Aiwa HS-JX989 AH User manual
SERVICE MANUAL
DATA
HS-JX989
AH,YH
STEREO RADIO
CASSETTE RECORDER BASIC TAPE MECHANISM : 7ZM-1 R1NF
S/M Code No. 09-008-434-6N1
All manuals and user guides at all-guides.com
all-guides.com
– 2 –
• Design and specifications are subject to change without notice.
SPECIFICATIONS
Frequency range:
Reception area EU AM 531 – 1,602 kHz (9 kHz steps)
FM1, FM2 87.5 – 108 MHz (50 kHz steps)
Reception area USA AM 530 – 1,710 kHz (10 kHz steps)
FM1, FM2 87.5 – 108.1 MHz (200 kHz steps)
Reception area JPN AM 531 – 1,629 kHz (9 kHz steps)
FM1, FM2 76 – 108 MHz
(100 kHz steps in 76 – 90 MHz, 50 kHz steps in 90 – 108 MHz)
Maximum output: 4 mW + 4 mW (EIAJ 32 ohms)
Power sources: DC 1.2 V using supplied rechargeable battery NB-5G
DC 1.5 V using a R6 (size AA) dry cell battery
AC house current using the optional AC adaptor
Maximum outside dimensions:
79.7 (W) x 108.5 (H) x 20.7 (D) mm
(excluding projecting parts and controls)
Weight: Approx.147 g (excluding batteries)
All manuals and user guides at all-guides.com
– 3 –
DESCRIPTIONREF.
NO. KANRI
NO.
PART
NO. KANRI
NO.
REF.
NO. DESCRIPTIONPART
NO.

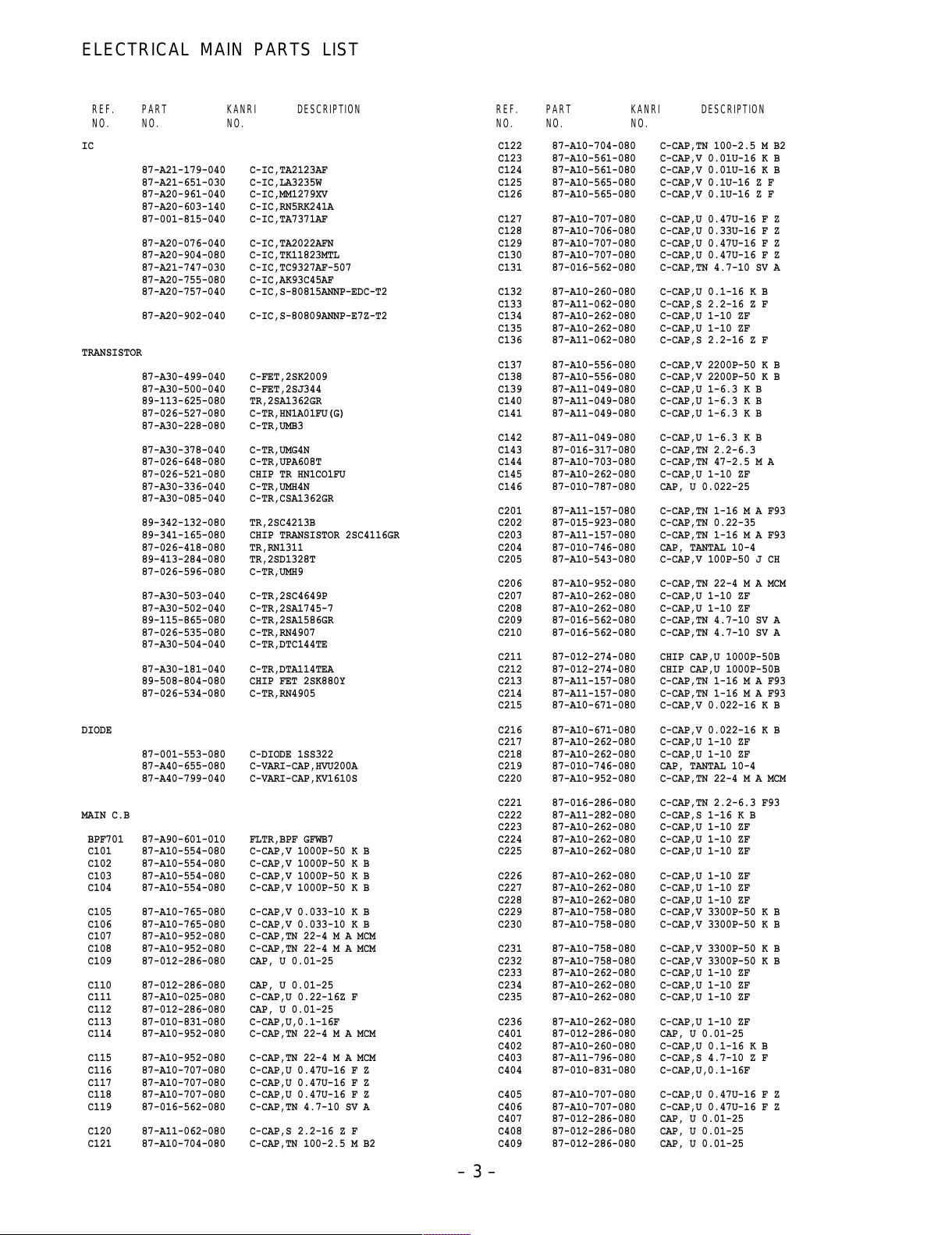

ELECTRICAL MAIN PARTS LIST
IC
87-A21-179-040 C-IC,TA2123AF
87-A21-651-030 C-IC,LA3235W
87-A20-961-040 C-IC,MM1279XV
87-A20-603-140 C-IC,RN5RK241A
87-001-815-040 C-IC,TA7371AF
87-A20-076-040 C-IC,TA2022AFN
87-A20-904-080 C-IC,TK11823MTL
87-A21-747-030 C-IC,TC9327AF-507
87-A20-755-080 C-IC,AK93C45AF
87-A20-757-040 C-IC,S-80815ANNP-EDC-T2
87-A20-902-040 C-IC,S-80809ANNP-E7Z-T2
TRANSIST R
87-A30-499-040 C-FET,2SK2009
87-A30-500-040 C-FET,2SJ344
89-113-625-080 TR,2SA1362GR
87-026-527-080 C-TR,HN1A01FU(G)
87-A30-228-080 C-TR,UMB3
87-A30-378-040 C-TR,UMG4N
87-026-648-080 C-TR,UPA608T
87-026-521-080 CHIP TR HN1C 1FU
87-A30-336-040 C-TR,UMH4N
87-A30-085-040 C-TR,CSA1362GR
89-342-132-080 TR,2SC4213B
89-341-165-080 CHIP TRANSIST R 2SC4116GR
87-026-418-080 TR,RN1311
89-413-284-080 TR,2SD1328T
87-026-596-080 C-TR,UMH9
87-A30-503-040 C-TR,2SC4649P
87-A30-502-040 C-TR,2SA1745-7
89-115-865-080 C-TR,2SA1586GR
87-026-535-080 C-TR,RN4907
87-A30-504-040 C-TR,DTC144TE
87-A30-181-040 C-TR,DTA114TEA
89-508-804-080 CHIP FET 2SK880Y
87-026-534-080 C-TR,RN4905
DI DE
87-001-553-080 C-DI DE 1SS322
87-A40-655-080 C-VARI-CAP,HVU200A
87-A40-799-040 C-VARI-CAP,KV1610S
MAIN C.B
BPF701 87-A90-601-010 FLTR,BPF GFWB7
C101 87-A10-554-080 C-CAP,V 1000P-50 K B
C102 87-A10-554-080 C-CAP,V 1000P-50 K B
C103 87-A10-554-080 C-CAP,V 1000P-50 K B
C104 87-A10-554-080 C-CAP,V 1000P-50 K B
C105 87-A10-765-080 C-CAP,V 0.033-10 K B
C106 87-A10-765-080 C-CAP,V 0.033-10 K B
C107 87-A10-952-080 C-CAP,TN 22-4 M A MCM
C108 87-A10-952-080 C-CAP,TN 22-4 M A MCM
C109 87-012-286-080 CAP, U 0.01-25
C110 87-012-286-080 CAP, U 0.01-25
C111 87-A10-025-080 C-CAP,U 0.22-16Z F
C112 87-012-286-080 CAP, U 0.01-25
C113 87-010-831-080 C-CAP,U,0.1-16F
C114 87-A10-952-080 C-CAP,TN 22-4 M A MCM
C115 87-A10-952-080 C-CAP,TN 22-4 M A MCM
C116 87-A10-707-080 C-CAP,U 0.47U-16 F Z
C117 87-A10-707-080 C-CAP,U 0.47U-16 F Z
C118 87-A10-707-080 C-CAP,U 0.47U-16 F Z
C119 87-016-562-080 C-CAP,TN 4.7-10 SV A
C120 87-A11-062-080 C-CAP,S 2.2-16 Z F
C121 87-A10-704-080 C-CAP,TN 100-2.5 M B2
C122 87-A10-704-080 C-CAP,TN 100-2.5 M B2
C123 87-A10-561-080 C-CAP,V 0.01U-16 K B
C124 87-A10-561-080 C-CAP,V 0.01U-16 K B
C125 87-A10-565-080 C-CAP,V 0.1U-16 Z F
C126 87-A10-565-080 C-CAP,V 0.1U-16 Z F
C127 87-A10-707-080 C-CAP,U 0.47U-16 F Z
C128 87-A10-706-080 C-CAP,U 0.33U-16 F Z
C129 87-A10-707-080 C-CAP,U 0.47U-16 F Z
C130 87-A10-707-080 C-CAP,U 0.47U-16 F Z
C131 87-016-562-080 C-CAP,TN 4.7-10 SV A
C132 87-A10-260-080 C-CAP,U 0.1-16 K B
C133 87-A11-062-080 C-CAP,S 2.2-16 Z F
C134 87-A10-262-080 C-CAP,U 1-10 ZF
C135 87-A10-262-080 C-CAP,U 1-10 ZF
C136 87-A11-062-080 C-CAP,S 2.2-16 Z F
C137 87-A10-556-080 C-CAP,V 2200P-50 K B
C138 87-A10-556-080 C-CAP,V 2200P-50 K B
C139 87-A11-049-080 C-CAP,U 1-6.3 K B
C140 87-A11-049-080 C-CAP,U 1-6.3 K B
C141 87-A11-049-080 C-CAP,U 1-6.3 K B
C142 87-A11-049-080 C-CAP,U 1-6.3 K B
C143 87-016-317-080 C-CAP,TN 2.2-6.3
C144 87-A10-703-080 C-CAP,TN 47-2.5 M A
C145 87-A10-262-080 C-CAP,U 1-10 ZF
C146 87-010-787-080 CAP, U 0.022-25
C201 87-A11-157-080 C-CAP,TN 1-16 M A F93
C202 87-015-923-080 C-CAP,TN 0.22-35
C203 87-A11-157-080 C-CAP,TN 1-16 M A F93
C204 87-010-746-080 CAP, TANTAL 10-4
C205 87-A10-543-080 C-CAP,V 100P-50 J CH
C206 87-A10-952-080 C-CAP,TN 22-4 M A MCM
C207 87-A10-262-080 C-CAP,U 1-10 ZF
C208 87-A10-262-080 C-CAP,U 1-10 ZF
C209 87-016-562-080 C-CAP,TN 4.7-10 SV A
C210 87-016-562-080 C-CAP,TN 4.7-10 SV A
C211 87-012-274-080 CHIP CAP,U 1000P-50B
C212 87-012-274-080 CHIP CAP,U 1000P-50B
C213 87-A11-157-080 C-CAP,TN 1-16 M A F93
C214 87-A11-157-080 C-CAP,TN 1-16 M A F93
C215 87-A10-671-080 C-CAP,V 0.022-16 K B
C216 87-A10-671-080 C-CAP,V 0.022-16 K B
C217 87-A10-262-080 C-CAP,U 1-10 ZF
C218 87-A10-262-080 C-CAP,U 1-10 ZF
C219 87-010-746-080 CAP, TANTAL 10-4
C220 87-A10-952-080 C-CAP,TN 22-4 M A MCM
C221 87-016-286-080 C-CAP,TN 2.2-6.3 F93
C222 87-A11-282-080 C-CAP,S 1-16 K B
C223 87-A10-262-080 C-CAP,U 1-10 ZF
C224 87-A10-262-080 C-CAP,U 1-10 ZF
C225 87-A10-262-080 C-CAP,U 1-10 ZF
C226 87-A10-262-080 C-CAP,U 1-10 ZF
C227 87-A10-262-080 C-CAP,U 1-10 ZF
C228 87-A10-262-080 C-CAP,U 1-10 ZF
C229 87-A10-758-080 C-CAP,V 3300P-50 K B
C230 87-A10-758-080 C-CAP,V 3300P-50 K B
C231 87-A10-758-080 C-CAP,V 3300P-50 K B
C232 87-A10-758-080 C-CAP,V 3300P-50 K B
C233 87-A10-262-080 C-CAP,U 1-10 ZF
C234 87-A10-262-080 C-CAP,U 1-10 ZF
C235 87-A10-262-080 C-CAP,U 1-10 ZF
C236 87-A10-262-080 C-CAP,U 1-10 ZF
C401 87-012-286-080 CAP, U 0.01-25
C402 87-A10-260-080 C-CAP,U 0.1-16 K B
C403 87-A11-796-080 C-CAP,S 4.7-10 Z F
C404 87-010-831-080 C-CAP,U,0.1-16F
C405 87-A10-707-080 C-CAP,U 0.47U-16 F Z
C406 87-A10-707-080 C-CAP,U 0.47U-16 F Z
C407 87-012-286-080 CAP, U 0.01-25
C408 87-012-286-080 CAP, U 0.01-25
C409 87-012-286-080 CAP, U 0.01-25
All manuals and user guides at all-guides.com
– 4 –
DESCRIPTIONREF.
NO. KANRI
NO.
PART
NO. KANRI
NO.
REF.
NO. DESCRIPTIONPART
NO.
C601 87-012-286-080 CAP, U 0.01-25
C602 87-012-282-080 CAP, U 4700P-50
C603 87-010-787-080 C-CAP, U 0.22-25 KB
C604 87-A10-952-080 C-CAP,TN 22-4 M A MCM
C605 87-012-278-080 C-CAP,U 2200P-50 B
C606 87-012-267-080 C-CAP,U 270P-50 B
C607 87-012-267-080 C-CAP,U 270P-50 B
C608 87-012-270-080 CAP, U 470P-50
C609 87-012-270-080 CAP, U 470P-50
C651 87-A11-813-080 C-CAP,E 100-4 MVS(4.6MAX)
C652 87-010-831-080 C-CAP,U,0.1-16F
C653 87-010-831-080 C-CAP,U,0.1-16F
C701 87-012-195-080 C-CAP,U 100P-50CH
C702 87-A10-561-080 C-CAP,V 0.01U-16 K B
C703 87-A10-561-080 C-CAP,V 0.01U-16 K B
C704 87-012-273-080 C-CAP,U 820P-50 B
C705 87-012-191-080 CHIP CAP 68 PF
C706 87-012-268-080 C-CAP,U 330P-50 B
C708 87-A10-561-080 C-CAP,V 0.01U-16 K B
C710 87-A10-952-080 C-CAP,TN 22-4 M A MCM
C711 87-A10-561-080 C-CAP,V 0.01U-16 K B
C712 87-012-165-080 CAP U 3P-50 CH
C713 87-A10-561-080 C-CAP,V 0.01U-16 K B
C714 87-A10-561-080 C-CAP,V 0.01U-16 K B
C715 87-012-286-080 CAP, U 0.01-25
C716 87-A10-561-080 C-CAP,V 0.01U-16 K B
C717 87-A10-561-080 C-CAP,V 0.01U-16 K B
C720 87-012-199-080 CAP 220P-50 J CH
C721 87-012-274-080 CHIP CAP,U 1000P-50B
C723 87-A10-565-080 C-CAP,V 0.1U-16 Z F
C801 87-A10-565-080 C-CAP,V 0.1U-16 Z F
C802 87-A12-348-080 C-CAP,U 560P-25 J CH
C804 87-A10-531-080 C-CAP,V 10P-50 D CH
C805 87-012-247-080 C-CAP,U 18P-50 UJ
C806 87-A10-671-080 C-CAP,V 0.022-16 K B
C807 87-A10-553-080 C-CAP,V 820P-50 K B
C808 87-A10-561-080 C-CAP,V 0.01U-16 K B
C809 87-A10-952-080 C-CAP,TN 22-4 M A MCM
C810 87-A10-262-080 C-CAP,U 1-10 ZF
C811 87-010-746-080 CAP, TANTAL 10-4
C812 87-A10-554-080 C-CAP,V 1000P-50 K B
C813 87-A10-561-080 C-CAP,V 0.01U-16 K B
C816 87-A10-560-080 C-CAP,V 8200P-25 K B
C817 87-A10-560-080 C-CAP,V 8200P-25 K B
C819 87-A10-565-080 C-CAP,V 0.1U-16 Z F
C820 87-A10-766-080 C-CAP,V 0.047-10 K B
C821 87-A10-915-080 C-CAP,U 1000P-25 J CH
C822 87-A10-262-080 C-CAP,U 1-10 ZF
C823 87-A10-565-080 C-CAP,V 0.1U-16 Z F
C824 87-A10-025-080 C-CAP,U 0.22-16Z F
C825 87-A10-554-080 C-CAP,V 1000P-50 K B
C826 87-A10-561-080 C-CAP,V 0.01U-16 K B
C829 87-A10-558-080 C-CAP,V 4700P-25 K B
C831 87-A10-262-080 C-CAP,U 1-10 ZF
C832 87-012-286-080 CAP, U 0.01-25
C901 87-A10-671-080 C-CAP,V 0.022-16 K B
C902 87-A11-282-080 C-CAP,S 1-16 K B
C903 87-A10-561-080 C-CAP,V 0.01U-16 K B
C904 87-A10-703-080 C-CAP,TN 47-2.5 M A
C905 87-A11-282-080 C-CAP,S 1-16 K B
C906 87-A10-539-080 C-CAP,V 47P-50 J CH
C907 87-A10-528-080 C-CAP,V 7.0P-50 D CH
C908 87-A10-526-080 C-CAP,V 5.0P-50 C CH
C951 87-A10-565-080 C-CAP,V 0.1U-16 Z F
C952 87-A10-565-080 C-CAP,V 0.1U-16 Z F
C953 87-A10-565-080 C-CAP,V 0.1U-16 Z F
C954 87-A10-025-080 C-CAP,U 0.22-16Z F
C955 87-A10-535-080 C-CAP,V 22P-50 J CH
C956 87-A10-534-080 C-CAP,V 18P-50 J CH
C957 87-A10-565-080 C-CAP,V 0.1U-16 Z F
C958 87-A10-561-080 C-CAP,V 0.01U-16 K B
C959 87-016-296-080 C-CAP,TN 22-4SV(A)
C960 87-A10-565-080 C-CAP,V 0.1U-16 Z F
C970 87-A10-262-080 C-CAP,U 1-10 ZF
CF801 87-A91-321-080 C-FLTR,SFECV10.7 MA-5-A-TC
CN101 87-A61-132-080 C-C NN,10P H FLZ-SM1-TB
FB101 87-A91-763-080 C-F-BEAD, BK1608LM252
FB102 87-A91-763-080 C-F-BEAD, BK1608LM252
FB103 87-A91-763-080 C-F-BEAD, BK1608LM252
FB108 87-A91-763-080 C-F-BEAD, BK1608LM252
IFT801 87-005-788-080 C-IFT,AM (450K)
J101 87-A60-272-010 JACK,3.5 ST 4P
J201 87-A60-272-010 JACK,3.5 ST 4P
L101 87-HJ2-613-010 C IL,L ADING3.3UH
L601 8A-HJ2-605-080 C-C IL, SC BIAS
L602 87-A50-012-080 C-C IL,100UH LQH3C
L651 87-003-089-110 C IL,47UH FL5R200F
L701 87-A50-511-080 C-C IL,82NH G LQN21A
L702 87-A50-583-080 C-C IL,S 2.2UH K FCI2012H
L703 87-A50-510-080 C-C IL,68NH G LQN21A
L801 88-HR4-614-010 BAR-ANT,MW
L802 87-A50-363-080 C-C IL, 100UH J NLV25T
L901 87-A50-037-080 C-C IL,D-D 5CDLU
L902 87-A50-583-080 C-C IL,S 2.2UH K FCI2012H
LCD951 8A-HJ2-606-010 LCD,AIW4223
PS501 87-A91-803-040 C-SNSR,5197K-F25
R415 87-A00-695-080 M-RES,M/F 3.9K-1/8W J 3000PPM
S601 87-A90-419-080 C-SW,SL 1-1-3
S951 8A-HJ2-608-010 SW,LEAF 7ZM-1R1
S952 8A-HJ2-607-010 SW,LEAF 7ZM-1REC
S954 87-A90-665-380 C-SW,TACT LS7A2M
S955 87-A91-758-080 C-SW,LVR 1-1-3 SLLB310300
S956 87-A90-665-280 C-SW,TACT LS7A2M
S957 87-A90-665-280 C-SW,TACT LS7A2M
S958 87-A90-665-280 C-SW,TACT LS7A2M
S959 87-036-237-080 CHIP SWICH PUSH
S960 87-036-237-080 CHIP SWICH PUSH
SFR401 87-A91-465-040 C-SFR,K 6.8K H RH03AEC
SFR801 87-A91-466-040 C-SFR,K 22K H RH03AEC
TC701 87-A91-762-080 C-TRIMMER,10P TZVY2Z100A
TC702 87-A91-761-080 C-TRIMMER,25P TZVY2R250A
TC801 87-011-189-180 C-TRIMMER,CER 10P 4.5X3.2 CTZ
VR101 87-A91-757-010 VR,RTRY 20KAX2 V RK10J12E0
X801 87-A91-441-080 C-FLTR,CDACV10.7 MG50-A-TC
X951 87-A70-187-010 VIB,XTAL 75KHZ CFV206
SW C.B
S953 87-036-379-180 C-SW,SL1-1-2 SS350
D.D C.B
C551 87-016-444-080 C-CAP,TN 47-10 F95E
C552 87-A10-955-080 C-CAP,TN 47-6.3 MCR
C553 87-016-444-080 C-CAP,TN 47-10 F95E
L551 87-A50-174-080 C-C IL, 82UH 7004-2
L552 87-A50-012-080 C-C IL,100UH LQH3C
L553 87-A50-010-080 C-C IL,22UH LQH3C
FLEX C.B
87-ZM1-604-010 HEAD ASSY,7ZM-1 J
All manuals and user guides at all-guides.com
– 5 –
2SA1362
2SA1586
2SA1745-7
2SC4116
2SC4213
2SC4649

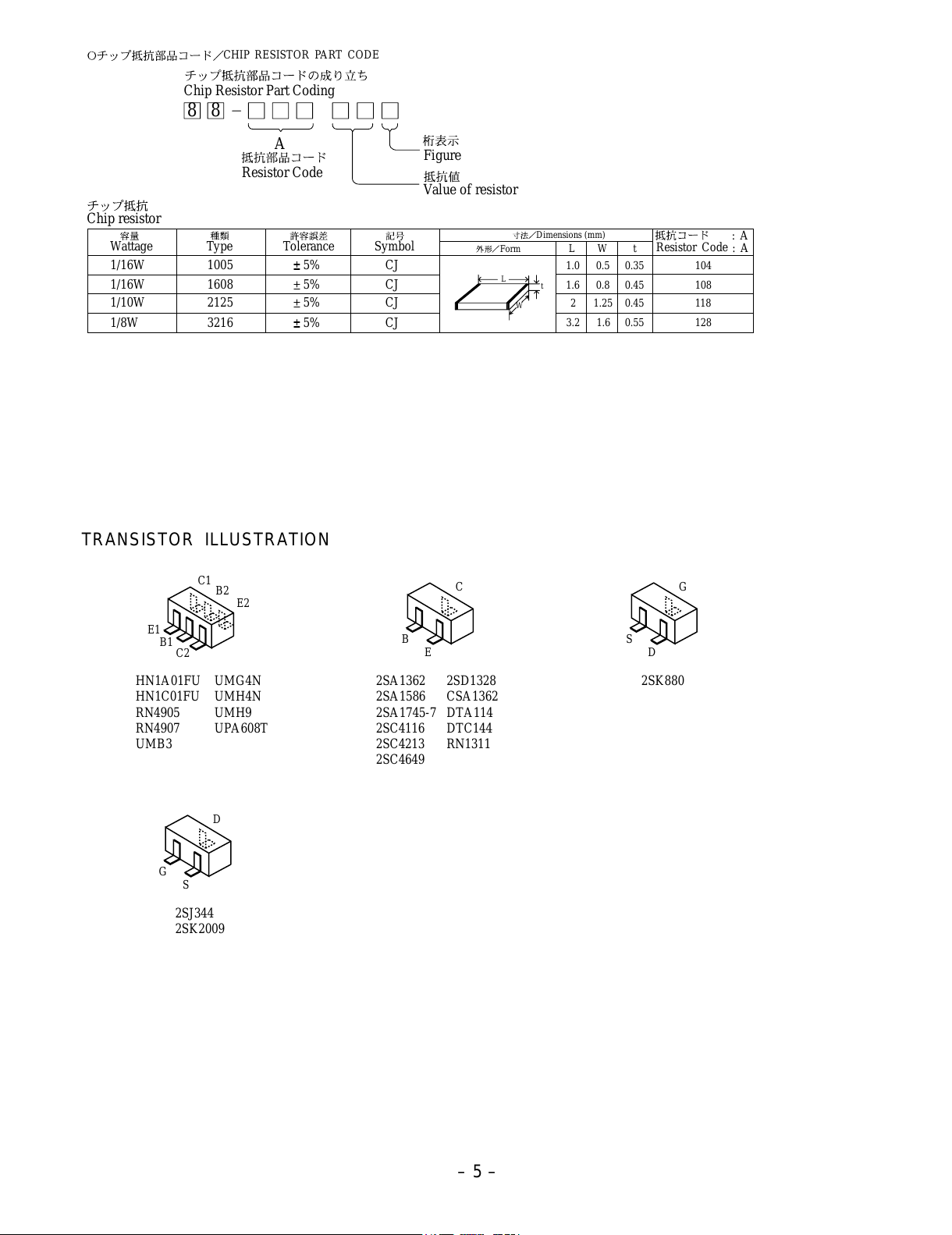

TRANSISTOR ILLUSTRATION
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ 1.0 0.5 0.35 104
Lt
W
2SD1328
CSA1362
DTA114
DTC144
RN1311
2SK880
2SJ344
2SK2009
HN1A01FU
HN1C01FU
RN4905
RN4907
UMB3
UMG4N
UMH4N
UMH9
UPA608T
E1B1 C2
C1 B2 E2
SD
G
GS
D
BE
C
All manuals and user guides at all-guides.com

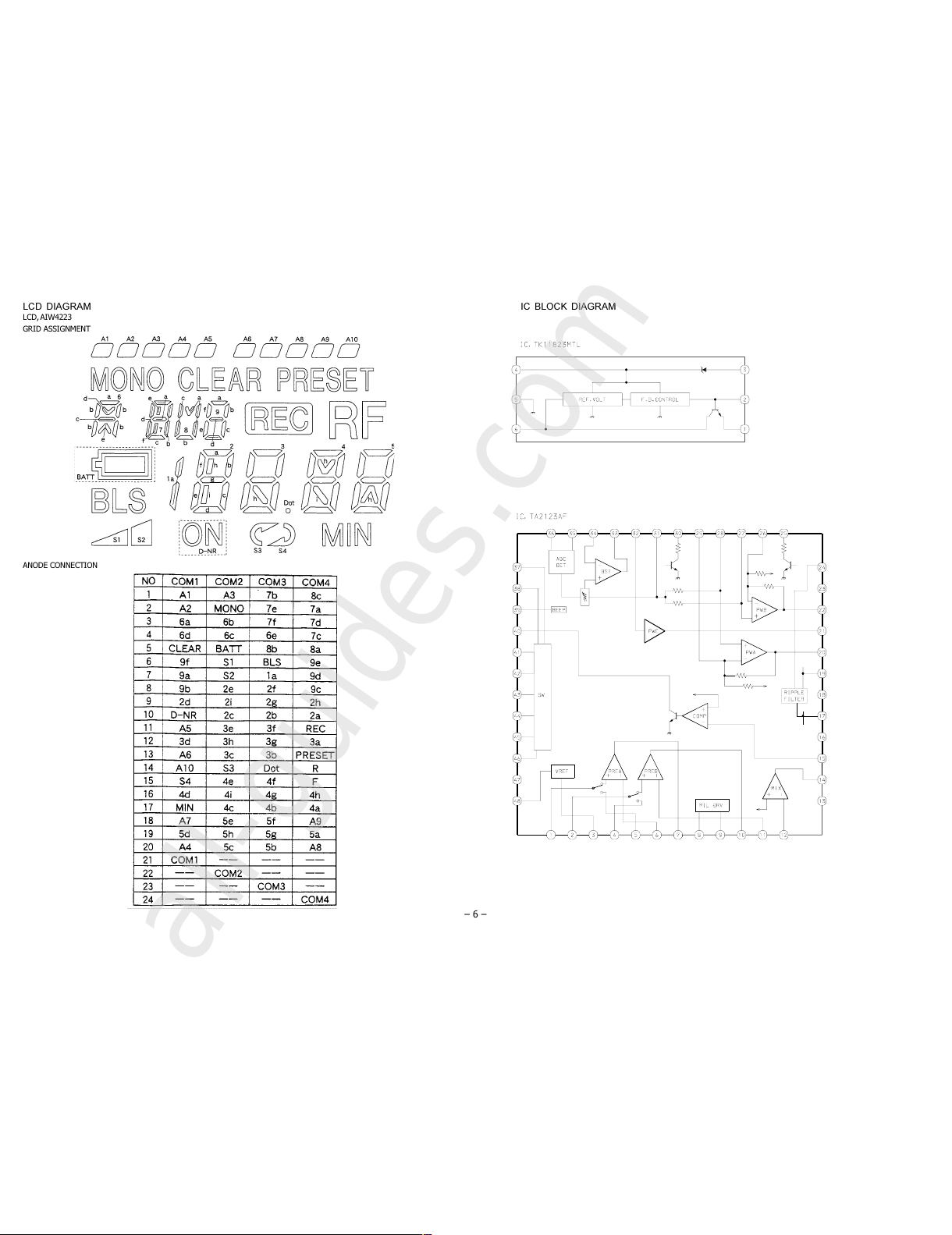

LCD DIAGRAM
LCD, AIW4223
6
GRID ASSIGNMENT
ANODE CONNECTION

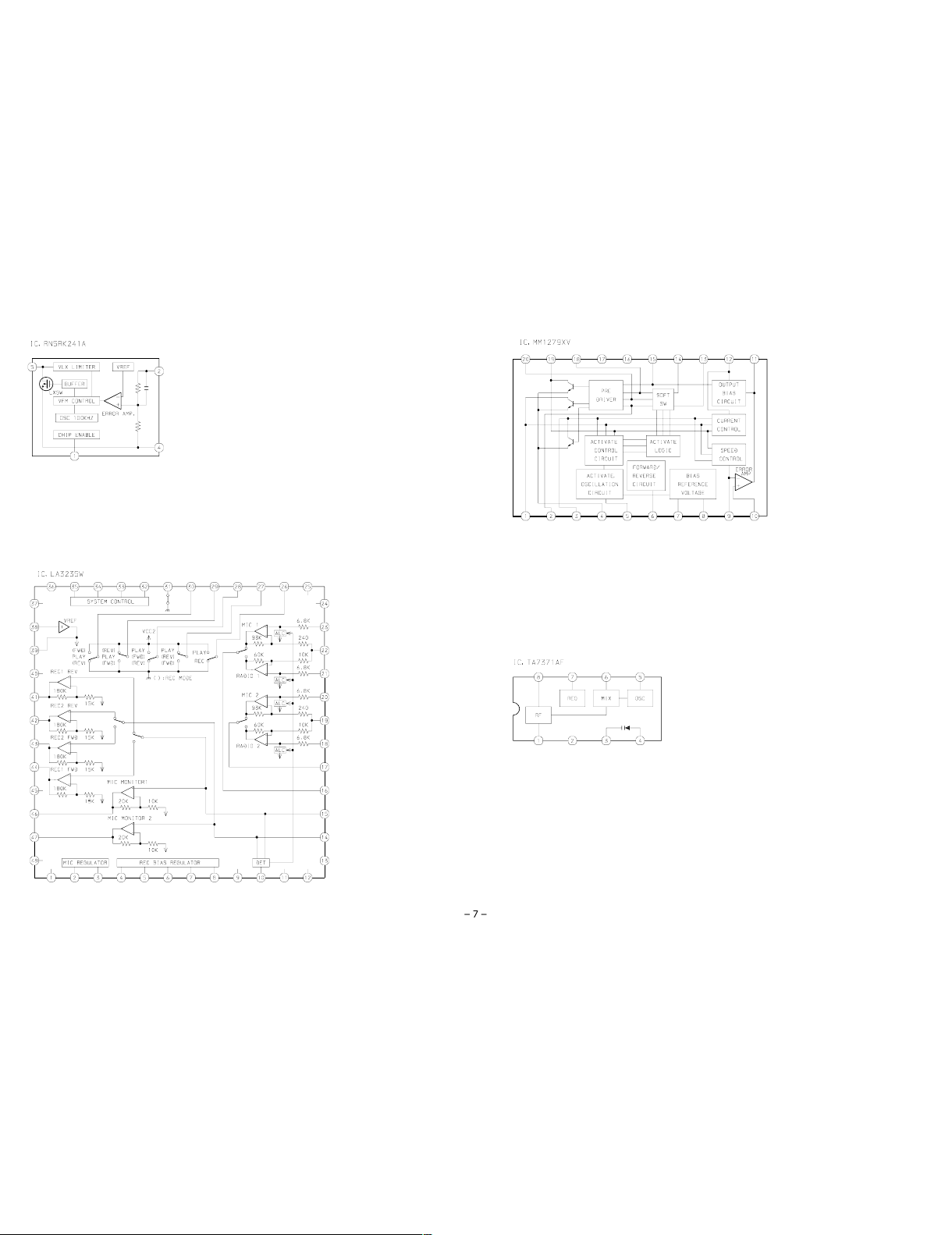

IC BLOCK DIAGRAM
All manuals and user guides at all-guides.com
all-guides.com
7
All manuals and user guides at all-guides.com
WIRING
- 8 -
876543211345678
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
2
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
9 10 11 12 13 14 15 16910111213141516
All manuals and user guides at all-guides.com

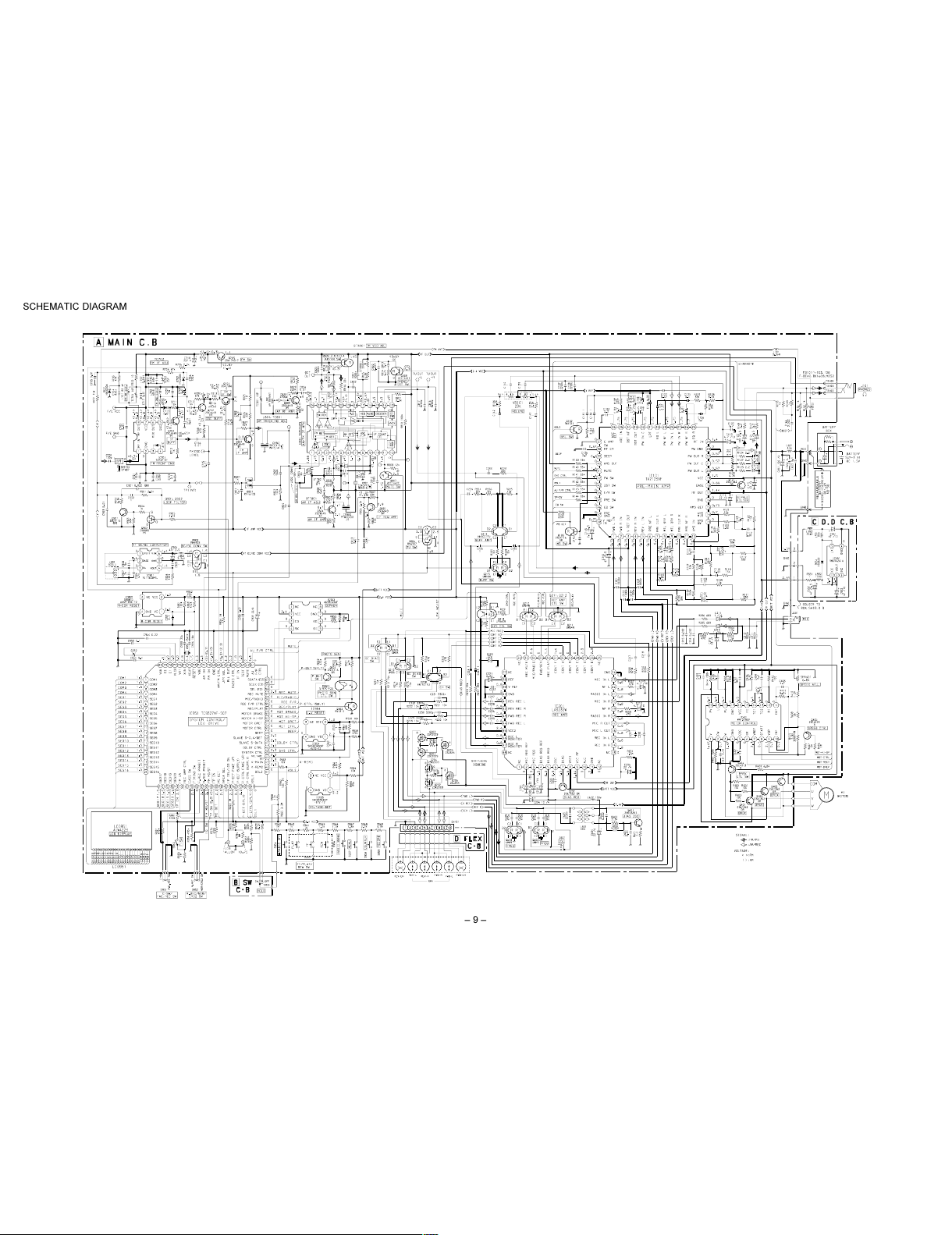

SCHEMATIC DIAGRAM
9
All manuals and user guides at all-guides.com
1 ~ 4 COM1 ~ COM4 O LCD driver common output.
5 ~ 24 SEG1 ~ SEG20 O LCD driver output.
25 TP ON O : Except TAPE mode, L: TAPE mode
26 REC AMP CTRL O Always output L. (Not used)
27 CASS SW I : SW OFF, L: SW ON.
28 TIMING SW I Input mechanism operation detection.
29 F. REC PR BIT I : Can not Record, L: can Record.
30 R. REC PR BIT I : Can not Record, L: can Record.
31 FM MO/ST O Output FM MONO/STEREO switching.
32 TP-ON O : Radio mode, L: Except Radio mode.
33 MS DET I : Exist music, L: No music.
34 AREA SET I Input voltage level of each AREA(D,U,E, ).
35 IF SEL/LCD ON I : IF 10.7, MID: IF 10.75, L: LCD ALL ON.
36 P-DET(TAKE UP) I Connected to ground.
37 P-DET(SUPPLY) I Input P-SNSR output waveform.
38 P-CTRL(TAKE UP) O Always output L. (Not used)
39 P-CTRL(SUPPLY) O Control P-SNSR circuit power supply.
40 DSL1 O : DSL ON, L: DSL OFF.
41 DSL2 O : DSL1, L: DSL2.
42 K-REMO I Input remote controller key.
43 K-MAIN I Input main unit key.
44 VOLTAGE DET I Reducing voltage mecha stop.
45 SYSTEM CTRL O : Except standby mode, L: Standby mode.
46 DOLBY CTRL O : Dolby OFF, L: Dolby ON.
47 SLAVE S-DATA O Output display data for remote controller.
48 SLAVE S-CLK/DET I Input serial clock. (Not used)
49 BEEP O Output buzzer. (Not used)
50 MOTOR CTRL O : Motor ON, L: Motor OFF.
51 MOTOR DRCT O : Clockwise, L: Counter clockwise.
52 MOTOR I-SP O : i speed, L: Nomal speed.
53 MOTOR BRAKE O : Motor brake ON, L: OFF.
54 REC/PLAY O : Recording, L: Except Recording.
55 REC F/R CTL O : Reverse Recording, L: Except Reverse Recording.
56 MIC/RADIO O : Radio recording, L: Except Radio recording.
57 REC MUTE O Rec Muting control.
58 SEL(E2) O EEPROM R/W switching terminal.
59 SCLK(E2) O Output EEPROM serial clock.
60 SDATA(E2) I/O Input/output EEPROM.
61 AU F/R CTL O : REV mode, L: FWD mode.
62 MUTE O : Mute OFF, L: Mute ON.
Pin No. Pin Name I/O Description

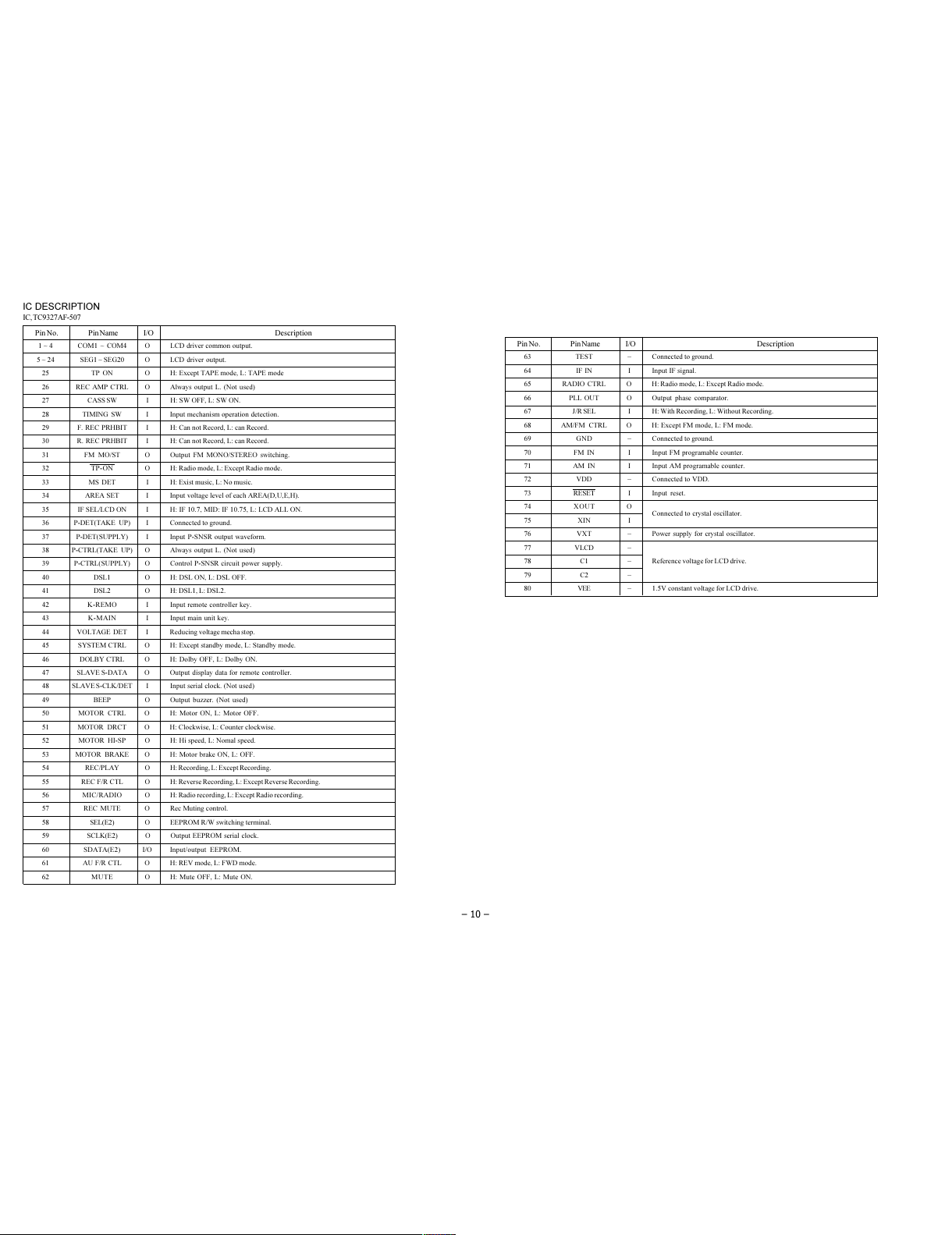

IC DESCRIPTION
IC, TC9327AF-507
10
Pin No. Pin Name I/O Description
63 TEST Connected to ground.
64 IF IN I Input IF signal.
65 RADIO CTRL O : Radio mode, L: Except Radio mode.
66 PLL OUT O Output phase comparator.
67 J/R SEL I : With Recording, L: Without Recording.
68 AM/FM CTRL O : Except FM mode, L: FM mode.
69 GND Connected to ground.
70 FM IN I Input FM programable counter.
71 AM IN I Input AM programable counter.
72 VDD Connected to VDD.
73 RESET I Input reset.
74 XOUT O
Connected to crystal oscillator.
75 XIN I
76 VXT Power supply for crystal oscillator.
77 VLCD
78 C1 Reference voltage for LCD drive.
79 C2
80 VEE 1.5V constant voltage for LCD drive.
All manuals and user guides at all-guides.com
– 6 –

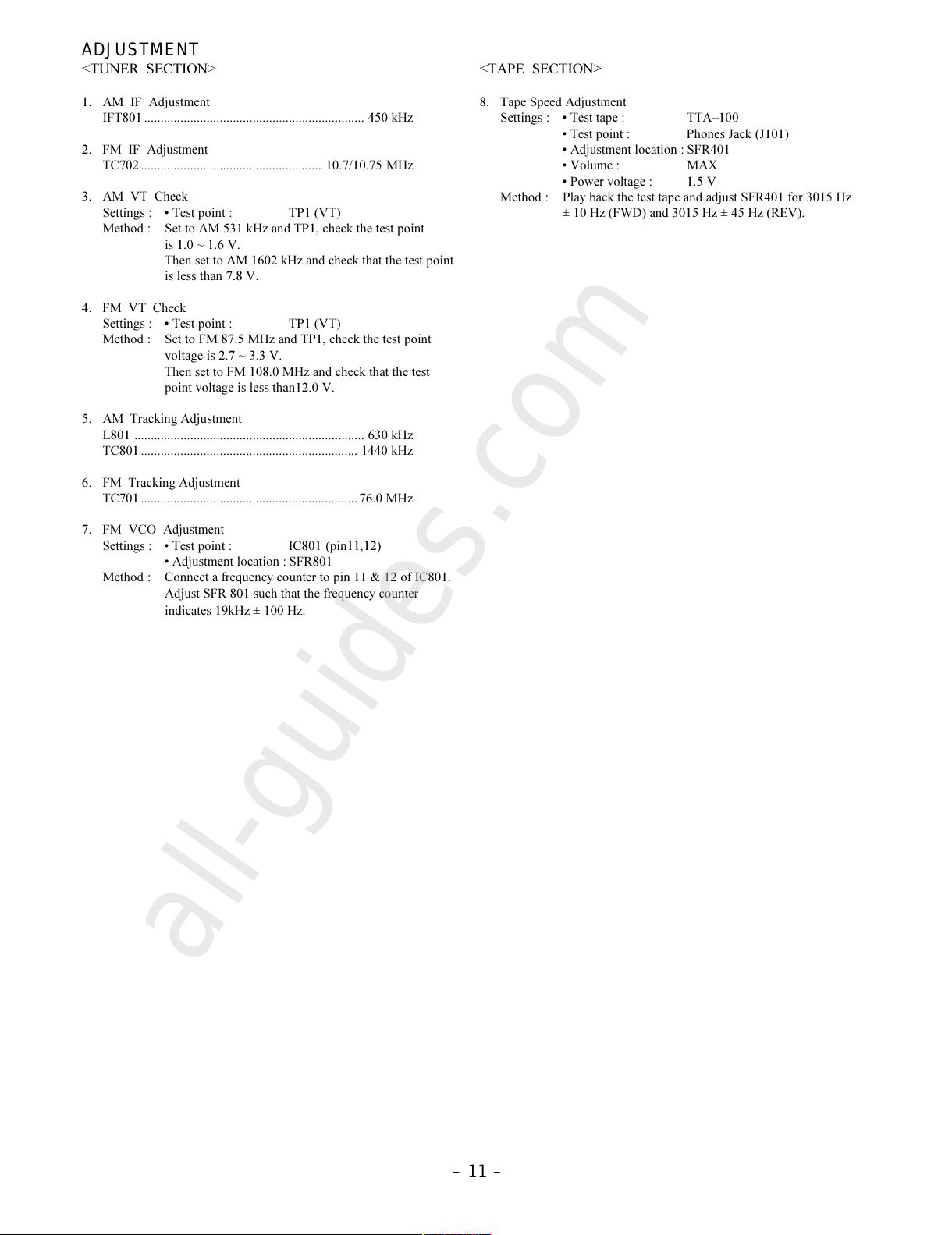

ADJUSTMENT
<TUNER SECTION>
1. AM IF Adjustment
IFT801 ................................................................... 450 kHz
2. FM IF Adjustment
TC702 ....................................................... 10.7/10.75 MHz
3. AM VT Check
ettings : Test point : TP1 (VT)
Method : et to AM 531 kHz and TP1, check the test point
is 1.0 ~ 1.6 V.
Then set to AM 1602 kHz and check that the test point
is less than 7.8 V.
4. FM VT Check
ettings : Test point : TP1 (VT)
Method : et to FM 87.5 MHz and TP1, check the test point
voltage is 2.7 ~ 3.3 V.
Then set to FM 108.0 MHz and check that the test
point voltage is less than12.0 V.
5. AM Tracking Adjustment
L801 ...................................................................... 630 kHz
TC801 .................................................................. 1440 kHz
6. FM Tracking Adjustment
TC701 ..................................................................76.0 MHz
7. FM VCO Adjustment
ettings : Test point : IC801 (pin11,12)
Adjustment location : FR801
Method : Connect a frequency counter to pin 11 & 12 of IC801.
Adjust FR 801 such that the frequency counter
indicates 19kHz ± 100 Hz.
<TAPE SECTION>
8. Tape peed Adjustment
ettings : Test tape : TTA100
Test point : Phones Jack (J101)
Adjustment location : FR401
Volume : MAX
Power voltage : 1.5 V
Method : Play back the test tape and adjust FR401 for 3015 Hz
± 10 Hz (FWD) and 3015 Hz ± 45 Hz (REV).
– 11 –
All manuals and user guides at all-guides.com
all-guides.com
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
MECHANICAL EXPLODED VIEW 1 / 1 MECHANICAL PARTS LIST 1 / 1
COLOR NAME TABLE
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Sil er ST Titan Sil er
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange PT Transparent Pink
12
1 8A-HJ2-024-010 LID,CASS ASSY 989
2 8Z-HK4-228-010 SPR-P,LID
3 8A-HJ2-003-010 WINDOW,CASS
4 8A-HJ2-202-010 HLDR,LID
5 8Z-HK4-210-010 NUT, B-BOX
8Z-HK4-20 -110 HLDR,ARM ASSY
7 8A-HJ2-212-010 SPR-P,CASS
8 8A-HJ2- 08-010 SW,LEAF 7ZM-1R1
9 8A-HJ2-223-010 PLATE,SW REC
10 8A-HJ2-204-010 HLDR,MIC
11 8A-HJ2-209-010 BASE,LOCK
12 8A-HJ2-207-010 BAT-CONTACT,(-)
13 8A-HJ2-224-010 SPR-T,LOCK
14 8A-HJ2-229-010 PLATE,LOCK J2
15 88-HR4- 14-010 BAR,ANT MW
1 8A-HJ2-21 -010 BAT-CONTACT,BOX (-)
17 8A-HJ2-205-010 HLDR,DD CON
18 8A-HJ2-208-010 BAT-CONTACT,(+)
19 8A-HJ2-213-010 SHAFT,ASSY
20 8A-HJ2-008-010 LID,BAT
21 8A-HJ2-00 -010 FRAME,R
22 8A-HJ2-222-010 CONN, RUBBER LCD
23 8A-HJ2-221-010 HLDR,LCD
24 8A-HJ2-004-010 CABI,REAR<YH>
24 8A-HJ2-021-010 CABI,REAR 990<AH>
25 8A-HJ2-01 -010 KNOB,SL REC
2 8A-HJ2-010-010 WINDOW,LCD<YH>
2 8A-HJ2-023-010 WINDOW,LCD 20<AH>
27 8A-HJ2-009-010 PANEL,CONT
28 8A-HJ2-011-010 KEY,CONT
29 8A-HJ2-005-010 FRAME,CENTER
30 8A-HJ2-013-010 KNOB,SL OPEN
31 8A-HJ2-014-010 KNOB,SL HOLD
32 8A-HJ2-210-010 PLATE,OPEN
33 8A-HJ2-217-010 SPR-C,REC
34 8A-HJ2-015-010 KNOB,SL OSC
35 8A-HJ2-012-010 KNOB,SL JOG
3 87-A 0-272-010 JACK,3.5 ST 4P
37 8A-HJ2-007-010 FRAME,L
38 8A-HJ2-017-010 KNOB,LEVER REC
39 8A-HJ2-20 -010 PLATE,HP
40 8A-HJ2- 07-010 SW,LEAF 7ZM-1REC
A 87-0 7-754-010 V+1.4-1. CR N
B 87-0 7-732-010 TAPPING SCREW, VT1.4-3
C 87-078-20 -010 S-SCRW,1.4-0. B NL
D 87-078-18 -010 SCRW-SR,1.4-1.8 CR L
E 87-078-153-010 SCRW,1.4-2.5 CR
F 8Z-HR8-212-010 S-SCREW,+1.4-4.5 CR HL
G 87-078-21 -010 SCRW-SR,1.4-1.4B LS
H 87-0 7-3 0-010 SCREW+1.4-3.5(BK)
I 85-HK3-241-010 SCRW-SR,1.4-3CR L
J 8A-HJ2-233-010 S-SCREW,+1.4-2.8 BLK
K 8A-HJ2-227-010 S-SCREW,SR+1.4-7 CR L
L 8A-HK5-217-010 S-SCREW,SERR1.4- CR
34
D
27
28
26
31 30 K
29 I
K
33
32
J
L
21
3833 I
35 H
36
36 G
39
40
10
7ZM-1
R1NF B
B11
C
14 15
13
P.C. B
6
5
4
3
2
A1
SH,CHAS
8
9
HLDR,
BATT
7
A
12
DE
E18
16
17
P.C. B
20
19
B
P.C. B
I22
LCD951
23
F
I
24
25
37
All manuals and user guides at all-guides.com
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
TAPE MECHANISM EXPLODED VIEW 1 / 1 TAPE MECHANISM PARTS LIST 1 / 1
13
D
F
F
J
I
F
C
E
C
G
G
C
34 35
33 36
40
39
38
37 42
43
44
41
46
47 48
42
22
45
43
16
44
17
23
18
20
21
24
50
26
25
26
27
28
29
30
31
32
B
A
A
11
13
8
4
7
9
10
12
6
5
HEAD FLEX. C.B
3
2
14
19
H
BRG,
7ZSIA
1
15
49
7ZM1R1
1 87-ZM1-305-010 HLDR,HEAD J
2 87-ZM1-254-110 ARM ASSY,PINCH R
3 87-ZM1-287-010 SPR-T,PINCH BACK R
4 87-ZM1-309-010 SPR-T,PINCH R J
5 87-ZM1-252-110 ARM ASSY,PINCH L
87-ZM1-28 -010 SPR-T,PINCH BACK L
7 87-ZM1-308-010 SPR-T,PINCH L J
8 87-ZM1-225-110 HLDR ASSY,CASSET
9 87-ZM1-275-010 SPR-T,HEAD BACK
10 87-ZM1-2 9-010 SHAFT,PINCH
11 87-ZM1-2 7-010 CAP,CAPSTAN
12 87-ZM1-2 3-010 HLDR,CASSET HLD L
13 87-ZM1-221-110 LEVER ASSY,DIR
14 87-ZM1-2 4-010 HLDR,CASSET HLD R
15 87-ZM1- 04-010 HEAD ASSY, 7ZM-1 J
1 87-ZM1-271-010 BELT,MOT
17 87-ZM1-234-110 GEAR,PULLY
18 87-ZM1-244-010 GEAR,IDL D
19 M8-7ZS-191-000 ABL-71 YMB
20 87-ZS1-205-010 COIL,FP 7ZS1A
21 87-ZS1-21 -010 PIN ASSY,7ZS1 5.0
22 87-ZM1-243-010 GEAR,IDL C
23 87-ZS1-210-210 HLDR,7ZS1A
24 87-ZM1-248-410 FLY-WHL ASSY,L
25 80-ZM4-230-310 REAL CAP,L
2 85-ZM2-2 9-010 SPR-C GEAR REEL
27 80-ZM4-231-210 REAL CAP,R
28 87-ZM1-232-010 GEAR,CAM
29 87-ZM1-2 -210 HLDR,DIR
30 87-ZM1-2 8-010 LEVER,CAM 2
31 87-ZM1-2 5-010 HLDR,CAM
32 87-ZM1-2 1-010 LEVER,SW
33 87-ZM1-250-210 FLY-WHL ASSY,R
34 87-ZM1-272-010 BELT,FLY-WHL
35 87-ZM1-30 -010 LEVER,DIR OFF J
3 87-ZM1-231-010 LEVER,CAM CONNECT
37 87-ZM1-207-010 SHAFT,CONTROL
38 87-ZM1-2 2-110 LEVER,FR CONTROL
39 87-ZM1-24 -010 GEAR,CAM C
40 87-ZM1-282-110 SPR-E,CAM
41 87-ZM1-325-010 GEAR ASSY,SLIP J
42 87-ZM1-241-010 GEAR,IDL A
43 87-ZM1-307-010 SH,AUTO J
44 87-ZM1-23 -110 GEAR,REEL
45 87-ZM1-217-010 LEVER ASSY,T-UP
4 87-ZM1-281-010 SPR-C,FR
47 87-ZM1-245-010 GEAR,FF/REW
48 87-ZM1-242-010 GEAR,IDL B
49 87-ZM1-335-010 CHAS ASSY,OUT-SERT R1NF
50 87-ZS1-211-010 MAGNET,PULL 7ZS1A
A 87-ZM1-273-010 S-SCREW,1.7-5
B 87-ZM1-314-010 S-SCREW,HEAD J 7ZM-1
C 87-B10-13 -010 W-P,1.09-3.1-0.4
D 87-B10-228-010 W-P,0.95-2-0.2
E 87-ZM1-292-010 W,1.55-2. 2-0.2 SOMA LIGHT
F 87-ZM1-291-010 W-P,0.8 -3-0.25
G 87-ZM1-29 -010 W-L,1.15-2. -0.188
H 87-ZS1-215-010 S-SCREW,VT+1.4-3.5 CR HL
I 87-B10-200-010 W-P,0. -2.5-0.5 SLT
J 87-B10-305-010 W-P,0. -3-0. SLT
All manuals and user guides at all-guides.com
– 7 –
ACCESSORIES / PACKAGE LIST
DESCRIPTIONREF.
NO. KANRI
NO.
PART
NO.
– 14 –
1 8A-HJ2-920-010 IB,AH(CK)S989<AH>
1 8A-HJ2-912-010 IB,AH(ECK)S989<AH>
1 8A-HJ2-913-010 IB,YHS(ECH)S989<YH>
2 87-B30-298-010 BAT,NB-5G(S)
3 8Z-HK4-090-010 B X,BAT ASSY SIL
4 82-HK3-951-010 CARRYING,CASE
5 87-B30-341-110 CHARGER,RB-107 H (L)
6 87-B30-405-010 HEADPH NE,HP-M041(T2)
7 87-041-083-110 MIC,CM-S40A
8 8A-HJ2-953-010 RC UNIT,RC989
All manuals and user guides at all-guides.com
211, IKENOHATA 1CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 3827) 3111
9630472 0251431 Printed in Singapore
All manuals and user guides at all-guides.com
Other manuals for HS-JX989 AH
1
Table of contents
Other Aiwa Stereo Receiver manuals
