SERVICE MANUAL
DATA
COMPACT DISC STEREO
CASSETTE RECEIVER BASIC TAPE MECHANISM : ZZM-2 APR1NC BASIC CD MECHANISM : AZG-1 VEZD4RNDC
NSX-VC18 HC
S/M Code No. 09-00A-429-2S1
SUPPLEMENT
• If requiring information about the CD mechanism, see Service Manual
of AZG-1, (S/M Code No. 09-001-335-3NG).
SPEAKER REMOTE
CONTROLLER
RC-ZAS11
SYSTEM CD
CASSEIVER
NSX-VC18 CX-NVC18 SX-NBL17
• This Service Manual contains information about the difference between
NSX-VC18(HC) and NSX-VC18(HR,HT). If requiring the other
information, see Service Manual of NSX-VC18(HR,HT),
(S/M Code No. 09-005-429-2R1).

– 2–
<FM tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
<MW tuner section>
Tuning range 530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
<SW tuner section>
Tuning range 5.730 MHz to 17.900 MHz
Usable sensitivity 40 µV (IEC)
Antenna Wire antenna
<Amplifier section>
Power output Rated: 24 W + 24 W
(1 kHz, T.H.D. 1%, 6 ohms)
Reference: 30 W + 30 W
(1 kHz, T.H.D. 10%, 6 ohms)
Total harmonic distortion 0.1% (8 W, 1 kHz, 6 ohms, DIN AUDIO)
Inputs VIDEO/AUX: 500 mV
MIC: 1.0 mV (10 kohms)
Outputs VIDEO OUT: 1.0 Vp-p (75 ohms)
SPEAKERS: accept speakers of 6
ohms or more
PHONES (stereo jack) : accepts
headphones of 32 ohms or more
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz – 8000 Hz
Recording system AC bias
Heads Deck 1 : Recording/Playback head
x 1, erase head x 1
Deck 2 : Playback head x 1
SPECIFICATIONS
<Compact disc player section>
Laser Semiconductor laser (λ =780 nm)
D-A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
Video signal NTSC/PAL color format(selectable)
Video data MPEG 1
Audio data MPEG 1, LAYER 2
<Speaker system>SX-NBL17
Speaker System 2 way, bass reflex (magnetic
shielded type)
Speaker units Woofer:
120 mm cone type
Tweeter:
20 mm ceramic type
Impedance 6 ohms
Sensitivity 87 dB/W/m
Dimensions (W xH xD) 220 x 324 x 211 mm
Weight 2.0 kg
<General>
Power requirements 120 V/220V-230 V/240 V AC
(switchable), 50/60 Hz
Power consumption 60 W
Power consumption 14 W with power-economizing
in standby mode mode off
0.9 W with power-economizing
mode on
Dimensions of main unit 260 x 324 x 346 mm
(W xH xD)
Weight of main unit 6.7 kg
• Design and specifications are subject to change without notice.

– 3–
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
8A-NHZ-601-010 C-IC,M38B57MCH-E244FP
87-A21-419-040 C-IC,NJM14558MD-TE2
87-A21-443-040 C-IC,M62495AFP
87-A21-560-010 IC,LA1844L-A
87-070-127-110 IC,LC72131 D
87-A21-018-040 IC,M65849BFP631D
87-A21-482-010 IC,RPM6938-H4
87-A21-396-010 IC,STK490-040
TRANSISTOR
87-026-609-080 TR,KTA1266GR
89-213-702-010 TR,2SB1370E
87-026-610-080 TR,KTC3198GR
87-A30-076-080 C-TR,2SC3052F
87-A30-075-080 C-TR,2SA1235F
87-026-245-080 TR,DTC114ES
87-A30-198-080 TR,KTC3199GR
87-A30-090-080 FET,2SK2541
87-A30-484-080 C-TR,KRA102S
87-A30-468-080 C-TR,KRC102S-RTK
87-A30-107-070 C-TR,CMBT5401
87-A30-106-040 C-TR,CMBT5551
87-A30-091-080 FET,2SJ460
87-A30-062-080 C-TR,KRC104S
87-A30-234-080 TR,CSC4115BC
87-A30-492-080 TR,2SC5343G
89-327-143-080 TR,2SC2714O
87-A30-489-080 C-TR,KRA107S
89-503-602-080 C-FET,2SK360E
87-A30-086-070 C-TR,CSD1306E
87-A30-495-080 TR,2SA1981Y
87-A30-074-080 C-TR,RT1P141C
DIODE
87-020-465-080 DIODE,1SS133 (110MA)
87-A40-455-080 DIODE,RL203 GW
87-A40-553-080 DIODE,1N4003 LES
87-A40-774-080 ZENER,UZ24BSD
87-A40-764-080 ZENER,UZ10BSC
87-A40-270-080 C-DIODE,MC2838
87-A40-269-080 C-DIODE,MC2836
87-A40-752-080 ZENER,UZ6.2BSC
87-A40-739-080 ZENER,UZ2.7BSA
87-017-149-080 ZENER,HZS6A2L
87-A40-313-080 C-DIODE,MC 2840
87-A40-768-080 ZENER,UZ16BSA
87-017-931-080 ZENER,MTZJ5.6B
MAIN C.B
C3 87-010-196-080 CHIP CAPACITOR,0.1-25
C4 87-010-196-080 CHIP CAPACITOR,0.1-25
C5 87-010-196-080 CHIP CAPACITOR,0.1-25
C6 87-010-196-080 CHIP CAPACITOR,0.1-25
C9 87-010-196-080 CHIP CAPACITOR,0.1-25
C10 87-010-196-080 CHIP CAPACITOR,0.1-25
C11 87-010-196-080 CHIP CAPACITOR,0.1-25
C12 87-010-196-080 CHIP CAPACITOR,0.1-25
C19 87-A12-431-000 CAP,E 2200-50 M 85IV
C20 87-A12-431-000 CAP,E 2200-50 M 85IV
C21 87-A12-442-000 CAP,E 3300-25 M 85IV
C22 87-A12-442-000 CAP,E 3300-25 M 85IV
C25 87-010-385-080 CAP, ELECT 220-25V
C26 87-010-247-080 CAP, ELECT 100-50V
C30 87-010-247-080 CAP, ELECT 100-50V
C31 87-010-263-080 CAP, ELECT 100-10V
C32 87-010-197-080 CAP, CHIP 0.01 DM
C33 87-010-263-080 CAP, ELECT 100-10V
C34 87-010-247-080 CAP, ELECT 100-50V
C35 87-010-406-080 CAP, ELECT 22-50
C36 87-010-381-080 CAP, ELECT 330-16V
C38 87-010-190-080 C-CAP,S 0.01-50 ZF
C60 87-010-403-080 CAP, ELECT 3.3-50V
C97 87-010-196-080 CHIP CAPACITOR,0.1-25
C100 87-018-127-080 CAP TC-U 470P
C101 87-010-183-080 C-CAP,S 2700P-50 B
C102 87-010-183-080 C-CAP,S 2700P-50 B
C103 87-010-545-080 CAP, ELECT 0.22-50V
C104 87-010-545-080 CAP, ELECT 0.22-50V
C105 87-010-178-080 CHIP CAP 1000P
C106 87-010-178-080 CHIP CAP 1000P
C107 87-010-404-080 CAP, ELECT 4.7-50V
C108 87-010-404-080 CAP, ELECT 4.7-50V
C109 87-010-179-080 C-CAP, S 1200P-50KB
C110 87-010-179-080 C-CAP, S 1200P-50KB
C111 87-010-391-080 CAP,E 10-35 SME
C112 87-010-391-080 CAP,E 10-35 SME
C113 87-010-405-080 CAP, ELECT 10-50V
C114 87-010-405-080 CAP, ELECT 10-50V
C119 87-010-197-080 CAP, CHIP 0.01 DM
C120 87-010-197-080 CAP, CHIP 0.01 DM
C125 87-012-368-080 C-CAP,S 0.1-50 F
C126 87-012-368-080 C-CAP,S 0.1-50 F
C127 87-012-368-080 C-CAP,S 0.1-50 F
C128 87-012-368-080 C-CAP,S 0.1-50 F
C129 87-A10-592-080 C-CAP,S 0.015-50
C130 87-A10-592-080 C-CAP,S 0.015-50 J
C131 87-010-197-080 CAP, CHIP 0.01 DM
C132 87-010-197-080 CAP, CHIP 0.01 DM
C133 87-010-186-080 CAP,CHIP 4700P
C140 87-010-182-080 C-CAP,S 2200P-50 B
C200 87-018-195-080 CAP TC-U 1200P
C239 87-A11-718-080 C-CAP,S 0.1-25 ZF
C300 87-018-195-080 CAP TC-U 1200P
C301 87-010-179-080 CAP,CHIP S B1200P
C302 87-010-179-080 CAP,CHIP S B1200P
C303 87-010-178-080 CHIP CAP 1000P
C304 87-010-178-080 CHIP CAP 1000P
C305 87-010-198-080 CAP, CHIP 0.022
C307 87-010-263-080 CAP, ELECT 100-10V
C308 87-010-263-080 CAP, ELECT 100-10V
C309 87-010-318-080 C-CAP, S 47P-50J CH
C310 87-010-318-080 C-CAP, S 47P-50J CH
C311 87-010-598-080 C-CAP,S 0.068-16VRK
C312 87-010-598-080 C-CAP,S 0.068-16VRK
C313 87-010-188-080 CAP,CHIP 6800P
C314 87-010-188-080 CAP,CHIP 6800P
C315 87-010-263-080 CAP, ELECT 100-10V
C317 87-010-546-080 CAP, ELECT 0.33-50V
C318 87-010-546-080 CAP, ELECT 0.33-50V
C326 87-010-198-080 CAP, CHIP 0.022
C327 87-010-196-080 CHIP CAPACITOR,0.1-25
C360 87-010-401-080 CAP, ELECT 1-50V
C399 87-012-140-080 CAP 470P
C401 87-010-544-080 CAP, ELECT 0.1-50V
C402 87-010-544-080 CAP, ELECT 0.1-50V
C405 87-010-197-080 CAP, CHIP 0.01 DM
C406 87-010-197-080 CAP, CHIP 0.01 DM
C407 87-010-197-080 CAP, CHIP 0.01 DM
C408 87-010-197-080 CAP, CHIP 0.01 DM
C409 87-010-182-080 C-CAP,S 2200P-50 B
C410 87-010-182-080 C-CAP,S 2200P-50 B
C411 87-010-405-080 CAP, ELECT 10-50V
C412 87-010-405-080 CAP, ELECT 10-50V
C452 87-010-382-080 CAP, ELECT 22-25V
C453 87-010-183-080 C-CAP,S 2700P-50 B

– 4–
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C454 87-010-183-080 C-CAP,S 2700P-50 B
C455 87-010-183-080 C-CAP,S 2700P-50 B
C456 87-010-197-080 CAP, CHIP 0.01 DM
C457 87-A12-361-080 CAP, M 5600P-100J CP
C460 87-010-196-080 CHIP CAPACITOR,0.1-25
C461 87-012-158-080 C-CAP,S 390P-50 CH
C462 87-012-158-080 C-CAP,S 390P-50 CH
C470 87-018-127-080 CAP, TC U 470P-50 BK
C605 87-010-179-080 CAP,CHIP S B1200P
C606 87-010-179-080 CAP,CHIP S B1200P
C609 87-010-213-080 C-CAP,S 0.015-50 B
C610 87-010-213-080 C-CAP,S 0.015-50 B
C611 87-010-545-080 CAP, ELECT 0.22-50V
C612 87-010-545-080 CAP, ELECT 0.22-50V
C613 87-010-545-080 CAP, ELECT 0.22-50V
C614 87-010-545-080 CAP, ELECT 0.22-50V
C615 87-010-154-080 CAP CHIP 10P
C616 87-010-385-080 CAP, ELECT 220-25V
C617 87-010-385-080 CAP, ELECT 220-25V
C618 87-010-405-080 CAP, ELECT 10-50V
C630 87-016-669-080 C-CAP,S 0.1-25 K B
C651 87-010-405-080 CAP, ELECT 10-50V
C669 87-010-322-080 C-CAP,S 100P-50 CH
C670 87-010-322-080 C-CAP,S 100P-50 CH
C671 87-016-669-080 C-CAP,S 0.1-25 KB
C672 87-016-669-080 C-CAP,S 0.1-25 KB
C677 87-010-197-080 CAP, CHIP 0.01 DM
C771 87-010-263-080 CAP, ELECT 100-10V
C772 87-010-197-080 CAP, CHIP 0.01 DM
C782 87-010-197-080 CAP, CHIP 0.01 DM
C783 87-010-197-080 CAP, CHIP 0.01 DM
C784 87-010-197-080 CAP, CHIP 0.01 DM
C785 87-010-197-080 CAP, CHIP 0.01 DM
C786 87-010-197-080 CAP, CHIP 0.01 DM
C788 87-010-149-080 C-CAP,S 5P-50 CH
C789 87-A10-801-080 C-CAP,S 0.022-16 J B
C790 87-A10-801-080 C-CAP,S 0.022-16 J B
C791 87-010-196-080 CHIP CAPACITOR,0.1-25
C792 87-010-197-080 CAP, CHIP 0.01 DM
C793 87-010-404-080 CAP, ELECT 4.7-50V
C795 87-010-197-080 CAP, CHIP 0.01 DM
C796 87-010-197-080 CAP, CHIP 0.01 DM
C797 87-010-405-080 CAP, ELECT 10-50V
C798 87-010-197-080 CAP, CHIP 0.01 DM
C799 87-010-407-080 CAP, ELECT 33-50V
C800 87-012-369-080 C-CAP,S 0.047-50F
C801 87-010-403-080 CAP, ELECT 3.3-50V
C802 87-012-369-080 C-CAP,S 0.047-50F
C803 87-010-198-080 CAP, CHIP 0.022
C804 87-010-263-080 CAP, ELECT 100-10V
C807 87-010-400-080 CAP, ELECT 0.47-50V
C808 87-010-401-080 CAP, ELECT 1-50V
C809 87-010-401-080 CAP, ELECT 1-50V
C810 87-010-196-080 CHIP CAPACITOR,0.1-25
C814 87-010-197-080 CAP, CHIP 0.01 DM
C815 87-010-400-080 CAP, ELECT 0.47-50V
C816 87-010-400-080 CAP, ELECT 0.47-50V
C821 87-010-405-080 CAP, ELECT 10-50V
C823 87-010-177-080 C-CAP,S 820P-50 SL
C824 87-010-405-080 CAP, ELECT 10-50V
C825 87-010-596-080 CAP, S 0.047-16
C842 87-010-197-080 CAP, CHIP 0.01 DM
C843 87-010-197-080 CAP, CHIP 0.01 DM
C844 87-010-197-080 CAP, CHIP 0.01 DM
C845 87-010-197-080 CAP, CHIP 0.01 DM
C846 87-010-197-080 CAP, CHIP 0.01 DM
C847 87-010-197-080 CAP, CHIP 0.01 DM
C848 87-010-197-080 CAP, CHIP 0.01 DM
C849 87-010-197-080 CAP, CHIP 0.01 DM
C851 87-010-197-080 CAP, CHIP 0.01 DM
C852 87-010-197-080 CAP, CHIP 0.01 DM
C853 87-010-197-080 CAP, CHIP 0.01 DM
C858 87-010-196-080 CHIP CAPACITOR,0.1-25
C859 87-010-196-080 CHIP CAPACITOR,0.1-25
C860 87-010-197-080 CAP, CHIP 0.01 DM
C940 87-010-197-080 CAP, CHIP S 0.01-25 KB
C941 87-010-314-080 CAP, CHIP S 22P-50 JCH
C943 87-010-197-080 CAP, CHIP S 0.01-25 KB
C945 87-010-197-080 CAP, CHIP S 0.01-25 KB
C946 87-010-971-080 CAP, CHIP S 4700P-50 JB
C947 87-010-197-080 CAP, CHIP S 0.01-25 KB
C948 87-010-148-080 CAP, CHIP S 4P-50 CH
C952 87-010-197-080 CAP, CHIP S 0.01-25 KB
C953 87-010-197-080 CAP, CHIP S 0.01-25 KB
C954 87-010-400-080 CAP, E 0.47-50 M
C956 87-010-263-080 CAP, E 100-10 M
C959 87-010-196-080 CHIP CAPACITOR,0.1-25
C960 87-010-196-080 CHIP CAPACITOR,0.1-25
C961 87-010-152-080 C-CAP,S 8P-50 CH
C962 87-010-401-080 CAP, ELECT 1-50 M
C963 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z
C964 87-010-854-080 CAP, CHIP S 560P-50 JCH
C971 87-010-381-080 CAP, ELECT 330-16V
C972 87-010-404-080 CAP, ELECT 4.7-50V
C973 87-010-197-080 CAP, CHIP 0.01 DM
C974 87-010-197-080 CAP, CHIP 0.01 DM
C979 87-010-322-080 C-CAP,S 100P-50 CH
C982 87-010-196-080 CHIP CAPACITOR,0.1-25
C983 87-010-197-080 CAP, CHIP 0.01 DM
C984 87-010-197-080 CAP, CHIP 0.01 DM
C987 87-010-197-080 CAP, CHIP 0.01 DM
C989 87-010-197-080 CAP, CHIP 0.01 DM
C993 87-010-178-080 CHIP CAP 1000P
C995 87-010-178-080 CHIP CAP 1000P
C997 87-010-196-080 CHIP CAPACITOR,0.1-25
C999 87-A11-155-080 CAP,TC U 0.01-16 Z F
CF831 87-008-261-010 FILTER, SFE10.7MA5-A
CF832 87-008-261-010 FILTER, SFE10.7MA5-A
CN301 87-A60-620-010 CONN,3P V 2MM JMT
CN351 87-A60-625-010 CONN,8P V 2MM JMT
CN601 87-099-719-010 CONN,30P TYK-B(X)
CN602 87-099-194-010 CONN,6P 6216V
CNA1 8A-NF8-653-010 CONN ASSY,9P TID-A(480)
D951 87-A40-618-080 VARI-CAP,SVC 348(S/T)
FFE831 A8-8ZA-192-070 8ZA-1 FEUNC
J101 87-A60-602-010 JACK,DIA6.3 BLK ST W/SW TC
J203 87-A60-238-010 TERMINAL,SP 4P (MSC)
J602 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN
J831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V02
J940 87-A60-633-010 CONN,2P H2.5MM
L101 87-A50-610-010 COIL,1UH-K(MDEC)
L102 87-A50-610-010 COIL,1UH-K(MDEC)
L451 87-007-342-010 COIL,OSC 85K BIAS
L801 87-A50-608-010 COIL,FM DET-N (TOK)
L802 87-A91-552-010 FLTR,CFMT-450AL(TOK)
L811 87-005-847-080 COIL,2.2UH(CECS)
L832 87-005-847-080 COIL,2.2UH(CECS)
L941 87-A50-022-010 COIL,ANT SW COI 7.96MHZ
L942 87-A50-550-010 COIL,OSC SW-2N
L943 87-A50-522-080 COIL,1MH K CEC
L944 87-A50-159-010 COIL,10MH K
L952 87-A50-430-010 COIL,ANT MW(3BSW)
L953 87-A50-431-010 COIL,OSC MW(3BSW)
R131 87-A00-258-080 RES,M/F 0.22-1W J
R132 87-A00-258-080 RES,M/F 0.22-1W J
R653 87-A11-144-080 CAP,TC U 0.1-50 K B
R654 87-A11-144-080 CAP,TC U 0.1-50 K B
R790 87-010-197-080 CAP, CHIP 0.01 DM
R991 87-010-322-080 C-CAP,S 100P-50 CH
R993 87-010-322-080 C-CAP,S 100P-50 CH

– 5–
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
R995 87-010-322-080 C-CAP,S 100P-50 CH
TC941 87-A91-773-080 TRIMMER,PLY 20P 6.0X5.4
TC943 87-A91-734-080 TRIMMER,PLY 30P 6.8X5.4
WH1 87-A90-510-010 HLDR,WIRE 2.5-9P
X991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
FRONT C.B
C101 87-010-196-080 CHIP CAPACITOR,0.1-25
C102 87-012-369-080 C-CAP,S 0.047-50F
C103 87-010-374-040 CAP, ELECT 47-10
C104 87-A10-797-040 CAP,E 47-35 M 5L SRM
C105 87-010-192-080 C-CAP,S 0.022-50 F
C107 87-010-196-080 CHIP CAPACITOR,0.1-25
C108 87-010-178-080 CHIP CAP 1000P
C109 87-012-369-080 C-CAP,S 0.047-50F
C110 87-010-197-080 CAP, CHIP 0.01 DM
C111 87-010-196-080 CHIP CAPACITOR,0.1-25
C113 87-010-178-080 CHIP CAP 1000P
C114 87-010-154-080 CAP CHIP 10P
C115 87-010-175-080 CAP 560P
C116 87-010-400-040 CAP,E 0.47-50
C117 87-012-393-080 C-CAP,S 0.22-16 K
C118 87-A10-189-040 CAP,E 220-10
C119 87-A10-189-040 CAP,E 220-10
C120 87-012-156-080 C-CAP,S 220P-50 CH
C123 87-010-196-080 CHIP CAPACITOR,0.1-25
C124 87-010-196-080 CHIP CAPACITOR,0.1-25
C125 87-010-405-040 CAP,E 10-50
C126 87-010-196-080 CHIP CAPACITOR,0.1-25
C129 87-010-374-040 CAP,E 47-10
C210 87-012-156-080 C-CAP,S 220P-50 CH
C212 87-010-404-040 CAP,E 4.7-50 SME
C213 87-010-404-040 CAP,E 4.7-50 SME
C401 87-010-186-080 C-CAP,S 4700P-50 K B
C402 87-010-060-040 CAP,E 100-16 M 7L SRA
C403 87-010-545-040 CAP,E 0.22-50 M 11L SME
C404 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C405 87-010-545-040 CAP,E 0.22-50 M 11L SME
C406 87-016-669-080 C-CAP,S 0.1-25 K B
C407 87-010-405-040 CAP,E 10-50 M 11L SME
C408 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C409 87-010-406-040 CAP,E 22-50 M 11L SME
C412 87-010-177-080 C-CAP,S 820P-50 J SL
C501 87-A11-718-080 C-CAP,S 0.1-25 ZF
C502 87-010-263-040 CAP,E 100-10 M 11L SME
C503 87-016-460-080 C-CAP,S 0.22-16 KB
C504 87-016-460-080 C-CAP,S 0.22-16 KB
C505 87-016-460-080 C-CAP,S 0.22-16 KB
C506 87-016-669-080 C-CAP,S 0.1-25 KB
C507 87-010-184-080 C-CAP,S 3300P-50 KB
C508 87-010-177-080 C-CAP,S 820P-50 J
C509 87-016-669-080 C-CAP,S 0.1-25 KB
C510 87-016-669-080 C-CAP,S 0.1-25 KB
C511 87-010-184-080 C-CAP,S 3300P-50 KB
C512 87-010-177-080 C-CAP,S 820P-50 J
C513 87-016-669-080 C-CAP,S 0.1-25 KB
C515 87-010-374-040 CAP,E 47-10 M 11L SME
C517 87-016-669-080 C-CAP,S 0.1-25 KB
C518 87-010-318-080 C-CAP,S 47P-50 J CH
C519 87-010-318-080 C-CAP,S 47P-50 J CH
C520 87-010-318-080 C-CAP,S 47P-50 J CH
C701 87-010-384-040 CAP,E 100-25 SME
CN101 87-099-720-010 CONN,30P TYK-B(P)
CN701 87-A60-673-010 CONN,9P H 2MM JMT
CN801 87-099-015-010 CONN,13P 6216V
EMI401 87-008-372-080 FLTR,EMI BL01 RN1
FL201 8A-NFA-604-010 FL,10-BT-224GNK
J401 87-A61-243-010 JACK,6.3 BLK MONO W/SW V MSC
L101 87-A50-050-010 COIL,CLK 4.19M(COI)
LED101 87-A40-317-080 LED,SLR-342VCT31 RED
S101 87-A91-555-010 SW,RTRY EC12E24504
S301 87-A90-164-080 SW,TACT SKQAB(N)
S302 87-A90-164-080 SW,TACT SKQAB(N)
S303 87-A90-164-080 SW,TACT SKQAB(N)
S304 87-A90-164-080 SW,TACT SKQAB(N)
S305 87-A90-164-080 SW,TACT SKQAB(N)
S306 87-A90-164-080 SW,TACT SKQAB(N)
S307 87-A90-164-080 SW,TACT SKQAB(N)
S308 87-A90-164-080 SW,TACT SKQAB(N)
S309 87-A90-164-080 SW,TACT SKQAB(N)
S310 87-A90-164-080 SW,TACT SKQAB(N)
S311 87-A90-164-080 SW,TACT SKQAB(N)
S312 87-A90-164-080 SW,TACT SKQAB(N)
S321 87-A90-164-080 SW,TACT SKQAB(N)
S322 87-A90-164-080 SW,TACT SKQAB(N)
S323 87-A90-164-080 SW,TACT SKQAB(N)
S324 87-A90-164-080 SW,TACT SKQAB(N)
S325 87-A90-164-080 SW,TACT SKQAB(N)
S326 87-A90-164-080 SW,TACT SKQAB(N)
S327 87-A90-164-080 SW,TACT SKQAB(N)
S328 87-A90-164-080 SW,TACT SKQAB(N)
S329 87-A90-164-080 SW,TACT SKQAB(N)
S330 87-A90-164-080 SW,TACT SKQAB(N)
S331 87-A90-164-080 SW,TACT SKQAB(N)
S332 87-A90-164-080 SW,TACT SKQAB(N)
S333 87-A90-164-080 SW,TACT SKQAB(N)
SFR701 87-024-431-080 SFR,3.3K RH063EC
PT C.B
C1 87-010-387-080 CAP,E 470-25 SME
C31 87-010-403-080 CAP, ELECT 3.3-50V
CN1 87-A61-110-010 CONN,9P V TID-A
JW14 87-A90-093-080 PROTECTOR,3A 491SERIES 60V
JW15 87-A90-093-080 PROTECTOR,3A 491SERIES 60V
PT1 8A-NHZ-606-010 PT,ANH-Z HR
PT2 8A-NF8-673-010 PT,SUB ANF-8 (H)KAMI
RY1 87-A91-281-010 RELAY,AC DC12V OSA-SS-212DM5
S1 87-A90-165-010 SW,SL 1-2-3 SWS2301
T1 87-A60-317-010 TERMINAL, 1P MSC
T2 87-A60-317-010 TERMINAL, 1P MSC
!
!
!
!
!
!
!
!

– 6–
TRANSISTOR ILLUSTRATION
E B C
2SC5343
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 1110 987654321
– 7 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
WIRING – 1 (MAIN)

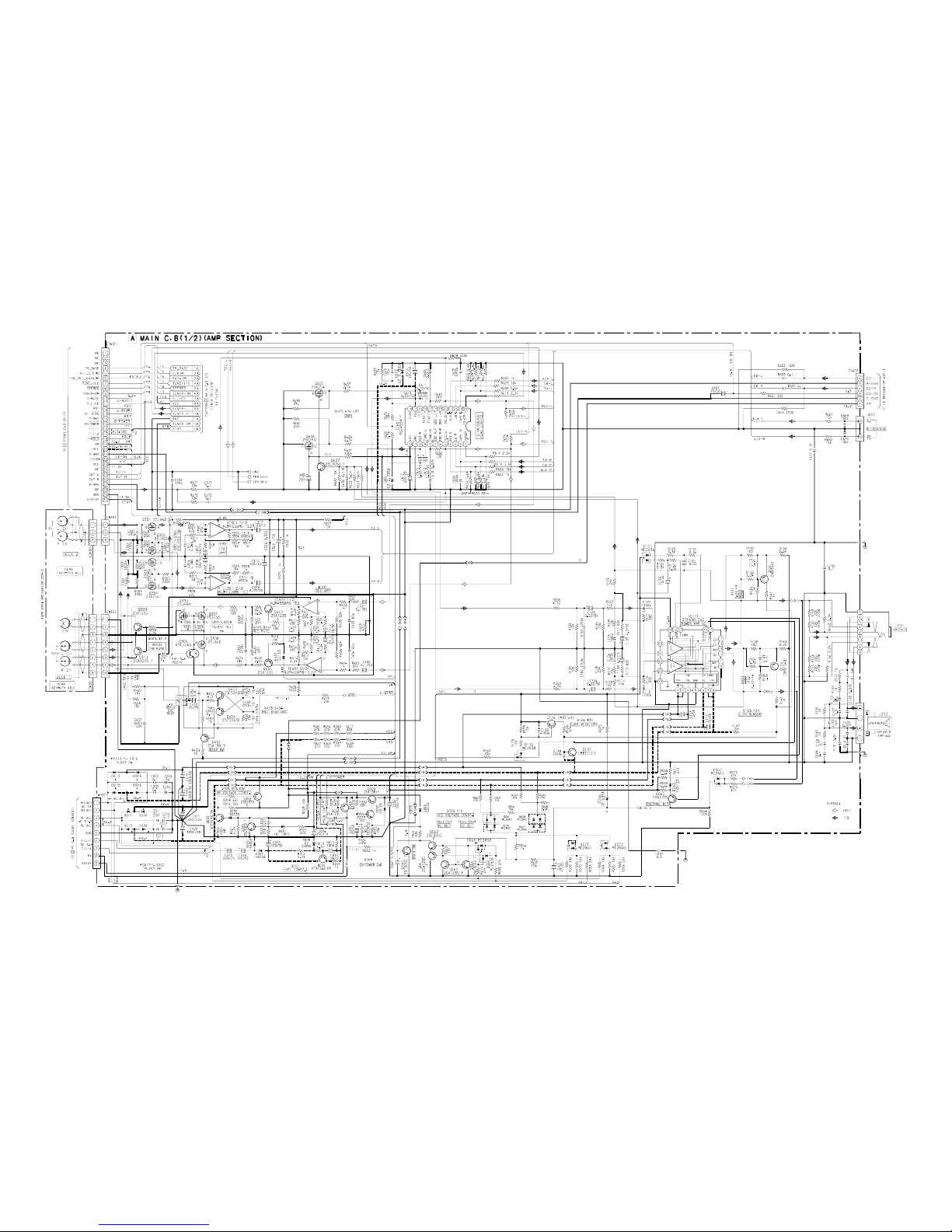

SCHEMATIC DIAGRAM  1 (MAIN 1 / 2 : AMP SECTION)
 8 

SCHEMATIC DIAGRAM  2 (MAIN 2 / 2 : TUNER SECTION)
 9 

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 1110 987654321
– 10 –
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
WIRING – 2 (FRONT)

SCHEMATIC DIAGRAM  3 (FRONT)
 11 

15 14 13 12 1110 987654321
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
– 12 –
WIRING – 3 (PT)

SCHEMATIC DIAGRAM  4 (PT)
 13 
PT 1
PT ANH-Z
HR

– 14 –
< TUNER SECTION >
2. MW VT Check
Settings : • Test point : TP1 (VT)
Method : Set to MW 1602kHz and check that the test point is less
than 8.0V. Then set to 531kHz and check that the test
point is more than 0.3V.
7. SW VT Adjustment
Settings : • Test point : TP1(VT)
• Adjustment location : L942
Method : Set to SW 17.9MHz and adjust L942 so that the test
point becomes 8.0V ±0.05V.
Then set to SW 5.9MHz and check that the test point is
more than 0.3V.
8. SW Tracking Adjustment
Settings : • Test point : TP8(Lch), TP9(Rch)
• Adjustment location :
L941 ............................................................ 5.9MHz
TC943 .......................................................... 17.9MHz
Method : Set up TC943 to center before adjustment. The level at
5.9MHz is adjusted to MAX by L941. Then the level at
17.9MHz is adjusted to MAX by TC943.
ADJUSTMENT

– 15 –
MECHANICAL EXPLODED VIEW 1 / 1
E
H
F
H
A
A
CA
A
AA
A
A
A
A
A
A
ZZM-2
PWB
A
A
PWB
A
A
A
AJ
HLDR2
HLDR1
PLATE,EARTH
D
G
8
18 16
17
14
1
FL
AZG-1
11
12
9
10
21
26
37
38
CHAS, MAIN
D
AD
35
13
PWB
B
A
29
31 30
HT-SINK
WIRE,
BINDER
32
1
2
3
4
5
6
7
15
24
19 20 22
23
27
34
A
40 39
I
36
42
ZZM-2
PLATE,
EARTH MIC
41
28
25
33
I
I

– 16 –
MECHANICAL PARTS LIST 1 / 1
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
!
!
1 82-NF7-218-010 SPR-T,CASS
2 8A-NFZ-007-110 WINDOW,CASS 2
3 8A-NFZ-006-110 WINDOW,CASS 1
4 8A-NFZ-004-110 BOX,CASS 2
5 8A-NFZ-003-110 BOX,CASS 1
6 8A-NFZ-011-010 KNOB,RTRY VOL
7 8A-NFZ-012-010 RING,VOL
8 8A-NHZ-003-010 WINDOW,DISP H
9 86-NFZ-231-010 DMPR,70
10 8A-NHZ-001-210 CABI,FR H
11 8A-NFZ-016-110 KEY,CASS 1
12 8A-NFZ-017-110 KEY,CASS 2P
13 8A-NHZ-021-010 FOOT,H20
14 8A-NFZ-010-010 KEY,OPE
15 8A-NFZ-013-210 KEY,CD
16 8A-NFZ-009-010 KEY,FUN
17 8A-NFA-018-010 REFLECTOR,ECO
18 8A-NFZ-008-010 KEY,POWER
19 87-B00-002-010 BADGE,AIWA 30 ABS SIL
20 8A-NHZ-002-010 PANEL,TRAY H
21 8A-NFA-208-010 GUIDE,FL 100-25 ANFA
22 88-913-321-110 FF-CABLE, 13P 1.25 320MM
23 8A-DJV-202-110 HLDR,STCB
24 8A-NHZ-006-110 KEY,PBC
25 87-A91-921-010 F-BEAD, 18.8/1.1/15 HF70SH
26 84-ZG1-245-210 CAP,OPTICAL
27 8A-NHZ-015-010 PANEL,REAR HCSC
28 88-906-251-110 FF-CABLE,6P 1.25
29 8A-NF8-226-010 HLDR,IC T2
30 8A-NFA-633-010 CONN ASSY,3P (PH)
31 8A-NFA-634-010 CONN ASSY,8P RPB
32 8A-NFA-214-010 HLDR,PWB M ANFA
33 87-A91-920-010 F-BEAD, 52/1.0/12 HF70SH
34 8A-DJV-003-010 CABI,STEEEL
35 8A-NF9-211-010 HLDR,PWB PT HI
36 8A-NHZ-606-010 PT,ANH-Z HR
37 87-A80-083-010 AC CORD,HC BLK
38 87-085-185-010 BUSHING, AC CORD (E)
39 8A-NHZ-005-010 KEY,ECHO
40 8A-NFZ-047-010 PLATE,MIC BL
41 87-A11-148-080 CAP,TC U 0.1-50 Z F
42 87-A90-510-010 HLDR,WIRE 2.5-9P
A 87-067-703-010 TAPPING SCREW, BVT2+3-10
B 87-NF4-224-010 S-SCREW,IT3B+3-8 CU
C 87-067-581-010 TAPPING SCREW, BVT2+3-15
D 87-078-200-010 S-SCREW,ITC+4-8 R
E 87-067-688-010 BVTT+3-6
F 87-723-096-410 QT2+3-10W/O SLOT BL
G 87-721-096-410 QT2+3-10 GLD
H 87-721-097-410 QT2+3-12 GLD
I 87-067-641-010 UTT2+3-8(W/O SLOT)BL
J 87-067-698-010 BVT2+3-18(W/O,SLOT)
COLOR NAME TABLE
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange PT Transparent Pink
LA Aqua Blue

– 17 –
TAPE MECHANISM EXPLODED VIEW 1 / 1
A
1
52
TERMINAL,LB1
B
2
3
4
5
59
6
7
57
58
57
58
8
9
11
12
13
13
16
17
19
20
21
22
24
23
26
27
18
28
25
29
55
54
30
31
32
1
34
35
36
38
39
40
41
43
44
45
46
49
48
42
50
53
53
1
2
3
4
5
6
15
14
24 26
27
28
25 29
55
54
37
37
33
33
1
a
b
a
b
34
61
38
39
60
40
10
7
8
9
11
12
10
43
44
45
46
47
47
51
51
56
A
TERMINAL,LB1
20
21
22
23
16
17
19
18
15
14
59

– 18 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
TAPE MECHANISM PARTS LIST 1 / 1
1 8Z-ZM1-254-310 SPR-C,REEL R
2 8Z-ZM1-225-110 GEAR,REEL R
3 8Z-ZM1-253-210 SPR-C,AUTO SENSOR
4 8Z-ZM1-217-110 LEVER,AUTO SENSOR
5 8Z-ZM1-212-210 LEVER,T-UP
6 8Z-ZM1-245-310 SPR-T,AUTO
7 8Z-ZM1-236-010 CLR,SLIP FF/REW
8 8Z-ZM1-252-110 SPR-C,FF/REW
9 8Z-ZM2-213-010 GEAR,SLIP FR A ZZM-2
10 8Z-ZM1-269-010 FELT,FF/REW 2
11 8Z-ZM1-238-110 GEAR,SLIP FF/REW B 2
12 8Z-ZM1-237-110 LEVER,FF/REW 2
13 8Z-ZM1-209-510 LEVER,PAUSE
14 8Z-ZM1-218-210 LEVER,E-LOCK H
15 8Z-ZM1-256-010 SPR-P,PAUSE
16 8Z-ZM1-244-110 SPR-T,T-UP
17 8Z-ZM1-247-310 SPR-T,PINCH
18 8Z-ZM1-261-110 ROLLER ASSY,PINCH
19 8Z-ZM1-221-210 LEVER,PINCH
20 8Z-ZM1-205-310 LEVER,PLAY
21 8Z-ZM1-248-210 SPR-T,BRG
22 87-A90-403-110 HEAD,RPH MS15R
23 84-ZM2-227-310 SPR-C,AZIMUTH
24 8Z-ZM1-216-110 LEVER,AUTO
25 8Z-ZM1-246-110 SPR-T,AUTO 2
26 8Z-ZM2-214-110 GEAR,IDL REW ZZM-2
27 8Z-ZM2-212-010 LEVER,STOP ZZM-2
28 8Z-ZM1-207-010 LEVER,FF
29 8Z-ZM1-206-010 LEVER,REW
30 8Z-ZM1-210-010 LEVER,REC
31 87-A90-404-010 HEAD,EH LE15B
32 8Z-ZM2-218-010 LEVER,REC LOCK ZZM-2
33 87-A91-492-010 SW,LEAF MSW18560
34 8Z-ZM1-226-010 GEAR,REEL L
35 8Z-ZM1-241-210 SPR-T,PLAY
36 8Z-ZM1-220-110 LEVER,REC SENSOR
37 8Z-ZM1-249-210 SPR-T,FR
38 8Z-ZM1-242-310 SPR-T,FF/REW
39 8Z-ZM3-244-110 GEAR,CAM TD20
40 8Z-ZM1-232-010 GEAR,IDL FF/REW
41 8Z-ZM3-228-110 FLY-WHL,M3
42 8Z-ZM2-601-010 CONN ASSY,9P ZZM-2
43 8Z-ZM1-228-010 GEAR,SLIP T-UP B
44 8Z-ZM1-265-010 FELT,T-UP
45 8Z-ZM1-227-010 GEAR,SLIP T-UP A
46 8Z-ZM1-251-210 SPR-C,T-UP SLIP
47 8Z-ZM1-243-310 SPR-T,STOP/PAUSE
48 87-A91-532-010 MOT,MS15U2LW1A
49 8Z-ZM1-235-010 PULLEY,MOT
50 8Z-ZM2-216-010 BELT,MAIN M
51 8Z-ZM1-260-010 SPR-P,CASETTE
52 8Z-ZM2-201-510 CHAS ASSY,ZZM-2
53 8Z-ZM1-255-310 SPR-T,E-LOCK
54 8Z-ZM2-219-010 LEVER,E-OPEN ZZM-2
55 8Z-ZM1-214-310 LEVER,LOCK
56 8Z-ZM2-211-210 FLY-WHL,ZZM-2
57 8Z-ZM1-257-110 SPR-C,F/R
58 8Z-ZM1-275-010 W-L,1.47-4-0.25
59 87-B10-301-010 W-L,1.63-3.2-0.5 SLIT
60 87-A91-494-010 SW,LEAF MSW17820
61 8Z-ZM1-241-010 SPR-T,PLAY
A 84-ZM2-242-010 S-SCREW,AZ1-2-6.4
B 8Z-ZM2-220-110 V+2.6 ZZM-2

– 19 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
SPEAKER PARTS LIST
SX-NBL17(YHSCNC1)
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
ACCESSORIES / PACKAGE LIST
3 8A-NS6-604-010 SPKR, W 200
1 8A-NHZ-911-010 IB,H(EC-K)S
4 87-A90-054-010 ANT,LOOP AM-CON C
7 87-A91-015-010 PLUG,CONVERSION JT-0475A
!

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:[phone]
Printed in Singapore9630472 0251431
