Aiwa NSX-S778 User manual
S E R V I C E M A N U A L
SIMPLE MANUAL
•Replace this Service Manual with "Revision Publishing" when it is issued.
NSX-S777
NSX-S778
• TYPE: S777(EZ, G), S778(HS)
S/M Code No. 09–996–403–5T5
COMPACT DISC STEREO
CASSETTE RECEIVER
ELECTRICAL MAIN PARTS LIST - 1/10
NOTE: The characters in the suffix column indicate the part usage.
778HS ..................XX..................................A...................
777G ...................XX...................................B..................
777EZ ..................XX....................................C.................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
C 505 87-010-178-080 CHIP CAP 1000P .B..................
C 502 87-010-196-080 CHIP CAPACITOR,0.1-25 .B..................
C 501 87-010-544-040 CAP,E 0.1-50 SME .B..................
C 503 87-010-544-040 CAP,E 0.1-50 SME .B..................
C 504 87-012-156-080 C-CAP,S 220P-50 CH .B..................
C 521 87-010-178-080 CHIP CAP 1000P .B..................
C 606 87-010-112-040 CAP,E 100-16 ABC.................
C 608 87-010-178-080 CHIP CAP 1000P A.C.................
C 601 87-010-186-080 CAP,CHIP 4700P ABC.................
C 607 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 605 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 603 87-010-320-080 CHIP CAP 68P ABC.................
C 602 87-010-405-040 CAP,E 10-50 A.C.................
C 604 87-010-546-040 CAP,E 0.33-50 ABC.................
C 621 87-010-178-080 CHIP CAP 1000P ABC.................
C 652 87-010-183-080 C-CAP,S 2700P-50 B ABC.................
C 653 87-010-213-080 C-CAP,S 0.015-50 B ABC.................
FB 601 87-A50-190-080 C-COIL,S BLM21A102S ABC.................
J 601 87-A60-651-010 JACK,3.5MONO ABC.................
J 602 87-A60-651-010 JACK,3.5MONO A.C.................
Q 502 87-A30-075-080 C-TR,2SA1235F .B..................
Q 501 87-A30-076-080 C-TR,2SC3052F .B..................
Q 604 87-A30-075-080 C-TR,2SA1235F ABC.................
Q 603 87-A30-076-080 C-TR,2SC3052F ABC.................
Q 602 87-A30-076-080 C-TR,2SC3052F A.C.................
Q 601 87-A30-087-080 C-FET,2SK2158 A.C.................
VR 501 86-NFA-607-010 VR,RTRY 10K15AX1 1 V XV0121PVN .B..................
87-010-403-040 CAP,E 3.3-50 SME .B..................
87-A90-195-080 PROTECTOR 7A 125V 49 .B..................
C 1 87-010-387-080 CAP,E 470-25 SME ABC.................
C 8 87-016-520-000 CAP,E 3300-65 M SMG ABC.................
C 9 87-016-520-000 CAP,E 3300-65 M SMG ABC.................
C 2 87-018-209-080 CAP, CER 0.1-50V ABC.................
C 4 87-018-209-080 CAP, CER 0.1-50V ABC.................
C 6 87-018-209-080 CAP, CER 0.1-50V ABC.................
C 3 87-018-209-080 CAP, CER 0.1-50V ABC.................
C 5 87-018-209-080 CAP, CER 0.1-50V ABC.................
C 31 87-010-403-040 CAP,E 3.3-50 SME A.C.................
CN 1 87-A60-851-010 CONN,9P V VH ABC.................
D 2 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 5 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 1 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 4 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 3 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 6 87-A40-547-090 DIODE,D5SBA20 ....................
D 6 87-A40-548-090 DIODE,D3SBA20 ABC.................
D 31 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 32 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
JW 20 87-026-682-080 PROTECTOR,10A 60V491 ....................
JW 21 87-026-682-080 PROTECTOR,10A 60V491 ....................
JW 20 87-A90-195-080 PROTECTOR 7A 125V 49 A.C.................
JW 21 87-A90-195-080 PROTECTOR 7A 125V 49 A.C.................
PR 2 87-026-682-080 PROTECTOR,10A 60V491 ABC.................
PR 1 87-026-682-080 PROTECTOR,10A 60V491 ABC.................
PR 2 87-026-691-080 FUSE,10A 125V 251 ....................
PR 1 87-026-691-080 FUSE,10A 125V 251 ....................
PR 3 87-A91-276-080 FUSE,125MA 125V F 251 ....................
PT 2 8Z-NF8-661-010 PT,SUB ZNF-8(U) ....................
PT 2 8Z-NF8-662-010 PT,SUB ZNF-8(E) ABC.................
PT 2 8Z-NF8-663-010 PT,SUB ZNF-8(H) ....................
Q 31 87-026-245-080 TR,DTC114ES ABC.................
Q 32 87-A30-198-080 TR,KTC3199GR ABC.................
RY 2 87-A90-976-010 RELAY,AC12V SDT-S-112LMR ABC.................
RY 1 87-A91-281-010 RELAY,AC DC12V OSA-SS-212DM5 ....................
S 1 87-A90-165-010 SW,SL 1-2-3 SWS2301 ....................
T 1 87-A60-317-010 TERMINAL, 1P MSC ABC.................
T 2 87-A60-317-010 TERMINAL, 1P MSC ABC.................
C 901 87-016-462-080 C-CAP,S 1-16 F .B..................
D 901 87-A40-270-080 C-DIODE,MC2838 .B..................
Q 901 87-A30-087-080 C-FET,2SK2158 .B..................
Q 902 87-A30-087-080 C-FET,2SK2158 .B..................
87-NF5-203-010 GUIDE,FL ABC.................
87-NF6-205-010 GUIDE,LED ABC.................
8Z-NF7-201-010 GUIDE,FUNCTION ABC.................
8Z-NF7-202-010 GUIDE,PLAY ABC.................
8Z-NF7-203-010 GUIDE,CD ABC.................
C 103 87-010-178-080 CHIP CAP 1000P ABC.................
C 106 87-010-312-080 C-CAP,S 15P-50 CH ABC.................
C 105 87-010-322-080 C-CAP,S 100P-50 CH ABC.................
C 108 87-010-405-040 CAP,E 10-50 ABC.................
C 107 87-012-157-080 C-CAP,S 330P-50 CH ABC.................
C 114 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 115 87-010-198-080 CAP, CHIP 0.022 ABC.................
C 116 87-010-493-040 CAP,E 0.47-50 GAS ABC.................
ELECTRICAL MAIN PARTS LIST - 2/10
C 117 87-010-498-040 CAP,E 10-16 GAS ABC.................
C 112 87-016-081-080 C-CAP,S 0.1-16 RK ABC.................
C 113 87-A11-242-040 CAP,E 220-10 M 5L SRM ABC.................
C 111 87-A11-242-040 CAP,E 220-10 M 5L SRM ABC.................
C 122 87-010-178-080 CHIP CAP 1000P ABC.................
C 125 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 123 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 124 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 126 87-012-145-080 CAP, CHIP S 270P CH ABC.................
C 121 87-012-368-080 C-CAP,S 0.1-50 F ABC.................
C 151 87-010-194-080 CAP, CHIP 0.047 ABC.................
C 153 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 154 87-010-264-040 CAP,E 100-10 5L ABC.................
C 183 87-010-182-080 C-CAP,S 2200P-50 B ABC.................
C 182 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 181 87-012-157-080 C-CAP,S 330P-50 CH ABC.................
C 202 87-012-140-080 CAP 470P ABC.................
C 221 87-010-404-040 CAP,E 4.7-50 SME ABC.................
C 222 87-010-404-040 CAP,E 4.7-50 SME ABC.................
C 223 87-010-408-040 CAP,E 47-50 SME ABC.................
C 224 87-012-369-080 C-CAP,S 0.047-50F ABC.................
C 386 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 381 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 387 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 383 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 385 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 384 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 382 87-012-158-080 C-CAP,S 390P-50 CH ABC.................
C 401 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 402 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 404 87-010-322-080 C-CAP,S 100P-50 CH ABC.................
C 408 87-010-322-080 C-CAP,S 100P-50 CH ABC.................
C 407 87-010-322-080 C-CAP,S 100P-50 CH ABC.................
C 406 87-010-322-080 C-CAP,S 100P-50 CH ABC.................
C 405 87-010-322-080 C-CAP,S 100P-50 CH ABC.................
C 403 87-010-322-080 C-CAP,S 100P-50 CH ABC.................
C 411 87-010-401-040 CAP,E 1-50 SME ABC.................
CN 101 87-099-720-010 CONN,30P TYK-B(P) ABC.................
CN 104 87-A60-140-010 CONN,15P V FE ABC.................
CN 301 87-A60-131-010 CONN,6P V FE ABC.................
CN 302 87-A60-131-010 CONN,6P V FE ABC.................
CN 901 87-A60-138-010 CONN,13P V FE ABC.................
D 103 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 108 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 104 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 101 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 107 87-A40-270-080 C-DIODE,MC2838 ABC.................
D 109 87-A40-509-080 ZENER,MTZJ6.8C ABC.................
D 111 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 305 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 306 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 307 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 303 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 308 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 301 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 304 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 302 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 309 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 310 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 315 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 311 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 316 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 313 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 312 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 314 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 318 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 323 87-020-465-080 DIODE,1SS133 (110MA) .B..................
D 328 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 320 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 327 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 325 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 385 87-017-932-080 ZENER,MTJ6.2B ABC.................
D 384 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 382 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 381 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 383 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 701 87-A40-269-080 C-DIODE,MC2836 ABC.................
D 901 87-020-465-080 DIODE,1SS133 (110MA) A.C.................
FL 201 8Z-NF7-610-010 FL,BJ679GK ABC.................
IC 102 87-A20-951-010 IC,TSOP1838RF1 ABC.................
IC 101 8Z-NF7-615-010 C-IC,LC875572V-5L45 ABC.................
IC 380 87-A21-023-040 C-IC,BA3835F ABC.................
IC 401 87-A21-021-040 C-IC,BU2099FV ABC.................
IC 402 87-A21-021-040 C-IC,BU2099FV ABC.................
L 101 87-A50-333-010 COIL,OSC 9.43MHZ ABC.................
LED 293 87-A40-589-040 LED,SLR-56VCT31 RED ABC.................
LED 401 87-A40-317-080 LED,SLR-342VCT31 RED ABC.................
LED 404 87-A40-317-080 LED,SLR-342VCT31 RED ABC.................
LED 403 87-A40-317-080 LED,SLR-342VCT31 RED ABC.................
LED 402 87-A40-317-080 LED,SLR-342VCT31 RED ABC.................
LED 405 87-A40-317-080 LED,SLR-342VCT31 RED ABC.................
LED 409 87-A40-496-040 LED,SLR-342MCT31 GRN ABC.................
ELECTRICAL MAIN PARTS LIST - 3/10
LED 407 87-A40-496-040 LED,SLR-342MCT31 GRN ABC.................
LED 408 87-A40-496-040 LED,SLR-342MCT31 GRN ABC.................
LED 406 87-A40-496-040 LED,SLR-342MCT31 GRN ABC.................
LED 412 87-A40-496-040 LED,SLR-342MCT31 GRN ABC.................
LED 414 87-A40-496-040 LED,SLR-342MCT31 GRN ABC.................
LED 411 87-A40-496-040 LED,SLR-342MCT31 GRN ABC.................
LED 413 87-A40-496-040 LED,SLR-342MCT31 GRN ABC.................
LED 410 87-A40-496-040 LED,SLR-342MCT31 GRN ABC.................
LED 415 87-A40-496-040 LED,SLR-342MCT31 GRN ABC.................
LED 416 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ABC.................
LED 417 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ABC.................
LED 418 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ABC.................
LED 419 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ABC.................
LED 421 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ABC.................
LED 420 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ABC.................
LED 438 87-A40-317-080 LED,SLR-342VCT31 RED ABC.................
LED 439 87-A40-317-080 LED,SLR-342VCT31 RED ABC.................
LED 433 87-A40-631-010 LED,SEL1550CM-LF55 GRN ABC.................
LED 434 87-A40-631-010 LED,SEL1550CM-LF55 GRN ABC.................
LED 435 87-A40-631-010 LED,SEL1550CM-LF55 GRN ABC.................
LED 436 87-A40-631-010 LED,SEL1550CM-LF55 GRN ABC.................
LED 440 87-A40-317-080 LED,SLR-342VCT31 RED ABC.................
LED 443 87-A40-637-040 LED,SLV-312MC GRN ABC.................
LED 445 87-A40-637-040 LED,SLV-312MC GRN ABC.................
LED 441 87-A40-637-040 LED,SLV-312MC GRN ABC.................
LED 444 87-A40-637-040 LED,SLV-312MC GRN ABC.................
LED 442 87-A40-637-040 LED,SLV-312MC GRN ABC.................
LED 461 87-A40-632-010 LED,SEL1250SM-LF55 RED ABC.................
LED 462 87-A40-632-010 LED,SEL1250SM-LF55 RED ABC.................
LED 481 87-A40-619-040 LED,SLR-56PT-T31-W GRN ABC.................
LED 488 87-A40-619-040 LED,SLR-56PT-T31-W GRN ABC.................
LED 487 87-A40-619-040 LED,SLR-56PT-T31-W GRN ABC.................
LED 482 87-A40-619-040 LED,SLR-56PT-T31-W GRN ABC.................
LED 484 87-A40-619-040 LED,SLR-56PT-T31-W GRN ABC.................
LED 483 87-A40-619-040 LED,SLR-56PT-T31-W GRN ABC.................
LED 486 87-A40-619-040 LED,SLR-56PT-T31-W GRN ABC.................
LED 485 87-A40-619-040 LED,SLR-56PT-T31-W GRN ABC.................
Q 102 87-026-610-080 TR,KTC3198GR ABC.................
Q 108 87-A30-073-080 C-TR,RT1N 141C ABC.................
Q 101 87-A30-087-080 C-FET,2SK2158 ABC.................
Q 104 87-A30-087-080 C-FET,2SK2158 ABC.................
Q 103 87-A30-087-080 C-FET,2SK2158 ABC.................
Q 262 87-A30-085-070 C-TR,CSA1362GR ABC.................
Q 301 87-A30-076-080 C-TR,2SC3052F ABC.................
Q 701 87-A30-240-080 TR,CSA1585BC ....................
Q 704 87-A30-318-080 TR,CSA952K ABC.................
Q 705 87-A30-318-080 TR,CSA952K ABC.................
Q 701 87-A30-329-080 TR,CD1585BC ABC.................
R 210 87-012-157-080 C-CAP,S 330P-50 CH ABC.................
R 212 87-012-157-080 C-CAP,S 330P-50 CH ABC.................
R 213 87-012-157-080 C-CAP,S 330P-50 CH ABC.................
S 101 87-A90-471-010 SW,RTRY EC16B24304-25 NON ABC.................
S 102 87-A91-018-010 SW,RTRY EC12E12504ENC-30 ABC.................
S 303 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 306 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 302 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 308 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 304 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 301 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 305 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 309 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 310 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 314 87-A90-095-080 SW,TACT EVQ11G04M A.C.................
S 311 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 313 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 312 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 315 87-A90-095-080 SW,TACT EVQ11G04M A.C.................
S 321 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 328 87-A90-095-080 SW,TACT EVQ11G04M A.C.................
S 329 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 323 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 322 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 325 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 327 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 326 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 324 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 332 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 333 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 334 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 335 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 347 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 346 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 341 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 343 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 348 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 345 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 344 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 342 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 349 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 350 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 355 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 351 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
ELECTRICAL MAIN PARTS LIST - 4/10
S 353 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 354 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 352 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
C 802 87-010-168-080 CAP, CHIP 150P ABC.................
C 804 87-010-187-080 CAP CHIP S5600P ABC.................
C 807 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 805 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 806 87-010-401-040 CAP,E 1-50 SME ABC.................
C 809 87-012-155-080 C-CAP 180P-50CH ABC.................
C 810 87-010-263-040 CAP,E 100-10 ABC.................
C 811 87-010-382-040 CAP,E 22-25 SME ABC.................
C 812 87-010-405-040 CAP,E 10-50 ABC.................
D 801 87-017-931-080 ZENER,MTZJ5.6B ABC.................
IC 801 87-A21-051-040 C-IC,BU9990-03FS ABC.................
JW 801 87-008-372-080 FILTER, EMI BL OIRNI ABC.................
L 802 87-005-847-080 COIL,2.2UH(CECS) ABC.................
L 801 87-A50-093-010 COIL,CLOCK 5.76MHZ ABC.................

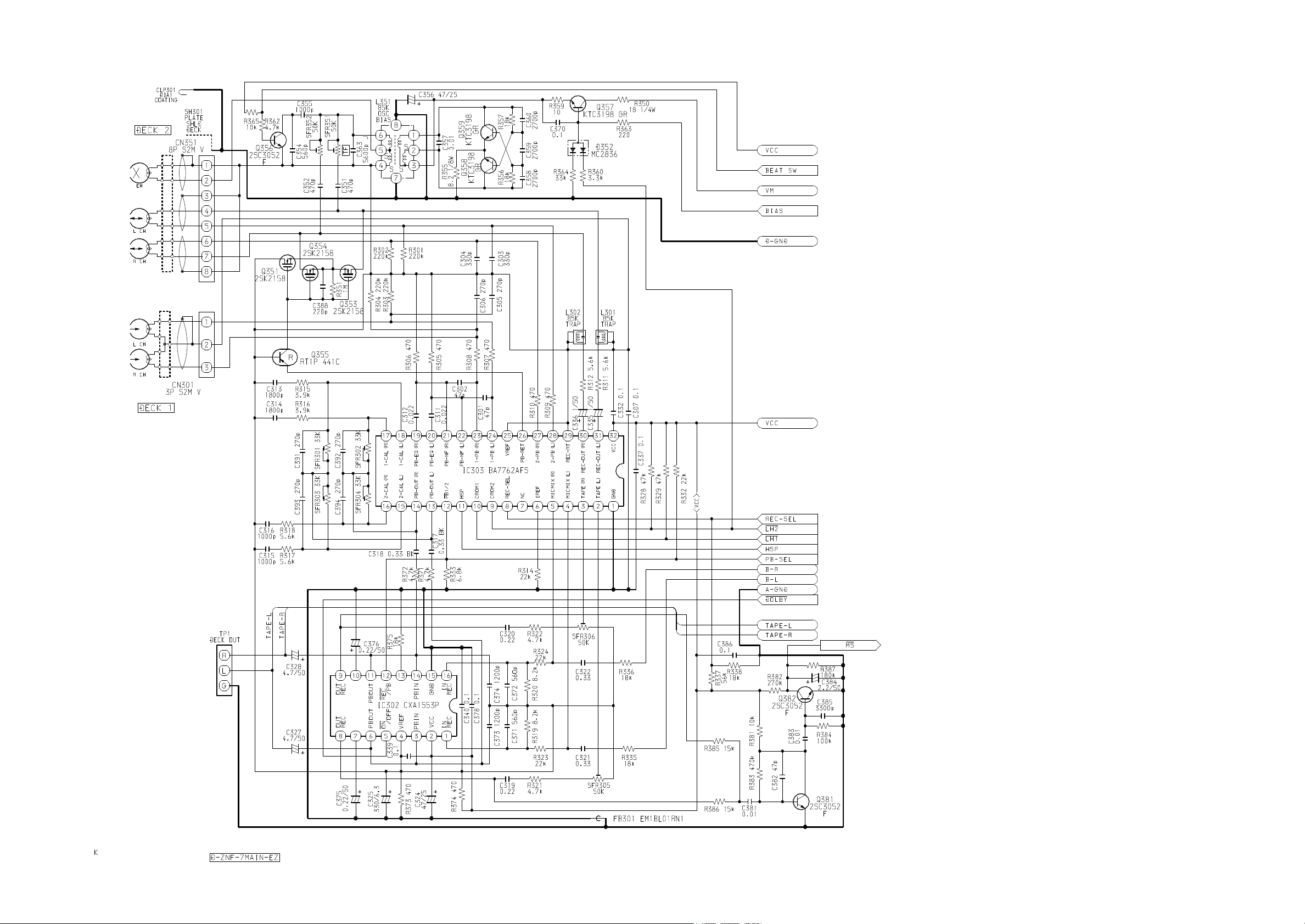

87-010-179-080 CAP,CHIP S B1200P .B..................
C 309 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 307 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 302 87-010-318-080 C-CAP,S 47P-50 CH ABC.................
C 301 87-010-318-080 C-CAP,S 47P-50 CH ABC.................
C 305 87-012-145-080 CAP, CHIP S 270P CH ABC.................
C 306 87-012-145-080 CAP, CHIP S 270P CH ABC.................
C 303 87-012-157-080 C-CAP,S 330P-50 CH ABC.................
C 304 87-012-157-080 C-CAP,S 330P-50 CH ABC.................
C 316 87-010-178-080 CHIP CAP 1000P ABC.................
C 315 87-010-178-080 CHIP CAP 1000P ABC.................
C 314 87-010-179-080 CAP,CHIP S B1200P ....................
C 316 87-010-179-080 CAP,CHIP S B1200P ....................
C 313 87-010-179-080 CAP,CHIP S B1200P ....................
C 315 87-010-179-080 CAP,CHIP S B1200P ....................
C 313 87-010-181-080 CAP,CHIP S 1800P ABC.................
C 314 87-010-181-080 CAP,CHIP S 1800P ABC.................
C 310 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 311 87-010-198-080 CAP, CHIP 0.022 ABC.................
C 312 87-010-198-080 CAP, CHIP 0.022 ABC.................
C 319 87-012-141-080 CHIP-CAPACITOR,0.22-16F ABC.................
C 318 87-A10-201-080 C-CAP,S0.33-16 KB ABC.................
C 317 87-A10-201-080 C-CAP,S0.33-16 KB ABC.................
C 324 87-010-260-080 CAP, ELECT 47-25V ABC.................
C 325 87-010-370-080 CAP,E 330-6.3 SME ABC.................
C 327 87-010-404-080 CAP, ELECT 4.7-50V ABC.................
C 328 87-010-404-080 CAP, ELECT 4.7-50V ABC.................
C 320 87-012-141-080 CHIP-CAPACITOR,0.22-16F ABC.................
C 322 87-016-492-080 C-CAP,S 0.33-16 FZ ABC.................
C 321 87-016-492-080 C-CAP,S 0.33-16 FZ ABC.................
C 332 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 337 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 339 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 335 87-010-401-080 CAP, ELECT 1-50V ABC.................
C 336 87-010-401-080 CAP, ELECT 1-50V ABC.................
C 340 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 354 87-010-175-080 CAP 560P ABC.................
C 358 87-010-183-080 C-CAP,S 2700P-50 B ABC.................
C 359 87-010-183-080 C-CAP,S 2700P-50 B ABC.................
C 357 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 356 87-010-260-080 CAP, ELECT 47-25V ABC.................
C 351 87-012-140-080 CAP 470P ABC.................
C 352 87-012-140-080 CAP 470P ABC.................
C 355 87-012-349-080 C-CAP,S 1000P-50 CH ABC.................
C 360 87-010-183-080 C-CAP,S 2700P-50 B ABC.................
C 372 87-010-175-080 CAP 560P ABC.................
C 371 87-010-175-080 CAP 560P ABC.................
C 373 87-010-179-080 CAP,CHIP S B1200P A.C.................
C 374 87-010-179-080 CAP,CHIP S B1200P A.C.................
C 378 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 370 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 379 87-010-382-080 CAP, ELECT 22-25V ....................
C 375 87-010-545-080 CAP, ELECT 0.22-50V ABC.................
C 376 87-010-545-080 CAP, ELECT 0.22-50V ABC.................
C 373 87-016-083-080 C-CAP,S 0.15-16 RK ....................
C 374 87-016-083-080 C-CAP,S 0.15-16 RK ....................
C 385 87-010-184-080 CHIP CAPACITOR 3300P(K) ABC.................
C 386 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 383 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 381 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 382 87-010-312-080 C-CAP,S 15P-50 CH ....................
C 382 87-010-318-080 C-CAP,S 47P-50 CH ABC.................
C 380 87-010-382-080 CAP, ELECT 22-25V ....................
C 384 87-010-402-080 CAP, ELECT 2.2-50V ABC.................
C 387 87-012-145-080 CAP, CHIP S 270P CH ....................
C 388 87-012-156-080 C-CAP,S 220P-50 CH ABC.................
C 393 87-010-319-080 C-CAP,S 56P-50 CH ....................
C 394 87-010-319-080 C-CAP,S 56P-50 CH ....................
C 391 87-010-319-080 C-CAP,S 56P-50 CH ....................
C 392 87-010-319-080 C-CAP,S 56P-50 CH ....................
C 391 87-012-145-080 CAP, CHIP S 270P CH ABC.................
C 393 87-012-145-080 CAP, CHIP S 270P CH ABC.................
C 392 87-012-145-080 CAP, CHIP S 270P CH ABC.................
C 394 87-012-145-080 CAP, CHIP S 270P CH ABC.................
CN 301 87-099-827-010 CONN,3P S2M-3W ABC.................
ELECTRICAL MAIN PARTS LIST - 5/10
CN 351 87-099-832-010 CONN,8P S2M-8W ABC.................
D 352 87-A40-269-080 C-DIODE,MC2836 ABC.................
FB 301 87-008-372-080 FILTER, EMI BL OIRNI ABC.................
IC 302 87-A20-355-010 IC,CXA1553P ABC.................
IC 303 87-A20-783-040 C-IC,BA7762AFS ABC.................
L 301 87-A50-049-010 COIL,TRAP 85K(COI) ABC.................
L 302 87-A50-049-010 COIL,TRAP 85K(COI) ABC.................
L 351 87-007-342-010 COIL,OSC 85K BIAS ABC.................
Q 357 87-026-610-080 TR,KTC3198GR ABC.................
Q 358 87-026-610-080 TR,KTC3198GR ABC.................
Q 359 87-026-610-080 TR,KTC3198GR ABC.................
Q 356 87-A30-076-080 C-TR,2SC3052F ABC.................
Q 354 87-A30-087-080 C-FET,2SK2158 ABC.................
Q 351 87-A30-087-080 C-FET,2SK2158 ABC.................
Q 353 87-A30-087-080 C-FET,2SK2158 ABC.................
Q 355 87-A30-105-080 C-TR,RT1P 441C ABC.................
Q 383 87-A30-075-080 C-TR,2SA1235F ....................
Q 382 87-A30-076-080 C-TR,2SC3052F ABC.................
Q 381 87-A30-076-080 C-TR,2SC3052F ABC.................
SFR 305 87-A90-433-080 SFR,50K H NVZ6TLTA ABC.................
SFR 306 87-A90-433-080 SFR,50K H NVZ6TLTA ABC.................
SFR 302 87-A90-557-080 SFR,33K H HOKU ABC.................
SFR 304 87-A90-557-080 SFR,33K H HOKU ABC.................
SFR 303 87-A90-557-080 SFR,33K H HOKU ABC.................
SFR 301 87-A90-557-080 SFR,33K H HOKU ABC.................
SFR 351 87-A90-433-080 SFR,50K H NVZ6TLTA ABC.................
SFR 352 87-A90-433-080 SFR,50K H NVZ6TLTA ABC.................
C 407 87-010-188-080 CAP,CHIP 6800P ABC.................
C 408 87-010-188-080 CAP,CHIP 6800P ABC.................
C 401 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 402 87-010-260-080 CAP, ELECT 47-25V ABC.................
C 404 87-010-404-080 CAP, ELECT 4.7-50V ABC.................
C 406 87-010-404-080 CAP, ELECT 4.7-50V ABC.................
C 405 87-010-404-080 CAP, ELECT 4.7-50V ABC.................
C 403 87-010-404-080 CAP, ELECT 4.7-50V ABC.................
C 409 87-012-140-080 CAP 470P ABC.................
C 416 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 415 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 419 87-010-260-080 CAP, ELECT 47-25V ABC.................
C 411 87-010-404-080 CAP, ELECT 4.7-50V ABC.................
C 414 87-010-404-080 CAP, ELECT 4.7-50V ABC.................
C 413 87-010-404-080 CAP, ELECT 4.7-50V ABC.................
C 412 87-010-404-080 CAP, ELECT 4.7-50V ABC.................
C 417 87-010-956-080 CHIP-CAP,S 0.068-25B ABC.................
C 418 87-010-956-080 CHIP-CAP,S 0.068-25B ABC.................
C 410 87-012-140-080 CAP 470P ABC.................
C 422 87-012-156-080 C-CAP,S 220P-50 CH ABC.................
C 421 87-012-156-080 C-CAP,S 220P-50 CH ABC.................
D 402 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 401 87-A40-269-080 C-DIODE,MC2836 ABC.................
IC 401 87-A21-022-040 C-IC,BA3880FS ABC.................
C 457 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 458 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 451 87-010-401-080 CAP, ELECT 1-50V ABC.................
C 452 87-010-401-080 CAP, ELECT 1-50V ABC.................
C 451 87-010-404-080 CAP, ELECT 4.7-50V ....................
C 452 87-010-404-080 CAP, ELECT 4.7-50V ....................
C 459 87-A10-299-080 CAP,M 0.022-50 J ABC.................
C 456 87-A10-305-080 CAP,M 0.068-50 J ABC.................
C 455 87-A10-305-080 CAP,M 0.068-50 J ABC.................
C 466 87-A10-299-080 CAP,M 0.022-50 J ABC.................
C 465 87-A10-299-080 CAP,M 0.022-50 J ABC.................
C 460 87-A10-299-080 CAP,M 0.022-50 J ABC.................
C 481 87-010-322-080 C-CAP,S 100P-50 CH ABC.................
IC 451 87-A21-031-040 C-IC,BU4551BF ABC.................
87-067-579-010 TAPPING SCREW, BVT2+3-8 ABC.................
87-067-689-010 TAPPING SCREW, BVTT+3-8 ....................
8Z-NF8-669-110 CONN ASSY,9P VH .B..................
C 9 87-010-928-000 CAP,E 4700-25 M SMG ABC.................
C 4 87-012-368-080 C-CAP,S 0.1-50 F ABC.................
C 6 87-012-368-080 C-CAP,S 0.1-50 F ABC.................
C 3 87-012-368-080 C-CAP,S 0.1-50 F ABC.................
C 5 87-012-368-080 C-CAP,S 0.1-50 F ABC.................
C 2 87-012-369-080 C-CAP,S 0.047-50F ABC.................
C 1 87-012-369-080 C-CAP,S 0.047-50F ABC.................
C 10 87-010-928-000 CAP,E 4700-25 M SMG ABC.................
C 27 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 26 87-010-263-080 CAP, ELECT 100-10V ABC.................
C 28 87-010-263-080 CAP, ELECT 100-10V ....................
C 29 87-010-384-080 CAP, ELECT 100-25V ABC.................
C 23 87-010-385-080 CAP, ELECT 220-25V ABC.................
C 22 87-010-385-080 CAP, ELECT 220-25V ABC.................
C 24 87-010-385-080 CAP, ELECT 220-25V ABC.................
C 21 87-010-385-080 CAP, ELECT 220-25V ABC.................
C 25 87-010-409-080 CAP,E 220-50 SME ABC.................
C 27 87-012-140-080 CAP 470P ....................
C 30 87-010-112-080 CAP, ELECT 100-16V ABC.................
C 31 87-010-235-080 CAP,E 470-16 SME ABC.................
C 61 87-010-260-080 CAP, ELECT 47-25V ABC.................
C 62 87-010-496-080 CAP,E 3.3-50 5L ABC.................
CNA 1 8Z-NF8-669-110 CONN ASSY,9P VH A.C.................
D 9 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
ELECTRICAL MAIN PARTS LIST - 6/10
D 8 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 6 87-070-274-080 DIODE,1N4003 SEM ABC.................
D 3 87-070-274-080 DIODE,1N4003 SEM ABC.................
D 5 87-070-274-080 DIODE,1N4003 SEM ABC.................
D 4 87-070-274-080 DIODE,1N4003 SEM ABC.................
D 7 87-A40-341-080 ZENER,MTZJ 36 A ABC.................
D 1 87-A40-547-090 DIODE,D5SBA20 ABC.................
D 10 87-A40-345-080 ZENER,MTZJ10C ABC.................
D 64 87-070-274-080 DIODE,1N4003 SEM ABC.................
D 62 87-A40-269-080 C-DIODE,MC2836 ABC.................
D 61 87-A40-270-080 C-DIODE,MC2838 ABC.................
D 99 87-A40-336-080 ZENER,MTZJ27D T-72 ....................
Q 1 87-026-609-080 TR,KTA1266GR ABC.................
Q 2 87-026-609-080 TR,KTA1266GR ABC.................
Q 5 87-026-610-080 TR,KTC3198GR ABC.................
Q 7 87-A30-075-080 C-TR,2SA1235F ....................
Q 8 87-A30-075-080 C-TR,2SA1235F ABC.................
Q 6 87-A30-076-080 C-TR,2SC3052F ABC.................
Q 9 87-A30-234-080 TR,CSC4115BC ABC.................
Q 3 89-213-702-010 TR,2SB1370 (1.8W) ABC.................
Q 4 89-213-702-010 TR,2SB1370 (1.8W) ABC.................
Q 66 87-A30-075-080 C-TR,2SA1235F ABC.................
Q 64 87-A30-075-080 C-TR,2SA1235F ABC.................
Q 67 87-A30-076-080 C-TR,2SC3052F ABC.................
Q 65 87-A30-076-080 C-TR,2SC3052F ABC.................
Q 63 87-A30-076-080 C-TR,2SC3052F ABC.................
R 20 87-A00-261-080 RES,M/F 0.56-1W J ....................
WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P ABC.................
87-067-703-010 TAPPING SCREW, BVT2+3-10 ABC.................
C 33 87-010-405-080 CAP, ELECT 10-50V ABC.................
C 34 87-010-405-080 CAP, ELECT 10-50V ABC.................
C 32 87-012-368-080 C-CAP,S 0.1-50 F ABC.................
C 34 87-016-299-080 CAP,E 10-100 SME ....................
C 33 87-016-299-080 CAP,E 10-100 SME ....................
C 102 87-010-178-080 CHIP CAP 1000P ABC.................
C 101 87-010-178-080 CHIP CAP 1000P ABC.................
C 102 87-010-183-080 C-CAP,S 2700P-50 B ....................
C 101 87-010-183-080 C-CAP,S 2700P-50 B ....................
C 106 87-010-186-080 CAP,CHIP 4700P ....................
C 105 87-010-186-080 CAP,CHIP 4700P ....................
C 109 87-010-322-080 C-CAP,S 100P-50 CH ABC.................
C 103 87-010-400-080 CAP, ELECT 0.47-50V ....................
C 104 87-010-400-080 CAP, ELECT 0.47-50V ....................
C 108 87-010-403-080 CAP, ELECT 3.3-50V ....................
C 107 87-010-403-080 CAP, ELECT 3.3-50V ....................
C 103 87-010-405-080 CAP, ELECT 10-50V ABC.................
C 104 87-010-405-080 CAP, ELECT 10-50V ABC.................
C 108 87-010-408-080 CAP, ELECT 47-50V ABC.................
C 107 87-010-408-080 CAP, ELECT 47-50V ABC.................
C 112 87-010-260-080 CAP, ELECT 47-25V ABC.................
C 111 87-010-260-080 CAP, ELECT 47-25V ABC.................
C 110 87-010-322-080 C-CAP,S 100P-50 CH ABC.................
C 118 87-016-247-080 C-CAP,0.1-50 F ABC.................
C 117 87-016-247-080 C-CAP,0.1-50 F ABC.................
C 114 87-A10-812-080 C-CAP,S 220P-200 J CH ABC.................
C 113 87-A10-812-080 C-CAP,S 220P-200 J CH ABC.................
C 123 87-010-176-080 C-CAP,S 680P-50 SL ABC.................
C 124 87-010-176-080 C-CAP,S 680P-50 SL ABC.................
C 121 87-010-178-080 CHIP CAP 1000P ABC.................
C 122 87-010-178-080 CHIP CAP 1000P ABC.................
C 129 87-010-191-080 C-CAP,S 0.015-50 F ABC.................
C 126 87-012-368-080 C-CAP,S 0.1-50 F ABC.................
C 127 87-012-368-080 C-CAP,S 0.1-50 F ABC.................
C 128 87-012-368-080 C-CAP,S 0.1-50 F ABC.................
C 125 87-012-368-080 C-CAP,S 0.1-50 F ABC.................
C 130 87-010-191-080 C-CAP,S 0.015-50 F ABC.................
C 136 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 133 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 131 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 132 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
D 14 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 15 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 12 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 11 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 13 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 19 87-A40-183-090 DIODE,RK36(F) ABC.................
D 16 87-A40-345-080 ZENER,MTZJ10C ABC.................
D 24 87-070-136-080 ZENER,MTZJ5.1B ABC.................
D 23 87-070-136-080 ZENER,MTZJ5.1B ABC.................
D 20 87-A40-183-090 DIODE,RK36(F) ABC.................
D 25 87-A40-345-080 ZENER,MTZJ10C ABC.................
D 25 87-A40-346-080 ZENER,MTZJ 8.2C ....................
D 24 87-A40-438-080 ZENER,MTZJ4.7A ....................
D 25 87-A40-442-080 ZENER,MTZJ9.1A ....................
D 102 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 104 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 103 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 109 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 101 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 107 87-A40-488-080 DIODE,1SS244 ABC.................
D 108 87-A40-488-080 DIODE,1SS244 ABC.................
D 111 87-020-331-080 CHIP-DIODE,DAN202K ....................
ELECTRICAL MAIN PARTS LIST - 7/10
D 117 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 114 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 115 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 112 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 110 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 113 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 116 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 111 87-A40-270-080 C-DIODE,MC2838 ABC.................
J 203 87-033-240-010 TERMINAL,SP 4P32SV1-05 ABC.................
J 201 87-A60-483-010 JACK,DIA6.3 BLK ST W/S KM ABC.................
J 201 87-A60-488-010 JACK,DIA6.3 BLK ST W/SW KM16AT ....................
L 101 87-003-383-010 COIL,1UH-S ABC.................
L 102 87-003-383-010 COIL,1UH-S ABC.................
Q 10 87-A30-072-080 C-TR,RT1P 144C ABC.................
Q 12 87-A30-075-080 C-TR,2SA1235F ABC.................
Q 11 87-A30-076-080 C-TR,2SC3052F ABC.................
Q 14 87-A30-162-010 FET,2SK2937 ABC.................
Q 13 87-A30-162-010 FET,2SK2937 ABC.................
Q 61 87-A30-074-080 C-TR,RT1P 141C ABC.................
Q 62 87-A30-075-080 C-TR,2SA1235F ABC.................
Q 62 87-A30-107-070 C-TR,CMBT5401 ....................
Q 103 87-A30-075-080 C-TR,2SA1235F ABC.................
Q 106 87-A30-075-080 C-TR,2SA1235F ABC.................
Q 104 87-A30-075-080 C-TR,2SA1235F ABC.................
Q 105 87-A30-075-080 C-TR,2SA1235F ABC.................
Q 108 87-A30-076-080 C-TR,2SC3052F ABC.................
Q 107 87-A30-076-080 C-TR,2SC3052F ABC.................
Q 109 87-A30-076-080 C-TR,2SC3052F ABC.................
Q 101 87-A30-086-070 C-TR,CSD1306E ABC.................
Q 102 87-A30-086-070 C-TR,CSD1306E ABC.................
Q 104 87-A30-107-070 C-TR,CMBT5401 ....................
Q 105 87-A30-107-070 C-TR,CMBT5401 ....................
Q 106 87-A30-107-070 C-TR,CMBT5401 ....................
Q 103 87-A30-107-070 C-TR,CMBT5401 ....................
Q 110 87-A30-076-080 C-TR,2SC3052F ABC.................
Q 119 87-A30-097-010 TR,FN 1016 ....................
Q 119 87-A30-137-010 TR,2SD2494 ABC.................
Q 112 87-A30-190-080 TR,CC5551 ABC.................
Q 111 87-A30-190-080 TR,CC5551 ABC.................
Q 127 87-A30-075-080 C-TR,2SA1235F ABC.................
Q 129 87-A30-076-080 C-TR,2SC3052F ABC.................
Q 128 87-A30-076-080 C-TR,2SC3052F ABC.................
Q 120 87-A30-097-010 TR,FN 1016 ....................
Q 121 87-A30-098-010 TR,FP 1016 ....................
Q 122 87-A30-098-010 TR,FP 1016 ....................
Q 123 87-A30-106-070 C-TR,CMBT5551 ABC.................
Q 124 87-A30-106-070 C-TR,CMBT5551 ABC.................
Q 126 87-A30-107-070 C-TR,CMBT5401 ABC.................
Q 120 87-A30-137-010 TR,2SD2494 ABC.................
Q 121 87-A30-138-010 TR,2SB1625 ABC.................
Q 122 87-A30-138-010 TR,2SB1625 ABC.................
Q 130 87-A30-076-080 C-TR,2SC3052F ABC.................
Q 131 87-A30-076-080 C-TR,2SC3052F ABC.................
R 129 87-A00-257-080 RES,M/F 0.15-1W J ABC.................
R 129 87-A00-262-080 RES,M/F 0.15-2W J ....................
R 131 87-A00-257-080 RES,M/F 0.15-1W J ABC.................
R 132 87-A00-257-080 RES,M/F 0.15-1W J ABC.................
R 130 87-A00-257-080 RES,M/F 0.15-1W J ABC.................
R 130 87-A00-262-080 RES,M/F 0.15-2W J ....................
R 131 87-A00-262-080 RES,M/F 0.15-2W J ....................
R 132 87-A00-262-080 RES,M/F 0.15-2W J ....................
R 146 87-A00-440-050 RES,220-1/2W J RP ABC.................
R 144 87-A00-440-050 RES,220-1/2W J RP ABC.................
R 145 87-A00-440-050 RES,220-1/2W J RP ABC.................
R 143 87-A00-440-050 RES,220-1/2W J RP ABC.................
R 166 87-A00-257-080 RES,M/F 0.15-1W J ABC.................
R 165 87-A00-257-080 RES,M/F 0.15-1W J ABC.................
R 165 87-A00-262-080 RES,M/F 0.15-2W J ....................
R 166 87-A00-262-080 RES,M/F 0.15-2W J ....................
TH 101 87-A91-042-080 C-THMS,100K 55001 ABC.................
TH 102 87-A91-042-080 C-THMS,100K 55001 ABC.................
C 204 87-010-177-080 C-CAP,S 820P-50 SL ABC.................
C 203 87-010-177-080 C-CAP,S 820P-50 SL ABC.................
C 209 87-010-403-080 CAP, ELECT 3.3-50V ABC.................
C 211 87-010-181-080 CAP,CHIP S 1800P ABC.................
C 212 87-010-181-080 CAP,CHIP S 1800P ABC.................
C 218 87-010-260-080 CAP, ELECT 47-25V ABC.................
C 217 87-010-260-080 CAP, ELECT 47-25V ABC.................
C 216 87-010-322-080 C-CAP,S 100P-50 CH ABC.................
C 215 87-010-322-080 C-CAP,S 100P-50 CH ABC.................
C 213 87-010-403-080 CAP, ELECT 3.3-50V ABC.................
C 214 87-010-403-080 CAP, ELECT 3.3-50V ABC.................
C 210 87-010-403-080 CAP, ELECT 3.3-50V ABC.................
C 219 87-A10-946-080 C-CAP,S 220P-100 J CH ABC.................
C 227 87-010-186-080 CAP,CHIP 4700P ABC.................
C 228 87-010-186-080 CAP,CHIP 4700P ABC.................
C 229 87-010-993-080 C-CAP,S 0.056-25 B ABC.................
C 226 87-012-368-080 C-CAP,S 0.1-50 F ABC.................
C 225 87-012-368-080 C-CAP,S 0.1-50 F ABC.................
C 220 87-A10-946-080 C-CAP,S 220P-100 J CH ABC.................
C 234 87-010-190-080 S CHIP F 0.01 ABC.................
C 233 87-010-190-080 S CHIP F 0.01 ABC.................
ELECTRICAL MAIN PARTS LIST - 8/10
C 239 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 231 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 232 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 238 87-010-322-080 C-CAP,S 100P-50 CH ABC.................
C 237 87-010-322-080 C-CAP,S 100P-50 CH ABC.................
C 230 87-010-993-080 C-CAP,S 0.056-25 B ABC.................
C 236 87-016-285-080 CAP,E 47-100SME ABC.................
C 235 87-016-285-080 CAP,E 47-100SME ABC.................
D 209 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 204 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 203 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 201 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 202 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 208 87-A40-488-080 DIODE,1SS244 ABC.................
D 207 87-A40-488-080 DIODE,1SS244 ABC.................
D 211 87-020-331-080 CHIP-DIODE,DAN202K ....................
D 210 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 214 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 212 87-020-465-080 DIODE,1SS133 (110MA) A.C.................
D 211 87-A40-270-080 C-DIODE,MC2838 ABC.................
J 204 87-A60-641-010 JACK,PIN 4P R/W/B JALCO ....................
J 204 87-A60-750-010 JACK,PIN 4P R/W BLUE ABC.................
L 201 87-003-383-010 COIL,1UH-S ABC.................
L 202 87-003-383-010 COIL,1UH-S ABC.................
Q 204 87-A30-075-080 C-TR,2SA1235F ABC.................
Q 205 87-A30-075-080 C-TR,2SA1235F ABC.................
Q 206 87-A30-075-080 C-TR,2SA1235F ABC.................
Q 203 87-A30-075-080 C-TR,2SA1235F ABC.................
Q 209 87-A30-076-080 C-TR,2SC3052F ABC.................
Q 208 87-A30-076-080 C-TR,2SC3052F ABC.................
Q 207 87-A30-076-080 C-TR,2SC3052F ABC.................
Q 201 87-A30-086-070 C-TR,CSD1306E ABC.................
Q 202 87-A30-086-070 C-TR,CSD1306E ABC.................
Q 210 87-A30-076-080 C-TR,2SC3052F ABC.................
Q 219 87-A30-106-070 C-TR,CMBT5551 ABC.................
Q 211 87-A30-190-080 TR,CC5551 ABC.................
Q 212 87-A30-190-080 TR,CC5551 ABC.................
Q 218 87-A30-255-010 TR,2SB1342 ABC.................
Q 217 87-A30-255-010 TR,2SB1342 ABC.................
Q 216 87-A30-256-010 TR,2SD1933 ABC.................
Q 215 87-A30-256-010 TR,2SD1933 ABC.................
Q 221 87-A30-073-080 C-TR,RT1N 141C A.C.................
Q 226 87-A30-076-080 C-TR,2SC3052F ABC.................
Q 227 87-A30-076-080 C-TR,2SC3052F ABC.................
Q 225 87-A30-076-080 C-TR,2SC3052F ABC.................
Q 224 87-A30-076-080 C-TR,2SC3052F ABC.................
Q 220 87-A30-106-070 C-TR,CMBT5551 ABC.................
R 231 87-A00-258-080 RES,M/F 0.22-1W J ABC.................
R 232 87-A00-258-080 RES,M/F 0.22-1W J ABC.................
R 233 87-A00-258-080 RES,M/F 0.22-1W J ABC.................
R 234 87-A00-258-080 RES,M/F 0.22-1W J ABC.................
R 265 87-A00-258-080 RES,M/F 0.22-1W J ABC.................
R 266 87-A00-258-080 RES,M/F 0.22-1W J ABC.................
RY 201 87-045-382-010 RELAY,OUAZ-SH-112L A.C.................
C 602 87-010-181-080 CAP,CHIP S 1800P ....................
C 601 87-010-181-080 CAP,CHIP S 1800P ....................
C 602 87-010-183-080 C-CAP,S 2700P-50 B ABC.................
C 601 87-010-183-080 C-CAP,S 2700P-50 B ABC.................
C 603 87-010-186-080 CAP,CHIP 4700P ABC.................
C 604 87-010-186-080 CAP,CHIP 4700P ABC.................
C 619 87-010-185-080 C-CAP,S 3900P-50 B ABC.................
C 611 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 613 87-016-081-080 C-CAP,S 0.1-16 RK ABC.................
C 614 87-016-081-080 C-CAP,S 0.1-16 RK ABC.................
C 617 87-A10-305-080 CAP,M 0.068-50 J ABC.................
C 618 87-A10-305-080 CAP,M 0.068-50 J ABC.................
C 620 87-010-185-080 C-CAP,S 3900P-50 B ABC.................
C 627 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 621 87-010-401-080 CAP, ELECT 1-50V ABC.................
C 622 87-010-401-080 CAP, ELECT 1-50V ABC.................
C 626 87-010-401-080 CAP, ELECT 1-50V ABC.................
C 625 87-010-401-080 CAP, ELECT 1-50V ABC.................
C 629 87-010-405-080 CAP, ELECT 10-50V ABC.................
C 623 87-A10-307-080 CAP,M 0.1-50 J ABC.................
C 624 87-A10-307-080 CAP,M 0.1-50 J ABC.................
C 637 87-010-183-080 C-CAP,S 2700P-50 B ABC.................
C 634 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 635 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 630 87-010-213-080 C-CAP,S 0.015-50 B ABC.................
C 632 87-010-263-080 CAP, ELECT 100-10V ABC.................
C 633 87-010-263-080 CAP, ELECT 100-10V ABC.................
C 636 87-010-992-080 C-CAP,S 0.047-25 B ABC.................
C 631 87-010-992-080 C-CAP,S 0.047-25 B ABC.................
C 641 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 640 87-010-314-080 C-CAP,S 22P-50V ABC.................
C 669 87-010-322-080 C-CAP,S 100P-50 CH ABC.................
C 677 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 678 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 671 87-010-322-080 C-CAP,S 100P-50 CH ABC.................
C 672 87-010-322-080 C-CAP,S 100P-50 CH ABC.................
C 670 87-010-322-080 C-CAP,S 100P-50 CH ABC.................
C 680 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
ELECTRICAL MAIN PARTS LIST - 9/10
CN 604 87-099-570-010 CONN,13P TUC-P13P-B1 .BC.................
CN 601 87-099-719-010 CONN,30P TYK-B(X) ABC.................
CN 602 87-A60-131-010 CONN,6P V FE ABC.................
CN 605 87-A60-189-010 CONN,16P V TUC-P16P-B1 A...................
D 601 87-A40-002-080 ZENER,MTZJ5.1C ABC.................
D 603 87-A40-234-080 ZENER,MTZJ5.6A ABC.................
D 602 87-A40-438-080 ZENER,MTZJ4.7A ABC.................
IC 601 87-A21-202-040 C-IC,M62445AFP ABC.................
J 601 87-A60-402-010 JACK,PIN 6P R/W HSP-246V30 ABC.................
Q 601 87-026-609-080 TR,KTA1266GR ABC.................
Q 603 87-A30-087-080 C-FET,2SK2158 A...................
Q 604 87-A30-142-040 C-TR,DTA123EKA ABC.................
Q 602 87-A30-269-040 C-FET,2SJ461-T1 A...................
C 707 87-010-180-080 C-CER 1500P A.C.................
C 702 87-010-196-080 CHIP CAPACITOR,0.1-25 A.C.................
C 706 87-010-197-080 CAP, CHIP 0.01 DM A.C.................
C 708 87-010-213-080 C-CAP,S 0.015-50 B A.C.................
C 709 87-010-213-080 C-CAP,S 0.015-50 B A.C.................
C 701 87-010-263-080 CAP, ELECT 100-10V A.C.................
C 703 87-010-319-080 C-CAP,S 56P-50 CH A.C.................
C 704 87-010-319-080 C-CAP,S 56P-50 CH A.C.................
C 705 87-012-393-080 C-CAP,S 0.22-16 R K A.C.................
C 711 87-010-181-080 CAP,CHIP S 1800P A.C.................
C 717 87-010-183-080 C-CAP,S 2700P-50 B A.C.................
C 718 87-010-183-080 C-CAP,S 2700P-50 B A.C.................
C 712 87-010-196-080 CHIP CAPACITOR,0.1-25 A.C.................
C 710 87-010-197-080 CAP, CHIP 0.01 DM A.C.................
C 714 87-010-374-080 CAP, ELECT 47-10V A.C.................
C 716 87-010-494-080 CAP ELECT GAS 1/50 A.C.................
C 715 87-010-494-080 CAP ELECT GAS 1/50 A.C.................
C 713 87-010-544-080 CAP, ELECT 0.1-50V A.C.................
C 735 87-010-178-080 CHIP CAP 1000P A.C.................
C 736 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 733 87-010-196-080 CHIP CAPACITOR,0.1-25 A.C.................
C 731 87-010-498-080 CAP,E 10-16 GAS A.C.................
C 734 87-012-156-080 C-CAP,S 220P-50 CH A.C.................
C 741 87-010-178-080 CHIP CAP 1000P A.C.................
D 701 87-017-931-080 ZENER,MTZJ5.6B A.C.................
IC 701 87-A20-613-040 C-IC,BU9262AFS A.C.................
JW 703 87-008-372-080 FILTER, EMI BL OIRNI A.C.................
L 701 87-005-448-080 COIL 220UH,K A.C.................
Q 732 87-A30-075-080 C-TR,2SA1235F A.C.................
Q 731 87-A30-076-080 C-TR,2SC3052F A.C.................
C 27 87-012-140-080 CAP 470P ....................
C 101 87-010-178-080 CHIP CAP 1000P ....................
C 102 87-010-178-080 CHIP CAP 1000P ....................
C 122 87-010-178-080 CHIP CAP 1000P ....................
C 121 87-010-178-080 CHIP CAP 1000P ....................
C 136 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 133 87-010-197-080 CAP, CHIP 0.01 DM ....................
C 203 87-010-177-080 C-CAP,S 820P-50 SL ....................
C 204 87-010-177-080 C-CAP,S 820P-50 SL ....................
C 211 87-010-181-080 CAP,CHIP S 1800P ....................
C 212 87-010-181-080 CAP,CHIP S 1800P ....................
C 227 87-010-186-080 CAP,CHIP 4700P ....................
C 228 87-010-186-080 CAP,CHIP 4700P ....................
C 232 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 231 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 307 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 309 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 302 87-010-318-080 C-CAP,S 47P-50 CH ....................
C 301 87-010-318-080 C-CAP,S 47P-50 CH ....................
C 305 87-012-145-080 CAP, CHIP S 270P CH ....................
C 306 87-012-145-080 CAP, CHIP S 270P CH ....................
C 304 87-012-157-080 C-CAP,S 330P-50 CH ....................
C 303 87-012-157-080 C-CAP,S 330P-50 CH ....................
C 314 87-010-179-080 CAP,CHIP S B1200P ....................
C 316 87-010-179-080 CAP,CHIP S B1200P ....................
C 315 87-010-179-080 CAP,CHIP S B1200P ....................
C 313 87-010-179-080 CAP,CHIP S B1200P ....................
C 310 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 312 87-010-198-080 CAP, CHIP 0.022 ....................
C 311 87-010-198-080 CAP, CHIP 0.022 ....................
C 337 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 332 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 339 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 340 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 354 87-010-175-080 CAP 560P ....................
C 358 87-010-183-080 C-CAP,S 2700P-50 B ....................
C 359 87-010-183-080 C-CAP,S 2700P-50 B ....................
C 357 87-010-197-080 CAP, CHIP 0.01 DM ....................
C 352 87-012-140-080 CAP 470P ....................
C 351 87-012-140-080 CAP 470P ....................
C 360 87-010-183-080 C-CAP,S 2700P-50 B ....................
C 370 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 378 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 386 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 383 87-010-197-080 CAP, CHIP 0.01 DM ....................
C 381 87-010-197-080 CAP, CHIP 0.01 DM ....................
C 382 87-010-312-080 C-CAP,S 15P-50 CH ....................
C 387 87-012-145-080 CAP, CHIP S 270P CH ....................
C 388 87-012-156-080 C-CAP,S 220P-50 CH ....................
C 393 87-010-319-080 C-CAP,S 56P-50 CH ....................
C 392 87-010-319-080 C-CAP,S 56P-50 CH ....................
C 391 87-010-319-080 C-CAP,S 56P-50 CH ....................
C 394 87-010-319-080 C-CAP,S 56P-50 CH ....................
C 601 87-010-181-080 CAP,CHIP S 1800P ....................
C 602 87-010-181-080 CAP,CHIP S 1800P ....................
C 619 87-010-185-080 C-CAP,S 3900P-50 B ....................
C 611 87-010-197-080 CAP, CHIP 0.01 DM ....................
C 620 87-010-185-080 C-CAP,S 3900P-50 B ....................
C 627 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 637 87-010-183-080 C-CAP,S 2700P-50 B ....................
C 634 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 635 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 630 87-010-213-080 C-CAP,S 0.015-50 B ....................
C 641 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 640 87-010-314-080 C-CAP,S 22P-50V ....................
C 678 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 677 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 680 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 736 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 408 87-010-188-080 CAP,CHIP 6800P ....................
C 407 87-010-188-080 CAP,CHIP 6800P ....................
C 401 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 409 87-012-140-080 CAP 470P ....................
C 416 87-010-197-080 CAP, CHIP 0.01 DM ....................
C 415 87-010-197-080 CAP, CHIP 0.01 DM ....................
C 410 87-012-140-080 CAP 470P ....................
C 457 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 458 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
ELECTRICAL MAIN PARTS LIST - 10/10
ELECTRICAL MAIN PARTS LIST - 1/3 (TUNER: ZZA-1)
NOTE: The characters in the suffix column indicate the part usage.
ZRDS ...................XX.......................................F..............
EZKG ...................XX........................................G.............
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
C 701 87-010-381-080 0E CAP, ELECT 330-16V ABCDEFGH............
C 702 87-010-404-080 0E CAP, ELECT 4.7-50V ABCDEFGH............
C 711 87-010-260-080 0E CAP, ELECT 47-25V ABCD.FGH............
C 711 87-010-553-080 0E CAP,E 47-16 ....E...............
C 712 87-010-831-080 0E C-CAP,U,0.1-16F ABCDEFGH............
C 718 87-012-179-080 0E C-CAP,U 20P-50 CH .BCD................
C 727 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGH............
C 728 87-010-248-080 0E CAP, ELECT 220-10V ABCDEFGH............
C 722 87-012-176-080 0E CAP 15P ABCDEFGH............
C 721 87-012-176-080 0E CAP 15P ABCDEFGH............
C 720 87-012-195-080 0E C-CAP,U 100P-50CH ABCDEFGH............
C 729 87-012-274-080 0E CHIP CAP,U 1000P-50B ABCDEFGH............
C 725 87-018-131-080 0E CAP, CER 1000P-50V .....FG.............
C 806 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 805 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
CN 701 87-A60-650-010 1A CONN,16P H GRY TUC-P16X-C1 .....F..............
CN 701 87-A60-700-010 0E CONN,13P H GRY TUC-P13X-C1 ABCDE.GH............
D 721 87-017-149-080 0E ZENER,HZS6A2L .BCDEFGH............
D 722 87-020-465-080 0E DIODE,1SS133 (110MA) .....FG.............
D 721 87-A40-234-080 0E ZENER,MTZJ5.6A A...................
IC 721 87-070-127-110 1C IC,LC72131 D ABCDEFGH............
Q 712 87-A30-072-080 0E C-TR,RT1P 144C ....E...............
Q 713 87-A30-072-080 0E C-TR,RT1P 144C ....E...............
Q 711 87-A30-196-080 0E TR,2SC4115SRS A...................
Q 711 87-A30-234-080 0E TR,CSC4115BC .BCDEFGH............
X 721 87-A70-061-010 1A VIB,XTAL 4.500MHZ CSA-309 ABCDEFGH............
C 872 87-010-400-080 0E CAP, ELECT 0.47-50V AB.....H............
C 873 87-010-404-080 0E CAP, ELECT 4.7-50V AB.....H............
C 878 87-012-278-080 0E C-CAP,U 2200P-50 B AB.....H............
C 877 87-012-278-080 0E C-CAP,U 2200P-50 B AB.....H............
C 889 87-010-248-080 0E CAP, ELECT 220-10V AB.....H............
C 884 87-010-260-080 0E CAP, ELECT 47-25V AB.....H............
C 883 87-010-404-080 0E CAP, ELECT 4.7-50V AB.....H............
C 885 87-010-545-080 0E CAP, ELECT 0.22-50V A......H............
C 886 87-010-545-080 0E CAP, ELECT 0.22-50V A......H............
C 888 87-010-787-080 0E CAP, U 0.022-25 AB.....H............
C 881 87-012-141-080 0E CHIP-CAPACITOR,0.22-16F AB.....H............
C 882 87-012-172-080 0E CAPACITOR CHIP U 10P CH AB.....H............
C 887 87-012-286-080 0E CAP, U 0.01-25 AB.....H............
C 886 87-016-460-080 0E C-CAP,S 0.22-16 B .B..................
C 885 87-016-460-080 0E C-CAP,S 0.22-16 B .B..................
IC 871 87-070-060-040 1F IC,TA2040AF AB.....H............
Q 873 87-026-226-080 0E CHIP-TR,DTA143EK AB.....H............
X 891 87-030-394-010 1B VIB,CER CSA3.6MGF228 AB.....H............
C 705 87-010-213-080 0E C-CAP,S 0.015-50 B ....................
C 706 87-010-213-080 0E C-CAP,S 0.015-50 B ....................
C 705 87-A10-592-080 0E C-CAP,S 0.015-50 J B .BCDE...............
C 706 87-A10-592-080 0E C-CAP,S 0.015-50 J B .BCDE...............
C 734 87-010-180-080 0E C-CER 1500P ....................
C 738 87-010-180-080 0E C-CER 1500P ....................
C 737 87-010-180-080 0E C-CER 1500P ....................
C 733 87-010-180-080 0E C-CER 1500P ....................
C 735 87-010-213-080 0E C-CAP,S 0.015-50 B ....................
C 736 87-010-213-080 0E C-CAP,S 0.015-50 B ....................
C 733 87-010-987-080 0E C-CAP,S 1500P-50 CH .BCDE...............
C 735 87-010-987-080 0E C-CAP,S 1500P-50 CH .BCDE...............
C 734 87-010-987-080 0E C-CAP,S 1500P-50 CH .BCDE...............
C 736 87-010-987-080 0E C-CAP,S 1500P-50 CH .BCDE...............
C 734 87-012-280-080 0E CAP, U 3300P-50 .....FG.............
C 733 87-012-280-080 0E CAP, U 3300P-50 .....FG.............
C 738 87-A10-592-080 0E C-CAP,S 0.015-50 J B .BCDE...............
C 737 87-A10-592-080 0E C-CAP,S 0.015-50 J B .BCDE...............
C 752 87-010-220-080 0E C-CAP,S 0.018-25 B .B..E...............
C 751 87-010-220-080 0E C-CAP,S 0.018-25 B .B..E...............
C 758 87-012-167-080 0E C-CAP,U 5P-50 CH ABCDEFGH............
C 757 87-012-188-080 0E C-CAP,U 47P-50 CH ABCDEFGH............
C 753 87-012-195-080 0E C-CAP,U 100P-50CH .....FG.............
C 752 87-012-282-080 0E CAP, U 4700P-50 .....FG.............
C 756 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 751 87-012-365-080 0E C-CAP,S 0.027-25VBK ..CD................
C 752 87-012-365-080 0E C-CAP,S 0.027-25VBK ..CD................
C 766 87-010-197-080 0E CAP, CHIP 0.01 DM .....FG.............
C 769 87-010-260-080 0E CAP, ELECT 47-25V ABCDEFGH............
C 765 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 768 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 764 87-012-337-080 0E C-CAP,U 56P-50 CH ABCDE..H............
C 774 87-010-263-080 0E CAP, ELECT 100-10V ABCDEFGH............
C 771 87-010-383-080 0E CAP, ELECT 33-25V ABCDEFGH............
C 777 87-010-400-080 0E CAP, ELECT 0.47-50V ABCDE..H............
C 775 87-010-404-080 0E CAP, ELECT 4.7-50V ABCDEFGH............
C 777 87-010-493-040 0E CAP,E 0.47-50 GAS ....................
C 777 87-010-493-080 0E CAP,E 0.47-50 GAS .....FG.............
C 770 87-010-829-080 0E CAP, U 0.047-16 ABCDEFGH............
C 780 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGH............
C 786 87-010-401-080 0E CAP, ELECT 1-50V ABCDEFGH............
ELECTRICAL MAIN PARTS LIST - 2/3 (TUNER: ZZA-1)
C 785 87-010-401-080 0E CAP, ELECT 1-50V ABCDEFGH............
C 785 87-010-405-080 0E CAP, ELECT 10-50V ABCDEFGH............
C 786 87-010-405-080 0E CAP, ELECT 10-50V ABCDEFGH............
C 786 87-010-494-080 0E CAP ELECT GAS 1/50 ....E...............
C 785 87-010-494-080 0E CAP ELECT GAS 1/50 ....E...............
C 788 87-012-275-080 0E C-CAP,U 1200P-50 B ABCDEFGH............
C 787 87-012-275-080 0E C-CAP,U 1200P-50 B ABCDEFGH............
C 784 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 796 87-010-403-080 0E CAP, ELECT 3.3-50V ABCDEFGH............
C 794 87-010-406-080 0E CAP, ELECT 22-50 ABCDEFGH............
C 795 87-010-596-080 0E CAP, S 0.047-16 ..CDEFG.............
C 793 87-012-273-080 0E C-CAP,U 820P-50 B ABCDEFGH............
C 798 87-012-276-080 0E CAP, CHIP SS 1500 PBK A....FGH............
C 797 87-012-276-080 0E CAP, CHIP SS 1500 PBK A....FGH............
D 771 87-020-465-080 0E DIODE,1SS133 (110MA) ABCDEFGH............
D 773 87-A40-291-080 0E DIODE,1N4148 (CPT) ....................
IC 771 87-A20-913-010 1D IC,LA1837NL ABCDEFGH............
L 771 87-A50-266-010 1A COIL,FM DET-2N(TOK) ABCDEFGH............
L 772 87-A90-052-010 1C FLTR,CFMT-450A(TOK) ....E...............
L 772 87-A90-053-010 1C FLTR,PCFMT-060(TOK) AB.....H............
L 772 87-A90-733-010 1A FLTR,PCFAZH-450 (TOK) ....................
L 772 87-A91-110-010 1B FLTR,PCFJZH-450 (TOK) ..CD.FG.............
L 781 87-005-847-080 0E COIL,2.2UH(CECS) .....FG.............
L 792 87-A50-027-010 1A COIL,1 POLE MPX(TOK) .....FG.............
L 791 87-A50-027-010 1A COIL,1 POLE MPX(TOK) .....FG.............
X 771 87-030-354-010 1A VIB,CF BFU 450C ....E...............
C 859 87-012-286-080 0E CAP, U 0.01-25 .....F..............
C 865 87-010-196-080 0E CHIP CAPACITOR,0.1-25 .....F..............
C 866 87-010-405-080 0E CAP, ELECT 10-50V .....F..............
C 864 87-010-405-080 0E CAP, ELECT 10-50V .....F..............
C 869 87-012-180-080 0E C-CAP,U 22P-50 CH .....F..............
C 868 87-012-184-080 0E C-CAP,U 33P-50 CH .....F..............
C 862 87-012-199-080 0E CAP 220P .....F..............
C 861 87-012-199-080 0E CAP 220P .....F..............
C 863 87-012-270-080 0E CAP, U 470P-50 .....F..............
C 867 87-012-286-080 0E CAP, U 0.01-25 .....F..............
IC 851 87-A20-440-040 1H C-IC,BU1920FS .....F..............
L 851 87-005-847-080 0E COIL,2.2UH(CECS) .....F..............
Q 853 87-A30-076-080 0E C-TR,2SC3052F .....F..............
X 851 87-A70-091-010 1B VIB,XTAL 4.332MHZ CSA-309 .....F..............
C 808 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 809 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 801 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 803 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 807 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 804 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 802 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 810 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 820 87-010-260-080 0E CAP, ELECT 47-25V ABCDEFGH............
C 893 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 894 87-012-286-080 0E CAP, U 0.01-25 ABCDEFGH............
C 942 87-012-168-080 0E C-CAP,U 6P-50 CH .....FG.............
C 942 87-012-172-080 0E CAPACITOR CHIP U 10P CH ....................
C 941 87-012-180-080 0E C-CAP,U 22P-50 CH ....E...............
C 944 87-014-049-080 0E CAP,PP 470P-100 J ....................
C 944 87-014-051-080 0E CAPACITOR (PP), 560P ....E...............
C 949 87-A10-039-080 0E C-CAP,U 470P-50 J CH .....FG.............
C 958 87-010-197-080 0E CAP, CHIP 0.01 DM .....FG.............
C 956 87-010-263-080 0E CAP, ELECT 100-10V ....E...............
C 959 87-010-831-080 0E C-CAP,U,0.1-16F ....EFG.............
C 954 87-012-358-080 0E C-CAP,S 0.47-10 F Z ....E...............
C 950 87-014-073-080 0E CAP,PP 4700P-100 J ....E...............
C 963 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGH............
C 962 87-010-401-080 0E CAP, ELECT 1-50V .....FG.............
C 964 87-012-170-080 0E C-CAP,U 8P-50 CH A...................
C 961 87-012-174-080 0E CAP CHIP CERA SS 12P CHJ .BCD...H............
C 960 87-012-350-080 0E C-CAP,1-25 F ....E...............
CF 802 82-785-747-010 1A CF MS2 GHY R .....FG.............
CF 802 87-008-261-010 1A FILTER, SFE10.7MA5-A ABCDE..H............
CF 801 87-008-261-010 1A FILTER, SFE10.7MA5-A ABCDE..H............
CF 801 87-008-423-010 1A CERAMIC FILTER, SFE10.7 .....FG.............
D 944 87-020-465-080 0E DIODE,1SS133 (110MA) ....EFG.............
D 942 87-A40-270-080 0E C-DIODE,MC2838 .....FG.............
D 981 87-A40-618-080 1B VARI-CAP,SVC 348(S/T) ....E...............
FFE 801 A8-6ZA-190-030 0E 6ZA-1 FEUNM ....................
FFE 801 A8-6ZA-191-130 6ZA-1 FEENM .....FG.............
FFE 801 A8-6ZA-192-030 2Y 6ZA-1 FEJNM .B..................
FFE 801 A8-6ZA-193-130 6ZA-1 FEVNM ....................
FFE 801 A8-6ZA-199-170 6ZA-1 FEENC ....................
FFE 801 A8-6ZA-19A-070 6ZA-1 FEJNC ....................
FFE 801 A8-6ZA-19D-070 1H 6ZA-1 YFEJNC A......H............
FFE 801 A8-8ZA-190-030 8ZA-1 FEUNM ..C.E...............
FFE 801 A8-8ZA-192-070 8ZA-1 FEUNC ....................
FFE 801 A8-8ZA-193-070 1E 8ZA-1 YFEUNC ...D................
J 801 87-033-241-010 1B TERMINAL,ANT AJ-2039 .....FG.............
J 801 87-A60-702-010 1B TERMINAL,ANT 4P CJ-9036 ABCD...H............
J 801 87-A60-703-010 1A TERMINAL,ANT 3P CJ-9037 ....E...............
J 940 81-754-629-010 0E CONNECTOR, 2P ....E...............
L 832 87-005-847-080 0E COIL,2.2UH(CECS) .....FG.............
L 943 87-005-372-080 0E COIL S 1MHM ....................
L 942 87-A50-019-010 0E COIL,OSC LW(COI) .....FG.............
L 941 87-A50-020-010 0E COIL,ANT LW(COI) .....FG.............
ELECTRICAL MAIN PARTS LIST - 3/3 (TUNER: ZZA-1)
L 941 87-A50-022-010 0E COIL,ANT SW(COI) ....E...............
L 944 87-A50-159-010 0E COIL,10MH K C2B ....E...............
L 942 87-A50-173-010 0E COIL,OSC SW-N(COI) ....E...............
L 943 87-A50-432-010 0E COIL,1MH K CW ....E...............
L 981 87-A50-430-010 0E COIL,ANT MW(3BSW) ....E...............
L 982 87-A50-431-010 0E COIL,OSC MW(3BSW) ....E...............
L 981 87-NF4-650-010 1D COIL,AM PACK 4N(TOK) A...................
L 981 87-NF4-651-010 1C COIL,AM PACK2N(TOM) ....................
L 981 88-NF8-625-110 1D COIL,AM PACK3N(TOK) ....................
L 981 8Z-ZA1-664-010 1D COIL,AM PACK 4(TOK) .BCD...H............
L 981 8Z-ZA1-665-010 1E COIL,AM PACK 2(TOK) .....FG.............
Q 712 87-A30-072-080 0E C-TR,RT1P 144C ABCD.FGH............
Q 805 89-327-143-080 0E TR,2SC2714 (0.1W) ABCDEFGH............
Q 942 87-A30-075-080 0E C-TR,2SA1235F ....E...............
Q 943 87-A30-075-080 0E C-TR,2SA1235F ....E...............
Q 944 87-A30-076-080 0E C-TR,2SC3052F ....E...............
Q 945 87-A30-076-080 0E C-TR,2SC3052F ....E...............
Q 949 87-A30-076-080 0E C-TR,2SC3052F ....E...............
Q 948 87-A30-086-070 0E C-TR,CSD1306E ....EFG.............
Q 947 89-503-602-080 1A C-FET,2SK360E ....E...............
Q 947 89-505-434-540 0E C-FET,2SK543(4/5) .....FG.............
Q 951 87-A30-074-080 0E C-TR,RT1P 141C ....EFG.............
TC 942 87-011-164-010 0E CAPACITOR,TRIMMER 30P .....FG.............
TC 941 87-011-173-010 1A CERAMIC TRIMMER 20P ....................
TC 941 87-011-220-080 1A TRIMMER CAP 20P VTC ....E...............
TC 943 87-011-221-080 1A CAP, TRIMMER 30P ....E...............
MECHANICAL PARTS LIST - 1/2
NOTE: The characters in the suffix column indicate the part usage.
778HS ..................XX..................................A...................
777G ...................XX...................................B..................
777EZ ..................XX....................................C.................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
82-NE6-067-010 BADGE,AIWA 30N ABC.................
86-NF6-007-010 WINDOW,TOP ABC.................
86-NF6-101-110 WINDOW,TOP UL ....................
8Z-NB8-011-210 PANEL,LEFT V-2 ABC.................
8Z-NB8-014-010 PANEL,TOP V-2 R ABC.................
8Z-NF7-001-010 CABI,FR U ....................
8Z-NF7-002-110 CABI,REAR USTM ....................
8Z-NF7-003-010 BOX,CASS 1 ABC.................
8Z-NF7-004-010 BOX,CASS 2 ABC.................
8Z-NF7-005-010 PANEL,TRAY ABC.................
8Z-NF7-006-010 PANEL,CD ABC.................
8Z-NF7-007-010 REFLECTOR,CD ABC.................
8Z-NF7-008-010 WINDOW,DISPLAY U ....................
8Z-NF7-009-010 WINDOW,CASS 1 ABC.................
8Z-NF7-010-010 WINDOW,CASS 2 ABC.................
8Z-NF7-014-010 RING,VOL ABC.................
8Z-NF7-015-010 RING,JOG ABC.................
8Z-NF7-016-010 REFLECTOR,JOG ABC.................
8Z-NF7-041-010 CABI,FR HR ....................
8Z-NF7-042-010 CABI,FR LH ....................
8Z-NF7-043-010 CABI,FR EZ A...................
8Z-NF7-044-010 CABI,FR K .B..................
8Z-NF7-045-010 CABI,FR U2 ....................
8Z-NF7-047-010 CABI,FR EZ3 ..C.................
8Z-NF7-051-110 WINDOW,DISPLAY H ....................
8Z-NF7-052-010 WINDOW,DISPLAY EZ A...................
8Z-NF7-053-010 WINDOW,DISPLAY K .B..................
8Z-NF7-054-010 WINDOW,DISPLAY U2 ....................
8Z-NF7-056-110 WINDOW,DISPLAY LHK ....................
8Z-NF7-057-010 WINDOW,DISPLAY HR ....................
8Z-NF7-059-010 WINDOW,DISPLAY EZ3 ..C.................
8Z-NF7-061-110 CABI,REAR HRJSTM ....................
8Z-NF7-062-110 CABI,REAR LHSTM ....................
8Z-NF7-063-110 CABI,REAR EZSTNE ....................
8Z-NF7-064-110 CABI,REAR KSTNE ....................
8Z-NF7-066-110 CABI,REAR U2STM ....................
8Z-NF7-067-110 CABI,REAR HRST ....................
8Z-NF7-068-110 CABI,REAR LHST ....................
8Z-NF7-069-110 CABI,REAR EZ2STNE ....................
8Z-NF7-070-110 CABI,REAR LHJSTKM ....................
8Z-NF7-071-110 CABI,REAR EZSTM ....................
8Z-NF7-072-110 CABI,REAR HRSTM ....................
8Z-NF7-073-110 CABI,REAR UST ....................
8Z-NF7-074-110 CABI,REAR HASTM ....................
8Z-NF7-077-110 CABI,REAR EZ3STM ..C.................
8Z-NF7-078-110 CABI,REAR HSSTM A...................
8Z-NF7-079-010 CABI,REAR GSTM .B..................
8Z-NF9-043-010 PANEL,RIGHT S V-2 ABC.................
8Z-NF7-011-010 KNOB,RTRY VOL ABC.................
8Z-NF7-012-010 KNOB,RTRY JOG ABC.................
8Z-NF7-013-010 KNOB,RTRY MIC .B..................
8Z-NF7-018-010 KEY,POWER ABC.................
8Z-NF7-019-010 KEY,CD ABC.................
8Z-NF7-020-010 KEY,DEMO U .B..................
8Z-NF7-021-010 KEY,KARAOKE U ....................
8Z-NF7-022-010 KEY,FUNCTION ABC.................
8Z-NF7-023-010 KEY,ASSY PLAY ABC.................
8Z-NF7-026-010 PANEL,PLAY ABC.................
8Z-NF7-027-110 KEY,NSP ABC.................
8Z-NF7-028-010 KEY,JOG U .B..................
8Z-NF7-029-010 KEY,PAD ABC.................
8Z-NF7-030-010 KEY,RDS A...................
8Z-NF7-031-010 KEY,DEMO H A.C.................
8Z-NF7-032-010 KEY,KARAOKE E ABC.................
8Z-NF7-033-010 KEY,JOG H A.C.................
8Z-NF7-036-010 REFLECTOR,ECO ABC.................
81-532-080-010 LABEL, CASS. COMPT A.C.................
86-NF6-061-010 REFLECTOR,CASS A.C.................
87-NF6-616-010 CONN ASSY,8P RPB ABC.................
84-ZG1-245-210 CAP,OPTICAL ABC.................
82-NF5-218-010 SPR-T,EJECT 1 (SIN) ABC.................
82-NF5-219-010 SPR-T,EJECT 2 (SIN) ABC.................
82-NF5-229-010 PLATE,LOCK ABC.................
86-NF9-224-010 SPR-C,LOCK ABC.................
87-NF4-216-010 HLDR,LOCK 1 ABC.................
87-NF4-217-110 HLDR,LOCK 2 ABC.................
87-NF8-220-010 DMPR,150 ABC.................
8Z-NB8-215-010 HLDR,PWB M ABC.................
8Z-NB8-240-010 COVER, PL ABC.................
87-067-641-010 UTT2+3-8(W/O SLOT)BL ABC.................
87-067-688-010 BVTT+3-6 ABC.................
87-067-703-010 TAPPING SCREW, BVT2+3-10 ABC.................
87-078-191-010 S-SCREW,IT+4-10 ABC.................
87-721-096-410 QT2+3-10 GLD ABC.................
MECHANICAL PARTS LIST - 2/2
87-721-097-410 QT2+3-12 GLD ABC.................
87-723-096-410 QT2+3-10W/O SLOT BL ABC.................
87-NF4-224-010 S-SCREW,IT3B+3-8 CU ABC.................
85-NF5-617-010 CABLE,FFC 6P-1.25 ABC.................
85-NF5-618-010 CABLE,FFC 13P-1.25 ABC.................
87-050-081-110 AC CORD ASSY,G .B..................
87-099-811-010 PLUG,ADPTR CONV(K) ....................
87-A80-105-010 AC CORD ASSY,AZ ....................
88-915-121-110 FF-CABLE, 15P 1.25 ABC.................
8Z-NF7-622-110 PT,LH ZNF-7 ....................
8Z-NF7-623-110 PT,HR ZNF-7 ....................
8Z-NF7-625-010 PT,U1 ZNF-7 ....................
PT 1 8Z-NF7-621-010 PT,U ZNF-7 ....................
PT 1 8Z-NF7-622-110 PT,LH ZNF-7 ....................
PT 1 8Z-NF7-623-110 PT,HR ZNF-7 ....................
PT 1 8Z-NF7-624-010 PT,EZ ZNF-7 ABC.................
PT 101 8Z-NF7-621-010 PT,U ZNF-7 ....................
W 1 87-085-185-010 BUSHING, AC CORD (E) ABC.................
W 1 87-085-189-010 BUSHING, CORD (U) ....................
W 101 87-050-079-010 AC-CORD ASSY,E ..C.................
W 101 87-A80-006-010 AC CORD ASSY HS A...................
W 101 87-A80-110-010 AC CORD ASSY,U SPT-2W ....................
87-010-403-040 CAP,E 3.3-50 SME .B..................
87-NF5-203-010 GUIDE,FL ABC.................
87-NF6-205-010 GUIDE,LED ABC.................
8Z-NF7-201-010 GUIDE,FUNCTION ABC.................
8Z-NF7-202-010 GUIDE,PLAY ABC.................
8Z-NF7-203-010 GUIDE,CD ABC.................
87-010-179-080 CAP,CHIP S B1200P .B..................
87-067-579-010 TAPPING SCREW, BVT2+3-8 ABC.................
87-067-689-010 TAPPING SCREW, BVTT+3-8 ....................
8Z-NF8-669-110 CONN ASSY,9P VH .B..................
WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P ABC.................
87-067-703-010 TAPPING SCREW, BVT2+3-10 ABC.................
ACCESSORIES / PACKAGE LIST - 1/1
NOTE: The characters in the suffix column indicate the part usage.
778HS ..................XX..................................A...................
777G ...................XX...................................B..................
777EZ ..................XX....................................C.................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
8Z-NF7-901-010 IB,H(ECA)M ....................
8Z-NF7-902-110 IB,LH(ESP)M ....................
8Z-NF7-903-110 IB,U(ESF)M A777 ....................
8Z-NF7-905-010 IB,K(E)E ....................
8Z-NF7-906-010 IB,EZ(9L)E ....................
8Z-NF7-911-010 IB,H(ECA)I ....................
8Z-NF7-913-110 IB,U(ESF)M A767 ....................
8Z-NF7-915-010 IB,G(E)M .B..................
8Z-NF7-916-010 IB,EZ(9L)M A...................
8Z-NF7-926-010 IB,EZ(9L)M- 777 NO-RDS ..C.................
8Z-NF7-912-010 IB,LH(P)KIT ....................
8Z-NF7-922-010 IB,HA(KIT)M ....................
87-043-106-010 WIRE, FM ANT (Z) ABC.................
87-043-115-010 ANT,FEEDER FM ....................
87-A90-030-010 ANT,LOOP AM-NC C ABC.................
87-A90-054-010 ANT,LOOP AM-CON C ....................
87-A91-017-010 PLUG,CONVERSION JT-0476 ....................
8Z-NF8-701-110 RC UNIT,RC-ZAS01 ABC.................
8Z-NF8-702-010 RC UNIT,RC-ZAS01 ....................
SCHEMATIC DIAGRAM _1 (MAIN 1/2)
SCHEMATIC DIAGRAM _2 (MAIN 2/2)
SCHEMATIC DIAGRAM _3 (FRONT)
This manual suits for next models
1
Table of contents
Other Aiwa Stereo Receiver manuals
Aiwa
Aiwa HS-GS192 Building instructions
Aiwa
Aiwa AV-D58 User manual
Aiwa
Aiwa CR-IC90 User manual
Aiwa
Aiwa Z-HK550 User manual
Aiwa
Aiwa NSX-SZ2 LH User manual
Aiwa
Aiwa NSX-F9 User manual
Aiwa
Aiwa NSX-SZ70 User manual
Aiwa
Aiwa Compact disc stereo cassette receiver User manual
Aiwa
Aiwa NSX-SZ30 User manual
Aiwa
Aiwa AV-D57 User manual
Popular Stereo Receiver manuals by other brands
Technics
Technics SA-EX100 Service manual
Sony
Sony ICF-SW7600GR - Portable Radio Operating instruction
Pioneer
Pioneer SX-2500 Installation, operation and service manual
Pioneer
Pioneer SX-828 Service manual
Pioneer
Pioneer Elite G-Clef SX-A9MK2-K operating instructions
Sony
Sony CFS-W500S operating instructions
