SERVICE MANUAL
DATA
COMPACT DISC STEREO
CASSETTE RECEIVER
BASIC TAPE MECHANISM : ZZM-2 PR1NM
BASIC CD MECHANISM : AZG-1 VZD3RNDM
NSX-VC18
HR,HT
S/M Code No. 09-005-429-2R1
REVISION
• If requiring information about the CD mechanism, see Service Manual
of AZG-1, (S/M Code No. 09-001-335-3NG).
• This Service Manual is the “Revision Publishing” and replaces “Simple
Manual” NSX-VC18(HR / HT), (S/M Code No. 09-004-429-2T1).
SPEAKER REMOTE
CONTROLLER
RC-ZAS11
SYSTEM CD
CASSEIVER
NSX-VC18 CX-NVC18 SX-NBL17
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 2–
<FM tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
<MW tuner section>
Tuning range 530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
<SW tuner section>
Tuning range 5.730 MHz to 17.900 MHz
Usable sensitivity 40 µV (IEC)
Antenna Wire antenna
<Amplifier section>
Power output Rated: 24 W + 24 W
(1 kHz, T.H.D. 1%, 6 ohms)
Reference: 30 W + 30 W
(1 kHz, T.H.D. 10%, 6 ohms)
Total harmonic distortion 0.1% (8 W, 1 kHz, 6 ohms, DIN AUDIO)
Inputs VIDEO/AUX: 500 mV
MIC: 1.0 mV (10 kohms)
Outputs VIDEO OUT: 1.0 Vp-p (75 ohms)
SPEAKERS: accept speakers of 6
ohms or more
PHONES (stereo jack) : accepts
headphones of 32 ohms or more
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz – 8000 Hz
Recording system AC bias
Heads Deck 1 : Recording/Playback head
x 1, erase head x 1
Deck 2 : Playback head x 1
SPECIFICATIONS
<Compact disc player section>
Laser Semiconductor laser (λ =780 nm)
D-A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
Video signal NTSC/PAL color format(selectable)
Video data MPEG 1
Audio data MPEG 1, LAYER 2
<Speaker system>SX-NBL17
Speaker System 2 way, bass reflex (magnetic
shielded type)
Speaker units Woofer:
120 mm cone type
Tweeter:
20 mm ceramic type
Impedance 6 ohms
Sensitivity 87 dB/W/m
Dimensions (W xH xD) 220 x 324 x 211 mm
Weight 2.0 kg
<General>
Power requirements 120 V/220V-230 V/240 V AC
(switchable), 50/60 Hz
Power consumption 60 W
Power consumption 14 W with power-economizing
in standby mode mode off
0.9 W with power-economizing
mode on
Dimensions of main unit 260 x 324 x 346 mm
(W xH xD)
Weight of main unit 5.6 kg
• Design and specifications are subject to change without notice.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 3–
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
This set employs laser. Therefore, be sure to follow carefully
the instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BESURETOOBSERVEFROMADISTANCEOFMORE
THAN 30cm FROM THE SURFACE OF THE OBJEC-
TIVE LENS ON THE OPTICAL PICK-UP BLOCK.
sCaution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
sAdvarsel: Usynliglaserstålingvedåbning,
nårsikkerhedsafbrydereerudeaffunktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saattaa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herein may result in
hazardous radiation exposure.
ATTENTION
L’utillisation de commandes, réglages ou procédures
autresque ceuxspécifiés peutentraîner unedangereuse
exposition aux radiations.
ADVARSEL
Usynliglaserstålingvedåbning,nårsikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
PICK-UP ASSY
P.C.B
Precaution to replace Optical block
(KSS-213F)
Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure
ground body and workbench, and use care the
clothes do not touch the diode.
1) After the connection, remove solder shown in
right figure.
SOLDER
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 4–
NOTE ON BEFORE STARTING REPAIR
Charging voltage (V) Discharging Rated power (W) Parts number
(C101, 102) resistor (Ω)
25-48 100 3 87-A00-247-090
49-140 220 5 87-A00-232-090
Note: The reference numbers (C101, C102) of the electrolytic capacitors can change depending on the models. Be sure to check the
reference numbers of the charging capacitors on schematic diagram before starting the discharging work.
2. Check items before exchanging the MICROCOMPUTER
Be sure to check the following items before exchanging the MICROCOMPUTER. Exchange the MICROCOMPUTER after confirming
that the MICROCOMPUTER is surely defective.
2-1. Regarding the HOLD terminal of the MICROCOMPUTER
WhentheHOLD terminal (INPUT) of the MICROCOMPUTER is“H”,the MICROCOMPUTER is judged to beoperatingcorrectly.
When this terminal is “L”, the main power cannot be turned on. Therefore, be sure to check the terminal voltage of the HOLD
terminal before exchange.
When the MICROCOMPUTER is not defective, the HOLD terminal can also go “L” when the POWER AMPLIFIER has any
abnormalities that triggers the abnormality detection circuit on the MAIN C. B. that sets the HOLD terminal to “L”.
• Good or no good judgement of the MICROCOMPUTER
11
11
1Turn on the AC main power.
22
22
2Confirm that the main power is turned on and the HOLD terminal of the MICROCOMPUTER keeps the “H” level or not.
33
33
3When the HOLD terminal is “L” level, the abnormality detection circuit is judged to be working correctly and the
MICROCOMPUTER is judged to be good.
1. Forced discharge of electrolytic capacitor of power supply block
When repair is going to be attempted in the set that uses relay circuit in the power supply block, electric potential is kept charged across
the electrolytic capacitors (C101, 102) even though AC power cord is removed. If repair is attempted in this condition, secondary defect
can occur.
In order to prevent the secondary trouble, perform the following measures before starting repair work.
Discharge procedure
11
11
1Remove the AC power cord.
22
22
2Connect a discharging resistor at an end of lead wire that
has clips at both ends. Connect the other end of the lead
wire to metal chassis.
33
33
3Contact the other end of the discharging resistor to the
positive (+) side (+VH) of C101. (For two seconds)
44
44
4Contact the same end of the discharging resistor as step
33
33
3to the negative (-) side (-VH) of C102 in the same way.
(For two seconds)
55
55
5Check that voltage across C101 and C102 has decreased
to 1 V or less using a multimeter or an oscilloscope.
Select a discharging resistor referring to the following table.
Fig-1
MAIN C.B
D101
C101 C102
22
34
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 5–
In such a case, check also if the POWER AMPLIFIER circuit or power supply circuit has any abnormalities or not.
2-2. Regarding reset
There are cases that the machine does not work correctly because the MICROCOMPUTER is not reset even though the AC power
cord is re-inserted, or the software reset (pressing the STOP key + POWER key) is performed.
When the above described phenomenon occurs, it can lead to wrong judgement as if the MICROCOMPUTER is defective and to
exchange the MICROCOMPUTER. In such a case, perform the forced-reset by the following procedure and check good or no
good of the MICROCOMPUTER.
11
11
1Remove the AC power cord.
22
22
2Short both ends of the electrolytic capacitor C113 that is connected to VDD of the MICROCOMPUTER with tweezers.
33
33
3Connect the AC power cord again. If the MICROCOMPUTER returns to the normal operation, the MICROCOMPUTER is
good.
Note: Thereferencenumberor MICROCOMPUTER pin number of transistor (Q110) andelectrolyticcapacitor(C113) can change depending
on the models. Be sure to check the reference numbers on schematic diagram before starting the discharging work.
2-3. Confirmation of soldering state of MICROCOMPUTER
Check the soldering state of the MICROCOMPUTER in addition to the above described procedures. Be sure to exchange the
MICROCOMPUTER after surely confirming that the trouble is not caused by poor soldering but the MICROCOMPUTER itself.
Fig-2-2
MICRO-
COMPUTER
MICROCOMPUTER
FRONT C.B
FRONT C.B
VSS
VDD
C113 *
%
C113
18
15
Short with tweezers.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 6–
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
8A-NHZ-601-010 C-IC,M38B57MCH-E244FP
87-A21-396-010 IC,STK490-040
87-A21-419-040 C-IC,NJM14558MD-TE2
87-A21-443-040 C-IC,M62495AFP
87-A21-560-010 IC,LA1844L-A
87-070-127-110 IC,LC72131 D
87-A21-482-010 IC,RPM6938-H4
87-A21-018-040 C-IC,M65849BFP631D
TRANSISTOR
87-026-609-080 TR,KTA1266GR
89-213-702-010 TR,2SB1370 (1.8W)
87-026-610-080 TR,KTC3198GR
87-A30-076-080 C-TR,2SC3052F
87-A30-075-080 C-TR,2SA1235F
87-026-245-080 TR,DTC114ES
87-A30-198-080 TR,KTC3199GR
87-A30-090-080 FET,2SK2541
87-A30-484-080 C-TR,KRA102S
87-A30-468-080 C-TR,KRC102S-RTK
87-A30-107-070 C-TR,CMBT5401
87-A30-106-040 C-TR,CMBT5551
87-A30-091-080 FET,2SJ460
87-A30-062-080 C-TR,KRC104S
87-A30-318-080 TR,CSA952K
89-333-317-880 TR,2SC3331 (0.5W)
87-A30-234-080 TR,CSC4115BC
89-327-143-080 TR,2SC2714 (0.1W)
87-A30-489-080 C-TR,KRA107S
89-503-602-080 C-FET,2SK360E
87-A30-086-070 C-TR,CSD1306E
87-A30-495-080 TR,2SA1981Y
87-A30-074-080 C-TR,RT1P141C
DIODE
87-A40-736-080 DIODE,1N4148M (SEM)
87-020-465-080 DIODE,1SS133 (110MA)
87-A40-455-080 DIODE,RL203 GW
87-A40-553-080 DIODE,1N4003 LES
87-A40-774-080 ZENER,UZ24BSD
87-A40-764-080 ZENER,UZ10BSC
87-A40-313-080 C-DIODE,MC 2840
87-A40-270-080 C-DIODE,MC2838
87-A40-269-080 C-DIODE,MC2836
87-A40-768-080 ZENER,UZ16BSA
87-A40-752-080 ZENER,UZ6.2BSC
87-A40-739-080 ZENER,UZ2.7BSA
87-017-149-080 ZENER,HZS6A2L
87-017-931-080 ZENER,MTZJ5.6B
MAIN C.B
C3 87-010-196-080 CHIP CAPACITOR,0.1-25
C4 87-010-196-080 CHIP CAPACITOR,0.1-25
C5 87-010-196-080 CHIP CAPACITOR,0.1-25
C6 87-010-196-080 CHIP CAPACITOR,0.1-25
C9 87-010-196-080 CHIP CAPACITOR,0.1-25
C10 87-010-196-080 CHIP CAPACITOR,0.1-25
C11 87-010-196-080 CHIP CAPACITOR,0.1-25
C12 87-010-196-080 CHIP CAPACITOR,0.1-25
C19 87-A10-627-000 CAP,E 2200-50 M SMG
C20 87-A10-627-000 CAP,E 2200-50 M SMG
C21 87-016-495-000 CAP,E 3300-25 M SMG
C22 87-016-495-000 CAP,E 3300-25 M SMG
C25 87-010-385-080 CAP, ELECT 220-25V
C26 87-010-247-080 CAP, ELECT 100-50V
C30 87-010-247-080 CAP, ELECT 100-50V
C31 87-010-263-080 CAP, ELECT 100-10V
C32 87-010-197-080 CAP, CHIP 0.01 DM
C33 87-010-263-080 CAP, ELECT 100-10V
C34 87-010-247-080 CAP, ELECT 100-50V
C35 87-010-406-080 CAP, ELECT 22-50
C36 87-010-381-080 CAP, ELECT 330-16V
C38 87-010-190-080 C-CAP,S 0.01-50 ZF
C60 87-010-403-080 CAP, ELECT 3.3-50V
C97 87-010-196-080 CHIP CAPACITOR,0.1-25
C100 87-018-127-080 CAP TC-U 470P
C101 87-010-183-080 C-CAP,S 2700P-50 B
C102 87-010-183-080 C-CAP,S 2700P-50 B
C103 87-010-545-080 CAP, ELECT 0.22-50V
C104 87-010-545-080 CAP, ELECT 0.22-50V
C105 87-010-178-080 CHIP CAP 1000P
C106 87-010-178-080 CHIP CAP 1000P
C107 87-010-404-080 CAP, ELECT 4.7-50V
C108 87-010-404-080 CAP, ELECT 4.7-50V
C109 87-010-179-080 C-CAP, S 1200P-50KB
C110 87-010-179-080 C-CAP, S 1200P-50KB
C111 87-010-391-080 CAP,E 10-35 SME
C112 87-010-391-080 CAP,E 10-35 SME
C113 87-010-405-080 CAP, ELECT 10-50V
C114 87-010-405-080 CAP, ELECT 10-50V
C119 87-010-197-080 CAP, CHIP 0.01 DM
C120 87-010-197-080 CAP, CHIP 0.01 DM
C125 87-012-368-080 C-CAP,S 0.1-50 F
C126 87-012-368-080 C-CAP,S 0.1-50 F
C127 87-012-368-080 C-CAP,S 0.1-50 F
C128 87-012-368-080 C-CAP,S 0.1-50 F
C129 87-A10-592-080 C-CAP,S 0.015-50 J
C130 87-A10-592-080 C-CAP,S 0.015-50 J
C131 87-010-197-080 CAP, CHIP 0.01 DM
C132 87-010-197-080 CAP, CHIP 0.01 DM
C133 87-010-186-080 CAP,CHIP 4700P
C140 87-010-182-080 C-CAP,S 2200P-50 B
C200 87-018-195-080 CAP TC-U 1200P
C239 87-A11-718-080 C-CAP,S 0.1-25 ZF<HR>
C239 87-010-196-080 C-CAP,S 0.1-25 ZF<HT>
C300 87-018-195-080 CAP TC-U 1200P
C301 87-010-179-080 CAP,CHIP S B1200P
C302 87-010-179-080 CAP,CHIP S B1200P
C303 87-010-178-080 CHIP CAP 1000P
C304 87-010-178-080 CHIP CAP 1000P
C305 87-010-198-080 CAP, CHIP 0.022
C307 87-010-263-080 CAP, ELECT 100-10V
C308 87-010-263-080 CAP, ELECT 100-10V
C309 87-010-318-080 C-CAP, S 47P-50J CH
C310 87-010-318-080 C-CAP, S 47P-50J CH
C311 87-010-598-080 C-CAP,S 0.068-16VRK
C312 87-010-598-080 C-CAP,S 0.068-16VRK
C313 87-010-188-080 CAP,CHIP 6800P
C314 87-010-188-080 CAP,CHIP 6800P
C315 87-010-263-080 CAP, ELECT 100-10V
C317 87-010-546-080 CAP, ELECT 0.33-50V
C318 87-010-546-080 CAP, ELECT 0.33-50V
C326 87-010-198-080 CAP, CHIP 0.022
C327 87-010-196-080 CHIP CAPACITOR,0.1-25
C360 87-010-401-080 CAP, ELECT 1-50V
C399 87-012-140-080 CAP 470P
C401 87-010-544-080 CAP, ELECT 0.1-50V
C402 87-010-544-080 CAP, ELECT 0.1-50V
C405 87-010-197-080 CAP, CHIP 0.01 DM
C406 87-010-197-080 CAP, CHIP 0.01 DM
C407 87-010-197-080 CAP, CHIP 0.01 DM
C408 87-010-197-080 CAP, CHIP 0.01 DM
C409 87-010-182-080 C-CAP,S 2200P-50 B
C410 87-010-182-080 C-CAP,S 2200P-50 B
C411 87-010-405-080 CAP, ELECT 10-50V
C412 87-010-405-080 CAP, ELECT 10-50V
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 7–
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C452 87-010-382-080 CAP, ELECT 22-25V
C453 87-010-183-080 C-CAP,S 2700P-50 B
C454 87-010-183-080 C-CAP,S 2700P-50 B
C455 87-010-183-080 C-CAP,S 2700P-50 B
C456 87-010-197-080 CAP, CHIP 0.01 DM
C460 87-010-196-080 CHIP CAPACITOR,0.1-25
C461 87-012-158-080 C-CAP,S 390P-50 CH
C462 87-012-158-080 C-CAP,S 390P-50 CH
C470 87-018-127-080 CAP, TC U 470P-50 BK<HT>
C605 87-010-179-080 CAP,CHIP S B1200P
C606 87-010-179-080 CAP,CHIP S B1200P
C609 87-010-213-080 C-CAP,S 0.015-50 B
C610 87-010-213-080 C-CAP,S 0.015-50 B
C611 87-010-545-080 CAP, ELECT 0.22-50V
C612 87-010-545-080 CAP, ELECT 0.22-50V
C613 87-010-545-080 CAP, ELECT 0.22-50V
C614 87-010-545-080 CAP, ELECT 0.22-50V
C615 87-010-154-080 CAP CHIP 10P
C616 87-010-385-080 CAP, ELECT 220-25V
C617 87-010-385-080 CAP, ELECT 220-25V
C618 87-010-405-080 CAP, ELECT 10-50V
C630 87-016-669-080 C-CAP,S 0.1-25 K B
C669 87-010-322-080 C-CAP,S 100P-50 CH
C670 87-010-322-080 C-CAP,S 100P-50 CH
C671 87-016-669-080 C-CAP,S 0.1-25 KB
C672 87-016-669-080 C-CAP,S 0.1-25 KB
C677 87-010-197-080 CAP, CHIP 0.01 DM
C771 87-010-263-080 CAP, ELECT 100-10V
C772 87-010-197-080 CAP, CHIP 0.01 DM
C782 87-010-197-080 CAP, CHIP 0.01 DM
C783 87-010-197-080 CAP, CHIP 0.01 DM
C784 87-010-197-080 CAP, CHIP 0.01 DM
C785 87-010-197-080 CAP, CHIP 0.01 DM
C786 87-010-197-080 CAP, CHIP 0.01 DM
C788 87-010-149-080 C-CAP,S 5P-50 CH
C789 87-A11-532-080 C-CAP,S 0.022-50 J B<HR>
C789 87-A10-801-080 C-CAP,S 0.022-16 J B<HT>
C790 87-A11-532-080 C-CAP,S 0.022-50 J B<HR>
C790 87-A10-801-080 C-CAP,S 0.022-16 J B<HT>
C791 87-010-196-080 CHIP CAPACITOR,0.1-25
C792 87-010-197-080 CAP, CHIP 0.01 DM
C793 87-010-404-080 CAP, ELECT 4.7-50V
C795 87-010-197-080 CAP, CHIP 0.01 DM
C796 87-010-197-080 CAP, CHIP 0.01 DM
C797 87-010-405-080 CAP, ELECT 10-50V
C798 87-010-197-080 CAP, CHIP 0.01 DM
C799 87-010-407-080 CAP, ELECT 33-50V
C800 87-012-369-080 C-CAP,S 0.047-50F
C801 87-010-403-080 CAP, ELECT 3.3-50V
C802 87-012-369-080 C-CAP,S 0.047-50F
C803 87-010-198-080 CAP, CHIP 0.022
C804 87-010-263-080 CAP, ELECT 100-10V
C807 87-010-400-080 CAP, ELECT 0.47-50V
C808 87-010-401-080 CAP, ELECT 1-50V
C809 87-010-401-080 CAP, ELECT 1-50V
C810 87-010-196-080 CHIP CAPACITOR,0.1-25
C814 87-010-197-080 CAP, CHIP 0.01 DM
C815 87-010-400-080 CAP, ELECT 0.47-50V
C816 87-010-400-080 CAP, ELECT 0.47-50V
C821 87-010-405-080 CAP, ELECT 10-50V
C823 87-010-177-080 C-CAP,S 820P-50 SL
C824 87-010-405-080 CAP, ELECT 10-50V
C825 87-010-596-080 CAP, S 0.047-16
C842 87-010-197-080 CAP, CHIP 0.01 DM
C843 87-010-197-080 CAP, CHIP 0.01 DM<HT>
C844 87-010-197-080 CAP, CHIP 0.01 DM
C845 87-010-197-080 CAP, CHIP 0.01 DM<HT>
C846 87-010-197-080 CAP, CHIP 0.01 DM<HT>
C847 87-010-197-080 CAP, CHIP 0.01 DM<HT>
C848 87-010-197-080 CAP, CHIP 0.01 DM<HT>
C849 87-010-197-080 CAP, CHIP 0.01 DM<HT>
C851 87-010-197-080 CAP, CHIP 0.01 DM
C852 87-010-197-080 CAP, CHIP 0.01 DM
C853 87-010-197-080 CAP, CHIP 0.01 DM
C858 87-010-196-080 CHIP CAPACITOR,0.1-25
C859 87-010-196-080 CHIP CAPACITOR,0.1-25
C860 87-010-197-080 CAP, CHIP 0.01 DM
C940 87-010-197-080 CAP, CHIP S 0.01-25 KB
C941 87-010-314-080 CAP, CHIP S 22P-50 JCH
C943 87-010-197-080 CAP, CHIP S 0.01-25 KB
C945 87-010-197-080 CAP, CHIP S 0.01-25 KB
C946 87-010-971-080 CAP, CHIP S 4700P-50 JB
C947 87-010-197-080 CAP, CHIP S 0.01-25 KB
C948 87-010-148-080 CAP, CHIP S 4P-50 CH
C952 87-010-197-080 CAP, CHIP S 0.01-25 KB
C953 87-010-197-080 CAP, CHIP S 0.01-25 KB
C954 87-010-400-080 CAP, E 0.47-50 M
C956 87-010-263-080 CAP, E 100-10 M
C959 87-010-196-080 CHIP CAPACITOR,0.1-25
C960 87-010-196-080 CHIP CAPACITOR,0.1-25
C961 87-010-152-080 C-CAP,S 8P-50 CH
C962 87-010-401-080 CAP, ELECT 1-50 M
C963 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z
C964 87-010-854-080 CAP, CHIP S 560P-50 JCH
C971 87-010-381-080 CAP, ELECT 330-16V
C972 87-010-404-080 CAP, ELECT 4.7-50V
C973 87-010-197-080 CAP, CHIP 0.01 DM
C974 87-010-197-080 CAP, CHIP 0.01 DM
C979 87-010-322-080 C-CAP,S 100P-50 CH
C982 87-010-196-080 CHIP CAPACITOR,0.1-25
C983 87-010-197-080 CAP, CHIP 0.01 DM
C984 87-010-197-080 CAP, CHIP 0.01 DM
C987 87-010-197-080 CAP, CHIP 0.01 DM
C989 87-010-197-080 CAP, CHIP 0.01 DM
C993 87-010-178-080 CHIP CAP 1000P
C995 87-010-178-080 CHIP CAP 1000P
C997 87-010-196-080 CHIP CAPACITOR,0.1-25
C999 87-A11-155-080 CAP,TC U 0.01-16 Z F
CF831 87-008-261-010 FILTER, SFE10.7MA5-A
CF832 87-008-261-010 FILTER, SFE10.7MA5-A
CN301 87-A60-620-010 CONN,3P V 2MM JMT
CN351 87-A60-625-010 CONN,8P V 2MM JMT
CN601 87-099-719-010 CONN,30P TYK-B(X)
CN602 87-099-194-010 CONN,6P 6216V
CNA1 8A-NF8-653-010 CONN ASSY,9P TID-A(480)
D951 87-A40-618-080 VARI-CAP,SVC 348(S/T)
FFE831 A8-8ZA-190-030 8ZA-1 FEUNM
J101 87-A60-602-010 JACK,DIA6.3 BLK ST W/SW TC
J203 87-A60-238-010 TERMINAL,SP 4P (MSC)
J602 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN
J831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V02
J940 87-A60-633-010 CONN,2P H2.5MM
L101 87-003-383-010 COIL,1UH-S<HR>
L101 87-A50-610-010 COIL,1UH-K(MDEC)<HT>
L102 87-003-383-010 COIL,1UH-S<HR>
L102 87-A50-610-010 COIL,1UH-K(MDEC)<HT>
L451 87-007-342-010 COIL,OSC 85K BIAS
L801 87-A50-608-010 COIL,FM DET-N (TOK)
L802 87-A91-552-010 FLTR,CFMT-450AL(TOK)
L811 87-005-847-080 COIL,2.2UH(CECS)
L832 87-005-847-080 COIL,2.2UH(CECS)
L941 87-A50-022-010 COIL,ANT SW COI 7.96MHZ
L942 87-A50-550-010 COIL,OSC SW-2N
L943 87-A50-522-080 COIL,1MH K CEC
L944 87-A50-159-010 COIL,10MH K
L952 87-A50-430-010 COIL,ANT MW(3BSW)
L953 87-A50-431-010 COIL,OSC MW(3BSW)
R131 87-A00-258-080 RES,M/F 0.22-1W J
R132 87-A00-258-080 RES,M/F 0.22-1W J
R653 87-A11-144-080 CAP,TC U 0.1-50 K B
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 8–
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
R654 87-A11-144-080 CAP,TC U 0.1-50 K B
R790 87-010-197-080 CAP, CHIP 0.01 DM
R991 87-010-322-080 C-CAP,S 100P-50 CH
R993 87-010-322-080 C-CAP,S 100P-50 CH
R995 87-010-322-080 C-CAP,S 100P-50 CH
TC941 87-011-254-080 TRIMMER,CER 20P 4.0X4.5 ECR
TC943 87-011-253-080 TRIMMER,CER 30P 4.0X4.5 ECRLA
WH1 87-A90-510-010 HLDR,WIRE 2.5-9P
X991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
FRONT C.B
C101 87-010-196-080 CHIP CAPACITOR,0.1-25
C102 87-012-369-080 C-CAP,S 0.047-50F
C103 87-010-374-040 CAP, ELECT 47-10
C104 87-A10-797-040 CAP,E 47-35 M 5L SRM
C105 87-010-192-080 C-CAP,S 0.022-50 F
C107 87-010-196-080 CHIP CAPACITOR,0.1-25
C108 87-010-178-080 CHIP CAP 1000P
C109 87-012-369-080 C-CAP,S 0.047-50F
C110 87-010-197-080 CAP, CHIP 0.01 DM
C111 87-010-196-080 CHIP CAPACITOR,0.1-25
C113 87-010-178-080 CHIP CAP 1000P
C114 87-010-154-080 CAP CHIP 10P
C115 87-010-175-080 CAP 560P
C116 87-010-400-040 CAP,E 0.47-50
C117 87-012-393-080 C-CAP,S 0.22-16 K
C118 87-A10-189-040 CAP,E 220-10
C119 87-A10-189-040 CAP,E 220-10
C120 87-012-156-080 C-CAP,S 220P-50 CH
C123 87-010-196-080 CHIP CAPACITOR,0.1-25
C124 87-010-196-080 CHIP CAPACITOR,0.1-25
C125 87-010-405-040 CAP,E 10-50
C126 87-010-196-080 CHIP CAPACITOR,0.1-25
C129 87-010-374-040 CAP,E 47-10
C210 87-012-156-080 C-CAP,S 220P-50 CH
C212 87-010-404-040 CAP,E 4.7-50 SME
C213 87-010-404-040 CAP,E 4.7-50 SME
C401 87-010-186-080 C-CAP,S 4700P-50 K B
C402 87-010-060-040 CAP,E 100-16 M 7L SRA
C403 87-010-545-040 CAP,E 0.22-50 M 11L SME
C404 87-010-322-010 C-CAP,S 100P-50 J CH GRM
C405 87-010-545-040 CAP,E 0.22-50 M 11L SME
C406 87-016-669-080 C-CAP,S 0.1-25 K B
C407 87-010-405-040 CAP,E 10-50 M 11L SME
C408 87-010-322-010 C-CAP,S 100P-50 J CH GRM
C409 87-010-406-040 CAP,E 22-50 M 11L SME
C410 87-010-196-080 C-CAP,S 0.1-25 Z F
C412 87-010-177-080 C-CAP,S 820P-50 J SL
C501 87-010-196-080 C-CAP,S 0.1-25 Z F<HT>
C501 87-A11-718-080 C-CAP,S 0.1-25 Z F<HR>
C502 87-010-263-040 CAP,E 100-10 M 11L
C503 87-016-460-080 C-CAP,S 0.22-16 K B
C504 87-016-460-080 C-CAP,S 0.22-16 K B
C505 87-016-460-080 C-CAP,S 0.22-16 K B
C506 87-016-669-080 C-CAP,S 0.1-25 K B
C507 87-010-184-080 C-CAP,S 3300P-50 KB
C508 87-010-177-080 C-CAP,S 820P-50 J SL
C509 87-016-669-080 C-CAP,S 0.1-25 K B
C510 87-016-669-080 C-CAP,S 0.1-25 K B
C511 87-010-184-080 C-CAP,S 3300P-50 KB
C512 87-010-177-080 C-CAP,S 820P-50 J SL
C513 87-016-669-080 C-CAP,S 0.1-25 K B
C515 87-010-374-040 CAP,E 47-10 M 11L
C517 87-016-669-080 C-CAP,S 0.1-25 K B
C518 87-010-318-080 C-CAP,S 47P-50 J CH
C519 87-010-318-080 C-CAP,S 47P-50 J CH
C520 87-010-318-080 C-CAP,S 47P-50 J CH
C701 87-010-384-040 CAP,E 100-25 SME
CN101 87-099-720-010 CONN,30P TYK-B(P)
CN701 87-A60-673-010 CONN,9P H 2MM JMT
CN801 87-099-015-010 CONN,13P 6216V
EMI401 87-008-372-080 FLTR,EMI BL01 RN1
FL201 8A-NFA-604-010 FL,10-BT-224GNK
J401 87-A61-242-010 JACK,6.3 BLK MONO W/SW VKM
L101 87-A50-050-010 COIL,CLK 4.19M(COI)
LED101 87-A40-317-080 LED,SLR-342VCT31 RED
S101 87-A91-555-010 SW,RTRY EC12E24504
S301 87-A90-164-080 SW,TACT SKQAB(N)
S302 87-A90-164-080 SW,TACT SKQAB(N)
S303 87-A90-164-080 SW,TACT SKQAB(N)
S304 87-A90-164-080 SW,TACT SKQAB(N)
S305 87-A90-164-080 SW,TACT SKQAB(N)
S306 87-A90-164-080 SW,TACT SKQAB(N)
S307 87-A90-164-080 SW,TACT SKQAB(N)
S308 87-A90-164-080 SW,TACT SKQAB(N)
S309 87-A90-164-080 SW,TACT SKQAB(N)
S310 87-A90-164-080 SW,TACT SKQAB(N)
S311 87-A90-164-080 SW,TACT SKQAB(N)
S312 87-A90-164-080 SW,TACT SKQAB(N)
S321 87-A90-164-080 SW,TACT SKQAB(N)
S322 87-A90-164-080 SW,TACT SKQAB(N)
S323 87-A90-164-080 SW,TACT SKQAB(N)
S324 87-A90-164-080 SW,TACT SKQAB(N)
S325 87-A90-164-080 SW,TACT SKQAB(N)
S326 87-A90-164-080 SW,TACT SKQAB(N)
S327 87-A90-164-080 SW,TACT SKQAB(N)
S328 87-A90-164-080 SW,TACT SKQAB(N)
S329 87-A90-164-080 SW,TACT SKQAB(N)
S330 87-A90-164-080 SW,TACT SKQAB(N)
S331 87-A90-164-080 SW,TACT SKQAB(N)
S332 87-A90-164-080 SW,TACT SKQAB(N)
S333 87-A90-164-080 SW,TACT SKQAB(N)
SFR701 87-024-431-080 SFR,3.3K RH063EC
PT C.B
C1 87-010-387-080 CAP,E 470-25 SME
C31 87-010-403-080 CAP, ELECT 3.3-50V
CN1 87-A61-110-010 CONN,9P V TID-A
JW14 87-A90-093-080 PROTECTOR,3A 491SERIES 60V<HT>
JW15 87-A90-093-080 PROTECTOR,3A 491SERIES 60V<HT>
PT1 8A-NFA-609-010 PT,ANF-A LH
PT2 8A-NF8-673-010 PT,SUB ANF-8 (H)KAMI
RY1 87-A91-281-010 RELAY,AC DC12V OSA-SS-212DM5
S1 87-A90-165-010 SW,SL 1-2-3 SWS2301
T1 87-A60-317-010 TERMINAL, 1P MSC
T2 87-A60-317-010 TERMINAL, 1P MSC
!
!
!
!
!
!
!
!
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 9–
TRANSISTOR ILLUSTRATION
E C B
CSA952
CSC4115
KTA1266
KTC3198
KTC3199
2SB1370
DTC114
B C E
E
B
C
2SA1235
2SC2714
2SC3052
CSD1306
CMBT5401
CMBT5551
E C B
2SJ460
2SK2541
S D G
KRA102
KRA107
KRC102
KRC104
RT1P141
B C E
2SC3331
E B C
2SA1981
G
D
S
2SK360
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
WIRING – 1 (MAIN) <HR>
– 12 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
WIRING – 2 (MAIN)<HT>
– 15 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
Other manuals for NSX-VC18
2
Table of contents
Other Aiwa Stereo Receiver manuals
Aiwa

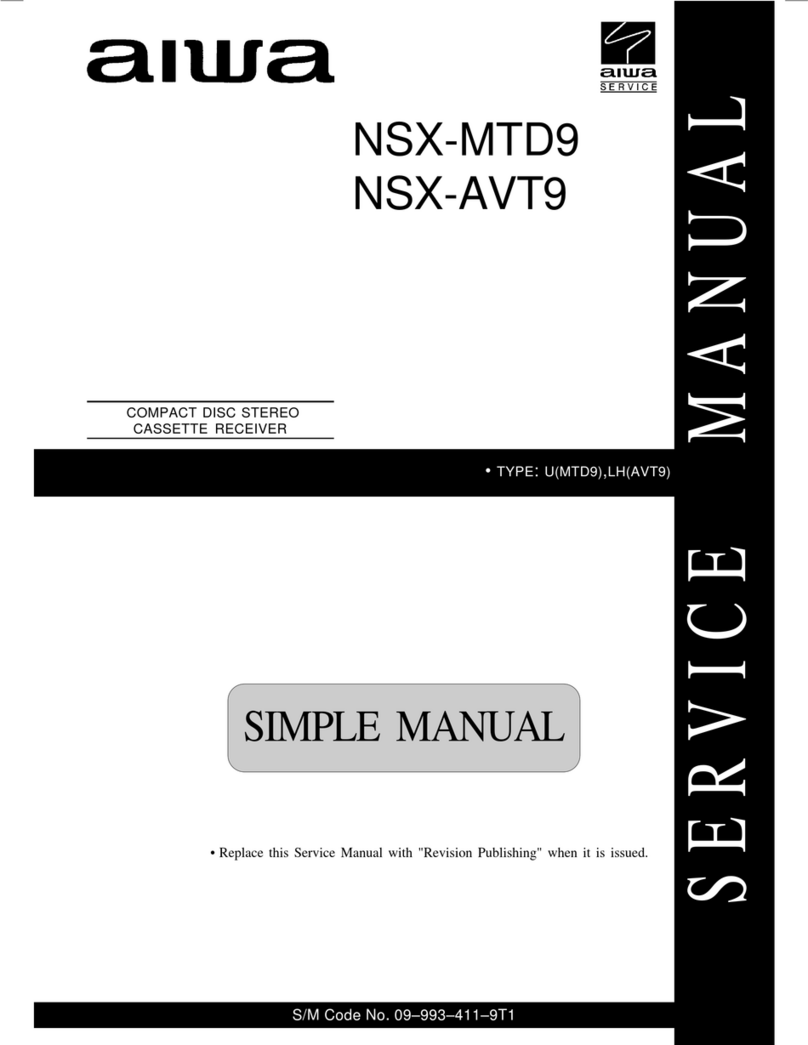

Aiwa NSX-MTD9 User manual
Aiwa

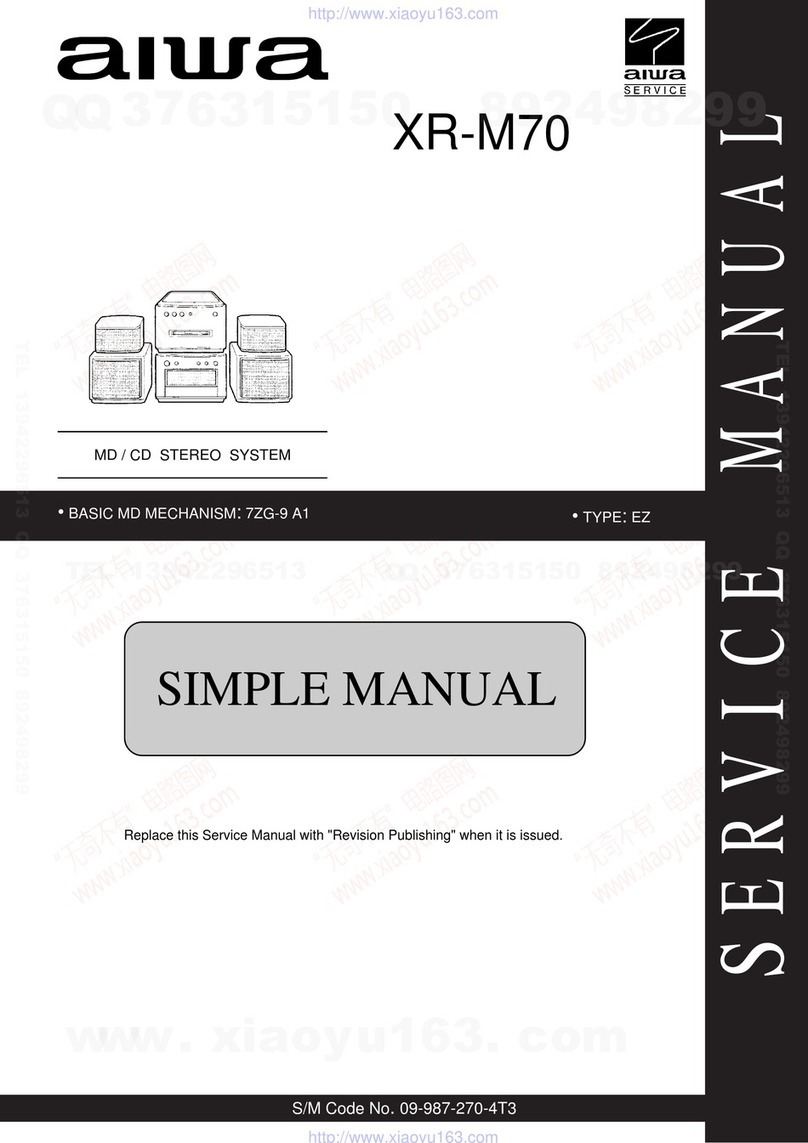

Aiwa XR-M70 User manual
Aiwa
Aiwa CR-AS65 User manual
Aiwa
Aiwa Compact disc stereo cassette receiver User manual
Aiwa
Aiwa NSX-AK772 User manual
Aiwa
Aiwa NSX-DS8 User manual
Aiwa
Aiwa HS-TA380 User manual
Aiwa
Aiwa NSX-SZ4 User manual
Aiwa

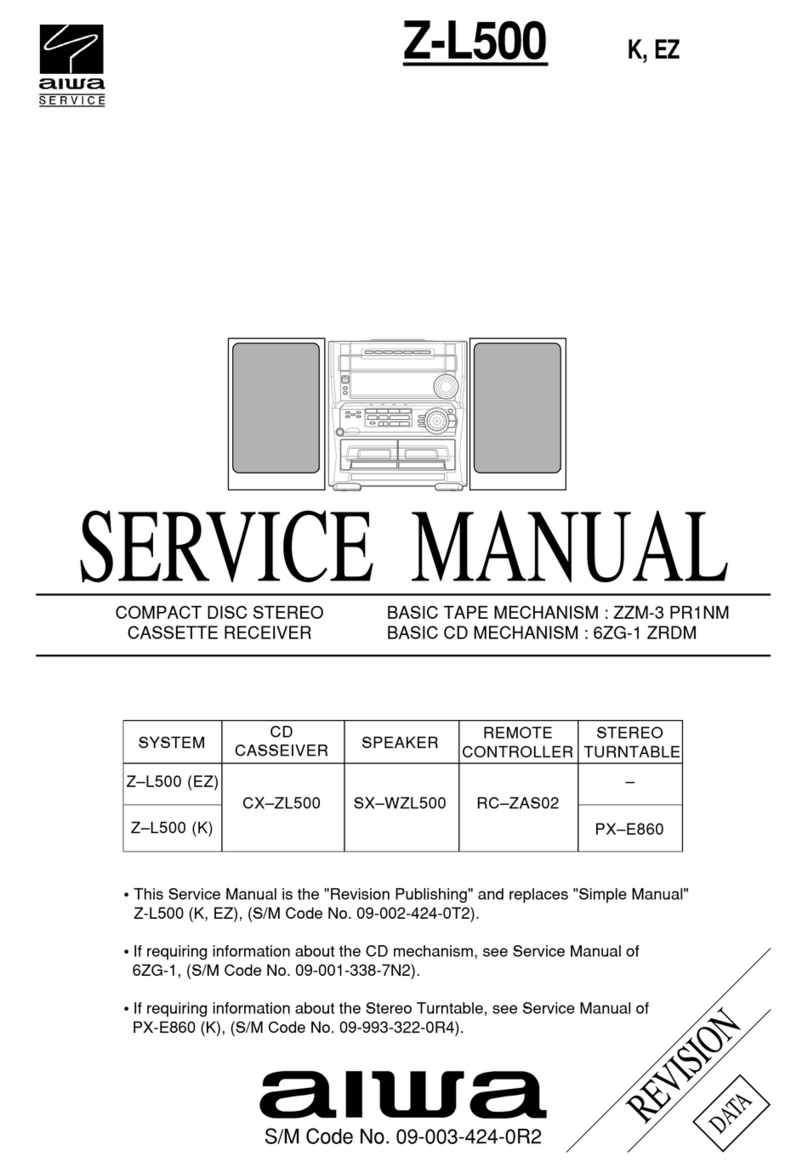

Aiwa Z-L500 User manual
Aiwa
Aiwa CX-NDP25 User manual
Aiwa

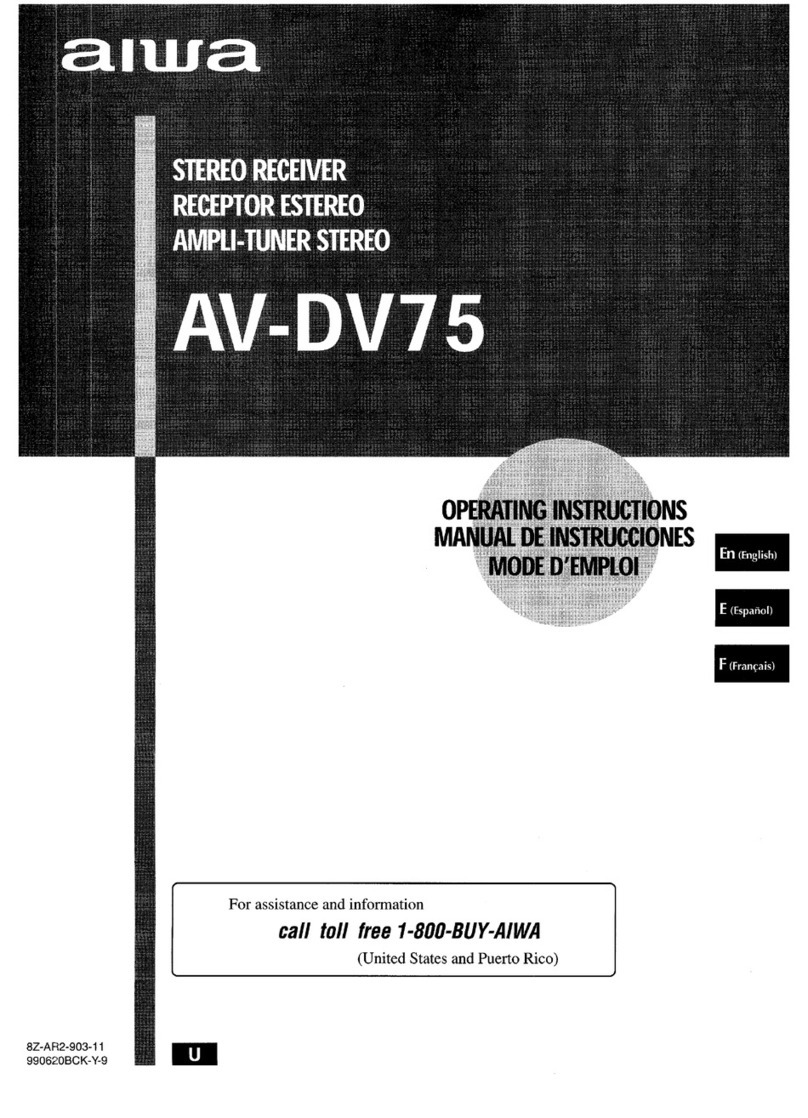

Aiwa AV-DV75 HC User manual
Aiwa
Aiwa NSX-SZ2 LH User manual
Aiwa
Aiwa AV-DV75 HC User manual
Aiwa
Aiwa NSX-AV240 Specification sheet
Aiwa

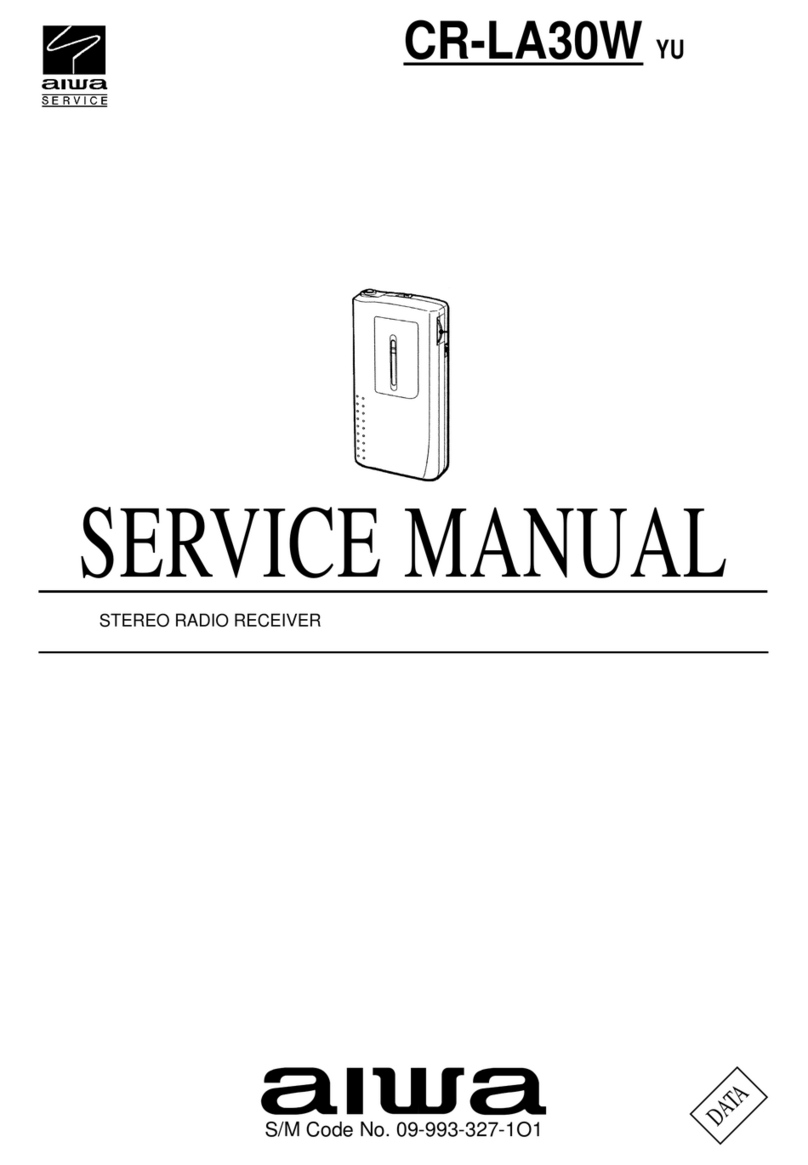

Aiwa CR-LA30W User manual
Aiwa
Aiwa NSX-MT70 User manual
Aiwa
Aiwa CT-R428M User manual
Aiwa
Aiwa AV-D35 User manual
Aiwa

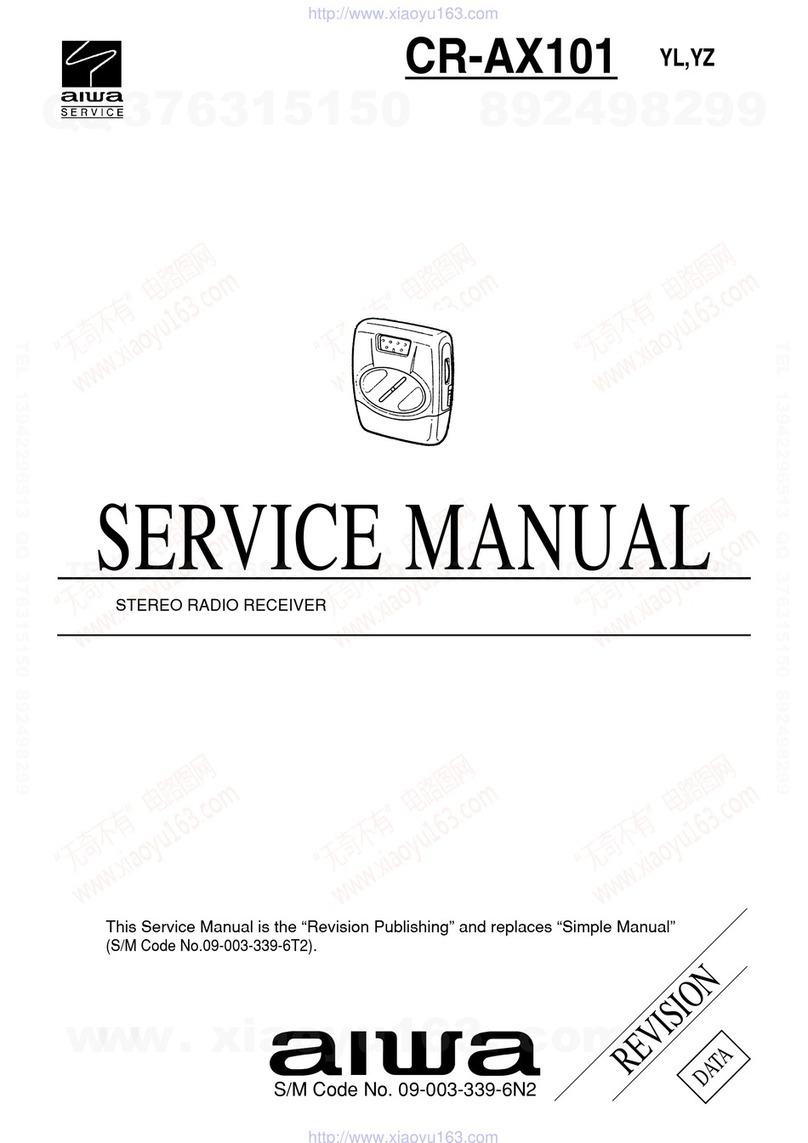

Aiwa CR-AX101 Building instructions
Aiwa
Aiwa Z-R900 User manual
