SERVICE MANUAL
DATA
COMPACT DISC
STEREO SYSTEM
BASIC TAPE MECHANISM : ZZM-2 PR1NC
BASIC CD MECHANISM : 3ZG-3 E8NC
NSX-VC8 HC
S/M Code No. 09-00C-437-8S1
SUPPLEMENT
NSX–VC8
SPEAKERSYSTEM CD
CASSEIVER
CX–NVC8
REMOTE
CONTROLLER
RC–AAS09SX–NVC8
• This Service Manual contains information about the difference between
NSX-VC8(HC) and NSX-VC8(HR). If requiring other information,
see Service Manual of NSX-VC8(HR), (S/M Code No. 09-00A-437-8R1).
All manuals and user guides at all-guides.com
all-guides.com

– 2 –

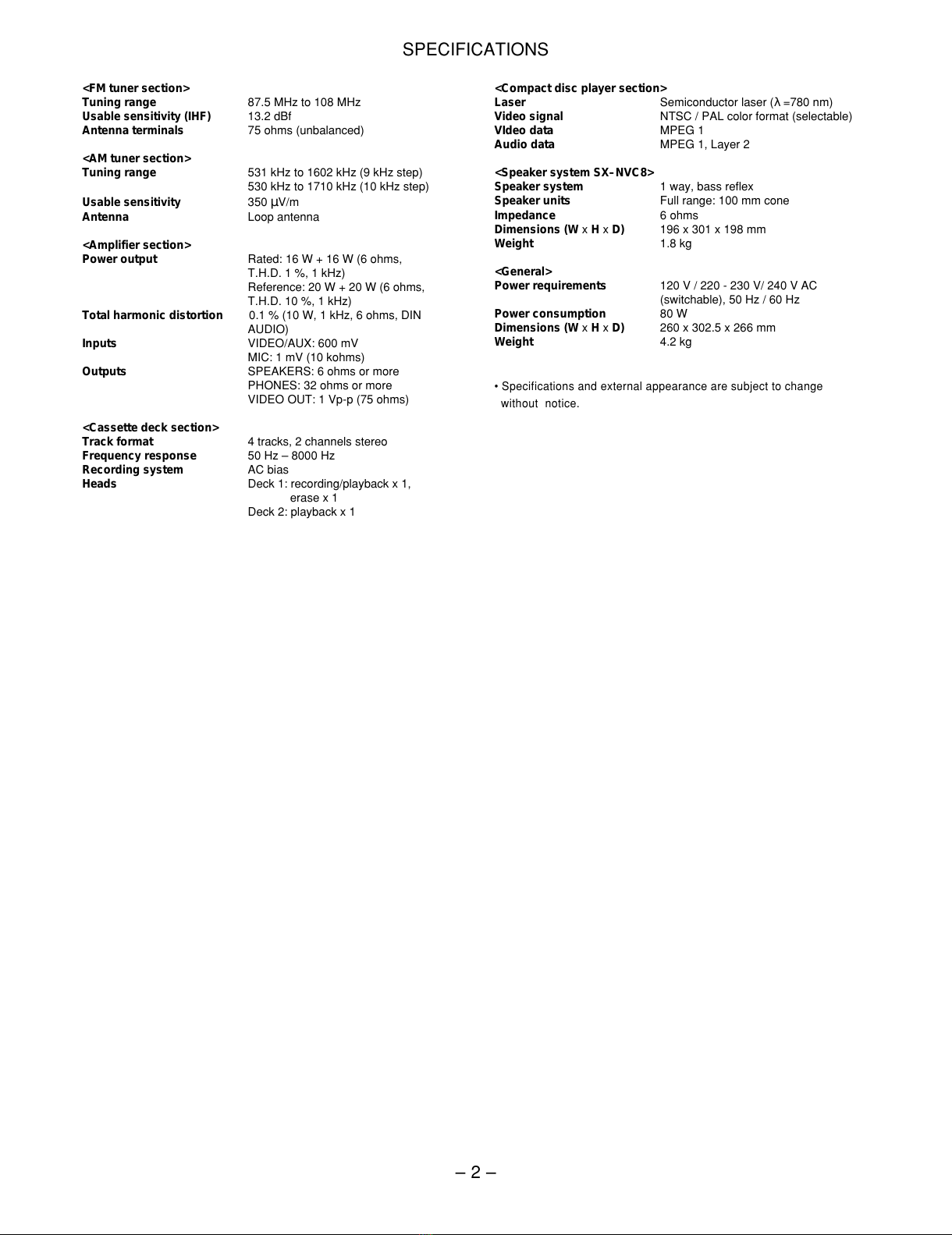

SPECIFICATIONS
<FM tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
<AM tuner section>
Tuning range 531 kHz to 1602 kHz (9 kHz step)
530 kHz to 1710 kHz (10 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
<Amplifier section>
Power output Rated: 16 W + 16 W (6 ohms,
T.H.D. 1 %, 1 kHz)
Reference: 20 W + 20 W (6 ohms,
T.H.D. 10 %, 1 kHz)
Total harmonic distortion 0.1 % (10 W, 1 kHz, 6 ohms, DIN
AUDIO)
Inputs VIDEO/AUX: 600 mV
MIC: 1 mV (10 kohms)
Outputs SPEAKERS: 6 ohms or more
PHONES: 32 ohms or more
VIDEO OUT: 1 Vp-p (75 ohms)
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz – 8000 Hz
Recording system AC bias
Heads Deck 1: recording/playback x 1,
erase x 1
Deck 2: playback x 1
<Compact disc player section>
Laser Semiconductor laser (λ =780 nm)
Video signal NTSC / PAL color format (selectable)
VIdeo data MPEG 1
Audio data MPEG 1, Layer 2
<Speaker system SX–NVC8>
Speaker system 1 way, bass reflex
Speaker units Full range: 100 mm cone
Impedance 6 ohms
Dimensions (W xH xD) 196 x 301 x 198 mm
Weight 1.8 kg
<General>
Power requirements 120 V / 220 - 230 V/ 240 V AC
(switchable), 50 Hz / 60 Hz
Power consumption 80 W
Dimensions (W xH xD) 260 x 302.5 x 266 mm
Weight 4.2 kg
• Specifications and external appearance are subject to change
without notice.
All manuals and user guides at all-guides.com

– 3 –

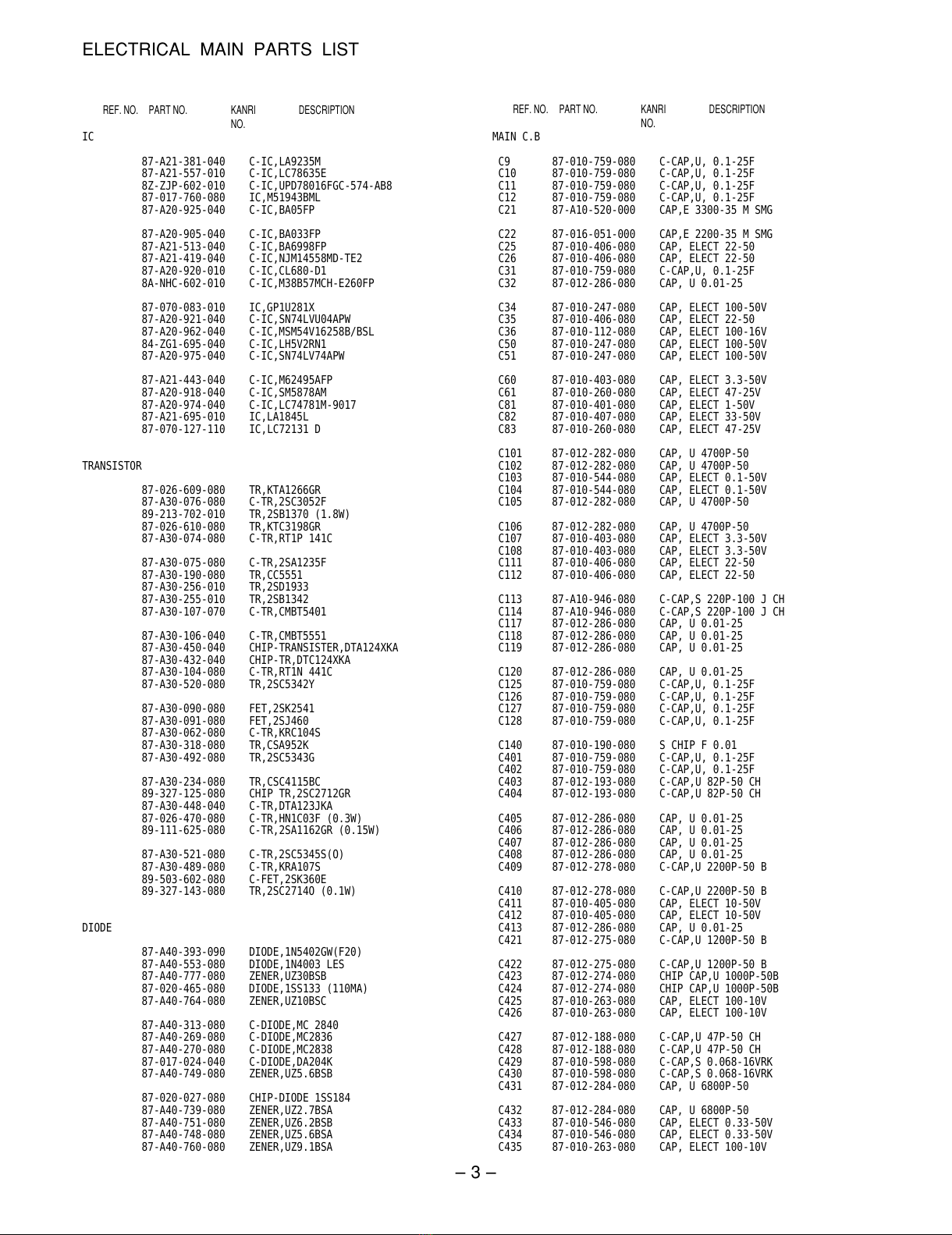

ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
87-A21-381-040 C-IC,LA9235M
87-A21-557-010 C-IC,LC78635E
8Z-ZJP-602-010 C-IC,UPD78016FGC-574-AB8
87-017-760-080 IC,M51943BML
87-A20-925-040 C-IC,BA05FP
87-A20-905-040 C-IC,BA033FP
87-A21-513-040 C-IC,BA6998FP
87-A21-419-040 C-IC,NJM14558MD-TE2
87-A20-920-010 C-IC,CL680-D1
8A-NHC-602-010 C-IC,M38B57MCH-E260FP
87-070-083-010 IC,GP1U281X
87-A20-921-040 C-IC,SN74LVU04APW
87-A20-962-040 C-IC,MSM54V16258B/BSL
84-ZG1-695-040 C-IC,LH5V2RN1
87-A20-975-040 C-IC,SN74LV74APW
87-A21-443-040 C-IC,M62495AFP
87-A20-918-040 C-IC,SM5878AM
87-A20-974-040 C-IC,LC74781M-9017
87-A21-695-010 IC,LA1845L
87-070-127-110 IC,LC72131 D
TRANSISTOR
87-026-609-080 TR,KTA1266GR
87-A30-076-080 C-TR,2SC3052F
89-213-702-010 TR,2SB1370 (1.8W)
87-026-610-080 TR,KTC3198GR
87-A30-074-080 C-TR,RT1P 141C
87-A30-075-080 C-TR,2SA1235F
87-A30-190-080 TR,CC5551
87-A30-256-010 TR,2SD1933
87-A30-255-010 TR,2SB1342
87-A30-107-070 C-TR,CMBT5401
87-A30-106-040 C-TR,CMBT5551
87-A30-450-040 CHIP-TRANSISTER,DTA124XKA
87-A30-432-040 CHIP-TR,DTC124XKA
87-A30-104-080 C-TR,RT1N 441C
87-A30-520-080 TR,2SC5342Y
87-A30-090-080 FET,2SK2541
87-A30-091-080 FET,2SJ460
87-A30-062-080 C-TR,KRC104S
87-A30-318-080 TR,CSA952K
87-A30-492-080 TR,2SC5343G
87-A30-234-080 TR,CSC4115BC
89-327-125-080 CHIP TR,2SC2712GR
87-A30-448-040 C-TR,DTA123JKA
87-026-470-080 C-TR,HN1C03F (0.3W)
89-111-625-080 C-TR,2SA1162GR (0.15W)
87-A30-521-080 C-TR,2SC5345S(O)
87-A30-489-080 C-TR,KRA107S
89-503-602-080 C-FET,2SK360E
89-327-143-080 TR,2SC2714O (0.1W)
DIODE
87-A40-393-090 DIODE,1N5402GW(F20)
87-A40-553-080 DIODE,1N4003 LES
87-A40-777-080 ZENER,UZ30BSB
87-020-465-080 DIODE,1SS133 (110MA)
87-A40-764-080 ZENER,UZ10BSC
87-A40-313-080 C-DIODE,MC 2840
87-A40-269-080 C-DIODE,MC2836
87-A40-270-080 C-DIODE,MC2838
87-017-024-040 C-DIODE,DA204K
87-A40-749-080 ZENER,UZ5.6BSB
87-020-027-080 CHIP-DIODE 1SS184
87-A40-739-080 ZENER,UZ2.7BSA
87-A40-751-080 ZENER,UZ6.2BSB
87-A40-748-080 ZENER,UZ5.6BSA
87-A40-760-080 ZENER,UZ9.1BSA
MAIN C.B
C9 87-010-759-080 C-CAP,U, 0.1-25F
C10 87-010-759-080 C-CAP,U, 0.1-25F
C11 87-010-759-080 C-CAP,U, 0.1-25F
C12 87-010-759-080 C-CAP,U, 0.1-25F
C21 87-A10-520-000 CAP,E 3300-35 M SMG
C22 87-016-051-000 CAP,E 2200-35 M SMG
C25 87-010-406-080 CAP, ELECT 22-50
C26 87-010-406-080 CAP, ELECT 22-50
C31 87-010-759-080 C-CAP,U, 0.1-25F
C32 87-012-286-080 CAP, U 0.01-25
C34 87-010-247-080 CAP, ELECT 100-50V
C35 87-010-406-080 CAP, ELECT 22-50
C36 87-010-112-080 CAP, ELECT 100-16V
C50 87-010-247-080 CAP, ELECT 100-50V
C51 87-010-247-080 CAP, ELECT 100-50V
C60 87-010-403-080 CAP, ELECT 3.3-50V
C61 87-010-260-080 CAP, ELECT 47-25V
C81 87-010-401-080 CAP, ELECT 1-50V
C82 87-010-407-080 CAP, ELECT 33-50V
C83 87-010-260-080 CAP, ELECT 47-25V
C101 87-012-282-080 CAP, U 4700P-50
C102 87-012-282-080 CAP, U 4700P-50
C103 87-010-544-080 CAP, ELECT 0.1-50V
C104 87-010-544-080 CAP, ELECT 0.1-50V
C105 87-012-282-080 CAP, U 4700P-50
C106 87-012-282-080 CAP, U 4700P-50
C107 87-010-403-080 CAP, ELECT 3.3-50V
C108 87-010-403-080 CAP, ELECT 3.3-50V
C111 87-010-406-080 CAP, ELECT 22-50
C112 87-010-406-080 CAP, ELECT 22-50
C113 87-A10-946-080 C-CAP,S 220P-100 J CH
C114 87-A10-946-080 C-CAP,S 220P-100 J CH
C117 87-012-286-080 CAP, U 0.01-25
C118 87-012-286-080 CAP, U 0.01-25
C119 87-012-286-080 CAP, U 0.01-25
C120 87-012-286-080 CAP, U 0.01-25
C125 87-010-759-080 C-CAP,U, 0.1-25F
C126 87-010-759-080 C-CAP,U, 0.1-25F
C127 87-010-759-080 C-CAP,U, 0.1-25F
C128 87-010-759-080 C-CAP,U, 0.1-25F
C140 87-010-190-080 S CHIP F 0.01
C401 87-010-759-080 C-CAP,U, 0.1-25F
C402 87-010-759-080 C-CAP,U, 0.1-25F
C403 87-012-193-080 C-CAP,U 82P-50 CH
C404 87-012-193-080 C-CAP,U 82P-50 CH
C405 87-012-286-080 CAP, U 0.01-25
C406 87-012-286-080 CAP, U 0.01-25
C407 87-012-286-080 CAP, U 0.01-25
C408 87-012-286-080 CAP, U 0.01-25
C409 87-012-278-080 C-CAP,U 2200P-50 B
C410 87-012-278-080 C-CAP,U 2200P-50 B
C411 87-010-405-080 CAP, ELECT 10-50V
C412 87-010-405-080 CAP, ELECT 10-50V
C413 87-012-286-080 CAP, U 0.01-25
C421 87-012-275-080 C-CAP,U 1200P-50 B
C422 87-012-275-080 C-CAP,U 1200P-50 B
C423 87-012-274-080 CHIP CAP,U 1000P-50B
C424 87-012-274-080 CHIP CAP,U 1000P-50B
C425 87-010-263-080 CAP, ELECT 100-10V
C426 87-010-263-080 CAP, ELECT 100-10V
C427 87-012-188-080 C-CAP,U 47P-50 CH
C428 87-012-188-080 C-CAP,U 47P-50 CH
C429 87-010-598-080 C-CAP,S 0.068-16VRK
C430 87-010-598-080 C-CAP,S 0.068-16VRK
C431 87-012-284-080 CAP, U 6800P-50
C432 87-012-284-080 CAP, U 6800P-50
C433 87-010-546-080 CAP, ELECT 0.33-50V
C434 87-010-546-080 CAP, ELECT 0.33-50V
C435 87-010-263-080 CAP, ELECT 100-10V
All manuals and user guides at all-guides.com

– 4 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C441 87-010-759-080 C-CAP,U, 0.1-25F
C442 87-010-759-080 C-CAP,U, 0.1-25F
C443 87-010-759-080 C-CAP,U, 0.1-25F
C445 87-A10-039-080 C-CAP,U 470P-50 J CH
C452 87-010-382-080 CAP, ELECT 22-25V
C453 87-012-279-080 C-CAP,U 2700P-50 B
C454 87-012-279-080 C-CAP,U 2700P-50 B
C455 87-012-279-080 C-CAP,U 2700P-50 B
C456 87-012-286-080 CAP, U 0.01-25
C460 87-010-759-080 C-CAP,U, 0.1-25F
C461 87-012-158-080 C-CAP,S 390P-50 CH
C462 87-012-158-080 C-CAP,S 390P-50 CH
C470 87-A10-039-080 C-CAP,U 470P-50 J CH
C605 87-012-275-080 C-CAP,U 1200P-50 B
C606 87-012-275-080 C-CAP,U 1200P-50 B
C609 87-010-785-080 C-CAP,U0.015-25BK
C610 87-010-785-080 C-CAP,U0.015-25BK
C611 87-010-545-080 CAP, ELECT 0.22-50V
C612 87-010-545-080 CAP, ELECT 0.22-50V
C613 87-010-545-080 CAP, ELECT 0.22-50V
C614 87-010-545-080 CAP, ELECT 0.22-50V
C615 87-012-172-080 CAPACITOR CHIP U 10P CH
C616 87-010-248-080 CAP, ELECT 220-10V
C617 87-016-459-080 CAP,E 470-10 SMG
C618 87-010-405-080 CAP, ELECT 10-50V
C630 87-A10-248-080 C-CAP,U0.1-16KBR
C669 87-012-195-080 C-CAP,U 100P-50CH
C670 87-012-195-080 C-CAP,U 100P-50CH
C671 87-010-831-080 C-CAP,U,0.1-16F
C672 87-010-831-080 C-CAP,U,0.1-16F
C673 87-012-278-080 C-CAP,U 2200P-50 B
C677 87-012-286-080 CAP, U 0.01-25
C679 87-A11-112-080 CAP,TC U 1000P-50 J CH
C681 87-010-401-080 CAP, ELECT 1-50V
C682 87-010-759-080 C-CAP,U, 0.1-25F
C683 87-010-260-080 CAP, ELECT 47-25V
C771 87-010-263-080 CAP, ELECT 100-10V
C772 87-012-286-080 CAP, U 0.01-25
C782 87-012-286-080 CAP, U 0.01-25
C783 87-012-286-080 CAP, U 0.01-25
C784 87-012-286-080 CAP, U 0.01-25
C785 87-012-286-080 CAP, U 0.01-25
C786 87-012-286-080 CAP, U 0.01-25
C788 87-012-167-080 C-CAP,U 5P-50 CH
C789 87-A10-801-080 C-CAP,S 0.022-16 J B CM
C790 87-A10-801-080 C-CAP,S 0.022-16 J B CM
C791 87-010-759-080 C-CAP,U, 0.1-25F
C792 87-012-286-080 CAP, U 0.01-25
C793 87-010-404-080 CAP, ELECT 4.7-50V
C795 87-012-286-080 CAP, U 0.01-25
C796 87-012-286-080 CAP, U 0.01-25
C797 87-010-405-080 CAP, ELECT 10-50V
C798 87-012-286-080 CAP, U 0.01-25
C799 87-010-407-080 CAP, ELECT 33-50V
C800 87-010-829-080 CAP, U 0.047-16
C801 87-010-403-080 CAP, ELECT 3.3-50V
C802 87-010-829-080 CAP, U 0.047-16
C803 87-010-787-080 CAP, U 0.022-25
C804 87-010-263-080 CAP, ELECT 100-10V
C807 87-010-400-080 CAP, ELECT 0.47-50V
C808 87-010-401-080 CAP, ELECT 1-50V
C809 87-010-401-080 CAP, ELECT 1-50V
C810 87-010-759-080 C-CAP,U, 0.1-25F
C814 87-012-286-080 CAP, U 0.01-25
C815 87-010-400-080 CAP, ELECT 0.47-50V
C816 87-010-400-080 CAP, ELECT 0.47-50V
C821 87-010-405-080 CAP, ELECT 10-50V
C823 87-010-177-080 C-CAP,S 820P-50 SL
C824 87-010-404-080 CAP, ELECT 4.7-50V
C825 87-010-596-080 CAP, S 0.047-16
C836 87-012-286-080 CAP, U 0.01-25
C837 87-012-286-080 CAP, U 0.01-25
C842 87-012-286-080 CAP, U 0.01-25
C844 87-012-286-080 CAP, U 0.01-25
C850 87-010-260-080 CAP, ELECT 47-25V
C851 87-012-286-080 CAP, U 0.01-25
C852 87-012-286-080 CAP, U 0.01-25
C853 87-012-286-080 CAP, U 0.01-25
C858 87-010-759-080 C-CAP,U, 0.1-25F
C859 87-010-759-080 C-CAP,U, 0.1-25F
C860 87-012-286-080 CAP, U 0.01-25
C902 87-018-145-080 CAP,TC-U 6.8P-50 CH
C908 87-012-174-080 CAP CHIP CERA SS 12P CHJ
C909 87-012-349-080 C-CAP,S 1000P-50 CH
C911 87-012-170-080 C-CAP,U 8P-50 CH
C912 87-012-195-080 C-CAP,U 100P-50CH
C913 87-012-286-080 CAP, U 0.01-25
C914 87-012-286-080 CAP, U 0.01-25
C915 87-012-286-080 CAP, U 0.01-25
C918 87-012-165-080 CAP 3P
C920 87-012-180-080 C-CAP,U 22P-50 CH
C921 87-012-186-080 C-CAP,U 39P-50 CH
C922 87-012-174-080 CAP CHIP CERA SS 12P CHJ
C923 87-A10-039-080 C-CAP,U 470P-50 J CH
C924 87-012-174-080 CAP CHIP CERA SS 12P CHJ
C927 87-012-195-080 C-CAP,U 100P-50CH
C961 87-012-170-080 C-CAP,U 8P-50 CH
C962 87-010-401-080 CAP, ELECT 1-50V
C971 87-010-381-080 CAP, ELECT 330-16V
C972 87-010-404-080 CAP, ELECT 4.7-50V
C973 87-012-286-080 CAP, U 0.01-25
C974 87-012-286-080 CAP, U 0.01-25
C979 87-012-195-080 C-CAP,U 100P-50CH
C981 87-010-260-080 CAP, ELECT 47-25V
C982 87-010-759-080 C-CAP,U, 0.1-25F
C983 87-012-286-080 CAP, U 0.01-25
C984 87-012-286-080 CAP, U 0.01-25
C987 87-012-286-080 CAP, U 0.01-25
C990 87-012-195-080 C-CAP,U 100P-50CH
C991 87-012-176-080 CAP 15P
C992 87-012-176-080 CAP 15P
C993 87-012-274-080 CHIP CAP,U 1000P-50B
C994 87-012-195-080 C-CAP,U 100P-50CH
C995 87-012-274-080 CHIP CAP,U 1000P-50B
C996 87-012-195-080 C-CAP,U 100P-50CH
C997 87-010-759-080 C-CAP,U, 0.1-25F
C998 87-010-260-080 CAP, ELECT 47-25V
C999 87-A11-155-080 CAP,TC U 0.01-16 Z F
CF831 87-008-261-010 FILTER, SFE10.7MA5-A
CF832 87-008-261-010 FILTER, SFE10.7MA5-A
CN81 87-009-030-010 CONNECTOR 2P PH M
CN351 87-A60-625-010 CONN,8P V 2MM JMT
CN401 87-A60-620-010 CONN,3P V 2MM JMT
CN601 87-099-194-010 CONN,6P 6216V
CNA351 8A-NEC-634-010 CONN ASSY,8P RPB
CNA401 8A-NEC-633-010 CONN ASSY,3P (PH)
D902 87-A40-916-040 C-VARI-CAP,HVC202A
D903 87-A40-916-040 C-VARI-CAP,HVC202A
F101 87-035-223-010 FUSE, 1.25AT
FC101 87-033-213-080 CLAMP, FUSE
FC102 87-033-213-080 CLAMP, FUSE
FC601 88-906-201-110 FF-CABLE,6P 1.25
J101 87-A60-602-010 JACK,DIA6.3 BLK ST W/SW TC
J103 87-A61-452-010 TERMINAL,SP 4P(MSC)
J271 87-A61-243-010 JACK,6.3 BLK MONO W/SW V MSC
J602 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN
J831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02
JW1 87-A90-093-080 PROTECTOR,3A 491 SERIES 60V
JW2 87-A90-093-080 PROTECTOR,3A 491 SERIES 60V
L101 87-A50-610-010 COIL,1UH K(MDEC)
!
!
!
!
!
All manuals and user guides at all-guides.com

– 5 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
L102 87-A50-610-010 COIL,1UH K(MDEC)
L451 87-007-342-010 COIL,OSC 85K BIAS
L801 87-A50-608-010 COIL,FM DET-N(TOK)
L802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK)
L811 87-005-847-080 COIL,2.2UH(CECS)
L832 87-005-847-080 COIL,2.2UH(CECS)
L903 88-ZA1-602-110 COIL,FM-RF-U2 2G
L904 88-ZA1-601-010 COIL,FM-RF-U1 2G
L906 87-005-847-080 COIL,2.2UH(CECS)
L907 8A-NEC-611-010 COIL,FM OSC U 2G
L908 88-ZA1-624-010 COIL,FM IFT 7-6.2 (COILS)
L951 8A-NF8-667-010 COIL,AM PACK 4(TOK)
PT101 8A-NHC-605-010 PT,ANH-C HR
R129 87-A00-258-080 RES,M/F 0.22-1W J
R130 87-A00-258-080 RES,M/F 0.22-1W J
R790 87-012-286-080 CAP, U 0.01-25
RY101 87-045-389-010 RELAY,OSA-SS-212DM5
S1 87-A90-165-010 SW,SL 1-2-3 SWS2301
T101 87-A60-317-010 TERMINAL, 1P MSC
T102 87-A60-317-010 TERMINAL, 1P MSC
TH101 87-A91-042-080 C-THMS,100K 55001
TH102 87-A91-042-080 C-THMS,100K 55001
X991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
FRONT C.B
C201 87-010-383-040 CAP,E 33-25 SME
C202 87-010-759-080 C-CAP,U, 0.1-25F
C203 87-010-260-040 CAP,E 47-25 SME
C204 87-016-251-040 CAP,E 220-16 SMG
C271 87-012-282-080 CAP, U 4700P-50
C272 87-010-112-040 CAP,E 100-16
C273 87-010-545-040 CAP,E 0.22-50 SME
C274 87-012-195-080 C-CAP,U 100P-50CH
C275 87-010-545-040 CAP,E 0.22-50 SME
C276 87-A10-248-080 C-CAP,U0.1-16KBR
C277 87-010-405-040 CAP,E 10-50
C278 87-012-195-080 C-CAP,U 100P-50CH
C279 87-010-405-040 CAP,E 10-50
C280 87-010-759-080 C-CAP,U, 0.1-25F
C281 87-010-177-080 C-CAP,S 820P-50 SL
C282 87-010-177-080 C-CAP,S 820P-50 SL
C500 87-010-759-080 C-CAP,U, 0.1-25F
C505 87-010-829-080 CAP, U 0.047-16
C506 87-010-263-040 CAP,E 100-10
C507 87-010-246-040 CAP,E 47-35 SME
C508 87-010-192-080 C-CAP,S 0.022-50 F
C509 87-010-404-040 CAP,E 4.7-50 SME
C510 87-010-404-040 CAP,E 4.7-50 SME
C511 87-010-759-080 C-CAP,U, 0.1-25F
C512 87-010-263-040 CAP,E 100-10
C514 87-012-274-080 CHIP CAP,U 1000P-50B
C515 87-012-274-080 CHIP CAP,U 1000P-50B
C517 87-010-759-080 C-CAP,U, 0.1-25F
C518 87-012-268-080 C-CAP,U 330P-50 B
C523 87-010-248-040 CAP,E 220-10 SME
C524 87-010-192-080 C-CAP,S 0.022-50 F
C525 87-010-401-040 CAP,E 1-50 SME
C526 87-012-172-080 CAPACITOR CHIP U 10P CH
C527 87-012-274-080 CHIP CAP,U 1000P-50B
C528 87-010-175-080 CAP 560P
C530 87-012-195-080 C-CAP,U 100P-50CH
C531 87-012-195-080 C-CAP,U 100P-50CH
C532 87-012-195-080 C-CAP,U 100P-50CH
C533 87-012-195-080 C-CAP,U 100P-50CH
C534 87-012-195-080 C-CAP,U 100P-50CH
C535 87-012-195-080 C-CAP,U 100P-50CH
C536 87-012-195-080 C-CAP,U 100P-50CH
C537 87-012-195-080 C-CAP,U 100P-50CH
C538 87-012-195-080 C-CAP,U 100P-50CH
C539 87-012-199-080 CAP 220P
C540 87-010-759-080 C-CAP,U, 0.1-25F
C541 87-016-459-040 CAP,E 470-10 SMG
C543 87-010-405-040 CAP,E 10-50
C590 87-010-384-040 CAP,E 100-25 SME
CN201 87-A60-058-010 CONN,10P V 9604S-10C
CN501 87-A60-673-010 CONN,9P H 2MM JMT
EMI271 87-008-372-080 FILTER, EMI BL OIRNI
FC201 88-910-231-110 FF-CABLE,10P 1.25 230MM
FL501 8A-NEC-601-010 FL,HNA-10SS15T
L501 87-A50-655-010 COIL,CLK 4.19MHZ (TOKO)7KLY
S201 87-A90-095-080 SW,TACT EVQ11G04M
S202 87-A90-095-080 SW,TACT EVQ11G04M
S203 87-A90-095-080 SW,TACT EVQ11G04M
S204 87-A90-095-080 SW,TACT EVQ11G04M
S205 87-A90-095-080 SW,TACT EVQ11G04M
S206 87-A90-095-080 SW,TACT EVQ11G04M
S208 87-A90-095-080 SW,TACT EVQ11G04M
S209 87-A90-095-080 SW,TACT EVQ11G04M
S210 87-A90-095-080 SW,TACT EVQ11G04M
S211 87-A90-095-080 SW,TACT EVQ11G04M
S212 87-A90-095-080 SW,TACT EVQ11G04M
S213 87-A90-095-080 SW,TACT EVQ11G04M
SFR501 87-024-431-080 SFR,3.3K RH063EC
VR271 87-NB7-602-010 VR,RTRY 10KAX1 1 V
CD C.B
C1 87-A10-222-040 CAP,AS 22-10 OS
C2 87-010-759-080 C-CAP,U, 0.1-25F
C3 87-010-260-080 CAP, ELECT 47-25V
C4 87-A10-222-040 CAP,AS 22-10 OS
C5 87-012-286-080 CAP, U 0.01-25
C6 87-010-405-080 CAP, ELECT 10-50V
C7 87-010-263-080 CAP, ELECT 100-10V
C8 87-012-274-080 CHIP CAP,U 1000P-50B
C10 87-010-546-080 CAP, ELECT 0.33-50V
C11 87-010-401-080 CAP, ELECT 1-50V
C13 87-012-193-080 C-CAP,U 82P-50 CH
C15 87-012-286-080 CAP, U 0.01-25
C16 87-010-260-080 CAP, ELECT 47-25V
C101 87-A10-504-080 C-CAP,U 0.047-16 K B
C102 87-010-401-080 CAP, ELECT 1-50V
C103 87-010-759-080 C-CAP,U, 0.1-25F
C104 87-010-759-080 C-CAP,U, 0.1-25F
C105 87-010-260-080 CAP, ELECT 47-25V
C106 87-012-195-080 C-CAP,U 100P-50CH
C107 87-010-759-080 C-CAP,U, 0.1-25F
C108 87-012-282-080 CAP, U 4700P-50
C109 87-A10-504-080 C-CAP,U 0.047-16 K B
C110 87-012-195-080 C-CAP,U 100P-50CH
C111 87-010-260-080 CAP, ELECT 47-25V
C112 87-012-286-080 CAP, U 0.01-25
C114 87-010-260-080 CAP, ELECT 47-25V
C115 87-012-286-080 CAP, U 0.01-25
C118 87-010-263-080 CAP, ELECT 100-10V
C119 87-012-286-080 CAP, U 0.01-25
C120 87-012-286-080 CAP, U 0.01-25
C123 87-A10-504-080 C-CAP,U 0.047-16 K B
C124 87-010-403-080 CAP, ELECT 3.3-50V
C125 87-010-759-080 C-CAP,U, 0.1-25F
C135 87-012-195-080 C-CAP,U 100P-50CH
C201 87-A10-248-080 C-CAP,U0.1-16KBR
C206 87-012-195-080 C-CAP,U 100P-50CH
C207 87-012-195-080 C-CAP,U 100P-50CH
C208 87-012-195-080 C-CAP,U 100P-50CH
C209 87-012-195-080 C-CAP,U 100P-50CH
C210 87-A10-248-080 C-CAP,U0.1-16KBR
C211 87-010-263-080 CAP, ELECT 100-10V
C213 87-010-190-080 S CHIP F 0.01
C214 87-010-759-080 C-CAP,U, 0.1-25F
!
!
!
!
All manuals and user guides at all-guides.com

– 6 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C306 87-010-112-080 CAP, ELECT 100-16V
C307 87-010-759-080 C-CAP,U, 0.1-25F
C308 87-010-263-080 CAP, ELECT 100-10V
C309 87-010-759-080 C-CAP,U, 0.1-25F
C310 87-010-263-080 CAP, ELECT 100-10V
C311 87-010-759-080 C-CAP,U, 0.1-25F
C401 87-010-101-080 CAP, ELECT 220-16
C402 87-010-759-080 C-CAP,U, 0.1-25F
C403 87-010-759-080 C-CAP,U, 0.1-25F
C404 87-010-759-080 C-CAP,U, 0.1-25F
C405 87-010-759-080 C-CAP,U, 0.1-25F
C406 87-010-759-080 C-CAP,U, 0.1-25F
C501 87-012-286-080 CAP, U 0.01-25
C502 87-012-286-080 CAP, U 0.01-25
C503 87-012-286-080 CAP, U 0.01-25
C504 87-012-172-080 CAPACITOR CHIP U 10P CH
C505 87-012-172-080 CAPACITOR CHIP U 10P CH
C506 87-012-286-080 CAP, U 0.01-25
C508 87-010-263-080 CAP, ELECT 100-10V
C509 87-016-669-080 C-CAP,S 0.1-25 K B
C510 87-010-263-080 CAP, ELECT 100-10V
C511 87-010-759-080 C-CAP,U, 0.1-25F
C512 87-012-286-080 CAP, U 0.01-25
C513 87-012-286-080 CAP, U 0.01-25
C514 87-012-286-080 CAP, U 0.01-25
C518 87-012-195-080 C-CAP,U 100P-50CH
C519 87-012-145-080 CAP, CHIP S 270P CH
C520 87-012-157-080 C-CAP,S 330P-50 CH
C521 87-012-197-080 C-CAP,U 150P-50 CH
C523 87-012-286-080 CAP, U 0.01-25
C524 87-012-286-080 CAP, U 0.01-25
C525 87-012-286-080 CAP, U 0.01-25
C526 87-012-286-080 CAP, U 0.01-25
C527 87-012-286-080 CAP, U 0.01-25
C528 87-012-286-080 CAP, U 0.01-25
C529 87-012-286-080 CAP, U 0.01-25
C530 87-012-286-080 CAP, U 0.01-25
C531 87-012-286-080 CAP, U 0.01-25
C532 87-010-374-040 CAP,E 47-10
C533 87-012-286-080 CAP, U 0.01-25
C534 87-010-263-080 CAP, ELECT 100-10V
C535 87-012-286-080 CAP, U 0.01-25
C536 87-010-078-040 CAP,E 47-6.3 5L
C537 87-010-190-080 S CHIP F 0.01
C538 87-010-759-080 C-CAP,U, 0.1-25F
C539 87-010-759-080 C-CAP,U, 0.1-25F
C540 87-010-078-040 CAP,E 47-6.3 5L
C541 87-012-286-080 CAP, U 0.01-25
C542 87-012-188-080 C-CAP,U 47P-50 CH
C544 87-012-286-080 CAP, U 0.01-25
C546 87-012-286-080 CAP, U 0.01-25
C560 87-010-759-080 C-CAP,U, 0.1-25F
C601 87-012-286-080 CAP, U 0.01-25
C602 87-012-286-080 CAP, U 0.01-25
C603 87-010-112-080 CAP, ELECT 100-16V
C604 87-010-759-080 C-CAP,U, 0.1-25F
C605 87-012-286-080 CAP, U 0.01-25
C606 87-012-286-080 CAP, U 0.01-25
C607 87-012-178-080 C-CAP,U 18P-50 CH
C608 87-012-178-080 C-CAP,U 18P-50 CH
C609 87-012-274-080 CHIP CAP,U 1000P-50B
C610 87-012-274-080 CHIP CAP,U 1000P-50B
C611 87-012-274-080 CHIP CAP,U 1000P-50B
C612 87-012-274-080 CHIP CAP,U 1000P-50B
C613 87-A10-303-080 CAP,M 0.047-50 J
C614 87-A10-303-080 CAP,M 0.047-50 J
C615 87-012-188-080 C-CAP,U 47P-50 CH
C616 87-012-188-080 C-CAP,U 47P-50 CH
C617 87-012-286-080 CAP, U 0.01-25
C618 87-010-112-080 CAP, ELECT 100-16V
C619 87-012-286-080 CAP, U 0.01-25
C701 87-012-196-080 C-CAP,U 120P-50 CH
C702 87-010-494-080 CAP ELECT GAS 1/50
C703 87-012-286-080 CAP, U 0.01-25
C704 87-016-526-080 C-CAP,S 0.47-16 BK
C705 87-010-371-080 CAP, ELECT 470-6.3V
C706 87-010-759-080 C-CAP,U, 0.1-25F
C707 87-012-286-080 CAP, U 0.01-25
C708 87-A11-167-080 C-CAP,S 27P-50 F CH
C709 87-A11-167-080 C-CAP,S 27P-50 F CH
C711 87-012-172-080 C-CAP,U, 10P-50 D CH
C900 87-A11-144-080 CAP,TC U,0.1-50 KB
C901 87-A11-144-080 CAP,TC U,0.1-50 KB
CN1 87-A60-424-010 CONN,16P V TOC-B
CN301 87-099-199-010 CONN,6P 6216 H
CN401 87-099-199-010 CONN,6P 6216 H
CN403 87-A60-077-010 CONN,10P H 9604S-10F
CN404 87-A60-082-010 CONN,05P H 9604S-05F
FB501 87-008-372-080 FILTER, EMI BL OIRNI
FB601 87-A50-189-080 C-COIL,S BLM21B272S
FB602 87-A50-189-080 C-COIL,S BLM21B272S
FB603 87-A50-189-080 C-COIL,S BLM21B272S
FC1 8A-NHC-603-010 FF-CABLE,16P -1.0
FC401 88-906-121-110 FF-CABLE,6P
FC404 88-905-201-110 FF-CABLE, 5P 1.25
J701 87-009-502-010 JACK,PIN 1P Y EARTH
JR302 87-005-778-080 C-COIL,10UK NLC25
L502 87-005-204-080 COIL,47UH
L503 87-005-189-080 COIL 2.7UH
L504 87-005-187-080 COIL,1.8UH
L505 87-005-204-080 COIL,47UH
L506 87-005-204-080 COIL,47UH
L507 87-005-204-080 COIL,47UH
L508 87-005-196-080 COIL,10UH
L701 87-005-817-080 C-COIL, 33UH J FLC32
R507 87-A00-408-080 C-RES,S 2K-1/10W D
R536 87-012-286-080 CAP, U 0.01-25
S201 87-A90-162-010 SW,SL 1-1-3 SSSU
X201 87-A70-124-080 VIB,CER 8.0MHZ
X501 87-A70-125-080 VIB,XTAL 27MHZ 50PPM
X601 87-030-270-080 VIB,XTAL 16.9344MHZ
CD LOAD C.B
CON6 87-099-210-010 CONN,5P 6216H
M1 87-045-305-010 MOTOR,RF-500TB DC-5V(2MA)
SW1 87-036-110-010 PUSH SWITCH

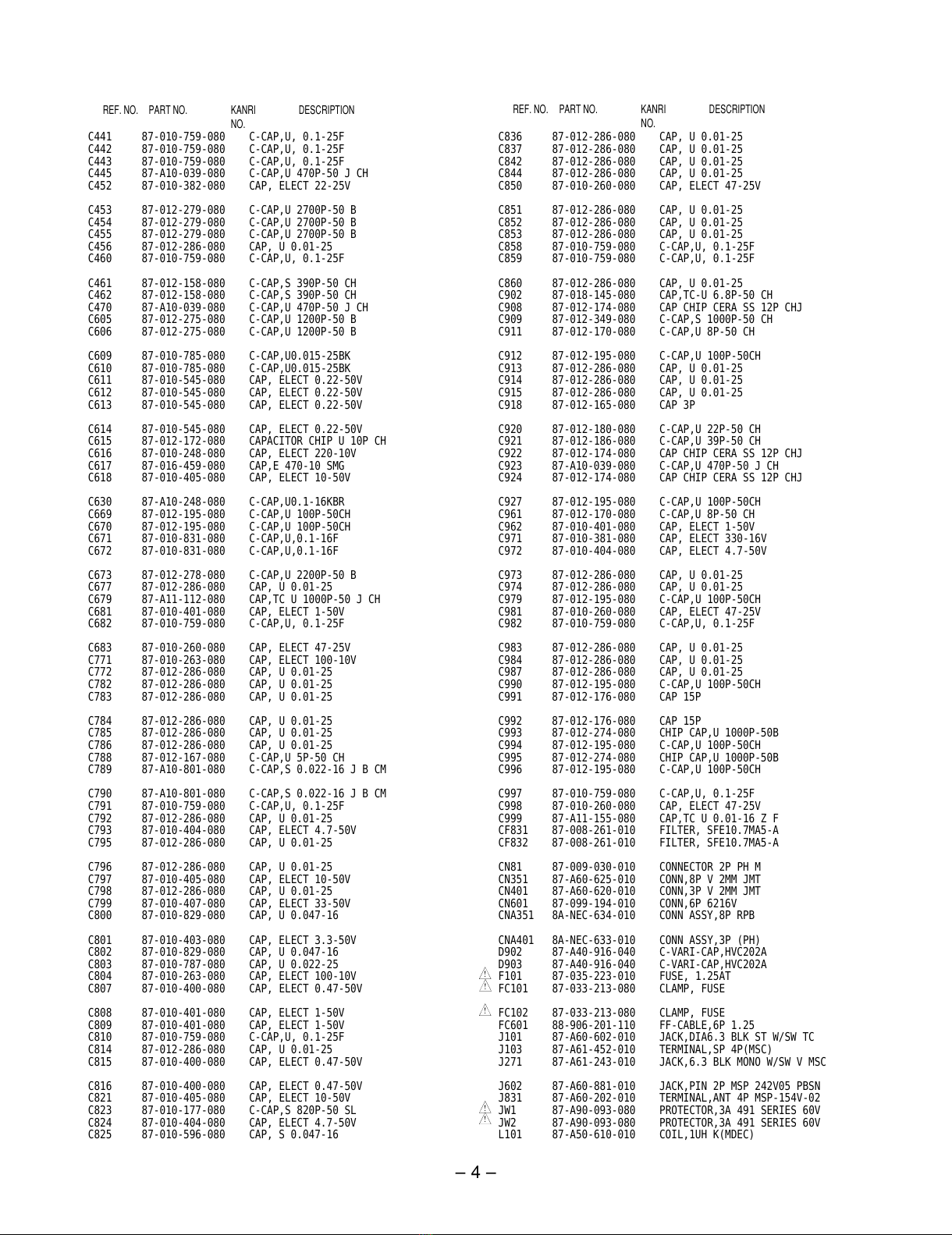

SW2 87-036-110-010 PUSH SWITCH
CD DRIVE C.B
CON3 87-A60-086-010 CONN,6P H 6216
M21 87-045-356-010 MOT,RF-310TA 30
SW1 87-A90-042-010 SW,LEAF MSW-17310MVPO
All manuals and user guides at all-guides.com
all-guides.com

– 7 –
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A

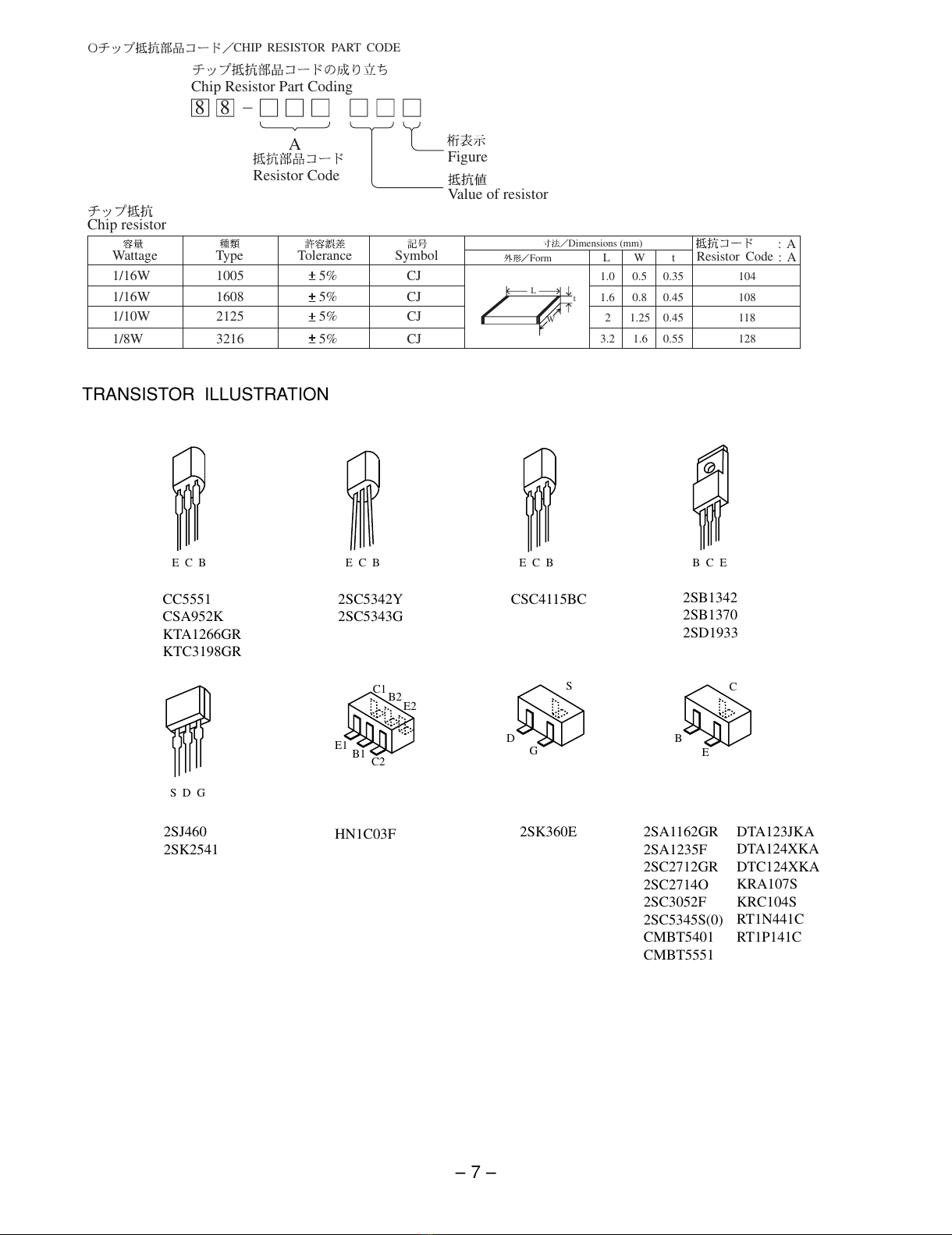

CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
TRANSISTOR ILLUSTRATION
E C B
CC5551
CSA952K
KTA1266GR
KTC3198GR
E C B
2SC5342Y
2SC5343G
2SB1342
2SB1370
2SD1933
CSC4115BC
E C B B C E
E
B
C
2SA1162GR
2SA1235F
2SC2712GR
2SC2714O
2SC3052F
2SC5345S(0)
CMBT5401
CMBT5551
DTA123JKA
DTA124XKA
DTC124XKA
KRA107S
KRC104S
RT1N441C
RT1P141C
2SK360E
DG
S
S D G
2SJ460
2SK2541
E2
C1 B2
C2
B1
E1
HN1C03F
All manuals and user guides at all-guides.com

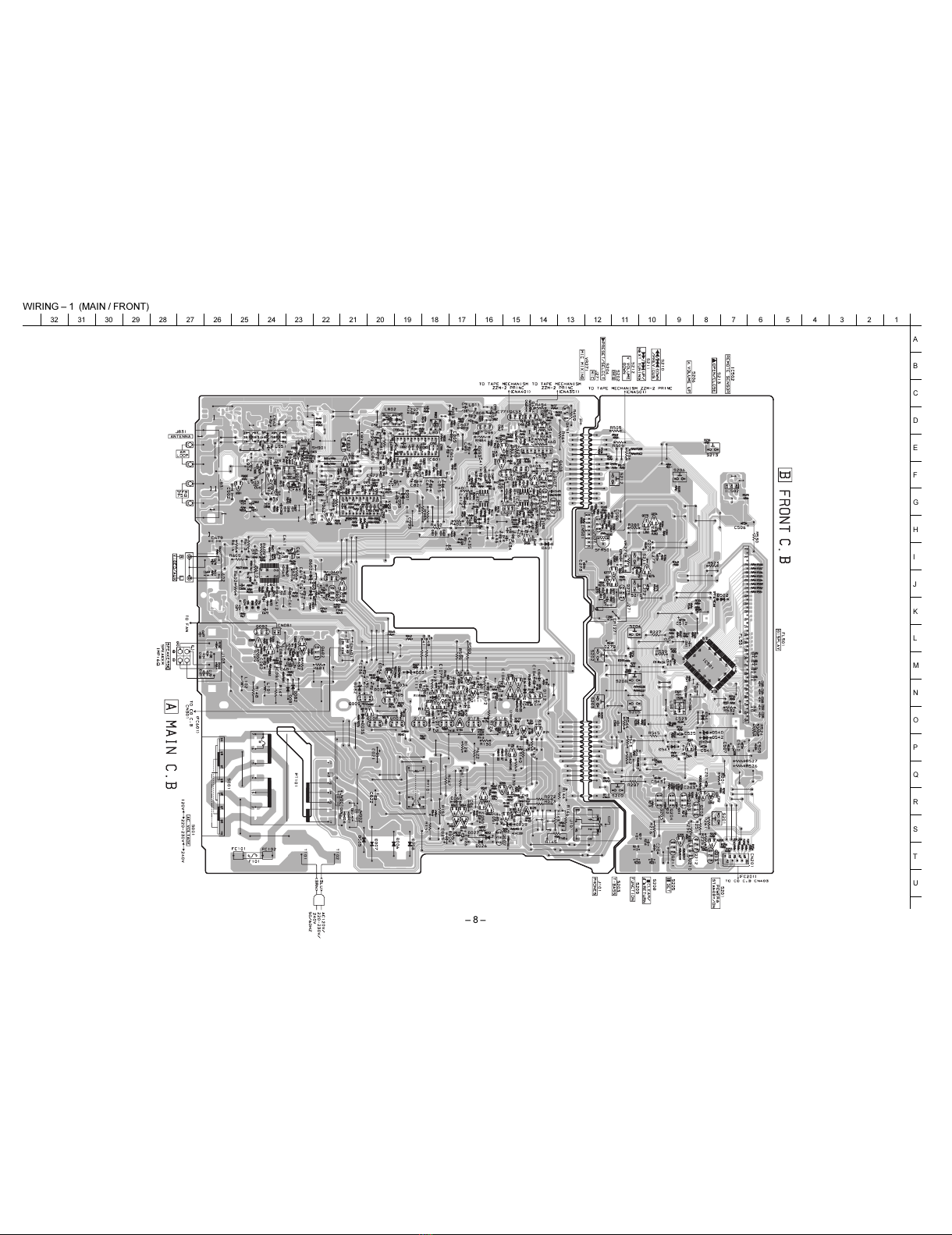

WIRING  1 (MAIN / FRONT)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
 8 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
All manuals and user guides at all-guides.com

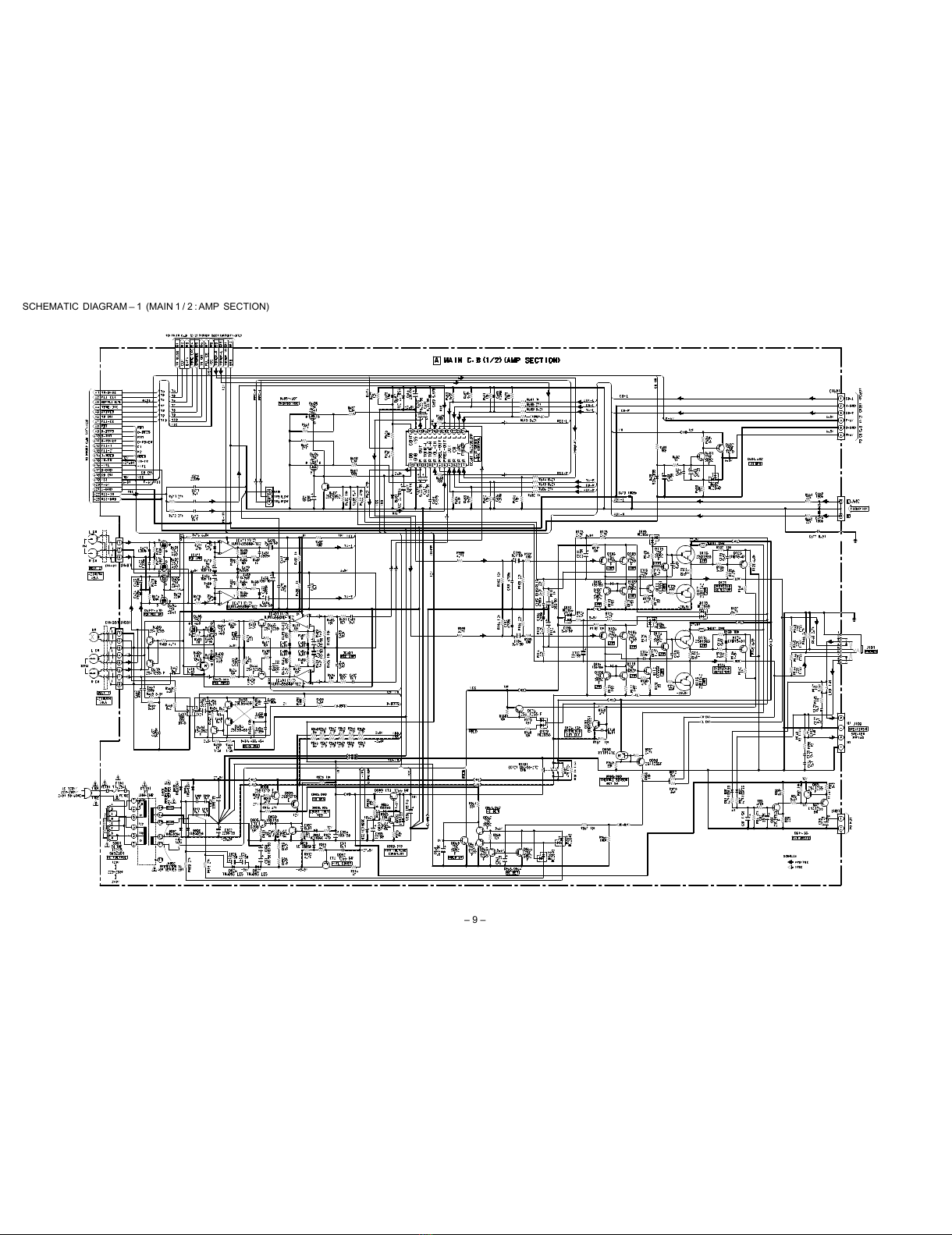

SCHEMATIC DIAGRAM _1 (MAIN 1 / 2 : AMP SECTION)
– 9 –
All manuals and user guides at all-guides.com

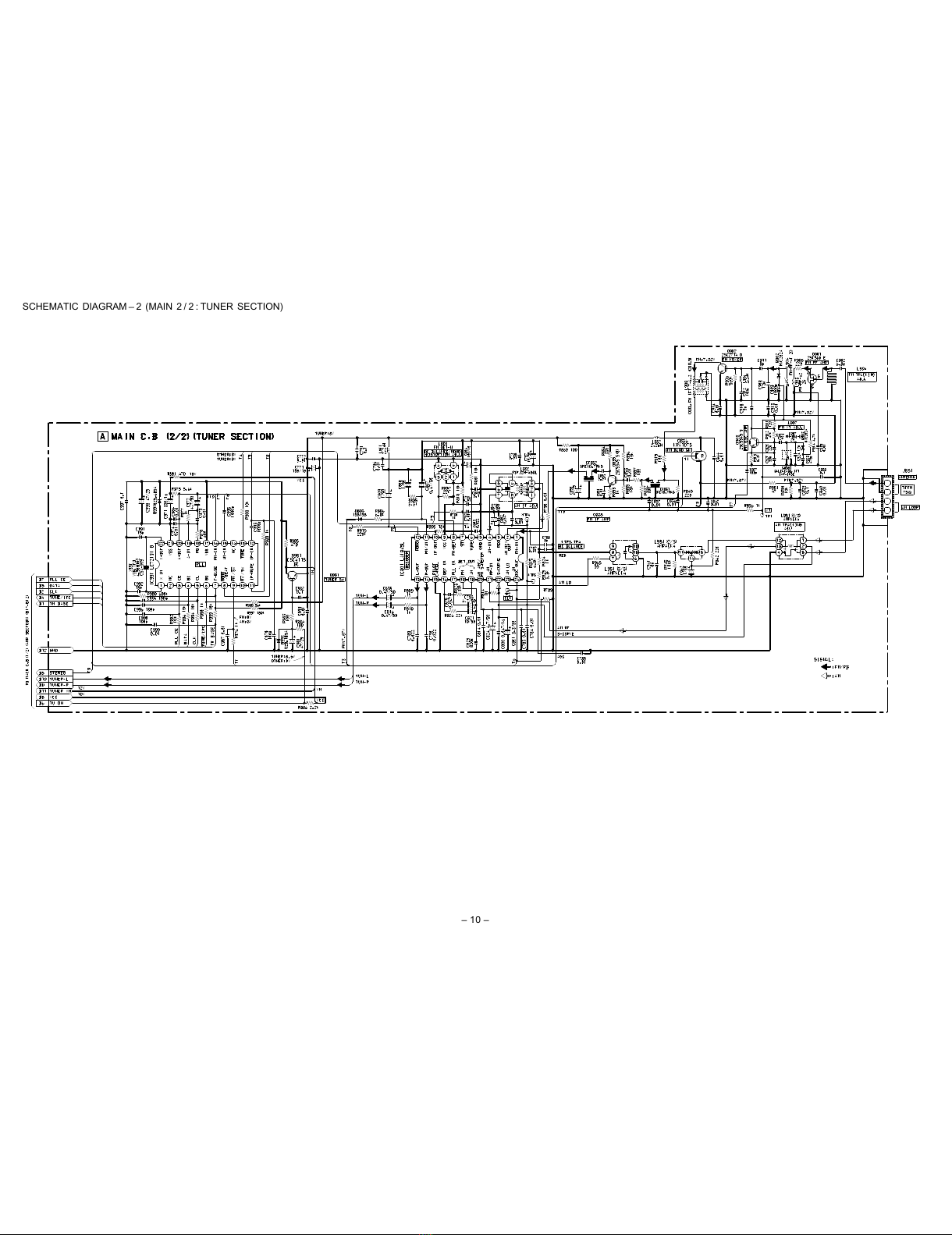

SCHEMATIC DIAGRAM _2 (MAIN 2 / 2 : TUNER SECTION)
– 10 –
All manuals and user guides at all-guides.com

SCHEMATIC DIAGRAM _3 (FRONT)
– 11 –
All manuals and user guides at all-guides.com
all-guides.com

WIRING  2 (CD) <1 / 2>
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
 12 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
All manuals and user guides at all-guides.com

WIRING  3 (CD) <2 / 2>
1 2 3 4 5 6 7 8 9 1011121314151617181920212223242526272829303132
 13 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
All manuals and user guides at all-guides.com

SCHEMATIC DIAGRAM _4 (CD : 1 / 2 / CD LOAD / CD DRIVE)
– 14 –
All manuals and user guides at all-guides.com

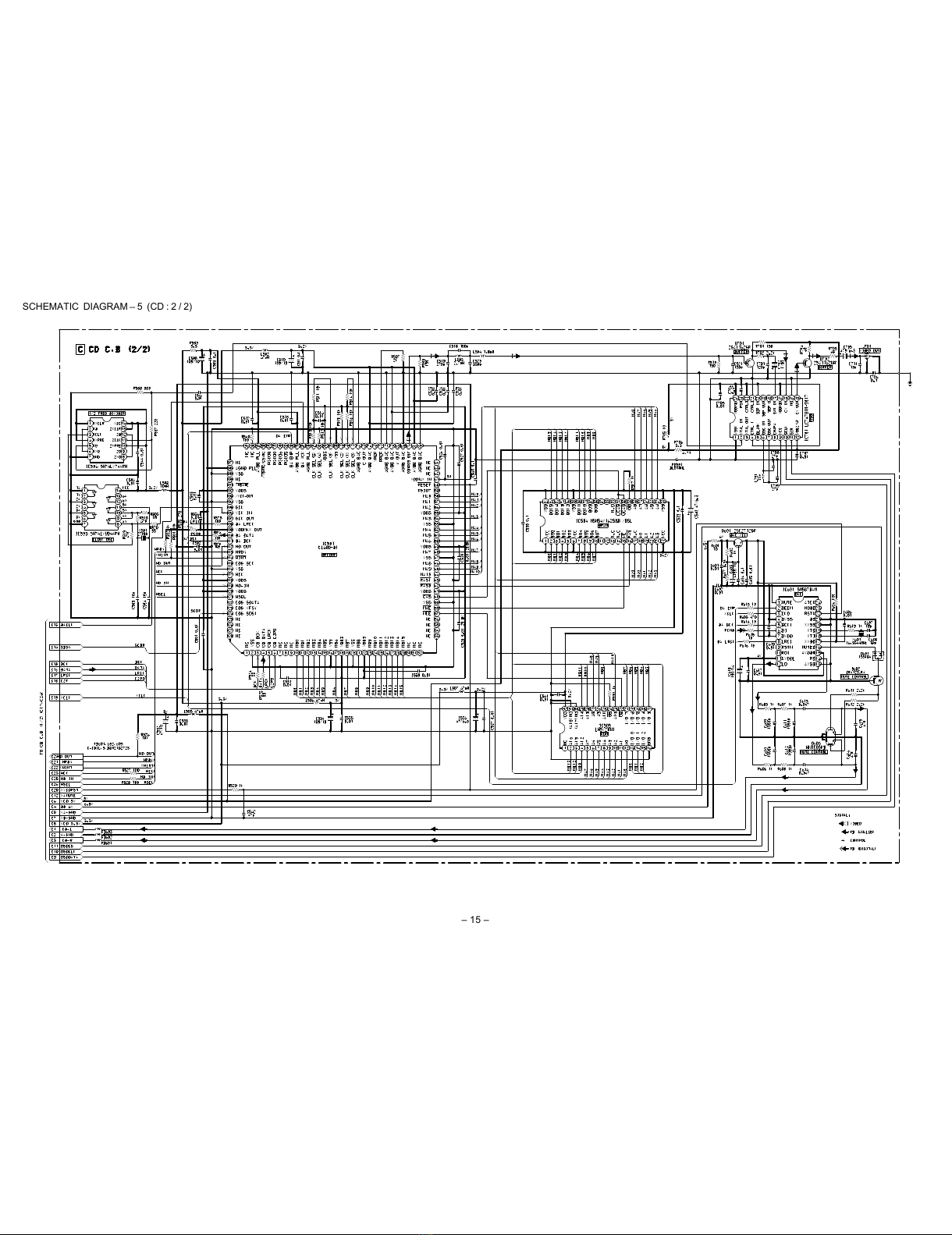

SCHEMATIC DIAGRAM _5 (CD : 2 / 2)
– 15 –
All manuals and user guides at all-guides.com

151413121110987654321
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
 16 

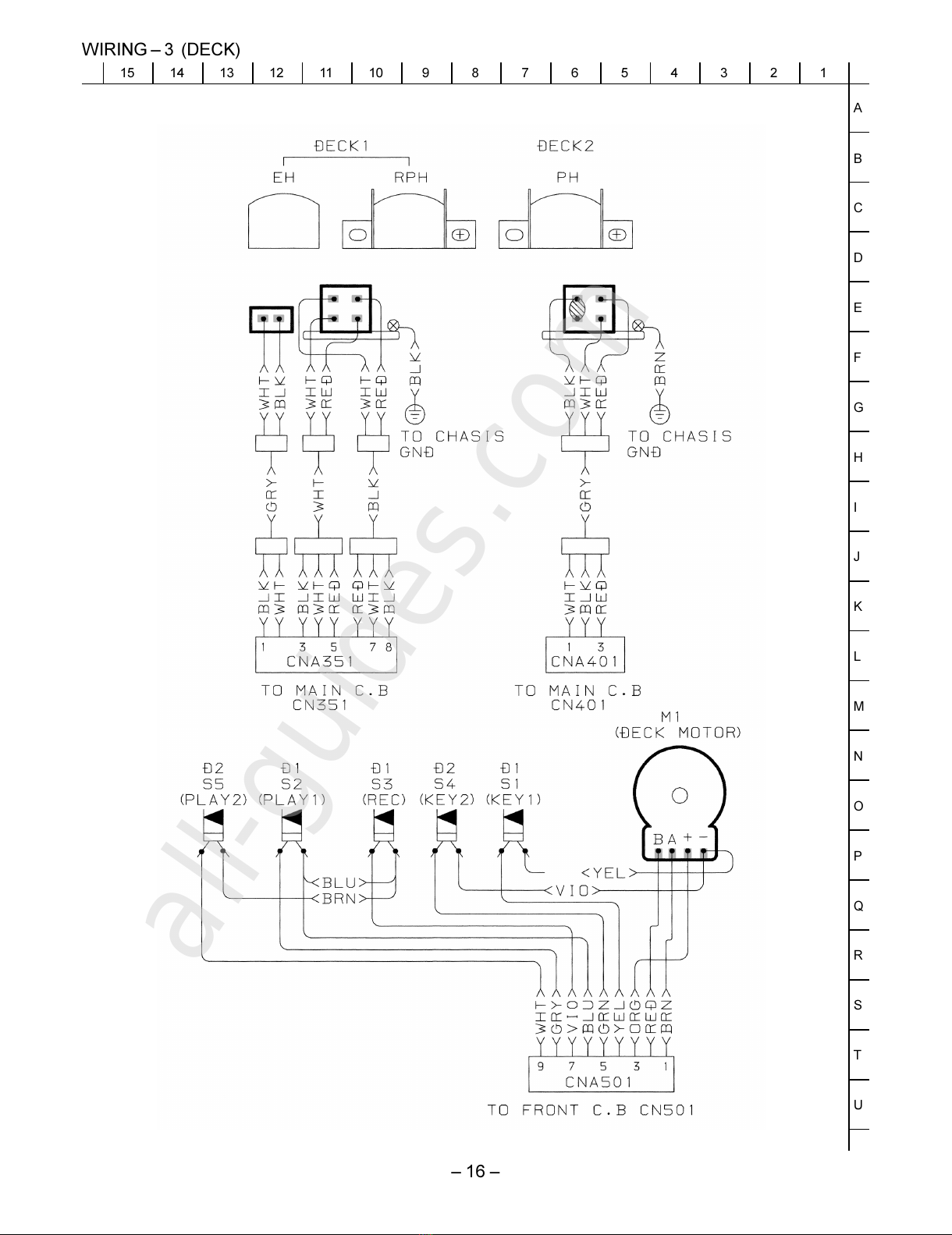

WIRING  3 (DECK)
All manuals and user guides at all-guides.com
all-guides.com

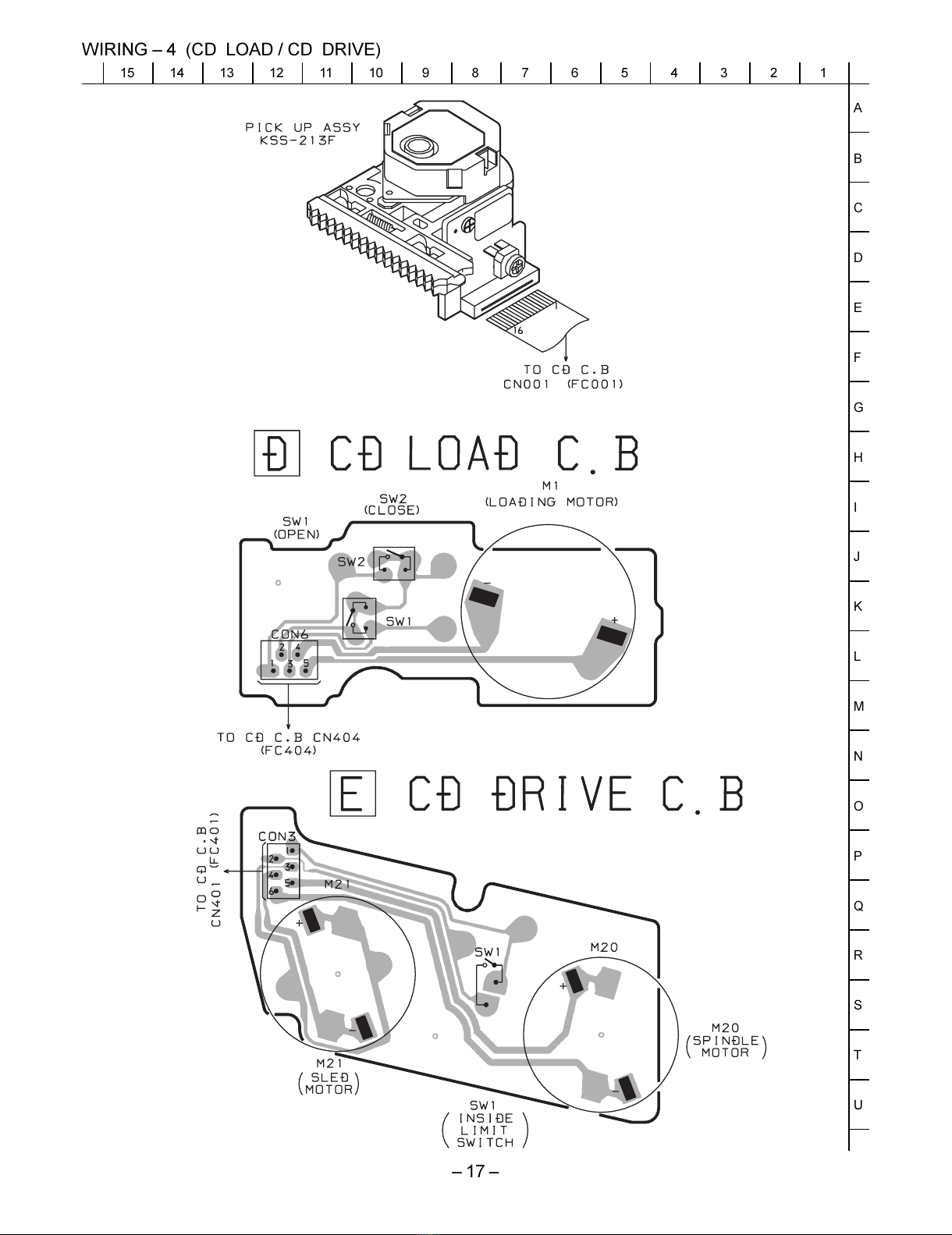

WIRING  4 (CD LOAD / CD DRIVE)
151413121110987654321
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
 17 
All manuals and user guides at all-guides.com

– 18 –
ADJUSTMENT <TUNER / DECK / FRONT>
1. Clock Frequency Check
Settings : • Test point : TP2 (CLK)
Method : Set to AM 1710kHz and check that the test point is
2160kHz ±45Hz.
2. AM VT Check
Settings : • Test point : TP1 (VT)
Method : Set to AM 1710kHz, 530kHz and check that the test
point is less than 8.5V (1710kHz) and more than
0.6V (530kHz).
3. FM VT Adjustment
Settings : • Test point : TP1 (VT)
• Adjustment location : L907
Method : Set to FM 108.0MHz and adjust L907 so that the test
point is 7.0V ±50mV.
4. AM Tracking Adjustment
Settings : • Test point : TP5 (Lch), TP6 (Rch)
• Adjustment location : L951(1/3)
Method : Set to AM 1000kHz and adjust L951(1/3) to MAX.
5. FM Tracking Adjustment
Settings : • Test point : TP5 (Lch), TP6 (Rch)
• Adjustment location : L904
Method : Set to FM 87.5MHz and adjust L904 so that the test
point is maximum.
6. AM IF Adjustment
Settings : • Test point : TP5 (Lch), TP6 (Rch)
• Adjustment location :
L802 ................................................ 450kHz
7. DC Balance / Mono Distortion Adjustment
Settings : • Test point : TP3, TP4 (DC Balance)
: TP5 (Lch), TP6 (Rch) (Distortion)
• Adjustment location : L801
• Input level : 60dBµV
Method : Set to FM 98.0MHz and adjust L801 so that the
voltage between TP3 and TP4 is 0V ±500mV.
Then check the distortion is less than 1.3%
< DECK SECTION >
1. Tape Speed Adjustment (DECK 1)
Settings : • Test tape : TTA–100
• Test point : TP5 (Lch), TP6 (Rch)
• Adjustment location : SFR501
Method : Play back the test tape and adjust SFR501 so that the
frequency counter reads 3000Hz ±5Hz (FWD) and
±45Hz (REV) with respect to forward speed.
2. Head Azimuth Adjustment (DECK 1, DECK 2)
Settings : • Test tape : TTA–330
• Test point : TP5 (Lch), TP6 (Rch)
• Adjustment location : Head azimuth
adjustment screw
Method : Play back (FWD) the 8kHz signal of the test tape
and adjust screw so that the output becomes maximum.
Next, perform on REV PLAY mode.
3. PB Frequency Response Check (DECK 1, DECK 2)
< TUNER SECTION >
Settings : • Test tape : TTA–330
• Test point :TP5 (Lch), TP6 (Rch)
Method : Play back the 315Hz and 8kHz signals of the test
tape and check that the output ratio of the 8kHz
signal with respect to that of the 315Hz signal is
0dB ±4dB.
4. REC/PB Frequency Response Check (DECK 1)
Settings : • Test tape : TTA–602
• Test point : TP5 (Lch), TP6 (Rch)
Method : Apply a 1kHz signal and REC mode. Then adjust
OSC attenuator so that the output level at the TP5,
TP6 becomes 80mV. Record and play back the 1kHz
and 8kHz signal and check that the output of the 8kHz
signals is 0dB ±5dB with respsct to that of the 1 kHz
signal.
5. REC/PB Sensitivity Check (DECK 1)
Settings : • Test tape : TTA–602
• Test point : TP5 (Lch), TP6 (Rch)
• Input signal : 1kHz (LINE IN)
Method : Apply a 1kHz signal and REC mode. Then adjust
OSC attenuator so that the output level at TP5, TP6
becomes 8mV. Record and play back the 1kHz signals
and check that the output is –2dB ±3.5dB.
6. PB Sensitivity Check (DECK 1, Deck 2)
Settings : • Test tape : TTA–200
• Test point :TP5 (Lch), TP6 (Rch)
Method : Play back the test tape and check that the output level of
the test point is 110mV ±3.5dB.
< FRONT SECTION >
1. µ-CON OSC Adjustment
Settings : • Test point : TP7 (K-SCAN) and TP8 (GND)
• Adjustment location : L501
Method : Insert AC plug while pressing function key and power
key. Adjust L501 so that the frequency at the test point
is 233.4Hz ±0.23Hz.
All manuals and user guides at all-guides.com

– 19 –
Operation
• Test mode is activated.
• CD block power is ON.
• Laser diode turns always ON.
• Continual focus search
(The pickup lens repeats the full-
swing up-down motion.)
* Avoid continual searches that last for
more than 10 minutes.
* NOTE 1
• Normal playback
• Focus search is continued if TOC
cannot be read. * NOTE 1
• During normal disc playback
Press once; tracking servo OFF
Press twice; tracking servo ON
* NOTE 2
• Pickup moves to the outermost track
• Pickup moves to the innermost track
* NOTE 3
(During playback, machine operates
normally.)
Mode/No.
Start mode
No.1
Search mode
No.2
Play mode
No.3
Traverse mode
No.4
Sled mode
No.5
1. How to Activate CD Test Mode
Insert the AC plug while pressing the function CD button.
All FL display tubes will light up, and the test mode will be
activated.
2. How to Cancel CD Test Mode
Either one of the following operations will cancel the CD test
mode.
• Press the power switch button.
• Disconnect the AC plug
3. CD Test Mode Functions
When test mode is activated, the following mode functions from No.1 to No.5 can be used by pressing the operation keys.
* NOTE 1: There are cases when the tracking servo cannot be locked owing to the protection circuit being operated when heat builds up
in the driver IC if the focus search is operated continually for more than 10 minutes. In these cases the power supply should be
switched off for 10 minutes until heat has been reduced and then re-started.
* NOTE 2: Do not press the fior flkeys when the machine is in the ;status is active. If they are pressed, playback will not be possible
after the ;status has been canceled. If the fior flkeys are pressed in the ;status, press the 9key and return to the start mode
(No.1).
* NOTE 3: When pressing the fior flkeys, take care to avoid damage to the gears. Because the sled motor is activated when the fior fl
keys are pressed, even when the pick-up is at the outermost or innermost track.
4. Operation Outline
The operation of each mode is carried out in the direction of the arrows from the start mode as indicated in the following illustration.
If the DISC DIRECT PLAY button is pressed, the machine performs the same operation as the PLAY button is pressed as shown. If
the tray is opened by pressing OPEN/CLOSE button during Play mode or Traverse mode, the machine returns to the Start mode.
CD TEST MODE
FL display
All lamps light
All lamps light
Contents
• FL display check (All displays light.)
• APC circuit check
• Laser current measurement
(Laser current control. Across a
resistor connected between emitter
and GND.)
FOCUS SERVO
• Check focus search waveform
• Check focus error waveform
(DRF/FZC are not monitored in the
search mode)
FOCUS SERVO/TRACKING SERVO
CLV SERVO/SLED SERVO
Check DRF
TRACKING SERVO ON/OFF
Tracking balance (traverse) check
SLED SERVO
Check SLED mechanism operation
Operation
Activation
9key
2
key
;key
fikey
fl
No. 2 No. 3
No. 1
No. 5 No. 4
Search mode
Start mode
(All FLs light up.)
Sled mode Traverse mode
Play mode
9
2
;
;
;
fi
fl
9
9
9
2
2
All manuals and user guides at all-guides.com

– 20 –

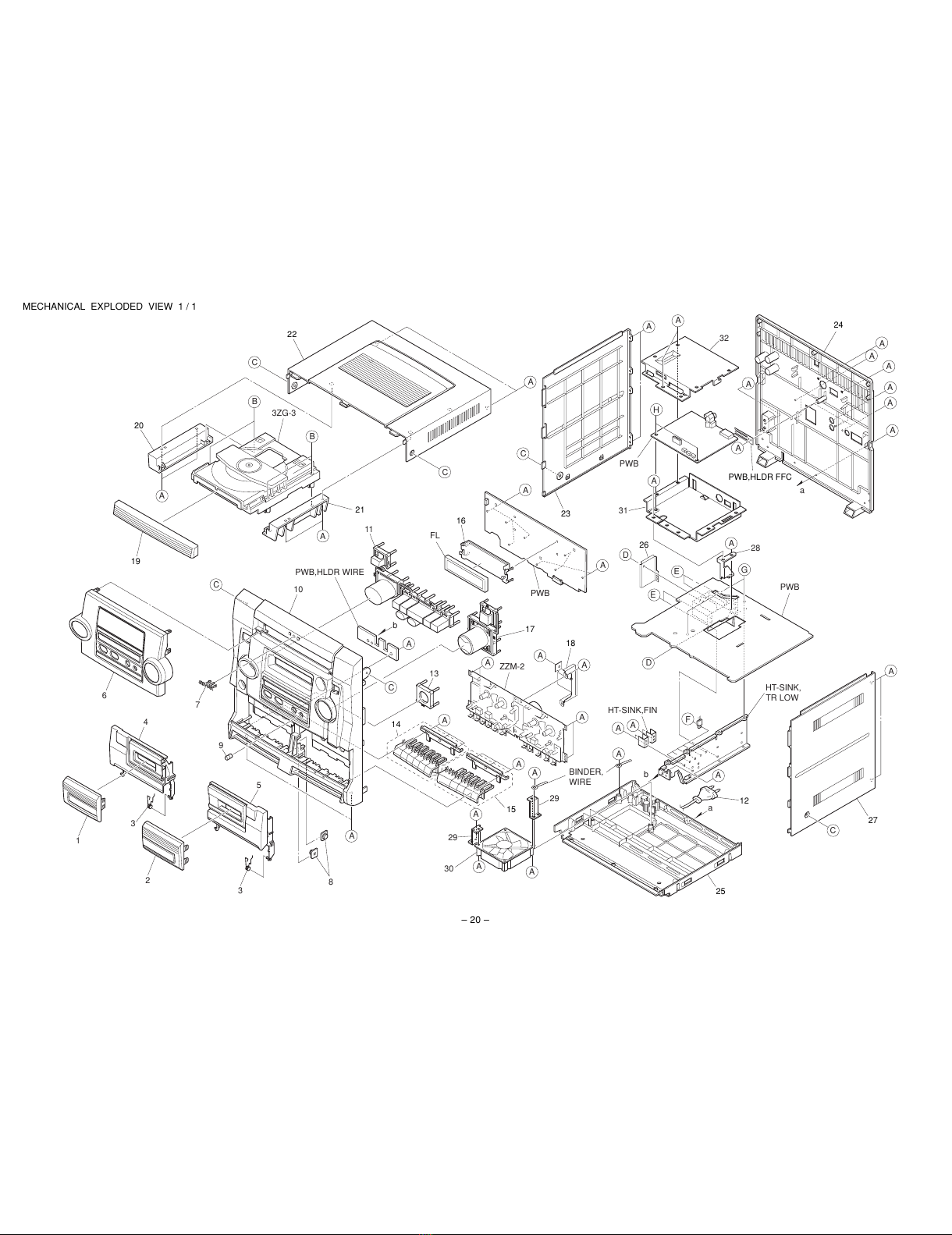

MECHANICAL EXPLODED VIEW 1 / 1
A
A
B
A
A
A
A
H
A
A
A
A
A
A
A
A
A
A
A
A
G
E
E
A
A
A
A
AA
A
A
D
A
F
A
A
A
A
C
C
A
A
A
D
B
C
C
C
C
PWB
PWB
PWB
FL
ZZM-2
HT-SINK,
TR LOW
HT-SINK,FIN
3ZG-3
1
2
3
3
4
5
9
6
7
8
10
11
PWB,HLDR WIRE
13
14
15
16
17
18
19
20
21
22
23
24
PWB,HLDR FFC
26
27
12
25
a
a
b
b
32
28
29
29
BINDER,
WIRE
30
31
All manuals and user guides at all-guides.com
