Aiwa XR- XR-M150 User manual

En
COMPACT DISC STEREO SYSTEM
SISTEMA ESTEREO CON REPRODUCTOR DE DISCOS COMPACTOS
CHAINE STEREO AVEC LECTEUR DE DISQUES COMPACTS
XR-M150
OPERATING INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MODE D’EMPLOI En (English)
E (Español)
8A-CL9-907-01
000114AWY-X2
F (Français)
For assistance and information,
call toll free 1-800-BUY-AIWA.
(United States and Puerto Rico)
U
00COVER/XR-M150<U>/ESF 10/4/2000, 5:06 PM1

1 ENGLISH
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
“CAUTION:TO REDUCE THE RISK OF
ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.”
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Explanation of Graphical Symbols:
Thelightningflashwitharrowheadsymbol,within
an equilateral triangle, is intended to alert the
user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
ENGLISH
7 Condensation — Moisture may form on the CD pickup lens
when:
- The unit is moved from a cold spot to a warm spot
- The heating system has just been turned on
- The unit is used in a very humid room
- The unit is cooled by an air conditioner
When this unit has condensation inside, it may not function
normally. Shouldthisoccur,leave theunit fora fewhours, then
try to operate again.
8 Wall or ceiling mounting —The unit should not be mounted
on a wall or ceiling, unless specified in the Operating Instruc-
tions.
Electric Power
1 Power sources — Connect this unit only to power sources
specified in the Operating Instructions, and as marked on the
unit.
2 Polarization —As a safety feature, some units are equipped
with polarized AC power plugs which can only be inserted
one way into a power outlet. If it is difficult or impossible to
insert theAC power plug into an outlet, turn the plug over and
try again. If it still does not easily insert into the outlet, please
call a qualified service technician to service or replace the
outlet. To avoid defeating the safety feature of the polarized
plug, do not force it into a power outlet.
3 AC power cord
- When disconnecting the AC power cord, pull out by the AC
power plug. Do not pull the cord itself.
- Never handle the AC power plug with wet hands, as this
could result in fire or shock.
- Power cord should be routed to avoid being severely bent,
pinched, or walked upon. Pay particular attention to the cord
from the unit to the power socket.
- Avoid overloading AC power plugs and extension cords
beyond their capacity, as this could result in fire or shock.
4 Extension cord — Tohelp preventelectricshock, donotuse a
polarizedAC power plug with an extension cord, receptacle, or
otheroutletunless the polarizedplugcanbe completely inserted
to prevent exposure of the blades of the plug.
5 When not in use — Unplug the AC power plug from the power
socket if the unit will not be used for several months or more.
Whenthecordis plugged in,asmallamountofcurrent continues
to flow to the unit, even when the power is turned off.
Outdoor Antenna
1 Power lines — When connecting an outdoor antenna, make
sure it is located away from power lines.
2 Outdoor antenna grounding — Be sure the antenna system
isproperly groundedto provide protection against unexpected
voltage surges or static electricity build-up. Article 810 of the
NationalElectrical Code,ANSI/NFPA70,provides information
on proper grounding of the mast, supporting structure, and
the lead-in wire to the antenna discharge unit, as well as the
size of the grounding unit, connection to grounding terminals,
and requirements for grounding terminals.
PRECAUTIONS
Read the Operating Instructions carefully and completely before
operating the unit. Be sure to keep the Operating Instructions for
future reference. All warnings and cautions in the Operating In-
structions and on the unit should be strictly followed, as well as
the safety suggestions below.
Installation
1 Water and moisture— Do not use this unit near water, such
as near a bathtub, washbowl, swimming pool, or the like.
2 Heat — Do not use this unit near sources of heat, including
heating vents, stoves, or other appliances that generate heat.
It also should not be placed in temperatures less than 5°C
(41°F) or greater than 35°C (95°F).
3 Mounting surface — Place the unit on a flat, even surface.
4 Ventilation — The unit should be situated with adequate
space around it so that proper heat ventilation is assured.
Allow 10 cm (4 in.) clearance from the rear and the top of the
unit, and 5 cm (2 in.) from the each side.
- Do not place the unit on a bed, rug, or similar surface that
may block the ventilation openings.
- Do not install the unit in a bookcase, cabinet, or airtight
rack where ventilation may be impeded.
5 Objects and liquid entry — Take care that objects or liquids
do not get inside the unit through the ventilation openings.
6 Carts and stands — When
placed or mounted on a stand or
cart, the unit should be moved
withcare.
Quickstops,excessiveforce,and
uneven surfaces may cause the
unit or cart to overturn or fall.
01-04/XR-M150<U>/Eng 10/4/2000, 5:07 PM1

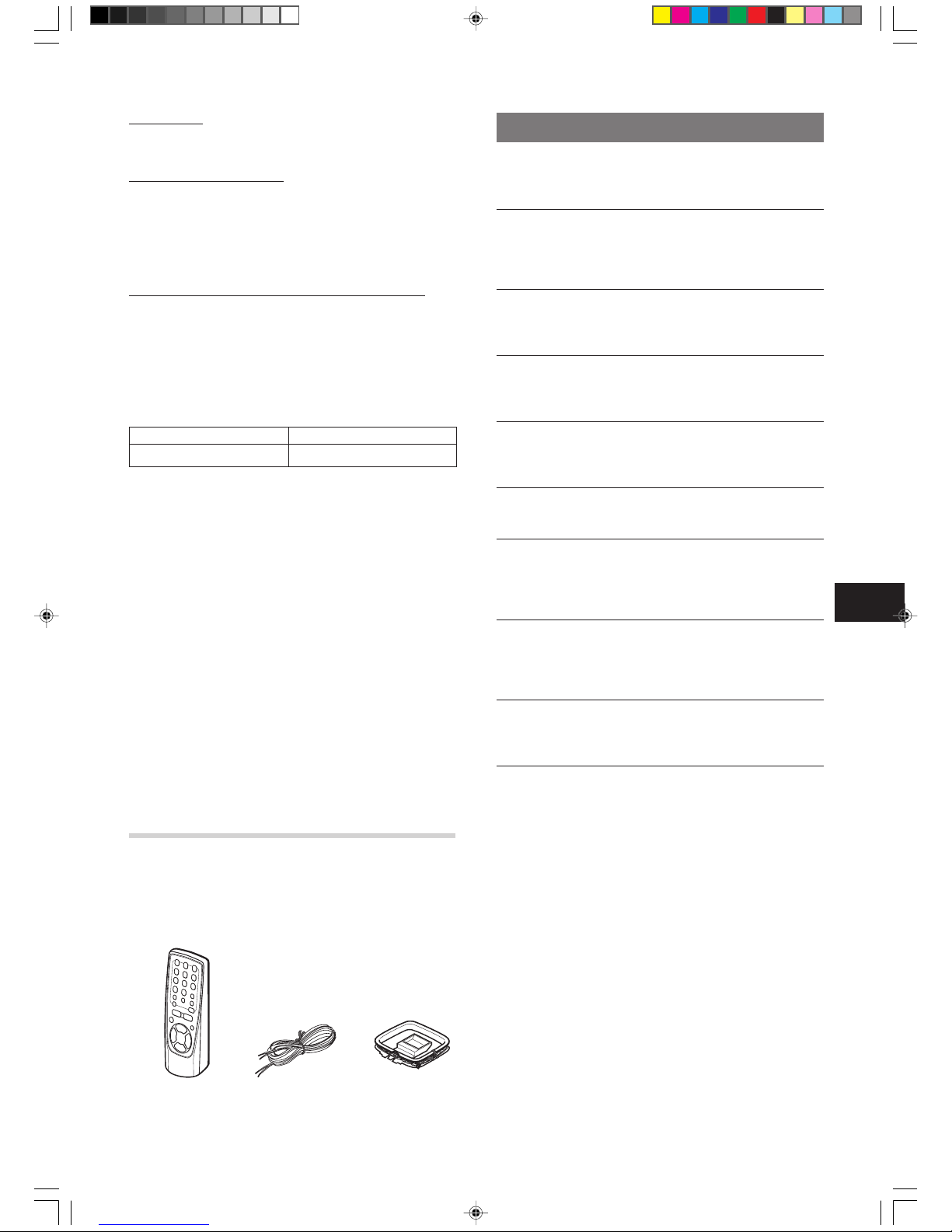

En
ENGLISH 2
TABLE OF CONTENTS
PRECAUTIONS ...................................................................1
PREPARATIONS
CONNECTIONS ................................................................. 3
REMOTE CONTROL ...........................................................4
BEFORE OPERATION........................................................5
SOUND
AUDIO ADJUSTMENTS .................................................... 6
GRAPHIC EQUALIZER.......................................................6
RADIO RECEPTION
MANUALTUNING ...............................................................7
PRESETTING STATIONS ...................................................7
CD PLAYING
BASIC OPERATIONS ........................................................ 8
PROGRAMMED PLAY ........................................................9
TAPE PLAYBACK
BASIC OPERATIONS ...................................................... 10
RECORDING
BASIC RECORDING........................................................ 11
AI EDIT RECORDING ...................................................... 12
PROGRAMMED EDIT RECORDING............................... 13
CLOCK AND TIMER
SETTING THE CLOCK..................................................... 14
SETTING THE SLEEP TIMER ......................................... 14
SETTING THE TIMER ...................................................... 15
OTHER CONNECTIONS
CONNECTING OPTIONAL EQUIPMENT ....................... 16
LISTENING TO EXTERNAL SOURCES ......................... 16
GENERAL
CARE AND MAINTENANCE ........................................... 17
TROUBLESHOOTING GUIDE ......................................... 17
SPECIFICATIONS ............................................................ 18
PARTS INDEX ...................................................
Back cover
Maintenance
Clean the unit only as recommended in the Operating Instruc-
tions.
Damage Requiring Service
Have the units serviced by a qualified service technician if:
- The AC power cord or plug has been damaged
- Foreign objects or liquid have gotten inside the unit
- The unit has been exposed to rain or water
- The unit does not seem to operate normally
- The unit exhibits a marked change in performance
- The unit has been dropped, or the cabinet has been damaged
DO NOTATTEMPT TO SERVICE THE UNITYOURSELF.
Owner’s record
For your convenience, record the model number and serial
number (you will find them on the rear of your set) in the space
providedbelow.Pleaserefer tothem when you contact yourAiwa
dealer in case of difficulty.
Model No. Serial No. (Lot No.)
XR-M150 U
Check your system and accessories
XR-M150 Compact disc stereo cassette receiver
SX-M150 Front speakers
Remote control FM antenna AM antenna
Operating Instructions, etc.
01-04/XR-M150<U>/Eng 10/4/2000, 5:07 PM2

3 ENGLISH
CONNECTIONS
PREPARATIONS
Before connecting the AC cord
The rated voltage of your unit shown on the rear panel is 120 V
AC. Check that the rated voltage matches your local voltage.
IMPORTANT
• Connect the speakers, antennas, and all optional equipment
first. Then connect theAC cord.
• Both speakers can be connected as L (Left) or R (Right).
1 Connect the speaker cord to the main unit.
The speaker cord with the white stripe should be connected
to 0terminal and the black cord to the 9terminal.
2 Connect the supplied antennas.
Connect the FM antenna to FM 75 Ωterminals and the AM
antenna to AM LOOP terminals.
ANTENNA
AM LOOP
3 Connect the AC cord to an AC outlet.
• The Demo will begin when the AC cord is plugged into an
AC outlet. See page 5 “DEMO” for details.
2FM antenna
2AM antenna
Right speaker
Left speaker
XR-M150
Speaker cord
AC cord 3
AM antenna
FM antenna
01-04/XR-M150<U>/Eng 10/4/2000, 5:07 PM3

En
ENGLISH 4
PREPARATIONS
To stand the AM loop antenna on a surface
Fix the claw to the slot.
To position the antennas
FM feeder antenna:
Extend this antenna horizontally in a T-shape and fix its ends to
the wall.
AM loop antenna:
Position for the best reception.
• Be sure to connect the speaker cords correctly. Improper
connections can cause short circuits in SPEAKERS terminals.
• Do not leave objects generating magnetism, such as credit
cards, near the speakers, as these objects may be damaged.
• Do not bring the FM antenna near metal objects or curtain rails.
• Do not bring the AM antenna near other optional equipment,
the stereo system itself, the AC cord or speaker cords, since
noise will be picked up.
• Do not unwind the AM antenna wire.
CONNECTING AN OUTDOOR ANTENNA
For better FM reception, use of an outdoor antenna is
recommended.
Connect the outdoor antenna to FM 75 Ωterminals.
ANTENNA
AM LOOP
To connect other optional equipment ➞page 16
REMOTE CONTROL
Inserting batteries
Detach the battery cover on the rear of the remote control and
insert two size AA (R6) batteries.
AA (R6)
When to replace the batteries
The maximum operational distance between the remote control
andthe sensoron the mainunit shouldbe approximately5meters
(16 feet). When this distance decreases, replace the batteries
with new ones.
Using the remote control
The instructions in this manual refer mainly to the buttons on the
main unit. Buttons on the remote control with the same names
as those on the main unit can be used as well.
To use FUNCTION on the remote control
The FUNCTION substitutes for the function buttons (TAPE,
TUNER, AUX/VIDEO, CD) on the main unit.
Each time FUNCTION is pressed while power is on, the next
function is selected cyclically.
cc
cc
cPLAY on the remote control
The function is the same as that of don the main unit.
cPLAY
FUNCTION
• If the remote control is not going to be used for an extended
period of time, remove the batteries to prevent possible
electrolyte leakage.
• The remote control may not operate correctly when:
- The line of sight between the remote control and the remote
sensor beside the DEMO/ECO is exposed to intense light,
such as direct sunlight
- Other remote controls are used nearby (those of a television,
etc.)
01-04/XR-M150<U>/Eng 10/4/2000, 5:07 PM4

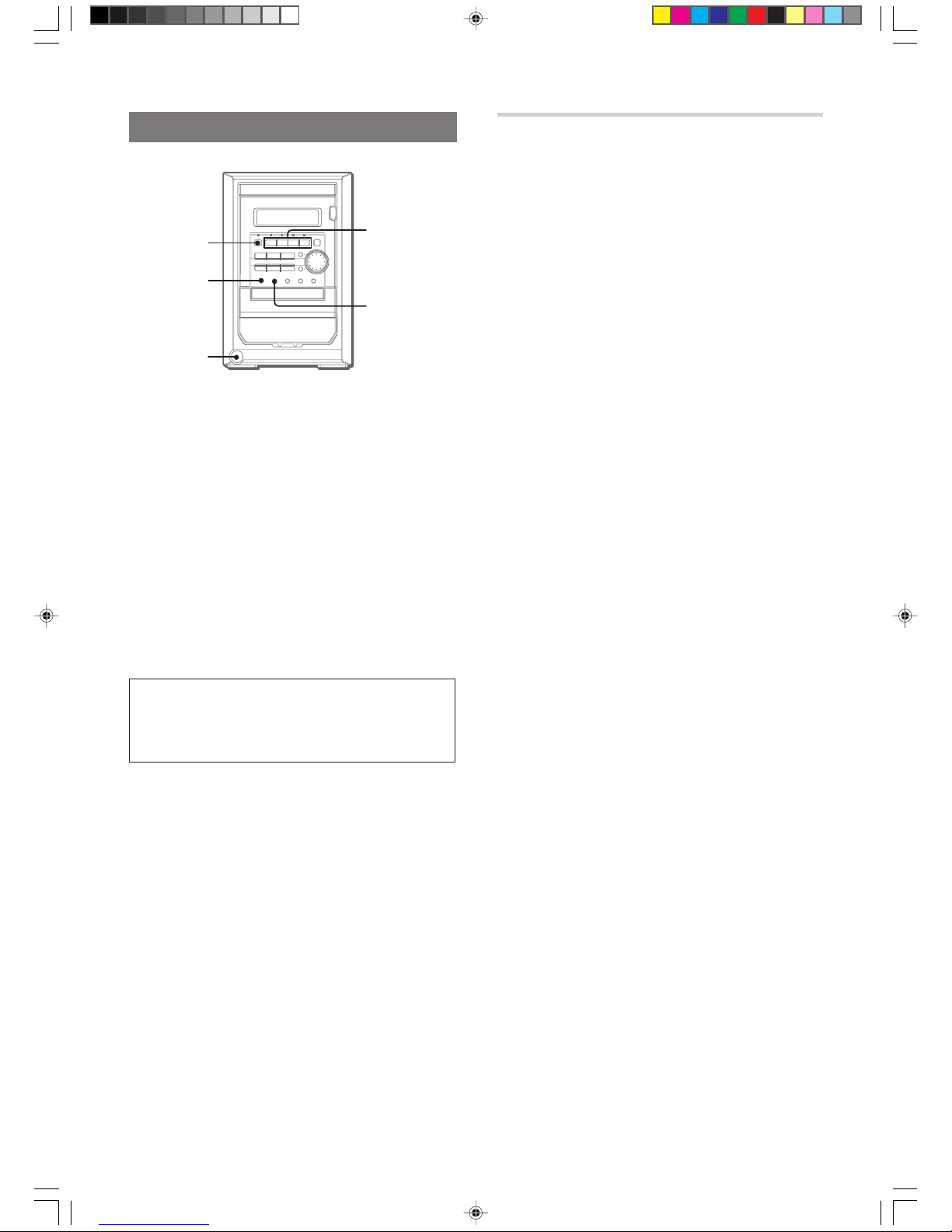

5 ENGLISH
BEFORE OPERATION
Function
buttons
POWER
PHONES
Remote
sensor DEMO/ECO
To turn the unit on
Press one of the function buttons (TAPE, TUNER, AUX/VIDEO,
CD). Playback of the inserted disc or tape begins, or the
previously tuned station is received (Direct Play Function).
POWER is also available.
To turn the power off
Press POWER. When the clock is set, the unit will return to the
ECO (Power Economizing) mode or clock display depending on
the setting before you turn on the unit.
If the previous setting is DEMO, the unit will also return to the
clock display.
• If the clock is not set, the unit will always return to the DEMO
mode.
DEMO (Demonstration) mode
When the AC cord is connected, the display window
demonstratesthe functions of the unit. Whenthe poweris turned
on, the DEMO display is overridden by the operation display.
To cancel DEMO mode
Press DEMO/ECO.
To re-activate the DEMO mode, press DEMO/ECO
repeatedlyuntil thedisplay window demonstratesthe functions
of the unit.
DIMMER mode
Press DEMO/ECO twice during power on.
The display is dimmer than usual, press DEMO/ECO again to
restore normal display.
Using the headphones
Connect the headphones to PHONES jack with a stereo mini
plug (ø3.5 mm, 1/8inch).
No sound is output from the speakers while the headphones are
plugged in.
SETTING ECO (POWER ECONOMIZING)
MODE
Setting this unit to power economizing mode reduces power
consumption.
Press DEMO/ECO repeatedly (during power off) until “ECO
MODE” is displayed.
The display disappears and the POWER indicator lights up.
05-08/XR-M150<U>/Eng 10/4/2000, 5:07 PM5

En
ENGLISH 6
PREPARATIONS
AUDIO ADJUSTMENTS
VOL
QSOUND
VOL/
MULTI JOG
DISPLA
Y
JOG MODE
VOLUME
Turn VOL/MULTI JOG on the main unit, or press VOL
( kk
kk
kor ii
ii
i) on the remote control.
The volume level is displayed as a number from 0 to MAX (31).
The volume level is automatically set to 20 when the power is
turned off with the volume level set to 21 or more.
To see the current volume level, press DISPLAY on the remote
control twice.
SUPER T-BASS SYSTEM
The T-BASS system enhances the realism of low-frequency
sound.
Press JOG MODE once, then turn VOL/MULTI JOG within
4 seconds to change the T-BASS level.
The level changes as follows. Select one of the three levels or
the off position to suit your preference.
T - BASS 0 T - BASS 1 T - BASS 2 T - BASS 3
(off)
(off)
Lowfrequency soundmay bedistorted whentheT-BASSsystem
is used for a disc or tape in which low frequency sound is
originally emphasized. In this case, cancel the T-BASS system.
QSOUND
This system provides a rich, three dimensional sound area for
stereo sources.
You can enjoy more enhanced sound.
Press QSOUND
To cancel QSOUND
Press QSOUND again. “OFF” is displayed.
• At higher volumes, turning QSOUND on may cause sound
distortion. In this case, turn the volume down.
GRAPHIC EQUALIZER
EQ
VOL/
MULTI JOG
JOG MODE
This unit provides the following three different equalization
curves.
ROCK: Powerful sound emphasizing treble and bass
POP: More presence in the vocals and midrange
JAZZ: Accented lower frequencies for jazz-type music
Press JOG MODE repeatedly until “GEQ” is displayed,
then turn VOL/MULTI JOG within 4 seconds to select an
equalization curve.
The equalization mode is displayed as follows:
GEQ JAZZ
GEQ OFF GEQ ROCK
GEQ POP
(cancel)
GEQ
To cancel the selected mode
Press JOG MODE repeatedly until “GEQ” is displayed, then turn
VOL/MULTI JOG within 4 seconds until “GEQOFF” isdisplayed.
To select with the remote control
Press EQ repeatedly until the desired equalization curve is
displayed.
GEQ JAZZ
GEQ OFF GEQ ROCK
GEQ POP
(cancel)
SOUND
SOUND
05-08/XR-M150<U>/Eng 10/4/2000, 5:07 PM6

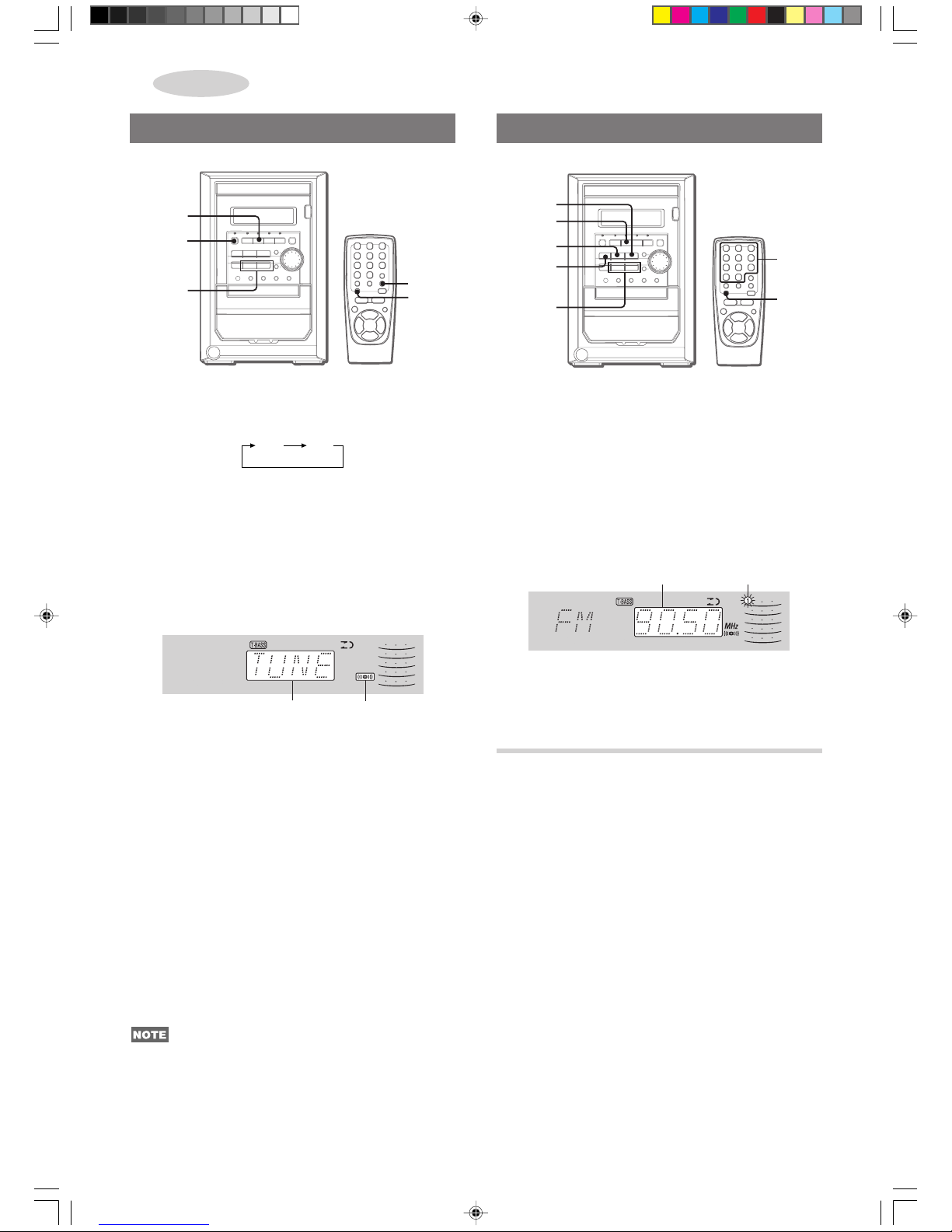

7 ENGLISH
PRESETTING STATIONS
0-9, +10
dDIR/
PRESET
2
s
1
BAND
1
The unit can store a total of 32 preset stations (Each band has a
maximum of 20 available preset stations). When a station is
stored,a presetnumber isassigned tothe station.Use thepreset
number to tune in to a preset station directly.
1 Press TUNER/BAND to select a band, and press
ff
ff
for gg
gg
gto select a station.
2 Press aa
aa
ato store the station.
A preset number beginning from 1 in consecutive order for
each band is assigned to the station.
Frequency Preset number
3 Repeat steps 1 and 2.
Thenext stationwill notbe stored ifa totalof 32preset stations
for all the bands or a total of 20 preset stations for one band
have already been stored.
PRESET NUMBER TUNING
Use the remote control to select the preset number directly.
1 Press BAND to select a band.
2 Press numbered buttons 0-9 and +10 to select a
preset number.
Example:
To select preset number 10, press +10 and 0.
To select preset number 15, press +10 and 5.
Selecting a preset number on the main unit
Press TUNER/BAND to select a band. Then, press dDIR/
PRESET repeatedly.
Each time dDIR/PRESET is pressed, the next ascending
number is selected.
To clear a preset station
Select the preset number of the station to be cleared. Then,
press s, and press awithin 4 seconds.
The preset numbers of all other stations in the band with higher
numbers are also decreased by one.
MANUAL TUNING
BAND
2
1
POWER
MODE
1 Press TUNER/BAND repeatedly to select the
desired band.
FM AM
When TUNER/BAND is pressed while the power is off, the
previously tuned station will be played (Direct Play Function).
To select a band with the remote control
Press BAND repeatedly.
2 Press ff
ff
for gg
gg
gto select a station.
Each time the button is pressed, the frequency changes.
Whena stationis received,“TUNE” isdisplayed for 2seconds.
During FM stereo reception, “1” is displayed.
TUNE 1
To search for a station quickly (Auto Search)
Keep for gpressed until the frequency starts to change
rapidly. After tuning in to a station, the search stops.
To stop the Auto Search manually, press for g.
• The Auto Search may not stop at stations with very weak
signals.
When an FM stereo broadcast contains noise
Press MODE on the remote control so that “MONO” appears on
the display.
Noise is reduced, although reception is monaural.
To restore stereo reception, press the button again so that
“MONO” disappears.
To change the AM tuning interval
The default setting of the AM tuning interval is 10 kHz/step. If
youuse thisunit in anarea wherethe frequencyallocationsystem
is 9 kHz/step, change the tuning interval.
Press POWER while pressing TUNER during power on.
To reset the interval, repeat this procedure.
When the AM tuning interval is changed, all preset stations are
cleared. The preset stations have to be set again.
RADIO RECEPTION
05-08/XR-M150<U>/Eng 10/4/2000, 5:07 PM7

En
ENGLISH 8
RADIO RECEPTION
BASIC OPERATIONS
s
a
f,g
CD z
OPEN/CLOSE
CD
CD BLANK
SKIP
0-9, +10
DISPLAY
REPEAT
MODE
d
LOADING DISC
Press CD, then press CD zz
zz
zOPEN/CLOSE to open
the disc compartment. Load a disc with the label
side up. Close the disc compartment by pressing
CD zz
zz
zOPEN/CLOSE.
z
Music calender (only
the first 20 tracks are
Total playing time displayed)
Total number of tracks
To start play when the power is off (Direct Play Function)
Press CD. The power is turned on and play of the loaded disc
begins.
When CD zz
zz
zOPEN/CLOSE is pressed, the power is also turned
on and the disc compartment is opened.
To check the remaining time
During play, press DISPLAY on the remote control three times.
The amount of time remaining until all tracks finish playing is
displayed. To restore the playing time display, press DISPLAY
again.
Selecting a track with the remote control
Press numbered buttons 0-9 and +10 to select a track.
Example:
To select the 25th track, press +10, +10 and 5.
To select the 10th track, press +10 and 0.
The selected track starts to play and continues to the end of that
disc.
• When removing the disc, press sto stop play before pressing
CD zz
zz
zOPEN/CLOSE.
• When loading an 8-cm (3-inch) disc, put it onto the inner circle
of the tray.
• Do not place more than one compact disc on the disc tray.
• Do not tilt the unit with disc loaded. Doing so may cause
malfunctions.
• Do not use irregular shape CDs (example: heart-shaped,
octagonal ones). It may result in malfunctions.
RANDOM/REPEAT PLAY
RANDOM play
All the tracks on the disc can be played randomly.
Press MODE on the remote control once, “RANDOM” lights
up on the display.
To cancelrandom play, pressthe buttononce duringplay or press
the button four times in stop mode.
• During random play, it is not possible to skip to the previously
played track with f.
• During random play, direct selection of the tracks with the
numbered buttons will cancel random play.
• During random play, “"1” play cannot be performed and
remaining time cannot be checked.
REPEAT play
One or all the tracks can be played repeatedly.
To repeat the entire disc, turn on “"”.
To repeat the desired track, turn on “"1”.
Press REPEAT on the remote control.
Each time REPEAT is pressed, the operations can be selected
cyclically.
ab
" " 1
c
To be continued
CD PLAYING
CD PLAYING
PLAYING DISC
Load a disc.
Press dd
dd
d.
Play begins with the first track.
Elapsed playing time
Number of track being played
To stop play, press s.
To pause play, press a. To resume play, press again.
To search for a particular point during playback, keep f
or gpressed and release it at the desired point.
To skip to the beginning of a track during playback, press
for grepeatedly.
To remove disc, press CD zz
zz
zOPEN/CLOSE.
(Cancel)
05-08/XR-M150<U>/Eng 10/4/2000, 5:07 PM8

9 ENGLISH
• During “"” play, random play can be performed.
• When you start random play during “"1” play, the repeat
play will be canceled.
• To repeat only selected tracks,program thedesired tracks (see
below) before choosing “"” function.
• During “"” play or “"1” play, the remaining time cannot be
checked.
BLANK SKIP PLAY
The silent portions between tracks recorded on a CD can be
skipped during playback.
1 Press CD BLANK SKIP.
“CD BLANK SKIP ON” is displayed and “ ” will appear in
the display.
2 Press dd
dd
dto start playback.
The silent portions between tracks will be skipped, and the
sound will be played back without interruption. If a track fades
out (ends with the sound gradually decreasing), the fade-out
portion will also be skipped.
To return to normal playback
Press CD BLANK SKIP again so that “CD BLANK SKIP OFF”
is displayed, and “ ” in the display will disappear.

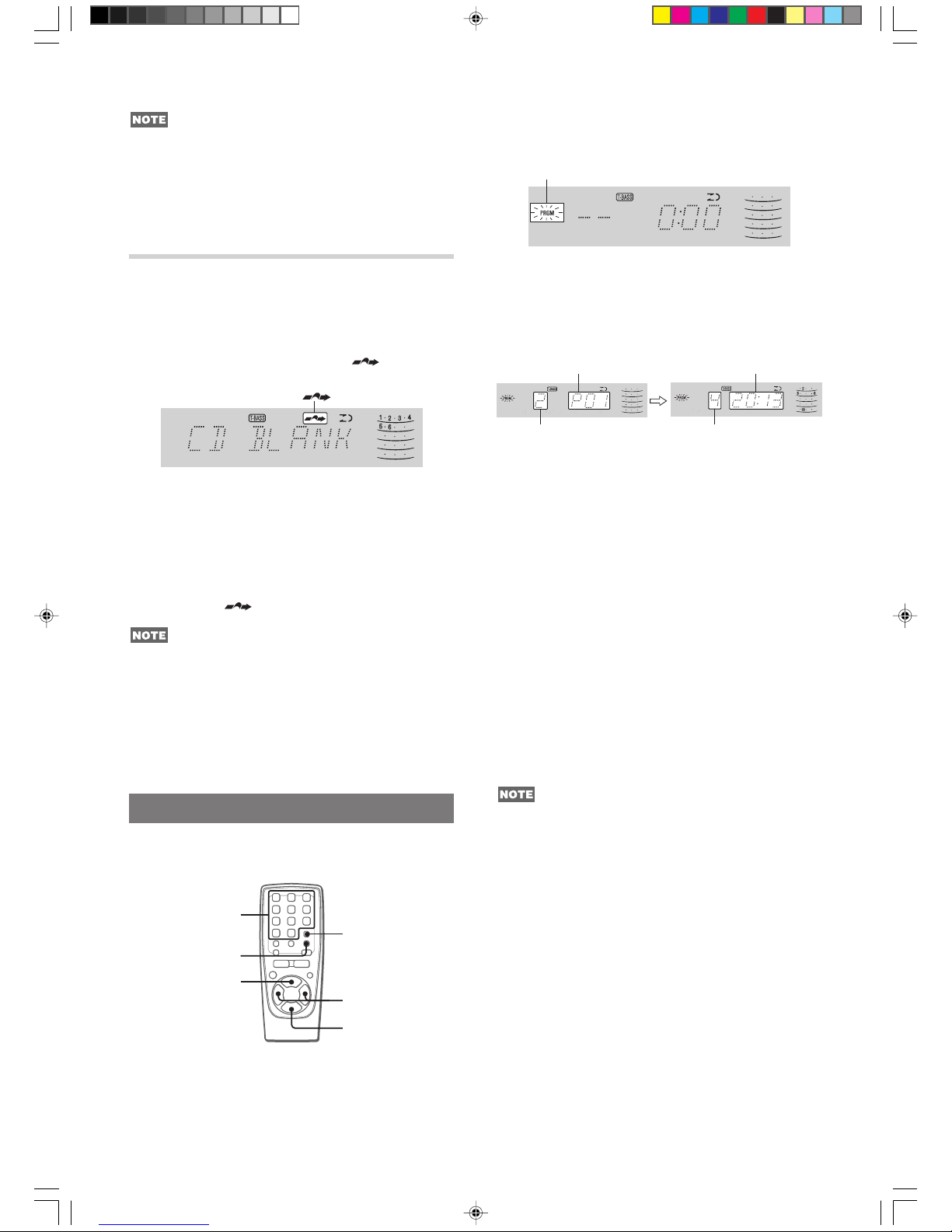

• There may be a case where BLANK SKIP PLAY does not
function correctly.
• BLANK SKIP PLAY is automatically canceled when performing
AI EDIT RECORDING (page 12), PROGRAMMED EDIT
RECORDING (page 13), PROGRAMMED PLAY recording
(page 9), RANDOM PLAY recording (page 8) or “"1” PLAY
recording (page 8).
PROGRAMMED PLAY
Up to 30 tracks can be programmed from the inserted disc.
REPEAT
4
2
1
s
f,g
Use the remote control.
1 Press MODE repeatedly in stop mode until
“PRGM” appears on the display.
“PRGM” flashes on the display.
PRGM
2 Press numbered buttons 0-9 and +10 to program
a track.
Example:
To select the 12th track, press +10 and 2.
To select the 20th track, press +10, +10 and 0.
Total playing time of
Program number the selected tracks
Selected track number Total number of
selected tracks
3 Repeat step 2 to program other tracks.
4 Press cc
cc
cto start play.
To check the program
Each time for gis pressed in stop mode, a track number
and program number will be displayed.
To clear the program
Press sin stop mode.
To add tracks to the program
Beforeplaying, repeat step 2.The trackwill beprogrammed after
the last track.
To change the programmed tracks
Clear the program and repeat all the steps again.
To play the programmed tracks repeatedly
After programming the tracks, press REPEAT on the remote
control, “"” lights up on the display.
• During programmed play, you cannot perform random play,
“"1” play, check the remaining time or select a track.
• If programmed time is more than 99:59 minutes, total playing
time is shown as --:-- in the display.
09-14/XR-M150<U>/Eng 10/4/2000, 5:09 PM9

En
ENGLISH 10
CD PLAYING
PLAYING BACK A TAPE

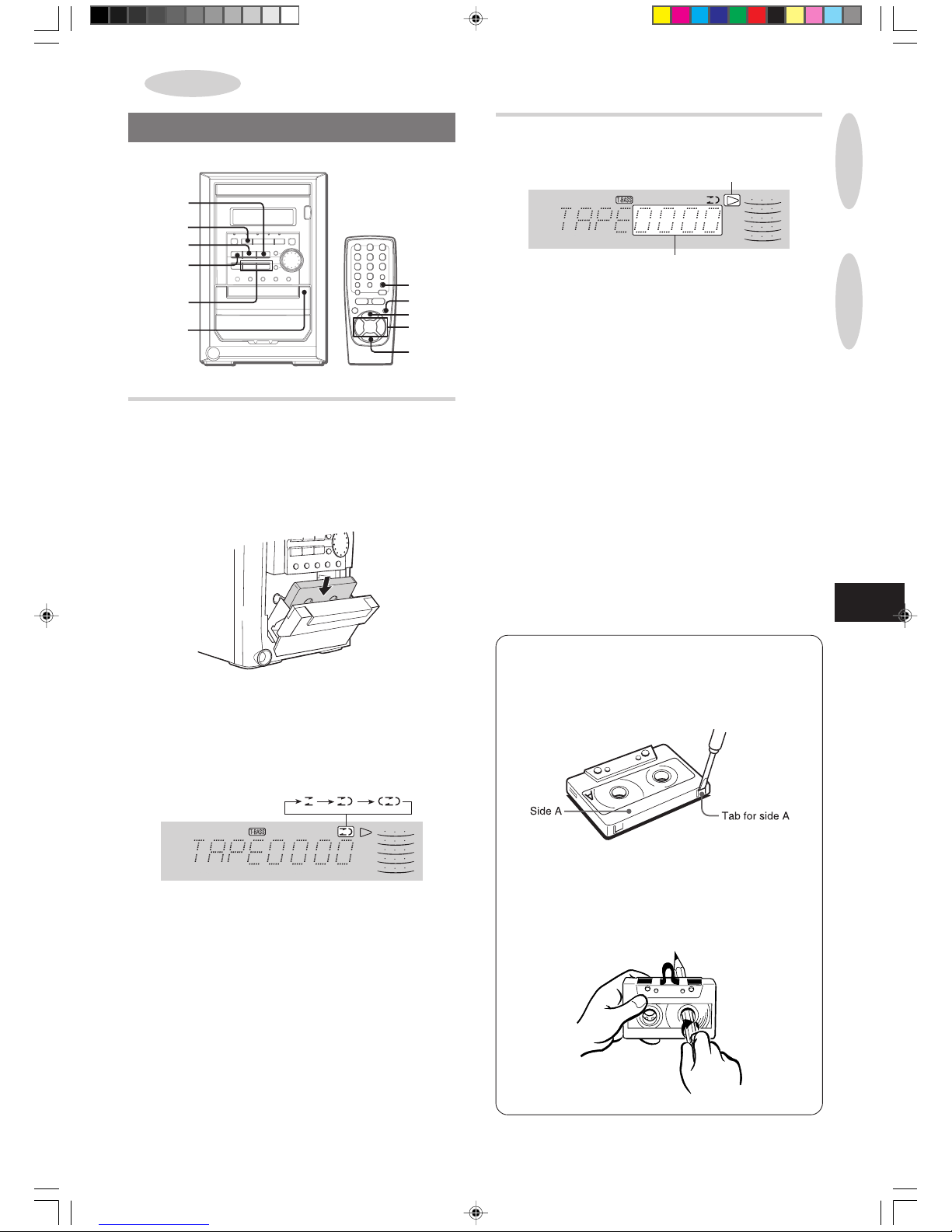

Insert a tape. Then press dd
dd
dto start play.
Playback side of the tape
The tape counter indicates
the tape running length
C: The front side is being played (forward).
X: The back side is being played (reverse).
To stop play, press s.
To pause play, press a. To resume play, press again.
To change the playback side, press dDIR/PRESET in play
or pause mode.
To fast forward or rewind, press for gin stop mode.
Then press sto stop the tape.
To start play when the power is off (Direct Play Function)
Press TAPE. The power is turned on and play of the inserted
tape begins.
To set the tape counter to 0000
Press sin stop mode.
The counter is also set to 0000 when the cassette holder is
opened.
About cassette tapes
•To prevent accidental erasure, break off the plastic tabs
on the cassette tape after recording with a screwdriver or
other pointed tool.
To record on the tape again, cover the tab openings with
adhesive tape, etc.
•120-minute or longer tapes are extremely thin and easily
deformed or damaged. They are not recommended.
•Take up any slack in the tape with a pencil or similar tool
beforeuse. Slack tapemay breakor jam inthe mechanism.
BASIC OPERATIONS
MODE
s
a
f,g
zPUSH
EJECT
d
s
a
TAPE/REV
MODE
f,g
c
INSERTING A TAPE
• You can select a reverse mode to playback one or both sides.
• Use Type I(normal) tapes for playback.
Press TAPE/REV MODE and press zPUSH EJECT
mark to open the cassette holder
Insert a tape with the exposed side down. Push the cassette
holder to close.
To select a reverse mode
Each time TAPE/REV MODE is pressed, the reverse mode
changes.
When using the remote control, press MODE.
To play one side only, select p.
To play from front side to back side once only, select [.
To play both sides repeatedly, select ].
TAPE PLAYBACK
TAPE PLAYBACK
09-14/XR-M150<U>/Eng 10/4/2000, 5:09 PM10

11 ENGLISH
BASIC RECORDING
This section explains how to record from the tuner, CD player, or
external equipment.
1
a
4
2
s
MODE
3
Preparation
• Use Type I(normal) tapes only.
• Set the tape to the point where recording will start.
1 Insert the tape to be recorded on into deck.
Insert the tape with the side to be recorded on first facing out
from the unit and the exposed side down.
2 Press TAPE/REV MODE to select the reverse
mode.
To record on one side only, select p.
To record on both sides, select [or ].
When using the remote control, press MODE.
3 Press function (TUNER, AUX/VIDEO or CD) and
prepare the source to be recorded.
To record from a CD, press CD and load the disc.
To record from a radio broadcast, pressTUNER/BAND and
tune in to a station.
To record from a connected source, press AUX/VIDEO and
play.
4 Press wREC/REC MUTE to start recording.
When the selected function is CD, playback and recording
start simultaneously.
To stop recording, press s.
To pause recording, press a(applicable when the source is
TUNER or AUX/VIDEO). To resume recording, press it again.
To erase a recording
1Insert the tape to be erased into the deck.
2Set the tape to the point where the erasure is to be started.
3Set the reverse mode by pressing TAPE/REV MODE.
4Press AUX/VIDEO and turn the connected equipment off.
5Press wREC/REC MUTE to start the erasure.
RECORDING
Sound adjustment during recording
The output volume and tone of the speakers or headphones may
be freely varied without affecting the recording.
INSERTING BLANK SPACE
Insertion of 4-second blank spaces may help you to locate the
beginning of the track on other equipments. This unit can add
blank spaces only when the source is TUNER orAUX/VIDEO.
1 Press wREC/REC MUTE during recording or while in
recording pause mode.
4on the display flashes for 4 seconds and the tape runs
without recording. After 4 seconds, the deck enters the
recording pause mode.
2 Press ato resume recording.
To insert a blank space of less than 4 seconds, press
wREC/REC MUTE again while 4is flashing.
To insert blank spaces of more than 4 seconds, after the
deck enters the recordingpause mode, press wREC/REC MUTE
again.
Each time wREC/REC MUTE is pressed, a 4-second blank
space is added.
*This unit does not have the function to locate the beginning of track.
Recording cannot be done when TAPE function is selected.
09-14/XR-M150<U>/Eng 10/4/2000, 5:09 PM11

En
ENGLISH 12
RECORDING
Number of Selected
programmed tracks
Tape length tracks for side A
Tape side Remaining
A: First recording side time of
B: Second recording side side A
5 Press ww
ww
wREC/REC MUTE to start recording.
The tape is rewound to the beginning of the front side, the
lead segment is played through for 10 seconds, and recording
starts. When recording on the front (side A) ends, recording
on the back (side B) starts.
To stop recording
Press s. Recording and CD play stop simultaneously.
To clear the edit program
Press stwice so that “EDIT” disappears on the display.
To check the order of the programmed track numbers
Before recording, press MODE on the remote control to select
side A or B, and press for grepeatedly.
Programmed
Tape side Program number track numbers
Track number
Time on cassette tapes and editing time
The actual cassette recording time is usually a little longer than
the specified recording time printed on the label. This unit can
program tracks to use the extra time. When the total recording
time is a little longer than the tape’s specified recording time
after editing, the display shows the extra time (without a minus
mark), instead of the time remaining on the tape (with the minus
mark).
• Recording is inhibited if the erasure prevention tab on either
side of the tape is broken off.
• The AI edit function cannot be used with discs containing 31
tracks or more.
AI EDIT RECORDING
1
5
s
4
3
2
f,g

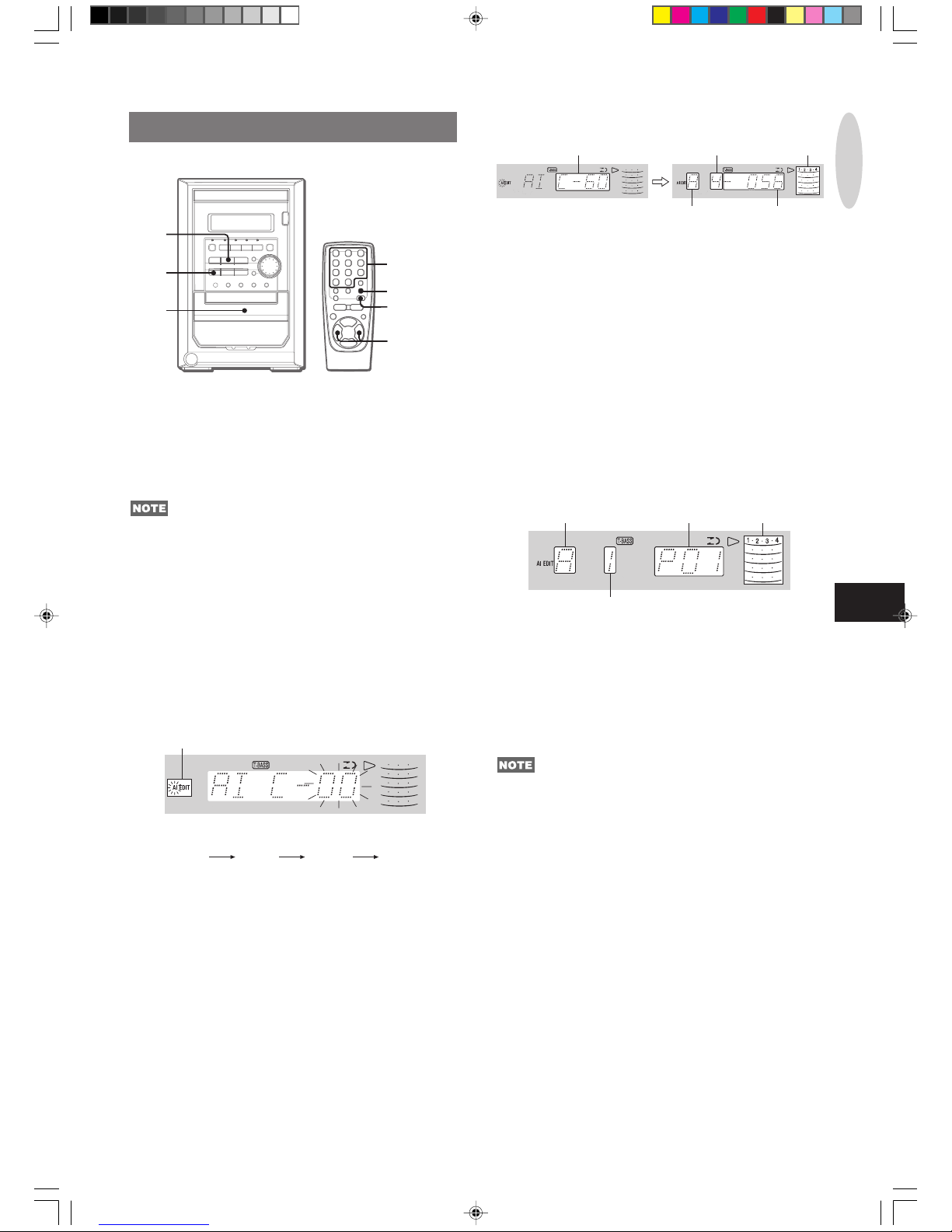

The AI edit recording function enables CD recording without
worrying about tape length and track length. When a CD is
inserted, the unit automatically calculates the total track length.
If necessary, the order of tracks is rearranged so that no track is
cut short.
(AI: Artificial Intelligence)
AI edit recording will not start from a point halfway into the tape.
The tape must be recorded from the beginning of either side.
Use the remote control from steps 2 to 4.
1 Insert the tape into deck.
Insert the tape with the side to be recorded on first facing out
from the unit.
2 Press FUNCTION repeatedly until “CD” is
displayed and load the disc.
3 Press MODE repeatedly until “AI EDIT” appears
on the display.
“EDIT” lights up and “AI” flashes on the display.
AI EDIT
Each time it is pressed, the display changes as follows.
PRGM EDIT
PRGM AI EDIT
RANDOM
4 Press numbered buttons 0-9 to designate the tape
length.
10 to 99 minutes can be specified.
Example: When using a 60-minute tape, press 6and 0.
In a few seconds, the tracks to be recorded on each side of
the tape are determined.
•fand garealso availableto designatethe tapelength.
09-14/XR-M150<U>/Eng 10/4/2000, 5:09 PM12

13 ENGLISH
PROGRAMMED EDIT RECORDING
1
8
s
4, 5
3, 7
2
f,g
In the programmed edit recording function, the track can be
programmed while checking the remaining time on each side of
the tape as the tracks are programmed.
Theprogrammed editrecording willnot startfrom apoint halfway
in the tape. The tape must be recorded on from the beginning of
either side.
Use the remote control from step 2 to 7.
1 Insert the tape into deck.
Insert the tape with the side to be recorded on first facing out
from the unit.
2 Press FUNCTION repeatedly until “CD” is
displayed and load the disc.
3 Press MODE repeatedly until “PRGM EDIT”
appears on the display.
“EDIT” lights up and “PRGM” flashes on the display.
PRGM EDIT
4 Press numbered buttons 0-9 to designate the
tape length.
10 to 99 minutes can be specified.
Example: When using a 60-minute tape, press 6and 0.
• The fand gare also available to designate the tape
length.
Maximum recording
Tape length time for side A
Tape side A
(front side)
5 Press the numbered buttons 0-9 and +10 to
program a track.
Example : To select the 10th track, press +10 and 0.
Selected Program Remaining Programmed
track number time of side A track
6 Repeat step 5 for the rest of the tracks for side
A.
A track whose playing time is longer than the remaining time
cannot be programmed.
7 Press MODE to select side B and program the
tracks for side B.
After confirming “B” on the display, repeat step 5.
Tape side B (reverse side)
8 Press ww
ww
wREC/REC MUTE to start recording.
The tape is rewound to the beginning of the front side, the
leadsegment is played through for 10 seconds,and recording
starts. When recording on the front (side A) ends, recording
on the back (side B) starts.
To stop recording
Press s. Recording and CD play stop simultaneously.
To check the order of the programmed track numbers
Before recording, press MODE on the remote control to select
side A or B, and press for grepeatedly.
Program Programmed
Track number number track numbers
Tape side
To change the program of each side
Press MODE on the remote control to select side A or B, and
presssto clearthe programon theselected side.Thenprogram
tracks again.
To clear the edit program
Press stwice so that “EDIT” disappears on the display.
• Recording is inhibited if the erasure prevention tab on either
side of the tape is broken off.
09-14/XR-M150<U>/Eng 10/4/2000, 5:09 PM13

En
ENGLISH 14
RECORDING

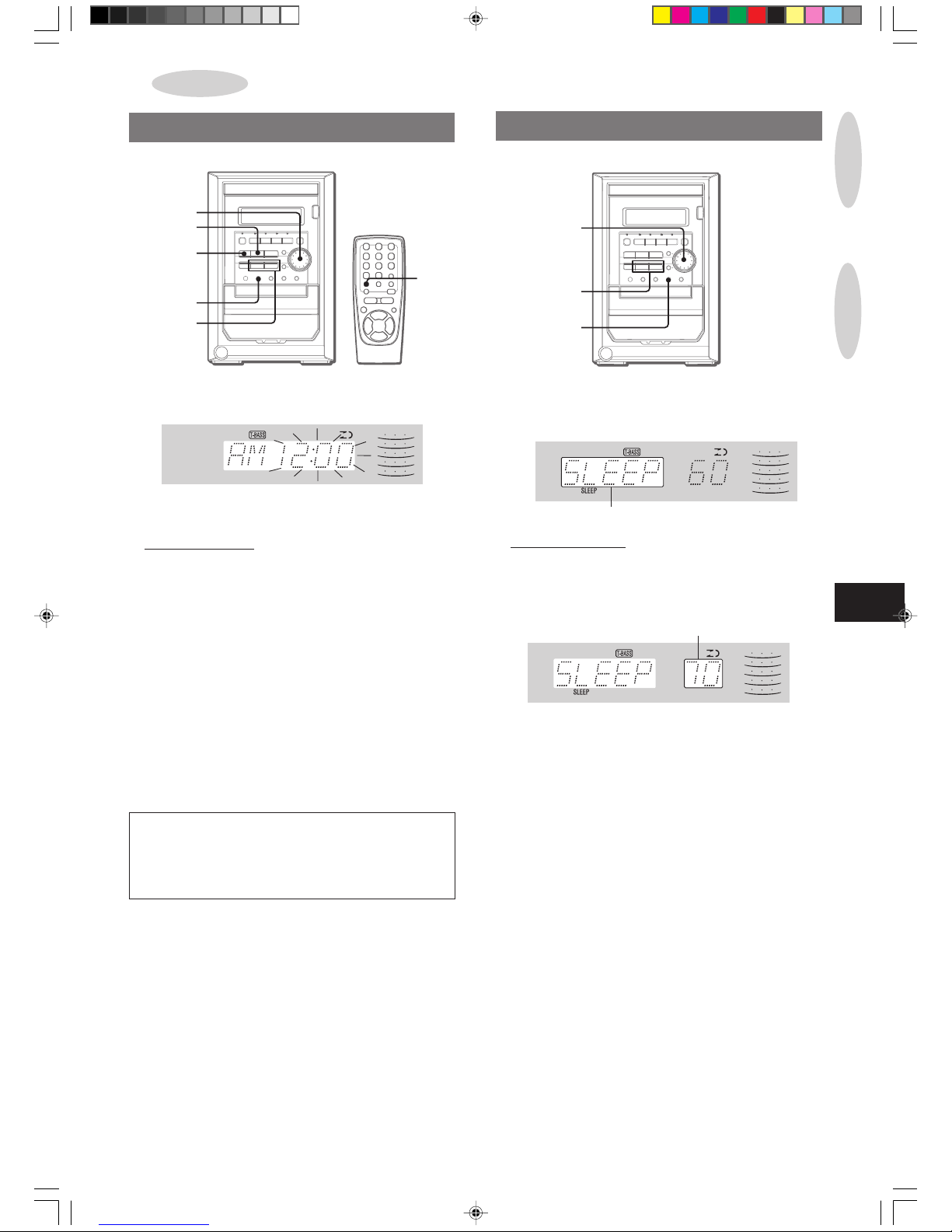

SETTING THE CLOCK
2
s
VOL/
MULTI JOG
2
DEMO/ECO
1
1 Press DISPLAY on the remote control.
To set the clock during power off, press aa
aa
auntil the clock
is displayed.
2 Within 4 seconds, press for gto designate
the time, then press a.
Each time for gis pressed, the time changes by 1
minute. To change the time by 30 minutes, press and hold
for g.
• VOL/MULTI JOG is also available instead of fand g.
To display the current time
With power on, press DISPLAY once on the remote control. The
time is displayed for 4 seconds.
However, the time cannot be displayed during recording.
When the power is off, press DEMO/ECO repeatedly until the
display changes to clock.
To switch to the 24-hour standard
With power on, press DISPLAY once on the remote control then
press swithin 4 seconds.
Repeat the same procedure to restore the 12-hour standard.
If the clock display flashes
Thisis causedby apower interruption.Thecurrent timeneeds
to be reset.
If power is interrupted for more than approximately 24 hours,
all settings stored in memory after purchase need to be reset.
SETTING THE SLEEP TIMER
VOL/
MULTI JOG
2
1
The unit can be turned off automatically at a specified time.
1 Press SLEEP.
SLEEP
2 Within 3 seconds, press for gto specify
the time until the power is turned off.
The time changes between 5 and 240 minutes in 5-minute
steps.
•VOL/MULTI JOG is also available instead of fand g.
Specified time
To check the time remaining until the power is turned off
Press SLEEP once. The remaining time is displayed for 4
seconds.
To cancel the sleep timer
Press SLEEP twice so that “SLEEPoFF” appears on the display.
CLOCK AND TIMER
CLOCK AND TIMER
09-14/XR-M150<U>/Eng 10/4/2000, 5:09 PM14

15 ENGLISH

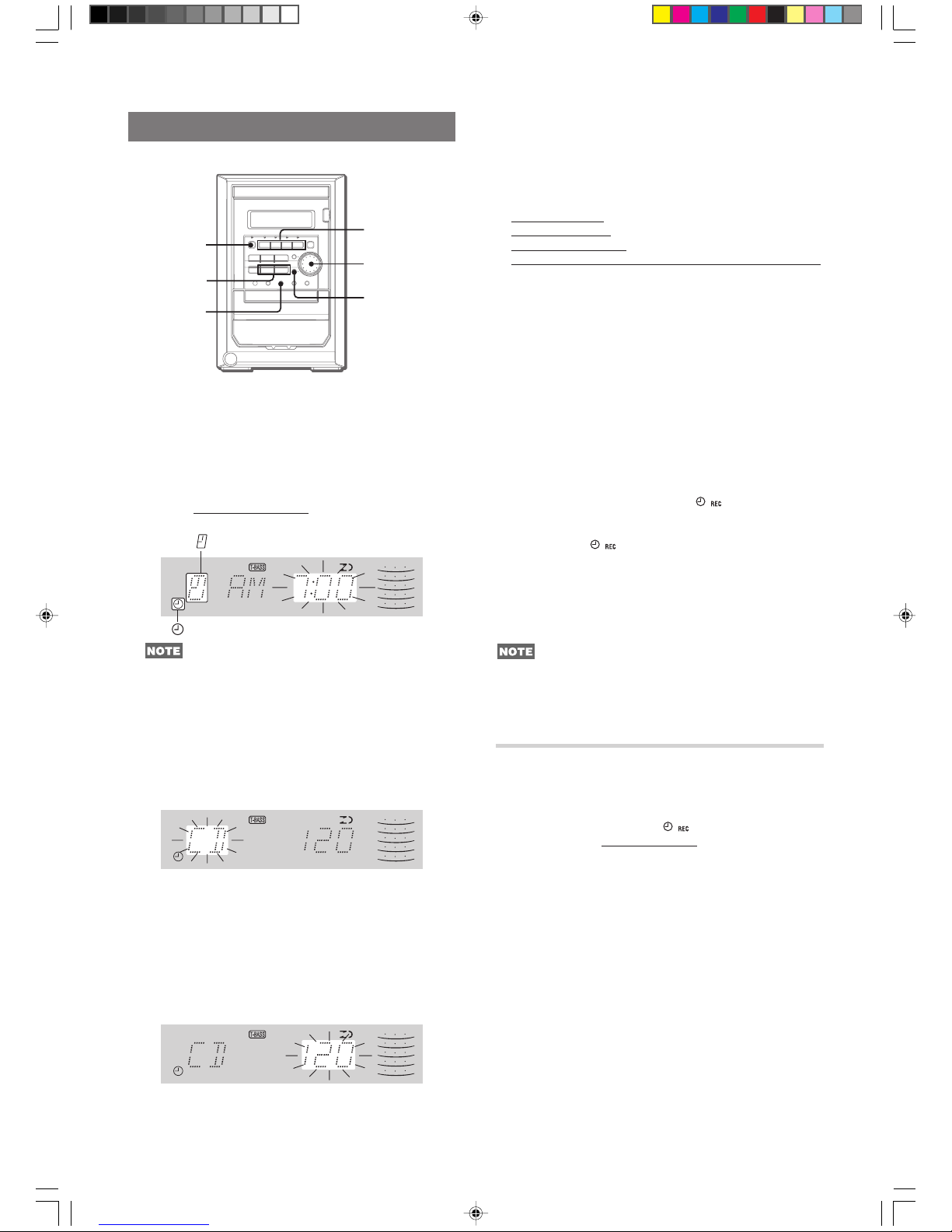

SETTING THE TIMER
VOL/
MULTI JOG
6
1, 2, 3, 4
2, 3, 4
3
1
The unit can be turned on at a specified time every day with the
built-in timer.
Preparation
Make sure the clock is set correctly. (See page 14).
1 Press TIMER once to display “5”, then press
ENTER within 6 seconds.
“5” is displayed and the time flashes.
If you press ENTER after 6 seconds, another operation may
start.
2 Designate the timer-on time by pressing for
g, then press ENTER.
To change the timer-on time by 30 minutes, press and hold
for g.
•VOL/MULTI JOG is also available instead of fand g.
Afteryou designatethe timer-on time,one ofthe sourcenames
flashes on the display.
3 Press any of the function buttons (TAPE, TUNER,
AUX, CD) or press for gto select a source,
then press ENTER.
The duration for the timer activated period flashes.
• If TUNER is pressed, the band cannot be selected in this
step.
•VOL/MULTI JOG is also available instead of fand g.
After you select a source, the duration for the timer-activated
period flashes on the display.
4 Select the duration for the timer-activated period
with for g, then press ENTER.
Theduration forthe timer-activated period can be set between
5 and 240 minutes in 5-minute steps.
•VOL/MULTI JOG is also available instead of fand g.
5 Prepare the source.
To listen to a CD, load the disc.
To listen to a tape, insert the tape into deck.
To listen to the radio, tune in to a station.
To listen to the equipment connected toAUX/VIDEO jacks,
set the timer of the connected source (with an external timer)
and prepare for the play.
6 Press POWER to turn the unit off after adjusting
the volume and tone.
When the timer-on time is reached, the unit turns on and
begins play with the selected source.
The volume level is automatically set to 20 when the power is
turned off with the volume level set to 21 or more.
To check the specified time and source
Press TIMER. The timer-on time, the selected source name and
the duration for the timer-activated period flash alternately for 6
seconds.
To cancel timer standby mode temporarily
Press TIMER repeatedly until “5” or “ ” disappears on the
display.
To restore the timer standby mode, press TIMER once or twice
to display “5” or “ ”.
Using the unit while the timer is set
You can use the unit normally after setting the timer.
Before turning off the power, carry out step 5 to prepare the
source, and adjust the volume and tone.
• Timer playback and timer recording will not begin unless the
power is turned off.
• Connected equipment cannot be turned on and off by the built-
in timer of this unit. Use an external timer.
TIMER RECORDING
Timer recording is applicable for TUNER and AUX/VIDEO (with
an external timer) sources only.
Press TIMER repeatedly until “ ” appears on the display,
then press ENTER within 6 seconds.
Carry out the steps of “SETTING THE TIMER” from step 2 and
insert the tape to be recorded on into deck after step 5.
15-18/XR-M150<U>/Eng 10/4/2000, 5:08 PM15

En
ENGLISH 16
CLOCK AND TIMER
LISTENING TO EXTERNAL SOURCES
POWER
1
To play equipment connected to the VIDEO/AUX jacks, proceed
as follows.
1 Press AUX/VIDEO.
“AUX” appears on the display.
2 Play the connected equipment.
To change a source name in the display
When AUX/VIDEO is pressed, “AUX” is displayed initially. It can
be changed to “TV” or “VIDEO”.
With the power on, press POWER while pressing AUX/VIDEO.
Repeat the procedure to select one of the source names.
OTHER CONNECTIONS
CONNECTING OPTIONAL EQUIPMENT
SUB WOOFER
Refer to the operating instructions of the connected equipment
for details.
• The connecting cords are not supplied. Obtain the necessary
connecting cords.
• Consult your local Aiwa dealer for optional equipment.
VIDEO/AUX JACKS
This unit can input analog sound signals through these jacks.
Use a cable with RCA phono plugs to connect audio equipment
(turntables, LD players, VCRs, TV, etc.).
Connect the red plug to the VIDEO/AUX R jack, and the white
plug to the VIDEO/AUX L jack.
When connecting a turntable
UseanAiwaturntable equippedwith abuilt-in equalizeramplifier.
SUB WOOFER 33
33
3JACK
Connect an optional powered sub woofer with built-in amplifier
to the jack.
OTHER CONNECTIONS
15-18/XR-M150<U>/Eng 10/4/2000, 5:08 PM16

17 ENGLISH
CARE AND MAINTENANCE
Occasional care and maintenance of the unit and the software
are needed to optimize the performance of your unit.
To clean the cabinet
Use a soft and dry cloth.
If the surfaces are extremely dirty, use a soft cloth lightly
moistened with mild detergent solution. Do not use strong
solvents, such as alcohol, benzine or thinner as these could
damage the finish of the unit.
To clean the tape heads
When the tape heads are dirty;
- high frequency sound is not emitted
- the sound is not adequately high
- the sound is off-balance
- the tape cannot be erased
- the tape cannot be recorded on
After every 10 hours of use, clean the tape heads with a head
cleaning cassette.
Refer to the instructions of the cleaning cassette for details.
To demagnetize the tape heads
The tape heads may become magnetized after long-term use.
Thismay narrowthe outputrange ofrecorded tapesand increase
noise.
After every 20 to 30 hours of use, demagnetize the tape heads
with a separately sold demagnetizing cassette.
Referto theinstructions ofthe demagnetizingcassette fordetails.
Care of discs
• When a disc becomes dirty, wipe the disc from the center out
with a cleaning cloth.
• After playing a disc, store the disc in its case. Do not leave the
disc in places that are hot or humid.
Care of tapes
• Store tapes in their cases after use.
• Do not leave tapes near magnets, motors, television sets, or
anysource ofmagnetism.This willdowngrade thesound quality
and cause noise.
• Do not expose tapes to direct sunlight, or leave them in a car
parked in direct sunlight.
GENERAL
To reset
If an unusual condition occurs in the display window or the
cassette decks, reset the unit as follows.
1Press POWER to turn off the power.
2Press POWER to turn the power back on while pressing s.
Everything stored in memory after purchase is canceled.
Ifthepower cannot beturnedoffinstep 1 becauseofamalfunction,
reset by disconnecting the AC cord, and connect it again. Then
carry out step 2.
TROUBLESHOOTING GUIDE
If the unit fails to perform as described in these Operating
Instructions, check the following guide.
GENERAL
There is no sound.
• Is the AC cord connected properly?
• Is there a bad connection? (➞page 3)
• There may be a short circuit in the speaker terminals.
➞Disconnect the AC cord, then correct the speaker
connections.
• Was an incorrect function button pressed?
Sound is emitted from one speaker only.
• Is the other speaker disconnected?
An erroneous display or a malfunction occurs.
➞Reset the unit as stated below.
The unit blacks out when the power is off.
• Is the unit set to power economizing mode? (➞page 5)
The power is not turned on.
• Disconnect theAC cord, and connect it again in a few seconds.
TUNER SECTION
There is constant, wave-like static.
• Is the antenna connected properly? (➞page 3)
• Is the signal weak?
➞Connect an outdoor antenna.
The reception contains noise interferences or the sound
is distorted.
• Is the system picking up external noise or multipath distortion?
➞Change the orientation of the antenna.
➞Move the unit away from other electrical appliances.
CASSETTE DECK SECTION
The tape does not run.
• Is deck in pause mode? (➞page 10)
The sound is off-balance or not adequately high.
• Is the playback head dirty? (➞page 17)
Recording is not possible.
• Is the erasure prevention tab on the tape broken off? (➞page
10)
• Is the recording head dirty? (➞page 17)
Erasure is not possible.
• Is the erasure head dirty? (➞page 17)
• Is a metal tape being used?
High frequency sound is not emitted.
• Is the recording/playback head dirty? (➞page 17)
CD PLAYER SECTION
The CD player does not play.
• Is the disc correctly placed? (➞page 8)
• Is the disc dirty? (➞page 17)
• Is the lens affected by condensation?
➞Wait approximately one hour and try again.
15-18/XR-M150<U>/Eng 10/4/2000, 5:08 PM17

En
ENGLISH 18
GENERAL
SPECIFICATIONS
Main unit XR-M150
FM tuner section
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
AM tuner section
Tuning range 530 kHz to 1710 kHz (10 kHz
step)
531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
Amplifier section
Power output 12 W + 12 W (50 Hz – 20 kHz,
T.H.D. less than 1%, 8 ohms)
15 W + 15 W (1 kHz, T.H.D. less
than 10%, 8 ohms)
Total harmonic distortion 0.07 % (7.5 W, 1 kHz, 8 ohms,
DIN AUDIO)
Inputs VIDEO/AUX: 0.4 V
Outputs SUB WOOFER: 1.0 V
SPEAKERS: accept speakers of
8 ohms or more
PHONES (stereo minijack):
accepts headphones of 32 ohms
or more
Cassette deck section
Track format 4 tracks, 2 channels stereo
Frequency response Normal tape: 50 Hz – 15000 Hz
Signal-to-noise ratio 50 dB
Recording system AC bias
Heads Recording/playback head ×1
Erase head ×1
Compact disc player section
Laser Semiconductorlaser (λ= 780nm)
D-A converter 1 bit dual
Signal-to-noise ratio 75 dB (1 kHz, 0 dB)
Harmonic distortion 0.1% (1 kHz, 0 dB)
Wow and flutter Unmeasurable
General
Power requirements AC : 120 V, 60 Hz
Power consumption 40 W
Dimensions of main unit 168 ×256 ×255 mm
(W ×H ×D) (65/8×101/8×101/8in)
Weight of main unit 3.5 kg
(7 Ibs 11 oz)
Standby power consumption If the power-economizing mode is
on: 1.0 W
If the power-economizing mode is
off: 10 W
Speaker system SX-M150
Cabinet type 2 way, bass reflex
Speakers Woofer:
120 mm (43/4in) cone type
Tweeter:
20 mm (13/16 in) ceramic type
Impedance 8 ohms
Output sound pressure level 87 dB/W/m
Dimensions (W ×H ×D) 150 ×256 ×210 mm
(6 ×101/8×83/8in)
Weight 2.0 kg
(7 Ibs 1 oz)
Specificationsand external appearance aresubjecttochange without
notice.
COPYRIGHT
Please check the laws on copyright relating to recordings from
discs, radio or external tape for the country in which the machine
is being used.
NOTE
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules.Theselimits aredesigned toprovide reasonable protection
against harmful interference in a residential installation.
Thisequipment generates,uses, andcan radiateradio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communi-
cations. However, there is no guarantee that interference will
not occur in a particular installation. lf this equipment does cause
harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- lncrease the separation between the equipment and
receiver.
- Connect the equipment into an outlet on circuit different
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician
for help.
CAUTION
Modifications or adjustments to this product, which are not
expressly approved by the manufacturer, may void the user’s
right or authority to operate this product.
15-18/XR-M150<U>/Eng 10/4/2000, 5:08 PM18

For assistance and information,
call toll free 1-800-BUY-AIWA. (United States and Puerto Rico)
Printed in Indonesia

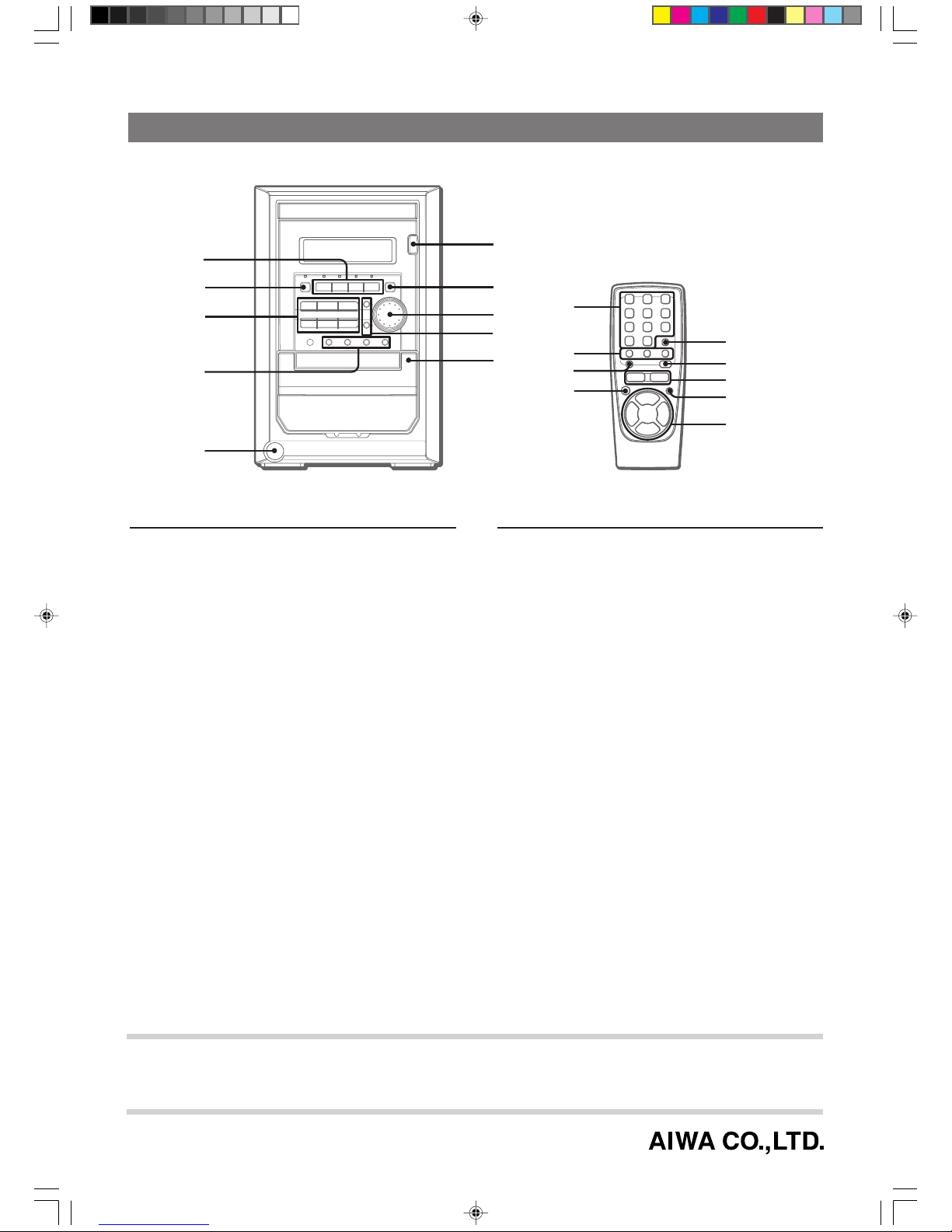

PARTS INDEX/ÍNDICE DE LAS PIEZAS/NOMENCLATURE
0zPUSH EJECT ............................... 10
!0-9, +10 ............................................. 7-9,12,13
@DISPLAY ........................................... 6,8,14
EQ ..................................................... 6
MODE ............................................... 7-13
#BAND ................................................ 7
$POWER............................................. 15-16
%REPEAT ............................................ 8,9
^FUNCTION........................................ 4,12,13
&VOL (kDOWN, iUP) .................... 6
*aPAUSE ......................................... 7,8,10,11,14
(cPLAY............................................ 4,9
r/fSKIP/SEARCH ................. 7-10,12-15
t/gSKIP/SEARCH ................. 7-10,12-15
sSTOP............................................ 7-14
Name/Piezas/Nom Page/Páginas/Page Name/Piezas/Nom Page/Páginas/Page
1TAPE/REV MODE............................. 5,10,11,15
TUNER/BAND .................................. 5,7,11,15
AUX/VIDEO ...................................... 5,11,15,16
CD ..................................................... 5,8,11,15
2POWER............................................. 5,7,15-17
3f/rTUNING DOWN................ 7-10,12-15
dDIR/PRESET ............................ 7-10
g/tTUNING UP ...................... 7-10, 12-15
aSET .............................................. 7,8,10,11,14
sCLEAR ......................................... 7-14,17
wREC/REC MUTE .......................... 11-13
4DEMO/ECO....................................... 5,14
TIMER ............................................... 15
SLEEP .............................................. 14
CD BLANK SKIP ..............................9
5PHONES ........................................... 5
6CD zOPEN/CLOSE........................ 8
7QSOUND .......................................... 6
8VOL/MULTI JOG .............................. 6,14,15
9ENTER .............................................. 15
JOG MODE....................................... 6
1
2
3
5
8
9
0
4
!
#
%
(
*
&
$
@^
7
6
00COVER/XR-M150<U>/ESF 10/4/2000, 5:06 PM2
