S E R V I C E M A N U A L
SIMPLE MANUAL
•Replace this Service Manual with ”Revision Publishing” when it is issued.
NSX-A555
NSX-S555
NSX-S556
NSX-S559
• TYPE:U,LH,HR,HA
EZ,K,V,G
COMPACT DISC STEREO SYSTEM
• BASIC TAPE MECHANISM: 2ZM/6ZM
• BASIC CD MECHANISM: 4ZG-1 Z3RDSH/4ZP-1/4ZP-1 K
S/M Code No. 09–998–401–7T4
BASIC TAPE MECHANISM TYPE
2ZM-3MK2 PR4N 555LH,559LH,HR,HA
6ZM-3PR1N U
6ZM-3PR2N 555EZ,556EZ,K,V,G

ELECTRICAL PARTS LIST-1/12
NOTE: The characters in the suffix column indicate the part usage.
555EZST5C ..............XX..................................A...................
555UST5FD ..............XX...................................B..................
555UST5C ...............XX....................................C.................
555HRST5M ..............XX.....................................D................
555KST5E ...............XX......................................E...............
555GST5M ...............XX.......................................F..............
555VJST5M ..............XX........................................G.............
555LHST5M ..............XX.........................................H............
556EZST5M ..............XX..........................................I...........
555EZST5M ..............XX...........................................J..........
555HAS5C2M .............XX............................................K.........
559LHS5KM ..............XX.............................................L........
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
C 503 87-010-112-040 CAP,E 100-16 ...D...H............
C 509 87-010-177-080 C-CAP,S 820P-50 SL ...D...H............
C 502 87-010-186-080 CAP,CHIP 4700P ...D...H............
C 506 87-010-320-080 CHIP CAP 68P ...D...H............
C 504 87-010-405-040 CAP,E 10-50 ...D...H............
C 507 87-010-544-040 CAP,E 0.1-50 SME ...D...H............
C 508 87-010-544-040 CAP,E 0.1-50 SME ...D...H............
C 505 87-010-545-040 CAP,E 0.22-50 SME ...D...H............
C 511 87-010-265-040 CAP,E 33-16 SME ...D...H............
C 510 87-010-322-080 C-CAP,S 100P-50 CH ...D...H............
J 501 87-A60-651-010 JACK,3.5MONO ...D...H............
Q 506 87-A30-075-080 C-TR,2SA1235F ...D...H............
Q 504 87-A30-075-080 C-TR,2SA1235F ...D...H............
Q 503 87-A30-076-080 C-TR,2SC3052F ...D...H............
Q 505 87-A30-076-080 C-TR,2SC3052F ...D...H............
Q 502 87-A30-076-080 C-TR,2SC3052F ...D...H............
Q 501 87-A30-087-080 C-FET,2SK2158 ...D...H............
VR 501 87-NB7-602-010 VR,RTRY 10KAX1 1 V ...D...H............
C 1 87-010-387-080 CAP,E 470-25 SME ABCDEFGHIJ..........
C 8 87-010-917-000 CAP,E 3300-50 M SMG ABCDEFGHIJ..........
C 9 87-010-917-000 CAP,E 3300-50 M SMG ABCDEFGHIJ..........
C 2 87-018-209-080 CAP, CER 0.1-50V A...EFG.IJ..........
C 5 87-A11-148-080 CAP,TC U 0.1-50 Z F ABCDEFGHIJ..........
C 3 87-A11-148-080 CAP,TC U 0.1-50 Z F ABCDEFGHIJ..........
C 4 87-A11-148-080 CAP,TC U 0.1-50 Z F ABCDEFGHIJ..........
C 6 87-A11-148-080 CAP,TC U 0.1-50 Z F ABCDEFGHIJ..........
C 31 87-010-403-040 CAP,E 3.3-50 SME ABCDEFGHIJ..........
CN 1 87-A60-851-010 CONN,9P V VH ABCDEFGHIJ..........
D 6 87-A40-547-090 DIODE,D5SBA20 ABCDEFGHIJ..........
D 32 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFGHIJ..........
D 31 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFGHIJ..........
JW 20 87-026-682-080 PROTECTOR,10A 60V491 A..DEFGHIJ..........
JW 21 87-026-682-080 PROTECTOR,10A 60V491 A..DEFGHIJ..........
PR 3 87-A91-276-080 FUSE,125MA 125V F 251 .BC.................
PT 2 8Z-NF8-661-010 PT,SUB ZNF-8(U) .BC.................
PT 2 8Z-NF8-662-010 PT,SUB ZNF-8(E) A...EFG.IJ..........
PT 2 8Z-NF8-663-010 PT,SUB ZNF-8(H) ...D...H............
Q 31 87-026-245-080 TR,DTC114ES ABCDEFGHIJ..........
Q 32 87-A30-198-080 TR,KTC3199GR ABCDEFGHIJ..........
RY 2 87-A90-976-010 RELAY,AC12V SDT-S-112LMR ABC.EFG.IJ..........
RY 1 87-A91-339-010 RELAY,AC DC12V G5PA-2 ...D...H............
S 1 87-A90-165-010 SW,SL 1-2-3 SWS2301 ...D...H............
T 1 87-A60-317-010 TERMINAL, 1P MSC ABCDEFGHIJ..........
T 2 87-A60-317-010 TERMINAL, 1P MSC ABCDEFGHIJ..........
88-NF8-205-010 GUIDE,FL ABCD.FGHIJ..........
8Z-NF8-201-110 GUIDE,OPE ABCD.FGHIJ..........
8Z-NF8-202-010 GUIDE,FUN ABCD.FGHIJ..........
C 201 87-012-140-080 CAP 470P ABCD.FGHIJ..........
C 203 87-012-157-080 C-CAP,S 330P-50 CH ABCD.FGHIJ..........
C 211 87-012-157-080 C-CAP,S 330P-50 CH ABCD.FGHIJ..........
C 254 87-010-194-080 CAP, CHIP 0.047 ABCD.FGHIJ..........
C 252 87-010-198-080 CAP, CHIP 0.022 ABCD.FGHIJ..........
C 255 87-A10-797-040 CAP,E 47-35 M 5L SRM ABCD.FGHIJ..........
C 260 87-010-198-080 CAP, CHIP 0.022 ABCD.FGHIJ..........
C 272 87-015-690-040 CAP,E 22-35 7L ABCD.FGHIJ..........
C 270 87-015-699-040 CAP,E 10-50 7L ABCD.FGHIJ..........
C 271 87-015-699-040 CAP,E 10-50 7L ABCD.FGHIJ..........
C 302 87-010-182-080 C-CAP,S 2200P-50 B ABCD.FGHIJ..........
C 301 87-010-182-080 C-CAP,S 2200P-50 B ABCD.FGHIJ..........
C 314 87-010-194-080 CAP, CHIP 0.047 ABCD.FGHIJ..........
C 311 87-010-194-080 CAP, CHIP 0.047 ABCD.FGHIJ..........
C 312 87-010-405-040 CAP,E 10-50 ABCD.FGHIJ..........
C 324 87-010-194-080 CAP, CHIP 0.047 ABCD.FGHIJ..........
C 325 87-010-263-040 CAP,E 100-10 ABCD.FGHIJ..........
C 322 87-015-694-040 E/CAP 0.47-50 ABCD.FGHIJ..........
C 323 87-016-459-040 CAP,E 470-10 SMG ABCD.FGHIJ..........
C 332 87-010-178-080 CHIP CAP 1000P ABCD.FGHIJ..........
C 334 87-010-312-080 C-CAP,S 15P-50 CH ABCD.FGHIJ..........
C 333 87-012-140-080 CAP 470P ABCD.FGHIJ..........
C 335 87-012-140-080 CAP 470P ABCD.FGHIJ..........
C 338 87-012-155-080 C-CAP 180P-50CH ABCD.FGHIJ..........
C 339 87-012-156-080 C-CAP,S 220P-50 CH ABCD.FGHIJ..........
C 341 87-010-194-080 CAP, CHIP 0.047 ABCD.FGHIJ..........
C 340 87-010-197-080 CAP, CHIP 0.01 DM ABCD.FGHIJ..........
C 351 87-010-382-040 CAP,E 22-25 SME ABCD.FGHIJ..........

ELECTRICAL PARTS LIST-2/12
C 401 87-010-197-080 CAP, CHIP 0.01 DM ABCD.FGHIJ..........
C 456 87-012-158-080 C-CAP,S 390P-50 CH ABCD.FGHIJ..........
C 455 87-016-461-080 C-CAP,S 0.47-16F ABCD.FGHIJ..........
C 454 87-016-461-080 C-CAP,S 0.47-16F ABCD.FGHIJ..........
C 457 87-016-461-080 C-CAP,S 0.47-16F ABCD.FGHIJ..........
C 604 87-010-322-080 C-CAP,S 100P-50 CH ABCD.FGHIJ..........
C 701 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCD.FGHIJ..........
CON 102 87-099-015-010 CONN,13P 6216V A.CD.FGHIJ..........
CON 102 87-A60-138-010 CONN,13P V FE .B..................
CON 101 88-NF9-658-010 CONN,30P BLK TYK-B(P) ABCD.FGHIJ..........
CON 301 87-099-013-010 CONN,11P 6216 V ABC..FG.IJ..........
CON 301 87-099-017-010 CONN, 15P 6216 V ...D...H............
D 204 87-020-465-080 DIODE,1SS133 (110MA) ABCD.FGHIJ..........
D 311 87-A40-509-080 ZENER,MTZJ6.8C ABCD.FGHIJ..........
D 452 87-017-932-080 ZENER,MTJ6.2B ABCD.FGHIJ..........
EMI 202 87-A50-322-080 C-COIL,S BK2125 LM252 ABCD.FGHIJ..........
EMI 201 87-A50-322-080 C-COIL,S BK2125 LM252 ABCD.FGHIJ..........
EMI 701 87-A50-322-080 C-COIL,S BK2125 LM252 ABCD.FGHIJ..........
FL 401 8Z-NF8-616-010 FL,SVA-11MM22 ABCD.FGHIJ..........
IC 201 8Z-NF8-729-010 C-IC,UPD780228GF-XXX ABCD.FGHIJ..........
IC 251 87-A20-951-010 IC,TSOP1838RF1 ABCD.FGHIJ..........
IC 451 87-A21-265-040 C-IC,M62457FP ABCD.FGHIJ..........
IC 601 87-A21-021-040 C-IC,BU2099FV ABCD.FGHIJ..........
L 252 87-005-847-080 COIL,2.2UH(CECS) ABCD.FGHIJ..........
L 251 87-005-847-080 COIL,2.2UH(CECS) ABCD.FGHIJ..........
L 331 87-A50-434-010 COIL,CLK 4.19M(TOKO) ABCD.FGHIJ..........
LED 311 87-A40-317-080 LED,SLR-342VCT31 RED ABCD.FGHIJ..........
LED 611 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ABCD.FGHIJ..........
LED 634 87-A40-619-040 LED,SLR-56PT-T31-W GRN ABCD.FGHIJ..........
LED 633 87-A40-619-040 LED,SLR-56PT-T31-W GRN ABCD.FGHIJ..........
Q 207 87-A30-087-080 C-FET,2SK2158 ABCD.FGHIJ..........
Q 251 87-A30-074-080 C-TR,RT1P 141C ABCD.FGHIJ..........
Q 303 87-A30-329-080 TR,CD1585BC ABCD.FGHIJ..........
Q 311 87-026-610-080 TR,KTC3198GR ABCD.FGHIJ..........
Q 312 87-A30-087-080 C-FET,2SK2158 ABCD.FGHIJ..........
Q 322 87-A30-073-080 C-TR,RT1N 141C ABCD.FGHIJ..........
Q 323 87-A30-087-080 C-FET,2SK2158 ABCD.FGHIJ..........
Q 351 87-A30-318-080 TR,CSA952K ABCD.FGHIJ..........
Q 352 87-A30-318-080 TR,CSA952K ABCD.FGHIJ..........
S 406 87-A90-164-080 SW,TACT SKQAB(N) ABCD.FGHIJ..........
S 402 87-A90-164-080 SW,TACT SKQAB(N) ABCD.FGHIJ..........
S 401 87-A90-164-080 SW,TACT SKQAB(N) ABCD.FGHIJ..........
S 407 87-A90-164-080 SW,TACT SKQAB(N) ABCD.FGHIJ..........
S 403 87-A90-164-080 SW,TACT SKQAB(N) ABCD.FGHIJ..........
S 428 87-A91-024-080 SW,TACT KSH0611BT ABCD.FGHIJ..........
S 434 87-A91-024-080 SW,TACT KSH0611BT ABCD.FGHIJ..........
SW 252 87-A90-535-010 SW,RTRY EC16B24304 ABCD.FGHIJ..........
SW 253 87-A90-950-010 SW,RTRY EC12E12504 ENCORDER ABCD.FGHIJ..........
C 304 87-010-178-080 CHIP CAP 1000P ABCDEFGHIJ..........
C 302 87-010-178-080 CHIP CAP 1000P ABCDEFGHIJ..........
C 301 87-010-178-080 CHIP CAP 1000P ABCDEFGHIJ..........
C 303 87-010-178-080 CHIP CAP 1000P ABCDEFGHIJ..........
C 305 87-010-198-080 CAP, CHIP 0.022 ABCDEFGHIJ..........
C 308 87-010-263-080 CAP, ELECT 100-10V ABCDEFGHIJ..........
C 307 87-010-263-080 CAP, ELECT 100-10V ABCDEFGHIJ..........
C 309 87-010-318-080 C-CAP,S 47P-50 CH ABCDEFGHIJ..........
C 314 87-010-187-080 CAP CHIP S5600P ABCDEFGHIJ..........
C 313 87-010-187-080 CAP CHIP S5600P ABCDEFGHIJ..........
C 315 87-010-263-080 CAP, ELECT 100-10V ABCDEFGHIJ..........
C 310 87-010-318-080 C-CAP,S 47P-50 CH ABCDEFGHIJ..........
C 317 87-010-546-080 CAP, ELECT 0.33-50V ABCDEFGHIJ..........
C 318 87-010-546-080 CAP, ELECT 0.33-50V ABCDEFGHIJ..........
C 311 87-010-598-080 C-CAP,S 0.068-16VRK ABCDEFGHIJ..........
C 312 87-010-598-080 C-CAP,S 0.068-16VRK ABCDEFGHIJ..........
C 327 87-012-368-080 C-CAP,S 0.1-50 F ABCDEFGHIJ..........
C 360 87-010-401-080 CAP, ELECT 1-50V ABCDEFGHIJ..........
C 399 87-012-140-080 CAP 470P ABCDEFGHIJ..........
C 409 87-010-182-080 C-CAP,S 2200P-50 B ABCDEFGHIJ..........
C 407 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 405 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 408 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 406 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 403 87-010-321-080 CHIP CAPACITOR,82P(J) ABCDEFGHIJ..........
C 404 87-010-321-080 CHIP CAPACITOR,82P(J) ABCDEFGHIJ..........
C 402 87-010-544-080 CAP, ELECT 0.1-50V ABCDEFGHIJ..........
C 401 87-010-544-080 CAP, ELECT 0.1-50V ABCDEFGHIJ..........
C 410 87-010-182-080 C-CAP,S 2200P-50 B ABCDEFGHIJ..........
C 411 87-010-405-080 CAP, ELECT 10-50V ABCDEFGHIJ..........
C 412 87-010-405-080 CAP, ELECT 10-50V ABCDEFGHIJ..........
C 459 87-010-175-080 CAP 560P ABCDEFGHIJ..........
C 458 87-010-178-080 CHIP CAP 1000P ABCDEFGHIJ..........
C 455 87-010-183-080 C-CAP,S 2700P-50 B ABCDEFGHIJ..........
C 454 87-010-183-080 C-CAP,S 2700P-50 B ABCDEFGHIJ..........
C 453 87-010-183-080 C-CAP,S 2700P-50 B ABCDEFGHIJ..........
C 456 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 451 87-010-198-080 CAP, CHIP 0.022 ABCDEFGHIJ..........
C 452 87-010-260-080 CAP, ELECT 47-25V A...EF..IJ..........
C 452 87-010-382-080 CAP, ELECT 22-25V .BCD..GH............
C 461 87-012-158-080 C-CAP,S 390P-50 CH ABCDEFGHIJ..........
C 462 87-012-158-080 C-CAP,S 390P-50 CH ABCDEFGHIJ..........
CN 301 87-A60-620-010 CONN,3P V 2MM JMT ABCDEFGHIJ..........
CN 351 87-A60-625-010 CONN,8P V 2MM JMT ABCDEFGHIJ..........

ELECTRICAL PARTS LIST-3/12
D 401 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFGHIJ..........
IC 301 87-017-888-080 IC,NJM4558MD ABCDEFGHIJ..........
IC 401 87-017-888-080 IC,NJM4558MD ABCDEFGHIJ..........
L 451 87-007-342-010 COIL,OSC 85K BIAS ABCDEFGHIJ..........
Q 309 87-A30-075-080 C-TR,2SA1235F ABCDEFGHIJ..........
Q 304 87-A30-090-080 FET,2SK2541 ABCDEFGHIJ..........
Q 303 87-A30-090-080 FET,2SK2541 ABCDEFGHIJ..........
Q 302 87-A30-091-080 FET,2SJ460 ABCDEFGHIJ..........
Q 308 87-A30-091-080 FET,2SJ460 ABCDEFGHIJ..........
Q 307 87-A30-091-080 FET,2SJ460 ABCDEFGHIJ..........
Q 305 87-A30-091-080 FET,2SJ460 ABCDEFGHIJ..........
Q 301 87-A30-091-080 FET,2SJ460 ABCDEFGHIJ..........
Q 306 87-A30-104-080 C-TR,RT1N 441C ABCDEFGHIJ..........
Q 310 87-A30-075-080 C-TR,2SA1235F ABCDEFGHIJ..........
Q 320 87-A30-087-080 C-FET,2SK2158 ABCDEFGHIJ..........
Q 444 87-A30-075-080 C-TR,2SA1235F ABCDEFGHIJ..........
Q 443 87-A30-075-080 C-TR,2SA1235F ABCDEFGHIJ..........
Q 451 87-026-610-080 TR,KTC3198GR ABCDEFGHIJ..........
Q 455 87-A30-076-080 C-TR,2SC3052F A...EF..IJ..........
Q 453 89-333-317-880 TR,2SC3331 (0.5W) ABCDEFGHIJ..........
Q 454 89-333-317-880 TR,2SC3331 (0.5W) ABCDEFGHIJ..........
R 392 87-012-349-080 C-CAP,S 1000P-50 CH ABCDEFGHIJ..........
SFR 451 87-024-355-080 SFR,33K DIA6 H ABCDEFGHIJ..........
SFR 452 87-024-355-080 SFR,33K DIA6 H ABCDEFGHIJ..........
C 507 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFGHIJ..........
C 508 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFGHIJ..........
C 502 87-010-401-080 CAP, ELECT 1-50V ABCDEFGHIJ..........
C 501 87-010-401-080 CAP, ELECT 1-50V ABCDEFGHIJ..........
C 506 87-A11-010-080 CAP,M 0.082-50 J DE ABCDEFGHIJ..........
C 505 87-A11-010-080 CAP,M 0.082-50 J DE ABCDEFGHIJ..........
IC 501 87-A21-031-040 C-IC,BU4551BF ABCDEFGHIJ..........
C 703 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 704 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 701 87-010-381-080 CAP, ELECT 330-16V ABCDEFGHIJ..........
C 702 87-010-404-080 CAP, ELECT 4.7-50V ABCDEFGHIJ..........
C 712 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFGHIJ..........
C 714 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 713 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 711 87-010-260-080 CAP, ELECT 47-25V ABCDEFGHIJ..........
C 715 87-010-322-080 C-CAP,S 100P-50 CH ABCDEFGHIJ..........
C 723 87-010-178-080 CHIP CAP 1000P ABCDEFGHIJ..........
C 725 87-010-178-080 CHIP CAP 1000P ABCDEFGHIJ..........
C 727 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFGHIJ..........
C 728 87-010-248-080 CAP, ELECT 220-10V ABCDEFGHIJ..........
C 722 87-010-312-080 C-CAP,S 15P-50 CH ABCDEFGHIJ..........
C 721 87-010-312-080 C-CAP,S 15P-50 CH ABCDEFGHIJ..........
D 721 87-017-149-080 ZENER,HZS6A2L ABCDEFGHIJ..........
D 722 87-020-465-080 DIODE,1SS133 (110MA) A...EF..IJ..........
IC 721 87-070-127-110 IC,LC72131 D ABCDEFGHIJ..........
Q 711 87-A30-234-080 TR,CSC4115BC ABCDEFGHIJ..........
X 721 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309 ABCDEFGHIJ..........
C 758 87-010-149-080 C-CAP,S 5P-50 CH ABCDEFGHIJ..........
C 756 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 755 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 757 87-010-318-080 C-CAP,S 47P-50 CH ABCDEFGHIJ..........
C 759 87-012-154-080 C-CAP,S 150P-50 CH ...D..G.............
C 759 87-012-156-080 C-CAP,S 220P-50 CH .BC....H............
C 763 87-010-194-080 CAP, CHIP 0.047 ABCDEFGHIJ..........
C 761 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFGHIJ..........
C 766 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 768 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 765 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 764 87-010-319-080 C-CAP,S 56P-50 CH .BCD..GH............
C 764 87-010-322-080 C-CAP,S 100P-50 CH A...EF...J..........
C 767 87-010-405-080 CAP, ELECT 10-50V ABCDEFGHIJ..........
C 769 87-010-408-080 CAP, ELECT 47-50V ABCDEFGHIJ..........
C 760 87-012-154-080 C-CAP,S 150P-50 CH ...D..G.............
C 760 87-012-156-080 C-CAP,S 220P-50 CH .BC....H............
C 772 87-010-194-080 CAP, CHIP 0.047 ABCDEFGHIJ..........
C 773 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFGHIJ..........
C 774 87-010-263-080 CAP, ELECT 100-10V ABCDEFGHIJ..........
C 777 87-010-400-080 CAP, ELECT 0.47-50V ABCDEFGHIJ..........
C 779 87-010-401-080 CAP, ELECT 1-50V ABCDEFGHIJ..........
C 778 87-010-401-080 CAP, ELECT 1-50V ABCDEFGHIJ..........
C 775 87-010-404-080 CAP, ELECT 4.7-50V ABCDEFGHIJ..........
C 771 87-010-407-080 CAP, ELECT 33-50V ABCDEFGHIJ..........
C 770 87-015-821-080 C-CAP 0.047 ABCDEFGHIJ..........
C 789 87-010-179-080 CAP,CHIP S B1200P ABCDEFGHIJ..........
C 787 87-010-186-080 CAP,CHIP 4700P A...EF..IJ..........
C 788 87-010-186-080 CAP,CHIP 4700P A...EF..IJ..........
C 780 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFGHIJ..........
C 784 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 786 87-010-400-080 CAP, ELECT 0.47-50V ABCDEFGHIJ..........
C 785 87-010-400-080 CAP, ELECT 0.47-50V ABCDEFGHIJ..........
C 781 87-010-405-080 CAP, ELECT 10-50V ABCDEFGHIJ..........
C 782 87-010-405-080 CAP, ELECT 10-50V ABCDEFGHIJ..........
C 783 87-015-819-080 CAPACITOR,0.01 ABCDEFGHIJ..........
C 793 87-010-177-080 C-CAP,S 820P-50 SL .BCD..GH............
C 790 87-010-179-080 CAP,CHIP S B1200P ABCDEFGHIJ..........
C 797 87-010-180-080 C-CER 1500P A...EF..IJ..........
C 798 87-010-180-080 C-CER 1500P A...EF..IJ..........
C 797 87-010-181-080 CAP,CHIP S 1800P ...D..G.............

ELECTRICAL PARTS LIST-4/12
C 798 87-010-181-080 CAP,CHIP S 1800P ...D..G.............
C 798 87-010-183-080 C-CAP,S 2700P-50 B .BC....H............
C 797 87-010-183-080 C-CAP,S 2700P-50 B .BC....H............
C 799 87-010-194-080 CAP, CHIP 0.047 ABCDEFGHIJ..........
C 796 87-010-403-080 CAP, ELECT 3.3-50V ABCDEFGHIJ..........
C 791 87-010-405-080 CAP, ELECT 10-50V ABCDEFGHIJ..........
C 794 87-010-406-080 CAP, ELECT 22-50 ABCDEFGHIJ..........
C 795 87-010-596-080 CAP, S 0.047-16 ABCDEFGHIJ..........
C 793 87-A11-523-080 C-CAP,S 1200P-50 J B A...EF..IJ..........
D 771 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFGHIJ..........
IC 771 87-A20-913-010 IC,LA1837NL ABCDEFGHIJ..........
L 771 87-A50-266-010 COIL,FM DET-2N(TOK) ABCDEFGHIJ..........
L 772 87-A90-052-010 FLTR,CFMT-450A(TOK) ...D................
L 772 87-A91-110-010 FLTR,PCFJZH-450 (TOK) ABC.EFGHIJ..........
L 781 87-005-847-080 COIL,2.2UH(CECS) ABCDEFGHIJ..........
X 771 87-030-354-010 VIB,CF BFU 450C ...D................
C 859 87-010-197-080 CAP, CHIP 0.01 DM ........I...........
C 865 87-010-196-080 CHIP CAPACITOR,0.1-25 ........I...........
C 867 87-010-197-080 CAP, CHIP 0.01 DM ........I...........
C 869 87-010-314-080 C-CAP,S 22P-50V ........I...........
C 868 87-010-316-080 C-CAP,S 33P-50 CH ........I...........
C 866 87-010-405-080 CAP, ELECT 10-50V ........I...........
C 864 87-010-405-080 CAP, ELECT 10-50V ........I...........
C 863 87-012-140-080 CAP 470P ........I...........
C 862 87-012-156-080 C-CAP,S 220P-50 CH ........I...........
C 861 87-012-156-080 C-CAP,S 220P-50 CH ........I...........
IC 851 87-A20-440-040 C-IC,BU1920FS ........I...........
Q 852 87-A30-073-080 C-TR,RT1N 141C ........I...........
Q 853 87-A30-076-080 C-TR,2SC3052F ........I...........
X 851 87-A70-091-010 VIB,XTAL 4.332MHZ CSA-309 ........I...........
C 829 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFGHIJ..........
C 828 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFGHIJ..........
C 820 87-010-408-080 CAP, ELECT 47-50V ABCDEFGHIJ..........
C 942 87-010-146-080 CHIP CAP 2PF A...EF..IJ..........
C 940 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 947 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 941 87-010-314-080 C-CAP,S 22P-50V ...D................
C 946 87-010-971-080 C-CAP,S 4700P-50 B J ...D................
C 948 87-012-140-080 CAP 470P A...EF..IJ..........
C 959 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFGHIJ..........
C 952 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 956 87-010-263-080 CAP, ELECT 100-10V ...D................
C 957 87-010-311-080 CAP 12P A...EF..IJ..........
C 954 87-010-400-080 CAP, ELECT 0.47-50V ...D................
C 961 87-010-152-080 C-CAP,S 8P-50 CH .BC...GH............
C 962 87-010-401-080 CAP, ELECT 1-50V A..DEF..IJ..........
C 964 87-010-854-080 C-CAP,S 560PCH ...D................
C 981 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z ABCDEFGHIJ..........
CF 802 82-785-747-010 CF MS2 GHY R A...EF..IJ..........
CF 801 87-008-261-010 FILTER, SFE10.7MA5-A .BCD..GH............
CF 802 87-008-261-010 FILTER, SFE10.7MA5-A .BCD..GH............
CF 801 87-008-423-010 CERAMIC FILTER, SFE10.7 A...EF..IJ..........
D 944 87-020-465-080 DIODE,1SS133 (110MA) A..DEF..IJ..........
D 942 87-A40-270-080 C-DIODE,MC2838 A...EF..IJ..........
D 981 87-A40-618-080 VARI-CAP,SVC 348(S/T) ...D................
FFE 801 A8-6ZA-191-130 6ZA-1 FEENM .....F..IJ..........
FFE 801 A8-6ZA-193-030 6ZA-1 FEVNM ......G.............
FFE 801 A8-6ZA-195-030 6ZA-1 YFEENM ....................
FFE 801 A8-6ZA-19C-170 6ZA-1 YFEENC A...E...............
FFE 801 A8-8ZA-190-030 8ZA-1 FEUNM ...D...H............
FFE 801 A8-8ZA-191-030 8ZA-1 YFEUNM .B..................
FFE 801 A8-8ZA-192-070 8ZA-1 FEUNC ....................
FFE 801 A8-8ZA-193-070 8ZA-1 YFEUNC ..C.................
J 801 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02 .BCD..GH............
J 802 87-A60-403-010 TERMINAL,ANT PAL 2P HSP-312V05 A...EF..IJ..........
J 940 81-754-629-010 CONNECTOR, 2P ...D................
JW 811 87-008-372-080 FILTER, EMI BL OIRNI .BC....H............
L 832 87-005-847-080 COIL,2.2UH(CECS) ABCDEFGHIJ..........
L 942 87-A50-019-010 COIL,OSC LW(COI) A...EF..IJ..........
L 941 87-A50-020-010 COIL,ANT LW(COI) A...EF..IJ..........
L 941 87-A50-022-010 COIL,ANT SW(COI) ...D................
L 944 87-A50-159-010 COIL,10MH K C2B ...D................
L 942 87-A50-173-010 COIL,OSC SW-N(COI) ...D................
L 943 87-A50-522-080 COIL,1MH K CEC ...D................
L 982 87-A50-430-010 COIL,ANT MW(3BSW) ...D................
L 983 87-A50-431-010 COIL,OSC MW(3BSW) ...D................
L 981 8Z-ZA1-650-010 COIL,AM PACK4C (TOK) .BC...GH............
L 981 8Z-ZA1-665-010 COIL,AM PACK 2(TOK) A...EF..IJ..........
Q 807 87-A30-072-080 C-TR,RT1P 144C ABCDEFGHIJ..........
Q 805 89-327-143-080 TR,2SC2714 (0.1W) ABCDEFGHIJ..........
Q 942 87-A30-075-080 C-TR,2SA1235F ...D................
Q 943 87-A30-075-080 C-TR,2SA1235F ...D................
Q 944 87-A30-076-080 C-TR,2SC3052F ...D................
Q 945 87-A30-076-080 C-TR,2SC3052F ...D................
Q 949 87-A30-076-080 C-TR,2SC3052F ...D................
Q 948 87-A30-086-070 C-TR,CSD1306E A..DEF..IJ..........
Q 951 87-A30-074-080 C-TR,RT1P 141C A..DEF..IJ..........
Q 953 89-503-602-080 C-FET,2SK360E A..DEF..IJ..........
TC 941 87-011-220-080 TRIMMER CAP 20P VTC ...D................
TC 942 87-011-221-080 CAP, TRIMMER 30P A..DEF..IJ..........
CNA 1 8Z-NF8-670-110 CONN ASSY,7P 480 VH ....................
87-067-703-010 TAPPING SCREW, BVT2+3-10 .BCDEF.H............

ELECTRICAL PARTS LIST-5/12
C 4 87-012-368-080 C-CAP,S 0.1-50 F ABCDEFGHIJ..........
C 3 87-012-368-080 C-CAP,S 0.1-50 F ABCDEFGHIJ..........
C 5 87-012-368-080 C-CAP,S 0.1-50 F ABCDEFGHIJ..........
C 6 87-012-368-080 C-CAP,S 0.1-50 F ABCDEFGHIJ..........
C 2 87-012-369-080 C-CAP,S 0.047-50F ABCDEFGHIJ..........
C 1 87-012-369-080 C-CAP,S 0.047-50F ABCDEFGHIJ..........
C 9 87-A10-520-000 CAP,E 3300-35 M SMG ABCDEFGHIJ..........
C 10 87-A10-520-000 CAP,E 3300-35 M SMG ABCDEFGHIJ..........
C 27 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 29 87-010-247-080 CAP, ELECT 100-50V ABCDEFGHIJ..........
C 26 87-010-263-080 CAP, ELECT 100-10V ABCDEFGHIJ..........
C 21 87-010-385-080 CAP, ELECT 220-25V ABCDEFGHIJ..........
C 22 87-010-385-080 CAP, ELECT 220-25V ABCDEFGHIJ..........
C 25 87-010-430-080 CAP, ELECT 100-63 ABCDEFGHIJ..........
C 36 87-010-198-080 CAP, CHIP 0.022 ABCDEFGHIJ..........
C 35 87-010-198-080 CAP, CHIP 0.022 ABCDEFGHIJ..........
C 31 87-010-235-080 CAP,E 470-16 SME ABCDEFGHIJ..........
C 30 87-010-381-080 CAP, ELECT 330-16V ABCDEFGHIJ..........
C 33 87-010-405-080 CAP, ELECT 10-50V ABCDEFGHIJ..........
C 32 87-010-405-080 CAP, ELECT 10-50V ABCDEFGHIJ..........
C 34 87-012-368-080 C-CAP,S 0.1-50 F ABCDEFGHIJ..........
C 40 87-010-112-080 CAP, ELECT 100-16V ABCDEFGHIJ..........
C 51 87-010-180-080 C-CER 1500P ABCDEFGHIJ..........
C 50 87-010-182-080 C-CAP,S 2200P-50 B ABCDEFGHIJ..........
C 61 87-010-260-080 CAP, ELECT 47-25V ABCDEFGHIJ..........
C 62 87-010-403-080 CAP, ELECT 3.3-50V ABCDEFGHIJ..........
CNA 1 8Z-NF8-669-110 CONN ASSY,9P VH ABCDEFGHIJ..........
D 9 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFGHIJ..........
D 8 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFGHIJ..........
D 6 87-070-274-080 DIODE,1N4003 SEM ABCDEFGHIJ..........
D 3 87-070-274-080 DIODE,1N4003 SEM ABCDEFGHIJ..........
D 4 87-070-274-080 DIODE,1N4003 SEM ABCDEFGHIJ..........
D 5 87-070-274-080 DIODE,1N4003 SEM ABCDEFGHIJ..........
D 7 87-A40-383-080 ZENER,MTZJ30A ABCDEFGHIJ..........
D 1 87-A40-547-090 DIODE,D5SBA20 ABCDEFGHIJ..........
D 10 87-A40-345-080 ZENER,MTZJ10C ABCDEFGHIJ..........
D 24 87-017-931-080 ZENER,MTZJ5.6B ABCDEFGHIJ..........
D 20 87-017-931-080 ZENER,MTZJ5.6B ABCDEFGHIJ..........
D 22 87-A40-001-080 ZENER,MTZJ12C ABCDEFGHIJ..........
D 25 87-A40-335-080 ZENER,MTZJ11C T-72 ABCDEFGHIJ..........
D 23 87-A40-393-090 DIODE,1N5402GW(F20) ABCDEFGHIJ..........
D 21 87-A40-393-090 DIODE,1N5402GW(F20) ABCDEFGHIJ..........
D 64 87-070-274-080 DIODE,1N4003 SEM ABCDEFGHIJ..........
D 62 87-A40-269-080 C-DIODE,MC2836 ABCDEFGHIJ..........
D 61 87-A40-270-080 C-DIODE,MC2838 ABCDEFGHIJ..........
JW 48 87-008-372-080 FILTER, EMI BL OIRNI A..DEFG.IJ..........
Q 1 87-026-609-080 TR,KTA1266GR ABCDEFGHIJ..........
Q 2 87-026-609-080 TR,KTA1266GR ABCDEFGHIJ..........
Q 5 87-026-610-080 TR,KTC3198GR ABCDEFGHIJ..........
Q 8 87-A30-075-080 C-TR,2SA1235F ABCDEFGHIJ..........
Q 6 87-A30-076-080 C-TR,2SC3052F ABCDEFGHIJ..........
Q 9 87-A30-234-080 TR,CSC4115BC ABCDEFGHIJ..........
Q 3 89-213-702-010 TR,2SB1370 (1.8W) ABCDEFGHIJ..........
Q 13 87-A30-073-080 C-TR,RT1N 141C ABCDEFGHIJ..........
Q 16 87-A30-186-010 FET,2SK3053 ABCDEFGHIJ..........
Q 15 87-A30-186-010 FET,2SK3053 ABCDEFGHIJ..........
Q 61 87-A30-074-080 C-TR,RT1P 141C A..DEFGHIJ..........
Q 66 87-A30-075-080 C-TR,2SA1235F ABCDEFGHIJ..........
Q 64 87-A30-075-080 C-TR,2SA1235F ABCDEFGHIJ..........
Q 65 87-A30-076-080 C-TR,2SC3052F ABCDEFGHIJ..........
Q 63 87-A30-076-080 C-TR,2SC3052F ABCDEFGHIJ..........
Q 67 87-A30-076-080 C-TR,2SC3052F ABCDEFGHIJ..........
R 20 87-A00-261-080 RES,M/F 0.56-1W J .BC.................
WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P ABCDEFGHIJ..........
87-067-703-010 TAPPING SCREW, BVT2+3-10 ABCDEFGHIJ..........
C 102 87-010-178-080 CHIP CAP 1000P ABCDEFGHIJ..........
C 101 87-010-178-080 CHIP CAP 1000P ABCDEFGHIJ..........
C 109 87-010-322-080 C-CAP,S 100P-50 CH ABCDEFGHIJ..........
C 104 87-010-405-080 CAP, ELECT 10-50V ABCDEFGHIJ..........
C 103 87-010-405-080 CAP, ELECT 10-50V ABCDEFGHIJ..........
C 107 87-010-408-080 CAP, ELECT 47-50V ABCDEFGHIJ..........
C 108 87-010-408-080 CAP, ELECT 47-50V ABCDEFGHIJ..........
C 112 87-010-260-080 CAP, ELECT 47-25V ABCDEFGHIJ..........
C 111 87-010-260-080 CAP, ELECT 47-25V ABCDEFGHIJ..........
C 110 87-010-322-080 C-CAP,S 100P-50 CH ABCDEFGHIJ..........
C 117 87-010-400-080 CAP, ELECT 0.47-50V ABCDEFGHIJ..........
C 118 87-010-400-080 CAP, ELECT 0.47-50V ABCDEFGHIJ..........
C 114 87-A10-946-080 C-CAP,S 220P-100 J CH ABCDEFGHIJ..........
C 113 87-A10-946-080 C-CAP,S 220P-100 J CH ABCDEFGHIJ..........
C 124 87-010-176-080 C-CAP,S 680P-50 SL ABCDEFGHIJ..........
C 123 87-010-176-080 C-CAP,S 680P-50 SL ABCDEFGHIJ..........
C 121 87-010-178-080 CHIP CAP 1000P ABCDEFGHIJ..........
C 122 87-010-178-080 CHIP CAP 1000P ABCDEFGHIJ..........
C 129 87-010-191-080 C-CAP,S 0.015-50 F ABCDEFGHIJ..........
C 125 87-012-368-080 C-CAP,S 0.1-50 F ABCDEFGHIJ..........
C 127 87-012-368-080 C-CAP,S 0.1-50 F ABCDEFGHIJ..........
C 126 87-012-368-080 C-CAP,S 0.1-50 F ABCDEFGHIJ..........
C 128 87-012-368-080 C-CAP,S 0.1-50 F ABCDEFGHIJ..........
C 130 87-010-191-080 C-CAP,S 0.015-50 F ABCDEFGHIJ..........
C 131 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 133 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 132 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFGHIJ..........

ELECTRICAL PARTS LIST-6/12
D 108 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFGHIJ..........
D 107 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFGHIJ..........
D 116 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFGHIJ..........
D 117 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFGHIJ..........
D 111 87-A40-270-080 C-DIODE,MC2838 ABCDEFGHIJ..........
J 203 87-A60-238-010 TERMINAL,SP 4P (MSC) ABCDEFGHIJ..........
J 201 87-A60-929-010 JACK,DIA6.3 BLK ST W/S TAI ABCDEFGHIJ..........
L 101 87-003-383-010 COIL,1UH-S ABCDEFGHIJ..........
L 102 87-003-383-010 COIL,1UH-S ABCDEFGHIJ..........
Q 105 87-A30-075-080 C-TR,2SA1235F ABCDEFGHIJ..........
Q 104 87-A30-075-080 C-TR,2SA1235F ABCDEFGHIJ..........
Q 106 87-A30-075-080 C-TR,2SA1235F ABCDEFGHIJ..........
Q 103 87-A30-075-080 C-TR,2SA1235F ABCDEFGHIJ..........
Q 107 87-A30-076-080 C-TR,2SC3052F ABCDEFGHIJ..........
Q 109 87-A30-076-080 C-TR,2SC3052F ABCDEFGHIJ..........
Q 108 87-A30-076-080 C-TR,2SC3052F ABCDEFGHIJ..........
Q 110 87-A30-076-080 C-TR,2SC3052F ABCDEFGHIJ..........
Q 111 87-A30-190-080 TR,CC5551 ABCDEFGHIJ..........
Q 112 87-A30-190-080 TR,CC5551 ABCDEFGHIJ..........
Q 119 87-A30-215-010 TR,2SD2025 ABCDEFGHIJ..........
Q 129 87-A30-076-080 C-TR,2SC3052F ABCDEFGHIJ..........
Q 128 87-A30-076-080 C-TR,2SC3052F ABCDEFGHIJ..........
Q 123 87-A30-106-070 C-TR,CMBT5551 ABCDEFGHIJ..........
Q 124 87-A30-106-070 C-TR,CMBT5551 ABCDEFGHIJ..........
Q 126 87-A30-107-070 C-TR,CMBT5401 ABCDEFGHIJ..........
Q 121 87-A30-214-010 TR,2SB1344 ABCDEFGHIJ..........
Q 122 87-A30-214-010 TR,2SB1344 ABCDEFGHIJ..........
Q 120 87-A30-215-010 TR,2SD2025 ABCDEFGHIJ..........
Q 130 87-A30-076-080 C-TR,2SC3052F ABCDEFGHIJ..........
Q 131 87-A30-076-080 C-TR,2SC3052F ABCDEFGHIJ..........
R 131 87-A00-257-080 RES,M/F 0.15-1W J ABCDEFGHIJ..........
R 132 87-A00-257-080 RES,M/F 0.15-1W J ABCDEFGHIJ..........
TH 101 87-A91-042-080 C-THMS,100K 55001 A..DEFGHIJ..........
TH 102 87-A91-042-080 C-THMS,100K 55001 A..DEFGHIJ..........
C 204 87-010-177-080 C-CAP,S 820P-50 SL ABCDEFGHIJ..........
C 203 87-010-177-080 C-CAP,S 820P-50 SL ABCDEFGHIJ..........
C 209 87-010-403-080 CAP, ELECT 3.3-50V ABCDEFGHIJ..........
C 211 87-010-181-080 CAP,CHIP S 1800P ABCDEFGHIJ..........
C 212 87-010-181-080 CAP,CHIP S 1800P ABCDEFGHIJ..........
C 217 87-010-260-080 CAP, ELECT 47-25V ABCDEFGHIJ..........
C 218 87-010-260-080 CAP, ELECT 47-25V ABCDEFGHIJ..........
C 210 87-010-403-080 CAP, ELECT 3.3-50V ABCDEFGHIJ..........
C 214 87-010-403-080 CAP, ELECT 3.3-50V ABCDEFGHIJ..........
C 213 87-010-403-080 CAP, ELECT 3.3-50V ABCDEFGHIJ..........
C 219 87-A10-946-080 C-CAP,S 220P-100 J CH ABCDEFGHIJ..........
C 227 87-010-186-080 CAP,CHIP 4700P ABCDEFGHIJ..........
C 228 87-010-186-080 CAP,CHIP 4700P ABCDEFGHIJ..........
C 229 87-010-993-080 C-CAP,S 0.056-25 B ABCDEFGHIJ..........
C 226 87-012-368-080 C-CAP,S 0.1-50 F ABCDEFGHIJ..........
C 225 87-012-368-080 C-CAP,S 0.1-50 F ABCDEFGHIJ..........
C 220 87-A10-946-080 C-CAP,S 220P-100 J CH ABCDEFGHIJ..........
C 234 87-010-190-080 S CHIP F 0.01 ABCDEFGHIJ..........
C 233 87-010-190-080 S CHIP F 0.01 ABCDEFGHIJ..........
C 232 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFGHIJ..........
C 239 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFGHIJ..........
C 231 87-010-196-080 CHIP CAPACITOR,0.1-25 ABCDEFGHIJ..........
C 237 87-010-322-080 C-CAP,S 100P-50 CH ABCDEFGHIJ..........
C 238 87-010-322-080 C-CAP,S 100P-50 CH ABCDEFGHIJ..........
C 230 87-010-993-080 C-CAP,S 0.056-25 B ABCDEFGHIJ..........
C 236 87-016-285-080 CAP,E 47-100SME ABCD..G.IJ..........
C 235 87-016-285-080 CAP,E 47-100SME ABCD..G.IJ..........
C 236 87-A10-121-080 CAP,E 47-100 REA ....EF..............
C 235 87-A10-121-080 CAP,E 47-100 REA ....EF..............
C 243 87-010-407-080 CAP, ELECT 33-50V ABCDEFGHIJ..........
C 240 87-010-407-080 CAP, ELECT 33-50V ABCDEFGHIJ..........
D 208 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFGHIJ..........
D 207 87-020-465-080 DIODE,1SS133 (110MA) ABCDEFGHIJ..........
D 211 87-A40-270-080 C-DIODE,MC2838 ABCDEFGHIJ..........
J 204 87-A60-750-010 JACK,PIN 4P R/W BLUE ABCDEFG.IJ..........
J 205 87-A60-751-010 JACK,PIN 2P R/W BLUE .......H............
L 202 87-003-383-010 COIL,1UH-S ABCDEFGHIJ..........
L 201 87-003-383-010 COIL,1UH-S ABCDEFGHIJ..........
Q 205 87-A30-075-080 C-TR,2SA1235F ABCDEFGHIJ..........
Q 204 87-A30-075-080 C-TR,2SA1235F ABCDEFGHIJ..........
Q 206 87-A30-075-080 C-TR,2SA1235F ABCDEFGHIJ..........
Q 203 87-A30-075-080 C-TR,2SA1235F ABCDEFGHIJ..........
Q 208 87-A30-076-080 C-TR,2SC3052F ABCDEFGHIJ..........
Q 207 87-A30-076-080 C-TR,2SC3052F ABCDEFGHIJ..........
Q 209 87-A30-076-080 C-TR,2SC3052F ABCDEFGHIJ..........
Q 210 87-A30-076-080 C-TR,2SC3052F ABCDEFGHIJ..........
Q 219 87-A30-106-070 C-TR,CMBT5551 ABCDEFGHIJ..........
Q 211 87-A30-190-080 TR,CC5551 ABCDEFGHIJ..........
Q 212 87-A30-190-080 TR,CC5551 ABCDEFGHIJ..........
Q 217 87-A30-255-010 TR,2SB1342 ABCDEFGHIJ..........
Q 218 87-A30-255-010 TR,2SB1342 ABCDEFGHIJ..........
Q 215 87-A30-256-010 TR,2SD1933 ABCDEFGHIJ..........
Q 216 87-A30-256-010 TR,2SD1933 ABCDEFGHIJ..........
Q 226 87-A30-076-080 C-TR,2SC3052F ABCDEFGHIJ..........
Q 224 87-A30-076-080 C-TR,2SC3052F ABCDEFGHIJ..........
Q 225 87-A30-076-080 C-TR,2SC3052F ABCDEFGHIJ..........
Q 227 87-A30-076-080 C-TR,2SC3052F ABCDEFGHIJ..........
Q 220 87-A30-106-070 C-TR,CMBT5551 ABCDEFGHIJ..........

ELECTRICAL PARTS LIST-7/12
R 232 87-A00-258-080 RES,M/F 0.22-1W J ABCDEFGHIJ..........
R 234 87-A00-258-080 RES,M/F 0.22-1W J ABCDEFGHIJ..........
R 233 87-A00-258-080 RES,M/F 0.22-1W J ABCDEFGHIJ..........
R 231 87-A00-258-080 RES,M/F 0.22-1W J ABCDEFGHIJ..........
R 266 87-A00-258-080 RES,M/F 0.22-1W J ABCDEFGHIJ..........
R 265 87-A00-258-080 RES,M/F 0.22-1W J ABCDEFGHIJ..........
C 606 87-010-179-080 CAP,CHIP S B1200P ABCDEFGHIJ..........
C 605 87-010-179-080 CAP,CHIP S B1200P ABCDEFGHIJ..........
C 609 87-010-213-080 C-CAP,S 0.015-50 B ABCDEFGHIJ..........
C 615 87-010-154-080 CAP CHIP 10P ABCDEFGHIJ..........
C 610 87-010-213-080 C-CAP,S 0.015-50 B ABCDEFGHIJ..........
C 616 87-010-385-080 CAP, ELECT 220-25V ABCDEFGHIJ..........
C 617 87-010-385-080 CAP, ELECT 220-25V ABCDEFGHIJ..........
C 612 87-010-546-080 CAP, ELECT 0.33-50V ABCDEFGHIJ..........
C 611 87-010-546-080 CAP, ELECT 0.33-50V ABCDEFGHIJ..........
C 614 87-010-546-080 CAP, ELECT 0.33-50V ABCDEFGHIJ..........
C 613 87-010-546-080 CAP, ELECT 0.33-50V ABCDEFGHIJ..........
C 622 87-010-401-080 CAP, ELECT 1-50V ABCDEFGHIJ..........
C 623 87-010-401-080 CAP, ELECT 1-50V ABCDEFGHIJ..........
C 631 87-010-178-080 CHIP CAP 1000P ABCDEFGHIJ..........
C 632 87-010-178-080 CHIP CAP 1000P ABCDEFGHIJ..........
C 669 87-010-322-080 C-CAP,S 100P-50 CH .BCD...H............
C 669 87-012-140-080 CAP 470P A...EFG.IJ..........
C 673 87-010-182-080 C-CAP,S 2200P-50 B ...D...H............
C 671 87-010-196-080 CHIP CAPACITOR,0.1-25 ...D...H............
C 672 87-010-196-080 CHIP CAPACITOR,0.1-25 ...D...H............
C 678 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 677 87-010-197-080 CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 670 87-010-322-080 C-CAP,S 100P-50 CH .BCD...H............
C 670 87-012-140-080 CAP 470P A...EFG.IJ..........
CN 602 87-A60-131-010 CONN,6P V FE ABCDEFGHIJ..........
CN 601 88-NF9-657-010 CONN,30P H BLK TYK-B(X) ABCDEFGHIJ..........
D 601 87-A40-466-080 ZENER,MTZJ2.7A ABCDEFGHIJ..........
D 602 87-A40-466-080 ZENER,MTZJ2.7A ABCDEFGHIJ..........
IC 601 87-A21-111-040 C-IC,M62495FP ABCDEFGHIJ..........
J 602 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN ABCDEFGHIJ..........
JW 601 87-008-372-080 FILTER, EMI BL OIRNI ABCDEFGHIJ..........
C 555 87-010-196-080 CHIP CAPACITOR,0.1-25 ...D...H............
C 553 87-010-196-080 CHIP CAPACITOR,0.1-25 ...D...H............
C 551 87-010-220-080 C-CAP,S 0.018-25 B ...D...H............
C 550 87-010-956-080 CHIP-CAP,S 0.068-25B ...D...H............
C 591 87-010-196-080 CHIP CAPACITOR,0.1-25 ...D...H............
C 590 87-010-196-080 CHIP CAPACITOR,0.1-25 ...D...H............
IC 551 87-017-726-080 IC,BU4052 BCF ...D...H............
IC 550 87-A21-362-040 C-IC,NJM2100M(TE2) ...D...H............
Q 590 87-A30-076-080 C-TR,2SC3052F ...D...H............
Q 591 87-A30-076-080 C-TR,2SC3052F ...D...H............
C 503 87-010-112-040 CAP,E 100-16 ..........K.........
C 508 87-010-178-080 CHIP CAP 1000P ..........K.........
C 502 87-010-186-080 CAP,CHIP 4700P ..........K.........
C 506 87-010-320-080 CHIP CAP 68P ..........K.........
C 504 87-010-405-040 CAP,E 10-50 ..........K.........
C 507 87-010-544-040 CAP,E 0.1-50 SME ..........K.........
C 509 87-010-544-040 CAP,E 0.1-50 SME ..........K.........
C 505 87-010-546-040 CAP,E 0.33-50 ..........K.........
J 501 87-A60-651-010 JACK,3.5MONO ..........K.........
Q 504 87-A30-075-080 C-TR,2SA1235F ..........K.........
Q 502 87-A30-076-080 C-TR,2SC3052F ..........K.........
Q 501 87-A30-087-080 C-FET,2SK2158 ..........K.........
VR 501 87-NB7-602-010 VR,RTRY 10KAX1 1 V ..........K.........
C 1 87-010-387-080 CAP,E 470-25 SME ..........K.........
C 4 87-010-403-080 CAP, ELECT 3.3-50V ....................
C 2 87-018-209-080 CAP, CER 0.1-50V ....................
C 9 87-A10-520-000 CAP,E 3300-35 M SMG ..........K.........
C 8 87-A10-520-000 CAP,E 3300-35 M SMG ..........K.........
C 5 87-A11-148-080 CAP,TC U 0.1-50 Z F ..........K.........
C 6 87-A11-148-080 CAP,TC U 0.1-50 Z F ..........K.........
C 4 87-A11-148-080 CAP,TC U 0.1-50 Z F ..........K.........
C 3 87-A11-148-080 CAP,TC U 0.1-50 Z F ..........K.........
C 31 87-010-403-040 CAP,E 3.3-50 SME ..........K.........
CN 1 87-A60-850-010 CONN,7P V VH ....................
CN 1 87-A60-851-010 CONN,9P V VH ..........K.........
D 6 87-A40-548-090 DIODE,D3SBA20 ..........K.........
D 31 87-020-465-080 DIODE,1SS133 (110MA) ..........K.........
D 32 87-020-465-080 DIODE,1SS133 (110MA) ..........K.........
PR 1 87-026-682-080 PROTECTOR,10A 60V491 ..........K.........
PR 2 87-026-682-080 PROTECTOR,10A 60V491 ..........K.........
PR 1 87-A91-276-080 FUSE,125MA 125V F 251 ....................
PT 2 8Z-NF8-661-010 PT,SUB ZNF-8(U) ....................
PT 2 8Z-NF8-662-010 PT,SUB ZNF-8(E) ....................
PT 2 8Z-NF8-663-010 PT,SUB ZNF-8(H) ..........K.........
Q 31 87-026-245-080 TR,DTC114ES ..........K.........
Q 32 87-A30-198-080 TR,KTC3199GR ..........K.........
RY 2 87-A90-976-010 RELAY,AC12V SDT-S-112LMR ....................
RY 1 87-A91-281-010 RELAY,AC DC12V OSA-SS-212DM5 ..........K.........
S 1 87-A90-165-010 SW,SL 1-2-3 SWS2301 ..........K.........
T 2 87-A60-317-010 TERMINAL, 1P MSC ..........K.........
T 1 87-A60-317-010 TERMINAL, 1P MSC ..........K.........
C 901 87-016-462-080 C-CAP,S 1-16 F ....................
D 901 87-A40-270-080 C-DIODE,MC2838 ....................
Q 902 87-A30-087-080 C-FET,2SK2158 ....................
Q 901 87-A30-087-080 C-FET,2SK2158 ....................
88-NF8-205-010 GUIDE,FL ..........K.........

ELECTRICAL PARTS LIST-8/12
* 8Z-NF8-201-110 GUIDE,OPE ..........K.........
* 8Z-NF8-202-010 GUIDE,FUN ..........K.........
C 201 87-012-140-080 CAP 470P ..........K.........
C 203 87-012-157-080 C-CAP,S 330P-50 CH ..........K.........
C 211 87-012-157-080 C-CAP,S 330P-50 CH ..........K.........
C 254 87-010-194-080 CAP, CHIP 0.047 ..........K.........
C 252 87-010-198-080 CAP, CHIP 0.022 ..........K.........
C 251 87-015-699-040 CAP,E 10-50 7L ..........K.........
C 256 87-015-699-040 CAP,E 10-50 7L ..........K.........
C 259 87-015-699-040 CAP,E 10-50 7L ..........K.........
C 255 87-A10-797-040 CAP,E 47-35 M 5L SRM ..........K.........
C 260 87-010-198-080 CAP, CHIP 0.022 ..........K.........
C 272 87-015-690-040 CAP,E 22-35 7L ....................
C 301 87-010-182-080 C-CAP,S 2200P-50 B ..........K.........
C 302 87-010-182-080 C-CAP,S 2200P-50 B ..........K.........
C 311 87-010-194-080 CAP, CHIP 0.047 ..........K.........
C 314 87-010-194-080 CAP, CHIP 0.047 ..........K.........
C 312 87-010-405-040 CAP,E 10-50 ..........K.........
C 324 87-010-194-080 CAP, CHIP 0.047 ..........K.........
C 325 87-010-263-040 CAP,E 100-10 ..........K.........
C 322 87-015-694-040 E/CAP 0.47-50 ..........K.........
C 323 87-016-459-040 CAP,E 470-10 SMG ..........K.........
C 332 87-010-178-080 CHIP CAP 1000P ..........K.........
C 334 87-010-312-080 C-CAP,S 15P-50 CH ..........K.........
C 333 87-012-140-080 CAP 470P ..........K.........
C 335 87-012-140-080 CAP 470P ..........K.........
C 338 87-012-155-080 C-CAP 180P-50CH ..........K.........
C 339 87-012-156-080 C-CAP,S 220P-50 CH ..........K.........
C 341 87-010-194-080 CAP, CHIP 0.047 ..........K.........
C 340 87-010-197-080 CAP, CHIP 0.01 DM ..........K.........
C 351 87-010-382-040 CAP,E 22-25 SME ..........K.........
C 401 87-010-197-080 CAP, CHIP 0.01 DM ..........K.........
C 455 87-010-196-080 CHIP CAPACITOR,0.1-25 ..........K.........
C 457 87-010-196-080 CHIP CAPACITOR,0.1-25 ..........K.........
C 456 87-012-158-080 C-CAP,S 390P-50 CH ..........K.........
C 601 87-010-196-080 CHIP CAPACITOR,0.1-25 ..........K.........
C 604 87-010-322-080 C-CAP,S 100P-50 CH ..........K.........
C 701 87-010-196-080 CHIP CAPACITOR,0.1-25 ..........K.........
CON 102 87-099-015-010 CONN,13P 6216V ..........K.........
CON 101 88-NF9-658-010 CONN,30P BLK TYK-B(P) ..........K.........
CON 301 87-099-013-010 CONN,11P 6216 V ....................
CON 301 87-099-017-010 CONN, 15P 6216 V ..........K.........
D 208 87-020-465-080 DIODE,1SS133 (110MA) ..........K.........
D 311 87-A40-509-080 ZENER,MTZJ6.8C ..........K.........
D 452 87-017-932-080 ZENER,MTJ6.2B ..........K.........
EMI 201 87-008-372-080 FILTER, EMI BL OIRNI ..........K.........
EMI 202 87-A50-322-080 C-COIL,S BK2125 LM252 ..........K.........
EMI 701 87-A50-322-080 C-COIL,S BK2125 LM252 ..........K.........
FL 401 8Z-NF8-616-010 FL,SVA-11MM22 ..........K.........
IC 201 8Z-NF8-675-010 C-IC,UPD780228GF-037-3BA ....................
IC 201 8Z-NF8-676-010 C-IC,UPD780228GF-045-3BA ..........K.........
IC 251 87-A20-951-010 IC,TSOP1838RF1 ..........K.........
IC 451 87-A21-023-040 C-IC,BA3835F ..........K.........
IC 601 87-A21-021-040 C-IC,BU2099FV ..........K.........
L 251 87-005-847-080 COIL,2.2UH(CECS) ....................
L 252 87-005-847-080 COIL,2.2UH(CECS) ....................
L 331 87-A50-434-010 COIL,CLK 4.19M(TOKO) ..........K.........
LED 311 87-A40-317-080 LED,SLR-342VCT31 RED ..........K.........
LED 611 87-A40-619-080 LED,SLR-56PT-TE7-W GRN ..........K.........
LED 633 87-A40-619-040 LED,SLR-56PT-T31-W GRN ..........K.........
LED 634 87-A40-619-040 LED,SLR-56PT-T31-W GRN ..........K.........
Q 207 87-A30-087-080 C-FET,2SK2158 ..........K.........
Q 251 87-A30-074-080 C-TR,RT1P 141C ..........K.........
Q 301 87-A30-067-080 C-TR,2SA 1298Y ..........K.........
Q 302 87-A30-067-080 C-TR,2SA 1298Y ..........K.........
Q 302 87-A30-159-080 C-TR,KTA1298Y ....................
Q 301 87-A30-159-080 C-TR,KTA1298Y ....................
Q 303 87-A30-329-080 TR,CD1585BC ..........K.........
Q 311 87-026-610-080 TR,KTC3198GR ..........K.........
Q 312 87-A30-087-080 C-FET,2SK2158 ..........K.........
Q 322 87-A30-073-080 C-TR,RT1N 141C ..........K.........
Q 323 87-A30-087-080 C-FET,2SK2158 ..........K.........
S 406 87-A90-164-080 SW,TACT SKQAB(N) ..........K.........
S 403 87-A90-164-080 SW,TACT SKQAB(N) ..........K.........
S 407 87-A90-164-080 SW,TACT SKQAB(N) ..........K.........
S 402 87-A90-164-080 SW,TACT SKQAB(N) ..........K.........
S 401 87-A90-164-080 SW,TACT SKQAB(N) ..........K.........
S 434 87-A91-024-080 SW,TACT KSH0611BT ..........K.........
SW 252 87-A90-535-010 SW,RTRY EC16B24304 ..........K.........
SW 253 87-A90-950-010 SW,RTRY EC12E12504 ENCORDER ..........K.........
C 309 87-010-196-080 CHIP CAPACITOR,0.1-25 ..........K.........
C 301 87-010-318-080 C-CAP,S 47P-50 CH ..........K.........
C 302 87-010-318-080 C-CAP,S 47P-50 CH ..........K.........
C 306 87-012-145-080 CAP, CHIP S 270P CH ..........K.........
C 305 87-012-145-080 CAP, CHIP S 270P CH ..........K.........
C 303 87-012-157-080 C-CAP,S 330P-50 CH ..........K.........
C 304 87-012-157-080 C-CAP,S 330P-50 CH ..........K.........
C 313 87-010-178-080 CHIP CAP 1000P ..........K.........
C 314 87-010-178-080 CHIP CAP 1000P ..........K.........
C 315 87-010-178-080 CHIP CAP 1000P ..........K.........
C 316 87-010-178-080 CHIP CAP 1000P ..........K.........
C 313 87-010-180-080 C-CER 1500P ....................

ELECTRICAL PARTS LIST-9/12
C 314 87-010-180-080 C-CER 1500P ....................
C 315 87-010-182-080 C-CAP,S 2200P-50 B ....................
C 316 87-010-182-080 C-CAP,S 2200P-50 B ....................
C 310 87-010-196-080 CHIP CAPACITOR,0.1-25 ..........K.........
C 312 87-010-198-080 CAP, CHIP 0.022 ..........K.........
C 311 87-010-198-080 CAP, CHIP 0.022 ..........K.........
C 324 87-010-260-080 CAP, ELECT 47-25V ..........K.........
C 325 87-010-370-080 CAP,E 330-6.3 SME ..........K.........
C 328 87-010-404-080 CAP, ELECT 4.7-50V ..........K.........
C 327 87-010-404-080 CAP, ELECT 4.7-50V ..........K.........
C 321 87-016-492-080 C-CAP,S 0.33-16 FZ ..........K.........
C 322 87-016-492-080 C-CAP,S 0.33-16 FZ ..........K.........
C 335 87-010-401-080 CAP, ELECT 1-50V ..........K.........
C 336 87-010-401-080 CAP, ELECT 1-50V ..........K.........
C 354 87-010-175-080 CAP 560P ..........K.........
C 358 87-010-183-080 C-CAP,S 2700P-50 B ..........K.........
C 359 87-010-183-080 C-CAP,S 2700P-50 B ..........K.........
C 357 87-010-197-080 CAP, CHIP 0.01 DM ..........K.........
C 356 87-010-260-080 CAP, ELECT 47-25V ..........K.........
C 351 87-012-140-080 CAP 470P ..........K.........
C 352 87-012-140-080 CAP 470P ..........K.........
C 355 87-012-349-080 C-CAP,S 1000P-50 CH ..........K.........
C 360 87-010-183-080 C-CAP,S 2700P-50 B ..........K.........
C 363 87-A10-292-080 CAP,M 5600P-50 J ..........K.........
C 379 87-010-406-080 CAP, ELECT 22-50 ..........K.........
C 373 87-016-083-080 C-CAP,S 0.15-16 RK ..........K.........
C 374 87-016-083-080 C-CAP,S 0.15-16 RK ..........K.........
C 380 87-010-406-080 CAP, ELECT 22-50 ..........K.........
C 388 87-012-156-080 C-CAP,S 220P-50 CH ..........K.........
C 392 87-010-319-080 C-CAP,S 56P-50 CH ..........K.........
C 394 87-010-319-080 C-CAP,S 56P-50 CH ..........K.........
C 391 87-010-319-080 C-CAP,S 56P-50 CH ..........K.........
C 393 87-010-319-080 C-CAP,S 56P-50 CH ..........K.........
CN 301 87-099-827-010 CONN,3P S2M-3W ..........K.........
CN 351 87-099-832-010 CONN,8P S2M-8W ..........K.........
D 352 87-A40-269-080 C-DIODE,MC2836 ..........K.........
IC 303 87-A20-783-040 C-IC,BA7762AFS ..........K.........
L 301 87-A50-049-010 COIL,TRAP 85K(COI) ..........K.........
L 302 87-A50-049-010 COIL,TRAP 85K(COI) ..........K.........
L 351 87-007-342-010 COIL,OSC 85K BIAS ..........K.........
Q 359 87-026-610-080 TR,KTC3198GR ..........K.........
Q 358 87-026-610-080 TR,KTC3198GR ..........K.........
Q 357 87-026-610-080 TR,KTC3198GR ..........K.........
Q 356 87-A30-076-080 C-TR,2SC3052F ....................
Q 354 87-A30-087-080 C-FET,2SK2158 ..........K.........
Q 351 87-A30-087-080 C-FET,2SK2158 ..........K.........
Q 353 87-A30-087-080 C-FET,2SK2158 ..........K.........
Q 355 87-A30-105-080 C-TR,RT1P 441C ..........K.........
SFR 351 87-A90-433-080 SFR,50K H NVZ6TLTA ..........K.........
SFR 352 87-A90-433-080 SFR,50K H NVZ6TLTA ..........K.........
C 457 87-010-196-080 CHIP CAPACITOR,0.1-25 ..........K.........
C 458 87-010-196-080 CHIP CAPACITOR,0.1-25 ..........K.........
C 452 87-010-401-080 CAP, ELECT 1-50V ..........K.........
C 451 87-010-401-080 CAP, ELECT 1-50V ..........K.........
C 459 87-A10-299-080 CAP,M 0.022-50 J ..........K.........
C 456 87-A10-305-080 CAP,M 0.068-50 J ..........K.........
C 455 87-A10-305-080 CAP,M 0.068-50 J ..........K.........
C 466 87-A10-299-080 CAP,M 0.022-50 J ..........K.........
C 465 87-A10-299-080 CAP,M 0.022-50 J ..........K.........
C 460 87-A10-299-080 CAP,M 0.022-50 J ..........K.........
IC 451 87-A21-031-040 C-IC,BU4551BF ..........K.........
87-067-703-010 TAPPING SCREW, BVT2+3-10 ....................
C 9 87-010-917-000 CAP,E 3300-50 M SMG ....................
C 5 87-012-368-080 C-CAP,S 0.1-50 F ..........K.........
C 3 87-012-368-080 C-CAP,S 0.1-50 F ..........K.........
C 6 87-012-368-080 C-CAP,S 0.1-50 F ..........K.........
C 4 87-012-368-080 C-CAP,S 0.1-50 F ..........K.........
C 2 87-012-369-080 C-CAP,S 0.047-50F ..........K.........
C 1 87-012-369-080 C-CAP,S 0.047-50F ..........K.........
C 9 87-A10-520-000 CAP,E 3300-35 M SMG ..........K.........
C 10 87-010-917-000 CAP,E 3300-50 M SMG ....................
C 10 87-A10-520-000 CAP,E 3300-35 M SMG ..........K.........
C 27 87-010-197-080 CAP, CHIP 0.01 DM ..........K.........
C 23 87-010-247-080 CAP, ELECT 100-50V ..........K.........
C 29 87-010-247-080 CAP, ELECT 100-50V ..........K.........
C 24 87-010-247-080 CAP, ELECT 100-50V ..........K.........
C 26 87-010-263-080 CAP, ELECT 100-10V ..........K.........
C 22 87-010-385-080 CAP, ELECT 220-25V ..........K.........
C 21 87-010-385-080 CAP, ELECT 220-25V ..........K.........
C 23 87-010-408-080 CAP, ELECT 47-50V ....................
C 24 87-010-408-080 CAP, ELECT 47-50V ....................
C 25 87-010-430-080 CAP, ELECT 100-63 ..........K.........
C 30 87-010-112-080 CAP, ELECT 100-16V ..........K.........
C 31 87-010-235-080 CAP,E 470-16 SME ..........K.........
C 34 87-016-100-080 CAP,E 10-50 BP ..........K.........
C 33 87-016-100-080 CAP,E 10-50 BP ..........K.........
C 61 87-010-260-080 CAP, ELECT 47-25V ..........K.........
C 62 87-010-403-080 CAP, ELECT 3.3-50V ..........K.........
C 92 87-010-248-080 CAP, ELECT 220-10V ....................
C 93 87-010-380-080 CAP, ELECT 47-16V ....................
C 91 87-010-401-080 CAP, ELECT 1-50V ....................
CN 91 87-A60-109-010 CONN,2P V S2M-2W ....................

ELECTRICAL PARTS LIST-10/12
CNA 1 8Z-NF8-669-110 CONN ASSY,9P VH ..........K.........
CNA 1 8Z-NF8-670-110 CONN ASSY,7P 480 VH ....................
D 9 87-020-465-080 DIODE,1SS133 (110MA) ..........K.........
D 8 87-020-465-080 DIODE,1SS133 (110MA) ..........K.........
D 3 87-070-274-080 DIODE,1N4003 SEM ..........K.........
D 5 87-070-274-080 DIODE,1N4003 SEM ..........K.........
D 4 87-070-274-080 DIODE,1N4003 SEM ..........K.........
D 6 87-070-274-080 DIODE,1N4003 SEM ..........K.........
D 7 87-A40-383-080 ZENER,MTZJ30A ..........K.........
D 1 87-A40-547-090 DIODE,D5SBA20 ....................
D 1 87-A40-548-090 DIODE,D3SBA20 ..........K.........
D 10 87-A40-345-080 ZENER,MTZJ10C ..........K.........
D 64 87-070-274-080 DIODE,1N4003 SEM ..........K.........
D 62 87-A40-269-080 C-DIODE,MC2836 ..........K.........
D 61 87-A40-270-080 C-DIODE,MC2838 ..........K.........
D 99 87-070-322-080 ZENER,MTZJ 36D ..........K.........
JW 16 87-008-372-080 FILTER, EMI BL OIRNI ..........K.........
Q 2 87-026-609-080 TR,KTA1266GR ..........K.........
Q 1 87-026-609-080 TR,KTA1266GR ..........K.........
Q 5 87-026-610-080 TR,KTC3198GR ..........K.........
Q 8 87-A30-075-080 C-TR,2SA1235F ..........K.........
Q 6 87-A30-076-080 C-TR,2SC3052F ..........K.........
Q 9 87-A30-196-080 TR,2SC4115SRS ..........K.........
Q 4 89-213-702-010 TR,2SB1370 (1.8W) ..........K.........
Q 61 87-A30-074-080 C-TR,RT1P 141C ..........K.........
Q 64 87-A30-075-080 C-TR,2SA1235F ..........K.........
Q 66 87-A30-075-080 C-TR,2SA1235F ..........K.........
Q 65 87-A30-076-080 C-TR,2SC3052F ..........K.........
Q 63 87-A30-076-080 C-TR,2SC3052F ..........K.........
Q 67 87-A30-076-080 C-TR,2SC3052F ..........K.........
R 20 87-A00-261-080 RES,M/F 0.56-1W J ....................
WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P ..........K.........
87-067-703-010 TAPPING SCREW, BVT2+3-10 ..........K.........
C 101 87-010-178-080 CHIP CAP 1000P ..........K.........
C 102 87-010-178-080 CHIP CAP 1000P ..........K.........
C 104 87-010-405-080 CAP, ELECT 10-50V ..........K.........
C 103 87-010-405-080 CAP, ELECT 10-50V ..........K.........
C 107 87-010-408-080 CAP, ELECT 47-50V ..........K.........
C 108 87-010-408-080 CAP, ELECT 47-50V ..........K.........
C 111 87-010-260-080 CAP, ELECT 47-25V ..........K.........
C 112 87-010-260-080 CAP, ELECT 47-25V ..........K.........
C 113 87-A10-946-080 C-CAP,S 220P-100 J CH ..........K.........
C 114 87-A10-946-080 C-CAP,S 220P-100 J CH ..........K.........
C 117 87-A11-185-080 C-CAP, 0.47-50 F Z ..........K.........
C 118 87-A11-185-080 C-CAP, 0.47-50 F Z ..........K.........
C 123 87-010-176-080 C-CAP,S 680P-50 SL ..........K.........
C 124 87-010-176-080 C-CAP,S 680P-50 SL ..........K.........
C 129 87-010-191-080 C-CAP,S 0.015-50 F ..........K.........
C 125 87-012-368-080 C-CAP,S 0.1-50 F ..........K.........
C 127 87-012-368-080 C-CAP,S 0.1-50 F ..........K.........
C 126 87-012-368-080 C-CAP,S 0.1-50 F ..........K.........
C 128 87-012-368-080 C-CAP,S 0.1-50 F ..........K.........
C 130 87-010-191-080 C-CAP,S 0.015-50 F ..........K.........
C 133 87-010-197-080 CAP, CHIP 0.01 DM ..........K.........
C 132 87-010-197-080 CAP, CHIP 0.01 DM ..........K.........
C 131 87-010-197-080 CAP, CHIP 0.01 DM ..........K.........
D 108 87-020-465-080 DIODE,1SS133 (110MA) ..........K.........
D 107 87-020-465-080 DIODE,1SS133 (110MA) ..........K.........
D 111 87-A40-270-080 C-DIODE,MC2838 ..........K.........
J 203 87-A60-238-010 TERMINAL,SP 4P (MSC) ..........K.........
J 201 87-A60-929-010 JACK,DIA6.3 BLK ST W/S TAI ..........K.........
L 101 87-003-383-010 COIL,1UH-S ..........K.........
L 102 87-003-383-010 COIL,1UH-S ..........K.........
Q 104 87-A30-075-080 C-TR,2SA1235F ..........K.........
Q 105 87-A30-075-080 C-TR,2SA1235F ..........K.........
Q 106 87-A30-075-080 C-TR,2SA1235F ..........K.........
Q 103 87-A30-075-080 C-TR,2SA1235F ..........K.........
Q 108 87-A30-076-080 C-TR,2SC3052F ..........K.........
Q 109 87-A30-076-080 C-TR,2SC3052F ..........K.........
Q 107 87-A30-076-080 C-TR,2SC3052F ..........K.........
Q 101 87-A30-086-070 C-TR,CSD1306E ..........K.........
Q 102 87-A30-086-070 C-TR,CSD1306E ..........K.........
Q 110 87-A30-076-080 C-TR,2SC3052F ..........K.........
Q 116 87-A30-097-010 TR,FN 1016 ..........K.........
Q 115 87-A30-097-010 TR,FN 1016 ..........K.........
Q 117 87-A30-098-010 TR,FP 1016 ..........K.........
Q 118 87-A30-098-010 TR,FP 1016 ..........K.........
Q 112 87-A30-190-080 TR,CC5551 ..........K.........
Q 111 87-A30-190-080 TR,CC5551 ..........K.........
Q 119 87-A30-215-010 TR,2SD2025 ....................
Q 126 87-A30-075-080 C-TR,2SA1235F ..........K.........
Q 127 87-A30-075-080 C-TR,2SA1235F ..........K.........
Q 129 87-A30-076-080 C-TR,2SC3052F ..........K.........
Q 128 87-A30-076-080 C-TR,2SC3052F ..........K.........
Q 123 87-A30-106-070 C-TR,CMBT5551 ..........K.........
Q 124 87-A30-106-070 C-TR,CMBT5551 ..........K.........
Q 122 87-A30-214-010 TR,2SB1344 ....................
Q 121 87-A30-214-010 TR,2SB1344 ....................
Q 120 87-A30-215-010 TR,2SD2025 ....................
Q 131 87-A30-076-080 C-TR,2SC3052F ..........K.........
Q 130 87-A30-076-080 C-TR,2SC3052F ..........K.........
R 132 87-A00-257-080 RES,M/F 0.15-1W J ..........K.........

R 131 87-A00-257-080 RES,M/F 0.15-1W J ..........K.........
R 144 87-A00-439-050 RES,180-1/2W J RP ....................
R 143 87-A00-439-050 RES,180-1/2W J RP ....................
R 145 87-A00-439-050 RES,180-1/2W J RP ....................
R 146 87-A00-439-050 RES,180-1/2W J RP ....................
R 145 87-A00-440-050 RES,220-1/2W J RP ..........K.........
R 143 87-A00-440-050 RES,220-1/2W J RP ..........K.........
R 146 87-A00-440-050 RES,220-1/2W J RP ..........K.........
R 144 87-A00-440-050 RES,220-1/2W J RP ..........K.........
TH 101 87-A91-042-080 C-THMS,100K 55001 ..........K.........
TH 102 87-A91-042-080 C-THMS,100K 55001 ..........K.........
C 204 87-010-177-080 C-CAP,S 820P-50 SL ..........K.........
C 203 87-010-177-080 C-CAP,S 820P-50 SL ..........K.........
C 209 87-010-403-080 CAP, ELECT 3.3-50V ..........K.........
C 212 87-010-181-080 CAP,CHIP S 1800P ..........K.........
C 211 87-010-181-080 CAP,CHIP S 1800P ..........K.........
C 218 87-010-260-080 CAP, ELECT 47-25V ..........K.........
C 217 87-010-260-080 CAP, ELECT 47-25V ..........K.........
C 216 87-010-322-080 C-CAP,S 100P-50 CH ..........K.........
C 215 87-010-322-080 C-CAP,S 100P-50 CH ..........K.........
C 210 87-010-403-080 CAP, ELECT 3.3-50V ..........K.........
C 213 87-010-403-080 CAP, ELECT 3.3-50V ..........K.........
C 214 87-010-403-080 CAP, ELECT 3.3-50V ..........K.........
C 219 87-A10-946-080 C-CAP,S 220P-100 J CH ..........K.........
C 227 87-010-186-080 CAP,CHIP 4700P ..........K.........
C 228 87-010-186-080 CAP,CHIP 4700P ..........K.........
C 223 87-010-190-080 S CHIP F 0.01 ..........K.........
C 224 87-010-190-080 S CHIP F 0.01 ..........K.........
C 229 87-010-993-080 C-CAP,S 0.056-25 B ..........K.........
C 225 87-012-368-080 C-CAP,S 0.1-50 F ..........K.........
C 226 87-012-368-080 C-CAP,S 0.1-50 F ..........K.........
C 220 87-A10-946-080 C-CAP,S 220P-100 J CH ..........K.........
C 233 87-010-190-080 S CHIP F 0.01 ..........K.........
C 234 87-010-190-080 S CHIP F 0.01 ..........K.........
C 231 87-010-196-080 CHIP CAPACITOR,0.1-25 ..........K.........
C 239 87-010-196-080 CHIP CAPACITOR,0.1-25 ..........K.........
C 232 87-010-196-080 CHIP CAPACITOR,0.1-25 ..........K.........
C 230 87-010-993-080 C-CAP,S 0.056-25 B ..........K.........
C 235 87-016-285-080 CAP,E 47-100SME ....................
C 236 87-016-285-080 CAP,E 47-100SME ....................
C 235 87-A10-121-080 CAP,E 47-100 REA ....................
C 236 87-A10-121-080 CAP,E 47-100 REA ....................
C 240 87-010-408-080 CAP, ELECT 47-50V ..........K.........
D 208 87-020-465-080 DIODE,1SS133 (110MA) ..........K.........
D 207 87-020-465-080 DIODE,1SS133 (110MA) ..........K.........
D 211 87-A40-270-080 C-DIODE,MC2838 ..........K.........
J 204 87-A60-750-010 JACK,PIN 4P R/W BLUE ....................
J 205 87-A60-751-010 JACK,PIN 2P R/W BLUE ..........K.........
L 201 87-003-383-010 COIL,1UH-S ..........K.........
L 202 87-003-383-010 COIL,1UH-S ..........K.........
Q 206 87-A30-075-080 C-TR,2SA1235F ..........K.........
Q 204 87-A30-075-080 C-TR,2SA1235F ..........K.........
Q 205 87-A30-075-080 C-TR,2SA1235F ..........K.........
Q 203 87-A30-075-080 C-TR,2SA1235F ..........K.........
Q 208 87-A30-076-080 C-TR,2SC3052F ..........K.........
Q 209 87-A30-076-080 C-TR,2SC3052F ..........K.........
Q 207 87-A30-076-080 C-TR,2SC3052F ..........K.........
Q 202 87-A30-086-070 C-TR,CSD1306E ..........K.........
Q 201 87-A30-086-070 C-TR,CSD1306E ..........K.........
Q 210 87-A30-076-080 C-TR,2SC3052F ..........K.........
Q 219 87-A30-106-070 C-TR,CMBT5551 ..........K.........
Q 212 87-A30-190-080 TR,CC5551 ..........K.........
Q 211 87-A30-190-080 TR,CC5551 ..........K.........
Q 218 87-A30-255-010 TR,2SB1342 ..........K.........
Q 217 87-A30-255-010 TR,2SB1342 ..........K.........
Q 215 87-A30-256-010 TR,2SD1933 ..........K.........
Q 216 87-A30-256-010 TR,2SD1933 ..........K.........
Q 224 87-A30-076-080 C-TR,2SC3052F ..........K.........
Q 226 87-A30-076-080 C-TR,2SC3052F ..........K.........
Q 227 87-A30-076-080 C-TR,2SC3052F ..........K.........
Q 225 87-A30-076-080 C-TR,2SC3052F ..........K.........
Q 220 87-A30-106-070 C-TR,CMBT5551 ..........K.........
R 231 87-A00-258-080 RES,M/F 0.22-1W J ..........K.........
R 233 87-A00-258-080 RES,M/F 0.22-1W J ..........K.........
R 232 87-A00-258-080 RES,M/F 0.22-1W J ..........K.........
R 234 87-A00-258-080 RES,M/F 0.22-1W J ..........K.........
R 266 87-A00-258-080 RES,M/F 0.22-1W J ..........K.........
R 265 87-A00-258-080 RES,M/F 0.22-1W J ..........K.........
C 602 87-010-180-080 C-CER 1500P ..........K.........
C 601 87-010-180-080 C-CER 1500P ..........K.........
C 606 87-010-318-080 C-CAP,S 47P-50 CH ..........K.........
C 605 87-010-318-080 C-CAP,S 47P-50 CH ..........K.........
C 619 87-010-185-080 C-CAP,S 3900P-50 B ..........K.........
C 613 87-016-081-080 C-CAP,S 0.1-16 RK ..........K.........
C 614 87-016-081-080 C-CAP,S 0.1-16 RK ..........K.........
C 618 87-A10-305-080 CAP,M 0.068-50 J ..........K.........
C 617 87-A10-305-080 CAP,M 0.068-50 J ..........K.........
C 616 87-A11-011-080 CAP,M 0.12-50 J DE ..........K.........
C 615 87-A11-011-080 CAP,M 0.12-50 J DE ..........K.........
C 620 87-010-185-080 C-CAP,S 3900P-50 B ..........K.........
C 627 87-010-196-080 CHIP CAPACITOR,0.1-25 ..........K.........
C 622 87-010-401-080 CAP, ELECT 1-50V ..........K.........
ELECTRICAL PARTS LIST-11/12

C 621 87-010-401-080 CAP, ELECT 1-50V ..........K.........
C 626 87-010-405-080 CAP, ELECT 10-50V ..........K.........
C 629 87-010-405-080 CAP, ELECT 10-50V ..........K.........
C 625 87-010-405-080 CAP, ELECT 10-50V ..........K.........
C 623 87-A10-307-080 CAP,M 0.1-50 J ..........K.........
C 624 87-A10-307-080 CAP,M 0.1-50 J ..........K.........
C 637 87-010-183-080 C-CAP,S 2700P-50 B ..........K.........
C 636 87-010-194-080 CAP, CHIP 0.047 ..........K.........
C 634 87-010-196-080 CHIP CAPACITOR,0.1-25 ..........K.........
C 635 87-010-196-080 CHIP CAPACITOR,0.1-25 ..........K.........
C 630 87-010-213-080 C-CAP,S 0.015-50 B ..........K.........
C 633 87-010-263-080 CAP, ELECT 100-10V ..........K.........
C 632 87-010-263-080 CAP, ELECT 100-10V ..........K.........
C 638 87-010-314-080 C-CAP,S 22P-50V ..........K.........
C 639 87-010-314-080 C-CAP,S 22P-50V ..........K.........
C 631 87-010-992-080 C-CAP,S 0.047-25 B ..........K.........
C 641 87-010-196-080 CHIP CAPACITOR,0.1-25 ..........K.........
C 669 87-010-322-080 C-CAP,S 100P-50 CH ..........K.........
C 677 87-010-196-080 CHIP CAPACITOR,0.1-25 ..........K.........
C 678 87-010-196-080 CHIP CAPACITOR,0.1-25 ..........K.........
C 670 87-010-322-080 C-CAP,S 100P-50 CH ..........K.........
C 680 87-010-196-080 CHIP CAPACITOR,0.1-25 ..........K.........
CN 604 87-099-570-010 CONN,13P TUC-P13P-B1 ..........K.........
CN 602 87-A60-131-010 CONN,6P V FE ..........K.........
CN 605 87-A60-189-010 CONN,16P V TUC-P16P-B1 ....................
CN 601 88-NF9-657-010 CONN,30P H BLK TYK-B(X) ..........K.........
D 601 87-A40-002-080 ZENER,MTZJ5.1C ..........K.........
D 603 87-A40-234-080 ZENER,MTZJ5.6A ..........K.........
D 602 87-A40-438-080 ZENER,MTZJ4.7A ..........K.........
IC 601 87-A21-202-040 C-IC,M62445AFP ..........K.........
J 602 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN ..........K.........
Q 601 87-026-609-080 TR,KTA1266GR ..........K.........
Q 604 87-A30-142-040 C-TR,DTA123EKA ..........K.........
C 735 87-010-178-080 CHIP CAP 1000P ..........K.........
C 732 87-010-196-080 CHIP CAPACITOR,0.1-25 ..........K.........
C 733 87-010-196-080 CHIP CAPACITOR,0.1-25 ..........K.........
C 731 87-010-560-080 CAP,E 10-50 GAS ..........K.........
C 734 87-012-157-080 C-CAP,S 330P-50 CH ..........K.........
JR 703 87-012-368-080 C-CAP,S 0.1-50 F ..........K.........
Q 732 87-A30-075-080 C-TR,2SA1235F ..........K.........
Q 731 87-A30-076-080 C-TR,2SC3052F ..........K.........
ELECTRICAL PARTS LIST-12/12

MECHANICAL PARTS LIST-1/2
NOTE: The characters in the suffix column indicate the part usage.
555EZST5C ..............XX..................................A...................
555UST5FD ..............XX...................................B..................
555UST5C ...............XX....................................C.................
555HRST5M ..............XX.....................................D................
555KST5E ...............XX......................................E...............
555GST5M ...............XX.......................................F..............
555VJST5M ..............XX........................................G.............
555LHST5M ..............XX.........................................H............
556EZST5M ..............XX..........................................I...........
555EZST5M ..............XX...........................................J..........
555HAS5C2M .............XX............................................K.........
559LHS5KM ..............XX.............................................L........
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
82-NE6-067-010 BADGE,AIWA 30N ABCDEFGHIJKL........
86-NFZ-001-010 WINDOW,TOP ABCDEFGHIJKL........
8Z-NB8-011-210 PANEL,LEFT V-2 ABCDEFGHIJKL........
8Z-NF8-001-010 CABI,FR U ABC..FG..J..........
8Z-NF8-002-110 CABI,REAR USTNM ....................
8Z-NF8-003-010 BOX,CASS 1U .BC.................
8Z-NF8-004-010 BOX,CASS 2U ABC..FG.IJ..........
8Z-NF8-021-010 WINDOW,CASS 1 ABCD.FGHIJKL........
8Z-NF8-022-010 WINDOW,CASS 2 ABCD.FGHIJKL........
8Z-NF8-023-010 WINDOW,DISP U .BC.................
8Z-NF8-024-010 WINDOW,CD ABCD.FGHIJKL........
8Z-NF8-025-010 PANEL,TRAY U ABCDEFGHIJKL........
8Z-NF8-033-010 CABI,FR H ...D...H..KL........
8Z-NF8-034-010 WINDOW,DISP H ...D...H..K.........
8Z-NF8-035-010 WINDOW,DISP K A....FG..J..........
8Z-NF8-036-010 WINDOW,DISP E ........I...........
8Z-NF8-037-010 BOX,CASS 1H ...D...H..KL........
8Z-NF8-038-010 BOX,CASS 2H ...D...H..KL........
8Z-NF8-040-010 CABI,FR E ........I...........
8Z-NF8-041-110 CABI,REAR HRJSTNM ....................
8Z-NF8-042-110 CABI,REAR LHSTNM ....................
8Z-NF8-043-110 CABI,REAR KSTNE ....................
8Z-NF8-044-110 CABI,REAR EZSTNE ....................
8Z-NF8-046-110 CABI,REAR VJSTNM ....................
8Z-NF8-047-110 CABI,REAR USTFD ....................
8Z-NF8-054-110 CABI,REAR EZSTE R ....................
8Z-NF8-055-110 CABI,REAR LHSTFD ....................
8Z-NF8-056-110 CABI,REAR EZSTM ....................
8Z-NF8-057-110 CABI,REAR EZSTM R ....................
8Z-NF8-059-110 CABI,REAR LHSTM KIT ..........K.........
8Z-NF8-060-010 WINDOW,DISP 559KIT ...........L........
8Z-NF8-064-110 CABI,REAR HRSTM ....................
8Z-NF8-065-110 CABI,REAR HRJSC1M ....................
8Z-NF8-068-010 BOX,CASS 1 E A....FG.IJ..........
8Z-NF8-073-010 CABI,REAR HAST5M ....................
8Z-NF8-076-010 CABI,REAR HRJST5M ....................
8Z-NF8-078-010 CABI,REAR HRST5M ...D................
8Z-NF8-081-010 CABI,REAR LHST5M .......H............
8Z-NF8-082-010 CABI,REAR LHS5KM ...........L........
8Z-NF8-083-010 CABI,REAR LHST5FD ....................
8Z-NF8-084-010 CABI,REAR KST5E ....E...............
8Z-NF8-085-010 CABI,REAR EZST5M .........J..........
8Z-NF8-086-010 CABI,REAR EZST5E R ....................
8Z-NF8-087-010 CABI,REAR EZST5M R ........I...........
8Z-NF8-088-010 CABI,REAR EZST5E ....................
8Z-NF8-089-010 CABI,REAR UST5M ....................
8Z-NF8-090-010 CABI,REAR UST5FD .B..................
8Z-NF8-096-010 CABI,REAR VJST5M ......G.............
8Z-NF8-097-010 CABI,REAR HSSTM ....................
8Z-NF8-099-010 CABI,REAR UST5C ..C.................
8Z-NF8-100-010 CABI,REAR LHST5CC ....................
8Z-NF8-107-010 CABI,REAR EZST5C ....................
8Z-NF8-108-010 CABI,REAR GST5M .....F..............
8Z-NF8-109-010 CABI,REAR HRS5C1M W/O SPEC ....................
8Z-NF8-114-010 CABI,REAR EZ A...................
8Z-NF8-115-010 CABI,REAR EZST5FD555 ....................
8Z-NF8-116-010 CABI,REAR EZST5FD556 ....................
8Z-NF9-043-010 PANEL,RIGHT S V-2 ABCDEFGHIJKL........
8Z-NF9-095-010 PANEL,TOP V-2 R ABCDEFGHIJKL........
8Z-NF8-005-210 KEY,POWER ABCD.FGHIJKL........
8Z-NF8-006-010 KEY,CD ABCD.FGHIJKL........
8Z-NF8-007-010 REFLECTOR,ECO ABCD.FGHIJKL........
8Z-NF8-008-010 KEY,TIMER ABCD.FGHIJKL........
8Z-NF8-009-010 KEY,EDIT ABC..FG.IJ..........
8Z-NF8-010-010 KEY,ASSY FUN ABCD.FGHIJKL........
8Z-NF8-013-010 KEY,ASSY PLAY A..D.FGHIJKL........
8Z-NF8-016-010 KEY,ASSY PAUSE ABCD.FGHIJKL........
8Z-NF8-020-110 KEY,RDS ........I...........
8Z-NF8-026-010 KNOB,RTRY JOG ABCD.FGHIJKL........
8Z-NF8-027-010 KNOB,RTRY VOL ABCD.FGHIJKL........
8Z-NF8-028-110 KNOB,RTRY MIC ...D...H..KL........
8Z-NF8-029-010 REFLECTOR,JOG ABCD.FGHIJKL........
8Z-NF8-030-010 KEY,ASSY PLAY U .BC.................
8Z-NF8-048-010 KEY,EDIT H ...D...H..KL........
8Z-NF8-049-010 KEY,ECHO U ABC..FG.IJ..........

MECHANICAL PARTS LIST-2/2
8Z-NF8-050-010 KEY,KARAOKE ...D...H..KL........
81-532-080-010 LABEL, CASS. COMPT ABCD.FGHIJKL........
87-NF6-616-010 CONN ASSY,8P RPB ...D...H..KL........
84-ZG1-245-210 CAP,OPTICAL ABCDEFGHIJKL........
82-NF5-218-010 SPR-T,EJECT 1 (SIN) ABCDEFGHIJKL........
82-NF5-219-010 SPR-T,EJECT 2 (SIN) ABCDEFGHIJKL........
82-NF5-229-010 PLATE,LOCK ABCD.FGHIJKL........
85-NF7-599-010 PVC W 3.2-8-0.3 ABCDEFGHIJKL........
86-NF9-224-010 SPR-C,LOCK ABCD.FGHIJKL........
87-064-185-010 HLDR,WIRE ABCDEFGHIJKL........
87-NF4-216-010 HLDR,LOCK 1 ABCD.FGHIJKL........
87-NF4-217-110 HLDR,LOCK 2 ABCD.FGHIJKL........
87-NF4-221-010 HLDR,CABLE ....................
87-NF8-220-010 DMPR,150 ABCD.FGHIJKL........
88-NF5-208-010 HLDR,PWB-M N ABCDEFGHIJKL........
8Z-NB8-240-010 COVER, PL ABCDEFGHIJKL........
8Z-NF8-205-310 HLDR,HT-SINK ABCDEFGHIJKL........
8Z-NF9-204-010 PLATE,MIC ...D...H..KL........
87-067-581-010 TAPPING SCREW, BVT2+3-15 ABCDEFGHIJKL........
87-067-641-010 UTT2+3-8(W/O SLOT)BL ABCDEFGHIJKL........
87-067-688-010 BVTT+3-6 ABCDEFGHIJKL........
87-067-703-010 TAPPING SCREW, BVT2+3-10 ABCDEFGHIJKL........
87-067-758-010 BVT2+3-12 W/O SLOT ABCDEFGHIJKL........
87-078-191-010 S-SCREW,IT+4-10 ABCDEFGHIJKL........
87-721-096-410 QT2+3-10 GLD ABCDEFGHIJKL........
87-721-097-410 QT2+3-12 GLD ABCDEFGHIJKL........
87-723-096-410 QT2+3-10W/O SLOT BL ABCDEFGHIJKL........
87-B10-090-010 BVIT3B+3-12 GOLD ABC...GHIJKL........
87-B10-184-010 BVTT+3-20 W/O SLOT ....................
87-NF4-224-010 S-SCREW,IT3B+3-8 CU ABCDEFGHIJKL........
87-050-034-010 AC CORD ASSY,E ....................
87-050-079-010 AC-CORD ASSY,E ....................
87-085-185-010 BUSHING, AC CORD (E) ..........K.........
87-085-189-010 BUSHING, CORD (U) ....................
87-099-811-010 PLUG,ADPTR CONV(K) ....................
87-A80-006-010 AC CORD ASSY HS ....................
87-A80-105-010 AC CORD ASSY,AZ ..........K.........
87-A80-110-010 AC CORD ASSY,U SPT-2W ....................
87-A90-796-010 FAN,F614R-12MC-15-300MM ....................
88-906-251-110 FF-CABLE,6P 1.25 ..........K.........
88-911-101-110 FF-CABLE,11P 1.25 ....................
88-913-301-110 FF-CABLE,13P-1.25 ..........K.........
88-915-101-110 FF-CABLE, 15P 1.25 100MM ..........K.........
8Z-NF8-604-010 PT,ZNF-8U ....................
8Z-NF8-605-010 PT,ZNF-8HR ....................
8Z-NF8-606-010 PT,ZNF-8EZ ....................
8Z-NF8-609-010 PT,ZNF-8LH ..........K.........
C 705 87-012-349-080 C-CAP,S 1000P-50 CH ..........K.........
W 1 87-A80-143-010 AC CORD ASSY,E BLK ....................
87-050-079-010 AC-CORD ASSY,E A..D..GHIJ.L........
87-050-081-110 AC CORD ASSY,G .....F..............
87-085-185-010 BUSHING, AC CORD (E) A..DEFGHIJ.L........
87-085-189-010 BUSHING, CORD (U) .BC.................
87-099-811-010 PLUG,ADPTR CONV(K) ....E...............
87-A80-105-010 AC CORD ASSY,AZ ....................
87-A80-110-010 AC CORD ASSY,U SPT-2W .BC.................
88-906-251-110 FF-CABLE,6P 1.25 ABCDEFGHIJ.L........
88-911-101-110 FF-CABLE,11P 1.25 ABC..FG.IJ..........
88-913-301-110 FF-CABLE,13P-1.25 ABCD.FGHIJ.L........
88-915-101-110 FF-CABLE, 15P 1.25 100MM ...D...H...L........
C 365 87-010-190-080 S CHIP F 0.01 A...EFG.IJ..........
PT 1 8Z-NF8-721-010 PT,ZNF-8L (U) .BC.................
PT 1 8Z-NF8-723-010 PT,ZNF-8L (LH) ...D...H...L........
PT 1 8Z-NF8-724-010 PT,ZNF-8L (EZ) A...EFG.IJ..........
W 1 87-A80-143-010 AC CORD ASSY,E BLK ....E...............
88-NF8-205-010 GUIDE,FL ..........K.........
88-NF8-205-010 GUIDE,FL ABCD.FGHIJ..........
8Z-NF8-201-110 GUIDE,OPE ABCD.FGHIJ..........
8Z-NF8-202-010 GUIDE,FUN ABCD.FGHIJ..........
87-067-703-010 TAPPING SCREW, BVT2+3-10 ....................
WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P ..........K.........
87-067-703-010 TAPPING SCREW, BVT2+3-10 .BCDEF.H............
WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P ABCDEFGHIJ..........
87-067-703-010 TAPPING SCREW, BVT2+3-10 ..........K.........
87-067-703-010 TAPPING SCREW, BVT2+3-10 ABCDEFGHIJ..........

ACCESSORIES / PACKAGE LIST-1/1
NOTE: The characters in the suffix column indicate the part usage.
555EZST5C ..............XX..................................A...................
555UST5FD ..............XX...................................B..................
555UST5C ...............XX....................................C.................
555HRST5M ..............XX.....................................D................
555KST5E ...............XX......................................E...............
555GST5M ...............XX.......................................F..............
555VJST5M ..............XX........................................G.............
555LHST5M ..............XX.........................................H............
556EZST5M ..............XX..........................................I...........
555EZST5M ..............XX...........................................J..........
555HAS5C2M .............XX............................................K.........
559LHS5KM ..............XX.............................................L........
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
8Z-NF8-564-010 CTN,PRINTED 555EZST5FD ....................
8Z-NF8-565-010 CTN,PRINTED 556EZST5FD ....................
8Z-NF8-901-110 IB,H(ECA)M ....................
8Z-NF8-902-010 IB,LH(ESP)M ....................
8Z-NF8-903-110 IB,U(ESF)M ....................
8Z-NF8-905-010 IB,K(E)E ....................
8Z-NF8-906-010 IB,EZ(9L)E NO RDS-S555 ....................
8Z-NF8-907-010 IB,V(ER)M ....................
8Z-NF8-909-110 IB,EZ(9L)E RDS-S556 ....................
8Z-NF8-911-010 IB,H(ECA)DIS ....................
8Z-NF8-915-010 IB,G(E)M-VA .....F..............
8Z-NF8-916-010 IB,EZ(9L)M NO RDS-S555 ....................
8Z-NF8-919-110 IB,EZ(9L)M RDS-S556 ....................
8Z-NF8-927-010 IB,U(ESF)M-VA .B..................
8Z-NF8-928-010 IB,LH(ESP)M - VA .......H............
8Z-NF8-931-010 IB,K(E)E-VA ....E...............
8Z-NF8-932-010 IB,EZ(9L)E - VA(S555) ....................
8Z-NF8-933-010 IB,EZ(9L)E - VA(S556) ....................
8Z-NF8-937-010 IB,H(ECA)DIS -VA ....................
8Z-NF8-938-010 IB,H(ECA)M -VA ...D................
8Z-NF8-940-010 IB,V(ER)M-VA ......G.............
8Z-NF8-941-010 IB,EZ(9L) A...................
8Z-NF8-942-010 IB,EZ(9L)M-VA (S555) .........J..........
8Z-NF8-943-010 IB,EZ(9L)M-VA (S556) ........I...........
8Z-NF8-944-010 IB,U(ESF)S-VA ....................
8Z-NF8-946-010 IB,LH(ESP)S - VA ....................
8Z-NF8-947-010 IB,U(ESF)B-VA ..C.................
8Z-NF8-948-010 IB,LH(ESP)B- VA ....................
8Z-NF8-949-010 IB,EZ(9L)B- VA(S556) ....................
8Z-NF8-912-010 IB,LH(P)KIT ....................
8Z-NF8-913-010 IB,H(T)M-THAI KIT-VA ....................
8Z-NF8-914-010 IB,HA(KIT)M -VA ....................
8Z-NF8-920-010 IB,H(T)M-KIT ....................
8Z-NF8-923-010 IB,HA(KIT)M ..........K.........
8Z-NF8-945-010 IB,LH(P)KIT- VA ...........L........
87-006-268-010 AM-LOOP ANT NC (UN) .B..................
87-043-106-010 WIRE, FM ANT (Z) ....................
87-043-115-010 ANT,FEEDER FM .BCD..GH..KL........
87-A90-030-010 ANT,LOOP AM-NC C A.C.EFGHIJKL........
87-A90-054-010 ANT,LOOP AM-CON C ...D................
87-A90-118-010 ANT,WIRE FM (Z) A...EF..IJ..........
87-A90-119-010 ANT,WIRE SW(5M) ...D................
87-A91-017-010 PLUG,CONVERSION JT-0476 ...D...H............
8Z-NF8-701-210 RC UNIT,RC-ZAS01 AB.D..GHIJKL........
8Z-NF8-702-010 RC UNIT,RC-ZAS01 ..C.EF..............

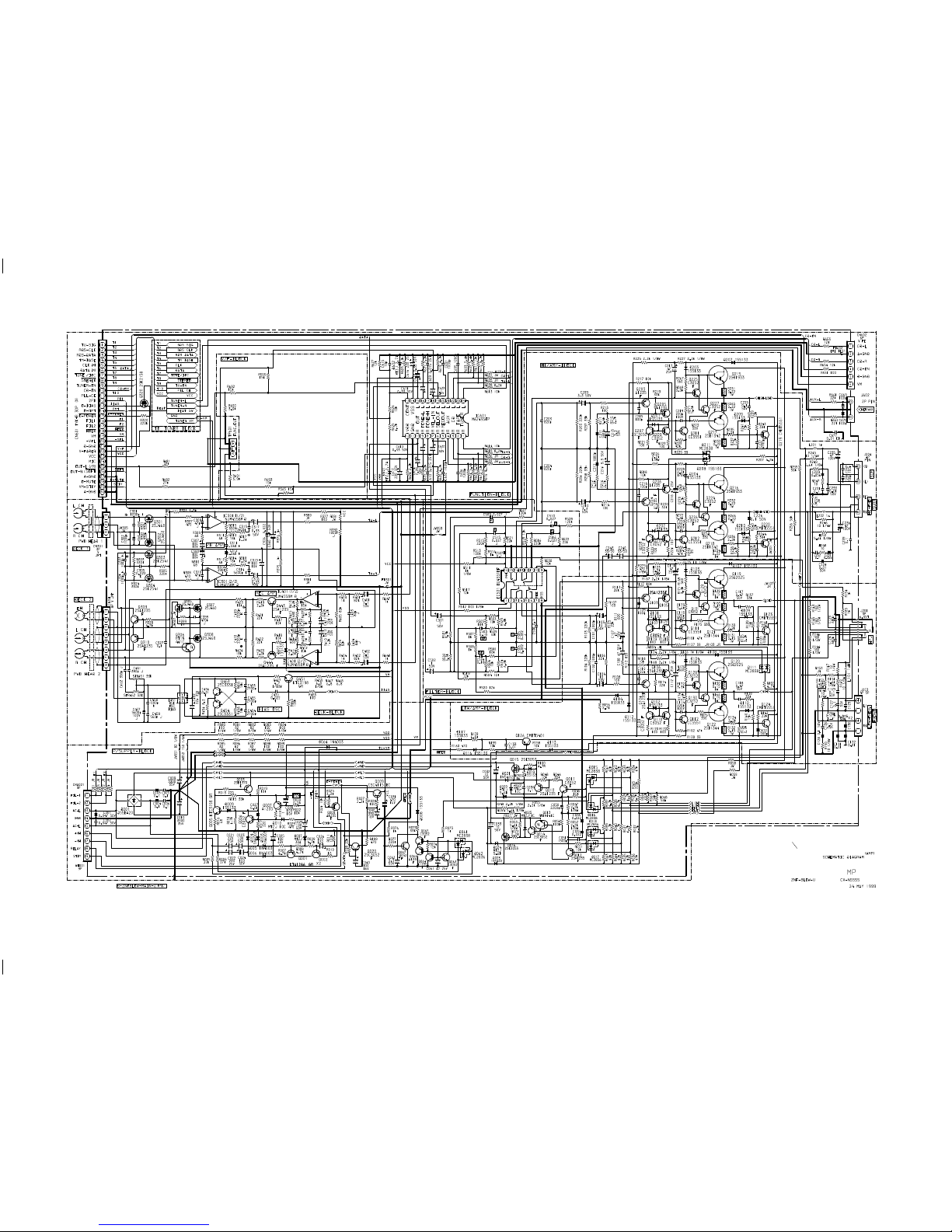

SCHEMATIC DIAGRAM _1 (MAIN)<U> 1/2

SCHEMATIC DIAGRAM _2 (MAIN)<U> 2/2

SCHEMATIC DIAGRAM _3 (PT)<U>

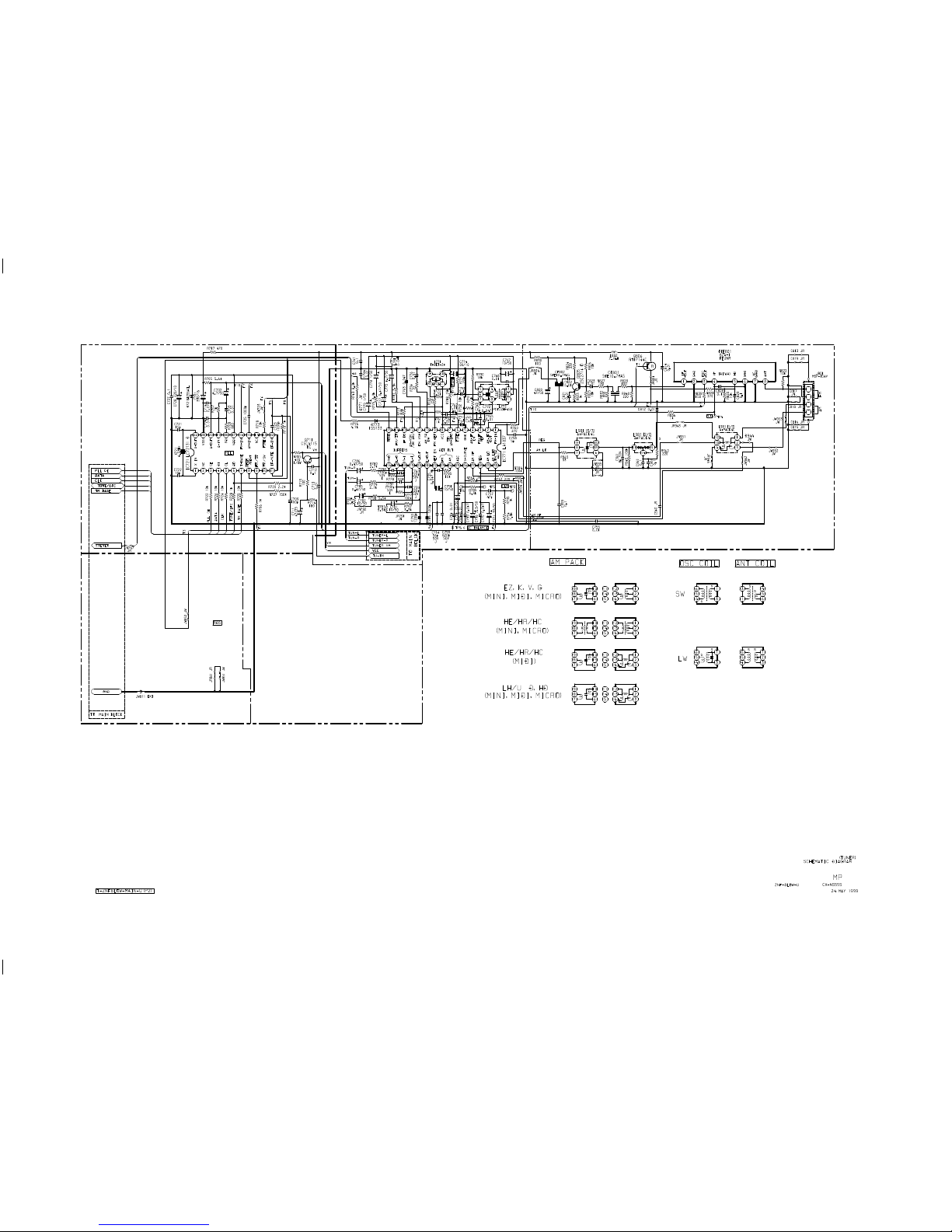

SCHEMATIC DIAGRAM _4 (FRONT)
