Aiwa NSX-MT725 User manual

For assistance and information
call toll free I-800-BUFAIWA
(United States and Puerto Rico)
8Z-NFU-903-01
990120 AMI-U-9
IilK5iE
DIGITAL AIIDICI

Owner’s record
For your convenience, record the model number and serial
number (you will find them on the rear of your set) in the space
provided below. Please refer to them when you contact your Aiwa
dealer in case of difficulty.
Model No. Serial No. (Lot No.)
ICX-NMT725 I I
ISX-NA772 I I
SX-R275
SX-C605
Read the Operating Instructions carefully and completely before
operating the unit. Be sure to keep the Operating Instructions
for future reference. All warnings and cautions in the Operating
Instructions and on the unit should be strictly folIowed, “as well
as the safety suggestions below.
installation
1
2
3
4
5
6
7
8
Water and moisture —Do not use this unit near water, such
as near abathtub, washbowl, swimming pool, or the like.
Heat —Do not use this unit near sources of heat, including
heating vents, stoves, or other appliances that generate heat.
It also should not be placed in temperatures less than 5°C
(41°F) or greater than 35°C (95”F).
Mounting surface —Place the unit on a flat, even surface.
Ventilation —The unit should be situated with adequate
space around it so that proper heat ventilation is assured.
Allow 10 cm (4 in.) clearance from the rear and the top of the
unit, and 5 cm (2 in.) from each side.
-Do not place the unit on a bed, rug, or similar surface that
may block the ventilation openings.
-Do not install the unit in abookcase, cabinet, or airtight rack
where ventilation may be impeded.
Objects and liquid entry —Take care that objects or liquids
do not get inside the unit through the ventilation openings.
Carts and stands —When placed
or mounted on a stand or cart, the
unit should be moved with care.
Quick stops, excessive force, and
uneven surfaces may cause the Q!!!! 3
AA*
unit or cart to overturn or fall.
Condensation —Moisture may form on the CD pickup lens
when:
-The unit is moved from acold spot to awarm spot
-The heating system has just been turned on
-The unit is used in avery humid room
-The unit is cooled by an air conditioner
When this unit has condensation inside, it may not function
normally. Should this occur, leave the unit for afew hours,
then try to operate again.
Wall or ceiling mounting —The unit should not be mounted
on a wall or ceiling, unless specified in the Operating
Instructions.
Electric Power
1Power sources —Connect this unit only to power sources
specified in the Operating Instructions, and as marked on the
unit.
2Polarization —As asafety feature, some units are equipped
with polarized AC power plugs which can only be inserted
one way into apower outlet. If it is difficult or impossible to
insert the AC power plug into an outlet, turn the plug over and
try again. If it still does not easily insert into the outlet, please
call aqualified service technician to service or replace the
outlet. To avoid defeating the safety feature of the polarized
plug, do not force it into apower outlet,
3AC power cord
-When disconnecting the AC power cord, pull it out by the
AC power plug. Do not pull the cord itself.
-Never handle the AC power plug with wet hands, as this
could result in fire or shock.
-Power cords should be firmly secured to avoid being severely
bent, pinched, or walked upon. Pay particular attention to
the cord from the unit to the power outlet.
-Avoid overloading AC power plugs and extension cords
beyond their capacity, as this could result in fire or shock.
2ENGLISH

4
5
Extension cord —To help prevent electric shock, do not use
apolarized AC power plug with an extension cord, receptacle,
or other outlet unless the polarized plug can be completely
inserted to prevent exposure of the blades of the plug.
When not in use— Unplug the AC power cord from the power
outlet if the unit will not be used for several months or more.
When the cord is plugged in, asmall amount of current
continues to flow to the unit, even when the power is turned
off.
Outdoor Antenna
1
2
Power lines —When connecting an outdoor antenna, make
sure it is located away from power lines.
Outdoor antenna grounding —Be sure the antenna system
is pro[perlygrounded to provide protection against unexpected
voltage surges or static electricity build-up. Article 810 of the
National Electrical Code, ANS1/NFPA 70, provides information
on proper grounding of the mast, supporting structure, and
the lead-in wire to the antenna discharge unit, as well as the
size of the grounding unit, connection to grounding terminals,
and requirements for grounding terminals themselves,
Antenna Grounding According to the National Electrical Code
T
ELECTRODE SYSTEM
(NEC ART 250 PART H)
NEC.NATIONAL ELECTRICAL COOE
Maintern~
Clean the unit only as recommended in the Operating
Instructions.
Damacw Requirina Service
Have the units serviced by aqualified service technician if:
-The AC power cord or plug has been damaged
-Foreign objects or liquid have gotten inside the unit
-The unit has been exposed to rain or water
-The unit does not seem to operate normally
-The unit exhibits amarked change in performance
-The unit has been dropped, or the cabinet has been damaged
DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.
PRECAUTIONS ...................................................................2
PREPARATIONS ———
SETTING UP .......................................................................4
REMOTE CONTROL ...........................................................7
BEFORE OPERATION ........................................................7
SOUND
AUDIO ADJUSTMENTS .................................................. 10
RHYTHM PLAY FUNCTION (BEAT MASTER 1)X).........11
GRAPHIC EQUALIZER .................................................... 15
DSP SURROUND ............................................................. 16
RADIO RECEPTION
MANUAL TUNING ............................................................ 17
PRESETTING STATIONS ................................................ 1’7
TAPE PLAYBACK
BASIC OPERATIONS ...................................................... 16
CONTINUOUS PLAY ....................................................... 19
CD PLAYING
BASIC OPERATIONS ...................................................... 2[0
PROGRAMMED PLAY ..................................................... 21
RECORDING —
BASIC RECORDING ........................................................ 2:2
DUBBING ATAPE MANUALLY ....................................... 23
DUBBING THE WHOLE ‘TAPE......................................... 23 m
Al EDIT RECORDING ...................................................... 24
PROGRAMMED EDIT RECORDING ................ .............. 2!5
DOLBY PRO LOGIC
ADJUSTING SPEAKER LEVEL BALANCE ................... 26
PLAY WITH DOLBY PRO LOGIC .................................... 2’7
KARAOKE
MICROPHONE MIXING .........m..................................... ... 2{3
KARAOKE PROGRAM ................................................ ... 2!3
CLOCK AND TIMER
SETTING THE CLOCK ....................................................... 30
SETTING THE SLEEP TIMER ..................................... ... 30
SETTING THE TIMER .................................................. ... 3’1
OTHER CONNECTIONS
CONNECTING OPTIONAL EQUIPMENT ................... ... 32
LISTENING TO EXTERNAL SOURCES ..................... ... 32
GENERAL
CARE AND MAINTENANCE ....................................... ... 33
TROUBLESHOOTING GUIDE ..................................... ... 3:3
SPECIFICATIONS ........................................................ ... 34
PARTS INDEX ................................................... Back cover
ENGLISH :3

The DOLBY PRO LOGIC system which is the biggest feature of
this stereo system provides you with multi channel sound in your
home.
Complete setting and connection of the main unit, supplied
speakers, your TV and video equipment according to the following
procedure.
Check your system and accessories
Eii!ml
CX-NMT725 Compact disc stereo cassette receiver
SX-NA772 Front speakers
SX-R275 Surround speakers
SX-C605 Center speaker
Remote control AM antenna FM antenna
Operating Instructions, etc
POSITIONING THE SPEAKERS
To achieve the optimum effects obtainable with the DOLBY PRO
LOGIC system, it is important to position the speakers properly.
Refer to the fqllowing illustration to find out the best location in
your room.
‘iCX-NMT725 ‘---’
1i2
6
@Front speakers
@Center speaker
(
Position in the center of the two ‘front speakers. In addition,
position on or below the TV set, if connecting aTV set to the
unit.
@Surround speakers
Place the surround speakers directly to the side of or slightly
behind the listening area. Align them horizontally, about 1
meter (3.2 feet) above ear height.
m
●No sound is heard from the center and surround speakers when
the DOLBY PRO LOGIC and the SURROUND system are set
to off.
●The center speaker sounds when the DOLBY PRO LOGIC is
set to on.
‘es.,.@!,,.-m.,,..~”,.,..-,$-s 8,,$,,,,,,s.,,”.~... ,.”
.,-,,,.,,”,fh,~..m,.,”-,,“..-.,s.8.-&&,,,... s,.,..
.. ........ .. .
CONNECTIONS
Before connecting the AC cord
The rated voltage of your unit shown on the rear panel is
120 VAC, Check that the rated voltage matches your local
voltage.
IMPORTANT
Connect the speakers, antennas, and all optional equipment first.
Then connect the AC cord.
There are no differences between the front speakers. Both
speakers can be connected as L(left) or R(right).
4ENGLISH

4FM antenna
Center speaker w
~Iaft s~~aker
~+7
AC cord
7Connect the supplied antennas. 3Connect the surround speakers to the main unit,
Connect the FM antenna to FM 75 Qterminals and the AM There are no differences between the surround speakers ❑
antenna to AM LOOP terminal. Connect each surround speaker cord to SIJRROUNUI
FM antenna SPEAKERS Ror Lterminal,
enna
mm
2Connect the right and left speakers to the main
unit.
Connect the right speaker cord to SPEAKERS Rterminals,
and left to SPEAKERS Lterminals.
The speaker cord with the white stripe should be connected
to 0terminal and the black cord to Oterminal.
#
Il!@$’
0,4
,.0 Q
.
.’ I
4Connect the center speaker.
Connect the center speaker cord to CENTER SPEA KEfl
terminal.
5Connect the video equipment.
Connect VIDEO/AUX jack of this unit to the audit, output jack
of the video equipment with an optional audio connecting cord,,
6Connect the Television to the video equipment.
Refer to the Operating Instructions of the connected equipment
for details.
7Connect the AC cord to an AC outlet.
“The game Demo will begin when the AC corcl is pluggecl
into an AC outlet. See page 9 “Game Demo” for details.
IENGLI!;H :)

To position the antennas
FM feeder antenna:
Extend this antenna horizontally in aT-shape and fix its ends to
the wall.
AM antenna:
Position to find the best possible reception.
To stand the AM antenna on asurface
Fix the claw to the slot.
m
●Be sure to connect the speaker cords correctly. Improper
connections can cause short circuits in SPEAKERS terminals.
cDo not leave obiects generating magnetism, such as credit
To mount the surround speakers on the wall
Mount each speaker on a soot that can hold its weight.
For better FM reception, use of an outdoor antenna is
recommended.

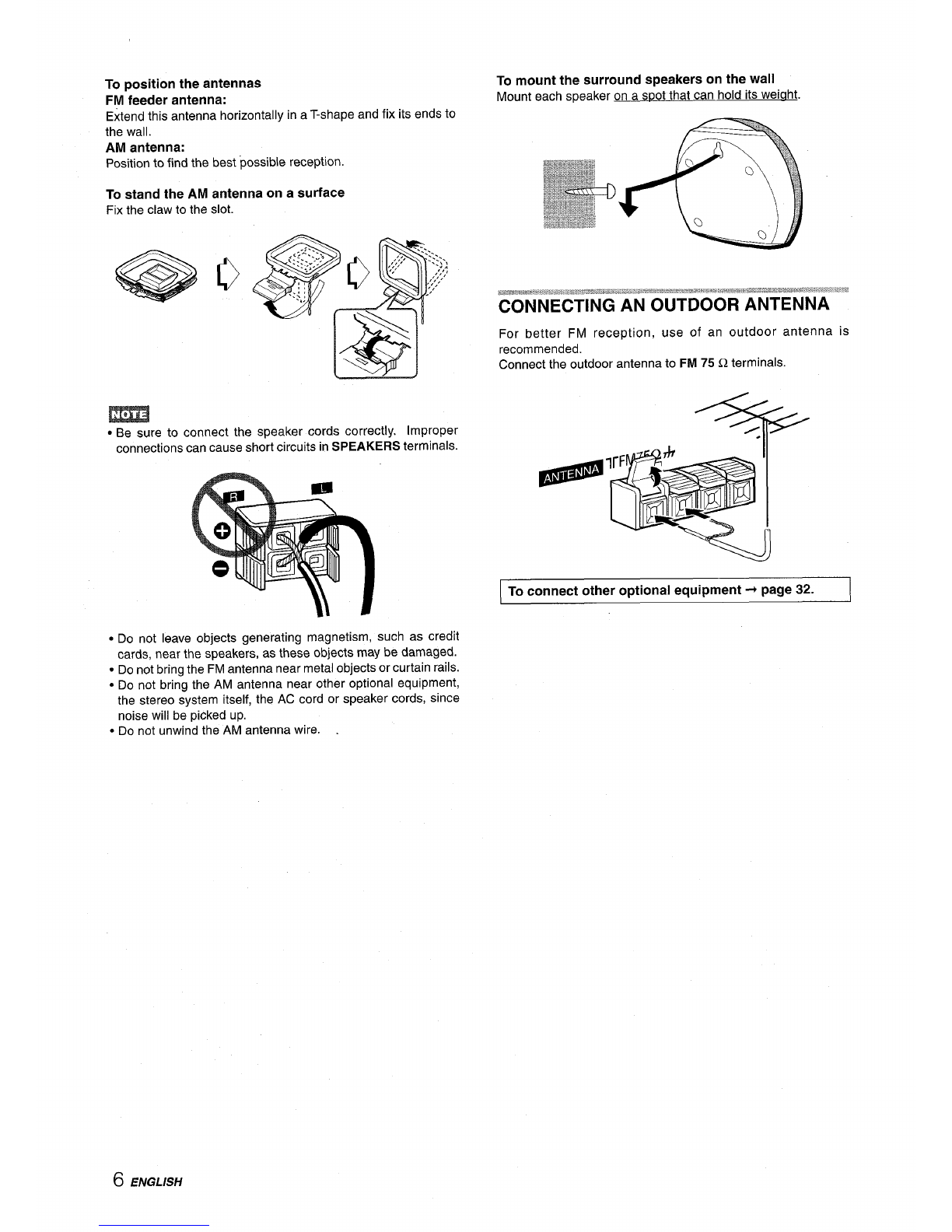

Connect the outdoor antenna to FM 75 Qterminals.
3’
-+% /.
To connect other optional equipment +page 32.
cards, near the speake;s, as the~e objects may be damaged.
.Do not bring the FM antenna near metal objects or curtain rails.
●Do not bring the AM antenna near other optional equipment,
the stereo system itself, the AC cord or speaker cords, since
noise will be picked up.
●Do not unwind the AM antenna wire. .
6ENGLISH

Inserting batteries
Detach the battery cover on the rear of the remote control
insert two R6 (size AA) batteries.
R6(AA)
When to replace the batteries
and
The maximum operational distance between the remote control
and the sensor on the main unit should be approximately 5meters
(16 feet). When this distance decreases, replace the batteries
with new ones.
Using the remote control
The instructions in this manual refer mainly to the buttons on the
main unit. Buttons on the remote control with the same names
as those on the main unit can be used as well.
-/<> PRESET on the remote control
The function is the same as that of +> on the main unit.
●If the remote control is not going to be used for an extended
period of time, remove the batteries to prevent possible
electrolyte leakage.
●The remote control may not operate correctly when:
-The line of sight between the remote control and the remote
sensor inside the display window is exposed to intense light,
such as direct sunlight
-Other remote controls are used nearby (those of atelevision,
etc.)
CD~
TAPE
To turn the power on
Press one of the function buttons (TAPE/DECKl/’2, TUNER/
BAND, VIDEO/AUX, CD, MD). Playback of the inserted disc or
tape begins, or the previously tuned station is received (Direct
Play Function),
POWER is also available,
m
When the power is turned on, the disc compartment may open
and close to reset the unit.
To turn the power off
Press POWER.
Flash window
The window on the top of the unit lights up or flashes while the
unit is being powered on,
To turn off the light of the top window, press ,whale pressing
CD. To turn back on, repeat the above.
Toturn off the light of the cassette decks, press ■while pressing
TAPE. To turn back on, repeat the above.
To change the brightness level of the display
1Press ECO so that “ECO MODE” is displayed.
2Within 4seconds, turn MULTI JOG to display“DIM MODE,
and then press ENTER within 4seconds.
3Within4seconds,turn MULTI JOG to select the dimmermode
as below.
The mode will be automatically set after4 seconds. It will also
be set if ENTER is pressed within 4seconds after step 3.
~DIM-OFF*DIMMER 1~DlMMER2+D[lMMER3~
DIM-OFF: The normal display.
DIMMER 1: The illumination of the display is dimmer than
usual.
DIMMER 2: The illumination of the display is dimmer than
DIMMER 1.
DIMMER 3: The illumination of the display is dimmer than
DIMMER 2. The spectrum analyzer, the window on the top of
the unit, and the button lamps light off.
If the timer recording (page 31)is done with the economizing
mode (page 8) set to “ON” and the power turns off, the dimmer
mode will be set to “DIMMER 3the next time the power is
turned on.
ENGLISH 7

cacx30-
CLOCK
l— m
SETTING POWER ECONOMIZING MODE
Setting this unit to power economizing mode reduces power
consumption as follows.
●When the power is turned off, all the display lightsturn off.
However, if the clock is not set, the game Demo (page 9) will
begin when the power is turned off.
●if CD, Tape or Rhythm play function (page 11) does not play for
10 minutes or if there is no audio input from any connected
external equipment for 10 minutes when VIDEO/AUX or MD is
selected as the source, the power shuts off.
●When the power turns on due to timer recording (page 31), the
display brightness level is set to “DIMMER 3(page 7), all button
lamps are off, and the volume is set to the minimum level (0).
●The display brightens only when operating the unit. When the
unit has not been used for 10 seconds, the brightness level
switches to the mode previously selected in “DIM MODE. (Page
7)
(If the display brightness level is set to “DIM-OFF”, the
brightness does not change. When the level is “DIMMER 3,
1Press ECO.
“ECO MODE will be displayed.
2Press ENTER within 4seconds.
The current power-economizing mode status will be displayed.
If the power-economizing mode is OFF: ECO OFF
If the power-economizing mode is ON: ECO ON
3Turn MULTI JOG within 4seconds to switch the
power-economizing mode on or off.
Example: When “ON” is selected
The mode will be automatically set after 4seconds. It will also
be set if ENTER is pressed within 4seconds after step 3.
m
Toview the clock when all the display lights turn off, press CLOCK
so that the time is displayed for 4seconds.
the button lamps are also turned off.)
8ENGLISH

II
1-i
;_. iH
When you only plug the AC power cord for the first time after
purchase, the game automatically comes on. This initial state is
disabled once you set the built-in clock. As long as you leave the
clock intact, the game automatically comes on when switching
off power.

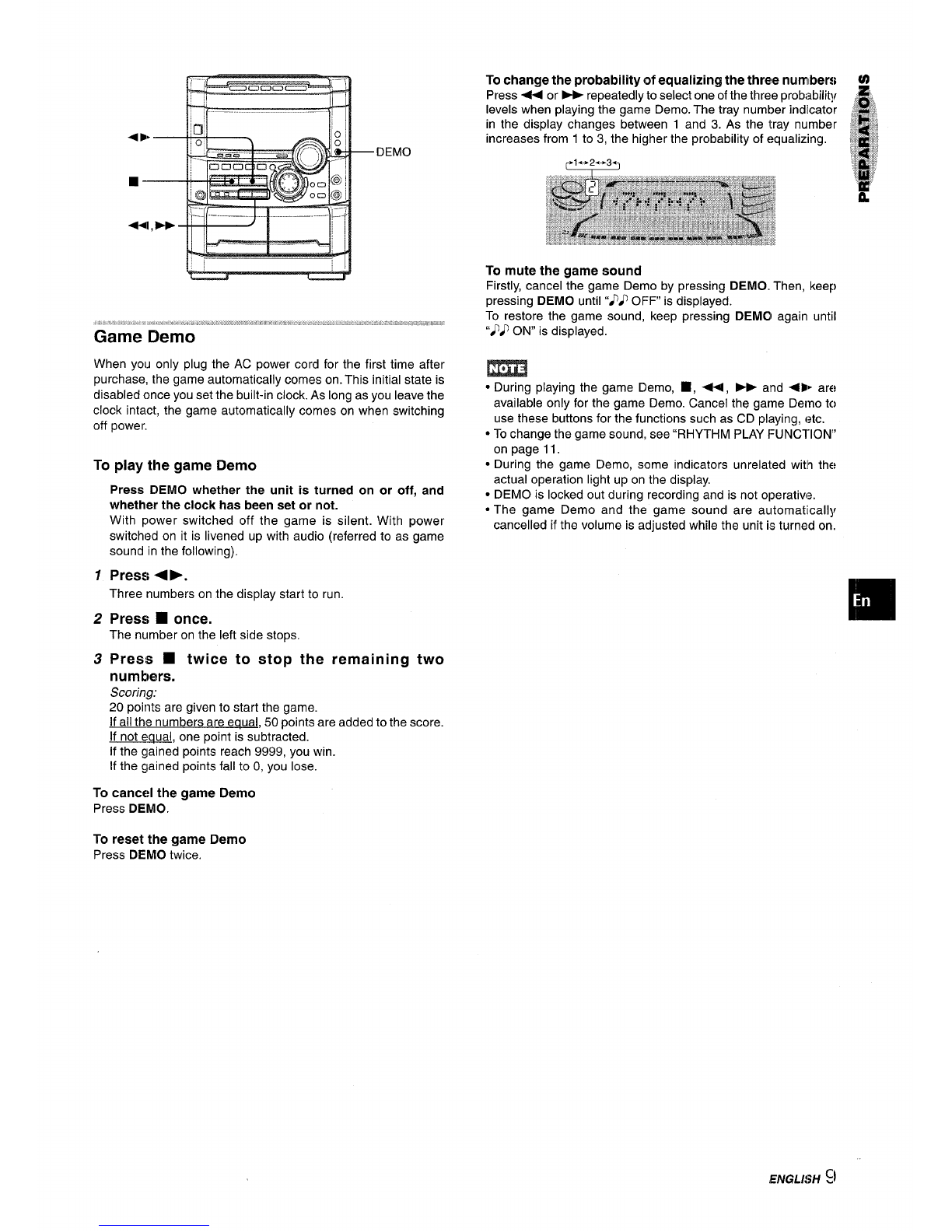

To Dlav the game Demo
To change the probabilityof equalizing the thre!enumlbers
Press 44 or -repeatedly to select one of the three probability
levels when playing the game Demo. The tray number indicator
in the display changes between 1 and 3. As the tray number
increases from 1to 3, the higher the probability of equalizing.
To mute the game sound
Firstly,cancel the game Demo by pressing DEMO. Then, keep
pressing DEMO until“~~ OFF is displayed.
To restore the game sound, keep pressing DEMOI again until
“)) ON” is displayed.
m
cDuring playing the game Demo, W, +, Wand +DF are
available only for the game Demo. Cancel the game Demo tc)
use these buttons for the functions such as CD playing, etc.
●To change the game sound, see “RHYTHM PLAY I=UNCl-lON”
on page 11.
●During the game Demo, some indicators unrelated with the
1
2
3
. .
Press DEMO whether the unit is turned on or off, and actual operation light up on the display.
●DEMO is locked out during recording and is not operative.
whether the clock has been set or not. ●The game Demo and the game sound are automatically
With power switched off the game is silent. With power cancelled if the volume is adjusted while the unit is turned on,
switched on it is livened up with audio (referred to as game
sound in the following).
Press <b.
Three numbers on the display start to run.
Press ■once.
The number on the left side stops,
Press ❑twice to stop the remaining two
numbers.
Scoring:
20 points are given to start the game.
if all the numbers are eaual, 50 points are added to the score.
If not eaual, one point is subtracted.
If the gained points reach 9999, you win.
If the gained points fall to O,you lose.
To cancel the game Demo
Press DEMO.
To reset the game Demo
Press DEMO twice.

VOLUME
Turn VOLUME on the main unit, or press VOL on the
remote control.
The volume level is displayed as anumber from Oto MAX (50).
The volume level is automatically set to 20 when the power is
turned off with the volume level set to 21 or more.
To change the Ieft/right balance
Press MANUAL SELECT onthe remotecontrol.L/R isdisplayed
for 4seconds. Press +4 DOWN or -UP onthe remotecontrol
within these 4seconds.
●The DOLBY PRO LOGIC (page 26) front speakers level is also
changed.
BBE SYSTEM
The BBE system enhances the clarity of high-frequency sound.
It also enriches the Karaoke function to make your voice sound
clear and pleasant,
Press BBE.
Each time it is pressed, the level changes. Select one of the
three levels, or the off positionto suit your preference.
SUPER T-BASS SYSTEM
The T-BASS system enhances the realism of low-frequency
sound,
Press T-BASS.
Each time it is pressed, the level changes. Select one of the
three levels, or the off position to suit your preference.
●Low frequency sound may be distorted when the T-BASS
system is used for adisc or tape in which low frequency sound
is originally emphasized. In this case, cancel the T-BASS
system.
●When playing back atape recorded with BBE, it is
recommended that BBE be set to off to avoid distorted high
frequency sound,
10 ENGUSH

This unit has alibrary of rhythm patterns from which you can
select the desired one to add to the playback of any music
sources, thus allowing you to create your original sounds.
The mix created with the BEAT and BBE functions can be
recorded on tape if you want to. Also, the mix is available at LINE
OUT.
m
The BEA-r function is not available when making atape copy
between two tape decks using SYNC DUB.
To select arhythm pattern
1Press BEAT ON/OFF to switch the function on.
You’ll hear the current rhythm pattern, the display showing
the name of the rhythm.
2Turn MULTI JOG to cycle through the options
provided until you find one that meets the music.
The display will change as follows:
GAME_H. ROCK1-2
$(HARD ROCK)
TANGO $
tBOSSANOV
WALTZ 1-2 (BOSSA NOVA)
t{
4BEAT 1-2 SAMBA 1-4
t
{
CUB RMBA
8BEAT 1-2 (CUBAN RUMBA)
{t
16 BEAT 1-3 SALSA 1-3
{!
MERENG 1-3 SL RMBA 1-2
(MER:NGUE) (SLOW4RUMBA)
+
REGGAE —AFkO
To adjust the tempo of the rhythm pattern
MULTI JOG 13EAT
ON/OFF
1Press RHYTHM repeatedly until the display reads
“Tempo XXX.”
m
If “AUTO shows while you are pressing RHYTHM, change it tc)
“MANUAL’ by tuning MULTI JOG to the left. In AUTO mode the
tempo is automatically set and you cannot access the display of
“Tempo.” (More about AUTO mode later,)
2Turn MULTI JOG.
Turning to the right speeds up the tempo. Turning to the left
slows down the tempo.
(If atime-out occurs before you turn the dial, go back to the
display of “Tempo” by pressing RHYTHM. )
The tempo can be changed within the limits of 81 to 160. m
m
The tempo of GAME is not adjustable.
These voice wave data incorporated in this product are Yamaha
Corporation’s copyrightable property and we are licensed by
Yamaha Corporation.
ENG/.JSH 11

To change the volume level of the rhythm pattern
1Press RHYTHM repeatedly until the display reads
“LEVEL X.”
2Turn MULTI JOG.
Three levels, 1-3, are available.
To stop the BEATfunction
Press BEAT ON/OFF.
BEAT toggles between On and Off.
When you interrupt or stop the playback of the sound source,
the BEAT function is automatically switched off.
12 ENGLISH

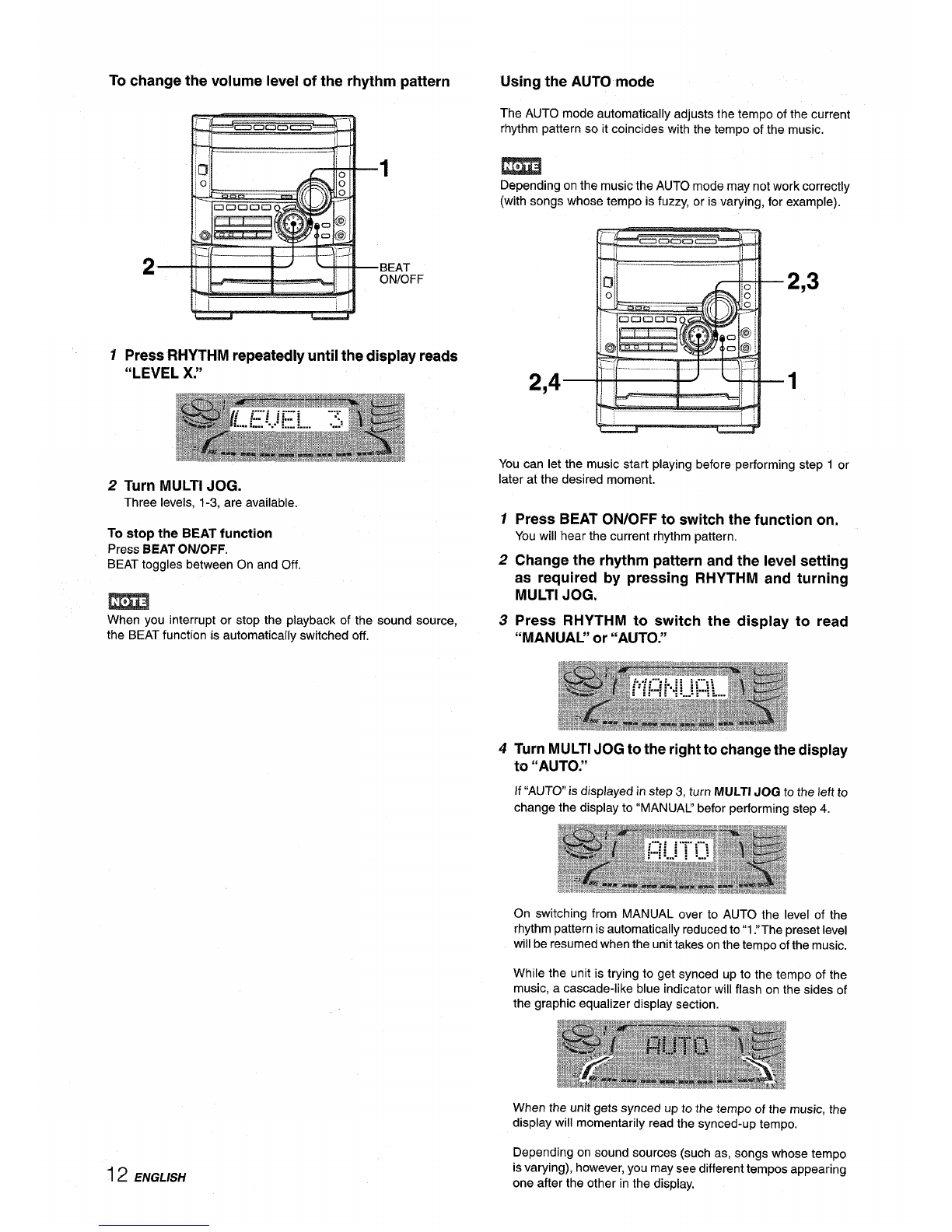

Using the AUTO mode
The AUTO mode automatically adjusts the tempo of the current
rhythm pattern so it coincides with the tempo of the music.
Depending on the music the AUTO mode may not work correctly
(with songs whose tempo is fuzzy, or is varying, for example).
2,4
2,3
II‘-’k[1
------ . .,.,—— -t,
H
You can let the music start playing before performing step 1or
later at the desired moment.
1
2
3
4
Press BEAT ON/OFF to switch the function on,
You will hear the current rhythm pattern.
Change the rhythm pattern and the level setting
as required by pressing RHYTHM and turning
MULTI JOG,
Press RHYTHM to switch the display to read
“MANUAL” or “AUTO.”
Turn MULTI JOG to the right to change the display
to “AUTO.”
If “AUTO” is displayed in step 3, turn MULTI JOG to the left to
change the display to “MANUAL’ befor performing step 4.
On switching from MANUAL over to AUTO the level of the
rhythm pattern is automatically reduced to”1 .“The preset level
will be resumed when the unit takes on the tempo of the music.
While the unit is trying to get synced up to the tempo of the
music, acascade-like blue indicator will flash on the sides of
the graphic equalizer display section.
When the unit gets synced up to the tempo of the music, the
display will momentarily read the synced-up tempo.
Depending on sound sources (such as, songs whose tempo
is varying), however, you may see different tempos appearing
one after the other in the display.

After once synced up if the sync lock unlocks the display will
read “BEAT OUT,” and again the unit will try to get synced up.
At the occurrence of BEAT OUT the level of the rhythm is
automatically reduced to”1”; and it increases back to the preset
level when sync is achieved again.
m
The BEAT function can be used together with the SPICE A/B
function, as well as with the FILL IN function. (For these functions
see below.) But you cannot use the AUTO SPICE function at the
same time as the BEAT function.

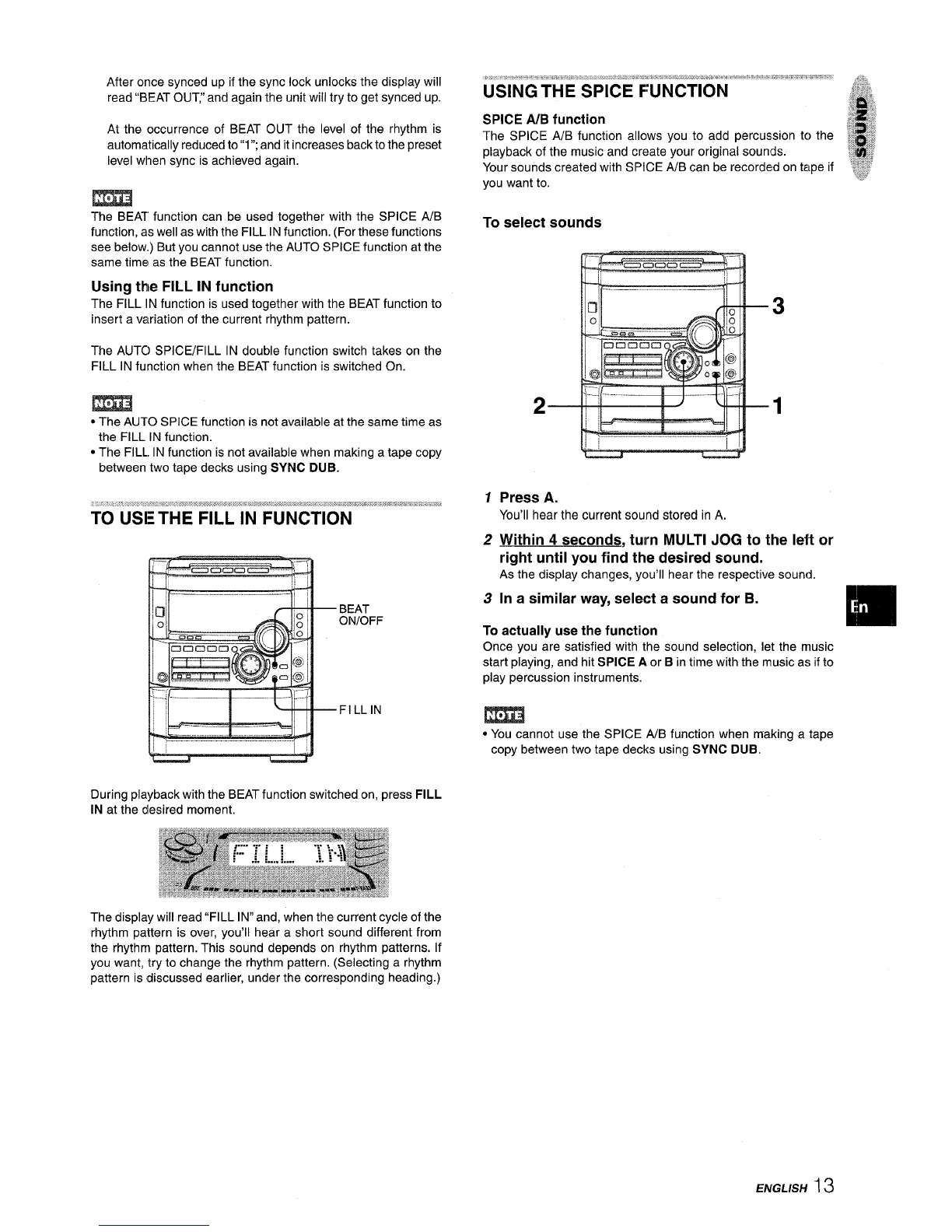

Using thle FILL IN function
The FILL IN function is used together with the BEAT function to
insert avariation of the current rhythm pattern.
The AUTC) SPICE/FILL IN double function switch takes on the
FILL IN function when the BEAT function is switched On.
●The AUTO SPICE function is not available at the same time as
the FILL IN function.
●The FILL.IN function is not available when making atape copy
between two tape decks using SYNC DUB.
BEAT
ONIOFF
.FILLIN
During playback with the BEAT function switched on, press FILL
IN at the desired moment.
SPICE A/B function
The SPICE A/B function allows you to add percussion to the
playback of the music and create your original sounds.
Your sounds created with SPICE A/B can be recorded on tape if
you want to.
To select sounds
1
2
3
3
II \Pw=w==%imm
;---- ----
Press A.
You’ll hear the current sound stored in A.
Within 4seconds, turn MULTI JOG to the Ielt or
right until you find the desired sound.
As the display changes, you’ll hear the respective sound.
In asimilar way, select asound for B.
To actually use the function
Once you are satisfied with the sound selection, let the music
start playing, and hit SPICE Aor Bin time with the music as if to
play percussion instruments.
m
●You cannot use the SPICE AIB function when making atape
copy between two tape decks using SYNC DUB.
The display will read “FILL IN” and, when the current cycle of the
rhythm pattern is over, you’ll hear ashort sound different from
the rhythm pattern. This sound depends on rhythm patterns. If
you want, try to change the rhythm pattern. (Selecting arhythm
pattern is discussed earlier, under the corresponding heading.)
ENGLISH13

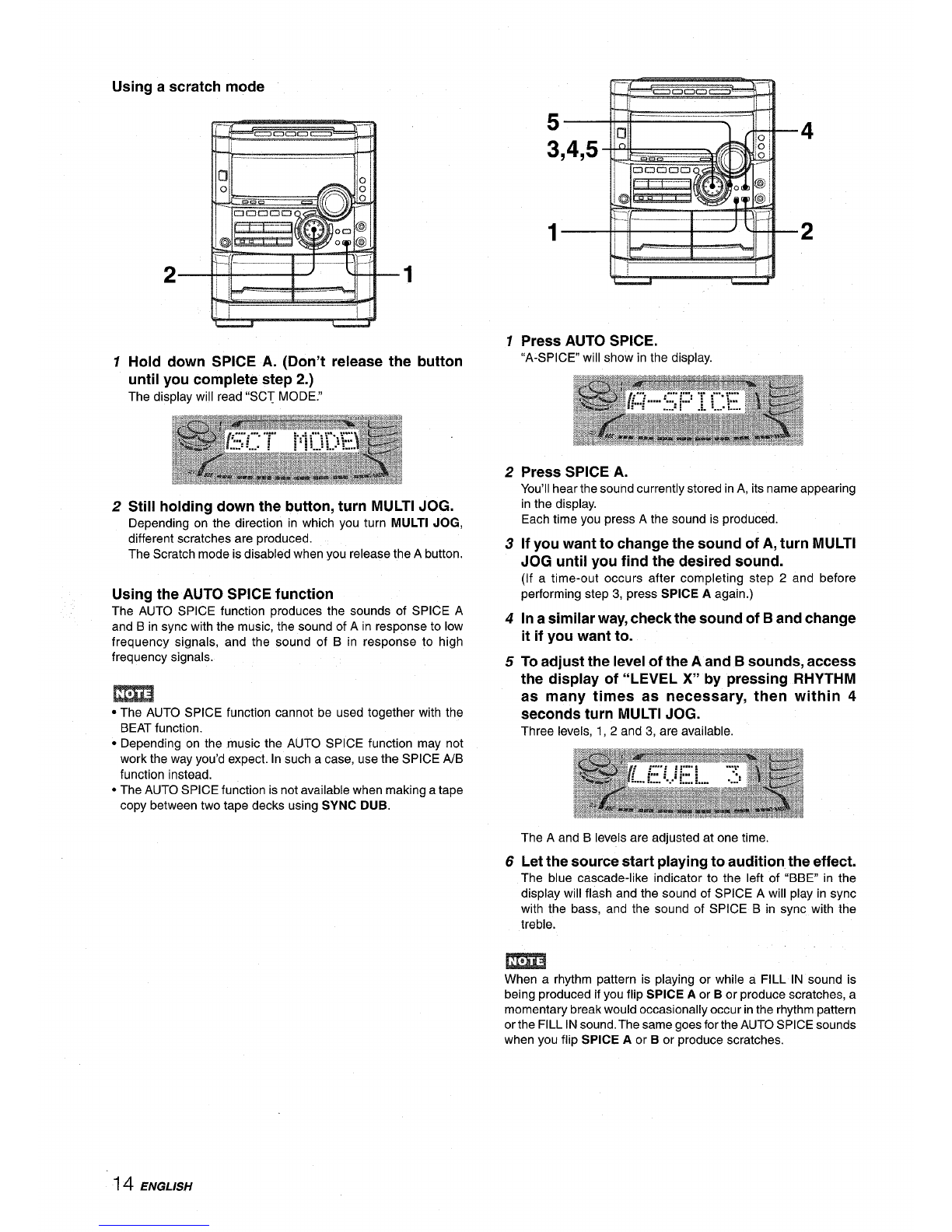

Using ascratch mode
0000-
1l&—
1
7Hold down SPICE A. (Don’t release the button
until you complete step 2.)
The display will read “SCT MODE.”
2Still holding down the button, turn MULTI JOG.
Depending on the direction in which you turn MULTI JOG,
different scratches are produced.
The Scratch mode is disabled when you release the Abutton.
Using the AUTO SPICE function
The AUTO SPICE function produces the sounds of SPICE A
and Bin sync with the music, the sound of Ain response to low
frequency signals, and the sound of Bin response to high
frequency signals.
●The AUTO SPICE function cannot be used together with the
BEAT function.
●Depending on the music the AUTO SPICE function may not
work the way you’d expect. In such acase, use the SPICE A/B
function instead.
●The AUTO SPICE function is not available when making atape
copy between two tape decks using SYNC DUB.
“4
“2
1
2
3
4
5
6
Press AUTO SPICE.
“A-SPICE” will show in the display.
Press SPICE A.
You’ll hear the sound currently stored in A, its name appearing
in the display.
Each time you press Athe sound is produced.
If you want to change the sound of A, turn MULTI
JOG until you find the desired sound.
(If atime-out occurs after completing step 2 and before
performing step 3, press SPICE Aagain.)
In asimilar way, check the sound of Band change
it if you want to.
To adjust the level of the Aand Bsounds, access
the display of “LEVEL X“ by pressing RHYTHM
as many times as necessary, then within 4
seconds turn MULTI JOG.
Three levels, 1, 2 and 3, are available.
The Aand Blevels are adjusted at one time.
Let the source start playing to audition the effect.
The blue cascade-like indicator-to the left of “BBE in the
display will flash and the sound of SPICE Awill play in sync
with the bass, and the sound of SPICE Bin sync with the
treble.
When arhythm pattern is playing or while aFILL IN sound is
being produced if you flip SPICE Aor Bor produce scratches, a
momentary breakwould occasionally occur in the rhythm pattern
or the FILL IN sound. The same goes for the AUTO SPICE sounds
when you flip SPICE Aor Bor produce scratches.
14 ENGLISH

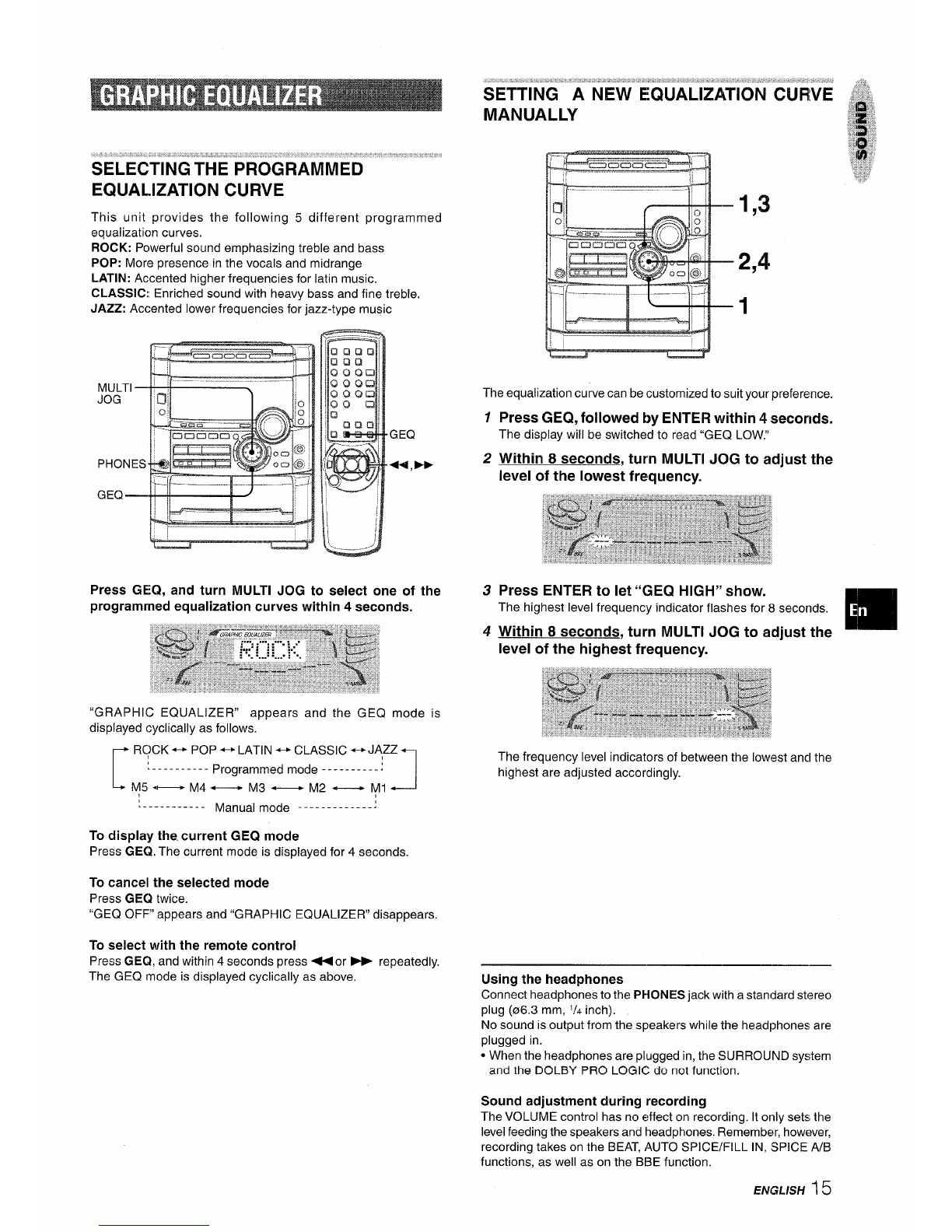

SELECTING THE PROGRAMMED
EQUALIZATION CURVE
This unit provides the following 5different programmed
equalization curves.
ROCK: Powerful sound emphasizing treble and bass
POP: More presence in the vocals and midrange
LATIN: Accented higher frequencies for Iatin music.
CLASSIC: Enriched sound with heavy bass and fine treble,
JAZZ: Accented lower frequencies for jazz-type music
GEQ
+4, W
Press GEQ, and turn MULTI JOG to select one of the
programmed equalization curves within 4seconds.
“GRAPHIC EQUALIZER” appears and the GEQ mode is
displayed cyclically as follows.
c’
RC)CK~POP ~LATIN+ CLASSIC ++ JA,ZZ
.---------- Programmed mode -----------
M5 —M4— M3 —M2 —Ml J
‘----------- Manual mode -------------:
To display the, current GEQ mode
Press GEQ. The current mode is displayed for 4seconds.
To cancel the selected mode
Press GEQ twice.
“GEQ OFF” appears and “GRAPHIC EQUALIZER disappears.
To select with the remote control
Press GEC2,and within 4seconds press +or ~repeatedly.
The GEQ mode is displayed cyclically as above.
SETTING ANEW EQUALIZATION CURVE
MANUALLY
1,3
2,4
1
The equalization curve can be customized to suit your preference.
1
2
3
4
Press GEQ, followed by ENTER within 4:seconds.
The display will be switched to read “GEQ LOW.”
Within 8seconds, turn MULTI JOG to adjust the
level of the lowest frequency.
Press ENTER to let “GEQ HIGH” show.
The highest level frequency indicator flashes for 8seconds.
Within 8seconds, turn MULTI JOG to adjust the m
level of the highest frequency.
The frequency level indicators of between the lowest ancl the
highest are adjusted accordingly.
Using the headphones
Connect headphonesto the PHONES jack with astandard stereo
plug (rz6,3 mm, 1/4 inch).
No sound is output from the speakers while the headphones are
plugged in.
●When the headphones are plugged in, the SURROUND system
and the DOLBY PRO LOGIC do not function.
Sound adjustment during recording
The VOLUME control has no effect on recording. It only sets the
levelfeeding the speakers and headphones. Remember, however,
recording takes on the BEAT, AUTO SPICE/FILL IN, SPICE A/B
functions, as well as on the BBE function.
ENGLISH15

IOCYOKJC=2
1,2,4
1,3
1
$’ ,1
I\
Up to 5customized equalization curves can be stored as the
manual modes Ml -M5.
1
2
3
4
Go through steps 1-4 on previous page.
The created curve is displayed for 8seconds.
Within 8seconds, press ENTER.
“M 1” flashes on the display for 8seconds.
. If this step is not completed within 8seconds, press GEQ
first to display “GEQ ON”. Then within 4seconds press
ENTER repeatedly until“Ml” flashes.
Within 8seconds, turn MULTI JOG to select one
of the manual modes Ml -M5 to store the curve.
Within 8seconds, press ENTER.
The new equalization curve is stored.
To select the stored equalization curve
Press GEQ, and turn MULTI JOG to select one of the manual
modes Ml -M5 within 4seconds.
To adjust the volume of the surround speakers
Press MANUAL SELECT twice on the remote controlwhile DSP
SURROUND mode is on.
“SUR is displayed for 4seconds. Press++ DOWN or -UP
on the remote controlwithin these 4seconds.
●The DOLBY PRO LOGIC (page 26) surround speakers level is
also changed.
m
The SURROUND mode is canceled when:
-the ECHO level is changed.
-the DOLBY PRO LOGIC is turned on.
-the headphones are plugged in.
The DSP (Digital Signal Processor) SURROUND adjusts the
delay time, the input mode and the feedback level to give a
resonant surround sound, allowing you to enjoy the real sound
presence of different environments.
This unit has been programmed with 5different SURROUND
modes.
SURROUND MODE
SURROUND
SURROUND
Five modes of DSP SURROUND offer the sound presence you’d
experience in disco (DISCO), at alive concert (LIVE), stadium
(STADIUM), in aconcert hall (HALL) or movie theater (MOVIE).
(Shown in parentheses are indications appearing in the display.)
Press SURROUND, and turn MULTI JOG or press
+or >repeatedly to select the desired
programmed mode within 4seconds.
“DSP SURROUND” appears and the DSP SURROUND mode is
displayed cyclically as follows.
DISCO— LIVE —STADIUM— HALL— MOVIE
Equalization curves are selected automatically to match the DSP
SURROUND modes and can also be manually selected or turned
off to suit your preference.
To display the current DSP SURROUND mode
Press SURROUND. The currentmode isdisplayedfor4seconds.
To cancel the selected mode
Press SURROUND twice. “DSP OFF” appears and “DSP
SURROUND disappears.
When the music source is monaural
Select ‘(LIVE, “STADIUM” or “MOVIE to obtain asimulated stereo
effect.
When “DISCO or “HALL’ is
from the surround speakers. selected, no sound will be heard
16 ENGLISH

MONO
TUNER
TUNER
BAND
1
2
J
Press TUNER/BAND repeatedly to select the
desired band.
FM — AM 1
When TUNER/BAND is pressed while the power is off, the
power is turned on directly.
Press 4DOWN or >UP to select astation.
Each time the button is pressed, the frequency changes.
When astation is received, “TUNE” is displayed for 2seconds,
During FM stereo reception, (11011)is displayed.
([(cm]) TUNE
To searclh for astation quickly (Auto Search)
Keep +-4 DOWN or *UP pressed until the frequency starts
to change rapidly, After tuning in to astation, the search stops.
To stop the Auto Search manually, press++ DOWN or -UP.
*The AutoSearch maynotstopat stationswithveryweak signals.
When an FM stereo broadcast contains noise
Press MONO TUNER on the remote control so that “MONO
appears on the display.
Noise is reduced, although reception is monaural.
To restore stereo reception, repeat the above so that “MONO”
disappears.
To change the AM tuning interval
The default setting of the AM tuning interval is 10 kHz/step, If
you use this unit in an area where the frequency allocation system
is 9kHz/step, change the tuning interval,
Press POWER while pressing ●>.
To reset the interval, repeat this procedure.
m
When the AM tuning interval is changed, all preset stations are
cleared. The preset stations have to be set again.
The unit can store atotal of 32 preset stations. When astation is
stored, apreset number is assigned to the station. Use the preset
number to tune in to apreset station directly.
1Press TUNER/13AND to select aband, and press
<< DOWN or >UP to select astaticm.
2Press 11 SET to store the station.
Apreset number beginning from 1in consecutive order for
each band is assigned to the station.
Preset number
3Repeat steps 1and 2.
The next station will not be stored if atotal of 32 preset stations
for all the bands have already been stored.
m
“FULL’ is displayed if you attempt to store more than 32 preset
stations,
1
2
Press TUNER/BAND to select aband.
Press numbered buttons O-9 and +10 to select a
preset number.
Example:
To select preset number 20, press +10, +10 and O.
To select preset number 15, press +10 and 5.
Selecting apreset number on the main unit
Press TUNER/BAND to select aband. Then, press +>
repeatedly or turn MULTI JOG.
Each time ●bis pressed, the next ascending number is
selected.
To clear apreset station
Selectthe preset numberofthe stationto be cleared.Then, press
❑CLEAR, and press II SET within 4seconds.
The preset numbers of all other stations in the band with higher
numbers are also decreased by one. A-,,
ENGLISH !/

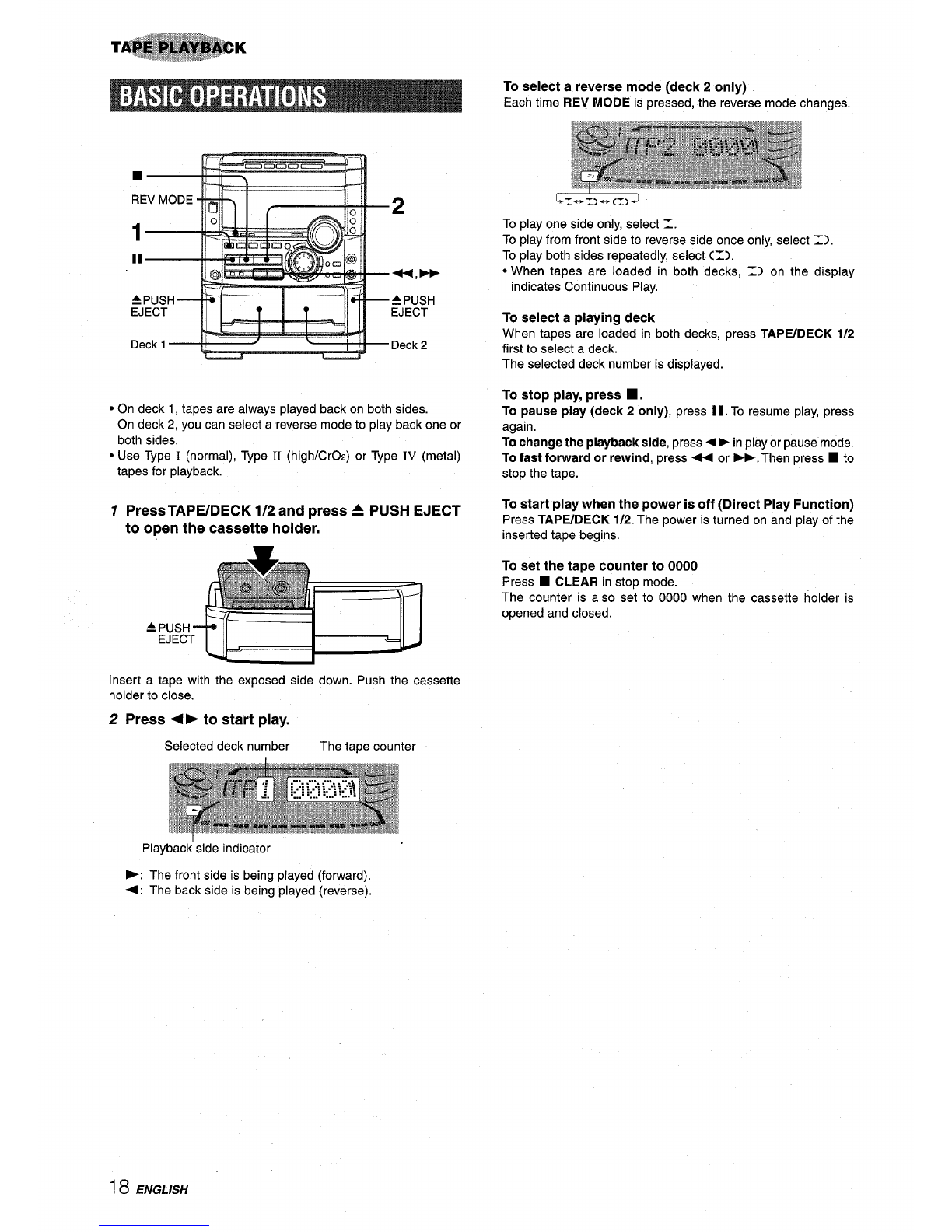

To select areverse mode (deck 2only)
Each time REV MODE is pressed, the reverse mode changes.
2To play one side only, select =.
To play from front side to reverse side once only, select Z).
To play both sides repeatedly, select (Z).
*,W ●When tapes are loaded in both decks, Z) on the display
indicates Continuous Play.
APUSH
EJECT To select aplaying deck
When tapes are loaded in both decks, press TAPE/DECK 1/2
Deck 2first to select adeck.
The selected deck number is displayed.
To stop play, press H.
●On deck 1, tapes are always played back on both sides. To pause play (deck 2only), press 11. To resume play, press
On deck 2, you can select areverse mode to play back one or again.
both sides. To change the playback side, press< ➤inplayorpause mode.
“Use Type I(normal), Type II (high/CrOz) or Type IV (metal) To fast forward or rewind, press +or -. Then press ■to
tapes for playback. stop the tape.
7Press TAPE/DECK 1/2 and press APUSH EJECT
to open the cassette holder.
=pE
To start play when the power is off (Direct Play Function)
Press TAPHDECK 1/2. The power is turned on and play of the
inserted tape begins.
To set the tape counter to 0000
Press ■CLEAR in stop mode.
The counter is also set to 0000 when the cassette holder is
opened and closed.
Insert atape with the exposed side down. Push the cassette
holder to close.
2Press +> to start play.
Selected deck number The tape counter
F: The front side is being played (forward).
<: The back side is being played (reverse).
18 ENGLISH

,., ,, .$. . . . ...” .~.”.~.~.~$. 8“.$8.. .“” -..~.~” ....’.”!”. :..!.ib

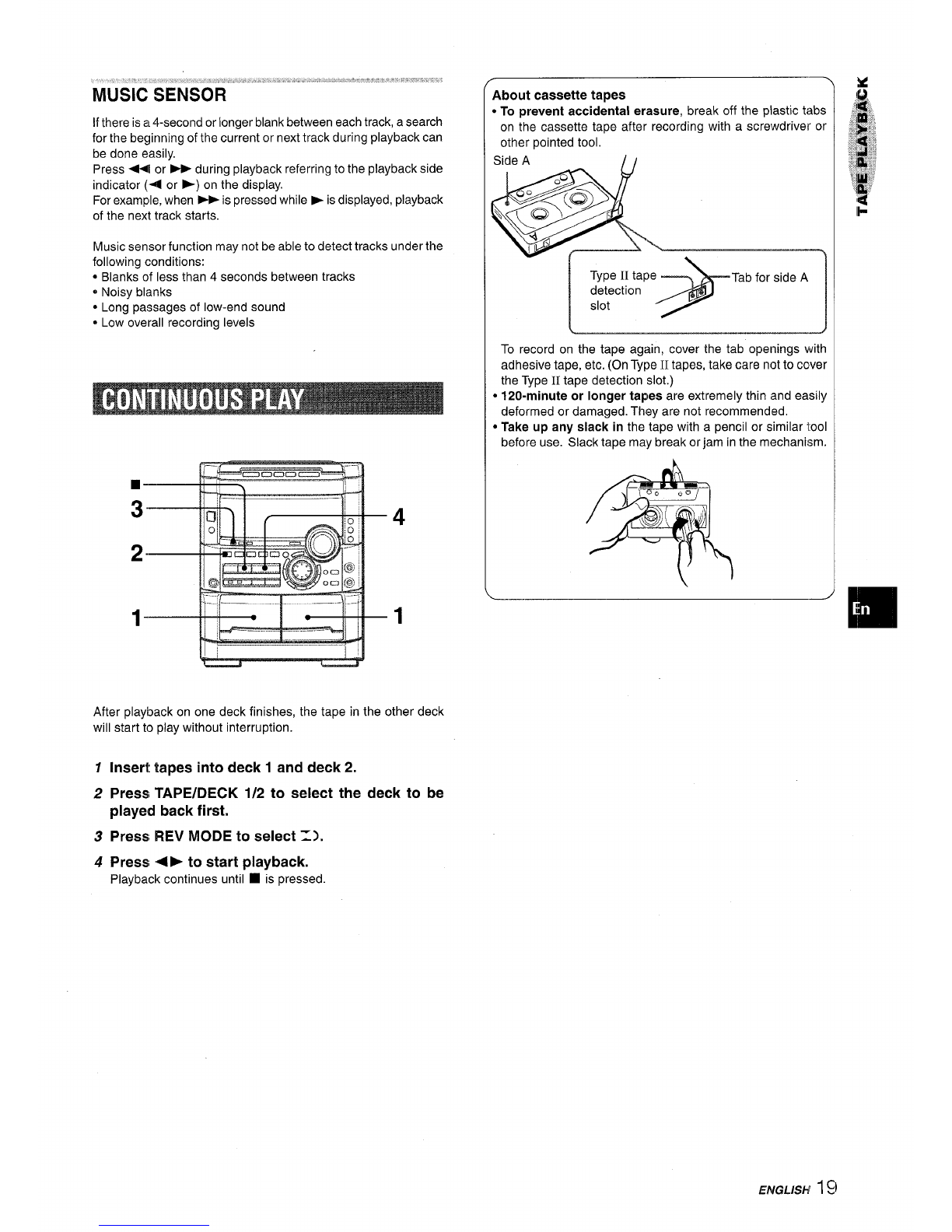

MUSIC SENSOR
Ifthere is a4-second or longer blank between each track, asearch
for the beginning of the current or next track during playback can
be done easily.
Press +or -during playback referring to the playback side
indicator (+ or >) on the display.
For example, when -is pressed while bis displayed, playback
of the next track starts.
Music sensor function may not be able to detect tracks under the
following conditions:
*Blanks of less than 4seconds between tracks
eNoisy blanks
●Long passages of low-end sound
~Low overall recording levels
1
1’
After playback on one deck finishes, the tape in the other deck
will start to play without interruption.
1
2
3
4
Insert tapes into deck 1and deck 2.
Press TAPE/DECK 1/2 to select the deck to be
played back first.
Press REV MODE to select 11.
Press +Fto start playback.
Playback continues until ■is pressed.
About cassette tapes
●To prevent accidental erasure, break off the plastic tabs
on the cassette tape after recording with ascrewdriver or
other pointed tool.
Side AII
side A
‘1
To record on the tape again, cover the tab openings vvith
adhesive tape, etc. (On Type II tapes, take care not to cover
the Type II tape detection slot.)
●120-minute or longer tapes are extremely thin iandeasily
deformed or damaged. They are not recommended.
●Take up any slack in the tape with apencil or similar tool
before use. Slacktape may break orjam inthe mechani:jrn.
ENGUSH 1St

40 PEN/CLOSE ?~CD EDIT/CHECK
LOADING DISCS
Press CD, then press AOPEN/CLOSE to open the
disc compartment. Load disc(s) with the label side
up.
To ~lav one or two discs, place the discs on tray 1 and 2.
To ~lav three discs, press DISC CHANGE to rotate the trays
after placing two discs. Place the third disc on tray 3.
Close the disc compartment by pressing &OPEN/CLOSE.
.
Tray number of the
disc to be played Total playing time
Total number of tracks
Load discs,
To plav all discs in the disc compartment, press 4>.
Play begins with the disc on tray 1.
.,,.-l-A. -. ..--,. b-:-- -, -..-4 -,----A -, -..:__ .: —-
IN UIIIUWI WI lFtiGK Ut51[ly ~ld.yW Cklpseu pmylrly 11111~
To play one disc only, press DISC DIRECT PLAY 1-3.
The selected disc is played once.
To stop play, press ■.
To pause play, press II. To resume play, press again.
To search for aparticular point during playback, keep -
or -pressed and release it at the desired point.
To skip to the beginning of atrack during playback, press
-or -repeatedly or turn MULTI JOG.
To remove discs, press 4OPEN/CLOSE.
To start play when the power is off (Direct Play Function)
Press CD. The power is turned on and play of the loaded disc(s)
begins.
When 4OPEN/CLOSE is pressed, the power is also turned on
and the disc compartment is opened.
To check the remaining time
During play, press CD EDIT/CHECK. The amount of time
remaining until all tracks finish playing is displayed. To restore
the playing time display, repeat the above.
Selecting atrack with the remote control
1Press DISC DIRECT PLAY, then press numbered buttons
1-3 within 3seconds to select adisc.
2Press numbered buttons O-9and +1Oto select atrack.
Example:
To select the 25th track, press +1O, +1Oand 5.
To select the 10th track, press +1Oand O.
The selected track starts to play and continues to the end of
that disc.
Replacing discs during play
While one disc is playing, the other discs can be replaced without
interrupting play.
1Press DISC CHANGE.
2Remove the discs and replace with other discs.
3Press AOPEN/CLOSE to close the disc compartment.
m
●When loading an 8-cm (3-inch) disc, put it onto the inner circle
of the tray.
●Do not place more than one compact disc on one disc tray.
●Do not tilt the unit with discs loaded. Doing so may cause
malfunctions.
●Do not use irregular shape CDs (example: heart-shaped,
octagonal ones). it may result in malfunctions.
20 ENGLISH
