SERVICE MANUAL
DATA
COMPACT DISC
STEREO SYSTEM
BASIC TAPE MECHANISM : ZZM-3 PR1NM /
6ZM-3 PR2NM
BASIC CD MECHANISM : AZG-1 ZD8RDM
NSX-SZ30
NSX-SZ30E
HR
HA
S/M Code No. 09-005-423-3S2
SUPPLEMENT
• If requiring information about the CD mechanism, see Service Manual
of AZG-1, (S/M Code No. 09-001-335-3N6).
• This Service Manual is the “Supplement” and replaces “Simple
Manual” (S/M Code No. 09-001-423-3T2).
• This Service Manual contains information about the difference between
NSX-SZ30 (HR)/SZ30E (HA) and NSX-SZ20 (HR)/SZ20E (HA). If requiring
the other information, see Service Manual of NSX-SZ20/21/20E
(HR,LH,HA) (S/M Code No. 09-005-423-4R3).
SYSTEM TAPE MECHANISM CD MECHANISM
ZZM-3 PR1NM AZG-1 ZD8RDM
NSX-SZ30
NSX-SZ30E
6ZM-3 PR2NM
NSX-SZ30
SPEAKER
SYSTEM CD
CASSEIVER REMOTE
CONTROLLER
NSX-SZ30E
CX-NSZ30 SX-NSZ52
CX-NSZ30E RC-ZAS02
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 2 –
SPECIFICATIONS
<FM tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
<AM/MW tuner section>
Tuning range 531 kHz to 1602 kHz (9 kHz step)
530 kHz to 1710 kHz (10 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
<SW tuner section> <HR only>
Tuning range 5.730 MHz to 17.900 MHz
Usable sensitivity 40 µV (IEC)
Antenna Wire antenna
<Amplifier section>
Power output HR:
Rated: 40 W + 40 W (6 ohms, THD 1%,
1 kHz)
Reference: 50 W + 50 W (6 ohms,
THD 10%, 1 kHz)
HA:
Rated: 65 W + 65 W (6 ohms, THD 1%,
1 kHz)
Reference: 80 W + 80 W (6 ohms,
THD 10%, 1 kHz)
Total harmonic distortion HR: 0.08% (25 W, 1 kHz, 6 ohms,
DIN AUDIO)
HA: 0.05% (40 W, 1 kHz, 6 ohms,
DIN AUDIO)
Inputs VIDEO/AUX: 500 mV
HR only: MIC: 1.0 mV (10 K ohms)
Outputs SPEAKERS: accept speakers of
6 ohms or more
PHONES (stereo jack) : accepts
headphones of 32 ohms or more
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz – 15 kHz
Recording system AC bias
Heads Deck 1 : Playback head x 1
Deck 2 : Recording/Playback head x 1,
erase head x 1
<Compact disc player section>
Laser Semiconductor laser (λ =780 nm)
D-A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
<Speaker system SX-NSZ52>
Speaker system 3 way, bass reflex (magnetic
shielded type)
Speaker units Woofer:
140 mm cone type
Tweeter:
60mm cone type
Super tweeter:
20 mm ceramic type
Impedance 6 ohms
Output sound pressure level 87 dB/W/m
Dimensions (W xH xD) 240 x 324 x 270 mm
Weight 4.0 kg
<General>
Power requirements 120 V/220-230 V/240 V AC
(switchable), 50/60 Hz
Power consumption HR: 80 W
HA: 125 W
Power consumption With power-economizing mode off
HR: 13 W
HA: 17 W
With power-economizing mode on
0.9 W
Dimensions of main unit 260 x 328 x 335 mm
(W xH xD)
Weight of main unit HR: 6.3 kg
HA: 5.6 kg
• Design and specifications are subject to change without notice.
• The word "BBE"and the "BBE symbol" are trademarks of BBE
Sound, Inc.
Under license from BBE Sound,Inc.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 3 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
87-A21-398-010 IC,STK490-110
87-A21-419-040 C-IC,NJM14558MD-TE2
87-A21-401-040 C-IC,M61503FP
87-A21-415-010 IC,LA1843
8A-NF9-601-110 C-IC,UPD780226GF-014-3BA
87-A21-482-010 IC,RPM6938-H4
87-070-127-110 IC,LC72131 D
87-A21-269-010 IC,EW732<HA>
87-020-454-010 IC,DN6851<HR>
TRANSISTOR
87-026-609-080 TR,KTA1266GR
89-213-702-010 TR,2SB1370E(1.8W)
87-026-610-080 TR,KTC3198GR
87-A30-076-080 C-TR,2SC3052F
87-A30-075-080 C-TR,2SA1235F
87-026-245-080 TR,DTC114ES
87-A30-198-080 TR,KTC3199GR
87-A30-074-080 C-TR,RT1P 141C
87-A30-468-080 C-TR,KRC102S-RTK
87-A30-107-070 C-TR,CMBT5401
87-A30-106-040 C-TR,CMBT5551
87-A30-087-080 C-FET,2SK2158
87-A30-091-080 FET,2SJ460
87-A30-090-080 FET,2SK2541
87-A30-062-080 C-TR,KRC104S
87-A30-318-080 TR,CSA952K
89-333-317-880 TR,2SC3331 (0.5W)
87-A30-329-080 TR,CD1585BC
89-327-143-080 TR,2SC2714(O)(0.1W)
87-A30-072-080 C-TR,RT1P 144C
87-A30-086-040 C-TR,CSD1306E<HR>
89-503-602-080 C-FET,2SK360E<HR>
87-A30-234-080 TR,CSC4115BC
DIODE
87-020-465-080 DIODE,1SS133
87-A40-535-080 DIODE,1N5393-GOODARK<HR>
87-A40-455-090 DIODE,RL203 GW
87-A40-553-080 DIODE,1N4003 LES
87-A40-776-080 ZENER,UZ27BSD
87-A40-764-080 ZENER,UZ10BSC
87-A40-313-080 C-DIODE,MC 2840
87-A40-270-080 C-DIODE,MC2838
87-A40-269-080 C-DIODE,MC2836
87-A40-854-080 ZENER,UZ15BSA
87-A40-752-080 ZENER,UZ6.2BSC
87-A40-739-080 ZENER,UZ2.7BSA
87-017-149-080 ZENER,HZS6A2L
MAIN C.B
C3 87-012-368-080 C-CAP,S 0.1-50 F
C4 87-012-368-080 C-CAP,S 0.1-50 F
C5 87-012-368-080 C-CAP,S 0.1-50 F
C6 87-012-368-080 C-CAP,S 0.1-50 F
C9 87-012-368-080 C-CAP,S 0.1-50 F
C10 87-012-368-080 C-CAP,S 0.1-50 F
C11 87-012-368-080 C-CAP,S 0.1-50 F
C12 87-012-368-080 C-CAP,S 0.1-50 F
C19 87-A12-036-000 CAP,E 2200-63 SMG
C20 87-A12-036-000 CAP,E 2200-63 SMG
C21 87-A10-520-000 CAP,E 3300-35 M SMG
C22 87-A10-520-000 CAP,E 3300-35 M SMG
C25 87-010-385-080 CAP, ELECT 220-25V
C26 87-010-247-080 CAP, ELECT 100-50V
C30 87-010-430-080 CAP, ELECT 100-63
C31 87-010-263-080 CAP, ELECT 100-10V
C32 87-010-197-080 CAP, CHIP 0.01 DM
C34 87-010-247-080 CAP, ELECT 100-50V
C35 87-010-380-080 CAP, ELECT 47-16V
C36 87-010-381-080 CAP, ELECT 330-16V
C38 87-010-197-080 CAP, CHIP 0.01 DM
C60 87-010-403-080 CAP, ELECT 3.3-50V
C61 87-010-260-080 CAP, ELECT 47-25V
C97 87-010-196-080 CHIP CAPACITOR,0.1-25
C101 87-010-185-080 C-CAP,S 3900P-50 B
C102 87-010-185-080 C-CAP,S 3900P-50 B
C103 87-010-545-080 CAP, ELECT 0.22-50V
C104 87-010-545-080 CAP, ELECT 0.22-50V
C105 87-010-187-080 CAP CHIP S5600P
C106 87-010-187-080 CAP CHIP S5600P
C107 87-010-404-080 CAP, ELECT 4.7-50V
C108 87-010-404-080 CAP, ELECT 4.7-50V
C111 87-010-391-080 CAP,E 10-35 SME
C112 87-010-391-080 CAP,E 10-35 SME
C113 87-010-405-080 CAP, ELECT 10-50V<HR>
C113 87-010-866-080 CAP, ELECT 10-63M VX<HA>
C114 87-010-405-080 CAP, ELECT 10-50V<HR>
C114 87-010-866-080 CAP, ELECT 10-63M VX<HA>
C119 87-012-369-080 C-CAP,S 0.047-50 ZF<HR>
C119 87-016-369-080 C-CAP,S 0.033-25 KB<HA>
C120 87-012-369-080 C-CAP,S 0.047-50 ZF<HR>
C120 87-016-369-080 C-CAP,S 0.033-25 KB<HA>
C125 87-012-368-080 C-CAP,S 0.1-50 F
C126 87-012-368-080 C-CAP,S 0.1-50 F
C127 87-012-368-080 C-CAP,S 0.1-50 F
C128 87-012-368-080 C-CAP,S 0.1-50 F
C129 87-010-191-080 C-CAP,S 0.015-50 F
C130 87-010-191-080 C-CAP,S 0.015-50 F
C131 87-010-197-080 CAP, CHIP 0.01 DM
C132 87-010-197-080 CAP, CHIP 0.01 DM
C133 87-010-186-080 CAP,CHIP 4700P
C140 87-010-182-080 C-CAP,S 2200P-50 B
C141 87-010-196-080 CHIP CAPACITOR,0.1-25
C239 87-010-196-080 CHIP CAPACITOR,0.1-25
C301 87-010-178-080 CHIP CAP 1000P
C302 87-010-178-080 CHIP CAP 1000P
C303 87-010-178-080 CHIP CAP 1000P
C304 87-010-178-080 CHIP CAP 1000P
C307 87-010-263-080 CAP, ELECT 100-10V
C308 87-010-263-080 CAP, ELECT 100-10V
C309 87-010-318-080 C-CAP,S 47P-50 CH
C310 87-010-318-080 C-CAP,S 47P-50 CH
C313 87-010-188-080 CAP,CHIP 6800P
C314 87-010-188-080 CAP,CHIP 6800P
C315 87-010-263-080 CAP, ELECT 100-10V
C317 87-010-546-080 CAP, ELECT 0.33-50V
C318 87-010-546-080 CAP, ELECT 0.33-50V
C326 87-010-198-080 CAP, CHIP 0.022
C327 87-012-368-080 C-CAP,S 0.1-50 F
C360 87-010-401-080 CAP, ELECT 1-50V
C399 87-012-140-080 CAP 470P
C401 87-010-544-080 CAP, ELECT 0.1-50V
C402 87-010-544-080 CAP, ELECT 0.1-50V
C403 87-010-321-080 CHIP CAPACITOR,82P(J)
C404 87-010-321-080 CHIP CAPACITOR,82P(J)
C405 87-010-197-080 CAP, CHIP 0.01 DM
C406 87-010-197-080 CAP, CHIP 0.01 DM
C407 87-010-197-080 CAP, CHIP 0.01 DM
C408 87-010-197-080 CAP, CHIP 0.01 DM
C409 87-010-182-080 C-CAP,S 2200P-50 B
C410 87-010-182-080 C-CAP,S 2200P-50 B
C411 87-010-405-080 CAP, ELECT 10-50V
C412 87-010-405-080 CAP, ELECT 10-50V
C452 87-010-382-080 CAP, ELECT 22-25V
C453 87-010-183-080 C-CAP,S 2700P-50 B
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 4 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C454 87-010-183-080 C-CAP,S 2700P-50 B
C455 87-010-183-080 C-CAP,S 2700P-50 B
C456 87-010-197-080 CAP, CHIP 0.01 DM
C460 87-010-196-080 CHIP CAPACITOR,0.1-25
C461 87-012-158-080 C-CAP,S 390P-50 CH
C462 87-012-158-080 C-CAP,S 390P-50 CH
C605 87-010-179-080 CAP,CHIP S 1200P-50 KB<HR>
C605 87-010-184-080 CAP,CHIP S 3300P-50 KB<HA>
C606 87-010-179-080 CAP,CHIP S 1200P-50 KB<HR>
C606 87-010-184-080 CAP,CHIP S 3300P-50 KB<HA>
C609 87-010-213-080 C-CAP,S 0.015-50 B
C610 87-010-213-080 C-CAP,S 0.015-50 B
C611 87-010-545-080 CAP, ELECT 0.22-50V
C612 87-010-545-080 CAP, ELECT 0.22-50V
C613 87-010-545-080 CAP, ELECT 0.22-50V
C614 87-010-545-080 CAP, ELECT 0.22-50V
C615 87-010-154-080 CAP CHIP 10P
C616 87-010-221-080 CAP, ELECT 470-10V
C617 87-010-221-080 CAP, ELECT 470-10V
C618 87-010-405-080 CAP, ELECT 10-50V
C630 87-016-669-080 C-CAP,S 0.1-25 K B
C631 87-010-185-080 C-CAP,S 3900P-50 B
C632 87-010-185-080 C-CAP,S 3900P-50 B
C633 87-016-369-080 C-CAP,S 0.033-25 B K
C634 87-016-369-080 C-CAP,S 0.033-25 B K
C669 87-010-322-080 C-CAP,S 100P-50 CH
C670 87-010-322-080 C-CAP,S 100P-50 CH
C671 87-010-196-080 CHIP CAPACITOR,0.1-25<HR>
C672 87-010-196-080 CHIP CAPACITOR,0.1-25<HR>
C673 87-010-182-080 C-CAP,S 2200P-50 B<HR>
C677 87-010-197-080 CAP, CHIP 0.01 DM
C771 87-010-263-080 CAP, ELECT 100-10V
C772 87-010-197-080 CAP, CHIP 0.01 DM
C782 87-010-197-080 CAP, CHIP 0.01 DM
C783 87-010-197-080 CAP, CHIP 0.01 DM
C784 87-010-197-080 CAP, CHIP 0.01 DM
C785 87-010-197-080 CAP, CHIP 0.01 DM
C786 87-010-197-080 CAP, CHIP 0.01 DM
C788 87-010-149-080 C-CAP,S 5P-50 CH
C789 87-A10-801-080 C-CAP,S 0.022-16 J B<HR>
C789 87-A12-052-080 C-CAP,S 0.033-25 J B<HA>
C790 87-A10-801-080 C-CAP,S 0.022-16 J B<HR>
C790 87-A12-052-080 C-CAP,S 0.033-25 J B<HA>
C791 87-010-196-080 CHIP CAPACITOR,0.1-25
C792 87-010-197-080 CAP, CHIP 0.01 DM
C793 87-010-404-080 CAP, ELECT 4.7-50V
C795 87-010-197-080 CAP, CHIP 0.01 DM
C796 87-010-197-080 CAP, CHIP 0.01 DM
C797 87-010-405-080 CAP, ELECT 10-50V
C798 87-010-197-080 CAP, CHIP 0.01 DM
C799 87-010-407-080 CAP, ELECT 33-50V
C800 87-012-369-080 C-CAP,S 0.047-50F
C801 87-010-403-080 CAP, ELECT 3.3-50V
C802 87-010-194-080 CAP, CHIP 0.047
C803 87-010-198-080 CAP, CHIP 0.022
C804 87-010-263-080 CAP, ELECT 100-10V
C807 87-010-400-080 CAP, ELECT 0.47-50V
C808 87-010-401-080 CAP, ELECT 1-50V
C809 87-010-401-080 CAP, ELECT 1-50V
C810 87-010-196-080 CHIP CAPACITOR,0.1-25
C814 87-010-197-080 CAP, CHIP 0.01 DM
C815 87-010-400-080 CAP, ELECT 0.47-50V
C816 87-010-400-080 CAP, ELECT 0.47-50V
C821 87-010-405-080 CAP, ELECT 10-50V
C823 87-010-177-080 C-CAP,S 820P-50 SL
C824 87-010-405-080 CAP, ELECT 10-50V
C825 87-010-596-080 CAP, S 0.047-16
C842 87-010-197-080 CAP, CHIP 0.01 DM
C844 87-010-197-080 CAP, CHIP 0.01 DM
C850 87-010-260-080 CAP, ELECT 47-25V
C851 87-010-197-080 CAP, CHIP 0.01 DM
C852 87-010-197-080 CAP, CHIP 0.01 DM
C853 87-010-197-080 CAP, CHIP 0.01 DM
C858 87-010-196-080 CHIP CAPACITOR,0.1-25
C859 87-010-196-080 CHIP CAPACITOR,0.1-25
C860 87-010-197-080 CAP, CHIP 0.01 DM
C940 87-010-197-080 CAP, CHIP 0.01 DM<HR>
C941 87-010-314-080 C-CAP,S 22P-50V<HR>
C943 87-010-197-080 CAP, CHIP 0.01 DM<HR>
C945 87-010-197-080 CAP, CHIP 0.01 DM<HR>
C946 87-010-971-080 C-CAP,S 4700P-50 B J<HR>
C947 87-010-197-080 CAP, CHIP 0.01 DM<HR>
C948 87-010-148-080 CAP, CHIP S 4P-50<HR>
C952 87-010-197-080 CAP, CHIP 0.01 DM<HR>
C953 87-010-197-080 CAP, CHIP 0.01 DM<HR>
C954 87-010-400-080 CAP, ELECT 0.47-50V<HR>
C956 87-010-263-080 CAP, ELECT 100-10V<HR>
C959 87-010-196-080 CHIP CAPACITOR,0.1-25
C960 87-010-196-080 CHIP CAPACITOR,0.1-25<HA>
C961 87-010-152-080 C-CAP,S 8P-50 CH<HA>
C962 87-010-401-080 CAP, ELECT 1-50V<HR>
C963 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z
C964 87-010-854-080 C-CAP,S 560PCH<HR>
C971 87-010-381-080 CAP, ELECT 330-16V
C972 87-010-404-080 CAP, ELECT 4.7-50V
C973 87-010-197-080 CAP, CHIP 0.01 DM
C974 87-010-197-080 CAP, CHIP 0.01 DM
C979 87-010-322-080 C-CAP,S 100P-50 CH
C981 87-010-260-080 CAP, ELECT 47-25V
C982 87-010-196-080 CHIP CAPACITOR,0.1-25
C983 87-010-197-080 CAP, CHIP 0.01 DM
C984 87-010-197-080 CAP, CHIP 0.01 DM
C987 87-010-197-080 CAP, CHIP 0.01 DM
C989 87-010-197-080 CAP, CHIP 0.01 DM<HR>
C991 87-010-312-080 C-CAP,S 15P-50 CH
C992 87-010-312-080 C-CAP,S 15P-50 CH
C993 87-010-178-080 CHIP CAP 1000P
C995 87-010-178-080 CHIP CAP 1000P
C997 87-010-196-080 CHIP CAPACITOR,0.1-25
C998 87-010-260-080 CAP, ELECT 47-25V
C999 87-A11-155-080 CAP,TC U 0.01-16 Z F
CF831 87-008-261-010 FILTER, SFE10.7MA5-A
CF832 87-008-261-010 FILTER, SFE10.7MA5-A
CN301 87-A60-620-010 CONN,3P V 2MM JMT
CN351 87-A60-625-010 CONN,8P V 2MM JMT
CN601 87-099-719-010 CONN,30P TYK-B(X)
CN602 87-A60-131-010 CONN,6P V FE
CNA1 8A-NF8-653-010 CONN ASSY,9P TID-A(480)
D951 87-A40-618-080 VARI-CAP,SVC 348(S/T)<HR>
FC104 88-911-101-110 FF-CABLE,11P 1.25
FC602 88-906-251-110 FF-CABLE,6P 1.25
FC731 88-913-301-110 FF-CABLE,13P-1.25
FFE831 A8-8ZA-190-030 8ZA-1 FEUNM
J202 87-A60-488-010 JACK,DIA6.3 BLK ST W/SW KM16AT
J203 87-A60-238-010 TERMINAL,SP 4P (MSC)
J602 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN
J831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02
J940 87-A60-633-010 CONN,2P H 2.5MM JMT<HR>
L101 87-A50-610-010 COIL,1UH K(MDEC)
L102 87-A50-610-010 COIL,1UH K(MDEC)
L451 87-007-342-010 COIL,OSC 85K BIAS
L801 87-A50-540-010 COIL,FM DET(TOK)
L802 87-A91-552-010 FLTR,CFMT-450AL (TOK)<HR>
L802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK)<HA>
L811 87-005-847-080 COIL,2.2UH(CECS)
L832 87-005-847-080 COIL,2.2UH(CECS)
L941 87-A50-022-010 COIL,ANT SW 7.96 MHZ(COI)<HR>
L942 87-A50-550-010 COIL,OSC SW-2N(COI)<HR>
L943 87-A50-522-080 COIL,1MH K CEC<HR>
L944 87-A50-159-010 COIL,10MH K C2B<HR>
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 5 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
L951 8A-NF8-667-010 COIL,AM PACK 4(TOK)<HA>
L952 87-A50-430-010 COIL,ANT MW(3BSW)<HR>
L953 87-A50-431-010 COIL,OSC MW(3BSW)<HR>
R129 87-A00-669-080 RES,M/F 0.22-2W J RA<HA>
R130 87-A00-669-080 RES,M/F 0.22-2W J RA<HA>
R131 87-A00-257-080 RES,M/F 0.15-1W J<HR>
R131 87-A00-669-080 RES,M/F 0.22-2W J RA<HA>
R132 87-A00-257-080 RES,M/F 0.15-1W J<HR>
R132 87-A00-669-080 RES,M/F 0.22-2W J RA<HA>
R143 87-A00-440-050 RES,220-1/2W J RP
R144 87-A00-440-050 RES,220-1/2W J RP
R145 87-A00-440-050 RES,220-1/2W J RP
R146 87-A00-440-050 RES,220-1/2W J RP
R653 87-A11-144-080 CAP,TC U 0.1-50 K B
R654 87-A11-144-080 CAP,TC U 0.1-50 K B
R790 87-010-197-080 CAP, CHIP 0.01 DM
R991 87-010-322-080 C-CAP,S 100P-50 CH
R993 87-010-322-080 C-CAP,S 100P-50 CH
R995 87-010-322-080 C-CAP,S 100P-50 CH
SFR451 87-A90-432-080 SFR,30K H NVZ6TLTA
SFR452 87-A90-432-080 SFR,30K H NVZ6TLTA
TC941 87-011-254-080 TRIMER,20P LAR<HR>
TC943 87-011-253-080 TRIMER,30P LAR<HR>
WH1 87-A90-510-010 HLDR,WIRE 2.5-9P
X991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
FRONT C.B
C101 87-010-196-080 CHIP CAPACITOR,0.1-25
C102 87-010-196-080 CHIP CAPACITOR,0.1-25
C103 87-010-498-040 CAP,E 10-16 GAS
C104 87-010-196-080 CHIP CAPACITOR,0.1-25
C107 87-010-493-040 CAP,E 0.47-50 GAS
C108 87-012-393-080 C-CAP,S 0.22-16 R K
C153 87-010-198-080 CAP, CHIP 0.022
C154 87-010-246-040 CAP,E 47-35 SME
C155 87-010-404-040 CAP,E 4.7-50 SME
C156 87-010-404-040 CAP,E 4.7-50 SME
C361 87-010-178-080 CHIP CAP 1000P
C362 87-010-178-080 CHIP CAP 1000P
C371 87-010-178-080 CHIP CAP 1000P
C372 87-010-178-080 CHIP CAP 1000P
C401 87-010-186-080 CAP,CHIP 4700P<HR>
C402 87-010-112-040 CAP,E 100-16<HR>
C403 87-010-545-040 CAP,E 0.22-50 SME<HR>
C404 87-010-320-080 CHIP CAP 68P<HR>
C405 87-010-544-040 CAP,E 0.1-50 SME<HR>
C406 87-010-544-040 CAP,E 0.1-50 SME<HR>
C407 87-010-405-040 CAP,E 10-50<HR>
C408 87-010-322-080 C-CAP,S 100P-50 CH<HR>
C409 87-010-265-040 CAP,E 33-16 SME<HR>
C410 87-012-369-080 C-CAP,S 0.047-50F<HR>
C413 87-010-177-080 C-CAP,S 820P-50 SL<HR>
C601 87-010-382-040 CAP,E 22-25 SME
C801 87-010-195-080 C-CAP,S 0.068-25 F
C802 87-010-195-080 C-CAP,S 0.068-25 F
C803 87-010-402-040 CAP,E 2.2-50 SME
C804 87-010-402-040 CAP,E 2.2-50 SME
C805 87-010-196-080 CHIP CAPACITOR,0.1-25
C806 87-010-196-080 CHIP CAPACITOR,0.1-25
C901 87-010-322-080 C-CAP,S 100P-50 CH
C902 87-010-322-080 C-CAP,S 100P-50 CH
C903 87-010-322-080 C-CAP,S 100P-50 CH
C904 87-010-322-080 C-CAP,S 100P-50 CH
C905 87-010-322-080 C-CAP,S 100P-50 CH
C906 87-010-322-080 C-CAP,S 100P-50 CH
C907 87-010-322-080 C-CAP,S 100P-50 CH
C908 87-010-322-080 C-CAP,S 100P-50 CH
C909 87-010-322-080 C-CAP,S 100P-50 CH
C910 87-010-322-080 C-CAP,S 100P-50 CH
C911 87-010-178-080 CHIP CAP 1000P
C912 87-010-196-080 CHIP CAPACITOR,0.1-25
C913 87-010-248-040 CAP,E 220-10 SME
C914 87-010-248-040 CAP,E 220-10 SME
C915 87-010-196-080 CHIP CAPACITOR,0.1-25
C916 87-010-196-080 CHIP CAPACITOR,0.1-25
C917 87-010-196-080 CHIP CAPACITOR,0.1-25
C919 87-010-197-080 CAP, CHIP 0.01 DM
C920 87-012-369-080 C-CAP,S 0.047-50F
C921 87-010-186-080 CAP,CHIP 4700P
C951 87-010-312-080 C-CAP,S 15P-50 CH
C952 87-012-155-080 C-CAP 180P-50CH
C953 87-012-140-080 CAP 470P
C961 87-010-378-040 CAP,E 10-16
C962 87-012-157-080 C-CAP,S 330P-50 CH
C963 87-010-196-080 CHIP CAPACITOR,0.1-25
CN104 87-A60-057-010 CONN,11P V 9604S-11C
CN701 87-099-720-010 CONN,30P TYK-B(P)
CN731 87-099-015-010 CONN,13P 6216V
EMI401 87-008-372-080 FILTER, EMI BL OIRNI<HR>
FL901 8A-NF9-605-010 FL,HNA-10SS12
J401 87-A61-242-010 JACK,6.3 BLK MONO W/SW V KM<HR>
L951 87-A50-434-010 COIL,CLK 4.19M(TOKO)
LED201 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED202 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED203 87-A40-619-040 LED,SLR-56PT-T31-W GRN<HR>
LED204 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED205 87-A40-619-040 LED,SLR-56PT-T31-W GRN
LED206 87-A40-619-040 LED,SLR-56PT-T31-W GRN<HR>
LED209 87-A40-317-080 LED,SLR-342VCT31 RED
LED210 87-A40-619-040 LED,SLR-56PT-T31-W GRN<HA>
S301 87-A90-164-080 SW,TACT SKQAB(N)
S302 87-A90-164-080 SW,TACT SKQAB(N)
S303 87-A90-164-080 SW,TACT SKQAB(N)
S304 87-A90-164-080 SW,TACT SKQAB(N)
S305 87-A90-164-080 SW,TACT SKQAB(N)
S306 87-A90-164-080 SW,TACT SKQAB(N)
S307 87-A90-164-080 SW,TACT SKQAB(N)
S308 87-A90-164-080 SW,TACT SKQAB(N)
S309 87-A90-164-080 SW,TACT SKQAB(N)
S321 87-A90-164-080 SW,TACT SKQAB(N)
S322 87-A90-164-080 SW,TACT SKQAB(N)
S323 87-A90-164-080 SW,TACT SKQAB(N)
S324 87-A90-164-080 SW,TACT SKQAB(N)
S325 87-A90-164-080 SW,TACT SKQAB(N)
S326 87-A90-164-080 SW,TACT SKQAB(N)
S341 87-A90-164-080 SW,TACT SKQAB(N)
S342 87-A90-164-080 SW,TACT SKQAB(N)
S343 87-A90-164-080 SW,TACT SKQAB(N)
S344 87-A90-164-080 SW,TACT SKQAB(N)
S345 87-A90-164-080 SW,TACT SKQAB(N)
S346 87-A90-164-080 SW,TACT SKQAB(N)
S347 87-A90-164-080 SW,TACT SKQAB(N)
S348 87-A90-164-080 SW,TACT SKQAB(N)
S349 87-A90-164-080 SW,TACT SKQAB(N)
S350 87-A90-164-080 SW,TACT SKQAB(N)
S361 87-A91-633-010 SW,RTRY XRE012103PVB25FINA 1-2
S371 87-A91-632-010 SW,RTRY XRE012103PVB25FINB 1-2
VR401 86-NFA-607-010 VR,RTRY 10K15AX1 1 V XV0121PVN<HR>
PT C.B
C1 87-010-387-080 CAP,E 470-25 SME
C31 87-010-403-080 CAP, ELECT 3.3-50V
CN1 87-A61-110-010 CONN,9P V TID-A
PT1 8A-NF9-614-010 PT,ANF-9 HR-HI<HR>
PT1 8A-NF9-616-010 PT,ANF-9 LH-HI<HA>
PT2 8A-NF8-673-010 PT,SUB ANF-8 (H)KAMI
RY1 87-A91-339-010 RELAY,AC DC12V G5PA-2
S1 87-A90-165-010 SW,SL 1-2-3 SWS2301
!
!
!
!
!
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 6 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
T1 87-A60-317-010 TERMINAL, 1P MSC
T2 87-A60-317-010 TERMINAL, 1P MSC
DECK C.B<HA>
CN1 87-099-753-010 CONN,11P H 9604
HL1 8Z-ZM3-214-010 HLDR,IC
SFR1 87-024-581-010 SFR,3.3K DIA6V K0A
SW1 87-A90-673-010 SW,MICRO ESE11SH1C
SW2 87-A91-500-010 SW,MICRO MPU11470MLB0
SW3 87-A91-500-010 SW,MICRO MPU11470MLB0
SW4 87-A91-500-010 SW,MICRO MPU11470MLB0
SW5 87-A90-673-010 SW,MICRO ESE11SH1C
DECK C.B<HR>
CON105 87-099-753-010 CONN,11P 9604
CON351 86-ZM3-605-110 CON ASSY,8P-PB
SFR1 87-024-581-010 SFR,3.3K DIA 6H
SOL1 82-ZM1-618-410 SOL ASSY, 27
SOL2 82-ZM1-618-410 SOL ASSY, 27
SW1 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW2 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW3 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW4 87-A90-248-010 SW,MICRO ESE11SH2CXQ
SW5 87-A90-248-010 SW,MICRO ESE11SH2CXQ
W1 82-ZM3-601-010 RBN-CORD,4P-75
HEAD-1 C.B<HR>
CON301 85-MA2-615-010 CONN,ASSY 3P-PB
88
A
Resistor Code

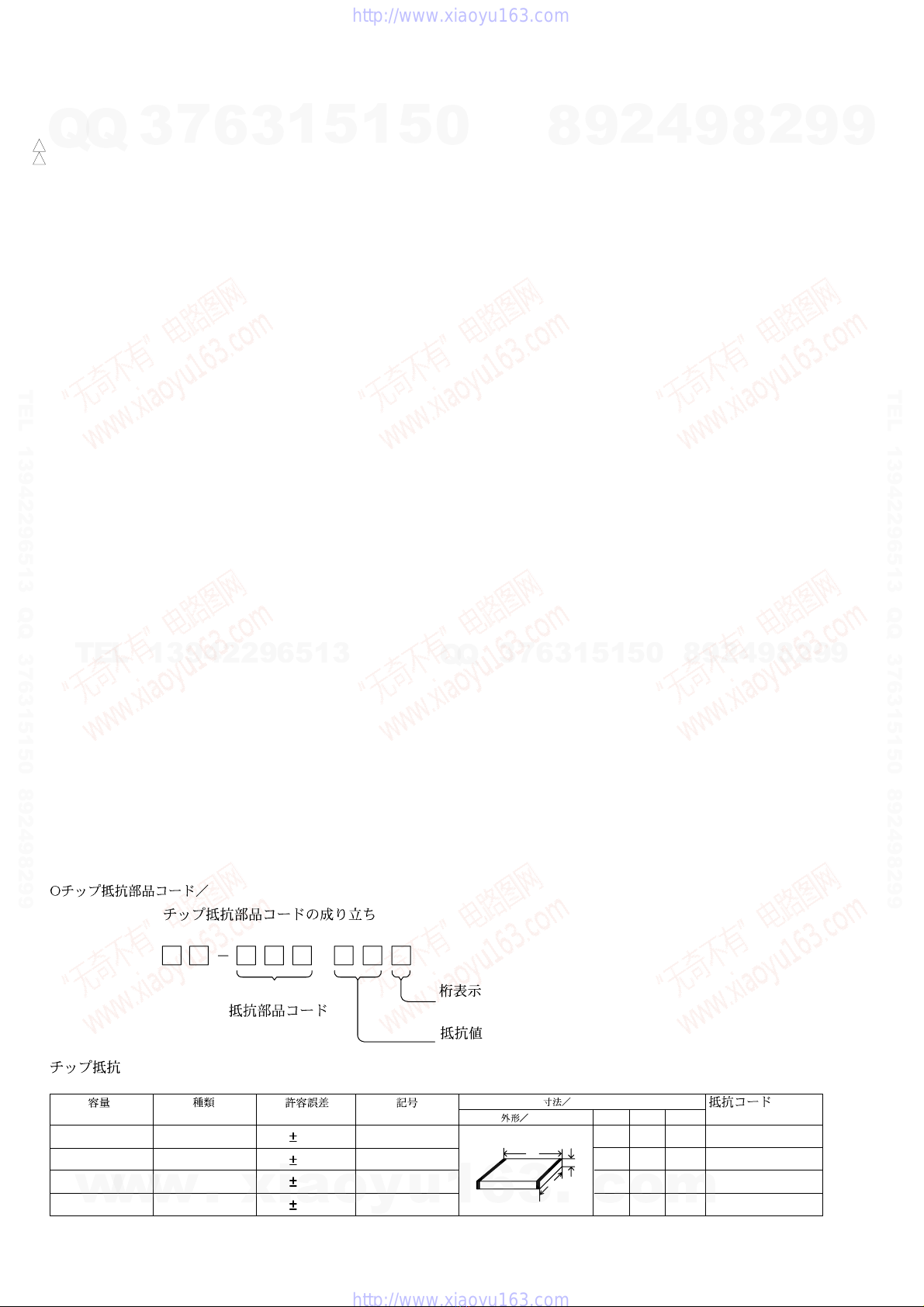

Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
!
!
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
WIRING – 2 (MAIN)<HA>
– 10 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
WIRING – 6 (DECK : ZZM-3 PR1NM)<HA>
– 17 –
1 3 57911
FC104
D DECK C . B
FROM B FRONT C. B CN104
DECK
MOTOR
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 19 –

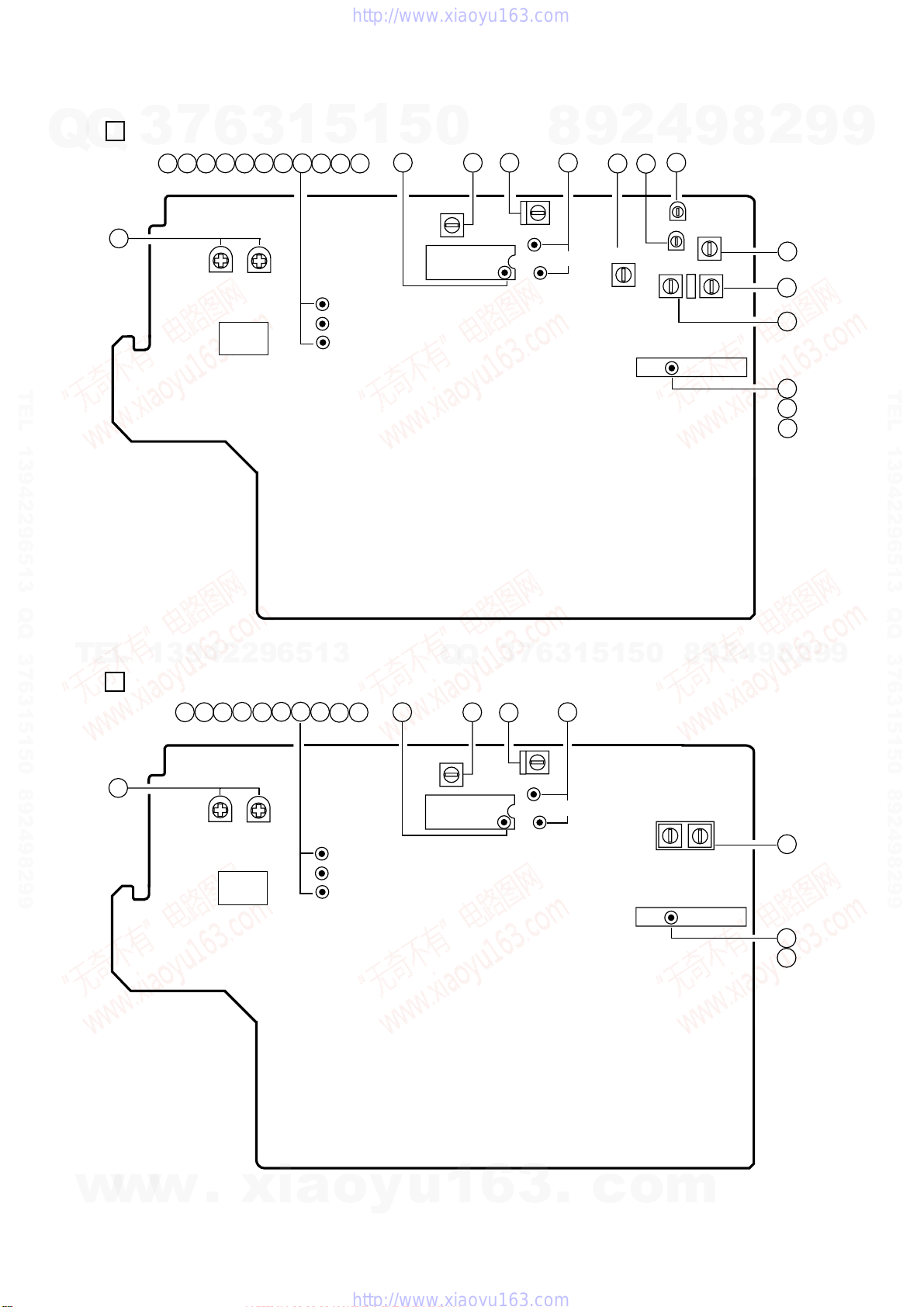

ADJUSTMENT <TUNER / DECK / MICON>
11
A MAIN C.B <HR>
FFE831
SFR452
IC801
L801
24
TP1(VT)
TP3(DC BAL)
TP9 (RCH)
TP8 (LCH)
L802
TP2
(CLK) L952
611
GND
SFR451
12
4
8611
9
10
16
3
IC301
TP4(DC BAL)
8
1
14 13
TC943
L942 L941
9
4
9
5
15
1
1
TC941
11
A MAIN C.B <HA>
L951
FFE831
SFR452
IC801
L801
24
TP1(VT)
TP3(DC BAL)
TP9 (RCH)
TP8 (LCH)
L802
TP2
(CLK) (3/3) (1/3)
11
GND
SFR451
12
5
611
10
16
2
IC301
TP4(DC BAL)
7
1
14 13 7
15
1
1
16
17 8
L953 3
16
17 6
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
–20 –
< TUNER SECTION >
1. Clock frequency Check
Settings : • Test point : TP2 (CLK)
Method : <HR>
Set to MW 1602kHz and check that the test point is
2052kHz ±45Hz.
<HA>
Set to AM 1710kHz and check that the test point is
2160kHz ±45Hz.
2. AM VT Check <HA>
Settings : • Test point : TP1 (VT)
Method : Set to AM 1710kHz, 530kHz and check that the test
point is less than 8.5V (1710kHz) and more than
0.6V (530kHz).
3. MW VT Adjustment <HR>
Settings : • Test point : TP1 (VT)
• Adjustment location : L953
Method : Set to MW 1602kHz and adjust L953 so that the test
point becomes 8.0V ±0.05V. Then check that the test
point is more than 0.3V (531kHz).
4. SW VT Adjustment <HR>
Settings : • Test point : TP1 (VT)
• Adjustment location : L942
Method : Set to SW 17.9MHz and adjust L942 so that the test
point becomes 8.0V ±0.05V. Then check that the test
point is more than 0.3V (5.9MHz).
5. FM VT Check
Settings : • Test point : TP1 (VT)
Method : Set to FM 87.5MHz, 108.0MHz and check that the test
point is more than 0.5V (87.5MHz) and less than 8.0V
(108.0MHz).
6. AM IF Adjustment
Settings : • Test point : TP8(Lch), TP9(Rch)
• Adjustment location :
L802 ................................................450kHz
7. AM Tracking Adjustment <HA>
Settings : • Test point : TP8(Lch), TP9(Rch)
• Adjustment location :
L951(1/3) ......................................1000kHz
Method : Set to AM 1000kHz and adjust L951(1/3) to MAX.
8. MW Tracking Adjustment <HR>
Settings : • Test point : TP8(Lch), TP9(Rch)
• Adjustment location :
L952 ...............................................603kHz
TC941 ..........................................1404kHz
Method : Set up TC941 to center before adjustment. The output
level at 603kHz is adjusted to maximum by L952. Then
the output level at 1404kHz is adjusted to maximum by
TC941.
9. SW Tracking Adjustment <HR>
Settings : • Test point : TP8(Lch), TP9(Rch)
• Adjustment location :
L941 ..............................................5.9MHz
TC943 .........................................17.9MHz
Method : Set up TC943 to center before adjustment. The output
level at 5.9MHz is adjusted to maximum by L941. Then
the output level at 17.9 MHz is adjusted to maximum by
TC943.
10. FM Tracking Check
Settings : • Test point : TP8(Lch), TP9(Rch)
Method : Set to FM 98.0MHz and check that the test point is less
than 9dBµV.
11. DC Balance / Mono Distortion Adjustment
Settings : • Test point : TP3, TP4 (DC Balance)
TP8(Lch), TP9(Rch) (Distortion)
• Adjustment location : L801
• Input level : 60dBµV
Method : Set to FM 98.0MHz and adjust L801 so that the voltage
between TP3 and TP4 becomes 0V ±300mV, with
minimum distortion.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
Other manuals for NSX-SZ30
6
This manual suits for next models
1
Table of contents
Other Aiwa Stereo System manuals
