SERVICE MANUAL
DATA
COMPACT DISC
STEREO SYSTEM
NSX-SZ702
NSX-SZ705
NSX-SZ708
EZ
HS,HT
HA
S/M Code No. 09-01A-441-7S3
SUPPLEMENT
This Service Manual contains information about the difference between
NSX-SZ702 EZ> / NSX-SZ705 HS,HT> / NSX-SZ708 HA> and NSX-SZ705
LH>. If requiring other information, see Service Manual of NSX-AJ700 U> /
NSX-SZ700 LH> / NSX-SZ705 LH>, (S/M Code No. 09-013-441-7R1).
If requiring information about the CD mechanism, see Service Manual of BZG-5,
(S/M Code No. 09-00C-353-3N2 / 09-00C-353-3N4).
BASIC TAPE MECHANISM : 2ZM-3MK2
BASIC CD MECHANISM : BZG-5
NSXSZ702
SYSTEM CD
CASSEIVER
CXNSZ702
NSXSZ705 CXNSZ705
NSXSZ708 CXNSZ708
SPEAKER REMOTE
CONTROLLER
SXWNSZ700
RCBAS02
SXWNSZ700
SXWNSZ703
TAPE
MECHANISM
6ZM-3
PR4NM
2ZM-3MK2
PR9NM
2ZM-3MK2
YPR9NM
CD
MECHANISM
BZG-5
ZD3NM
BZG-5
YZD3NCM
2
<FM tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity (IHF) EZ ONLY: 16.8 dBf
EXCEPT EZ: 13.2 dBf
Antenna terminal 75 oh s (unbalanced)
<AM/MW tuner section>
Tuning range 530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity 350 µV/
Antenna Loop antenna
< W tuner section> <HT ONLY>
Tuning range 5.730 MHz to 17.900 MHz
Usable sensitivity 40 µV/ (IEC)
Antenna Wire antenna
<LW tuner section> <EZ ONLY>
Tuning range 144 kHz to 290 kHz
Usable sensitivity 1400 µV/
Antenna Loop antenna
<Amplifier section>
Power output <HA>
Nor inal: 112 W + 112 W (6 oh s,
T.H.D. 1 %, 1 kHz)
Reference: 140 W + 140 W
(6 oh s, T.H.D. 10 %, 1 kHz)
<HS>
Rated: 112 W + 112 W (6 oh s,
T.H.D. 1 %, 1 kHz)
Reference: 140 W + 140 W
(6 oh s, T.H.D. 10 %, 1 kHz)
<HT>
Rated: 104 W + 104 W (6 oh s,
T.H.D. 1 %, 1 kHz)
Reference: 130 W + 130 W (6 oh s,
T.H.D. 10 %, 1 kHz)
<EZ>
Rated: 72 W + 72 W (6 oh s,
T.H.D. 1 %, 1 kHz/DIN 45500)
Reference: 90 W + 90 W (6 oh s,
T.H.D. 10 %, 1 kHz/DIN 45324)
DIN MUSIC POWER: 200 W + 200 W
Total harmonic distortion <HA,HS>
0.08 % (70 W, 1 kHz, 6 oh s,
DIN AUDIO)
<HT>
0.08 % (65 W, 1 kHz, 6 oh s,
DIN AUDIO)
<EZ>
0.08 % (45 W, 1 kHz, 6 oh s,
DIN AUDIO)
Input EXCEPT EZ: VIDEO/AUX: 700 V
EZ ONLY: VIDEO/AUX: 500 V
EXCEPT EZ: MIC: 1.7 V (10 koh s)
Outputs Speakers: 6 oh s or ore
Phones: 32 oh s or ore
<Compact disc player section>
Laser Se iconductor laser (l = 780 n )
D/A converter 1 bit dual
ignal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
SPECIFICATIONS
Design and specifications are subject to change without notice.
The word "BBE"and the "BBE sy bol" are trade arks of BBE
Sound, Inc.
Under license fro BBE Sound,Inc.
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz 15 kHz
Recording system AC bias
Heads Deck 1: Playback x 1
Deck 2: Recording / Playback x 1,
erase x 1
<General>
Power requirements HA,HT: 120 V / 220 230 V / 240 V AC,
(switchable), 50 / 60 Hz
HS: AC ~ 220 V, 60 Hz
EZ: 230 V AC, 50 Hz
Power consumption HA,HT: 130 W
HS: 120 W
EZ: 115 W
Power consumption in standby mode
With ECO ode on: 0.6 W
EZ ONLY: With ECO ode off: 20 W
EXCEPT EZ: With ECO ode off: 23 W
Dimensions (W x H x D) 260 x 326 x 345
Weight EXCEPT EZ: 8.4 kg
EZ: 7.4 kg
< peaker system XWN Z700> <EXCEPT HA>
peaker system 3 way, built-in subwoofer
( agnetic shielded type)
peaker units Subwoofer:
160 cone type
Full range:
100 cone type
Super tweeter:
20 cera ic type
Impedance 6 oh s
Dimensions (W x H x D) 230 x 324 x 257
Weight 5.0 kg
< peaker system XWN Z703> <HA ONLY>
peaker system 3 way, built-in subwoofer
( agnetic shielded type)
peaker units Subwoofer:
160 cone type
Full range:
100 cone type
Super tweeter:
20 cera ic type
Impedance 6 oh s
Dimensions (W x H x D) 230 x 324 x 257
Weight 4.8 kg
3
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
8B-NF7-631-130 C-IC,LC866560W-5V19
87-A21-831-010 IC,SPS-422-1-F1
87-A21-419-040 C-IC,NJM14558MD-TE2
87-A21-893-040 C-IC,NJM14558V-TE2
87-A21-023-040 C-IC,BA3835F
87-A21-401-040 C-IC,M61503FP
87-A21-695-010 IC,LA1845L
87-A21-928-010 IC,LC72131D-N
87-A21-269-010 IC,EW732
TRANSIST R
87-A30-494-080 TR,2SA1980G
87-A30-559-010 TR,CSB1370EF
87-A30-076-080 C-TR,2SC3052F
87-A30-075-080 C-TR,2SA1235F
87-A30-484-080 C-TR,KRA102S
87-A30-190-080 TR,CC5551
87-A30-098-010 TR,FP1016
87-A30-097-010 TR,FN1016
87-026-609-080 TR,KTA1266GR
87-A30-087-080 C-FET,2SK2158
87-A30-490-080 C-TR,KRC107S
87-A30-074-080 C-TR,RT1P 141C
87-A30-162-010 FET,2SK2937
87-A30-582-080 TR,CDA1585BC
87-A30-495-080 TR,2SA1981Y
87-A30-091-080 FET,2SJ460
87-A30-090-080 FET,2SK2541
87-A30-062-080 C-TR,KRC104S
89-327-143-080 C-TR,2SC2714
87-A30-489-080 C-TR,KRA107S
89-503-602-080 C-FET,2SK360E
87-A30-520-080 TR,2SC5342Y
87-A30-515-080 TR,2SA1979 /Y
87-A30-234-080 TR,CSC4115BC
87-A30-216-080 TR,2SA933AS(R)
87-A30-636-040 C-TR,SBT5551F
87-A30-635-040 C-TR,SBT5401F
87-A30-529-010 TR,2SD2642
87-A30-528-010 TR,2SB1686
87-A30-086-040 C-TR,CSD1306E
87-026-610-080 TR,KTC3198GR
87-A30-615-080 TR,STC250
DI DE
87-A40-393-090 DI DE,1N5402GW(F20)
87-A40-291-080 DI DE,1N4148M(CPT)
87-A40-839-090 DI DE,G5SBA60L-6088
87-A40-781-080 ZENER,UZ36BSA
87-A40-764-080 ZENER,UZ10BSC
87-A40-553-080 DI DE,1N4003 LES
87-A40-270-080 C-DI DE,MC2838
87-A40-269-080 C-DI DE,MC2836
87-A40-488-080 DI DE,1SS244
87-A40-748-080 ZENER,UZ5.6BSA
87-A40-747-080 ZENER,UZ5.1BSB
87-A40-749-080 ZENER,UZ5.6BSB
87-A40-802-080 ZENER,UZ5.1BSC
87-A40-739-080 ZENER,UZ2.7BSA
87-017-149-080 ZENER,HZS6A2L
87-A40-455-090 DI DE,RL203 GW
MAIN C.B
C3 87-A12-317-080 C-CAP,U 0.1-50 Z F
C4 87-A12-317-080 C-CAP,U 0.1-50 Z F
C5 87-A12-317-080 C-CAP,U 0.1-50 Z F
C6 87-A12-317-080 C-CAP,U 0.1-50 Z F
C9 87-010-759-080 C-CAP,U, 0.1-25F
C10 87-010-759-080 C-CAP,U, 0.1-25F
C11 87-010-759-080 C-CAP,U, 0.1-25F
C12 87-010-759-080 C-CAP,U, 0.1-25F
C19 87-A12-383-000 CAP,E 3300-65 M 85 IV LEL N<HA>
C19 87-A12-828-000 CAP,E 3300-63 M 85 GS<HS,HT>
C19 87-A12-831-000 CAP,E 2200-56 M 85 GS<EZ>
C20 87-A12-383-000 CAP,E 3300-65 M 85 IV LEL N<HA>
C20 87-A12-828-000 CAP,E 3300-63 M 85 GS<HS,HT>
C20 87-A12-831-000 CAP,E 2200-56 M 85 GS<EZ>
C21 87-A12-780-090 CAP,E 4700-35 M 85 SKR<*EZ>
C21 87-A12-825-000 CAP,E 3300-25 M 85 GS<EZ>
C22 87-A12-780-090 CAP,E 4700-35 M 85 SKR<*EZ>
C22 87-A12-825-000 CAP,E 3300-25 M 85 GS<EZ>
C25 87-A12-072-080 CAP,E 100-25 SMG<EZ>
C26 87-A12-072-080 CAP,E 100-25 SMG<EZ>
C27 87-A12-072-080 CAP,E 100-25 SMG<EZ>
C28 87-A12-072-080 CAP,E 100-25 SMG<EZ>
C30 87-010-430-080 CAP,E 100-63<EZ>
C31 87-A12-062-080 CAP,E 100-10 SMG<EZ>
C31 87-A12-091-080 CAP,E 10-50 SMG<*EZ>
C32 87-012-286-080 CAP, U 0.01-25
C34 87-A12-072-080 CAP,E 100-25 SMG
C35 87-A12-071-080 CAP,E 47-25 SMG
C36 87-A12-067-080 CAP,E 330-16 SMG
C38 87-012-286-080 CAP, U 0.01-25
C60 87-A12-089-080 CAP,E 3.3-50 SMG
C61 87-A12-071-080 CAP,E 47-25 SMG
C83 87-A12-068-080 CAP,E 470-16 SMG<EZ>
C83 87-A12-074-080 CAP,E 470-25 SMG<*EZ>
C97 87-010-831-080 C-CAP,U,0.1-16F
C101 87-012-279-080 C-CAP,U 2700P-50 B
C102 87-012-279-080 C-CAP,U 2700P-50 B
C103 87-A12-084-080 CAP,E 0.22-50 SMG
C104 87-A12-084-080 CAP,E 0.22-50 SMG
C107 87-A12-089-080 CAP,E 3.3-50 SMG
C108 87-A12-089-080 CAP,E 3.3-50 SMG
C109 87-012-195-080 C-CAP,U 100P-50 J CH<EZ>
C110 87-012-195-080 C-CAP,U 100P-50 J CH<EZ>
C111 87-A12-077-080 CAP,E 33-35 SMG
C112 87-A12-077-080 CAP,E 33-35 SMG
C113 87-A10-596-080 C-CAP,S 100P-100 J CH
C114 87-A10-596-080 C-CAP,S 100P-100 J CH
C117 87-A12-317-080 C-CAP,U 0.1-50 Z F
C118 87-A12-317-080 C-CAP,U 0.1-50 Z F
C119 87-012-286-080 CAP, U 0.01-25
C120 87-012-286-080 CAP, U 0.01-25
C123 87-010-177-080 C-CAP,S 820P-50 SL
C124 87-010-177-080 C-CAP,S 820P-50 SL
C133 87-012-282-080 CAP, U 4700P-50
C140 87-012-278-080 C-CAP,U 2200P-50 K B<EZ>
C140 87-012-280-080 C-CAP,U 3300P-50 K B<*EZ>
C186 87-010-759-080 C-CAP,U, 0.1-25F
C187 87-010-866-080 CAP, ELECT 10-63
C188 87-010-866-080 CAP, ELECT 10-63
C223 87-010-176-080 C-CAP,S 680P-50 J SL<EZ>
C224 87-010-176-080 C-CAP,S 680P-50 J SL<EZ>
C225 87-A12-317-080 C-CAP,U 0.1-50 Z F
C226 87-A12-317-080 C-CAP,U 0.1-50 Z F
C227 87-A12-317-080 C-CAP,U 0.1-50 Z F
C228 87-A12-317-080 C-CAP,U 0.1-50 Z F
C229 87-010-191-080 C-CAP,S 0.015-50 Z F GRM<EZ>
C230 87-010-191-080 C-CAP,S 0.015-50 Z F GRM<EZ>
C231 87-012-286-080 C-CAP,U 0.01-25 K B<EZ>
C232 87-012-286-080 C-CAP,U 0.01-25 K B<EZ>
C241 87-010-831-080 C-CAP,U,0.1-16F
C301 87-012-275-080 C-CAP,U 1200P-50 K B GRM<EZ>
C301 87-012-274-080 C-CAP,U 1000P-50 K B<*EZ>
4
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C302 87-012-275-080 C-CAP,U 1200P-50 K B GRM<EZ>
C302 87-012-274-080 C-CAP,U 1000P-50 K B<*EZ>
C303 87-012-275-080 C-CAP,U 1200P-50 B
C304 87-012-275-080 C-CAP,U 1200P-50 B
C307 87-A12-062-080 CAP,E 100-10 SMG
C308 87-A12-062-080 CAP,E 100-10 SMG
C309 87-012-188-080 C-CAP,U 47P-50 J CH<*EZ>
C309 87-012-196-080 C-CAP,U 120P-50 J CH<EZ>
C310 87-012-188-080 C-CAP,U 47P-50 J CH<*EZ>
C310 87-012-196-080 C-CAP,U 120P-50 J CH<EZ>
C313 87-012-284-080 CAP, U 6800P-50
C314 87-012-284-080 CAP, U 6800P-50
C315 87-A12-062-080 CAP,E 100-10 SMG
C317 87-A12-085-080 CAP,E 0.33-50 SMG
C318 87-A12-085-080 CAP,E 0.33-50 SMG
C326 87-010-787-080 CAP, U 0.022-25
C327 87-010-831-080 C-CAP,U,0.1-16F
C333 87-012-195-080 C-CAP,U 100P-50 J CH<EZ>
C334 87-012-195-080 C-CAP,U 100P-50 J CH<EZ>
C350 87-012-286-080 C-CAP,U 0.01-25 K B<EZ>
C360 87-A12-087-080 CAP,E 1-50 SMG
C365 87-012-195-080 C-CAP,U 100P-50 J CH<EZ>
C399 87-A10-039-080 C-CAP,U 470P-50 J CH
C401 87-A12-083-080 CAP,E 0.1-50 SMG
C402 87-A12-083-080 CAP,E 0.1-50 SMG
C403 87-012-193-080 C-CAP,U 82P-50 CH
C404 87-012-193-080 C-CAP,U 82P-50 CH
C405 87-012-286-080 CAP, U 0.01-25
C406 87-012-286-080 CAP, U 0.01-25
C407 87-012-286-080 CAP, U 0.01-25
C408 87-012-286-080 CAP, U 0.01-25
C409 87-012-278-080 C-CAP,U 2200P-50 B
C410 87-012-278-080 C-CAP,U 2200P-50 B
C411 87-A12-091-080 CAP,E 10-50 SMG
C412 87-A12-091-080 CAP,E 10-50 SMG
C452 87-A12-069-080 CAP,E 22-25 SMG
C453 87-012-279-080 C-CAP,U 2700P-50 B
C454 87-012-279-080 C-CAP,U 2700P-50 B
C455 87-012-279-080 C-CAP,U 2700P-50 B
C456 87-012-286-080 CAP, U 0.01-25
C457 87-A12-361-080 CAP,M 5600P-100 J CP
C458 87-012-274-080 CHIP CAP,U 1000P-50B
C459 87-012-271-080 CAP, U 560P-50
C460 87-010-831-080 C-CAP,U,0.1-16F
C461 87-012-158-080 C-CAP,S 390P-50 CH
C462 87-012-158-080 C-CAP,S 390P-50 CH
C470 87-018-127-080 CAP, CER 470P-50V
C605 87-012-280-080 CAP, U 3300P-50
C606 87-012-280-080 CAP, U 3300P-50
C609 87-010-785-080 C-CAP,U0.015-25BK
C610 87-010-785-080 C-CAP,U0.015-25BK
C611 87-A12-084-080 CAP,E 0.22-50 SMG
C612 87-A12-084-080 CAP,E 0.22-50 SMG
C613 87-A12-084-080 CAP,E 0.22-50 SMG
C614 87-A12-084-080 CAP,E 0.22-50 SMG
C615 87-012-172-080 CAPACIT R CHIP U 10P CH
C616 87-016-459-080 CAP,E 470-10 SMG
C617 87-016-459-080 CAP,E 470-10 SMG
C618 87-A12-091-080 CAP,E 10-50 SMG
C620 87-010-263-080 CAP, ELECT 100-10V
C623 87-A12-084-080 CAP,E 0.22-50 SMG
C624 87-A12-084-080 CAP,E 0.22-50 SMG
C630 87-A10-260-080 C-CAP,U 0.1-16 K B
C631 87-012-281-080 C-CAP,U 3900P-50 B
C632 87-012-281-080 C-CAP,U 3900P-50 B
C633 87-A11-070-080 C-CAP,U 0.033-16 K B
C634 87-A11-070-080 C-CAP,U 0.033-16 K B
C661 87-012-336-080 C-CAP,U 330P-50J SL
C662 87-012-336-080 C-CAP,U 330P-50J SL
C669 87-012-274-080 C-CAP,U 1000P-50 K B<EZ>
C670 87-012-274-080 C-CAP,U 1000P-50 K B<EZ>
C671 87-010-831-080 C-CAP,U 0.1-16F<*EZ>
C672 87-010-831-080 C-CAP,U 0.1-16F<*EZ>
C673 87-010-182-080 C-CAP,S 2200P-50 K B C2012<*EZ>
C677 87-012-286-080 CAP, U 0.01-25
C771 87-A12-062-080 CAP,E 100-10 SMG
C772 87-012-286-080 CAP, U 0.01-25
C779 87-010-949-080 C-CAP,S 0.01-50 JB<EZ>
C780 87-010-949-080 C-CAP,S 0.01-50 JB<EZ>
C782 87-012-286-080 CAP, U 0.01-25
C783 87-012-286-080 CAP, U 0.01-25
C784 87-012-286-080 CAP, U 0.01-25
C785 87-012-286-080 CAP, U 0.01-25
C786 87-012-286-080 CAP, U 0.01-25
C788 87-012-167-080 C-CAP,U 5P-50 CH
C779 87-010-949-080 C-CAP,S 0.01-50 JB<EZ>
C789 87-016-118-080 C-CAP,U 0.022-25 JB GRM<*HA>
C789 87-A12-052-080 C-CAP,S 0.033-25 J B<HA>
C790 87-016-118-080 C-CAP,U 0.022-25 JB GRM<*HA>
C790 87-A12-052-080 C-CAP,S 0.033-25 J B<HA>
C791 87-010-831-080 C-CAP,U,0.1-16F
C792 87-012-286-080 CAP, U 0.01-25
C793 87-A12-090-080 CAP,E 4.7-50 SMG
C795 87-012-286-080 CAP, U 0.01-25
C796 87-012-286-080 CAP, U 0.01-25
C797 87-A12-091-080 CAP,E 10-50 SMG
C798 87-012-286-080 CAP, U 0.01-25
C799 87-A12-093-080 CAP,E 33-50 SMG
C800 87-010-829-080 CAP, U 0.047-16
C801 87-A12-089-080 CAP,E 3.3-50 SMG
C802 87-010-829-080 CAP, U 0.047-16
C803 87-010-787-080 CAP, U 0.022-25
C804 87-A12-062-080 CAP,E 100-10 SMG
C807 87-A12-086-080 CAP,E 0.47-50 SMG
C808 87-A12-087-080 CAP,E 1-50 SMG
C809 87-A12-087-080 CAP,E 1-50 SMG
C810 87-010-831-080 C-CAP,U,0.1-16F
C814 87-012-286-080 CAP, U 0.01-25
C815 87-A12-086-080 CAP,E 0.47-50 SMG
C816 87-A12-086-080 CAP,E 0.47-50 SMG
C818 87-012-276-080 C-CAP,U 1500P-50 K B<EZ>
C821 87-A12-091-080 CAP,E 10-50 SMG
C823 87-010-177-080 C-CAP,S 820P-50 J SL C2012<*EZ>
C823 87-A10-915-080 C-CAP,U 1000P-25 J CH<EZ>
C824 87-A12-090-080 CAP,E 4.7-50 SMG
C825 87-010-596-080 CAP, S 0.047-16
C831 87-A12-092-080 CAP,E 22-50 SMG<EZ>
C842 87-012-286-080 CAP, U 0.01-25
C844 87-012-286-080 CAP, U 0.01-25
C850 87-A12-071-080 CAP,E 47-25 SMG
C851 87-012-286-080 CAP, U 0.01-25
C852 87-012-286-080 CAP, U 0.01-25
C853 87-012-286-080 CAP, U 0.01-25
C858 87-010-831-080 C-CAP,U,0.1-16F
C859 87-010-831-080 C-CAP,U 0.1-16 Z F<EZ>
C860 87-012-286-080 C-CAP,U 0.01-25 K B<EZ>
C901 87-018-145-080 CAP,TC-U 6.8P-50 CH<*EZ>
C904 87-012-286-080 CAP, U 0.01-25 K B<*EZ>
C905 87-012-286-080 CAP, U 0.01-25 K B<*EZ>
C907 87-012-286-080 CAP, U 0.01-25 K B<*EZ>
C908 87-A10-915-080 C-CAP,U 1000P-25 J CH<*EZ>
C909 87-012-286-080 C-CAP,U 0.01-25 K B<*EZ>
C910 87-012-174-080 C-CAP,U 12P-50 J CH<*EZ>
C911 87-012-170-080 C-CAP,U 8P-50 CH<*EZ>
C912 87-012-195-080 C-CAP,U 100P-50 J CH<*EZ>
C913 87-012-286-080 C-CAP,U 0.01-25 K B<*EZ>
C914 87-012-166-080 C-CAP,U 4P-50 C CH<*EZ>
C915 87-012-174-080 CAP CHIP CERA SS 12P CHJ<*EZ>
C916 87-012-180-080 C-CAP,U 22P-50 J CH<*EZ>
C917 87-012-186-080 C-CAP,U 39P-50 J CH<*EZ>
5
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C918 87-A10-039-080 C-CAP,U 470P-50 J CH<*EZ>
C921 87-012-195-080 C-CAP,U 100P-50 J CH<*EZ>
C922 87-012-174-080 C-CAP,12P J CH<*EZ>
C940 87-012-286-080 C-CAP,U 0.01-25 K B<HT,EZ>
C941 87-012-180-080 C-CAP,U 22P-50 J CH<HT>
C942 87-012-165-080 C-CAP,U 3P-50 C CH<EZ>
C943 87-012-286-080 C-CAP,U 0.01-25 K B<HT>
C945 87-012-286-080 C-CAP,U 0.01-25 K B<HT>
C946 87-010-971-080 C-CAP,S 4700P-50 J B<HT>
C947 87-012-286-080 C-CAP,U 0.01-25 K B<HT,EZ>
C948 87-012-166-080 C-CAP,U 4P-50 C CH<HT>
C948 87-A10-039-080 C-CAP,U 470P-50 J CH<EZ>
C952 87-012-286-080 C-CAP,U 0.01-25 K B<HT,EZ>
C953 87-012-286-080 C-CAP,U 0.01-25 K B<HT>
C954 87-A12-086-080 CAP,E 0.47-50 SMG<HT>
C956 87-A12-062-080 CAP,E 100-10 SMG<HT>
C957 87-012-174-080 C-CAP,U 12P-50 J CH<EZ>
C958 87-012-286-080 C-CAP,U 0.01-25 K B<EZ>
C959 87-010-831-080 C-CAP,U,0.1-16F
C960 87-010-831-080 C-CAP,U,0.1-16F<*HT>
C961 87-012-167-080 C-CAP,U 5P-50 CH<HA,HS>
C963 87-015-785-080 CHIP CAPACIT R, 0.1FZ-25Z
C964 87-010-854-080 C-CAP,S 560P-50 J CH<HT>
C971 87-A12-067-080 CAP,E 330-16 SMG
C972 87-A12-090-080 CAP,E 4.7-50 SMG
C973 87-012-286-080 CAP, U 0.01-25
C974 87-012-286-080 CAP, U 0.01-25
C979 87-012-195-080 C-CAP,U 100P-50CH
C981 87-A12-071-080 CAP,E 47-25 SMG
C982 87-010-831-080 C-CAP,U,0.1-16F
C983 87-012-286-080 CAP, U 0.01-25
C984 87-012-286-080 CAP, U 0.01-25
C985 87-012-195-080 C-CAP,U 100P-50 J CH<EZ>
C987 87-012-286-080 CAP, U 0.01-25
C989 87-012-286-080 C-CAP,U 0.01-25 K B<HT,EZ>
C991 87-012-176-080 CAP 15P
C992 87-012-176-080 CAP 15P
C993 87-012-274-080 CHIP CAP,U 1000P-50B
C995 87-012-274-080 CHIP CAP,U 1000P-50B
C997 87-010-831-080 C-CAP,U,0.1-16F
C998 87-A12-071-080 CAP,E 47-25 SMG
C999 87-A11-155-080 CAP,TC U 0.01-16 Z F
C1000 87-018-142-080 CAP,TC U 3.9P-50 K C<EZ>
C1001 87-018-142-080 CAP,TC U 3.9P-50 K C<EZ>
C1002 87-018-117-080 CAP,TC U 68P-50 J SL<EZ>
C1003 87-018-117-080 CAP,TC U 68P-50 J SL<EZ>
CF831 87-008-261-010 FILTER,CF SFE10.7MA5<*EZ>
CF831 87-008-423-010 FLTR,CF SFE10.7MS3G-A<EZ>
CF832 87-008-261-010 FILTER,CF SFE10.7MA5<*EZ>
CF832 82-785-747-010 CF,MS2 GHY,R<EZ>
CN301 87-A60-620-010 C NN,3P V 2MM JMT
CN351 87-A60-625-010 C NN,8P V 2MM JMT
CN601 87-099-719-010 C NN,30P H BLK TYK-B(X)
CN602 87-A60-131-010 C NN,6P V FE
CNA1 8A-NF8-653-010 C NN ASSY,9P TID-A(480)<*EZ>
D902 87-A40-128-080 C-VARI-CAP,HVU202A<*EZ>
D903 87-A40-128-080 C-VARI-CAP,HVU202A<*EZ>
D951 87-A40-618-080 VARI-CAP,SVC 348(S/T)<HT>
FB303 87-008-474-080 F-BEAD,BL02RN1-R62T2 EMI<EZ>
FC602 88-906-251-110 FF-CABLE,6P 1.25
FFE831 A8-6ZA-19H-030 6ZA-1 FEMENM<EZ>
J201 87-A60-488-010 JACK,DIA6.3BLK ST W/SW KM16AT<*HS>
J201 87-A60-602-010 JACK,DIA6.3 BLK ST W/SW TC<HS>
J203 87-A60-238-010 TERMINAL,SP 4P (MSC)
J602 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN
J831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02<*EZ>
J832 87-A60-403-010 TERMINAL,ANT PAL 2P HSP-312V05<EZ>
J940 87-A60-633-010 C NN,2P H 2.5MM JMT<HT>
JR123 87-A10-596-080 C-CAP,S 100P-100 J CH
JR124 87-A10-596-080 C-CAP,S 100P-100 J CH
L201 87-A50-610-010 C IL,1UH K(MDEC)
L202 87-A50-610-010 C IL,1UH K(MDEC)
L451 87-007-342-010 C IL, SC 85K HZ BIAS
L801 87-A50-608-010 C IL,FM DET-N(T K)
L802 87-A91-551-010 FLTR,PCFJZH-450 L(T K)<*HT>
L802 87-A91-552-010 FLTR,CFMT-450AL(T K)<HT>
L811 87-005-847-080 C IL,2.2UH K CECS
L832 87-005-847-080 C IL,2.2UH K CECS
L902 88-ZA1-602-110 C IL,FM-RF-U2 2G<*EZ>
L903 88-ZA1-601-010 C IL,FM-RF-U1 2G<*EZ>
L904 87-005-847-080 C IL,2.2UH K CECS<*EZ>
L905 88-ZA1-624-010 C IL,FM IFT 7-6.2(C ILS)<*EZ>
L906 88-ZA1-603-010 C IL,FM- SC-U 2G<*EZ>
L941 87-A50-020-010 C IL,ANT LW(C I)252KHZ<EZ>
L941 87-A50-022-010 C IL,ANT SW(C I)7.9MHZ<HT>
L942 87-A50-019-010 C IL, SC LW(C I)856KHZ<EZ>
L942 87-A50-550-010 C IL, SC SW-2N(C I)<HT>
L943 87-A50-522-080 C IL,1MH K CEC<HT>
L944 87-A50-159-010 C IL,10MH K C2B<HT>
L951 8A-NF8-667-010 C IL,AM PACK 4(T K)<HA,HS>
L951 8A-NF8-668-010 C IL,AM PACK 2(T K)<EZ>
L952 87-A50-430-010 C IL,ANT MW(3BSW)<HT>
L953 87-A50-431-010 C IL, SC MW(3BSW)<HT>
R129 87-A00-262-080 RES,M/F 0.15-2W J
R130 87-A00-262-080 RES,M/F 0.15-2W J
R131 87-A00-262-080 RES,M/F 0.15-2W J
R132 87-A00-262-080 RES,M/F 0.15-2W J
R243 87-A01-001-050 RES,220-1/2W J BLT2J
R244 87-A01-001-050 RES,220-1/2W J BLT2J
R245 87-A00-999-050 RES,180-1/2W J BLT2J<HS,HT>
R245 87-A01-001-050 RES,220-1/2W J BLT2J<HA>
R245 87-A01-002-050 RES,270-1/2W J BLT2J<EZ>
R246 87-A00-999-050 RES,180-1/2W J BLT2J<HS,HT>
R246 87-A01-001-050 RES,220-1/2W J BLT2J<HA>
R246 87-A01-002-050 RES,270-1/2W J BLT2J<EZ>
R790 87-012-286-080 CAP, U 0.01-25
R991 87-012-195-080 C-CAP,U 100P-50CH
R993 87-012-195-080 C-CAP,U 100P-50CH
R995 87-012-195-080 C-CAP,U 100P-50CH
SFR451 87-A90-432-080 SFR,30K H NVZ6TLTA
SFR452 87-A90-432-080 SFR,30K H NVZ6TLTA
TC941 87-A91-773-080 TRIMMER,PLY 20P 6.8X5.4 CDYL<HT>
TC942 87-A91-774-080 TRIMMER,PLY 20P 6.8X5.4 CDYL<EZ>
TC943 87-A91-774-080 TRIMMER,PLY 20P 6.8X5.4 CDYL<HT>
TH101 87-A91-042-080 C-THMS,100K 55001
TH102 87-A91-042-080 C-THMS,100K 55001
W99 8B-NFJ-620-010 F-CABLE,9P 2.5 280MM<EZ>
WH1 87-A90-510-010 HLDR,WIRE 2.5-9P
X992 87-A70-306-010 VIB,XTAL 4.500MHZ CSA-309ST

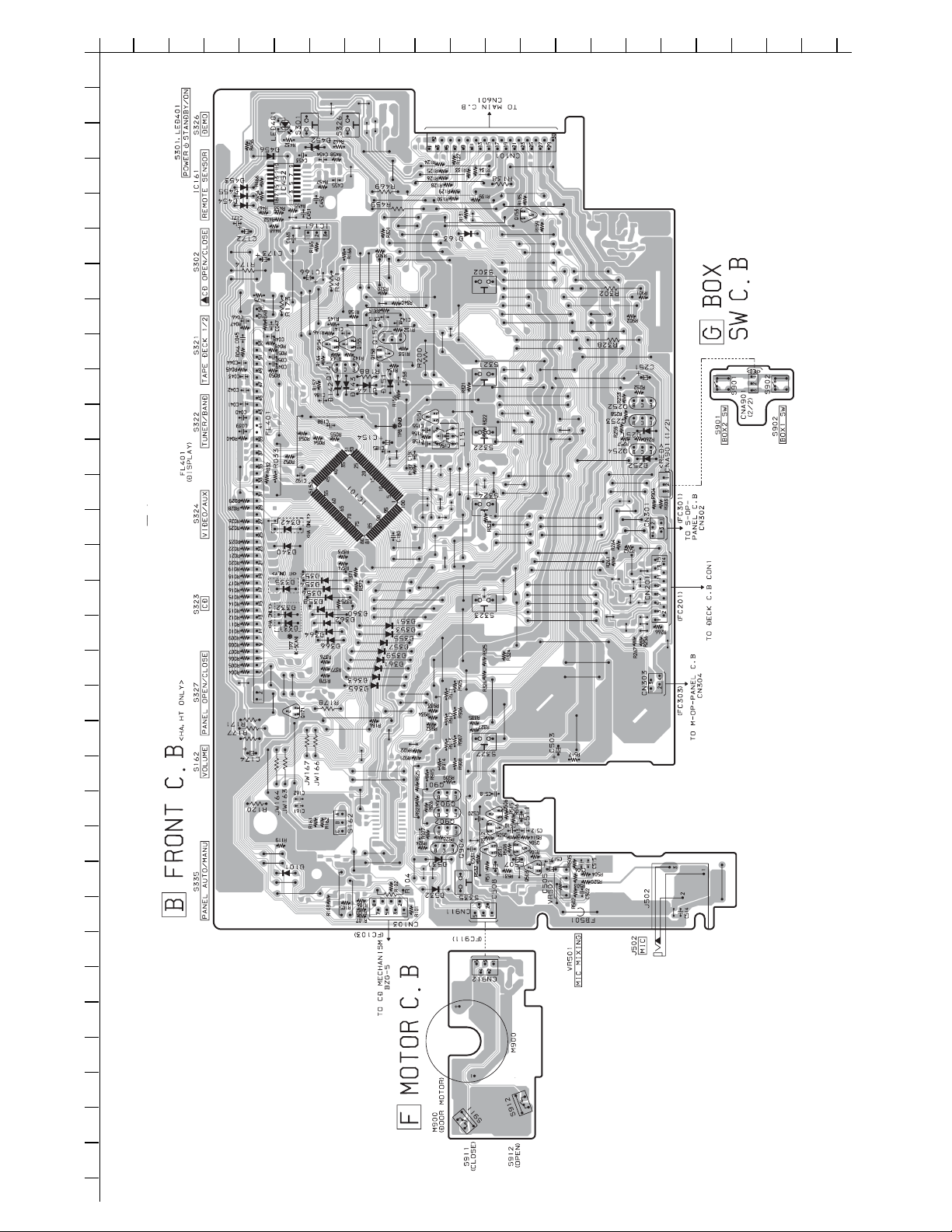

FR NT C.B
C39 87-A10-039-080 C-CAP,U 470P-50 J CH
C40 87-012-195-080 C-CAP,U 100P-50CH
C41 87-012-195-080 C-CAP,U 100P-50CH
C42 87-012-195-080 C-CAP,U 100P-50CH
C43 87-012-195-080 C-CAP,U 100P-50CH
C44 87-012-195-080 C-CAP,U 100P-50CH
C45 87-012-195-080 C-CAP,U 100P-50CH
C46 87-012-195-080 C-CAP,U 100P-50CH
C47 87-012-195-080 C-CAP,U 100P-50CH
C48 87-012-199-080 CAP 220P
C49 87-012-145-080 CAP, CHIP S 270P CH
C50 87-012-145-080 CAP, CHIP S 270P CH
C141 87-012-278-080 C-CAP,U 2200P-50 B
C142 87-010-785-080 C-CAP,U0.015-25BK
C153 87-A11-058-080 C-CAP,U 0.22-10 K B
C154 87-A10-189-040 CAP,E 220-10
C155 87-012-176-080 CAP 15P
C156 87-012-198-080 CAP 180P
6
C158 87-A10-039-080 C-CAP,U 470P-50 J CH
C161 87-012-274-080 CHIP CAP,U 1000P-50B
C162 87-012-274-080 CHIP CAP,U 1000P-50B
C165 87-012-157-080 C-CAP,S 330P-50 CH
C166 87-010-552-040 CAP,E 22-16 M 5L SRE
C171 87-012-369-080 C-CAP,S 0.047-50F
C172 87-010-408-040 CAP,E 47-50 M 11L SME
C173 87-010-421-040 CAP,E 4.7-50 5L
C174 87-010-421-040 CAP,E 4.7-50 5L
C180 87-010-759-080 C-CAP,U, 0.1-25F
C185 87-010-759-080 C-CAP,U, 0.1-25F
C186 87-012-274-080 CHIP CAP,U 1000P-50B
C188 87-012-369-080 C-CAP,S 0.047-50F
C191 87-012-286-080 CAP, U 0.01-25
C192 87-010-759-080 C-CAP,U, 0.1-25F
C193 87-018-209-080 CAP,TC U 0.5-50 Z F UP050<HS>
C251 87-010-408-040 CAP,E 47-50 M 11L SME
C315 87-010-759-080 C-CAP,U, 0.1-25F
C451 87-010-759-080 C-CAP,U, 0.1-25F
C452 87-010-759-080 C-CAP,U, 0.1-25F
C453 87-010-759-080 C-CAP,U, 0.1-25F
C454 87-010-759-080 C-CAP,U, 0.1-25F
C455 87-010-759-080 C-CAP,U, 0.1-25F
C502 87-012-282-080 C-CAP,U 4700P-50 K B<*EZ>
C503 87-010-112-040 CAP,E 100-16<*EZ>
C505 87-010-492-040 CAP,E 0.33-50 M 5L SRE<*EZ>
C506 87-012-191-080 C-CAP,U 68P-50 J CH<*EZ>
C507 87-010-545-040 CAP,E 0.22-50 SME<*EZ>
C508 87-010-544-040 CAP,E 0.1-50 11L SME<*EZ>
C510 87-012-195-080 C-CAP,U 100P-50 CH<*EZ>
C511 87-A12-065-040 CAP,E 33-16 SMG<*EZ>
C512 87-012-274-080 C-CAP,U 1000P-50B<*EZ>
C514 87-010-759-080 C-CAP,U 0.1-25 Z F<*EZ>
C515 87-012-274-080 C-CAP,U 1000P-50 K B<*EZ>
C517 87-012-274-080 C-CAP,U 1000P-50 K B<*EZ>
C518 87-010-759-080 C-CAP,U 0.1-25 Z F<*EZ>
C520 87-012-273-080 C-CAP,U 820P-50 K B<*EZ>
C531 87-010-805-080 C-CAP,S 1-16 Z F<*EZ>
CN101 87-099-720-010 C NN,30P BLK TYK-B(P)
CN103 87-099-196-010 C NN,8P V BLK 6216
CN201 87-099-017-010 C NN,15P V BLK 6216<*EZ>
CN202 87-099-013-010 C NN,11P V BLK 6216<EZ>
CN301 87-099-209-010 C NN,4P H BLK 6216
CN303 87-099-209-010 C NN,4P H BLK 6216
CN911 87-099-212-010 C NN,5P V BLK 6216
CNA901 8B-NF7-620-010 C NN ASSY,3P V 120MM
FB501 87-008-372-080 FLTR,EMI BL01 IN1<*EZ>
FC103 88-908-301-110 FF-CABLE,8P 1.25
FC201 88-915-101-110 FF-CABLE,15P 1.25<*EZ>
FC202 88-911-101-110 FF-CABLE,11P 1.25<EZ>
FC301 88-904-091-110 FF-CABLE,4P 1.25 90MM
FC303 88-904-091-110 FF-CABLE,4P 1.25 90MM
FC911 88-905-151-110 FF-CABLE, 5P 1.25 150MM
FL401 8B-NF7-621-010 FL,BJ815GNK
J502 87-A61-242-010 JACK,6.3 BLK M N W/SW V KM<*EZ>
L151 87-A50-656-010 C IL,CLK 5.76MHZ (T K )7KLY
LED401 87-A40-589-040 LED,SLR-56VCT31 RED
S162 87-A91-645-010 SW,RTRY EC12E24304N N-CLICK
S301 87-A90-095-080 SW,TACT EVQ11G04M
S302 87-A90-095-080 SW,TACT EVQ11G04M
S321 87-A90-095-080 SW,TACT EVQ11G04M
S322 87-A90-095-080 SW,TACT EVQ11G04M
S323 87-A90-095-080 SW,TACT EVQ11G04M
S324 87-A90-095-080 SW,TACT EVQ11G04M
S326 87-A90-095-080 SW,TACT EVQ11G04M
S327 87-A90-095-080 SW,TACT EVQ11G04M
S335 87-A90-095-080 SW,TACT EVQ11G04M
VR501 87-NB7-602-010 VR,RTRY 10KAX1 1 V<*EZ>
PT C.B<EZ>
C85 87-010-831-080 C-CAP,U 0.1-16 Z F
PT1 8B-NFJ-605-010 PT,BNF-18 EZK VA
PT81 8B-MA6-675-010 PT,SUB BMA E(VRK)
RY81 87-A91-418-010 RELAY,AC12V G5PA-1-M
T81 87-A60-317-010 TERMINAL,1P MSC
T82 87-A60-317-010 TERMINAL,1P MSC
WH81 87-A90-510-010 HLDR,WIRE 2.5-9P
PT C.B<HA,HS,HT>
CN1 87-A61-110-010 C NN,9P V TID-A
PT1 8B-NFJ-602-010 PT,BNF-18 LH<HA>
PT1 8B-NFJ-604-010 PT,BNF-18 HR<HS,HT>
PT2 8B-MA6-673-010 PT,SUB BMA H (VRK)
RY1 87-A91-281-010 RELAY,AC DC12V SA-SS-212DM5<HS>
RY1 87-A91-339-010 RELAY,AC DC12V G5PA-2<HA,HT>
S1 87-A90-165-010 SW,SL 1-2-3 SWS2301<HA,HT>
T1 87-A60-317-010 TERMINAL, 1P MSC
T2 87-A60-317-010 TERMINAL, 1P MSC
M- P-PANEL C.B
C391 87-012-274-080 CHIP CAP,U 1000P-50B
C392 87-012-199-080 CAP 220P
CN304 87-099-209-010 C NN,4P H BLK 6216
S341 87-A90-095-080 SW,TACT EVQ11G04M
S342 87-A90-095-080 SW,TACT EVQ11G04M
S343 87-A90-095-080 SW,TACT EVQ11G04M
S344 87-A90-095-080 SW,TACT EVQ11G04M
S345 87-A90-095-080 SW,TACT EVQ11G04M
S346 87-A90-095-080 SW,TACT EVQ11G04M
S347 87-A90-095-080 SW,TACT EVQ11G04M
S348 87-A90-095-080 SW,TACT EVQ11G04M
S349 87-A90-095-080 SW,TACT EVQ11G04M
S350 87-A90-095-080 SW,TACT EVQ11G04M
S351 87-A90-095-080 SW,TACT EVQ11G04M
S352 87-A90-095-080 SW,TACT EVQ11G04M
S371 87-A91-991-010 SW,RTRY RE 12303PVB8H
S- P-PANEL C.B
CN302 87-A60-083-010 C NN,04P H 9604S-04F
S303 87-A90-095-080 SW,TACT EVQ11G04M
S304 87-A90-095-080 SW,TACT EVQ11G04M
S305 87-A90-095-080 SW,TACT EVQ11G04M<*EZ>
S306 87-A90-095-080 SW,TACT EVQ11G04M<*EZ>
S307 87-A90-095-080 SW,TACT EVQ11G04M
S308 87-A90-095-080 SW,TACT EVQ11G04M
S329 87-A90-095-080 SW,TACT EVQ11G04M
S330 87-A90-095-080 SW,TACT EVQ11G04M
S332 87-A90-095-080 SW,TACT EVQ11G04M
S333 87-A90-095-080 SW,TACT EVQ11G04M
M T R C.B
CN912 87-099-210-010 C NN,5P H BLK 6216
M900 87-045-305-010 M T R,RF-500TB
S911 87-036-109-010 SW,MICR SPPB61
S912 87-036-109-010 SW,MICR SPPB61
B X SW C.B
S901 87-036-252-010 SW,MICR SPPB51
S902 87-036-252-010 SW,MICR SPPB51
DECK C.B<EZ>
C N105 87-099-753-010 C NN,11P H 9604
M1 87-A92-321-010 M T,SHU2L 60
SFR1 87-024-581-010 SFR,3.3K H KVSF637A
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
!
!
!
!
!
!
!
!
!
!
!
!
!
7
S L1 82-ZM3-627-010 S L ASSY,27 S
S L2 82-ZM3-627-010 S L ASSY,27 S
SW1 87-A90-248-010 SW,MICR ESE11SH2CXQ
SW2 87-A90-248-010 SW,MICR ESE11SH2CXQ
SW3 87-A90-248-010 SW,MICR ESE11SH2CXQ
SW4 87-A90-248-010 SW,MICR ESE11SH2CXQ
SW5 87-A90-248-010 SW,MICR ESE11SH2CXQ
DECK C.B<HA,HS,HT>
C N1 87-099-756-010 C NN,15P 9604
M1 87-A92-321-010 M T,SHU2L 60
SFR1 87-024-581-010 SFR,3.3K H KVSF637A
S L1 82-ZM3-627-010 S L ASSY,27 S
S L2 82-ZM3-627-010 S L ASSY,27 S
SW1 87-A90-248-010 SW,MICR ESE11SH2CXQ
SW2 87-A90-248-010 SW,MICR ESE11SH2CXQ
SW4 87-036-110-010 SW,MICR SPPB62
SW6 87-036-110-010 SW,MICR SPPB62
SW8 87-A90-248-010 SW,MICR ESE11SH2CXQ
SW9 87-A90-248-010 SW,MICR ESE11SH2CXQ
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
HEAD-1 C.B
85-ZM3-602-010 PWB,FLEX A
C N301 85-MA2-615-010 C NN ASSY,3P-PB<EZ>
C N301 87-NF6-615-010 C NN ASSY,3P PB<*EZ>
HEAD-2 C.B<*EZ>
85-ZM3-602-010 PWB,FLEX A
C N351 87-NF6-616-010 C NN ASSY,8P RPB
N TE: * = EXCEPT
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
8
TRANSISTOR ILLUSTRATION
2SA1235F
2SC2714O
2SC3052F
CSD1306E
KRA102S
KRA107S
2SA1980G
2SA1981Y
2SA1979O/Y
2SC5342Y
STC250
2SA933AS(R)
C
B
E
S
D
G
D
G
S
2SJ460
2SK2541
2SK360E 2SK2158
2SK2937
E C B
G D S B C E
FN1016
FP1016
S D G
E C B E C B
CC5551
CDA1585BC
CSC4115BC
KTA1266GR
KTC3198GR
B C E
CSB1370EF
2SB1686
2SD2462
KRC104S
KRC107S
RT1P141C
SBT5401F
SBT5551F
9
WIRING 1 (MAIN) <HA / HS>
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
– 10 –
SCHEMATIC DIAGRAM – 1 (MAIN 1 / 2 : AMP SECTION) <HA / HS>
– 11 –

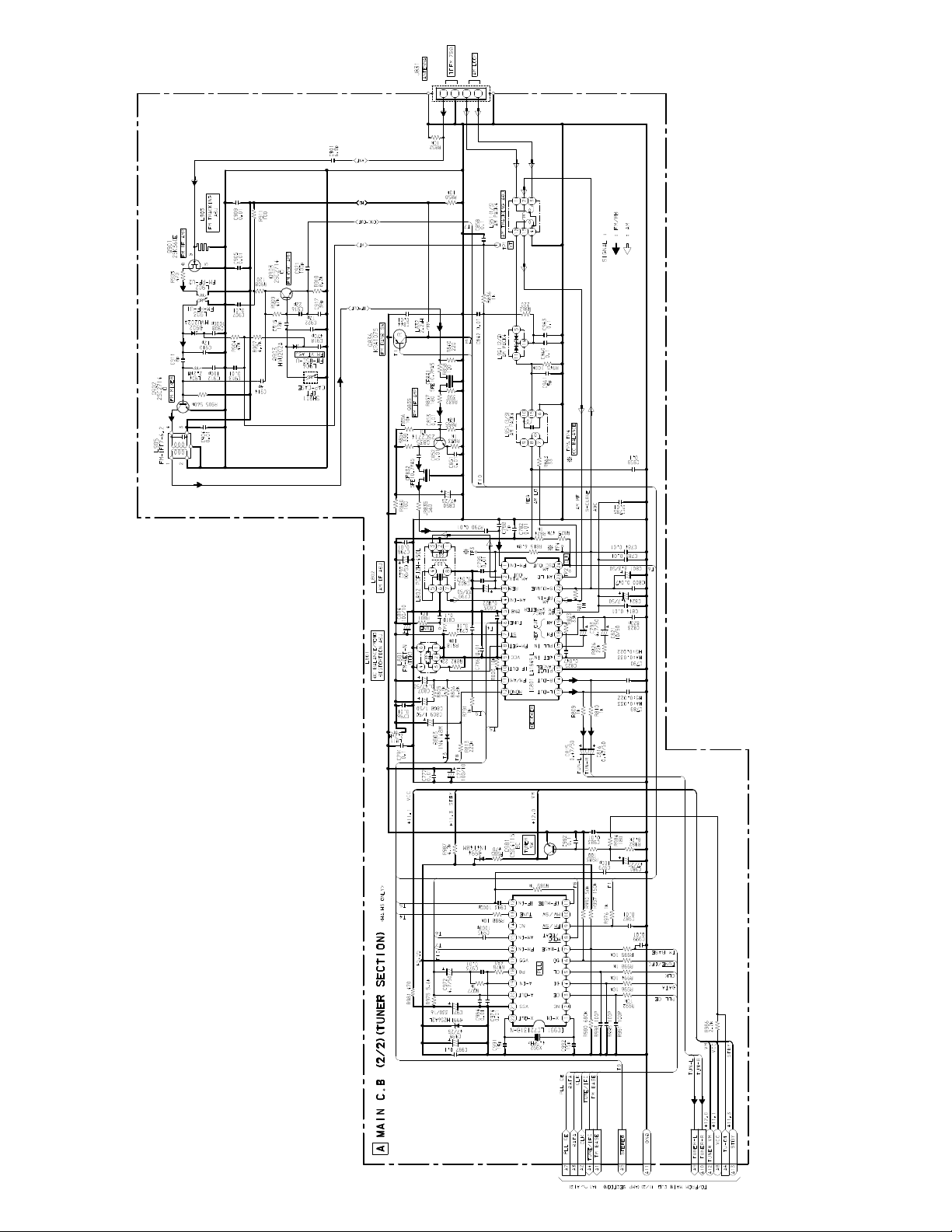

SCHEMATIC DIAGRAM–2 (MAIN 2/2:TUNER SECTION) <HA/HS>
12
WIRING 2 (MAIN) <HT>
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
– 13 –

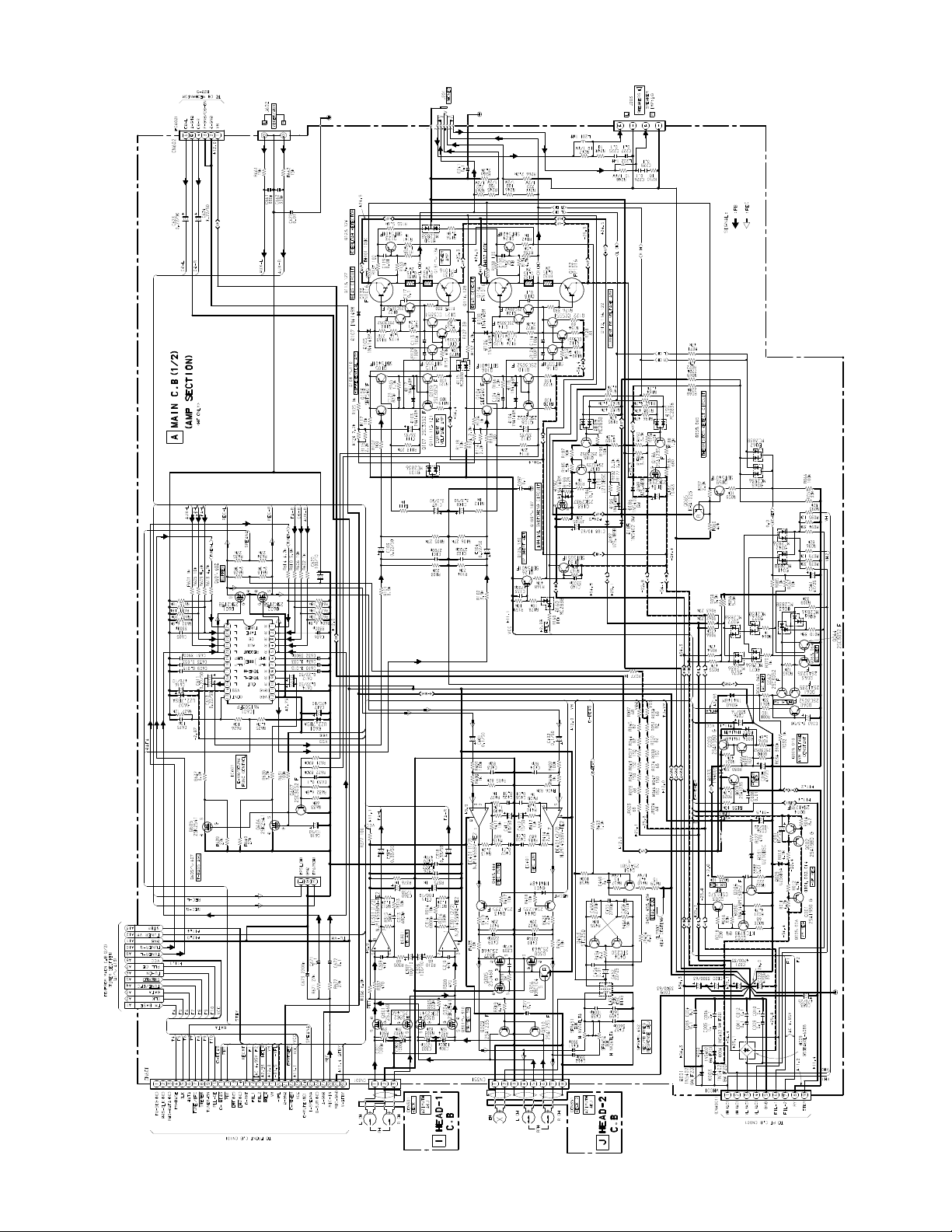

SCHEMATIC DIAGRAM–3 (MAIN 1 / 2 : AMP SECTION) <HT>
– 14 –
SCHEMATIC DIAGRAM–4 (MAIN 2/2:TUNER SECTION) <HT>
15
WIRING 3 (MAIN) <EZ>
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
– 16 –

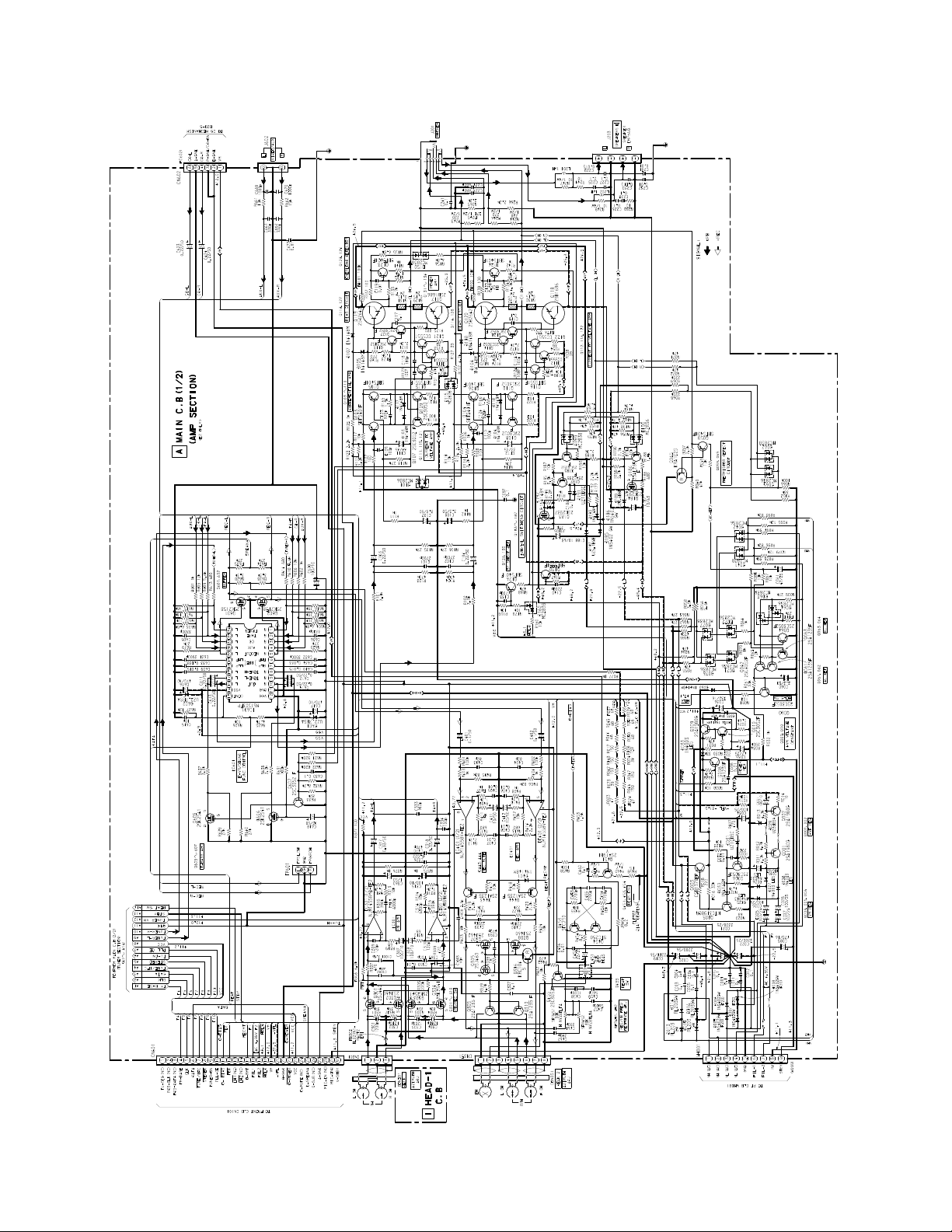

SCHEMATIC DIAGRAM – 5 (MAIN 1 / 2 : AMP SECTION) <EZ>
– 17 –

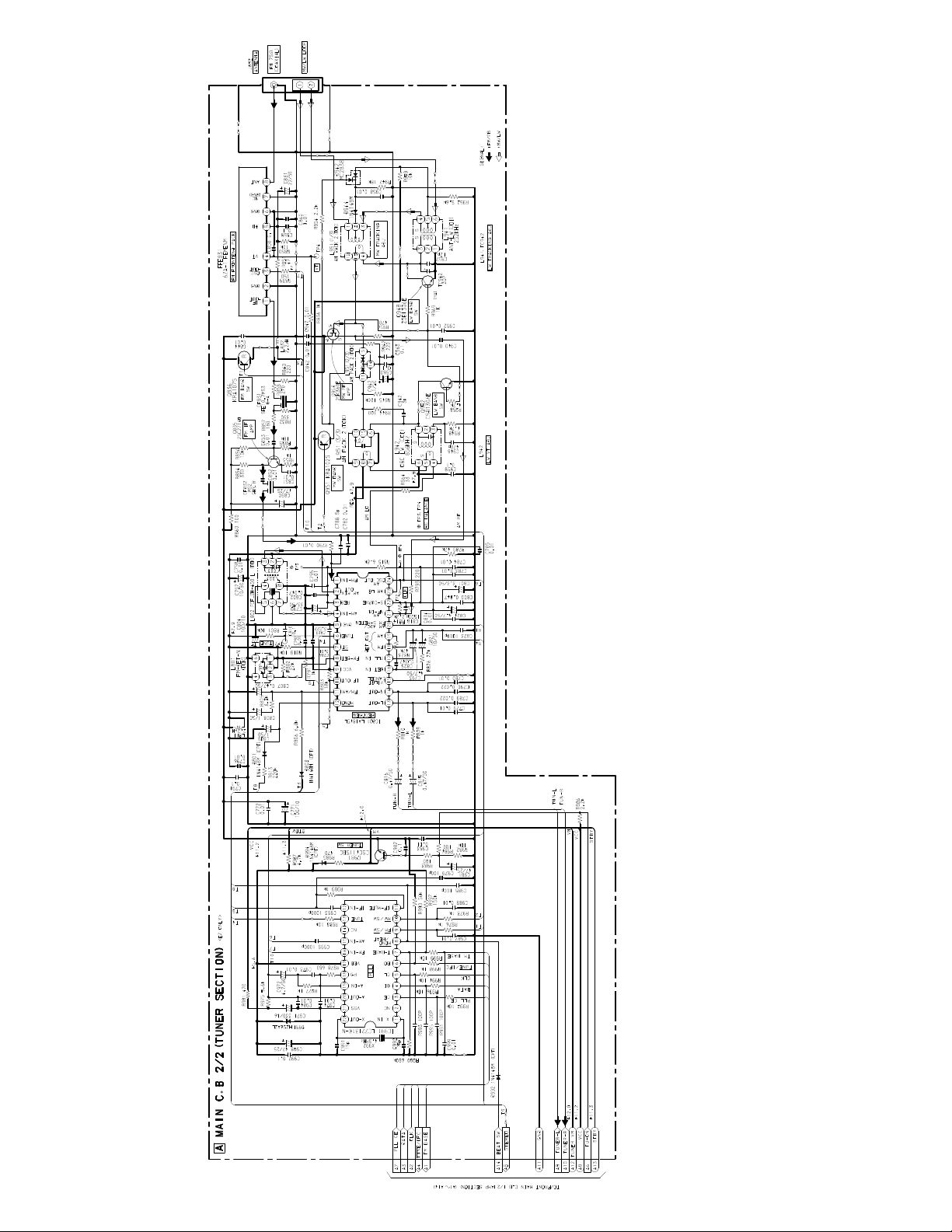

SCHEMATIC DIAGRAM–6 (MAIN 2 / 2 : TUNER SECTION) <EZ>
– 18 –

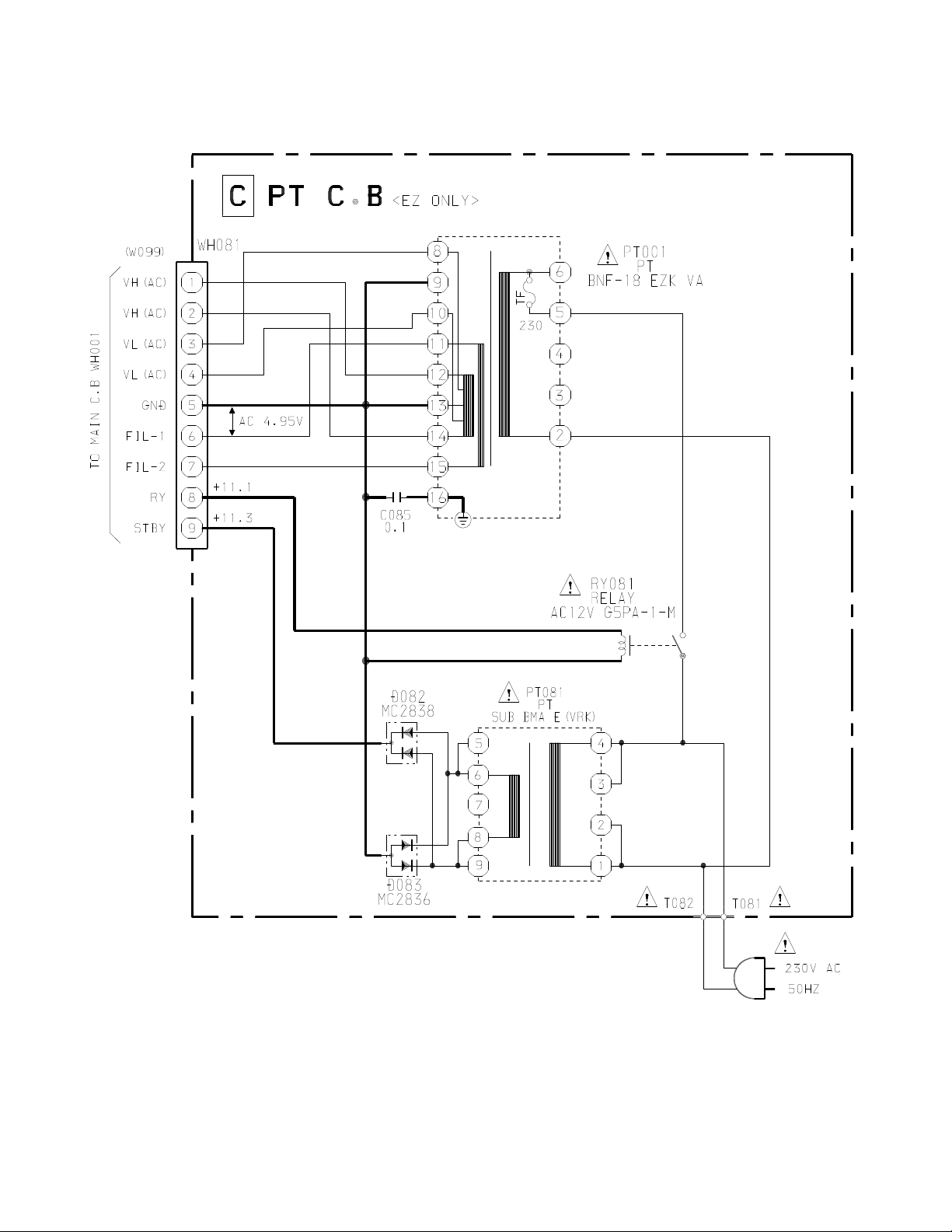

SCHEMATIC DIAGRAM – 7 (PT) <EZ>
19
WIRING 4 (FRONT / MOTOR / BOX SW) <HA / HT>
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
20
WIRING 5 (FRONT / MOTOR / BOX SW) < HS >
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
This manual suits for next models
6
Table of contents
Other Aiwa Stereo System manuals
