Aiwa NSX-SZ201 User manual

SERVICE MANUAL
DATA
NSX-SZ201
NSX-SZ203
NSX-SZ207
K
EZ,V
EZ
COMPACT DISC STEREO SYSTEM
S/M Code No. 09-013-440-9R2
REVISION
BASIC CD MECHANISM : BZG-2 ZD4NC
BASIC TAPE MECHANISM: ZZM-3 YPR2NC
• This Service Manual is the “Revision Publishing” and replace “Simple Manual”
NSX-SZ201/203/207<K,V,EZ>, (S/M Code No. 09-012-440-9T2).
• If requiring information about the CD mechanism, see Service Manual of
BZG-2 (S/M Code No. 09-00C-353-2N2).
NSX–SZ201
SPEAKERSYSTEM
SX–NSZ202CX–NSZ201
REMOTE
CONTROLLER
RC–AAS11(VS)
CD
CASSEIVER
NSX–SZ203 SX–NSZ202
CX–NSZ203
NSX–SZ207 SX–NSZ207
CX–NSZ207 ZAS17

– 2 –
SPECIFICATIONS
TUNER ( CX-NSZ203 V only)
FM tuning range: FM1 (OIRT)
65 MHz to 74 MHz (10 kHz)
FM2 (CCIR)
87.5 MHz to 108 MHz (50 kHz)
FM usable sensitivity(IHF):
FM1: 15.3 dBf
FM2: 12.8 dBf
FM antenna terminals: 75 ohms (unbalanced)
AM tuning range: 531 kHz to 1602 kHz (9 kHz step)
530 kHz to 1710 kHz (10 kHz step)
AM usable sensitivity:
350
mV/m
AM antenna: Loop antenna
TUNER ( except CX-NSZ203 V)
FM tuning range: 87.5 MHz to 108 MHz
FM usable sensitivity(IHF):
16.8 dBf
FM antenna terminals: 75 ohms (unbalanced)
MW tuning range: 531 kHz to 1602 kHz (9 kHz step)
530 kHz to 1710 kHz (10 kHz step)
MW usable sensitivity:
350
mV/m
LW tuning range: 144 kHz to 290 kHz
LW usable sensitivity: 1400mV/m
MW/LW antenna: Loop antenna
AMPLIFIER
CX-NSZ201
Power output: Rated: 15 W + 15 W (6 ohms, T.H.D.
1 %, 1 kHz/DIN 45500)
Reference: 18 W + 18 W (6 ohms,
T.H.D. 10 %, 1 kHz/DIN 45324)
DIN MUSIC POWER: 40 W + 40 W
Total
harmonicdistortion:
0.1 % (6 W, 1 kHz, 6 ohms, DIN AUDIO)
CX-NSZ203
Power output: Rated: 20 W + 20 W (6 ohms, T.H.D.
1 %, 1 kHz/DIN 45500)
Reference: 25 W + 25 W (6 ohms,
T.H.D. 10 %, 1 kHz/DIN 45324)
DIN MUSIC POWER: 75 W + 75 W<EZ>
Total
harmonicdistortion:
0.1 % (10 W, 1 kHz, 6 ohms, DIN AUDIO)
CX-NSZ207
Power output: Rated: 12 W + 12 W (6 ohms, T.H.D.
1 %, 1 kHz/DIN 45500)
Reference: 15 W + 15 W (6 ohms,
T.H.D. 10 %, 1 kHz/DIN 45324)
DIN MUSIC POWER: 39 W + 39 W
Total
harmonicdistortion:
0.1 % (6 W, 1 kHz, 6 ohms, DIN AUDIO)
Input: VIDEO/AUX: 500 mV
Output: SPEAKERS: 6 ohms or more
PHONES: 32 ohms or more
CASSETTE DECK
Track format: 4 tracks, 2 channels stereo
Frequency response: 50 Hz - 8 kHz
Recording system: AC bias
Heads: DECK 1: playback x 1
DECK 2: recording/playback x 1,
erase x 1
CD PLAYER
Laser: Semiconductor laser (
l = 780 nm)
D/A converter: 1 bit dual
Signal-to-noise ratio: 85 dB (1 kHz, 0 dB)
Harmonic distortion: 0.05 % (1 kHz, 0 dB)
FRONT SPEAKERS SX-NSZ202 and SX-NSZ207
Speaker system: 2 way, bass relex (magnetic shielded)
Speaker units: Woofer: 120 mm cone
Tweeter: 20 mm ceramic
Impedance: 6 ohms
Dimensions ( W x H x D): 220 x 324 x 198 mm
Weight: 2.3 kg
GENERAL
Power requirements: 230 V AC, 50 Hz
Power consumption: 56 W<201K>, 53 W<207EZ>,
59 W<203EZ, 203V>
Power consumption
in standby mode: With ECO mode on: 0.6 W
With ECO mode off: 15 W
Dimensions ( W x H x D): 260 x 323 x 291 mm
Weight: 4.9 kg<201K, 207EZ>, 5.3 kg<203EZ, 203V>
• Design and specifications are subject to change without notice.

NOTE ON BEFORE STARTING REPAIR
Charging voltage (V) Discharging Rated power (W) Parts number
(C101, 102) resistor (Ω)
25-48 100 3 87-A00-247-090
49-140 220 5 87-A00-232-090
Note: The reference numbers (C101, C102) of the electrolytic capacitors can change depending on the models. Be sure to check the
reference numbers of the charging capacitors on schematic diagram before starting the discharging work.
2. Check items before exchanging the MICROCOMPUTER
Be sure to check the following items before exchanging the MICROCOMPUTER. Exchange the MICROCOMPUTER after confirming
that the MICROCOMPUTER is surely defective.
2-1. Regarding the HOLD terminal of the MICROCOMPUTER
Whenthe HOLDterminal (INPUT)of theMICROCOMPUTER is“H”, theMICROCOMPUTER isjudged tobe operatingcorrectly.
When this terminal is “L”, the main power cannot be turned on. Therefore, be sure to check the terminal voltage of the HOLD
terminal before exchange.
When the MICROCOMPUTER is not defective, the HOLD terminal can also go “L” when the POWER AMPLIFIER has any
abnormalities that triggers the abnormality detection circuit on the MAIN C. B. that sets the HOLD terminal to “L”.
•Good or no good judgement of the MICROCOMPUTER
11
11
1Turn on the AC main power.
22
22
2Confirm that the main power is turned on and the HOLD terminal of the MICROCOMPUTER keeps the “H” level or not.
33
33
3When the HOLD terminal is “L” level, the abnormality detection circuit is judged to be working correctly and the
MICROCOMPUTER is judged to be good.
1. Forced discharge of electrolytic capacitor of power supply block
When repair is going to be attempted in the set that uses relay circuit in the power supply block, electric potential is kept charged across
the electrolytic capacitors (C101, 102) even though AC power cord is removed. If repair is attempted in this condition, secondary defect
can occur.
In order to prevent the secondary trouble, perform the following measures before starting repair work.
Discharge procedure
11
11
1Remove the AC power cord.
22
22
2Connect a discharging resistor at an end of lead wire that
has clips at both ends. Connect the other end of the lead
wire to metal chassis.
33
33
3Contact the other end of the discharging resistor to the
positive (+) side (+VH) of C101. (For two seconds)
44
44
4Contact the same end of the discharging resistor as step
33
33
3to the negative (-) side (-VH) of C102 in the same way.
(For two seconds)
55
55
5Check that voltage across C101 and C102 has decreased
to 1 V or less using a multimeter or an oscilloscope.
Select a discharging resistor referring to the following table.
Fig-1
MAIN C.B
D101
C101 C102
22
34
–4 –

This set employs laser. Therefore, be sure to follow carefully
the instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BESURETOOBSERVEFROMADISTANCEOFMORE
THAN30cmFROMTHESURFACEOFTHEOBJECTIVE
LENS ON THE OPTICAL PICK-UP BLOCK.
Caution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
sAdvarsel: Usynliglaserstålingved åbning,
nårsikkerhedsafbrydereerudeaffunktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L’utillisation de commandes, réglages ou procédures
autres que ceux spécifiés peut entraîner une dangereuse
exposition aux radiations.
ADVARSEL
Usynliglaserstålingvedåbning,nårsikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
Precaution to replace Optical block
(KSS-213F)
Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure
ground body and workbench, and use care the
clothes do not touch the diode.
1) After the connection, remove solder shown in
right figure.
PICK-UP ASSY PWB
– 3 –
Solder

In such a case, check also if the POWER AMPLIFIER circuit or power supply circuit has any abnormalities or not.
2-2. Regarding reset
There are cases that the machine does not work correctly because the MICROCOMPUTER is not reset even though the AC power
cord is re-inserted, or the software reset (pressing the STOP key + POWER key) is performed.
When the above described phenomenon occurs, it can lead to wrong judgement as if the MICROCOMPUTER is defective and to
exchange the MICROCOMPUTER. In such a case, perform the forced-reset by the following procedure and check good or no
good of the MICROCOMPUTER.
11
11
1Remove the AC power cord.
22
22
2Short both ends of the electrolytic capacitor C113 that is connected to VDD of the MICROCOMPUTER with tweezers.
33
33
3Connect the AC power cord again. If the MICROCOMPUTER returns to the normal operation, the MICROCOMPUTER is
good.
Note: Thereference number or MICROCOMPUTER pin number of transistor (Q110) and electrolyticcapacitor (C113)can changedepending
on the models. Be sure to check the reference numbers on schematic diagram before starting the discharging work.
2-3. Confirmation of soldering state of MICROCOMPUTER
Check the soldering state of the MICROCOMPUTER in addition to the above described procedures. Be sure to exchange the
MICROCOMPUTER after surely confirming that the trouble is not caused by poor soldering but the MICROCOMPUTER itself.
Fig-2-2
MICRO-
COMPUTER
MICROCOMPUTER
FRONT C.B
FRONT C.B
VSS
VDD
C113 *
%
C113
18
15
Short with tweezers.
–5 –

KANRI
NO.
REF. NO. DESCRIPTIONPART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
ELECTRICAL MAIN PARTS LIST
– 6 –
IC
87-A21-269-010 IC,EW732
87-A21-893-040 C-IC,NJM14558V-TE2
87-A21-419-040 C-IC,NJM14558MD-TE2
8B-NFA-602-030 IC,UPD780226GF-022-3BA
87-A21-218-110 IC,NJL64H380A
87-A21-443-040 C-IC,M62495AFP
87-A21-695-010 IC,LA1845L
87-A21-928-010 IC,LC72131D-N
T ANSISTO
87-A30-494-080 T ,2SA1980G
89-213-702-010 T ,2SB1370E
87-026-610-080 T ,KTC3198G <203V>
87-A30-076-080 C-T ,2SC3052F
87-A30-075-080 C-T ,2SA1235F
87-A30-484-080 C-T ,K A102S
87-A30-190-080 T ,CC5551
87-A30-255-010 T ,2SB1342
87-A30-256-010 T ,2SD1933
87-A30-107-070 C-T ,CMBT5401
87-A30-106-040 C-T ,CMBT5551
87-A30-162-010 FET,2SK2937<203EZ,203V>
87-A30-091-080 FET,2SJ460
87-A30-090-080 FET,2SK2541
87-A30-062-080 C-T ,K C104S
87-A30-492-080 T ,2SC5343G<EXCEPT 203V>
87-A30-615-080 T ,STC250<203V>
87-A30-468-080 C-T ,K C102S- TK
87-A30-582-080 T ,CDA1585BC
87-A30-495-080 T ,2SA1981Y
89-327-143-080 C-T ,2SC2714O
87-A30-489-080 C-T ,K A107S
89-503-602-080 C-FET,2SK360E<EXCEPT 203V>
87-A30-086-040 C-T ,CSD1306E<EXCEPT 203V>
87-A30-234-080 T ,CSC4115BC
DIODE
87-A40-535-080 DIODE,1N5393-GOODA K<EXCEPT 201K>
87-A40-393-090 DIODE,1N5402GW(F20)<203EZ,203V>
87-A40-455-080 DIODE, L203 GW<201K>
87-A40-553-080 DIODE,1N4003 LES
87-A40-778-080 ZENE ,UZ30BSD
87-A40-291-080 DIODE,1N4148 (CPT)
87-A40-764-080 ZENE ,UZ10BSC
87-A40-269-080 C-DIODE,MC2836
87-A40-270-080 C-DIODE,MC2838
87-A40-749-080 ZENE ,UZ5.6BSB<203EZ,203V>
87-A40-748-080 ZENE ,UZ5.6BSA
87-A40-739-080 ZENE ,UZ2.7BSA
87-017-149-080 ZENE ,HZS6A2L
MAIN C.B
C3 87-010-759-080 C-CAP,U, 0.1-25F<203EZ,203V>
C4 87-010-759-080 C-CAP,U, 0.1-25F<203EZ,203V>
C5 87-010-759-080 C-CAP,U, 0.1-25F<203EZ,203V>
C6 87-010-759-080 C-CAP,U, 0.1-25F<203EZ,203V>
C9 87-010-759-080 C-CAP,U, 0.1-25F
C10 87-010-759-080 C-CAP,U, 0.1-25F
C11 87-010-759-080 C-CAP,U, 0.1-25F
C12 87-010-759-080 C-CAP,U, 0.1-25F
C19 87-A12-431-000 CAP,E 2200-50 M 85<203EZ,203V>
C20 87-A12-431-000 CAP,E 2200-50 M 85<203EZ,203V>
C21 87-A12-442-000 CAP,E 3300-25 M 85<EXCEPT 201K>
C21 87-A12-440-000 CAP,E 3300-35 M 85 IV LELON<201K>
C22 87-A12-381-000 CAP,E 2200-25 M 85<EXCEPT 201K>
C22 87-A12-441-000 CAP,E 2200-35 M 85 IV LELON<201K>
C25 87-010-384-080 CAP,E 100-25 M 11L SME<203EZ,203V>
C25 87-010-407-080 CAP, E 33-50V<201K,207EZ>
C26 87-010-384-080 CAP,E 100-25 M 11L SME<203EZ,203V>
C26 87-010-407-080 CAP, E 33-50V<201K,207EZ>
C30 87-010-393-080 CAP, E 100-35V<201K,207EZ>
C30 87-010-384-080 CAP,E 100-25 M 11L SME<203EZ,203V>
C31 87-010-263-080 CAP, ELECT 100-10V
C35 87-010-406-080 CAP, ELECT 22-50
C36 87-010-381-080 CAP, ELECT 330-16V
C38 87-010-190-080 S CHIP F 0.01
C50 87-010-384-080 CAP,E 100-25 M 11L SME<203EZ,203V>
C50 87-010-393-080 CAP, E 100-35V<201K,207EZ>
C60 87-010-403-080 CAP, ELECT 3.3-50V
C61 87-010-380-080 CAP, E 47-16V
C98 87-A12-317-080 C-CAP,U 0.1-50 Z F
C123 87-012-269-080 C-CAP,U 390P-50 B
C124 87-012-269-080 C-CAP,U 390P-50 B
C125 87-010-759-080 C-CAP,U, 0.1-25F
C126 87-010-759-080 C-CAP,U, 0.1-25F
C127 87-010-759-080 C-CAP,U, 0.1-25F
C128 87-010-759-080 C-CAP,U, 0.1-25F
C129 87-010-191-080 C-CAP,S 0.015-50 F
C130 87-010-191-080 C-CAP,S 0.015-50 F
C131 87-012-286-080 CAP, U 0.01-25
C132 87-012-286-080 CAP, U 0.01-25
C133 87-A12-317-080 C-CAP,U 0.1-50 Z F
C181 87-010-235-080 CAP,E 470-16 SME
C192 87-010-759-080 C-CAP,U, 0.1-25F
C401 87-A12-319-080 C-CAP,U 0.1-25 K B
C402 87-A12-319-080 C-CAP,U 0.1-25 K B
C403 87-012-193-080 C-CAP,U 82P-50 CH
C404 87-012-193-080 C-CAP,U 82P-50 CH
C405 87-012-286-080 CAP, U 0.01-25
C406 87-012-286-080 CAP, U 0.01-25
C407 87-012-286-080 CAP, U 0.01-25
C408 87-012-286-080 CAP, U 0.01-25
C409 87-012-278-080 C-CAP,U 2200P-50 B
C410 87-012-278-080 C-CAP,U 2200P-50 B
C411 87-010-405-080 CAP, ELECT 10-50V
C412 87-010-405-080 CAP, ELECT 10-50V
C413 87-012-286-080 C-CAP,U 0.01-25 K B
C421 87-012-274-080 C-CAP,U 1000P-50 K B
C422 87-012-274-080 C-CAP,U 1000P-50 K B
C423 87-012-274-080 C-CAP,U 1000P-50 K B
C424 87-012-274-080 C-CAP,U 1000P-50 K B
C425 87-010-263-080 CAP, ELECT 100-10V
C426 87-010-263-080 CAP, ELECT 100-10V
C427 87-012-188-080 C-CAP,U 47P-50 CH
C428 87-012-188-080 C-CAP,U 47P-50 CH
C429 87-010-598-080 C-CAP,S 0.068-16V K
C430 87-010-598-080 C-CAP,S 0.068-16V K
C431 87-012-284-080 CAP, U 6800P-50
C432 87-012-284-080 CAP, U 6800P-50
C433 87-010-546-080 CAP, ELECT 0.33-50V
C434 87-010-546-080 CAP, ELECT 0.33-50V
C435 87-010-263-080 CAP, ELECT 100-10V
C440 87-010-759-080 C-CAP,U, 0.1-25F
C441 87-010-787-080 CAP, U 0.022-25
C442 87-010-759-080 C-CAP,U 0.1-25 Z F
C443 87-010-759-080 C-CAP,U, 0.1-25F
C445 87-A10-039-080 C-CAP,U 470P-50 J CH
C446 87-010-401-080 CAP, ELECT 1-50V
C452 87-010-382-080 CAP, ELECT 22-25V
C453 87-012-279-080 C-CAP,U 2700P-50 B
C454 87-012-279-080 C-CAP,U 2700P-50 B
C455 87-012-279-080 C-CAP,U 2700P-50 B
C456 87-012-286-080 CAP, U 0.01-25
C457 87-A12-361-080 CAP,M 5600P-100 J CP
C458 87-012-274-080 CHIP CAP,U 1000P-50B<EXCEPT 203V>
C459 87-A12-468-080 C-CAP,U 560P-50 J SL<EXCEPT 203V>

KANRI
NO.
REF. NO. DESCRIPTIONPART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
– 7 –
C460 87-010-759-080 C-CAP,U, 0.1-25F
C461 87-A12-466-080 C-CAP,U 390P-50 J SL
C462 87-A12-466-080 C-CAP,U 390P-50 J SL
C470 87-012-270-080 C-CAP,U 470P-50 K B
C605 87-012-275-080 C-CAP,U 1200P-50 B
C606 87-012-275-080 C-CAP,U 1200P-50 B
C609 87-010-785-080 C-CAP,U 0.015-25BK
C610 87-010-785-080 C-CAP,U0.015-25BK
C611 87-010-545-080 CAP, ELECT 0.22-50V
C612 87-010-545-080 CAP, ELECT 0.22-50V
C613 87-010-545-080 CAP, ELECT 0.22-50V
C614 87-010-545-080 CAP, ELECT 0.22-50V
C615 87-012-172-080 CAPACITO CHIP U 10P CH
C616 87-010-248-080 CAP, ELECT 220-10V
C617 87-010-248-080 CAP, ELECT 220-10V
C618 87-010-405-080 CAP, ELECT 10-50V
C625 87-010-598-080 C-CAP,S 0.068-16V K
C626 87-010-598-080 C-CAP,S 0.068-16V K
C630 87-016-669-080 C-CAP,S 0.1-25 K B
C677 87-012-286-080 CAP, U 0.01-25
CN102 87-A61-001-010 CONN,17P V BLK TAC-L17X-A3
CN401 87-A60-620-010 CONN,3P V 2MM JMT
CN451 87-A60-625-010 CONN,8P V 2MM JMT
CN602 87-099-194-010 CONN,6P 6216V
CNA401 86-ZM3-604-210 CONN ASSY,3P -PB
CNA451 8B-NFA-626-010 CONN,ASSY,8P - PB
FFC602 88-906-251-110 FF-CABLE,6P 1.25
J101 87-A60-602-010 JACK,DIA6.3 BLK ST W/SW TC
J602 87-A60-881-010 JACK,PIN 2P MSP
JW149 87-008-372-080 FLT ,EMI BL01 N1
L101 87-A50-611-010 COIL,1UH K(CS)
L102 87-A50-611-010 COIL,1UH K(CS)
L451 87-007-342-010 COIL,OSC 85K BIAS
PT1 8B-NFA-611-010 PT,BNF-A EZ-LOW<207EZ>
PT1 8B-NFA-608-010 PT,BNF-A EZ<203EZ,203V>
PT1 8B-NFA-612-010 PT,BNF-A K<201K>
PT2 8B-NF9-665-010 PT,SUB BNF E (TAM)
Y181 87-A91-418-010 ELAY,AC12V G5PA-1-M
T181 87-A60-317-010 TE MINAL, 1P MSC
T182 87-A60-317-010 TE MINAL, 1P MSC
TM101 87-A61-452-010 TE MINAL,SP 4P(MSC)
F ONT C.B
C301 87-010-759-080 C-CAP,U, 0.1-25F
C303 87-012-280-080 CAP, U 3300P-50
C304 87-016-116-080 C-CAP,U 0.015-25 J B CB
C305 87-012-184-080 C-CAP,U 33P-50 CH
C306 87-012-274-080 CHIP CAP,U 1000P-50B
C307 87-012-274-080 CHIP CAP,U 1000P-50B
C308 87-010-544-040 CAP,E 0.1-50 SME
C309 87-010-404-040 CAP,E 4.7-50 SME
C310 87-012-286-080 CAP, U 0.01-25
C311 87-A12-052-080 C-CAP,S 0.033-25 J B
C312 87-012-195-080 C-CAP,U 100P-50CH
C501 87-010-759-080 C-CAP,U, 0.1-25F
C502 87-010-759-080 C-CAP,U, 0.1-25F
C503 87-012-278-080 C-CAP,U 2200P-50 B
C504 87-016-460-080 C-CAP,S 0.22-16 B
C505 87-010-248-040 CAP,E 220-10 SME
C507 87-010-400-040 CAP,E 0.47-50
C508 87-012-172-080 CAPACITO CHIP U 10P CH
C509 87-A12-462-080 C-CAP,U 180P-50 J SL
C510 87-012-270-080 CAP, U 470P-50
C511 87-010-759-080 C-CAP,U, 0.1-25F
C512 87-012-268-080 C-CAP,U 330P-50 B
C513 87-010-829-080 CAP, U 0.047-16
C514 87-012-286-080 CAP, U 0.01-25
C515 87-012-274-080 CHIP CAP,U 1000P-50B
C516 87-010-759-080 C-CAP,U, 0.1-25F
C517 87-012-272-080 C-CAP,U 680P-50 B
C518 87-012-272-080 C-CAP,U 680P-50 B
C519 87-010-759-080 C-CAP,U, 0.1-25F
C520 87-010-246-040 CAP,E 47-35 SME
C521 87-A12-317-080 C-CAP,U 0.1-50 Z F
C522 87-010-263-040 CAP,E 100-10
C523 87-010-404-040 CAP,E 4.7-50 SME
C524 87-010-404-040 CAP,E 4.7-50 SME
C525 87-010-260-040 CAP,E 47-25 SME
C527 87-010-759-080 C-CAP,U, 0.1-25F
C528 87-010-759-080 C-CAP,U, 0.1-25F
CN502 87-099-196-010 CONN,8P 6216 V
CN504 87-A60-136-010 CONN,11P V FE
FFC502 88-908-201-110 FF-CABLE,8P 1.25
FFC504 88-911-131-110 FF-CABLE,11P 1.25 130MM
FL501 8B-NFA-601-010 FL,HNA-10SS19T
L501 87-A50-655-010 COIL,CLK 4.19MHZ(TOKO) 7KLY
LED501 87-A40-317-080 LED,SL -342VCT31 ED
S201 87-A90-164-080 SW,TACT SKQAB(N)
S202 87-A90-164-080 SW,TACT SKQAB(N)
S203 87-A90-164-080 SW,TACT SKQAB(N)
S204 87-A90-164-080 SW,TACT SKQAB(N)
S205 87-A90-164-080 SW,TACT SKQAB(N)
S206 87-A90-164-080 SW,TACT SKQAB(N)
S207 87-A90-164-080 SW,TACT SKQAB(N)
S208 87-A90-164-080 SW,TACT SKQAB(N)
S209 87-A90-164-080 SW,TACT SKQAB(N)
S213 87-A90-164-080 SW,TACT SKQAB(N)
S214 87-A90-164-080 SW,TACT SKQAB(N)
S215 87-A90-164-080 SW,TACT SKQAB(N)
S216 87-A90-164-080 SW,TACT SKQAB(N)
S217 87-A90-164-080 SW,TACT SKQAB(N)
S218 87-A90-164-080 SW,TACT SKQAB(N)
S219 87-A90-164-080 SW,TACT SKQAB(N)
S220 87-A90-164-080 SW,TACT SKQAB(N)
S221 87-A90-164-080 SW,TACT SKQAB(N)
S222 87-A90-164-080 SW,TACT SKQAB(N)
S223 87-A90-164-080 SW,TACT SKQAB(N)
S230 87-A92-054-010 SW, T Y EC12E24504
TUNE C.B
C771 87-010-263-080 CAP, ELECT 100-10V
C772 87-012-286-080 CAP, U 0.01-25
C779 87-010-949-080 C-CAP,S 0.01-50 BJ<EXCEPT 203V>
C780 87-010-949-080 C-CAP,S 0.01-50 BJ<EXCEPT 203V>
C782 87-012-286-080 C-CAP,U 0.01-25 K B
C783 87-012-286-080 C-CAP,U 0.01-25 K B
C784 87-012-286-080 C-CAP,U 0.01-25 K B
C785 87-012-286-080 C-CAP,U 0.01-25 K B
C786 87-012-286-080 C-CAP,U 0.01-25 K B
C788 87-012-167-080 C-CAP,U 5P-50 CH
C789 87-016-118-080 C-CAP,U0.022-25BJ
C790 87-016-118-080 C-CAP,U0.022-25BJ
C791 87-010-759-080 C-CAP,U, 0.1-25F
C792 87-012-286-080 C-CAP,U 0.01-25 K B
C793 87-010-404-080 CAP, ELECT 4.7-50V
C795 87-012-286-080 C-CAP,U 0.01-25 K B
C796 87-012-286-080 C-CAP,U 0.01-25 K B
C797 87-010-405-080 CAP, ELECT 10-50V
C798 87-012-286-080 C-CAP,U 0.01-25 K B
C799 87-010-265-080 CAP, ELECT 33-16V
C800 87-012-369-080 C-CAP,S 0.047-50F
C801 87-010-403-080 CAP, ELECT 3.3-50V
C802 87-012-369-080 C-CAP,S 0.047-50F
C803 87-010-787-080 CAP, U 0.022-25
C804 87-010-263-080 CAP, ELECT 100-10V
C807 87-010-400-080 CAP, ELECT 0.47-50V
C808 87-010-401-080 CAP, ELECT 1-50V
!
!
!
!
!
!
!

KANRI
NO.
REF. NO. DESCRIPTIONPART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
C809 87-010-401-080 CAP, ELECT 1-50V
C810 87-010-759-080 C-CAP,U, 0.1-25F
C814 87-012-286-080 CAP, U 0.01-25
C815 87-010-400-080 CAP, ELECT 0.47-50V
C816 87-010-400-080 CAP, ELECT 0.47-50V
C818 87-012-276-080 CAP, CHIP SS 1500 PBK<EXCEPT 203V>
C821 87-010-405-080 CAP, ELECT 10-50V
C823 87-012-349-080 C-CAP,S 1000P-50 CH
C824 87-010-404-080 CAP, ELECT 4.7-50V
C825 87-010-829-080 CAP, U 0.047-16
C831 87-010-406-080 CAP, ELECT 22-50<EXCEPT 203V>
C842 87-012-286-080 C-CAP,U 0.01-25 K B
C844 87-012-286-080 C-CAP,U 0.01-25 K B
C850 87-010-260-080 CAP, ELECT 47-25V
C851 87-012-286-080 C-CAP,U 0.01-25 K B
C852 87-012-286-080 C-CAP,U 0.01-25 K B
C853 87-012-286-080 C-CAP,U 0.01-25 K B
C858 87-010-831-080 C-CAP,U 0.1-16 Z F
C859 87-010-831-080 C-CAP,U 0.1-16 Z F
C860 87-012-286-080 C-CAP,U 0.01-25 K B
C940 87-012-286-080 CAP, U 0.01-25<EXCEPT 203V>
C942 87-012-165-080 CAP 3P<EXCEPT 203V>
C947 87-012-286-080 CAP, U 0.01-25<EXCEPT 203V>
C948 87-A10-039-080 C-CAP,U 470P-50 J CH<EXCEPT 203V>
C952 87-012-286-080 CAP, U 0.01-25<EXCEPT 203V>
C957 87-012-174-080 C-CAP, CE A SS 12P CHJ<EXCEPT 203V>
C958 87-012-286-080 C-CAP,U 0.01-25 K B<EXCEPT 203V>
C959 87-010-831-080 C-CAP,U 0.1-16 Z F
C960 87-010-831-080 C-CAP,U 0.1-16 Z F
C961 87-012-167-080 C-CAP,U 5P-50 CH<203V>
C962 87-010-401-080 CAP, ELECT 1-50V<EXCEPT 203V>
C963 87-015-785-080 C-CAP,0.1-25 Z F C3216
C971 87-010-381-080 CAP, ELECT 330-16V
C972 87-010-404-080 CAP, ELECT 4.7-50V
C973 87-012-286-080 C-CAP,U 0.01-25 K B
C974 87-012-286-080 C-CAP,U 0.01-25 K B
C979 87-012-195-080 C-CAP,U 100P-50 J CH
C981 87-010-260-080 CAP, ELECT 47-25V
C982 87-010-759-080 C-CAP,U, 0.1-25F
C983 87-012-286-080 C-CAP,U 0.01-25 K B
C984 87-012-286-080 C-CAP,U 0.01-25 K B
C985 87-012-195-080 C-CAP,U 100P-50CH<EXCEPT 203V>
C987 87-012-286-080 C-CAP,U 0.01-25 K B
C989 87-012-286-080 C-CAP,U 0.01-25 K B<EXCEPT 203V>
C991 87-012-176-080 CAP 15P
C992 87-012-176-080 CAP 15P
C993 87-010-178-080 CHIP CAP 1000P
C995 87-010-178-080 CHIP CAP 1000P
C997 87-010-759-080 C-CAP,U, 0.1-25F
C998 87-010-260-080 CAP, ELECT 47-25V
C999 87-012-286-080 C-CAP,U 0.01-25 K B
CF831 87-008-423-010 CE AMIC FILTE , SFE10.7<EXCEPT 203V>
CF831 87-008-261-010 FILTE , SFE10.7MA5-A<203V>
CF832 82-785-747-010 CF MS2 GHY <EXCEPT 203V>
CF832 87-008-261-010 FILTE , SFE10.7MA5-A<203V>
FFE831 A8-6ZA-199-170 6ZA-1 FEENC<EXCEPT 203V>
FFE831 A8-6ZA-19E-170 6ZA-1 FEVNC<203V>
J831 87-A60-202-010 TE MINAL,ANT 4P MSP-154V-02<203V>
J832 87-A60-403-010 ANT PAL 2P HSP-312V05<EXCEPT 203V>
L801 87-A50-608-010 COIL,FM DET-N(TOK)
L802 87-A91-551-010 FLT ,PCFJZH-450 L(TOK)
L811 87-005-847-080 COIL,2.2UH(CECS)
L832 87-005-847-080 COIL,2.2UH(CECS)
L941 87-A50-020-010 COIL,ANT LW(COI)<EXCEPT 203V>
L942 87-A50-019-010 COIL,OSC LW(COI)<EXCEPT 203V>
L951 8A-NF8-668-010 COIL,AM PACK 2(TOK)<EXCEPT 203V>
L951 8A-NF8-667-010 COIL,AM PACK 4(TOK)<203V>
790 87-012-286-080 C-CAP,U 0.01-25 K B
991 87-012-195-080 C-CAP,U 100P-50 J CH
993 87-012-195-080 C-CAP,U 100P-50 J CH
995 87-012-195-080 C-CAP,U 100P-50 J CH
TC942 87-A91-774-080 T IMME ,PLY 30P 6.8X5.4<EXCEPT 203V>
X992 87-A70-306-010 VIB,XTAL 4.500MHZ CSA-309ST
AMP C.B
C32 87-012-286-080 CAP, U 0.01-25
C34 87-010-247-080 CAP, ELECT 100-50V<203EZ,203V>
C34 87-010-380-080 CAP, ELECT 47-16V<201K,207EZ>
C101 87-012-281-080 C-CAP,U 3900P-50 B
C102 87-012-281-080 C-CAP,U 3900P-50 B
C103 87-010-545-080 CAP, ELECT 0.22-50V
C104 87-010-545-080 CAP, ELECT 0.22-50V
C105 87-012-282-080 CAP, U 4700P-50
C106 87-012-282-080 CAP, U 4700P-50
C107 87-010-403-080 CAP, ELECT 3.3-50V
C108 87-010-403-080 CAP, ELECT 3.3-50V
C109 87-012-195-080 C-CAP,U 100P-50 J CH
C110 87-012-195-080 C-CAP,U 100P-50 J CH
C111 87-010-406-080 CAP, ELECT 22-50
C112 87-010-406-080 CAP, ELECT 22-50
C113 87-A10-946-080 C-CAP,S 220P-100 J CH<EXCEPT 207EZ>
C113 87-012-199-080 CAP 220P<207EZ>
C114 87-A10-946-080 C-CAP,S 220P-100<EXCEPT 207EZ>
C114 87-012-199-080 CAP 220P<207EZ>
C119 87-012-286-080 CAP, U 0.01-25
C120 87-012-286-080 CAP, U 0.01-25
C121 87-A12-317-080 C-CAP,U 0.1-50 Z F
C122 87-A12-317-080 C-CAP,U 0.1-50 Z F
C133 87-012-282-080 C-CAP,U, 4700P-50 K B
C140 87-012-278-080 C-CAP,U 2200P-50 B
C186 87-010-759-080 C-CAP,U, 0.1-25F<203EZ,203V>
C187 87-010-405-080 CAP, ELECT 10-50V<203EZ,203V>
C188 87-010-405-080 CAP, ELECT 10-50V<203EZ,203V>
CN101 87-A61-015-010 CONN,17P H BLK TAC-L17P-A3
131 87-A00-258-080 ES,M/F 0.22-1W J<EXCEPT 207EZ>
132 87-A00-258-080 ES,M/F 0.22-1W J<EXCEPT 207EZ>
TH101 87-A91-042-080 C-THMS,100K 55001<203EZ,203V>
TH102 87-A91-042-080 C-THMS,100K 55001<203EZ,203V>
DECK C.B
CN1 87-099-753-010 CONN,11P H 9604
SF 1 87-024-581-010 SF ,3.3K DIA6V K0A
SOL1 82-ZM1-618-410 SOL ASSY,27
SOL2 82-ZM1-618-410 SOL ASSY,27
SW1 87-A90-673-010 SW,MIC O ESE11SH1C
SW2 87-A91-500-010 SW,MIC O MPU11470MLB0
SW3 87-A91-500-010 SW,MIC O MPU11470MLB0
SW4 87-A91-500-010 SW,MIC O MPU11470MLB0
SW5 87-A90-673-010 SW,MIC O ESE11SH1C
W1 82-ZM3-601-010 BN-CO D,4P-75
– 8 –

TRANSISTOR ILLUSTRATION
– 9 –
2SA1235F
2SC2714O
2SC3052F
CMBT5551
CMBT5401
CSD1306E
KRA102S
KRA107S
KRC102S-RTK
KRC104S
E
B
C
2SA1980G
CDA1585BC
CSC4115BC
KTC3198GR
E C B
2SB1342
2SB1370E
2SD1933
B C E
2SK360E
D
S
G
E C B
CC5551
2SJ460
2SK2541
S D GG D S
2SK2937
B C E
2SA1981Y
2SC5343G
STC250
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W

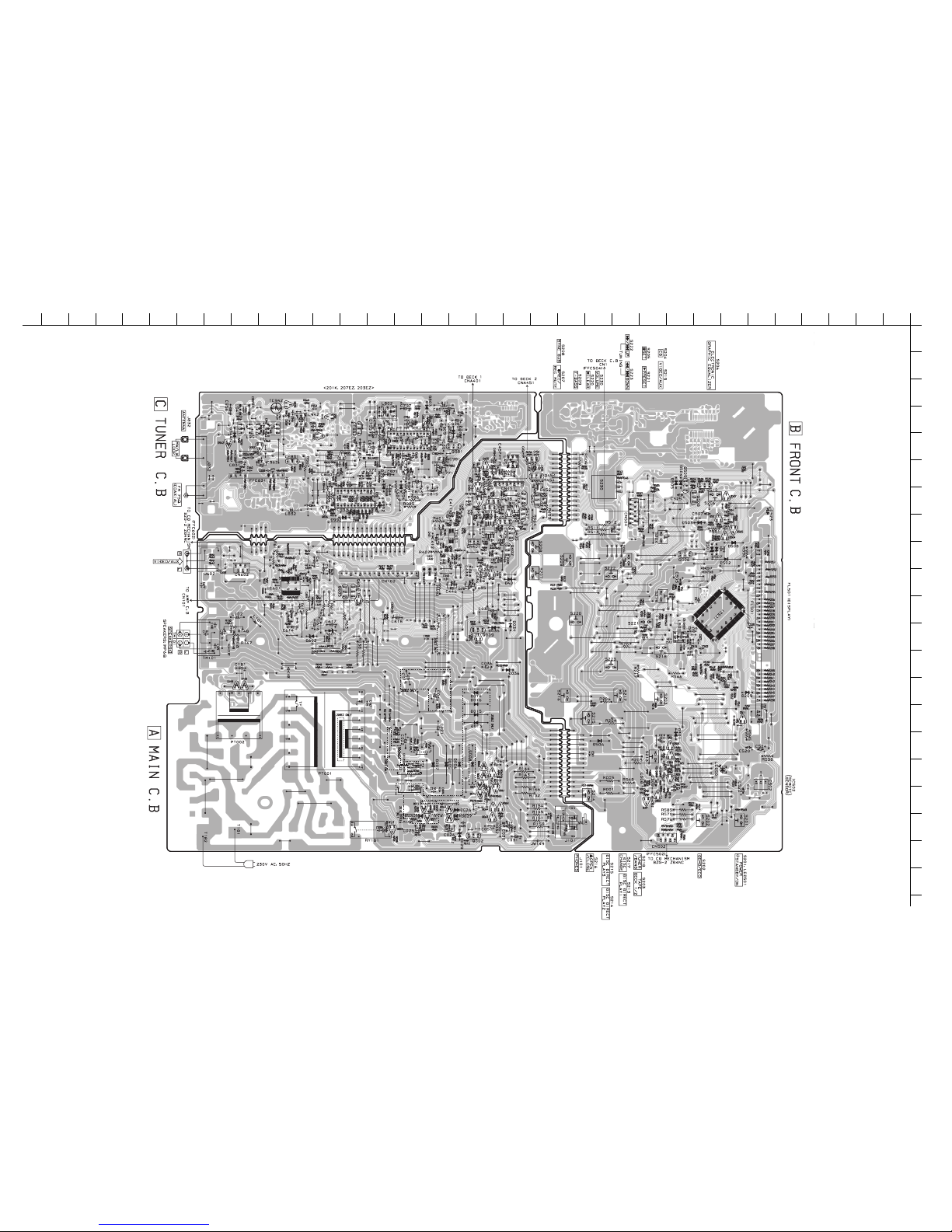

WIRING 1 (MAIN / FRONT / TUNER) <EZ, K>
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
10
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

– 11 –
SCHEMATIC DIAGRAM – 1 (MAIN 1 / 2) <EZ, K>

SCHEMATIC DIAGRAM – 2 (FRONT / DECK) <EZ, K>
– 12 –

SCHEMATIC DIAGRAM – 3 (TUNER) <EZ, K>
– 13 –

SCHEMATIC DIAGRAM – 4 (MAIN 2 / 2: PT SECTION) <201K, 207EZ>
– 14 –

WIRING 2 (MAIN / FRONT / TUNER) <V>
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
15
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

SCHEMATIC DIAGRAM – 5 (MAIN 1 / 2) <V>
– 16 –

SCHEMATIC DIAGRAM – 6 (FRONT / DECK) <V>
– 17 –

SCHEMATIC DIAGRAM – 7 (TUNER) <V>
– 18 –

SCHEMATIC DIAGRAM – 8 (MAIN 2 / 2: PT SECTION) <203EZ, 203V>
– 19 –

WIRING 3 (AMP) <201K, 207EZ>
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
20
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
Other manuals for NSX-SZ201
1
This manual suits for next models
7
Table of contents
Other Aiwa Stereo System manuals
