Aiwa JAX-E3 User manual
SERVICE MANUAL
9-961-003-01 Sony Corporation
2003F05-1 Home Audio Company
C2003.06 Published by Sony Engineering Corporation
Ver 1.0 2003.06
MINI Hi-Fi COMPONENT SYSTEM
AEP Model
•JAX-E3 is composed of the following models.
As service manuals are issued for each component model, please refer to them.
JAX-E3
1-477-842-11 COMMANDER, STANDARD (RM-Z20004)
1-501-374-92 ANTENNA, LOOP (AM)
1-793-184-21 CONNECTOR (F TYPE ADAPTOR)
4-245-998-01 COVER, BATTERY (for RM-Z20004)
4-246-024-12 MANUAL, INSTRUCTION
(ENGLISH, SPANISH, FRENCH, GERMAN, ITALIAN,
RUSSIAN, CZECH, HUNGARIAN, POLISH)
ACCESSORIES
Part No. Description Remark
SPECIFICATIONS
COMPONENT MODEL NAME
JAX-E3
COMPACT DISC DECK RECEIVER CX-JE3
SPEAKER SYSTEM SX-JE3
Power requirements 230 V AC, 50/60 Hz
Power consumption 60 W
Power consumption With ECO mode on: 0.25 W
in standby mode With ECO mode off: 15 W
Dimensions (W x H x D) 280 x 330 x 392.5 mm
Weight 6.5 kg
Supplied accessories
Remote commander (1)
Batteries (2)
FM antenna (1)
AM antenna (1)
Specificationsandexternalappearancearesubjecttochange
without notice.
SERVICE MANUAL
Model Name Using Similar Mechanism CX-JS3
CD Mechanism Type CDM74S-K6BD71A
CD Base Unit Name BU-K6BD71A
Section Optical Pick-up Block Name KSM-213DCP
Optical Pick-up Name KSS-213D
Tape deck Model Name Using Similar Mechanism CX-JS3
Section Tape Transport Mechanism Type CWM43FF13
COMPACT DISC DECK RECEIVER
AEP Model
CX-JE3
Ver. 1.2 2005.05
9-961-005-03 Sony Corporation
2005E05-1 Personal Audio Group
© 2005.05 Published by Sony Engineering Corporation
SPECIFICATIONS
CX-JE3 is the amplifier, CD player, tape deck
and tuner section in JAX-E3.
TUNER
FM tuning range 87.5 MHz to 108 MHz
FM usable sensitivity (IHF) 16.8 dBf
FM antenna terminal 75 ohms (unbalanced)
AM tuning range 531 kHz to 1602 kHz
AM usable sensitivity 350 µV/m
AM antenna Loop antenna
AMPLIFIER
Power output Rated:20W+20W (6ohms,T.H.D.
1 %, 1 kHz/DIN 45500)
Reference: 25 W + 25 W (6 ohms,
T.H.D. 10 %, 1 kHz/DIN 45324)
MUSIC POWER: 50 W + 50 W
Total harmonic distortion 0.08 % (16 W, 1 kHz, 6 ohms, DIN
AUDIO)
Input VIDEO/AUX: 400 mV
Outputs SPEAKER: 6 ohms or more
PHONES: 32 ohms or more
CASSETTE DECK
Track format 4 tracks, 2 channels stereo
Frequency response 50 Hz – 8 kHz
Recording system AC bias
Heads Deck A: playback x 1
Deck B: recording/playback x 1,
erase x 1
CD PLAYER
Laser Semiconductor laser (λ= 780 nm)
Emission duration:
continuous
D/A converter 1 bit dual
Signal-to-noise ratio 85 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
GENERAL
Power requirements 230 V AC, 50/60 Hz
Power consumption 60 W
Power consumption With ECO mode on: 0.25 W
in standby mode With ECO mode off: 15 W
Dimensions (W x H x D) 280 x 330 x 392.5 mm
Weight 6.5 kg
Specificationsandexternalappearancearesubjecttochange
without notice.
COPYRIGHT
Checkcopyrightlawsrelevanttorecordingsfromdiscs,tuner
or tape for the country where the unit is to be used.
Licensed by BBE Sound, Inc. under USP4638258, 5510752
and 5736897.
CX-JE3
2
Notes on chip component replacement
•Never reuse a disconnected chip component.
•Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
Flexible Circuit Board Repairing
•Keep the temperature of the soldering iron around 270 ˚C dur-
ing repairing.
•Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
•Be careful not to apply force on the conductor when soldering
or unsoldering.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous ra-
diation exposure.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED
LINE WITH MARK 0ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

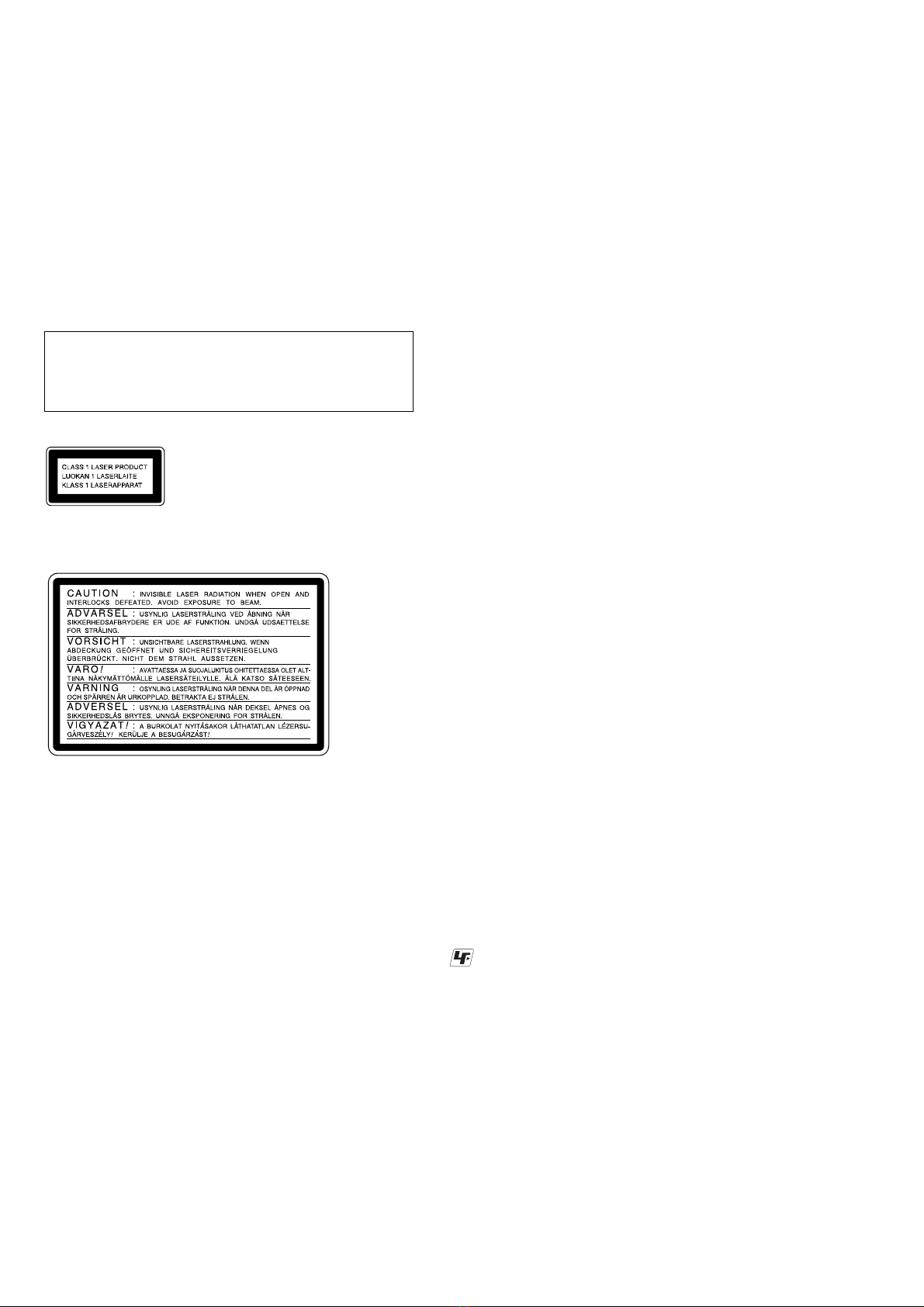

The following caution label is located inside the unit.
This appliance is classified as
a CLASS 1 LASER product.
The CLASS 1 LASER
PRODUCT MARKING is
located on the rear exterior.
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
•Unleaded solder melts at a temperature about 40 ˚C higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 ˚C.
Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!
•Strong viscosity
Unleaded solder is more viscou-s (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges oc-
cur such as on IC pins, etc.
•Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
CX-JE3
3
TABLE OF CONTENTS
1. SERVICING NOTES ................................................ 4
2. GENERAL
Location of Controls ....................................................... 6
3. DISASSEMBLY
3-1. Disassembly Flow ........................................................... 8
3-2. Case (SIDE-L/R) ............................................................. 9
3-3. Case (Top) ....................................................................... 9
3-4. Tray Panel........................................................................ 10
3-5. CD Mechanism Deck (CDM74S-K6BD71A)................ 10
3-6. Front Panel Section ......................................................... 11
3-7. Mechanical Deck (CWM43FF13) .................................. 11
3-8. Rear Cabinet Section ...................................................... 12
3-9. PT Board, MAIN Board.................................................. 12
3-10. Table Assy ....................................................................... 13
3-11. MOTOR (TB) Board ....................................................... 13
3-12. MOTOR (LD) Board....................................................... 14
3-13. Base Unit (BU-K6BD71A)............................................. 14
3-14. Motor Gear Assy (Sled) (M701), BD Board .................. 15
4. TEST MODE.............................................................. 16
5. ELECTRICAL ADJUSTMENTS
CD Section ...................................................................... 17
6. DIAGRAMS
6-1. Block Diagram – CD Section – ..................................... 18
6-2. Block Diagram – TUNER/TAPE/PANEL Section –..... 19
6-3. Block Diagram – AMP/POWER SUPPLY Section – ... 20
6-4. Note for Printed Wiring Boards and
Schematic Diagrams ....................................................... 21
6-5. Printed Wiring Board – BD Section – ........................... 22
6-6. Schematic Diagram – BD Section – .............................. 23
6-7. Printed Wiring Boards – CHANGER Section –............ 24
6-8. Schematic Diagram – CHANGER Section – ................ 25
6-9. Schematic Diagram – MAIN Section (1/4) –................ 26
6-10. Schematic Diagram – MAIN Section (2/4) –................ 27
6-11. Schematic Diagram – MAIN Section (3/4) –................ 28
6-12. Schematic Diagram – MAIN Section (4/4) –................ 29
6-13. Printed Wiring Board – MAIN Section – ...................... 30
6-14. Printed Wiring Board – HP Section – ........................... 31
6-15. Schematic Diagram – HP Section – .............................. 31
6-16. Printed Wiring Board – PANEL Section – .................... 32
6-17. Schematic Diagram – PANEL Section – ....................... 33
6-18. Printed Wiring Boards – KEY Section –....................... 34
6-19. Schematic Diagram – KEY Section – ........................... 35
6-20. Printed Wiring Board – PT Section – ............................ 36
6-21. Schematic Diagram – PT Section –............................... 37
6-22. IC Pin Function Description ........................................... 41
7. EXPLODED VIEWS
7-1. Case Section .................................................................... 43
7-2. Front Panel Section-1...................................................... 44
7-3. Front Panel Section-2...................................................... 45
7-4. Front Panel Section-3...................................................... 46
7-5. Front Panel Section-4...................................................... 47
7-6. Chassis Section ............................................................... 48
7-7. CD Mechanism Deck Section-1
(CDM74S-K6BD71A) .................................................... 49
7-8. CD Mechanism Deck Section-2
(CDM74S-K6BD71A) .................................................... 50
7-9. CD Mechanism Deck Section-3
(CDM74S-K6BD71A) .................................................... 51
7-10. Base Unit Section (BU-K6BD71A) ............................... 52
8. ELECTRICAL PARTS LIST ............................... 53
4
CX-JE3 SECTION 1
SERVICING NOTES
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT
The laser diode in the optical pick-up block may suffer electro-
static break-down because of the potential difference generated
by the charged electrostatic load, etc. on clothing and the human
body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused
on the disc reflective surface by the objective lens in the optical
pick-up block. Therefore, when checking the laser diode emis-
sion, observe from more than 30 cm away from the objective lens.
LASER DIODE AND FOCUS SEARCH OPERATION
CHECK
Carry out the “S curve check” in “CD section adjustment” and
check that the S curve waveforms is output three times.

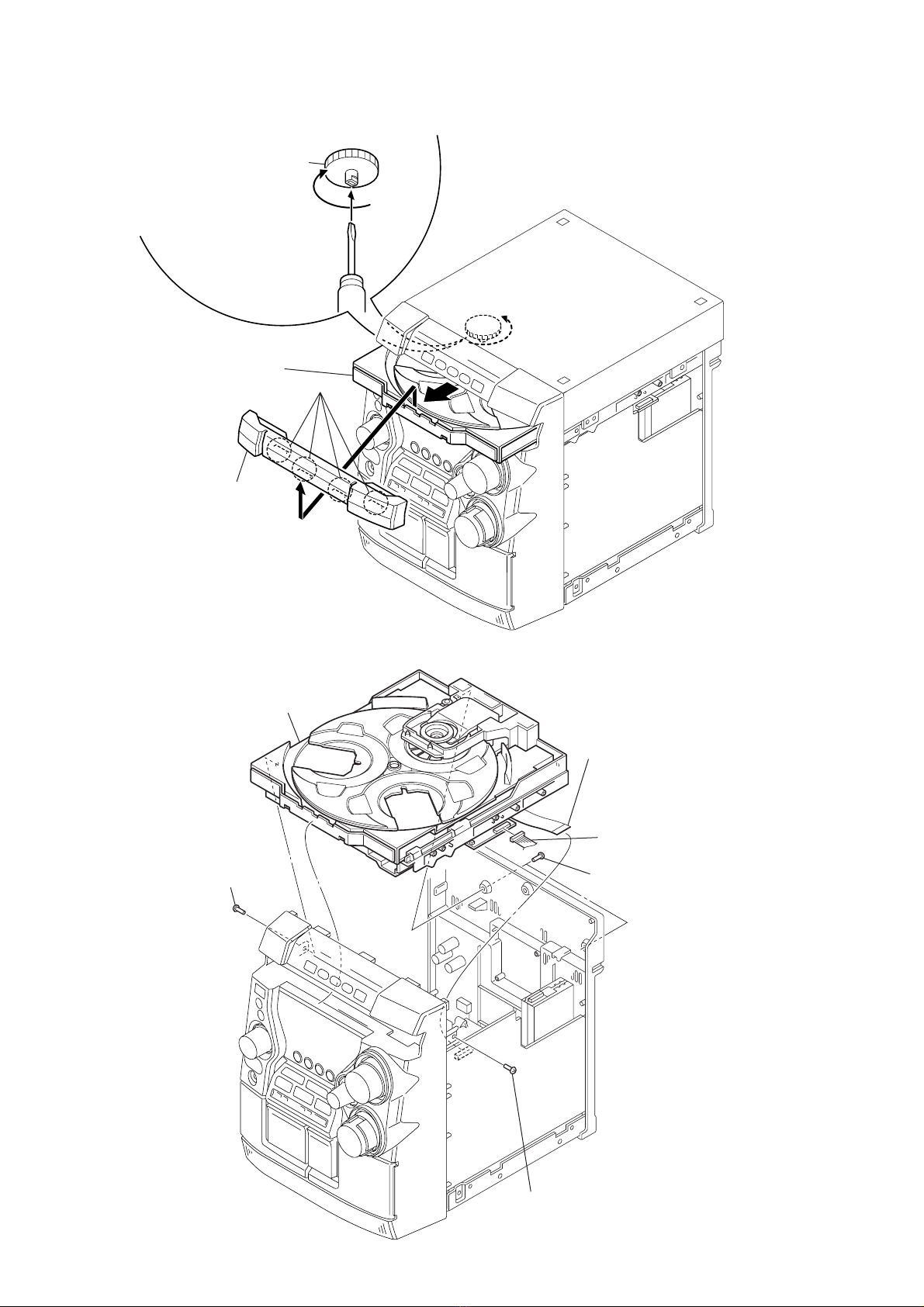

HOW TO OPEN THE DISC TRAY WHEN POWER SWITCH TURNS OFF.
3
Pull-out the disc tray.
1
Remove the case (side-L).
2
Turn the loading gear in the direction of arrow
A
.
A
5
CX-JE3
SERVICE POSITION
– CD mechanism deck –
–Tape mechanism deck –
main board (CN691)
Connect wire (flat type) (19 core) to
main board (CN691) and BD board (CN710).
BD board (CN710)
Connect wire (flat type) (13 core) to
panel board (CN601) and mechanical deck.
panel board (CN601)
main board (CN301)
6
CX-JE3 SECTION 2
GENERAL This section is extracted from
instruction manual.
•LOCATION OF CONTROLS
1DISC CHANGE
Rotates the CD trays.
2POWER 6STANDBY/ON
Switches the unit on and off (standby).
The red indicator flashes when receiving a signal from
the remote.
3MODE
Selects various modes (ECO and Repeat/Shuffle/
Programmed playback, etc.) when used in combination
with ENTER and MULTI JOG.
4ENTER
Fixes the modes and the time (ECO, Repeat/Shuffle/
Programmedplayback,clock,andtimer,etc.)whenused
in combination with ENTER and MULTI JOG.
Main unit: front
5MULTI JOG
WhenusedincombinationwithENTERandMULTIJOG,
CD: selects a track and Repeat/Shuffle/Programmed
playback.
Tuner: selects a preset station.
Tape: specifies tape length.
Clock and Timer: sets the time.
i-Bass: selects a frequency range.
Spectrumanalyzer,ECOand Dimmer: selectsthemode.
6PHONES jack
Plug in here an optional headphones set with a mini
stereo plug (ø3.5 mm). Speaker output is canceled.
7SYNC DUB
Starts dubbing a whole tape.
wREC/REC MUTING
Starts recording.
8DISC DIRECT PLAY 1-3
Selects a disc.
9zOPEN/CLOSE
Opens or closes the disc compartment.
0TAPE A/B
Selects Tape function, and deck A or B.
TUNER/BAND
Selects Tuner function and the radio band.
VIDEO/AUX
Selectsthe function of external equipment connected to
VIDEO/AUX jacks.
CD
Selects CD function.
!Remote sensor
Receives a signal from the remote.
@VOLUME
Adjusts the volume.
Main unit: rear
1AM LOOP, FM 75 Ωterminals
Plug in the supplied AM and FM antennas here.
2VIDEO/AUX jacks
Acceptsanalog sound signals from externalequipment.
Connect using an optional connecting cable with RCA
phono plugs (red plug to R jack, white plug to L jack).
Referalsototheoperatinginstructionsofyourequipment.
To switch function to external input, press VIDEO/AUX.
Tip:
To changethedisplayedname for this function, turn the
unit on, then hold down VIDEO/AUX and press POWER
on the unit. Repeat the procedure to select "VIDEO",
"AUX" or "TV".
3#SPEAKER terminals
Connectthe speaker cord ofthesuppliedfront speakers
here.
4AC power cord
#TREBLE
Enhances high frequency sound.
$cPLAY/PRESET
When the unit is turned off: activates or deactivates
DEMO.
CD and Tape: starts playback.
Tuner: tunes into a preset station.
sSTOP/CLEAR
CD and Tape: stops playback.
Tuner: clears a station preset.
fTUNING DOWN, gTUNING UP
CD: searches a track in fast forward or fast reverse
playback when held down.
Tape: fast forwards or rewinds the tape.
Tuner: manually tunes down or up within the band.
aPAUSE/SET
CD and Tape: pauses playback.
Tuner: stores the received station in to preset.
%BASS
Emphasizes low frequency sound.
^i-Bass
Produces rich and clear low frequency sound.
&DISPLAY
Displays the time and the remaining time for CD.
ALBUM k,i
Selects a previous album or a succeeding album with
MP3-CDs.
PTY
Displays a program type for RDS (Radio Data System)
7
CX-JE3
7
Buttons with the same or similar names with the main unit
basically have the same function.
1POWER
21-0/10, +10
CD: selects a CD track of the specified number.
Tuner: tunes in to the station with the specified preset
number.
The numbered buttons take on these functions below when pressed
with SHIFT held down
:
EDIT
EntersAIEditRecordingorProgrammedEditRecording
mode when pressed in stop mode.
BAND
Selects Tuner function and the radio band.
TAPE A/B
SPECTRUM
Changes the spectrum analyzer display.
TUNER MODE
Switches between stereo or monaural FM reception.
3r,t
CD: selects a track.
Tuner: selects a preset station.
Tape: specifies tape length.
BASS and TREBLE: adjusts the level.
Clock and Timer: sets the time.
4ALBUM M,N
Selects a previous album or a succeeding album.
5PLAY MODE
SelectsShuffleorProgrammedplaybackinCDfunction.
REPEAT
Enters CD repeat playback mode.
ENTER
6CLOCK/TIMER/SET
Enters timer setting mode.
CLOCK/TIMER/SELECT
Selects timer playback, timer recording or timer off.
7DISPLAY
8SHIFT
Holddownwhenpressinga numberedbutton tochange
its function to that printed above the number.
e.g.)
"Press SHIFT+BAND on the remote" indicates "Hold
downSHIFTandpress'2'(BAND)".Doingsomakesyou
be able to select Tuner function and the radio band.
9FUNCTION
Switches the active function among CD, TAPE, TUNER
and VIDEO (AUX or TV).
0DISC SKIP
Select a disc.
!c/d
When the unit is turned off: activates or deactivates
DEMO.
CD and Tape: starts playback.
s
CD and Tape: stops playback.
f,g
CD: searches a track in fast forward or fast reverse
playback when held down.
Tape: fast forwards or rewinds the tape.
Tuner: manually tunes down or up within the band.
a
CD and Tape: pauses playback.
@SLEEP
Switchesthesleep-timeron/offandselectstheduration.
#VOLUME (+,-)
Adjusts the volume.
$SOUND
Selects BASS or TREBLE setting mode
CLEAR
Clears a track of the CD programmed playback and a
Radio preset station.
Note
The button not explained above (KARAOKE) does not
operate for this unit.
Remote control
Setting the clock
Use the remote.
1
Press CLOCK/TIMER/SET.
Gotostep3whenthetimeappearsandthe'hour'flashes.
2
Press ror trepeatedly until "CLOCK
SET" appears in the display and then press
ENTER.
3
Press ror trepeatedly to set the hour
and then press ENTER.
4
Press ror trepeatedly to set the minute
and then press ENTER.
Thetime display stops flashing and the clock starts from
00 seconds.
•MULTI JOG is also available in place of ror t.
To display the time
PressDISPLAYonthe remote. The time will be displayed for
6 seconds.
If "- -:- -" appears when the unit is turned off
There has been a power interruption. Re-set the clock.
CX-JE3
8
• This set can be disassembled in the order shown below.
3-1. DISASSEMBLY FLOW
SECTION 3
DISASSEMBLY
Set
3-2. CASE
(SIDE-L/R)
(Page 9)
3-3. CASE (TOP)
(Page 9) 3-4. TRAY PANEL
(Page 10)
3-6. FRONT PANEL
SECTION
(Page 11)
3-8. REAR CABINET
SECTION
(Page 12)
3-7. MECHANICAL
DECK
(CWM43FF13)
(Page 11)
3-9. PT BOARD,
MAIN BOARD
(Page 12)
3-14. MOTOR GEAR ASSY (SLED) (M701),
BD BOARD
(Page 15)
3-13. BASE UNIT
(BU-K6BD71A)
(Page 14)
3-10. TABLE ASSY
(Page 13)
3-11. MOTOR (TB)
BOARD
(Page 13)
3-12. MOTOR (LD)
BOARD
(Page 14)
3-5. CD MECHANISM DECK
(CDM74S-K6BD71A)
(Page 10)
Note 1: The process described in can be performed in any order.
Note 2: Without completing the process described in , the next process can not be performed.
CX-JE3
9

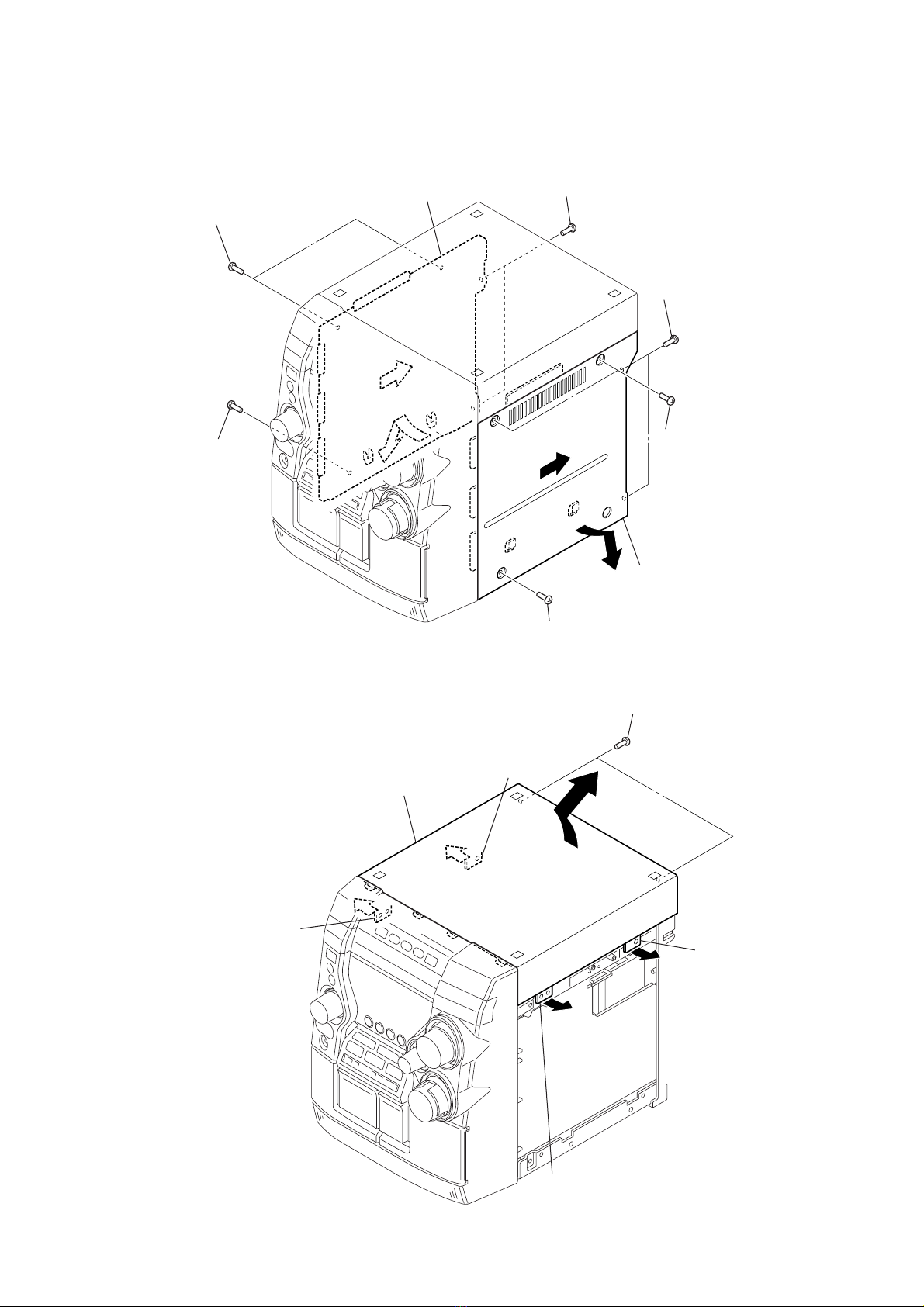

3-3. CASE (TOP)
Note: Follow the disassembly procedure in the numerical order given.
3-2. CASE (SIDE-L/R)
1
case screw
1
case screw
3
3
4
4
5
case (side-L)
5
case (side-R)
2
two screws
(BVTP3
×
10)
2
two screws
(BVTP3
×
10)
1
two case screw
s
1
two case screws
3
4
case (top)
2
claw
2
cla
w
1
two screws
(BVTP3
×
10)
2
claw
2
claw
CX-JE3
10
3-4. TRAY PANEL
3-5. CD MECHANISM DECK (CDM74S-K6BD71A)
4
tray panel
2
Pull-out the disc table.
1
Turn the loading gear
in the direction of arrow
A
.
A
3
four claws
5
CD mechanism deck
(CDM74S-K6BD71A)
3
screw
(BVTP3
×
10)
4
two screws
(BVTP3
×
10)
3
screw
(BVTP3
×
10)
1
wire (flat type) (19 core)
(CN691)
2
connector
(CN701)
CX-JE3
11

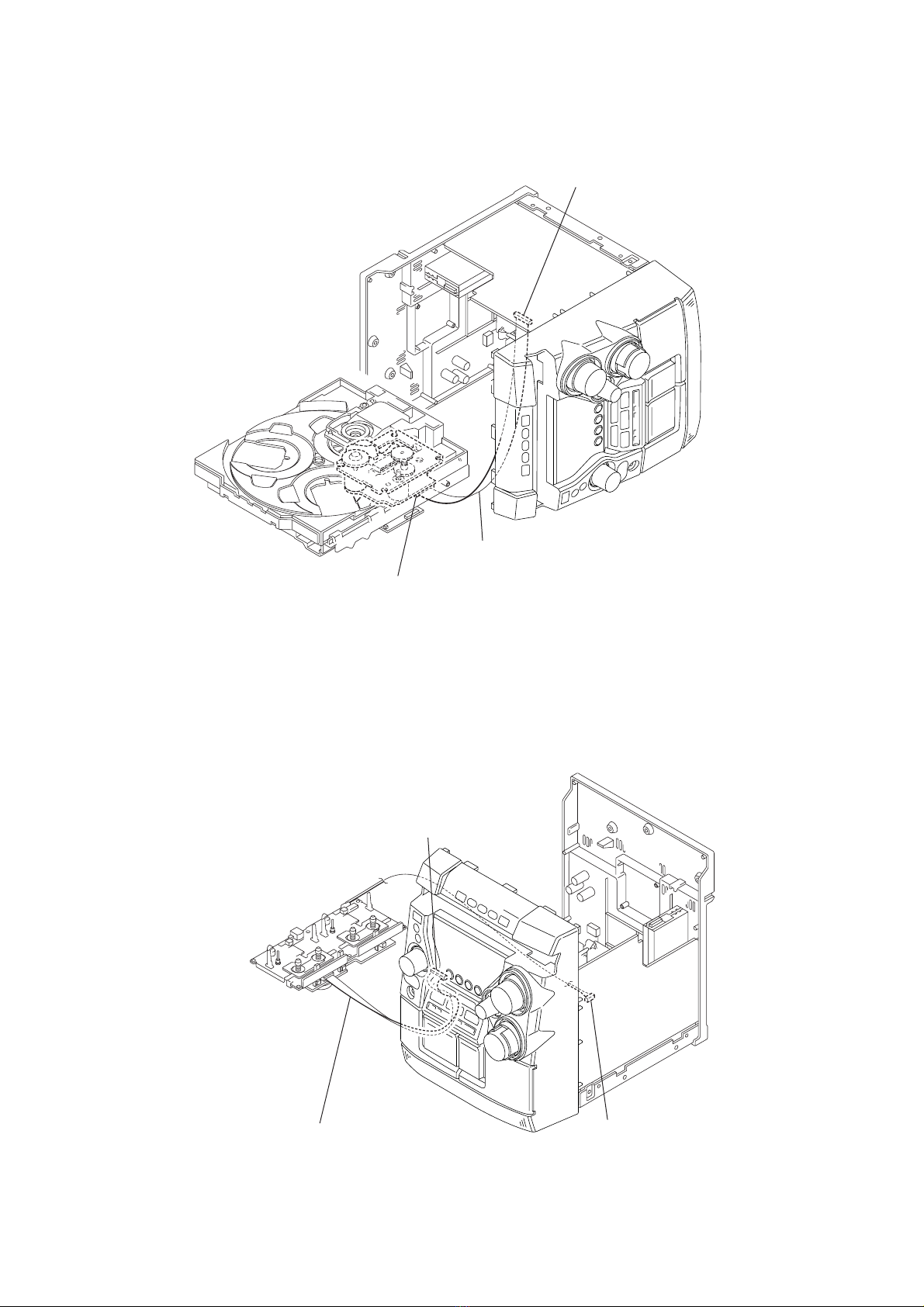

3-6. FRONT PANEL SECTION
3-7. MECHANICAL DECK (CWM43FF13)
1
screw
(BVWHTP)
2
headphone board
7
front panel section
5
three screws
(BVTP3
×
10)
3
wire (flat type) (11 core)
(CN694)
4
connector
(CN301)
4
connector
(CN302)
6
connector
(CN101)
5
ground mechanical plate
2
six screws
(BVTP3
×
10)
1
wire (flat type) (13 core)
4
mechanical deck
(CWM43FF13)
3
clamp
CX-JE3
12
3-8. REAR CABINET SECTION
3-9. PT BOARD, MAIN BOARD
3
rear cabinet section
2
three screws
(BVTP3
×
10)
2
screw
(BVTP3
×
10)
1
wire (flat type) (15 core) (CN802)
6
PT board
8
main board
4
Remove the PWB PT HLDR
in the direction of the arrow.
2
screw
(BVTT3
×
8)
7
screw
(BVTT3
×
8)
3
screw
(BVTP3
×
10)
5
two screws
(ITC4
×
8)
7
two screws
(BVTT3
×
8)
5
two screws
(ITC4
×
8)
1
connector (CN091)
CX-JE3
14
3-12. MOTOR (LD) BOARD
3-13. BASE UNIT (BU-K6BD71A)
2
connector
(CN704)
3
two screws
(BTTP M2.6)
4
motor (LD) board
1
belt (loading)
3
three coil springs
(insulator)
4
three insulators
8
base unit
(BU-K6BD71A)
1
threescrews
(BTTP M2.6)
2
three stoppers (BU)
6
coil spring
(insulator)
7
insulator
5
screw
(PTPWH M2.6)
CX-JE3
15
1
Remove two
solders.
qa
BD board
2
two screws
(P2
×
3)
6
claw
7
gear (A)
8
gear (B)
5
wire (flat type) (16 core
)
(CN708)
0
motor gear assy (SLED)
(M701)
3
screw (P2.6
×
6)
9
Remove two solders.
4

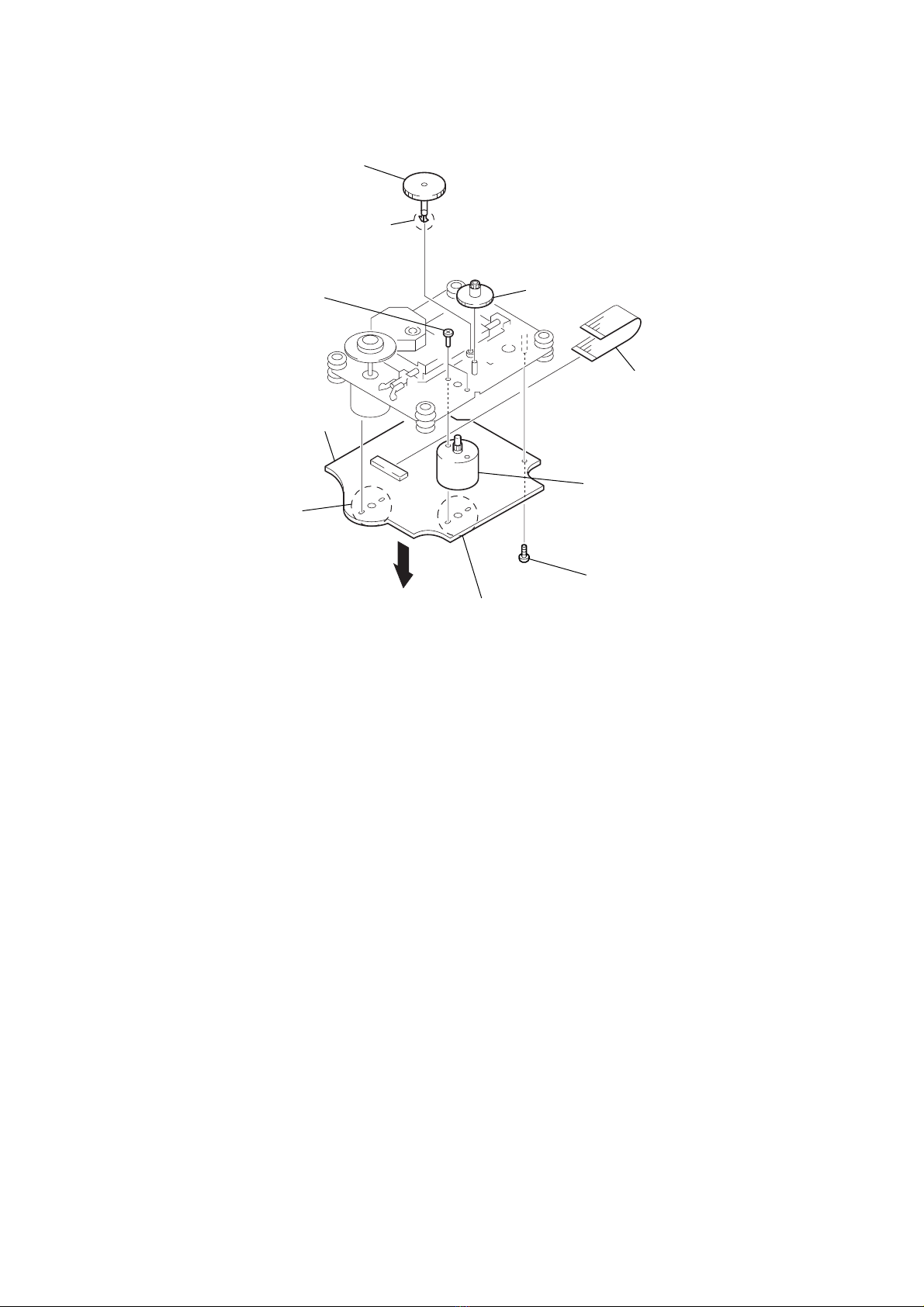

3-14. MOTOR GEAR ASSY (SLED) (M701), BD BOARD
16
CX-JE3 SECTION 4
TEST MODE
MC COLD RESET
•The cold reset clears all data including preset data stored in the
RAM to initial conditions. Execute this mode when returning
the set to the customer.
Procedure:
1. In the standby status, while pressing the xbutton, press the
[POWER] button.
2. The set is reset, then becomes standby status.
GC TEST MODE
Procedure:
1. Press the [POWER] button to turn the power on.
2. While pressing the xbutton, press the [POWER] button for
5 seconds.
3. It change displays in order of model type, version and suffix at
2 seconds interval, then the display is back to normal status.
AMP TEST MODE
Procedure:
1. In the status where AC plug is disconnected, while pressing
the [VIDEO/AUX] button, connect the AC plug to turn the
power on. Then enter the AMP test mode and display “AMP
TEST”.
2. If turn the [VOLUME] knob clockwise, it displays “VOLUME
MAX”, and if turn the knob counterclockwise, it displays
“VOLUME 0”.
3. If the [TREBLE] and [BASS] knobs are turned clockwise or
counterclockwise, it change displays in order of “EQ MAX”,
“EQ MIN” and “EQ FLAT”.
4. To release from this mode, disconnect the AC plug and turn
the power off.
DISC TRAY LOCK
Procedure:
1. Press the [POWER] button to turn the power on.
2. While pressing the xbutton, press the [ OPEN/CLOSE]
button for 5 seconds.
3. The message “LOCKED” is displayed and the tray is locked.
(Even if exiting from this mode, the tray is still locked)
4. To release this lock, while pressing the xbutton, press the
[ OPEN/CLOSE] button for 5 again.
5. The message “UNLOCKED” is displayed and the tray is un-
locked.
CD REPEAT 5 LIMIT CANCEL MODE
•Number of repeat for CD playback is 5 times when the repeat
mode is “REPEAT”. This mode enables CD to repeat playback
for limitless times.
Procedure:
1. Press the [POWER] button to turn the power on.
2. In the repeat on status, while pressing the xbutton, press the
[CD] button to enter the CD repeat 5 limit cancel mode and
repeat mark blinks on the fluorescent indicator tube.
3. To release this mode, press the [POWER] button to turn the
power off.
Z
Z
FUNCTION CHANGE MODE
•Select either TV, VIDEO orAUX (MD) of the external function
input.
Procedure:
1. Press the [POWER] button to turn the power on.
2. While pressing the [VIDEO/AUX] button, press the [POWER]
button.
3. Each time this operation is operated, it change displays in or-
der of “TV”, “VIDEO” and “AUX”.
CX-JE3
1717
SECTION 5
ELECTRICAL ADJUSTMENTS
CD TEST MODE
•This mode can run the CD sled motor freely. Use this mode, for
instance, when cleaning the pickup.
Procedure:
1. In the status where AC plug is disconnected, while pressing
the [CD] button, connect theAC plug to turn the power on.
2. When enter this mode, it displays “CD TEST” and few sec-
onds later, all segments turn on of the fluorescent indicator
tube.
3. To release from this mode, disconnect the AC plug and turn
the power off.
In this mode, it operates as following table.
Button Operation Purpose of use
MMove the pick-up to outside track Sled circuit check
mMove the pick-up to inside track Tracking circuit check
Mechanism operation check
Optical pick-up check
NPlayback a CD Servo block check
If it cannot focus on, it continuous focus search
xWhen playback a CD: stop playback APC circuit check
When stop a CD: Laser current measure
display “READING” (blink) Focus search waveform check
continuous laser diode on Tracking balance check
continuous focus search (not made focus on)
XPause, Tracking servo off
(ignore CLV error)
CD SECTION
Note:
1. CDBlock is basically designed to operate without adjustment.Therefore,
check each item in order given.
2. UseYEDS-18 (3-702-101-01) unless otherwise indicated.
3. Use an oscilloscope with more than 10MΩimpedance.
4. Clean the object lens by an applicator with neutral detergent when the
signal level is low than specified value with the following checks.

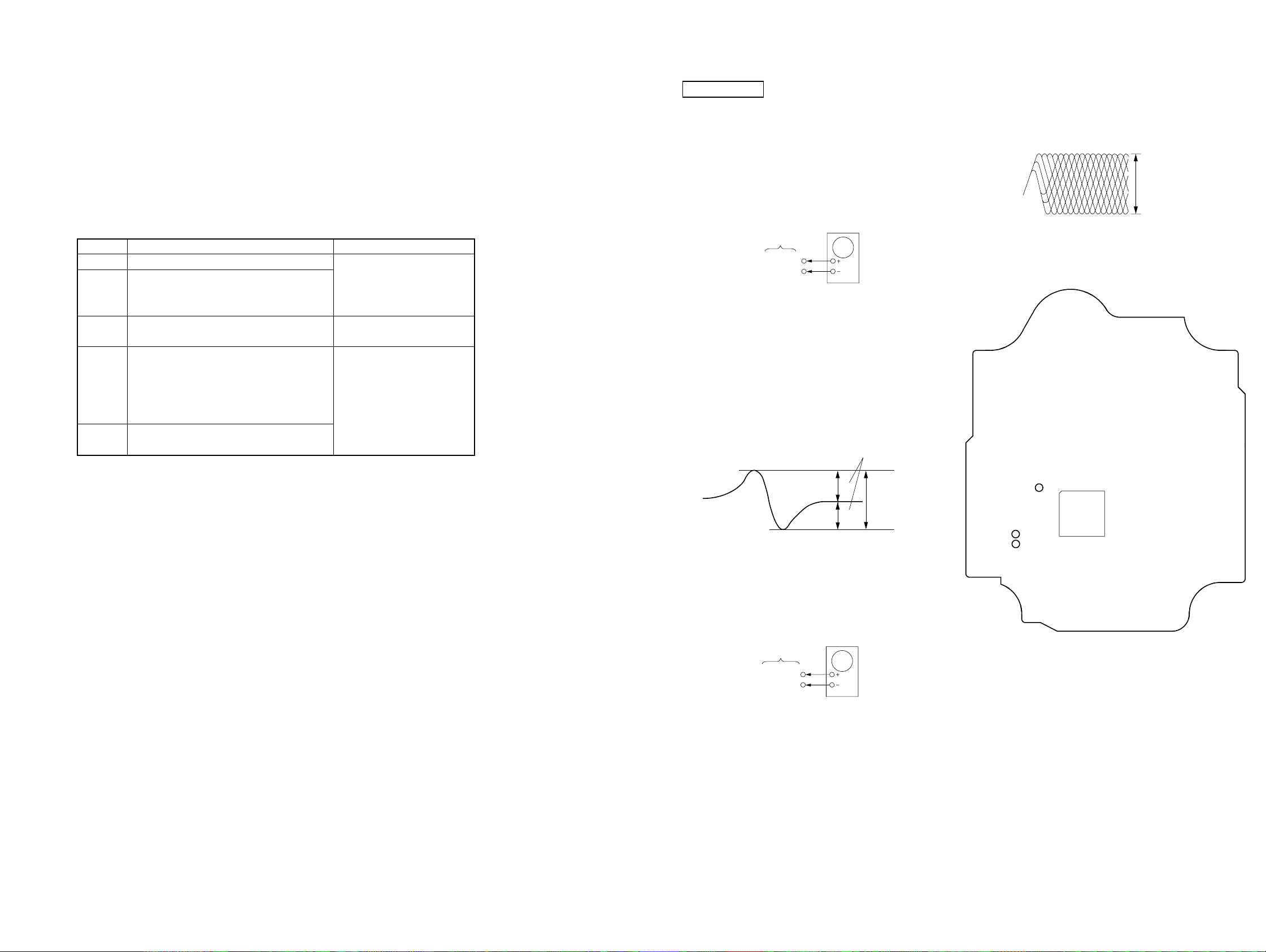

S-CURVE CHECK
Procedure :
1. Connect an oscilloscope to TP (FE) and TP (VC).
2. Turn the power on.
3. Load a disc (YEDS-18) and actuate the focus search. (In
consequence of open and close the disc tray, actuate the focus
search)
4. Confirm that the oscilloscope waveform (S-curve) is
symmetrical betweenA and B.And confirm peak to peak level
within 3 ±0.5 Vp-p.
Note: •Try to measure several times to make sure than the ratio
of A : B or B : A is more than 10 : 7.
•Take sweep time as long as possible and light up the
brightness to obtain best waveform.
RF LEVEL CHECK
Procedure :
1. Connect an oscilloscope to TP (RF) and TP (VC).
2. Turn the power on.
3. Load a disc (YEDS-18) and playback.
4. Confirm that oscilloscope waveform is clear and check if RF
signal level is correct or not.
BD board Oscilloscope
TP(FE)
TP(VC)
symmetry
S-curve waveform
within 3
±
0.5Vp-p
A
B
TP(RF)
BD board oscilloscope
TP(VC)
Note: Clear RF signal waveform means that the shape “ ◊” can be clearly
distinguished at the center of the waveform.
Connecting Location: BD board
RF signal waveform VOLT/DIV : 200mV
TIME/DIV : 500ns
level : 1.3
±
0.3Vp-
p
– BD Board (Conductor side) –
TP (RF)
TP (VC)
TP (FE)
IC721
CX-JE3
1818
8
7
9
10
80
79
70 LIMIT SW
20
TDO
18
10
VO3(+)
FOIN
20TIN
3SPIN
7LDS
25SLIN
17 VO3(–)
11 VO2(+)
12 VO2(–)
26 VO4(+)
27 VO4(–)
2VO1(+)
1VO1(–)
A
C
B
D
E
F
LD
PD
CD DSP
IC721
21
FDO
23
SLDO
22
SPDO
25
CONT4
A
B
D
E
F
C
I-V AMP
DETECTOR
LD
PD
LASER DIODE
OPTICAL PICK-UP
BLOCK
(KSM-213DCP)
2-AXIS
DEVICE
(FOCUS)
(TRACKING)
M702
(SPINDLE)
M701
(SLED)
M
M
FOCUS/TRACKING COIL DRIVE,
SPINDLE/SLED MOTOR DRIVE
IC722
49
48
X701
16.9344MHz
S701
(LIMIT)
79 DATAIN
80 DATACK
I/O1 – I/O16
A0 – A8
MDATA0
– MDATA15
MADRS0
– MADRS8
5C2FIN
1LRSY
2ADDATA
3ADBCK
4ADLRCK
7CKIN
9CKOUT
78 RESB
99 CD DO
98 CD DI
100 C D CLK
5CD CE
97 CD WRQ
95 CD DRF
4CD RESET
60
DATA
59
DATACK
52
C2F
58
LRSY
29 OE
45OEB
15 WE
42WEB
16 RAS
41RASB
31 LCAS
43CASLB
30 UCAS
44CASUB
57
ASDFIN
56
ASDACK
55
ASLRCK
54
16MOUT
10
6
76 66
53
EFLG
50
FSX/16MIN
73 CMDOUT
74 CMDIN
CE
FSYNC
MP3 CE
MP3 SYNC
75 CL
26MP3RES
64
DO
63
DI
62
CL
74CD NUMBER SENS
20CD BUSY
9RIN LM-R
11RESET
1MUTE
94POWER
27HOLD
MUTE
POWER
HOLD
61
CE
65
WRQ
67DRF
66RES
4OUT1
2OUT2
M751
(LOADING)
M
LOADING MOTOR DRIVE
IC701
MP3 DECODER
IC801
IC802
MEMORY
SYSTEM CONTROLLER
IC901 (1/2) S751
OPEN/CLOSE
DETECT
OPEN
CLOSE
LEVEL SHIFT
Q731
TABLE ADDRESS
SENSOR
IC731
+ROTARY
ENCODER
S711
7FIN LM-F
9RIN TM-R
4OUT1
2OUT2
M741
(TABLE)
M
TABLE MOTOR DRIVE
IC712
7FIN TM-F
LM-L, LM-R,
TM-L, TM-R
D
O-MUTE,
O-POWER,
HOLD
B
42
LCHO
45
RCHO R-CH
CD
A
APC
FIN2
FIN1
LDD
LDS
TIN2
TIN1
XOUT
XIN
RF 4EFMIN
3ERROR
CORRECT
EQ,
AGC
COMMAND
INTERFACE
CLOCK
GENERATOR
PH, BH
RF AMP
TBAL A/D
CONVERTER
D/A
CONVERTER
EXTERNAL
AUDIO IN
SERIAL OUT
D/A
CONVERTER
SERVO
PROCESSOR
AUTOMATIC
POWER CONTROL
Q701
18POWER DOWN P-DOWN
RESET
RESET,
P-DOWN
C
• SIGNAL PATH
: CD
• R-ch is omitted due to same as L-ch.
(Page 20)
(Page 20)
(Page 20)
(Page 20)
2-5, 7-10,
35-38, 40-43
23-30, 33-40
60-53, 50
18-21, 24-28
SECTION 6
DIAGRAMS
6-1. BLOCK DIAGRAM – CD Section –
This manual suits for next models
1
Table of contents
Other Aiwa Stereo System manuals
