Aiwa XR-H55MD Specification sheet
S E R V I C E M A N U A L
SIMPLE MANUAL
•Replace this Service Manual with ”Revision Publishing” when it is issued.
XR-H55MD
• BASIC TAPE MECHANISM: 2ZM–1MK2 PR4
•BASICCDMECHANISM:4ZG–1Z1MD
•BASIC CDMECHANISM: 7ZG–BD • TYPE: EZ
S/M Code No. 09–985–265–9FE
MD/CD STEREO SYSTEM
ELECTRICAL MAIN PARTS LIST - 1/8
NOTE: The characters in the suffix column indicate the part usage.
EZ .....................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
87-085-184-010 BUSHING, AC CORD (D) A...................
87-085-185-010 BUSHING, AC CORD (E) A...................
87-A90-296-210 MOT ASSY,F614R-12MC-15 A...................
88-906-151-110 FF-CABLE,6P 1.25 A...................
88-906-191-110 FF-CABLE,6P 1.25 A...................
88-907-271-110 FF-CABLE,7P 1.25 A...................
88-915-261-110 FF-CABLE, 15P 1.25 A...................
C 651 87-018-209-080 CAP, CER 0.1-50V A...................
C 800 87-018-134-080 CAPACITOR,TC-U 0.01-16 ....................
F 0 87-035-369-010 FUSE,5A 250V TE ....................
PT 101 87-NBG-605-010 PT,D 7NB-G ....................
PT 101 87-NBG-607-010 PT,LH 7NB-G ....................
PT 101 87-NBG-609-010 PT,EZ 7NB-G A...................
W 103 87-050-079-010 AC-CORD ASSY,E A...................
W 103 87-050-098-010 AC CODE ASSY,D ....................
87-NB6-212-010 GUIDE,LED L IND A...................
87-NB6-212-010 GUIDE,LED L IND A...................
87-NBG-201-010 GUIDE,OPE A...................
87-NBG-201-010 GUIDE,OPE A...................
87-NBG-202-010 GUIDE,FUN A...................
87-NBG-202-010 GUIDE,FUN A...................
87-NF5-203-010 GUIDE,FL A...................
87-NF5-203-010 GUIDE,FL A...................
C 5 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 1 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 6 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 7 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 2 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 8 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 4 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 3 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 9 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 11 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 12 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 10 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 13 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 103 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 105 87-010-198-080 CAP, CHIP 0.022 A...................
C 101 87-010-198-080 CAP, CHIP 0.022 A...................
C 104 87-010-198-080 CAP, CHIP 0.022 A...................
C 102 87-010-198-080 CAP, CHIP 0.022 A...................
C 108 87-010-498-040 CAP,E 10-16 GAS A...................
C 107 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 118 87-010-194-080 CAP, CHIP 0.047 A...................
C 112 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 114 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 119 87-010-408-040 CAP,E 47-50 SME A...................
C 117 87-010-555-040 CAP,E 100-10 GAS A...................
C 116 87-015-695-040 E/CAP 1UF 50V TAPG A...................
C 113 87-A10-189-040 CAP,E 220-10 A...................
C 128 87-010-178-080 CHIP CAP 1000P A...................
C 122 87-010-194-080 CAP, CHIP 0.047 A...................
C 127 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 123 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 124 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 125 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 126 87-010-312-080 C-CAP,S 15P-50 CH A...................
C 121 87-010-421-040 CAP,E 4.7-50 5L A...................
C 120 87-010-421-040 CAP,E 4.7-50 5L A...................
C 132 87-010-178-080 CHIP CAP 1000P A...................
C 131 87-010-316-080 C-CAP,S 33P-50 CH A...................
C 130 87-010-320-080 CHIP CAP 68P A...................
C 226 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 225 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 352 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 357 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 354 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 356 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 355 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 353 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 351 87-012-158-080 C-CAP,S 390P-50 CH A...................
C 723 87-010-154-080 CAP CHIP 10P A...................
C 720 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 726 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 725 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
CON 102 87-099-015-010 CONN,13P 6216V A...................
CON 104 87-099-017-010 CONN, 15P 6216 V A...................
CON 502 87-099-195-010 CONN,7P 6216 V A...................
D 109 87-017-932-080 ZENER,MTJ6.2B A...................
D 104 87-A40-246-080 DIODE,IN4148 T-72 A...................
D 105 87-A40-246-080 DIODE,IN4148 T-72 A...................
D 106 87-A40-246-080 DIODE,IN4148 T-72 A...................
D 108 87-A40-269-080 C-DIODE,MC2836 A...................
D 103 87-A40-270-080 C-DIODE,MC2838 A...................
D 107 87-A40-270-080 C-DIODE,MC2838 A...................
D 112 87-A40-246-080 DIODE,IN4148 T-72 A...................
ELECTRICAL MAIN PARTS LIST - 2/8
D 111 87-A40-246-080 DIODE,IN4148 T-72 A...................
D 113 87-A40-246-080 DIODE,IN4148 T-72 A...................
D 114 87-A40-269-080 C-DIODE,MC2836 A...................
D 110 87-A40-269-080 C-DIODE,MC2836 A...................
D 121 87-A40-246-080 DIODE,IN4148 T-72 A...................
D 309 87-A40-246-080 DIODE,IN4148 T-72 ....................
D 306 87-A40-269-080 C-DIODE,MC2836 A...................
D 301 87-A40-269-080 C-DIODE,MC2836 A...................
D 302 87-A40-269-080 C-DIODE,MC2836 A...................
D 308 87-A40-269-080 C-DIODE,MC2836 A...................
D 305 87-A40-269-080 C-DIODE,MC2836 A...................
D 307 87-A40-269-080 C-DIODE,MC2836 A...................
D 304 87-A40-269-080 C-DIODE,MC2836 A...................
D 303 87-A40-269-080 C-DIODE,MC2836 A...................
D 311 87-A40-246-080 DIODE,IN4148 T-72 A...................
D 319 87-A40-246-080 DIODE,IN4148 T-72 A...................
D 320 87-A40-246-080 DIODE,IN4148 T-72 ....................
D 351 87-A40-246-080 DIODE,IN4148 T-72 ....................
D 352 87-A40-246-080 DIODE,IN4148 T-72 A...................
D 353 87-A40-246-080 DIODE,IN4148 T-72 A...................
D 354 87-A40-246-080 DIODE,IN4148 T-72 A...................
D 722 87-A40-269-080 C-DIODE,MC2836 A...................
D 721 87-A40-313-080 C-DIODE,MC 2840 A...................
FL 101 87-NBG-616-010 FL,7NB-G A...................
IC 102 87-A20-593-010 IC,SPS-442-1-A A...................
IC 101 87-NBG-618-010 IC,LC866560W-5G61 ....................
IC 201 87-017-915-080 IC,BU4094BCF A...................
IC 203 87-070-289-040 IC,BU 2092F A...................
IC 380 87-A20-083-010 IC,BA3835S A...................
LED 205 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 202 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 201 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 204 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 203 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 206 87-A40-380-080 LED,SEL6510C-TP5 GRN A...................
LED 209 87-A40-380-080 LED,SEL6510C-TP5 GRN A...................
LED 208 87-A40-380-080 LED,SEL6510C-TP5 GRN A...................
LED 207 87-A40-380-080 LED,SEL6510C-TP5 GRN A...................
LED 218 87-070-281-080 LED,SLZ736A-25-S-T1 A...................
LED 217 87-070-281-080 LED,SLZ736A-25-S-T1 A...................
LED 219 87-070-281-080 LED,SLZ736A-25-S-T1 A...................
LED 216 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 215 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 211 87-A40-380-080 LED,SEL6510C-TP5 GRN A...................
LED 212 87-A40-380-080 LED,SEL6510C-TP5 GRN A...................
LED 213 87-A40-380-080 LED,SEL6510C-TP5 GRN A...................
LED 210 87-A40-380-080 LED,SEL6510C-TP5 GRN A...................
LED 214 87-A40-380-080 LED,SEL6510C-TP5 GRN A...................
LED 221 87-070-281-080 LED,SLZ736A-25-S-T1 A...................
LED 220 87-070-281-080 LED,SLZ736A-25-S-T1 A...................
LED 222 87-070-281-080 LED,SLZ736A-25-S-T1 A...................
LED 233 87-A40-265-010 LED,SLH-56PCL GRN A...................
LED 232 87-A40-265-010 LED,SLH-56PCL GRN A...................
LED 234 87-A40-265-010 LED,SLH-56PCL GRN A...................
LED 231 87-A40-265-010 LED,SLH-56PCL GRN A...................
LED 236 87-A40-267-010 LED,SLH-56VCL RED A...................
LED 235 87-A40-267-010 LED,SLH-56VCL RED A...................
LED 255 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 254 87-A40-317-080 LED,SLR-342VCT31 RED A...................
LED 251 87-A40-380-080 LED,SEL6510C-TP5 GRN A...................
LED 253 87-A40-380-080 LED,SEL6510C-TP5 GRN A...................
LED 252 87-A40-380-080 LED,SEL6510C-TP5 GRN A...................
Q 101 87-026-263-080 C-TR,RN1410 A...................
Q 108 87-A30-071-080 C-TR,RT1N 144C A...................
Q 104 87-A30-073-080 C-TR,RT1N 141C A...................
Q 109 87-A30-074-080 C-TR,RT1P 141C A...................
Q 103 87-A30-075-080 C-TR,2SA1235F A...................
Q 102 87-A30-076-080 C-TR,2SC3052F A...................
Q 107 87-A30-084-080 TR,CSB1058B A...................
Q 105 87-A30-085-070 C-TR,CSA1362GR A...................
Q 106 87-A30-085-070 C-TR,CSA1362GR A...................
Q 110 87-A30-072-080 C-TR,RT1P 144C A...................
Q 195 87-A30-076-080 C-TR,2SC3052F A...................
Q 207 87-A30-073-080 C-TR,RT1N 141C A...................
Q 209 87-A30-073-080 C-TR,RT1N 141C A...................
Q 206 87-A30-073-080 C-TR,RT1N 141C A...................
Q 201 87-A30-073-080 C-TR,RT1N 141C A...................
Q 208 87-A30-073-080 C-TR,RT1N 141C A...................
Q 211 87-A30-073-080 C-TR,RT1N 141C A...................
Q 210 87-A30-073-080 C-TR,RT1N 141C A...................
Q 274 87-A30-087-080 C-FET,2SK2158 A...................
Q 276 87-A30-087-080 C-FET,2SK2158 A...................
Q 272 87-A30-087-080 C-FET,2SK2158 A...................
Q 273 89-327-143-080 TR,2SC2714 (0.1W) A...................
Q 271 89-327-143-080 TR,2SC2714 (0.1W) A...................
Q 275 89-327-143-080 TR,2SC2714 (0.1W) A...................
Q 301 87-A30-076-080 C-TR,2SC3052F A...................
Q 722 87-A30-076-080 C-TR,2SC3052F A...................
Q 725 87-A30-087-080 C-FET,2SK2158 A...................
S 308 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 302 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 309 87-A90-095-080 SW,TACT EVQ11G04M A...................
ELECTRICAL MAIN PARTS LIST - 3/8
S 307 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 304 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 305 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 303 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 306 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 310 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 311 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 322 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 328 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 327 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 329 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 326 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 332 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 331 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 336 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 376 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 377 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 372 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 378 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 375 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 374 87-A90-095-080 SW,TACT EVQ11G04M A...................
S 373 87-A90-095-080 SW,TACT EVQ11G04M A...................
SW 102 87-A90-085-010 SW,RTRY EC16B 24204 A...................
SW 101 87-A90-535-010 SW,RTRY EC16B24304 A...................
X 202 87-A70-070-080 VIB,CER 5.76MHZ CRHF A...................
C 505 87-010-180-080 C-CER 1500P A...................
C 509 87-010-181-080 CAP,CHIP S 1800P A...................
C 504 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 508 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 506 87-010-213-080 C-CAP,S 0.015-50 B A...................
C 507 87-010-213-080 C-CAP,S 0.015-50 B A...................
C 501 87-010-319-080 C-CAP,S 56P-50 CH A...................
C 502 87-010-319-080 C-CAP,S 56P-50 CH A...................
C 503 87-012-393-080 C-CAP,S 0.22-16 R K A...................
C 511 87-010-067-040 CAP,E 0.1-50 5L A...................
C 516 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 515 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 518 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 510 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 519 87-010-263-040 CAP,E 100-10 A...................
C 512 87-010-553-040 CAP,E 47-16 GAS A...................
C 517 87-012-141-080 CHIP-CAPACITOR,0.22-16F A...................
C 514 87-015-695-040 E/CAP 1UF 50V TAPG A...................
C 513 87-015-695-040 E/CAP 1UF 50V TAPG A...................
C 520 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 521 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 522 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 556 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 602 87-010-186-080 CAP,CHIP 4700P A...................
C 605 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 608 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 607 87-010-321-080 CHIP CAPACITOR,82P(J) A...................
C 606 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 604 87-010-382-040 CAP,E 22-25 SME A...................
C 603 87-010-405-040 CAP,E 10-50 A...................
C 609 87-010-545-040 CAP,E 0.22-50 SME A...................
C 601 87-010-560-040 CAP,E 10-50 GAS A...................
C 612 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 611 87-010-177-080 C-CAP,S 820P-50 SL A...................
C 614 87-010-248-040 CAP,E 220-10 SME A...................
C 610 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 670 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
D 501 87-017-931-080 ZENER,MTZJ5.6B A...................
D 601 87-A40-246-080 DIODE,IN4148 T-72 A...................
FB 601 87-008-372-080 FILTER, EMI BL OIRNI A...................
IC 501 87-A20-613-040 C-IC,BU9262AFS A...................
IC 601 87-017-888-080 IC,NJM4558MD A...................
J 601 87-A60-284-010 JACK,3.5MO (MSC) A...................
J 602 87-A60-284-010 JACK,3.5MO (MSC) A...................
L 501 87-005-448-080 COIL 220UH,K A...................
Q 601 87-A30-087-080 C-FET,2SK2158 A...................
C 408 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................
C 407 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................
C 409 87-010-198-080 CAP, CHIP 0.022 A...................
C 406 87-010-401-040 CAP,E 1-50 SME A...................
C 405 87-010-401-040 CAP,E 1-50 SME A...................
C 403 87-010-992-080 C-CAP,S 0.047-25 B A...................
C 404 87-010-992-080 C-CAP,S 0.047-25 B A...................
C 416 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 413 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 410 87-010-198-080 CAP, CHIP 0.022 A...................
C 415 87-010-374-040 CAP,E 47-10 A...................
C 414 87-010-374-040 CAP,E 47-10 A...................
C 418 87-010-405-040 CAP,E 10-50 A...................
C 419 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 417 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 412 87-A10-201-080 C-CAP,S0.33-16 KB A...................
C 411 87-A10-201-080 C-CAP,S0.33-16 KB A...................
D 401 87-A40-246-080 DIODE,IN4148 T-72 A...................
IC 401 87-A20-450-040 C-IC,BH 3864 F A...................
FC 2 87-033-213-080 CLAMP, FUSE A...................
FC 1 87-033-213-080 CLAMP, FUSE A...................
ELECTRICAL MAIN PARTS LIST -4/8
PR 2 87-026-682-080 PROTECTOR,10A 60V491 A...................
PR 6 87-026-682-080 PROTECTOR,10A 60V491 A...................
PR 5 87-026-682-080 PROTECTOR,10A 60V491 A...................
PR 1 87-026-682-080 PROTECTOR,10A 60V491 A...................
PR 2 87-A90-195-080 PROTECTOR 7A 125V 49 ....................
PR 1 87-A90-195-080 PROTECTOR 7A 125V 49 ....................
T 1 82-304-743-010 TERMINAL, 1P A...................
T 2 82-304-743-010 TERMINAL, 1P A...................
W 1 85-NF5-628-010 F-CABLE 7P-2.5 A...................
W 1 85-NF5-628-010 F-CABLE 7P-2.5 A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................
C 109 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 102 87-010-917-000 CAP,E 3300-50 M SMG A...................
C 101 87-010-917-000 CAP,E 3300-50 M SMG A...................
C 106 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 107 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 105 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 108 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 102 87-016-520-000 CAP,E 3300-65 M SMG ....................
C 101 87-016-520-000 CAP,E 3300-65 M SMG ....................
C 103 87-016-658-000 CAP,E 4700-35 M SMG A...................
C 104 87-016-658-000 CAP,E 4700-35 M SMG A...................
C 112 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 111 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 110 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 116 87-010-247-080 CAP, ELECT 100-50V A...................
C 113 87-010-247-080 CAP, ELECT 100-50V A...................
C 119 87-010-260-080 CAP, ELECT 47-25V A...................
C 118 87-010-263-080 CAP, ELECT 100-10V A...................
C 117 87-010-430-080 CAP, ELECT 100-63 A...................
C 124 87-010-112-080 CAP, ELECT 100-16V A...................
C 125 87-010-235-080 CAP,E 470-16 SME A...................
C 123 87-010-384-080 CAP, ELECT 100-25V A...................
C 129 87-010-393-080 CAP, ELECT 100-35V A...................
C 120 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 121 87-012-140-080 CAP 470P A...................
C 126 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 127 87-012-368-080 C-CAP,S 0.1-50 F A...................
D 102 87-017-447-010 DIODE,GBU4DL ....................
D 101 87-017-447-010 DIODE,GBU4DL A...................
D 106 87-070-274-080 DIODE,1N4003 SEM A...................
D 108 87-070-274-080 DIODE,1N4003 SEM A...................
D 107 87-070-274-080 DIODE,1N4003 SEM A...................
D 109 87-070-274-080 DIODE,1N4003 SEM A...................
D 102 87-A40-115-060 DIODE,RS603M A...................
D 104 87-A40-269-080 C-DIODE,MC2836 A...................
D 105 87-A40-270-080 C-DIODE,MC2838 A...................
D 103 87-A40-291-080 DIODE,1N4148 (CPT) A...................
D 112 87-070-334-080 ZENER,MTZJ10B A...................
D 116 87-A40-269-080 C-DIODE,MC2836 A...................
D 110 87-A40-341-080 ZENER,MTZJ 36 A A...................
D 120 87-A40-004-080 ZENER,MTZJ16A A...................
Q 103 87-026-610-080 TR,KTC3198GR A...................
Q 107 87-A30-075-080 C-TR,2SA1235F A...................
Q 109 87-A30-075-080 C-TR,2SA1235F A...................
Q 106 87-A30-076-080 C-TR,2SC3052F A...................
Q 104 87-A30-076-080 C-TR,2SC3052F A...................
Q 108 87-A30-076-080 C-TR,2SC3052F A...................
Q 105 87-A30-196-080 TR,2SC4115SRS A...................
Q 101 89-213-750-010 TR,2SB1375 (25W) A...................
Q 102 89-213-750-010 TR,2SB1375 (25W) A...................
Q 111 87-026-609-080 TR,KTA1266GR A...................
Q 112 87-026-609-080 TR,KTA1266GR A...................
Q 114 87-A30-075-080 C-TR,2SA1235F A...................
Q 110 87-A30-076-080 C-TR,2SC3052F A...................
RY 101 87-045-389-010 RELAY,OSA-SS-212DM5 A...................
C 206 87-010-181-080 CAP,CHIP S 1800P A...................
C 205 87-010-181-080 CAP,CHIP S 1800P A...................
C 201 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 202 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 209 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 208 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 207 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 212 87-010-186-080 CAP,CHIP 4700P A...................
C 211 87-010-186-080 CAP,CHIP 4700P A...................
C 219 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 215 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 214 87-010-260-080 CAP, ELECT 47-25V A...................
C 213 87-010-260-080 CAP, ELECT 47-25V A...................
C 210 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 228 87-010-178-080 CHIP CAP 1000P A...................
C 223 87-010-194-080 CAP, CHIP 0.047 A...................
C 222 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 221 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 220 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 227 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 229 87-012-358-080 C-CAP,S 0.47-10 F Z A...................
C 225 87-A10-516-080 C-CAP,S 100P-200 J CH A...................
C 226 87-A10-516-080 C-CAP,S 100P-200 J CH A...................
C 232 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 231 87-010-176-080 C-CAP,S 680P-50 SL A...................
ELECTRICAL MAIN PARTS LIST - 5/8ELEC-
TRICAL MAIN PARTS LIST -4/8
C 236 87-010-191-080 C-CAP,S 0.015-50 F A...................
C 235 87-010-191-080 C-CAP,S 0.015-50 F A...................
C 238 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 237 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 233 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 239 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 234 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 230 87-012-358-080 C-CAP,S 0.47-10 F Z A...................
C 240 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 244 87-010-406-040 CAP,E 22-50 SME ....................
C 242 87-010-406-080 CAP, ELECT 22-50 A...................
C 244 87-010-406-080 CAP, ELECT 22-50 A...................
D 209 87-070-136-080 ZENER,MTZJ5.1B A...................
D 202 87-A40-291-080 DIODE,1N4148 (CPT) A...................
D 206 87-A40-291-080 DIODE,1N4148 (CPT) A...................
D 204 87-A40-291-080 DIODE,1N4148 (CPT) A...................
D 205 87-A40-291-080 DIODE,1N4148 (CPT) A...................
D 203 87-A40-291-080 DIODE,1N4148 (CPT) A...................
D 201 87-A40-291-080 DIODE,1N4148 (CPT) A...................
D 210 87-070-136-080 ZENER,MTZJ5.1B A...................
D 217 87-A40-184-090 DIODE,RK34(F) A...................
D 218 87-A40-184-090 DIODE,RK34(F) A...................
D 214 87-A40-291-080 DIODE,1N4148 (CPT) A...................
D 216 87-A40-291-080 DIODE,1N4148 (CPT) A...................
D 211 87-A40-291-080 DIODE,1N4148 (CPT) A...................
D 213 87-A40-291-080 DIODE,1N4148 (CPT) A...................
D 212 87-A40-291-080 DIODE,1N4148 (CPT) A...................
D 221 87-A40-291-080 DIODE,1N4148 (CPT) A...................
D 227 87-A40-291-080 DIODE,1N4148 (CPT) A...................
D 222 87-A40-291-080 DIODE,1N4148 (CPT) A...................
J 253 87-099-474-010 JACK,PIN 3P BLK A...................
J 252 87-A60-024-010 JACK 6.3BLK W/S WKM A...................
J 254 87-A60-238-010 TERMINAL,SP 4P (MSC) A...................
JR 215 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
L 201 87-003-383-010 COIL,1UH-S A...................
L 202 87-003-383-010 COIL,1UH-S A...................
PR 202 87-026-682-080 PROTECTOR,10A 60V491 A...................
PR 201 87-026-682-080 PROTECTOR,10A 60V491 A...................
Q 201 87-A30-086-070 C-TR,CSD1306E A...................
Q 202 87-A30-086-070 C-TR,CSD1306E A...................
Q 205 87-A30-106-070 C-TR,CMBT5551 A...................
Q 206 87-A30-106-070 C-TR,CMBT5551 A...................
Q 203 87-A30-106-070 C-TR,CMBT5551 A...................
Q 204 87-A30-106-070 C-TR,CMBT5551 A...................
Q 207 87-A30-111-080 TR,C2N5401 A...................
Q 208 87-A30-111-080 TR,C2N5401 A...................
Q 209 87-A30-137-010 TR,2SD2494 A...................
Q 214 87-A30-076-080 C-TR,2SC3052F A...................
Q 213 87-A30-076-080 C-TR,2SC3052F A...................
Q 210 87-A30-137-010 TR,2SD2494 A...................
Q 212 87-A30-138-010 TR,2SB1625 A...................
Q 211 87-A30-138-010 TR,2SB1625 A...................
Q 219 87-A30-162-010 FET,2SK2937 A...................
Q 223 87-A30-072-080 C-TR,RT1P 144C A...................
Q 229 87-A30-073-080 C-TR,RT1N 141C A...................
Q 225 87-A30-075-080 C-TR,2SA1235F A...................
Q 222 87-A30-075-080 C-TR,2SA1235F A...................
Q 226 87-A30-075-080 C-TR,2SA1235F A...................
Q 221 87-A30-076-080 C-TR,2SC3052F A...................
Q 227 87-A30-076-080 C-TR,2SC3052F A...................
Q 220 87-A30-162-010 FET,2SK2937 A...................
Q 232 87-A30-073-080 C-TR,RT1N 141C A...................
Q 233 87-A30-075-080 C-TR,2SA1235F A...................
Q 234 87-A30-075-080 C-TR,2SA1235F A...................
Q 236 87-A30-075-080 C-TR,2SA1235F A...................
Q 235 87-A30-075-080 C-TR,2SA1235F A...................
Q 231 87-A30-106-070 C-TR,CMBT5551 A...................
R 229 87-A00-257-080 RES,M/F 0.15-1W J A...................
R 230 87-A00-257-080 RES,M/F 0.15-1W J A...................
RY 201 87-045-382-010 RELAY,OUAZ-SH-112L A...................
TH 201 87-A90-221-080 C-THMS,100K A...................
TH 202 87-A90-221-080 C-THMS,100K A...................
C 307 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 309 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 302 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 301 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 306 87-012-145-080 CAP, CHIP S 270P CH A...................
C 305 87-012-145-080 CAP, CHIP S 270P CH A...................
C 304 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 303 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 316 87-010-178-080 CHIP CAP 1000P A...................
C 314 87-010-178-080 CHIP CAP 1000P A...................
C 315 87-010-178-080 CHIP CAP 1000P A...................
C 313 87-010-178-080 CHIP CAP 1000P A...................
C 310 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 312 87-010-198-080 CAP, CHIP 0.022 A...................
C 311 87-010-198-080 CAP, CHIP 0.022 A...................
C 324 87-010-260-080 CAP, ELECT 47-25V A...................
C 325 87-010-370-080 CAP,E 330-6.3 SME A...................
C 327 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 328 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 322 87-016-492-080 C-CAP,S 0.33-16 FZ A...................
C 321 87-016-492-080 C-CAP,S 0.33-16 FZ A...................
C 332 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 337 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 339 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 335 87-010-401-080 CAP, ELECT 1-50V A...................
C 336 87-010-401-080 CAP, ELECT 1-50V A...................
C 340 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 354 87-010-175-080 CAP 560P A...................
C 359 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 358 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 357 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 356 87-010-260-080 CAP, ELECT 47-25V A...................
C 352 87-012-140-080 CAP 470P ....................
C 351 87-012-140-080 CAP 470P ....................
C 352 87-012-349-080 C-CAP,S 1000P-50 CH A...................
C 351 87-012-349-080 C-CAP,S 1000P-50 CH A...................
C 355 87-012-349-080 C-CAP,S 1000P-50 CH A...................
C 360 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 370 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 378 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 379 87-010-382-080 CAP, ELECT 22-25V A...................
C 373 87-010-993-080 C-CAP,S 0.056-25 B A...................
C 374 87-010-993-080 C-CAP,S 0.056-25 B A...................
C 386 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 381 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 383 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 382 87-010-312-080 C-CAP,S 15P-50 CH A...................
C 380 87-010-382-080 CAP, ELECT 22-25V A...................
C 384 87-010-402-080 CAP, ELECT 2.2-50V A...................
C 387 87-012-145-080 CAP, CHIP S 270P CH A...................
D 351 87-A40-246-080 DIODE,IN4148 T-72 A...................
D 352 87-A40-269-080 C-DIODE,MC2836 A...................
IC 303 87-A20-783-040 C-IC,BA7762AFS A...................
L 301 87-A50-049-010 COIL,TRAP 85K(COI) A...................
L 302 87-A50-049-010 COIL,TRAP 85K(COI) A...................
L 351 87-007-342-010 COIL,OSC 85K BIAS A...................
Q 358 87-026-610-080 TR,KTC3198GR A...................
Q 357 87-026-610-080 TR,KTC3198GR A...................
Q 359 87-026-610-080 TR,KTC3198GR A...................
Q 355 87-A30-074-080 C-TR,RT1P 141C A...................
Q 356 87-A30-076-080 C-TR,2SC3052F A...................
Q 354 87-A30-087-080 C-FET,2SK2158 A...................
Q 353 87-A30-087-080 C-FET,2SK2158 A...................
Q 351 87-A30-087-080 C-FET,2SK2158 A...................
Q 383 87-A30-075-080 C-TR,2SA1235F A...................
Q 382 87-A30-076-080 C-TR,2SC3052F A...................
Q 381 87-A30-076-080 C-TR,2SC3052F A...................
SFR 301 87-A90-638-080 SFR,220K H RH0638C LG A...................
SFR 303 87-A90-638-080 SFR,220K H RH0638C LG A...................
SFR 302 87-A90-638-080 SFR,220K H RH0638C LG A...................
SFR 304 87-A90-638-080 SFR,220K H RH0638C LG A...................
SFR 351 87-A90-637-080 SFR,47K H RH0638C LG A...................
SFR 352 87-A90-637-080 SFR,47K H RH0638C LG A...................
C 406 87-010-101-080 CAP, ELECT 220-16 A...................
C 402 87-010-187-080 CAP CHIP S5600P A...................
C 401 87-010-187-080 CAP CHIP S5600P A...................
C 408 87-010-188-080 CAP,CHIP 6800P A...................
C 407 87-010-188-080 CAP,CHIP 6800P A...................
C 405 87-010-260-080 CAP, ELECT 47-25V A...................
C 404 87-010-405-080 CAP, ELECT 10-50V A...................
C 403 87-010-405-080 CAP, ELECT 10-50V A...................
C 409 87-012-140-080 CAP 470P A...................
C 414 87-010-195-080 C-CAP,S 0.068-25 F A...................
C 413 87-010-195-080 C-CAP,S 0.068-25 F A...................
C 411 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 412 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 417 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 418 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 416 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 415 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 410 87-012-140-080 CAP 470P A...................
C 422 87-010-402-080 CAP, ELECT 2.2-50V A...................
C 421 87-010-402-080 CAP, ELECT 2.2-50V A...................
D 441 87-A40-246-080 DIODE,IN4148 T-72 A...................
D 442 87-A40-269-080 C-DIODE,MC2836 A...................
IC 401 87-A20-056-010 IC,BA3880S A...................
C 516 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 606 87-010-180-080 C-CER 1500P A...................
C 605 87-010-180-080 C-CER 1500P A...................
C 615 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 619 87-010-263-080 CAP, ELECT 100-10V A...................
C 614 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 613 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 611 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 623 87-010-194-080 CAP, CHIP 0.047 A...................
C 622 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 629 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 620 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 621 87-010-263-080 CAP, ELECT 100-10V A...................
C 627 87-010-316-080 C-CAP,S 33P-50 CH A...................
C 628 87-010-316-080 C-CAP,S 33P-50 CH A...................
C 637 87-010-322-080 C-CAP,S 100P-50 CH A...................
ELECTRICAL MAIN PARTS LIST -6/8
C 636 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 647 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 646 87-010-322-080 C-CAP,S 100P-50 CH A...................
CON 603 87-099-194-010 CONN,6P 6216V A...................
CON 602 87-099-194-010 CONN,6P 6216V A...................
D 603 87-070-136-080 ZENER,MTZJ5.1B A...................
D 602 87-A40-003-080 ZENER,MTZJ4.3A A...................
D 601 87-A40-246-080 DIODE,IN4148 T-72 A...................
IC 601 87-A20-456-040 C-IC,BH3810 FS A...................
J 601 87-A60-398-010 JACK,PIN 2P R/W HSP-242V24 A...................
JW 617 87-008-372-080 FILTER, EMI BL OIRNI A...................
L 601 87-003-231-080 C-COIL 1UH A...................
C 131 87-010-263-080 CAP, ELECT 100-10V A...................
C 132 87-010-380-080 CAP, ELECT 47-16V A...................
C 130 87-010-401-080 CAP, ELECT 1-50V A...................
D 122 87-A40-291-080 DIODE,1N4148 (CPT) A...................
D 121 87-A40-291-080 DIODE,1N4148 (CPT) A...................
Q 122 87-026-609-080 TR,KTA1266GR A...................
Q 121 87-A30-076-080 C-TR,2SC3052F A...................
C 704 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 703 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 701 87-010-381-080 CAP, ELECT 330-16V A...................
C 702 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 713 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 712 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 713 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 714 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 711 87-010-263-080 CAP, ELECT 100-10V A...................
C 715 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 723 87-010-178-080 CHIP CAP 1000P A...................
C 725 87-010-178-080 CHIP CAP 1000P A...................
C 727 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 728 87-010-248-080 CAP, ELECT 220-10V A...................
C 722 87-010-312-080 C-CAP,S 15P-50 CH A...................
C 721 87-010-312-080 C-CAP,S 15P-50 CH A...................
D 710 87-A40-246-080 DIODE,IN4148 T-72 A...................
D 721 87-017-931-080 ZENER,MTZJ5.6B ....................
D 721 87-A40-234-080 ZENER,MTZJ5.6A A...................
IC 720 86-NFZ-655-010 IC,LC72131D(Z) A...................
Q 711 87-A30-196-080 TR,2SC4115SRS A...................
X 721 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309 A...................
C 738 87-010-182-080 C-CAP,S 2200P-50 B ....................
C 737 87-010-182-080 C-CAP,S 2200P-50 B ....................
C 734 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 732 87-010-400-080 CAP, ELECT 0.47-50V ....................
C 733 87-010-404-080 CAP, ELECT 4.7-50V ....................
C 749 87-010-101-080 CAP, ELECT 220-16 ....................
C 740 87-010-197-080 CAP, CHIP 0.01 DM ....................
C 747 87-010-197-080 CAP, CHIP 0.01 DM ....................
C 748 87-010-198-080 CAP, CHIP 0.022 ....................
C 744 87-010-260-080 CAP, ELECT 47-25V ....................
C 743 87-010-404-080 CAP, ELECT 4.7-50V ....................
C 746 87-010-545-080 CAP, ELECT 0.22-50V ....................
C 745 87-010-545-080 CAP, ELECT 0.22-50V ....................
C 741 87-010-545-080 CAP, ELECT 0.22-50V ....................
C 742 87-012-140-080 CAP 470P ....................
D 746 87-A40-246-080 DIODE,IN4148 T-72 ....................
IC 740 87-070-060-040 IC,TA2040AF ....................
Q 733 87-026-226-080 CHIP-TR,DTA143EK ....................
X 750 87-030-394-010 VIB,CER CSA3.6MGF228 ....................
C 758 87-010-149-080 C-CAP,S 5P-50 CH A...................
C 755 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 756 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 757 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 763 87-010-194-080 CAP, CHIP 0.047 A...................
C 761 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 766 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 765 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 762 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 768 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 767 87-010-405-080 CAP, ELECT 10-50V A...................
C 769 87-010-408-080 CAP, ELECT 47-50V A...................
C 772 87-010-194-080 CAP, CHIP 0.047 A...................
C 773 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 776 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 774 87-010-263-080 CAP, ELECT 100-10V A...................
C 777 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 779 87-010-401-080 CAP, ELECT 1-50V A...................
C 778 87-010-401-080 CAP, ELECT 1-50V A...................
C 775 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 771 87-010-407-080 CAP, ELECT 33-50V A...................
C 770 87-015-821-080 C-CAP 0.047 A...................
C 770 87-015-835-080 C-CAP,0.047 D ....................
C 789 87-010-179-080 CAP,CHIP S B1200P A...................
C 788 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................
C 787 87-010-184-080 CHIP CAPACITOR 3300P(K) A...................
C 780 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 784 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 786 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 785 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 781 87-010-405-080 CAP, ELECT 10-50V A...................
C 782 87-010-405-080 CAP, ELECT 10-50V A...................
ELECTRICAL MAIN PARTS LIST -7/8
C 783 87-015-819-080 CAPACITOR,0.01 A...................
C 793 87-010-177-080 C-CAP,S 820P-50 SL A...................
C 793 87-010-178-080 CHIP CAP 1000P ....................
C 790 87-010-179-080 CAP,CHIP S B1200P A...................
C 798 87-010-180-080 C-CER 1500P A...................
C 797 87-010-180-080 C-CER 1500P A...................
C 798 87-010-182-080 C-CAP,S 2200P-50 B ....................
C 797 87-010-182-080 C-CAP,S 2200P-50 B ....................
C 799 87-010-194-080 CAP, CHIP 0.047 A...................
C 796 87-010-403-080 CAP, ELECT 3.3-50V A...................
C 791 87-010-405-080 CAP, ELECT 10-50V A...................
C 794 87-010-406-080 CAP, ELECT 22-50 A...................
C 795 87-010-596-080 CAP, S 0.047-16 A...................
D 771 87-A40-246-080 DIODE,IN4148 T-72 A...................
D 770 87-A40-246-080 DIODE,IN4148 T-72 A...................
IC 770 87-A20-438-010 IC,LA1837 ....................
IC 770 87-A20-913-010 IC,LA1837NL A...................
L 770 87-005-849-080 COIL,10UH(CECS) A...................
L 771 87-A50-165-010 COIL,FM DET-N(TOK) A...................
L 772 87-A90-053-010 FLTR,PCFMT-060(TOK) ....................
L 772 87-A90-245-010 FLTR,CFAZH-450 (TOK) A...................
C 859 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 865 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 867 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 869 87-010-314-080 C-CAP,S 22P-50V A...................
C 868 87-010-316-080 C-CAP,S 33P-50 CH A...................
C 864 87-010-405-080 CAP, ELECT 10-50V A...................
C 866 87-010-405-080 CAP, ELECT 10-50V A...................
C 863 87-012-140-080 CAP 470P A...................
C 861 87-012-156-080 C-CAP,S 220P-50 CH A...................
C 862 87-012-156-080 C-CAP,S 220P-50 CH A...................
IC 850 87-A20-440-040 C-IC,BU1920FS A...................
L 850 87-005-847-080 COIL,2.2UH(CECS) A...................
Q 852 87-A30-073-080 C-TR,RT1N 141C A...................
Q 850 87-A30-076-080 C-TR,2SC3052F A...................
Q 851 87-A30-076-080 C-TR,2SC3052F A...................
X 850 87-A70-091-010 VIB,XTAL 4.332MHZ CSA-309 A...................
C 819 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 814 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 813 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 815 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 816 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 814 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 812 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 829 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 828 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 821 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 823 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 822 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 820 87-010-408-080 CAP, ELECT 47-50V A...................
C 942 87-010-151-080 C-CAP,S 7P-50 CH A...................
C 947 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 940 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 949 87-014-049-080 CAP,PP 470P-100 J A...................
C 959 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 958 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 952 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 957 87-010-311-080 CAP 12P A...................
C 961 87-010-152-080 C-CAP,S 8P-50 CH ....................
C 960 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 962 87-010-401-080 CAP, ELECT 1-50V A...................
CF 802 82-785-747-010 CF MS2 GHY R A...................
CF 802 87-008-261-010 FILTER, SFE10.7MA5-A ....................
CF 801 87-008-261-010 FILTER, SFE10.7MA5-A ....................
CF 801 87-008-423-010 CERAMIC FILTER, SFE10.7 A...................
D 944 87-A40-246-080 DIODE,IN4148 T-72 A...................
D 942 87-A40-270-080 C-DIODE,MC2838 A...................
FFE 801 A8-6ZA-19B-070 6ZA-1 YFEUNC ....................
FFE 801 A8-6ZA-19C-070 6ZA-1 YFEENC A...................
FFE 801 A8-6ZA-19D-070 6ZA-1 YFEJNC ....................
J 801 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02 ....................
J 801 87-A60-403-010 TERMINAL,ANT PAL 2P HSP-312V05 A...................
L 832 87-005-847-080 COIL,2.2UH(CECS) A...................
L 942 87-A50-019-010 COIL,OSC LW(COI) A...................
L 941 87-A50-020-010 COIL,ANT LW(COI) A...................
L 981 87-NF4-650-010 COIL,AM PACK 4N(TOK) ....................
L 981 87-NF4-651-010 COIL,AM PACK2N(TOM) A...................
Q 806 87-A30-072-080 C-TR,RT1P 144C A...................
Q 805 89-327-143-080 TR,2SC2714 (0.1W) A...................
Q 948 87-A30-086-070 C-TR,CSD1306E A...................
Q 947 89-505-434-540 C-FET,2SK543(4/5) A...................
Q 951 87-A30-074-080 C-TR,RT1P 141C A...................
Q 952 87-A30-086-070 C-TR,CSD1306E A...................
TC 942 87-011-221-080 CAP, TRIMMER 30P A...................
FC 1 87-033-147-010 FUSE CLAMP ....................
FC 2 87-033-147-010 FUSE CLAMP ....................
SW 1 87-A90-165-010 SW,SL 1-2-3 SWS2301 ....................
T 1 87-A60-317-010 TERMINAL, 1P MSC ....................
T 2 87-A60-317-010 TERMINAL, 1P MSC ....................
ELECTRICAL MAIN PARTS LIST -8/8
MECHANICAL PARTS LIST - 1
NOTE: The characters in the suffix column indicate the part usage.
EZ .....................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
82-NE6-067-010 BADGE,AIWA 30N A...................
86-NF6-007-010 WINDOW,TOP A...................
87-NB8-005-010 PANEL,LEFT A...................
87-NB8-006-010 PANEL,RIGHT A...................
87-NB8-014-010 WINDOW,FLAP N A...................
87-NBG-001-110 CABI,FR D ....................
87-NBG-002-110 PANEL,CONT A...................
87-NBG-003-010 BOX,CASS 1 A...................
87-NBG-004-010 BOX,CASS 2 A...................
87-NBG-005-010 PANEL,TRAY A...................
87-NBG-006-010 PANEL,CD A...................
87-NBG-007-010 WINDOW,DISP ....................
87-NBG-008-010 WINDOW,CD A...................
87-NBG-009-010 WINDOW,CASS 1 A...................
87-NBG-010-010 WINDOW,CASS 2 A...................
87-NBG-031-110 CABI,REAR S ....................
87-NBG-033-010 CABI,REAR LHS ....................
87-NBG-035-010 CABI,REAR EZS A...................
87-NBG-041-010 CABI,FR H ....................
87-NBG-043-010 CABI,FR E A...................
87-NBG-044-010 WINDOW,DISP E A...................
87-NF6-021-010 PANEL,TOP A...................
87-NBG-011-010 KNOB,RTRY VOL A...................
87-NBG-012-010 KNOB,RTRY JOG A...................
87-NBG-013-010 KEY,CD A...................
87-NBG-014-010 KEY,DUBB A...................
87-NBG-015-010 KEY,POWER A...................
87-NBG-016-110 KEY,FUN A...................
87-NBG-017-110 KEY,DSP A...................
87-NBG-018-110 KEY,MD EJECT A...................
87-NBG-019-010 KEY,ECHO A...................
87-NBG-020-010 KEY,ASSY OPE A...................
87-NBG-023-010 REFLECTOR,FUN A...................
87-NBG-024-010 KEY,MD ENTER A...................
87-NBG-025-010 RING,JOG A...................
87-NBG-030-010 KEY ASSY,REC A...................
87-NBG-045-010 KEY,RDS A...................
81-532-080-010 LABEL, CASS. COMPT A...................
86-NF6-061-010 REFLECTOR,CASS A...................
87-NF6-616-010 CONN ASSY,8P RPB A...................
84-ZG1-245-210 CAP,OPTICAL A...................
82-NF5-218-010 SPR-T,EJECT 1 (SIN) A...................
82-NF5-219-010 SPR-T,EJECT 2 (SIN) A...................
82-NF5-229-010 PLATE,LOCK A...................
86-NF9-224-010 SPR-C,LOCK A...................
87-NBG-206-010 HLDR,FAN A...................
87-NBG-207-010 SPR-T,FLAP NBG A...................
87-NF4-216-010 HLDR,LOCK 1 A...................
87-NF4-217-010 HLDR,LOCK 2 A...................
87-NF8-220-010 DMPR,150 A...................
87-067-579-010 TAPPING SCREW, BVT2+3-8 A...................
87-067-584-010 TAPPING SCREW, BVT2+3-6 A...................
87-067-688-010 BVTT+3-6 A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................
87-067-822-010 BVT2+3-20 W/O SLOT A...................
87-078-019-010 S-SCREW,IT+4-6 A...................
87-721-096-410 QT2+3-10 GLD A...................
87-721-097-410 QT2+3-12 GLD A...................
87-723-096-410 QT2+3-10W/O SLOT BL A...................
87-NF4-224-010 S-SCREW,IT3B+3-8 CU A...................
85-NF5-618-010 CABLE,FFC 13P-1.25 A...................
ACCESSORIES/PACKAGE LIST - 1
NOTE: The characters in the suffix column indicate the part usage.
EZ .....................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
1 87-NBG-901-110 IB,D(J)I(H55) ....................
1 87-NBG-903-010 IB,LH(ESP)I ....................
1 87-NBG-906-010 IB,E(9L)I A...................
2 87-006-225-010 AM LOOP ANT NC2 A...................
3 87-A90-064-010 FEEDER-ANT,FM(SHS) A...................
4 87-A90-312-010 PLUG,CONVERSION WTN-1157R1 ....................
5 87-NB7-651-010 RC UNIT,RC-7ASO8 A...................
DESCRIPTIONREF.NO. KANRI
NO.
PARTNO.KANRI
NO.
REF.NO. DESCRIPTIONPARTNO.
TAPE MECHANISM PARTS LIST 1/1
1 82-ZM3-301-519 1H CHAS ASSY,M2
2 82-ZM1-258-110 0E SPR-T,PINCH L
3 82-ZM1-341-110 1A LVR ASSY,PINCH L2
4 82-ZM1-333-010 0E PLATE,LINK 2
5 82-ZM1-266-11K 0E LVR,DIR
6 82-ZM1-214-010 0E SPR-T,DIR
7 82-ZM1-206-81K 1A CHAS,HEAD
8 82-ZM3-307-019 0E CUSH-G,DIA3.7-8-3.2
9 82-ZM1-269-219 0E SPR-T,BRG
10 82-ZM1-219-119 0E SPR-T,LINK
11 82-ZM1-210-119 0E GEAR,H T
12 82-ZM1-213-019 0E SPR-T,HEAD
13 82-ZM1-207-619 0E GUIDE,TAPE
14 86-ZM4-206-010 0E S-SCREW,AZIMUTH
15 82-ZM1-314-119 0E PLATE,HEAD
16 82-ZM1-208-119 0E HLDR,HEAD
17 82-ZM1-218-019 0E SPR-E,HB
18 82-ZM1-263-110 0E LVR,EJECT L (DECK 1)
18 82-ZM1-264-010 0E LVR,EJECT R (DECK 2)
19 82-ZM1-222-21K 0E LVR,PLAY
20 82-ZM1-217-319 0E REEL TABLE
21 82-ZM1-244-510 0E SPR-C,BT
22 82-ZM1-285-310 0E SPR-C,BT L
23 82-ZM1-257-019 0E SPR-T,CAS
24 82-ZM1-241-319 0E LVR,MC
25 82-ZM1-242-019 0E LVR,CAS
26 82-ZM1-243-019 0E LVR,STOP
27 82-ZM1-344-110 1A LVR ASSY,PINCH R2
28 82-ZM1-259-110 0E SPR-T,PINCH R
29 82-ZM1-240-11K 0E LVR,REC (DECK 2)
31 82-ZM1-255-319 0E SPR-E,LVR DIR
32 82-ZM3-305-01K 0E GEAR,CAM M2
33 82-ZM1-227-21K 0E LVR,TRIG
34 82-ZM3-306-11K 0E LVR,FR M2
35 82-ZM1-265-119 0E SPR-E,TRIG
36 82-ZM1-236-019 0E CAPSTAN N 2-41.5
37 82-ZM1-239-019 0E CAPSTAN N 2.2-41.7
38 82-ZM1-322-019 0E SPR-T,FR60
39 82-ZM1-220-219 0E GEAR,IDLER
40 82-ZM3-616-019 0E RING MAGNET 4
41 82-ZM1-216-31K 0E GEAR,REEL
42 87-A90-319-010 1D HEAD,PH HADKH2 FPC
42 87-A90-320-010 1F HEAD,RPH HADKH5 FPC
43 82-ZM1-225-21K 0E GEAR,FR
44 82-ZM1-226-019 0E GEAR,REW
45 82-ZM3-333-310 1B SLIP DISK ASSY 2
46 82-ZM1-338-010 0E BELT FR4
47 82-ZM1-349-110 1A FLY-WHL,R W(DECK 2)
47 82-ZM3-338-110 1A FLY-WHL,R3 W(DECK 1)
48 82-ZM1-348-010 1A FLY-WHL,L W(DECK 2)
48 82-ZM1-348-010 1A FLY-WHL,L W(DECK 1)
49 82-ZM3-329-210 0E BELT,SBU R2
50 82-ZM1-245-210 0E HLDR,IC
51 87-045-347-019 1H MOT,SHU2L 70(M1)
52 82-ZM3-221-010 0E PULLEY,MOT 2M
53 82-ZM1-288-019 0E SH,1.63-3.2-0.5 SLT
54 80-ZM6-243-019 0E SH,1.75-3.6-0.5 SLT
55 82-ZM3-335-210 0E PULLEY,COUPLER M3(DECK 1)
56 82-ZM3-337-010 0E BELT,SBU MOT 2
57 82-ZM3-339-010 0E SHAFT,COUPLER N3(DECK 1)
58 86-ZM1-206-010 0E BELT,MAIN L
59 82-ZM3-340-010 0E SH,BELT D2
A 85-ZM3-202-010 0E S-SCREW,TG
B 80-ZM6-207-019 0E V+1.6-7
C 82-ZM3-318-019 0E S-SCRW MOTOR M2
D 87-B10-043-010 0E W-P,0.99-4-0.25 SLT
E 82-ZM3-334-010 0E PW,2.16-6-0.4
DESCRIPTIONREF.NO. KANRI
NO.
PARTNO.KANRI
NO.
REF.NO. DESCRIPTIONPARTNO.
1 87-ZGB-201-010 1C HLDR,MD
2 87-ZGA-611-010 0E FF-CABLE,8P 1.0 100MM
3 87-ZGA-612-010 1A FF-CABLE,14P 1.0 100MM
A 87-067-703-010 0E TAPPING SCREW,BVT2+3-10
MD MECHANISM PARTS LIST 1/4
DESCRIPTIONREF.NO. KANRI
NO.
PARTNO.KANRI
NO.
REF.NO. DESCRIPTIONPARTNO.
MD MECHANISM PARTS LIST 2/4
1 87-ZG9-602-010 1B FF-CABLE,21P 0.5 90MM
2 87-ZG9-603-010 0E FF-CABLE,8P 1.0 120MM
3 87-ZG9-604-010 0E FF-CABLE,5P 1.25 100MM
A 87-ZG9-206-010 0E S-SCREW,MD
B 87-067-688-010 0E BVTT+3-6
C 87-067-421-010 0E VTT+2-4
DESCRIPTIONREF.NO. KANRI
NO.
PARTNO.KANRI
NO.
REF.NO. DESCRIPTIONPARTNO.
MD MECHANISM PARTS LIST 3/4
1 87-ZG8-220-110 1B PLATE ASSY,LATCH
2 87-ZG8-259-010 0E SPR-T,LATCH
3 87-ZG8-230-110 0E LEVER,LATCH
4 87-ZG8-224-110 0E SPR-E,LATCH
5 87-ZG8-214-110 1D HLDR ASSY,CARTRIGE
6 87-ZG8-233-010 0E LEVER,SW H
7 87-ZG8-255-110 0E PLATE,CARTRIGE
8 87-ZG8-201-210 1H CHAS ASSY,MAIN
9 87-ZG8-256-010 0E LEVER,SW S2
10 87-ZG8-242-010 0E GEAR,MOT
11 87-ZG8-253-010 0E GEAR,REDUCTION S3
12 87-ZG8-246-010 0E GEAR,IDLER 2
13 87-ZG8-252-010 0E GEAR,REDUCTION L3
14 87-ZG8-231-010 0E LEVER,SHUTTER
15 87-ZG8-232-010 0E SPR-E,SHUTTER
16 87-ZG8-225-110 1A LEVER ASSY,CAM
17 87-ZG8-239-010 0E CAM,LOAD
18 87-ZG8-257-110 1A LEVER ASSY,REC
19 87-ZG8-213-010 0E PLATE,SLIDE R
20 87-ZG8-209-010 1B PLATE ASSY,SLIDE L
21 87-A90-605-010 2A HEAD,OWH RF325-74A
A 87-B10-129-010 0E VTT+1.7-3.5 W/O MFZN2-C
B 87-B10-128-010 0E V+1.7-2 W/O MFZN2-C
C 87-B10-130-010 0E W-P,1.23-3.1-0.25 SLIT
D 87-067-421-010 0E VTT+2-4
E 87-B10-131-010 0E VW+1.7-5 W/O MFZN2C
DESCRIPTIONREF.NO. KANRI
NO.
PARTNO.KANRI
NO.
REF.NO. DESCRIPTIONPARTNO.
MD MECHANISM PARTS LIST 4/4
1 87-ZG3-202-010 1F CHAS ASSY,OUT-SERT
2 87-ZG3-214-010 0E SPR-T,SPINDLE-A
3 83-ZG5-308-010 0E BRG,1.5-2
4 83-ZG5-305-010 0E SPR-P,DISC
5 83-ZG5-302-010 1A TURN TABLE,MD1
6 83-ZG5-605-010 1A MAGNET,CHUCK
7 87-ZG3-212-010 1A SHAFT,LEAD
8 87-ZG3-211-010 0E SHAFT,GUIDE
9 87-A90-613-010 2H PICKUP,KMS-260A
10 87-ZG3-216-010 0E SPR-P,RACK
11 87-ZG3-213-010 0E SPR-P,LEAD
12 87-A90-413-010 1H MOT,FF-110PH 9
13 87-ZG3-206-010 0E GEAR,A
14 87-ZG3-205-010 0E GEAR,MOT SL
15 87-ZG3-208-010 1A HLDR ASSY,MOTOR
16 87-A90-616-010 1F MOT,FF-N30VA
A 87-261-547-310 0E V+2-3 BLK (1)
B 87-263-523-310 0E SCREW, V+1.7-2
C 87-261-509-310 0E SCREW, V+1.4-4
D 87-067-393-010 0E SCREW +1.4-1.4
E 87-261-503-310 0E PRECISION SCREW, V+1.4-2
F 87-078-033-010 0E PW 1.2-2.5-0.25 SLT
G 87-341-035-210 0E SCREW,UT1+2-6
X:23 W:95
Y:8.7 H:5.1
Helvetica 12 No track
14.4 100%
Left align

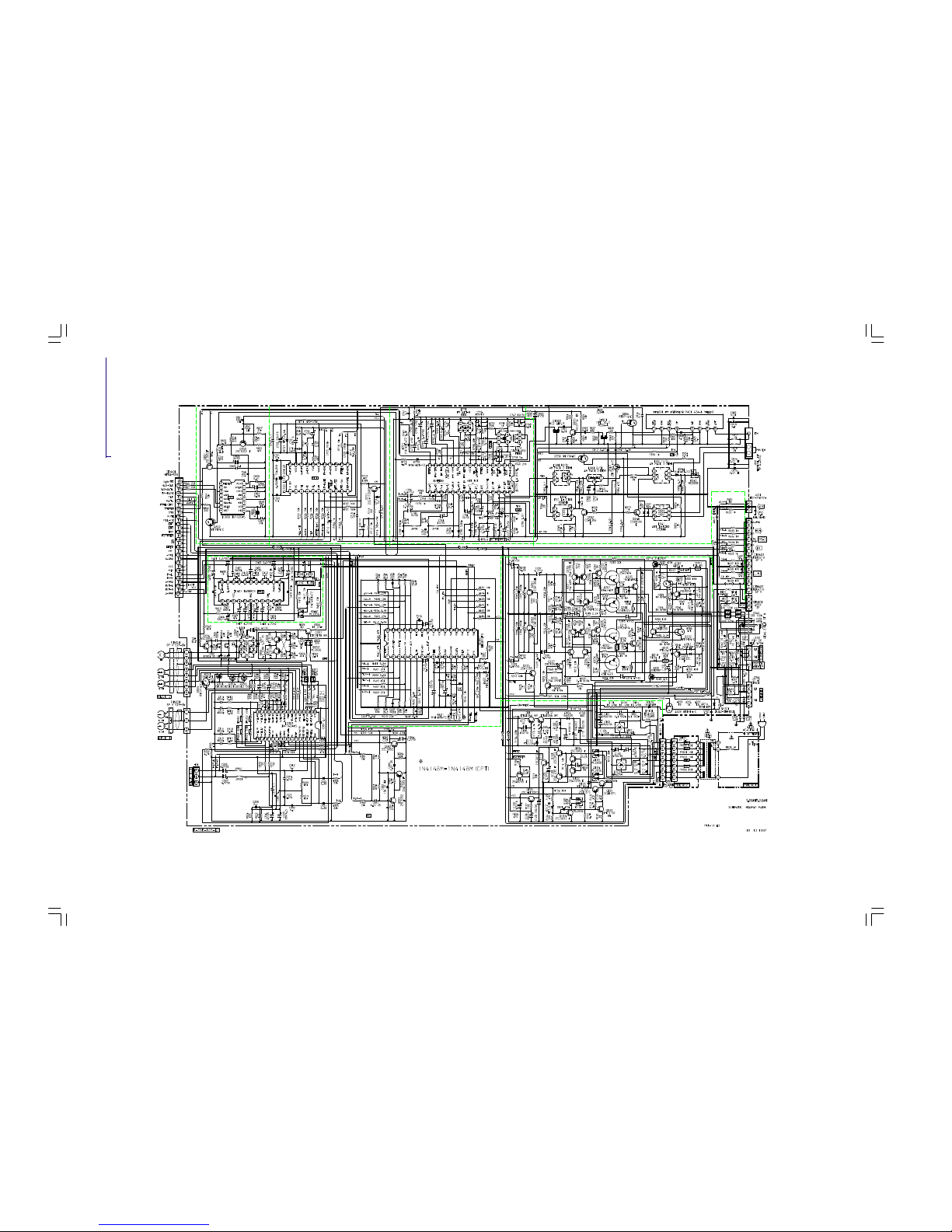

SCHEMATIC DIAGRAM _1 (MAIN)
X:23 W:95
Y:8.7 H:5.1
Helvetica 12 No track
14.4 100%
Left align

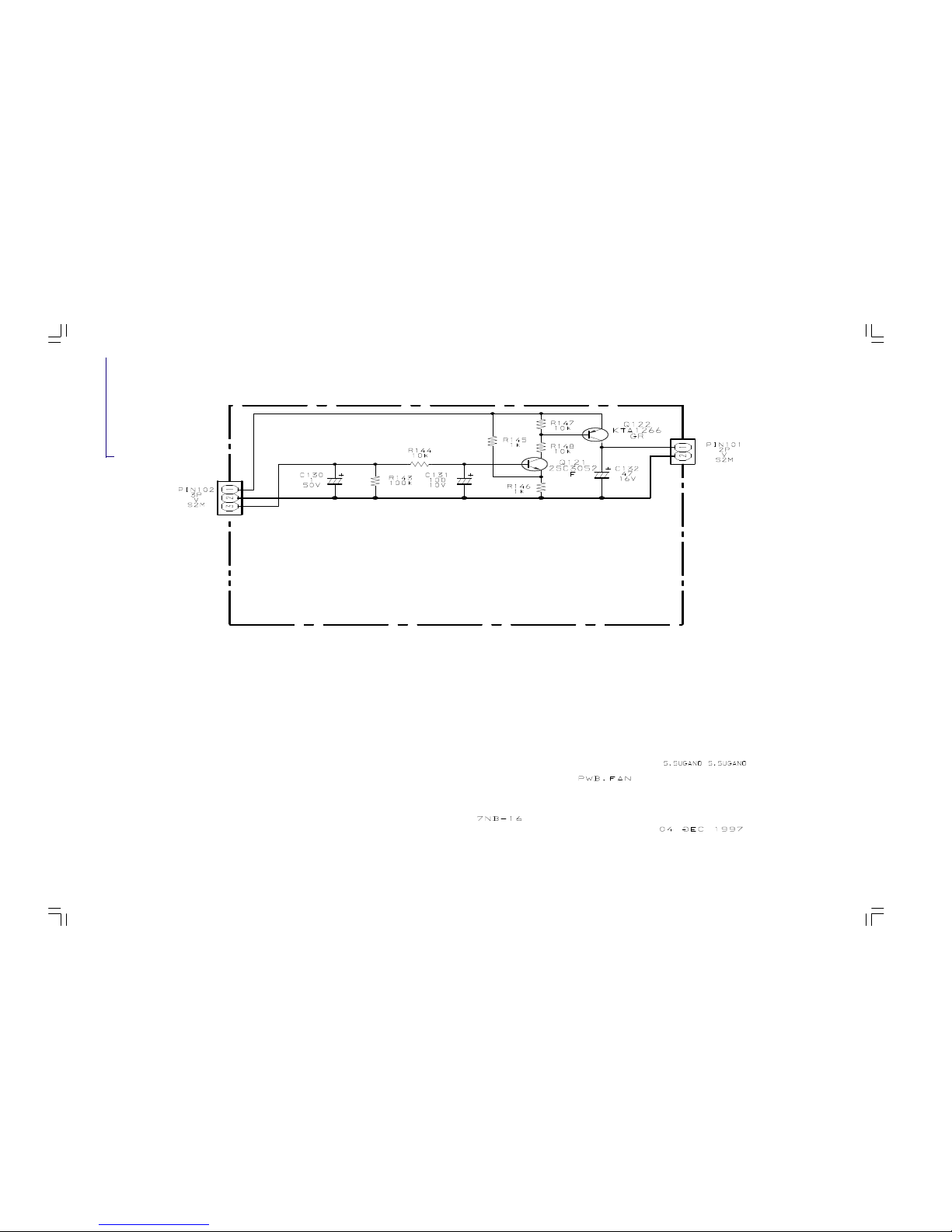

SCHEMATIC DIAGRAM _2 (MAIN)
X:23 W:95
Y:8.7 H:5.1
Helvetica 12 No track
14.4 100%
Left align

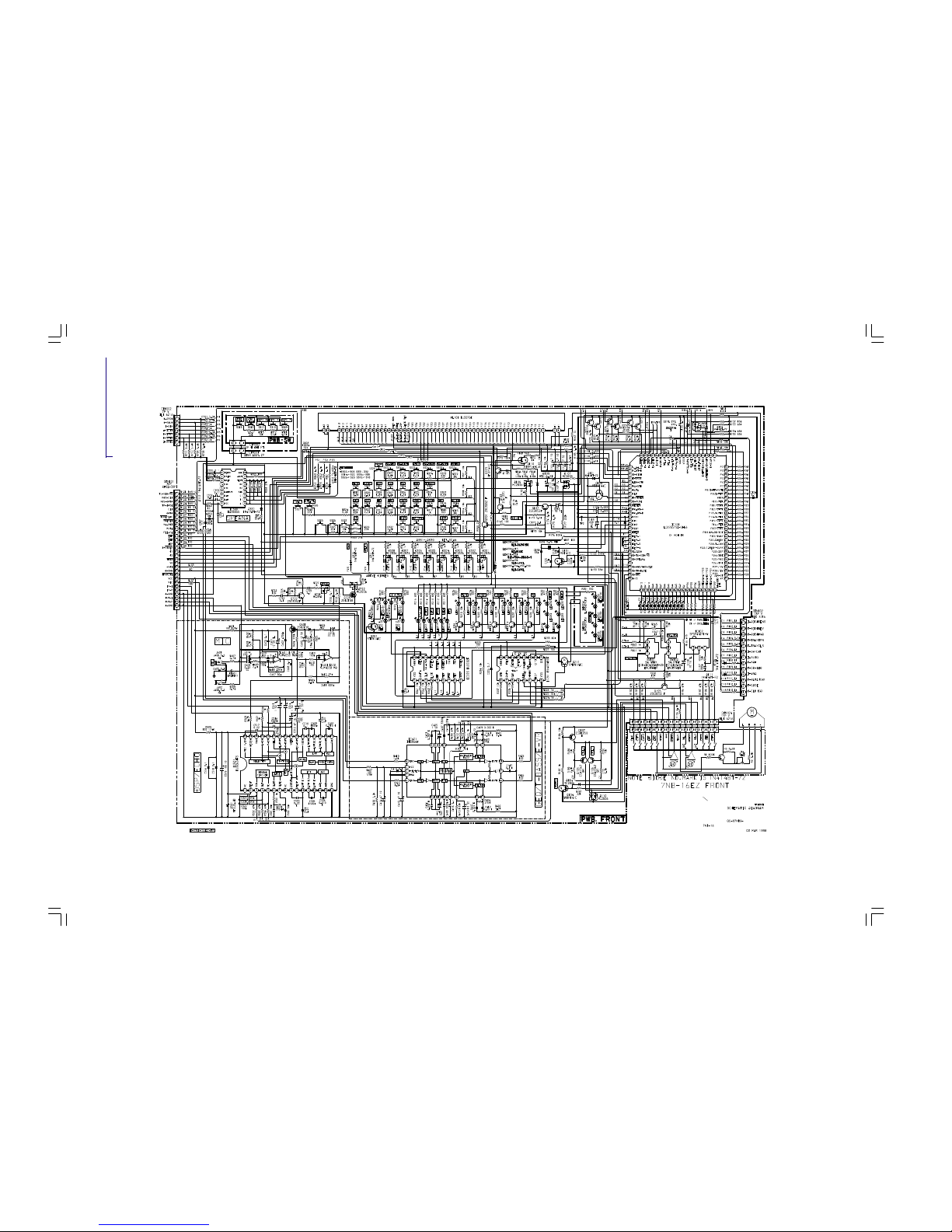

SCHEMATIC DIAGRAM _3 (FRONT)
X:23 W:95
Y:8.7 H:5.1
Helvetica 12 No track
14.4 100%
Left align

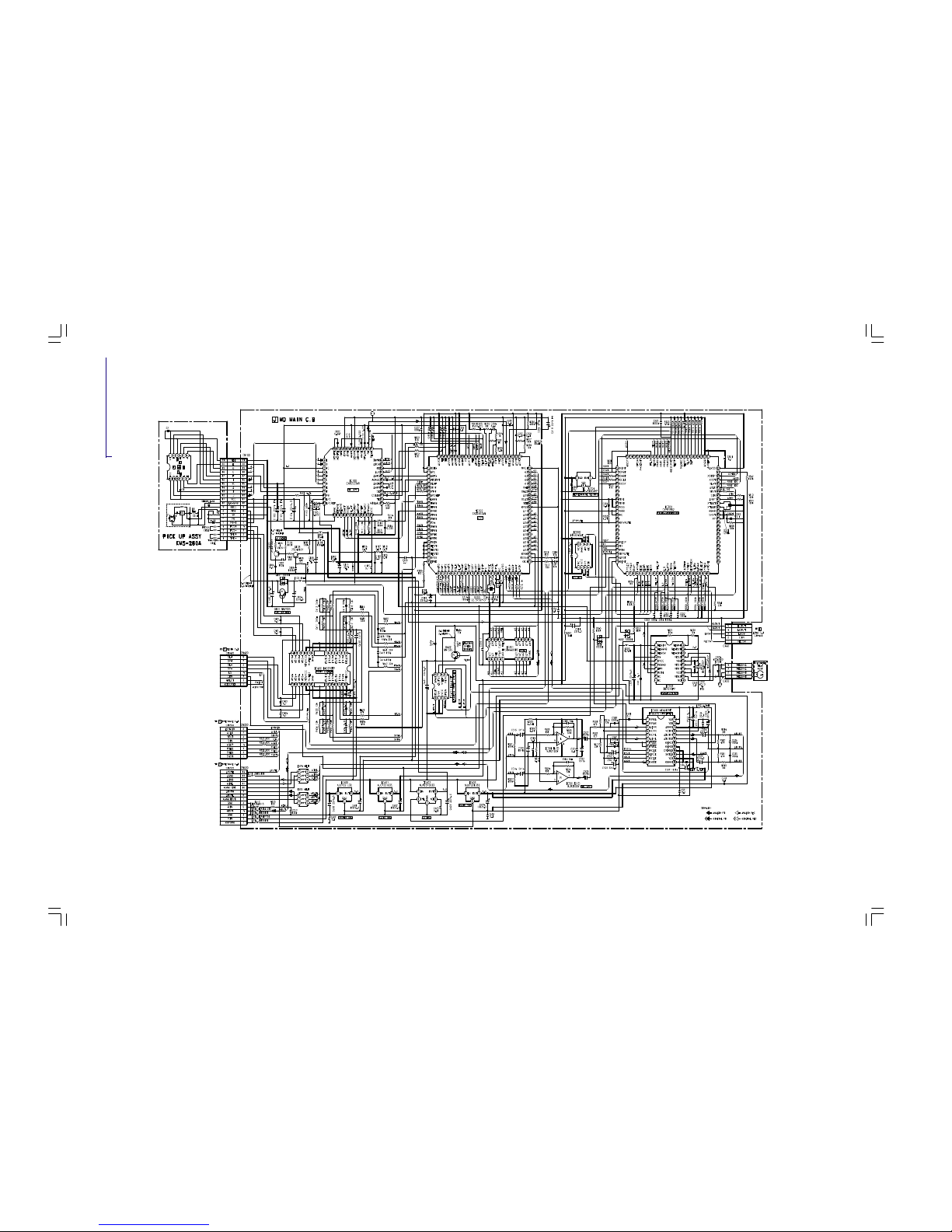

SCHEMATIC DIAGRAM _4 (MD MAIN)
Table of contents
Other Aiwa Stereo System manuals
