Aiwa XR-M35 User manual

88-CL3-903-11
980307 BYK- H-7
For assistance and information,
call toll free I-800 -BUY-AIWA.
L(United States and Puerto Rico)
maiiif
DIGITAL AUDIO

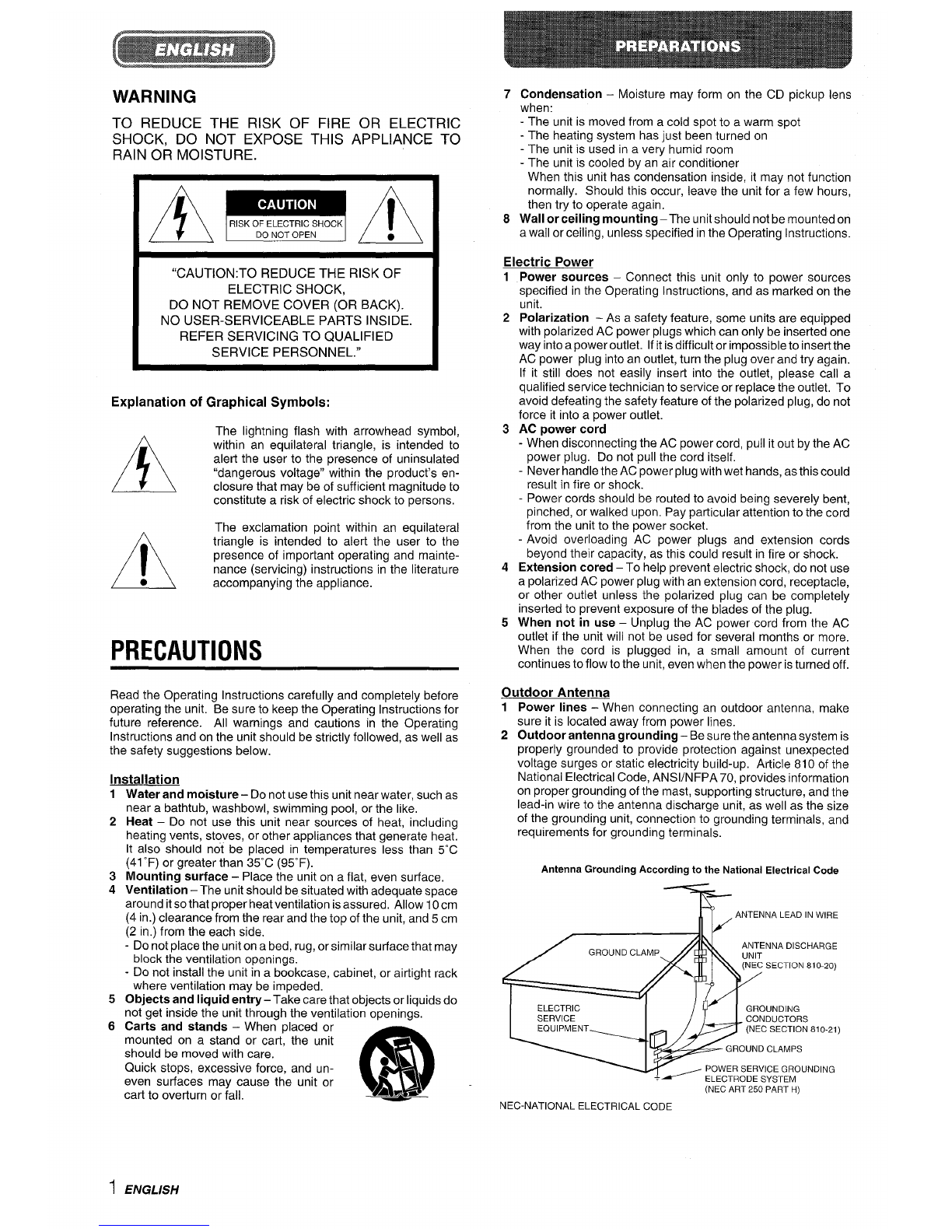

WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK. DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
A,●
RISK OF ELECTRIC SHOCK
DO NOT OPEN
~A●
“CAUTION:TO REDUCE THE RISK OF
ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.”
Explanation of Graphical Symbols:
AThe lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s en-
closure that may be of sufficient magnitude to
constitute arisk of electric shock to persons.
AThe exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and mainte-
nance (servicing) instructions in the literature
●accompanying the appliance.
PRECAUTIONS
Read the Operating Instructions carefully and completely before
operating the unit. Be sure to keep the Operating Instructions for
future reference. All warnings and cautions in the Operating
Instructions and on the unit should be strictly followed, as well as
the safety suggestions below.
Installation
1
2
3
4
5
6
Water and moisture –Do not use this unit near water, such as
near abathtub, washbowl, swimming pool, or the like.
Heat –Do not use this unit near sources of heat, including
heating vents, stoves, or other appliances that generate heat.
It also should not be placed in temperatures less than 5°C
(41 “F) or greater than 35-C (95-F).
Mounting surface –Place the unit on a flat, even surface.
Ventilation –The unit should be situated with adequate space
around it so that proper heat ventilation is assured. Allow 10 cm
(4 in.) clearance from the rear and the top of the unit, and 5 cm
(2 in.) from the each side.
-Do not place the unit on a bed, rug, orsimilarsurface that may
block the ventilation openings.
-Do not install the unit in abookcase, cabinet, or airtight rack
where ventilation may be impeded.
Objects and liquid entry –Take care that objects or liquids do
not get inside the unit through the ventilation openings.
Carts and stands –When placed or
mounted on a stand or cart, the unit
should be moved with care.
Quick stops, excessive force, and un-
m
k
even surfaces may cause the unit or 3
cart to overturn or fall. A&*
7Condensation –Moisture may form on the CD pickup lens
when:
-The unit is moved from acold spot to awarm spot
-The heating system has just been turned on
-The unit is used in avery humid room
-The unit is cooled by an air conditioner
When this unit has condensation inside, it may not function
normally. Should this occur, leave the unit for afew hours,
then try to operate again.
8Wall or ceiling mounting–The unit should not be mounted on
awall or ceiling, unless specified in the Operating Instructions.
1
2
3
4
5
Electric Power
Power sources –Connect this unit only to power sources
specified in the Operating Instructions, and as marked on the
unit.
Polarization -As asafetv feature, some units are equipped
with polarized AC power p(ugs which can only be inserted one
way into apower outlet. If it is difficult orimpossibleto insert the
AC power plug into an outlet, turn the plug over and try again. i
If it still does not easily inserf into the outlet, please call a
qualified service technician to service or replace the outlet. To :
avoid defeating the safety feature of the polarized plug, do not
force it into apower outlet.
AC power cord
-When disconnecting the AC power cord, pull it out by the AC
power plug. Do not pull the cord itself.
-Never handle the AC power plug with wet hands, asthiscould
result in fire or shock.
-Power cords should be routed to avoid being severely bent,
pinched, or walked upon. Pay particular attention to the cord
from the unit to the power socket.
-Avoid overloading AC power plugs and extension cords
beyond their capacity, as this could result in fire or shock.
Extension cored –To help prevent electric shock, do not use
apolarized AC power plug with an extension cord, receptacle,
or other outlet unless the polarized plug can be completely
inserted to prevent exposure of the blades of the plug.
When not in use –Urmlua the AC power cord from the AC
,0
outlet if the unit will not be used for several months or more.
When the cord is plugged in, asmall amount of current
continues to flow to the unit, even when the power is turned off.
Outdoor Antenna
1
2
Power lines -When connecting an outdoor antenna, make
sure it is located away from power lines.
Outdoor antenna grounding –Be sure the antenna system is
properly grounded-to provide protection against unexpected
voltage surges or static electricity build-up. Article 810 of the
National Electrical Code, AN S1/NFPA 70, provides information
on proper graunding of the mast, supporting structure, and the
lead-in wire to the antenna discharge unit, as well as the size
of the grounding unit, connection to grounding terminals, and
requirements for grounding terminals.
Antenna Grounding According to the National Electrical Code
,ANTENNA LEAD IN WIRE
/
ANTENNA DISCHARGE
(NEC SECTION 810-20)
ELECTRIC GROUNDING
SERVICE CONDUCTORS
EQUIPMENT (NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250 PART H)
NEC-NATIONAL ELECTRICAL CODE
1ENGLISH

Wtenance
Clean the unit only as recommended in the Operating Instructions.
m~qe Reauirina Service
Have the units serviced by aqualified service technician if:
-The AC power cord or plug has been damaged
-Foreign objects or liquid have gotten inside the unit
-The unit has been exposed to rain or water
-The unit does not seem to operate normally
-The unit exhibits amarked change in performance
-The unit has been dropped, or the cabinet has been damaged
DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.
7t%&u#waAv#&uashf?tzsm

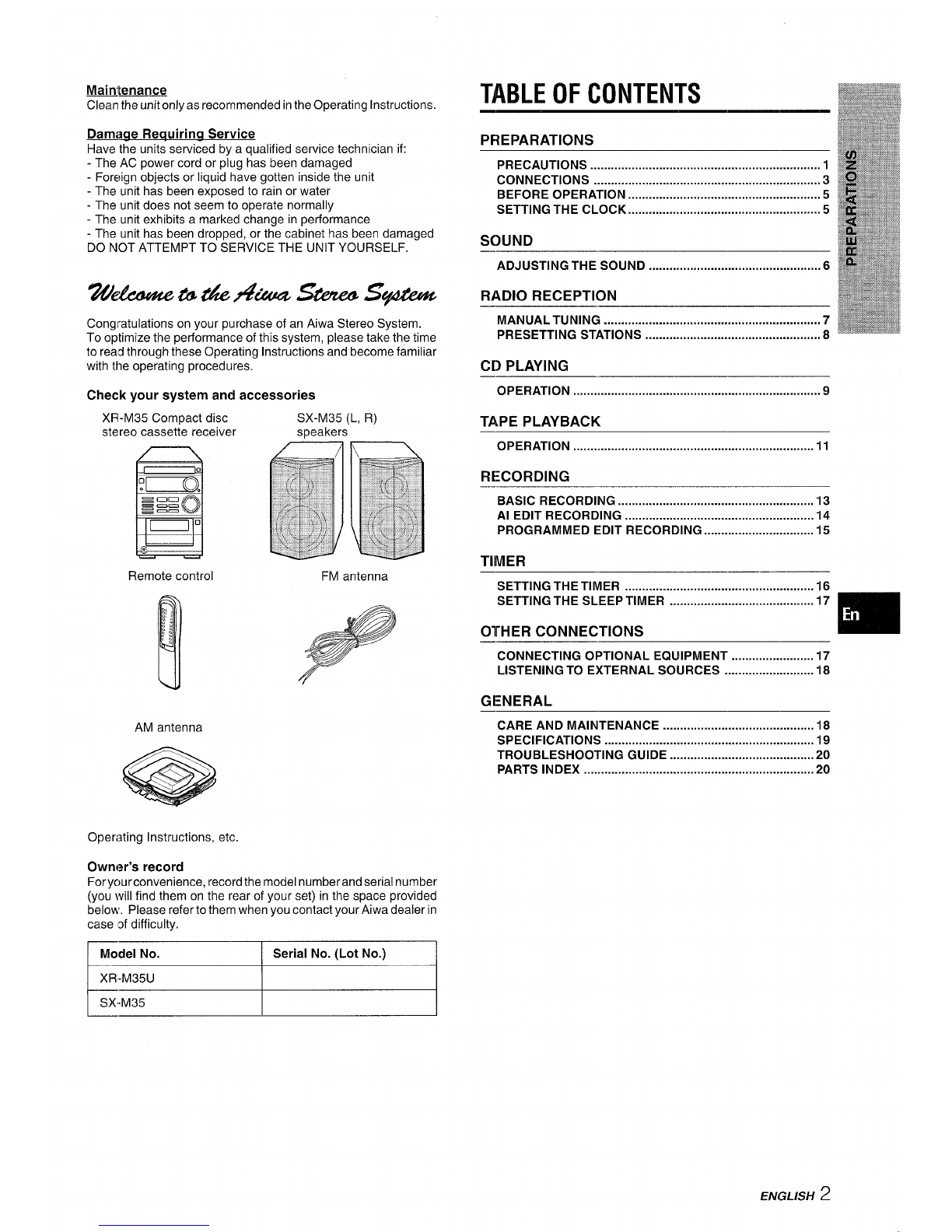

Congratulations on your purchase of an Aiwa Stereo System.
To optimize the performance of this system, please take the time
to read through these Operating Instructions and become familiar
with the operating procedures.
Check your system and accessories
XR-M35 Compact disc SX-M35 (L, R)
stereo cassette receiver speakers
Remote control FM antenna
AM antenna
Operating Instructions, etc.
Owner’s record
Forycwrconvenience, record the model number and serial number
(you will find them on the rear of your set) in the space provided
below. Please refer to them when you contact your Aiwa dealer in
case of difficulty.
IModel No. ISerial No. (Lot No.) I
TABLE OF CONTENTS
PREPARATIONS
PRECAUTIONS ................................................................... 1
CONNECTIONS ..................................................................3
BEFORE OPERATION ........................................................5
sETTING THEcLocK .......m...............................m....m...........5
SOUND
ADJUSTING THE SOUND ..................................................6
RADIO RECEPTION
MANUAL TUNING ...............................................................7
PRESETTING STATIONS ...................................................8
CD PLAYING
OPERATION ........................................................................9
TAPE PLAYBACK
Operation ......................................................................ll
RECORDING
BASIC RECORDING .........................................................13
Al EDIT RECORDING .......................................................l4
PROGRAMMED EDIT RECORDING ................................15
TIMER
SETTING THE TIMER ....................................................m..l6
SETTING THE SLEEP TIMER ..........................................17
OTHER CONNECTIONS
CONNECTING OPTIONAL EQUIPMENT ........................17
LISTENING TO EXTERNAL SOURCES ..........................18
GENERAL
CARE AND MAINTENANCE ............................................18
SPECIFICATIONS .............................................................19
TROUBLESHOOTING GUIDE ..........................................20
PARTS INDEX ...................................................................20
t-
XR-M35U
SX-M35
ENGLISH 2

CONNECTIONS
Before connecting the AC cord
The rated voltage of your unit shown on the rear panel is 120 V
AC. Check that the rated voltage matches your local voltage.
IMPORTANT
●Connect the speakers, antennas, and all optional equipment
first. Then connect the AC cord in the end.
●There are no differences between the front speakers. Both
speakers can be connected as L(Left) or R(Right).
1Connect the speaker cords to the main unit.
The cords with the white stripes should be connected to the
~terminals and the other cords to the Oterminals.
@d
Q
o
2Connect the supplied antennas.
Connect the FM antenna to the FM 75 Qterminals and the
AM antenna to the AM LOOP terminals.
3Connect the AC cord to an AC outlet.
When the AC cord is connected for the first time, the display
window demonstrates the functions of the unit. When the power
is turned on, the demonstration display is overridden by the
operation display. When the power is turned off, the
demonstration mode is restored.
To cancel the demonstration
Press the DEMO button or turn the MULTI JOG dial right or left.
To activate, press the DEMO button again.
Do not short-circuit the ~and Ospeaker cord leads; otherwise
the sound may become inaudible or the unit may be turned off.
If this happens, disconnect the AC cord from the AC outlet and
re-connect the s~eaker cord correctlv. Connect then the AC cord
.
and turn the unit on again.
2AM antenna
~T
DFM antenna
Speaker cord 3AC cord
3ENGLISH

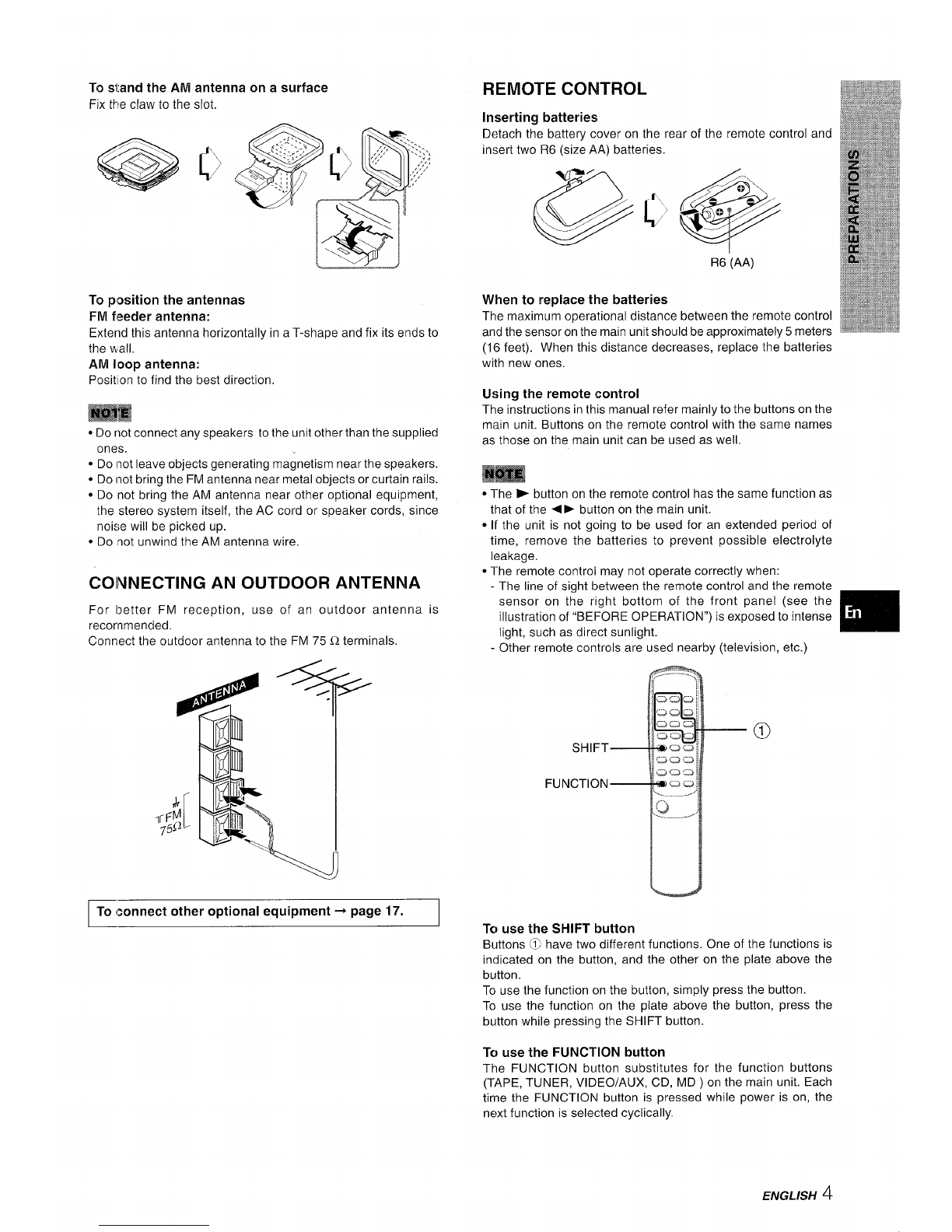

To stand the AM antenna on asurface
Fix the claw to the slot.
To prxition the antennas
FM feeder antenna:
Extend this antenna horizontally in aT-shape and fix its ends to
the wall.
AM loop antenna:
PositIon to find the best direction.
m~
oDo not connect any speakers to the unit other than the supplied
ones.
=Do Inot leave objects generating magnetism near the speakers.
*Do [not bring the FM antenna near metal objects or curtain rails.
*Do not bring the AM antenna near other optional equipment,
the stereo system itself, the AC cord or speaker cords, since
noise will be picked up.
*Do not unwind the AM antenna wire.
CONNECTING AN OUTDOOR ANTENNA
For [better FM reception, use of an outdoor antenna is
recommended.
Connect the outdoor antenna to the FM 75 Qterminals.
REMOTE CONTROL
Inserting batteries
Detach the battery cover on the rear of the remote control and
insert two R6 (size AA) batteries.
P.
L)
/
R6 (AA)
When to replace the batteries
The maximum operational distance between the remote control
and the sensor on the main unit should be atwroximatelv 5meters
(16 feet). When this distance decreases, replace the batteries
with new ones.
Using the remote control
The instructions in this manual refer mainly to the buttons on the
main unit. Buttons on the remote control with the same names
as those on the main unit can be used as well.
●The >button on the remote control has the same function as
that of the 4P button on the main unit.
●If the unit is not going to be used for an extended period of
time, remove the batteries to prevent possible electrolyte
leakage,
●The remote control may not operate correctly when:
-The line of sight between the remote control and the remote
sensor on the right bottom of the front panel (see the
illustration of “BEFORE OPERATION”) is exposed to intense
Iiaht, such as direct sunlight. m
-O-ther remote controls ar~ used nearby (television, etc.)
SHIFT
FUNCTION
ITo connect other optional equipment+ page Ii’. I
TCJuse the SHIFT button
Buttons (~ have two different functions. One of the functions is
indicated on the button, and the other on the plate above the
button.
To use the function on the button, simply press the button.
To use the function on the plate above the button, press the
button while pressing the SHIFT button.
TCIuse the FUNCTION button
The FUNCTION button substitutes for the function buttons
(TAPE, TUNER, VIDEO/AUX, CD, MD) on the main unit. Each
time the FUNCTION button is pressed while power is on, the
next function is selected cyclically.
ENGLISH 4

I
BEFORE OPERATION SETTING THE CLOCK
POWER –-@l
DEMO
Function
PHONES m
U-sensor
Remote
,.-,
—........
To turn the unit on
Press one of the function buttons (TAPE, TUNER, VIDEO/AUX,
CD, MD).
Playback of the inserted disc or tape begins, or the previously
tuned station is received (Direct Play Function).
The POWER button is also available.
The disc compartment may open and close to reset the unit.
Illumination guides
Whenever the AC cord is connected or one of the function buttons
is pressed, the buttons for that operation light up or flash.
Example: When the AC cord is connected, the II button flashes
as aguide to setting the current time.
After use
Press the POWER button to turn off the power. The display
changes to the clock.
MULTI JOG dial
The MULTI JOG dial can be used when tuning in to apreset
station or skipping to the beginning of aCD track. it can also be
used with the MODE button as aconvenient dial to adjust the
sound quality and turn Dolby NR on or off. Refer to pages 6, 8,
9, and 11 for details.
Using the headphones
Connect headphones to the PHONES jack with astereo mini
plug (03.5 mm, l/s inch).
No sound is output from the speakers while the headphones are
plugged in.
““m
1
2
3
4
5
6
II 1“””””””’”~ Ej
–CLOCK
–SHIFT
–44, -
-II
Press the CLOCK button while pressing the
SHIFT button on the remote control.
Within 4seconds, press the 11 button.
The hour flashes.
To switch to the 24-hour standard, press the ■button.
To restore the 12-hour standard, press the ■button again.
Press the <or Wbutton or turn the MULTI
JOG dial to designate the hour.
Press the 11 button to set the hour.
The hour stops flashing and the minute starts flashing.
Press the +or * button or turn the MULTI
JOG dial to designate the minute.
Press the II button to set the minute and
complete setting.
The minute stops flashing on the display and the clock starts
from 00 seconds.
To set the clock without the remote control
1Turn off the unit if the unit is powered. Then, if
the demonstration display appears, press the
DEMO button to cancel it.
2Press the 1Ibutton twice so that the hour flashes.
Carry out then the steps 3to 6above.
To display the current time
Press the CLOCK button while pressing the SHIFT button on
the remote control. The time is displayed for 4seconds.
However, the time cannot be displayed during recording.
If the clock display flashes while the power is off
This is caused by apower interruption. The current time needs
to be reset.
If power is interrupted for more than approximately 12 hours, all
settings stored in memory after purchase need to be reset.
5ENGLISH

~BIJIJsTING THE SOUND
~—– —.—.....
4
EQ
T-BASS
A13JUSTINGTHEVOLUME
Turn the VOLUME control on the main uni’i, or press the
VOLUME buttons on the remote control.
The volume level is shown on the display for 4seconds. It can
be set from O(minimum) to 30, and then MAX (maximum). When
you set the volume level to 21 or higher, the level indication on
the clisplay flashes,
The (olume remains memorized even after the power is turned
off. However, if the power is turned off when the volume is set to
more than 21, it is automatically set to 21 the next time the power
is turned on.
ENIHANCING THE TREBLE SOUND
The 3BE system enhances the clarity of high-frequency sound,
Press the MODE button repeatedly until “BBE” appears on the
display. Then, turn the MULTI JOG dial right or left to select
one of the three levels, or off position within 10 seconds. The
BBE level does not change cyclically.
ENHANCING THE BASS SOUND
The T-BASS system enhances the realism of low-frequency
sourld.
Press the MODE button repeatedly until “T-BASS” appears on
the clisplay. Then, turn the MULTI JOG dial right or left to select
one of the three levels, or off position within 10 seconds. The T-
BASS level does not change cyclically.
When using the remote control, press the T-BASS button
repeatedly.
EQ (EQUALIZER)
This unit provides the following three different kinds.
ROCK: Powerful sound emphasizing treble and bass
POP: More presence in the vocals and midrange
JAZZ: Accented lower frequencies for jazz-type music
Press the MODE button repeatedly until “GEQ oFF” appears
on the display. Then, turn the MULTI JOG dial right or left to
select one of the three kinds, or off position within 10 seconds.
When using the remote control, press the EQ button repeatedly,
SOUND ADJUSTMENT DURING
RECORDING
The output volume and tone of the speakers or headphones
may be freely varied without affecting the level of the recording.
ma
Low frequency sound may be distorted when the T-BASS system
is used fora disc or tape in which Iowfrequency sound is originally
emphasized. In this case, cancel the T-BASS system,
ENGLISH6

MANUAL TUNING
1
2
BANDI
1MODE
TUNER
2SHIFT
Press the TUNER/BAND button repeatedly to
select the desired band.
n
If the power is turned off, the previously tuned station will be
played (Direct Play Function).
When using the remote control, press the BAND/MODE
TUNER button repeatedly while power is on.
Press the ++ or ~button to select astation.
Each time the button is pressed, the frequency changes.
When astation is received, TUNE is displayed for amoment.
During FM stereo reception, [[[01] is displayed.
When an FM stereo broadcast contains noise
Press the BAND/MODE TUNER button while pressing the SHIFT
button on the remote control.
“MONO” appears on the display.
Noise is reduced, although reception is monaural.
MONO
To restore stereo reception, repeat the above again.
To change the AM tuning interval
The default setting of the AM tuning interval is 10 kHz/step. If
you use this unit in an area where the frequency allocation system
is 9kHz/step, change the tuning interval.
While pressing the TUNER/BAND button, press the POWER
button.
To reset the interval, repeat this procedure.
m
When the AM tuning interval is changed, all preset stations (see
“PRESETTING STATIONS”) are cleared. The preset stations
have to be set again.
To search for astation quickly (Auto Search)
Keep the +or -button pressed until the tuner starts
searching for astation. After tuning in to astation, the search
stops.
To stop the Auto Search manually, press the+ or -button.
●The Auto Search may not stop at stations with very weak
signals.
7ENGLISH

PFIESETTING STATIONS PRESET NUMBER TUNING
The unit can store atotal of 32 preset stations. (Each band has
amaximum of 20 available preset stations. )When astation is
stored, apreset number is assigned to the station. Use the preset
num~er to tune in to apreset station directly.
1
2
3
Press the TUNER/BAND button to select aband.
Then, press the ++ or -button to select a
station.
Press the 11 button to store the station.
Astation is assigned apreset number, beginning from 1in
consecutive order for each band.
Preset number
Repeat steps 1and 2.
The next station will not be stored if atotal of 32 preset stations
have already been stored.
Use the remote control to select the preset number directly.
1Press the TUNER/BAND button to select aband.
2Press the numbered buttons to select apreset
number.
Example:
To select preset number 15, press the +1 Oand 5 buttons.
To select preset number 10, press the +1 Oand Obuttons.
Other methods to tune in to apreset station
Press the TUNER/BAND button to select aband.
Then follow any one of the methods described below to select a
station.
.Press the +➤button repeatedly.
●Press the Ebutton on the remote control repeatedly.
Each time the button is pressed, station with the next higher
number is selected.
●Turn the MULTI JOG dial.
“Turning the dial right selects the next higher number. Turning
it left selects the next lower number.
To clear apreset station
Select the preset number of the station to be cleared. Then,
press the ■button, and press the II button within 4seconds.
The preset numbers of all other stations in the band with higher
numbers are also decreased by one.
ENGLISH 8
—

OPERATION
OPENI \Z- RANDOM
CLOSE
MULTI
JOG
<F
■
U,*
CD
II
LOADING DISCS
REPEAT
0–9,+1 o
EDITI
CHECK
SHIFT
I
Q...-...
Press the CD button, then press the OPEN/CLOSE
button to open the disc compartment. Load a
disc with the label side up and close the disc
compartment.
II
Music calender (only the first
Total number of tracks 20 tracks are displayed)
Total playing time
PLAYING DISCS
Load a disc.
Press the <F button.
Play begins with the first track.
Number of track being played
1
Elapsed playing time
To stop play, press the ■button.
To pause play, press the 1Ibutton. To resume play, press again.
To search for aparticular point during playback, keep the
+< or> button pressed and release the button at the desired
point.
To skip to the beginning of atrack during playback, press
the 4< or *button repeatedly or turn the MULTI JOG dial.
The unit skips forward through the tracks when turning it right,
and skips back when turning it left.
To remove discs, press the OPEN/CLOSE button.
To start play when the power is off (Direct Play
Function)
Press the CD button. The power is turned on and play of the
loaded disc begins.
To replace the disc before play, press the OPEN/CLOSE button
to open the disc compartment.
To check the remaining time
Press the EDIT/CHECK button while pressing the SHIFT button
during play. The amount of time remaining until all tracks finish
playing is displayed. To restore the play time display, repeat the
above again.
Selecting atrack with the remote control
Press the numberd buttons and the +10 button to select atrack.
Example:
To select the 25th track, press the +10, +10 and 5 buttons.
To select the 10th track, press the +10 and Obuttons.
The selected track starts to play and play continues to the end
of that disc.
●Do not use irregular shape CDs (example: heart-shaped,
octagonal ens). It may result in malfunction.
●When loading an 8-cm (3-inch) disc, put it onto the inner circle
of the tray.
●Do not place more than one compact disc on the disc tray.
●Skipping through the CD tracks by turning the MULTI JOG dial
is not possible when the dial is used to adjust BBE, T-BASS or
EQ, or to turn the Dolby NR on and off.
9ENGLISH

RANDOM PLAY
All ttle tracks on the disc can be played randomly.
During playback or in stop mode, press the
RANDOM button while pressing the SHIFT button
on the remote control.
“RAPdDOM” lights up on the display.
To cancel random play, repeat the above again.
ma
●Even if the 4< button is pressed or the MULTI JOG dial is
turned, apreviously played track cannot be skipped. The unit
returns to the beginning of the current track only.
●When you select atrack with the numbered buttons on the
remote control during the random play mode, the selected track
stal’ts to play and the random play mode is cancelled.
REIPEAT PLAY
Asingle track or all tracks can be played back repeatedly.
While pressing the SHIFT button, press the REPEAT
button repeatedly on the remote control.
“G1” lights up when the single track repeat play is selected,
and ‘“~” lights up when the all tracks repeat play is selected.
To cancel repeat play, repeat the above again.
To repeat random play
First press the RANDOM button while pressing the SHIFT button
on the remote control to activate random play.
Ther, press the REPEAT button while pressing the SHIFT button
on the remote control so that “=” lights up.
PROGRAMMED PLAY
Up to 30 tracks can be programmed from the inserted disc.
Use the remote control.
1Press the PRGM button while pressing the SHIFT
button in stop mode.
“PRGM” flashes on the display.
2
3
4
Press the numbered buttons and the +10 button
to program atrack.
Example:
To select the 12th track, press the +1 Oand 2 buttons.
To select the 20th track, press the +10, +1 Oand Obuttons.
Selected track
number Program number
Total number of Total playing time of
selected tracks the selected tracks
Repeat step 2to program other tracks.
Press the >button to start play.
To check the program
Each time the -button is pressed in stop mode, atrack
number and program number will be displayed.
To clear the program
Press the ■button in stop mode.
To add tracks to the program
Before playing, repeat step 2. The track will be programmed
after the last track. m
To change the programmed tracks
Clear the program and repeat all the steps again.
m
During the programmed play, the EDIT/CHECK, RANDOM, and
numbered buttons do not function.
If yoL press the >button before going to step 2, the programming
mode is cancelled and the first track of the CD starts to play.
ENGLISH 10

OPERATION
TAPEIREV
MODE
II
EJECT
INSERTING TAPES
MULTI JOG
MODE
.You can select areverse mode to play back one or both sides.
●Use Type I(normal), Type II (high/CrOdOrTwe Iv (metal)
tapes for playback.
Press the TAPE/REV MODE button and press the
EJECT mark to open the cassette holder.
I-EJECT
Insert atape with the exposed side down. Push the cassette
holder to close.
To select areverse mode
Each time the TAPE/REV MODE button is pressed, the reverse
mode changes.
To play one side only, select Z.
To play from front side to back side once only, select Z).
To play both sides repeatedly, select (Z).
PLAYING BACK A TAPE
Insert atape
7Press the MODE button repeatedly until “DOLBY”
appears on the display. Then, turn the MULTI JOG
dial right or left to turn Dolby NR on or off to
match the playback tape within 10 seconds.
For tapes recorded with DOLBY NR, turn on no NR.
For tapes recorded without DOLBY NR, turn off DU NR.
2Press the +➤button to start play.
Playback side of the tape
The tape counter indicates the tape
running length. (It disappears when no
tape is inserted.)
D: The front side is being played (forward).
~: The back side is being played (reverse).
To stop play, press the ■button.
To pause play, press the II button. To resume play, press again.
To change the playback side, press the +> button in play or
pause mode.
To fast forward or rewind, press the -or> button in stop
mode. Then press the ■button to stop the tape.
To start play when the power is off (Direct Play
Function)
Press the TAPE button. The power is turned on and play of the
inserted tape begins.
To set the tape counter to 0000
Press the ■button in stop mode.
The counter is also set to 0000 when the cassette holder is
opened.
I1ENGLISH

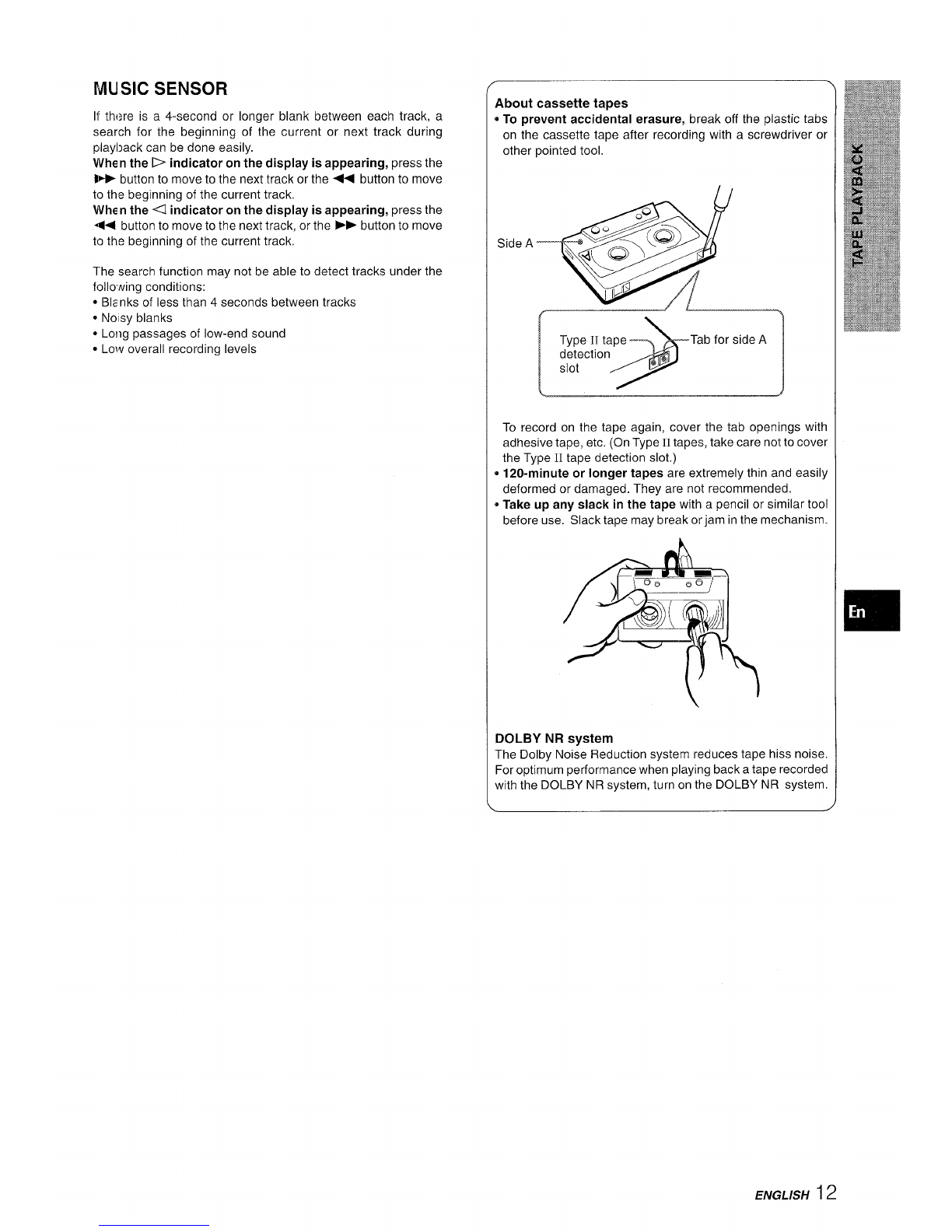

MUSIC SENSOR
If there is a4-second or longer blank between each track, a
search for the beginning of the current or next track during
playl]ack can be done easily.
When the Dindicator on the display is appearing, press the
*button to move to the next track or the << button to move
to the beginning of the current track,
When the Uindicator on the display is appearing, press the
44 button to move to the next track, or the *P button to move
to the beginning of the current track,
The search function may not be able to detect tracks under the
follo~ing conditions:
*Blenks of less than 4seconds between tracks
*NoIsy blanks
*Long passages of low-end sound
sLow overall recording levels
About cassette tapes
oTo prevent accidental erasure, break off the plastic tabs
on the cassette tape after recording with ascrewdriver or
other pointed tool.
&
Type 11tape Tab for side A
detection
slot
To record on the tape again, cover the tab openings with
adhesive tape, etc. (On Type 11tapes, take care not to cover
the Type II tape detection slot.)
o120-minute or longer tapes are extremely thin and easily
deformed or damaged. They are not recommended.
eTake up any slack in the tape with apencil or similar tool
before use. Slack tape may break or jam in the mechanism.
DOLBY NR system
The Dolby Noise Reduction system reduces tape hiss noise.
For optimum performance when playing back atape recorded
with the DOLBY NR system, turn on the DOLBY NR system.
ENGLISH I2

BASIC RECORDING
This section explains how to record from the tuner, CD player,
MD recorder or external equipment.
m
When an MD recorder or other optional equipment is connected
to this unit, you can also record from an MD or the connected
equipment.
For how to connect an MD recorder and other optional equipment,
see page 17.
Q~
b
●
!! JJ
ti
1““”’”””!’ ......
J
Preparation
●Set the tape to the point where recording will start.
●Use Type I(normal) and Type II (high/CrOz) tapes for recording.
1
2
3
4
Insert the tape to be recorded on into the deck.
Insert the tape with the side to be recorded on first facing out
from the unit and the exposed side down.
I
—EJECT
Press the TAPE/REV MODE button to select the
reverse mode.
To record on one side only, select Z.
To record on both sides, select 11 or (1).
Press the MODE button repeatedly until “DOLBY”
appears on the display. Then, turn the MULTI JOG
dial right or left to turn Dolby NR on or off within
10 seconds.
To record with DOLBY NR, turn the dial so that “DOLBY ON”
is displayed. (The Do NR indication also turns on.)
To record without DOLBY NR, turn the dial so that “DOLBY
oFF’r is displayed.
Press one of the function buttons and prepare
the source to be recorded.
To record from aCD, press the CD button and load the disc.
To record from aradio broadcast, press the TUNER/BAND
button and tune in to astation.
To record from an MD, press the MD button and load an
MD.
To record from the connected source, press the VIDEO/
AUX button and prepare to play.
5Press the ●button to start recording.
When the selected function is CD, playback and recording
start simultaneously.
When the selected function is MD or VI DEO/AUX, start
playback.
To stop recording, press the ■button.
To pause recording, press the II button. (Applicable when the
source is TUNER, MD, VI DEO/AUX.) To resume recording, press
again.
To start recording with the remote control
First press the ●button, and then press the >button within 2
seconds.
INSERTING BLANK SPACES
Insertion of 4-second blank spaces enables activation of the
Music Sensor function. (Applicable when the source is TUNER,
MD, or VIDEO/AUX.)
1
2
Press the ●button during recording or while in recording
pause mode.
The. button flashes for 4seconds and the tape runs without
recording. After 4seconds, the deck enters the recording
pause mode.
Press the II button to resume recording.
To insert ablank space of less than 4seconds, press the ●
button again while the button is”flashing.
To insert blank spaces of more than 4seconds, after the
deck enters recording pause mode, press the .button again.
Each time the button is pressed, a4-second blank space is
added.
To erase arecording
1
2
3
4
Insert the tape to be erased into the deck.
Set the tape to the point where the erasure is to be started.
Press the VIDEO/AUX button.
If an optional equipment is connected to the VIDEO/AUX
jacks, turn it off.
Press the ●button to start the erasure.
13 ENGLISH

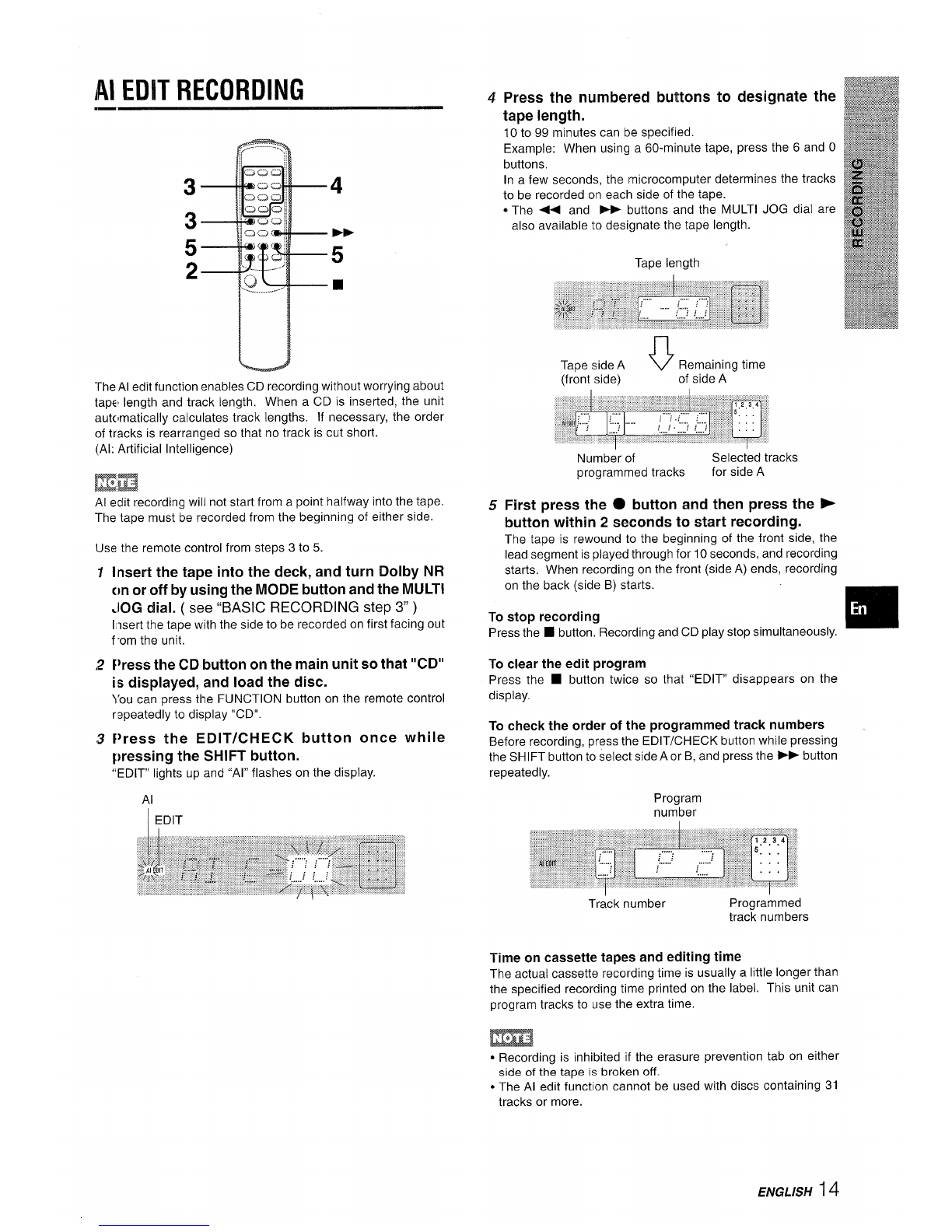

Al EDIT RECORDING
34
3Fb
5
2
5
E
The Al edit function enables CD recording without worrying about
tap~ length and track length, When aCD is inserted, the unit
autc,matically calculates track lengths. If necessary, the order
of tracks is rearranged so that no track is cut short.
(Al: Artificial Intelligence)
mm
Al edit recording will not start from apoint halfway into the tape.
The tape must be recorded from the beginning of either side.
Use the remote control from steps 3to 5.
1
2
3
Insert the tape into the deck, and turn Dolby NR
on or off by using the MODE button and the MULTI
JOG dial. (see “BASIC RECORDING step 3)
Ilsert the tape with the side to be recorded on first facing out
f’om the unit.
Press the CD button on the main unit so that “CD”
is displayed, and load the disc.
}’OUcanpressthe FUNCTION button on the remote control
repeatedly to display “CD”.
Press the EDIT/CHECK button once while
pressing the SHIFT button.
“EDIT lights up and “Al” flashes on the display.
Al
4
5
Press the numbered buttons to designate the
tape length.
10 to 99 minutes can be specified.
Example: When using a60-minute tape, press the 6 and O
buttons.
In afew seconds, the microcomputer determines the tracks
to be recorded on each side of the tape.
*The 44 and PP buttons and the MULTI JOG dial are
also available to designate the tape length.
Tape length
Tape side AoRemaining time
(front side) of side A
Number of Selected tracks
programmed tracks for side A
First press the @button and then press the >
button within 2seconds to start recording.
The tape is rewound to the beginning of the front side, the
lead segment is played through for 10 seconds, and recording
starts, When recording on the front (side A) ends, recording
on the back (side B) starts.
To stop recording
Press the ■button, Recording and CD play stop simultaneously. ❑
To clear the edit program
Press the 9button twice so that “EDIT” disappears on the
display,
To check the order of the programmed track numbers
Before recording, press the EDIT/CHECK button while pressing
the SHIFT button to select side Aor B, and press the ➤Pbutton
repeatedly.
Program
number
Track number Programmed
track numbers
Time on cassette tapes and editing time
The actual cassette recording time is usually alittle longer than
the specified recording time printed on “the label. This unit can
program tracks to use the extra time.
●Recording is inhibited if the erasure prevention tab on either
side of the tape is broken off.
●The Al edit function cannot be used with discs containing 31
tracks or more.
ENGLISH 14

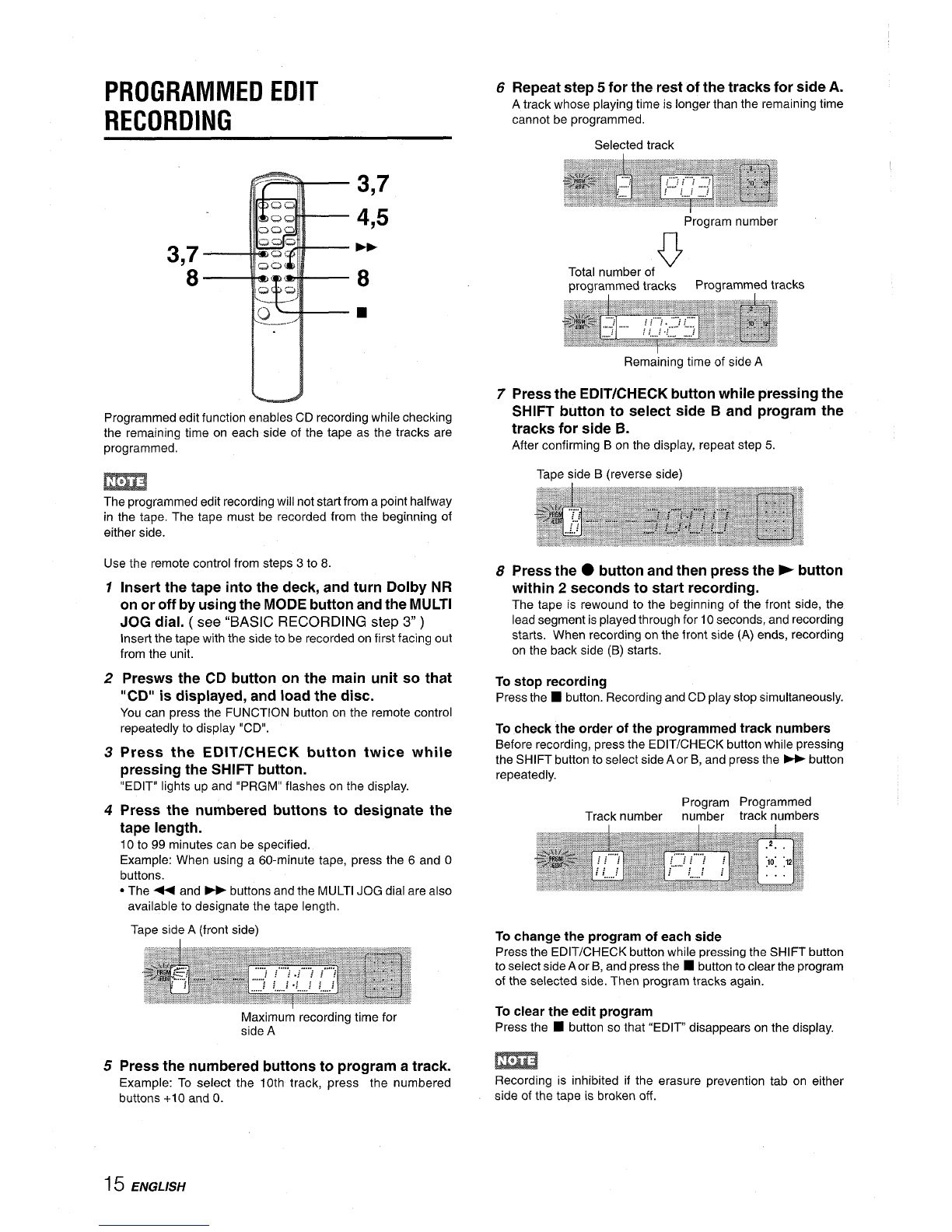

PROGRAMMED EDIT
RECORDING
3,7
4,5
3,7 M
88
■
Programmed edit function enables CD recording while checking
the remaining time on each side of the tape as the tracks are
programmed.
The programmed edit recording will not start from apoint halfway
in the tape. The tape must be recorded from the beginning of
either side.
Use the remote control from steps 3to 8.
1
2
3
4
5
Insert the tape into the deck, and turn Dolby NR
on or off by using the MODE button and the MULTI
JOG dial. (see ‘(BASIC RECORDING step 3“ )
Insertthetapewiththesidetobe recordedonfirstfacingout
fromthe unit.
Presws the CD button on the main unit so that
“CD” is displayed, and load the disc.
You can press the FUNCTION button on the remote control
repeatedly to display “CD”.
Press the EDIT/CHECK button twice while
pressing the SHIFT button.
“EDIT” lights up and “PRGM” flashes on the display.
Press the numbered buttons to designate the
tape length.
10 to 99 minutes can be specified.
Example: When using a60-minute tape, press the 6 and O
buttons.
●The <and -buttons and the MULTI JOG dial are also
available to designate the tape length.
Tape side A(front side)
I
Maximum recording time for
side A
Press the numbered buttons to program atrack.
Example: To select the 10th track, press ‘the numbered
buttons +1 Oand O.
6Repeat step 5for the rest of the tracks for side A.
Atrack whose playing time is longer than the remaining time
cannot be programmed.
Program number
o
Total number of
programmed tracks Programmed tracks
Remaining time of side A
7Press the EDIT/CHECK button while pressing the
SHIFT button to select side Band program the
tracks for side B.
After confirming Bon the display, repeat step 5.
Tape side B(reverse side)
8Press the ●button and then press the -button
within 2seconds to start recording.
The tape is rewound to the beginning of the front side, the
lead segment is played through for 10 seconds, and recording
starts. When recording on the front side (A) ends, recording
on the back side (B) starts.
To stop recording
Press the ■button. Recording and CD play stop simultaneously.
To check the order of the programmed track numbers
Before recording, press the EDIT/CHECK button while pressing
the SHIFT button to select side Aor B, and press the -button
repeatedly.
Program Programmed
Track number number track numbers
To change the program of each side
Press the EDIT/CHECK button while pressing the SHIFT button
to select side Aor B, and press the ■button to clear the program
of the selected side. Then program tracks again.
To clear the edit program
Press the ■button so that “EDIT” disappears on the display.
Recording is inhibited if the erasure prevention tab on either
side of the tape is broken off.
15 ENGLISH

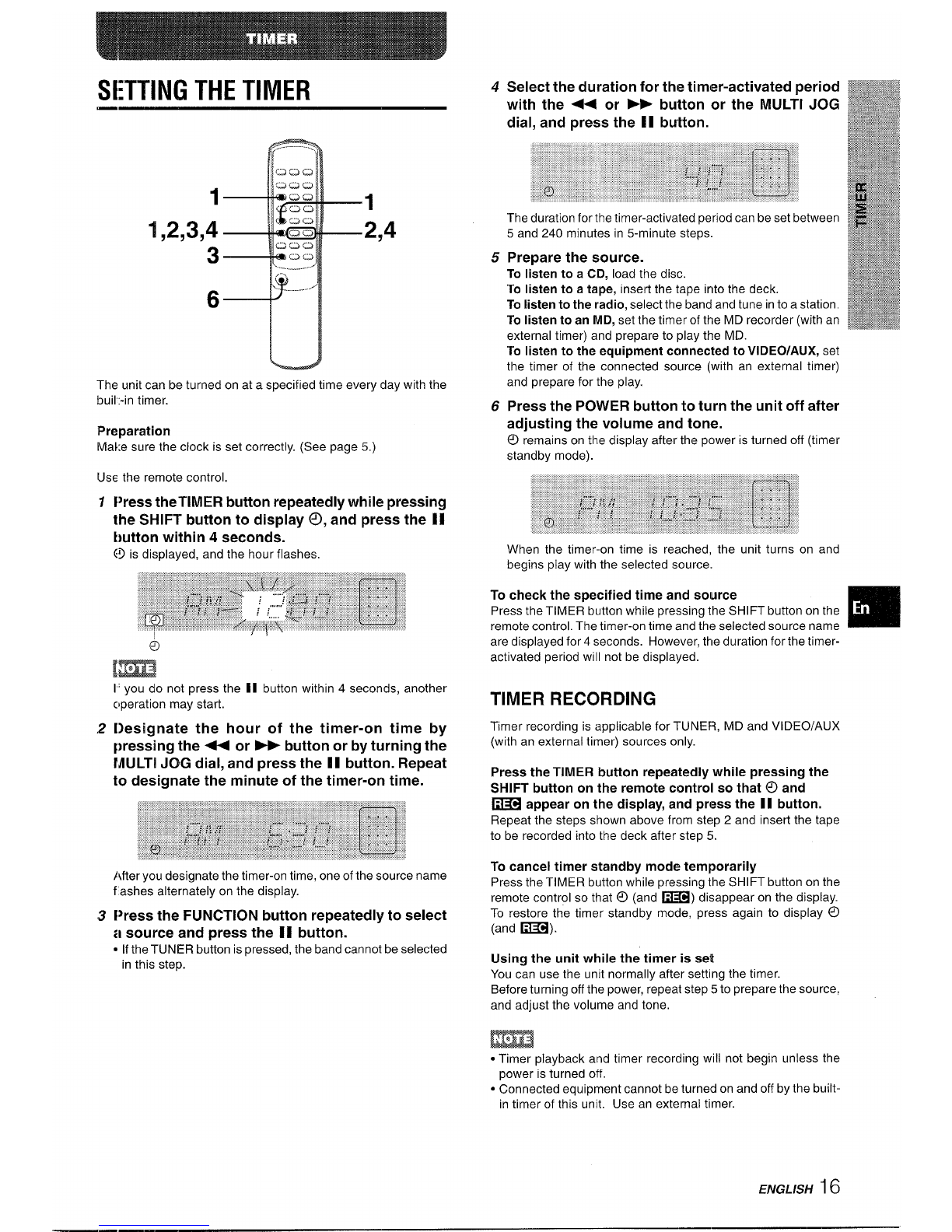

SETTING THE TIMER
1
1,2,3,4
3
1
2,4
m
,/
6
......-.-.’
The unit can be turned on at aspecified time every day with the
buil”:-in timer.
Preparation
Make sure the clock is set correctly. (See page 5.)
Use the remote control.
7Press theTIMER button repeatedly while pressing
the SHIFT button to display 0, and press the 11
button within 4seconds.
@is displayed, and the hour flashes.
I‘ you do not press the 11 button within 4seconds, another
CIperation may start.
2[)esignate the hour of the timer-on time by
pressing the * or _button or by turning the
!flULTl JOG dial, and press the 11 button. Repeat
to designate the minute of the timer-on time.
After you designate the timer-on time, one of the source name
fashes alternately on the display.
.3 Press the FUNCTION button repeatedly to select
asource and press the Ii button.
●If the TUNER button is pressed, the band cannot be selected
in this step.
4
5
6
Select the duration for the timer-activated period
with the +< or ➤Fbutton or the MULTI JOG
dial, and press the 11 button.
The duration for the timer-activated period can be set between
5 and 240 minutes in 5-minute steps.
Prepare the source.
To listen to aCD, load the disc.
To listen to atape, insert the tape into the deck.
To listen to the radio, select the band and tune into astation.
To listen to an MD, set the timer of the MD recorder (with an
external timer) and prepare to play the MD.
To listen to the equipment connected to VIDEO/AUX, set
the timer of the connected source (with an external timer)
and prepare for the play.
Press the POWER button to turn the unit off after
adjusting the volume and tone.
@remains on the display after the power is turned off (timer
standby mode).
When the timer-on time is reached, the unit turns on and
begins play with the selected source.
To check the specified time and source
Press the TIMER button while pressing the SHIFT button on the
remote control. The timer-on time and the selected source name ❑
are displayed for 4seconds. However, the duration for the timer-
activated period will not be displayed.
TIMER RECORDING
Timer recording is applicable for TUNER, MD and ViDEO/AUX
(with an external timer) sources only.
Press the TIMER button repeatedly while pressing the
SHIFT button on the remote control so that @and
~appear on the display, and press the 11 button.
Repeat the steps shown above from step 2 and insert the tape
to be recorded into the deck after step 5.
To cancel timer standby mode temporarily
Press the TIMER button while pressing the SHIFT button on the
remote control so that @(and ~) disappear on the display.
To restore the timer standby mode, press again to display @
(and ~).
Using the unit while the timer is set
You can use the unit normally after setting the timer.
Before turning off the power, repeat step 5to prepare the source,
and adjust the volume and tone.
m
●Timer playback and timer recording will not begin unless the
power is turned off.
●Connected equipment cannot be turned on and off by the built-
in timer of this unit. Use an external timer.
ENGLISH 16

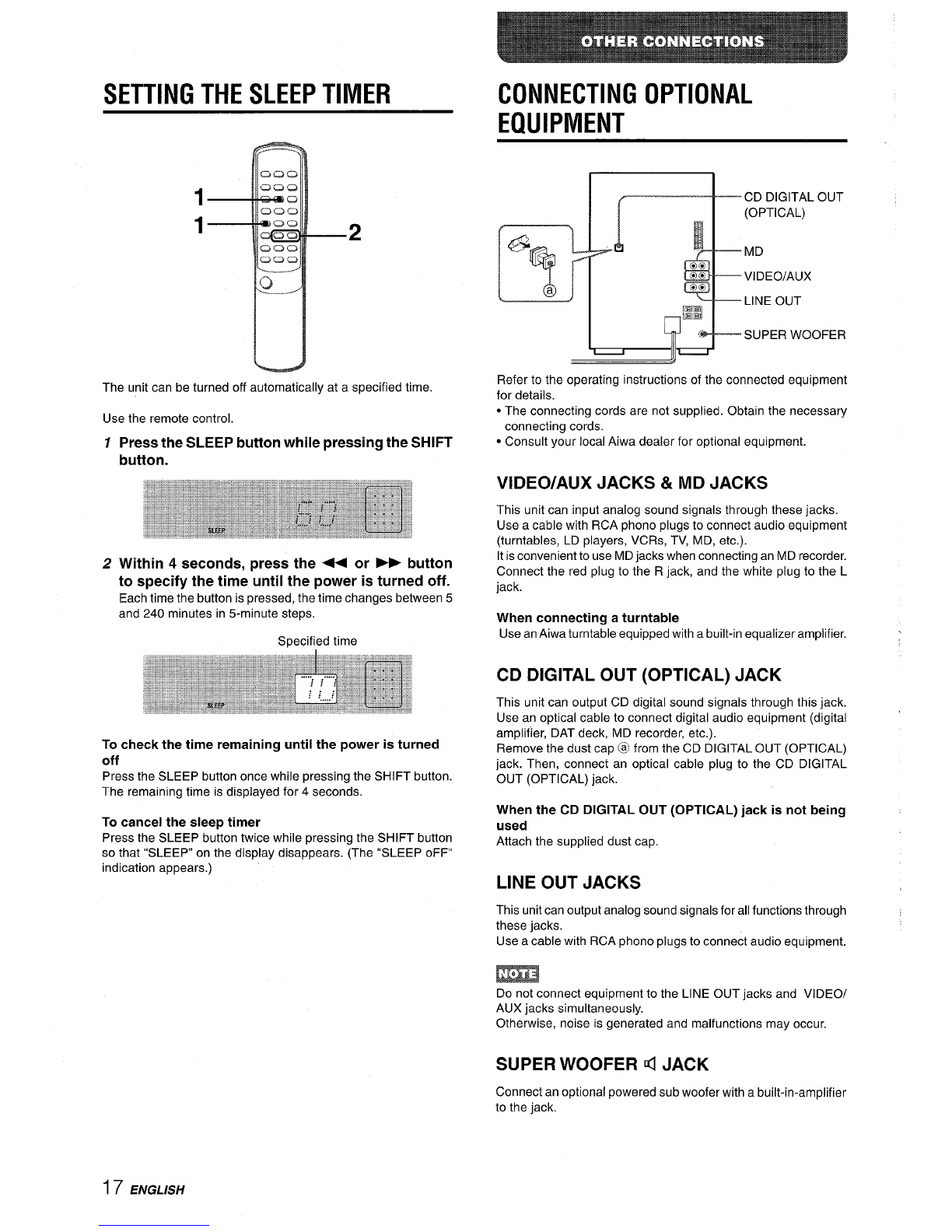

SETTING THE SLEEP TIMER
1
12
The unit can be turned off automatically at aspecified time.
Use the remote control.
7Press the SLEEP button while pressing the SHIFT
button.
2Within 4seconds, press the -or -button
to specify the time until the power is turned off.
Each time the button is pressed, the time changes between 5
and 240 minutes in 5-minute steps.
Specified time
To check the time remaining until the power is turned
off
Press the SLEEP button once while pressing the SHIFT button.
The remaining time is displayed for 4seconds.
To cancel the sleep timer
Press the SLEEP button twice while pressing the SHIFT button
so that “SLEEP on the display disappears. (The “SLEEP oFF”
indication appears.)
CONNECTING OPTIONAL
EQUIPMENT
MD
VI DEO/AUX
LINE OUT
SUPER WOOFER
Refer to the operating instructions of the connected equipment
for details.
●The connecting cords are not supplied. Obtain the necessary
connecting cords.
●Consult your local Aiwa dealer for optional equipment.
VIDEO/AUX JACKS &MD JACKS
This unit can input analog sound signals through these jacks,
Use acable with RCA phono plugs to connect audio equipment
(turntables, LD players, VCRs, TV, MD, etc.).
It is convenient to use MD jacks when connecting an MD recorder.
Connect the red plug to the Rjack, and the white plug to the L
jack.
When connecting aturntable
Use an Aiwa turntable equipped with abuilt-in equalizer amplifier.
CD DIGITAL OUT (OPTICAL) JACK
This unit can output CD digital sound signals through this jack.
Use an optical cable to connect digital audio equipment (digital
amplifier, DAT deck, MD recorder, etc.).
Remove the dust cap @from the CD DIGITAL OUT (OPTICAL)
jack. Then, connect an optical cable plug to the CD DIGITAL
OUT (OPTICAL) jack.
When the CD DIGITAL OUT (OPTICAL) jack is not being
used
Attach the supplied dust cap.
LINE OUT JACKS
This unit can output analog sound signals for all functions through
these jacks.
Use acable with RCA phono plugs to connect audio equipment.
m
Do not connect equipment to the LINE OUT jacks and VIDEO/
AUX jacks simultaneously.
Otherwise, noise is generated and malfunctions may occur.
SUPER WOOFER 4JACK
Connect an optional powered sub woofer with abuilt-in-amplifier
to the jack.
17 ENGLISH

LISTENING TO EXTERNAL
SOURCES
POWER -
1-
1-
—.
..l.................. .. ““r
To play equipment connected to the VIDEO/AUX jacks or the
MD ,acks, proceed as follows.
?Press the VI DEO/AUX button when playing
equipment connected to VIDEO/AUX jacks, or
press the MD button when playing equipment
connected to MD jacks.
“\llDEO”or “MD” appears on the display.
2Play the connected equipment.
To change asource name in the display
When the VIDEO/AUX button is pressed, “VIDEO is displayed
initiclly. It can be changed to “AUX or “TV.
With the power on, press the POWER button while pressing the
VIDf:O/AUX button,
Rep?at the procedure to select one of the names.
CARE AND MAINTENANCE
Occasional care and maintenance of the unit and the software
are needed to optimize the performance of your unit.
To clean the cabinet
Use asoft and dry cloth,
If the surfaces are extremely dirty, use asoft cloth lightly
moistened with mild detergent solution. Do not use strong
solvents, such as alcohol, benzine or thinner as these could
damage the finish of the unit.
To clean the heads and tape paths
After every 10 hours of use, clean the heads and tape paths
with a head cleaning cassette or cotton swab moistened with
cleaning fluid or denatured alcohol. (These cleaning kits are
commercially available.)
When cleaning with acotton swab, wipe the recording/playback
head, erasure head, capstans, and pinchrollers.
Recordino/
Pinchroller Erasure head Pinchroller
mJ
n“
After cleaning the heads and tape paths with aliquid head m
cleaning cass-ette or amoistened swab, wait until the cleaned
parts are completely dry before inserting the tapes.
To demagnetize the heads
The heads may become magnetized after long-term use, This
may narrow the output range of recorded tapes and increase
noise. After 20 to 30 hours use, demagnetize the heads with
any commercially available demagnetizer.
Care of discs
●When adisc becomes dirty, wipe the disc from the center out
with acleaning cloth.
●After playing adisc, store the disc in its case. Do not leave the
disc in places that are hot or humid.
Care of tapes
●Store tapes in their cases after use.
●Do not leave tapes near magnets, molors, television sets, or
any source of magnetism. This will downgrade the sound
quality and cause noise.
●Do not expose tapes to direct sunlight, or leave them in acar
parked in direct sunlight.
ENGLISH18

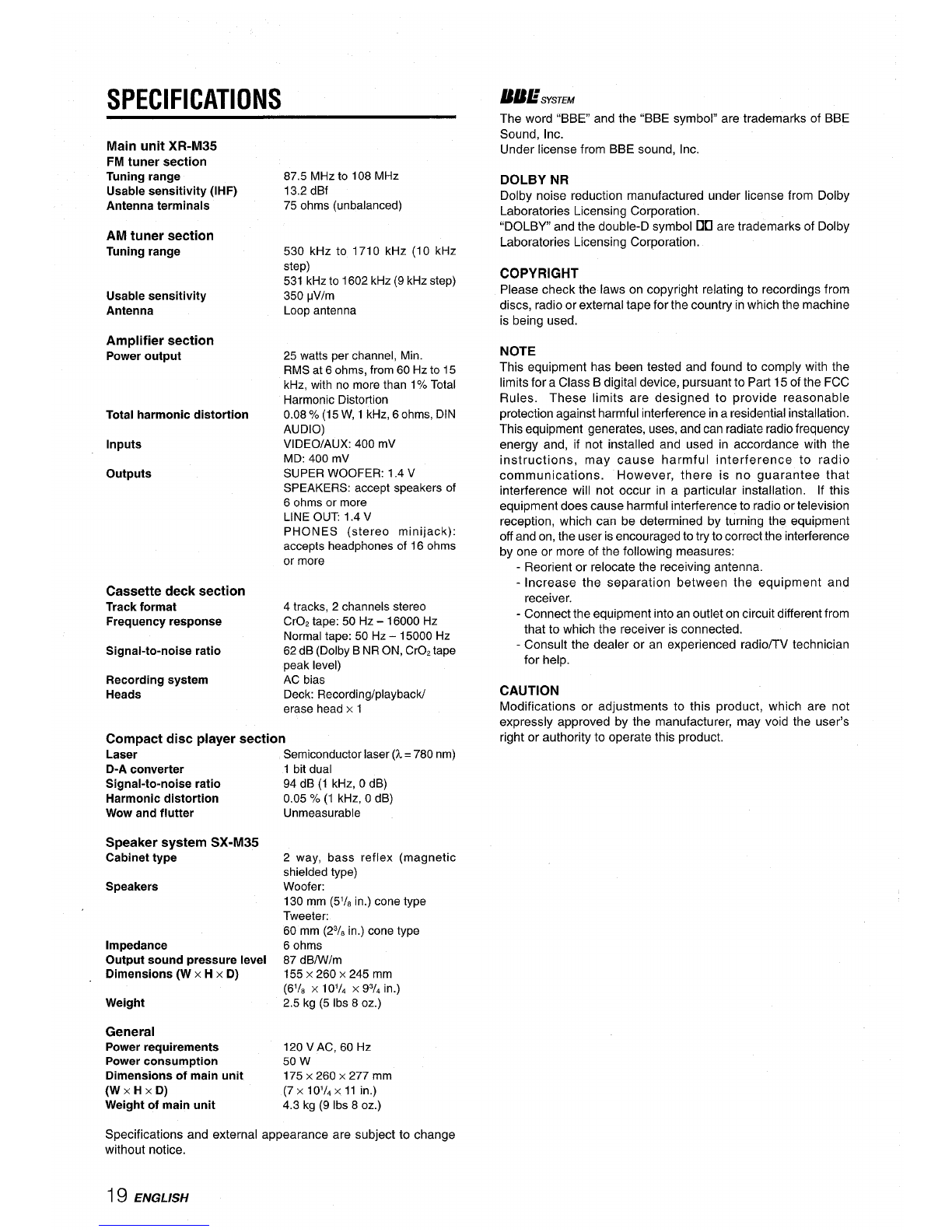

SPECIFICATIONS ltltEskiTEh.i
Main unit XR-M35
FM tuner section
Tuning range
Usable sensitivity (IHF)
Antenna terminals
AM tuner section
Tuning range
Usable sensitivity
Antenna
Amplifier section
Power output
Total harmonic distortion
Inputs
outputs
Cassette deck section
Track format
Frequency response
Signal-to-noise ratio
Recording system
Heads
87.5 MHz to 108 MHz
13.2 dBf
75 ohms (unbalanced)
530 kHz to 1710 kHz (10 kHz
step)
531 kHz to 1602 kHz (9 kHz step)
350 l.rV/m
Loop antenna
25 watts per channel, Min.
RMS at 6ohms, from 60 Hz to 15
kHz, with no more than 17. Total
Harmonic Distortion
0.08 %(15 W, 1kHz, 6ohms, DIN
AUDIO)
VIDEO/AUX: 400 mV
MD: 400 mV
SUPER WOOFER: 1.4 V
SPEAKERS: accept speakers of
6ohms or more
LINE OUT 1.4 V
PHONES (stereo mini jack):
accepts headphones of 16 ohms
or more
4tracks, 2channels stereo
CrO, tape: 50 Hz -16000 Hz
Normal tape: 50 Hz – 15000 Hz
62 dB (Dolby BNR ON, Cr02tape
peak level)
AC bias
Deck: Recording/playback/
erase head x1
Compact disc player section
Laser
D-A converter
Signal-to-noise ratio
Harmonic distortion
Wow and flutter
Speaker system SX-M35
Cabinet type
Speakers
Impedance
Output sound pressure level
Dimensions (W xHxD)
Weight
General
Power requirements
Power consumption
Dimensions of main unit
(W XHXD)
Weight of main unit
Semiconductor laser (k= 780 nm)
1bit dual
94 dB (1 kHz, OdB)
0.05 %(1 kHz, OdB)
Unmeasurable
2way, bass reflex (magnetic
shielded type)
Woofer:
130 mm (5’/a in.) cone type
Tweetec
60 mm (23/sin.) cone type
6ohms
87 dBIW/m
155 x260x 245 mm
(6’/8 x10’/, x93/, in.)
2.5 kg (5 Ibs 8OZ.)
120 VAC, 60 tiz
50 w
175 x 260 x 277 mm
(7x 101/, x 11 in.)
4.3 kg (9 Ibs 8OZ.)
The word “BBE” and the “BBE symbol” are trademarks of BBE
Sound, Inc.
Under license from BBE sound, Inc.
DOLBY NR
Dolby noise reduction manufactured under license from Dolby
Laboratories Licensing Corporation.
“DOLBY” and the double-D symbol no are trademarks of Dolby
Laboratories Licensing Corporation.
COPYRIGHT
Please checkthe lawsoncopyrightrelatingto recordingsfrom
discs, radio or external tape for the country in which the machine
is being used.
NOTE
This equipment has been tested and found to comply with the
limits for aClass Bdigital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in aresidential installation.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in aparticular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and
receiver.
-Connect the equipment into an outlet on circuit different from
that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician
for help.
CAUTION
Modifications or adjustments to this product, which are not
expressly approved by the manufacturer, may void the user’s
right or authority to operate this product.
Specifications and external appearance are subject to change
without notice.
I9ENGLISH
