Aiwa XR-M77 User manual

BASIC CD MECHANISM : KSM-213CDM
COMPACT DISC STEREO
SYSTEM
XR-M77
S/M Code No. 09-995-331-7R1
U
SERVICE MANUAL
REVISION
DATA
This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
(S/M Code No. 09-995-331-7T1).

2
TABLE OF CONTENTS
SPECIFICATIONS .................................................................................................................................. 3
ACCESSORIES/PACKAGE LIST ........................................................................................................... 3
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING/
Precaution to replace Optical block......................................................................................................... 4
ELECTRICAL MAIN PARTS LIST ....................................................................................................... 5-7

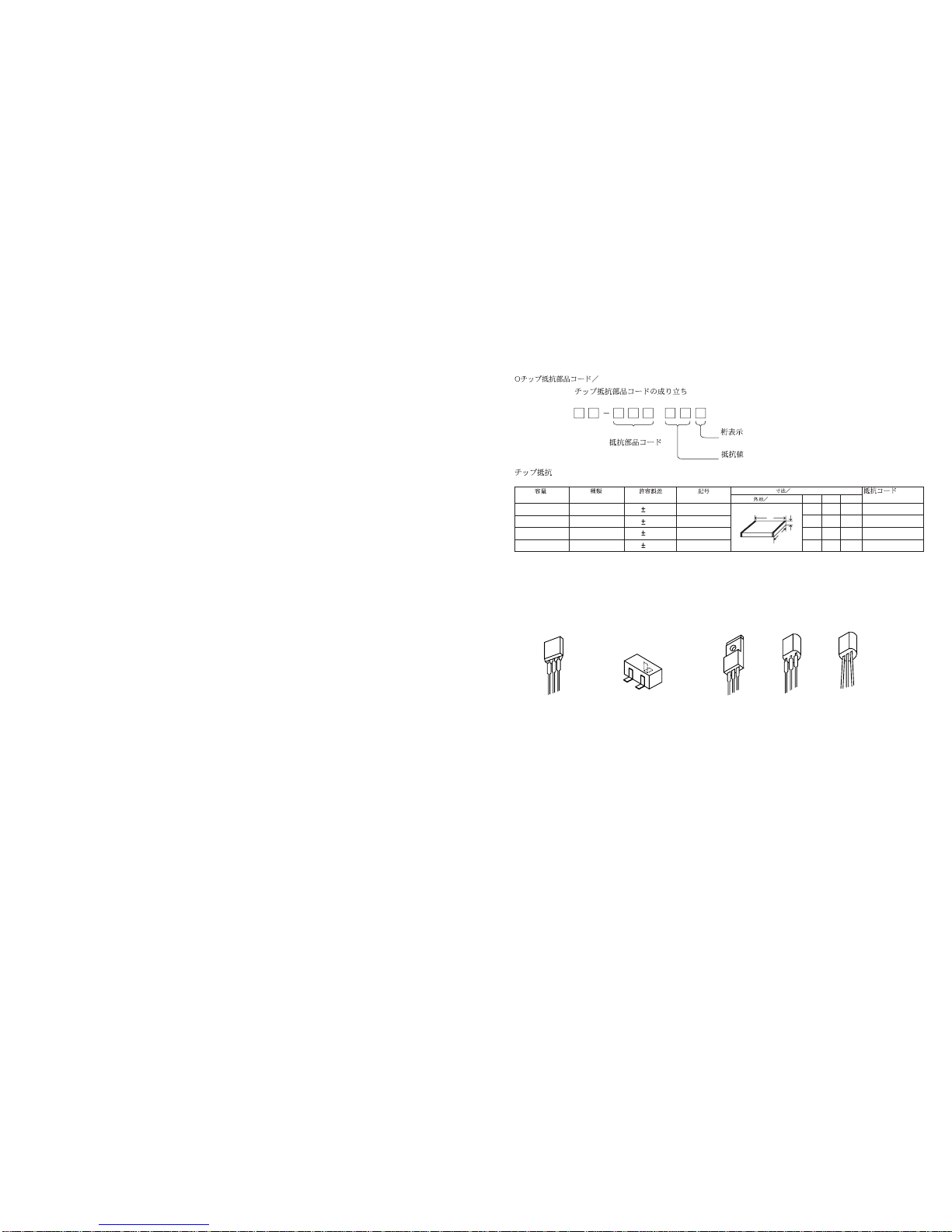

TRANSISTOR ILLUSTRATION .............................................................................................................. 8

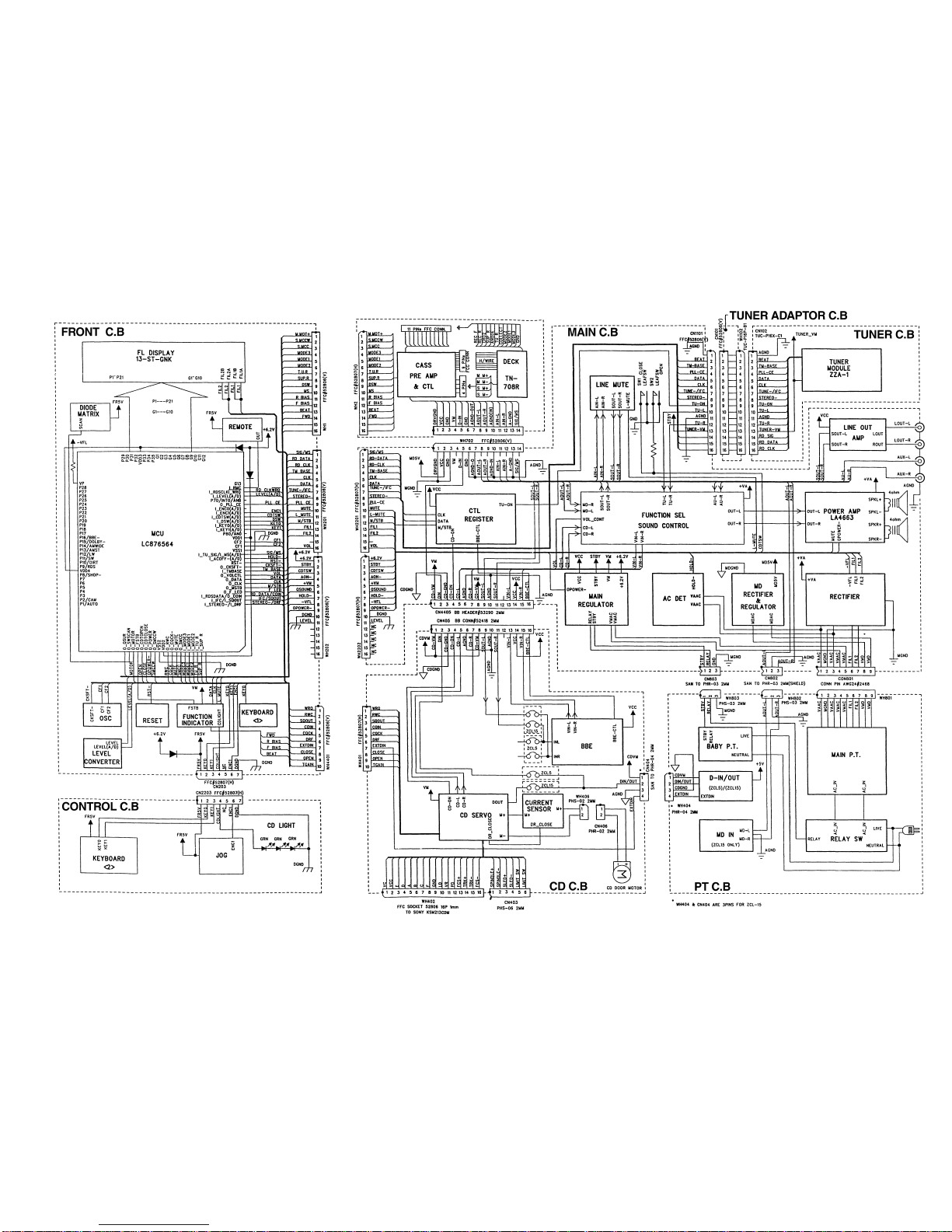

BLOCK DIAGRAM-1 ......................................................................................................................... 9, 10
BLOCK DIAGRAM-2 ....................................................................................................................... 11, 12

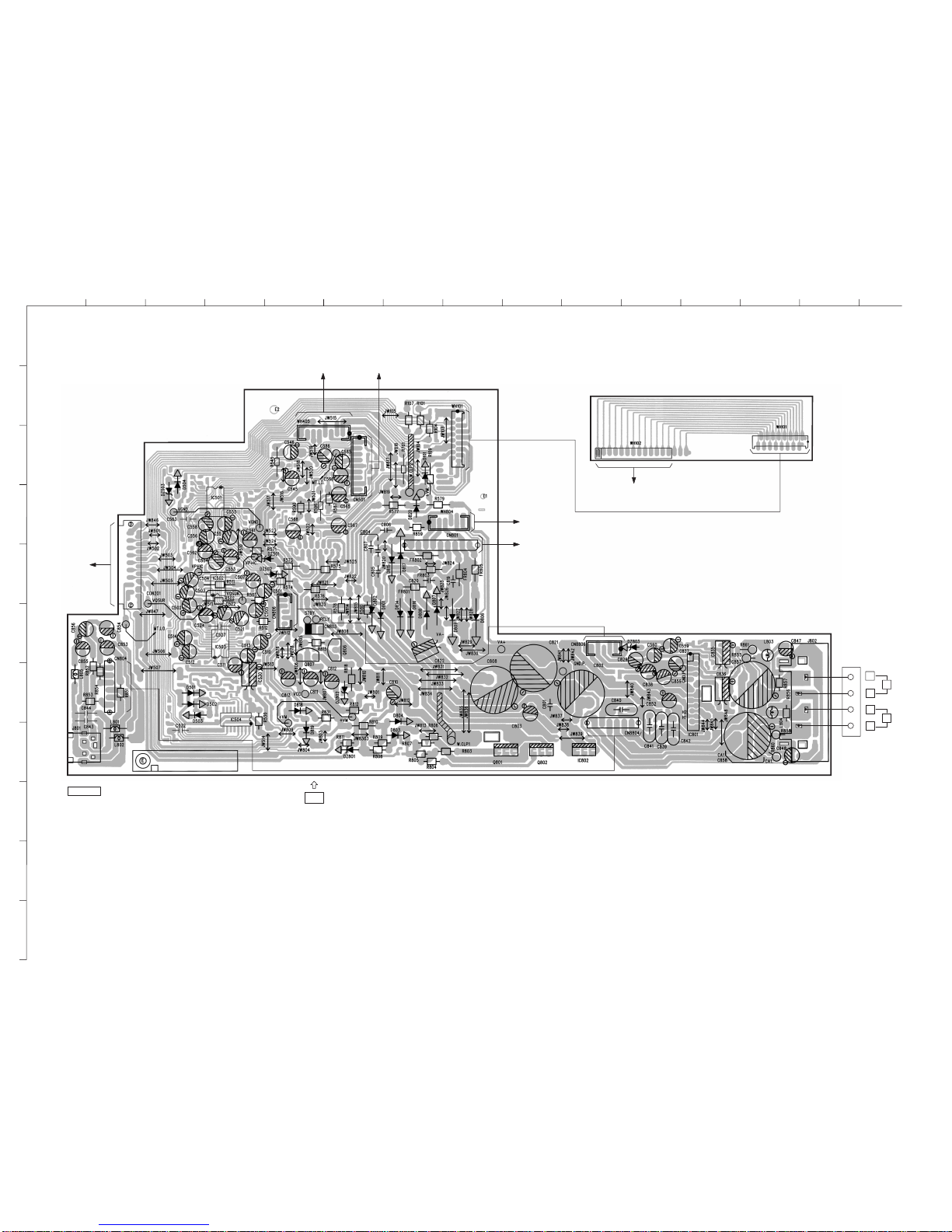

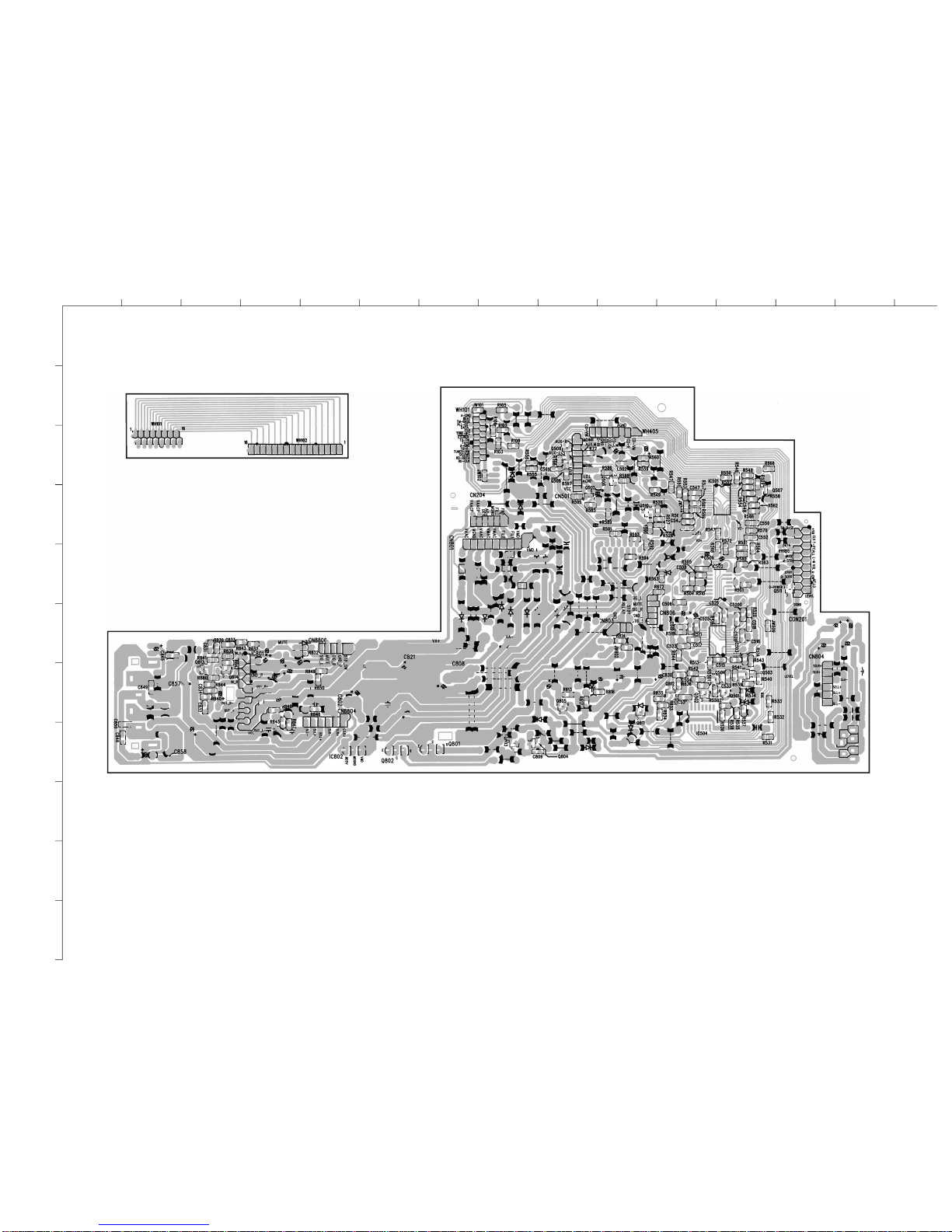

WIRING-1 (MAIN: INSERTED PARTS) .......................................................................................... 13, 14
WIRING-2 (MAIN: CHIP PARTS).................................................................................................... 15, 16

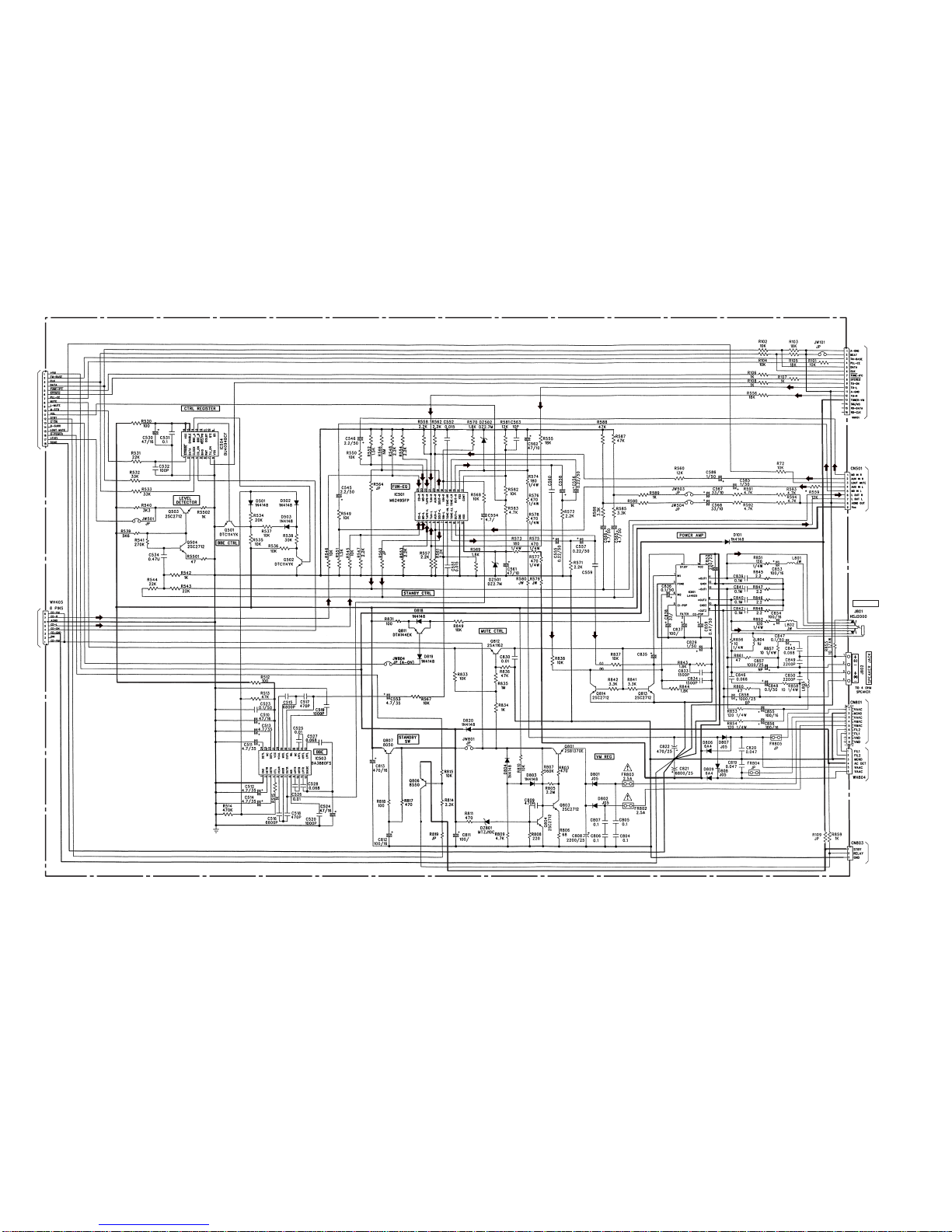

SCHEMATIC DIAGRAM-1 (MAIN).................................................................................................. 17, 18

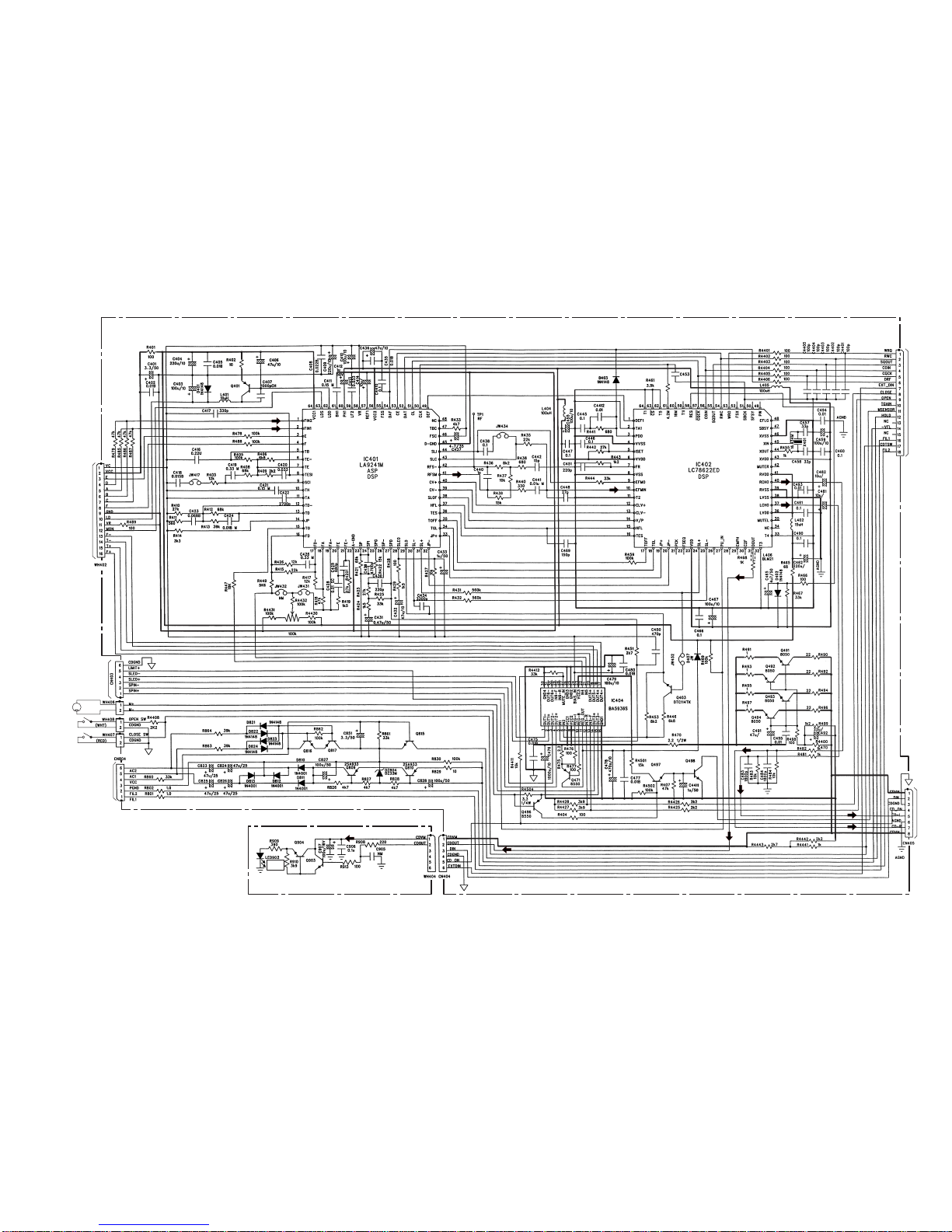

SCHEMATIC DIAGRAM-2 (CD) ..................................................................................................... 19, 20
WIRING-3 (CD: INSERTED PARTS).............................................................................................. 21, 22
WIRING-4 (CD: CHIP PARTS) ....................................................................................................... 23, 24

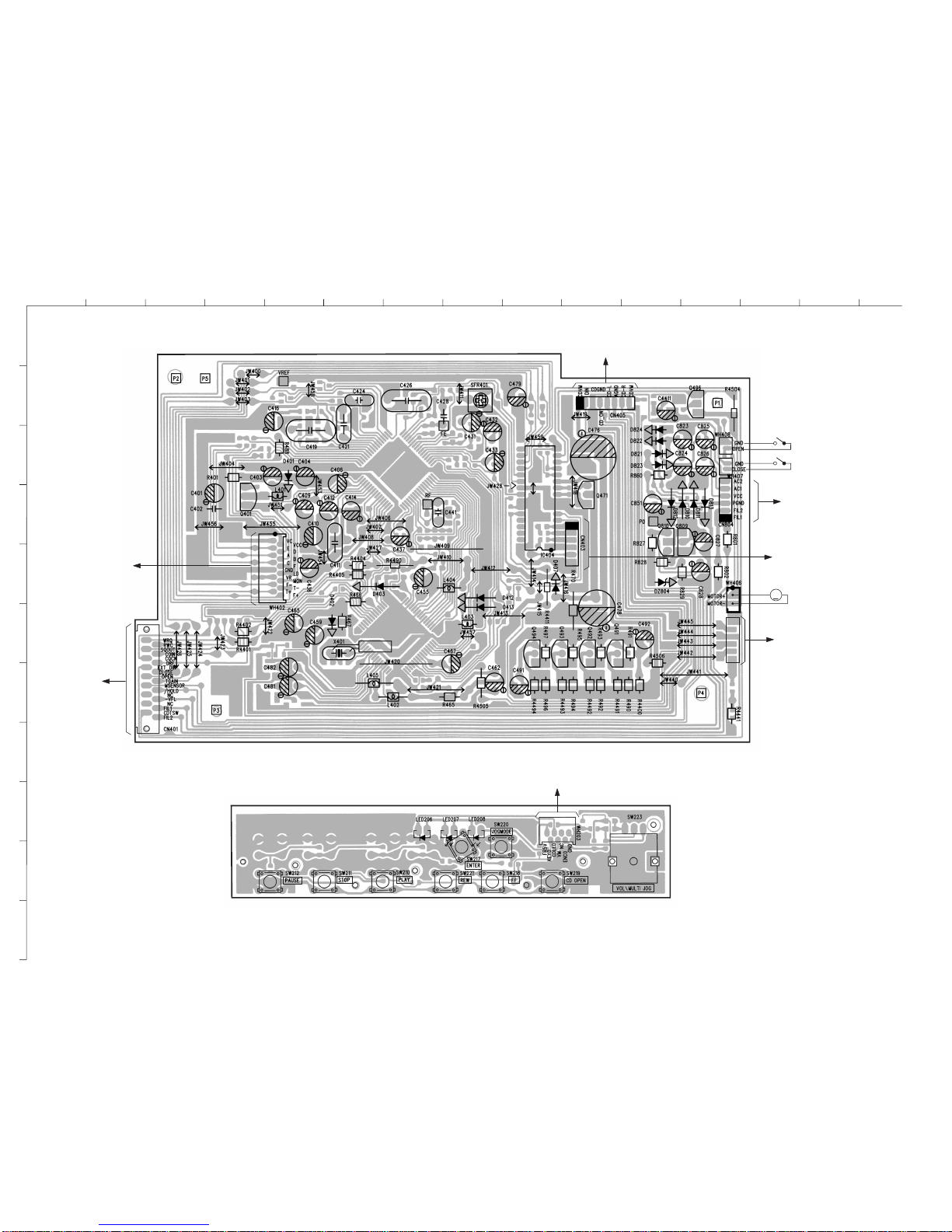

WIRING-5 (FRONT)........................................................................................................................ 25, 26
SCHEMATIC DIAGRAM-3 (FRONT) .............................................................................................. 27, 28

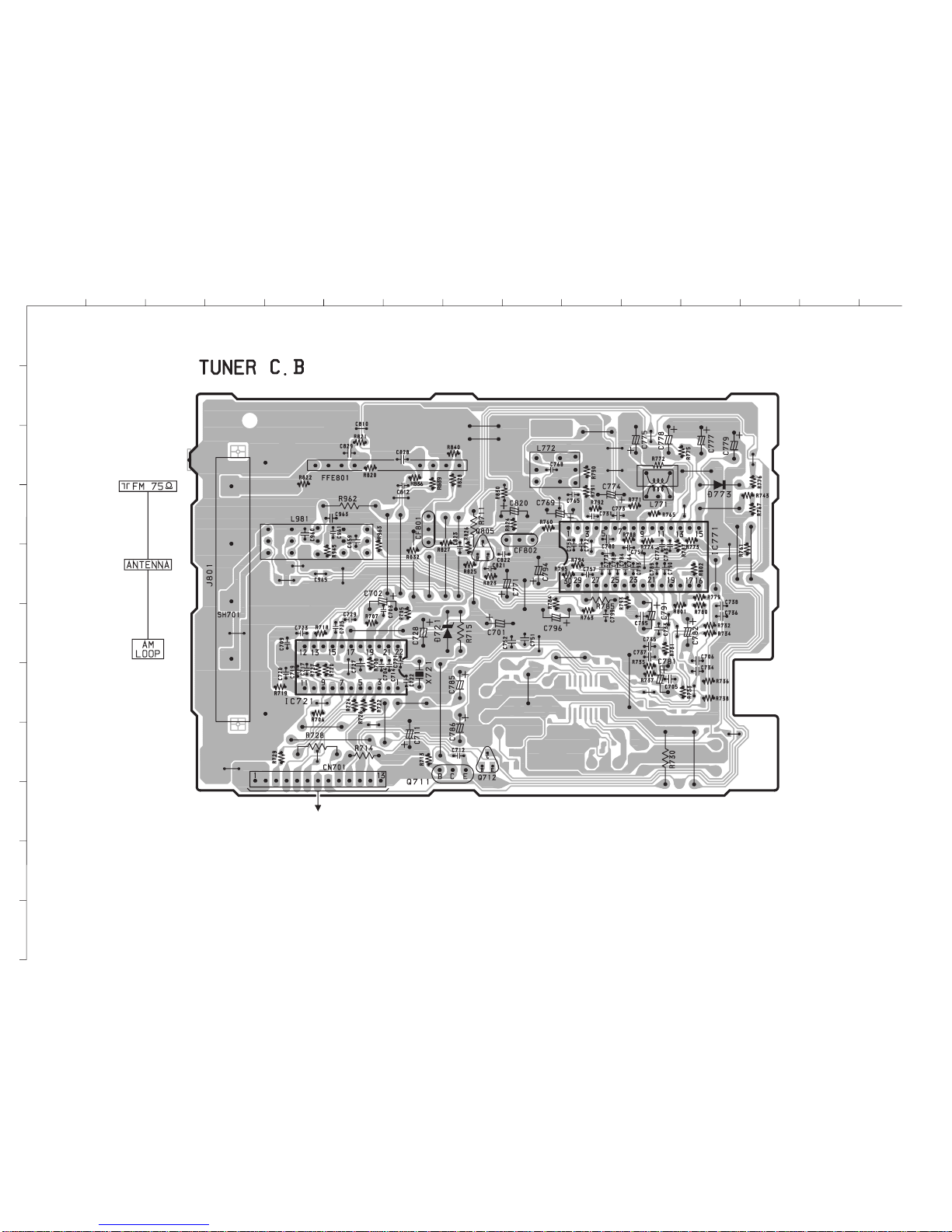

WIRING-6 (TUNER)........................................................................................................................ 29, 30
SCHEMATIC DIAGRAM-4 (TUNER) .............................................................................................. 31, 32

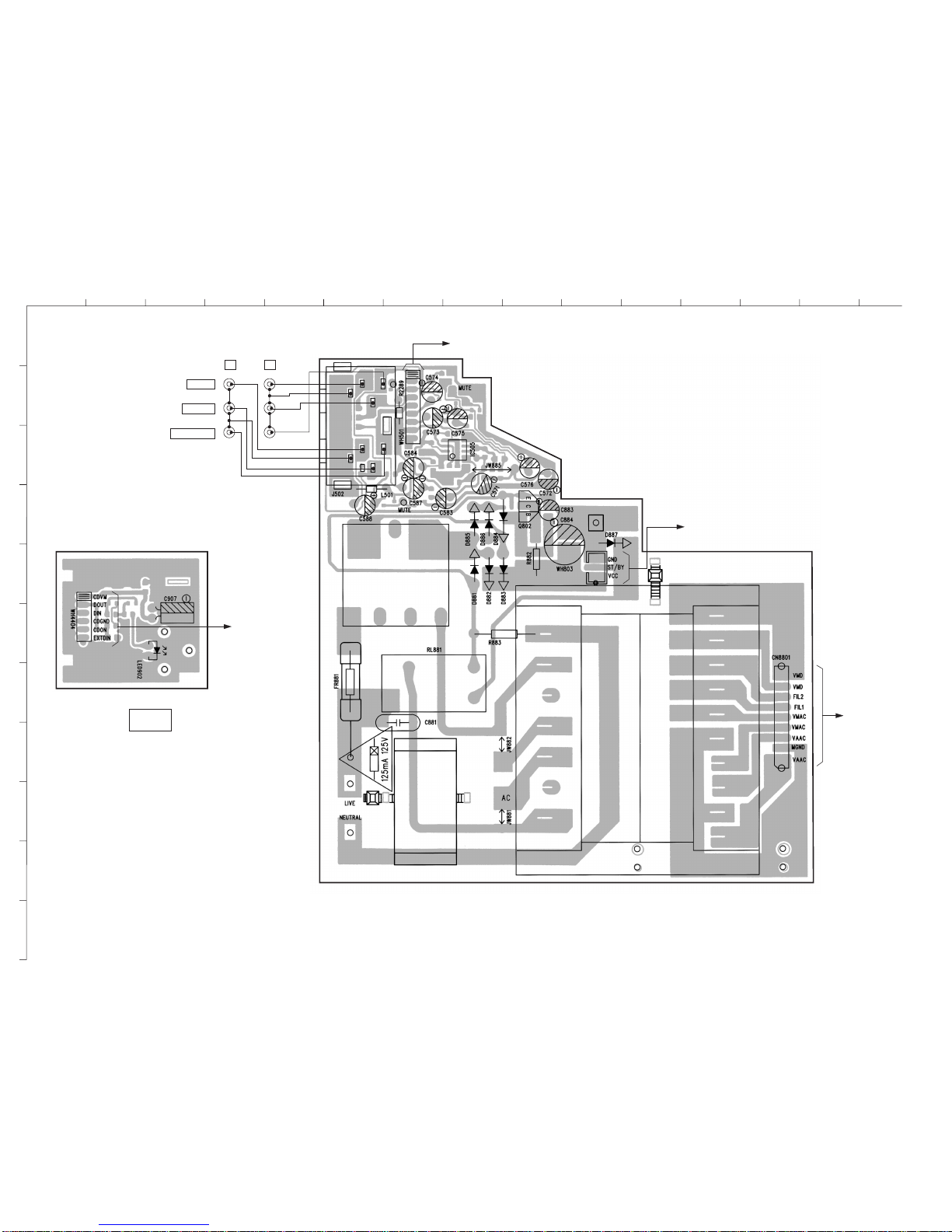

WIRING-7 (PT: INSERTED PARTS) .............................................................................................. 33, 34
WIRING-8 (PT: CHIP PARTS) ........................................................................................................ 35, 36
SCHEMATIC DIAGRAM-5 (PT) ...................................................................................................... 37, 38
WIRING-9 (MECHA) ............................................................................................................................. 39
VOLTAGE CHART........................................................................................................................... 40-42
FL GRID ASSIGNMENT/ANODE CONNECTION .......................................................................... 43, 44
ELECTRICAL ADJUSTMENT.......................................................................................................... 45-47
PRACTICAL SERVICE FIGURE........................................................................................................... 47
IC DESCRIPTION ............................................................................................................................ 48-53
IC BLOCK DIAGRAM...................................................................................................................... 54, 55
MECHANICAL PARTS LIST 1/1 ........................................................................................................... 56
MECHANICAL EXPLODED VIEW 1/1............................................................................................ 57, 58
CD MECHANISM EXPLODED VIEW 1/1 ............................................................................................ 59
CD MECHANISM PARTS LIST 1/1 ...................................................................................................... 59
SPEAKER DISASSEMBLY INSTRUCTIONS....................................................................................... 60
SPEAKER PARTS LIST 1/1.................................................................................................................. 61

3

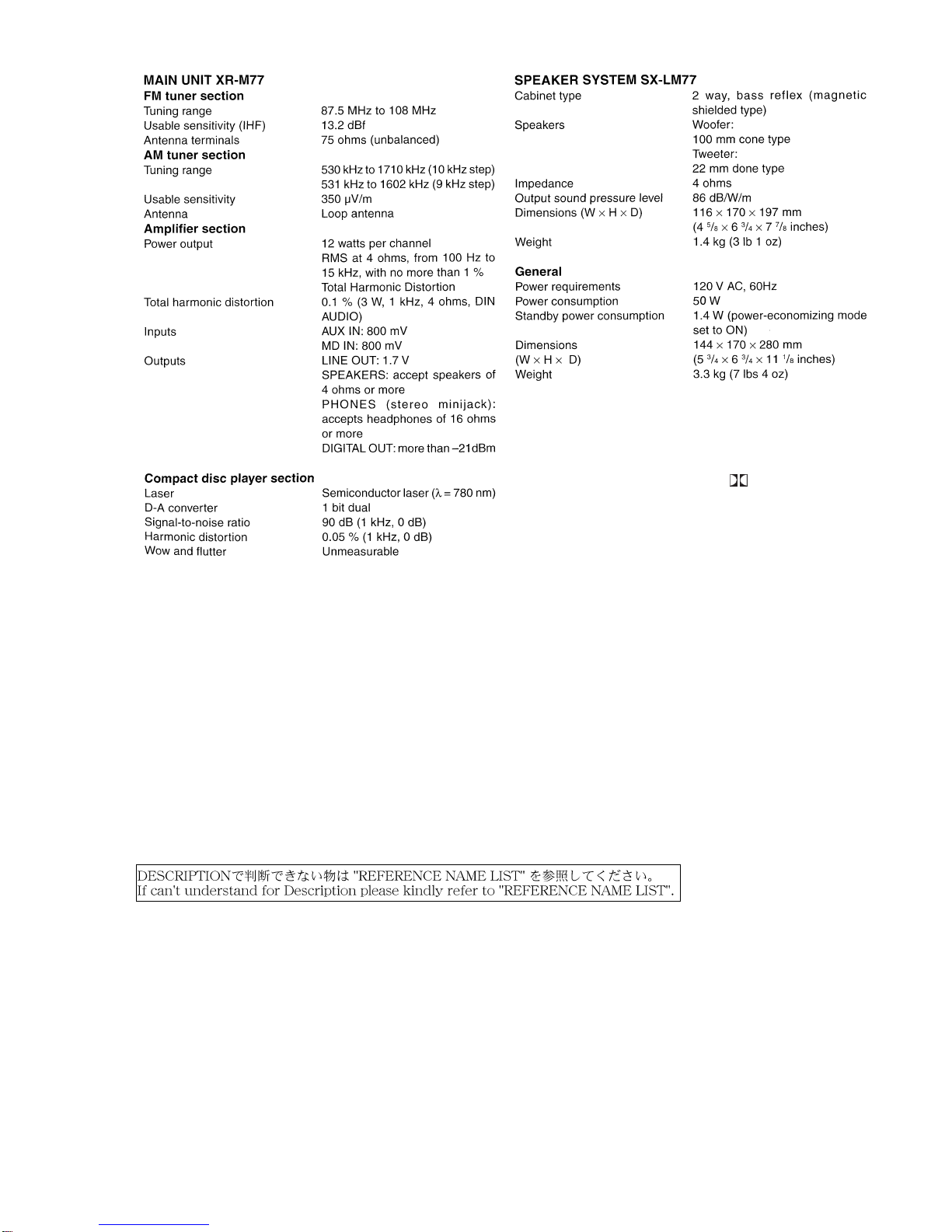

SPECIFICATIONS
•
Design and specifications are subject to change without
notice.
•
Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation.
“DOLBY” and the double-D symbol are trademarks
of Dolby Laboratories Licensing Corporation.
•
The word “BBE” and the “BBE symbol” are trademarks
of BBE Sound,Inc.
Under license from BBE Sound,Inc.
REF. NO PART NO. KANRI DESCRIPTION
NO.
ACCESSORIES/PACKAGE LIST
1 8Z-CLF-903-010 IB,U(ESF)A
2 87-043-115-010 ANT,FEEDER FM
3 87-A90-030-010 ANT,LOOP AM-NC C
4 8Z-CK4-962-010 RC UNIT,RC-ZAT04 (VS)

4
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainit-
ulla tavalla saattaa altistaa käyt-täjän turvallisuusluokan 1 ylit-
tävälle näkymättömälle lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som specificeras i
denna bruksanvising, kan användaren utsättas för osynling
laserstrålning, som överskrider gränsen för laserklass 1.
Caution: Invisible laser radiation when
open and interlocks defeated avoid expo-
sure to beam.
Advarsel:Usynling laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
ATTENTION
L'utilisation de commandes, réglages ou procédures autres que
ceux spécifiés peut entraîner une dangereuse exposition aux
radiations.
ADVARSEL!
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude
af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1 LASER
product.
The CLASS 1 LASER PRODUCT label is located on the rear
exterior.
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!
WHEN SERVICING, DO NOT APPROACH THE LASER EXIT
WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO
CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE
FROM A DISTANCE OF MORE THAN 30cm FROM THE
SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL
PICK-UP BLOCK.
CLASS 1
KLASSE 1
LUOKAN 1
KLASS 1
LASER PRODUCT
LASER PRODUKT
LASER LAITE
LASER APPARAT
Precaution to replace Optical block
(KSS-213C)
1) After the connection, remove solder shown in
the right figure.
Body or clothes electrostatic potential could ruin
laser diode in the optical block. Be sure ground
body and workbench, and use care the clothes
do not touch the diode.

5
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
ELECTRICAL MAIN PARTS LIST
IC
8Z-CL5-601-010 C-IC,LC876564-XXXX
87-070-282-010 IC,BU2092
8Z-CL5-616-010 IC,RPM638CBRL676/6938-V4
87-A20-446-010 C-IC,LA9241ML
87-A20-459-010 C-IC,LC78622ED
87-A20-445-010 IC,BA5936
87-A21-111-040 C-IC,M62495FP
87-A21-022-040 C-IC,BA3880FS
87-017-915-080 IC,BU4094BCF
87-070-391-040 IC,BA4558F
87-A20-909-010 IC,LA4663
87-070-127-110 IC,LC72131 D
87-A20-913-010 IC,LA1837NL
TRANSISTOR
89-327-125-080 CHIP TR,2SC2712GR
87-A30-087-080 C-FET,2SK2158
87-026-230-080 CHIP-TR,DTA114YK
89-111-625-080 TR,2SA1162 (0.15W)
87-026-235-080 CHIP-TR,DTC114EK
87-026-463-080 TR,2SA933S (0.3W)
87-026-239-080 TR,DTC114TK (0.2W)
87-026-213-080 CHIP-TR,DTC114YK
89-213-702-010 TR,2SB1370 (1.8W)
87-026-211-080 TR,DTA144EK
S7-805-000-020 TR,PE8050
87-026-210-080 TR,DTC144EK
89-318-155-810 TR,2SC1815GR
87-026-235-010 TR,DTC114EK
S7-855-000-020 TR,PE8550
DIODE
87-A40-345-080 ZENER,MTZJ10C
87-070-345-080 DIODE,IN4148
87-A40-337-080 ZENER,MTZJ 6.8B
88-CD9-651-090 DIODE,J05
87-A40-466-080 ZENER,MTZJ2.7A
87-002-743-080 ZENER,MTZJ 33B
8Z-CL5-626-010 DIODE,6A1
S8-CM2-609-010 DIODE,IN4001B
MAIN C.B
C510 87-015-688-080 CAP,E 4.7-35 7L
C511 87-015-688-080 CAP,E 4.7-35 7L
C512 87-015-688-080 CAP,E 4.7-35 7L
C513 87-015-688-080 CAP,E 4.7-35 7L
C514 87-015-688-080 CAP,E 4.7-35 7L
C515 87-010-188-080 CAP,CHIP 6800P
C516 87-010-188-080 CAP,CHIP 6800P
C517 87-012-140-080 CAP 470P
C518 87-012-140-080 CAP 470P
C519 87-010-178-080 CHIP CAP 1000P
C520 87-010-178-080 CHIP CAP 1000P
C521 87-015-695-080 CAP,E 1-50 7L
C522 87-015-695-080 CAP,E 1-50 7L
C523 87-010-178-080 CHIP CAP 1000P
C524 87-015-684-080 CAP,E 47-16 7L
C525 87-010-178-080 CHIP CAP 1000P
C526 87-010-197-080 CAP, CHIP 0.01 DM
C528 87-010-195-080 C-CAP,S 0.068-25 F
C530 87-015-684-080 CAP,E 47-16 7L
C531 87-010-196-080 CHIP CAPACITOR,0.1-25
C532 87-010-322-080 C-CAP,S 100P-50 CH
C545 87-015-696-080 CAP,E 2.2-50 7L
C546 87-015-696-080 CAP,E 2.2-50 7L
C551 87-010-213-080 C-CAP,S 0.015-50 B
C552 87-010-213-080 C-CAP,S 0.015-50 B
C553 87-015-688-080 CAP,E 4.7-35 7L
C554 87-015-688-080 CAP,E 4.7-35 7L
C555 87-015-692-080 CAP,E 0.22-50 7L
C556 87-015-692-080 CAP,E 0.22-50 7L
C557 87-015-692-080 CAP,E 0.22-50 7L
C558 87-015-692-080 CAP,E 0.22-50 7L
C561 87-015-680-080 CAP,E 47-10 7L
C562 87-015-680-080 CAP,E 47-10 7L
C563 87-010-154-080 CAP CHIP 10P
C565 87-015-688-080 CAP,E 4.7-35 7L
C566 87-015-688-080 CAP,E 4.7-35 7L
C567 87-015-679-080 33U 10V SRA
C568 87-015-679-080 33U 10V SRA
C585 87-015-695-080 CAP,E 1-50 7L
C586 87-015-695-080 CAP,E 1-50 7L
C804 87-010-196-080 CHIP CAPACITOR,0.1-25
C805 87-010-196-080 CHIP CAPACITOR,0.1-25
C806 87-010-196-080 CHIP CAPACITOR,0.1-25
C807 87-010-196-080 CHIP CAPACITOR,0.1-25
C808 87-010-389-090 CAP, E 2200-25 SME
C809 87-012-140-080 CAP 470P
C811 87-010-060-080 ELECTROLYTIC 100-16V
C812 87-010-060-080 ELECTROLYTIC 100-16V
C813 87-010-235-080 CAP,E 470-16 SME
C819 87-010-194-080 CAP, CHIP 0.047
C820 87-010-194-080 CAP, CHIP 0.047
C821 87-010-889-010 CAP,E 6800-25
C822 87-010-387-080 CAP,E 470-25 SME
C829 87-015-681-080 CAP,E 10-16 7L
C830 87-010-197-080 CAP, CHIP 0.01 DM
C833 87-010-213-080 C-CAP,S 0.015-50 B
C834 87-010-213-080 C-CAP,S 0.015-50 B
C835 87-015-688-080 CAP,E 4.7-35 7L
C836 87-015-688-080 CAP,E 4.7-35 7L
C837 87-010-247-080 CAP, ELECT 100-50V
C847 87-015-691-080 CAP,E 0.1-50 7L
C848 87-015-691-080 CAP,E 0.1-50 7L
C849 87-010-182-080 C-CAP,S 2200P-50 B
C850 87-010-182-080 C-CAP,S 2200P-50 B
C853 87-010-060-080 ELECTROLYTIC 100-16V
C854 87-010-060-080 ELECTROLYTIC 100-16V
C855 87-010-060-080 ELECTROLYTIC 100-16V
C856 87-010-060-080 ELECTROLYTIC 100-16V
C859 87-015-694-080 CAP,E 0.47-50 7L
CN201 87-A60-778-010 CONN,18P B TMC-D(P)
CN203 8Z-CL5-618-010 CONN,7P H WHT 528070710
CN803 87-009-031-010 CONNECTOR, 3P
! FR802 87-A91-266-010 FUSE,2.5A 125V F 51NM
! FR803 87-A91-266-010 FUSE,2.5A 125V F 51NM
J801 87-009-216-010 JACK, DIA 3.5
J802 87-A60-238-010 TERMINAL,SP 4P (MSC)
W801 8Z-CL5-622-010 F-CABLE,9P 2.5 250MM UL2468 AW
FRONT C.B
C201 87-010-196-080 CHIP CAPACITOR,0.1-25
C202 87-010-196-080 CHIP CAPACITOR,0.1-25
C203 87-010-196-080 CHIP CAPACITOR,0.1-25
C204 87-015-698-080 CAP,E 4.7-50 7L
C205 87-015-698-080 CAP,E 4.7-50 7L
C206 87-010-408-080 CAP, ELECT 47-50V
C207 87-010-196-080 CHIP CAPACITOR,0.1-25
C208 87-010-322-080 C-CAP,S 100P-50 CH
C209 87-010-196-080 CHIP CAPACITOR,0.1-25
C210 87-010-312-080 C-CAP,S 15P-50 CH
C211 87-010-198-080 CAP, CHIP 0.022
C212 87-010-196-080 CHIP CAPACITOR,0.1-25
C213 87-012-145-080 CAP, CHIP S 270P CH
C214 87-010-178-080 CHIP CAP 1000P

6
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
C215 87-015-681-080 CAP,E 10-16 7L
C216 87-015-694-080 CAP,E 0.47-50 7L
C217 87-010-196-080 CHIP CAPACITOR,0.1-25
C218 87-010-248-080 CAP, ELECT 220-10V
C221 87-010-196-080 CHIP CAPACITOR,0.1-25
C222 87-015-694-080 CAP,E 0.47-50 7L
C223 87-010-196-080 CHIP CAPACITOR,0.1-25
C224 87-015-681-080 CAP,E 10-16 7L
C225 87-010-194-080 CAP, CHIP 0.047
C227 87-010-248-080 CAP, ELECT 220-10V
C228 87-010-196-080 CHIP CAPACITOR,0.1-25
C229 87-015-696-080 CAP,E 2.2-50 7L
C230 87-015-680-080 CAP,E 47-10 7L
CN201 87-A60-770-010 CONN,18P B TMC-D(X)
CN205 8Z-CL5-617-010 CONN,7P V WHT 528060710
D217 87-020-331-080 CHIP-DIODE,DAN202K
D220 87-020-331-080 CHIP-DIODE,DAN202K
D221 87-020-331-080 CHIP-DIODE,DAN202K
D222 87-020-330-080 DIODE,DAP202K
DP201 8Z-CL1-630-010 FL,13-ST-36GNAK
L201 87-A50-052-010 COIL,CLOCK 5.76MHZ T1
LED201 8Z-CL5-613-010 LED,SE6201AT RED W/REFCT
LED202 8Z-CL5-615-010 LED,W03327GRHW GR/RED DUAL COL
LED203 8Z-CL5-615-010 LED,W03327GRHW GR/RED DUAL COL
LED204 8Z-CL5-615-010 LED,W03327GRHW GR/RED DUAL COL
LED205 8Z-CL5-615-010 LED,W03327GRHW GR/RED DUAL COL
S201 87-036-073-010 TACT SWITCH
S202 87-036-073-010 TACT SWITCH
S203 87-036-073-010 TACT SWITCH
S204 87-036-073-010 TACT SWITCH
S205 87-036-073-010 TACT SWITCH
S206 87-036-073-010 TACT SWITCH
S207 87-036-073-010 TACT SWITCH
CD C.B
C401 87-015-697-080 CAP,E 3.3-50 7L
C402 87-010-197-080 CAP, CHIP 0.01 DM
C403 87-010-264-010 CAP,E 100-10
C404 87-010-754-080 CAP,E220-10 SRA 7L
C405 87-010-197-080 CAP, CHIP 0.01 DM
C406 87-015-680-080 CAP,E 47-10 7L
C407 87-010-178-080 CHIP CAP 1000P
C408 87-010-198-080 CAP, CHIP 0.022
C409 87-010-754-080 CAP,E220-10 SRA 7L
C410 87-010-060-080 ELECTROLYTIC 100-16V
C412 87-015-691-080 CAP,E 0.1-50 7L
C413 87-010-193-080 CHIP CAPACITOR,0.033
C414 87-015-681-080 CAP,E 10-16 7L
C416 87-015-692-080 CAP,E 0.22-50 7L
C417 87-012-157-080 C-CAP,S 330P-50 CH
C418 87-010-213-080 C-CAP,S 0.015-50 B
C420 87-010-193-080 CHIP CAPACITOR,0.033
C422 87-010-183-080 C-CAP,S 2700P-50 B
C423 87-010-195-080 C-CAP,S 0.068-25 F
C425 87-010-176-080 C-CAP,S 680P-50 SL
C429 87-010-186-080 CAP,CHIP 4700P
C430 87-012-156-080 C-CAP,S 220P-50 CH
C431 87-015-694-080 CAP,E 0.47-50 7L
C432 87-015-680-080 CAP,E 47-10 7L
C433 87-015-695-080 CAP,E 1-50 7L
C434 87-010-184-080 CHIP CAPACITOR 3300P(K)
C435 87-010-197-080 CAP, CHIP 0.01 DM
C436 87-015-680-080 CAP,E 47-10 7L
C437 87-015-688-080 CAP,E 4.7-35 7L
C438 87-010-196-080 CHIP CAPACITOR,0.1-25
C442 87-010-312-080 C-CAP,S 15P-50 CH
C445 87-010-196-080 CHIP CAPACITOR,0.1-25
C446 87-010-196-080 CHIP CAPACITOR,0.1-25
C447 87-010-196-080 CHIP CAPACITOR,0.1-25
C448 87-010-315-080 C-CAP,S 27P-50 CH
C450 87-012-140-080 CAP 470P
C451 87-012-156-080 C-CAP,S 220P-50 CH
C453 87-010-322-080 C-CAP,S 100P-50 CH
C455 87-010-060-080 ELECTROLYTIC 100-16V
C457 87-010-316-080 C-CAP,S 33P-50 CH
C458 87-010-316-080 C-CAP,S 33P-50 CH
C459 87-010-060-080 ELECTROLYTIC 100-16V
C460 87-010-196-080 CHIP CAPACITOR,0.1-25
C461 87-010-196-080 CHIP CAPACITOR,0.1-25
C462 87-A10-505-080 CAP,E 220-6.3 SF
C465 87-015-688-080 CAP,E 4.7-35 7L
C466 87-010-196-080 CHIP CAPACITOR,0.1-25
C467 87-010-060-080 ELECTROLYTIC 100-16V
C468 87-010-322-080 C-CAP,S 100P-50 CH
C469 87-012-154-080 C-CAP,S 150P-50 CH
C475 87-010-197-080 CAP, CHIP 0.01 DM
C476 87-010-236-080 CAP,E 1000-10 SME
C477 87-010-197-080 CAP, CHIP 0.01 DM
C478 87-010-221-080 CAP, ELECT 470-10V
C479 87-010-060-080 ELECTROLYTIC 100-16V
C480 87-010-197-080 CAP, CHIP 0.01 DM
C481 87-015-681-080 CAP,E 10-16 7L
C482 87-015-681-080 CAP,E 10-16 7L
C483 87-010-181-080 CAP,CHIP S 1800P
C484 87-010-181-080 CAP,CHIP S 1800P
C490 87-010-196-080 CHIP CAPACITOR,0.1-25
C491 87-015-684-080 CAP,E 47-16 7L
C492 87-015-682-080 CAP,E 22-16 7L
C493 87-010-197-080 CAP, CHIP 0.01 DM
C494 87-010-197-080 CAP, CHIP 0.01 DM
C494 87-010-197-080 CAP, CHIP 0.01 DM
C495 87-010-197-080 CAP, CHIP 0.01 DM
C823 87-010-260-080 CAP, ELECT 47-25V
C824 87-010-260-080 CAP, ELECT 47-25V
C825 87-010-260-080 CAP, ELECT 47-25V
C825 87-010-260-080 CAP, ELECT 47-25V
C826 87-010-260-080 CAP, ELECT 47-25V
C827 87-010-247-080 CAP, ELECT 100-50V
C828 87-010-247-080 CAP, ELECT 100-50V
C851 87-015-697-080 CAP,E 3.3-50 7L
C4401 87-010-322-080 C-CAP,S 100P-50 CH
C4402 87-010-322-080 C-CAP,S 100P-50 CH
C4403 87-010-322-080 C-CAP,S 100P-50 CH
C4404 87-010-322-080 C-CAP,S 100P-50 CH
C4405 87-010-322-080 C-CAP,S 100P-50 CH
C4410 87-010-196-080 CHIP CAPACITOR,0.1-25
C4411 87-015-681-080 CAP,E 10-16 7L
C4412 87-010-197-080 CAP, CHIP 0.01 DM
CN405 87-009-036-010 CONNECTOR, 8P PH V WHT
CN804 87-009-034-010 CONN,6P PH V
CNA404 8Z-CL5-619-010 CONN ASSY,6P PHR06-170MM JST
CNA407 8Z-CL5-611-010 CONN ASSY,2P RED ZHRAWG28 UL15
CNA408 8Z-CL5-612-010 CONN ASSY,2P BLU ZHRAWG28 UL15
L401 87-005-730-080 COIL,10UH J SP02
L402 87-005-510-080 COIL,15UH
L403 S0-035-341-000 BEAD,COIL,100UH
L404 87-005-742-080 COIL,100UH J SP02
L405 87-005-742-080 COIL,100UH J SP02
L406 S1-212-720-000 BLM21B272SPT
M401 87-A91-069-010 MOT,RF-370CA15370
S401 8Z-CL5-609-010 SW,PUSH 1-1-1 MQS2
S402 8Z-CL5-609-010 SW,PUSH 1-1-1 MQS2
SFR401 87-024-437-080 SFR100K,RH063EC
W401 8Z-CL5-604-010 FF-CABLE, 16P 1.0 100MM
WH402 8Z-CL5-610-010 CONN,16P H WHT 528071610
WH404 87-A60-116-010 CONN,6P H S2M-6WR
WH407 87-009-865-010 CONN,2P ZH BLU
WH408 87-009-863-010 CONN,2P ZH WHT
X401 81-592-641-010 VIB,CER 16.93MHZ

REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
CONTROL C.B
C219 87-010-197-080 CAP, CHIP 0.01 DM
C220 87-010-197-080 CAP, CHIP 0.01 DM
LED206 8Z-CL5-614-010 LED,W03304GSC-SC GR
LED207 8Z-CL5-614-010 LED,W03304GSC-SC GR
LED208 8Z-CL5-614-010 LED,W03304GSC-SC GR
S210 87-036-073-010 TACT SWITCH
S211 87-036-073-010 TACT SWITCH
S212 87-036-073-010 TACT SWITCH
S217 87-036-073-010 TACT SWITCH
S219 87-036-073-010 TACT SWITCH
S220 87-036-073-010 TACT SWITCH
S221 87-036-073-010 TACT SWITCH
S223 87-A90-646-010 SW,RTRY 3-2-1 RE0131
W203 8Z-CL5-603-010 FF-CABLE, 7P 1.0 150MM UL2896
TUNER C.B
C701 87-010-381-080 CAP, ELECT 330-16V
C702 87-010-404-080 CAP, ELECT 4.7-50V
C709 87-012-195-080 C-CAP,U 100P-50CH
C711 87-010-260-080 CAP, ELECT 47-25V
C712 87-010-831-080 C-CAP,U,0.1-16F
C721 87-012-176-080 CAP 15P
C722 87-012-176-080 CAP 15P
C725 87-012-274-080 CHIP CAP,U 1000P-50B
C727 87-010-196-080 CHIP CAPACITOR,0.1-25
C728 87-010-248-080 CAP, ELECT 220-10V
C729 87-012-274-080 CHIP CAP,U 1000P-50B
C731 87-012-286-080 CAP, U 0.01-25
C751 87-012-365-080 C-CAP,S 0.027-25VBK
C752 87-012-365-080 C-CAP,S 0.027-25VBK
C757 87-012-188-080 C-CAP,U 47P-50 CH
C758 87-012-167-080 C-CAP,U 5P-50 CH
C763 87-010-829-080 CAP, U 0.047-16
C764 87-012-337-080 C-CAP,U 56P-50 CH
C769 87-010-260-080 CAP, ELECT 47-25V
C770 87-010-829-080 CAP, U 0.047-16
C771 87-010-383-080 CAP, ELECT 33-25V
C772 87-010-829-080 CAP, U 0.047-16
C773 87-010-196-080 CHIP CAPACITOR,0.1-25
C774 87-010-263-080 CAP, ELECT 100-10V
C775 87-010-404-080 CAP, ELECT 4.7-50V
C777 87-010-400-080 CAP, ELECT 0.47-50V
C778 87-010-401-080 CAP, ELECT 1-50V
C779 87-010-401-080 CAP, ELECT 1-50V
C781 87-010-405-080 CAP, ELECT 10-50V
C782 87-010-405-080 CAP, ELECT 10-50V
C783 87-012-286-080 CAP, U 0.01-25
C785 87-010-401-080 CAP, ELECT 1-50V
C786 87-010-401-080 CAP, ELECT 1-50V
C789 87-012-275-080 C-CAP,U 1200P-50 B
C790 87-012-275-080 C-CAP,U 1200P-50 B
C791 87-010-405-080 CAP, ELECT 10-50V
C793 87-012-273-080 C-CAP,U 820P-50 B
C794 87-010-406-080 CAP, ELECT 22-50
C795 87-010-596-080 CAP, S 0.047-16
C796 87-010-403-080 CAP, ELECT 3.3-50V
C799 87-010-829-080 CAP, U 0.047-16
C820 87-010-260-080 CAP, ELECT 47-25V
C959 87-010-196-080 CHIP CAPACITOR,0.1-25
C960 87-010-196-080 CHIP CAPACITOR,0.1-25
C961 87-012-174-080 CAP CHIP CERA SS 12P CHJ
C963 87-010-196-080 CHIP CAPACITOR,0.1-25
CF801 87-008-261-010 FILTER, SFE10.7MA5-A
CF802 87-008-261-010 FILTER, SFE10.7MA5-A
CN701 87-A60-700-010 CONN,13P H GRY TUC-P13X-C1
FFE801 A8-8ZA-190-030 8ZA-1 FEUNM
J801 87-A60-702-010 TERMINAL,ANT 4P CJ-9036
L771 87-A50-266-010 COIL,FM DET-2N(TOK)
L772 87-A91-110-010 FLTR,PCFJZH-450 (TOK)
L981 8Z-ZA1-664-010 COIL,AM PACK 4(TOK)
X721 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
DIGITAL OUT C.B
C906 87-010-197-080 CAP, CHIP 0.01 DM
C907 87-010-060-080 ELECTROLYTIC 100-16V
LED902 87-A40-558-010 LED,SLZ-8128A-01-A
PT C.B
C571 87-010-060-080 ELECTROLYTIC 100-16V
C572 87-010-060-080 ELECTROLYTIC 100-16V
C573 87-015-688-080 CAP,E 4.7-35 7L
C574 87-015-688-080 CAP,E 4.7-35 7L
C575 87-015-688-080 CAP,E 4.7-35 7L
C576 87-015-688-080 CAP,E 4.7-35 7L
C577 87-010-176-080 C-CAP,S 680P-50 SL
C578 87-010-176-080 C-CAP,S 680P-50 SL
C579 87-010-318-080 C-CAP,S 47P-50 CH
C580 87-010-318-080 C-CAP,S 47P-50 CH
C581 87-012-154-080 C-CAP,S 150P-50 CH
C582 87-012-154-080 C-CAP,S 150P-50 CH
C583 87-015-695-080 CAP,E 1-50 7L
C584 87-015-695-080 CAP,E 1-50 7L
C587 87-015-695-080 CAP,E 1-50 7L
C588 87-015-695-080 CAP,E 1-50 7L
C881 87-A10-479-080 CAP,CER 2200P-250 M E KH
C883 87-015-681-080 CAP,E 10-16 7L
C884 87-010-387-080 CAP,E 470-25 SME
! FR881 87-A91-276-080 FUSE,125MA 125V F 251
J501 8Z-CL5-608-010 JACK,PIN 6P VERTICAL
P1 87-A60-317-010 TERMINAL, 1P MSC
P2 87-A60-317-010 TERMINAL, 1P MSC
! PT881 8Z-CL5-681-010 PT,U L6636EI-66/36
! PT882 8Z-NF8-661-010 PT,SUB ZNF-8(U)
! RL881 87-A90-976-010 RELAY,AC12V SDT-S-112LMR
MOTOR C.B
M2 9X-262-576-910 MOTOR GEAR ASSY
PIN3 91-564-722-110 CONNECTOR 6P
SW1 91-572-085-120 LEAF SW
87
TRANSISTOR ILLUSTRATION
• Regarding connectors, they are not stocked as they are not the initial order items.
The connectors are available after they are supplied from connector manufacturers upon the order is received.
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ 1.0 0.5 0.35 104
Lt
W
ECB
PE8050
PE8550
ECB
2SC1815
ECB
2SA933 2SB1370
BE
C
2SA1162
2SC2712
DTA114YK
DTA144EK
DTC114EK
DTC114TK
DTC114YK
BCE

109
BLOCK DIAGRAM-1

1211
BLOCK DIAGRAM-2

123456789
10 11 12 13 14
A
B
C
D
E
F
G
H
I
J
K
1413
WIRING-1 (MAIN: INSERTED PARTS)
TUNER ADAPTOR C. B
MAIN C. B
1
1
1
1
1
1
124
1
6
12 13
24
8
916
3
5
1
1
1
14
6
5
9
6
13
TO/FROM
FRONT C.B WH201
TO/FROM
CD C.B CN405 TO/FROM PT C.B WH501
TO/FROM
CD C.B CN804
TO/FROM
PT C.B CN8801
TO/FROM
PT C.B WH803
TO/FROM
TUNER C.B CN701
13
CN803
J801
PHONES
L
R
L
R
+
_

123456789
10 11 12 13 14
A
B
C
D
E
F
G
H
I
J
K
1615
WIRING-2 (MAIN: CHIP PARTS)
TUNER ADAPTOR C. B MAIN C. B

SCHEMATIC DIAGRAM-1 (MAIN)
17 18
TO/FROM
TUNER ADAPTOR C.B
WH102
TO/FROM PT C.B
WH501
TO/FROM
PT C.B
CN8801
TO/FROM
CD C.B
CN804
TO/FROM
PT C.B
WH803
TO/FROM FRONT C.B
WH201
TO/FROM CD C.B
CN405
MAIN C.B
PHONES
CN201
R
R
16
4.7/35
25
25
0.068
0.068
0.22/50
35

SCHEMATIC DIAGRAM-2 (CD)
19 20
TO/FROM
MAIN C.B WH405
TO/FROM
FRONT C.B WH401
TO/FROM CD PICK UP
TO/FROM
MAIN C.B
WH804
TO/FROM
MOTOR C.B
M
M1
(LOADING)
S1
(OPEN)
S2
(CLOSE)
CD C.B
DIGITAL OUT C.B
2SC2712
2SC2712
2SC2712
2SA1162
2SC2712
DIGITAL
OUT LED
DRIVER
Q815-817
–VF REG
Q809,810
AC DETECT
MOTOR
LOAD PROTECT Q471
REG
PROTECT
2SC2712 2SC2712
+B SWITCH
SWITCH
SLED/
SPIN
MOTOR
DRIVE 16 16
R
CURRENT
LIMITER
6.3
16
16
CN401
100p
16
APC
2SA933
SFR401

123456789
10 11 12 13 14
A
B
C
D
E
F
G
H
I
J
K
2221
WIRING-3 (CD: INSERTED PARTS)
CD C. B
CONTROL C. B
TO/FROM
PICK UP ASSY
TO/FROM FRONT C.B
WH401
TO/FROM
MOTOR C.B TO/FROM
MAIN C.B
WH804
TO/FROM
MAIN C.B WH405
TO/FROM
FRONT C.B CN205
TO/FROM
DIGITAL
OUT C.B
WH404
1
1
1
1
1
6
1
6
2
1
2
1
1617
32
6
16
18
MM1
(LOADING)
S1
(OPEN)
S2
(CLOSE)
CN404

123456789
10 11 12 13 14
A
B
C
D
E
F
G
H
I
J
K
2423
WIRING-4 (CD: CHIP PARTS)
CD C. B
CONTROL C. B

2625
WIRING-5 (FRONT)
7654321123
4567
A
B
C
D
E
F
G
H
I
J
A
B
C
D
E
F
G
H
I
J
FRONT C.B (CONDUCTOR SIDE)
TO/FROM
CONTROL C.B
WH203
TO/FROM
CD C.B
CN401
FRONT C.B (COMPONENT SIDE)
TO/FROM
MAIN C.B
CN201

SCHEMATIC DIAGRAM-3 (FRONT)
27 28
TO/FROM MAIN C.B CN201TO/FROM CD C.B CN401
FRONT C.B
VOL/MULTI JOG
REW CD OPEN ENTER PAUSE
POWERTUNERAUXCDMD DISPLAY DEMO
PLAY STOP
JOG MODEFF
(CD LED)
CONTROL C.B
LED DRIVER
BUFFER
DECODER
2.2/50
0.47/
50
LED DRIVER DRIVER SW
R
R
R
R
R
RR
R
SW
SW
SISTEM
/10
AND GATE
D201,207 : IN4148
P14
AM 10K
D207
RECIVER
16
/10
220/10
/16
REG
RESET
MONO_ SW

123456789
10 11 12 13 14
A
B
C
D
E
F
G
H
I
J
K
3029
WIRING-6 (TUNER)
TO/FROM TUNER ADAPTOR C.B
WH102

SCHEMATIC DIAGRAM-4 (TUNER)
31 32
+
+
–
–
ANTENNA
AM TRACKING
ADJ.
BAND SW
IF AMP
AM IF
ADJ
DC
BALANCE
FM/AM
TUNER IF/STEREO SYSTEM
TP6
TP5
TUNER
ON/OFF
SW
CN701
TUNER C.B
SIGNAL
:FM
:AM
T1
TO/FROM TUNER ADAPTOR C.B
WH102

123456789
10 11 12 13 14
A
B
C
D
E
F
G
H
I
J
K
3433
WIRING-7 (PT: INSERTED PARTS)
PT C. B
DIGITAL OUT C. B
TO/FROM MAIN C. B
CN801
TO/FROM
CD C. B
CN404
9
1
PT881
3
1
TO/FROM MAIN C. B
CN803
TO/FROM MAIN C. B
CN501
1
9
1
45
8
PT882
J502
MD IN
AUX IN
LINE OUT
LR
LED902
DIGITAL
OUT
1
6
