Aiwa XR-DV525 User manual

DVD
STEREO
SYSTEM
’
XR-DV525
OPERATING INSTRUCTIONS
BA-DJV-905-01 a
000807AMI-U-9
EON

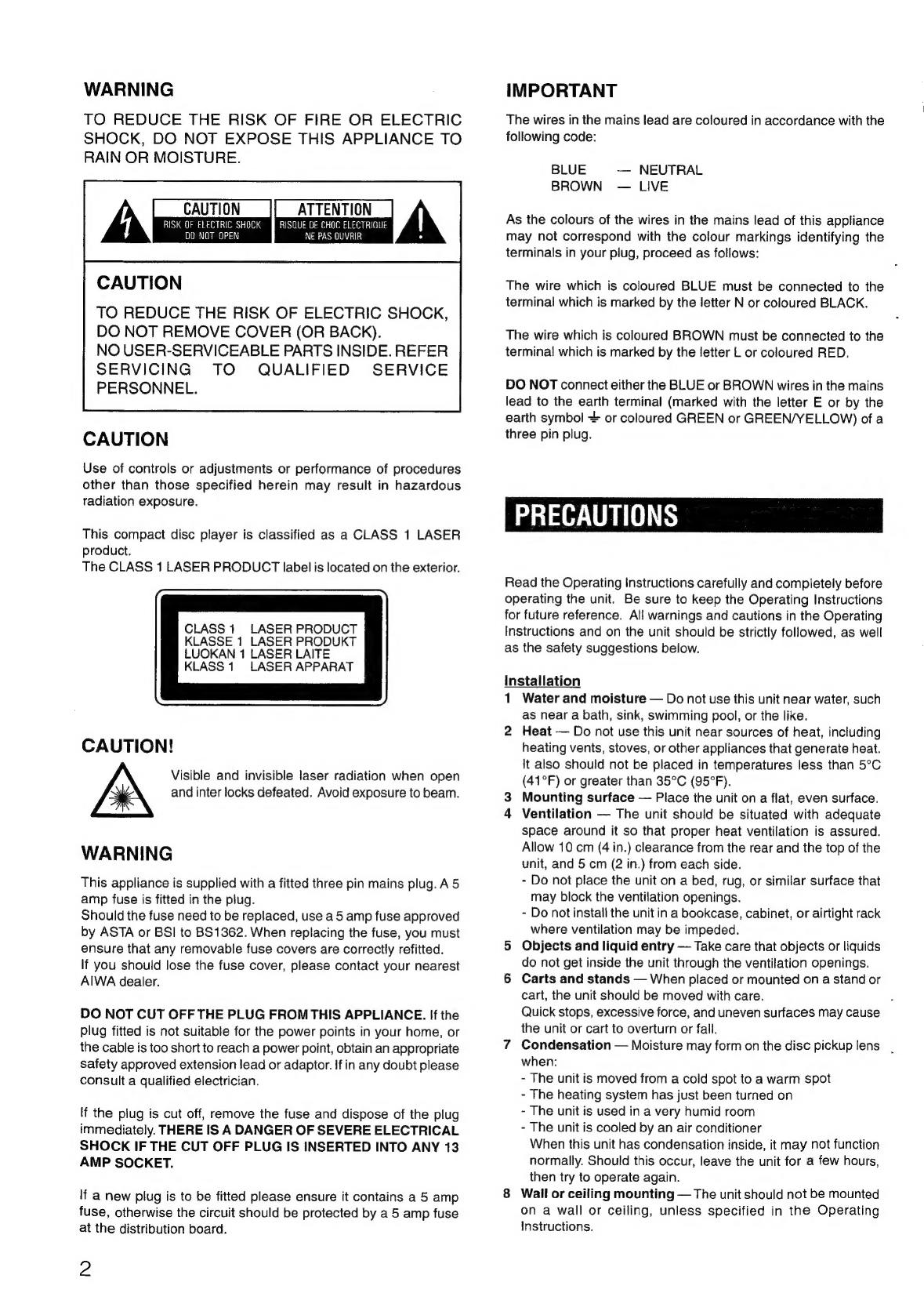

WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
CAUTION ATTENTION
RISK OF ELECTRIC SHOCK | RISQUE DE CHOC ELECTRIQUE
DO NOT OPEN NE PAS QUVRIR
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
This compact disc player is classified as a CLASS 1 LASER
product.
The CLASS 1 LASER PRODUCT label is located on the exterior.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1. LASER APPARAT
CAUTION!
Visible and invisible laser radiation when open
and inter locks defeated. Avoid exposure to beam.
WARNING
This appliance is supplied with a fitted three pin mains plug. A5
amp fuse is fitted in the plug.
Should the fuse need to be replaced, use a 5 amp fuse approved
by ASTA or BSI to BS1362. When replacing the fuse, you must
ensure that any removable fuse covers are correctly refitted.
If you should lose the fuse cover, please contact your nearest
AIWA dealer.
DO NOT CUT OFF THE PLUG FROM THIS APPLIANCE. If the
plug fitted is not suitable for the power points in your home, or
the cable is too short to reach a power point, obtain an appropriate
safety approved extension lead or adaptor. If in any doubt please
consult a qualified electrician.
If the plug is cut off, remove the fuse and dispose of the plug
immediately. THERE IS A DANGER OF SEVERE ELECTRICAL
SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13
AMP SOCKET.
If a new plug is to be fitted please ensure it contains a 5 amp
fuse, otherwise the circuit should be protected by a 5 amp fuse
at the distribution board.
2
IMPORTANT
The wires in the mains lead are coloured in accordance with the
following code:
BLUE — NEUTRAL
BROWN — LIVE
As the colours of the wires in the mains lead of this appliance
may not correspond with the colour markings identifying the
terminals in your plug, proceed as follows:
The wire which is coloured BLUE must be connected to the
terminal which is marked by the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the
terminal which is marked by the letter L or coloured RED.
DO NOT connect either the BLUE or BROWN wires in the mains
lead to the earth terminal (marked with the letter E or by the
earth symbol + or coloured GREEN or GREEN/YELLOW) of a
three pin plug.
PRECAUTIONS
Read the Operating Instructions carefully and completely before
operating the unit. Be sure to keep the Operating Instructions
for future reference. All warnings and cautions in the Operating
Instructions and on the unit should be strictly followed, as well
as the safety suggestions below.
installation
1 Water and moisture — Do not use this unit near water, such
as near a bath, sink, swimming pool, or the like.
2 Heat — Do not use this unit near sources of heat, including
heating vents, stoves, or other appliances that generate heat.
It also should not be placed in temperatures less than 5°C
(41°F) or greater than 35°C (95°F).
3 Mounting surface — Place the unit on a flat, even surface.
4 Ventilation — The unit should be situated with adequate
space around it so that proper heat ventilation is assured.
Allow 10 cm (4 in.) clearance from the rear and the top of the
unit, and 5 cm (2 in.) from each side.
- Do not place the unit on a bed, rug, or similar surface that
may block the ventilation openings.
- Do not install the unit in a bookcase, cabinet, or airtight rack
where ventilation may be impeded.
5 Objects and liquid entry — Take care that objects or liquids
do not get inside the unit through the ventilation openings.
6 Carts and stands — When placed or mounted on a stand or
cart, the unit should be moved with care.
Quick stops, excessive force, and uneven surfaces may cause
the unit or cart to overturn or fall.
7 Condensation — Moisture may form on the disc pickup lens |
when:
- The unit is moved from a cold spot to a warm spot
- The heating system has just been turned on
- The unit is used in a very humid room
- The unit is cooled by an air conditioner
When this unit has condensation inside, it may not function
normally. Should this occur, leave the unit for a few hours,
then try to operate again.
8 Wall or ceiling mounting — The unit should not be mounted
on a wall or ceiling, unless specified in the Operating
Instructions.

Electric Power
1 Power sources — Connect this unit only to power sources
specified in the Operating Instructions, and as marked on the
unit.
2 AC power cord
- When disconnecting the AC power cord, pull it out by the
AC power plug. Do not pull the cord itself.
- Never handle the AC power plug with wet hands, as this
could result in fire or shock.
- Power cords should be firmly secured to avoid being severely
bent, pinched, or walked upon. Pay particular attention to
the cord from the unit to the power socket.
- Avoid overloading power sockets and extension cords
beyond their capacity, as this could result in fire or shock.
3 When not in use — Unpiug the AC power plug from the AC
power socket if the unit will not be used for several months or
more. When the cord is plugged in, a small amount of current
continues to flow to the unit, even when the power is turned
off.
Maintenance
Clean the unit only as recommended in the Operating
Instructions.
Damage Requiring Service
Have the units serviced by a qualified service technician if:
- The AC power cord or plug has been damaged
- Foreign objects or liquid have got inside the unit
- The unit has been exposed to rain or water
- The unit does not seem to operate normally
- The unit exhibits a marked change in performance
- The unit has been dropped, or the cabinet has been damaged
DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.
TABLE OF CONTENTS
PRECAUTIONS .....ccsssssssssssssssccsssssecccssssnscsssssssscessssunsesseessese 2
PREPARATIONS
CONNECTIONS. ..essssssssccssssssssssssssseessssssssseessssseeecesssnassecesses 4
REMOTE CONTROL wusecsssssssessssssssessssssssesscsssssessssssnseeseserees 6
BEFORE OPERATION oessecsscsssssssssssccssssssssssssseceessnsessssseeeeees 7
SETTING THE CLOCK .sssssessesccssessscosnssesssossveseensonssssonerssess 8
SOUND
AUDIO ADJUSTMENTS o..csssssesssccssssssescssssnsesesssnsesecsssesansess 9
GRAPHIC EQUALIZER
RADIO RECEPTION
PRESETTING STATIONS woscsssssssssssssssssesccsssssesssssnsesessessene 10
RECEPTION BY PRESET NUMBER .......cssssscsssssssesseeseeee 11
SEARCHING WITH THE HELP OF RDS CODEG........... 12
PLAYING AUDIO CDS, DVDS AND VCDS
BEFORE, USE ssstinsicicisrsgateecsctassiarasieaeed neanrtenaa 14
BASIC OPERATIONS. ....... we 16
SELECTING A TRACK woccsscssssssesssssssssescesssseecssses 218
FRAME ADVANCE AND SLOW PLAYBACK ..........:00+ 19
REPEAT, PROGRAMMED AND
RRANDOM PLAYBACK Q.cssssssssssscscsscsssssssessccscsnsscseseeseseeeee 19
MARKING AND SEARCHING .... saree
SPECIAL DVD FEATURES. ou..ccssssssssssssssesssense wee 24
CHANGING THE DISPLAY INFORMATION ...........00s0++++- 26
TAPE PLAYBACK
BASIC OPERATIONS ...........s:ccsesseccsseatssseesessussesensessseeseee 28
RECORDING
BASIC RECORDING .............::cssssscssssneeescesssensssasnensenensetas
DUBBING A TAPE MANUALLY ...........::0000
DUBBING THE WHOLE TAPE. ...........
Al EDIT RECORDING ..........::cssesesceesee
PROGRAMMED EDIT RECORDING
DOLBY SURROUND
PLAYING DOLBY SURROUND SOUND .........ccsssssccesrsens 33
ADJUSTING SPEAKER LEVEL BALANCE ...........2:c000 35
KARAOKE
MICROPHONE MIXING ........ccsscsssccsscessersssssesersssssernaees
USING DVD KARAOKE DISCS
TIMER
SETTING THE SLEEP TIMER ...........s:cesssscessseueseeesseeeseoss 38
SETTING THE TIMER ............ccsscseccoccestscceeerssesensenensesensens 38
OTHER FEATURES
DEMO (Demonstration) ..........cssssscesscnssenssecseerereneneeee 40
OTHER CONNECTIONS
CONNECTING OPTIONAL EQUIPMENT ........sssccsssecnens 41
LISTENING TO EXTERNAL SOURCES ..........c:sessnseseoes 41
CUSTOMIZING DVD SETUP
OVERVIEW OF THE SETUP MENU
BASIC MENU OPERATIONS ...........cecessseneee
ON-SCREEN MENU..........cessscstesseneenserenteatnrens
DISC LANGUAGES .....
AUDIO OUTPUT SETTING...
TV ASPECT. ......cscscserseesseessees
RATINGS
me nnneaunsennnnsaonce
DISC RESUME ...........ccccsscsscosserenserssrossenssesserere ate
COUNTRY CODES. ..........sscccscssserecessecssssssesanseossressossnonsnees
LANGUAGE CODES. ........:cccscsssecesscsseeessscnceessessensnvsnnensonee
GENERAL
CARE AND MAINTENANCE ...........c::cssssessceesenesnteersensers 52
TROUBLESHOOTING GUIDE ..........cccssscecsseeesesenneneeeeeenes 53
SPECIFICATIONS. .......cccsssscccssnscccessccnserrnecerereesessensuansesaaes 54
PARTS | INDEX jccesendescscedccisnscncuesectecssexsvecernsncectedss Back cover

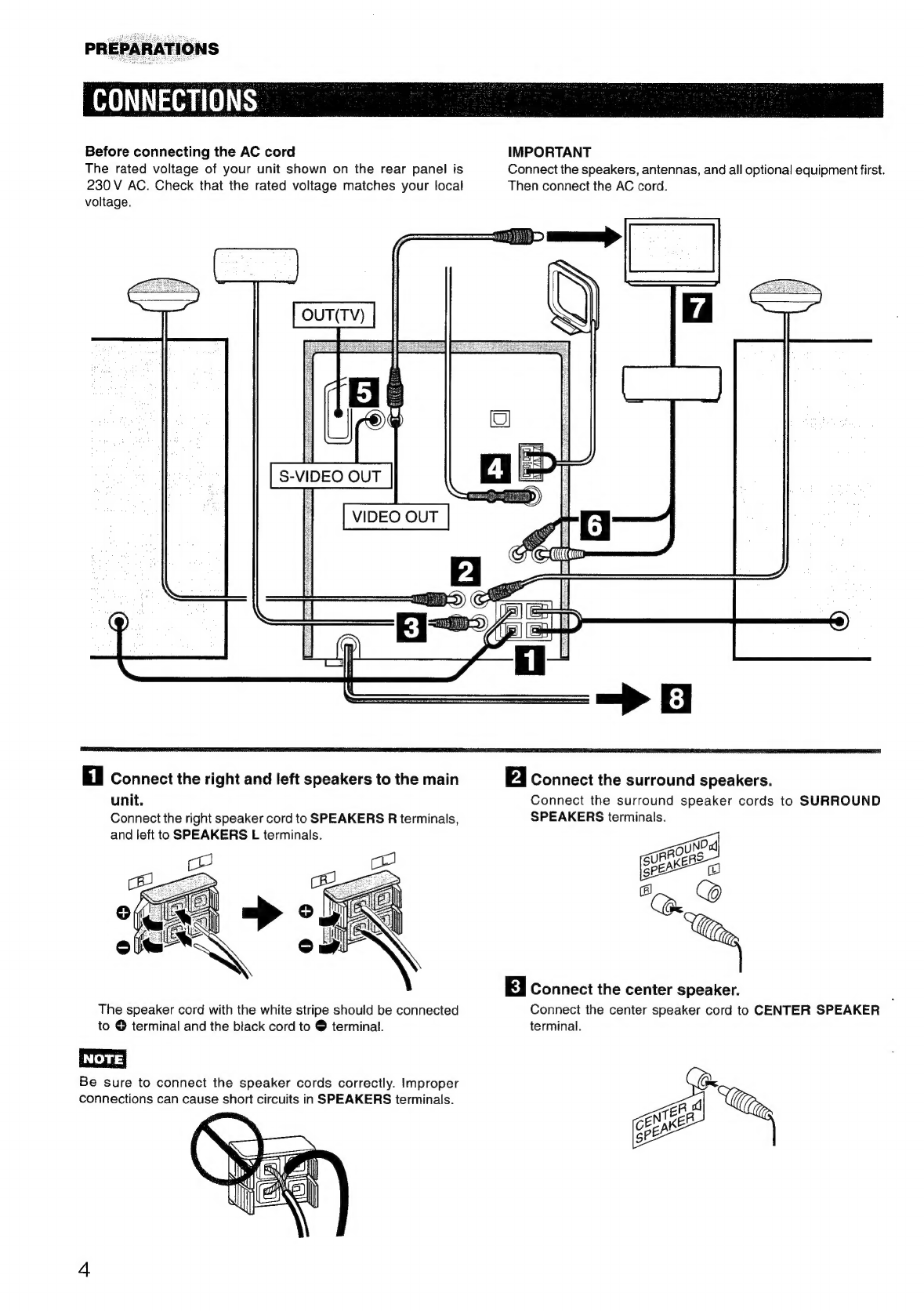

Before connecting the AC cord IMPORTANT
The rated voltage of your unit shown on the rear panel is
230 V AC. Check that the rated voltage matches your local
voltage.
Connect the speakers, antennas, and all optional equipment first.
Then connect the AC cord.
S-VIDEO OUT
cane
a
1 Connect the right and left speakers to the main | 2 | Connect the surround speakers.
unit. Connect the surround speaker cords to SURROUND
Connect the right speaker cord to SPEAKERS R terminals, SPEAKERS terminals.
and left to SPEAKERS L terminals.
Did
OUN
URR ERS
spene
ts
@
Connect the center speaker.
Connect the center speaker cord to CENTER SPEAKER ,
terminal.
The speaker cord with the white stripe should be connected
to ® terminal and the black cord to @ terminal.
[NOTE]
Be sure to connect the speaker cords correctly. Improper
connections can cause short circuits in SPEAKERS terminals.

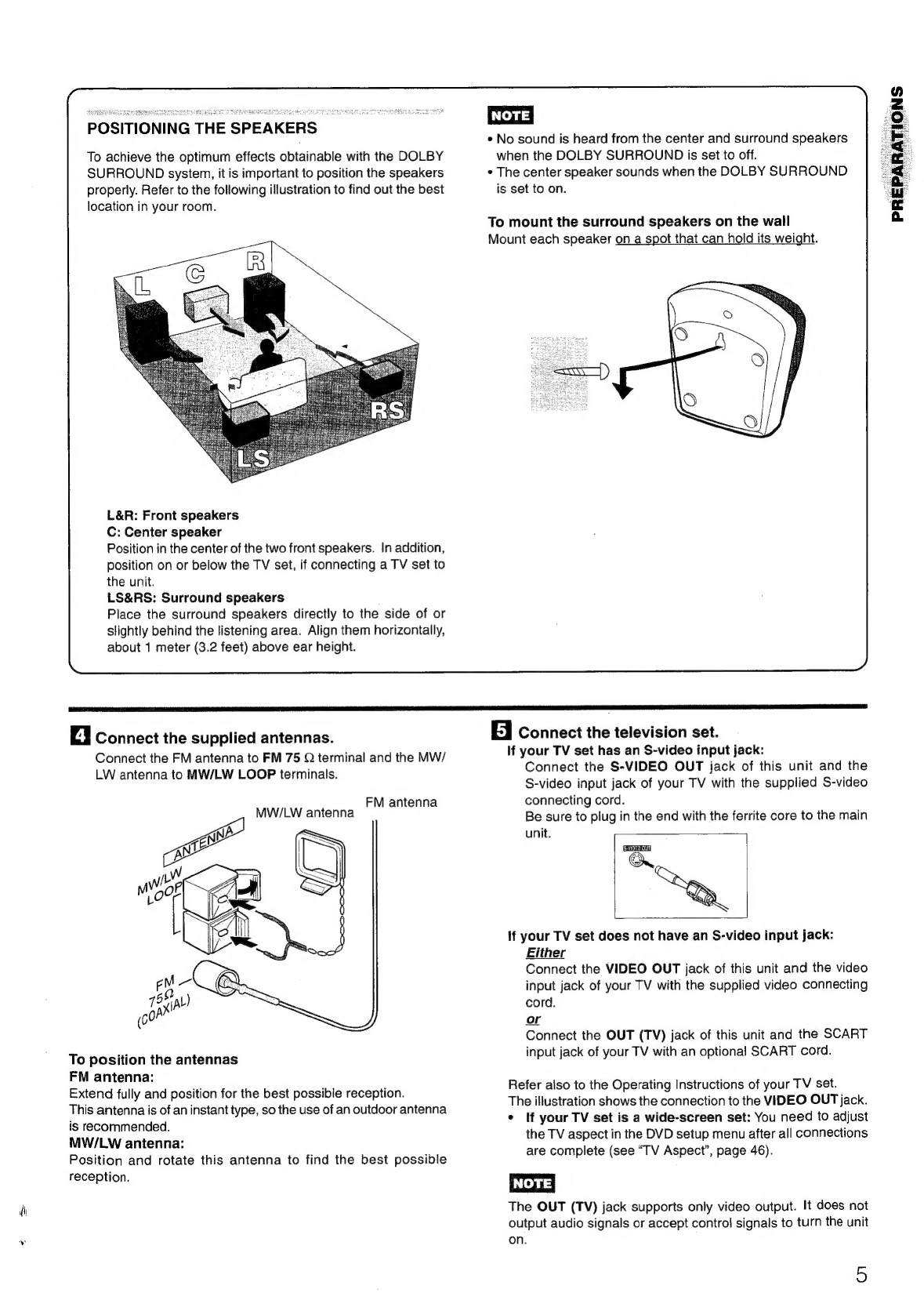

POSITIONING THESPEAKERS
To achieve the optimum effects obtainable with the DOLBY
SURROUND system, it is important to position the speakers
properly. Refer to the following illustration to find out the best
location in your room.
L&R: Front speakers
C: Center speaker
Position in the center of the two front speakers. In addition,
position on or below the TV set, if connecting a TV set to
the unit.
LS&RS: Surround speakers
Place the surround speakers directly to the side of or
slightly behind the listening area. Align them horizontally,
about 1 meter (3.2 feet) above ear height.
4 Connect the supplied antennas.
Connect the FM antenna to FM 75 Q terminal and the MW/
LW antenna to MW/LW LOOP terminals.
FM antenna
MW/LW antenna
= oO
w
woe
“
ane
5
one
To position the antennas
FM antenna:
Extend fully and position for the best possible reception.
This antenna is of an instant type, so the use of an outdoor antenna
is recommended.
MW/LW antenna:
Position and rotate this antenna to find the best possible
reception.
NOTE
* No sound is heard from the center and surround speakers
when the DOLBY SURROUND is set to off.
¢ The center speaker sounds when the DOLBY SURROUND
is set to on.
To mount the surround speakers on the wall
Mount each speaker on a spot that can hold its weight.
5 | Connect the television set.
If your TV set has an S-video input jack:
Connect the S-VIDEO OUT jack of this unit and the
S-video input jack of your TV with the supplied S-video
connecting cord.
Be sure to plug in the end with the ferrite core to the main
unit.
[S-VIDEO OUTS
a
If your TV set does not have an S-video input jack:
Either
Connect the VIDEO OUT jack of this unit and the video
input jack of your TV with the supplied video connecting
cord.
or
Connect the OUT (TV) jack of this unit and the SCART
input jack of your TV with an optional SCART cord.
Refer also to the Operating Instructions of your TV set.
The illustration shows the connection to the VIDEO OUT jack.
¢ If your TV set is a wide-screen set: You need to adjust
the TV aspect in the DVD setup menu after all connections
are complete (see “TV Aspect’, page 46).
The OUT (TV) jack supports only video output. It does not
output audio signals or accept control signals to turn the unit
on.
5

6 | Connect the video equipment.
Connect VIDEO/AUX jack of this unit to the audio output
jack of the video equipment with an optional audio connecting
cord.
Connect the Television to the video equipment.
Refer to the Operating Instructions of the connected
equipment for details.
8 | Connect the AC cord to an AC outlet.
The DEMO will begin when the AC cord is plugged into an
AC outlet for the first time. To deactivate the DEMO, set the
clock.
* Do not leave objects generating magnetism, such as credit
cards, near the speakers, as these objects may be damaged.
¢ Do not bring the FM antenna near metal objects or curtain rails.
* Do not bring the MW/LW antenna near other optional equipment,
the stereo system itself, the AC cord or speaker cords, since
noise will be picked up.
* Do not unwind the MW/LW antenna wire.
To stand the MW/LW antenna on a surface
Fix the claw to the slot.
CONNECTING AN OUTDOOR ANTENNA
For better FM reception, use of an outdoor antenna is
recommended.
Connect the outdoor antenna to FM 75 © terminals.
To connect other optional equipment — page 41.
REMOTE CONTROL =
Inserting batteries
Detach the battery cover on the rear of the remote control and
insert two R6 (size AA) batteries.
NS
R6(AA)
When to replace the batteries
The maximum operational distance between the remote control
and the sensor on the main unit should be approximately 5 meters
(16 feet). When this distance decreases, replace the batteries
with new ones.
To use SHIFT on the remote control
Buttons @ have two different functions. One of these functions
is indicated on the button, and the other on the plate above the
button.
To use the function on the button, simply press the button.
To use the function on the plate above the button, press the
button while pressing SHIFT.
To use FUNCTION on the remote control
FUNCTION substitutes for the function buttons (TAPE DECK
1/2, TUNER BAND, VIDEO/AUX, DVD/CD) on the main unit.
Each time FUNCTION is pressed, the next function is selected
cyclically.
»>/<> PRESET on the remote control
The function is the same as that of <4 on the main unit.
®
SHIFT
FUNCTION >/<P>
PRESET
[NOTE |
¢ If the remote control is not going to be used for an extended |
period of time, remove the batteries to prevent possible
electrolyte leakage.
* The remote control may not operate correctly when:
- The fine of sight between the remote control and the remote
sensor inside the display window is exposed to intense light,
such as direct sunlight
- Other remote controls are used nearby (those of a television,
etc.)

BEFORE OPERATION _
ECO
To turn the power on
Press one of the function buttons (TAPE DECK 1/2,
TUNER BAND, VIDEO/AUX, DVD/CD). Playback of the inserted
disc or tape begins, or the previously tuned station is received
(Direct Play Function).
POWER is also available.
When the power is turned on, the disc compartment may open
and close to reset the unit.
To turn the power off
Press POWER.
DEMO(Demonstration)
When the AC cord is plugged into an AC outlet for the first time
after purchase, the DEMO will begin in the display. When the
power is turned on, the DEMO will end. When the power is turned
off, the DEMO will begin again.
When the clock is set, the DEMO will not begin even if the power
is turned off. :
To deactivate or activate DEMO
Press CLOCK, and clock is displayed in place of the DEMO.
Press <4 to activate.
( For more about the DEMO, see page 40 )
SETTING POWER ECONOMIZING MODE
When you set power economizing mode to “ECO ON” or “ECO
AUTO” the unit reduces power consumption by conducting four
ECO operations as follows.
ECO ON
* The unit (all the illumination of the display and the buttons)
blacks out when the power is turned off. Only the red indicator
lights up.
¢ If DIMMER (1-3) is selected, the illumination of the display and
the buttons brighten for 10seconds only when you press a
button, or turn VOLUME or MULTI JOG.
* The display dimmer mode is set to the dimmest, the button
iltumination lights off, and the volume is set to the minimum (0)
when the unit turns on by timer recording.
ECO AUTO
*In addition to the three operations of ECO ON, the unit
automatically turns itself off if you do not operate it and the
sound source is mute for 10 minutes.
ECO OFF
The power economizing mode does not function.
1 Press ECO.
“ECO MODE’ will be displayed.
2 Press ENTER within 4 seconds.
The current power-economizing mode status will be displayed.
3 Turn MULTI JOG within 4 seconds to select one
of the power-economizing mode.
Example : When “ECO ON’ is selected.
4 Press ENTER within 4 seconds.
If the clock is not set, the unit does not black out.
Instead, the DEMO will begin when the power is turned off.
DIMMER MODE
To change the display dimmer mode
1 Press ECO repeatedly until “DIM MODE?’ is displayed.
2 Within 4 seconds, press ENTER.
3 Within 4 seconds, turn MULTI JOG to select one of the dimmer
modes changed cyclically as below.
4 Within 4 seconds, press ENTER.
[" DIM-OFF «+ DIMMER 1 «> DIMMER 2«~ DIMMER al
“DIM-OFF” mode is the brightest and “DIMMER 3” mode is the
dimmest. In “DIMMER 3” mode, the spectrum analyzer and the
button illumination light off in addition.
PREPARATIONS

SETTING THE CLOCK
7 Press CLOCK.
When using the remote control, press CLOCK while pressing
SHIFT.
The clock is displayed. (The “:” between the hours and minutes
flashes.)
2 Within 4 seconds, turn MULTI JOG to designate
the hour and the minute.
Turning MULTI JOG changes both the hour and the minute.
<4 or PP is also available in place of MULTI JOG. Holding
these buttons down will vary the time rapidly.
3 Press ENTER or II.
The clock starts from 00 seconds.
To restore an original clock setting
Press CLOCK before completing step 3 to restore the previous
time setting. This cancels any new setting.
To view the clock when another display is in the display
Press CLOCK. The time is displayed for 4 seconds and then the
original display reappears. However, the clock cannot be
displayed during recording.
To switch to the 24-hour standard
Press CLOCK and then press ll within 4 seconds.
Repeat the same procedure to restore the 12-hour standard.
In the 12-hour standard, “AM 12:00” indicates midnight and “PM
12:00” indicates noon.
If the clock display flashes
lf the display flashes when the clock is displayed, it indicates
that the clock has stopped due to a power failure or the removal
of the power cord. The current time needs to be reset.
If the power-economizing mode (page 7) is on, the unit blacks
out when the power is turned off. To view the clock, press CLOCK
so that the time is displayed for 4 seconds.

SOUND
AUDIO ADJUSTMENTS GRAPHIC EQUALIZER
+-MAN/SEL
VOLUME
Turn VOLUME on the main unit, or press VOL on the
remote control.
The volume level is displayed as a number from 0 to MAX (50).
The volume level is automatically set to 20 when the power is
turned off with the volume level set to 21 or more.
To change the left/right balance
Press MAN/SEL while pressing SHIFT on the remote control.
L/R is displayed for 2 seconds. Press << DOWN or > UP on
the remote control within these 2 seconds.
¢ The DOLBY SURROUND (page 35) front speakers level is also
changed.
BBE SYSTEM
The BBE system enhances the clarity of high-frequency sound.
It also enriches the Karaoke function to make your voice sound
clear and pleasant.
Press BBE.
Each time it is pressed, the level changes. Select one of the
three levels, or the off position to suit your preference.
l4soc8 ee oe ee eh ‘se
SUPER T-BASS SYSTEM
The T-BASS system enhances the realism of low-frequency
sound.
Press T-BASS.
Each time it is pressed, the level changes. Select one of the
three leveis, or the off position to suit your preference.
* : a
[NOTE |
«When playing back a tape recorded with BBE, it is
recommended that BBE be set to off to avoid distorted high
frequency sound.
¢ Low frequency sound may be distorted when the T-BASS
system is used for a disc or tape in which low frequency sound
is Originally emphasized. In this case, cancel the T-BASS
system.
GEQ
This unit provides the following five different equalization curves.
ROCK: Powerful sound emphasizing treble and bass
POP: More presence in the vocals and midrange
LATIN: Accented higher frequencies for latin music.
CLASSIC: Enriched sound with heavy bass and fine treble.
JAZZ: Accented lower frequencies for jazz-type music
Press GEQ repeatedly, or press GEQ once and turn MULTI
JOG within 4 seconds, to select one of the equalization
curves.
GRAPHIC EQUALIZER
“GRAPHIC EQUALIZER” appears and the GEQ mode is
displayed cyclically as follows.
; ROCK —* POP LATIN + CLASSIC — JAZZ ]
GEQOFF «
(cancel)
*The GEQ mode can be displayed in reverse order if MULTI
JOG is used.
To display the current GEQ mode
Press GEQ. The current mode is displayed for 4 seconds.
To cancel the selected mode
Press GEQ repeatedly, or press GEQ once and turn MULTI JOG
within 4 seconds, to select “GEQ OFF”.
“GRAPHIC EQUALIZER’ disappears.
Using the headphones
Connect headphones to the PHONES jack with a standard stereo
plug (96.3 mm, '/4 inch).
No sound is output from the speakers while the headphones are
plugged in.
Sound adjustment during recording
The output volume and tone (except BBE) of the speakers or
headphones are freely varied without affecting the recording.
9
PREPARATIONS
SOUND >

RADIO RECEPTION
PRESETTING STATIONS
The unit can store a total of 32 preset stations. Presetting allows
you to tune in to a station directly. Stations are assigned preset
numbers, beginning from 1 in consecutive order for each band
(FM, MW, LW).
Automatic presetting:
This unit has a function for reception of *'RDS (Radio Data
System) and other stations.
FM RDS stations take priority over other FM stations if there are
more than 32 receivable stations.
Manual presetting:
You can select stations to be preset from all the bands.
AUTOMATIC PRESETTING
The tuner scans through the receivable frequency range and
stores stations automatically.
7 Press TUNER BAND.
FM is displayed.
2 Keep pressing RT for 4 seconds until AUTO
PRESET is displayed.
Il SET flashes for 4 seconds.
3 Press If SET while Hl flashes.
The tuner searches for a station, beginning with the FM band.
When a tuned station is stored, the selected preset number
flashes on the display.
The search continues on the MW and LW bands if preset
numbers are still available.
When automatic presetting has been completed, the display
returns to the first preset station.
When the tuner detects “identical RDS stations with
alternative frequencies
Only the station with the stronger signal is stored.
Before storing an RDS station, the tuner checks first whether
the same stations on the other frequencies are present, and
stores the station with the best reception.
When automatic presetting is done, all previously stored stations
are cleared.
10
MANUAL PRESETTING
71 Press TUNER BAND repeatedly to select the
band.
> FM —> MW — LW
2 Press << DOWN or > UP to select a station.
Each time the button is pressed, the frequency changes.
@ When tuning in to an FM RDS station
After TUNE on the display goes out, the Program Service
station name (*8PS) is displayed and RDS lights up.
The Program Service
station name (PS) RDS
2 Cane
® When tuning in to the other stations
After TUNE on the display goes out, the band is displayed.
SCE ee: A A Ves. cee one
* During FM stereo reception, {{t@»)} lights.
3 Press Il SET to store the station.
The selected preset number flashes.
4 Repeat steps 1 to 3 to store the stations.
The next station will not be stored if a total of 32 preset stations
for all the bands have already been stored.
To search for a station quickly with << DOWN or >>
UP (Auto Search)
Keep one of the buttons pressed until the tuner starts searching
for a station. The search stops when the tuner tunes in to a station.
To stop the Auto Search manually, press one of the buttons.
*The Auto Search may not stop at stations with very weak
signals.
[NOTE
“FULL” is displayed if you attempt to store more than 32 preset
stations.
