SERVICE MANUAL
DATA
COMPACT DISC STEREO
CASSETTE RECEIVER
BASIC TAPE MECHANISM : 2ZM-3MK2 PR4NM
BASIC CD MECHANISM : 6ZG-1 ZRNDM
NSX-T99
NSX-T99E
LH
HA
S/M Code No. 09-003-426-5R1
REVISION
•This Service Manual is the “Revision Publishing” and replaces “Simple Manual”
NSX-T99/T99E, (S/M Code No. 09-002-426-5T1).
•If requiring information about the CD mechanisim, see Service Manual of 6ZG-1,
(S/M Code No. 09-001-338-7N2)
CD
CASSEIVER
SYSTEM REMOTE
CONTROL
NSX-T99 CX-NT99
SPEAKERS
SX-WNT99 RC-ZAS04
NSX-T99E CX-NT99E
All manuals and user guides at all-guides.com
all-guides.com

– 2 –
<FM Tuner section>
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity(IHF) 13.2 dBf
Antenna terminals 75 ohms (unbalanced)
<AM Tuner section>
Tuning range 531 kHz to 1602 kHz (9 kHz step)
530 kHz to 1710 kHz (10 kHz step)
Usable sensitivity 350 uV/m
Antenna Loop antenna
<Amplifier section>
Mid-high frequency amplifier
Power output* Rated: 56 W + 56 W
(8 ohms, THD 1 %,1 kHz)
Reference: 70 W + 70 W
(8 ohms, THD 10 %,1 kHz)
Total harmonic distortion 0.3 % (28 W, 1 kHz, 8 ohms,
DIN AUDIO)
Low frequency amplifier
Power output* Rated: 167 W + 167 W
(6 ohms, THD 1 %,75 Hz)
Reference: 210 W + 210 W
(6 ohms, THD 10 %,75 Hz)
Total harmonic distortion 0.3 % (84 W,75 Hz,6 ohms,
DIN AUDIO)
* without connecting to surround speakers
Inputs VIDEO/AUX : 300 mV (adjustable)
MD : 300 mV (adjustable)
MIC1,MIC2 : 1.0 mV (10 kohms)
LINE OUT : 150 mV
Outputs SPEAKERS HIGH FREQ :
accept speakers of 8 ohms or more
SPEAKERS LOW FREQ :
accept speakers of 6 ohms or more
SURROUND SPEAKERS : accept
speakers of 8 to 16 ohms
PHONES (stereo jack) : accepts
headphones of 32 ohms or more
<Cassette deck section>
Track format 4 tracks, 2 channels stereo
Frequency response CrO2 tape: 50 Hz – 16000 Hz
Normal tape: 50 Hz – 15000 Hz
Signal to noise ratio 60dB (Dolby B NR ON, CrO2 tape
peak level)
Recording system AC bias
Heads Deck 1: Playback head x 1
Deck 2: Recording/Playback head
x 1, erase head x 1
SPECIFICATIONS
<Compact disc player section>
Laser Semiconductor laser (λ =780 nm)
D-A converter 1 bit dual
Signal-to-noise ratio 83 dB (1 kHz, 0 dB)
Harmonic distortion 0.05 % (1 kHz, 0 dB)
Wow and flutter Unmeasurable
<Speaker system SX–WNT99>
Cabinet type 4 way, built-in subwoofer
Speakers Subwoofer :
200 mm ( 77/8in.) cone type
Mid range:
100 mm ( 315/16 in.) cone type
Tweeter :
60 mm ( 23/8in.) cone type
Super Tweeter :
20 mm (13/16 in.) ceramic type
Impedance 6 ohms / 8 ohms
Output sound pressure level 87 dB/W/m
Dimensions (W xH xD) 260 x 463 x 314 mm
(101/4x 181/4x 123/8in..)
Weight 8.0 kg (17 lbs. 10 oz)
<General>
Power requirements 120 V/220-230 V/240 V
(switchable ) 50/60Hz
Power consumption 275W
Dimensions of main unit 300 x 382.6 x 396.4mm
(117/8x 151/8x 15 5/8in.)
Weight of main unit 13.7 kg (30 lbs. 3 oz)
Standby power consumption
If the power-economizing mode is OFF: 36 W
If the power-economizing mode is ON: 0.9 W
• Design and specifications are subject to change without
notice.
• Dolby noise reduction manufactured under license from Dolby
Laboratories Licensing Corporation.
"DOLBY" and the double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
• The word "BBE"and the "BBE symbol" are trademarks of BBE
Sound, Inc.
Under license from BBE Sound,Inc.
All manuals and user guides at all-guides.com

– 3 –

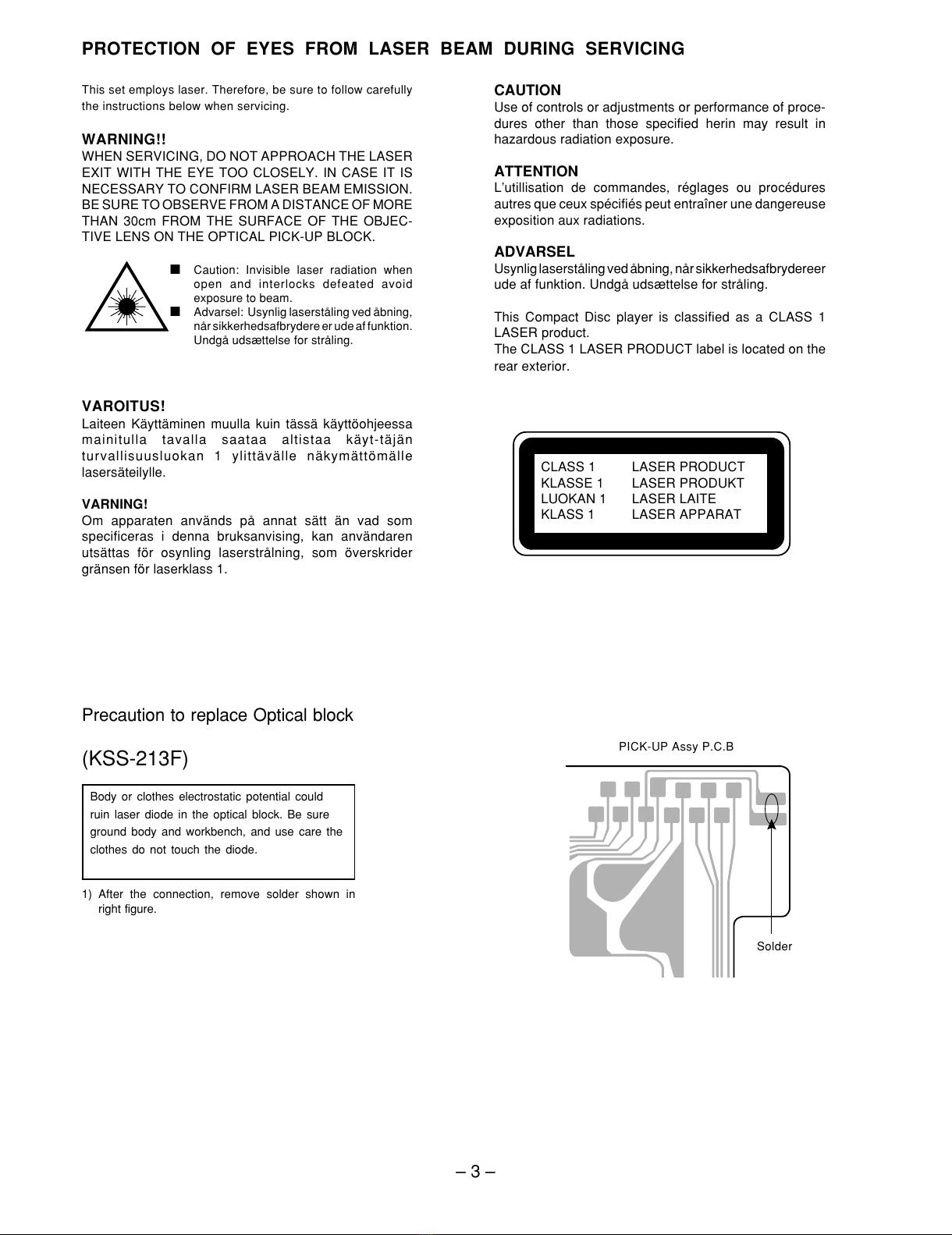

CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
This set employs laser. Therefore, be sure to follow carefully
the instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 30cm FROM THE SURFACE OF THE OBJEC-
TIVE LENS ON THE OPTICAL PICK-UP BLOCK.
sCaution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
sAdvarsel: Usynlig laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L’utillisation de commandes, réglages ou procédures
autres que ceux spécifiés peut entraîner une dangereuse
exposition aux radiations.
ADVARSEL
Usynliglaserstålingvedåbning,nårsikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
Precaution to replace Optical block
(KSS-213F)
Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure
ground body and workbench, and use care the
clothes do not touch the diode.
1) After the connection, remove solder shown in
right figure.
PICK-UP Assy P.C.B
Solder
All manuals and user guides at all-guides.com

– 4 –
NOTE ON BEFORE STARTING REPAIR
Charging voltage (V) Discharging Rated power (W) Parts number
(C101, 102) resistor (Ω)
25-48 100 3 87-A00-247-090
49-140 220 5 87-A00-232-090
Note: The reference numbers (C101, C102) of the electrolytic capacitors can change depending on the models. Be sure to check the
reference numbers of the charging capacitors on schematic diagram before starting the discharging work.
2. Check items before exchanging the MICROCOMPUTER
Be sure to check the following items before exchanging the MICROCOMPUTER. Exchange the MICROCOMPUTER after confirming
that the MICROCOMPUTER is surely defective.
2-1. Regarding the HOLD terminal of the MICROCOMPUTER
When the HOLD terminal (INPUT) of the MICROCOMPUTER is “H”, the MICROCOMPUTER is judged to be operating correctly.
When this terminal is “L”, the main power cannot be turned on. Therefore, be sure to check the terminal voltage of the HOLD
terminal before exchange.
When the MICROCOMPUTER is not defective, the HOLD terminal can also go “L” when the POWER AMPLIFIER has any
abnormalities that triggers the abnormality detection circuit on the MAIN C. B. that sets the HOLD terminal to “L”.
• Good or no good judgement of the MICROCOMPUTER
11
11
1Turn on the AC main power.
22
22
2Confirm that the main power is turned on and the HOLD terminal of the MICROCOMPUTER keeps the “H” level or not.
33
33
3When the HOLD terminal is “L” level, the abnormality detection circuit is judged to be working correctly and the
MICROCOMPUTER is judged to be good.
1. Forced discharge of electrolytic capacitor of power supply block
When repair is going to be attempted in the set that uses relay circuit in the power supply block, electric potential is kept charged across
the electrolytic capacitors (C101, 102) even though AC power cord is removed. If repair is attempted in this condition, secondary defect
can occur.
In order to prevent the secondary trouble, perform the following measures before starting repair work.
Discharge procedure
11
11
1Remove the AC power cord.
22
22
2Connect a discharging resistor at an end of lead wire that
has clips at both ends. Connect the other end of the lead
wire to metal chassis.
33
33
3Contact the other end of the discharging resistor to the
positive (+) side (+VH) of C101. (For two seconds)
44
44
4Contact the same end of the discharging resistor as step
33
33
3to the negative (-) side (-VH) of C102 in the same way.
(For two seconds)
55
55
5Check that voltage across C101 and C102 has decreased
to 1 V or less using a multimeter or an oscilloscope.
Select a discharging resistor referring to the following table.
Fig-1
MAIN C.B
D101
C101 C102
22
34
All manuals and user guides at all-guides.com

– 5 –
In such a case, check also if the POWER AMPLIFIER circuit or power supply circuit has any abnormalities or not.
2-2. Regarding reset
There are cases that the machine does not work correctly because the MICROCOMPUTER is not reset even though the AC power
cord is re-inserted, or the software reset (pressing the STOP key + POWER key) is performed.
When the above described phenomenon occurs, it can lead to wrong judgement as if the MICROCOMPUTER is defective and to
exchange the MICROCOMPUTER. In such a case, perform the forced-reset by the following procedure and check good or no
good of the MICROCOMPUTER.
11
11
1Remove the AC power cord.
22
22
2Short both ends of the electrolytic capacitor C113 that is connected to VDD of the MICROCOMPUTER with tweezers.
33
33
3Connect the AC power cord again. If the MICROCOMPUTER returns to the normal operation, the MICROCOMPUTER is
good.
Note: The reference number or MICROCOMPUTER pin number of transistor (Q110) and electrolytic capacitor (C113) can change depending
on the models. Be sure to check the reference numbers on schematic diagram before starting the discharging work.
2-3. Confirmation of soldering state of MICROCOMPUTER
Check the soldering state of the MICROCOMPUTER in addition to the above described procedures. Be sure to exchange the
MICROCOMPUTER after surely confirming that the trouble is not caused by poor soldering but the MICROCOMPUTER itself.
Fig-2-2
MICRO-
COMPUTER
MICROCOMPUTER
FRONT C.B
FRONT C.B
VSS
VDD
C113 *
%
C113
18
15
Short with tweezers.
All manuals and user guides at all-guides.com

– 6 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
8A-NF3-635-010 C-IC,LC876580W-5P43
87-A21-482-010 IC,RPM6938-H4
87-A20-869-040 C-IC,M62449FP
87-A21-398-010 IC,STK490-110
87-A20-355-010 IC,CXA1553P
87-A20-783-040 C-IC,BA7762AFS
87-A21-577-040 C-IC,M61506FP
87-070-289-040 IC,BU 2092F
87-A21-021-040 C-IC,BU2099FV
87-A21-018-040 C-IC,M65849BFP631D
87-A21-452-030 C-IC,BD3876KS2
87-A21-051-040 C-IC,BU9990-03FS
87-A21-560-010 IC,LA1844L-A
87-070-127-110 IC,LC72131 D
87-020-454-010 IC,DN 6851
TRANSISTOR
87-026-245-080 TR,DTC114ES
87-A30-217-010 TR,2SB1436(R)
87-A30-198-080 TR,KTC3199GR
89-213-702-010 TR,2SB1370 (1.8W)
87-A30-218-080 TR,2SB1237(Q)
87-A30-087-080 C-FET,2SK2158
87-A30-086-040 C-TR,CSD1306E
87-A30-076-080 C-TR,2SC3052F
87-A30-107-070 C-TR,CMBT5401
87-A30-074-080 C-TR,RT1P 141C
87-A30-190-080 TR,CC5551
87-A30-204-010 TR,2SD2439
87-A30-205-010 TR,2SB1588
87-A30-106-040 C-TR,CMBT5551
87-A30-276-040 C-TR,DTA143EKA
87-A30-063-080 C-TR,KRA104S
87-026-609-080 TR,KTA1266GR
87-A30-186-010 FET,2SK3053
87-A30-075-080 C-TR,2SA1235F
87-A30-329-080 TR,CD1585BC
87-A30-318-080 TR,CSA952K
89-327-143-080 TR,2SC2714 (0.1W)
87-A30-072-080 C-TR,RT1P 144C
87-A30-234-080 TR,CSC4115BC
87-026-463-080 TR,2SA933S
DIODE
87-A40-673-090 DIODE,D10XB20
87-017-447-010 DIODE,GBU4DL-6419
87-A40-224-010 DIODE,GBU8DL
87-017-654-060 DIODE,GBU6JL6131
87-A40-736-080 DIODE,1N4148M(SEM)
87-A40-553-080 DIODE,1N4003 LES
87-A40-781-080 ZENER,UZ36BSA
87-070-274-080 DIODE,1N4003 SEM
87-A40-768-080 ZENER,UZ16BSA
87-017-154-080 ZENER,HZS6C3L
87-A40-488-080 DIODE,1SS244
87-020-331-080 CHIP-DIODE,DAN202K
87-A40-313-080 C-DIODE,MC 2840
87-A40-270-080 C-DIODE,MC2838
87-A40-751-080 ZENER,UZ6.2BSB
87-A40-747-080 ZENER,UZ5.1BSB
87-A40-646-010 DIODE,FMB-G16L
87-A40-764-080 ZENER,UZ10BSC
87-A40-745-080 ZENER,UZ4.7BSA
87-A40-749-080 ZENER,UZ5.6BSB
87-017-149-080 ZENER,HZS6A2L
MAIN C.B
C3 87-012-368-080 C-CAP,S 0.1-50 F
C4 87-012-368-080 C-CAP,S 0.1-50 F
C21 87-016-035-090 CAP, E 6800-35 VR
C22 87-016-035-090 CAP, E 6800-35 VR
C25 87-010-990-080 CAP,E 33-100 SME<HASM>
C25 87-016-285-080 CAP,E 47-100 SME<LHSM>
C26 87-010-990-080 CAP,E 33-100 SME<HASM>
C26 87-016-285-080 CAP,E 47-100 SME<LHSM>
C27 87-010-990-080 CAP,E 33-100 SME<HASM>
C27 87-016-285-080 CAP,E 47-100 SME<LHSM>
C28 87-010-990-080 CAP,E 33-100 SME<HASM>
C28 87-016-285-080 CAP,E 47-100 SME<LHSM>
C31 87-010-263-080 CAP, ELECT 100-10V
C32 87-010-197-080 CAP, CHIP 0.01 DM
C34 87-010-247-080 CAP, ELECT 100-50V
C35 87-010-380-080 CAP, ELECT 47-16V
C36 87-010-381-080 CAP, ELECT 330-16V
C38 87-010-384-080 CAP, ELECT 100-25V
C39 87-010-384-080 CAP, ELECT 100-25V
C40 87-010-190-080 S CHIP F 0.01
C60 87-010-403-080 CAP, ELECT 3.3-50V
C80 87-010-401-080 CAP, ELECT 1-50V
C81 87-010-374-080 CAP, ELECT 47-10V
C82 87-010-260-080 CAP, ELECT 47-25V
C104 87-010-196-080 CHIP CAPACITOR,0.1-25
C105 87-010-196-080 CHIP CAPACITOR,0.1-25
C111 87-010-401-080 CAP, ELECT 1-50V
C112 87-010-401-080 CAP, ELECT 1-50V
C115 87-010-401-080 CAP, ELECT 1-50V
C116 87-010-401-080 CAP, ELECT 1-50V
C121 87-010-406-080 CAP, ELECT 22-50
C122 87-010-406-080 CAP, ELECT 22-50
C151 87-010-405-080 CAP, ELECT 10-50V<HASM>
C163 87-010-196-080 CHIP CAPACITOR,0.1-25
C171 87-012-368-080 C-CAP,S 0.1-50 F
C172 87-012-368-080 C-CAP,S 0.1-50 F
C173 87-012-368-080 C-CAP,S 0.1-50 F
C174 87-012-368-080 C-CAP,S 0.1-50 F
C175 87-A11-572-080 C-CAP,S 0.015-50 K B
C176 87-A11-572-080 C-CAP,S 0.015-50 K B
C177 87-010-197-080 CAP, CHIP 0.01 DM
C178 87-010-197-080 CAP, CHIP 0.01 DM
C301 87-010-318-080 C-CAP,S 47P-50 CH
C302 87-010-318-080 C-CAP,S 47P-50 CH
C303 87-012-157-080 C-CAP,S 330P-50 CH
C304 87-012-157-080 C-CAP,S 330P-50 CH
C305 87-012-157-080 C-CAP,S 330P-50 CH
C306 87-012-157-080 C-CAP,S 330P-50 CH
C307 87-010-196-080 CHIP CAPACITOR,0.1-25
C311 87-010-198-080 CAP, CHIP 0.022
C312 87-010-198-080 CAP, CHIP 0.022
C313 87-010-180-080 C-CER 1500P
C314 87-010-180-080 C-CER 1500P
C315 87-010-178-080 CHIP CAP 1000P
C316 87-010-178-080 CHIP CAP 1000P
C317 87-A10-201-080 C-CAP,S0.33-16 KB
C318 87-A10-201-080 C-CAP,S0.33-16 KB
C319 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C320 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C321 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C322 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C324 87-010-260-080 CAP, ELECT 47-25V
C325 87-010-370-080 CAP,E 330-6.3 SME
C327 87-010-404-080 CAP, ELECT 4.7-50V
C328 87-010-404-080 CAP, ELECT 4.7-50V
C332 87-010-196-080 CHIP CAPACITOR,0.1-25
C335 87-010-401-080 CAP, ELECT 1-50V
C336 87-010-401-080 CAP, ELECT 1-50V
All manuals and user guides at all-guides.com
all-guides.com

– 7 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.

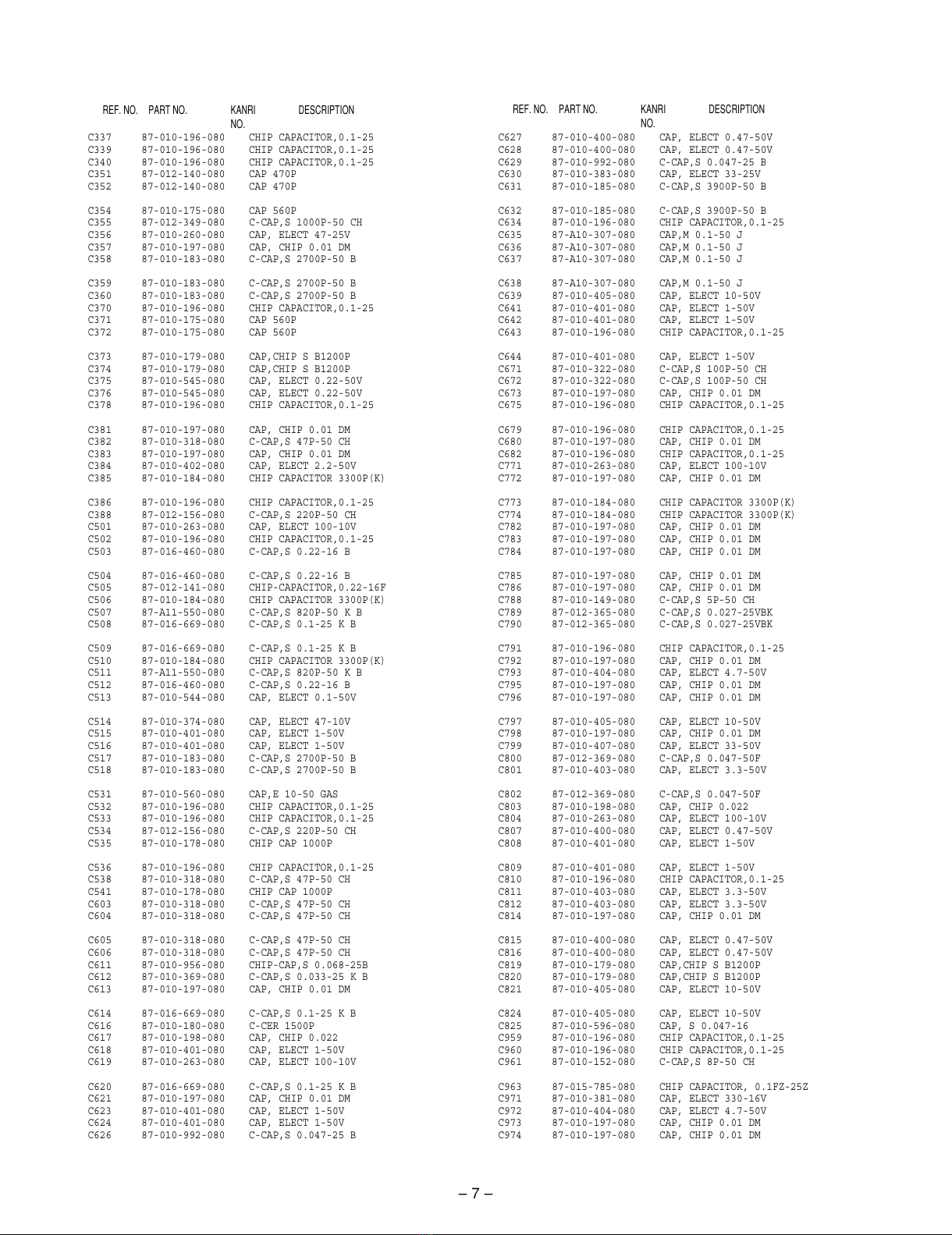

C337 87-010-196-080 CHIP CAPACITOR,0.1-25
C339 87-010-196-080 CHIP CAPACITOR,0.1-25
C340 87-010-196-080 CHIP CAPACITOR,0.1-25
C351 87-012-140-080 CAP 470P
C352 87-012-140-080 CAP 470P
C354 87-010-175-080 CAP 560P
C355 87-012-349-080 C-CAP,S 1000P-50 CH
C356 87-010-260-080 CAP, ELECT 47-25V
C357 87-010-197-080 CAP, CHIP 0.01 DM
C358 87-010-183-080 C-CAP,S 2700P-50 B
C359 87-010-183-080 C-CAP,S 2700P-50 B
C360 87-010-183-080 C-CAP,S 2700P-50 B
C370 87-010-196-080 CHIP CAPACITOR,0.1-25
C371 87-010-175-080 CAP 560P
C372 87-010-175-080 CAP 560P
C373 87-010-179-080 CAP,CHIP S B1200P
C374 87-010-179-080 CAP,CHIP S B1200P
C375 87-010-545-080 CAP, ELECT 0.22-50V
C376 87-010-545-080 CAP, ELECT 0.22-50V
C378 87-010-196-080 CHIP CAPACITOR,0.1-25
C381 87-010-197-080 CAP, CHIP 0.01 DM
C382 87-010-318-080 C-CAP,S 47P-50 CH
C383 87-010-197-080 CAP, CHIP 0.01 DM
C384 87-010-402-080 CAP, ELECT 2.2-50V
C385 87-010-184-080 CHIP CAPACITOR 3300P(K)
C386 87-010-196-080 CHIP CAPACITOR,0.1-25
C388 87-012-156-080 C-CAP,S 220P-50 CH
C501 87-010-263-080 CAP, ELECT 100-10V
C502 87-010-196-080 CHIP CAPACITOR,0.1-25
C503 87-016-460-080 C-CAP,S 0.22-16 B
C504 87-016-460-080 C-CAP,S 0.22-16 B
C505 87-012-141-080 CHIP-CAPACITOR,0.22-16F
C506 87-010-184-080 CHIP CAPACITOR 3300P(K)
C507 87-A11-550-080 C-CAP,S 820P-50 K B
C508 87-016-669-080 C-CAP,S 0.1-25 K B
C509 87-016-669-080 C-CAP,S 0.1-25 K B
C510 87-010-184-080 CHIP CAPACITOR 3300P(K)
C511 87-A11-550-080 C-CAP,S 820P-50 K B
C512 87-016-460-080 C-CAP,S 0.22-16 B
C513 87-010-544-080 CAP, ELECT 0.1-50V
C514 87-010-374-080 CAP, ELECT 47-10V
C515 87-010-401-080 CAP, ELECT 1-50V
C516 87-010-401-080 CAP, ELECT 1-50V
C517 87-010-183-080 C-CAP,S 2700P-50 B
C518 87-010-183-080 C-CAP,S 2700P-50 B
C531 87-010-560-080 CAP,E 10-50 GAS
C532 87-010-196-080 CHIP CAPACITOR,0.1-25
C533 87-010-196-080 CHIP CAPACITOR,0.1-25
C534 87-012-156-080 C-CAP,S 220P-50 CH
C535 87-010-178-080 CHIP CAP 1000P
C536 87-010-196-080 CHIP CAPACITOR,0.1-25
C538 87-010-318-080 C-CAP,S 47P-50 CH
C541 87-010-178-080 CHIP CAP 1000P
C603 87-010-318-080 C-CAP,S 47P-50 CH
C604 87-010-318-080 C-CAP,S 47P-50 CH
C605 87-010-318-080 C-CAP,S 47P-50 CH
C606 87-010-318-080 C-CAP,S 47P-50 CH
C611 87-010-956-080 CHIP-CAP,S 0.068-25B
C612 87-010-369-080 C-CAP,S 0.033-25 K B
C613 87-010-197-080 CAP, CHIP 0.01 DM
C614 87-016-669-080 C-CAP,S 0.1-25 K B
C616 87-010-180-080 C-CER 1500P
C617 87-010-198-080 CAP, CHIP 0.022
C618 87-010-401-080 CAP, ELECT 1-50V
C619 87-010-263-080 CAP, ELECT 100-10V
C620 87-016-669-080 C-CAP,S 0.1-25 K B
C621 87-010-197-080 CAP, CHIP 0.01 DM
C623 87-010-401-080 CAP, ELECT 1-50V
C624 87-010-401-080 CAP, ELECT 1-50V
C626 87-010-992-080 C-CAP,S 0.047-25 B
C627 87-010-400-080 CAP, ELECT 0.47-50V
C628 87-010-400-080 CAP, ELECT 0.47-50V
C629 87-010-992-080 C-CAP,S 0.047-25 B
C630 87-010-383-080 CAP, ELECT 33-25V
C631 87-010-185-080 C-CAP,S 3900P-50 B
C632 87-010-185-080 C-CAP,S 3900P-50 B
C634 87-010-196-080 CHIP CAPACITOR,0.1-25
C635 87-A10-307-080 CAP,M 0.1-50 J
C636 87-A10-307-080 CAP,M 0.1-50 J
C637 87-A10-307-080 CAP,M 0.1-50 J
C638 87-A10-307-080 CAP,M 0.1-50 J
C639 87-010-405-080 CAP, ELECT 10-50V
C641 87-010-401-080 CAP, ELECT 1-50V
C642 87-010-401-080 CAP, ELECT 1-50V
C643 87-010-196-080 CHIP CAPACITOR,0.1-25
C644 87-010-401-080 CAP, ELECT 1-50V
C671 87-010-322-080 C-CAP,S 100P-50 CH
C672 87-010-322-080 C-CAP,S 100P-50 CH
C673 87-010-197-080 CAP, CHIP 0.01 DM
C675 87-010-196-080 CHIP CAPACITOR,0.1-25
C679 87-010-196-080 CHIP CAPACITOR,0.1-25
C680 87-010-197-080 CAP, CHIP 0.01 DM
C682 87-010-196-080 CHIP CAPACITOR,0.1-25
C771 87-010-263-080 CAP, ELECT 100-10V
C772 87-010-197-080 CAP, CHIP 0.01 DM
C773 87-010-184-080 CHIP CAPACITOR 3300P(K)
C774 87-010-184-080 CHIP CAPACITOR 3300P(K)
C782 87-010-197-080 CAP, CHIP 0.01 DM
C783 87-010-197-080 CAP, CHIP 0.01 DM
C784 87-010-197-080 CAP, CHIP 0.01 DM
C785 87-010-197-080 CAP, CHIP 0.01 DM
C786 87-010-197-080 CAP, CHIP 0.01 DM
C788 87-010-149-080 C-CAP,S 5P-50 CH
C789 87-012-365-080 C-CAP,S 0.027-25VBK
C790 87-012-365-080 C-CAP,S 0.027-25VBK
C791 87-010-196-080 CHIP CAPACITOR,0.1-25
C792 87-010-197-080 CAP, CHIP 0.01 DM
C793 87-010-404-080 CAP, ELECT 4.7-50V
C795 87-010-197-080 CAP, CHIP 0.01 DM
C796 87-010-197-080 CAP, CHIP 0.01 DM
C797 87-010-405-080 CAP, ELECT 10-50V
C798 87-010-197-080 CAP, CHIP 0.01 DM
C799 87-010-407-080 CAP, ELECT 33-50V
C800 87-012-369-080 C-CAP,S 0.047-50F
C801 87-010-403-080 CAP, ELECT 3.3-50V
C802 87-012-369-080 C-CAP,S 0.047-50F
C803 87-010-198-080 CAP, CHIP 0.022
C804 87-010-263-080 CAP, ELECT 100-10V
C807 87-010-400-080 CAP, ELECT 0.47-50V
C808 87-010-401-080 CAP, ELECT 1-50V
C809 87-010-401-080 CAP, ELECT 1-50V
C810 87-010-196-080 CHIP CAPACITOR,0.1-25
C811 87-010-403-080 CAP, ELECT 3.3-50V
C812 87-010-403-080 CAP, ELECT 3.3-50V
C814 87-010-197-080 CAP, CHIP 0.01 DM
C815 87-010-400-080 CAP, ELECT 0.47-50V
C816 87-010-400-080 CAP, ELECT 0.47-50V
C819 87-010-179-080 CAP,CHIP S B1200P
C820 87-010-179-080 CAP,CHIP S B1200P
C821 87-010-405-080 CAP, ELECT 10-50V
C824 87-010-405-080 CAP, ELECT 10-50V
C825 87-010-596-080 CAP, S 0.047-16
C959 87-010-196-080 CHIP CAPACITOR,0.1-25
C960 87-010-196-080 CHIP CAPACITOR,0.1-25
C961 87-010-152-080 C-CAP,S 8P-50 CH
C963 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z
C971 87-010-381-080 CAP, ELECT 330-16V
C972 87-010-404-080 CAP, ELECT 4.7-50V
C973 87-010-197-080 CAP, CHIP 0.01 DM
C974 87-010-197-080 CAP, CHIP 0.01 DM
All manuals and user guides at all-guides.com

– 8 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C979 87-010-322-080 C-CAP,S 100P-50 CH
C981 87-010-260-080 CAP, ELECT 47-25V
C982 87-010-196-080 CHIP CAPACITOR,0.1-25
C983 87-010-197-080 CAP, CHIP 0.01 DM
C984 87-010-197-080 CAP, CHIP 0.01 DM
C987 87-010-197-080 CAP, CHIP 0.01 DM
C991 87-010-312-080 C-CAP,S 15P-50 CH
C992 87-010-312-080 C-CAP,S 15P-50 CH
C993 87-010-178-080 CHIP CAP 1000P
C995 87-010-178-080 CHIP CAP 1000P
C997 87-010-196-080 CHIP CAPACITOR,0.1-25
C998 87-010-260-080 CAP, ELECT 47-25V
C999 87-A11-155-080 CAP,TC U 0.01-16 Z F
CN1 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3
CN91 87-A60-619-010 CONN,2P V 2MM JMT
CN92 87-A60-619-010 CONN,2P V 2MM JMT
CN101 87-A60-996-010 CONN,13P V BLK TAC-L13X-A3
CN301 87-A60-620-010 CONN,3P V 2MM JMT
CN351 87-A60-625-010 CONN,8P V 2MM JMT
CN601 87-099-719-010 CONN,30P TYK-B(X)
CN602 87-A60-131-010 CONN,6P V FE
CN605 87-099-568-010 CONN,11P TUC-P11P-B1
CNA1 8A-NF8-653-010 CONN ASSY,9P TID-A(480)
CNA2 8A-NF3-640-110 CONN ASSY,3P (VM) ANF-3
FB501 87-008-372-080 FILTER, EMI BL OIRNI
FFC302 88-906-481-110 FF-CABLE,6P 1.25 480MM
FFE831 A8-8ZA-190-030 8ZA-1 FEUNM
J102 87-A60-238-010 TERMINAL,SP 4P (MSC)
J103 87-A60-483-010 JACK,DIA6.3 BLK ST W/S KM
J601 87-A60-885-010 JACK,PIN 6P R/W MSC
J831 87-A60-202-010 TERMINAL,ANT 4P MSP-154V-02
L101 87-A50-610-010 COIL,1UH K(MDEC)
L102 87-A50-610-010 COIL,1UH K(MDEC)
L301 87-A50-049-010 COIL,TRAP 85K(COI)
L302 87-A50-049-010 COIL,TRAP 85K(COI)
L351 87-007-342-010 COIL,OSC 85K BIAS
L801 87-A50-608-010 COIL,FM DET-N(TOK)
L802 87-A91-551-010 FLTR,PCFJZH-450 L(TOK)
L811 87-005-847-080 COIL,2.2UH(CECS)
L821 87-A50-209-010 COIL,1POLE MPX(MIT)
L822 87-A50-209-010 COIL,1POLE MPX(MIT)
L832 87-005-847-080 COIL,2.2UH(CECS)
L951 8A-NF8-667-010 COIL,AM PACK 4(TOK)
R161 87-A00-441-050 RES,270-1/2W J RP
R162 87-A00-441-050 RES,270-1/2W J RP
R163 87-A00-441-050 RES,270-1/2W J RP
R164 87-A00-441-050 RES,270-1/2W J RP
R790 87-010-197-080 CAP, CHIP 0.01 DM
R991 87-010-322-080 C-CAP,S 100P-50 CH
R993 87-010-322-080 C-CAP,S 100P-50 CH
R995 87-010-322-080 C-CAP,S 100P-50 CH
SFR301 87-024-355-080 SFR,33K DIA6 H
SFR302 87-024-355-080 SFR,33K DIA6 H
SFR303 87-024-355-080 SFR,33K DIA6 H
SFR304 87-024-355-080 SFR,33K DIA6 H
SFR305 87-024-356-080 SFR,47K DIA6 H
SFR306 87-024-356-080 SFR,47K DIA6 H
SFR351 87-024-356-080 SFR,47K DIA6 H
SFR352 87-024-356-080 SFR,47K DIA6 H
X991 87-A70-061-010 VIB,XTAL 4.500MHZ CSA-309
DISPLAY C.B
C103 87-010-196-080 CHIP CAPACITOR,0.1-25
C104 87-010-313-080 CAP, CHIP 18P
C105 87-010-322-080 C-CAP,S 100P-50 CH
C106 87-012-145-080 CAP, CHIP S 270P CH
C107 87-012-157-080 C-CAP,S 330P-50 CH
C108 87-015-681-040 E/CAP 10-16
C109 87-010-401-040 CAP,E 1-50 SME
C110 87-010-196-080 CHIP CAPACITOR,0.1-25
C112 87-016-460-080 C-CAP,S 0.22-16 B
C113 87-A10-189-040 CAP,E 220-10
C114 87-010-196-080 CHIP CAPACITOR,0.1-25
C115 87-010-198-080 CAP, CHIP 0.022
C116 87-010-493-040 CAP,E 0.47-50 GAS
C117 87-010-498-040 CAP,E 10-16 GAS
C118 87-010-194-080 CAP, CHIP 0.047
C119 87-A10-797-040 CAP,E 47-35 M 5L SRM
C120 87-015-699-040 CAP,E 10-50 7L
C121 87-015-699-040 CAP,E 10-50 7L
C122 87-010-197-080 CAP, CHIP 0.01 DM
C123 87-010-196-080 CHIP CAPACITOR,0.1-25
C125 87-010-196-080 CHIP CAPACITOR,0.1-25
C128 87-010-178-080 CHIP CAP 1000P
C129 87-010-194-080 CAP, CHIP 0.047
C131 87-A10-189-040 CAP,E 220-10
C132 87-A10-189-040 CAP,E 220-10
C151 87-010-194-080 CAP, CHIP 0.047
C192 87-015-785-080 CHIP CAPACITOR, 0.1FZ-25Z
C196 87-010-194-080 CAP, CHIP 0.047
C197 87-010-194-080 CAP, CHIP 0.047
C213 87-A10-189-040 CAP,E 220-10
C301 87-010-318-080 C-CAP,S 47P-50 CH
C303 87-016-460-080 C-CAP,S 0.22-16 B
C304 87-016-460-080 C-CAP,S 0.22-16 B
C305 87-010-196-080 CHIP CAPACITOR,0.1-25
C306 87-010-196-080 CHIP CAPACITOR,0.1-25
C310 87-010-067-040 CAP,E 0.1-50 5L
C701 87-010-981-040 CAP,E 22-35 5L SRE
C801 87-012-156-080 C-CAP,S 220P-50 CH
C802 87-010-176-080 C-CAP,S 680P-50 SL
C803 87-010-187-080 CAP CHIP S5600P
C804 87-010-213-080 C-CAP,S 0.015-50 B
C805 87-010-197-080 CAP, CHIP 0.01 DM
C806 87-010-071-040 CAP,E 1-50 M 5L SRE
C807 87-010-197-080 CAP, CHIP 0.01 DM
C809 87-012-155-080 C-CAP 180P-50CH
C810 87-010-264-040 CAP,E 100-10 5L
C811 87-010-244-040 CAP,E 22-16 5L
C812 87-016-044-040 CAP,E 100-16 GAS
C821 87-010-196-080 CHIP CAPACITOR,0.1-25
C833 87-010-322-080 C-CAP,S 100P-50 CH
C901 87-012-157-080 C-CAP,S 330P-50 CH
C902 87-010-176-080 C-CAP,S 680P-50 SL
C903 87-010-176-080 C-CAP,S 680P-50 SL
C904 87-010-176-080 C-CAP,S 680P-50 SL
C905 87-010-176-080 C-CAP,S 680P-50 SL
C906 87-010-176-080 C-CAP,S 680P-50 SL
C907 87-010-176-080 C-CAP,S 680P-50 SL
C908 87-010-176-080 C-CAP,S 680P-50 SL
C909 87-010-176-080 C-CAP,S 680P-50 SL
C910 87-010-176-080 C-CAP,S 680P-50 SL
C911 87-010-176-080 C-CAP,S 680P-50 SL
C912 87-010-176-080 C-CAP,S 680P-50 SL
C913 87-010-176-080 C-CAP,S 680P-50 SL
C914 87-012-145-080 CAP, CHIP S 270P CH
CN101 87-099-720-010 CONN,30P TYK-B(P)
CN102 87-A60-054-010 CONN,14P V 9604S-14C
CN103 87-099-750-010 CONN,15P V 9604SC
CN601 87-A60-062-010 CONN,05P V 9604S-05C
CN701 87-099-750-010 CONN,15P V 9604SC
FFC102 88-914-481-110 FF-CABLE,14P 1.25 480MM
FFC104 88-915-161-110 FF-CABLE,15P 1.25
FFC601 88-905-081-110 FF-CABLE,5P 1.25
FFC701 88-915-161-110 FF-CABLE,15P 1.25
FL101 8A-NF3-613-010 FL,BJ752GK-ANF3
JW315 87-A90-896-080 F-BEAD, 035600STY7
JW316 87-A90-896-080 F-BEAD, 035600STY7
L101 87-A50-333-010 COIL,OSC 9.43MHZ
All manuals and user guides at all-guides.com

– 9 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.

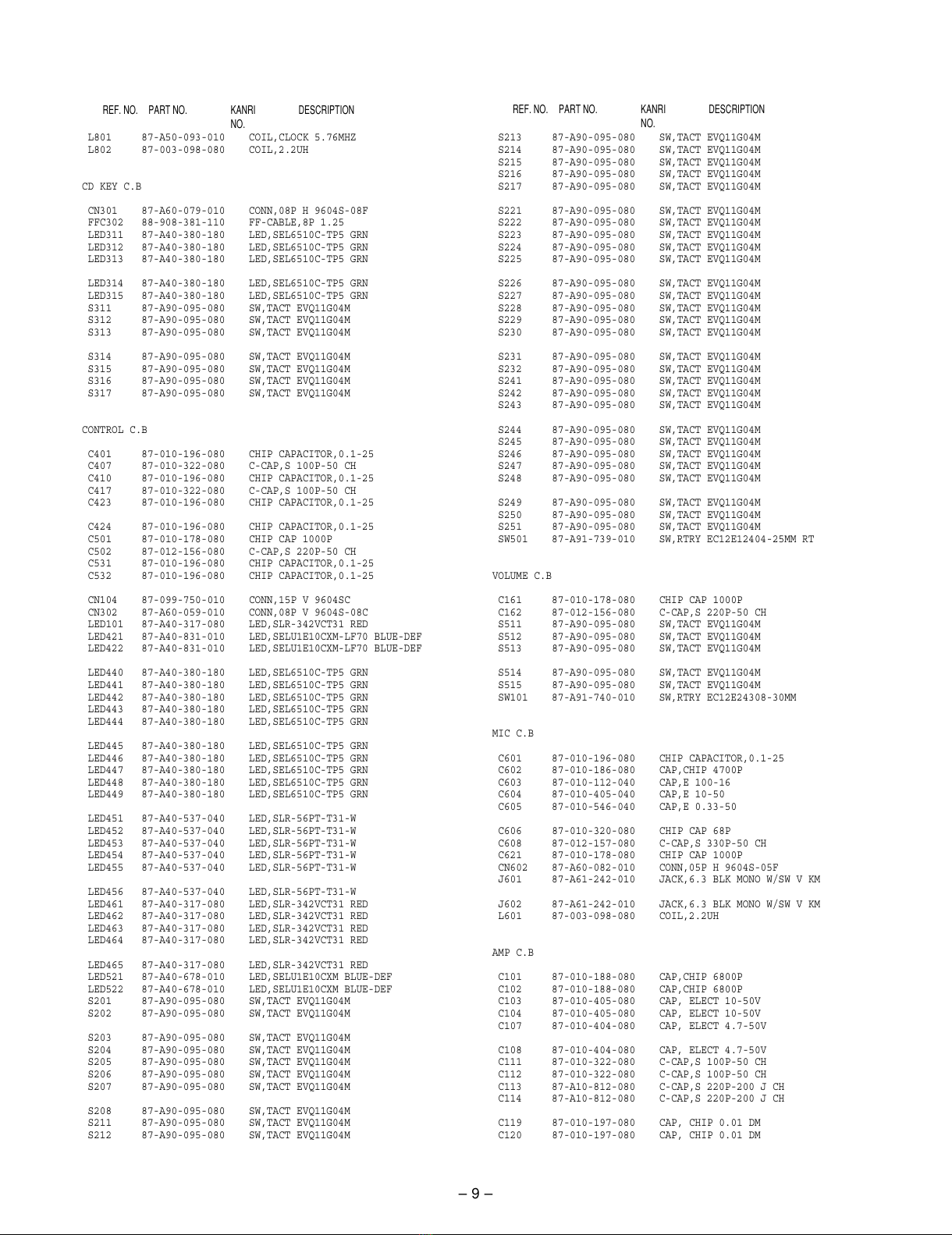

L801 87-A50-093-010 COIL,CLOCK 5.76MHZ
L802 87-003-098-080 COIL,2.2UH
CD KEY C.B
CN301 87-A60-079-010 CONN,08P H 9604S-08F
FFC302 88-908-381-110 FF-CABLE,8P 1.25
LED311 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED312 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED313 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED314 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED315 87-A40-380-180 LED,SEL6510C-TP5 GRN
S311 87-A90-095-080 SW,TACT EVQ11G04M
S312 87-A90-095-080 SW,TACT EVQ11G04M
S313 87-A90-095-080 SW,TACT EVQ11G04M
S314 87-A90-095-080 SW,TACT EVQ11G04M
S315 87-A90-095-080 SW,TACT EVQ11G04M
S316 87-A90-095-080 SW,TACT EVQ11G04M
S317 87-A90-095-080 SW,TACT EVQ11G04M
CONTROL C.B
C401 87-010-196-080 CHIP CAPACITOR,0.1-25
C407 87-010-322-080 C-CAP,S 100P-50 CH
C410 87-010-196-080 CHIP CAPACITOR,0.1-25
C417 87-010-322-080 C-CAP,S 100P-50 CH
C423 87-010-196-080 CHIP CAPACITOR,0.1-25
C424 87-010-196-080 CHIP CAPACITOR,0.1-25
C501 87-010-178-080 CHIP CAP 1000P
C502 87-012-156-080 C-CAP,S 220P-50 CH
C531 87-010-196-080 CHIP CAPACITOR,0.1-25
C532 87-010-196-080 CHIP CAPACITOR,0.1-25
CN104 87-099-750-010 CONN,15P V 9604SC
CN302 87-A60-059-010 CONN,08P V 9604S-08C
LED101 87-A40-317-080 LED,SLR-342VCT31 RED
LED421 87-A40-831-010 LED,SELU1E10CXM-LF70 BLUE-DEF
LED422 87-A40-831-010 LED,SELU1E10CXM-LF70 BLUE-DEF
LED440 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED441 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED442 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED443 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED444 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED445 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED446 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED447 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED448 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED449 87-A40-380-180 LED,SEL6510C-TP5 GRN
LED451 87-A40-537-040 LED,SLR-56PT-T31-W
LED452 87-A40-537-040 LED,SLR-56PT-T31-W
LED453 87-A40-537-040 LED,SLR-56PT-T31-W
LED454 87-A40-537-040 LED,SLR-56PT-T31-W
LED455 87-A40-537-040 LED,SLR-56PT-T31-W
LED456 87-A40-537-040 LED,SLR-56PT-T31-W
LED461 87-A40-317-080 LED,SLR-342VCT31 RED
LED462 87-A40-317-080 LED,SLR-342VCT31 RED
LED463 87-A40-317-080 LED,SLR-342VCT31 RED
LED464 87-A40-317-080 LED,SLR-342VCT31 RED
LED465 87-A40-317-080 LED,SLR-342VCT31 RED
LED521 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF
LED522 87-A40-678-010 LED,SELU1E10CXM BLUE-DEF
S201 87-A90-095-080 SW,TACT EVQ11G04M
S202 87-A90-095-080 SW,TACT EVQ11G04M
S203 87-A90-095-080 SW,TACT EVQ11G04M
S204 87-A90-095-080 SW,TACT EVQ11G04M
S205 87-A90-095-080 SW,TACT EVQ11G04M
S206 87-A90-095-080 SW,TACT EVQ11G04M
S207 87-A90-095-080 SW,TACT EVQ11G04M
S208 87-A90-095-080 SW,TACT EVQ11G04M
S211 87-A90-095-080 SW,TACT EVQ11G04M
S212 87-A90-095-080 SW,TACT EVQ11G04M
S213 87-A90-095-080 SW,TACT EVQ11G04M
S214 87-A90-095-080 SW,TACT EVQ11G04M
S215 87-A90-095-080 SW,TACT EVQ11G04M
S216 87-A90-095-080 SW,TACT EVQ11G04M
S217 87-A90-095-080 SW,TACT EVQ11G04M
S221 87-A90-095-080 SW,TACT EVQ11G04M
S222 87-A90-095-080 SW,TACT EVQ11G04M
S223 87-A90-095-080 SW,TACT EVQ11G04M
S224 87-A90-095-080 SW,TACT EVQ11G04M
S225 87-A90-095-080 SW,TACT EVQ11G04M
S226 87-A90-095-080 SW,TACT EVQ11G04M
S227 87-A90-095-080 SW,TACT EVQ11G04M
S228 87-A90-095-080 SW,TACT EVQ11G04M
S229 87-A90-095-080 SW,TACT EVQ11G04M
S230 87-A90-095-080 SW,TACT EVQ11G04M
S231 87-A90-095-080 SW,TACT EVQ11G04M
S232 87-A90-095-080 SW,TACT EVQ11G04M
S241 87-A90-095-080 SW,TACT EVQ11G04M
S242 87-A90-095-080 SW,TACT EVQ11G04M
S243 87-A90-095-080 SW,TACT EVQ11G04M
S244 87-A90-095-080 SW,TACT EVQ11G04M
S245 87-A90-095-080 SW,TACT EVQ11G04M
S246 87-A90-095-080 SW,TACT EVQ11G04M
S247 87-A90-095-080 SW,TACT EVQ11G04M
S248 87-A90-095-080 SW,TACT EVQ11G04M
S249 87-A90-095-080 SW,TACT EVQ11G04M
S250 87-A90-095-080 SW,TACT EVQ11G04M
S251 87-A90-095-080 SW,TACT EVQ11G04M
SW501 87-A91-739-010 SW,RTRY EC12E12404-25MM RT
VOLUME C.B
C161 87-010-178-080 CHIP CAP 1000P
C162 87-012-156-080 C-CAP,S 220P-50 CH
S511 87-A90-095-080 SW,TACT EVQ11G04M
S512 87-A90-095-080 SW,TACT EVQ11G04M
S513 87-A90-095-080 SW,TACT EVQ11G04M
S514 87-A90-095-080 SW,TACT EVQ11G04M
S515 87-A90-095-080 SW,TACT EVQ11G04M
SW101 87-A91-740-010 SW,RTRY EC12E24308-30MM
MIC C.B
C601 87-010-196-080 CHIP CAPACITOR,0.1-25
C602 87-010-186-080 CAP,CHIP 4700P
C603 87-010-112-040 CAP,E 100-16
C604 87-010-405-040 CAP,E 10-50
C605 87-010-546-040 CAP,E 0.33-50
C606 87-010-320-080 CHIP CAP 68P
C608 87-012-157-080 C-CAP,S 330P-50 CH
C621 87-010-178-080 CHIP CAP 1000P
CN602 87-A60-082-010 CONN,05P H 9604S-05F
J601 87-A61-242-010 JACK,6.3 BLK MONO W/SW V KM
J602 87-A61-242-010 JACK,6.3 BLK MONO W/SW V KM
L601 87-003-098-080 COIL,2.2UH
AMP C.B
C101 87-010-188-080 CAP,CHIP 6800P
C102 87-010-188-080 CAP,CHIP 6800P
C103 87-010-405-080 CAP, ELECT 10-50V
C104 87-010-405-080 CAP, ELECT 10-50V
C107 87-010-404-080 CAP, ELECT 4.7-50V
C108 87-010-404-080 CAP, ELECT 4.7-50V
C111 87-010-322-080 C-CAP,S 100P-50 CH
C112 87-010-322-080 C-CAP,S 100P-50 CH
C113 87-A10-812-080 C-CAP,S 220P-200 J CH
C114 87-A10-812-080 C-CAP,S 220P-200 J CH
C119 87-010-197-080 CAP, CHIP 0.01 DM
C120 87-010-197-080 CAP, CHIP 0.01 DM
All manuals and user guides at all-guides.com

– 10 –
!
!
!
!
!
!
!
!
!
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C121 87-010-260-080 CAP, ELECT 47-25V
C122 87-010-260-080 CAP, ELECT 47-25V
C173 87-010-186-080 CAP,CHIP 4700P
C174 87-010-186-080 CAP,CHIP 4700P
C205 87-010-187-080 CAP,CHIP S5600P
C206 87-010-187-080 CAP,CHIP S5600P
C207 87-010-403-080 CAP, ELECT 3.3-50V
C208 87-010-403-080 CAP, ELECT 3.3-50V
C209 87-010-184-080 CHIP CAPACITOR 3300P(K)
C210 87-010-184-080 CHIP CAPACITOR 3300P(K)
C211 87-010-401-080 CAP, ELECT 1-50V
C212 87-010-401-080 CAP, ELECT 1-50V
C215 87-012-156-080 C-CAP,S 220P-50 CH
C216 87-012-156-080 C-CAP,S 220P-50 CH
C217 87-010-260-080 CAP, ELECT 47-25V
C218 87-010-260-080 CAP, ELECT 47-25V
C221 87-016-100-080 CAP, ELECT 10-50 M BP SME
C222 87-016-100-080 CAP, ELECT 10-50 M BP SME
C223 87-010-197-080 CAP, CHIP 0.01 DM
C224 87-010-197-080 CAP, CHIP 0.01 DM
C249 87-012-368-080 C-CAP,S 0.1-50 F
C251 87-010-993-080 C-CAP,S 0.056-25 B
C252 87-010-196-080 CHIP CAPACITOR,0.1-25
C253 87-010-196-080 CHIP CAPACITOR,0.1-25
C254 87-010-993-080 C-CAP,S 0.056-25 B
C255 87-010-190-080 S CHIP F 0.01
C256 87-010-190-080 S CHIP F 0.01
C265 87-010-260-080 CAP,E 47-25V
C402 87-010-196-080 CHIP CAPACITOR,0.1-25
C413 87-A10-119-080 CAP,E 10-100 REA
C414 87-A10-119-080 CAP,E 10-100 REA
CNA101 8A-NF8-652-010 CONN ASSY,7P TID-A(480)
CON101 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3
CON102 87-A61-011-010 CONN,13P H BLK TAC-L13P-A3
J201 87-A61-148-010 JACK,PIN 4P R/W BLUE
JW138 87-A90-896-080 F-BEAD, 035600STY7
JW944 87-A90-896-080 F-BEAD, 035600STY7
L251 87-A50-610-010 COIL,1UH K(MDEC)
L252 87-A50-610-010 COIL,1UH K(MDEC)
R161 87-A00-418-010 RES,M/F 0.15-3W J
R162 87-A00-418-010 RES,M/F 0.15-3W J
R165 87-A00-418-010 RES,M/F 0.15-3W J
R166 87-A00-418-010 RES,M/F 0.15-3W J
R231 87-A00-669-080 RES,M/F 0.22-2W J RA
R232 87-A00-669-080 RES,M/F 0.22-2W J RA
R243 87-A00-669-080 RES,M/F 0.22-2W J RA
R244 87-A00-669-080 RES,M/F 0.22-2W J RA
TH101 87-A91-042-080 C-THMS,100K 55001
TH102 87-A91-042-080 C-THMS,100K 55001
WH101 87-A90-460-010 HLDR,WIRE 2.5-7P
PT C.B
C1 87-010-387-080 CAP,E 470-25 SME
C4 87-A11-148-080 CAP,TC U 0.1-50 Z F
C5 87-A11-148-080 CAP,TC U 0.1-50 Z F
C6 87-010-917-000 CAP,E 3300-50 M SMG
C7 87-010-917-000 CAP,E 3300-50 M SMG
C8 87-A11-148-080 CAP,TC U 0.1-50 Z F
C9 87-A11-148-080 CAP,TC U 0.1-50 Z F
C10 87-A11-148-080 CAP,TC U 0.1-50 Z F
C11 87-A11-148-080 CAP,TC U 0.1-50 Z F
C12 87-010-917-000 CAP,E 3300-50 M SMG
C13 87-010-917-000 CAP,E 3300-50 M SMG
C16 87-010-403-040 CAP,E 3.3-50 SME
C18 87-A11-148-080 CAP,TC U 0.1-50 Z F
C19 87-A11-148-080 CAP,TC U 0.1-50 Z F
C20 87-A11-148-080 CAP,TC U 0.1-50 Z F
C21 87-A11-148-080 CAP,TC U 0.1-50 Z F
C22 87-A10-231-090 CAP,E 3300-80
C23 87-A10-231-090 CAP,E 3300-80
C24 87-A11-148-080 CAP,TC U 0.1-50 Z F
C25 87-A11-148-080 CAP,TC U 0.1-50 Z F
C27 87-A11-148-080 CAP,TC U 0.1-50 Z F
C28 87-A11-148-080 CAP,TC U 0.1-50 Z F
C29 87-A11-148-080 CAP,TC U 0.1-50 Z F
C30 87-A11-148-080 CAP,TC U 0.1-50 Z F
C31 87-A11-148-080 CAP,TC U 0.1-50 Z F
C32 87-A11-148-080 CAP,TC U 0.1-50 Z F
C33 87-A11-148-080 CAP,TC U 0.1-50 Z F
C34 87-A11-148-080 CAP,TC U 0.1-50 Z F
C35 87-A11-148-080 CAP,TC U 0.1-50 Z F
C36 87-A11-148-080 CAP,TC U 0.1-50 Z F
C37 87-A11-148-080 CAP,TC U 0.1-50 Z F
C38 87-A11-148-080 CAP,TC U 0.1-50 Z F
CN1 87-A61-110-010 CONN,9P V TID-A
CN2 87-A61-109-010 CONN,7P V TID-A
F101 87-035-459-010 FUSE,5A 250V
F102 87-035-459-010 FUSE,5A 250V
FB101 87-A90-562-010 F-BEAD,9.5-17.5.5-28.5 BRH
FC1 87-033-213-080 FUSE CLAMP,PFC5000
FC2 87-033-213-080 FUSE CLAMP,PFC5000
FC3 87-033-213-080 FUSE CLAMP,PFC5000
FC4 87-033-213-080 FUSE CLAMP,PFC5000
PR1 87-026-682-080 PROTECTOR,10A 60V491
PR2 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR3 87-A90-195-080 PROTECTOR,7A 125V 49
PR4 87-A90-195-080 PROTECTOR,7A 125V 49
PR5 87-A90-195-080 PROTECTOR,7A 125V 49
PR6 87-A90-195-080 PROTECTOR,7A 125V 49
PR7 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PR8 87-026-682-080 PROTECTOR,10A 491 SERIES 60V
PT2 8A-NF8-673-010 PT,SUB ANF-8 (H)KAMI
PT101 8A-NF3-602-010 PT,LH EI105-60 ANF-3
RY2 87-A91-300-010 RELAY,AC 12V-ALA2PF12
S1 87-A90-165-010 SW,SL 1-2-3 SWS2301
T1 87-A60-317-010 TERMINAL, 1P MSC
T2 87-A60-317-010 TERMINAL, 1P MSC
VM C.B
CNA3 87-049-919-010 CONN,3P EH V WHT
GEQ C.B
C201 87-010-402-080 CAP, ELECT 2.2-50V
C202 87-010-402-080 CAP, ELECT 2.2-50V
C205 87-010-404-080 CAP, ELECT 4.7-50V
C207 87-016-669-080 C-CAP,S 0.1-25 K B
C208 87-016-669-080 C-CAP,S 0.1-25 K B
C209 87-016-460-080 C-CAP,S 0.22-16 B
C210 87-016-460-080 C-CAP,S 0.22-16 B
C211 87-012-365-080 C-CAP,S 0.027-25VBK
C212 87-012-365-080 C-CAP,S 0.027-25VBK
C213 87-010-956-080 CHIP-CAP,S 0.068-25B
C214 87-010-956-080 CHIP-CAP,S 0.068-25B
C215 87-010-197-080 CAP, CHIP 0.01 DM
C216 87-010-197-080 CAP, CHIP 0.01 DM
C217 87-010-198-080 CAP, CHIP 0.022
C218 87-010-198-080 CAP, CHIP 0.022
C219 87-010-183-080 C-CAP,S 2700P-50 B
C220 87-010-183-080 C-CAP,S 2700P-50 B
C221 87-010-188-080 CAP,CHIP 6800P
C222 87-010-188-080 CAP,CHIP 6800P
C223 87-010-178-080 CHIP CAP 1000P
C224 87-010-178-080 CHIP CAP 1000P
C225 87-010-182-080 C-CAP,S 2200P-50 B
C226 87-010-182-080 C-CAP,S 2200P-50 B
C227 87-010-112-080 CAP, ELECT 100-16V
C228 87-010-196-080 CHIP CAPACITOR,0.1-25
!
!
!
!
!
!
!
!
!
!
!
!
All manuals and user guides at all-guides.com
