S E R V I C E M A N U A L
SIMPLE MANUAL
•Replace this Service Manual with ”Revision Publishing” when it is issued.
NSX-MT241
• BASIC TAPE MECHANISM: 6ZM-3 PR1NM
• BASIC CD MECHANISM: 4ZG–1 Z3RDLSHM • TYPE: U
S/M Code No. 09–991–402–9T1
COMPACT DISC STEREO SYSTEM

ELECTRICAL MAIN PARTS LIST - 1/6
NOTE: The characters in the suffix column indicate the part usage.
USTM ...................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
C 1 87-010-387-080 CAP,E 470-25 SME A...................
C 4 87-010-403-080 CAP, ELECT 3.3-50V A...................
CN 1 87-A60-850-010 CONN,7P V VH A...................
D 4 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 3 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 2 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 6 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 5 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 7 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 1 87-020-465-080 DIODE,1SS133 (110MA) A...................
PR 1 87-A91-276-080 FUSE,125MA 125V F 251 A...................
PT 2 8Z-NF8-661-010 PT,SUB ZNF-8(U) A...................
PT 2 8Z-NF8-662-010 PT,SUB ZNF-8(E) ....................
PT 2 8Z-NF8-663-010 PT,SUB ZNF-8(H) ....................
Q 1 87-026-245-080 TR,DTC114ES A...................
Q 2 87-026-610-080 TR,KTC3198GR A...................
RY 1 87-A90-976-010 RELAY,AC12V SDT-S-112LMR A...................
RY 2 87-A91-281-010 RELAY,AC DC12V OSA-SS-212DM5 ....................
S 1 87-A90-165-010 SW,SL 1-2-3 SWS2301 ....................
T 1 87-A60-317-010 TERMINAL, 1P MSC A...................
T 2 87-A60-317-010 TERMINAL, 1P MSC A...................
82-NF7-210-110 GUIDE,FL (*) A...................
* 8Z-NF9-201-010 GUIDE,OPE 1W A...................
C 101 87-A11-140-080 CAP,TC U 0.047-50 K B A...................
C 153 87-010-221-080 CAP, ELECT 470-10V A...................
C 151 87-A11-132-080 CAP,TC U 0.01-50 K B A...................
C 204 87-010-246-040 CAP,E 47-35 SME A...................
C 201 87-010-421-040 CAP,E 4.7-50 5L A...................
C 202 87-010-421-040 CAP,E 4.7-50 5L A...................
C 203 87-010-560-040 CAP,E 10-50 GAS A...................
C 205 87-018-205-080 CAP, CERA-SOL 0.022 A...................
C 208 87-A11-242-040 CAP,E 220-10 M 5L SRM A...................
C 210 87-010-060-040 CAP,E 100-16 A...................
C 213 87-015-694-040 E/CAP 0.47-50 A...................
C 218 87-018-125-080 CAP, CER 330P-50V A...................
C 217 87-018-125-080 CAP, CER 330P-50V A...................
C 219 87-018-131-080 CAP, CER 1000P-50V A...................
C 216 87-018-131-080 CAP, CER 1000P-50V A...................
C 212 87-018-205-080 CAP, CERA-SOL 0.022 A...................
C 214 87-A11-155-080 CAP,TC U 0.01-16 Z F A...................
C 211 87-A11-242-040 CAP,E 220-10 M 5L SRM A...................
C 221 87-018-105-080 CAP,TC-U 12P-50 SL A...................
C 222 87-018-128-080 CAP, CERA-SOL SS 560P A...................
C 220 87-018-205-080 CAP, CERA-SOL 0.022 A...................
C 224 87-018-205-080 CAP, CERA-SOL 0.022 A...................
C 231 87-015-681-040 E/CAP 10-16 A...................
C 230 87-A11-140-080 CAP,TC U 0.047-50 K B A...................
C 232 87-A11-140-080 CAP,TC U 0.047-50 K B A...................
C 234 87-A11-140-080 CAP,TC U 0.047-50 K B A...................
C 243 87-018-117-080 CAP,TC-U 68P-50 SL A...................
C 244 87-018-117-080 CAP,TC-U 68P-50 SL A...................
C 245 87-018-117-080 CAP,TC-U 68P-50 SL A...................
C 241 87-018-117-080 CAP,TC-U 68P-50 SL A...................
C 242 87-018-117-080 CAP,TC-U 68P-50 SL A...................
C 246 87-018-118-080 CAP,TC-U 82P-50 B A...................
C 251 87-018-117-080 CAP,TC-U 68P-50 SL A...................
C 252 87-018-131-080 CAP, CER 1000P-50V A...................
C 701 87-018-115-080 CAP, CER 47P-50V A...................
CN 701 87-099-013-010 CONN,11P 6216 V A...................
CON 102 87-099-015-010 CONN,13P 6216V A...................
CON 101 87-099-720-010 CONN,30P TYK-B(P) ....................
CON 101 88-NF9-658-010 CONN,30P BLK TYK-B(P) A...................
D 102 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 101 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 151 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 202 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 203 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 201 87-A40-509-080 ZENER,MTZJ6.8C A...................
D 213 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 217 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 214 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 212 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 215 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 219 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 216 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 218 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 225 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 229 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 226 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 227 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 220 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 228 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 224 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 223 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 221 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 222 87-020-465-080 DIODE,1SS133 (110MA) A...................

D 230 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 237 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 235 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 239 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 232 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 240 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 262 87-020-465-080 DIODE,1SS133 (110MA) ....................
D 702 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 701 87-020-465-080 DIODE,1SS133 (110MA) A...................
FL 301 8Z-NF9-610-010 FL,SVA-10MS12 A...................
IC 202 87-A21-218-010 IC,NJL64H380A A...................
IC 201 8Z-NFW-630-010 C-IC,M38B59MFH-E106FP A...................
L 201 87-A50-434-010 COIL,CLK 4.19M(TOKO) A...................
LED 607 87-A40-266-080 LED,SLH-56VCT31 RED A...................
LED 606 87-A40-266-080 LED,SLH-56VCT31 RED A...................
LED 603 87-A40-619-080 LED,SLR-56PT-TE7-W GRN A...................
LED 604 87-A40-619-080 LED,SLR-56PT-TE7-W GRN A...................
LED 601 87-A40-619-080 LED,SLR-56PT-TE7-W GRN A...................
LED 602 87-A40-619-080 LED,SLR-56PT-TE7-W GRN A...................
LED 605 87-A40-619-080 LED,SLR-56PT-TE7-W GRN A...................
Q 152 87-026-609-080 TR,KTA1266GR A...................
Q 153 87-026-610-080 TR,KTC3198GR A...................
Q 151 87-026-610-080 TR,KTC3198GR A...................
Q 206 87-026-215-080 TR,DTC114YS A...................
Q 203 87-026-610-080 TR,KTC3198GR A...................
Q 205 87-026-610-080 TR,KTC3198GR A...................
Q 202 87-A30-090-080 FET,2SK2541 A...................
Q 201 87-A30-090-080 FET,2SK2541 A...................
Q 204 87-A30-090-080 FET,2SK2541 A...................
Q 602 87-026-287-080 TR,DTC143ES A...................
Q 601 87-026-287-080 TR,DTC143ES A...................
Q 603 87-026-287-080 TR,DTC143ES A...................
Q 605 87-026-287-080 TR,DTC143ES A...................
Q 606 87-026-287-080 TR,DTC143ES A...................
Q 701 87-026-245-080 TR,DTC114ES A...................
Q 702 87-A30-240-080 TR,CSA1585BC A...................
Q 703 87-A30-318-080 TR,CSA952K A...................
Q 704 87-A30-318-080 TR,CSA952K A...................
S 201 87-A90-535-010 SW,RTRY EC16B24304 A...................
S 202 87-A90-791-010 SW,RTRY EC16B12204 ENCODER A...................
S 301 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 305 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 309 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 302 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 306 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 304 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 303 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 307 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 308 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 315 87-A90-164-080 SW,TACT SKQAB(N) ....................
S 319 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 318 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 312 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 316 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 311 87-A90-164-080 SW,TACT SKQAB(N) ....................
S 310 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 313 87-A90-164-080 SW,TACT SKQAB(N) ....................
S 317 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 314 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 320 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 323 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 329 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 322 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 325 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 327 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 324 87-A90-164-080 SW,TACT SKQAB(N) A...................
S 321 87-A90-164-080 SW,TACT SKQAB(N) A...................
C 307 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 309 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 301 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 302 87-010-318-080 C-CAP,S 47P-50 CH A...................
C 305 87-012-145-080 CAP, CHIP S 270P CH A...................
C 306 87-012-145-080 CAP, CHIP S 270P CH A...................
C 303 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 304 87-012-157-080 C-CAP,S 330P-50 CH A...................
C 314 87-010-180-080 C-CER 1500P A...................
C 313 87-010-180-080 C-CER 1500P A...................
C 315 87-010-182-080 C-CAP,S 2200P-50 B A...................
C 316 87-010-182-080 C-CAP,S 2200P-50 B A...................
C 310 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 311 87-010-198-080 CAP, CHIP 0.022 A...................
C 312 87-010-198-080 CAP, CHIP 0.022 A...................
C 324 87-010-260-080 CAP, ELECT 47-25V A...................
C 325 87-010-370-080 CAP,E 330-6.3 SME A...................
C 327 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 328 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 322 87-016-492-080 C-CAP,S 0.33-16 FZ A...................
C 321 87-016-492-080 C-CAP,S 0.33-16 FZ A...................
C 337 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 339 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 332 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 335 87-010-401-080 CAP, ELECT 1-50V A...................
ELECTRICAL MAIN PARTS LIST - 2/6

C 336 87-010-401-080 CAP, ELECT 1-50V A...................
C 340 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 354 87-010-175-080 CAP 560P A...................
C 358 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 359 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 357 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 356 87-010-260-080 CAP, ELECT 47-25V A...................
C 351 87-012-140-080 CAP 470P A...................
C 352 87-012-140-080 CAP 470P A...................
C 355 87-012-349-080 C-CAP,S 1000P-50 CH A...................
C 360 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 363 87-A10-292-080 CAP,M 5600P-50 J A...................
C 378 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 370 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 379 87-010-406-080 CAP, ELECT 22-50 A...................
C 373 87-016-083-080 C-CAP,S 0.15-16 RK A...................
C 374 87-016-083-080 C-CAP,S 0.15-16 RK A...................
C 388 87-010-170-080 S CHIP SL 220P(K) A...................
C 386 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 380 87-010-406-080 CAP, ELECT 22-50 A...................
CN 301 87-099-827-010 CONN,3P S2M-3W A...................
CN 351 87-099-832-010 CONN,8P S2M-8W A...................
D 352 87-A40-269-080 C-DIODE,MC2836 A...................
FB 301 87-008-372-080 FILTER, EMI BL OIRNI ....................
IC 303 87-A20-783-040 C-IC,BA7762AFS A...................
L 301 87-A50-049-010 COIL,TRAP 85K(COI) A...................
L 302 87-A50-049-010 COIL,TRAP 85K(COI) A...................
L 351 87-007-342-010 COIL,OSC 85K BIAS A...................
Q 359 87-026-610-080 TR,KTC3198GR A...................
Q 357 87-026-610-080 TR,KTC3198GR A...................
Q 358 87-026-610-080 TR,KTC3198GR A...................
Q 356 87-A30-076-080 C-TR,2SC3052F ....................
Q 353 87-A30-087-080 C-FET,2SK2158 A...................
Q 354 87-A30-087-080 C-FET,2SK2158 A...................
Q 351 87-A30-087-080 C-FET,2SK2158 A...................
Q 355 87-A30-105-080 C-TR,RT1P 441C A...................
SFR 351 87-A90-433-080 SFR,50K H NVZ6TLTA A...................
SFR 352 87-A90-433-080 SFR,50K H NVZ6TLTA A...................
C 452 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 451 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 467 87-016-314-080 C-CAP,S 1-16 F A...................
C 5 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 3 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 6 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 4 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 2 87-012-369-080 C-CAP,S 0.047-50F ....................
C 1 87-012-369-080 C-CAP,S 0.047-50F ....................
C 9 87-016-658-090 CAP,E 4700-35 SMG A...................
C 10 87-016-658-090 CAP,E 4700-35 SMG A...................
C 29 87-010-247-080 CAP, ELECT 100-50V A...................
C 26 87-010-263-080 CAP, ELECT 100-10V A...................
C 28 87-010-263-080 CAP, ELECT 100-10V A...................
C 24 87-010-383-080 CAP, ELECT 33-25V A...................
C 23 87-010-383-080 CAP, ELECT 33-25V A...................
C 21 87-010-383-080 CAP, ELECT 33-25V A...................
C 22 87-010-383-080 CAP, ELECT 33-25V A...................
C 25 87-010-430-080 CAP, ELECT 100-63 A...................
C 27 87-012-140-080 CAP 470P A...................
C 30 87-010-112-080 CAP, ELECT 100-16V A...................
C 31 87-010-235-080 CAP,E 470-16 SME A...................
C 61 87-010-260-080 CAP, ELECT 47-25V A...................
C 62 87-010-403-080 CAP, ELECT 3.3-50V A...................
CNA 1 8Z-NF8-670-010 CONN ASSY,7P 480 VH A...................
D 9 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 8 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 4 87-070-274-080 DIODE,1N4003 SEM A...................
D 3 87-070-274-080 DIODE,1N4003 SEM A...................
D 5 87-070-274-080 DIODE,1N4003 SEM A...................
D 6 87-070-274-080 DIODE,1N4003 SEM A...................
D 1 87-A40-224-010 DIODE,GBU8D ....................
D 7 87-A40-336-080 ZENER,MTZJ27D T-72 A...................
D 1 87-A40-549-090 DIODE,RBA-1002 A...................
D 10 87-A40-345-080 ZENER,MTZJ10C A...................
D 64 87-070-274-080 DIODE,1N4003 SEM A...................
D 62 87-A40-269-080 C-DIODE,MC2836 A...................
D 61 87-A40-270-080 C-DIODE,MC2838 A...................
JW 16 87-008-372-080 FILTER, EMI BL OIRNI ....................
Q 1 87-026-609-080 TR,KTA1266GR A...................
Q 2 87-026-609-080 TR,KTA1266GR A...................
Q 5 87-026-610-080 TR,KTC3198GR A...................
Q 7 87-A30-075-080 C-TR,2SA1235F A...................
Q 8 87-A30-075-080 C-TR,2SA1235F A...................
Q 6 87-A30-076-080 C-TR,2SC3052F A...................
Q 9 87-A30-234-080 TR,CSC4115BC A...................
Q 3 89-213-702-010 TR,2SB1370 (1.8W) A...................
Q 61 87-A30-074-080 C-TR,RT1P 141C A...................
Q 62 87-A30-075-080 C-TR,2SA1235F A...................
Q 66 87-A30-075-080 C-TR,2SA1235F A...................
Q 64 87-A30-075-080 C-TR,2SA1235F A...................
Q 65 87-A30-076-080 C-TR,2SC3052F A...................
Q 67 87-A30-076-080 C-TR,2SC3052F A...................
Q 63 87-A30-076-080 C-TR,2SC3052F A...................
ELECTRICAL MAIN PARTS LIST - 3/6

Q 81 87-A30-074-080 C-TR,RT1P 141C A...................
Q 82 87-A30-075-080 C-TR,2SA1235F A...................
R 20 87-A00-261-080 RES,M/F 0.56-1W J A...................
WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................
C 101 87-010-181-080 CAP,CHIP S 1800P A...................
C 102 87-010-181-080 CAP,CHIP S 1800P A...................
C 105 87-010-186-080 CAP,CHIP 4700P A...................
C 106 87-010-186-080 CAP,CHIP 4700P A...................
C 109 87-010-322-080 C-CAP,S 100P-50 CH ....................
C 103 87-010-401-080 CAP, ELECT 1-50V A...................
C 104 87-010-401-080 CAP, ELECT 1-50V A...................
C 108 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 107 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 111 87-010-260-080 CAP, ELECT 47-25V A...................
C 112 87-010-260-080 CAP, ELECT 47-25V A...................
C 110 87-010-322-080 C-CAP,S 100P-50 CH ....................
C 113 87-A10-946-080 C-CAP,S 220P-100 J CH A...................
C 114 87-A10-946-080 C-CAP,S 220P-100 J CH A...................
C 117 87-A11-236-080 C-CAP, 0.22-50 Z F A...................
C 118 87-A11-236-080 C-CAP, 0.22-50 Z F A...................
C 124 87-010-176-080 C-CAP,S 680P-50 SL ....................
C 123 87-010-176-080 C-CAP,S 680P-50 SL ....................
C 121 87-010-178-080 CHIP CAP 1000P A...................
C 122 87-010-178-080 CHIP CAP 1000P A...................
C 129 87-010-191-080 C-CAP,S 0.015-50 F ....................
C 125 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 126 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 127 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 128 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 130 87-010-191-080 C-CAP,S 0.015-50 F ....................
C 131 87-010-197-080 CAP, CHIP 0.01 DM ....................
C 132 87-010-197-080 CAP, CHIP 0.01 DM ....................
C 133 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 135 87-010-246-080 CAP, ELECT 47-35V A...................
C 136 87-012-368-080 C-CAP,S 0.1-50 F ....................
D 107 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 103 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 104 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 108 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 101 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 102 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 114 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 112 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 113 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 111 87-A40-270-080 C-DIODE,MC2838 A...................
J 203 87-A60-238-010 TERMINAL,SP 4P (MSC) A...................
J 201 87-A60-483-010 JACK,DIA6.3 BLK ST W/S KM A...................
L 102 87-003-383-010 COIL,1UH-S A...................
L 101 87-003-383-010 COIL,1UH-S A...................
Q 104 87-A30-075-080 C-TR,2SA1235F A...................
Q 106 87-A30-075-080 C-TR,2SA1235F A...................
Q 103 87-A30-075-080 C-TR,2SA1235F A...................
Q 105 87-A30-075-080 C-TR,2SA1235F A...................
Q 107 87-A30-076-080 C-TR,2SC3052F A...................
Q 109 87-A30-076-080 C-TR,2SC3052F A...................
Q 108 87-A30-076-080 C-TR,2SC3052F A...................
Q 101 87-A30-086-070 C-TR,CSD1306E A...................
Q 102 87-A30-086-070 C-TR,CSD1306E A...................
Q 110 87-A30-076-080 C-TR,2SC3052F A...................
Q 111 87-A30-190-080 TR,CC5551 A...................
Q 112 87-A30-190-080 TR,CC5551 A...................
Q 119 87-A30-256-010 TR,2SD1933 A...................
Q 126 87-A30-075-080 C-TR,2SA1235F A...................
Q 127 87-A30-075-080 C-TR,2SA1235F A...................
Q 128 87-A30-076-080 C-TR,2SC3052F A...................
Q 129 87-A30-076-080 C-TR,2SC3052F A...................
Q 124 87-A30-106-070 C-TR,CMBT5551 A...................
Q 123 87-A30-106-070 C-TR,CMBT5551 A...................
Q 122 87-A30-255-010 TR,2SB1342 A...................
Q 121 87-A30-255-010 TR,2SB1342 A...................
Q 120 87-A30-256-010 TR,2SD1933 A...................
Q 130 87-A30-076-080 C-TR,2SC3052F A...................
Q 131 87-A30-076-080 C-TR,2SC3052F A...................
R 129 87-A00-258-080 RES,M/F 0.22-1W J A...................
R 130 87-A00-258-080 RES,M/F 0.22-1W J A...................
R 131 87-A00-258-080 RES,M/F 0.22-1W J A...................
R 132 87-A00-258-080 RES,M/F 0.22-1W J A...................
R 145 87-A00-440-050 RES,220-1/2W J RP A...................
R 144 87-A00-440-050 RES,220-1/2W J RP A...................
R 146 87-A00-440-050 RES,220-1/2W J RP A...................
R 143 87-A00-440-050 RES,220-1/2W J RP A...................
R 165 87-A00-258-080 RES,M/F 0.22-1W J A...................
R 166 87-A00-258-080 RES,M/F 0.22-1W J A...................
TH 101 87-A91-042-080 C-THMS,100K 55001 A...................
TH 102 87-A91-042-080 C-THMS,100K 55001 A...................
C 203 87-010-182-080 C-CAP,S 2200P-50 B A...................
C 204 87-010-183-080 C-CAP,S 2700P-50 B A...................
C 209 87-010-246-080 CAP, ELECT 47-35V A...................
C 201 87-010-401-080 CAP, ELECT 1-50V A...................
C 202 87-010-401-080 CAP, ELECT 1-50V A...................
C 210 87-010-258-080 CAP,E 22-35 SME A...................
ELECTRICAL MAIN PARTS LIST - 4/6

C 213 87-010-258-080 CAP,E 22-35 SME A...................
C 217 87-010-260-080 CAP, ELECT 47-25V A...................
C 215 87-010-322-080 C-CAP,S 100P-50 CH ....................
C 216 87-010-322-080 C-CAP,S 100P-50 CH ....................
C 218 87-010-384-080 CAP, ELECT 100-25V A...................
C 214 87-010-391-080 CAP,E 10-35 SME A...................
C 219 87-A10-596-080 C-CAP,S 100P-100 J CH A...................
C 227 87-010-186-080 CAP,CHIP 4700P A...................
C 228 87-010-186-080 CAP,CHIP 4700P A...................
C 229 87-010-993-080 C-CAP,S 0.056-25 B A...................
C 220 87-A10-596-080 C-CAP,S 100P-100 J CH A...................
C 226 87-A10-712-080 C-CAP,S 0.22-50 Z F A...................
C 225 87-A10-712-080 C-CAP,S 0.22-50 Z F A...................
C 237 87-010-190-080 S CHIP F 0.01 ....................
C 233 87-010-190-080 S CHIP F 0.01 ....................
C 234 87-010-190-080 S CHIP F 0.01 ....................
C 239 87-010-196-080 CHIP CAPACITOR,0.1-25 ....................
C 231 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 238 87-010-322-080 C-CAP,S 100P-50 CH ....................
C 240 87-015-690-080 CAP,E 22-35 7L A...................
C 256 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 254 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 898 87-010-993-080 C-CAP,S 0.056-25 B A...................
C 899 87-012-368-080 C-CAP,S 0.1-50 F A...................
C 900 87-012-368-080 C-CAP,S 0.1-50 F ....................
D 201 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 204 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 207 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 202 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 208 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 203 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 213 87-020-465-080 DIODE,1SS133 (110MA) A...................
D 211 87-A40-270-080 C-DIODE,MC2838 A...................
J 204 87-A60-752-010 JACK,PIN 4P R/W,O/B A...................
L 201 87-003-383-010 COIL,1UH-S A...................
L 801 87-003-383-010 COIL,1UH-S A...................
Q 203 87-A30-075-080 C-TR,2SA1235F A...................
Q 206 87-A30-075-080 C-TR,2SA1235F A...................
Q 204 87-A30-075-080 C-TR,2SA1235F A...................
Q 205 87-A30-075-080 C-TR,2SA1235F A...................
Q 208 87-A30-076-080 C-TR,2SC3052F A...................
Q 207 87-A30-076-080 C-TR,2SC3052F A...................
Q 209 87-A30-076-080 C-TR,2SC3052F A...................
Q 202 87-A30-086-070 C-TR,CSD1306E A...................
Q 201 87-A30-086-070 C-TR,CSD1306E A...................
Q 210 87-A30-076-080 C-TR,2SC3052F A...................
Q 219 87-A30-106-070 C-TR,CMBT5551 A...................
Q 212 87-A30-190-080 TR,CC5551 A...................
Q 211 87-A30-190-080 TR,CC5551 A...................
Q 217 87-A30-214-010 TR,2SB1344 A...................
Q 215 87-A30-215-010 TR,2SD2025 A...................
Q 218 87-A30-255-010 TR,2SB1342 A...................
Q 216 87-A30-256-010 TR,2SD1933 A...................
Q 225 87-A30-076-080 C-TR,2SC3052F A...................
Q 227 87-A30-076-080 C-TR,2SC3052F A...................
Q 226 87-A30-076-080 C-TR,2SC3052F A...................
Q 224 87-A30-076-080 C-TR,2SC3052F A...................
Q 223 87-A30-105-080 C-TR,RT1P 441C A...................
Q 220 87-A30-106-070 C-TR,CMBT5551 A...................
R 231 87-A00-258-080 RES,M/F 0.22-1W J A...................
R 234 87-A00-258-080 RES,M/F 0.22-1W J A...................
R 232 87-A00-258-080 RES,M/F 0.22-1W J A...................
R 233 87-A00-258-080 RES,M/F 0.22-1W J A...................
R 266 87-A00-258-080 RES,M/F 0.22-1W J A...................
R 265 87-A00-258-080 RES,M/F 0.22-1W J A...................
TH 202 87-A91-042-080 C-THMS,100K 55001 A...................
TH 201 87-A91-042-080 C-THMS,100K 55001 A...................
C 801 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 802 87-010-176-080 C-CAP,S 680P-50 SL A...................
C 809 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 808 87-010-401-080 CAP, ELECT 1-50V A...................
C 807 87-010-401-080 CAP, ELECT 1-50V A...................
C 805 87-010-958-080 CHIP -CAP,S 0.01-25BJ A...................
C 806 87-010-958-080 CHIP -CAP,S 0.01-25BJ A...................
C 803 87-010-958-080 CHIP -CAP,S 0.01-25BJ A...................
C 804 87-010-958-080 CHIP -CAP,S 0.01-25BJ A...................
C 810 87-010-112-080 CAP, ELECT 100-16V A...................
C 817 87-010-221-080 CAP, ELECT 470-10V A...................
C 813 87-010-400-080 CAP, ELECT 0.47-50V A...................
C 811 87-010-493-080 CAP,E 0.47-50 GAS A...................
C 812 87-010-493-080 CAP,E 0.47-50 GAS A...................
C 814 87-010-494-080 CAP ELECT GAS 1/50 A...................
C 819 87-A10-800-080 C-CAP,S 6800P-16 J B CM A...................
C 818 87-A10-891-080 CAP,E 4.7-25 SME(K) A...................
C 825 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 821 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 824 87-010-374-080 CAP, ELECT 47-10V A...................
C 820 87-010-374-080 CAP, ELECT 47-10V A...................
C 822 87-A10-804-080 C-CAP,S 0.1-25 J B A...................
C 839 87-010-805-080 CAP, S 1-16 A...................
C 831 87-010-971-080 C-CAP,S 4700P-50 B J A...................
C 837 87-010-971-080 C-CAP,S 4700P-50 B J A...................
ELECTRICAL MAIN PARTS LIST - 5/6

C 830 87-012-142-080 CAP, S 0.33-16 A...................
C 832 87-012-349-080 C-CAP,S 1000P-50 CH A...................
C 838 87-012-349-080 C-CAP,S 1000P-50 CH A...................
C 834 87-A11-182-080 C-CAP,S 0.27-16 J B A...................
C 835 87-A11-182-080 C-CAP,S 0.27-16 J B A...................
C 836 87-A11-183-080 C-CAP,S 0.12-16 J B A...................
C 833 87-A11-183-080 C-CAP,S 0.12-16 J B A...................
C 840 87-010-401-080 CAP, ELECT 1-50V A...................
C 846 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 847 87-010-404-080 CAP, ELECT 4.7-50V A...................
C 849 87-012-393-080 C-CAP,S 0.22-16 R K A...................
C 844 87-012-393-080 C-CAP,S 0.22-16 R K A...................
C 848 87-012-393-080 C-CAP,S 0.22-16 R K A...................
C 845 87-012-393-080 C-CAP,S 0.22-16 R K A...................
C 843 87-A10-229-080 C-CAP,S 0.68-10 K W5 A...................
C 841 87-A10-799-080 C-CAP,S 5600P-16 J B CM A...................
C 842 87-A10-802-080 C-CAP,S 0.047-16 J B CM A...................
C 853 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 854 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 857 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 850 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 856 87-A10-801-080 C-CAP,S 0.022-16 J B CM A...................
C 855 87-A10-801-080 C-CAP,S 0.022-16 J B CM A...................
C 851 87-A10-802-080 C-CAP,S 0.047-16 J B CM A...................
C 852 87-A10-802-080 C-CAP,S 0.047-16 J B CM A...................
D 802 87-070-136-080 ZENER,MTZJ5.1B A...................
D 801 87-A40-442-080 ZENER,MTZJ9.1A A...................
IC 801 87-A21-097-040 C-IC,M62463AFP A...................
JW 807 87-008-372-080 FILTER, EMI BL OIRNI A...................
R 807 87-022-214-080 C-RES S100K-1/10WF A...................
C 601 87-010-180-080 C-CER 1500P A...................
C 602 87-010-180-080 C-CER 1500P A...................
C 619 87-010-185-080 C-CAP,S 3900P-50 B A...................
C 611 87-010-197-080 CAP, CHIP 0.01 DM A...................
C 612 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 613 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 614 87-016-081-080 C-CAP,S 0.1-16 RK A...................
C 620 87-010-185-080 C-CAP,S 3900P-50 B A...................
C 628 87-010-322-080 C-CAP,S 100P-50 CH A...................
C 621 87-010-401-080 CAP, ELECT 1-50V A...................
C 622 87-010-401-080 CAP, ELECT 1-50V A...................
C 629 87-010-405-080 CAP, ELECT 10-50V A...................
C 623 87-A10-307-080 CAP,M 0.1-50 J A...................
C 624 87-A10-307-080 CAP,M 0.1-50 J A...................
C 634 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 635 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 632 87-010-263-080 CAP, ELECT 100-10V A...................
C 633 87-010-263-080 CAP, ELECT 100-10V A...................
C 641 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 640 87-010-314-080 C-CAP,S 22P-50V A...................
C 677 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
C 678 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................
CN 604 87-099-570-010 CONN,13P TUC-P13P-B1 A...................
CN 602 87-A60-131-010 CONN,6P V FE A...................
CN 605 87-A60-189-010 CONN,16P V TUC-P16P-B1 ....................
CN 601 88-NF9-657-010 CONN,30P H BLK TYK-B(X) A...................
D 601 87-A40-002-080 ZENER,MTZJ5.1C A...................
D 603 87-A40-234-080 ZENER,MTZJ5.6A A...................
D 602 87-A40-438-080 ZENER,MTZJ4.7A A...................
IC 601 87-A21-202-040 C-IC,M62445AFP A...................
J 604 87-A60-881-010 JACK,PIN 2P MSP 242V05 PBSN A...................
Q 601 87-026-609-080 TR,KTA1266GR A...................
Q 604 87-A30-142-040 C-TR,DTA123EKA A...................
ELECTRICAL MAIN PARTS LIST - 6/6

MECHANICAL PARTS LIST - 1/1
NOTE: The characters in the suffix column indicate the part usage.
USTM ...................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
82-NE6-067-010 BADGE,AIWA 30N A...................
8Z-NB8-011-110 PANEL,LEFT V-2 A...................
8Z-NF9-002-010 PANEL,TRAY H A...................
8Z-NF9-003-010 BOX,CASS 1 1WAY A...................
8Z-NF9-004-010 BOX,CASS 2 A...................
8Z-NF9-042-010 PANEL,TOP V-2 A...................
8Z-NF9-043-010 PANEL,RIGHT S V-2 A...................
8Z-NFW-001-010 CABI,FR U A...................
8Z-NFW-007-010 CABI,FR EZ ....................
8Z-NFW-011-010 CABI,REAR USTM A...................
8Z-NFW-012-010 CABI,REAR EZSTM ....................
8Z-NFW-016-010 CABI,REAR LHSTM ....................
8Z-NFW-017-010 CABI,REAR EZSTE ....................
8Z-NF9-009-010 KNOB,RTRY VOL A...................
8Z-NF9-010-010 KNOB,RTRY JOG A...................
8Z-NF9-011-010 KEY,POWER A...................
8Z-NF9-013-010 KEY,ASSY OPE 1W A...................
8Z-NF9-016-010 KEY,CD A...................
8Z-NF9-017-010 KEY,GEQ A...................
8Z-NF9-018-010 KEY,RDS ....................
8Z-NFW-003-010 KEY,PRO A...................
86-NFZ-001-010 WINDOW,TOP A...................
8Z-NF9-005-010 WINDOW,CD A...................
8Z-NF9-007-010 WINDOW,CASS 1 A...................
8Z-NF9-008-010 WINDOW,CASS 2 A...................
8Z-NFW-002-010 WINDOW,DISP U A...................
8Z-NFW-006-010 WINDOW,DISP EZ ....................
8Z-NFW-008-010 WINDOW,DISP H ....................
84-ZG1-245-210 CAP,OPTICAL A...................
82-NF5-218-010 SPR-T,EJECT 1 (SIN) A...................
82-NF5-219-010 SPR-T,EJECT 2 (SIN) A...................
82-NF5-229-010 PLATE,LOCK A...................
86-NF9-224-010 SPR-C,LOCK A...................
87-NF4-216-010 HLDR,LOCK 1 A...................
87-NF4-217-010 HLDR,LOCK 2 ....................
87-NF4-217-110 HLDR,LOCK 2 A...................
87-NF4-221-010 HLDR,CABLE A...................
87-NF8-220-010 DMPR,150 A...................
88-NF5-208-010 HLDR,PWB-M N A...................
8Z-NB8-240-010 COVER, PL A...................
8Z-NF8-205-110 HLDR,HT-SINK A...................
8Z-NF9-209-010 HLDR,RDS ....................
87-067-581-010 TAPPING SCREW, BVT2+3-15 A...................
87-067-641-010 UTT2+3-8(W/O SLOT)BL A...................
87-067-689-010 TAPPING SCREW, BVTT+3-8 A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................
87-067-758-010 BVT2+3-12 W/O SLOT A...................
87-067-975-010 S-SCREW,IT+4-8 A...................
87-721-096-410 QT2+3-10 GLD A...................
87-721-097-410 QT2+3-12 GLD A...................
87-NF4-224-010 S-SCREW,IT3B+3-8 CU A...................
87-050-079-010 AC-CORD ASSY,E ....................
87-085-185-010 BUSHING, AC CORD (E) ....................
87-085-189-010 BUSHING, CORD (U) A...................
88-906-251-110 FF-CABLE,6P 1.25 A...................
88-911-201-110 FF-CABLE,11P 1.25 A...................
88-913-221-110 FF-CABLE, 13P 1.25 220MM A...................
PT 1 8Z-NFW-601-010 PT,ZNF-W U A...................
PT 1 8Z-NFW-603-010 PT,ZNF-W EKZ ....................
PT 1 8Z-NFW-604-010 PT,ZNF-W LH ....................
W 101 87-A80-110-010 AC CORD ASSY,U SPT-2W A...................
82-NF7-210-110 GUIDE,FL (*) A...................
WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P A...................
87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................

ACCESSORIES / PACKAGE LIST - 1/1
NOTE: The characters in the suffix column indicate the part usage.
USTM ...................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
8Z-NFW-902-010 IB,LH(ESP)M ....................
8Z-NFW-903-110 IB,U(ESF)M A...................
8Z-NFW-906-010 IB,EZ(9L)E ....................
8Z-NFW-916-010 IB,EZ(9L)M ....................
87-006-225-010 AM LOOP ANT NC2 A...................
87-043-106-010 WIRE, FM ANT (Z) ....................
87-043-115-010 ANT,FEEDER FM A...................
87-A91-017-010 PLUG,CONVERSION JT-0476 ....................
8Z-NFW-702-010 RC UNIT,ZAS10 A...................

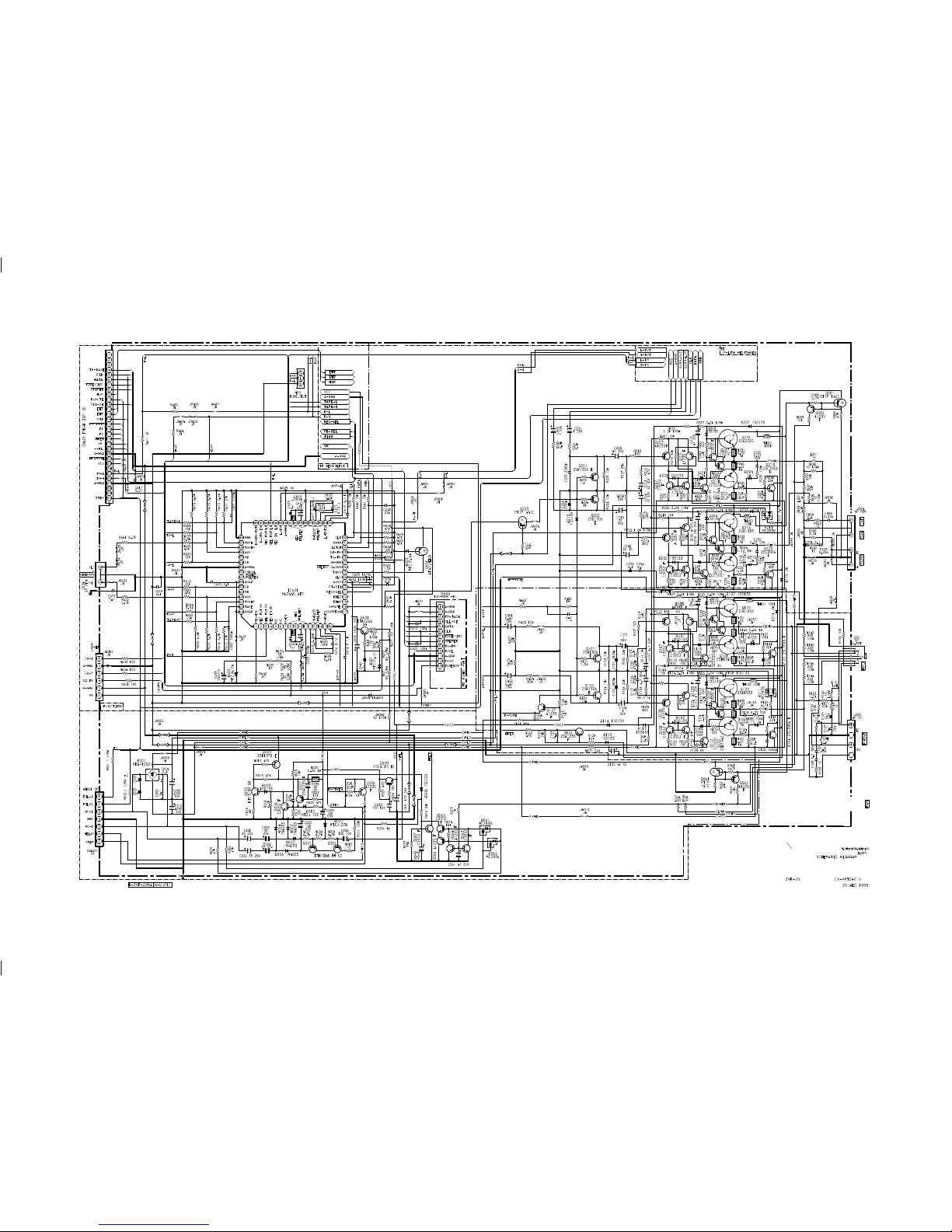

SCHEMATIC DIAGRAM _1 (MAIN 1/2)

SCHEMATIC DIAGRAM _2 (MAIN 2/2)

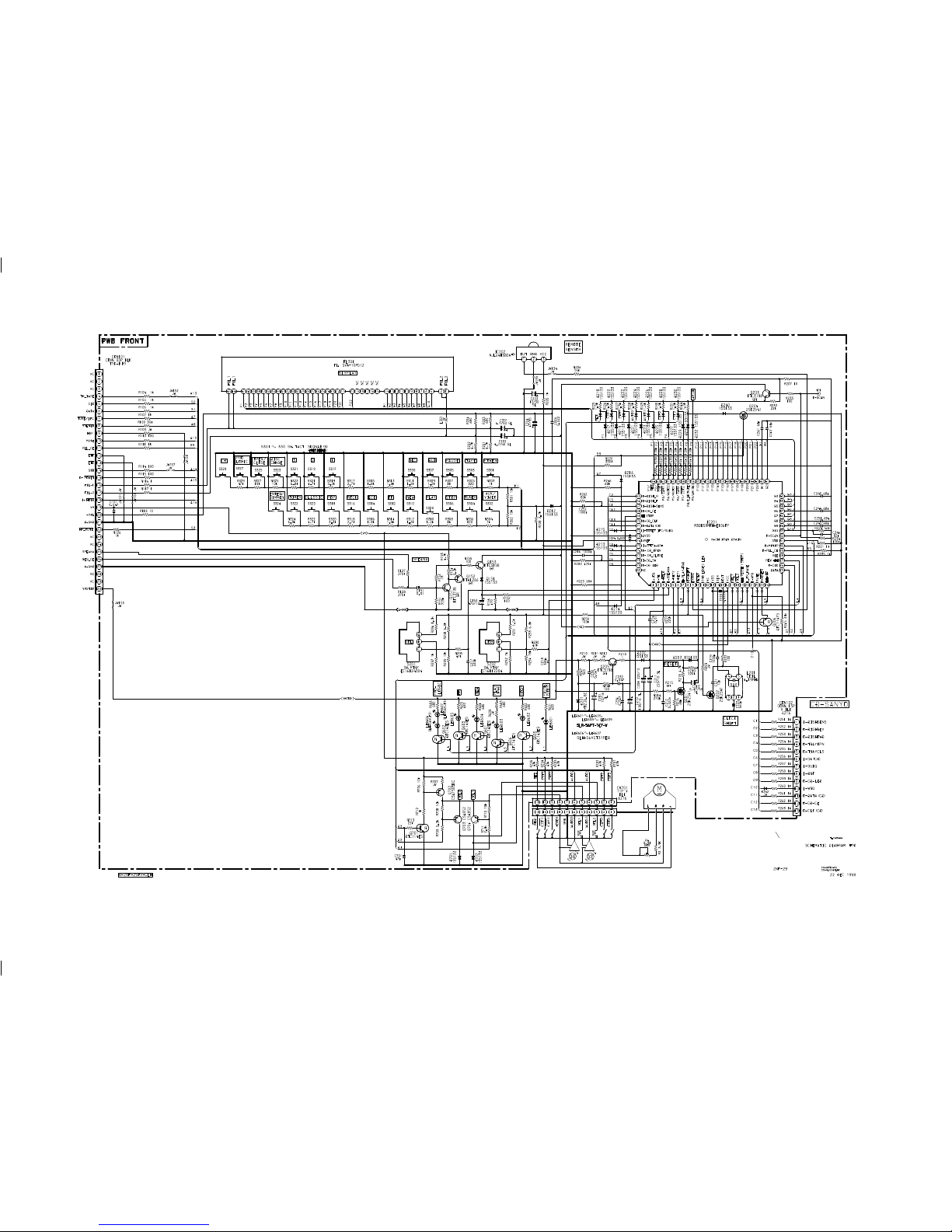

SCHEMATIC DIAGRAM _3 (FRONT)

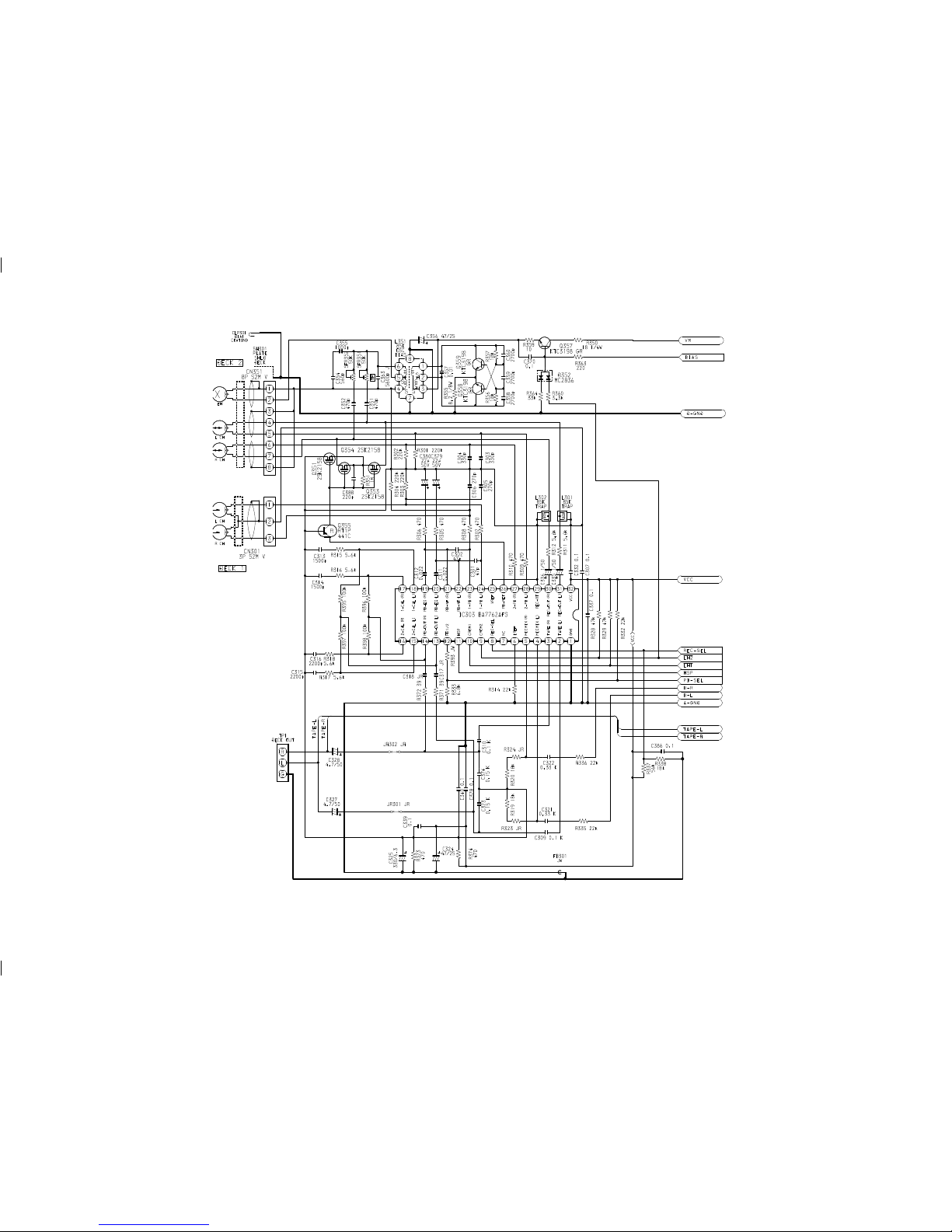

SCHEMATIC DIAGRAM _4 (DECK)

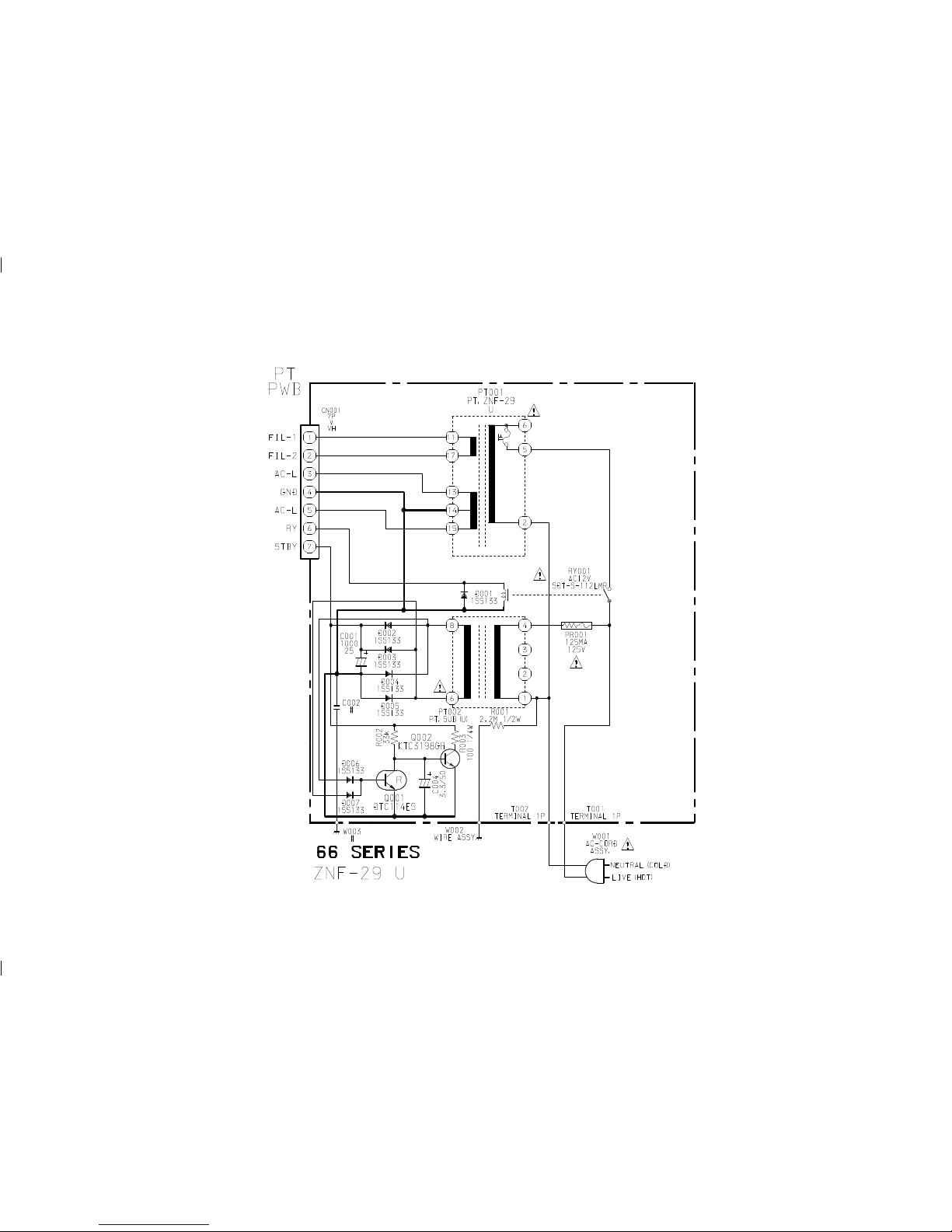

SCHEMATIC DIAGRAM _5 (PT)

PrintedinSingapore
Tokyo Japan
4
9820543
