Aiwa TV-21ST3 ST User manual

COLOR TELEVISION
TV-21ST3
S/M Code No. 09-997-333-0S3
SERVICE MANUAL
DATA
D
SUPPLEMENT
このサービスマニュアルは、TV-21ST3との違いのみ(主にCRTとCRTに関する部品)
載せています。共通部分については、TV-21ST3,TV-20ST5,TV-14ST5 (S/M Code No.
09-997-333-0N1)のサービスマニュアルを参照してください。
MODEL CODE: 8ZJBR-0193(ST) 8ZJBR-0197(ST) 8ZJBR-0297(ST) 8ZJBR-0397(ST)
8ZJBR-0497(ST) 8ZJBR-0597(ST) 8ZJBR-0593(ST)
Parts No. Description
TV-21ST3 ST 8ZJBR-0193 86-LB2-601-010 CRT, A51KST93X27(VM)
TV-21ST3 STP 8ZJBR-0197 86-LB2-601-010 CRT, A51KST93X27(VM)
TV-21ST3 ST5C 8ZJBR-0297 8Z-JBR-618-010 CRT, A51JFC82X13 (C)
TV-21ST3 ST1C 8ZJBR-0397 86-LB2-601-010 CRT, A51KST93X27(VM)
TV-21ST3 STRC 8ZJBR-0497 8Z-JBR-640-010 CRT, 54SX503Y22-DC01
TV-21ST3 ST2C 8ZJBR-0597 87-JBC-608-010 CRT, A51KPD12XX93 NAWR
TV-21ST3 ST2M 8ZJBR-0593 87-JBC-608-010 CRT, A51KPD12XX93 NAWR
Model Name Model Code CRT

-2-
REF. NO PART NO. KANRI DESCRIPTION
NO.
ACCESSORIES LIST
1 8Z-JBR-901-210 1B IB,D (J) 21ST3 -M<ST>
1 8Z-JBR-904-110 1B IB,D (J) -21ST3 SOL<STRC,ST2C>
1 8Z-JBR-901-310 1B IB,D (J) 21ST3 -M<STP,ST2M>
1 8Z-JBR-904-010 1B IB,D (J) -21ST3 SOL<ST1C,ST5C>
2 8Z-JBR-951-010 1H RC UNIT,RC-ZVT06
3 87-B30-311-010 1B ADAPTOR,300 75 TSN-02

-3-
ELECTRICAL MAIN PARTS LIST -1/4
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
IC
87-001-536-010 1A IC,NJM78M05FA
87-020-881-080 1A IC,NJM78L05A
87-020-969-010 1B IC,NJM78M09FA
87-070-237-010 1C IC,LA7832
87-A20-364-010 1A IC,KIA7809PI<ST,ST1C,ST5C>
87-A20-411-010 2M IC,TA1230Z
87-A20-515-010 1D IC,AN5285K(A)
87-A20-611-080 0E IC,M51943BSL-700A
87-A21-090-010 1C IC,LA4600
87-A21-219-010 1F IC,TC90A45P
87-A21-220-010 1F IC,MM1311AD
87-A21-239-010 2M IC,TA1201CN
87-A21-259-010 1E IC,MM1454XD
87-A21-290-010 1E IC,STR30110
87-A21-314-010 1D IC,STR-G6651
87-A21-377-010 1A IC,S-24C02BDP-1A
87-A21-788-010 1A IC,KIA7809API<STRC,STP,ST2C,ST2M>
87-A91-538-010 1B RCR UNIT,SBX1981-72P
8Z-JBR-619-010 2A IC,M37221M8-160SP<EXCEPT ST>
8Z-JBT-621-010 2A IC,M37221M8-131SP<ST>
TRANSISTOR
87-A30-050-010 1D TR,2SD2499
87-A30-065-080 0E TR,2SC2785FE
87-A30-066-080 0E TR,2SA1175FE
87-A30-090-080 0E FET,2SK2541
87-A30-091-080 1E FET,2SJ460
89-110-154-080 0E TR,2SA1015Y
89-320-012-080 0E TR,2SC2001L
89-334-674-580 1A TR,2SC3467(D/E)
89-337-794-580 1B TR,2SC3779(D/E)
89-337-894-510 1A TR,2SC3789(D/E)
DIODE
87-002-743-080 0E ZENER,MTZJ33B
87-017-932-080 0E ZENER,MTZJ6.2B
87-020-465-080 0E DIODE,1SS133
87-070-092-080 0E DIODE,S5566B
87-070-136-080 0E ZENER,MTZJ5.1B
87-070-345-080 0E DIODE,1N4148
87-A40-001-080 0E ZENER,MTZJ12C
87-A40-002-080 0E ZENER,MTZJ5.1C
87-A40-235-080 0E ZENER,MTZJ9.1C
87-A40-286-080 0E DIODE,RGP10JE-5025
87-A40-328-010 1B DIODE,GBU4JL
87-A40-348-080 0E ZENER,MTZJ3.3A
87-A40-354-090 1B DIODE,UF3GL-6251
87-A40-450-090 0E DIODE,RU 1P
87-A40-553-080 0E DIODE,1N4003 LES
87-A40-658-080 0E DIODE,EGP10G
MAIN C.B
BT0301 87-JBC-625-010 1A CONN ASSY,5P V WHT TV-NK
BT0601 87-JBC-626-010 1A CONN ASSY,4P V WHT TV-NK
BT0801 8Z-JBR-651-010 0E CONN ASSY,1P PS-TU
C0001 87-010-405-080 0E CAP,E 10-50 M 11L SME
C0002 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050<ST,ST1C,ST5C>
C0002 87-A11-132-080 0E CAP,TC U 0.01-50 K B<STRC,STP,ST2C,ST2M>
C0003 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050<ST,ST1C,ST5C>
C0003 87-A11-132-080 0E CAP,TC U 0.01-50 K B<STRC,STP,ST2C,ST2M>
C0005 87-010-401-080 0E CAP,E 1-50 M 11L SME
C0007 87-010-248-080 0E CAP,E 220-10 M 11L SME
C0008 87-018-148-080 0E CAP,TC U 12P-50 J CH UP050
C0009 87-018-148-080 0E CAP,TC U 12P-50 J CH UP050
C0010 87-010-263-080 0E CAP,E 100-10 M 11L SME
C0012 87-018-119-080 0E CAP,TC U 100P-50 K B UP050<ST,ST1C,ST5C>
C0012 87-A11-088-080 0E CAP,TC U 100P-50 J CH<STRC,STP,ST2C,ST2M>
C0013 87-018-119-080 0E CAP,TC U 100P-50 K B UP050<ST,ST1C,ST5C>
C0013 87-A11-088-080 0E CAP,TC U 100P-50 J CH<STRC,STP,ST2C,ST2M>
C0014 87-018-131-080 0E CAP,TC U 1000P-50 K B UP050<ST,ST1C,ST5C>
C0014 87-A11-112-080 0E CAP,TC U 1000P-50 J CH<STRC,STP,ST2C,ST2M>
C0016 87-018-131-080 0E CAP,TC U 1000P-50 K B UP050<ST,ST1C,ST5C>
C0016 87-A11-112-080 0E CAP,TC U 1000P-50 J CH<STRC,STP,ST2C,ST2M>
C0017 87-010-263-080 0E CAP,E 100-10 M 11L SME
C0018 87-018-109-080 0E CAP,TC U 22P-50 J SL UP050<ST,ST1C,ST5C>
C0018 87-A11-073-080 0E CAP,TC U 22P-50 J CH<STRC,STP,ST2C,ST2M>
C0019 87-018-109-080 0E CAP,TC U 22P-50 J SL UP050<ST,ST1C,ST5C>
C0019 87-A11-073-080 0E CAP,TC U 22P-50 J CH<STRC,STP,ST2C,ST2M>
C0020 87-018-109-080 0E CAP,TC U 22P-50 J SL UP050<ST,ST1C,ST5C>
C0020 87-A11-073-080 0E CAP,TC U 22P-50 J CH<STRC,STP,ST2C,ST2M>
C0021 87-018-109-080 0E CAP,TC U 22P-50 J SL UP050<ST,ST1C,ST5C>
C0021 87-A11-073-080 0E CAP,TC U 22P-50 J CH<STRC,STP,ST2C,ST2M>
C0022 87-018-109-080 0E CAP,TC U 22P-50 J SL UP050<ST,ST1C,ST5C>
C0022 87-A11-073-080 0E CAP,TC U 22P-50 J CH<STRC,STP,ST2C,ST2M>
C0023 87-018-123-080 0E CAP,TC U 220P-50 K B UP050<ST,ST1C,ST5C>
C0023 87-A11-096-080 0E CAP,TC U 220P-50 J CH<STRC,STP,ST2C,ST2M>
C0030 87-017-932-080 0E ZENER,MTZJ6.2B<STRC,STP,ST2C,ST2M>
C0030 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050<ST,ST1C>
C0031 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050<ST5C>
C0031 87-A11-132-080 0E CAP,TC U 0.01-50 K B<STRC,STP,ST2C,ST2M>
C0101 87-010-404-080 0E CAP,E 4.7-50 M 11L SME
C0102 87-010-101-080 0E CAP,E 220-16 M SME
C0103 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050<ST,ST1C,ST5C>
C0103 87-A11-132-080 0E CAP,TC U 0.01-50 K B<STRC,STP,ST2C,ST2M>
C0104 87-010-263-080 0E CAP,E 100-10 M 11L SME
C0105 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050<ST,ST1C,ST5C>
C0105 87-A11-132-080 0E CAP,TC U 0.01-50 K B<STRC,STP,ST2C,ST2M>
C0106 87-A10-207-080 0E CAP,TC U 0.01-50 K B UP050<ST,ST1C,ST5C>
C0106 87-A11-132-080 0E CAP,TC U 0.01-50 K B<STRC,STP,ST2C,ST2M>
C0110 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050<ST,ST1C,ST5C>
C0110 87-A11-132-080 0E CAP,TC U 0.01-50 K B<STRC,STP,ST2C,ST2M>
C0111 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050<ST,ST1C,ST5C>
C0111 87-A11-132-080 0E CAP,TC U 0.01-50 K B<STRC,STP,ST2C,ST2M>
C0112 87-018-109-080 0E CAP,TC U 22P-50 J SL UP050<ST,ST1C,ST5C>
C0112 87-A11-073-080 0E CAP,TC U 22P-50 J CH<STRC,STP,ST2C,ST2M>
C0113 87-018-109-080 0E CAP,TC U 22P-50 J SL UP050<ST,ST1C,ST5C>
C0113 87-A11-073-080 0E CAP,TC U 22P-50 J CH<STRC,STP,ST2C,ST2M>
C0201 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050<ST,ST1C,ST5C>
C0201 87-A11-132-080 0E CAP,TC U 0.01-50 K B<STRC,STP,ST2C,ST2M>
C0202 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050<ST,ST1C,ST5C>
C0202 87-A11-132-080 0E CAP,TC U 0.01-50 K B<STRC,STP,ST2C,ST2M>
C0203 87-010-400-080 0E CAP,E 0.47-50 M 11L SME
C0204 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050<ST,ST1C,ST5C>
C0204 87-A11-132-080 0E CAP,TC U 0.01-50 K B<STRC,STP,ST2C,ST2M>
C0205 87-010-237-080 0E CAP,E 1000-16 M SME<ST,STP,ST1C,ST5C>
C0205 87-A10-096-080 0E CAP,E 1000-16 REA<STRC,ST2C,ST2M>
C0207 87-010-400-080 0E CAP,E 0.47-50 M 11L SME
C0208 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050<ST,ST1C,ST5C>
C0208 87-A11-132-080 0E CAP,TC U 0.01-50 K B<STRC,STP,ST2C,ST2M>
C0209 87-010-101-080 0E CAP,E 220-16 M SME
C0210 87-A11-080-080 0E CAP,TC U 47P-50 J CH
C0211 87-A11-080-080 0E CAP,TC U 47P-50 J CH
C0212 87-A11-080-080 0E CAP,TC U 47P-50 J CH
C0213 87-A11-082-080 0E CAP,TC U 56P-50 J CH
C0216 87-018-209-080 0E CAP,TC U 0.1-50 Z F UP050<ST,ST1C,ST5C>
C0216 87-A11-148-080 0E CAP,TC U 0.1-50 Z F<STRC,STP,ST2C,ST2M>
C0217 87-010-405-080 0E CAP,E 10-50 M 11L SME
C0218 87-010-405-080 0E CAP,E 10-50 M 11L SME
C0220 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050<ST,ST1C,ST5C>
C0220 87-A11-132-080 0E CAP,TC U 0.01-50 K B<STRC,STP,ST2C,ST2M>
C0221 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050<ST,ST1C,ST5C>
C0221 87-A11-132-080 0E CAP,TC U 0.01-50 K B<STRC,STP,ST2C,ST2M>
C0222 87-018-127-080 0E CAP,TC U 470P-50 K B UP050<ST,ST1C,ST5C>
C0222 87-A11-104-080 0E CAP,TC U 470P-50 J CH<STRC,STP,ST2C,ST2M>
C0223 87-018-127-080 0E CAP,TC U 470P-50 K B UP050<ST,ST1C,ST5C>
C0223 87-A11-104-080 0E CAP,TC U 470P-50 J CH<STRC,STP,ST2C,ST2M>

-4-
ELECTRICAL MAIN PARTS LIST -2/4
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
C0224 87-010-405-080 0E CAP,E 10-50 M 11L SME
C0225 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050<ST,ST1C,ST5C>
C0225 87-A11-132-080 0E CAP,TC U 0.01-50 K B<STRC,STP,ST2C,ST2M>
C0226 87-010-260-080 0E CAP,E 47-25 M 11L SME
C0227 87-010-405-080 0E CAP,E 10-50 M 11L SME
C0229 87-018-149-080 0E CAP,TC U 15P-50 J CH UP050
C0301 87-010-401-080 0E CAP,E 1-50 M 11L SME
C0302 87-018-119-080 0E CAP,TC U 100P-50 K B UP050<ST>
C0303 87-010-401-080 0E CAP,E 1-50 M 11L SME
C0304 87-010-405-080 0E CAP,E 10-50 M 11L SME
C0305 87-018-126-080 0E CAP,TC U 390P-50 K B UP050<ST,ST1C,ST5C>
C0305 87-A11-102-080 0E CAP,TC U 390P-50 J CH<STRC,STP,ST2C,ST2M>
C0306 87-010-101-080 0E CAP,E 220-16 M SME
C0308 87-010-400-080 0E CAP,E 0.47-50 M 11L SME
C0309 87-018-147-080 0E CAP,TC U 10P-50 J CH UP050
C0310 87-017-932-080 0E ZENER,MTZJ6.2B<STRC>
C0311 87-018-209-080 0E CAP,TC U 0.1-50 Z F UP050<ST,ST1C,ST5C>
C0311 87-A11-148-080 0E CAP,TC U 0.1-50 Z F<STRC,STP,ST2C,ST2M>
C0312 87-018-209-080 0E CAP,TC U 0.1-50 Z F UP050<ST,ST1C,ST5C>
C0312 87-A11-148-080 0E CAP,TC U 0.1-50 Z F<STRC,STP,ST2C,ST2M>
C0313 87-018-209-080 0E CAP,TC U 0.1-50 Z F UP050<ST,ST1C,ST5C>
C0313 87-A11-148-080 0E CAP,TC U 0.1-50 Z F<STRC,STP,ST2C,ST2M>
C0315 87-018-123-080 0E CAP,TC U 220P-50 K B UP050<ST,ST1C,ST5C>
C0315 87-A11-096-080 0E CAP,TC U 220P-50 J CH<STRC,STP,ST2C,ST2M>
C0316 87-A10-378-080 0E CAP,E 2.2-50 K SH
C0317 87-010-402-080 0E CAP,E 2.2-50 M 11L SME
C0318 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050<ST,ST1C,ST5C>
C0318 87-A11-132-080 0E CAP,TC U 0.01-50 K B<STRC,STP,ST2C,ST2M>
C0319 87-010-221-080 0E CAP,E 470-10 M SME
C0321 87-010-404-080 0E CAP,E 4.7-50 M 11L SME
C0323 87-016-280-080 0E CAP,E 3.3-50 M BP SME
C0327 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050<ST,ST1C,ST5C>
C0327 87-A11-132-080 0E CAP,TC U 0.01-50 K B<STRC,STP,ST2C,ST2M>
C0328 87-010-405-080 0E CAP,E 10-50 M 11L SME
C0330 87-010-401-080 0E CAP,E 1-50 M 11L SME
C0331 87-010-401-080 0E CAP,E 1-50 M 11L SME
C0332 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050<ST,ST1C,ST5C>
C0332 87-A11-132-080 0E CAP,TC U 0.01-50 K B<STRC,STP,ST2C,ST2M>
C0334 87-018-209-080 0E CAP,TC U 0.1-50 Z F UP050<ST,ST1C,ST5C>
C0334 87-A11-148-080 0E CAP,TC U 0.1-50 Z F<STRC,STP,ST2C,ST2M>
C0335 87-010-101-080 0E CAP,E 220-16 M SME
C0336 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050<ST,ST1C,ST5C>
C0336 87-A11-132-080 0E CAP,TC U 0.01-50 K B<STRC,STP,ST2C,ST2M>
C0338 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050<ST,ST1C,ST5C>
C0338 87-A11-132-080 0E CAP,TC U 0.01-50 K B<STRC,STP,ST2C,ST2M>
C0339 87-010-260-080 0E CAP,E 47-25 M 11L SME
C0340 87-018-131-080 0E CAP,TC U 1000P-50 K B UP050<ST1C,ST5C>
C0340 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050<ST>
C0340 87-A11-112-080 0E CAP,TC U 1000P-50 J CH<STRC,STP,ST2C,ST2M>
C0343 88-254-460-810 0E CAP,CER 180P-50 J CH
C0348 87-A11-075-080 0E CAP,TC U 27P-50 J CH
C0350 87-018-131-080 0E CAP,TC U 1000P-50 K B UP050<ST1C,ST5C>
C0350 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050<ST>
C0350 87-A11-112-080 0E CAP,TC U 1000P-50 J CH<STRC,STP,ST2C,ST2M>
C0351 87-010-260-080 0E CAP,E 47-25 M 11L SME
C0352 87-010-401-080 0E CAP,E 1-50 M 11L SME
C0354 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050<ST,ST1C,ST5C>
C0354 87-A11-132-080 0E CAP,TC U 0.01-50 K B<STRC,STP,ST2C,ST2M>
C0355 87-A11-084-080 0E CAP,TC U 68P-50 J CH
C0356 87-A11-080-080 0E CAP,TC U 47P-50 J CH
C0357 87-A11-080-080 0E CAP,TC U 47P-50 J CH
C0358 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050<ST,ST1C,ST5C>
C0358 87-A11-132-080 0E CAP,TC U 0.01-50 K B<STRC,STP,ST2C,ST2M>
C0359 87-010-260-080 0E CAP,E 47-25 M 11L SME
C0360 87-010-260-080 0E CAP,E 47-25 M 11L SME
C0361 87-010-400-080 0E CAP,E 0.47-50 M 11L SME
C0401 87-010-387-080 1A CAP,E 470-25 M SME
C0402 87-010-387-080 1A CAP,E 470-25 M SME
C0403 87-010-405-080 0E CAP,E 10-50 M 11L SME
C0404 87-010-544-080 0E CAP,E 0.1-50 M 11L SME
C0405 87-010-404-080 0E CAP,E 4.7-50 M 11L SME
C0406 87-010-405-080 0E CAP,E 10-50 M 11L SME
C0407 87-010-384-080 0E CAP,E 100-25 M 11L SME
C0408 87-010-404-080 0E CAP,E 4.7-50 M 11L SME
C0409 87-010-405-080 0E CAP,E 10-50 M 11L SME
C0410 87-010-545-080 0E CAP,E 0.22-50 M 11L SME
C0411 87-010-405-080 0E CAP,E 10-50 M 11L SME
C0417 87-010-405-080 0E CAP,E 10-50 M 11L SME
C0432 87-010-260-080 0E CAP,E 47-25 M 11L SME
C0433 87-010-387-080 1A CAP,E 470-25 M SME
C0434 87-010-384-080 0E CAP,E 100-25 M 11L SME
C0435 87-010-404-080 0E CAP,E 4.7-50 M 11L SME
C0436 87-010-545-080 0E CAP,E 0.22-50 M 11L SME
C0437 87-010-545-080 0E CAP,E 0.22-50 M 11L SME
C0439 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050<ST,ST1C,ST5C>
C0439 87-A11-132-080 0E CAP,TC U 0.01-50 K B<STRC,STP,ST2C,ST2M>
C0501 87-A11-804-080 0E CAP,M 0.15-100 J TF TYPE1<ST,ST1C,ST5C>
C0501 87-A12-378-080 0E CAP,M 0.15-100 J CP<STRC,STP,ST2C,ST2M>
C0502 87-010-397-090 1A CAP,E 1000-35 M SME<ST,STP,ST1C,ST5C>
C0502 87-A10-779-090 0E CAP,E 1000-35 M<STRC,ST2C,ST2M>
C0503 87-A10-377-080 0E CAP,E 1-50 K SH<ST,STRC,ST1C,ST5C>
C0503 87-A12-087-080 0E CAP,E 1-50 SMG<STP,ST2C,ST2M>
C0504 87-A10-377-080 0E CAP,E 1-50 K SH
C0506 87-A12-361-080 0E CAP,M 5600P-100 J CP<STRC,STP,ST2C,ST2M>
C0508 87-A12-353-080 0E CAP,M 1200P-100 J CP<STRC,STP,ST2C,ST2M>
C0510 87-018-131-080 0E CAP,TC U 1000P-50 K B UP050<ST,ST1C,ST5C>
C0510 87-A11-112-080 0E CAP,TC U 1000P-50 J CH<STRC,STP,ST2C,ST2M>
C0511 87-010-247-080 0E CAP,E 100-50 M SME
C0512 87-018-127-080 0E CAP,TC U 470P-50 K B UP050<ST,ST1C,ST5C>
C0512 87-A11-104-080 0E CAP,TC U 470P-50 J CH<STRC,STP,ST2C,ST2M>
C0601 87-016-373-080 1A CAP,E 10-250 M SME
C0602 87-016-279-080 0E CAP,E 1-50 M BP SME
C0603 87-010-974-080 0E CAP,CER 220P-500 K B DD10<ST,ST1C,ST5C>
C0603 87-A12-491-080 0E CAP,CER 220P-500 K B Y5P
<STRC,STP,ST2C,ST2M>
C0604 87-010-397-090 1A CAP,E 1000-35 M SME<ST,STP,ST1C,ST5C>
C0604 87-A10-779-090 0E CAP,E 1000-35 M<STRC,ST2C,ST2M>
C0605 87-010-388-090 1A CAP,E 1000-25 M SME<ST,STP,ST1C,ST5C>
C0605 87-A10-778-090 0E CAP,E 1000-25 M<STRC,ST2C,ST2M>
C0606 87-A11-277-090 1A CAP,M/P 0.39-250 J ECWF(SR)<ST,ST1C,ST5C>
C0606 87-A11-278-090 1A CAP,M/P 0.47-250 J ECWF(SR)
<STP,ST2C,ST2M>
C0606 87-A11-279-090 0E CAP,M/P 0.56-250 J ECWF(SR)<STRC>
C0607 87-016-221-090 1A CAP,E 100-160 M TWSS
C0609 87-A11-334-090 1A CAP,M/P 6800P-1.6K H ECWH(VB)
<ST,STRC,STP,ST1C>
C0609 87-A11-335-090 1A CAP,M/P 8200P-1.6K H ECWH(VB)
<ST2C,ST2M,ST5C>
C0610 87-010-976-080 0E CAP,CER 1000P-500 K B DD10<ST,ST1C,ST5C>
C0610 87-A12-492-080 0E CAP,CER 1000P-500 K B Y5P
<STRC,STP,ST2C,ST2M>
C0611 87-010-974-080 0E CAP,CER 220P-500 K B DD10<ST,ST1C,ST5C>
C0611 87-A12-491-080 0E CAP,CER 220P-500 K B Y5P
<STRC,STP,ST2C,ST2M>
C0612 87-010-405-080 0E CAP,E 10-50 M 11L SME<ST,STRC,ST1C,ST5C>
C0613 87-A10-833-010 0E CAP,CER 1000P-2K K R LONG<ST,STP,ST1C>
C0613 87-A10-864-090 0E CAP,CER 1200P-2K K R<ST2C,ST2M>
C0613 87-A10-865-090 0E CAP,CER 1500P-2K K R<STRC>
C0613 87-A10-867-090 1A CAP,CER 2200P-2K K R<ST5C>
C0614 87-A10-871-090 1A CAP,CER 4700P-2K K R
C0616 87-010-964-080 1A CAP,E 10-160 M SME
C0701 87-010-401-080 0E CAP,E 1-50 M 11L SME
C0702 87-010-260-080 0E CAP,E 47-25 M 11L SME
C0703 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050<ST,ST1C,ST5C>
C0703 87-A11-132-080 0E CAP,TC U 0.01-50 K B<STRC,STP,ST2C,ST2M>
C0705 87-010-402-080 0E CAP,E 2.2-50 M 11L SME
C0706 87-010-402-080 0E CAP,E 2.2-50 M 11L SME
C0707 87-010-402-080 0E CAP,E 2.2-50 M 11L SME
C0708 87-010-402-080 0E CAP,E 2.2-50 M 11L SME
C0709 87-010-401-080 0E CAP,E 1-50 M 11L SME
C0710 87-010-402-080 0E CAP,E 2.2-50 M 11L SME

-5-
ELECTRICAL MAIN PARTS LIST -3/4
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
C0711 87-010-401-080 0E CAP,E 1-50 M 11L SME
C0712 87-010-402-080 0E CAP,E 2.2-50 M 11L SME
C0713 87-010-382-080 0E CAP,E 22-25 M 11L SME
C0714 87-010-221-080 0E CAP,E 470-10 M SME
C0715 87-016-279-080 0E CAP,E 1-50 M BP SME
C0716 87-016-100-080 0E CAP,E 10-50 M BP SME
C0718 87-010-405-080 0E CAP,E 10-50 M 11L SME
C0719 87-010-405-080 0E CAP,E 10-50 M 11L SME
C0720 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050<ST,ST1C,ST5C>
C0720 87-A11-132-080 0E CAP,TC U 0.01-50 K B<STRC,STP,ST2C,ST2M>
C0721 87-010-260-080 0E CAP,E 47-25 M 11L SME
C0722 87-010-405-080 0E CAP,E 10-50 M 11L SME
C0723 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050<ST,ST1C,ST5C>
C0723 87-A11-132-080 0E CAP,TC U 0.01-50 K B<STRC,STP,ST2C,ST2M>
C0724 87-018-109-080 0E CAP,TC U 22P-50 J SL UP050<ST,ST1C,ST5C>
C0724 87-A11-073-080 0E CAP,TC U 22P-50 J CH<STRC,STP,ST2C,ST2M>
C0725 87-018-109-080 0E CAP,TC U 22P-50 J SL UP050<ST,ST1C,ST5C>
C0725 87-A11-073-080 0E CAP,TC U 22P-50 J CH<STRC,STP,ST2C,ST2M>
C0728 87-018-122-080 0E CAP,TC U 180P-50 K B UP050<ST,ST1C,ST5C>
C0728 87-A11-094-080 0E CAP,TC U 180P-50 J CH<STRC,STP,ST2C,ST2M>
!!
!!
!C0801 87-A11-298-090 1A CAP,M/P 0.1-125 K ECQE1A(FB)
!!
!!
!C0804 87-A11-298-090 1A CAP,M/P 0.1-125 K ECQE1A(FB)
!!
!!
!C0805 87-016-219-080 0E CAP,E 22-160 M TWSS
C0806 87-010-405-080 0E CAP,E 10-50 M 11L SME
C0807 87-010-384-080 0E CAP,E 100-25 M 11L SME
C0809 87-010-260-080 0E CAP,E 47-25 M 11L SME
!!
!!
!C0811 87-A10-519-010 1A CAP,CER 4700P-4K M E KX
!!
!!
!C0812 87-A10-519-010 1A CAP,CER 4700P-4K M E KX
C0813 87-A11-356-090 1E CAP,E 680-160 M SMH 22*40
!!
!!
!C0815 87-016-219-080 0E CAP,E 22-160 M TWSS
!!
!!
!C0816 87-A10-519-010 1A CAP,CER 4700P-4K M E KX
CAN604 8Z-JBR-654-010 1A CONN ASSY,1P H-SIZE
CF0201 84-LB3-626-010 1A FLTR,TPS4.5MB2<ST,STRC,ST1C,ST5C>
CF0201 87-A92-026-010 0E FLTR,TRAP TPSR4.5MB2<STP,ST2C,ST2M>
CF0202 84-LB3-627-010 1A FLTR,SFSH 4.5MDB SIF<ST,STRC,ST1C,ST5C>
CF0202 87-A92-027-010 0E FLTR,BPF SFSR4.5MD<STP,ST2C,ST2M>
CN0001 87-009-195-010 0E CONN,5P V WHT EH
CN0401 87-049-469-010 0E CONN,4P V WHT EH
CN0401 87-JB8-601-110 1B CONN ASSY,4P SP-20<ST>
CN0401 8A-JET-663-010 1B CONN ASSY,4P SP-21<EXCEPT ST>
CN0601 87-A60-439-010 1A CONN,4P V RTB<EXCEPT STRC>
CN0601 87-A60-933-010 1B CONN,4P V B04(5-3)B-DVS-L<STRC>
CN0604 87-A60-485-010 0E CONN,2P V LV GRA
CN0701 87-009-035-010 0E CONN,7P V WHT PH
!!
!!
!CN0801 87-099-674-010 0E CONN,2P V VA
!!
!!
!CN0802 82-481-649-010 0E CONN,2P V VT-50P
CN0803 87-099-448-010 0E CONN,2P V VT
CN0804 87-009-195-010 0E CONN,5P V WHT EH
D0001 87-A40-422-010 1A LED,SLP-581D-51 Y-G/R<ST,STRC,ST1C,ST5C>
D0001 87-002-352-010 1A LED,SPR-39MVWF GRN/RED<STP,ST2C,ST2M>
!!
!!
!D0806 87-A90-966-010 0E VRIS,TNR15G221K
!!
!!
!F0801 87-A91-106-010 0E FUSE,5A 125V T SER233
FB0301 87-003-320-080 1A F-BEAD,-9.0 FBR07HA121NB-00
!!
!!
!FC0801 87-033-213-080 0E FUSE CLAMP,PFC5000
!!
!!
!FC0802 87-033-213-080 0E FUSE CLAMP,PFC5000
!!
!!
!FR0601 87-A00-413-090 0E RES,FUSE 2.2-1/2W J
FR0602 87-029-148-090 1B RES,FUSE 2.2-2W J<ST,STRC,STP,ST1C>
FR0602 87-A00-419-090 1D RES,FUSE 1-2W J ERQ2Z<ST2C,ST2M,ST5C>
!!
!!
!FR0603 87-A00-486-090 1A RES,FUSE 1.5-2W J
!!
!!
!FR0604 87-029-148-090 1B RES,FUSE 2.2-2W J
!!
!!
!FR0613 87-A00-275-090 0E RES,FUSE 2.2K-1W J R-TYPE
J0401 87-A60-858-010 1D JACK,3.5 BLK ST 2 SW
J0701 87-A61-434-010 1B JACK,PIN 3P WHT YKC21-5729 B
J0702 87-A60-324-110 1B JACK,PIN 6P Y-W-R W/SW
L0002 87-005-614-080 0E COIL,100UH J LAV35<EXCEPT ST5C>
L0002 87-005-618-080 0E COIL,220UH J LAV35<ST5C>
L0101 87-005-614-080 0E COIL,100UH J LAV35
L0102 87-005-614-080 0E COIL,100UH J LAV35
L0103 8Z-JBR-614-010 1B COIL,TRAP 60.25MHZ JP-9004
L0104 87-003-140-080 0E COIL,0.82UH K LAL02
L0201 8Z-JBR-612-010 1A COIL,SIF 4.5MHZ 504BN
L0202 87-003-108-080 0E COIL,0.68UH K LAL02
L0203 87-005-612-080 0E COIL,68UH J LAV35
L0204 87-003-146-080 0E COIL,15UH J LAL02
L0205 8Z-JBR-611-010 1A COIL,PIF 58.75MHZ 519BN
L0206 87-005-614-080 0E COIL,100UH J LAV35
L0207 87-003-147-080 0E COIL,22UH J LAL02
L0208 87-003-285-080 0E COIL,39UH J LAL02
L0209 87-005-614-080 0E COIL,100UH J LAV35
L0301 87-003-146-080 0E COIL,15UH J LAL02
L0302 87-005-614-080 0E COIL,100UH J LAV35
L0303 87-005-614-080 0E COIL,100UH J LAV35
L0304 87-005-614-080 0E COIL,100UH J LAV35
L0306 87-003-282-080 0E COIL,12UH J LAL02
L0307 87-003-282-080 0E COIL,12UH J LAL02
L0308 87-005-614-080 0E COIL,100UH J LAV35
L0401 87-005-614-080 0E COIL,100UH J LAV35
L0602 87-A50-040-010 1A COIL,2.2MH<ST,ST1C,ST5C>
L0602 87-A50-467-010 0E COIL,2.2MH CW8A<STRC,STP,ST2C,ST2M>
L0603 88-JBJ-625-010 1B COIL,HLC-ELH5L4120N<ST2C,ST2M>
L0604 8Z-JBR-607-010 1B COIL,HLC ZJB-R<ST,ST1C,ST5C>
L0604 8Z-JBR-630-010 1B COIL,HLC 21 ELH5L6133N<STRC,STP>
L0701 87-005-614-080 0E COIL,100UH J LAV35
L0801 87-A91-453-010 1D FLTR,LINE PLH10A7003R6P02B1<EXCEPT ST5C>
L0801 87-A91-804-010 1B FLTR,LINE PLH10A1612R1P02B1<ST5C>
!!
!!
!L0802 87-A91-449-010 1D FLTR,LINE ELF18D450D
!!
!!
!PR0801 87-A90-429-080 1A FUSE,1.25A 125V A 251
R0107 87-A00-575-090 0E RES,M/F 27K-3W J RSF(S)
R0319 87-A00-159-090 0E RES,M/F 27-2W J RSF(S)
R0404 87-A00-541-090 0E RES,M/F 390-1W J RSF(S)
R0405 87-A00-541-090 0E RES,M/F 390-1W J RSF(S)
R0429 87-025-420-080 0E RES,M/F 1.5K-1/6W F
R0430 87-025-380-080 0E RES,M/F 15K-1/6W F
R0441 87-025-424-080 0E RES,M/F 10K-1/6W F
R0442 87-025-381-080 0E RES,M/F 18K-1/6W F
R0443 87-025-381-080 0E RES,M/F 18K-1/6W F
R0505 87-A00-197-090 0E RES,M/F 1.2-1W J RSF(S)
R0606 87-A00-196-090 0E RES,M/F 0.47-1/2W J RSF(S)
R0609 87-A00-255-090 1B RES,M/F 2.2-5W K RSV5
R0610 87-A00-256-090 1A RES,M/F 1.5K-7W J RSV7
R0611 87-A00-247-090 0E RES,M/F 100-3W J RSF(S)
R0801 87-023-102-080 0E RES,SD 4.7M-1/2W K
R0803 87-A00-150-090 0E RES,M/F 220-1W J RSF(S)
R0805 87-025-414-080 0E RES,M/F 56K-1/6W F<EXCEPT STRC>
R0805 87-025-416-080 0E RES,M/F 82K-1/6W F<STRC>
R0809 87-A00-552-010 1A RES,CEM 1.0-10W J MPC722
R0811 8Z-JBE-603-090 1D RES,CEM 180-20W J ZY
R0816 87-A00-552-010 1A RES,CEM 1.0-10W J MPC722
!!
!!
!RY0801 87-A91-390-010 1B RELAY,AC12V G5PA-1-8
SF0201 8Z-JBR-615-010 1B FLTR,SAW SAF58MBY200Z
SFR0201 87-024-430-080 0E SFR,2.2K H RH063MC
SW0002 87-A90-712-080 0E SW,TACT EVQ11L07K
SW0003 87-A90-712-080 0E SW,TACT EVQ11L07K
SW0004 87-A90-712-080 0E SW,TACT EVQ11L07K
SW0005 87-A90-712-080 0E SW,TACT EVQ11L07K
SW0006 87-A90-712-080 0E SW,TACT EVQ11L07K
SW0007 87-A90-712-080 0E SW,TACT EVQ11L07K
SW0801 87-A90-077-010 0E SW,PUSH 2-2-2 22F02
!!
!!
!T0601 8Z-JBR-605-010 2B FBT, HFT3607(SAN)21-C
!!
!!
!T0602 85-JT2-653-010 1C PT,HDT-TV141-2
!!
!!
!T0603 87-A90-359-010 1B FLTR,LINE LF-4Z-E223
!!
!!
!TH0801 87-A90-254-010 1C POS-THMS,PTH451BG5R0M140
TU0101 87-A91-883-010 2M TU UNIT, BTP-AK361<STRC,STP,ST2C,ST2M>
TU0101 8Z-JBR-610-010 2B TU UNIT,JPN ENV54D36G3<ST,ST1C,ST5C>
X0001 86-LBU-675-010 1B VIB,XTAL 8.00MHZ CSA-309 10PPM
X0201 87-A70-056-010 1A VIB,CER 503KHZ CSB503E7
X0301 87-A70-007-080 1B VIB,XTAL 3.58MHZ AQC-1001
X0302 87-030-327-010 0E VIB,CER 503.500KHZ CSB F30

-6-
ELECTRICAL MAIN PARTS LIST -4/4
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
NK C.B
C0901 87-A10-833-090 0E CAP,CER 1000P-2K K R
C0902 87-018-128-080 0E CAP,TC U 560P-50 K B UP050<ST,ST1C,ST5C>
C0902 87-A11-106-080 0E CAP,TC U 560P-50 J CH<STRC,STP,ST2C,ST2M>
C0903 87-018-127-080 0E CAP,TC U 470P-50 K B UP050<ST,ST1C,ST5C>
C0903 87-A11-104-080 0E CAP,TC U 470P-50 J CH<STRC,STP,ST2C,ST2M>
C0904 87-018-129-080 0E CAP,TC U 680P-50 K B UP050<ST,ST1C,ST5C>
C0904 87-A11-108-080 0E CAP,TC U 680P-50 J CH<STRC,STP,ST2C,ST2M>
C0905 87-010-976-080 0E CAP,CER 1000P-500 K B DD10<ST,ST1C,ST5C>
C0905 87-A12-492-080 0E CAP,CER 1000P-500 K B Y5P
<STRC,STP,ST2C,ST2M>
C0906 87-010-400-080 0E CAP,E 0.47-50 M 11L SME
C0907 87-010-221-080 0E CAP,E 470-10 M SME
C0908 87-010-260-080 0E CAP,E 47-25 M 11L SME
CN0901 87-049-469-010 0E CONN,4P V WHT EH
CN0902 87-009-033-010 0E CONN,5P V WHT PH
CN0903 87-A60-485-010 0E CONN,2P V LV GRA<ST,STRC,STP,ST1C>
CN0904 87-A60-485-010 0E CONN,2P V LV GRA<ST2C,ST2M,ST5C>
L0901 87-005-445-080 0E COIL,120UH K FLR50
R0904 87-A00-165-090 0E RES,M/F 15K-2W J RSF(S)
R0905 87-A00-165-090 0E RES,M/F 15K-2W J RSF(S)
R0906 87-A00-165-090 0E RES,M/F 15K-2W J RSF(S)
SO0901 8Z-JB4-670-010 1B SOCKET,CRT 9P CVT3327 1603
<ST,STRC,STP,ST1C>
SO0902 86-LBR-670-010 1B SOCKET,CRT 9P HPS1521<ST2C,ST2M,ST5C>
JK/PS C.B
BT0701 8Z-JBR-650-010 1A CONN ASSY,7P VD-JK
!!
!!
!BT0850 8Z-JBR-652-010 1B CONN ASSY,2P PS-MAIN
BT0851 8Z-JBR-653-010 1A CONN ASSY,5P PS-MAIN
C0702 87-010-401-080 0E CAP,E 1-50 M 11L SME
C0703 87-010-402-080 0E CAP,E 2.2-50 M 11L SME
C0704 87-010-402-080 0E CAP,E 2.2-50 M 11L SME
C0724 87-018-134-080 0E CAP,TC U 0.01-16 N Y UP050<ST,ST1C,ST5C>
C0724 87-A11-132-080 0E CAP,TC U 0.01-50 K B<STRC,STP,ST2C,ST2M>
C0850 87-A11-809-090 1C CAP,E 100-250 M SMG
C0851 87-018-127-080 0E CAP,TC U 470P-50 K B UP050<ST,ST1C,ST5C>
C0851 87-A11-104-080 0E CAP,TC U 470P-50 J CH<STRC,STP,ST2C,ST2M>
C0852 87-010-246-080 0E CAP,E 47-35 M 11L SME<STRC,ST2C,ST2M>
C0852 87-A12-078-080 0E CAP,E 47-35 SMG<ST,STP,ST1C,ST5C>
C0853 87-018-127-080 0E CAP,TC U 470P-50 K B UP050<ST,ST1C,ST5C>
C0853 87-A11-104-080 0E CAP,TC U 470P-50 J CH<STRC,STP,ST2C,ST2M>
C0854 87-018-131-080 0E CAP,TC U 1000P-50 K B UP050<ST,ST1C,ST5C>
C0854 87-A11-112-080 0E CAP,TC U 1000P-50 J CH<STRC,STP,ST2C,ST2M>
C0855 87-010-976-080 0E CAP,CER 1000P-500 K B DD10<ST,ST1C,ST5C>
C0855 87-A12-492-080 0E CAP,CER 1000P-500 K B Y5P
<STRC,STP,ST2C,ST2M>
C0856 87-010-389-090 1A CAP,E 2200-25 M SME<ST,STP,ST1C,ST5C>
C0856 87-A10-780-090 0E CAP,E 2200-25 M<STRC,ST2C,ST2M>
C0857 87-010-976-080 0E CAP,CER 1000P-500 K B DD10<ST,ST1C,ST5C>
C0857 87-A12-492-080 0E CAP,CER 1000P-500 K B Y5P
<STRC,STP,ST2C,ST2M>
C0858 87-010-386-080 0E CAP,E 330-25 M SME<STRC,ST2C,ST2M>
C0859 87-A11-302-090 0E CAP,M/P 0.01-630 J ECQF6(ZH)
C0862 87-A10-840-080 0E CAP,CER 220P-1K K R
C0863 87-010-383-080 0E CAP,E 33-25 M 11L SME<STRC,ST2C,ST2M>
C0863 87-A12-070-080 0E CAP,E 33-25 SMG<ST,STP,ST1C,ST5C>
FB0851 87-003-223-080 0E F-BEAD, BL02RN2
FB0852 87-003-223-080 0E F-BEAD, BL02RN2
J0703 87-A60-875-010 1C JACK,PIN 3P +S YKC22-0477
!!
!!
!P0850 87-A91-395-010 1A P-COUPLER,ON3131-R
!!
!!
!PR0850 87-026-689-080 0E PROTECTOR,1A 491SERIES 60V
R0851 87-A00-574-090 0E RES,M/F 33K-2W J RSF(S)
R0852 87-A00-572-090 1B RES,CEM 1-5W K RGC5
R0861 87-A00-227-090 0E RES,M/F 100K-2W J RSF(S)
!!
!!
!T0850 8Z-JBU-606-010 1H PT,SW.ZJB-U

-7-

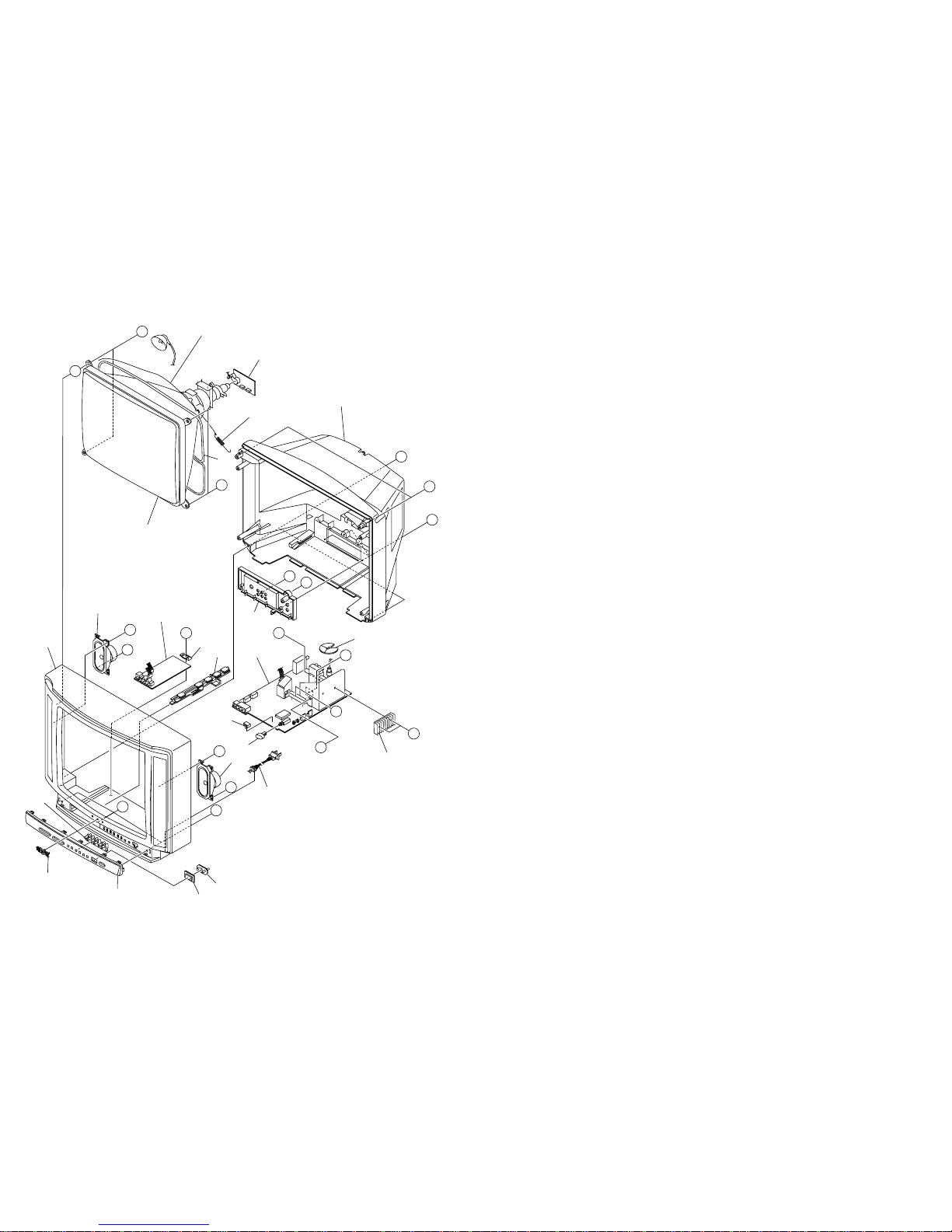

MECHANICAL EXPLODED VIEW 1/1 MECHANICAL MAIN PARTS LIST 1/1
REF. NO PART NO. KANRI DESCRIPTION
NO.
1 87-054-086-010 1A BADGE,AIWA 52.5 ABS GLD
2 8Z-JBR-003-110 1C PANEL,MAIN
3 8Z-JBR-004-010 1A KEY,MAIN<ST,ST1C,ST5C>
3 8Z-JBR-004-110 1A KEY,MAIN<STRC,STP,ST2C,ST2M>
4 8Z-JBR-005-010 0E LENS,RC
5 8Z-JBR-006-010 0E LENS,LED
6 8Z-JB4-001-010 2B CABI,FR<ST>
6 8Z-JAD-002-010 2B CABI,FR DC ST C<STRC,ST2C>
6 8Z-JAD-001-010 2Y CABI,FR DC ST<STP,ST2M>
6 8Z-JBR-001-010 2C CABI,FR<ST1C,ST5C>
7 87-A91-411-010 1F SPKR,F 6*12 8OHM 8W S0612J27
8 8Z-JBR-205-110 0E HLDR,PCB 3
9 8Z-JBR-201-010 1A HLDR,PCB 1
!!
!!
!10 86-LB2-601-010 9Z CRT,A51KST93X27(VM)<ST,STP,ST1C>
!!
!!
!10 8Z-JBR-640-010 3P CRT,54SX503Y22-DC01<STRC>
!!
!!
!10 87-JBC-608-010 3B CRT,A51KPD12XX93 NAWR<ST2C,ST2M>
!!
!!
!10 8Z-JBR-618-010 -- CRT,A51JFC82X13(C)<ST5C>
!!
!!
!10 8Z-JBR-617-010 3P CRT,ASSY:A51JFC82X23(C)<ST5C>
11 86-LBN-625-010 1H COIL,DGC21 6LB-22
12 84-LB3-205-010 0E SPR-E,EARTH<ST,ST1C,ST5C>
12 83-JT1-217-010 0E SPR-E,EARTH<STRC,STP,ST2C,ST2M>
13 8Z-JBR-012-010 2Y CABI,REAR N<ST>
13 8Z-JBX-005-010 2B CABI,REAR MI C<STRC,ST2C>
13 8Z-JBX-002-010 2Y CABI,REAR MI<STP,ST2M>
13 8Z-JB5-002-110 2Y CABI,REAR 3<ST1C,ST5C>
14 8Z-JBS-010-010 1B PANEL,REAR
!!
!!
!15 87-A90-332-010 0E HLDR,SF-2001 HV CABLE
16 84-LB3-216-010 0E HLDR,LED
17 8Z-JBS-007-010 0E BTN,POWER
!!
!!
!18 8Z-JBU-604-110 1F AC CORD ASSY,D BLK ZJB
19 86-LBN-622-110 1A CONN ASSY,1P CRT-GND<ST,ST1C,ST5C>
19 8Z-JBR-620-010 1A CONN ASSY,1P CRT GND<STRC,STP,ST2C,ST2M>
A 87-067-680-010 0E BVIT3B+3-10
B 86-LBB-206-010 0E S-SCREW,ASSY TV5-40 W20
C 87-078-070-010 0E BVIT3B+4-12
D 87-067-761-010 0E BVT2+3-10 BLK
E 87-067-844-010 0E BVT2+4-16 BLK
F 87-067-690-010 0E BVIT3B+3-12 BLK
G 87-067-579-010 0E BVT2+3-8 W/0 SL0T
H 87-067-758-010 0E BVT2+3-12 W/0 SL0T
I 8Z-JBS-204-010 0E W-PVC,10-20-1<EXCEPT ST,STP,ST1C>
2
A
H
C
7
C
16
9
15
G
G
17
G
MAIN C.B
HT-SYNK
A
8
A
14
D
D
10
19
B
E
E
F
11
HK C.B
13
B
I
12
JK/PS C.B
C
C
7
A
18
45
3
1
6

920074 Printed in Singapore
2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110-8710, JAPAN TEL:[phone]
