S E R V I C E M A N U A L
SIMPLE MANUAL
•Replace this Service Manual with ”Revision Publishing” when it is issued.
HV-CX717
HV-CX818
• TYPE: KE
VIDEO CASSETTE PLAYER
• BASIC VIDEO MECHANISM:K-P2SPN 104P-C<717>
K-P2SRN 104R-C<818>
S/M Code No. 09–985–276–4FP

DESCRIPTIONREF.NO. KANRI
NO.
PARTNO.KANRI
NO.
REF.NO. DESCRIPTIONPARTNO.
ELECTRICAL MAIN PARTS LIST - 1/3
IC
88-JP6-616-010 IC,TOP224Y
87-A20-649-080 IC,HA17431VP
87-A20-216-110 C-IC,HA118201CF
87-A20-275-040 C-IC,MSM7470-73MS
87-070-424-040 IC,BA7180F
87-001-933-010 IC,LA7295<818>
88-JP6-611-010 C-IC,M37776M5A-166GP
87-001-982-010 IC,TA7291S
87-070-289-040 IC,BU 2092F
87-070-083-010 IC,GP1U281X
87-070-391-040 IC,BA4558<717>
TRANSISTOR
89-109-521-080 TR,2SA952 (0.6W)
87-A30-062-080 C-TR,KRC104S
89-109-340-480 TR,2SA934Q
87-A30-060-080 C-TR,KTC3875GR
87-A30-061-080 C-TR,KTA1504GR
87-026-235-080 C-TR,DTC114EK
87-A30-099-080 TR,2SC3708S/T<818>
87-A30-141-010 P-TR,PN268NC-R
DIODE
87-070-173-010 DIODE,S1WBA60
87-A40-368-080 DIODE,EG01C
87-A40-480-080 ZENER,P6KE150A-G23
87-A40-291-080 DIODE,1N4148 (CPT)
87-A40-369-090 DIODE,RN3Z
87-A40-184-090 DIODE,RK34(F)
87-A40-466-080 ZENER,MTZJ2.7A
87-A40-003-080 ZENER,MTZJ4.3A
87-A40-344-080 ZENER,MTZJ5.6B
87-070-274-080 DIODE,1N4003 SEM
MAIN C.B
C1 87-A10-374-010 CAP,M/P 0.1-275 K RMR
C4 87-A10-003-090 CAP,E 100-400 M SME
C5 87-A10-892-080 CAP,CER 68P-1K J SL
C7 87-010-374-080 CAP, ELECT 47-10V
C9 87-A10-413-010 CAP,CER 2200P-4K M E KX
C12 87-A10-896-090 CAP,E 820-16 M PJ
C13 87-A10-895-080 CAP,E 1000-10 M PJ
C14 87-010-235-080 CAP,E 470-16 SME
C15 87-010-221-080 CAP, ELECT 470-10V
C16 87-010-235-080 CAP,E 470-16 SME
C18 87-010-378-080 CAP, ELECT 10-16V
C19 87-010-112-080 CAP, ELECT 100-16V
C20 87-010-263-080 CAP, ELECT 100-10V
C21 87-010-983-010 CAP,CER 0.01-500 KB
C22 87-A10-596-080 C-CAP,S 100P-100J C
C23 87-A10-843-080 CAP,CER 680P-1K KR
C102 87-018-205-080 CAP, CERA-SOL 0.022<818>
C103 87-010-197-080 CAP, CHIP 0.01 DM
C104 87-010-145-080 C-CAP,S 1P-50 CH
C105 87-010-197-080 CAP, CHIP 0.01 DM
C106 87-010-073-080 CAP,E 3.3-50 5L
C107 87-012-155-080 C-CAP 180P-50CH
C108 87-010-316-080 C-CAP,S 33P-50 CH
C110 87-010-244-080 CAP,E 22-16 M 5L SRE
C111 87-010-196-080 CHIP CAPACITOR,0.1-25
C112 87-010-193-080 CHIP CAPACITOR,0.033
C113 87-010-402-080 CAP, ELECT 2.2-50V
C116 87-010-180-080 C-CER 1500P
C117 87-010-314-080 C-CAP,S 22P-50V
C119 87-010-400-080 CAP, ELECT 0.47-50V
C120 87-010-198-080 CAP, CHIP 0.022
C122 87-010-401-080 CAP, ELECT 1-50V
C126 87-018-134-080 CAPACITOR,TC-U 0.01-16
C127 87-010-405-080 CAP, ELECT 10-50V
C129 87-010-196-080 CHIP CAPACITOR,0.1-25
C130 87-010-263-080 CAP, ELECT 100-10V
C131 87-010-545-080 CAP, ELECT 0.22-50V
C132 87-010-405-080 CAP, ELECT 10-50V
C133 87-010-400-080 CAP, ELECT 0.47-50V
C134 87-010-405-080 CAP, ELECT 10-50V<818>
C135 87-010-405-010 CAP, ELECT 10-50V<717>
C136 87-010-402-080 CAP, ELECT 2.2-50V
C137 87-010-403-080 CAP, ELECT 3.3-50V
C138 87-010-196-080 CHIP CAPACITOR,0.1-25
C139 87-010-196-080 CHIP CAPACITOR,0.1-25
C141 87-010-196-080 CHIP CAPACITOR,0.1-25
C143 87-010-403-080 CAP, ELECT 3.3-50V
C144 87-010-197-080 CAP, CHIP 0.01 DM
C149 87-010-316-080 C-CAP,S 33P-50 CH
C150 87-010-493-080 CAP,E 0.47-50 GAS
C152 87-010-068-080 CAP, ELECT 0.22-50
C154 87-012-154-080 C-CAP,S 150P-50 CH
C157 87-015-695-080 CAP,E 1-50 7L
C158 87-010-197-080 CAP, CHIP 0.01 DM
C159 87-010-198-080 CAP, CHIP 0.022
C160 87-010-197-080 CAP, CHIP 0.01 DM
C161 87-015-677-080 CAP,E 100-6.3 7L
C162 87-018-214-080 CAP TC U 0.1-50F
C163 87-010-178-080 CHIP CAP 1000P
C164 87-010-198-080 CAP, CHIP 0.022
C165 87-010-196-080 C-CAP,S 0.1-25 Z F
C180 87-012-158-080 C-CAP,S 390P-50 CH
C182 87-010-196-080 CHIP CAPACITOR,0.1-25
C183 87-010-553-080 CAP,E 47-16
C184 87-018-131-080 CAP, CER 1000P-50V
C185 87-018-134-080 CAPACITOR,TC-U 0.01-16
C186 87-010-149-080 C-CAP,S 5P-50 CH
C187 87-010-314-080 C-CAP,S 22P-50V
C201 87-010-112-080 CAP, ELECT 100-16V
C202 87-010-197-080 CAP, CHIP 0.01 DM
C203 87-010-374-080 CAP, ELECT 47-10V
C204 87-010-371-080 CAP, ELECT 470-6.3V
C205 87-010-263-080 CAP, ELECT 100-10V
C206 87-010-197-080 CAP, CHIP 0.01 DM
C207 87-010-263-080 CAP, ELECT 100-10V
C208 87-010-197-080 CAP, CHIP 0.01 DM
C251 87-010-181-080 CAP,CHIP S 1800P<818>
C252 87-010-316-080 C-CAP,S 33P-50 CH<818>
C253 87-012-154-080 C-CAP 150P-50CH<818>
C254 87-012-157-080 C-CAP,S 330P-50 CH<818>
C255 87-012-154-080 C-CAP,S 150P-50 CH<818>
C256 87-010-198-080 CAP, CHIP 0.022<818>
C257 87-010-197-080 CAP, CHIP 0.01 DM<818>
C258 87-010-550-080 CAP 100-6.3 GAS<818>
C259 87-010-198-080 CAP, CHIP 0.022<818>
C260 87-010-198-080 CAP, CHIP 0.022<818>
C261 87-010-198-080 CAP, CHIP 0.022<818>
C262 87-010-197-080 CAP, CHIP 0.01 DM<818>
C263 87-010-244-080 CAP,E 22-16 M 5L SRE<818>
C265 87-010-178-010 CHIP CAP 1000P<818>
C301 87-010-196-080 CHIP CAPACITOR,0.1-25
C302 87-010-196-080 CHIP CAPACITOR,0.1-25<818>
C303 87-010-196-080 CHIP CAPACITOR,0.1-25
C306 87-010-196-080 CHIP CAPACITOR,0.1-25
C307 87-010-196-080 CHIP CAPACITOR,0.1-25<818>
C308 87-015-677-080 CAP,E 100-6.3 7L
C309 87-010-805-080 CHIP CAPACITOR,S 1-16
C310 87-010-198-080 CAP, CHIP 0.022<818>
C311 87-010-197-080 CAP, CHIP 0.01 DM
C351 87-010-314-080 C-CAP,S 22P-50 CH
C352 87-010-313-080 C-CAP,S 18P-50 CH
C354 87-010-320-080 CHIP CAP 68P
C355 87-010-317-080 C-CAP,S 39P-50 CH
C356 87-010-197-080 CAP, CHIP 0.01 DM
C357 87-010-321-080 C-CAP,S 82P-50CH

DESCRIPTIONREF.NO. KANRI
NO.
PARTNO.KANRI
NO.
REF.NO. DESCRIPTIONPARTNO.
ELECTRICAL MAIN PARTS LIST - 2/3
C360 87-010-320-080 C-CAP,S 68P-50 CH
C362 87-012-157-080 C-CAP,S 330P-50 CH
C365 87-012-157-080 C-CAP,S 330P-50 CH
C367 87-010-322-080 C-CAP,S 100P-50 CH
C370 87-010-197-080 CAP, CHIP 0.01 DM
C371 87-015-677-080 CAP, ELECT 100-6.3 M 7L
C401 87-010-112-080 CAP, ELECT 100-16V<818>
C402 87-010-197-080 CAP, CHIP 0.01 DM<818>
C404 87-010-182-080 C-CAP,S 2200P-50 B<818>
C405 87-010-401-080 CAP, ELECT 1-50V<818>
C406 87-010-197-080 CAP, CHIP 0.01 DM<818>
C407 87-010-404-080 CAP, ELECT 4.7-50V<818>
C409 87-010-404-080 CAP, ELECT 4.7-50V<818>
C410 87-010-213-080 C-CAP,S 0.015-50 B<818>
C411 87-010-382-080 CAP, ELECT 22-25V<818>
C413 87-010-402-080 CAP, ELECT 2.2-50V<818>
C415 87-012-365-080 C-CAP,S 0.027-25VBK<818>
C416 87-015-698-080 CAP,E 4.7-50 7L<818>
C417 87-010-260-080 CAP, ELECT 47-25V<818>
C418 87-010-378-080 CAP, ELECT 10-16V<818>
C419 87-010-260-080 CAP, ELECT 47-25V<818>
C420 87-010-427-080 C-CAP,S 0.039-25 Z F<818>
C421 87-010-182-080 C-CAP,S 2200P-50 B<818>
C423 87-012-156-080 C-CAP,S 220P-50 CH<818>
C431 87-010-178-080 CHIP CAP 1000P
C451 87-010-112-080 CAP, ELECT 100-16V<717>
C452 87-010-197-080 C-CAP,S 0.01-25 K B<717>
C453 87-010-182-080 C-CAP,S 2200P-50 B<717>
C455 87-010-405-080 CAP, ELECT 10-50V<717>
C457 87-010-405-080 CAP, ELECT 10-50V<717>
C458 87-010-263-080 CAP,ELECT 100-10V<717>
C459 87-010-175-080 C-CAP,S 560P-50 J SL<717>
C460 87-010-244-080 C-CAP,E 22-16 M 5L SRE<717>
C461 87-010-805-080 C-CAP,S 1-16 Z F<717>
C462 87-010-197-080 C-CAP,S 0.01-25 K B<717>
C602 87-010-197-080 CAP, CHIP 0.01 DM<818>
C603 87-010-196-080 CHIP CAPACITOR,0.1-25
C604 87-015-677-080 CAP,E 100-6.3 7L
C605 87-010-154-080 C-CAP,S 10P-50V
C606 87-010-154-080 C-CAP,S 10P-50V
C609 87-010-178-080 CHIP CAP 1000P
C610 87-010-178-080 CHIP CAP 1000P
C611 87-010-178-080 CHIP CAP 1000P
C612 87-015-695-080 CAP,E 1-50 7L
C613 87-010-184-080 CHIP CAPACITOR 3300P(K)
C614 87-010-196-080 CHIP CAPACITOR,0.1-25
C615 87-010-375-080 CAP,E 330-10 SME
C616 87-015-681-080 CAP,E 10-16 7L
C617 87-010-193-080 CHIP CAPACITOR,0.033
C618 87-015-681-080 CAP,E 10-16 7L
C619 87-010-263-080 CAP, ELECT 100-10V
C620 87-010-196-080 CHIP CAPACITOR,0.1-25
C622 87-010-805-080 CAP, S 1-16
C623 87-010-196-080 CHIP CAPACITOR,0.1-25
C628 87-010-196-080 CHIP CAPACITOR,0.1-25
C629 87-010-260-080 CAP, ELECT 47-25V
C630 87-010-197-080 CAP, CHIP 0.01 DM
C631 87-015-680-080 CAP,E 47-10 7L
C632 87-010-197-080 CAP, CHIP 0.01 DM
C633 87-010-197-080 CAP, CHIP 0.01 DM
C634 87-015-684-080 CAP,E 47-16 7L
C635 87-010-197-080 CAP, CHIP 0.01 DM
C636 87-015-684-080 CAP,E 47-16 7L
C637 87-010-197-080 CAP, CHIP 0.01 DM
CN604 87-099-197-010 CONN, 9P 6216 V
CNA402 88-JP6-622-010 CONN ASSY,6P ACE
CNA602 88-JP6-623-010 CONN ASSY,7P MOTOR
D604 87-070-418-010 LED,LN66A
F1 87-035-454-010 FUSE,1.6A 250V T W/C
F000 88-909-121-110 FF-CABLE,9P 12CM
FC1 87-A90-505-080 FUSE CLAMP,TP00351-51
FC2 87-A90-505-080 FUSE CLAMP,TP00351-51
J201 87-A60-240-010 JACK,PIN 2P Y/B HTJ-033<818>
J202 87-A60-240-010 JACK,PIN 2P Y/B HTJ-033
L2 87-A50-180-080 COIL,22UH K LHL10
L3 87-A50-180-080 COIL,22UH K LHL10
L4 87-A50-180-080 COIL,22UH K LHL10
L101 87-003-146-080 COIL,15UH K LAL02
L102 87-005-730-080 COIL,10UH J SP02
L103 87-005-736-080 COIL,33UH J SP02
L105 87-005-481-080 COIL,47UH J FLR50
L108 87-005-743-080 COIL,120UH J SP02
L109 87-005-481-080 COIL,47UH J FLR50
L180 87-005-742-080 COIL,100UH J SP02
L181 87-005-740-080 COIL,68UH J SP02
L201 87-005-738-080 COIL,47UH J SP02
L202 87-005-481-080 COIL,47UH J FLR50
L203 87-005-481-080 COIL,47UH J FLR50
L251 87-005-738-080 COIL,47UH J SP02<818>
L252 87-005-729-080 COIL,8.2UH J SP02<818>
L253 87-005-738-080 COIL,47UH J SP02<818>
L254 87-005-732-080 COIL,15UH J SP02<818>
L255 87-005-739-080 COIL,56UH J SP02<818>
L256 87-005-746-080 COIL,220UH J SP02<818>
L301 87-005-481-080 COIL,47UH J FLR50
L351 87-005-734-080 COIL,22UH J SP02
L352 87-005-738-080 COIL,47UH J SP02
L353 87-005-730-080 COIL,10UH J SP02
L354 87-005-730-080 COIL,10UH J SP02
L355 87-005-745-080 COIL,180UH J SP02
L356 87-005-738-080 COIL,47UH J SP02
L358 87-005-481-080 COIL,47UH J FLR50
L401 88-JP6-615-010 COIL,BIAS OSC 70KHZ<818>
L402 87-005-398-080 COIL,8.2MH LHL06<818>
L403 87-005-739-080 COIL,56UH J SP02<818>
L601 87-005-481-080 COIL,47UH J FLR50
L602 87-005-481-080 COIL,47UH J FLR50
LF1 87-A90-869-010 FLTR,LINE LF2020-333
PS1 87-A90-717-010 P-COUPLER,PC123FY2
PS601 87-A90-834-010 SNSR,SG-258S
PS602 87-A90-834-010 SNSR,SG-258S
PT1 88-JP6-630-010 PT,KER SWT
R8 87-A00-414-090 RES,M/F 8.2-1W J RNS
R10 87-025-425-080 RES,M/F 12K-1/8W F
R11 87-022-629-080 RES,M/F 11K-1/6WF
R12 87-A00-363-090 RES,M/F 68K-2W J RSS2X
RF201 87-A90-740-010 RF MOD UNIT,NJH3032E20 G/K
S601 87-A90-873-080 SW,TACT SKQNAJ
S602 87-036-110-010 SW,MICRO SPPB62
SFR601 87-024-177-080 SEMI-FIXED RESISTER, 220K
TM1 87-A60-317-010 TERMINAL, 1P MSC
TM2 87-A60-317-010 TERMINAL, 1P MSC
X101 87-A70-019-080 VIB,XTAL 4.43MHZ
X601 87-A70-090-080 VIB,XTAL 16MHZ AT-49
FRONT C.B
C702 87-010-196-080 CHIP CAPACITOR,0.1-25
C703 87-010-196-080 CHIP CAPACITOR,0.1-25
C704 87-010-263-080 CAP, ELECT 100-10V
CN701 87-099-202-010 CONN,9P 6216 H
D703 87-017-733-080 LED,SEL1250SM
D704 87-017-733-080 LED,SEL1250SM<818>
D705 87-017-350-080 LED,SEL1550CM
D706 87-017-350-080 LED,SEL1550CM
D707 87-017-350-080 LED,SEL1550CM
D708 87-017-350-080 LED,SEL1550CM
D709 87-017-350-080 LED,SEL1550CM
D710 87-017-350-080 LED,SEL1550CM
D711 87-017-350-080 LED,SEL1550CM
D712 87-017-350-080 LED,SEL1550CM
S701 87-A90-164-080 SW,TACT SKQAB(N)
S702 87-A90-164-080 SW,TACT SKQAB(N)
S703 87-A90-164-080 SW,TACT SKQAB(N)

DESCRIPTIONREF.NO. KANRI
NO.
PARTNO.KANRI
NO.
REF.NO. DESCRIPTIONPARTNO.
ELECTRICAL MAIN PARTS LIST - 3/3
S704 87-A90-164-080 SW,TACT SKQAB(N)
S705 87-A90-164-080 SW,TACT SKQAB(N)
S706 87-A90-164-080 SW,TACT SKQAB(N)
S707 87-A90-164-080 SW,TACT SKQAB(N)
UPPER DRUM MOTOR C.B
LOWER DRUM MOTOR C.B
CAPSTAN MOTOR C.B
LOADING MOTOR C.B
ACE HEAD C.B

DESCRIPTIONREF.NO. KANRI
NO.
PARTNO.KANRI
NO.
REF.NO. DESCRIPTIONPARTNO.
MECHANICAL PARTS LIST - 1
1 88-JP6-003-010 CABI,STEEL
2 88-JP6-004-010 PANEL,RE 1<818>
2 88-JP9-004-010 PANEL,RE 2<717>
3 87-A80-088-010 AC CORD ASSY,E BLK
4 88-JP6-008-010 KEY,CONT 1<818>
4 88-JP9-008-010 KEY,CONT 2<717>
5 88-JP8-001-010 CABI,FR<818>
5 88-JP9-001-010 CABI,FR<717>
6 84-LB3-024-110 PLATE FOOT
7 88-JP6-009-010 CAP, RING
8 88-JP6-006-010 WINDOW,DSPLY 1
9 82-NE8-032-010 BADGE,AIWA 27.5
10 88-JP6-007-010 KEY,POWER
11 88-JP9-005-010 DOOR,CASS 2<717>
11 88-JP8-005-010 DOOR,CASS 4<818>
12 84-JP9-202-010 SPR-T,DOOR
13 81-JUK-045-010 FELT,FOOT 8-8
A 87-067-761-010 TAPPING SCREW, BVT2+3-10
B 87-067-579-010 TAPPING SCREW, BVT2+3-8
C 87-067-703-010 TAPPING SCREW, BVT2+3-10
D 87-078-070-010 BVIT3B+4-12
E 87-067-688-010 BVTT+3-6

DESCRIPTIONREF.NO. KANRI
NO.
PARTNO.KANRI
NO.
REF.NO. DESCRIPTIONPARTNO.
ACCESSORIES / PACKAGE LIST - 1
1 88-JP9-903-010 IB,KE (ECRPA)-M<717>
1 88-JP8-903-010 IB,KE (ECRPA)-M<818>
2 87-B30-106-010 CORD,RF PAL/UJ0502
3 88-JP8-670-010 RC UNIT,RC-8VP02<818>
3 88-JP9-670-010 RC UNIT,RC-8VP03<717>

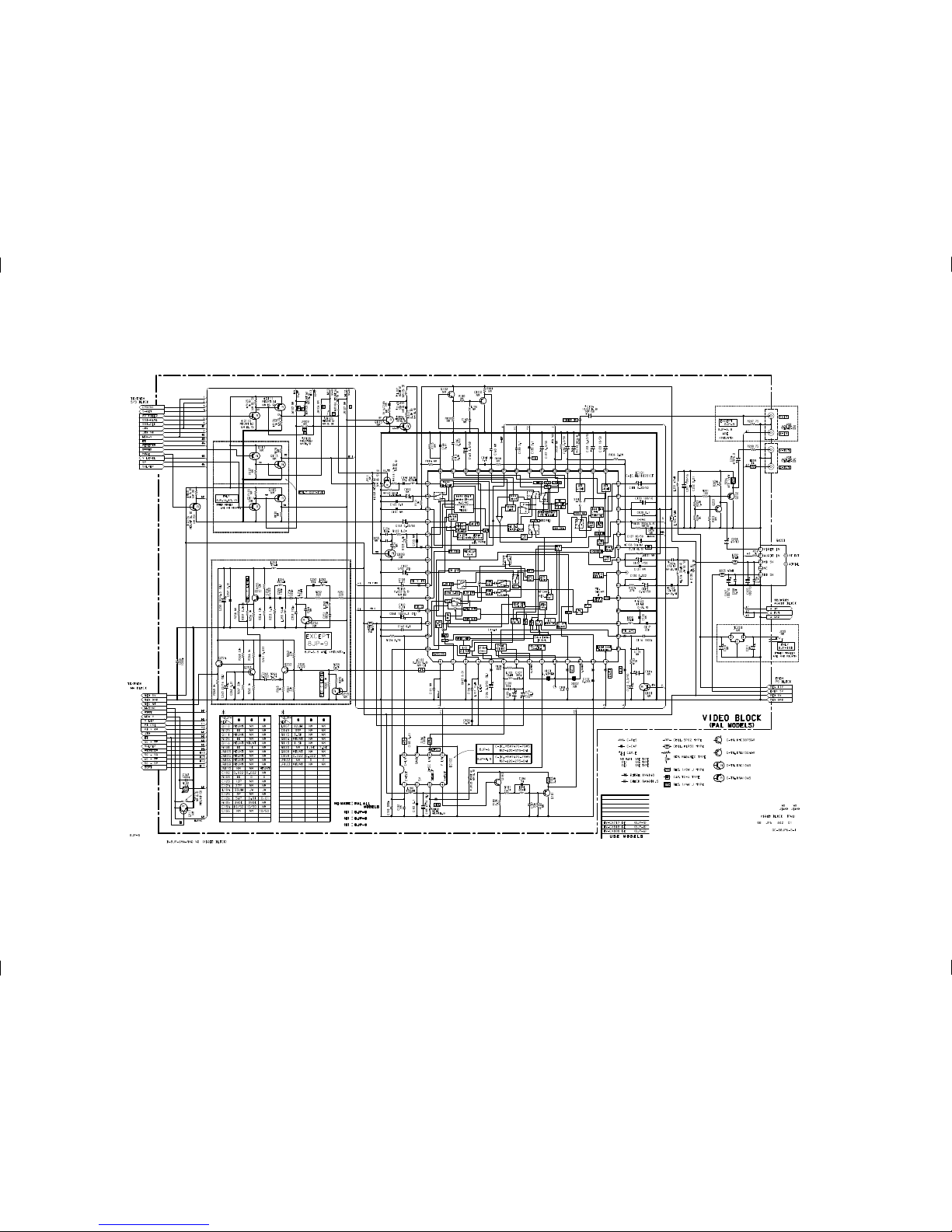

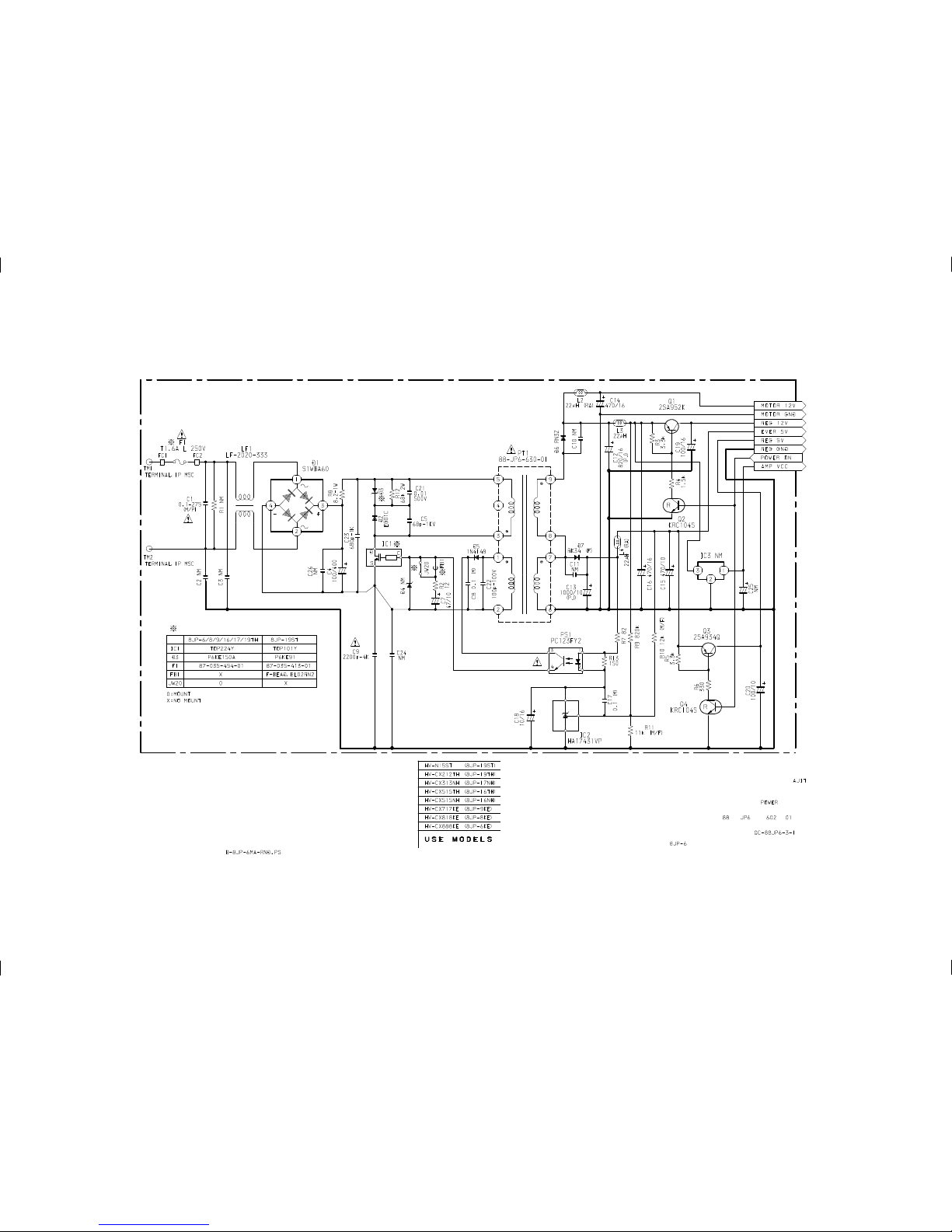

SCHEMATIC DIAGRAM _1 (VIDEO)

SCHEMATIC DIAGRAM _2 (AUDIO)

SCHEMATIC DIAGRAM _3 (FRONT)

SCHEMATIC DIAGRAM _4 (HEAD AMP)
