SERVICE MANUAL
DATA
STEREO VIDEO CASSETTE RECORDER BASIC VIDEO MECHANISM : NC3600 P4LRH
HV-FX8700 K, EH
S/M Code No. 09-008-437-3N1
• If requiring information about the mechanism, see Service Manual of
NCP4LHR3600, (S/MCode No.09-995-333-1n1).
All manuals and user guides at all-guides.com
all-guides.com

– 2 –
SPECIFICATIONS
ACCESSORIES / PACKAGE LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
1 8A-JU1-901-110 IB,K (E) -FX8700<K>
1 8A-JU1-903-110 IB,EH EGDSI-FX8700<EH>
2 87-050-076-010 AC CORD SET ASSY,E<EH>
2 87-A80-062-010 AC CORD SET ASSY,K BLK<K>
3 87-A80-141-010 CORD,PIN 2PC368V 150CM R-W
3 87-034-796-010 CORD,RF PAL S
4 8A-JU1-620-010 RC UNIT,RC-AVRO1<K>
4 8A-JU1-624-010 RC UNIT,RC-AVRO2<EH>
!
Video recording system Rotary 2 head helical scanning
system
Video head Double azimuth 4 heads
Tuner system Frequency sysnthesised tuner
TV system B/G <EH>
I <K>
Video signal PAL color signal, 625 lines, 50 fields
Usable cassettes VHS video cassettes
Recording/playback time PAL
<EH>
SP: 5 hours max. with E-300 tape
LP: 10 hours max. with E-300 tape
<K>
SP: 4 hours 20 minutes max. with
E-260 tape
LP: 8 hours 40 minutes max. with
E-260 tape
NTSC (Playback only)
SP: 3 hours max. with T-180 tape
LP: 6 hours max. with T-180 tape
EP: 9 hours max. with T-180 tape
Tape speed PAL
SP: 23.39 mm/sec
LP: 11.69 mm/sec
NTSC (Playback only)
SP: 33.35 mm/sec
LP: 16.67 mm/sec
EP: 11.12 mm/sec
Rewind time Approx. 1 min. with E-180 tape
Channel coverage VHF-Low <EH> : E2–4, S1–6
VHF-High <EH> : E5–12, S7–41
UHF: 21–69
RF output UHF channel between 22 and 69
72 dBµ<EH>
UHF channel between 22 and 69
73 dBµ<K>
Video input 0.5–2.0 Vp-p, 75 ohms, unbalanced
Video output 1.0 Vp-p, 75 ohms, unbalanced
Horizontal resolution 240 lines (nominal)
Video S/N 43 dB (nominal)
Audio track 3 tracks (Hi-Fi sound 2 tracks,
Normal sound 1 track)
Audio input level SCART: –8 dBs, 22 kohms
RCA: –8 dBs, 22 kohms
Audio output level SCART: –8 dBs less than 2.2 kohm
RCA: –8 dBs less than 2.2 kohm
Hi-Fi frequency response 20 Hz–20 kHz
Hi-Fi dynamic range More than 90 dB
Hi-Fi Wow and Flutter Less than 0.01% (nominal)
Operating temperature 5°C–40°C
Power requirements EH: 220–240 V AC, 50 Hz
K: 230 V AC, 50 Hz
Power consumption 21 watts
TYP 2.2 watts (power save mode,
230V AC)
Dimensions 380 (W) x 304 (D) x 92 (H) mm
(15 x 12 x 35/8in.)
Weight Approx. 4.2 kg (9.24Ibs.)
• Design and specifications are subject to change without
notice.
• The word "BBE" and the "BBE symbol" are trademarks of BBE
Sound, Inc.
Under license feom BBE Sound, Inc.
!
All manuals and user guides at all-guides.com

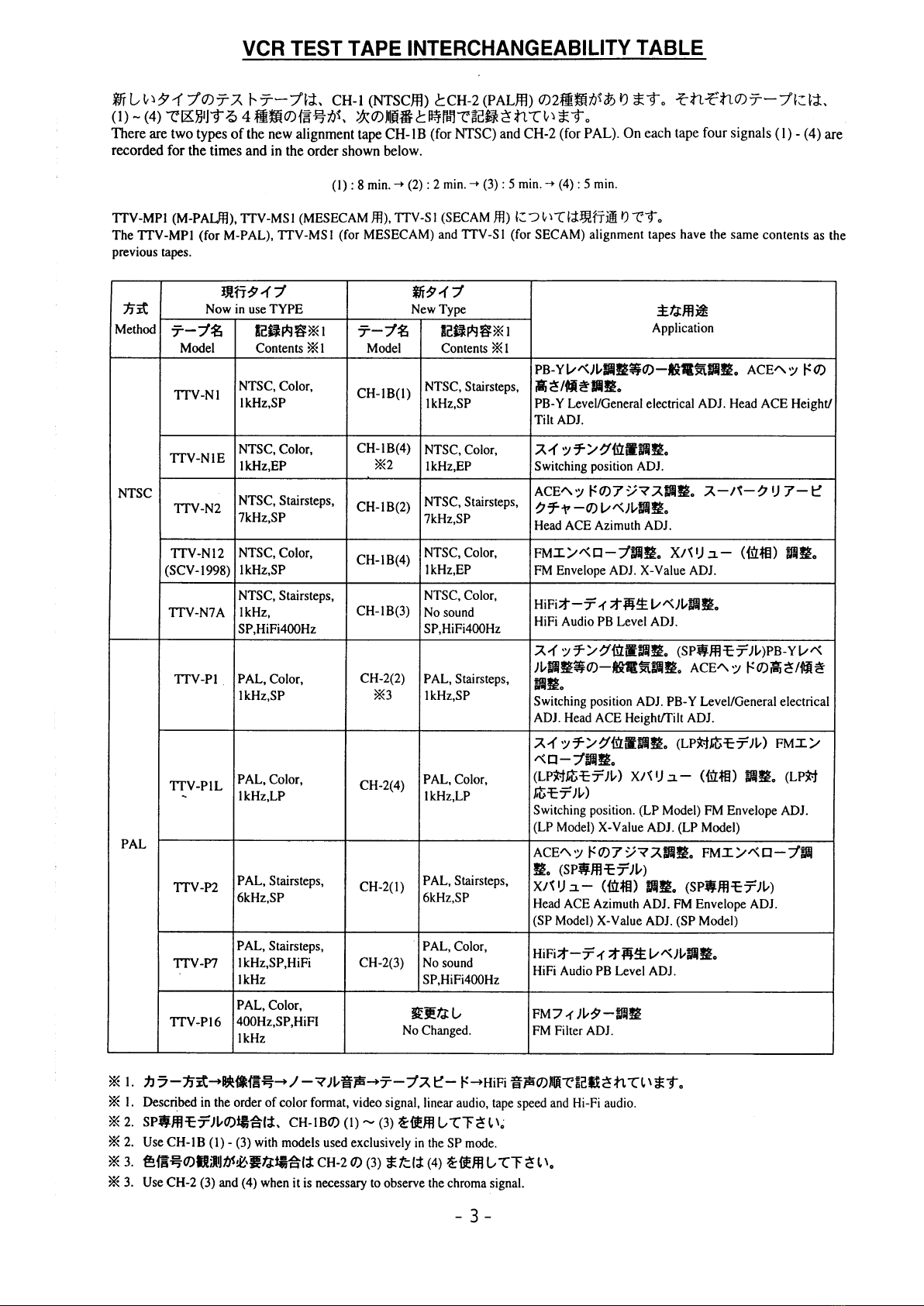

– 3 –
All manuals and user guides at all-guides.com

– 4 –

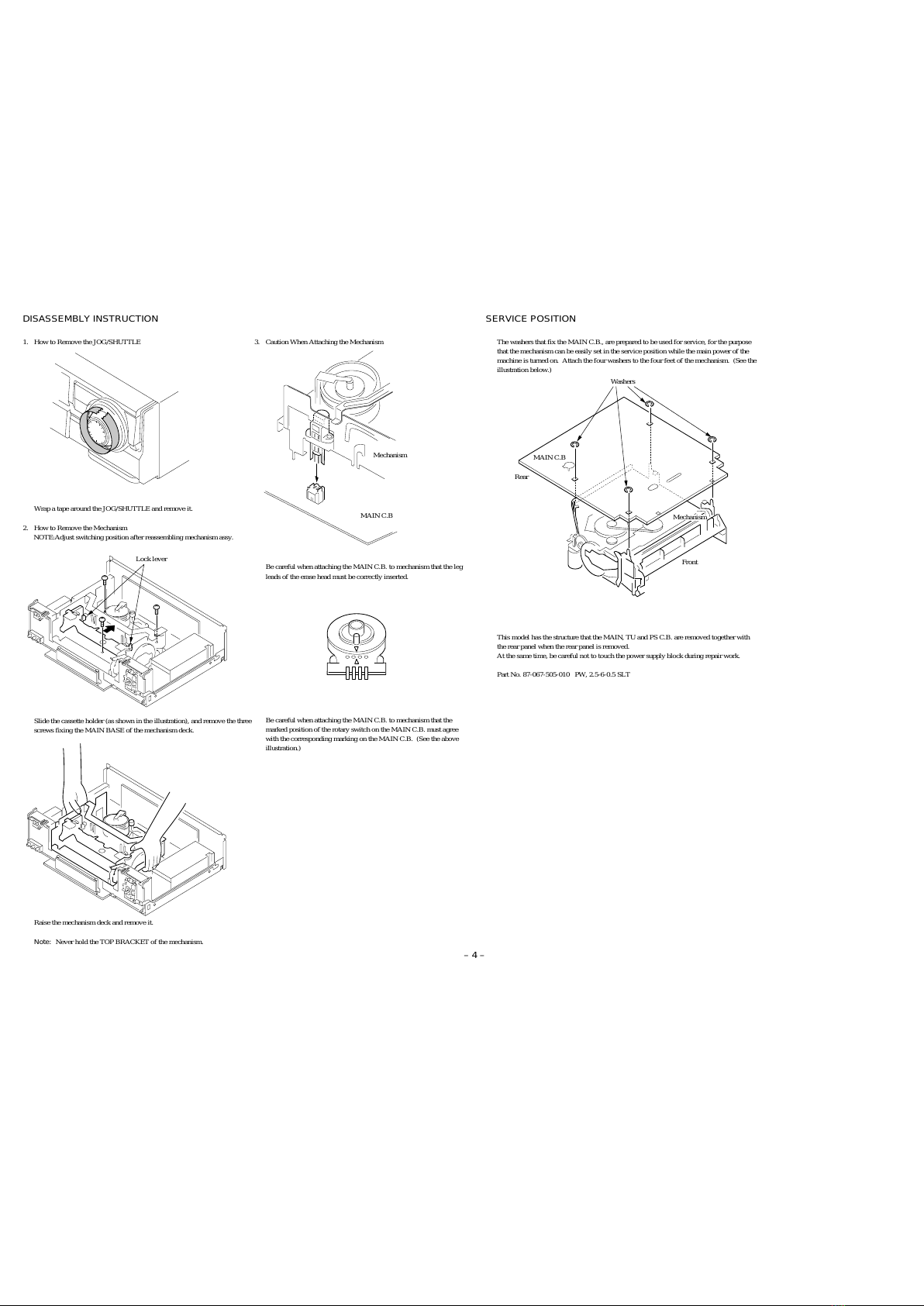

DISASSEMBLY INSTRUCTION
1. How to Remove the JOG/SHUTTLE
Wrap a tape around the JOG/SHUTTLE and remove it.
2. How to Remove the Mechanism
NOTE:Adjust switching position after reassembling mechanism assy.
Slide the cassette holder (as shown in the illustration), and remove the three
screws fixing the MAIN BASE of the mechanism deck.
Raise the mechanism deck and remove it.
Note: Never hold the TOP BRACKET of the mechanism.
Lock lever
3. Caution When Attaching the Mechanism
Be careful when attaching the MAIN C.B. to mechanism that the leg
leads of the erase head must be correctly inserted.
Be careful when attaching the MAIN C.B. to mechanism that the
marked position of the rotary switch on the MAIN C.B. must agree
with the corresponding marking on the MAIN C.B. (See the above
illustration.)
MAIN C.B
Mechanism
The washers that fix the MAIN C.B., are prepared to be used for service, for the purpose
that the mechanism can be easily set in the service position while the main power of the
machine is turned on. Attach the four washers to the four feet of the mechanism. (See the
illustration below.)
This model has the structure that the MAIN, TU and PS C.B. are removed together with
the rear panel when the rear panel is removed.
At the same time, be careful not to touch the power supply block during repair work.
Part No. 87-067-505-010 PW, 2.5-6-0.5 SLT
SERVICE POSITION
Front
Washers
MAIN C.B
Rear
Mechanism
All manuals and user guides at all-guides.com

ELECTRICAL MAIN PARTS LIST
 5 
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
87-A21-186-010 IC,STR-F6552
87-A20-649-080 IC,HA17431VP
87-A20-389-010 IC,NJM7809FA
8Z-JU1-600-010 IC,TMP93CW76F-1A78<K
8Z-JU1-610-010 IC,TMP93CW76F-1A77<EH
87-A20-676-040 IC,S-80827ANNP-EDQ
87-A21-217-040 IC,S-24C08AFJA-TB-01
87-070-242-010 IC,LA7123
87-001-982-010 IC,TA7291S
87-A21-146-010 IC,TB6515AP
87-017-375-080 IC,TC4094BF
87-A21-147-010 IC,TA1278AF
8Z-JU1-601-040 IC,TC90A24F-406
87-001-854-010 IC,BA7755A
87-A21-022-040 IC,BA3880FS
87-A21-148-010 IC,TA1246AF
87-A20-943-080 IC,LA7157M
87-A91-074-010 RCR UNIT,NJL68H380
87-A21-221-040 IC,TC4021BF
87-A20-371-080 IC,KA33V
87-A20-562-010 IC,SDA5650P-DIP-14
87-A21-261-010 IC,MSP3417D
TRANSISTOR
87-A30-217-010 TR,2SB1436R
87-026-223-080 CHIP-TR,DTC143TK
87-A30-218-080 TR,2SB1237(Q)
87-026-235-080 CHIP-TR,DTC114EK
87-026-210-080 CHIP-TR,DTC144EK
87-A30-216-080 TR,2SA933AS(R)
87-026-227-080 CHIP-TR,DTA114EK
87-A30-220-080 TR,2SC1741AS(R)
89-110-372-080 CHIP-TR,2SA1037K(R)
87-A30-219-080 TR,2SB1443(Q)
89-324-122-080 CHIP-TR,2SC2412KR
87-A30-270-010 P-TR,PT493F
87-A30-099-080 TR,2SC3708S/T
89-418-580-080 TR,2SD1858 TV2
87-A30-062-080 CHIP-TR,KRC104S
87-A30-063-080 CHIP-TR,KRA104S
DIODE
87-070-173-010 DIODE,S1WBA60
87-A40-368-080 DIODE,EG01C
87-A40-172-080 DIODE,EG01Z
87-020-465-080 DIODE,1SS133
87-A40-367-080 DIODE,EU01
87-A40-628-080 DIODE,EN01Z
87-A40-369-090 DIODE,RN3Z
87-070-274-080 DIODE,1N4003 SEM
87-A40-184-090 DIODE,RK34(F)
87-A40-353-080 ZENER,HZS333
87-A40-002-080 ZENER,MTZJ5.1C
87-017-079-080 ZENER,HZS4A3
87-A40-597-010 LED,GL451V
87-027-406-080 ZENER,HZ3A33
87-017-130-080 ZENER,HZS12A1
87-017-350-080 LED,SEL1550CM PGRN
87-A90-531-080 LED,SEL6915A
87-A40-343-010 LED,SIR-56ST3F TRP
87-020-027-080 C-DIODE,1SS184
MAIN C.B
C101 87-010-313-080 C-CAP,S 18P-50 CH
C102 87-010-313-080 C-CAP,S 18P-50 CH
C103 87-010-311-080 C-CAP,S 12P-50 CH
C104 87-010-311-080 C-CAP,S 12P-50 CH
C105 87-010-197-080 C-CAP,S 0.01-25 KB
C106 87-010-322-080 C-CAP,S 100P-50 CH
C107 87-010-197-080 C-CAP,S 0.01-25 KB
C108 87-010-079-080 CAP,E 100-6.3V M 5L
C109 87-016-040-080 CAP,DL 0.047F-5.5FM
C110 87-010-079-080 CAP,E 100-6.3V M 5L
C111 87-015-695-080 CAP,E 1-50 7L
C112 87-010-197-080 C-CAP,S 0.01-0.25 KB
C113 87-010-197-080 C-CAP,S 0.01-0.25 KB
C114 87-010-197-080 C-CAP,S 0.01-0.25 KB
C115 87-010-197-080 C-CAP,S 0.01-0.25 KB
C116 87-015-681-080 CAP,E 10-16 7L
C117 87-010-405-080 CAP,ELECT 10-50V
C118 87-010-405-080 CAP,ELECT 10-50V
C119 87-010-197-080 C-CAP,S 0.01-0.25 KB
C120 87-010-197-080 C-CAP,S 0.01-0.25 KB
C121 87-015-677-080 CAP,E 100-6.3 7L
C122 87-010-550-040 CAP,E 100-6.3 M 5L
C123 87-010-197-080 C-CAP,S 0.01-0.25 KB
C124 87-010-197-080 C-CAP,S 0.01-0.25 KB
C125 87-015-681-080 CAP,E 10-16 7L
C127 87-010-374-080 CAP,ELECT 47-10V
C128 87-010-197-080 C-CAP,S 0.010.25 KB
C129 87-010-405-080 CAP,ELECT 10-50V
C130 87-010-263-080 CAP,ELECT 100-10V
C131 87-010-197-080 C-CAP,S 0.01-0.25 KB
C132 87-010-197-080 C-CAP,S 0.01-0.25 KB
C133 87-010-197-080 C-CAP,S 0.01-0.25 KB
C134 87-010-197-080 C-CAP,S 0.01-0.25 KB
C135 87-010-178-080 C-CAP,S 1000P-50KB
C136 87-010-374-080 CAP,ELECT 47-10V
C137 87-010-403-080 CAP,ELECT 3.3-50V
C138 87-010-405-080 CAP,ELECT 10-50V
C139 87-010-805-080 CAP,S 1-16
C140 87-010-322-080 C-CAP,S 100P-50 CH
C146 87-010-196-080 CAP,0.1-25 ZF
C147 87-010-197-080 C-CAP,S 0.01-25 KB
C148 87-010-197-080 C-CAP,S 0.01-25 KB
C149 87-010-197-080 C-CAP,S 0.01-25 KB
C150 87-010-196-080 C-CAP,S 0.1-25
C151 87-010-197-080 C-CAP,S 0.01-25 KB
C152 87-010-197-080 C-CAP,S 0.01-25 KB
C153 87-010-260-080 CAP,ELECT 47-25V
C154 87-010-498-080 CAP,E 10-16 M 5L
C155 87-010-498-040 CAP,E 10-16 M 5L
C156 87-010-498-040 CAP,E 10-16 M 5L
C157 87-015-689-080 CAP,E 0-35 7L
C158 87-010-197-080 C-CAP,S 0.01-25 KB
C159 87-010-178-080 C-CAP,S 1000P-50 KB
C160 87-010-197-080 C-CAP,S 0.01-25 KB
C161 87-010-197-080 C-CAP,S 0.01-25 KB
C162 87-010-178-080 C-CAP,S 1000P-50 KB
C163 87-010-175-080 C-CAP,S 560P-50
C164 87-010-263-080 CAP,ELECT 100-10V
C165 87-010-196-080 C-CAP,S 0.1-25
C166 87-010-198-080 C-CAP,S 0.022-25
C167 87-010-322-080 C-CAP,S 100P-50 CH
C168 87-010-260-080 CAP,ELECT 47-25V
C169 87-015-684-080 CAP,E 47-16 7L
C170 87-010-197-080 C-CAP,S 0.01-25 KB
C171 87-010-197-080 C-CAP,S 0.01-25 KB
C172 87-010-197-080 C-CAP,S 0.01-25 KB
C173 87-010-078-080 CAP,E 47-6.3 5L
C174 87-010-281-080 CAP,ELECT 22-35 SRE
C175 87-012-368-080 C-CAP,S 0.1-50 F
C176 87-010-197-080 C-CAP,S 0.01-25 KB
C177 87-010-553-040 CAP,E 47-16 M 5L
C182 87-010-263-080 CAP,ELECT 100-10V
C183 87-010-197-080 C-CAP,S 0.01-25 KB
All manuals and user guides at all-guides.com

 6 
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C184 87-010-322-080 C-CAP,S 100P-50 CH
C185 87-010-322-080 C-CAP,S 100P-50 CH
C186 87-010-322-080 C-CAP,S 100P-50 CH
C187 87-010-322-080 C-CAP,S 100P-50 CH
C188 87-010-197-080 C-CAP,S 0.01-25 KB
C190 87-010-197-080 C-CAP,S 0.01-25 KB
C191 87-010-178-080 C-CAP,S 1000P-50
C192 87-010-197-080 C-CAP,S 0.01-25 KB
C193 87-018-134-080 CAPACITOR,TC-U 0.01-16
C301 87-010-403-080 CAP,ELECT 3.3-50V
C303 87-010-181-080 C-CAP,S 1800P-50 KB
C304 87-010-400-080 CAP,ELECT 0.47-50V
C305 87-010-196-080 C-CAPACITOR,S 0.1-25
C306 87-010-263-080 CAP,ELECT 100-10V
C308 87-010-213-080 C-CAP,S 0.015-25 KB
C309 87-010-400-080 CAP,ELECT 0.47-50V
C310 87-010-316-080 C-CAP,S 33P-50 CH
C311 87-010-197-080 C-CAP,S 0.01-25 KB
C312 87-010-196-080 C-CAPACITOR,S 0.1-25
C313 87-010-993-080 C-CAP,S 0.056-25 KB
C314 87-010-197-080 C-CAP,S 0.01-25 KB
C315 87-010-197-080 C-CAP,S 0.01-25 KB
C316 87-015-695-080 CAP,E 1-50 7L
C317 87-010-197-080 C-CAP,S 0.01-25 KB
C318 87-010-196-080 C-CAPACITOR,S 0.1-25
C319 87-015-677-080 CAP,E 100-6.3 7L
C320 87-010-196-080 C-CAPACITOR,S 0.1-25
C321 87-015-677-080 CAP,E 100-6.3 7L
C322 87-010-197-080 C-CAP,S 0.01-25 KB
C323 87-010-186-080 C-CAP,S 4700P-50 KB
C324 87-010-197-080 C-CAP,S 0.01-25 KB
C325 87-010-196-080 C-CAP,S 0.1-25
C326 87-010-405-080 CAP,ELECT 10-50V
C327 87-010-197-080 C-CAP,S 0.01-25
C328 87-010-400-080 CAP,ELECT 0.47-50V
C329 87-010-312-080 C-CAP,S 15P-50 CH
C331 87-010-196-080 C-CAPACITOR,S 0.1-25
C332 87-010-370-080 CAP,E 330-6.3 SME
C333 87-015-785-080 C-CAPACITOR,S 0.1-25
C334 87-010-402-080 CAP,ELECT 2.2-50V
C335 87-010-196-080 C-CAPACITOR,S 0.1-25
C336 87-018-209-080 CAP, TC U 0.1-50V
C337 87-010-196-080 C-CAPACITOR,S 0.1-25
C338 87-018-209-080 CAP,TC U 0.1-50V
C339 87-010-196-080 C-CAPACITOR,S 0.022-25
C340 87-010-178-080 C-CAP,S 1000P-50
C342 87-012-154-080 C-CAP,S 150P-50 CH
C343 87-010-196-080 C-CAPACITOR,S 0.1-25
C344 87-010-405-080 CAP,ELECT 10-50V
C345 87-010-320-080 C-CAP,S 68P-50
C346 87-012-154-080 C-CAP,S 150P-50 CH
C347 87-012-140-080 C-CAP,S 470P-50
C348 87-012-155-080 C-CAP,S 180P-50CH
C349 87-010-153-080 C-CAP,S 9P-50 CH
C350 87-018-134-080 CAPACITOR,TC-U 0.01-16
C351 87-018-123-080 CAP,TC U 220P-50V
C352 87-018-134-080 CAPACITOR,TC-U 0.01-16
C353 87-010-196-080 C-CAPACITOR,S 0.1-25
C356 87-010-196-080 C-CAPACITOR,S 0.1-25
C358 87-010-196-080 C-CAPACITOR,S 0.1-25
C360 87-010-196-080 C-CAPACITOR,S 0.1-25
C361 87-010-374-080 CAP,ELECT 47-10V
C362 87-010-263-080 CAP,ELECT 100-10V
C363 87-010-197-080 C-CAP,S 0.01-25 KB
C365 87-010-178-080 C-CAP,S 1000P-50
C366 87-012-157-080 C-CAP,S 330P-50 CH
C367 87-010-313-080 C-CAP,S 18P-50
C368 87-010-313-080 C-CAP,S 18P-50
C369 87-010-196-080 C-CAPACITOR,S 0.1-25
C371 87-012-156-080 C-CAP,S 220P-50 CH
C374 87-010-196-080 C-CAPACITOR,S 0.1-25
C375 87-010-196-080 C-CAPACITOR,S 0.1-25
C376 87-010-263-080 CAP,ELECT 100-10V
C377 87-010-322-080 C-CAP,S 100P-50 CH
C378 87-010-197-080 C-CAP,S 0.01-25 KB
C379 87-010-178-080 C-CAP,S 1000P-50
C381 87-010-178-080 C-CAP,S 1000P-50
C392 87-010-321-080 C-CAPACITOR,S 82P-50
C402 87-010-197-080 C-CAP,S 0.01-25 KB
C403 87-010-186-080 C-CAP,S 4700P-50
C404 87-010-196-080 C-CAPACITOR,S 0.1-25
C405 87-015-677-080 CAP,E 100-6.3 7L
C408 87-010-197-080 C-CAP,S 0.01-25 KB
C409 87-012-155-080 C-CAP,S 180P-50CH
C410 87-010-197-080 C-CAP,S 0.01-25 KB
C411 87-010-178-080 C-CAP,S 1000P-50
C413 87-015-677-080 CAP,E 100-6.3 7L
C414 87-010-196-080 C-CAPACITOR,S 0.1-25
C415 87-010-186-080 C-CAP,S 4700P-50
C450 87-010-401-080 CAP,ELECT 1-50V
C451 87-010-382-080 CAP,ELECT 22-25V
C452 87-010-197-080 C-CAP,S 0.01-25 KB
C453 87-010-197-080 C-CAP,S 0.01-25 KB
C454 87-010-196-080 C-CAPACITOR,S 0.1-25
C455 87-010-263-080 CAP,ELECT 100-10V
C456 87-010-405-080 CAP,ELECT 10-50V
C457 87-010-184-080 C-CAPACITOR,S 3300P-50
C458 87-010-178-080 C-CAP,1000P-50
C459 87-010-406-080 CAP,ELECT 22-50
C460 87-010-197-080 C-CAP,S 0.01-25 KB
C461 87-010-193-080 C-CAPACITOR,S 0.033-25
C462 87-010-196-080 C-CAPACITOR,S 0.1-25
C463 87-010-405-080 CAP,ELECT 10-50V
C464 87-010-197-080 C-CAP,S 0.01-25 KB
C465 87-010-182-080 C-CAP,S 2200P-50 KB
C466 87-010-176-080 C-CAP,S 680P-50 SL
C467 87-010-382-080 CAP,ELECT 22-25V
C468 87-010-196-080 C-CAP,S CAPACITOR,0.1-25
C469 87-010-382-080 CAP,ELECT 22-25V
C470 87-010-382-080 CAP,ELECT 22-25V
C471 87-010-196-080 C-CAP,S CAPACITOR,0.1-25
C472 87-010-183-080 C-CAP,S 2700P-50 KB
C473 87-012-365-080 C-CAP,S 0.027-25KB
C474 87-010-260-080 CAP,ELECT 47-25V
C476 87-012-156-080 C-CAP,S 220P-50 CH
C478 87-010-196-080 CAPACITOR,0.1-25
C479 87-010-382-080 CAP,ELECT 22-25V
C480 87-010-197-080 C-CAP,S 0.01-25 KB
C481 87-010-184-080 C-CAP,S CAPACITOR 3300P-50
C482 87-010-260-080 CAP,ELECT 47-25V
C553 87-010-370-080 CAP,E 330-6.3 SME
C555 87-010-405-080 CAP,ELECT 10-50V
C556 87-010-401-080 CAP,ELECT 1-50V
C558 87-010-405-080 CAP,ELECT 10-50V
C560 87-010-405-080 CAP,ELECT 10-50V
C563 87-010-382-080 CAP,ELECT 22-25V
C565 87-010-382-080 CAP,ELECT 22-25
C572 87-010-382-080 CAP,ELECT 22-25V
C573 87-010-263-080 CAP,ELECT 100-10V
C574 87-010-196-080 C-CAP,S CAPACITOR,0.1-25
C575 87-010-196-080 C-CAP,S CAPACITOR,0.1-25
C576 87-010-176-080 C-CAP,S 680P-50 SL
C577 87-010-196-080 C-CAP,S CAPACITOR,0.1-25
C578 87-010-805-080 CAP,S 1-16
C580 87-015-681-080 CAP,E 10-16 7L
C582 87-015-681-080 CAP,E 10-16 7L
C583 87-015-695-080 CAP,E 1-50 7L
C585 87-015-681-080 CAP,E 10-16 7L
C586 87-010-263-080 CAP,ELECT 100-10V
C587 87-010-196-080 C-CAP,S CAPACITOR,0.1-25
All manuals and user guides at all-guides.com
all-guides.com

 7 
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C588 87-015-695-080 CAP,E 1-50 7L
C590 87-015-695-080 CAP,E 1-50 7L
C594 87-010-382-080 CAP,ELECT 22-25V
C595 87-010-401-080 CAP,ELECT 1-50V
C597 87-010-071-080 CAP,ELECT 1-50 M 5L SRE
C599 87-010-244-080 CAP,ELECT 22-16
C683 87-010-263-080 CAP,ELECT 100-10V
C684 87-010-196-080 C-CAP,S CAPACITOR,0.1-25
CN508 87-A60-830-010 CONN,15P 15PV-FJ
CN101 87-A60-386-010 CONN,18P V BLK 5085 PLUG
CN102 87-099-843-010 CONN,15P V BLK 5085 PLUG
CN103 87-A60-583-010 CONN,10P V TKC-G10P
CN104 8Z-JU1-615-010 CONN,ASSY,2P LM
CN105 87-A60-635-010 CONN,19P 19P-250K-1.25FJNA
CN301 87-A60-582-010 CONN,5P V BGE TKX-P05P-X1
CN302 87-A60-842-010 CONN,18P V BLK FMN-BTRK
CN303 87-099-668-010 CONN,9P TUC-P 9P-B1
CN450 87-A60-132-010 CONN,7P V FE
CN451 8Z-JU1-608-010 CONN,2P V TMC-A02X
CN551 87-099-573-010 CONN,18P TUC-P18P-B1
CN552 87-A60-832-010 CONN,11P 11P-250K-1.25FJNA
FL101 8Z-JU1-602-010 FL,10-MT-113 G
H101 8Z-JU1-604-010 SNSR,HW-300B-15 -H2
HL101 8Z-JU1-203-010 HLDR,FL
HL102 8Z-JU1-205-010 HLDR,LED
HL103 8Z-JU1-206-010 HLDR,SENSOR
HL104 8Z-JU1-206-010 HLDR,SENSOR
HL105 8Z-JU1-207-010 HLDR,HALL SNSR
ICF50 87-001-196-080 PROTECTOR,ICP-N10
ICF51 87-002-330-080 PROTECTOR,ICP-N5
ICF101 87-001-132-080 PROTECTOR ICP-N38
ICF102 87-001-132-080 PROTECTOR ICP-N38
L101 87-005-432-080 COIL,10UH K FLR50
L102 87-005-684-080 COIL,10UH J LF5.0S
L103 87-005-440-080 COIL,47UH K FLR50
L104 87-005-684-080 COIL,10UH J LF5.0S
L105 87-005-684-080 COIL,0UH J LF5.0S
L106 87-005-684-080 COIL,10UH J LF5.0S
L107 87-005-684-080 COIL,10UH J LF5.0S
L108 87-005-684-080 COIL,10UH J LF5.0S
L109 87-005-432-080 COIL,10UH K FLR50
L110 87-005-432-080 COIL,10UH K FLR50
L111 87-005-432-080 COIL,10UH K FLR50
L112 87-005-684-080 COIL,10UH J FL5.0S
L113 87-005-684-080 COIL,10UH J LF5.0S
L114 87-005-684-080 COIL,10UH J LF5.0S
L301 87-005-432-080 COIL,10UH K FLR50
L302 87-005-440-080 COIL,47UH K FLR50
L303 87-005-440-080 COIL,47UH K FLR50
L304 87-005-432-080 COIL,10UH FLR50
L305 87-005-693-080 COIL,56UH J LF5.0S
L306 87-005-697-080 COIL,120UH J LFS5.0S
L310 87-005-440-080 COIL,47UH K FLR50
L311 87-005-432-080 COIL,10UH K FLR50
L313 87-005-488-080 COIL,180UH J FLR50
L314 87-005-688-080 COIL,22UH J LF5.0S
L315 87-005-684-080 COIL,10UH J LF5.0S
L401 87-005-440-080 COIL,47UH K FLR50
L402 87-005-440-080 COIL,47UH K FLR50
L450 87-005-432-080 COIL,10UH K FLR50
L451 87-005-440-080 COIL,47UH K FLR50
L452 8Z-JU1-644-010 COIL,OSC AE ZJU1
L453 87-005-440-080 COIL,47UH K FLR50
L454 8Z-JU1-643-010 COIL,OSC FE ZJU11
L551 87-005-432-080 COIL,10UH K FLR50
L552 87-005-432-080 COIL,10UH K FLR50
L553 87-005-432-080 COIL,10UH K FLR50
M101 8Z-JU1-609-010 STATOR,DMNVS
PS101 8Z-JU1-603-010 SNSR,GP15566
PS102 8Z-JU1-603-010 SNSR,GP15566
R90 87-029-115-010 FUSE RESISTER 10-1/4W
S101 8Z-JU1-605-010 SW,RTRY MODE SWITCH
S102 8Z-JU1-606-010 SW,LEAF REC SWITCH
X101 87-A70-090-080 VIB,XTAL 16MHZ AT-49
X102 87-030-364-010 VIB,XTAL 32 768KHZ CF5-308CT
X301 87-A70-188-080 VIB,XTAL 4.43MHZ TA1278
FR1C.B
C701 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C702 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C703 87-010-550-040 CAP,E 100-63 M 5L SRE
C704 87-015-677-080 CAP,E 100-6.3 M 7L SRA
C706 87-010-263-080 CAP,E 100-10 M 11L SME
C707 87-010-322-080 C-CAP,S 100P-50 J CH GRM
CN701 87-099-841-010 CONN,15P H BLK 5085 RECE
HL701 86-JU1-201-210 HLDR,SENSOR A
HL702 8Z-JU1-202-010 HLDR,JOG
L701 87-005-690-080 COIL,33UH J LF5.0S
L703 87-005-684-080 COIL,10UH J LF5.0S
S701 87-A90-164-080 SW,TACT SKQAB(N)
S702 87-A90-164-080 SW,TACT SKQAB(N)
S703 87-A90-164-080 SW,TACT SKQAB(N)
S704 87-A90-164-080 SW,TACT SKQA(N)
S705 87-A91-307-010 SW,JOG RJS-Y0003-02
FR2 C.B
C751 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C752 87-010-176-080 C-CAP,S 680P-50 J SL
C753 87-010-176-080 C-CAP,S 680P-50 J SL
C754 87-010-176-080 C-CAP,S 680P-50 J SL
C755 87-010-079-080 CAP,E 100 6.3 M 5L SRE
C756 87-010-079-080 CAP,E 100-6.3 M 5L SRE
C757 87-010-197-080 C-CAP,S 0.01-25 K B C2012
CN751 87-A60-388-010 CONN,18P H BLK 5085 RECE
HL751 8Z-JU1-204-010 HLDR,LEDF
J751 87-A60-069-010 JACK,PIN 3P 15 VT B
L751 87-005-690-080 COIL,33UH J LF5.0S
S751 87-A90-164-080 SW,TACT SKQNAB(N)
S752 87-A90-164-080 SW,TACT SKQNAB(N)
S754 87-A90-164-080 SW,TACT SKQAB(N)
S755 87-A90-164-080 SW,TACT SKQAB(N)
S756 87-A90-164-080 SW,TACT SKQNAB(N)
S758 87-A90-164-080 SW,TACT SKQNAB(N)
S759 87-A90-164-080 SW,TACT SKQNAB(N)
REAR C.B
C520 87-015-688-080 CAP,E 4.7-35 M 7L SRA
C521 87-015-688-080 CAP,E 4.7-35 M 7L SRA
C525 87-015-688-080 CAP,E 4.7-35 M 7L SRA
C528 87-015-684-080 CAP,E 47-16 M 7L SRA
C531 87-015-688-080 CAP,E 4.7-35 M 7L SRA
C534 87-010-196-080 CHIP CAPACITOR,S 0.1-25 ZFC2012
C535 87-010-060-080 CAP,E 100-16 M 7L SRA
C536 87-015-688-080 CAP,E 4.7-35 M 7L SRA
C537 87-015-688-080 CAP,E 4.7-35 M 7L SRA
C600 87-018-134-080 CAPACITOR,TC-U 0.01-16 N Y UP050
C601 87-018-134-080 CAPACITOR,TC-U 0.01-16 N Y UP050
C603 87-018-134-080 CAPACITOR,TC-U 0.01-16 N Y UP050
C604 87-018-134-080 CAPACITOR,TC-U 0.01-16 N Y UP050
C605 87-015-696-080 CAP,E 2.2-50 M 7L SRA
C606 87-015-696-080 CAP,E 2.2-50 M 7L SRA
C607 87-015-684-080 CAP,E 47-16 M 7L SRA
C608 87-015-696-080 CAP,E 2.2-50 M 7L SRA
C609 87-015-696-080 CAP,E 2.2-50 M 7L SRA
C610 87-015-696-080 CAP,E 2.2-50 M 7L SRA
C611 87-015-696-080 CAP,E 2.2-50 M 7L SRA
C612 87-A10-205-080 CAP,E 470-6.3 M SRG
!
!
!
!
All manuals and user guides at all-guides.com

 8 
C613 87-A10-205-080 CAP,E 470-6.3 M SRG
C614 87-010-805-080 CAP,S 1-16 Z F
C616 87-015-696-080 CAP,E 2.2-50 M 7L SRA
C617 87-015-696-080 CAP,E 2.2-50 M 7L SRA
C618 87-015-696-080 CAP,E 2.2-50 M 7L SRA
C619 87-015-696-080 CAP,E 2.2-50 M 7L SRA
C620 87-015-682-080 CAP,E 22-16 M 7L SRA
C621 87-010-196-080 CHIP CAPACITOR,S SRA 0.1-25 Z
C622 87-010-060-080 CAP,E 100-16 M 7L SRA
C623 87-010-196-080 CHIP CAPACITOR,S 0.1-25 Z F C2012
C624 87-015-682-080 CAP,E 22-16 M 7L SRA
C625 87-010-529-080 CAP,E 1-50 M BP
C626 87-010-197-080 CAP,CHIP S 0.01-25 K B C2012
C627 87-015-682-080 CAP,E 22-16 M 7L SRA
C628 87-010-197-080 CAP,CHIP 0.01-25 K B C2012
C629 87-015-677-080 CAP,E 100-6.3 M 7L SRA
C630 87-015-695-080 CAP,E 1-50 M 7L SRA
C631 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C632 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C633 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C634 87-010-322-080 C-CAP,S 100P-50 J CH GRM
C635 87-012-154-080 C-CAP,S 150P-50 CH GRM
C636 87-012-154-080 C-CAP,S 150P-50 CH GRM
C637 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C638 87-010-322-080 C-CAP,S 100P-50 CH GRM
C639 87-010-318-080 C-CAP,S 47P-50 CHGRM
C640 87-012-154-080 C-CAP,S 150P-50 CH GRM
C641 87-012-154-080 C-CAP,S 150P-50 CHGRM
C642 87-010-322-080 C-CAP,S 100P-50 CHGRM
C643 87-010-322-080 C-CAP,S 100P-50 CHGRM
C644 87-012-154-080 C-CAP,S 150P-50J CHGRM
C645 87-012-154-080 C-CAP,S 150P-50 CHGRM
C647 87-010-178-080 CHIP CAPS 1000P50 K B C2012
C648 87-010-322-080 C-CAP,S 100P-50J CHGRM
C649 87-010-322-080 C-CAP,S 100P-50 CHGRM
C650 87-010-322-080 C-CAP,S 100P-50 CHGRM
C651 87-010-322-080 C-CAP,S 100P-50 CHGRM
C653 87-010-318-080 C-CAP,S 47P-50 CHGRM
C654 87-012-154-080 C-CAP,S 150P-50 CHRM
C655 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C656 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C657 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C662 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C664 87-015-696-080 CAP,E 2.2-50 M 7L SRA
C665 87-015-696-080 CAP,E 2.2-50 M 7L SRA
CN501 87-099-562-010 CONN,18P TUC-P18X-B1
CN600 87-099-670-010 CONN,9P TUC-P9X-B1
CN601 87-A60-417-010 CONN,21P V BLK 0350535000
CN602 87-A60-417-010 CONN,21P V BLK 0350535000
FB600 87-003-223-080 FERRITE BEAD BL02RN2
J600 87-A60-368-010 JACK,PIN 2P JK020123
L501 87-005-432-080 COIL,10UH K FLR50
L600 87-005-440-080 COIL,47UH K FLR50
L601 87-005-440-080 COIL,47UH K FLR50
MPX C.B
C912 87-012-156-080 C-CAP,S 220P-50 J Cg GRM
C913 87-012-140-080 C-CAP,S 470o-50 J CH
C914 87-010-180-080 C-CAP,S 1500o-50 K B C2012
C915 87-010-405-080 CAP,E 10-50 M ML SME
C916 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C920 87-010-805-080 C-CAP,S 1-16 Z F
C923 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C924 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C926 87-010-316-080 C-CAP,S 33P-50 J Cg GRM
C927 87-010-145-080 C-CAP,S 1P-50 C Cg GRM
C928 87-010-145-080 C-CAP,S 1P-50 C Cg GRM
C929 87-010-315-080 C-CAP,S 27P-50 J CH<K
C929 87-010-317-080 C-CAP,S 39P-50 J CH<EH
C930 87-010-319-080 C-CAP,S 56P-50 J CH
C931 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C933 87-010-405-080 CAP,E 10-50 M ML SME
C934 87-010-180-080 C-CAP,S 1500P-50 K B C2012
C935 87-012-140-080 C-CAP,S 470P- 50 J CH
C937 87-010-405-080 CAP,E 10-50 M ML SME
C938 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C939 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C940 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C945 87-010-403-080 CAP,E 3.3-50 M 11L SME
C946 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C947 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C948 87-010-405-080 CAP,E 10-50 M ML SME
C949 87-010-405-080 CAP,E 10-50 M ML SME
C950 87-010-180-080 C-CAP,S 1500P-50 K B C2012
C951 87-012-140-080 C-CAP,S 470P-50 J CH
C953 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C951 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C955 87-010-406-080 CAP,E 22-50 M 11L SME
C956 87-010-406-080 CAP,E 22-50 M 11L SME
C959 87-010-805-080 C-CAP,S 1-16 Z F
C962 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C963 87-010-318-080 C-CAP,S 47P-50 J CH GRM
C964 87-010-196-080 CAP,S 0.1-25 Z F C2022
CN901 87-999-670-010 CONN,9P TUC-P9X-B1
L901 87-005-425-080 COIL,2.7UH K FLR50
L902 87-005-425-080 COIL,2.7UH K FLR50
L903 87-005-432-080 COIL,10UH K FLR50
L904 87-005-688-080 COIL,22UH J LF5.0S
X901 87-A70-199-080 VIB,XTAL 18.432MHZ
TUNER C.B
C801 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C803 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C804 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C805 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C806 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C807 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C809 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C810 87-010-185-080 C-CAP,S 3900P-50 K B
C811 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C812 87-010-382-080 CAP,E 22-25 M 11L SME
C813 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C814 87-010-405-080 CAP,E 10-50 M 11L SME
C815 87-010-194-080 C-CAP,S 0.047-25 Z F<EH
C816 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C817 87-010-374-080 CAP,E 47-10 M 11L SME
C818 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C819 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C820 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C821 87-010-374-080 CAP,E 47-10 M 11L SME
C822 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C823 87-012-368-080 C-CAP,S 0.1-50 Z F
C824 87-010-408-080 CAP,E 47-50 M 11L SME
C825 87-010-196-080 C-CAP,S 0.1-25 Z F C2012
C826 87-010-374-080 CAP,E 47-10 M 11L SME
C827 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C828 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C829 87-010-374-080 CAP,E 47-10 M 11L SME
C830 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C851 87-010-263-080 CAP,E 100-10 M 11L SME
C852 87-010-180-080 C-CAP,S 1500P-50 K B C2012
C853 87-A10-468-080 CAP,E 10-10 M 7L BP SRA
C854 87-010-805-080 C-CAP,S 1-16 Z F
C855 87-012-154-080 C-CAP,S 150P-50 J CH GRM
C856 87-010-182-080 C-CAP,S 2200P-50 K B C2012
C857 87-010-193-080 C-CAP,S 0.033-25 Z F C2012
C860 87-010-197-080 C-CAP,S 0.01-25 K B C2012
CN801 87-A60-636-010 CONN,19P 19RK-1.25FJN
CN802 87-A60-834-010 CONN,11P 11RK-1.25FJN
CN803 87-099-668-010 CONN,9P TUC-P 9P-B1
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
All manuals and user guides at all-guides.com

FB803 87-008-372-080 FILTER, EMI BLO1#RNN
FB851 87-008-372-080 FILTER, EMI BLO1#RNN
L801 87-005-430-080 COIL,6.8UH K FLR50
L802 87-005-432-080 COIL,10UH K FLR50
L803 87-005-440-080 COIL,47UH K FLR50
L804 87-005-440-080 COIL,47UH K FLR50
L851 87-005-432-080 COIL,10UH K FLR50
TU801 8Z-JU1-640-010 TU UNIT,I PAL SIF<K
TU801 8Z-JU1-641-010 TU UNIT,BG PAL SIF<EH
PS C.B
C001 87-A10-374-010 CAP,M/P 0.1-275 M MKT 1.40 6-2
C007 87-A10-480-090 CAP,CER 4700P-250 M E KH
C008 87-A10-480-090 CAP,CER 4700P-250 M E KH
C9 87-A10-898-090 CAP,E 56-400 SMG 0.43A(RMS)
C10 87-A11-196-080 CAP,M/P 0.022-400 K MMC
C13 87-A11-194-080 CAP,CER 47P-2K K SL
C14 87-016-501-080 CAP,E 47-35 M 105 SXE
C15 87-010-190-080 C-CAP,S 0.01-50 Z F C2012
C20 87-010-866-080 CAP,E 10-63 M VX
C21 87-A11-195-080 CAP,E 330-50 KMF
C22 87-010-409-080 CAP,E 220-50 M SME
C23 87-A10-493-080 CAP,E 1000-25 KMF
C24 87-010-387-080 CAP,E 470-25-M SME
C25 87-010-101-080 CAP,E 220-16M SME
C26 87-010-401-080 CAP,E 1-50 M 11L SME
C27 87-A10-491-080 CAP,E 2200-10 KMF
C28 87-010-377-090 CAP,E 3300-10 M SME
C29 87-010-247-080 CAP,E 100-50 M SME
C30 87-010-221-080 CAP,E 470-10 M SME
CN1 87-A60-831-010 CONN,15P 15R-FJ
F1 87-035-454-010 FUSE,1.6A 250V T 218
FB1 87-003-223-080 FERRITE BEAD BL02RN2
FC1 87-033-213-080 CLAMP,FUSE PFC500
FC2 87-033-213-080 CLAMP,FUSE PFC500
ICF2 87-A91-337-080 PROTECTOR,IC ICP-N75
ICF3 87-001-211-080 PROTECTOR,IC ICP-N50
ICF4 87-001-132-080 PROTECTOR,IC ICP-N38
ICF5 87-001-132-080 PROTECTOR,IC ICP-N38
ICF6 87-A91-337-080 PROTECTOR,IC ICP-N75
J001 87-A60-021-010 JACK,AC E BLK W/O SW HJC-028
L1 87-A50-193-080 COIL,10UH K LHL10
L2 87-A50-180-080 COIL,22UH K LHL10
L3 87-A50-444-080 COIL,22UH K LHL08
LF001 87-A90-491-010 FLTR,20UH SU9VD-07020A
LF002 87-A90-470-010 FLTR,33MH SS10V-03330
LF003 87-A90-470-010 FLTR,33MH SS10V-03330
PS001 87-A90-717-010 P-COUPLER,PC123FY2
PT001 8Z-JU1-630-010 PT,E ZJU-1 SWT
R1 87-022-565-090 RES,M/F 47K-1W J
R2 87-A00-410-090 RES,M/F 100K-1W J
R3 87-A00-558-090 RES,M/F 56K-2W J
R14 87-A00-254-090 RES,M/F 0.68-2W J
R24 87-A00-279-080 RES,M/F 75-1/6W F
R25 87-025-365-080 RES,M/F 680-1/6W F
R26 87-025-365-080 RES,M/F 680-1/6W F
R41 87-029-374-010 RES,FUSE 47-1/4W J
R42 87-029-132-090 RESTOR FUSE 4.7-1/4W J
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
 9 
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
All manuals and user guides at all-guides.com

– 10 –
TRANSISTOR ILLUSTRATION
E C B
2SA933AS
2SC1741AS
2SA1037
2SC2412K
DTA114EK
DTC114EK
DTC143TK
2SB1436
B C E
2SB1237
2SB1443
2SD1858TV2
E C B
2SC3708ST
DTC144EK
KRA104S
KRC102S
E C B E C B
PT493F
B
C
E
C E
All manuals and user guides at all-guides.com

– 11 –
FL (10-MT-113G) GRID ASSIGNMENT & ANODE CONNECTION
GRID ASSIGNMENT
ANODE CONNECTION
All manuals and user guides at all-guides.com
all-guides.com

– 12 –
C
WIREHARNESSDIAGRAM
All manuals and user guides at all-guides.com

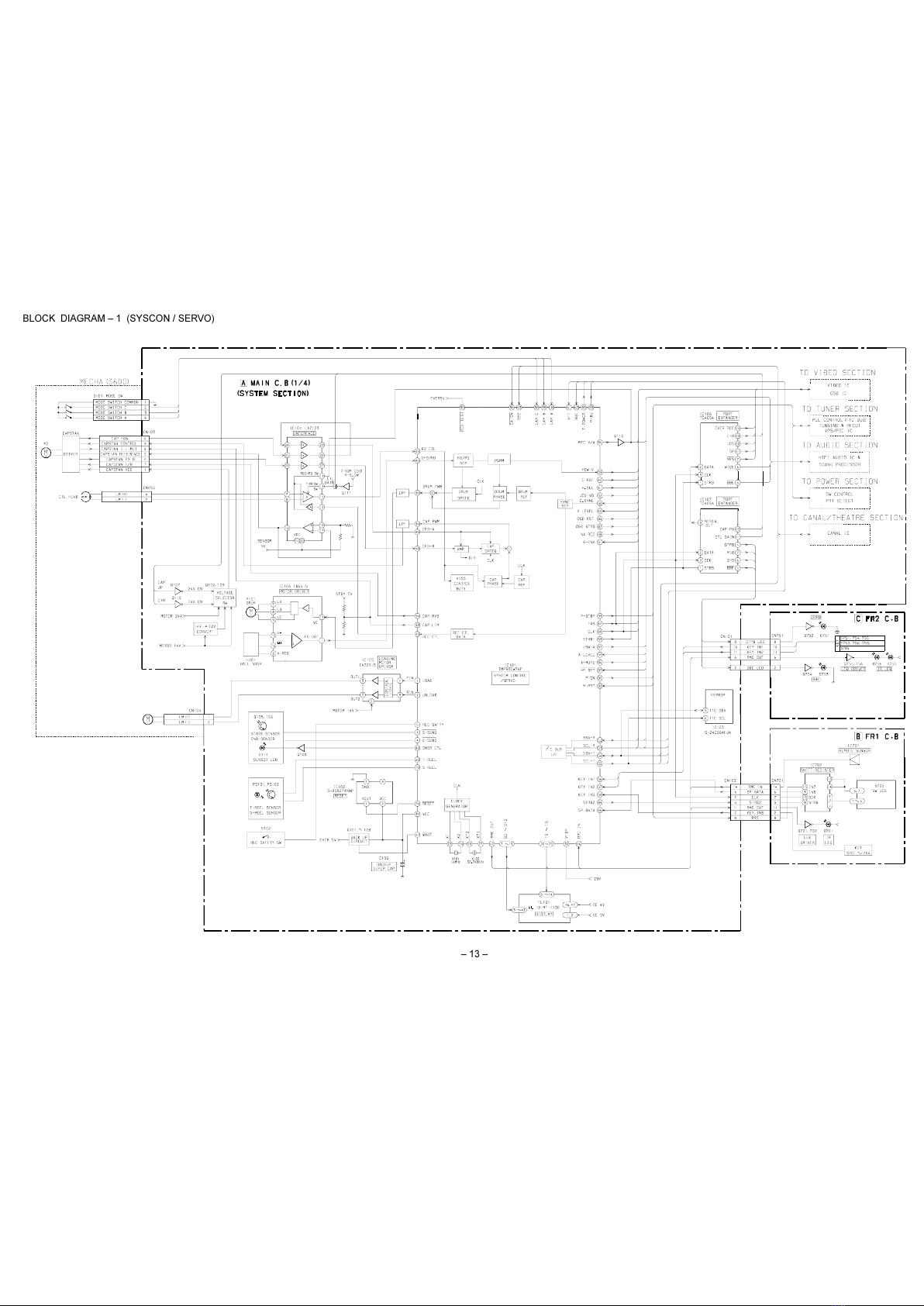

BLOCK DIAGRAM  1 (SYSCON / SERVO)
 13 
All manuals and user guides at all-guides.com

BLOCK DIAGRAM  2 (VIDEO)
 14 
All manuals and user guides at all-guides.com

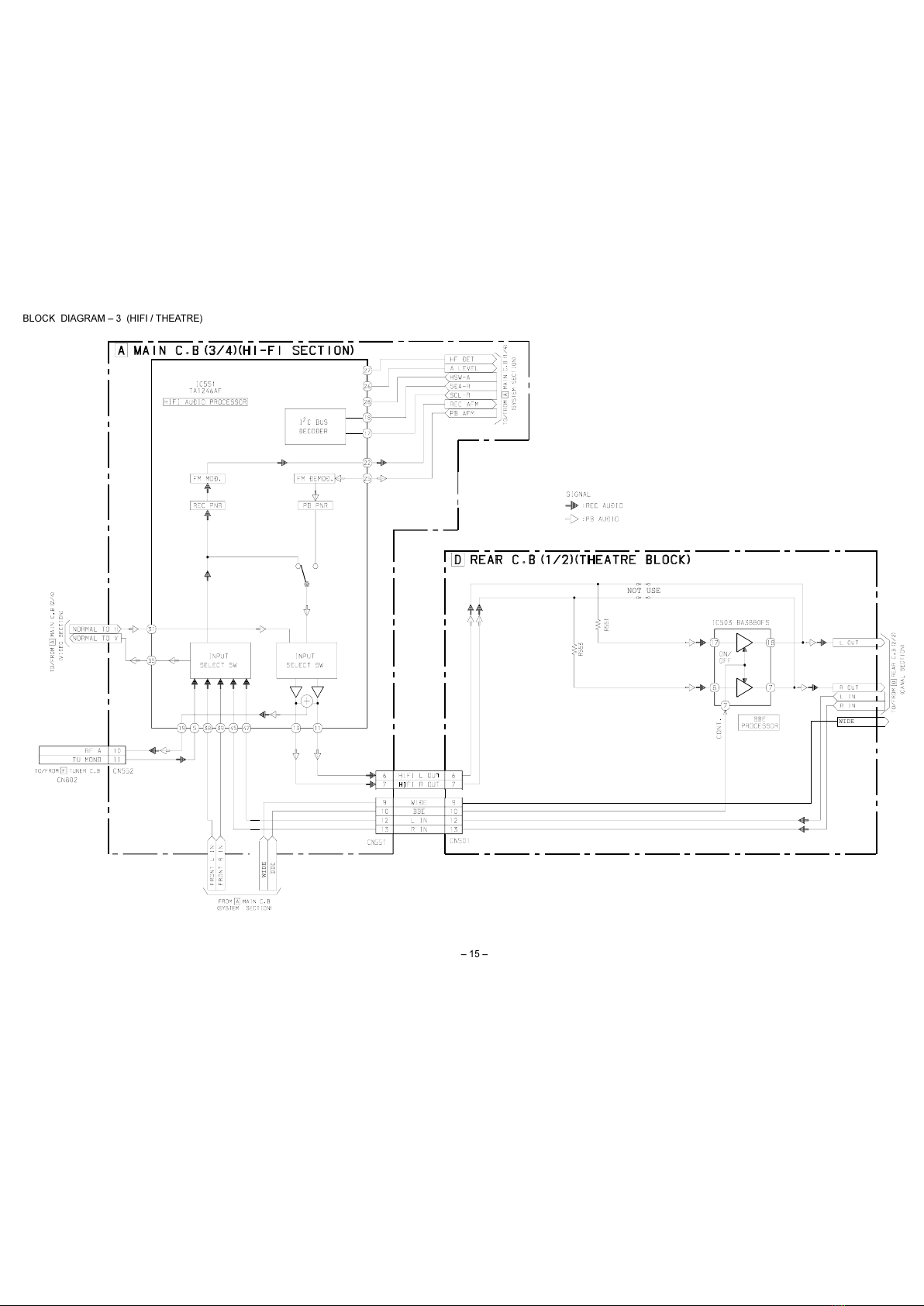

BLOCK DIAGRAM  3 (HIFI / THEATRE)
 15 
NOT USE
WIDE
WIDE
All manuals and user guides at all-guides.com

– 16 –
BLOCKDIAGRAM-4 (TUNER)
All manuals and user guides at all-guides.com
all-guides.com

– 17 –
BLOCK DIAGRAM - 5 (MPX)
All manuals and user guides at all-guides.com

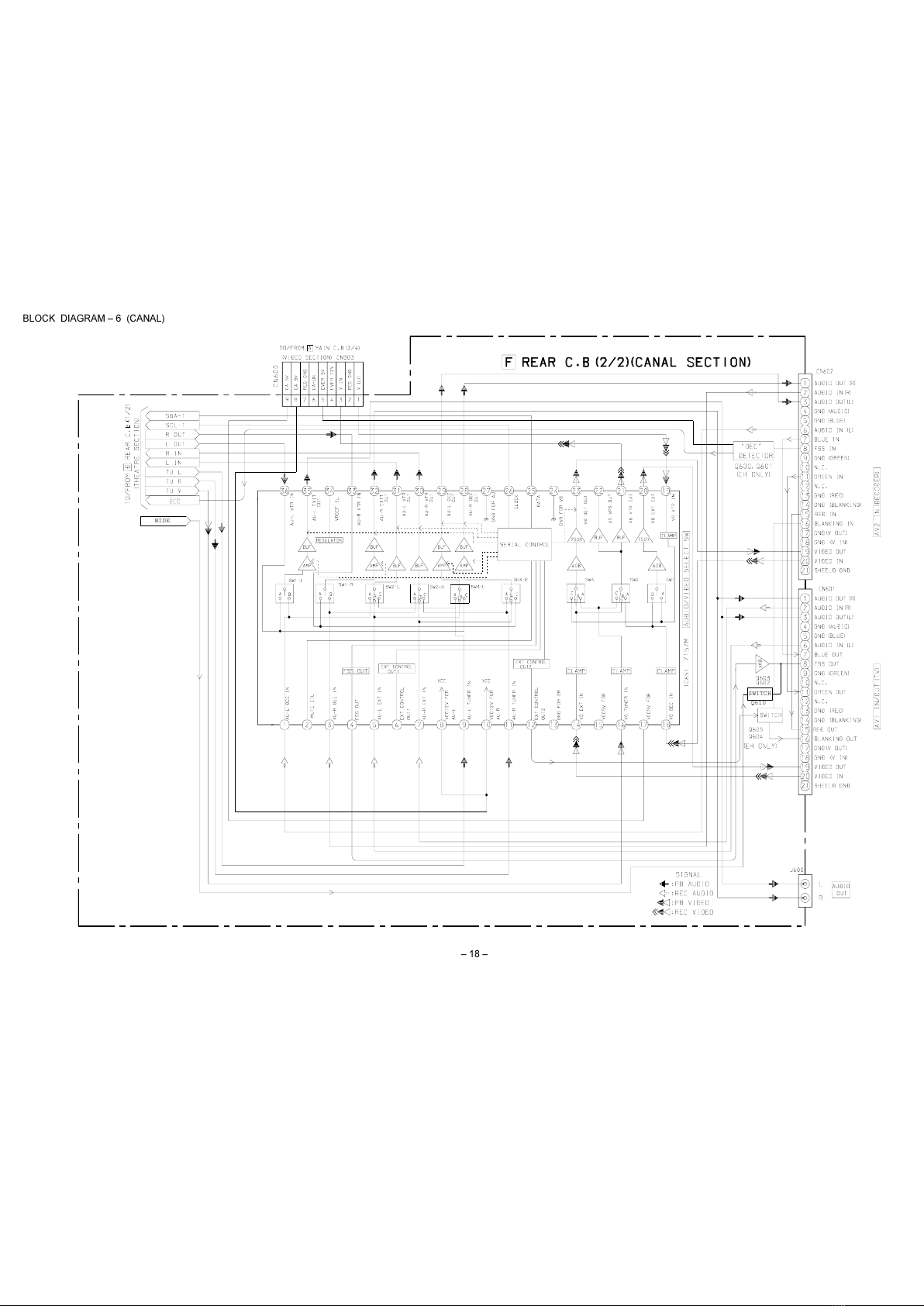

BLOCK DIAGRAM  6 (CANAL)
 18 
SWITCH
Q610
WIDE
All manuals and user guides at all-guides.com

– 19 –
BLOCK DIAGRAM - 7 (POWER/PS)
All manuals and user guides at all-guides.com

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

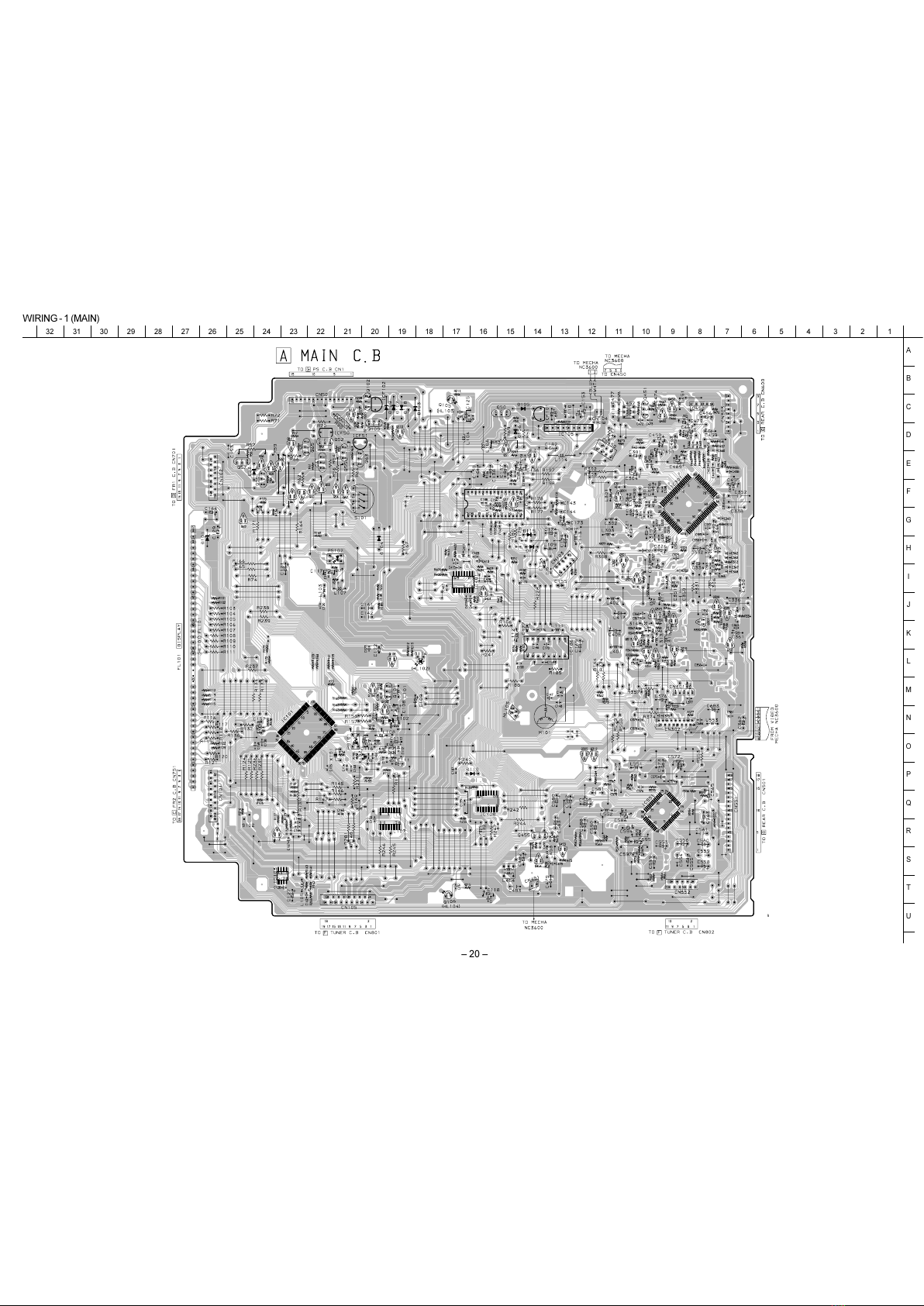

WIRING - 1 (MAIN)
 20 
All manuals and user guides at all-guides.com
