AJAX Systems Button User manual

Button User Manual
Updated December 8, 2020
Button is a wireless panic button with protection against accidental press and
additional mode to control .
Button is compatible with only. No support for and
integration modules!
Button is connected to the security system and configured via on iOS,
Android, macOS, and Windows. The users are alerted of all alarms and events
via push notifications, SMS, and phone calls (if enabled).
Functional elements
automation devices
Ajax hubs ocBridge Plus uartBridge
Ajax apps
Buy panic button Button

Operating principle
Button is a wireless panic button that, when pressed, transmits an alarm to
users, as well as to the security company’s CMS. In Control mode, Button allows
you to control Ajax automation devices with a short or long press of a button.
In panic mode, the Button can act as a panic button and signal about a threat, or
inform about an intrusion, as well as a fire, gas or medical alarm. You can
choose the type of alarm in the button settings. The text of alarm notifications
depends on the selected type, as well as the event codes transmitted to the
central monitoring station of the security company (CMS).
You can bind the action of an automation device ( , or ) to a
button press in the Button — Scenarios menu.
The Button is equipped with protection against accidental press and transmits
alarms at a distance of up to 1,300 m from the hub. Please be aware that the
presence of any obstructions that impede the signal (for example, walls or
floors) will reduce this distance.
1. Alarm button
2. Indicator lights
3. Button mounting hole
Relay WallSwitch Socket
settings

Button is easy to carry around. You can always keep it on a wrist or a neckless.
The device is resistant to dust and splashes.
When connecting Button via , note that Button does not automatically switch
between the radio networks of the radio signal extender and the hub. You can assign
Button to another hub or ReX manually in the app.
Connecting the button to the Ajax security system
Prior to initiating connection
Only users with administrative rights can add a device to the hub
In order to connect a Button
For detection and pairing, the Button must be located within the hub radio
communication zone (on the single protected object).
ReX
1. Follow the hub instructions to install the . Create an
account, add a hub to the app, and create at least one room.
Ajax application
2. Enter the Ajax app.
3. Activate the hub and check your internet connection.
4. Ensure that the hub is not in armed mode and is not being updated by
checking its status in the app.
1. Click on Add Device in the Ajax app.
2. Name the device, scan its QR code (located on the package) or enter it
manually, select a room and a group (if group mode is enabled).
3. Click Add and the countdown will begin.
4. Hold the button for 7 seconds. When the Button is added, the LEDs will flash
green once.

The connected button will appear in the list of hub devices in the application.
Updating the statuses of the device in the list does not depend on the polling
time value in the hub settings. Data is updated only by pressing the Button.
The Button only works with one hub. When connected to a new hub, the button
Button stops transmitting commands to the old hub. Note that after being
added to the new hub, the Button is not automatically removed from the device
list of the old hub. This must be done manually through the Ajax application.
States
Button statuses can be viewed in the device menu:
Parameter Value
Battery Charge
Battery level of the device. Two states available:
Operating mode
Displays the operating mode of the button.
Three modes are available:
Indicator light brightness
Displays current brightness level of indicator
light:
1. Ajax app Devices Button
ОК
Battery discharged
How battery charge is displayed in
Ajax apps
Panic
Control
Mute Fire Alarm
Disabled (no display)
Minimum
Maximum

Protection against accidental activation Displays the selected type of protection against
accidental activation:
Routed Through ReX Display the status of using the ReX range
extender
Temporary Deactivation Displays the status of the device: active or
completely disabled by the user
Firmware Button firmware version
ID Device ID
Configuration
You can adjust the device parameters in the settings section:
Parameter Value
First field Name of the device, can be changed
Room The choice of the virtual room that the device is
assigned to
Operating mode Displays the operating mode of the button.
Three modes are available:
Off — protection disabled.
Delay when pressing — in order to send
alarm you should hold the button down for
more than 1.5 seconds.
Double-pressing — in order to send alarm
you should double-press on the button with
a pause of no more than 0.5 seconds.
1. Ajax app Devices Button Settings
Panic — sends an alarm when pressed
Control — controls automation devices by
short or long (2 sec) pressing
Mute Fire Alarm — when pressed, mutes the
fire alarm of FireProtect/FireProtect Plus
detectors
Learn more

Alarm type
(available only in panic mode)
Selection of the Button alarm type:
The text of SMS and notifications in the
application depend on the selected type of
alarm
LED brightness
This displays the current brightness of the
indicator lights:
Accidental press protection
(available only in panic mode)
Displays the selected type of protection against
accidental activation:
Alert with a siren if panic button is pressed If active, added to the systemare
activated after panic button pressing
Scenarios Opens the menu for creating and configuring
scenarios
User Guide Opens the Button user guide
Temporary deactivation Allows a user to deactivate the device without
deleting it from the system.
The device will not execute system commands
and participate in automation scenarios. The
Intrusion
Fire
Medical
Panic button
Gas
Disabled (no display)
Minimum
Maximum
Off — protection disabled.
Delay when pressing — in order to send
alarm you should hold the button down for
more than 1.5 seconds.
Double-pressing — in order to send alarm
you should double-press on the button with
a pause of no more than 0.5 seconds.
sirens

panic button of a deactivated device is disabled
Unpair Device Disconnects Button from the hub and deletes
its settings
Operating indication
Button status is indicated with red or green LED indicators.
Category Indication Event
Linking to security system
Green LEDs flash 6 times The button is not registered in
any security system
Lights up green for a few
seconds
Adding a button to the security
system
Command delivery indication
Lights up green briefly Command is delivered to
security system
Lights up red briefly Command is not delivered to
security system
Long press indication in
Control mode Blinks green briefly
Button recognized the
pressing as a long press and
sent the corresponding
command to the hub
Feedback Indication
(follows the Command
Delivery Indication)

Lights up green for about half
a second after the command
delivery indication
The security system has
received and performed the
command
Briefly lights up red after the
command delivery indication
The security system did not
perform the command
Battery status
(follows Feedback Indication)
After the main indication it
lights up red and goes out
smoothly
Button battery needs to be
replaced. At the same time,
button commands are
delivered to the security
system.

Learn more about device temporary
deactivation

Use cases
Panic Mode
As a panic button, the Button is used to call for security company or help, as well
as for emergency notification through the app or sirens. Button support 5 types
of alarms: intrusion, fire, medical, gas leak, and panic button. You can choose
the type of alarm in the device settings. The text of alarm notifications depends
on the selected type, as well as the event codes transmitted to the central
monitoring station of the security company (CMS).
Consider, that in this mode, pressing the Button will raise an alarm regardless of
security mode of the system.
An alarm if Button is pressed can also in the Ajax security system.
Button can be installed on a flat surface or carried around. To install on a flat
surface (for example, under the table), secure the Button with double-sided
adhesive tape. To carry the Button on the strap: attach the strap to the Button
using the mounting hole in the main body of the Button.
Control Mode
In the Control mode, the Button has two pressing options: short and long (the
button is pressed for more than 3 seconds). These pressings can trigger the
execution of an action by one or more automation devices: Relay, WallSwitch, or
Socket.
To bind an automation device action to a long or short press of a Button:
run a scenario

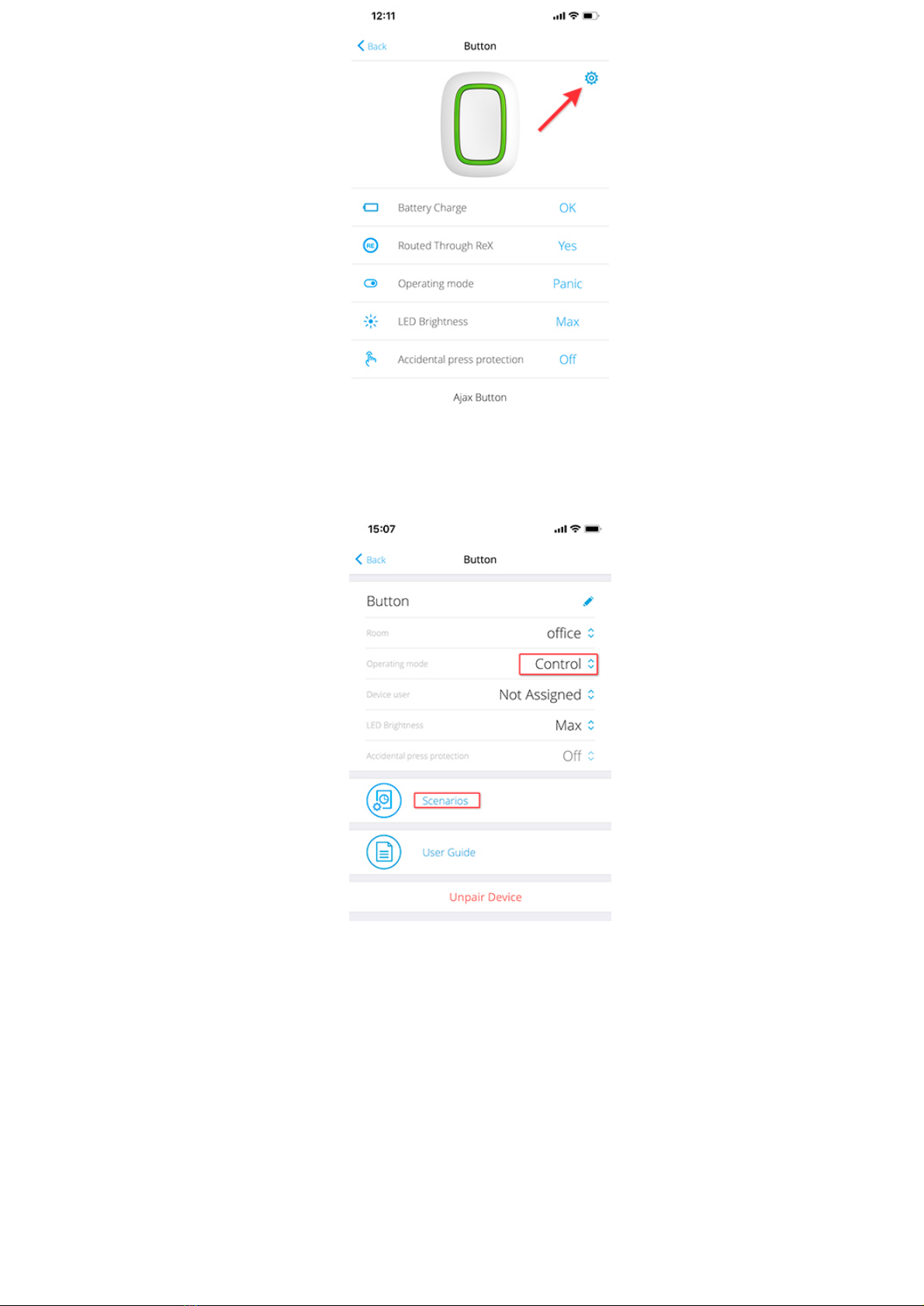

1. Open the and go to the Devices tab.Ajax app
2. Select Button in the list of devices and go to settings by clicking the gear
icon .

3. Select the Control mode in the Button mode section.
4. Click the Button to save the changes.
5. Go to the Scenarios menu and click Create scenario if you are creating a
scenario for the first time, or Add scenario if scenarios have already been
created in the security system.

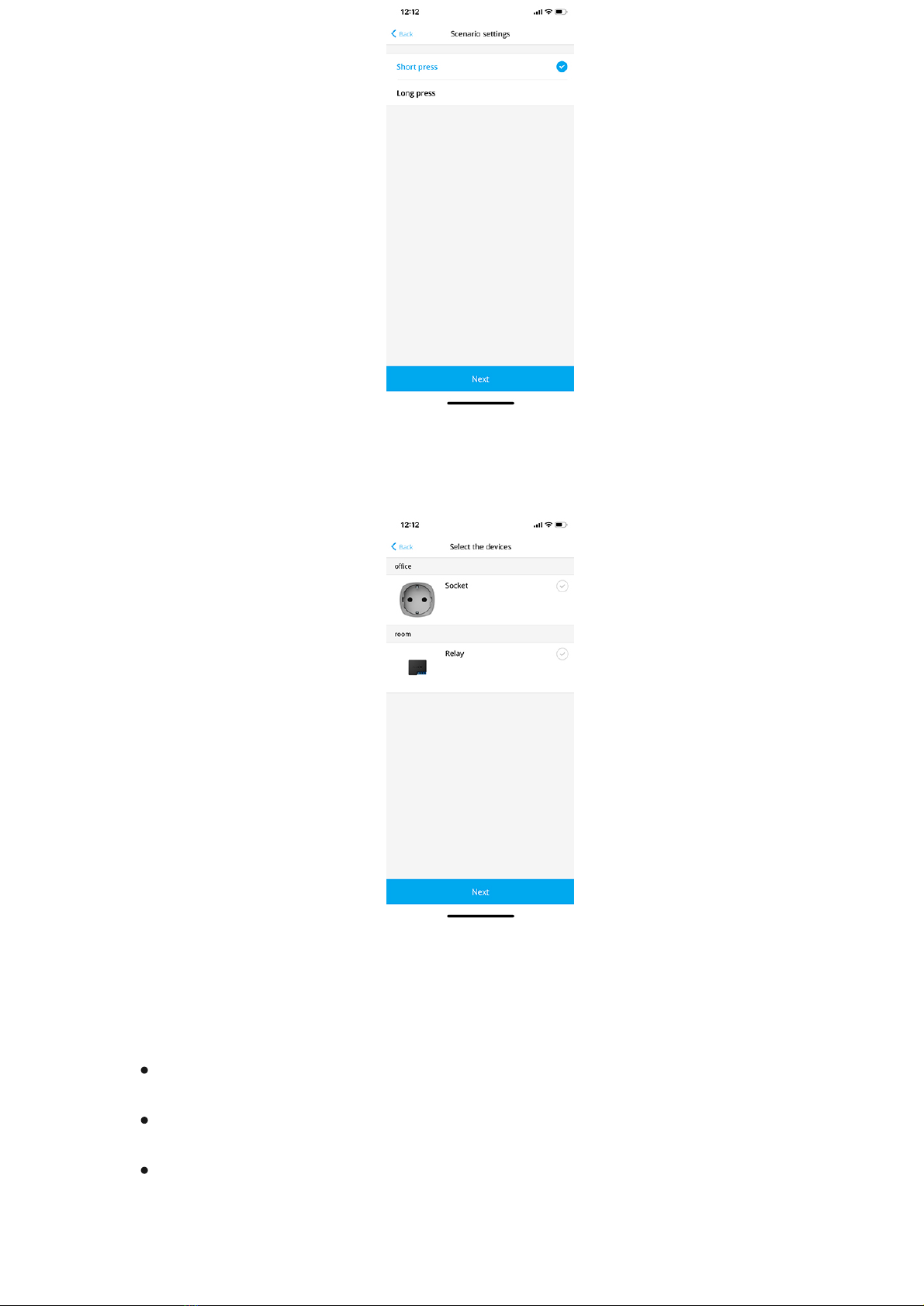

. Select a pressing option to run the scenario: Short press or Long press.

7. Select the automation device to execute the action.

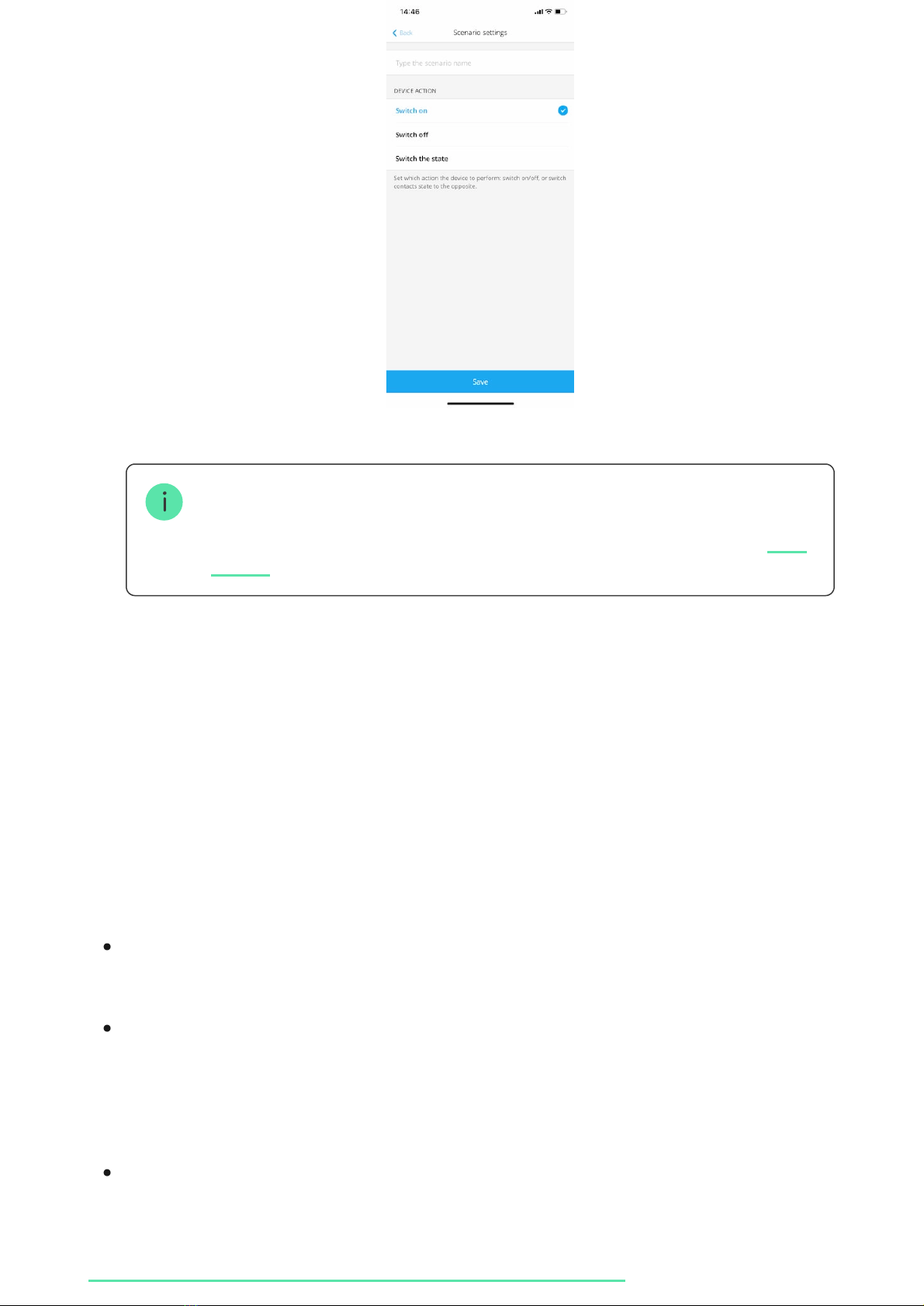

. Enter the Scenario Name and specify the Device Action to be executed by
pressing the Button.
Switch on
Switch off
Switch the state

Mute Fire Alarm
By pressing the Button, the fire signal can be muted (if the corresponding
operating mode is selected). The reaction of the system to pressing a button
depends on the settings and the state of the system:
When configuring a scenario for Relay, which is in pulse mode, the Device Action
setting is not available. During the scenario execution, this relay will close/open the
contacts for a set time. The operating mode and pulse duration are set in the
.
Relay
settings
9. Click Save. The scenario will appear in the list of device scenarios.
Interconnected FireProtect Alarms are disabled — pressing the Button
mutes the sirens of triggered FireProtect/FireProtect Plus detectors.
The Interconnected FireProtect Alarms have already propagated — by the
first press of the Button, all fire detectors sirens are muted, except for those
that registered the alarm. Pressing the button again mutes the remaining
detectors.
The interconnected alarms delay time lasts — the siren of the triggered
FireProtect/FireProtect Plus detector is muted by pressing.
Learn more about interconnected alarms of fire detectors

Placement
Button can be fixed on a surface or carried around.
How to fix Button
To fix Button on a surface (e. g. under a table), use Holder.
To install the button in the holder:
Please note that Holder is sold separately.
How to carry around Button
The button is convenient to carry with you thanks to a special hole on its body. It
can be worn on the wrist or around the neck, or hung on a key ring.
Button has an IP55 protection rating. This means that the device body is
protected from dust and splashes. Tight buttons are recessed into the body and
1. Choose a location to install the holder.
2. Press the button to test whether the commands can reach the hub. If not,
choose another location or use a .
When connecting Button via ReX, keep in mind that the button does not
automatically switch between range extender and hub. You can assign Button to a
hub or another ReX in the Ajax app.
ReX radio signal range extender
3. Fix Holder on the surface using the bundled screws or double-sided
adhesive tape.
4. Put Button into the holder.
Buy Holder

software protection helps to avoid accidental pressing.
Maintenance
When cleaning the key fob body, use cleaners that are suitable for technical
maintenance.
Never use substances containing alcohol, acetone, gasoline and other active
solvents to clean the Button.
The pre-installed battery provides up to 5 years of key fob operation in normal
use (one press per day). More frequent use may reduce battery life. You can
check battery level at any time in the Ajax app.
The pre-installed battery is sensitive to low temperatures and if the key fob is
cooled significantly, the battery level indicator in the app may show incorrect
values until the key fob becomes warmer.
The battery level value is not updated on a regular basis, but only updates after
pressing the button.
When the battery has run down, the user will receive a notification in the Ajax
app, and the LED will steadily light up red and go out each time the button is
pressed.
Technical Specifications
Number of buttons 1
LED backlight indicating command delivery Available
Protection against accidental activation Available, in panic mode
Frequency band 868.0 – 868.6 MHz or 868.7 – 869.2 MHz,
depending on the sales region
Compatibility Operates with all Ajax , and
featuring OS Malevich 2.7.102 and
How long Ajax devices operate on batteries, and what affects this
Battery Replacement
hubs range
extenders

later
Maximum radio signal power Up to 20 mW
Radio signal modulation GFSK
Radio signal range Up to 1,300 m (without obstacles)
Power supply 1 CR2032 battery, 3 V
Battery life Up to 5 years (depending on frequency of use)
Protection class IP55
Operating temperature range From -10°С to +40°С
Operating humidity Up to 75%
Dimensions 47 × 35 × 13 mm
Weight 16 g
Complete Set
Warranty
The warranty for the products manufactured by the AJAX SYSTEMS
MANUFACTURING limited liability company is valid for 2 years after purchase
and does not extend to the bundled battery.
If the device does not function properly, we recommend that you first contact
the support service as technical issues can be resolved remotely in half of the
cases!
1. Button
2. Pre-installed CR2032 battery
3. Double-sided tape
4. Quick Start Guide
Warranty obligations
User agreement

Technical support: suppor[email protected]
