AJAX Systems Button User manual

Button User Manual
Button is a wireless panic button with protection against accidental press
and additional mode to control automation devices.
Button only operates with Ajax hubs. No provision is made for connection to the ocBridge
Plus and uartBridge integration modules!
Button is connected to the security system and configured via Ajax apps on
iOS, Android, macOS, and Windows. The users are alerted of all alarms
and events via push notifications, SMS, and phone calls (if enabled).
The Ajax security system can be used for independent monitoring of the
site and can be connected to the security company’s Central Monitoring
Station.

Functional elements
1. Alarm button
2. Indicator lights
3. Button mounting hole
Operating principle
Button is a wireless panic button that, when pressed, transmits an alarm to
users, as well as to the security company’s CMS. In Control mode, Button
allows you to control Ajax automation devices with a short or long press of
a button.
You can bind the action of an automation device (Relay, Wall Switch or Socket) to a button press
in the Button settings —Scenarios menu.
The Button is equipped with protection against accidental press and
transmits alarms at a distance of up to 1,300 m from the hub. Please be
aware that the presence of any obstructions that impede the signal (for
example, walls or floors) will reduce this distance.
Button is easy to carry around. You can always keep it on a wrist or a neck
less. The device is resistant to dust and splashes.

When connecting Button via ReX, note that Button does not automatically switch between the
radios networks of the radio signal extender and the hub. You can assign Button to another hub
or ReX manually in the app.
Connecting the button to the Ajax security
system
Prior to initiating connection
1. Follow the hub instructions to install the Ajax application. Create an account,
add a hub to the app, and create at least one room.
2. Enter the Ajax app.
3. Activate the hub and check your internet connection.
4. Ensure that the hub is not in armed mode and is not being updated by
checking its status in the app.
Only users with administrative rights can add a device to the hub
In order to connect a Button
1. Click on Add Device in the Ajax app.
2. Name the device, scan its QR code (located on the package) or enter it
manually, select a room and a group (if group mode is enabled).
3. Click Add and the countdown will begin.
4. Hold the button for 7 seconds. When the Button is added, the LEDs will
flash green once.
For detection and pairing, the Button must be located within the hub radio
communication zone (on the single protected object).

The connected button will appear in the list of hub devices in the
application. Updating the statuses of the device in the list does not depend
on the polling time value in the hub settings. Data is updated only by
pressing the Button.
The Button only works with one hub. When connected to a new hub, the
Button stops transmitting commands to the old hub. Note that after being
added to the new hub, the Button is not automatically removed from the
device list of the old hub. This must be done manually through the Ajax
application.
States
Button statuses can be viewed in the device menu:
1. Ajax app Devices Button

Parameter
Value
Battery charge
Button battery charge level. There are two statuses:
•Battery OK
•Battery low
Operating mode
Displays the operating mode of the button. Two modes are
available:
•Panic
•Control
Indicator light brightness
Displays current brightness level of indicator light:
•Disabled (no display)
•Minimum
•Maximum
Protection against accidental
activation
Displays the selected type of protection against accidental
activation:
•Off —protection disabled.
•Delay when pressing —in order to send alarm you should hold
the button down for more than 1.5 seconds.
•Double-pressing —in order to send alarm you should double-
press on the button with a pause of no more than 0.5 seconds.
Routed Through ReX
Display the status of using the ReX range extender
Firmware
Button firmware version
ID
Device ID

Configuration
You can adjust the device parameters in the settings section:
1. Ajax app Devices Button Settings
Parameter
Value
First field
Name of the device, can be changed
Room
The choice of the virtual room that the device is assigned to
Operating mode
Displays the operating mode of the button. Two modes are
available:
•Panic —sends an alarm when pressed
•Control —controls automation devices by short or long (3 sec)
pressing

Device user
Assigns a panic button user. After assignment, button presses
will be displayed as events of the selected user
LED brightness
This displays the current brightness of the indicator lights:
•Disabled (no display)
•Minimum
•Maximum
Accidental press protection
(available only in panic mode)
Displays the selected type of protection against accidental
activation:
•Off —protection disabled.
•Delay when pressing —in order to send alarm you should hold
the button down for more than 1.5 seconds.
•Double-pressing —in order to send alarm you should double-
press on the button with a pause of no more than 0.5 seconds.
Alert with a siren if panic button is pressed
If active, Home Siren and Street Siren are activated after
panic button pressing
Scenarios
Opens the menu for creating and configuring scenarios
User Guide
Opens the Button user guide
Unpair Device
Disconnects Button from the hub and deletes its settings
Firmware
Button firmware version
ID
Device ID
Operating indication
Button status is indicated with red or green LED indicators.
Category
Indication
Event
Linking to security system
Green LEDs flash 6 times
The button is not registered in any
security system
Lights up green for a few
seconds
Adding a button to the security system
Command delivery indication
Lights up green briefly
Command is delivered to security system

Lights up red briefly
Command is not delivered to security
system
Long press indication in
Control mode
Blinks green briefly
Button recognized the pressing as a long
press and sent the corresponding
command to the hub
Feedback Indication
(follows the Command
Delivery Indication)
Lights up green for about half a
second after the command
delivery indication
The security system has received and
performed the command
Briefly lights up red after the
command delivery indication
The security system did not perform the
command
Battery status
(follows Feedback
Indication)
After the main indication it
lights up red and goes out
smoothly
Button battery needs to be replaced. At
the same time, button commands are
delivered to the security system.
Use cases
Panic Mode
As a panic button, the Button is used to call for Security Company or help,
as well as for emergency notification through the app or sirens. In this
mode, pressing the Button will raise an alarm regardless of security mode
of the system.
An alarm if Button is pressed can also run a scenario in the Ajax security
system.
Button can be installed on a flat surface or carried around. To install on a
flat surface (for example, under the table), secure the Button with double-
sided adhesive tape. To carry the Button on the strap: attach the strap to
the Button using the mounting hole in the main body of the Button.

Control Mode
In the Control mode, the Button has two pressing options: short and long
(the button is pressed for more than 3 seconds). These pressings can
trigger the execution of an action by one or more automation devices:
Relay, Wall Switch, or Socket.
To bind an automation device action to a long or short press of a Button:
1. Open the Ajax app and go to the Devices tab.
2. Select Button in the list of devices and go to settings by clicking the gear
icon

3. Select the Control mode in the Button mode section.
4. Click the Back to save the changes.
5. Go to the Scenarios menu and click Create scenario if you are creating a
scenario for the first time, or Add scenario if scenarios have already been
created in the security system.

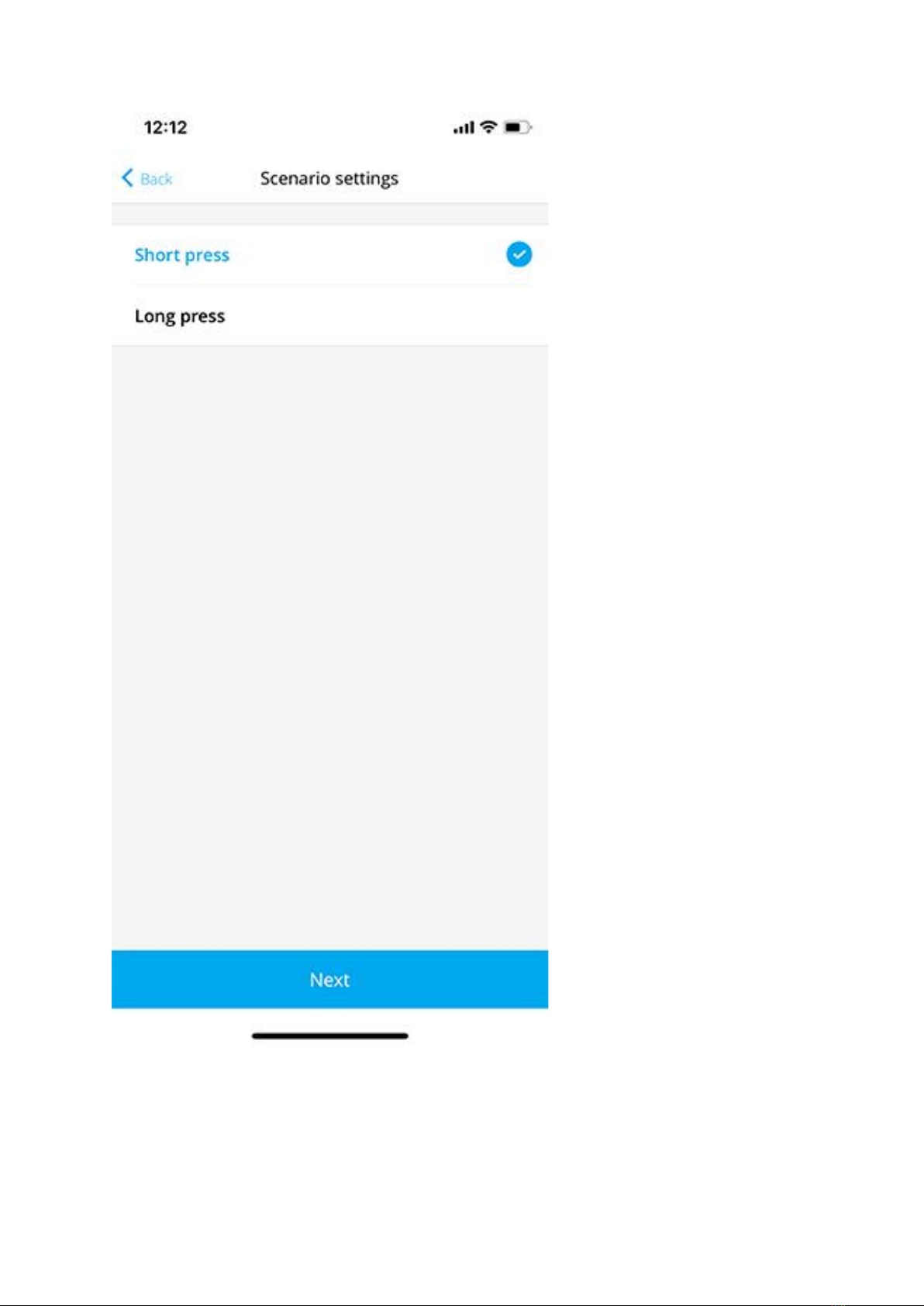

6. Select a pressing option to run the scenario: Short press or Long press.

7. Select the automation device to execute the action.

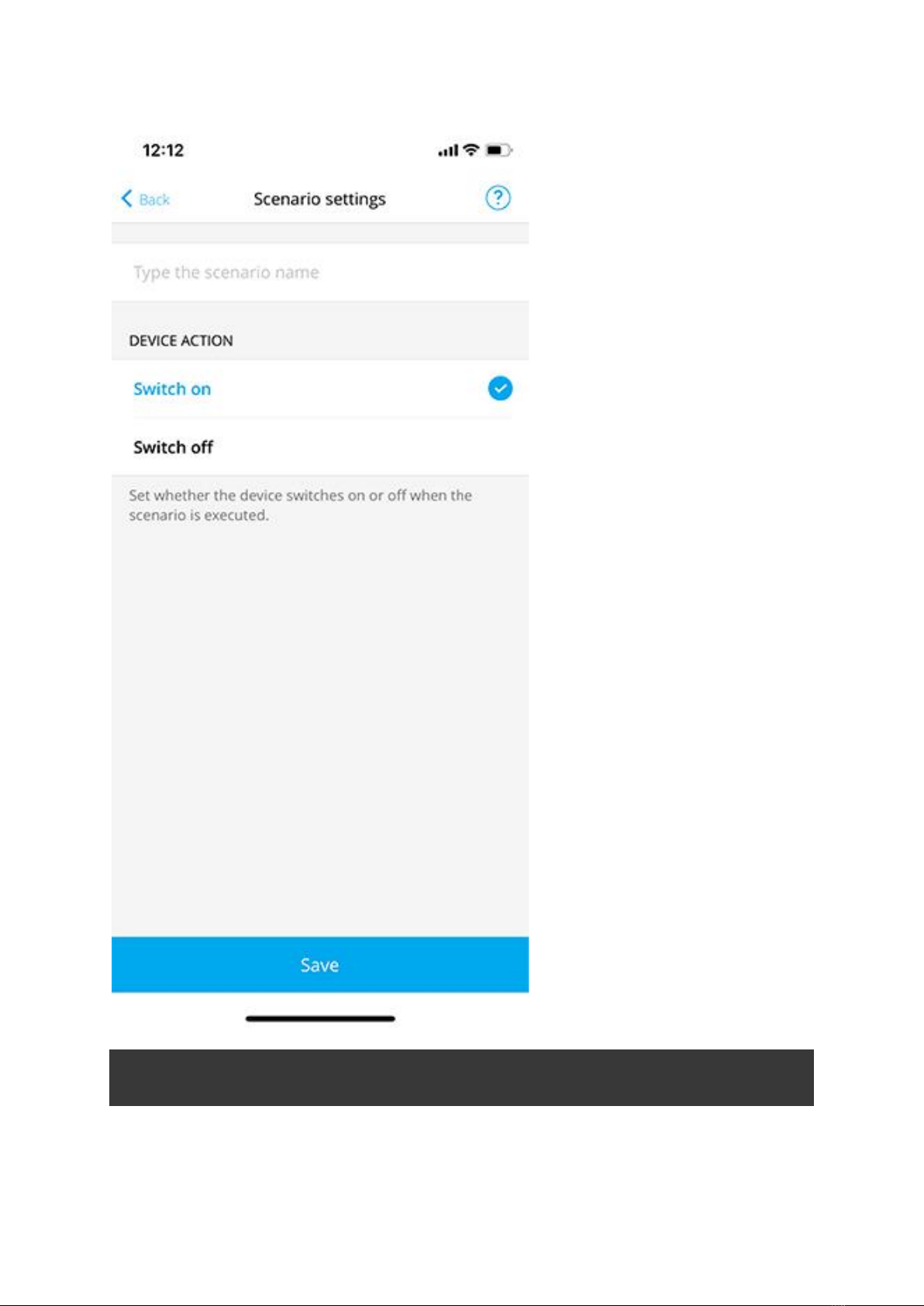

8. Enter the Scenario Name and specify the Device Action to be executed
by pressing the Button.
When configuring a scenario for Relay, which is in pulse mode, the Device Action setting is not
available. During the scenario execution, this relay will close/open the contacts for a set time.
The operating mode and pulse duration are set in the Relay settings.
9. Click Save. The scenario will appear in the list of device scenarios.

Maintenance
When cleaning the key fob body, use cleaners that are suitable for
technical maintenance.
Never use substances containing alcohol, acetone, gasoline and other
active solvents to clean the Button.
The pre-installed battery provides up to 5 years of key fob operation in
normal use (one press per day). More frequent use may reduce battery life.
You can check battery level at any time in the Ajax app.
The pre-installed battery is sensitive to low temperatures and if the key fob
is cooled significantly, the battery level indicator in the app may show
incorrect values until the key fob becomes warmer.
The battery level value is not updated on a regular basis, but only updates
after pressing the button.
When the battery has run down, the user will receive a notification in the
Ajax app, and the LED will steadily light up red and go out each time the
button is pressed.
Technical Specifications
Number of buttons
1
LED backlight indicating command
delivery
Available
Protection against accidental
activation
Available, in panic mode
Frequency band
868.0 –868.6 MHz or 868.7 –869.2 MHz, depending on the
sales region
Compatibility
Operates with Hub, Hub Plus, Hub 2, ReX featuring OS
Malevich 2.7.102 and later
Maximum radio signal power
Up to 20 mW
Radio signal modulation
GFSK
Radio signal range
Up to 1,300 m (without obstacles)
Power supply
1 CR2032 battery, 3 V

Battery life
Up to 5 years (depending on frequency of use)
Protection class
IP55
Operating temperature range
From -10°С to +40°С
Operating humidity
Up to 75%
Dimensions
47 х 35 х 13 mm
Weight
16 g
Complete Set
1. Button
2. Pre-installed CR2032 battery
3. Double-sided tape
4. Quick Start Guide
Warranty
The warranty for the products manufactured by the AJAX SYSTEMS
MANUFACTURING limited liability company is valid for 2 years after
purchase and does not extend to the bundled battery.
If the device does not function properly, we recommend that you first
contact the support service as technical issues can be resolved remotely in
half of the cases!
