PepperBall MOBILE User manual

POWERFUL
PERSONAL
PROTECTION™
USER MANUAL
MOBILEMOBILE

2 | MOBILE™
WARNINGS & SAFETY........................................................................................................PAGE 3
MOBILE OVERVIEW...........................................................................................................PAGE 7
BATTERY INSTALLATION....................................................................................................PAGE 8
LOADING/REPLACING CO2CARTRIDGES..............................................................................PAGE 9
LOADING PROJECTILES.................................................................................................... PAGE 10
FIRING THE MOBILE........................................................................................................ PAGE 11
LASER ADJUSTMENT....................................................................................................... PAGE 12
CLEANING & MAINTENANCE ............................................................................................ PAGE 13
TROUBLESHOOTING......................................................................................................... PAGE 13
WARRANTY .................................................................................................................... PAGE 14
RETURN POLICY.............................................................................................................. PAGE 15
MOBILEMOBILE
TABLE OF CONTENTS
THIS LAUNCHER IS NOT A TOY AND IS INTENDED FOR SELF-DEFENSE ONLY. THIS PRODUCT LAUNCHES PROJECTILES
FROM THE BARREL. MISUSE MAY CAUSE SERIOUS INJURY OR DEATH. IMPROPER USE COULD ALSO RESULT IN
CRIMINAL PROSECUTION, FINES, IMPRISONMENT, AS WELL AS CIVIL LIABILITY. WHEN THE LAUNCHER IS NOT IN USE,
ALWAYS MAKE SURE THAT THE TRIGGER SAFETY IS IN “SAFE MODE”. SEE ADDITIONAL SAFETY GUIDELINES AND USER
INSTRUCTIONS IN THIS MANUAL.
!WARNING

PEPPERBALL.COM | 3
WARNINGS & SAFETY
Congratulations on your purchase of the PepperBall®Mobile™Launcher.
This launcher has been designed and manufactured by United Tactical Systems, LLC (UTS) to be reliable,
accurate and durable. When properly handled, the Mobile will give many years of dependable service. Please
take the time to read through this manual and become familiar with the Mobile parts, operation, maintenance,
and safety precautions before you attempt to load or fire this launcher.
By purchasing this launcher, you assume total responsibility for its safe and lawful use. You must observe the
same safety precautions as you would with any firearm to ensure the safety of not only yourself, but everyone
around you. The operator should use caution at all times when maintaining and firing this launcher.
LIMITATIONS AND USAGE
There are some state or local limitations on purchase, possession, and use of the Mobile. Verify local legal
requirements in your state and city to ensure possession and use are proper. The user assumes the liability
from unsafe or improper use or any action which constitutes a violation of any applicable law or regulation.
The Mobile may be prohibited from certain premises, including government buildings, airports, courthouses,
schools, or other public spaces. Possessing a Mobile in a prohibited area may subject user to criminal liability.
WARNING: If misused, this PepperBall launcher is a dangerous weapon.
The user assumes all liability from unsafe handling or any action that constitutes a violation of any applicable
laws or regulations. UTS shall not be liable for personal injury, loss of property, or loss of life resulting from
the use of this weapon under any circumstances, including any intentional, reckless, negligent or accidental
discharges. By using this PepperBall launcher, you release UTS of any and all liability associated with its use.
All information in this manual is subject to change without notice. Please refer to www.pepperball.com for
the most up-to-date information about the use of this product. UTS reserves the right to make changes and
improvements to products without incurring any obligation to incorporate such improvements in products
previously sold.
IF YOU DO NOT ACCEPT LIABILITY, DO NOT USE THIS OR ANY PEPPERBALL LAUNCHER.
WARNING: This product contains chemicals known to the State of California to cause cancer and birth
defects or other reproductive harm.
SAFETY IS YOUR RESPONSIBILITY!
The following safety information contains important warnings related to the proper use of the launcher,
projectiles, and gas canisters. Do not load, discharge or otherwise use this launcher until you have completely
read this manual and are familiar with its safety features, mechanical operation, and handling characteristics.
USE WITH CAUTION: This product may have the appearance of a deadly weapon, and may increase the risk of
injury from third parties. Always be aware of your surroundings when using this product.

4 | MOBILE™
LAUNCHERS
WARNING: CONTENTS ARE DANGEROUS — USE WITH CARE. PURCHASE AND USE OF PEPPERBALL LAUNCHERS AND
PROJECTILES ARE LIMITED TO INDIVIDUALS WHO ARE AT LEAST 18 YEARS OLD. KEEP ALL PEPPERBALL PROJECTILES
AND LAUNCHERS OUT OF THE SIGHT AND REACH OF CHILDREN.
• DANGER: Never aim or shoot at the head, face, eyes, ears, throat or spine. Impact in these areas could result in
unintended severe or permanent injury or death.
• DANGER: ALWAYS KEEP THE LAUNCHER POINTED IN A SAFE DIRECTION. Never look down the barrel of the launcher.
Accidental discharge into the eyes may cause permanent injury or death.
• Handle this launcher as if it were loaded at all times.
• Keep your finger off the trigger until ready to fire.
• Keep this launcher on “Safe Mode” until ready to fire. Store in a safe and secure location when not in use.
• Never point or discharge your launcher at anything you do not intend to shoot.
• Never discharge your launcher at the personal property of others.
• Do not disassemble this launcher while it is pressurized or attempt to pressurize while it is disassembled.
• Keep exposed skin away from any escaping gas when in use and when installing or removing air supply.
• Use only PepperBall®authorized projectiles in this launcher. The use of any unauthorized projectiles in this
launcher will void all warranties.
• Any modifications to the launcher are prohibited, except with United Tactical manufactured accessories and
in accordance with United Tactical instructions. Unauthorized modifications will void all warranties.
• Increasing the velocity of this product increases the risk of death or injury.
CARTRIDGES
WARNING! NEVER USE GAS CARTRIDGES OTHER THAN WHAT IS SPECIFIED IN THIS MANUAL.
CO2Cartridges: WARNING — CONTENTS UNDER PRESSURE Do not puncture or incinerate container. Do not expose to
heat or store at temperatures above 120°F. Keep out of the reach of children.
N2Cartridges: WARNING! CONTENTS UNDER PRESSURE Do not heat over 125°F or rupture may occur. NEVER POINT
TOWARDS FACE OR PERSONS NEARBY. DO NOT INHALE — FIRST AID: IF INHALED, remove to fresh air. If breathing is
difficult, give oxygen and call a physician.
CAUTION! Pressurized with nitrogen. Intended for use in specified PepperBall launching devices only.
Protect from sunlight when ambient temperature exceeds 52°C/ 125°F.
For product information, refer to the Safety Data Sheets (SDS) listed on www.pepperball.com
SAFETY

PEPPERBALL.COM | 5
SAFETY
PROJECTILES
Read projectile label carefully before opening container or using any of its contents. Opening container
indicates user has carefully read label in its entirety and accepts its provisions as the terms and conditions
under which this product is furnished.
Handle PepperBall projectiles with care and follow proper cleanup procedure. PepperBall projectiles cause skin
irritation, serious eye irritation, and may cause serious respiratory irritation. Exposure may result in copious
tears, temporary blindness, burning sensation, and difficulty breathing. The projectile should never be ingested.
• In case of accidental exposure, exit the exposure area. Remove contact lenses and contaminated clothing.
Flush eyes and affected areas with cool water. Do not rub or use creams, salves, lotions or oils which can trap
irritant on the skin. Discard contact lenses and wash exposed clothing before reuse. If exposure or ingestion
occurs, get medical advice/attention.
• Keep all PepperBall projectiles out of the reach of children. Store in a secure location with temperatures not to
exceed 150° F or below -15° F. PepperBall projectiles have a shelf life of 2 years and should be safely disposed of
aer this period.
EXPOSURE:
Eye Contact: Flush eyes and other contaminated areas IMMEDIATELY with large amounts of cool water, and
expose to fresh air. Contact lenses should be removed by subject or qualified medical personnel and must be
discarded.
Skin Contact: Wash skin with soap and water to prevent further exposure. Flush skin with large amounts of
cool water to minimize irritant effect. Wash contaminated clothing before reuse. DO NOT rub contaminated
areas or apply creams, salves, oils, lotions, or burn cream, which can trap irritant on the skin.
Inhalation: If breathing is difficult, administer oxygen. If high concentrations are inhaled, immediately remove
subject to fresh air. Keep person calm. If not breathing, begin artificial respiration. If breathing difficulty
persists, seek medical attention.
Ingestion: Although ingestion is unlikely and not considered a potential route of exposure, individual should be
treated as having an acute non-specific airway reaction by an appropriate specialist. Do not induce vomiting.
For more details on these products, refer to the Safety Data Sheets (SDS) listed on www.pepperball.com.

6 | MOBILE™
Max. output power: 4.99 milliwatts
Wavelength: 400–700 nanometers (visible light)
Min. divergence: 1 milliradian
Output: Continuous (CW)
Laser hazard classification: Class 3R
DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS;
CAN CAUSE EYE INJURY UP TO 52 Ft (16M) AWAY
Laser hazards
Eye injury from beam
AVOID DIRECT EYE EXPOSURE: Do not look into the direct or reflected
beam; can cause eye injury up to 52  (16 m) away.
Visual interference (glare) with pilots and drivers
Interferes with vision up to 1200  (366 m) away. Can be a distraction up
to 2.2 miles (3.5 km) away. NEVER point any laser towards aircra or
vehicles; it is unsafe and illegal.
Safe use guidance
Class 3R lasers are safe when handled carefully. Do not look into the
beam. Avoid accidental exposure to eyes. Do not aim at aircra. This is
not a toy. Always supervise children. Additional safety information online
Manufacturer:
United Tactical Systems LLC
Fort Wayne, Indiana 46809
Made in the China | Pepperball.com
US patents 5.965.839, 6.393.992, 6.543.365, 6.546.874
EMC Compliance Complies with 21 CFR 1040.10
SAFETY

PEPPERBALL.COM | 7
ACTION: SEMI-AUTO CAPACITY: 6 ROUNDS POWER: CO2LAUNCH DISTANCE: 40'
MOBILE™SPECIFICATIONS
SIZE: 9" L x 2-5/16" W x 2-9/16" H WEIGHT: 1.40 LBS LUMENS: 350 CALIBER: .68
INCLUDES: 6 LIVE SD™ PEPPERBALLS • 12 INERT PEPPERBALLS • 3 CO2CARTRIDGES • 3 AAA BATTERIES
FLASHLIGHT
LASER SIGHT
LAUNCH CHAMBER TRIGGER
SAFETY
BATTERY COMPARTMENT
INTERNAL AIR SOURCE
PUSH BUTTON
FLASHLIGHT OPERATION
PEPPERBALL®QUICK ACCESS PORT
3 ROUND CAPACITY
OPERATIONAL INSTRUCTIONS
OVERVIEW

8 | MOBILE™
BATTERY INSTALLATION

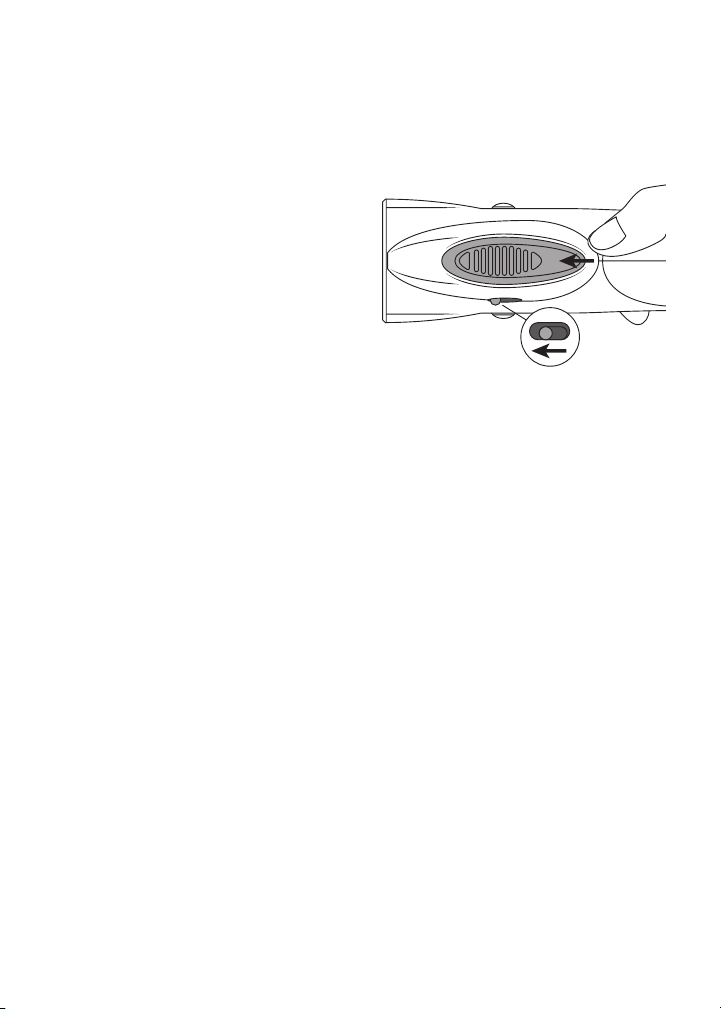

1. PLACE THE MOBILE™IN SAFE MODE - Slide the safety
back towards the rear of the launcher. (Fig 1)
2. REMOVE THE BATTERY COVER - To install non-
rechargeable batteries, place three AAA batteries
in the Battery Tray, following the correct placement
of + and -. If the unit is new, make sure to pull the
white tab to make sure the battery is connected.
3. REPLACE THE BATTERY COVER - Ensure the Battery
Door is closed, by pushing the latch forward until
it clicks. (Fig 3)
NOTE: Launcher fires projectile with CO2cartridge
installed and does not require batteries to fire
projectiles.
Fig 1
Fig 2
Fig 3
*CLICK*
OPERATIONAL INSTRUCTIONS

PEPPERBALL.COM | 9
INSERTING CO2CARTRIDGE
1. Make sure the Mobile™has NOT been loaded
with projectiles.
2. Unscrew Puncture Ram from cartridge chamber
located in the front of the Mobile. (Fig 1)
WARNING: Do not point launcher towards yourself or
others while performing this procedure.
3. Insert 8 gram CO2cartridge (skinny end first) into
the cartridge chamber where you removed the
Puncture Ram. (Fig 2)
4. Re-install Puncture Ram into cartridge chamber
and tighten until Puncture Ram is flush with the
front of the unit.
PUNCTURE RAM PART NO. B90-0013
NOTE: PepperBall®recommends the user only install 8
gram CO2cartridges that have been ASTM certified to
meet size standards.
REPLACING SPENT CO2 CARTRIDGE
1. To replace the spent CO2cartridge, ensure the launcher is empty of projectiles.
2. Unscrew the Puncture Ram from the launcher.
NOTE: It is normal to hear a hissing sound as excess CO2gas is released.
3. Point the launcher in a safe direction and at a downward angle.
4. Disengage the safety and press the trigger.
5. The spent CO2cartridge should release and fall free of the launcher. Never hit the launcher against
a hard surface to release a spent CO2cartridge.
6. Engage safety prior to installing a fresh CO2cartridge then replace the Puncture Ram on an empty chamber
for storage.
7. Properly dispose of the spent CO2cartridge.
Fig 1
Fig 2
OPERATIONAL INSTRUCTIONS

10 | MOBILE™
LOADING PROJECTILES
1. Remove Projectile Plunger from the rear of the
Mobile™by pushing in and turning approximately
1/8 turn counterclockwise. A tab on the Projectile
Plunger will line up with a notch in the body of the
Mobile so it can be removed. (Fig 1)
NOTE: Remember to always keep Mobile pointed in a
safe direction while loading.
2. Place three PepperBall®projectiles in the projectile
load chamber where you removed the Projectile
Plunger. Reinsert the Projectile Plunger and turn it
approximately 1/8 turn clockwise until it locks back
into place. (Fig 2)
CAUTION: Minimal force should be required to re-insert
the projectile plunger. If resistance is felt, remove
and inspect projectiles for damage.
NOTE: Never place more than three PepperBall
projectiles in the Mobile.
The projectiles are designed to fracture easily to
ensure effectiveness on a variety of surfaces and
distances. If the unit is ever dropped on a hard
surface, the projectiles should be removed and
inspected for damage.
Fig 1
Fig 2
OPERATIONAL INSTRUCTIONS

PEPPERBALL.COM | 11
FIRING THE MOBILE™
1. The Mobile is now ready to fire. Aim the Mobile
at the intended target and slide the safety to
the forward position. This will activate the laser.
Aim the laser on the target and firmly press the
red trigger straight down with your thumb until
projectile is launched. (Fig 1)
2. Replace the CO2cartridge aer firing five
projectiles or any time the Mobile will be stored.
NOTE: CO2cartridge will be pierced only at first trigger
push each time the Mobile is reloaded with a new
cartridge. To ensure the Mobile is ready for defensive
use, only stage with a fresh, unused CO2cartridge.
Firing multiple magazines in rapid succession may
cause the launcher to freeze. If this occurs, allow
launcher to thaw to room temperature prior to
continued use.
WARNING:
- Never point laser direct into eyes
- Do not shoot at head, neck or spine
- Do not shoot Mobile at unintended target
STORING THE MOBILE
If storing the Mobile for an extended period and it is
not intended to be used, replace the Puncture Ram
without a CO2cartridge in the chamber and ensure
the launcher is free of projectiles. Place the Mobile
in its case, restore the safety to the ON position, and
store in a safe location.
Fig 1
OPERATIONAL INSTRUCTIONS

12 | MOBILE™
ADJUSTING LASER SIGHT
1. The Mobile™comes with the laser aligned
properly. Only adjust the laser if the projectiles
are not hitting at the same point where the laser
is projected.
2. Secure the Mobile in a horizontal position with the
trigger pointing up.
3. Once secure, shoot one round from the Mobile at
a target from 15 feet away. The projectile should
hit within a 1.5" square from where the laser is
projecting.(Fig 1)
4. If the projectile did not hit within the specified
range, use the two adjustment screws at the front
of the launcher to adjust the laser until it is within
range. The le screw adjusts the elevation. The
right screw adjusts windage. (Fig 2)
NOTE: Adjustment is delicate and only light pressure
should be applied to the adjustment screws.
Attempting to force the screws past the designed
limits could damage the unit.
ELEVATION ADJUSTMENT: Turn clockwise to move up —
counter clockwise to move down.
WINDAGE ADJUSTMENT: Turn clockwise to shi le —
counter clockwise to shi right.
X
Laser
1.5"
1.5"
Projectile hit
Fig 1
Fig 2
OPERATIONAL INSTRUCTIONS

PEPPERBALL.COM | 13
CLEANING & MAINTENANCE
SAFETY NOTES
• Never clean a loaded or pressurized launcher.
• Remove all projectiles from the launcher prior to doing any cleaning or maintenance.
• Never use petroleum-based cleaning solvents or lubricants as they can attack the O-ring seals.
• Do not use cleaning solvents that come in aerosol cans.
MOBILE™CLEANING PROCEDURE
1. Ensure the Mobile is in “Safe Mode” and clear the Mobile of all projectiles and CO2cartridge before attempting
to clean launcher. Point the Mobile barrel in downward direction and gently tap side of launcher to remove
large shell fragments and powder from barrel opening.
2. Use a damp swab to clean remaining powder out of magazine tube by gently inserting swab in a rotating
motion. Rotate the Mobile and repeat this process on the barrel of the launcher. Dispose of contaminated swabs.
3. To prevent wet powder from drying inside of launcher, immediately follow normal procedure of loading
CO2cartridge into Mobile and dry fire the launcher without projectiles until the CO2is depleted. Place the
launcher in “Safe Mode.”
4. With the Mobile barrel in safe direction and spray compressed air into magazine slot (front of launcher) to
blow excess projectile powder out of barrel. Rotate the Mobile and repeat this process on the magazine tube.
5. Wipe entire launcher with damp towel.
FAQ
I can’t remove the CO2cartridge.
• With the CO2cartridge exposed, tilt opening towards down and simultaneously pull the trigger.
Projectiles do not come out of the barrel when shooting.
• Put Mobile in “Safe Mode” and remove projectile cap. Hold hand over opening and tilt launcher towards
ground and catch projectiles that have been loaded. Place on FIRE and “dry” fire the Mobile twice. Replace
projectiles and cap and try again.
A projectile broke in the barrel or breech.
• See Barrel Debris Removal section on page 13
My Mobile has air leaking out of the barrel when I pull the trigger.
• Contact warranty/tech support at [email protected] or visit pblifelite.com.

14 | MOBILE™
WARRANTY, DISCLAIMER OF WARRANTY AND LIMITATION OF REMEDIES
United Tactical Systems, LLC (UTS) warrants, solely to the end user, that the product is delivered free from
defects in materials and workmanship for a period of one (1) year from the original date of purchase.
Within the one-year warranty period, UTS’ liability and the buyer’s sole and exclusive remedy hereunder for all
claims shall be limited to a refund or credit to buyer of the purchase price, or replacement of this product,
at UTS’s option, provided that the non-conforming product is (1) returned during the warranty period and (2)
properly packaged and shipped to the UTS designated facility in accordance with the UTS Return Merchandise
Authorization (RMA) Policy.
THE REMEDY SET FORTH ABOVE SHALL BE THE SOLE AND EXCLUSIVE REMEDY FOR BREACH OF THE
FOREGOING WARRANTY.
Products which have been improperly handled, stored or shipped, or which have been subject to abuse, misuse,
alteration and or neglect are not covered by the warranty. Aermarket products and the use of non-authorized
projectiles are strictly prohibited by UTS and any indication of their installation or use shall void all warranties.
Unauthorized modifications voids the warranty.
DISCLAIMER OF WARRANTY: Except for the express limited warranty set forth above, UTS makes no warranties or
representations of any kind, whether express or implied, with respect to the product, including any (a) warranty
of merchantability; or (b) warranty of fitness for a particular purpose; or (c) warranty against infringement
of intellectual property rights of a third-party, whether express or implied by law, course of dealing, course of
performance, usage of trade or otherwise. There are no warranties which extend beyond the description of the
face hereof. Buyer shall make no warranty or representation regarding the products that is inconsistent with
the warranty set forth above. UTS shall not be liable for any injury, loss, or damage, direct or consequential,
arising out of the use or the inability to use this product. Warranty does not cover damage caused by abuse,
misuse, loss, improper handling, alterations, accident, neglect, or disassembly. Before use, the user shall
determine the suitability of the product and be fully trained for its intended use, and user assumes all risks
and liability whatsoever in connection therein. In no event shall UTS be liable or obligated to buyer or to any
third party in any manner for any (a) special, non-compensatory, consequential, indirect, incidental, statutory,
or punitive damages of any kind, including, without limitation, lost profits and/or lost revenue, regardless of
the form of action, whether in contract, tort, negligence, strict product liability, or otherwise, even if informed
of or aware of the possibility of any such damages in advance, (b) in an amount greater than the amounts
paid to UTS by buyer for the products, or (c) damage or injury caused by the products, unless due to the gross
negligence or willful misconduct of UTS. The limitations set forth above shall be deemed to apply to the
maximum extent permitted by applicable law and notwithstanding the failure of the essential purpose of any
limited remedies. The parties acknowledge and agree that they have fully considered the foregoing allocation
of risk and find it reasonable, and that the foregoing limitations are an essential basis of the bargain between
the parties.
WARRANTY & DISCLAIMER

PEPPERBALL.COM | 15
CUSTOMER SERVICE, REPAIR POLICY AND RETURN POLICY
For any Customer Service related issues that cannot be answered by the FAQ in this manual, please contact
PepperBall at [email protected] or call PepperBall Customer Service at 888-874-3491
WARRANTY AND SERVICE INFO
All returns must be authorized by PepperBall. Contact PepperBall at [email protected] or call PepperBall
Customer Service at 888-874-3491
When returning product:
CAUTION: ALWAYS UNLOAD AND REMOVE AIR SOURCE, AND PROJECTILES BEFORE SHIPPING A LAUNCHER.
CAUTION: DO NOT SHIP BACK THE AIR SOURCE.
• Make sure the RA Number is clearly marked on the outside of the shipping package.
• Include a brief statement regarding the requested repair
• Include your name, return address and a telephone number where you can be reached during normal
business hours inside the shipping package.
• All in warranty products will be repaired or exchanged at the discretion of PepperBall and will be shipped
back to the Customer via ground shipping at no-charge.
RETURN POLICY
NAME:
ADDRESS:
DATE OF PURCHASE:
SERIAL NUMBER:
PepperBall®Warranty Support
28101 Ballard Dr. Ste. F
Lake Forest, IL 60045
Please detach from product manual,
place in stamped envelope and send to:
MOBILE™WARRANTY REGISTRATION CARD:
"

050621
THIS IS NOT A TOY.
ONLY ALLOW USE BY RESPONSIBLE PERSONS.
READ MANUAL BEFORE USE.
Additional safety information available online.
USE WITH CAUTION: This product may have the appearance
of a deadly weapon and may increase the risk of injury from
third parties. Always be aware of your surroundings when
using this product.
PepperBall®is a division of United Tactical Systems, LLC
28101 Ballard Drive, Suite F
Lake Forest, IL 60045
Pepperball.com
