AJAX FireProtect 2 RB Heat Jeweller User manual

1
Technical Data Sheet: FireProtect 2 Jeweller
FireProtect 2 RB
(Heat / CO) Jewe er
Wire ess heat and carbon monoxide
detector. Featured with a bui t-in siren for
a arm and event notication. It can operate
as part of the Ajax security system and
autonomous y without a hub.
Find the detailed information
on the device at:
support.ajax.systems/en/manuals/reprotect-2-heat-co/
Jewe er
Key features
Advanced hardware and software
An interconnected alarm of all re detectors at the facility in 20 seconds
Built-in siren with a volume of 85 dB at a distance of 3 meters
Ability to operate autonomously without an Ajax hub
Up to 7 years on replaceable batteries.
Easy to install and congure
SmartBracket mounting panel with the ability to align the detector after installation
Remote control and conguring via Ajax apps
Pairing with the Ajax hub via QR code.
EN 50291-
2018

2
Technical Data Sheet: FireProtect 2 Jeweller
O erating rinci le
Detection of a ra id
tem erature rise
Two built-in thermistors are responsible for the reaction
to temperature rise. Thermistors are located outside the
detector for faster threat detection.
If the room temperature exceeds 64°C or increases at more than 10°C per minute, the detector recognizes
this as a rapid temperature rise and raises the alarm.
Detection of a dangerous
concentration of carbon
monoxide
A built-in chemical sensor with a service life of
at least 10 years is responsible for detecting a
dangerous concentration of carbon monoxide in
FireProtect 2.
Carbon monoxide (CO) is a colourless, tasteless, and odourless gas produced due to incomplete fuel
combustion in automobile engines and heating appliances that use coal or other natural fuels. For
example, it can be made by replaces, boilers, or heating systems. In airtight or closed rooms with
poor ventilation, life-threatening concentrations of carbon monoxide can accumulate.
Interconnected re detectors alarms
The detector supports interconnected re alarms. The
feature activates built-in sirens of all Ajax re detectors
at the facility if at least one of them is triggered. In case
of a re, this allows alerting as many people as
possible.
FireProtect 2 detectors have an improved
interconnected re alarm algorithm that activates all re
detectors
'
sirens within 20 seconds. The function is
available only when the detectors operate with the hub.

3
Technical Data Sheet: FireProtect 2 Jeweller
peration without a hub
FireProtect 2 detectors can be used without
connecting to an Ajax hub. In this case, the
detector noties re alarms with a built-in siren
and LED indication but does not send a
notication to the user's smartphone, Ajax
Translator, or PRO Desktop.
Manual and automatic testing
FireProtect 2 regularly checks the status of batteries and built-in sensors. If a malfunction is detected, the
hub will notify users and the monitoring station instantly. And the detector will turn on the light and sound
alert by the built-in siren and LEDs. All detector states can be checked at any time in Ajax apps.
The detector supports manual testing mode. It is activated by pressing the device's front panel. The front
panel has a mechanical button, which can be pressed either manually or with a oor mop. During the test, the
built-in siren and testing of sensors are run. This allows the installer to test the device at any time and to
demonstrate to the customer the light and sound indication of the detector for various types of alarms.
Autonomous operation
The detector with replaceable batteries FireProtect 2
(Heat / CO) works for up to 7 years on two pre-installed
CR123A batteries. After their discharge, the batteries
can be replaced with new ones.

4

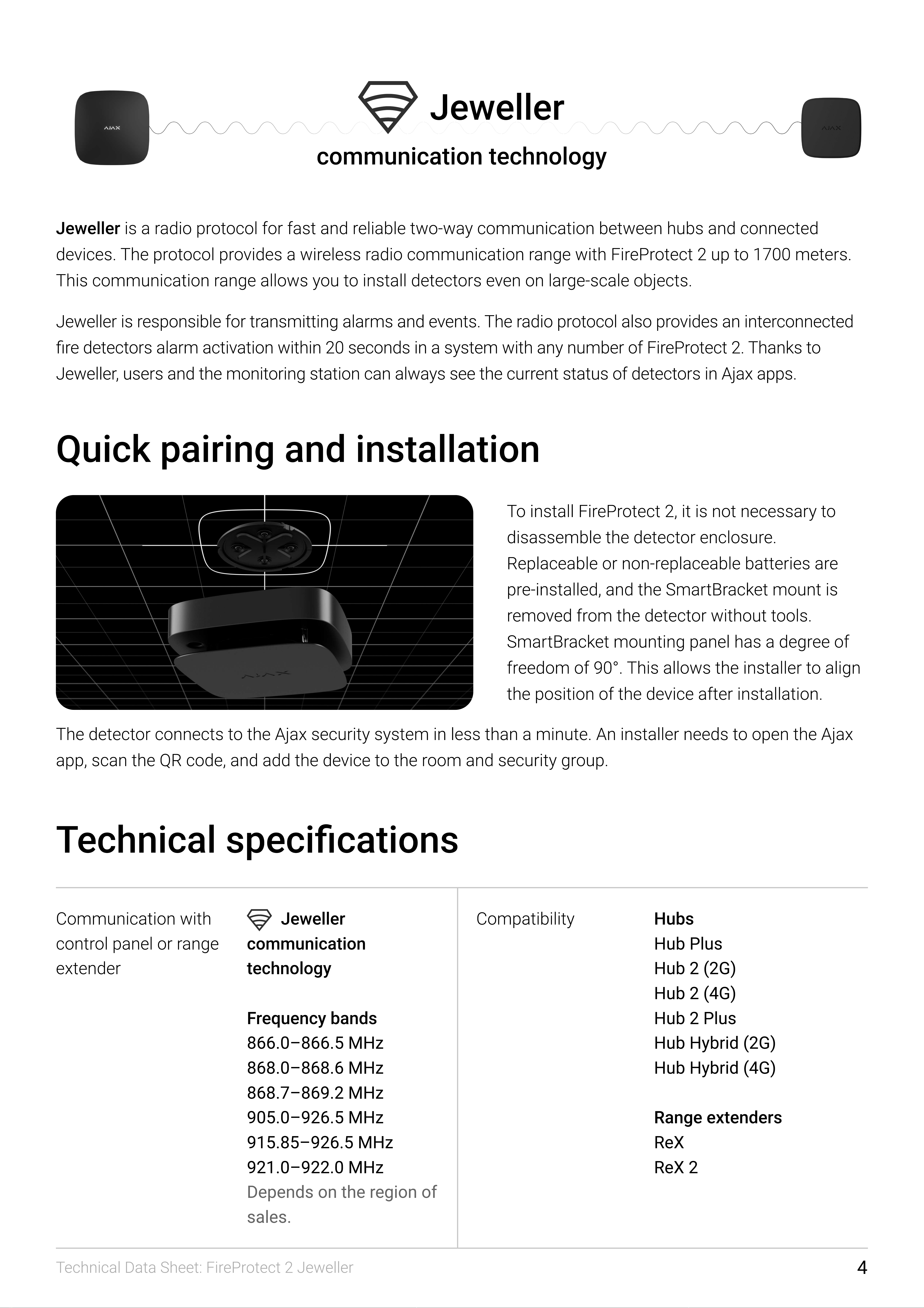

Technical Data Sheet: FireProtect 2 Jeweller
Jeweller
commun cat on technology
Jeweller is a radio protocol for fast and reliable two-way communication between hubs and connected
devices. The protocol provides a wireless radio communication range with FireProtect 2 up to 1700 meters.
This communication range allows you to install detectors even on large-scale objects.
Jeweller is responsible for transmitting alarms and events. The radio protocol also provides an interconnected
re detectors alarm activation within 20 seconds in a system with any number of FireProtect 2. Thanks to
Jeweller, users and the monitoring station can always see the current status of detectors in Ajax apps.
Qu ck pa r ng and nstallat on
To install FireProtect 2, it is not necessary to
disassemble the detector enclosure.
Replaceable or non-replaceable batteries are
pre-installed, and the SmartBracket mount is
removed from the detector without tools.
SmartBracket mounting panel has a degree of
freedom of 90°. This allows the installer to align
the position of the device after installation.
The detector connects to the Ajax security system in less than a minute. An installer needs to open the Ajax
app, scan the QR code, and add the device to the room and security group.
Techn cal spec cat ons
Communication with
control panel or range
extender
Jeweller
commun cat on
technology
F
re
q
uency
b
ands
866.0–866.5 MH
868.0–868.6 MH
868.7–869.2 MH
905.0–926.5 MH
915.85–926.5 MH
921.0–922.0 MH
Depends on the region of
sales.
Compatibility
H
u
b
s
Hub Plus
Hub 2 (2G)
Hub 2 (
4
G)
Hub 2 Plus
Hub Hybrid (2G)
Hub Hybrid (
4
G)
R
ange e
x
tenders
ReX
ReX 2

5
Technical Data Sheet: FireProtect 2 Jeweller
Communication with
control panel or range
extender
Maximum effective
radiated power (ERP)
Up to 20 mW
Communication range
up to 1,700 m
Without obstacles.
Detection of
dangerous
temperature
Sensitive element
thermistor
High temperature Alarm
at temperatures above
64°C
Rapid temperature rise
Alarm
when the temperature
rises more than 10°C in 1
minute or less
According to the
requirements for
temperature detectors of
A1 class of EN 54-5 and
BS 5446-2 standards.
Additional features In-built siren
volume 85 dB (at a
distance of 3 meters)
Interconnected re
detectors alarms
All re detectors in the
system turn on built-in
sirens if at least one of the
detectors registers an
alarm.
T
he interconnected alarm
is activated after no more
than 20 seconds.
Compliance with
special
re
standards
EN 502
9
1-1
:
201
Car
b
on monoxide
(
C
O)
detection
Sensitive element
chemical C
O
sensor
Alarm if accumulated dose
of C
O
is exceeded
more than 50 ppm
(0.005
%
)
—
no more than in
9
0 minutes
more than 100 ppm
(0.01
%
)
—
no more than in
40 minutes
more than 300 ppm
(0.03
%
)
—
no more than in
3 minutes
Sensor life
10 years
Anti
-
sa
b
otage
protection
T
ampering alarm
Protection against
spoong
device authentication
D
etection of
communication failure
within 15 minutes
T
he time to detect
communication loss
depends on the number of
undelivered data pac
k
ages
setting (specied in the
J
eweller or
J
eweller
/F
ibra
settings).
T
he polling
interval is
x
ed at 300
seconds.

6
Technical Data Sheet: FireProtect 2 Jeweller
Additional features LED indication
green is a power
indication
yellow is an indication of
malfunctions
red is an indication of re
alarms
Button on the front panel
of the detector
In normal mode, when
pressed, it starts the
smoke chamber test.
In the event of an alarm or
malfunction, the pressing
turns off the detector
sound notication.
Lights up once every 56
seconds.
Lights up when
malfunctions are
detected. For example, in
the case of discharged
batteries, contamination
of the smoke chamber, or
end of the service life.
Lights up when the
detector detects a re
alarm.
Power supply 2 × CR123A battery
Up to 7 years of battery
life.
Casing and
installation
Dimensions
TBC
Weight
TBC
Operating temperature
range
from 0°С to +50°С
Operating humidity
up to 80%
Protection class
IP20
Colours
Black
White
Complete set FireProtect 2 RB
(H
eat
/
C
O)
J
eweller
S
martBracket mounting
panel
Installation kit
2 × CR123A batteries
Q
uick
S
tart
G
uide
Pre
-
installed
