Akai PD-X2210IN User manual

PORTABLE CD PLAYER WITH ANTI-SHOCK (10 SEC.)
PD-X2210IN
Operator’s manual
Operator’s manual 1-9
10-18
19-29
(GB)
(NL)
(F)
Gebruikshandleiding
Mode d’emploi

1
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
IMPORTANT SAFETY INSTRUCTIONS
The lightning flash with arrowhead symbol within an equilateral triangle is intended
to alert the user to the presence of uninsulated dangerous voltage within the prod-
uct’s enclosure that may be of sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
1. READ INSTRUCTIONS - All the safety and operating instructions should be read before the
product is operated.
2. RETAIN INSTRUCTIONS - The safety and operating instructions should be retained for fu-
ture reference.
3. HEED WARNINGS - All warnings on the product and in the operating instructions should be
adhered to.
4. FOLLOW INSTRUCTIONS - All operating and use instructions should be followed.
5. CLEANING - Unplug this product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.
6. ATTACHMENTS - Do not use attachments not recommended by the product manufacturer as
they may cause hazards.
7. WATER AND MOISTURE - Do not use this product near water - for example, near a bath tub,
wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the
like.
8. ACCESSORIES - Do not place this product on an unstable cart, stand, tripod, bracket, or
table. The product may fall, causing serious injury to a child or adult, and serious damage to the
product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer,
or sold with the product. Any mounting of the product should follow the manufacturer’s instruc-
tions, and should use a mounting accessory recommended by the manufacturer.
A Product and Cart Combination Should Be Moved with Care - Quick stops, excessive force and
uneven surfaces may cause the product and cart combination to overturn.
9. VENTILATION - Slots and openings in the cabinet are provided for ventilation and to ensure
reliable operation of the product and to protect it from overheating, and these openings must not
be blocked or covered. The openings should never be blocked by placing the product on a bed,
sofa, rug or other similar surface. This product should not be placed in a built-in installation, such
as a bookcase or rack, unless proper ventilaton is provided or the manufacturer’s instructions
have been adhered to.
10. POWER SOURCES - This product should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power supply to your home,
consult your product dealer or local power company. For products intended to operate from
battery power, or other sources, refer to the operating instructions.
11. GROUNDING OR POLARIZATION - This product may be equipped with a polarized alter-
nating-current line plug (a plug having one blade wider than the other). This plug will fit into the
power outlet only one way. This is safety feature: If you are unable to insert the plug fully into the
outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace
your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

2
12. POWER-CORD PROTECTION - Power-supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or against them, paying particular atten-
tion to cords at plugs, convenience receptacles, and the point where exit from the product.
13. NONUSE PERIODS - The power cord of the product should be unplugged from the outlet
when left unused for long periods of time.
14. OVERLOADING - Do not overload wall outlets, extension cords, or integral convenience
receptacles as this can result in a risk of fire or electric shock.
15. OBJECT AND LIQUID ENTRY - Never push objects of any kind into this product through
openings as they may touch dangerous voltage points or short-out parts that could result in a
fire or electric shock. Never spill liquid of any kind on the product.
16. SERVICING - Do not attempt to service this product yourself as opening or removing covers
may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
17. DAMAGES REQUIRING SERVICE - Unplug this product from the wall outlet and refer
servicing to qualified service personnel under the following conditions.
a) When the power-supply cord or plug is damaged.
b) If liquid has been spilled, or objects have fallen into the product.
c) If the product has been exposed to rain or water.
d) If the product does not operate normally be following the operating instructions. Adjust
only those controls that are covered by the operating instructions as an improver adjust-
ment of other controls may result in damage and will often require extensive work by a
qualified technician to restore the product to its normal operation.
e) When the product exhibits a distinct change in performance - this indicates a need for
service.
18. REPLACEMENT PARTS - When replacement parts are required, be sure the service tech-
nician has used replacement parts specified by the manufacturer or have the same characteris-
tics as the original part, Unauthorized substitutions may result in fire, electric shock or other
hazards.
19. SAFETY CHECK - Upon completion of any service or repair to this product, ask the service
technician to perform safety checks to determine that the product is in proper operating condi-
tion.
20. HEAT - The product should be situated away from heat sources such as radiators, heat
registers, stoves or other products (including amplifiers) that produce heat.

3
CONTROL OPERATION AND FUNCTION
POWER SUPPLY
Your CD player requires 2 size “AA” alkaline
batteries (not include), or use the AC adaptor
AC ADAPTOR OPERATION (NOT INCLUDE)
Plug one end of the AC adaptor into the DC 4.5V jack, then plug the other end into
AC wall outlet.
PRECAUTIONS ON USING THE AC ADAPTOR
Don’t touch the AC adaptor with wet hands. Doing so is dangerous, as this could
result in an electric shock.
If the adaptor plug is insert into the DC Jack of the Player, the power supply auto-
matically switch to the AC/DC power and the batteries supply will be disconnected.
DC OPERATION
ALKALINE BATTERY INSTALLATION (NOT SUPPLIED)
Insert two AA batteries (not supplied) into the battery compartment on the bottom of
the unit. Be sure to observe the proper polarity.
NOTE ON ALKALINE BATTERIES
1. When replacing the alkaline batteries, use two new batteries of the same type. Do
not mix a used battery with a new one or mix different types of batteries.
2. When inserting the batteries, be sure to place the batteries as the sketch shown,
mistakenly inserting even one with improper polarity will cause leakage.
3. When not use the unit for an extended period of time, or not use the batteries for a
long time, remove them to prevent possible acid leakage or corrosion resulting in
damage to your player or personal injury such as skin burns.
4. Bear in mind that battery life expectancy is based upon playing mode. Maximum
battery power consumption happens at maximum settings. If sound gets distorted
or if the unit fails to switch tracks, your batteries are weak. Replace both batteries,
or use AC adaptor.
5. Never charge, heat, disassemble, or throw batteries into a fire.

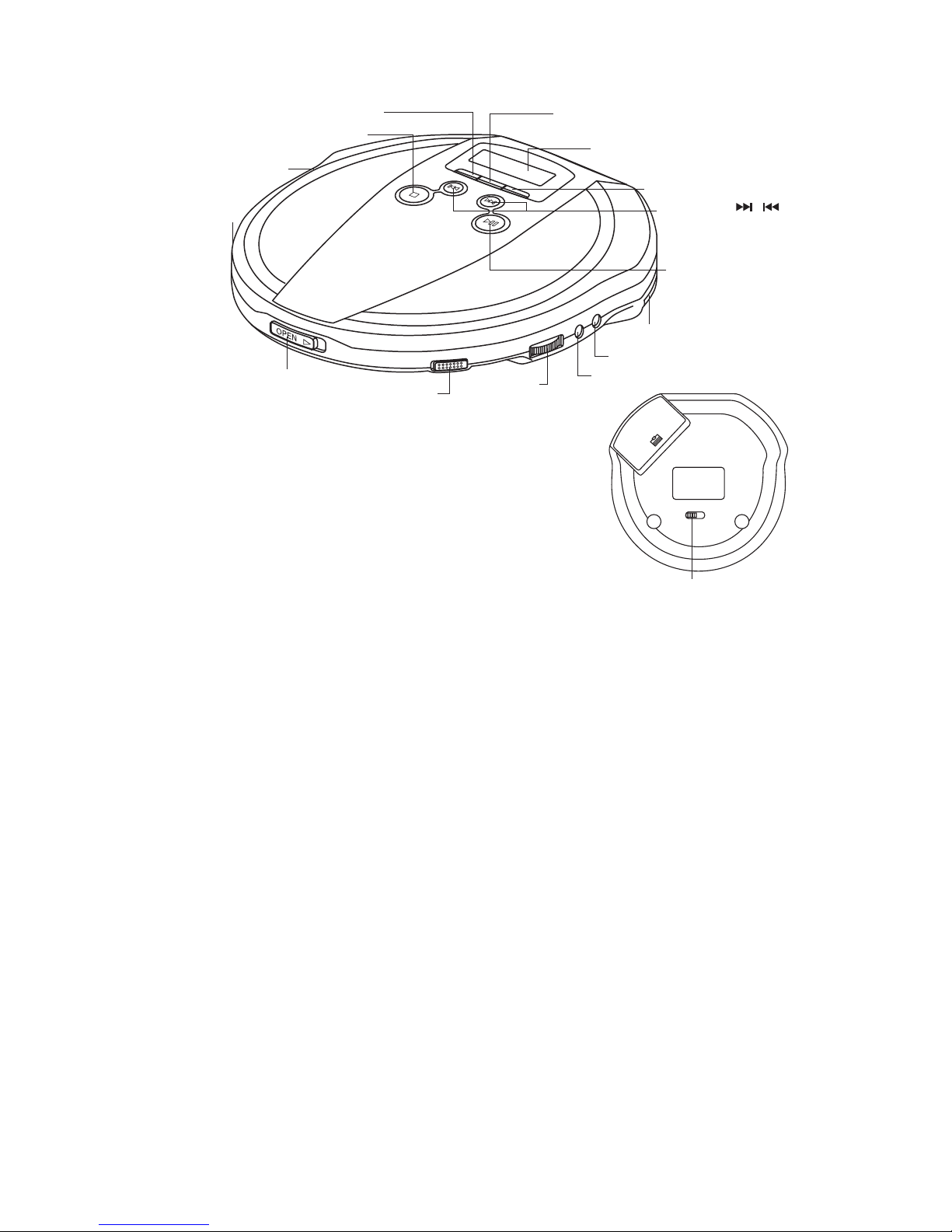

LOCATION OF CONTROLS
RECHARGE SWITCH
CD SKIP ( )
BUTTON
CD MODE BUTTON
DC IN 4.5V
ADAPTOR JACK
HOLD
SWITCH
PROGRAM BUTTON
PLAY/PAUSE
(power on)
LCD (Liquid Crystal Display)
ANTI-SKIP BUTTON
BATTERY DOOR
STOP BUTTON (power off)
LINE OUT JACK
PHONES JACK
VOLUME
CONTROL
BASS BOOST
SWITCH
DOOR OPEN

4
6. If the display shows the symbol “ ”, this means your batteries are weak, re-
place them or use the AC adaptor.
7. If the display is blank - no numbers show when power is turned on, the batteries
are dead.
Replace them or use the AC adaptor.
CHARGING AND USE OF RECHARGEABLE BATTERIES
This unit can fully recharge the specified rechargeable batteries, in approximately 15
hours. The rechargeable batteries (NOT supplied) should be recharged before they
are used for the first time or they have not been used for a long period of time be-
cause they are low in power (over 60 days).
1. Open the battery compartment cover and insert two of the recommended recharge-
able batteries, matching polarity. (1.2V 650mA).
ALL BATTERIES MUST BE OF RECHARGEABLE NICKEL-CADMIUM TYPE,
OTHERWISE THE BATTERIES MAY EXPLODE OR LEAK.
2. Plug in the AC ADAPTOR.
3. Slide the recharge switch to “ON” position.
USE ONLY THE AC ADAPTOR FOR CHARGING.
4. After 15 hours, please unplug the AC ADAPTOR and slide the recharge switch to
“OFF” position.
DO NOT CHARGE CONTINUOUSLY FOR 24 HOURS OR MORE. DOING SO
CAN CAUSE THE PERFORMANCE OF THE RECHARGEABLE BATTERIES TO
DETERIORATE.
NOTE: You may play DISC’S whilst charging the batteries.
If the operating time decreases drastically even when the rechargeable nickel-cad-
mium batteries are properly recharged, purchase a new set of rechargeable nickel-
cadmium batteries. When charging for the first time or after a long time, playing time
may be reduced. In this case, charge and discharge the batteries several times.
AUTO POWER ON FUNCTION
The power turns on automatically when the PLAY/PAUSE button is pressed.
AUTO POWER OFF FUNCTION
The power turns off immediately after the disc compartment is opened.
When all the tracks on a disc have been played, or the Stop button is pressed, the
power turns off automatically within 60 seconds if no button is pressed.
If you pressed the Stop button twice the power will turn off
THE HOLD FUNCTION
It is useful during playing, the function will lock the key on the panel to protect the
mistake in the Playing.
During playing slide the HOLD switch to “ON” position, the “HOLD” will appears in
the display, the key on the panel will be locked, the panel key is disable.
Slide the HOLD Switch to “OFF” position to stop the function.
LISTENING WITH HEADPHONE (EARPHONE)
Connect the plug of the stereo headphone (earphone) into the headphone jack
(marked phones) before use the unit.
CAUTION: Hearing experts advise against exposure to continuous extended play at
loud volume levels while using headphone (earphone), possible hearing loss may
result. If you experience a ringing in the ears, reduce volume or discontinue use. We
want you listening for a life time.

5
PLAYING A DISC
Be sure to reduce the volume before plugging in or unplugging the headphones/
earphones
1. Plug the cord from a pair of headphone/earphone into the PHONES jack.
2. Slide the Door Open button to open the CD door.
3. Hold the disc with the label side up and press it onto the spindle until it “clicks” into
place.
4. Close the disc compartment, press PLAY/PAUSE button, the disc will begin to spin,
the display will indicate “01”, play will begin immediately from track number 1.
5. Adjust the volume as desired.
6. Set the BASS BOOST function as desired.
7. To stop play temporarily, press the PLAY/PAUSE button.
• The elapsed playing time flashes in the display.
• Press the PLAY/PAUSE button again to resume.
8. To stop play, press the Stop Button, and the power turns off automatically after a
while.
Note: Both 8cm and 12cm discs can be played in the unit.
Place only one disc at a time in the CD compartment.
TRACK SEARCH
• Press the and button during play to skip to the desired track.
• Press the to skip to the next track on the disc.
• Press the to skip to the beginning of the track currently playing.
• Press the twice or more to skip to previous tracks.
FORWARD/REVERSE SEARCH
Press and hold the skip ( ) button during play to scan the disc at high speed.
When the desired section of the disc is found, release the button. Normal play will
resume.
----forward ----reverse
• If you press and hold the skip button ( ) while playing, it will scan the current
playing track forward at high speed.
• If you press and hold the skip button ( ) while playing, it will scan the current
playing track backwards at high speed.
BASS BOOST
Use the Bass Boost function to increase the bass output when listening with head-
phones. During bass boost on setting, sometimes, you may hear some distortion,
adjust the volume control to a lower level when using the bass boost feature.
PROGRAMMED PLAY
The tracks on the disc can be programmed for play in any order. (Up to 24 tracks can
be programmed.)
During programming, “PROG” in the display.
NOTE: Programming is possible in the STOP mode.
1. Press the PROGRAM button in the STOP MODE. The “PROG” appears in the
display.
2. Press the skip button ( ) to select the first track to be programmed.
3. Press the PROGRAM button again to enter the track into the memory.
4. Repeat steps 2 to 3 to program other track till you finish.
5. After programming is finished, press the PLAY/PAUSE Button.
Program number
Track number 123
359

6
Note: Programmed play will begins automatically if you program 24 tracks.
“PROG” shows steady in the display and programmed play begins.
6. The player stops automatically after all programmed tracks have been played.
To play the same program again, press the PLAY/PAUSE Button.
The programming will be cleared if
1. Open the door
2. Power off
3. After random play
4. To check the program, press the STOP Button and then the PROGRAM button.
SINGLE TRACK REPEAT
Press the CD Mode button once during play, and the “ 1” will appear in the
display.
The current track will be played over and over again until Stop button is pressed.
ALL TRACKS REPEAT/CONTINUOUS PLAY
Press the CD Mode button twice during play. And the “ ALL” will appear in the
display.
The all tracks on disc will be played over and over again until Stop button is pressed.
INTRO PLAY
Plays the first 10 seconds of all tracks once, then stops.
This is useful if you do not remember the song titles.
1. During playback press the STOP button.
2. Press the CD Mode button 3 times.
3. Press the PLAY/PAUSE button and wait for a while.
4. The “INTRO” will appear in the display.
5. To stop the intro play and start the normal play. Press the CD Mode button twice
more or press the stop button.
Note: If you press the button during playing, it will start the INTRO play after the song
finished.
RANDOM OR SHUFFLE PLAY
Plays all the tracks in random order.
1. Press the CD Mode button 4 times during playing.
2. The “RAND” will appear in the display.
3. The display will show the first track the CD player select.
4. Press the skip button to skip the next random song.
5. To stop the function, press the CD Mode button once more or press the Stop button.
THE ANTI-SKIP MEMORY FUNCTION (10 SEC.)
The digital anti-skip function uses semiconductor memory to prevent the sound from
skipping when the unit is subjected to shocks and vibration during play.

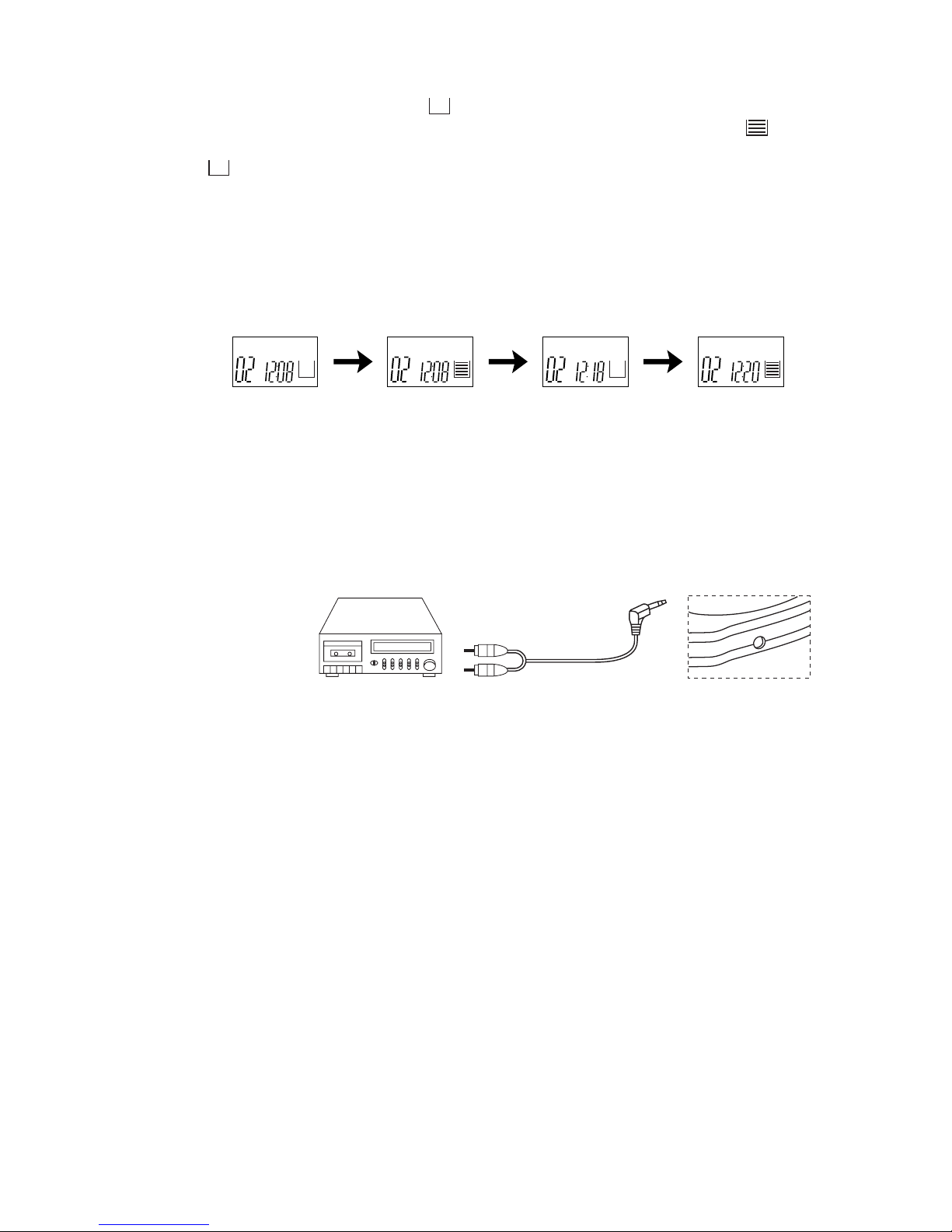

1. When the ESP button is pressed during play, the
ANTI-S
indicator appears in the
display and the digital anti-skip function turns on. The digital data equivalent to
approximately 3 seconds (10 seconds) of music is stored in a read-ahead memory
buffer before it is decoded and played. The display changes from the
ANTI-S
mark to
the
ANTI-S
mark, indicating that the data has been stored.
THE CD MODE BUTTON
This button can be pressed during play to accomplish many different kinds of play.
Once for single track repeat.
Twice for all tracks repeat.
3 times for INTR play.
4 times for RANDOM (SHUFFLE) play.
5 times for return to normal play.
CD Mode button pressed

7
2. When the unit is subjected to a shock during play, the data stored in memory con-
tinues to be decoded and continue reading new data. As the data is read from
memory, the indicator changes to
ANTI-S
. Once the pickup returns to its original posi-
tion, new data is stored in memory and the display changes back to the
ANTI-S
mark.
3. If the set is subjected to repeated shocks and all the data stored in memory is used
up, the
ANTI-S
mark is displayed and the sound will skip or stop for a brief period until
the memory base fills up again.
4. to turn off the anti-skip function, press the ESP button again.
NOTE: Keep the digital anti-skip function off when using the set in stable and no
vibration area, where it will not receive shocks. The battery power consumption is
less than when it is on.
NOTE: When the digital anti-S function is switched on or off, the sound will be inter-
rupted for 1 to 2 seconds, this is normal (the interrupted time is used for the memory
on or off).
CONNECTING TO HOME STEREO SYSTEMS
The line out jack is made to accept a stereo mini plug (3.5mm). By using a commer-
cially available audio line cable, simply connect the cable’s mini plug to line out jack
on your player, and the other appropriate end to CD/AUX input(s) of your home
stereo system.
NOTE: Always switch the power off before making any connections between the
player and any other set.
NOTE: The volume control or the player become inoperable when the line out jack is
used. Adjustments are made on your audio system.
PRECAUTIONS FOR UNIT
SECURITY
• Before operation, check if the voltage of the unit is in line with the local voltage.
• Hold the plug to disconnect it from the mains outlet. Do not pull the power cord.
• When the plug of the unit is connected to the mains outlet, the unit will be still
connected to AC even of the power is turned off.
• Disconnect the plug as soon as liquid or objects enter the unit. The unit cannot be
used until being checked by experts.
• Do not open the cabinet. Laser rays employed by the unit may damage eyes. Any
servicing should be done by qualified service personnel.
PLACEMENT
• Put the unit where ventilation is good enough to prevent overheating.
• Never put the unit in direct sunlight or near heat sources.
• Put the unit horizontally, never put any heavy object on the unit.
• To protect the pickup, do not put the unit where there is much dust. If there is dust
on the pickup, use a cleaning disc to clean it.
• Refer to the operation instructions of the cleaning disc you bought.
CONDENSATION
Moisture will appear on the pickup lens in the following cases:
• The unit is suddenly moved from a cold place to a warm place.
• The unit is put in a room with a heater, or in cold air from an air - conditioner.
LINE OUT
ANTI-S ANTI-S ANTI-S ANTI-S

8
• Use the unit in a humid place. In these cases, the unit cannot work. Unload the
disc and leave the unit on for about one hour evaporates the water.
CLEANING
• Use soft cloth with a little neutral detergent to wipe the cabinet, panel and controls.
Never use abrasive paper, polishing powder or solvent like alcohol and gasoline.
PRECAUTIONS FOR DISCS
HANDLING DISC
• To keep the disc clean, do not touch the play sides of the disc.
• Do not attach paper or ape to the disc.
• Keep the disc away from direct sunlight or heat sources.
• Store the disc in a disc case after playback.
CLEANING DISC
• Before playback, wipe the disc outwards from the center with clean cloth.
• Do not use any type of solvent such as thinner, benzine, commercially available
cleaners or anti-static spray.
TECHNICAL SPECIFICATIONS
Audio
D/A conversion 1-bit DAC four times oversampling
Frequency response 20-20,000Hz
Anti-shock 10 seconds memory
Wow and flutter Below measurable limits
No. of channels 2 channels (stereo)
Output level Line output: 0.6V rms (47KΩ)
Headphone: 20mW (32Ω)
Bass Boost effect (100Hz) + 6 dB
General
Power requirements -2 x LR6 / UM-3 / “AA” alkaline battery
- DC in 4,5V jack accepts AC power adaptor
(centre positive) (not include)
Power consumption 0.8W (DC 3V)
Dimension Approx. 138 (W) x 138 (D) x 28.5 (H) mm
Weight (without batteries) 230 g.
Design and specifications subject to change without notice

9
TROUBLE SHOOTING GUIDE
Replace both batteries.
Check the AC adaptor connection at AC
outlet and side of set.
Re-insert disc with label side facing up.
Try another audio compact disc.
Close lid securely (push down left corner of
door)
Take out the CD and leave the CD door
open for about an hour to dry the moisture
condensation.
Re-insert headphone plug into the
headphone jack (marked phones).
Plug headphone into the headphone jack
(not the line out jack).
Increase the volume.
Replace with fresh batteries or use the AC
adaptor.
Try another compact disc.
Clean or replace the compact disc or clean
the lens with a camera brush or blower.
Reduce movement of CD player.
Decrease the volume control level.
Batteries are getting weak, replace both
batteries or use the AC adaptor.
Lower volume control or slide bass boost
switch to off.
Replace both batteries with fresh alkaline
batteries, or use a AC Adaptor.
Remove batteries and AC adaptor.
Wait a few seconds and re-insert.
Make sure batteries are fresh or adaptor has
power.
The AC adaptor not
connected properly.
CD Player will not
turn on.
SOLUTION
Slide the HOLD switch to OFF position.
SYMPTOM CAUSE
Dead or weak batteries.
Disc inserted incorrectly
Defective or wrong type
compact disc.
CD door not closed.
Moisture has condensed
inside the CD deck.
Headphone plug not inserted
properly.
Headphone plugged into the
line out jack.
The volume control set to
minimum
Weak batteries.
Defective compact disc.
The compact disc or lens is
dirty.
Too much movement of the
CD player.
Music is too loud.
Weak batteries.
Bass boost is on and music
is too loud.
Batteries are too weak and
the battery symbol will show
in display
Electronic or static error
caused circuitry to lock.
The HOLD function is on.
Disc will not play.
No sound from
headphones
Sound is skipping
Sound in distorted
Tracks do not
change or set does
not play normally
Buttons do not work
