Akai PD-X4440R User manual
Page
CONTENTS PRODUCT SAFETY NOTICE
Specifications & Performance Specifications ............................................................................................ 1
Electrical Parts List ................................................................................................................................ 2
Wiring Diagram ...................................................................................................................................... 6
Printed Circuit Boards ............................................................................................................................. 7

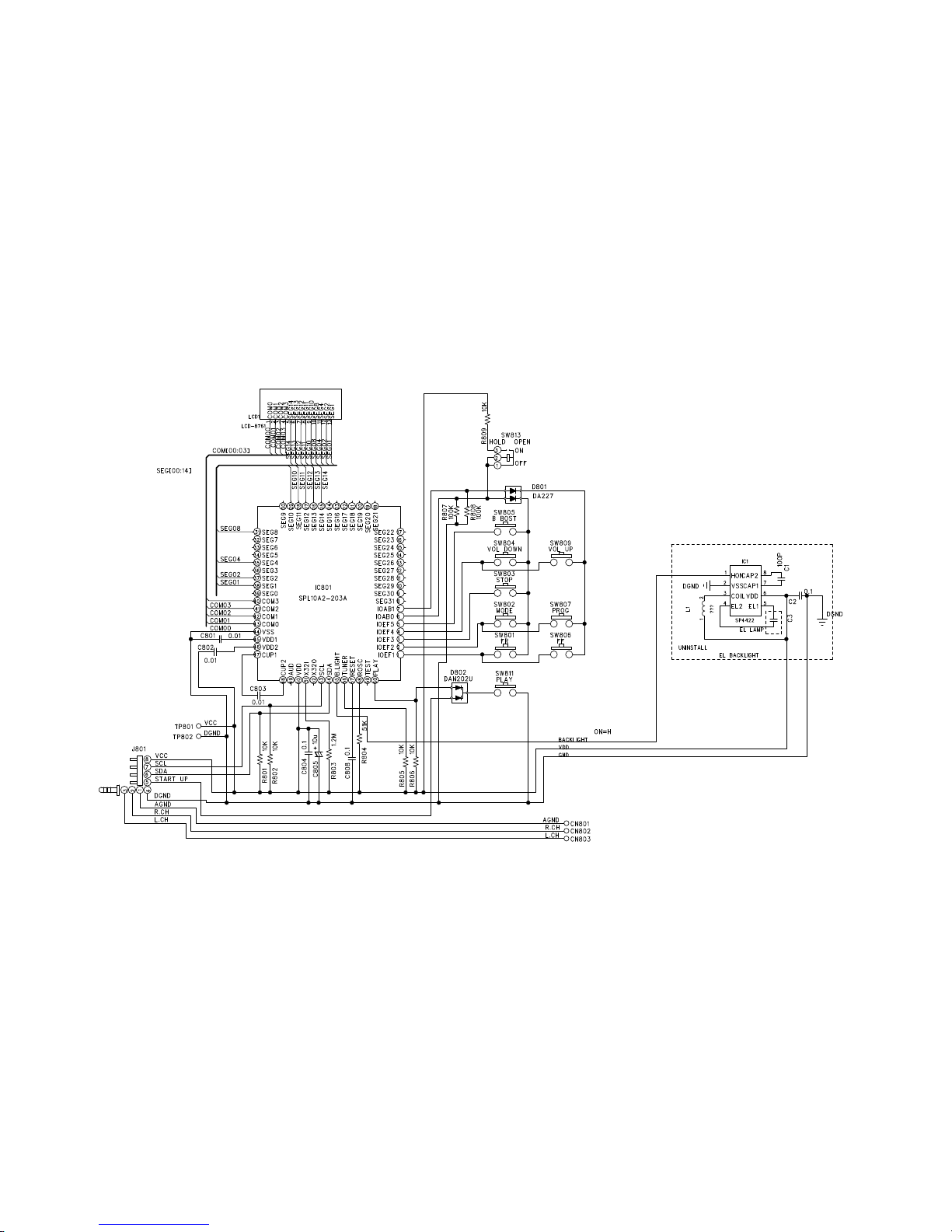

Schematic Diagrams ............................................................................................................................. 15
Voltage Chart ....................................................................................................................................... 19

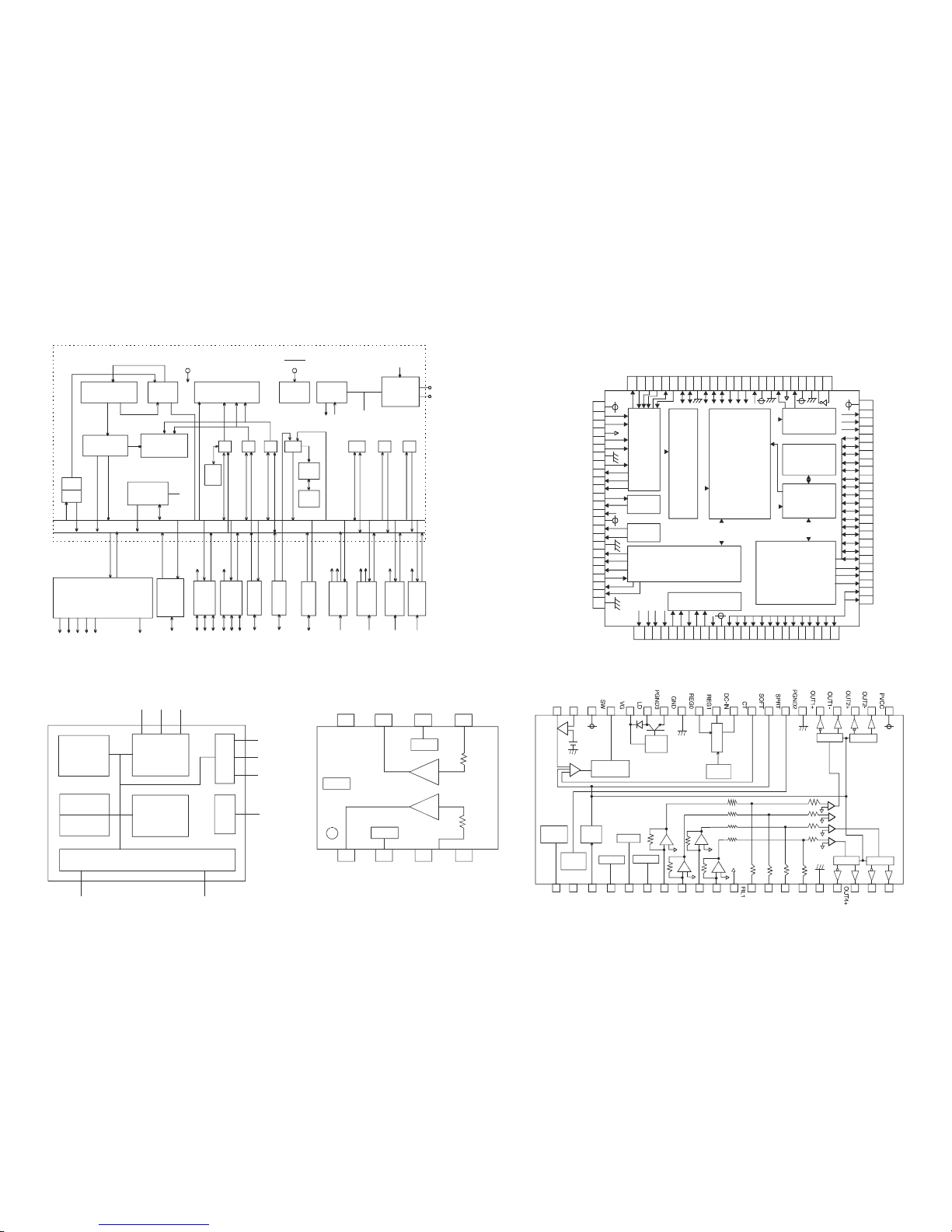

IC Lead Identification & Internal Diagrams ............................................................................................. 21

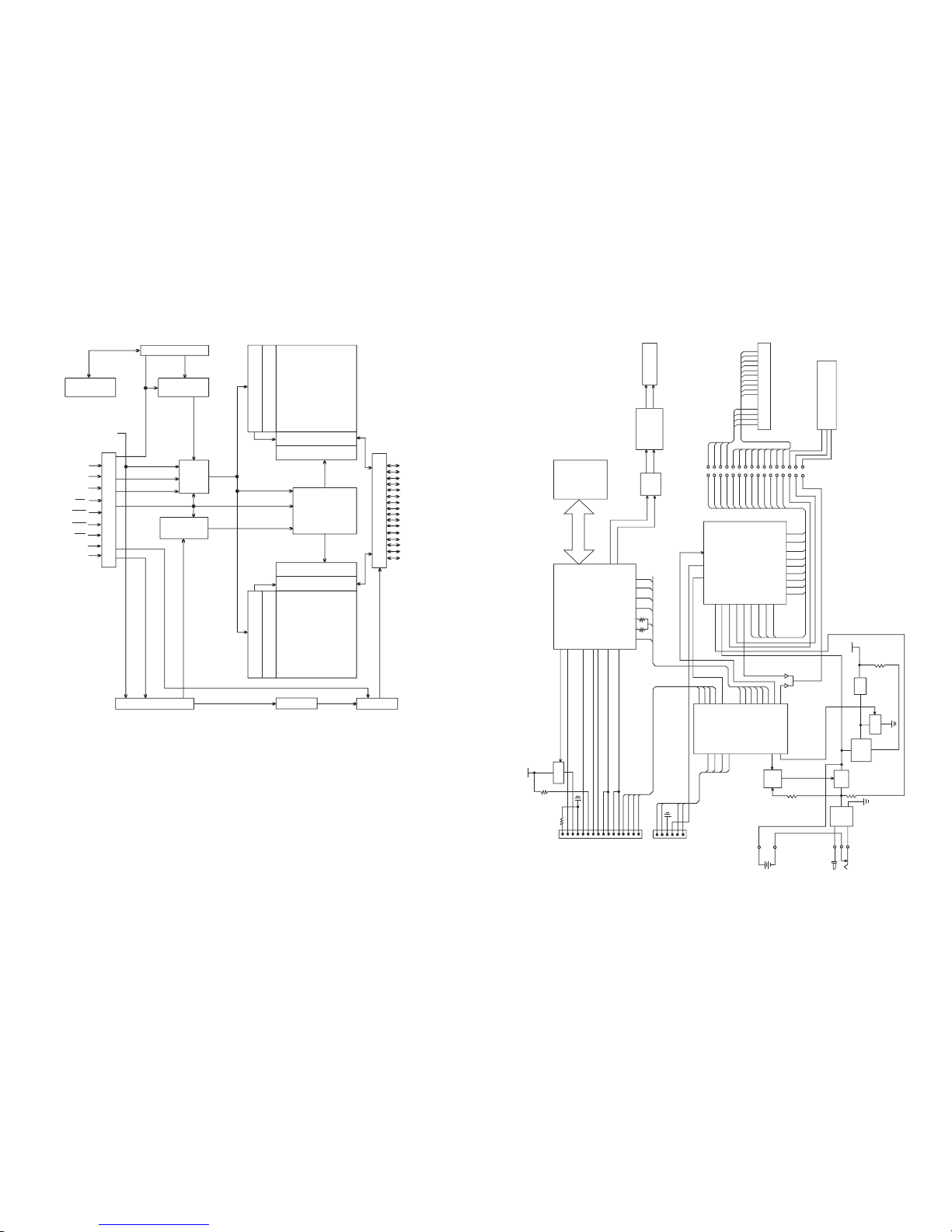

Block Diagram ...................................................................................................................................... 24
Exploded Drawing Parts List .................................................................................................................. 25
Exploded Drawing ................................................................................................................................. 27
Many electrical and mechanical parts in this chassis have special safety characteristics.
These safety characteristics often pass unnoticed and the protection afforded by them cannot
necessarily be obtained by using replacement components rated for higher voltage, wattage, etc.
Replacement parts that have these special safety characteristics are identified in this manual
and its supplements; electrical components having such features are identified by in the
schematic diagram and the parts list.
Before replacing any of these components, read the parts list in this manual carefully.
The use of substitute replacement parts that do not have the same safety characteristics as
specified in the parts list may create shock, fire or other hazards.
COMPACT DISC COMPACT PLAYER
PD-X4440R
1 2
SPECIFICATIONS
Power Supply
:
AC - DC Adaptor 100V: 6V DC 60Hz
Battery: 3V (AA x 2)
120V: 6V DC 60Hz
230V: 6V DC 50Hz
110/220V: 6V
Headphone Output Load
:
16 ohm or 32 ohm
Reference Output :5mW
Input Signal Source :CBS SONY YED7 (PTD-001) SONY
PHILIPS SBC 444A (TCD-725, TDC-731, TDC-712) A. Bex
Remarks :All data should be checked at main unit.
GENERAL TEST CONDITION
PERSFORMANCE SPECIFICATIONS
GENERAL
OUTPUT (at 1kHz 0dB level): Headphones / earphones (stereo mini-jack)
15mW + 15mW at 16ohms to 32ohms
POWER REQUIREMENTS: 3V (2 x AA / LR6 / MN 1500) alkalline batteries,
or DC IN 6V, 350mA power adaptor
Polarity of plug
DIMENSIONS: Approx. 153 x 30 x 128 mm (W/H/D)
WEIGHT: Approx. 200g (not include batteries)
OPERATING VOLTAGE:
U.S.A.
Middle East and Australia:
UK and Germany
120V AC±5% 60Hz
240V AC±5% 50Hz
230V AC±5% 50Hz
Chile:
Singapore, Malaysia & Thailand
Japan
230V AC±5% 50Hz
200-240V AC±5% 50 Hz
100V AC±5% 50/60Hz
We continually strive to improve our products, specificatons may change without notice.
Earphone Output:
UNIT
NOMINAL
LIMIT
1
10% THD Output Power (1kHz, 0dB) (16 or 32ohm)
mW
-
12
*2
Signal to Noise Ratio (1kHz)
dB
76
70
*3
Channel Separation (1kHz, 0dB)
dB
55
45
*4
Total Harmonic Distortion 1kHz
%
0.3
1
5
Frequency Response (1kHz, 0dB)
100Hz
dB
±1
±3
10kHz
dB
±1
±3
20kHz
dB
±3
±6
*with external A filter
Playability Testing
UNIT
LIMIT
1
Interruption
(PHILIPS SBC-444A)
mm
0.6
2
Black Dot
(PHILIPS SBC-444A)
mm
0.6
3
Finger Print
(ESP OFF) (PHILIPS SBC-444A)
-
TN0, 18, 19
4
Vertical
(A.Bex TDC-731R)
mm
0.5
5
Eccentricity
(A. Bex TDC-712R)
µm
140
TEST ITEMS
TEST ITEMS
ELECTRICAL PARTS LIST
Ref. No. Mfr's Part No. Qty.
PCB
REMOTE PCB PCB WRC7-01-01 164x80x0.8mm/6 (FR4) 033-00WRC7-100 1
CONTROL PCB PCB CDM29R-01-02 190x81.5x0.8mm/3 (94HB) 033-CDM29R-101 1
SINGLE SIDED
MAIN PCB PCB CDM29W-01-01 203x132x0.8mm/2 (FR4) 033-CDM29W-100 1
REMOTE CONTROL SECTION - (OPTIONAL)
RESISTORS
R801,802,805,806 CHIP RESISTOR 10 Kohm +-5% 1/16W (T&W) 001-310356-016 4
(0402/1005)
R807,808 CHIP RESISTOR 100 Kohm +-5% 1/16W (0402/1005) 001-310456-016 2
R803 CHIP RESISTOR 1.2 Mohm +-5% 1/16W (0402/1005) 001-312556-016 1
R804 CHIP RESISTOR 51 Kohm +-5% 1/16W (0402/1005) 001-351356-016 1
CAPACITORS
C801,802,803 CHIP CAP 0.01 uF/16V +-10% (0402/1005) 003-510314-016 3
(GRM36X7R103K16PT)
C804,808 CHIP CAP 0.1 uF/16V +80-20% (0402/1005) 003-510484-016 2
C805 CHIP TANTALUM CAP 10 MFD/4V +-20% 006-A10000-04D 1
(A CASE:3216)
INTEGRATED CIRCUIT
IC801 ICDISPLAYDRIVER-LCD SPL10A2-203A-C (SUNPLUS) 010-530102-000 1
DIODES
D802 CHIP DIODE DAN202U 011-040202-003 1
D801 CHIP DIODE DA227 (ROHM) 011-040227-000 1
SWITCHES
SW802,804,807,809 LUMI SWITCH LS7A2M-T (87-A90-665-18) 021-007200-000 4
SW801,803,806,808,811 CHIP TACT SW SKQLLA/F1841501M/SKQLLAE010 021-SKQLLA-000 5
SKQLLAE011/SKQLLAE012 (87-036-342-08J)
MISCELLANEOUS ZEBRA CONNECTOR 23.6x1.5x1.9mm 100-052301-190 1
LCD-P-02D-2315SM000P JT4-02263 112-002263-000 1
23.5x15.4x1.7mm TRANSIMISSIVE/POSITIVE
HEADPHONE JACK HSJ1715-01-110 (BLACK) 116-001715-001 1
TC38-072-01/EJS-3-0935B/EJ-3513 (BK)
REM.CONTROL LINE CORD L=760mm MOULDING 122-008020-070 1
SM3544+SR 8C CABLE GREY SLDG=1mm
H-P SET HP3215-009LT GREY, w/3.5mm STEREO (For w/charge) 114-013215-000 1
SIL.GREY WIRE, MOLD:63223,SPY SIL,PNT BLK
(F114-010810-000) HEADPHONE SET (For w/o charge) 114-010103-000 1
#AR-103/AR103-LT IN EAR
APD-EI35GS&&350MA/SO 230V:6VDC CE STD PLUG: 133-020635-017 1
3.5x8 (35V-D0635/AKAI PD-X4440)
MAIN UNIT
RESISTORS [All are +-5% 1/16W (1/8W) tape & wheel resistors unless otherwise specified]
R622,623 CHIP RESISTOR 8.2 ohm +-5% 1/10W (For w/charge) 001-382850-010 2
R511 CHIP RESISTOR 4.7 Kohm +-5% 1/16W (0603/1608) 001-347252-016 1
R401,402 CHIP RESISTOR 10 Kohm +-5% 1/16W (T&W) 001-310356-016 2
(0402/1005)
R101 *CdF RESISTOR 100 ohm 001-010151-016 1
R104,532 *CdF RESISTOR 1 Kohm 001-010251-016 2
R501,507,509 *CdF RESISTOR 10 Kohm 001-010351-016 3
R103,502,505,531,610 *CdF RESISTOR 100 Kohm 001-010451-016 5
R121 RESISTOR 18 Kohm 001-018351-016 1
R611 *CdF RESISTOR 22 Kohm 001-022351-016 1
R102,105 *CdF RESISTOR 4.7 ohm 001-047851-016 2
Description
+
_
3 4
ELECTRICAL PARTS LIST - CONTINUED ELECTRICAL PARTS LIST - CONTINUED
Ref. No. Mfr's Part No. Qty.
J000 CHIP RESISTOR 0 ohm +-5% 1/8W (1206/3216) 001-300051-018 1
R604 CHIP RESISTOR 10 ohm +-5% 1/16W (0402/1005) 001-310056-016 1
R100,608 CHIP RESISTOR 100 ohm +-5% 1/16W (T&W) 001-310156-016 2
(0402/1005)
R314,315,603,620 CHIP RESISTOR 1 Kohm +-5% 1/16W (0402/1005) 001-310256-016 4
R517 CHIP RESISTOR 10 Kohm +-5% 1/16W (0603/1608) 001-310352-016 1
R312,506,508,513,555, CHIP RESISTOR 10 Kohm +-5% 1/16W (T&W) 001-310356-016 8
557,558,609 (0402/1005)
R112 CHIP RESISTOR 100 Kohm +-5% 1/16W (0402/1005) 001-310456-016 1
R120 CHIP RESISTOR 1 Mohm +-5% 1/16W (T&W) 001-310556-016 1
(0402/1005)
R605,615 CHIP RESISTOR 12 Kohm +-5% 1/16W (0402/1005) 001-312356-016 2
R140,141 CHIP RESISTOR 1.2 Mohm +-5% 1/16W (0402/1005) 001-312556-016 2
R303 CHIP RESISTOR 180 Kohm +-5% 1/16W (0402/1005) 001-318456-016 1
R106,107,108,109,512 CHIP RESISTOR 20 Kohm +-5% 1/16W 001-320356-016 5
R304,305,306,307 CHIP RESISTOR 2.2 Kohm +-5% 1/16W (0402/1005) 001-322256-016 4
R518 CHIP RESISTOR 22 Kohm +-5% 1/16W (0402/1005) 001-322352-016 1
R110,111,123,313,553, CHIP RESISTOR 22 Kohm +-5% 1/16W (0402/1005) 001-322356-016 6
554
R302 CHIP RESISTOR 2.2 ohm +-5% 1/16W (0402/1005) 001-322856-016 1
R606,617 CHIP RESISTOR 27 Kohm +-5% 1/16W (0402/1005) 001-327356-016 2
R118 CHIP RESISTOR 33 Kohm +-5% 1/16W (0402/1005) 001-333356-016 1
R310,311 CHIP RESISTOR 39 Kohm +-5% 1/16W (0402/1005) 001-339356-016 2
R114 CHIP RESISTOR 470 ohm +-5% 1/16W (0402/1005) 001-347156-016 1
R119 CHIP RESISTOR 4.7 Kohm +-5% 1/16W (0402/1005) 001-347256-016 1
R115,301,616 CHIP RESISTOR 47 Kohm +-5% 1/16W (0402/1005) 001-347356-016 3
R117 CHIP RESISTOR 470 Kohm +-5% 1/16W (0402/1005) 001-347456-016 1
R127 CHIP RESISTOR 4.7 ohm +-5% 1/16W (0402/1005) 001-347856-016 1
R510 CHIP RESISTOR 6.8 Kohm +-5% 1/10W (0805/2012) 001-368250-010 1
(MCR10EZHJ-682)
R515 CHIP RESISTOR 6.8 Kohm +-5% 1/16W (0603/1608) 001-368252-016 1
R122,302 CHIP RESISTOR 75 Kohm +-5% 1/16W (0402/1005) 001-375356-016 2
R607 CHIP RESISTOR 8.2 Kohm +-5% 1/16W (0402/1005) 001-382256-016 1
R116,504 CHIP RESISTOR 91 Kohm +-5% 1/16W (0402/1005) 001-391356-016 2
CAPACITORS
C119,135,501,503,504, CERAMIC CAP 0.1 uF/50V +80-20% 003-210481-050 7
505,616 (UP050F104Z-BB) (AXIAL TAPED 52mm)
C608 CHIP CAP 0.001 uF/50V +-10% (0402/1005) 003-510214-050 1
(GRM36X7R102K50PT)
C103 CHIP CAP 0.01 uF/16V +-10% (0402/1005) 003-510314-016 1
(GRM36X7R103K16PT)
C105,107,110,111,115, CHIP CAP 0.1 uF/16V +80-20% (0402/1005) 003-510484-016 26
117,126,128,129,134,315,
506,508,510,604,606,612,
615,617,622,623,624,
CE01,02,03,04
C124,133,303,614 CHIP CAP 1 uF/10V +80-20% (0603/1608) 003-510582-010 4
C121 CHIP CAP 0.0022 uF/50V +-10% (0402/1005) 003-522214-050 1
(GRM36X7R222K50PT)
C607,618,619,620,621 CHIP CAP 0.022 uF/16V +-10% (0402/1005) 003-522314-016 5
C114 CHIP CAP 0.22 uF/10V +80-20% (0402/1005) 003-522484-010 1
C109,611 CHIP CAP 470 pF/50V +-10% (0402/1005) 003-547114-050 2
C304,305,306,307 CHIP CAP 560 pF/50V +-10% (0402/1005) 003-556114-050 4
C125 CHIP CAP 0.0068 uF/25V +-10% (0402/1005) 003-568214-025 1
Description Ref. No. Mfr's Part No. Qty.
C112 CHIP CAP 120 pF/50V +-5% NPO (0402/1005) 003-612154-050 1
C100,131,132 CHIP CAP 15 pF/50V +-5% NPO (0402/1005) 003-615054-050 3
(GRM36C0G150J50PT)
C122,123 CHIP CAP 150 pF/50V +-5% NPO (0402/1005) 003-615154-050 2
C603 CHIP CAP 47 pF/50V +-5% NPO (0402/1005) 003-647054-050 1
C605,610 ELECT CAP 220 MFD/10V +-20% (SMALL SIZE) (6.3x7) 006-122100-10D 2
C113,403 ELECT CAP 3.3 MFD/25V +-20% (SMALL SIZE) 006-203000-25C 2
(MAD/4x5)
C308,309 ELECT CAP 4.7 MFD/16V +-20% (SMALL SIZE) (4x5) 006-204000-16D 2
C609,613 *CdF ELECT CAP 10 MFD/16V +-20% 006-210000-16C 2
(SMALL SIZE) (MAD/4x5)
C101,102,108,120,127, *CdF ELECT CAP 100 MFD/4V +-20% 006-210100-04C 6
402 (SMALL SIZE) (MAD/5x5)
C118 *CdF ELECT CAP 22 MFD/16V +-20% 006-222000-16C 1
(SMALL SIZE) (UMJ1C220/5x5)
C104,301,312,313,601, ELECT CAP 220 MFD/4V +-20% (SMALL SIZE) 006-222100-04D 6
602 (MAD/6.3x5)
C302,502 *CdF ELECT CAP 47 MFD/4V +-20% (SMALL SIZE) 006-247000-04C 2
(MAD/4x5)
TRANSISTORS
Q101 (F008-100933-000) TR PNPSST-RAD&SC-072 008-109330-000 1
2SA933S(R/S) 2SA933ASS/2SA933ASTPR/S
Q601 TRLPNPPWR-RAD&SC-072 2SB1237 (ROHM) 008-201237-000 1
Q602,603 TR NPNGEN-RAD&SC-072 2SC4115SR/Q/S/ 008-304115-000 2
STPR/STPQ/STPS
Q604,605 TR NPNSST-SMT&SC-072 2SC1740S-Q/R 008-317400-001 2
(ROHM) (TAPING)
Q102 TR PNPGEN-TAP&SC-70& DTA124EUA (ROHM) 008-A00124-800 1
(SMD) (CHIP)
Q607 TR PNPGEN-RAD&SC-070 2SA1586GR (TOSHIBA) 008-A15860-001 1
(CHIP) (89-115-865-08C)
INTEGRATED CIRCUITS
IC501 ICMCU-16K-LCD BU24590-8W 4BIT 1CHIP CPU 010-352459-004 1
IC101 ICCDP-005CDSP BU9534KV CD SERVO WITH 010-359534-000 1
BUILT IN DRAM CONTROLLER
IC301 ICAMP-HEAD-ST-0.001W BH4453F 010-404453-000 1
IC601 ICMOTORDRIVER-04CH BH6575FV 010-406575-000 1
IC401 (F010-310416-002) ICRAMS-01X016M 045-Q01016-200 1
HY57V161610DTC-8/-6 (SC076)
DIODES
D603 ZENER DIODE 6.2V #MTZJ6.2C 011-010062-005 1
D601 RECTIFIER IN-4001B/IN-4001 (DC) 011-024001-000 1
D501 CHIP DIODE DAN202U 011-040202-003 1
INDUCTORS
L601 IFT R0002-CY68-950M-825549 10mm 012-825549-010 1
L302,303,304,305,306, CHIP FERRITE BEAD GZ1608Y102T (0603/1608) 032-101608-015 7
307,308 (SUNLORD)
RESONATOR
X101 CERAMIC RESONATOR 16.93 MHz ZTA16.93MX 020-001693-005 1
(ZHEJIANG JIAKANG)
SWITCHES
SW512 TACT SW (DETECTRO SWITCH) 1P1T DTS-03-B/1120-1 021-001111-001 1
SW508,509 CHIP TACT SW SKQLLA/F1841501M/SKQLLAE010 021-SKQLLA-000 2
SKQLLAE011/SKQLLAE012 (87-036-342-08J)
Description
Ref. No. Mfr's Part No. Qty.
INDUCTORS
L101 INDUCTOR 10 uH CEC-100K/ZHFAI03-100KT 018-010016-000 1
+-10% (CdF)
L603 CHOKE COIL 330 uH +-10% CW45-331K 018-030335-202 1
MISCELLANEOUS
L301 TOROIDAL COIL BA1203030835 100MHz 037-120835-100 1
UNIT"PC" FLEXIBLE PWB 17PINS L=163.2mm (81.6+81.6) 044-170163-005 0.5
P:0.5&1.0mm MATERIAL:POLYESTER S-0187B
LCD-P-02D-2616SM000P JT4-02006 VOP:3V 112-002006-001 1
26x16x2.8 REF./P SDT-DA065-RP-1/DA408-RP-0
J301 HEADPHONE JACK 3.5mm 8 PINS EJS-4-3735 116-083735-000 1
J601 DC JACK #TC18-077-01 (TAI CHUNG)/DC-003 120-118077-001 1
(LINKTECH) (87-A60-122-019)
CN601 HEADER JST 6 PINS W150V-06T PITCH 1.5mm 135-B06BZR-061 1
VERTICAL TYPE
FFC/FPC CONNECTOR 16 PINS PITCH:1mm 135-D100DR-160 1
#D100-DRA-16 DOUBLE CONTACT (CdF)
CN501 FFC SOCKET 17 PINS PITCH:1mm 135-FPCSMT-170 1
#FPC1.0C-SMT-17PW
CD&-PTB-01-SAMG-N CD MECHANISM 153-000996-000 1
CMS-M99DG6 SAMSUNG
Description
5 6
ELECTRICAL PARTS LIST - CONTINUED WIRING DIAGRAM
MAINPCB(TOPVIEW)
CDM29W-01-01
8
7
PRINTEDCIRCUITBOARDS
MAINPCB(BOTTOMVIEW)
CDM29W-01-01
10
9
CONTROLPCB
CDM29R-01-02
1211
REMOTEPCB(TOPVEIW)
WRC7-01-01
1413
REMOTEPCB(BOTTOMVIEW)
WRC7-01-01
R111 33K
X101
16.9344MHz
R617
27K
R615
12K
R119
4.7K
R117
470K
R115
47K
R116
91K
R118
33K
C118
22/50V
C610
220/10V
L603 330uH
C623
0.1(C)
C606
0.1(C)
C605
220/10V
R610
100K
R611
22K
R106 18K
R108 18K
C104
220/10V
C132 15P(A)
R122 75K
R112
100K
R107 18K
R616 47K
R607
8.2k
C607
0.022(C)
C612 0.1(C)
C608
1000P(C)
R608
100
13
2
L601
D.D TRANS
Q602
2SC4115
Q603
2SC4115
C604
0.1(C)
R604
10
C603
47P(A)
R603
1K
C602
220/4V
C601
220/4V
L602
10uH
R606
27K
R605
12k
C614
1/50V
C611
470P(C)
C508 0.1(C)
R505 100K
C505 0.1(C)
C621
0.022(C)
C302
47/16V
R303
180K
C303
1/50V C308
4.7/50V
C309
4.7/50V
R401
10K
R402
10K
C403
3.3/50V
R306
2.2K
R307
2.2K
C306
560P(C) C307
560P(C)
Q401
DTC114TSA
Q101
2SA933
R110 33K
R104
1K
R105
4.7
C312
220/4V
C313
220/4V
C503
0.1/50V
C502 47/16V
C501
0.1(C)
L501
10uH
J601
DC JACK
TP604
BATT-
TP603
BATT+
C504 0.1(C)
R504
91K
C108
100/10V
C122 150P(C)
R508 10K
C301
220/10V
C103
0.01(C)
C112 120P(C)
C125
6800P(C)
C105
0.1(C)
C124
1/50V
R102
4.7
COM0
COM1
COM2
COM3
R509 10K
SEG01
SEG02
SEG08
SEG10
SEG04
SEG11
SEG12
SEG13
SEG14
TP109
SP
TP108
SD
TP107
FD
TP601
SVCC
TP102
RF
TP602
GND
C131 15P(A)
C101
100/10V R103
100K
C113
3.3/50V
Max 8.5V
C117
0.1(C)
TP105
TDOUT
TP106
JUMPO
TP402
C2FX
TP401
YFLAG
R302 75K
R301 47K
R114
471
R304
2.2K
R305
2.2K
C304
560p(C) C305
560p(C)
88
26
LON
27
CLK
28
SUBSYQ
29
MCK
30
DIN
31
DOUT
32
R/W
33
RESETX
34 BUSY
35 DVDD1
36 RCLK
37 RCKE
38 A13
39 A12
40 A11
41 A10
42 A09
43 A08
44 A07
45 A06
46
A05
47
A04
48
A03
49
A02
50
AVDD1
1
AC
2
BD
3
VBIAS
4
E
5
F
6
AGND1
7
FEN
8
FEO
9
PKC
10
BTC
11
PD
12
LD
13
ASY
14
AVDD2
15
PCO
16
FCO
17
AGND2
18
FDOUT
19
JUMPO
20
TDOUT
21
SDIN
22
SDOUT
23
CLVOUT
24
DGND1
25 A01 51
A00 52
RASX 53
CASX 54
WEX 55
DQ07 56
DQ06 57
DQ05 58
DQ04 59
DQ03 60
DQ02 61
DQ01 62
DQ00 63
DQ15 64
DQ14 65
DQ13 66
DQ12 67
DQ11 68
DQ10 69
DQ09 70
DQ08 71
DOUTA 72
LRCK 73
DCK 74
DVDD2 75
XI 76
XO 77
DGND2 78
AVDD3 79
LDACO 80
VCDAC 81
RDACO 82
AGND3 83
DVDD3 84
XBUFO 85
DFDCK 86
DFLRCK 87
DFDIN 88
MONI0 89
MONI1 90
XPLCK 91
DGND3 92
RFRPRFM 93
TZCRFM 94
SC 95
TEO 96
TEN 97
CACG 98
RFI 99
EQO 100
CLK
IC101
BU9534KV
C109
470P(C)
C110
0.1(C)
C111
0.1(C)
C114
0.22/50V
C115
0.1(C)
C133
1uF
C134
0.1(C)
C127
100uF
C128 0.1(C)
C129
0.1(C)
R121 18K
DQ00
DQ01
DQ02
DQ03
A00
A01
A02
A03
A04
A05
A06
A07
A08
A09
A10
C402
100/10V
C401
0.1(C)
WE-
CAS-
RAS-
C120
100/10V
C119
0.1(C)
SLED+ 1
SLED- 2
LID SW 3
LID SW 4
SPIND+ 5
SPIND- 6
CN102
R109 18K
C107
0.1(C)
C102
100/10V
OUT1 1
MUTE 2
IN1 3
GND 4
IN2
5BIAS
6OUT2
7VCC
8
IC301
BH4453F
TP104
TE
TP103
FE
C126 0.1u
TP118 RESETX
R120 1M
C135
0.1(C)
C506 0.1(C)
R507 10K
R506 10K
RF-SVCC
SVCC
SVCC
SVCC
SVCC
RF-SVCC
TP101
VC
C121 2200P(C)
C123 150P(C)
TP111
TZCRFM
TP110
RFRPRFM
TAP101
TP112 BUSY
TAP507
TP120 DCK
TP121 LRCK
TP122 DOUTA
A11
A12
A13
CKE
RCLK
SVCC
A00
A01
A02
A03 A04
A05
A06
A07
A08
A09
A10
DQ00
DQ01
DQ02
DQ03
DQ04
DQ05
DQ06
DQ07 DQ08
DQ09
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
RAS-
CAS-
WE- RCLK
CKE
A11
DQ04
DQ05
DQ06
DQ07
DQ15
DQ14
DQ13
DQ12
DQ11
DQ10
DQ09
DQ08
XBUFO
DFDCK
DFLRCK
DFDIN
MONI1
MONI0
MONI1
MONI0
R502
100K
SVCC
VC
VC
VC
VC
C106
OPEN
TAP512
TAP517
FOR CMS-M99B
WP 1
OFF 2
CLK88 3
MUTE34 4
MUTE1 5
RESET 6
CLV 7
SLED 8
TRK 9
FOCUS 10
VREF 11
FIL1 12
FIL2 13
FIL3 14
FIL4 15
DPG1 16
FO(-) 17
FO(+) 18
TRK(-) 19
TRK(+) 20
PVCC
21
SLED(-)
22
SLED(+)
23
SPIND(-)
24
SPIND(+)
25
DPG2
26
SPRT
27
SOFT
28
CT
29
DC IN
30
REGB
31
REGO
32
PRGND
33
PGND
34
LG
35
VG
36
SW
37
VSYS
38
EI
39
EO
40
IC601 BH6575FV
C609 10/47V
D603
UDZ6.2B
C615 0.1(C)
C616
0.1(C)
C619
0.022(C)
C620
0.022(C)
C618
0.022(C)
TP503
TP502
VCC
1
DQ0
2
DQ1
3
VSSQ
4
DQ2
5
DQ3
6
VCCQ
7
DQ4
8
DQ5
9
VSSQ
10
DQ6
11
DQ7
12
VCCQ
13
LDQM
14
WE
15
CAS
16
RAS
17
CS
18
A11
19
A10
20
A0
21
A1
22
A2
23
A3
24
VCC
25 VSS 26
A4 27
A5 28
A6 29
A7 30
A8 31
A9 32
N.C. 33
CKE 34
CLK 35
UDQM 36
N.C. 37
VCCQ 38
DQ8 39
DQ9 40
VSSQ 41
DQ10 42
DQ11 43
VCCQ 44
DQ12 45
DQ13 46
VSSQ 47
DQ14 48
DQ15 49
VSS 50
IC401
16M SDRAM
R609
180
R501 10K
R113
0
R101
91R
C613
10/47V
A
B
D
C
E
F
TRK+
TRK-
FCS+
FCS-
VR
PD
RF-VCC
L101
10uH
SVCC
A+C
B+D
FEIN
FEO
PKC
BTC
PDO
LDO
ASY
PCO
FCO
FD
JUMP
TD
SDINSDO
CLV
CLK88
MUTE34
CLK
SUB
MCK
DIN
DOUT
R/W
S-RESET
BUSY
RFO
RFI
TEIN
TEO
SC
CACG
L-LOUT
L-ROUT
XO
XI
A-VC
U-VCC
BATT+
BATT-
DC+
OFF
DC-IN
BATT
B.BOOST
KEY1
KEY0
WREM
R320
2.2R
INNER
LID
MUTE1
P-MUTE
A-MUTE
P-VCC
BIAS
R-IN
L-IN
P-ROUT
P-LOUT
RESET
SLED+
SLED-
SP+
SP-
FIL1
FIL2
FIL3
FIL4
FCSIN
TRKIN
SLIN
SPIN
SPRT
SOFT
CT
LG
VG
SW
EI
EO WP
L102
100uH
XVCC
A-VCC
TZCRFM
RFRPRFM
GND
PALY
P-RESET
LD
W-GND
L604 DC
DC-
SW512
LID
E-IN
F-IN
C510 0.1(C)
C622 0.1(C)
C315
0.1u
R531 100K
R100 100
C100
15P
Q102
DTA124ESA
R123
22K
SD:16M(1X16) 45S BY 4BIT COMPRESSION
SD:64M(4X16)
EDO:4M(1X4)
EDO:16M(4X4)
SD:16M(1X16)
SD:64M(4X16)
MAX 180S BY 4BIT COMPRESSION
10S BY 4BIT COMPRESSION
45S BY 4BIT COMPRESSION
45S BY NO COMPRESSION
10S BY NO COMPRESSION
GND GND GND
33 2829
CPU PIN
RAM TYPE ESP TIME (SEC.)
GND
GND
GND
GND
GND
GND
GND
GND
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
OPEN
R310
27K
R311
27K
C617
0.1(C)
R127 4.7R
C624 0.1
R124
4M7
TAP507 SHORT FOR JOGGER; OPEN FOR NORMAL
SVCC
VR 16
PD 15
LD 14
GND 13
F12
VCC 11
VC 10
E9
C8
A7
D6
B5
T(+) 4
F(+) 3
F(-) 2
T(-) 1
CN101
CMS-M99
T103
SP T104
SP
T102
SP
T101
SP
TP109
GND
T107
B
T106
A
T105
C
T108
F
T111
RF-VCC
T112
LD
T113
D
T110
SP
T115
PD
T114
E
T601
SL+
T602
SL- T603
INNER
T604
SP+ T605
SP-
T606
GND
TP605
CHARGE
R623
28R
Q601
2SB1237
Q604
2SC1740
Q605
2SC1740
CHARGE
D601
IN4001
DCIN
REGB
D501
DAN202U
R141
1.2M
R140
1.2M
VDD
1
DQ0
2
VCCQ
3
DQ1
4
DQ2
5
VSSQ
6
DQ3
7
DQ4
8
VCCQ
9
DQ5
10
DQ6
11
VSSQ
12
DQ7
13
VCC
14
DQML
15
WE
16
CAS
17
RAS
18
CS
19
A13
20
A12
21
A10/AP
22
A0
23
A1
24
A2
25
A3
26
VCC
27 VSS 28
A4 29
A5 30
A6 31
A7 32
A8 33
A9 34
A11 35
N.C. 36
CKE 37
CLK 38
DQMU 39
N.C. 40
VSS 41
DQ8 42
VCCQ 43
DQ9 44
DQ10 45
VSSQ 46
DQ11 47
DQ12 48
VCCQ 49
DQ13 50
DQ14 51
VSSQ 52
DQ15 53
VSS 54
IC402
64M SDRAM
DQ00
DQ01
DQ02
DQ03
DQ04
DQ05
DQ06
DQ07
A00
A01
A02
A03 A04
A05
A06
A07
A08
A09
A10
A11
A12
A13
DQ08
DQ09
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
CKE
RCLK
L103
10uH
WE-
CAS-
RAS-
SW501
PLAY
SW502
STOP
SW503
FF
SW504
FR
R518
22K
R511
4.7K
SW507
PROG
R517
10K R516
4.7K
SW505
P-MODE
R510
6.8K
R515
6.8K
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
CN501
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
CN502
COM0
COM1
COM2
COM3
SEG04
SEG14
SEG08
SEG10
SEG11
SEG12
SEG13
SEG01
SEG02
START
KEY0
KEY1
KEY BOARD
LCD501
R532
1K
L304 L305
L306
P-GND
R
L
J301
R-JACK
L307
L308
L302 L303
L301
R314
1K
R315
1K
SEG11
12 SEG12
13
SEG13
14
SEG14
15
SEG15
16
LIGHT 17
NC 18
AMUTE 19
XRESET 20
RLCD-SEL 21
EVR-SEL 22
ESP-SEL3 33
NC 23
STOP 24
JOG-SEL 25
SCL-R 26
SDA-R 27
ESP-SEL1 28
ESP_SEL2 29
SCL 30
SDA 31
SLED_SEL 32
SLIM-SEL 34
P.OFF 35
CDM_SEL 36
MMUTE 37
RW 38
SUBQ 39
COMMAND 40
MCK 41
SUBSYQ 42
BUSY 43
HOLD 44
SEG00
1SEG01
2SEG02
3SEG03
4SEG04
5SEG05
6SEG06
7SEG07
8SEG08
9SEG09
10 SEG10
11
LID 45
INNER 46
RESET 47
GND 48
OSC1
49
NC
50
VDD
51
DC_IN
52
BATT
53
B.BOOST
54
KEY1
55
KEY0
56
WREM
57
PLAY
58
NC
59
NC
60
COM0
61
COM1
62
COM2
63
COM3
64
IC501
BU24591-8W
R553
22K
R554
22K
R555
10K
R558
10K
R557
10K
R312
10K
R313
10K
L-IN
W-WP
W-UVCC
W-SDA
W-SCL
U-VCC
SW509
UP
SW508
DOWN
R512
20K
R513
22K
Q607
2SA1815
R620
1K
16
15
NOTES:
1.Allresistancevaluesareindicatedin"ohms"(k=1000ohms.M=1000Kohms).
2.Allcapacitancevaluesareindicatedin"µF"(p=10µF).
-6
MAINSECTION SCHEMATICDIAGRAMS
18
17
NOTES:
1.Allresistancevaluesareindicatedin"ohms"(k=1000ohms.M=1000Kohms).
2.Allcapacitancevaluesareindicatedin"µF"(p=10µF).
-6
REMOTECONTROLSECTION
19 20
VOLTAGE CHART VOLTAGE CHART - CONTINUED
There is no need to adjust the CD servo PWB. Because auto-adjustment function has been set by the CPU.
ALIGNMENT SET-UP PROCEDURES
IC401 (HY57V161610DTC/W981616BH-7)
PIN'S NUMBER 12345678910
CD PLAY 3.14 1.62 1.15 01.50 1.54 3.14 3.03 1.53 0
PIN'S NUMBER 11 12 13 14 15 16 17 18 19 20
CD PLAY 1.15 1.60 3.14 03.09 3.08 3.04 02.40 1.47
PIN'S NUMBER 21 22 23 24 25 26 27 28 29 30
CD PLAY 1.65 1.47 1.42 1.47 3.14 01.56 1.54 1.49 1.45
PIN'S NUMBER 31 32 33 34 35 36 37 38 39 40
CD PLAY 1.42 1.49 00.14 0003.14 1.53 1.58
PIN'S NUMBER 41 42 43 44 45 46 47 48 49 50
CD PLAY 01.56 1.56 3.14 1.53 1.60 01.65 1.69 0
MAIN SECTION
TEST CONDITION:CD PLAY
IC301 (BH4453F)
PIN'S NUMBER 12345678
CD PLAY 1.00 1.50 1.10 01.10 1.10 1.00 2.90
IC501 (BU24590-8W)
PIN'S NUMBER 12345678
CD PLAY 1.56 1.56 1.56 1.57 1.56 2.00 1.57 1.56
PIN'S NUMBER 9 10 11 12 13 14 15 16
CD PLAY 1.56 1.56 1.56 1.56 1.56 1.56 1.56 1.56
PIN'S NUMBER 17 18 19 20 21 22 23 24
CD PLAY 0.02 3.10 0.04 0.02 0.05 0.04 0.17 0.17
PIN'S NUMBER 25 26 27 28 29 30 31 32
CD PLAY 3.10 3.10 3.10 3.10 3.10 0.02 3.10 0.26
PIN'S NUMBER 33 34 35 36 37 38 39 40
CD PLAY 0.03 3.10 1.44 0.03 3.10 3.09 0.05 0.05
PIN'S NUMBER 41 42 43 44 45 46 47 48
CD PLAY 3.10 0.06 0.02 2.48 3.10 3.10 3.10 0.02
PIN'S NUMBER 49 50 51 52 53 54 55 56
CD PLAY 1.54 1.41 0.00 3.1 2.96 1.29 0.02 1.43
PIN'S NUMBER 57 58 59 60 61 62 63 64
CD PLAY 3.10 3.10 3.10 0.02 1.56 1.55 1.55 1.56
IC101 (BU9534KV)
PIN'S NUMBER 12345678910
CD PLAY 2.87 1.48 1.47 1.44 1.49 1.49 01.44 1.44 1.96
PIN'S NUMBER 11 12 13 14 15 16 17 18 19 20
CD PLAY 0.95 0.19 1.97 1.44 2.87 1.44 1.25 0.00 1.50 1.46
PIN'S NUMBER 21 22 23 24 25 26 27 28 29 30
CD PLAY 1.64 1.63 21.69 01.47 2.93 1.46 0.08 2.91
PIN'S NUMBER 31 32 33 34 35 36 37 38 39 40
CD PLAY 1.90 0.17 2.71 2.92 2.95 2.93 1.46 0.41 0 0
PIN'S NUMBER 41 42 43 44 45 46 47 48 49 50
CD PLAY 02.32 0 0 2.32 2.32 2.44 2.40 2.00 2.00
PIN'S NUMBER 51 52 53 54 55 56 57 58 59 60
CD PLAY 1.99 1.70 2.44 2.45 2.79 1.33 1.42 1.37 1.42 1.39
PIN'S NUMBER 61 62 63 64 65 66 67 68 69 70
CD PLAY 1.37 1.39 1.38 1.34 1.33 1.39 1.41 1.39 1.43 1.40
PIN'S NUMBER 71 72 73 74 75 76 77 78 79 80
CD PLAY 2.05 1.48 1.50 1.44 2.96 1.50 1.47 02.94 1.48
PIN'S NUMBER 81 82 83 84 85 86 87 88 89 90
CD PLAY 1.48 1.49 02.94 2.93 2.94 2.94 2.94 2.94 0
PIN'S NUMBER 91 92 93 94 95 96 97 98 99 100
CD PLAY 2.93 02.17 1.45 0.39 1.57 1.44 0.87 1.45 1.52
IC601 (BH6575FV)
PIN'S NUMBER 12345678910
CD PLAY 2.93 2.92 1.47 2.93 0.03 2.91 1.44 1.48 2.08 1.44
PIN'S NUMBER 11 12 13 14 15 16 17 18 19 20
CD PLAY 1.44 1.41 1.44 1.44 1.44 0.02 0.12 0.32 0.1 0.05
PIN'S NUMBER 21 22 23 24 25 26 27 28 29 30
CD PLAY 2.94 0002.95 00.06 1.06 0 0
PIN'S NUMBER 31 32 33 34 35 36 37 38 39 40
CD PLAY 0 0 0 0 2.96 2.96 0.24 2.93 0.92 0.43
21 22
IC501 BU24590-8W
O
S
C
0
3
A
O
S
C
1
O
S
C
2
S
T
P
C
L
O
C
K
G
E
N
R
E
S
E
T
P
C
I
N
C
PCS
T
A
C
K
8
RO
M
16384
x
8
B
I
T
S
Y
S
T
E
M
C
L
K
R
A
M
6
1
2
x
4
B
I
T
INSTRUCTION
DECODEREH
X
L
Y
ALUACC
FLAG
FLAG
STK
TEST
R
E
S
E
T
INTERRUPT
CONTROL
G
STK
IRQ
DPH
DPL
U-DUS
L-HUS
P
W
C
0
1
A
T
M
R
0
3
B
S
T
P
0
4
A
B
I
X
0
3
A
P
I
O
1
1
A
P
I
O
1
1
A
P
I
O
1
1
A
S
I
O
0
4
B
S
I
O
0
4
B
A
D
C
8
3
A
8
C
H
-
8
B
I
T
/
D
I
G
I
T
A
L
-
I
N
I
R
Q
I
R
Q
I
R
Q
S
T
P
I
R
Q
S
T
P
P
W
C
T
0
,
T
1
W
0
~
W
3
B
I
N
P
0
0
~
P
0
3
P
1
0
~
P
1
3
P
2
0
~
P
2
3
S
C
K
0
S
C
K
1
S
I
O
0
S
I
O
1
A
D
C
0
~
7
S
I
N
0
S
I
N
1
I
R
Q
I
R
Q
L
C
D
0
7
A
C
O
M
M
O
N
G
E
N
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
B
I
A
S
G
E
N
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
D
I
S
P
.
S
E
C
M
E
N
T
D
R
I
V
E
R
COM0~3
SEG00~0
3
SEG04~0
7
SEG08~1
1
SEG12~1
5
SEG16~1
9
CPU02A
IC LEAD IDENTIFICATION & INTERNAL DIAGRAMS
8-BIT
RISC
PROCESSOR
ROSC GEN
TIME BASE
&
INTERRUPT
LOGIC
7Kx8
ROM
96x8
SRAM
ONE
12-BIT
AUTO
RELOAD
TIMER
32 SEGMENTS x 4 COMMANDS LCD DRIVER
12
I/O
P
O
R
T
DA
/
TONE
ROSC X32I
X32O
IOAB1 - 0
(I/O)
IOCD3 - 0
(I/O)
IOEF5 - 0
(INPUT)
AUD
SEG31 - 0
COM3 - 0
IC801 SPL10A-203A IC601 BH6575FV
1
5
10
16
3 72 6
11
17
4 9
+
+
+
+
+
+
+
+
+
+
-
-
-
-
-
-
-
-
-
-
+
++
--
--
15
8
14
START
MUTE1
IN4
PGND1
OFF
RESET
VREF
OUT4-
CLK
IN1
M
U
T
E
3
4
I
N
3
F
I
L
4
I
N
2
F
I
L
2
F
I
L
3
O
U
T
3
-
O
U
T
3
+
12
18
13
19
20
40 34
26
37
31
23
39 33
25
36
28
30
22
38
32
24
35
27
29
21
EO
VSYS
EI
+
-
DC/DC
CONVERTER
VDD VG
CONV
REG/SW
VSYS
DET
SYSTEM
ON
SYSTEM
OFF
OSC
CLK
MUTE34
MUTE1
RESET PRE-DR
PRE-DR
PRE-DR
PRE-DR
30K
30K
30K
30K
IC101 BU9534KV
RFSignalGen.
ServoSignalGen.
x8 Over
Sampling
Digital Filter
1bit DAC
16K SRAM
Digital
Signal
Processor
Digital
Servo
Filter
APC
PLL
Digital
Servo
Signal
Processor Anti-shock
Memory
Controller
Command
Interface
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
DVDD2
DCK
LRCK
DOUTA
DQ08
DQ09
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ00
DQ01
DQ02
DQ03
DQ04
DQ05
DQ06
DQ07
WEX
CASX
RASX
A00
A01
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
CLK88
LON
CLK
SUBSYQ
MCK
DIN
DOUT
R/W
RESETX
BUSY
DVDD1
RCLK
RCKE
A13
A12
A11
A10
A09
A08
A07
A06
A05
A04
A03
A02
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
AVDD1
AC
BK
VBIAS
E
F
AGND1
FEN
FEO
PKC
BTC
PD
LD
ASY
AVDD2
PCO
FCO
AGND2
FDOUT
JUMPO
TDOUT
SDIN
SDOUT
CLVOUT
DGND1
E
Q
O
R
F
I
C
A
G
C
T
E
N
T
E
O
S
C
T
Z
C
R
F
M
R
F
R
P
R
F
M
D
G
N
D
3
X
P
L
C
K
M
O
N
I
1
M
O
N
I
0
D
F
D
I
N
D
F
L
R
C
K
D
F
D
C
K
X
B
U
F
O
D
V
D
D
3
A
G
N
D
3
R
D
A
C
O
V
C
D
A
C
L
D
A
C
O
A
V
D
D
3
D
G
N
D
2
X
O
X
I
1
0
0
9
9
9
8
9
7
9
6
9
5
9
4
9
3
9
2
9
1
9
0
8
9
8
8
8
7
8
6
8
5
8
4
8
3
8
2
8
1
8
0
7
9
7
8
7
7
7
6
IC301 BH4453F
BIAS
+
+
MUTE
MUTE
TSD
1
2
3
4
8
7
6
5
OUT1
IN1
GND
VCC OUT2 BIAS
IN2
24.7K24.7K
16.9dB
16.9dB
23 24
IC401 HY57V16160DTC/W981616BH-7
Self Refresh Counter
Interval Timer
Refresh Refresh
Counter
RowAddr.Latch/PredecodeRowAddr.Latch/Predecode
Row DecoderRow Decoder
Sense AMP & I/O gates
Sense AMP & I/O gates
Column Decoder
Column Decoder
512Kx16
512Kx16
Bank 0
Bank 1
Column Addr
Latch & Counter
Address
Register
Burst Length
Counter
C
A
(
0
7
)
C
A
(
0
7
)
D
a
t
a
I
n
p
u
t
/
O
u
t
p
u
t
B
u
f
f
e
r
s
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
I/O Control
Test Mode
Mode Register
StateMachine
CLK
CKE
BA(ALL)
UDOM
LDOM
RAS
CAS
WE
CS
Auto/SelfRefresh
RefAddr (0:11)
Address (0 10)
Column Active
Overflow
OPCODE
Mode RegisterSet
BurstLengthType
Precharge
Row Active
Read/Write/OPMass
BLOCK DIAGRAM
IC101
BU9534KV
13
12
6
VR
SLED+
PD
SLED-
LD
LIMSW
SPIN D+
GND
LIMSW
SPIN D-
F
VCC
VC
E
C
A
D
B
T-
F+
T+
F-
4
5
2
3
Q101
R
F
-
S
V
C
C
CN101
CN102
19 20 21 23 24 26 27
82
80
IC401
16M
SDRAM
VR301
A
M
P
I
C
3
0
1
B
H
4
4
5
3
F
3
1
5
7
H
P
J
A
C
K
J
3
0
2
IC601
BH6575
22
23
24
25
31
37
20
19
18
17
6
10
9
8
7
4
3
2
1
52
53
55
56
58
61
62
63
642 3 5 9 1112 13 14 15
47 46 35
L
C
D
5
0
1
K
E
Y
(
S
W
5
0
1
-
S
W
5
0
7
)
Q605
Q601
L604
L601
Q
6
0
3
S
V
C
C
12
3Q602
BATT+
J601
C
N
5
0
1
C
N
5
0
2
C
P
U
I
C
5
0
1
B
U
2
4
5
9
0
-
8
W
25 26
EXPLODED DRAWING PARTS LIST EXPLODED DRAWING PARTS LIST - CONTINUED
Ref. No. Mfr's Part No. Qty.
REMOTE CONTROL SECTION - (OPTIONAL)
1FRONT CABINET, MOLD COLOR (ABS), w/SPY 500-WRC701-xxx 1
2PLAY/PAUSE/STOP KNOB, MOLD COLOR (ABS) CAV:1, w/SPY 510-WRC703-xxx 1
3LCD COVER, STAINLESS IRON T=0.3mm 600-WRC714-000 1
4ZEBRA CONNECTOR 23.6x1.5x1.9mm 100-052301-190 1
5REMOTE PCB WRC7-01-01 033-00WRC7-100 1
6HEADPHONE JACK HSJ1715-01-110 (BLACK), 116-001715-001 1
TC38-072-01/EJS-3-0935B/EJ-3513(BK)
7REAR CABINET, MOLD COLOR (ABS) CAV:1 500-WRC702-xxx 1
8BASS BOOST KNOB, MOLD COLOR (ABS) CAV:1 510-WRC710-xxx 1
9PLAY MODE/PROG KNOB, MOLD COLOR (ABS) CAV:1 510-WRC709-xxx 2
10 CLIP SPRING, D=0.6 SPRING STEEL WIRE w/NICKEL PLATED 561-MDP123-001 1
11 RC CLIP, MOLD D.GREY(1524A) (POM) CAV:4 500-990917-001 1
12 (F531-MDP124-000) CLIP SPRING PIN, DIA:1.2x8mm, 700-MDP124-000 1
STAINLESS STEEL
13 VOLUME KNOB, MOLD COLOR (ABS) CAV:1 510-WRC708-xxx 1
14 LCD HOLDER, MOLD D.GREY(1524A) (ABS) CAV:1 500-WRC713-001 1
15 LCD-P-02D-2315SM000P JT4-02263, 23.5x15.4x1.7mm, 112-002263-000 1
TRANSIMISSIVE/POSITIVE
16 SKIP UP/DOWN KNOB, MOLD COLOR (ABS) CAV:1, w/SPY 510-WRC705-xxx 1
17 APD-EI35GS&&350MA/SO 230V:6VDC CE STD PLUG:3.5x8, (For w/o remote) 133-020635-017 1
(35V-D0635/AKAI PD-X4440)
18 DISPLAY LENS, MOLD TRANS.CLEAR, CAV:4, w/PNT 500-WRC712-xxx 1
(PMMA)CAV:4w/PNT(FOR:TDM8761)
SCREW 2x6mm PB T.T.S. NI (01 PTP 2x6 NI) 722-020200-060 1
MAIN UNIT
1DISPLAY LENS, T=0.5mm TRANS PVC, w/PNT 650-820009-xxx 1
2CD DOOR COVER, MOLD COLOR (ABS) CAV:2, w/PNT, 500-820005-xxx 1
or w/SPY & PNT
3CD KNOB SET, MOLD COLOR (ABS) CAV:2, w/SPY 510-820006-xxx 1
4LCD-P-02D-2616SM000P JT4-02006 VOP:3V 26x16x2.8 112-002006-001 1
REF./P SDT-DA065-RP-1/DA408-RP-0
5CONTROL PCB CDM29R-01-02 033-CDM29R-101 1
6PCB COVER, MOLD COLOR (ABS) CAV:2, w/SPY 500-820007-xxx 1
7CD DOOR, MOLD COLOR (SAN) CAV:1, w/SPY & PNT 500-820001-xxx 1
8MIDDLE CABINET, MOLD COLOR (ABS) CAV:2, w/SPY, 500-820013-XXX 1
(For w/WRC7)
9LOCK SPRING, DIA=0.4mm SUS WIRE 561-876115-000 1
10 DOOR OPEN KNOB, MOLD COLOR (ABS) CAV:4, w/SPY 510-820008-xxx 1
11 DC JACK #TC18-077-01 (TAI CHUNG)/DC-003(LINKTECH), J601 120-118077-001 1
(87-A60-122-019)
12 VOLUME KNOB, MOLD D.GREY 431C, ABS, w/ENGRAVE LOGO 510-820017-000 1
13 HEADPHONE JACK 3.5mm 8 PINS EJS-4-3735 J301 116-083735-000 1
14 BATTERY SPRING (-), DIA:0.7mm SPRING WIER w/NICKEL 561-820016-000 1
15 BATTERY SPRING (+), DIA:0.7mm SPRING WIRE w/NICKEL 561-820015-000 1
16 BATTERY SPRING (+/-), DIA:0.7mm SPRING WIRE w/NICKEL 535-890319-000 1
17 BOTTOM CABINET, MOLD COLOR (ABS) CAV:2, w/SPY, 500-820014-xxx 1
18 BATTERY DOOR, MOLD COLOR (ABS) CAV:4, w/SPY 500-820004-xxx 1
19 MAIN PCB CDM29W-01-01 033-CDM29W-100 1
20 DECK CUSHION, LB50 RUBBER 700-830020-000 3
21 CD&-PTB-01-SAMG-N CD MECHANISM CMS-M99DG6 SAMSUNG 153-000996-000 1
22 CD DOOR SPRING (L), DIA:0.6mm w/PLATING NICKEL 561-820011-000 1
23 CD DOOR SPRING (R), DIA:0.6mm w/PLATING NICKEL 561-820012-000 1
SCREW 1.7x3mm FLAT HEAD (B TYPE) (1.7x3IPBHF) 720-220170-300 6
Description Ref. No. Mfr's Part No. Qty.
PROTECTION SHEET, 109.4x100.4mm, 700-8200A6-000 1
TRANS CLEAR STATIC ELECTRONIC LBL w/ADH (REMOTE)
SCREW 2x8mm PB T.T.S. w/CHROMATE PLATING, 722-020200-082 5
(PTTP2x8MC)
PVC WASHER DIA:4.2x8.0x0.3mm TRANS. PVC 532-504208-031 1
BATTERY CHARGE PLATE, 0.2mm THK PHOSPHOR BRONZE (For w/o remote) 650-870121-000 1
CONTACT PLATE METAL DOME, 6.0mm, 0.06 THK LEG=0.5mm 650-880116-001 6
RUBBER FOAM, 28x4x2mm UNIT"PC" 700-880117-000 0.18
Description
27 28
EXPLODED DRAWINGS
MAIN UNIT REMOTE CONTROL
NOTES:
Printed in China
FEBRUARY, 2004
808- 820045-040
Table of contents
Other Akai CD Player manuals
