Akai DVP4785KDSM User manual

SERVICEMANUAL
Model:
DVP4785KDSM
DVDPLAYER
www.akai.ru

CONTENTS
1. PRECAUTIONS-------------------------------------------------------------------------------------------------------------------- 1
1-1 SAFETY PRECAUTIONS---------------------------------------------------------------------------------------------------------- 1
1-2 SERVICING PRECAUTIONS ------------------------------------------------------------------------------------------------------ 2
1-2-1 General Serving Precautions --------------------------------------------------------------------------------------------2
1-2-2 Insulation Checking Procedure------------------------------------------------------------------------------------------3
1-3 ESD PRECAUTIONS ------------------------------------------------------------------------------------------------------------- 3
2. REFERENCE INFORMATION ------------------------------------------------------------------------------------------------4
2-1 COMPONENT DESCRIPTIONS --------------------------------------------------------------------------------------------------- 4
2-1-1 DVD SANYO HD60 PUH ------------------------------------------------------------------------------------------------4
2-1-2 DVD Processor Chip MTK1389-----------------------------------------------------------------------------------------6
2-1-3 20-Pin, 24-Bit, 192kHz D/A with Volume Control (WM8766) -----------------------------------------------------12
2-1-4 Serial EEPROM, 2K (256 x 8) (24C02) or 16 K (2048 x 8) (24C16) ---------------------------------------------13
2-1-5 8M-BIT [1Mx8/512Kx16] CMOS FLASH MEMORY ---------------------------------------------------------------14
2-1-6 512K X 16 Bit X 2 Banks Synchronous DRAM (A43L0616) -------------------------------------------------------17
3. PRODUCT SPECIFICATIONS------------------------------------------------------------------------------------------------20
4. UPGRADING SYSTEM AND CHANGING THE REGION CODE---------------------------------------------------21
5. OPERATING INSTRUCTION-------------------------------------------------------------------------------------------------22
MAINTENANCE & TROUBLESHOOTING ------------------------------------------------------------------------------------------23
6.DISASSEMBLY AND REASSEMBLY----------------------------------------------------------------------------------------25
7.TROUBLESHOOTING ----------------------------------------------------------------------------------------------------------26
8. ELECTRICAL PART LIST-----------------------------------------------------------------------------------------------------27
9. BLOCK DIAGRAM --------------------------------------------------------------------------------------------------------------38
10. CIRCUIT DIAGRAMS---------------------------------------------------------------------------------------------------------40
11. WIRING DIAGRAM------------------------------------------------------------------------------------------------------------48

1. PRECAUTIONS
1-1 Safety Precautions
1) Before returning an instrument to the customer, always
make a safety check of the entire instrument, including, but
not limited to, the following items:
(1) Be sure that no built-in protective devices are defective
or have been defeated during servicing.
(1) Protective shields are provided to protect both the
technician and the customer. Correctly replace all
missing protective shields, including any remove for
servicing convenience.
(2) When reinstalling the chassis and/or other
assembly in the cabinet, be sure to put back in place
all protective devices, including, but not limited to,
nonmetallic control knobs, insulating fish papers,
adjustment and compartment covers/shields, and
isolation resistor/capacitor networks. Do not operate
this instrument or permit it to be operated without all
protective devices correctly installed and functioning.
(2) Be sure that there are no cabinet opening through which
adults or children might be able to insert their fingers
and contact a hazardous voltage. Such openings
include, but are not limited to, excessively wide
cabinet ventilation slots, and an improperly fitted
and/or incorrectly secured cabinet back cover.
(3) Leakage Current Hot Check-With the instrument
completely reassembled, plug the AC line cord
directly into a 120V AC outlet. (Do not use an
isolation transformer during this test.) Use a leakage
current tester or a metering system that complies with
American National Standards institute (ANSI) C101.1
Leakage.
Current for Appliances and underwriters Laboratories
(UL) 1270 (40.7). With the instrument’s AC switch
first in the ON position and then in the OFF position,
measure from a known earth ground (metal water pipe,
conduit, etc.) to all exposed metal parts of the
instrument (antennas, handle brackets, metal cabinets,
screwheads, metallic overlays, control shafts, etc.),
especially and exposed metal parts that offer an
electrical return path to the chassis.
Any current measured must not exceed 0.5mA.
Reverse the instrument power cord plug in the outlet
and repeat the test.

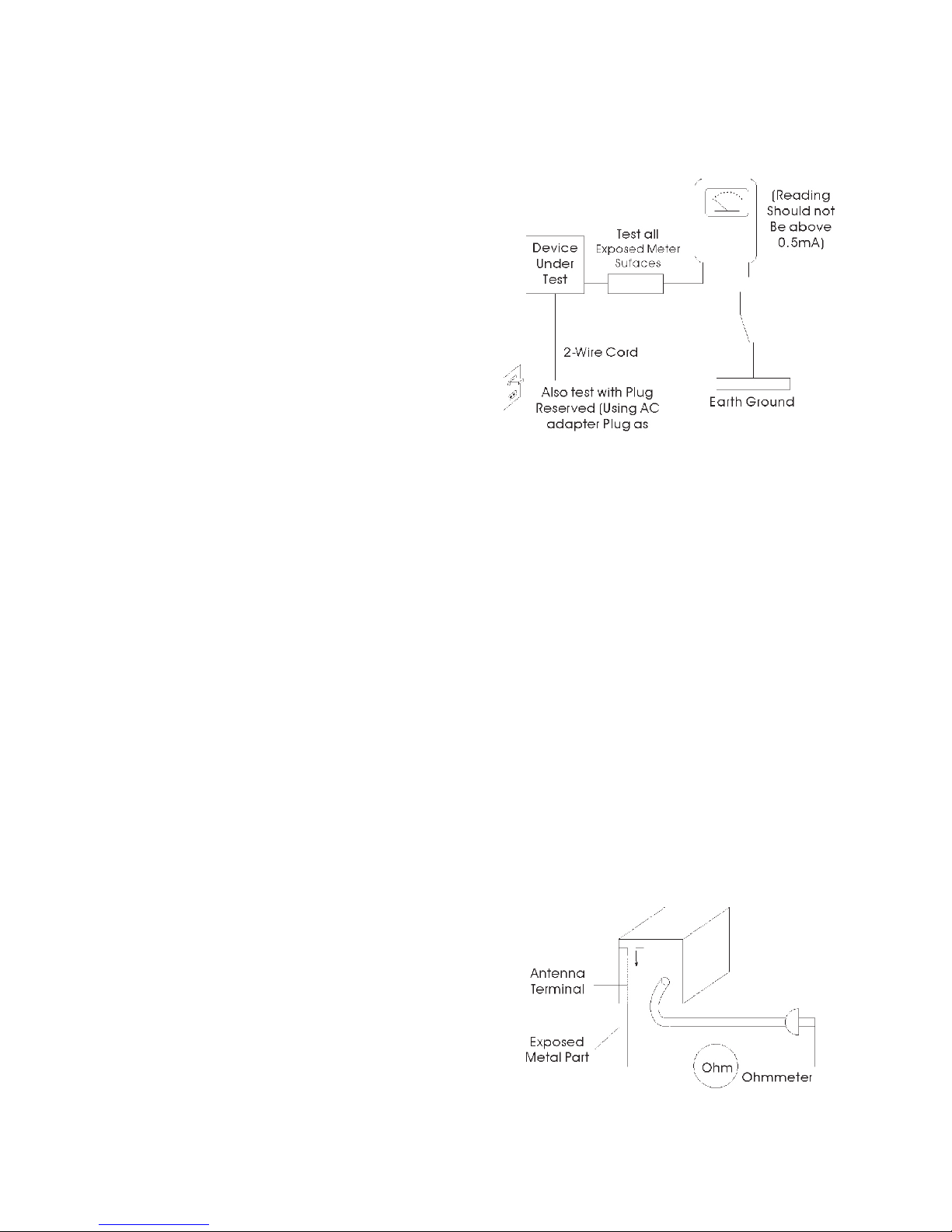

AC Leakage Test
Any measurements not within the limits specified
herein indicate a potential shock hazard that must be
eliminated before returning the instrument to the
customer.
(4) Insulation Resistance Test Cold Check-(1) Unplug the
power supply cord and connect a jumper wore
between the two prongs of the plug. (2) Turn on the
power switch of the instrument. (3) Measure the
resistance with an ohmmeter between the jumpered
AC plug and all exposed metallic cabinet parts on the
instrument, such as screwheads, antenna, control
shafts, handle brackets, etc. When an exposed
metallic part has a return path to the chassis, the
reading should be between 1 and 5.2 megohm. When
there is no return path to the chassis, the reading must
be infinite. If the reading is not within the limits
specified, there is the possibility of a shock hazard,
and the instrument must be re-pared and rechecked
before it is returned to the customer.
Insulation Resistance Test
1 - Cosmic Digital Technology Limited -

2) Read and comply with all caution and safety related
notes non or inside the cabinet, or on the chassis.
3) Design Alteration Warning-Do not alter of add to the
mechanical or electrical design of this instrument.
Design alterations and additions, including but not
limited to, circuit modifications and the addition of
items such as auxiliary audio output connections,
might alter the safety characteristics of this instrument
and create a hazard to the user. Any design alterations
or additions will make you, the service, responsible
for personal injury or property damage resulting there
from.
4) Observe original lead dress. Take extra care to assure
correct lead dress in the following areas:
(1) near sharp edges, (2) near thermally hot parts (be
sure that leads and components do not touch
thermally hot parts), (3) the AC supply, (4) high
voltage, and (5) antenna wiring. Always inspect in all
areas for pinched, out-of-place, or frayed wiring. Do
not change spacing between a component and the
printed-circuit board, Check the AC power cord for
damage.
5) Components, parts, and/or wiring that appear to have
overheated or that are otherwise damaged should be
replaced with components, parts and/or wiring that
meet original specifications. Additionally determine
the cause of overheating and/or damage and, if
necessary, take corrective action to remove and
potential safety hazard.
6) Product Safety Notice-Some electrical and mechanical
parts have special safety-related characteristics which
are often not evident from visual inspection, nor can
the protection they give necessarily be obtained by
replacing them with components rated for higher
voltage, wattage, etc. Parts that have special safety
characteristics are identified by shading, an ( ) or a
() on schematics and parts lists. Use of a substitute
replacement that does not have the same safety
characteristics as the recommended replacement part
might created shock, fire and/or other hazards.
Product safety is under review continuously and new
instructions are issued whenever appropriate.
1-2 Servicing Precautions
CAUTION: Before servicing Instruments covered by this
service manual and its supplements, read and follow the
Safety Precautions section of this manual.
Note: If unforeseen circument create conflict between the
following servicing precautions and any of the safety
precautions, always follow the safety precautions.
Remember; Safety First
1-2-1 General Serving Precautions
(1) a. Always unplug the instrument’s AC power cord from
the AC power source before (1) removing or
reinstalling any component, circuit board, module or
any other instrument assembly. (2) disconnecting
any instrument electrical plug or other electrical
connection. (3) connecting a test substitute in
parallel with an electrolytic capacitor in the
instrument.
b. Do not defeat any plug/socket B+ voltage interlocks
with which instruments covered by this service
manual might be equipped.
c. Do not apply AC power to this instrument and/or any
of its electrical assemblies unless all solid-state
device heat sinks are correctly installed.
d. Always connect a test instrument’s ground lead to
the instrument chassis ground before connecting the
test instrument positive lead. Always remove the test
instrument ground lead last.
Note: Refer to the Safety Precautions section ground
lead last.
(2) The service precautions are indicated or printed on the
cabinet, chassis or components. When servicing,
follow the printed or indicated service precautions
and service materials.
(3) The components used in the unit have a specified flame
resistance and dielectric strength.
When replacing components, use components which
have the same ratings, by ( ) or by ( ) in the
circuit diagram are important for safety or for the
characteristics of the unit. Always replace them with
the exact replacement components.
(4) An insulation tube or tape is sometimes used and some
components are raised above the printed wiring board
for safety. The internal wiring is sometimes clamped
2 - Cosmic Digital Technology Limited -

to prevent contact with heating components. Install
such elements as they were.
(5) After servicing, always check that the removed screws,
components, and wiring have been installed correctly
and that the portion around the serviced part has not
been damaged and so on. Further, check the insulation
between the blades of the attachment plus and
accessible conductive parts.
1-2-2 Insulation Checking Procedure
Disconnect the attachment plug from the AC outlet and
turn the power ON. Connect the insulation resistance meter
(500V) to the blades of the attachment plug. The insulation
resistance between each blade of the attachment plug and
accessible conductive parts (see note) should be more than
1 Megohm.
Note: Accessible conductive parts include metal panels,
input terminals, earphone jacks, etc.
1-3 ESD Precautions
Electrostatically Sensitive Devices (ESD)
Some semiconductor (solid static electricity) devices can
be damaged easily by static electricity.
Such compo9nents commonly are called Electrostatically
Sensitive Devices (ESD). Examples of typical ESD devices
are integrated circuits and some field-effect transistors and
semiconductor chip components. The following techniques
of component damage caused by static electricity.
(1) immediately before handling any semiconductor
components or semiconductor-equipped assembly,
drain off any electrostatic charge on your body by
touching a known earth ground. Alternatively, obtain
and wear a commercially available discharging wrist
strap device, which should be removed for potential
shock reasons prior to applying power to the unit
under test.
(2) after removing an electrical assembly equipped with
ESD devices, place the assembly on a conductive
surface such as aluminum foil, to prevent electrostatic
charge buildup or exposure of the assembly.
(3) Use only a grounded-tip soldering iron to solder or
unsolder ESD device.
(4) Use only an anti-static solder removal devices. Some
solder removal devices not classified as “anti-static”
can generate electrical charges sufficient to damage
ESD devices.
(5) Do not use freon-propelled chemicals. These can
generate electrical charges sufficient to damage ESD
devices.
(6) Do not remove a replacement ESD device from its
protective package until immediately before you are
ready to install it. (Most replacement ES devices are
packaged with leads electrically shorted together by
conductive foam, aluminum foil or comparable
conductive materials).
(7) Immediately before removing the protective materials
from the leads of a replacement ES device touch the
protective material to the chassis or circuit assembly
into which the device will be installed.
CAUTION: Be sure no power is applied to the chassis or
circuit, and observe all other safety precautions.
(8) Minimize bodily motions when handling unpackaged
replacement ESD devices. (Otherwise harmless
motion such as the brushing together of your clothes
fabric or the lifting of your foot from a carpeted floor
can generate static electricity sufficient to damage an
ESD device).
3 - Cosmic Digital Technology Limited -

2. Reference Information
2-1 Component Descriptions
2-1-1 DVD SANYO HD60 PUH
Connector Pin Definition
I/F Signals I/O Pin #
F- 1
F + 2
T + 3
T - 4
C 5
D 6
CD/DVD 7
RF 8
A 9
B 10
F 11
GND-PD 12
VC 13
VCC 14
E 15
NC 16
VR-CD 17
VR-DVD 18
LD-CD 19
MD 20
HFM 21
NC 22
LD-DVD 23
GND-LD 24
4

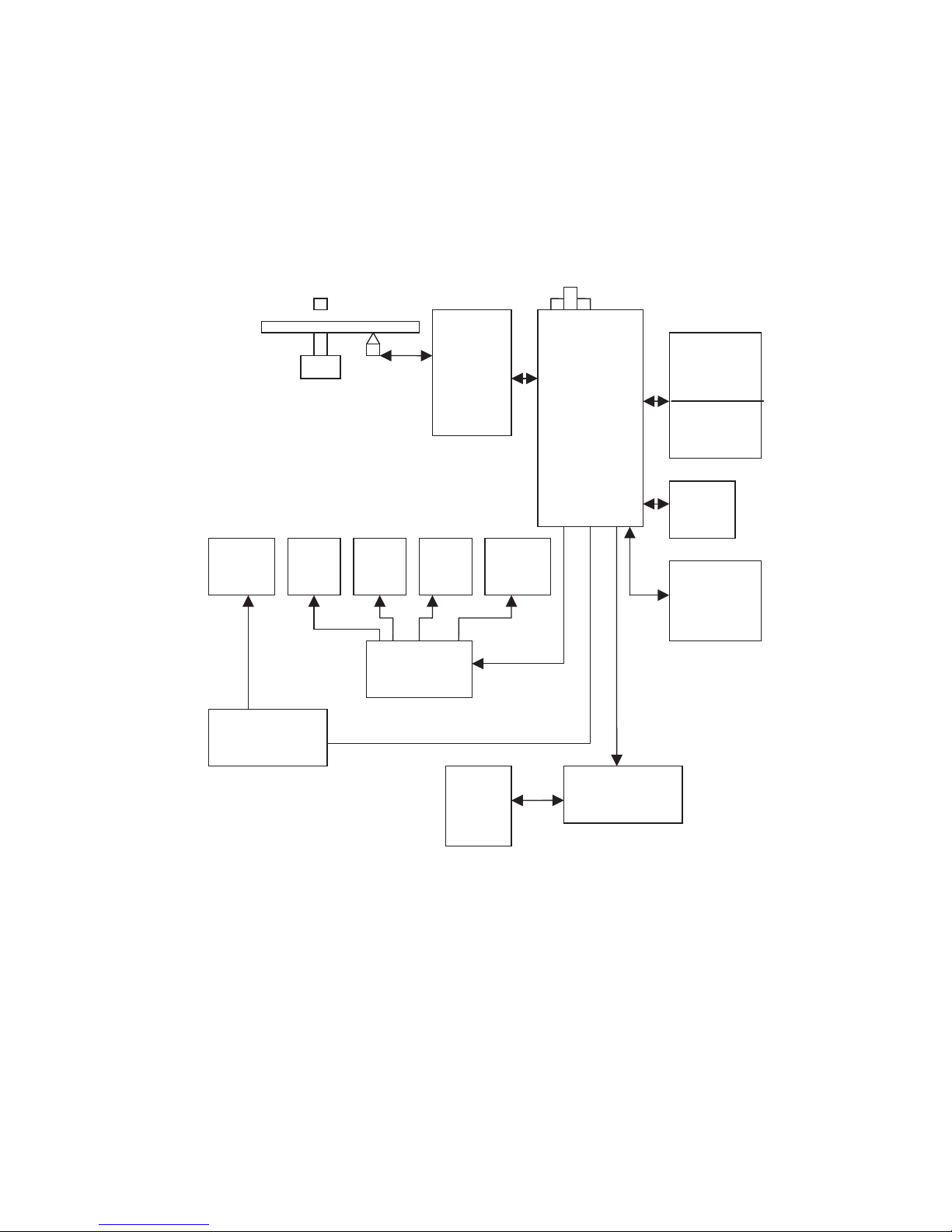

4. Block Diagram
Disc
MT1369
(RF AMP)
Laser Driver
Equalizer
Error Gen
MT1369
(Decode/Servo)
ATAPI
Buffer Manager
Demodulator
Error Correction
PLI
Focus & Tracking
Loading
AuDdio D/A
WM8720
SDRAM
1*16MHzX2
Video D/A
CS4955
1/F
Conn
(frant pannel)
Spindle
Motor
Focus
Coil
Track
Coil
Sied
Motor
Loading
Motor
BA5954FP
4ch motor Drive
BA6208
Spindle Motor Drive
80c52
System Controller
Fiash
Memory
8Mbit
Laser
pickup
Spindle motor single for CLV
Disc motor unit
5

2-1-2 DVD Processor Chip MTK1389
Features
Super Integration DVD player single chip
z High performance analog RF amplifier
z Servo controller and data channel processing
z MPEG-1/MPEG-2/JPEG video
z Dolby AC-3/DTS/DVD-Audio
z Unified memory architecture
z Versatile video scaling & quality enhancement
z OSD & Sub-picture
z 2-D graphic engine
High Performance Analog RF Amplifier
z Programmable fc
z Dual automatic laser power control
z Defect and blank detection
z RF level signal generato
- Audio
z Dolby Digital (AC -3)/EX decoding
z DTS/DTS -ES decoding
z MLP decoding for DVD-Audio
z MPEG-1 layer 1/layer 2 audio decoding
z MPEG-2 layer1/layer2 2-channel audio
z High Definition Compatible Digital (HDCD)
z Windows Media Audio (WMA)
z Advanced Audio Coding (AAC)
z Dolby ProLogic II
z Concurrent multi-channel and downmix out
z IEC 60958/61937 output
-TV Encod er
z Six 108MHz/12bit DACs
z Support NTSC, PAL-BDGHINM, PAL-60
z Support 525p, 625p progressive TV format
z Automatically turn off unconnected channels
z Support PC monitor (VGA)
z Support Macrovision 7.1 L1, Macrovision 525P
z and 625P
6

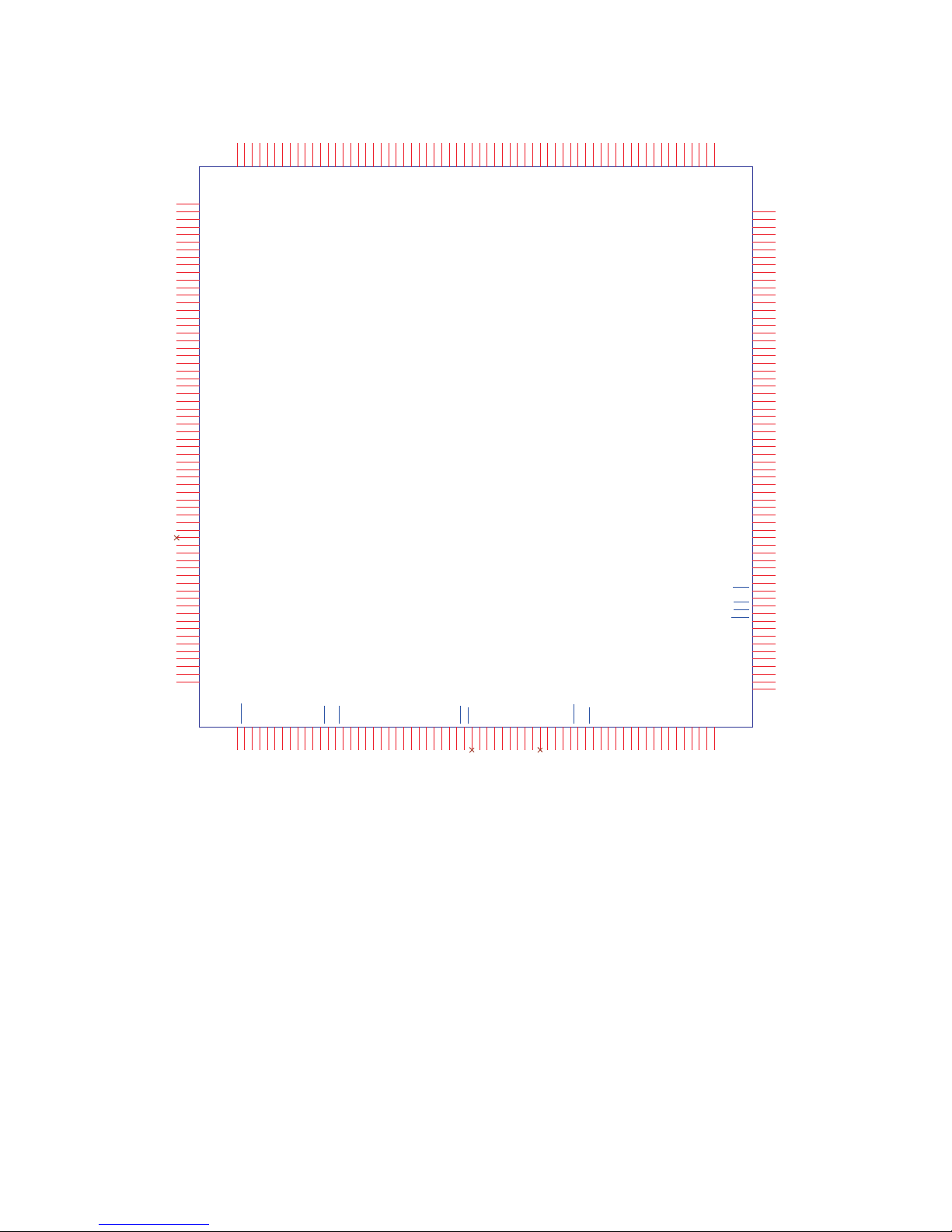

*Pinout Diagram
MT1389
2
250
3
4
5
1
252
253
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
256
28
27
30
29
32
31
43
26
25
33
34
35
36
42
41
45
39
40
46
38
37
59
75
74
72
71
70
69
68
52
91
62
63
87
86
64
65
84
83
82
81
73
93
53
54
55
56
80
57
58
67
92
85
60
61
76
78
90
79
66
77
94
95
96
97
98
99
100
101
102
103
104
105
116
106
107
244
245
108
109
110
111
112
122
113
114
115
117
118
120
119
121
123
124
125
126
128
127
129
192
191
190
189
188
187
186
185
184
183
182
181
180
179
178
177
176
175
174
173
172
171
170
169
167
168
166
165
164
163
162
161
160
159
158
156
157
155
154
153
152
151
150
148
149
147
146
145
144
143
141
142
140
139
138
137
136
134
135
133
132
131
130
249
255
24
254
231
230
238
237
248
247
236
251
246
243
241
242
240
239
234
235
232
224
225
222
221
220
219
226
218
217
215
213
214
204
211
210
209
208
212
207
206
205
203
202
201
200
199
198
197
196
195
194
193
233
44
47
48
49
50
51
88
89
216
223
228
229
227
DVDA
CEQP
DVDB
DVDC
DVDD
AGND
OSP
OSN
DVDRFIP
DVDRFIN
MA
MB
MC
MD
SA
SB
SC
SD
CDFON
CDFOP
TNI
TPI
MDI1
MDI2
LDO2
LDO1
AVDD3
V2REFO
SGND
VREFO
V20
TEO
FEO
USB_VSS
RFLVL/RFON
CSO/RFOP
TEZISLV
OP_OUT
OP_INN
OP_INP
FOO
TRO
USBM
TROPENPWM
PWMOUT1/V_ADIN9
USB_VDD3
FMO
DMO
HIGHA0
HIGHA1
HIGHA2
HIGHA3
HIGHA4
HIGHA5
HIGHA6
HIGHA7
DVDD18
AD7
DVSS
APLLCAP
AD5
AD4
APLLVSS
APLLVDD3
AD3
AD2
AD1
AD0
DVDD3
IOA0
IOA2
IOA3
IOA4
IOA5
DVDD3
IOA6
IOA7
A16
A17
DVSS
IOA18
IOA19
IOA20
IOA1
ALE
IOOE
IOWR
IOCS
DVSS
UWR
URD
DVDD18
UP1_2
UP1_3
UP1_4
UP1_5
UP1_6
UP1_7
UP3_0
UP3_1
DVSS
UP3_4
UP3_5
RFVDD3
RFRPDC
DVDD3
ICE
PRST
IR
INT0
DVDD18
DQM0
DQS0
RD7
RD6
RD5
RD4
DVSS
RD3
RD2
RD1
RD0
RD15
RD14
DVDD3
RD13
YUV0/CIN
FS
VREF
DACVDDC
RD16
RD17
RD18
RD19
RD20
RD21
DVDD3
RD22
RD23
DQM2
DQM3
RD24
RD25
DVSS
RD26
DVDD18
RD27
RD28
RD29
RD30
DVDD3
RD31/ASDATA5
RA4
RA5
RA6
DVSS
RA7
DVSS
RA8
RA9
RA11
RCLK
CKE
DVDD3
RCLKB
RVREF/V_ADIN3
DVDD18
RA3
RA2
DVSS
RA1
RA0
RA10
BA1
DVSS
BA0
DVDD3
RCS
RAS
CAS
RWE
DQM1
DQS1
DVSS
RD8
RD9
RD10
RD11
DR12
RFGND
IREF
SVDD3
RFGC
JITFN
JITFO
LPFOP
LPFIN
CRTPLP
HRFZC
LPFIP
CEQN
RFRPAC
S_VREFN
ADCVSS
S_VREFP
S_VCM
ADCVDD3
PLLVDD3
LPFON
PLLVSS
MC_DATA
SPDIF
ASDATA4
DVDD18
ASDATA3
ASDATA2
RFGND18
ASDATA1
ASDATA0
ACLK
ALRCK
ABCK
DVDD3
SPBCK/ASDATA5
SPLRCK
SPDATA
SPMCLK
DVDD3
HSYNC/V_ADIN2
YUV7/ASDATA5
VSYNC/V_ADIN1
YUV6/R
YUV5/B
DACVSSA
YUV4/G
DACVDDA
YUV3/CVBS
DACVSSB
YUV2/C
DACVDDB
YUV1/Y
DACVSSC
IDACEXLP
USBP
FG/V_ADIN8
TDI/V_ADIN4
TMS/V_ADIN5
TCK/V_ADIN6
TDO/V_ADIN7
AD6
IOA21/V_ADIN0
DVSS
DVSS
XTALO
XTALI
RFVDD18
7

PIN DESCRIPTON
PIN Symbol Type Description
1 AGND Ground Ground
2 DVDA Analog input AC coupled DVD RF signal input A
3 DVDB Analog input t AC coupled DVD RF signal input B
4 DVDC Analog input AC coupled DVD RF signal input C
5 DVDD Analog input AC coupled DVD RF signal input D
6 DVDRFIP Analog input Positive input of RF differential signal
7 DVDRFIN Analog input Negative input of RF differential signal
8 MA Analog input DC coupled DVD-RAM main-beam RF signal input A
9 MB Analog input DC coupled DVD-RAM main-beam RF signal input B
10 MC Analog input DC coupled DVD-RAM main-beam RF signal input C
11 MD Analog input DC coupled DVD-RAM main-beam RF signal input D
12 SA Analog input DC coupled DVD-RAM sub-beam RF signal input A
13 SB Analog input DC coupled DVD-RAM sub-beam RF signal input B
14 SC Analog input DC coupled DVD-RAM sub-beam RF signal input C
15 SD Analog input DC coupled DVD-RAM sub-beam RF signal input D
16 CDFON Analog input The general PWM output
17 CDFOP Analog input 2.5V power
18 TN1 Analog input 3 beam satellite PD signal negative input
19 TPI Analog input 3 beam satellite PD signal positive input
20 MDI1 Analog input Laser power monitor input
21 MDI2 Analog input Laser power monitor input
22 LDO2 Analog output Laser driver output
23 LDO1 Analog output Laser driver output
24 SVDD3 power 3.3v power
25 CSO/RFOP Analog output RF positive output
26 RFLVL/RFON Analog output RF negative output
27 SGND Ground Ground
28 V2REFO power 2.8v power
29 V20 power 2.0v power
30 VREFO power 1.4v power
31 FEO Analog output Focusing error output
32 TEO Analog output Tracking error output
33 TEZISLV Inout
34 OP_OUT Inout
35 OP_INN Inout
36 OP_INP Inout
37 DMO Analog output Disk motor control output.PWM output
38 FMO Analog output Feed motor control. PWM output
39 TROPENPWM Analog output
Tray open output,controlled by microcontroller.
This is PWM output for TRWMEN27hRW2=1 or is digital output for
TRWMEN27Hrw2=0
40 PWMOUT1/V Analog output The general PWM output
41 TRO Analog output Tracking servo output.PDM output of tracking servo compensator
42 FOO Analog output Focus servo output. PDM output of focus servo compensator
43 USB_VSS ground ground
44 USBP
45 USBM
46 USB_VDD3 power 3.3v power
47 FG/V_ADIN8 Analog input ADC input
48 TD/V_ADIN4 Analog input ADC input
49 TMS/V_ADIN5 Analog input ADC input
50 TCK/V_ADIN6 Analog input ADC input
51 TDO/V_ADIN7 Analog input ADC input
52 DVDD18 power 1.8v power
53 IOA2 Inout, pull up Microcontroller address 0/GPIO2
54 IOA3 Inout, pull up Microcontroller address 0/GPIO3
8

PIN Symbol Type Description
9
55 IOA4 Inout, pull up Microcontroller address 0/GPIO4
56 IOA5 Inout,pull up Microcontroller address 0/GPIO5
57 IOA6 Inout, pull up Microcontroller address 0/GPIO6
58 IOA7 Inout, pull up Microcontroller address 0/GPIO7
59 HIGHA0 Inout,pull up Microcontroller address 8
60 IOA18 nout,pull up Microcontroller address 0/GPIO18
61 IOA19 Inout,pull up Microcontroller address 0/GPIO19
62 DVSS GND GND
63 APLLCAP Analogue out Analogue output for PLL circuit
64 APLLVSS gnd gnd
65 APLLVDD3 Power 3.3V power
66 IOWR inout Flash write enable,active low /GPIO17
67 A16 output Flash address 16
68 HIGHA7 Inout,pull up Microcontroller address 15
69 HIGHA6 Inout,pull up Microcontroller address 14
70 HIGHA5 Inout,pull up Microcontroller address 13
71 HIGHA4 Inout, pull up Microcontroller address 12
72 HIGHA3 Inout, pull up Microcontroller address 11
73 DVDD3 Power 3.3V power
74 HIGHA2 Inout, pull up Microcontroller address 10
75 HIGHA1 Inout,pull up Microcontroller address 9
76 IOA20 Inout,pull up Microcontroller address 0/GPIO20
77 IOCS Inout,pull up Flash chip select,active low /GPIO18
78 IOA1 Inout,pull up Microcontroller address 0/GPIO2
79 IOOE Inout,pull up Flash output enable,active low /GPIO13
80 DVDD3 Power 3.3V power
81 AD0 Inout Microcontroller address/data 0
82 AD1 Inout Microcontroller address/data 1
83 AD2 Inout Microcontroller address/data 2
84 AD3 Inout Microcontroller address/data 3
85 DVSS gnd gnd
86 AD4 Inout Microcontroller address/data 4
87 AD5 Inout Microcontroller address/data 5
88 AD6 Inout Microcontroller address/data 6
89 IOA21/V_ADIN
0 Inout, pull up Microcontroller address 0/GPIO21
90 ALE Inout, pull up Microcontroller address latch enable
91 AD7 Inout Microcontroller address/data 7
92 A17 output Flash address 17
93 IOA0 Inout,pull up/down Microcontroller address 0/GPIO0
94 DVSS gnd gnd
95 UWR Inout,pull up/down USB write
96 URD Inout,pull up/down USB read
97 DVDD18 Power Power1.8V
98 UP1_2 Inout,pull up Microcontroller port 1-2
99 UP1_3 Inout,pull up Microcontroller port 1-3
100 UP1_4 Inout,pull up Microcontroller port 1-4
101 UP1_5 Inout,pull up Microcontroller port 1-5
102 UP1_6 Inout,pull up Microcontroller port 1-6
103 UP1_7 Inout,pull up Microcontroller port 1-7
104 UP3_0 Inout,pull up Microcontroller port 3-0
105 UP3_1 Inout,pull up Microcontroller port 3-1
106 UP3_4 Inout,pull up Microcontroller port 3-4
107 UP3_5 Inout,pull up Microcontroller port 3-5
108 DVDD3 Power 3.3V power
109 ICE Inout,pull down Microcontroller ICE mode enable
110 PRST Inout,pull down Power on reset input, active low
111 IR input IR control signal input
112 INT0 input Microcontroller interrupt 0,active low
113 DQM0 Output Mask for DRAM input/output byte 0

PIN Symbol Type Description
114 DQS0 Output Mask for DRAM input/output byte 4
115 RD7 Output DRAM data 7
116 DVSS gnd gnd
117 RD6 Output DRAM data 6
118 RD5 Output DRAM data 5
119 DVSS gnd gnd
120 RD4 Output DRAM data 4
121 RD3 Output DRAM data 3
122 DVDD18 Power 1.8V Power
123 RD2 Output DRAM data 2
124 RD1 Output DRAM data 1
125 RD0 Output DRAM data 0
126 RD15 Output DRAM data 15
127 DVDD3 Power 3.3V power
128 RD14 Output DRAM data 14
129 RD13 Output DRAM data 13
130 RD12 Output DRAM data 12
131 RD11 Output DRAM data 11
132 RD10 Output DRAM data 10
133 RD9 Output DRAM data 9
134 DVSS gnd gnd
135 RD8 Output DRAM data 8
136 DQS1 Output Mask for DRAM input/output byte 3
137 DQM1 Output Mask for DRAM input/output byte 1
138 RWE Output DRAM write enable,active low
139 CAS Output DRAM column address strobe,active low
140 RAS Output DRAM row address strobe,active low
141 DVDD3 Power 3.3V power
142 RCS Output DRAM chip select,active low
143 BA0 Output DRAM bank address 0
144 DVSS gnd gnd
145 BA1 Output DRAM bank address 1
146 RA10 Output DRAM address 10
147 RA0 Output DRAM address 0
148 DVSS gnd gnd
149 RA1 Output DRAM address 1
150 RA2 Output DRAM address 2
151 RA3 Output DRAM address 3
152 DVDD18 Power 1.8V power
153 RVREF Output
154 RCLKB Output DRAM clock
155 DVDD3 Power 3.3V power
156 RCLK Output DRAM clock
157 CKE Output DRAM clock enable
158 RA11 Output DRAM address 11
159 RA9 Output DRAM address 9
160 RA8 Output DRAM address 8
161 DVSS gnd gnd
162 RA7 Output DRAM address 7
163 DVSS Ground Ground
164 RA6 Output DRAM address 6
165 RA5 Output DRAM address 5
166 RA4 Output DRAM address 4
167 DVDD3 Power 3.3V power
168 RD31 Output DRAM data 31
169 RD30 Output DRAM data 30
170 RD29 Output DRAM data 29
171 RD28 Output DRAM data 28
172 RD27 Output DRAM data 27
10

PIN Symbol Type Description
11
173 DVDD18 Power 1.8V power
174 RD26 output DRAM data 26
175 DVSS GND GND
176 RD25 output DRAM data 25
177 RD24 output DRAM data 24
178 DQM3 output Mask for DRAM input/output byte 3
179 DQM2 output Mask for DRAM input/output byte 2
180 RD23 output DRAM data 23
181 RD22 output DRAM data 22
182 DVDD3 Power 3.3V power
183 RD21 output DRAM data 21
184 RD20 output DRAM data 20
185 RD19 output DRAM data 19
186 RD18 output DRAM data 18
187 RD17 output DRAM data 17
188 RD16 output DRAM data 16
189 DACVDD3 Power 3.3V power
190 VREF output
191 FS
192 YUV0
193 DACVSSC GND GND
194 YUV1 Output Video data output bit 1
195 DACVDDB Power 3.3V power
196 YUV2 Output Video data output bit 2
197 DACVSSB GND GND
198 YUV3 Output Video data output bit 3
199 DACVDDA Power 3.3V power
200 YUV4 Output Video data output bit 4
201 DACVSSA GND GND
202 YUV5 Output Video data output bit 5
203 YUV6 Output Video data output bit 6
204 DVDD3 Power 3.3V power
205 VSYNC Output Vertical sync / GPIO16
206 YUV7 Output Video data output bit 7
207 HSYNC Output Horizontal sync / GPIO15
208 SPMCLK Inout
209 SPDATA Analog input
210 SPLRCK Input,pull down
211 SPBCLK Output
212 DVDD3 Power 3.3V power
213 ALRCK Input,pull down (1) Audio left/right channel clock (2)Trap value in power-on reset.
1:use external 373, 0: use internal 373
214 ABCK Output Audio bit clock
215 ACLK Inout Audio DAC master clock (384/256 audio sample frequency)
216 DVSS GND GND
217 ASDATA0 Input,pull down Audio serial data 0 (left/right channel)
218 ASDATA1 Input,pull down Audio serial data 1 (surround left/surround right channel)
219 ASDATA2 Input,pull down Audio serial data 2 (center/LFE channel)
220 ASDATA3 Input,pull down
221 DVDD18 Power 1.8V power
222 ASDATA4 Input,pull down
223 DVSS GND GND
224 MC_DATA Input Microphone serial input
225 SPDIF Output SPDIF output
226 RFGND18 GND GND
227 RFVDD18 Power 1.8V power
228 XTAL0 Output Crystal output
229 XTAL1 Input Crystal input,27MHz
230 JITFO Analog output RF jitter meter output
231 JITFN Analog input Negative input of the operation amplifier for RF jigger meter

PIN Symbol Type Description
232 PLLVSS GND GND
233 IDACEXLP
234 PLLVDD3 Power 3.3V power
235 LPFON Analog output Negative output of the low pass filter
236 LPFIP Analog input Positive input of loop filter amplifier
237 LPFIN Analog input Negative input of loop filter amplifier
238 LPFOP Analog output Positive output of the low pass filter
239 ADCVDD3 Power 3.3V power
240 S_VCM GND GND
241 ADCVSS GND GND
242 S_VREFP
243 S_VREFN
244 RFVDD3 Power 3.3V power
245 RFRPDC Analog input RF ripple detect input
246 RFRPAC Analog input RF ripple detect input (through AC coupling)
247 HFRZC Analog input High frequency RF ripple zero crossing
248 CRTPLP
249 RFGND GND GND
250 CEQP Analog output
251 CEQN Analog output
252 OSP Analog output
253 OSN Analog output
254 RFGC
255 IREF Analog Input Current reference input.it generate reference current for data PLL
Connect an external 100K resistor to this pin and PLLVSS.
256 AVDD3 Power 3.3V power
2-1-3 20-Pin, 24-Bit, 192kHz D/A with Volume Control (WM8766)

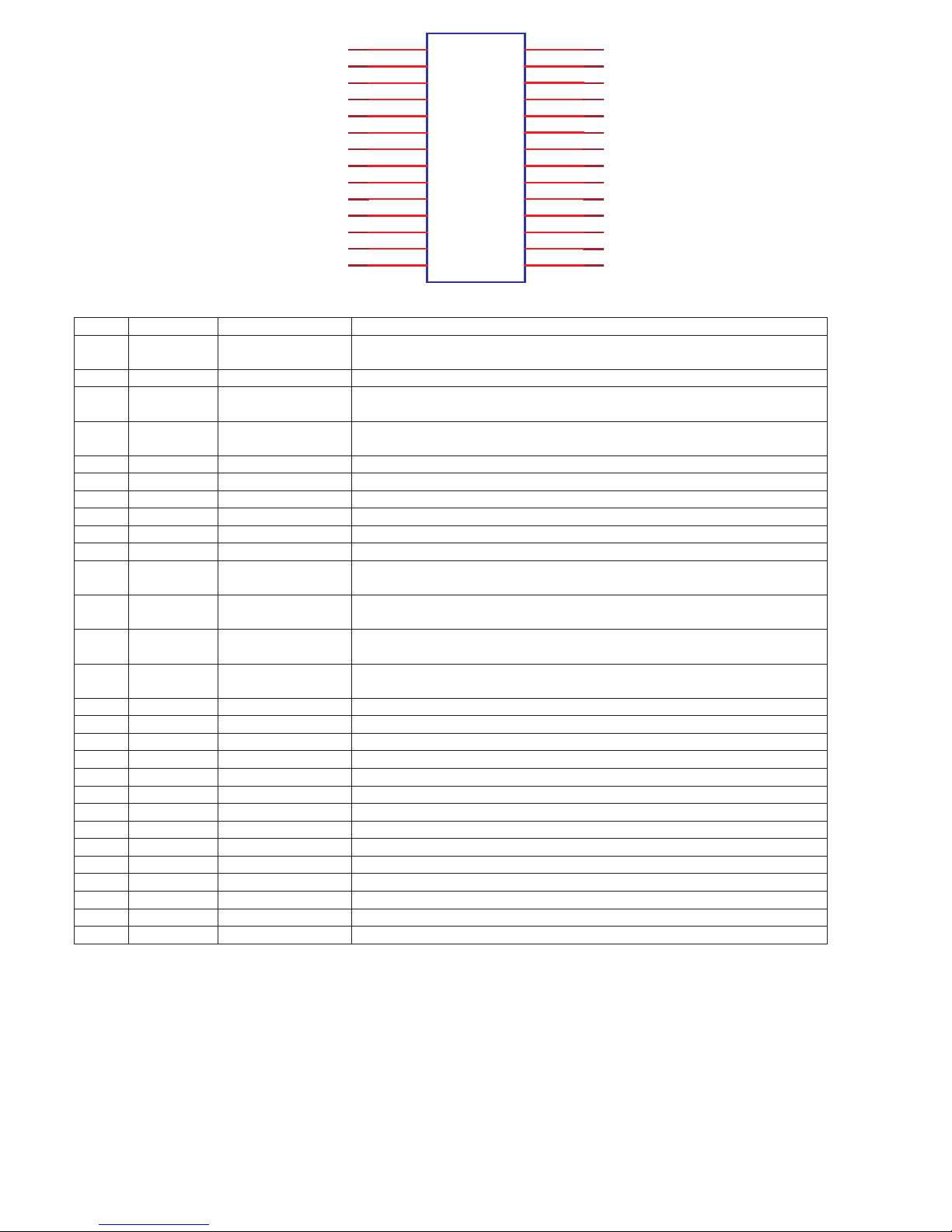

PIN CONFIGURATION
12

MODE
MCLK
BCLK
LRC
DVDD
DGND
DIN1
DIN2
DIN3
DNC
ML/I2S
MC/WL
MC/DM
MUTE TESTRE F
VREFN
VREFP
VMID
NC
NC
VOUT1L
VOUT1R
VOUT2L
VOUT2R
VOUT3L
VOUT3R
AGND
AVDD
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
16
17
18
19
20
21
22
23
24
25
26
27
28

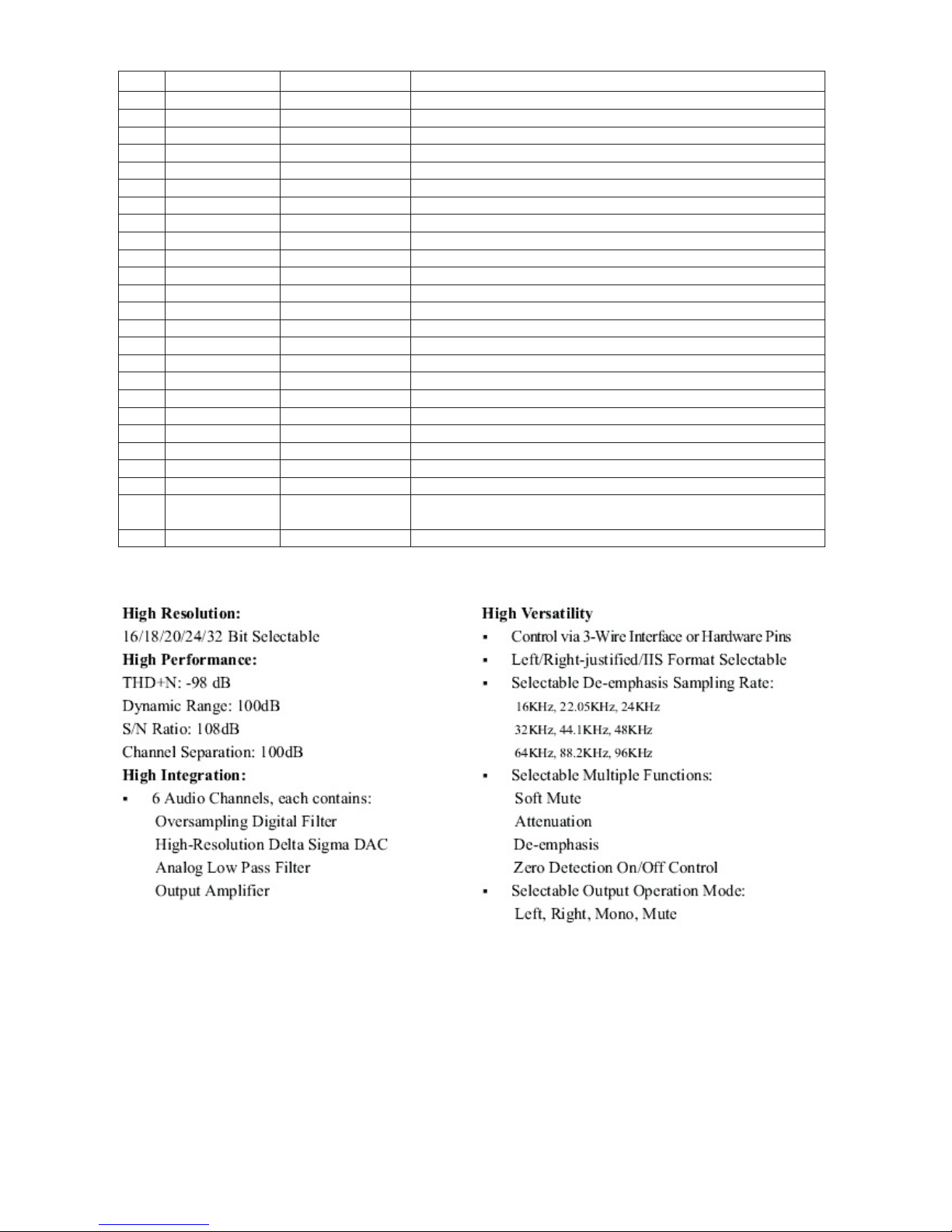

PIN DESCRIPTIONS
PIN NAME TYPE DESCRIPTION
1 MODE Digital input Control format selection
0=Software control 1=Hardwar e control
2 MCLK Digital input Master clock:256,384,512 or 768f s ( f s = word clock frequency)
3 BCLK Digital
input/output
Audio interface bit clock
4 LRCLK Digital
input/output
Audio left/right word clock
5 DVDD Supply Digital positive supply
6 DGND Supply Digital negative supply
7 DIN1 Digital input DAC channel 1 data input
8 DIN2 Digital input DAC channel 2 data input
9 DIN3 Digital input DAC channel 3 data input
10 DNC Do not connect Do not connect
11 ML/I2S Digital input Software Mode: Serial interface Latch signal
Hardware Mode: Input Audio Data Format
12 MC/IWL Digital input Software Mode: Serial control interface clock
Hardware Mode: Audio data input word length
13 MD/DM Digital input Software Mode: Serial interfacedata
Hardware Mode: De-empahsis selection
14 MUTE Digital
input/output
DAC Zero flag output or DAC mute input
15 TESTREF1 Digital input Test pin
16 VREFN Supply Digital negative supply and substrate connection
17 VREFP Supply Digital positive reference supply
18 VMID Analog output Midrail divider decoupling pin; 10uf external decoupling
19 NC Do not connect Do not connect
20 NC Do not connect Do not connect
21 VOUT1L Analog output DAC channel 1left output
22 VOUT1R Analog output DAC channel 1right output
23 VOUT2L Analog output DAC channel 2 left output
24 VOUT2R Analog output DAC channel 2 right output
25 VOUT3L Analog output DAC channel 3 left output
26 VOUT3R Analog output DAC channel 3 right output
27 AGND Supply Analogue negative supply and substrate connection
28 AVDD Supply Analogue positive reference supply
Note:
Digital input pins have Schmitt trigger input buffers.
2-1-4 Serial EEPROM, 2K (256 x 8) (24C02) or 16 K (2048 x 8) (24C16)
24C02 is used for DVD player while 24C16 is for DVD receiver. The capacity is the only difference between two kinds of
serial EEPROM. Both of them use same package and have same pin configuration.
13

* Features
z Low-Voltage and Standard-Voltage Operation
-5.0 (V CC = 4.5V to 5.5V)
-2.7 (V CC = 2.7V to 5.5V)
-2.5 (V CC = 2.5V to 5.5V)
-1.8 (V CC = 1.8V to 5.5V)
z Internally Organized 128 x 8 (1K), 256 x 8 (2K), 512 x 8 (4K), 1024 x 8 (8K) or 2048 x 8 (16K)
z 2-Wire Serial Interface
z Schmitt Trigger, Filtered Inputs for Noise Suppression
z Bi-directional Data Transfer Protocol
z 100 kHz (1.8v, 2.5V, 2.7V) and 400 kHz (5V) Compatibility
z Write Protect Pin for Hardware Data Protection
z 8-Byte Page (1K, 2K), 16-Byte Page (4K, 8K, 16K) Write Modes
z Partial Page Writes Are Allowed
z Self-Timed Write Cycle (10 ms max)
z High Reliability
- Endurance: 1 Million Write Cycles
- Data Retention: 100 Years
- ESD Protection: >3000V
z Automotive Grade and Extended Temperature Devices Available
z 8-Pin and 14-Pin JEDEC SOIC, 8-Pin PDIP, 8-Pin MSOP, and 8-Pin TSSOP Packages
*Pin Configurations
*Pin Description
Pin Name Function
A0-A2 Address Inputs
SDA Serial Data
SCL Serial Clock input
WP Write Protect
NC No Connect
2-1-5 8M-BIT [1Mx8/512Kx16] CMOS FLASH MEMORY
FEATURES
• 1,048,576 x 8/524,288 x 16 switchable
• Single power supply operation
- 5.0V only operation for read, erase and program
operation
• Fast access time: 70/90/120ns
• Low power consumption
- 50mA maximum active current
- 0.2uA typical standby current
14

• Command register architecture
- Byte/word Programming (7us/12us typical)
- Sector Erase (Sector structure 16K-Bytex1,
8K-Bytex2, 32K-Bytex1, and 64K-Byte x15)
• Auto Erase (chip & sector) and Auto Program
- Automatically erase any combination of sectors with
Erase Suspend capability.
- Automatically program and verify data at specified
address
• Erase suspend/Erase Resume
- Suspends sector erase operation to read data from,
or program data to, another sector that is not being
erased, then resumes the erase.
• Status Reply
- Data polling & Toggle bit for detection of program and
erase operation completion.
• Ready/Busy pin (RY/BY)
- Provides a hardware method of detecting program
or erase operation completion.
• Sector protection
- Sector protect/chip unprotect for 5V/12V system.
- Hardware method to disable any combination of
sectors from program or erase operations
- Tempory sector unprotect allows code changes in
previously locked sectors.
• 100,000 minimum erase/program cycles
• Latch-up protected to 100mA from -1V to VCC+1V
• Boot Code Sector Architecture
- T = Top Boot Sector
- B = Bottom Boot Sector
• Low VCC write inhibit is equal to or less than 3.2V
• Package type:
- 44-pin SOP
- 48-pin TSOP
• Compatibility with JEDEC standard
- Pinout and software compatible with single-power
supply Flash
15

16

2-1-6 512K X 16 Bit X 2 Banks Synchronous DRAM (A43L0616)
Features
? JEDEC standard 3.3V power supply
? LVTTL compatible with multiplexed address
? Dual banks / Pulse RAS
? MRS cycle with address key programs
- CAS Latency (2,3)
- Burst Length (1,2,4,8 & full page)
- Burst Type (Sequential & interleave)
? All inputs are sampled at the positive going edge of the system clock
? Burst Read Single-bit Write operation
? DQM for masking
? Auto & self refresh
? 64ms refresh period (4K cycle)
? 50 Pin TSOP (II)

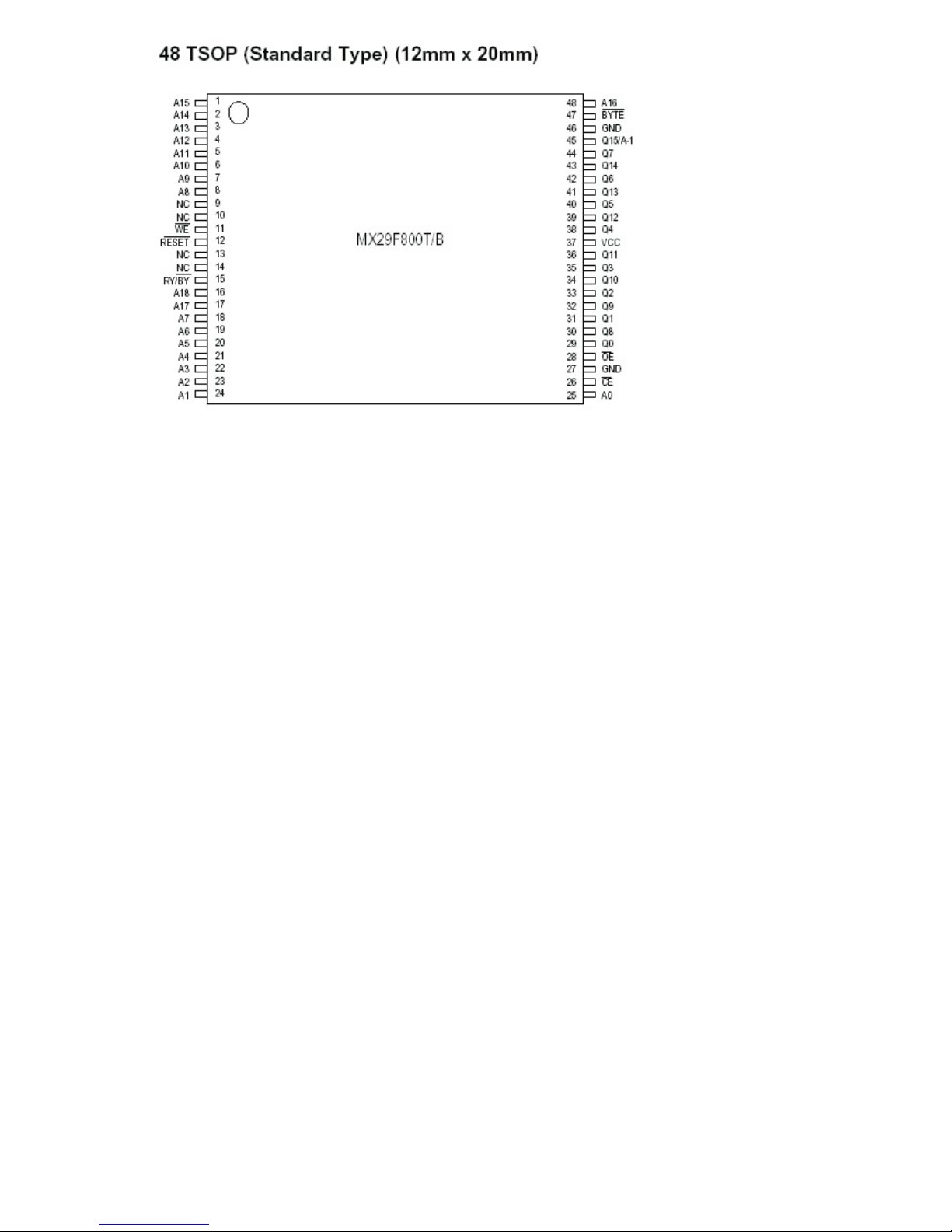

Pin Configuration
17

18
Table of contents
Other Akai DVD Player manuals
