SERVICEMANUAL
794-019
AKRON
CHILDSTILTTABLE
®
Model
8601B

Page 1
General Maintenance
?It is recommended that the following checks and adjustments are carried out at
minimum of twice a year and more frequently if the couch is in constant use.
?The framework of the couch is of steel construction and coated with an
epoxy paint finish. This is resistant to most cleaning substances.
?The major pivot points need to be lubricated sparingly with oil. Care
should be taken to keep oil away from the upholstery.
?All nuts should be checked and tightened where necessary. Care
should be taken not to over tighten the nuts on the pivot points as this
may cause them to bind.
?Air tubes should be checked to ensure that they are not pinched.
?Disconnect the mains supply and check the following;
NOTE - all electrical checks should be carried out by a suitably
qualified person.
Electric cables and mains plug should be inspected for damage and
replaced where necessary. In addition, electrical safety checks for
earth continuity (class I equipment only) and earth leakage checks
should also be carried out.
The correct value fuse of 5 amps and ASTA approved to BS1362
MUST be used.
?The upholstered top is manufactured using fire retardant vinyl. This
tends to go brittle if oil or grease (including body oils) are left on it. The
upholstery should be cleaned with warm soapy water after use. The
use of detergents is not recommended although a suitable sterilization
fluid is acceptable. Use of a couch cover or towel will help prolong the
life of the upholstery.
?Fixing screws, used to secure the upholstery, should be checked and
tightened or replaced where necessary.
?The hinge pins on the head and foot sections should be checked to
ensure that they have not moved within the hinge tubes. If the pin
protrudes, ensure the 'E' clip is located, securing the pin in place. If the
pin moves easily, the 'E' clip may have been dislodged and will need
replacing. Contact Akron Service Dept.

Page 2
Manufacturers Details
Huntleigh Akron
1 Farthing Road
Ipswich
Suffolk
IP1 5AP
England
Tel. [phone]
Fax. [phone]
Huntleigh Akron T/A a Division of Huntleigh Nesbit Evans Limited
A Member of the Huntleigh Technology PLC Group of Companies
© Huntleigh Technology PLC 2001
Revision History
DOCUMENT ISSUE DCN No SIGNED DATE
All Pages 1~Paula Hammond 23.10.98
2G6017Z 2G6018Z 2 905 Gary Mullenger 3.8.99
2G6017Z 2G6018Z
2G6030Z 2G6031Z 2G6032Z 3 932 Gary Mullenger 6.3.00

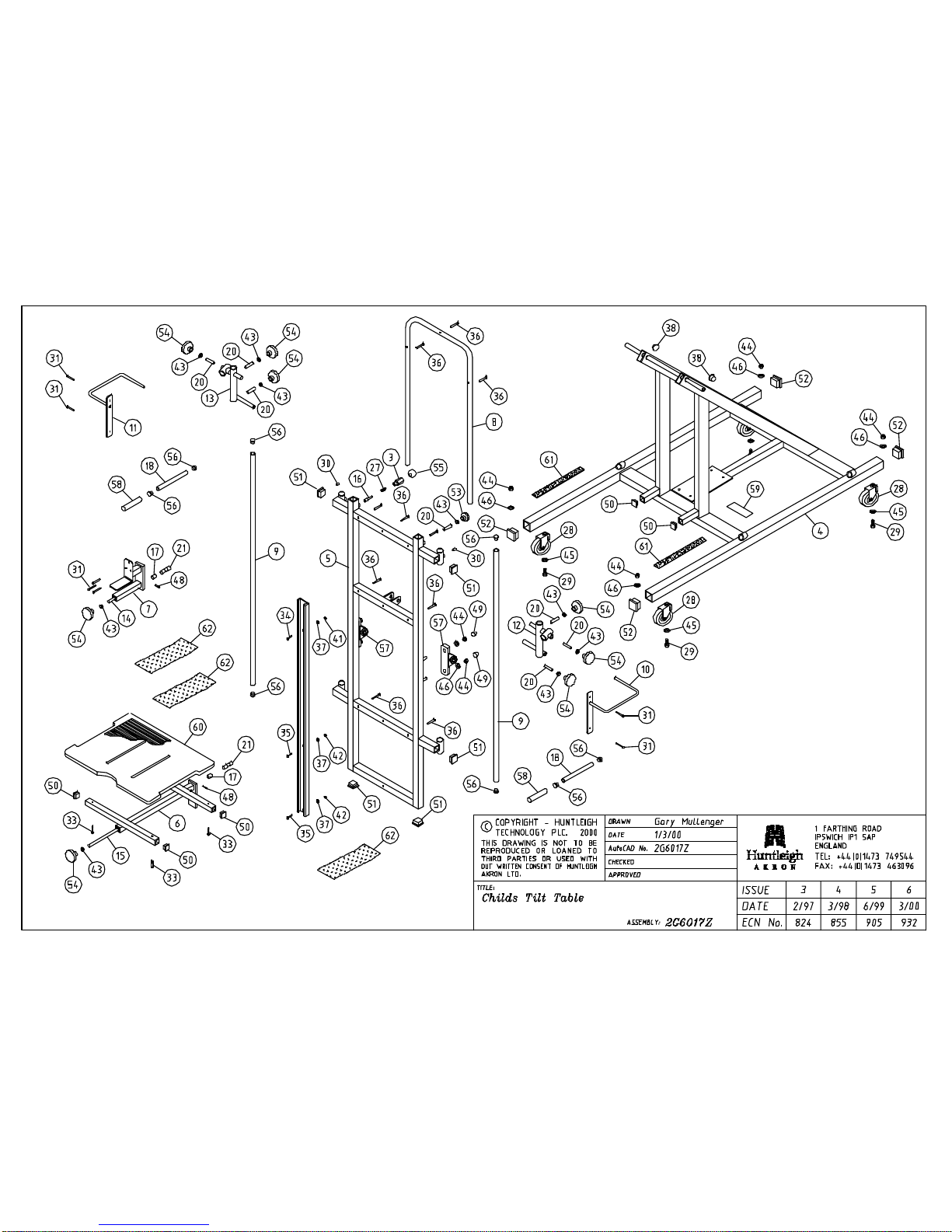

PARTS LIST
CHILDS TILT TABLE
2G6017Z – Issue 16
Issue 10 11 12 13 14 15 16
Date 2/96 10/96 2/97 4/98 9/98 8/99 3/00
E.C.N. 756 811 824 855 867 905 932
Reference
Number Description Quantity Part Number Issue Status
1Spring Pin Body 13A6710Z 0
2Base Frame 13A6801Z 4
3Top Frame 13A6802Z 5
4Footboard Frame 13A6805Z 0
5Pommel Bracket 13A6806Z 2
6Headrest Extension 13A6808Z 0
7Fixation Rail 23A6810Z 0
8Left Pelvic Stabiliser 13A6817Z 1
9Right Pelvic Stabiliser 13A6818Z 1
10 Left Stabiliser Holder 13A6819Z 2
11 Right Stabiliser Holder 13A6820Z 2
12 M10 x 116mm Steel Stud 13A6821Z 0
13 M10 x 341mm Steel Stud 13A6822Z 0
14 Spring Pin 13A6823Z 0
15 Plunger Cap 23A6824Z 0
16 Hand Hold Tube 23A9626Z 0
17 Pommel Channel 13F6803Z 0
18 M10 x 42mm Brass Stud 73G4431Z 0
19 Nylon Plunger 23G6825Z 0
20 Spring 15G3700Z 0
21 3" Locking Castor 45H0403A 0
22 M10 x 20mm Socket Head Set Screw 45J8058R 0
23 M10 x 20mm Grub Screw 25J8058Z 0
24 No.10 x 1" Roundhead Woodscrew 75K0411Z 0
25 M5 x 30mm Pan Head Screw 45K1139U 0
26 M6 x 30mm Countersunk Posidrive Screw 15K1239V 0
27 M6 x 35mm Countersunk Posidrive Screw 25K1240V 0
28 M6 x 40mm Pan Head Set Screw 10 5K1241U 0
29 1/4" Flat Washer 35L0362V 0
30 5/8" Capped Starlock 05L0803Z 0
31 M6 Half Nut 15L2919A 0
32 M6 Nyloc Nut 25L2919C 0
33 M10 Half Nut 95L3319A 0
34 M10 Nyloc Nut 85L3319C 0
35 M10 Spring Washer 45L3351K 0

PARTS LIST
CHILDS TILT TABLE
2G6017Z – Issue 16
Issue 10 11 12 13 14 15 16
Date 2/96 10/96 2/97 4/98 9/98 8/99 3/00
E.C.N. 756 811 824 855 867 905 932
Reference
Number Description Quantity Part Number Issue Status
36 M10 Flat Washer 85L3365K 0
37 1/8" x 3/4" Seloc Pin 25M0206A 0
38 M10 Nut Cap 45N0029X 0
39 3/4" x 3/4" x 16-18G Insert 65N0707E 0
40 1" x 1" x 10-14G Insert 65N0909Z 0
41 11/4" x 11/4" x 16G Insert 45N1010E 0
42 11/4" x M10 Knob 15N1082N 0
43 21/4" x M10 Knob 85N1582N 0
44 25mm Ball Knob 15N3327S 0
45 7/8" x 10-12G Ribbed Insert 85N9008M 0
46 5/8" Self Alignment Bearing 25P1808A 0
47 7/8" x 5" Sleeve 25T1000Z 0
48 Huntleigh Akron Label 15U1006Z 2
49 Footboard 15U8800Z 0
50 Resilient Anti-Slip 25Y5600Z 0
51 100mm Loop Velcro 0.46 8A6500Z 0

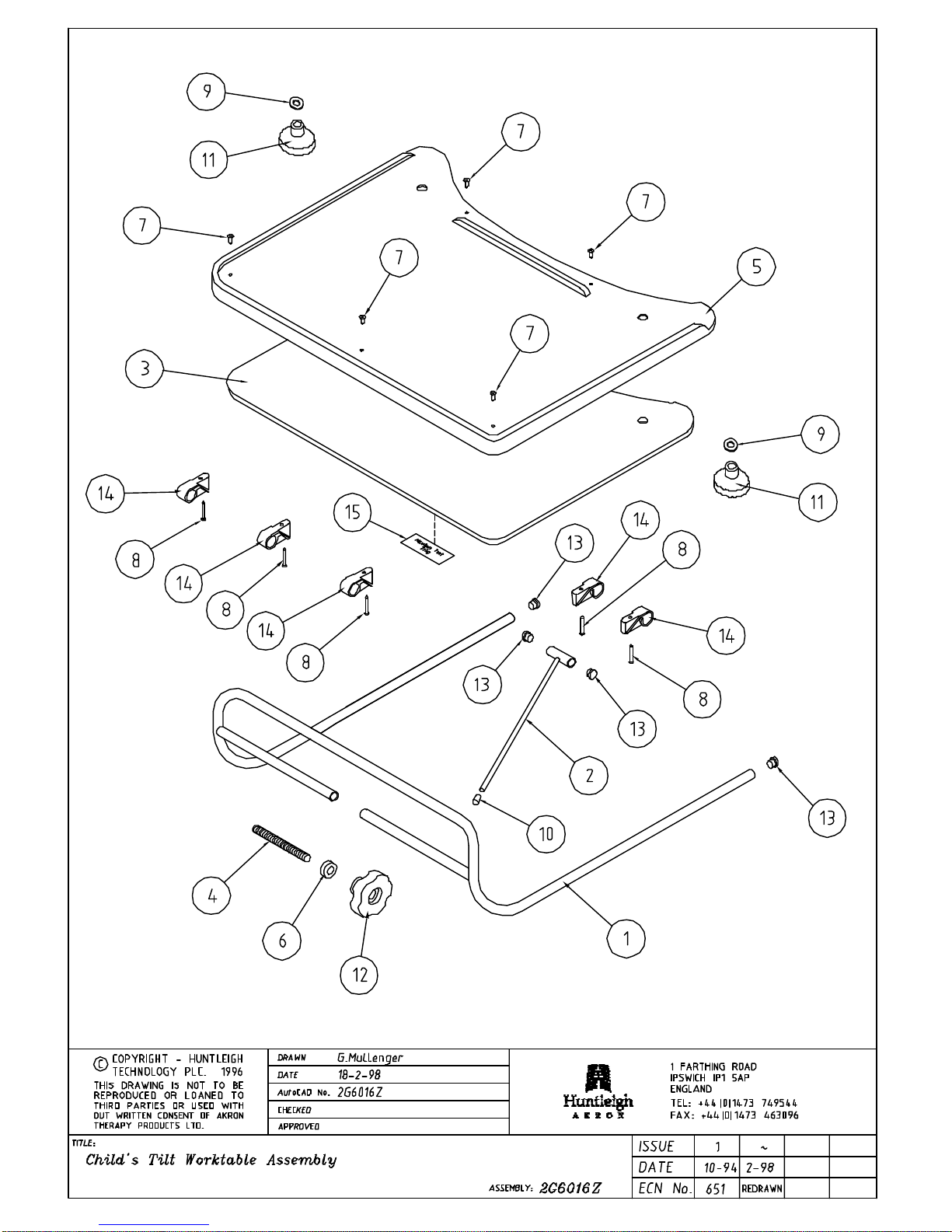

PARTS LIST
CHILDS TILT ACCESSORY TABLE
2G6016Z – Issue 02
\\MAIN_SERVER\WORKDOCS\P-LIST\2G6016Z.DOC 13th August 1998
Reference
Number Description Quantity Part Number Issue Status
1Fixing Frame 13A6807Z 4
2Pivot Bar 13A6830Z 0
3Wood Insert 13A9570Z 0
4M16 x 120mm Stud 13F6829Z 0
5Worktable 13F9571Z 0
6Nylon Spacer 13G9513Z 0
7No.8 x 3/8" Flange Head Posidrive Screw 55K0305R 0
8No.10 x 11/2" Woodscrew 55K0413A 0
9M10 Flat Washer 25L3362K 0
10 5/16" End Cap 15N0200L 0
11 21/4" x M10 Knob 25N1582N 0
12 16mm Handwheel 15N2749P 0
13 5/8" x 16G Insert 45N9206M 0
14 Cleat 55T2500Z 0
15 20KG Maximum Load Label 15U1031Z 0

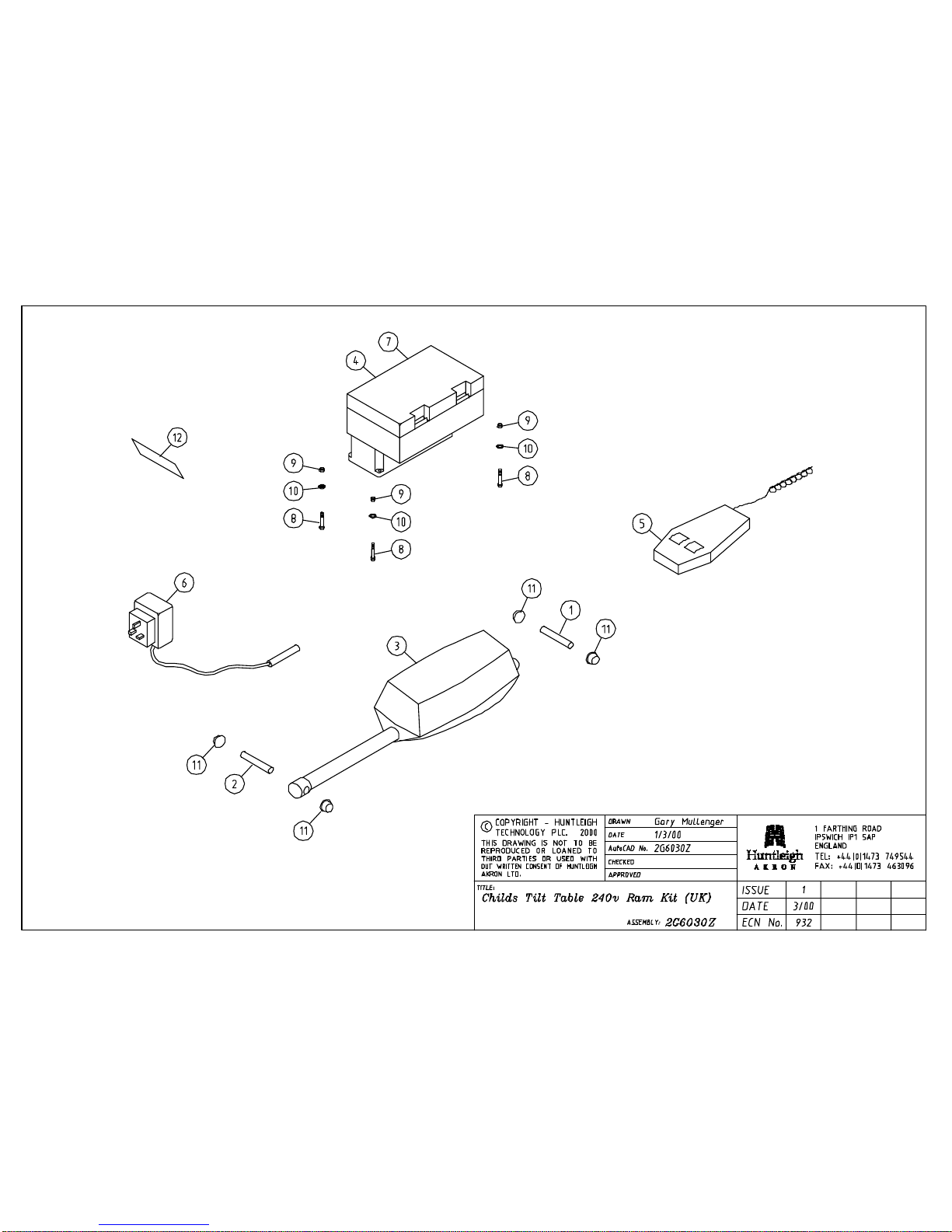

PARTS LIST
CHILDS TILT TABLE 240V RAM KIT (UNITED KINGDOM)
2G6030Z - Issue 01
Issue 1
Date 3/00
E.C.N. 932
Reference
Number Description Quantity Part Number Issue Status
112mm x 50mm Fixing Pin 13A6050Z 0
212mm x 58mm Fixing Pin 13A6052Z 0
3Actuator 300mm Stroke 15F3200Z 0
4Power Supply 15F3300Z 0
5Handset 15F3400Z 0
6240V Charger & Plug 15F3500Z 0
7Batteries 15F3600Z 0
8M5x25mm Pan Head Screw 45K1138U 0
9M5 Nyloc Nut 45L2819C 0
10 M5 Flat Washer 45L2865K 0
11 12mm Capped Starlock 45L3503Z 0
12 Serial Number Label 1760.53 0

PARTS LIST
CHILDS TILT TABLE 240V RAM KIT (EUROPE)
2G6031Z - Issue 01
Issue 1
Date 3/00
E.C.N. 932
Reference
Number Description Quantity Part Number Issue Status
112mm x 50mm Fixing Pin 13A6050Z 0
212mm x 58mm Fixing Pin 13A6052Z 0
3Actuator 300mm Stroke 15F3200Z 0
4Power Supply 15F3300Z 0
5Handset 15F3400Z 0
6Batteries 15F3600Z 0
7240V Charger & Plug 15F3900Z 0
8M5x25mm Pan Head Screw 45K1138U 0
9M5 Nyloc Nut 45L2819C 0
10 M5 Flat Washer 45L2865K 0
11 12mm Capped Starlock 45L3503Z 0
12 Serial Number Label 1760.53 0

PARTS LIST
CHILDS TILT TABLE 110V RAM KIT (UNITED STATES)
2G6032Z - Issue 01
Issue 1
Date 3/00
E.C.N. 932
Reference
Number Description Quantity Part Number Issue Status
112mm x 50mm Fixing Pin 13A6050Z 0
212mm x 58mm Fixing Pin 13A6052Z 0
3Actuator 300mm Stroke 15F3200Z 0
4Power Supply 15F3300Z 0
5Handset 15F3400Z 0
6Batteries 15F3600Z 0
7110V Charger & Plug 15F3700Z 0
8M5x25mm Pan Head Screw 45K1138U 0
9M5 Nyloc Nut 45L2819C 0
10 M5 Flat Washer 45L2865K 0
11 12mm Capped Starlock 45L3503Z 0
12 Serial Number Label 1760.55 0
