Akw 30501 User manual

AKW BIDET
INSTALLATION INSTRUCTIONS
Please read all instructions before installation and leave this document
with the end user for future reference as it contains important warranty information
Side Entry: 30502
Bottom Entry: 30504
Side Entry: 30501
Bottom Entry: 30503
Ergonomic Bidet Seat Consilio Bidet Seat

General: 01905 823 298 | www.akw-ltd.co.uk
2
TABLE OF CONTENTS
Table of Contents
Overview ..................................................................................................................................................................3
Contents ..................................................................................................................................................................4
Important Safety Information.................................................................................................................................5
Important Information ............................................................................................................................................6
...........................................................................................................................................7
Technical Dimensions.............................................................................................................................................8
Side Entry Installation ......................................................................................................................................9-10
Bottom Entry Installation .............................................................................................................................. 11-12
Remote Control Installation........................................................................................................................... 13-14
Maintenance ........................................................................................................................................................ 15
Contact Us............................................................................................................................................................ 16

Technical Support: 01905 560 219Order: 01905 823 299 |orders.akw-ltd.co.uk
3

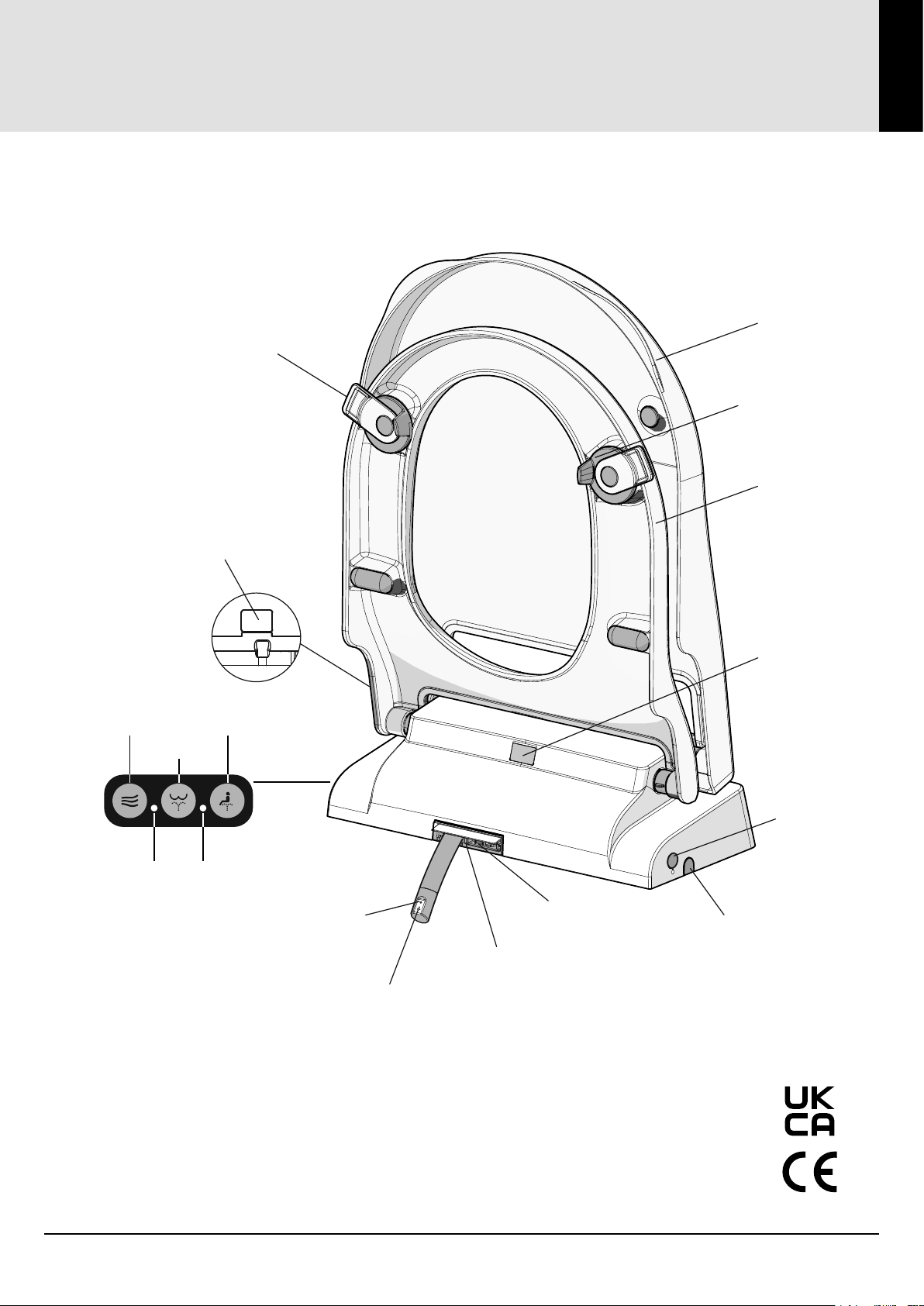

OVERVIEW
Overview
Power switch (rear face)
Seat lifting tab
Program
upgrade
Unlatch Button/
Thermostat reset Button
Seated detector
Seat
Seat lid
Air dry
Air dry
Power light/
LED Fault
Indication
Night detector
Night light
Female wash
Female wash
Rear wash
Rear wash
Seat side
transfer
adjustable pegs

General: 01905 823 298 | www.akw-ltd.co.uk
4
CONTENTS
Contents
3
Fixing Plate
Bidet - Side or Bottom Entry Fitting Template &
Cable Holders
Remote Control
(Batteries not supplied) Remote Holder Fixings,
Cover & Double Sided Tape
Remote Control Holder
& Cord
3 Pin Waterproof
Cable Connector
Flexible Water Pipe
or
Tee Junction, Filter & Isolating
Valve
Expansion Fittings, Adjustment
Plates & Seat Hinge Covers
3/8”x1/2”
Bottom Entry
Bottom Entry Only -
1/2”x1/2”
Side Entry

Technical Support: 01905 560 219Order: 01905 823 299 |orders.akw-ltd.co.uk
5
IMPORTANT SAFETY INFORMATION
Important Safety Information
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:
Installation of this appliance must be carried out in accordance with these instructions by
a competent and experienced installer. The supplier shall not be liable for any loss arising
from the failure to comply with the following instructions.
Before you start
Remove all protective covering and carefully remove the product from the packaging. Notify the
retailer immediately of any damage or faults. The manufacturer cannot be held responsible for
any installation costs that may arise from damaged or faulty products being installed and not in
accordance with these instructions. Dispose of all packaging in accordance with the local recycling
authorities.
SAFETY
• Isolate the electrical and water supplies before commencing installation.
• This equipment is “Class 1” type electrical appliance, and must be Earthed.
• The equipment is an electrical appliance, do not install in areas with high humidity or where
it can be easily splashed with water or exposed to high temperatures. (Eg. steam rooms
and aunas). Ensure that an extractor fan is installed to aid good ventilation when using the
bathroom.
•              
plugged into a electrical socket. If the power supply cord is damaged, it must be replaced by

•              
valve.
• Do not switch on the appliance if water is leaking from the casing. Isolate the electricity supply
immediately and then isolate the water supply.
• This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction by a person responsible for their safety and shown how to use

• Children must not play with the appliance. Cleaning and user maintenance must not be
undertaken by children.

General: 01905 823 298 | www.akw-ltd.co.uk
6
IMPORTANT INFORMATION
Important Information
These instructions are provided to advise the minimum standards of installation and recommends what the
best practice for the installation is. Due to the very wide variability of possible installation conditions, AKW cannot
provide all circumstances for the installation. AKW cannot accept any liability in connection with this information
or its use. This information is provided on the condition that the person receiving it shall make their own tests to
determine the suitability for the particular purpose. Failure to install this AKW product in accordance with supplied
instructions or the making of unauthorised modications will invalidate any warranty and may affect product
safety. None of the foregoing affects your statutory rights.
CAUTION
• Only connect to the mains cold water supply and test the water supply pressure. Depending
on the water pressure to the installation, the AKW Bidet will need to be adjusted to operate
at that pressure. See Water Pressure Mode setting, Page 6 in the user manual.
• After the installation, make sure to check all water supply connections for leaks.
Rubber washers should be in place for the water connection hoses and tee junction.
• Do not open/close the seat/seat lid cover using excessive force.
• Ensure that the user is familiar with the operation of the bidet and leave the user manual
with the owner.
• Exercise caution that urine does not come into contact with the warm air dryer outlet. Failure
to do so may result in bad odours or malfunction.
• Do not tilt or turn the bidet upside down if there is any water in the tank. See page 15.
• If the appliance is not to be used for a long period of time (more than a few weeks), switch off
the appliance at the mains, isolate the water supply and drain the heater tank. See page 15.
• When this appliance has reached the end of its serviceable life, it should be disposed of in
a safe manner in accordance with current local authority recycling or waste disposal policy.

Technical Support: 01905 560 219Order: 01905 823 299 |orders.akw-ltd.co.uk
7
TECHNICAL SPECIFICATION

Wash
Rear Wash
Female Wash
Oscillating Spray
Pulsating Spray
Oscillating and Pulsating Spray
Adjustable Water Temperature
Temperature Modes
Adjustable Flow Rate
Adjustable Spray Position
Yes
Yes
Yes
Yes
Yes
6 Levels (Default 4th)
Constant Temperature (Default) and Gradual cooling
5 Steps (Default 3rd)
5 Steps (Default 3rd)
Warm
Air
Air Drying
Adjustable Dryer Temperature
Adjustable Dryer Rate
Yes
6 Levels (Default 3rd)
5 Steps (Default 3rd)
Hygiene 

Yes
Yes
Features
Night Light
Soft Closing Seat and Cover
Quick Release Seat and Cover
Control Buttons
Remote Control
Yes
Yes
Yes
Yes
Yes

Water Supply Connector
Water Supply Direction
G 1/2” / G 3/8”
Side Entry / Bottom Entry
Water Supply Pressure (Standard)
Water Supply Pressure (Low)
Water Supply Temperature
Rated Voltage
Power Rating
Length f Power Cord
Ambient Temperature
Protection Degree
Maximum Weight Loading
Min 0.5 (dynamic)~Max 8 (static) Bar
Min 0.2 (dynamic)~Max 8 (static) Bar
4~30°C

1750W
approx. 1.5m
4~40°C
IPX4
150kG
Wash
Device
Flow Rate (Standard)
Flow Rate (Low)
Water Temperature
Wash Cycle Time (Standard)
Wash Cycle Time (low)
Heating Mode
Safety Device
Back Flow Prevention
600~1000mL/min
450~650mL/min
31~39°C
2 Minutes at onstant temperature mode or 1 minute at
gradual cooling mode.
1 Minute at onstant temperature mode and gradual
cooling mode.
Element
Thermal Fuse\Liquid Level Switch\Thermostat
Air Gap
Dry
Device
Minimum Air Volume
Maximum Dryer Power
Warm Air Temperature
Dry Cycle Time
Safety Device
0.2m³/min
350W
40~52°C
3 minutes
Thermal Fuse/Thermostat
Remote
Control
Frequency
Maximum RF Output Power
Type of Batteries

0dBm
2x 1.5V LR03 AAA (not included)

General: 01905 823 298 | www.akw-ltd.co.uk
8

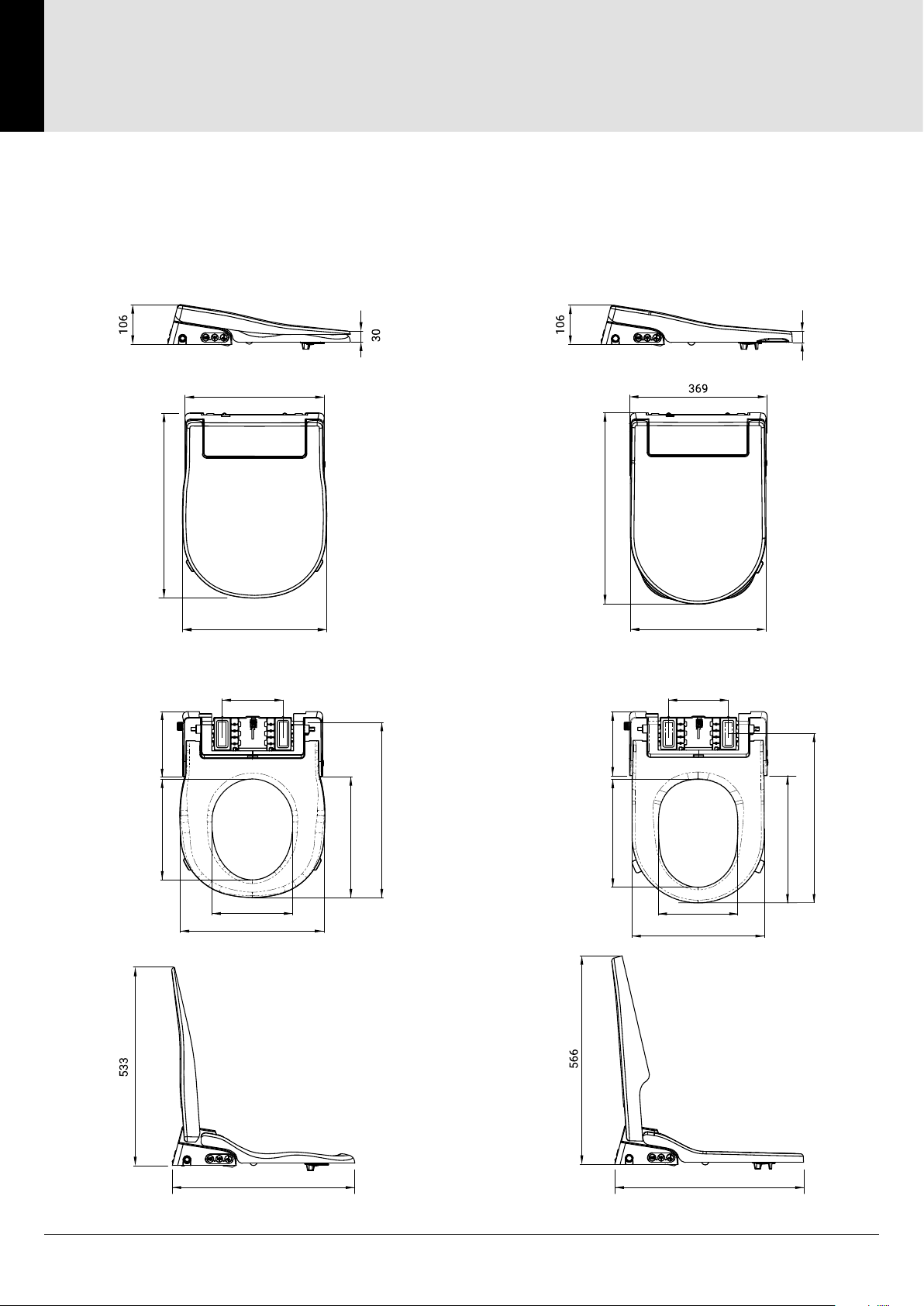

TECHNICAL DIMENSIONS
Technical Dimensions
490 513
30
520
172
341
354382
289
370
212
382
172
318
264
160 (+/- 20mm)
367
212
497
453 (+/- 31mm)
431 (+/- 31mm)
160 (+/- 20mm)
Ergonomic Bidet Seat
Side Entry: 30502
Bottom Entry: 30504
Consilio Bidet Seat
Side Entry: 30501
Bottom Entry: 30503

Technical Support: 01905 560 219Order: 01905 823 299 |orders.akw-ltd.co.uk
9

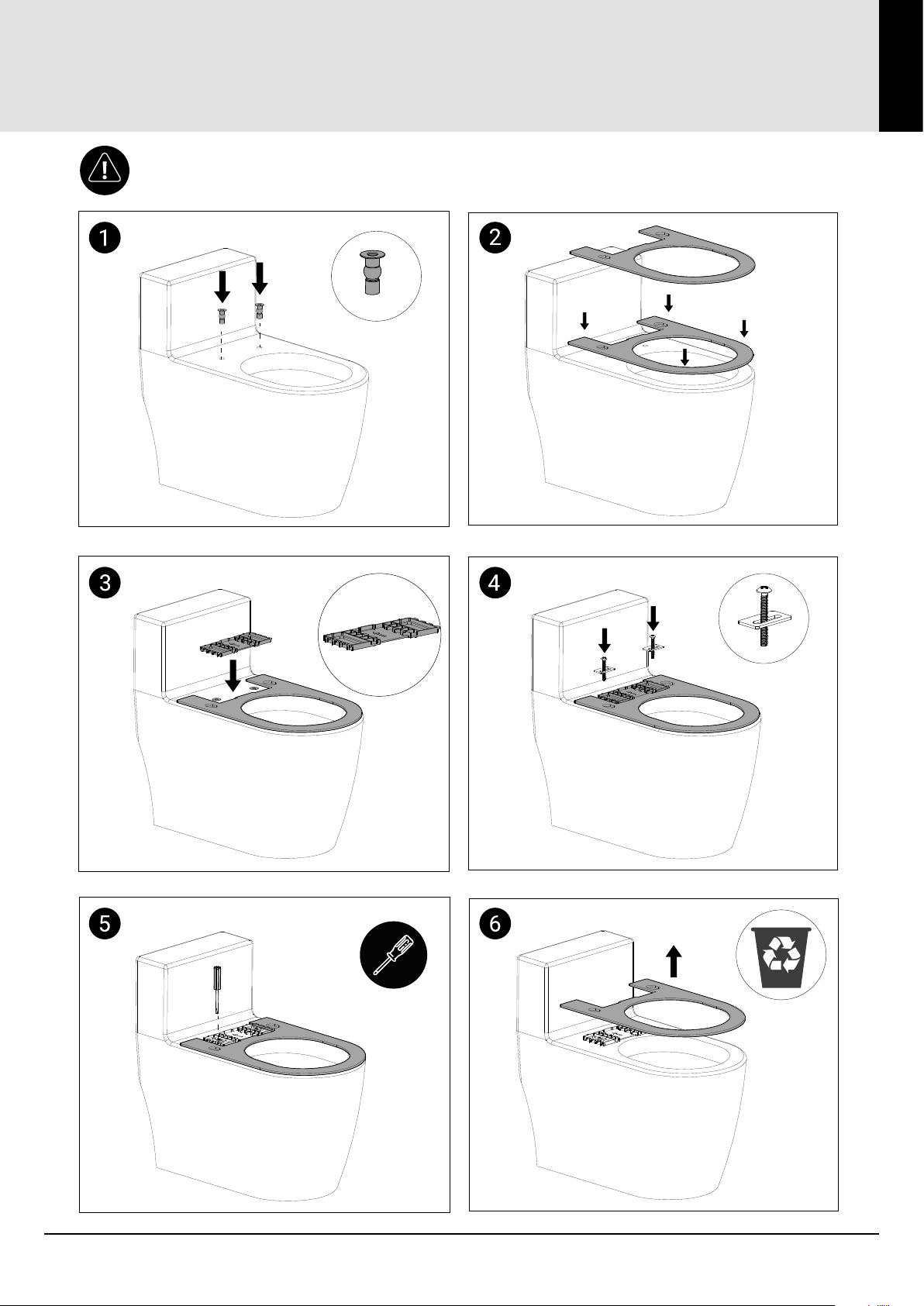

SIDE ENTRY INSTALLATION
Side Entry Installation
Caution: Ensure that the power supply is turned off at the mains supply and the
water is turned off at the isolation valve.

General: 01905 823 298 | www.akw-ltd.co.uk
10
SIDE ENTRY INSTALLATION
Side Entry Installation
ON
Refer to the user instructions for AKW Bidet functions and operations.
1/2” x 1/2”
Flexible
Water Pipe
1/2” x 1/2”
Cistern Pipe
(not supplied)
1/2” Isolating
Valve & Tee
Junction

Technical Support: 01905 560 219Order: 01905 823 299 |orders.akw-ltd.co.uk
11
BOTTOM ENTRY INSTALLATION
Bottom Entry Installation
18
Refer to the toilet cistern installation instructions for completing the electrical and
plumbing installation, and then the pan instructions before attaching the AKW Bidet.

General: 01905 823 298 | www.akw-ltd.co.uk
12

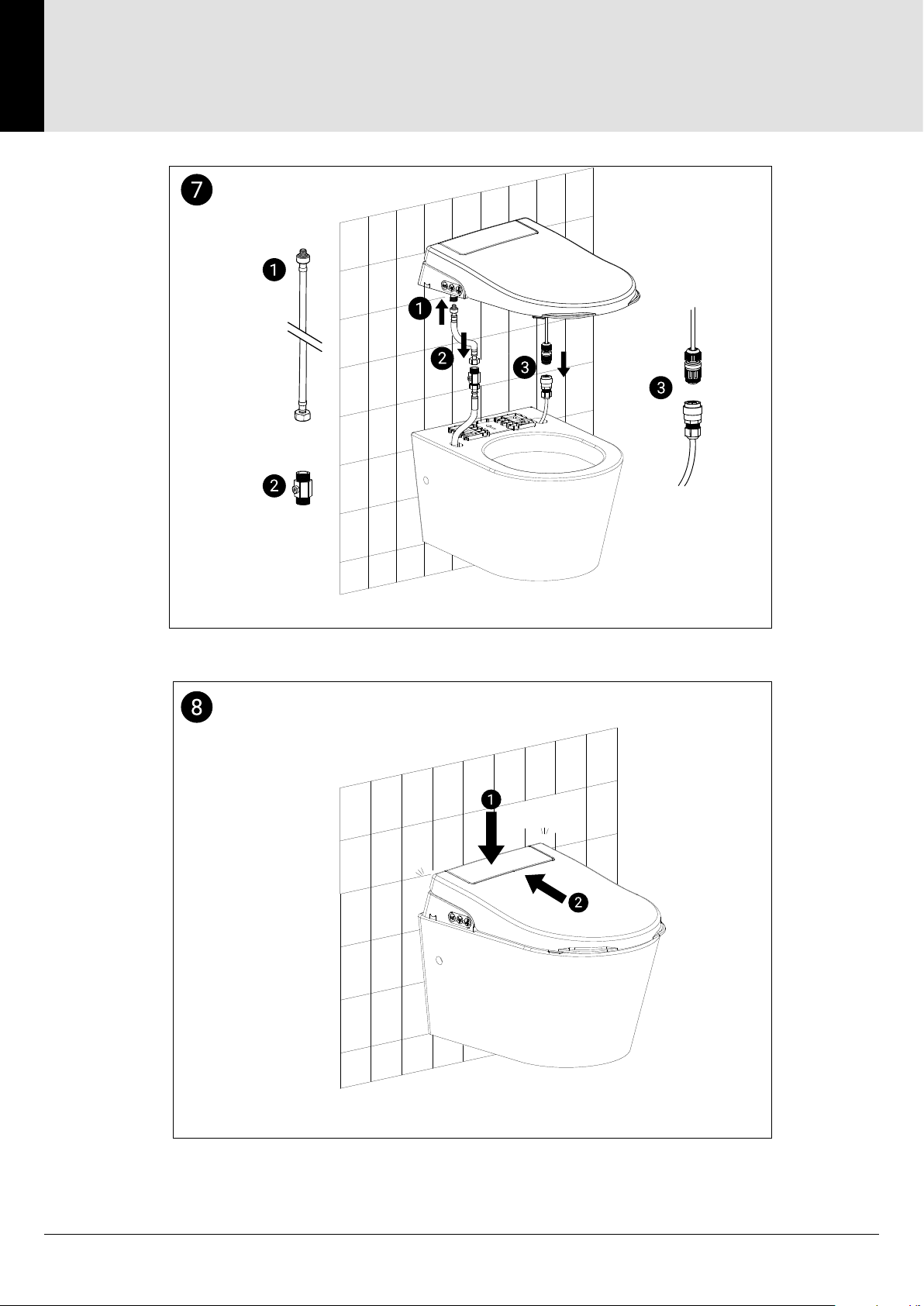

BOTTOM ENTRY INSTALLATION
Bottom Entry Installation
“Click”
“Click”
Refer to the user instructions for Bidet functions and operations.
3/8” x 1/2”
Flexible
Pipe
Connector
1/2” x 1/2”
Isolating Valve 3 Pin Waterproof Cable Connector

Technical Support: 01905 560 219Order: 01905 823 299 |orders.akw-ltd.co.uk
13

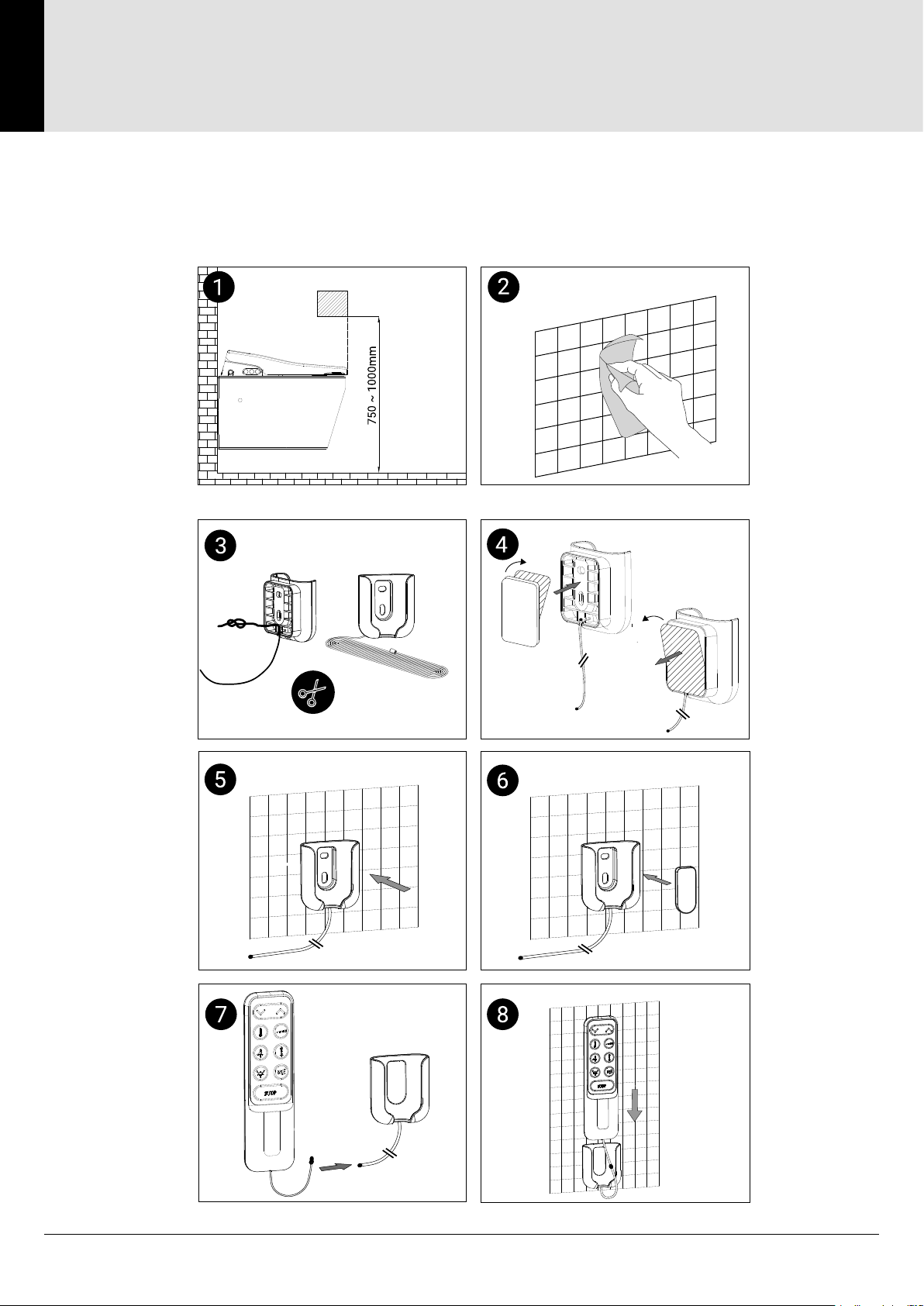

REMOTE CONTROL INSTALLATION
Remote Control Installation
200 mm
200 mm
200 mm
200 mm
Recommended Installation area for the remote control holder.
Using wall xings

General: 01905 823 298 | www.akw-ltd.co.uk
14
REMOTE CONTROL INSTALLATION
Remote Control Installation
Using double-sided tape
200 mm 200 mm
200 mm
200 mm
Recommended Installation area for the remote control holder.

Technical Support: 01905 560 219Order: 01905 823 299 |orders.akw-ltd.co.uk
15

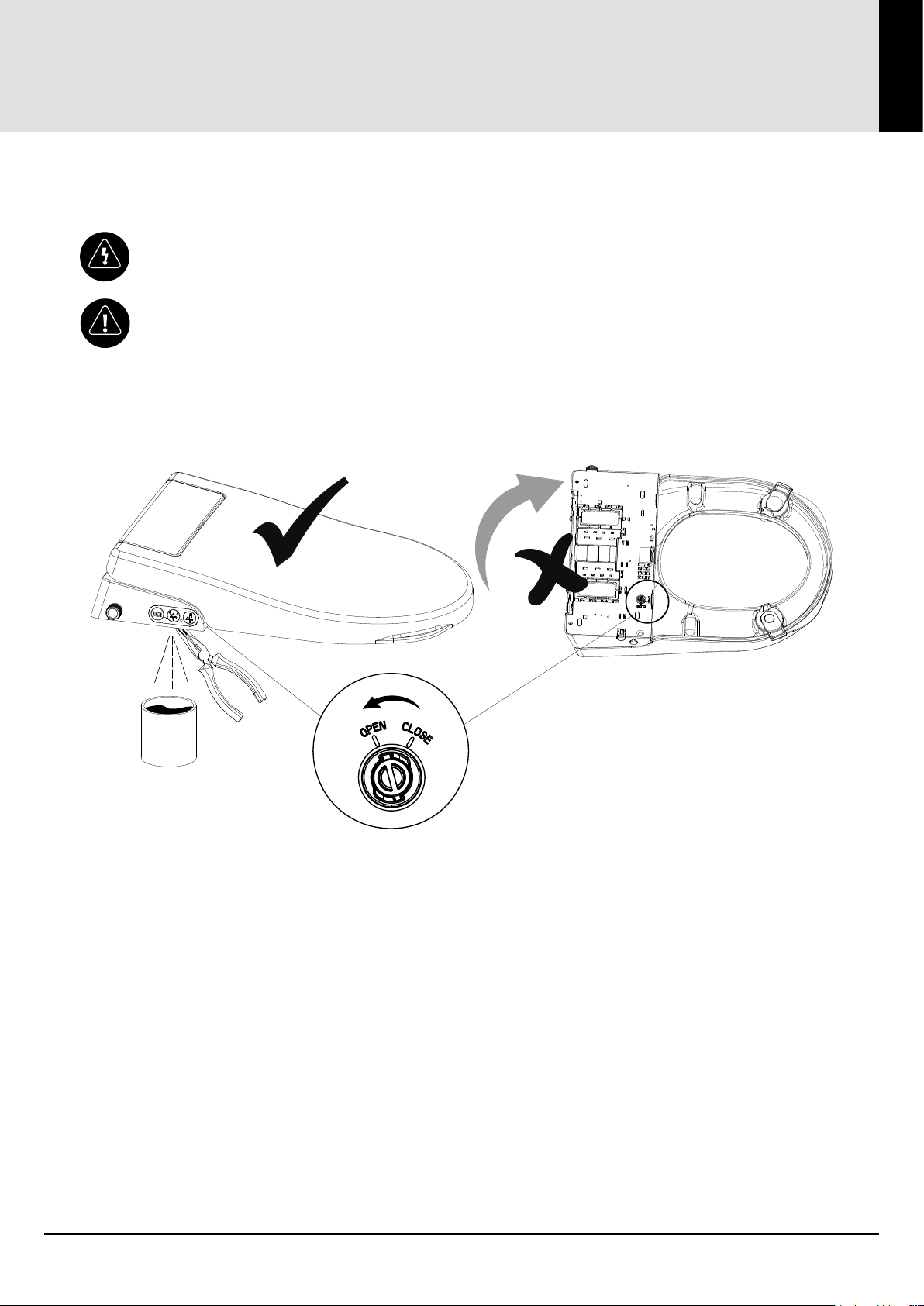

MAINTENANCE
Maintenance
Draining the water tank
Do not turn the appliance over to drain
the tank. Only drain from underneath
and catch the water.
Insert and turn to close
Turn and pull out to open.
Isolate the power and water supply before attempting to uninstall the bidet.


18-009-018-08
Orders & Quotes
01905 823 299
[email protected]
General Enquiries
01905 823 298
[email protected]
Technical Enquiries
01905 560 219
[email protected]
Kitchen Enquiries
01905 823 262
[email protected]
Fax
01905 823 297
AKW
Pointon Way, Hampton Lovett
Droitwich Spa, WR9 0LR
www.akw-ltd.co.uk
orders.akw-ltd.co.uk
Follow us on Social:
© AKW Medi-Care Limited 2022
Contact Us
Warranty
Warranty applies only to manufacturing or material
defects, conditional on the one-time correct installation of
the product. It does not apply to:
• Inappropriate use or accidental damage.
• Damage or defects that result from incorrect installation.
• Lack of maintenance including the build up of grime or
damage resulting from inappropriate cleaning.
• Damage or defects that result from repairs or
modications undertaken by unauthorised persons.
• General wear and tear through usage and does not
apply to surface nishes.
Warranty period starts from the date of installation.
To activate your warranty, you must register your product
within 30 days of installation. See the T&Cs on our website
for further information.
Select 1 of 3 ways to activate your warranty
1. Scan using your Smart Device
2. Visit Online
akw-ltd.co.uk/warranty-information
3. Warranty Card
Fill and complete warranty card and post
using the prepaid envelope supplied
What to do if something goes wrong?
In the event that you encounter a problem with this product,
follow the trouble shooting guide if applicable, then contact
your local installer. If the issue is still unresolved, contact
AKW Technical Enquiries who will provide further advice
and arrange for a maintenance engineer to visit if necessary.
None of the foregoing affects your statutory rights.
