ALADIN ALADIN SPORT User manual

1
h
h
m
ft
DO NOT FLY
DESATURATION
S
L
O
W
DIVEPLAN
LOGBOOK
DIVE
SPEED %
depth dive time
max. depth deco info
STOP NO STOP
max. depth deco info
h
h
m
ft
DO NOT FLY
DESATURATION
S
L
O
W
DIVEPLAN
LOGBOOK
DIVE
SPEED
%
depth
dive time
STOP
NOSTOP
®
SWISS MADE BY UWATEC AG
NO-STOP DIVE COMPUTER
OPERATING MANUAL
®
English

Operating Manual Aladin®Sport
Aladin®Sport is a valuable diving companion which offers you highest possible comfort and a so far
never reached standard of safety, if you strictly observe the following rules:
– Aladin®Sport does not replace either a profound diving training or a
diving partner!
– Always dive according to your level or training. Aladin®Sport does not
increase your abilities as a diver!
– Due to the danger of nitrogen narcosis do not dive deeper than 40 m.
Aladin®Sport does not warn you in this respect.
– Strictly obey the optical alarm signals of Aladin®Sport. Avoid risk
situations, which are marked or in this operating manual.
– You must read this operating manual carefully and completely!
B
Remarks about Safety
December 1995, Copyright by Uwatec, Switzerland

Operating Manual Aladin®Sport
DIVE
depth
dive time
max. depth deco info
®

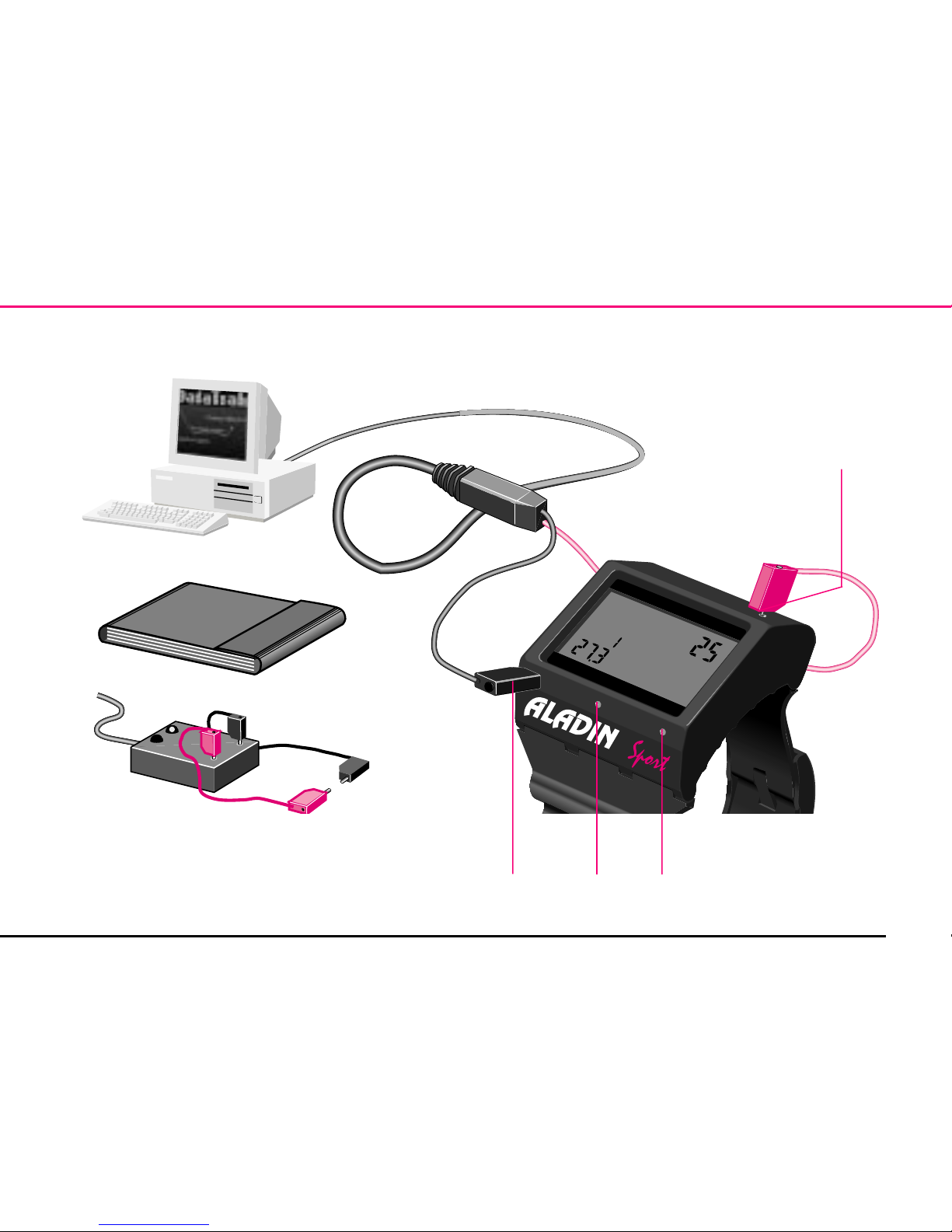

Aladin®Sport
C
B
• Dive Computer
Aladin®Sport
• Interface and Logbook Software
DataTrak/DataTalk (Option)
–+ E
• Logbook (Option)
• External Memory
Extension (Option)

1
Operating Manual Aladin®Sport

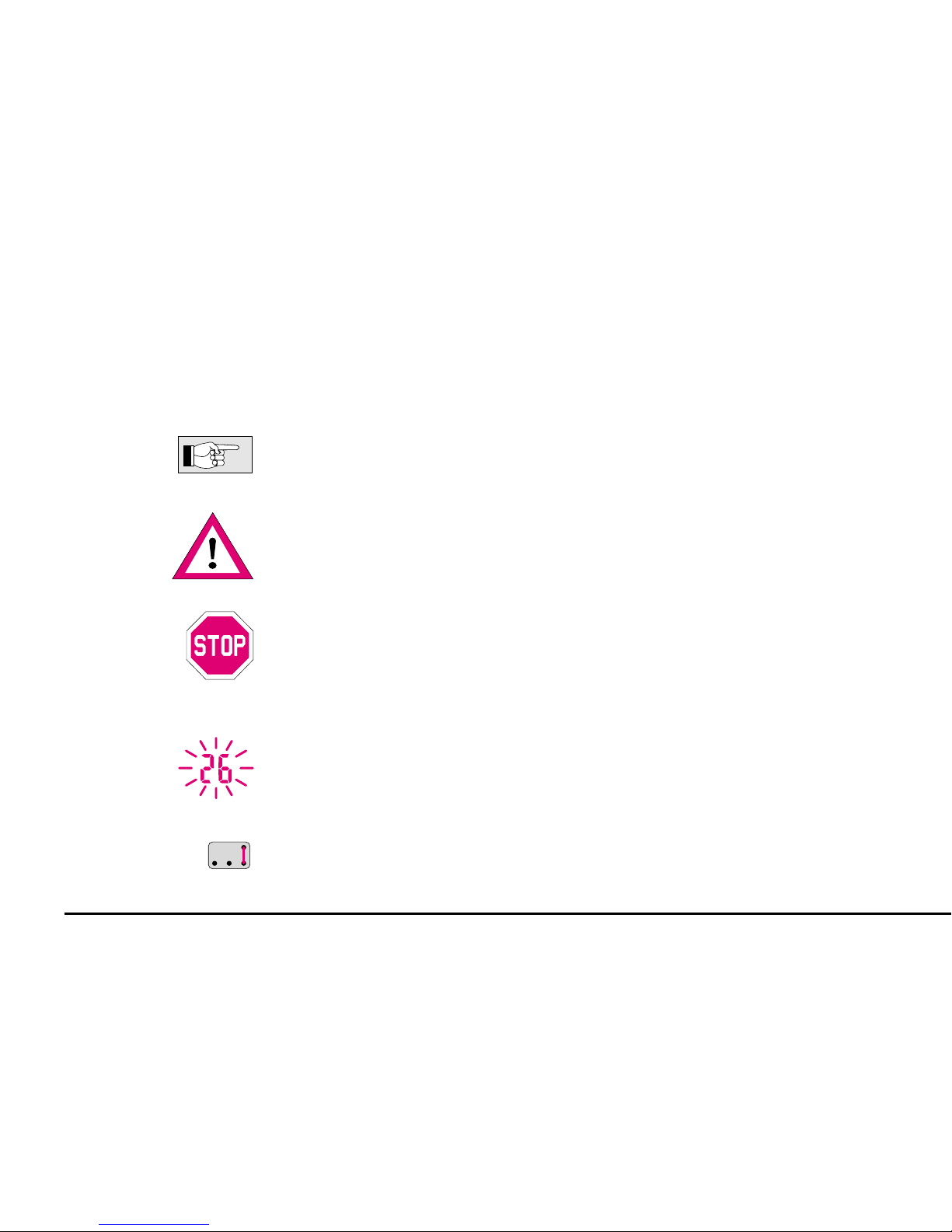

This operating manual makes use of the following icons to indicate especially important comments:
Remarks: Information and tips which are important for optimal use of the functions of your
Aladin®Sport.
Attention! Information which draws your attention to situations and special features important
for your diving comfort and the early avoidance of risk situations.
Danger! Alarms which indicate risk situations and dangers. Ignoring these warnings can
lead to situations involving danger to life and limb. These alarms must be obeyed!
The following symbols are used in the operating manual:
Important Remarks
D
B
– + E
Flashing display
Operating instruction for manual input
(Example: bridging contacts B and E)

I
II
III
IV
V
VI
VII
VIII
IX
LIST OF CHAPTERS
I INTRODUCTION 1
II ALADIN®SPORT - SURVEY 9
III DIVING WITH ALADIN®SPORT 23
IV DIVING AT LOW RISK WITH ALADIN®SPORT 39
V LOGBOOK 47
VI DIVE-PLANNER 53
VII INTERFACE AND SOFTWARE DATATRAK/DATATALK 59
VIII TROUBLE SHOOTING 61
IX APPENDIX 65

1
I Introduction
I
I INTRODUCTION
1 Aladin®Sport – Safe No-Stop Diving ______________________________________ 2
2 Aladin®Sport – Your Personal Companion ______________________________________ 3
3 The Calculation Model ZH-L8 ADT 3.1 Description ____________________________ 5
3.2 Advantages ____________________________ 6
4 Safety in Diving ______________________________________ 8

2I Introduction
The proven no-stop dive computer Aladin is
enhanced with a new, revolutionary calculation
model which makes it even safer and more
comfortable. The Aladin of the new generation is
called Aladin®Sport and is part of the Aladin
family which also includes the air
integrated Aladin®Air X and
the decompression computer
Aladin®Pro.
Although the Aladin®Sport is designed for no-
stop diving it does provide the minimum necessary
information in the event of a diverequiring de-
compression stops.
The new generation Ala-
din®Sport provides an
increased level of safety
and more features to-
gether with it‘s tradi-
tional ease of use.
Read this operating manual carefully and to
the last page!
1 Aladin®Sport – Safe No-Stop Diving

3
I Introduction
I
Aladin®Sport considers your individual reactions
during the dive, the cooling of your skin and includes
your workload as a constant value in the calculations.
The test results of medical and physiological research
were taken into consideration. The new calculation
model also predicts and considers the effects of the
formation of micro-bubbles in both the venous and
arterial circulation depending on workload and skin
temperature. This has led to the development of a
unique, adaptive calculation model.
Aladin®Sport was exclusively designed for diving
with compressed air and distinguishes itself from
previous models and other commercial diving
computers in a number of significant ways.
• The ZH-L8 ADT decompression calculation model
considers eight body tissues as well as the diver's
conduct and the ambient conditions. This allows for an
even more precise calculation of the risk for
decompression sickness which increases diver safety.
.• Compared to all previous models the Aladin®Sport
is much more of a personal instrument, as it
considers the individual conduct of the diver.
Different actions by diving buddies can lead to
distinctive differences in the display of the decom-
pression information. This is because risk situations
(violations of diving rules) can have a significant
effect on the physiological processes. On the
other hand Aladin®Sport ‘rewards’ a diving
conduct.
• The diver's workload is incorporated in the decom-
pression calculations as a constant value. For the
calculation of the surface intervals and the
decompression information for repetitive dives the
new model calculates on the basis that the
physical performance at the surface is smaller than
during the dive.
• Alarms are given optically in risk situations or in
case of dangerous conduct.
2 Aladin®Sport –Your Personal Companion

4I Introduction
2 Aladin®Sport – Your Personal Companion
• By means of the logbook, the diver can directl call
up the information of the last 19 dives
Via interface to the PC, 37 dives and 200
minutes of precise dive-profile in
intervals of 20 seconds can be
read out.
• The dive planner allows the
advance planning of no-stop
dives with freely determinable
surface intervals.
• Aladin®Sport is designed to be
mounted on the diver‘s wrist or built in
consoles.
• Ease of operation, ease of understanding
the unambiguous display, enhanced safety
advice, the PC interface option and comfort in use
are all strong features of the new Aladin®Sport.

5
I Introduction
I
3 Calculation Model ZH-L8 ADT
3.1 Description
The Model ZH-L8 ADT (8 compartments with nomi-
nal half-time periods from 5 to 640 minutes) differs
considerably from other models by the consideration
of additional physiological processes:
1. Blood perfusion of the organs is not constant.
Skin and muscles in particular are subject to
considerable changes of blood perfusion
depending on temperature and workload. A
change in blood perfusion also causes a change
of the saturation tolerance. The model takes
these effects into account. Therefore, skin and
muscle compartments show variable half-time
periods and saturation tolerances.
The necessary decompression times are calculated
according to the workload and the decreasing
skin temperature. The decrease of skin
temperature is estimated based on the water
temperature and the dive time. At the surface,
the diver’s physical performance is lower than
during the dive. By considering the differences in
physical performance the no fly time becomes
considerably longer.
2. The model considers inert gas not only in the
dissolved state, but also in the gaseous phase
(microbubbles). Formation of microbubbles is
calculated with allowance for the different
influences in arterial and venous blood. With nor-
mal ascents gas bubbles mainly form in venous
blood, with fast ascents also in arterial blood and
on ignoring decompression stops in the tissues.
As the model calculates microbubbles, those
physiological processes are reconstructed which
actually occur.
The bubbles on the venous side of the circulation
are carried into the lungs where they change the
arterial nitrogen pressure. This influences mainly
repetitive dives, dives with very long
decompression times and the no fly time.

6I Introduction
3 Calculation Model ZH-L8 ADT
• Gross disregard of the ascent rate, exceeding the
decompression depth and repeated ascents to the
surface (yoyo dives), can all cause microbubbles to
form on the arterial side and in tissues. Where the
bubbles partially impair circulation, the rate of gas
diffusion and the saturation tolerance are
changed. No-stop-time, decompression time, and
if necessary decompression depth, are adjusted so
that existing bubbles stop growing. In addition,
altered decompression assures that the tissue
desaturates sufficiently if microbubbles impair
circulation locally.
• The calculation of the gas bubbles results in a new
ascent instruction. The ascent rate near the
surface is reduced down to 7m/min. This prevents
with high reliability the formation of
microbubbles in the arterial circulation and
minimizes the formation of microbubbles in the
venous circulation after the dive.
3.2 Advantages
On first dives with correct diving technique and
avoiding risk situations, there are no extended
decompression times. On the other hand, it is
possible to react correctly in risk situations due to the
realistic simulation of the physiological processes in
the body. This increases safety considerably. Risk
situations are, for example:
• Repetitive dives (especially with short intervals)
and dives on several successive days
• Dives in cold water
• Yoyo dives
• Flying after the dive

7
I Introduction
I
In case of mistakes on the part of the diver, actual
prevention of decompression sickness is possible for
the first time due to the reconstruction of the bubble
formation and its consequences. The correction of
the decompression must not be confused with a real
recompression, which serves as therapy of already
existing damage.
3 Calculation Model ZH-L8 ADT

8I Introduction
4 Safety in Diving
Should an incident occur, the detailed previous
history of the incident is stored in the dive computer.
The evaluation of these records allows better
diagnosis and the most effective treatment for the
diver.
With its new decompression model Aladin®Sport
offers a so far unreached level of safety. However,
responsibility for the dive finally remains with the
diver as before. The usual diving caution is still
absolutely necessary when diving with Aladin®Sport.
In case of diver mistakes (ignoring decompression
stops, excessive ascent rate etc.) Aladin®Sport can
calculate a corrected ascent instruction immediately
which minimizes the occurrence of decompression
sickness. The prevention of barotrauma and nitrogen
narcosis still lies in the hands of the diver.
Aladin®Sport is a highly developed technical instru-
ment of high reliability. Despite this, the user of the
Aladin®Sport is to have an understanding of the
physiological interrelations, to know the use of
decompression tables and to have them with him on
every dive.

II Aladin®Sport – Survey 9
II
II ALADIN®SPORT – SURVEY
1 The Aladin®System _____________________________________ 10

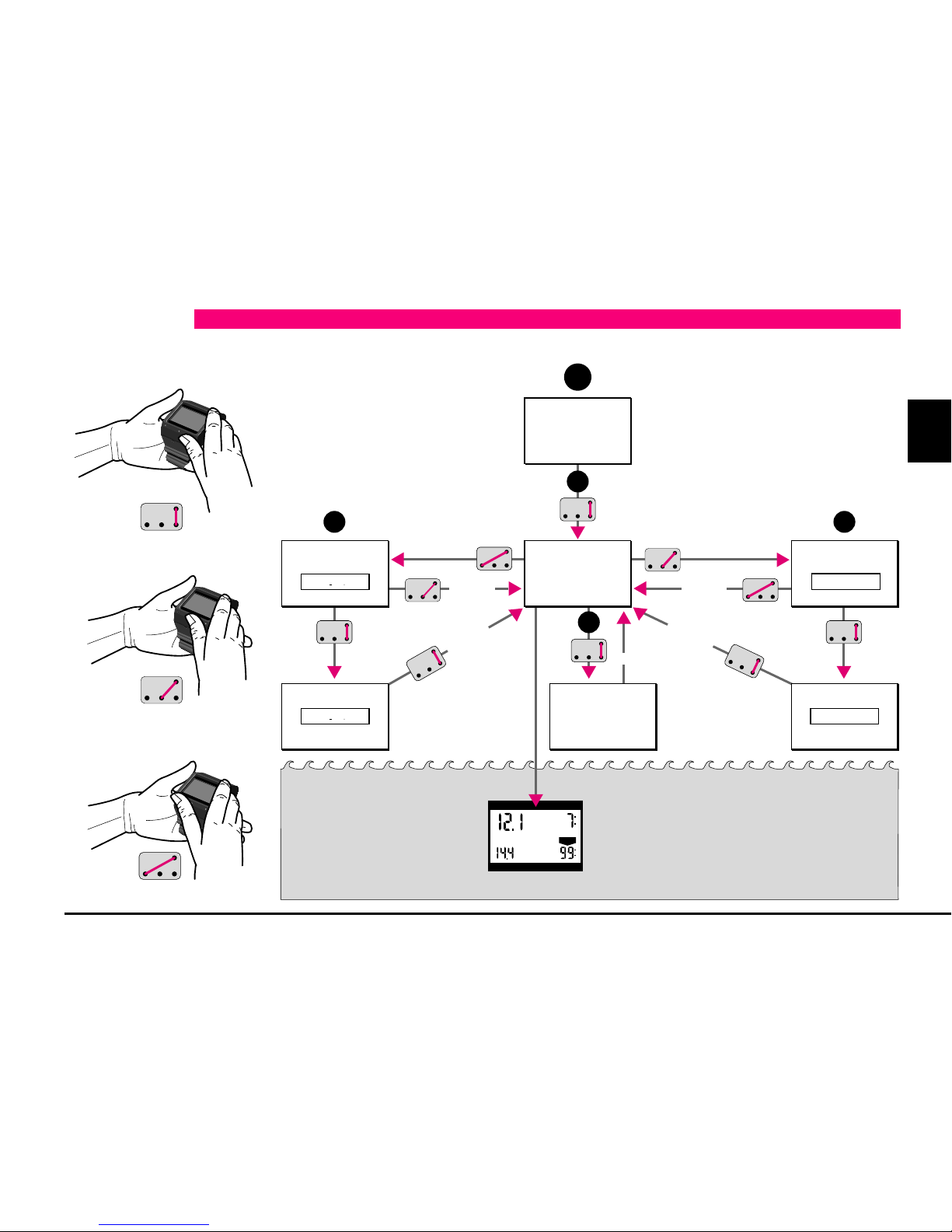

2 Operation 2.1 Operating scheme for surface functions ____ 13
2.2 Operating modes ______________________ 18

II Aladin®Sport – Survey
10
The potential of the Aladin®Sport computer is expanded by the additional of accessory items.
1 During the dive the Aladin®Sport dive computer
supplies only the important dive and decompres-
sion information, plus warnings if necessary. It has
a logbook with the last 19 dives and a dive
planner.
1 The Aladin System
1
S
L
O
W
depth dive time
max. depth deco info
STOP
NO STOP
h
h
m
ft
DONOTFLY
DESATURATION
S
L
O
W
DIVEPLAN
LOGBOOK
DIVE
SPEED
%
depth
dive time
STOP
NOSTOP
®

II Aladin®Sport – Survey 11
II
DIVE
depth
divetime
max. depth deco info
®
2 The configuration software DataTalk (supplied together with DataTrak) allows the alteration of a number
of preset parameters of Aladin®Sport.
1 The Aladin System
3 The external memory extension (ESE) makes it possible to read data from the logbook memory of Aladin®
Sport without a personal computer. This is especially valuable on diving holidays.
4 The logbook software DataTrak enables you to print out logbook pages. You can get a special logbook
with insert folders from your retailer.
2
4
3

II Aladin®Sport – Survey
12
Switching on display: – automatically, on submerging in water or when adaptation to atmospheric
pressure is necessary.
– manually by operating contacts on housing.
Switching off display: – automatically, after three minutes without operation.
Aladin®Sport has 4 operating contacts B, E, +, – on the outside of the housing. For manual operation touch
base contact B and any one of the other three contacts above the display with moistened fingers.
Contact B: Base contact, which has to be touched for all
operations
Contact E: Enter contact. It serves to switch on the computer, to
activate the logbook and dive-plan-mode and to
switch between no-stop and decompression
planning. It is also used to confirm inputs and is
therefore comparable to the ENTER- or RETURN-key
of a computer.
+ / –contacts: They serve to select the logbook and dive-plan as well
as to set values (time, depth, dive-number etc.).
depth
dive time
max. depth decoinfo
®
2 Operation
–+E
B

II Aladin®Sport – Survey 13
II
DO NOT FLY
DIVEPLAN
LOGBOOK
depth dive time
max. depth deco info
NO STOP
Sleep
Surface Sleep
Ready or
Surface
Battery-
capazity
1
2
3
54
5 sec
(or 3 min)
(or 3 min)
3 sec
(or 3 min) (or 3 min)
automatically
DIVEPLAN
DIVEPLAN
Input stage
LOGBOOK
LOGBOOK
Input stage
2.1 Operating scheme for surface functions
B and E
B and +
B and –1. Aladin®Sport is in a state of rest;
depth dive time
decoinfo
max.depth
depth dive time
deco info
max.depth
2 Operation
depth dive time
deco info
max.depth

II Aladin®Sport –Survey
14

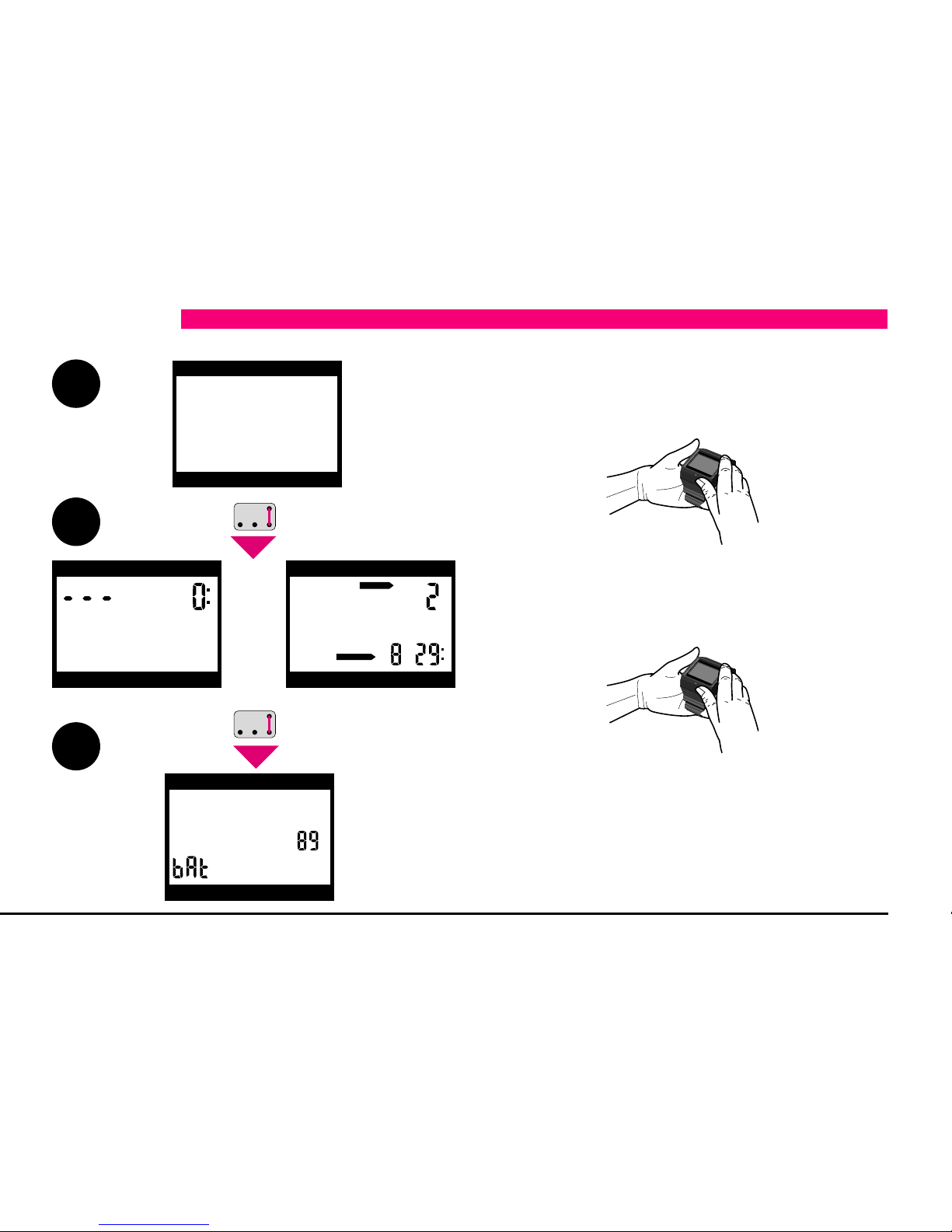

1. Aladin Sport is in a state of rest; no information is
displayed (-> sleep-mode or -> surface-sleep-
mode).
2. Bridging B and E activates the computer -> ready-
mode or -> surface-mode.
3. A second bridging of contacts B and E activates
the display of the remaining battery capacity for
approximately 5 seconds.
As soon as the battery capacity is 0%, a battery
alarm is sent (see page 26). There is still a small
reserve left at bAt 0%.
depth dive time
max. depth deco info
2 Operation
Ready-mode Surface-mode
2
3
depth dive time
max. depth deco info
depthdivetime
decoinfo
max.depth
depthdivetime
decoinfo
max.depth
h
h
DO NOT FLY
DESATURATION
S
L
O
W
depth dive time
max. depth deco info
1
depth dive time
max. depth deco info

II Aladin®Sport –Survey 15
II

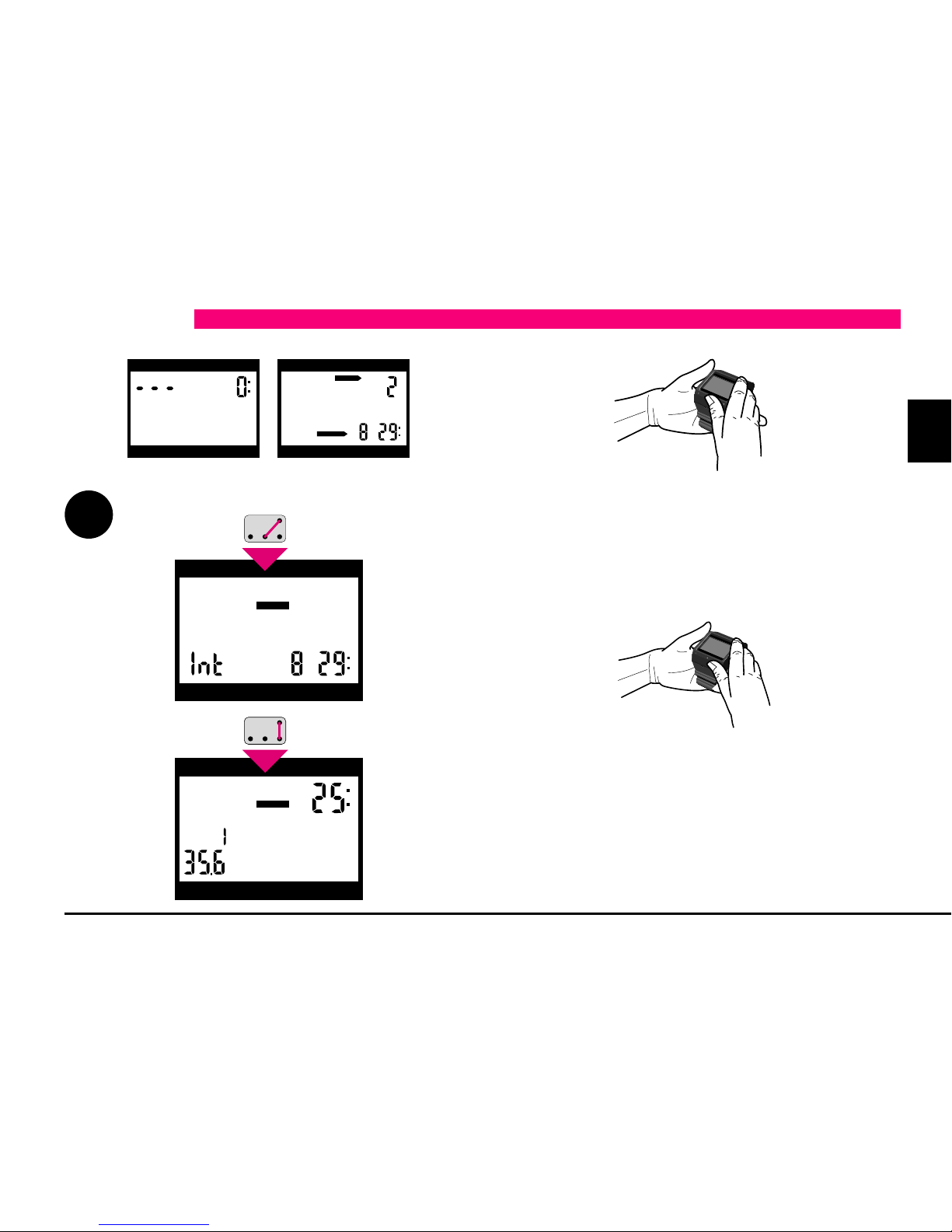

4.a) Selecting the logbook function:
B and +
Cancel: B and –
or automatically after three minutes without
operation
4.b) Activating the logbook:
B and E. Aladin®Sport shows the most recent dive.
DIVEPLAN
LOGBOOK
DIVE
depth dive time
max. depth deco info
2 Operation
Ready-mode Surface-mode
4
DIVEPLAN
depth dive time
max. depth deco info
h
h
DO NOT FLY
DESATURATION
depth dive time
max. depth deco info
depthdivetime
decoinfo
max.depth
depthdivetime
decoinfo
max.depth
h
LOGBOOK
depth dive time
max. depth deco info
