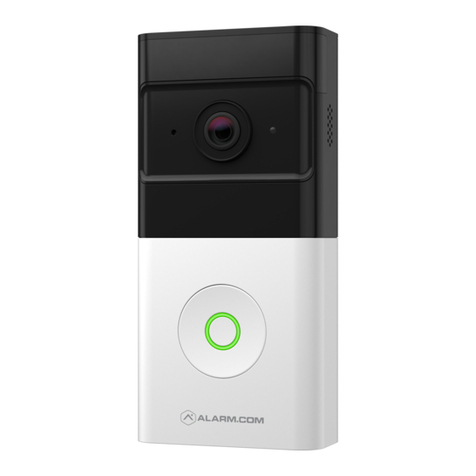

Alarmcom ADC-VDB780B User manual

Wireless Video
Doorbell
Installation Guide
ADCVDB780B
Scan QR code to navigate to:
www.alarm.com/doorbell/780binstall

8281 Greensboro Drive
Suite 100
Tysons, VA 22102
© 2021 Alarm.com. All rights reserved.
Designed in the USA by Alarm.com. Made in Taiwan.
210128
Product installation height should
be less than 2 m (6’ 7”) from floor
level and in a vertical orientation.
Operating and Storage
Temperature:
-4ºF – 122ºF (-20ºC – 50ºC)
FCC Notices
Any changes or modifications not
expressly approved by the party
responsible for compliance could
void the user’s authority to operate
this equipment.
This device complies with Part 15 of
the FCC Rules. Operation is subject
to the following two conditions:
1) this device may not cause harmful
interference and 2) this device must
accept any interference received,
including interference that may
cause undesired operation.
This device and its antenna(s) must
not be co-located or operating in
conjunction with any other antenna
or transmitter. For products
available in the USA/Canada
market, only channels 1-11 can
be operated. Selection of other
channels is not possible.
This equipment complies with
FCC and ISED radiation exposure
limits set forth for an uncontrolled
environment. This equipment should
be installed and operated with
minimum distance 20 cm between
the radiator & your body.
ISED Notices
This device contains licence-exempt
transmitter(s)/receiver(s) that
comply with Innovation, Science
and Economic Development
Canada’s licence-exempt RSS(s).
Operation is subject to the following
two conditions:
This device may not cause
interference.
This device must accept any
interference, including interference
that may cause undesired operation
of the device.
Mexico:
La operación de este equipo
está sujeta a las siguientes dos
condiciones: (1) es posible que
este equipo o dispositivo no cause
interferencia perjudicial y (2) este
equipo o dispositivo debe aceptar
cualquier interferencia, incluyendo
la que pueda causar su operación
no deseada.
Brazil:
Este equipamento não tem direito
à proteção contra interferência
prejudicial e não pode causar
interferência em sistemas
devidamente autorizados.

2021/10/20 上午10:47
VDB780B install – Doorbell Camera
https://doorbell.poweredbyalarm.com/vdb780b-install/
1/11
Alarm.com
Video Doorbell
Installation Guide
se this guide to assist with the installation of your ADC-VDB780B Wireless Video Doorbell.
n the Box
ADC-VDB780B Wireless Video Doorbell
ADC-VDB780B mounting plate
Battery with charging cable
Mounting screws (2)
Mounting anchors (2)
Quick start guide
We use cookies on our website to give you the most relevant experience by remembering your
preferences and repeat visits. By clicking “Accept”, you consent to the use of ALL the cookies.
However you may visit Cookie Settings to provide a controlled consent.
Cookie settings ACCEPT

2021/10/20 上午10:47
VDB780B install – Doorbell Camera
https://doorbell.poweredbyalarm.com/vdb780b-install/
2/11
Pre-Installation Checklist
ADC-VDB780B and included accessories
Drill/Screwdriver
Level
Pencil
An installed Alarm.com Smart Chime (ADC-W115C) – if you have not installed the Alarm.com
must be completed before you can proceed with the installation of your doorbell.
Wi-Fi connection to broadband (Cable, DSL, or Fiber Optic) internet
A computer, tablet, or smartphone with Wi-Fi
We use cookies on our website to give you the most relevant experience by remembering your
preferences and repeat visits. By clicking “Accept”, you consent to the use of ALL the cookies.
However you may visit Cookie Settings to provide a controlled consent.
Cookie settings ACCEPT

2021/10/20 上午10:47
VDB780B install – Doorbell Camera
https://doorbell.poweredbyalarm.com/vdb780b-install/
3/11

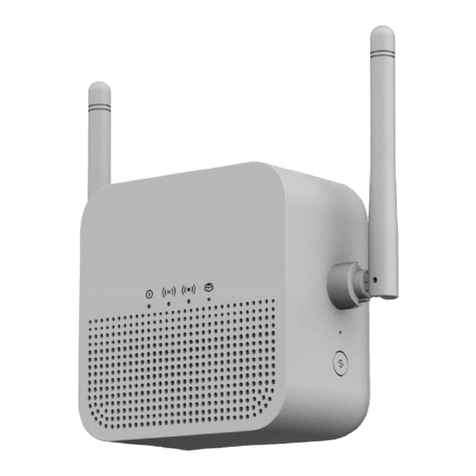

The Alarm.com Smart Chime (ADC-W115C) is required for installation.
Installation
ower on the Wireless Video Doorbell
1. Remove the Wireless Video Doorbell (VDB780B) from the packaging.
2. Separate the battery pack from the VDB780B body.
We use cookies on our website to give you the most relevant experience by remembering your
preferences and repeat visits. By clicking “Accept”, you consent to the use of ALL the cookies.
However you may visit Cookie Settings to provide a controlled consent.
Cookie settings ACCEPT

2021/10/20 上午10:47
VDB780B install – Doorbell Camera
https://doorbell.poweredbyalarm.com/vdb780b-install/
4/11
3. Activate the battery by plugging in the Micro USB charger to a wall outlet and connecting it to the b
4. Press the doorbell button on the front of the battery. If the LED alternates between red and blue, t
completing the installation.
5. If the LED isn’t alternating blue and red, reconnect the battery pack to the VDB780B body.
6. After the button LED stops flashing red, press and release the doorbell button and ensure the LED
onnect the Wireless Video Doorbell to the Alarm.com Smart Chime
nsure the Wireless Video Doorbell (VDB780B) is less than 10 feet away from the Alarm.com Smart Chim
1. Confirm that the W115C has been installed and associated with an account.
2. To enable WPS mode, press and hold the VDB780B doorbell button firmly for greater than 30 secon
We use cookies on our website to give you the most relevant experience by remembering your
preferences and repeat visits. By clicking “Accept”, you consent to the use of ALL the cookies.
However you may visit Cookie Settings to provide a controlled consent.
Cookie settings ACCEPT

2021/10/20 上午10:47
VDB780B install – Doorbell Camera
https://doorbell.poweredbyalarm.com/vdb780b-install/
5/11
3. Press the WPS button located on the side of the W115C to enable WPS mode. The WPS LED will be
4. If the pairing is successful, the W115C Devices LED will quickly blink 3 times, and the VDB780B LE
nroll the Wireless Video Doorbell to the Account
We use cookies on our website to give you the most relevant experience by remembering your
preferences and repeat visits. By clicking “Accept”, you consent to the use of ALL the cookies.
However you may visit Cookie Settings to provide a controlled consent.
Cookie settings ACCEPT

2021/10/20 上午10:47
VDB780B install – Doorbell Camera
https://doorbell.poweredbyalarm.com/vdb780b-install/
6/11
1. Add the Wireless Video Doorbell (VDB780B) to the account by selecting the account in MobileTech
following web address: www.alarm.com/addcamera.
2. Select the VDB780B from the video device list or enter in its MAC address to begin adding the devi
on the box, or on the reference card.
3. Follow the on-screen instructions to finish adding the device.
Mount the Wireless Video Doorbell
an, Level, & Mark
1. Identify a location on the side of your doorframe to mount your Wireless Video Doorbell (VDB780B
above the ground for an optimal field of view.
2. Place the mount at your desired location.
3. Use a level to ensure the mount is parallel with the ground.
4. Use a pencil to mark the two holes of the mount.
p: If you have someone to help you with the setup, use the Mobile App or Customer Website to start
our planned mounting position to assess the field of view before you start drilling.
rill
1. Use a 9/32” drill bit to create appropriately sized holes for the supplied anchors at your marked loc
2. Insert the anchors.
We use cookies on our website to give you the most relevant experience by remembering your
preferences and repeat visits. By clicking “Accept”, you consent to the use of ALL the cookies.
However you may visit Cookie Settings to provide a controlled consent.
Cookie settings ACCEPT

2021/10/20 上午10:47
VDB780B install – Doorbell Camera
https://doorbell.poweredbyalarm.com/vdb780b-install/
7/11
crew
1. Place the mount over the two anchors.
2. Use the supplied screws to secure the mount in place.
ttach the Wireless Video Doorbell to the Mount
1. Align the prongs on the back of the Wireless Video Doorbell (VDB780B) with the 4 rectangular slots
2. Push the VDB780B into the slots and slide down, until the device clicks into place.
3. Slide the latch on the bottom of the mount to secure the VDB780B in place.
onfirm Battery Charge
1. If the battery was not fully charged as part of the Power on the Wireless Video Doorbell sectio
instructions in the Charging the Battery section.

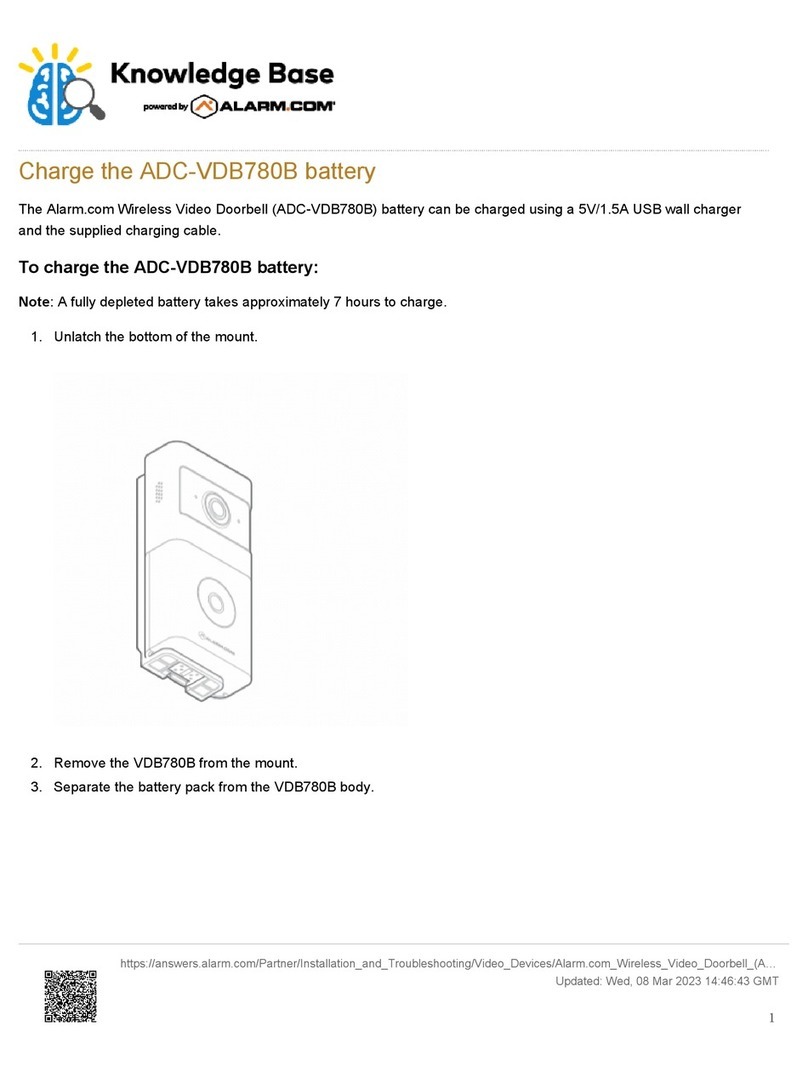

Charging The Battery
fully depleted battery will take approximately 7 hours to charge.
1. Unlatch the bottom of the mount.
We use cookies on our website to give you the most relevant experience by remembering your
preferences and repeat visits. By clicking “Accept”, you consent to the use of ALL the cookies.
However you may visit Cookie Settings to provide a controlled consent.
Cookie settings ACCEPT

2021/10/20 上午10:47
VDB780B install – Doorbell Camera
https://doorbell.poweredbyalarm.com/vdb780b-install/
8/11
2. Remove the VDB780B from the mount.
3. Separate the battery pack from the VDB780B body.
4. Plug in the Micro USB charger to a wall outlet and connect it to the battery
5. The charging LED, located on the top of the battery pack, will be solid orange while the device is c
when charging has completed.
LED Guide
utton light guide
perational States
ff = Camera in standby mode (normal operation) or battery is drained and requires recharging
inking red = Power on, camera booting
inking blue = WPS mode
We use cookies on our website to give you the most relevant experience by remembering your
preferences and repeat visits. By clicking “Accept”, you consent to the use of ALL the cookies.
However you may visit Cookie Settings to provide a controlled consent.
Cookie settings ACCEPT

2021/10/20 上午10:47
VDB780B install – Doorbell Camera
https://doorbell.poweredbyalarm.com/vdb780b-install/
9/11
inking white = AP mode
inking yellow = Camera power cycling
ternating red and green = Camera resetting to factory default
ternating red and blue = Low battery – recharge required
olid green = Connected to Alarm.com LAN Connection
olid red = No local or Internet connection
apidly Flashing yellow = Firmware Upgrade
harging States
ED display is located on the top of the device
attery pack must be removed and plugged in
olid orange = Charging
olid green = Fully Charged
dditional states communicated by the main button LED
inking red/white = charging failure, ensure the battery is being charged with an appropriate power so
harges please contact Alarm.com.
inking red rapidly = battery is overheated, please charge in an indoor environment
inking red/yellow = battery is too cold, please charge in an indoor environment
We use cookies on our website to give you the most relevant experience by remembering your
preferences and repeat visits. By clicking “Accept”, you consent to the use of ALL the cookies.
However you may visit Cookie Settings to provide a controlled consent.
Cookie settings ACCEPT

2021/10/20 上午10:47
VDB780B install – Doorbell Camera
https://doorbell.poweredbyalarm.com/vdb780b-install/
10/11
FCC Statement
his equipment has been tested and found to comply with the limits for a Class B digital device, pursuan
esigned to provide reasonable protection against harmful interference in a residential installation. This
equency energy and, if not installed and used in accordance with the instructions, may cause harmful
ere is no guarantee that interference will not occur in a particular installation. If this equipment does c
ception, which can be determined by turning the equipment off and on, the user is encouraged to try
llowing measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the receiver is connecte
Consult the dealer or an experienced radio/TV technician for help
CC Caution: Any changes or modifications not expressly approved by the party responsible for complian
quipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired
his device and its antenna(s) must not be co-located or operating in conjunction with any other antenn
SA/Canada market, only channel 1-11 can be operated. Selection of other channels is not possible.
CC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set fort
hould be installed and operated with minimum distance 20cm between the radiator & your body.
Copyright © 2000-2021 Alarm.com Incorporated. All rights r
Alarm.com and the Alarm.com logo are registered trademarks of Alarm
Terms & Conditions | Privacy Policy
We use cookies on our website to give you the most relevant experience by remembering your
preferences and repeat visits. By clicking “Accept”, you consent to the use of ALL the cookies.
However you may visit Cookie Settings to provide a controlled consent.
Cookie settings ACCEPT

2021/10/20 上午10:47
VDB780B install – Doorbell Camera
https://doorbell.poweredbyalarm.com/vdb780b-install/
11/11
We use cookies on our website to give you the most relevant experience by remembering your
preferences and repeat visits. By clicking “Accept”, you consent to the use of ALL the cookies.
However you may visit Cookie Settings to provide a controlled consent.
Cookie settings ACCEPT
