Alcatel MOVETIME Track & Talk watch User manual

L1 Service Manual TCLCommunication Ltd.
Rev.
SW10 Level 1 Service Manual
Page
1.4
1/19
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.

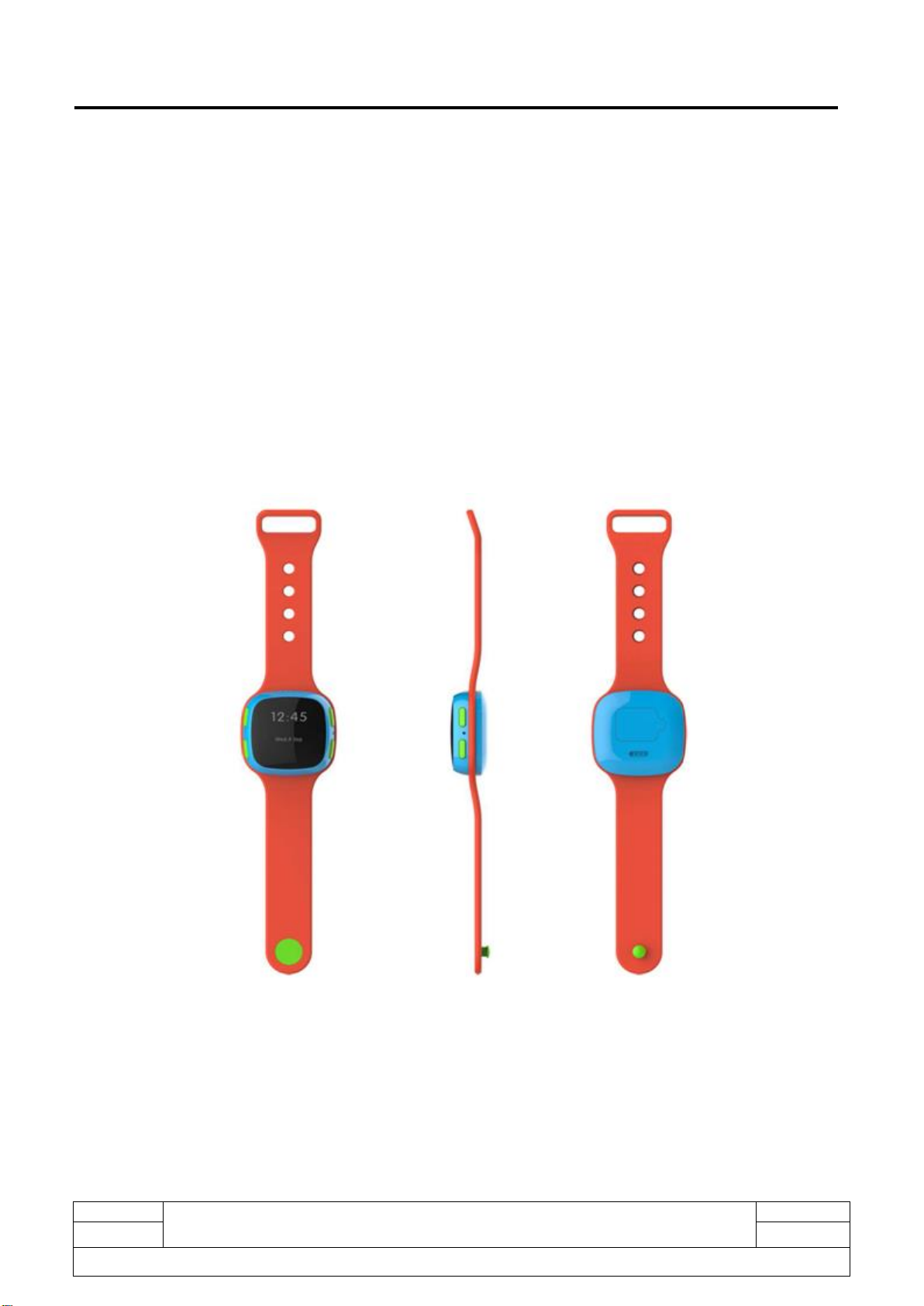

MOVETIME Track & Talk
Watch
SW10
Note: this manual is non-contractual and TCL Communication Ltd. can modify it without prior
notice on the characteristics of described equipments.

L1 Service Manual TCLCommunication Ltd.
Rev.
SW10 Level 1 Service Manual
Page
1.4
2/19
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
1.0
Preliminary draft
Jane Chen
Rev.
Date
Modification description
Prepared By
Checked By
Approved By

L1 Service Manual TCLCommunication Ltd.
Rev.
SW10 Level 1 Service Manual
Page
1.4
3/19
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.

L1 Service Manual TCLCommunication Ltd.
Rev.
SW10 Level 1 Service Manual
Page
1.4
4/19
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
Content
1. General.............................................................................................................................................5
2. Portable Label..................................................................................................................................6
2.1 Label zones......................................................................................................................................6
2.2 Commercial label samples: ...........................................................................................................7
2.3 L1 Spare Part List ...........................................................................................................................7
2.4.1. Charging cable (for end user) ................................................................................................8
2.4.2. Charging cable (for CC)..........................................................................................................8
2.4.3. Furnished SIM Card Cover and screw..................................................................................9
2.4.4. Screwdriver...............................................................................................................................9
3. MAINTENANCE POLICY.............................................................................................................10
3.1 VISUAL MECHANICAL INSPECTION.......................................................................................10
3.2 Main maintenance operations.....................................................................................................10
3.3 SW10 Maintenance Procedure...................................................................................................10
4. Software download .......................................................................................................................11
4.1 Equipments requested when download：.................................................................................11
4.2 SW download process..................................................................................................................11

L1 Service Manual TCLCommunication Ltd.
Rev.
SW10 Level 1 Service Manual
Page
1.4
5/19
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
1. General
MOVE TIME Track & Talk Watch –SW10 is a fashion accessory of smart phone. It pairs with phone
devices supporting Android 4.3 or later versions, IOS7 or later versions. It is safe to wear it in the rain.
Detail features
Project Name
MOVETIME Track & Talk Watch
Commercial Name
SW10
Product
Operating system
Nucleus
Weight
<40g
Color
Watch-face:Blue+Wristband:Orange
Watch-face:Red+Wristband:Blue
Dimensions
40x40x15.8mm (L x W x H),
wrist length up to 217.4x20.0x3.0mm
Dust/Water Proof
IP65
Power Key
Press on once more then 3s(ON/OFF)
Restricted phone call
Incoming calls list：10calls
Dial out list：5calls
Voice message
Push to talk, release to send
Wireless
GSM
GSM900MHz/1800MHz ,phone call
includes SOS and five restricted calls
Network
GPRS
GPS
Integrated MT3333
WiFi
MTK MT5931 802.11 b/g/n
Chipsets
Base band
MT2503A
Displaying
OLED
OLED 0.95'' single white color (96*64)
Screen Displaying
Clock(Standby) + Battery life + Carton
animations
Memory
ROM
16M Bytes- EXT FLASH
RAM
4M Bytes
Battery &
Autonomy
Battery Capacity
370mAh
Charging time
Less than 2hrs
Talking time
Phone call up to 2 hours
Working time
Up to 48 hours (Two days)
Standby time
Up to 96 hours (Four days)
Audio
Speaker
Loud speaker
Microphone
MEMS

L1 Service Manual TCLCommunication Ltd.
Rev.
SW10 Level 1 Service Manual
Page
1.4
6/19
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
Sensor
Accelerator 3D
Calculate pace, motion monitoring
Connectors
Nano SIM connector
4FF
Pogo Pins
Charging input port
2. Portable Label
2.1Label zones
Printing Zone definition (TA74-3DS12044AAAA--------For General
23×15mm)

L1 Service Manual TCLCommunication Ltd.
Rev.
SW10 Level 1 Service Manual
Page
1.4
7/19
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.

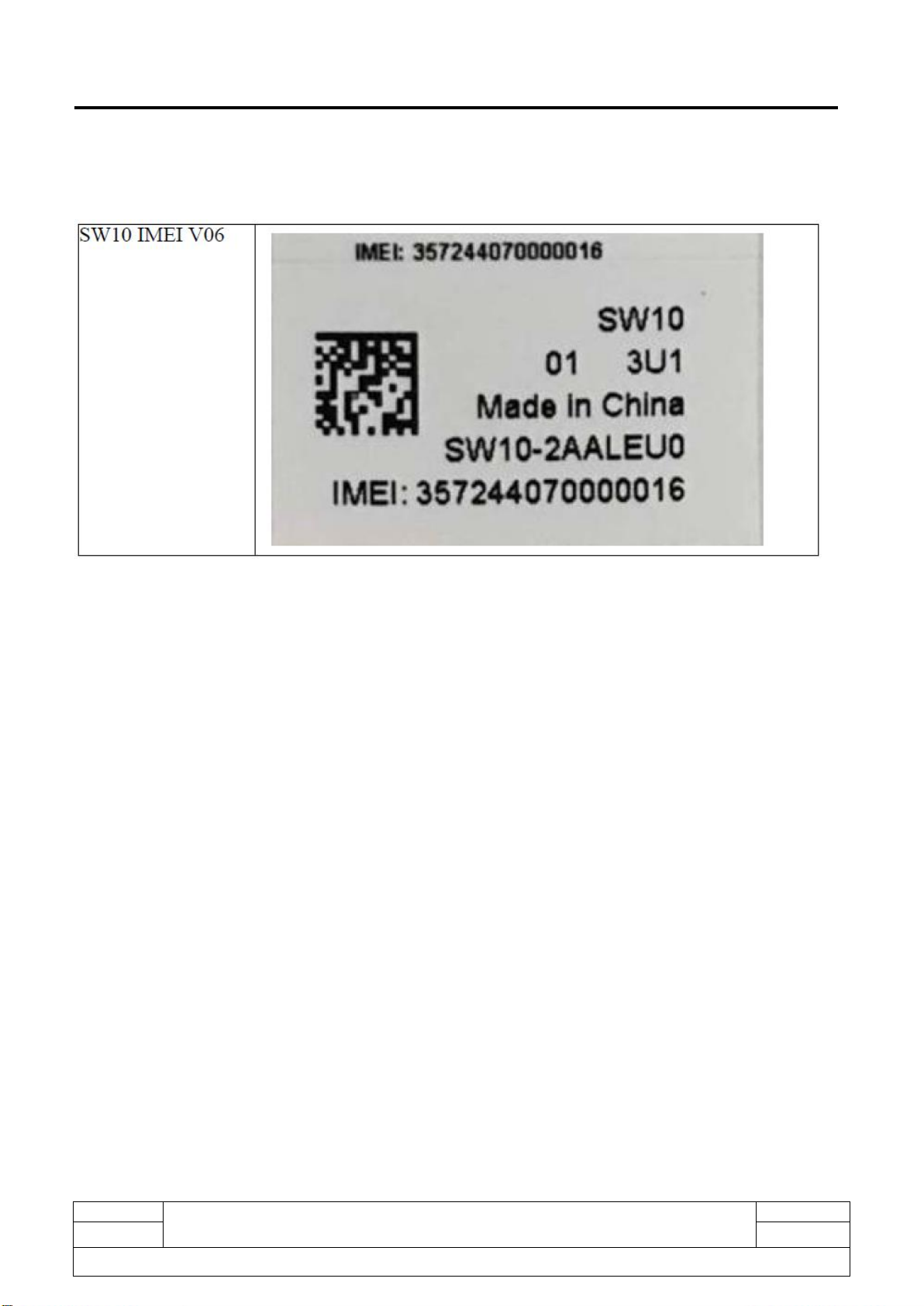

2.2Commercial label samples:
2.3L1 Spare Part List
Please get the latest SPL in Forlog system.
Label information
1. Length = 42mm
2. Width = 22mm
3. Thickness = 0.05mm

L1 Service Manual TCLCommunication Ltd.
Rev.
SW10 Level 1 Service Manual
Page
1.4
8/19
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.

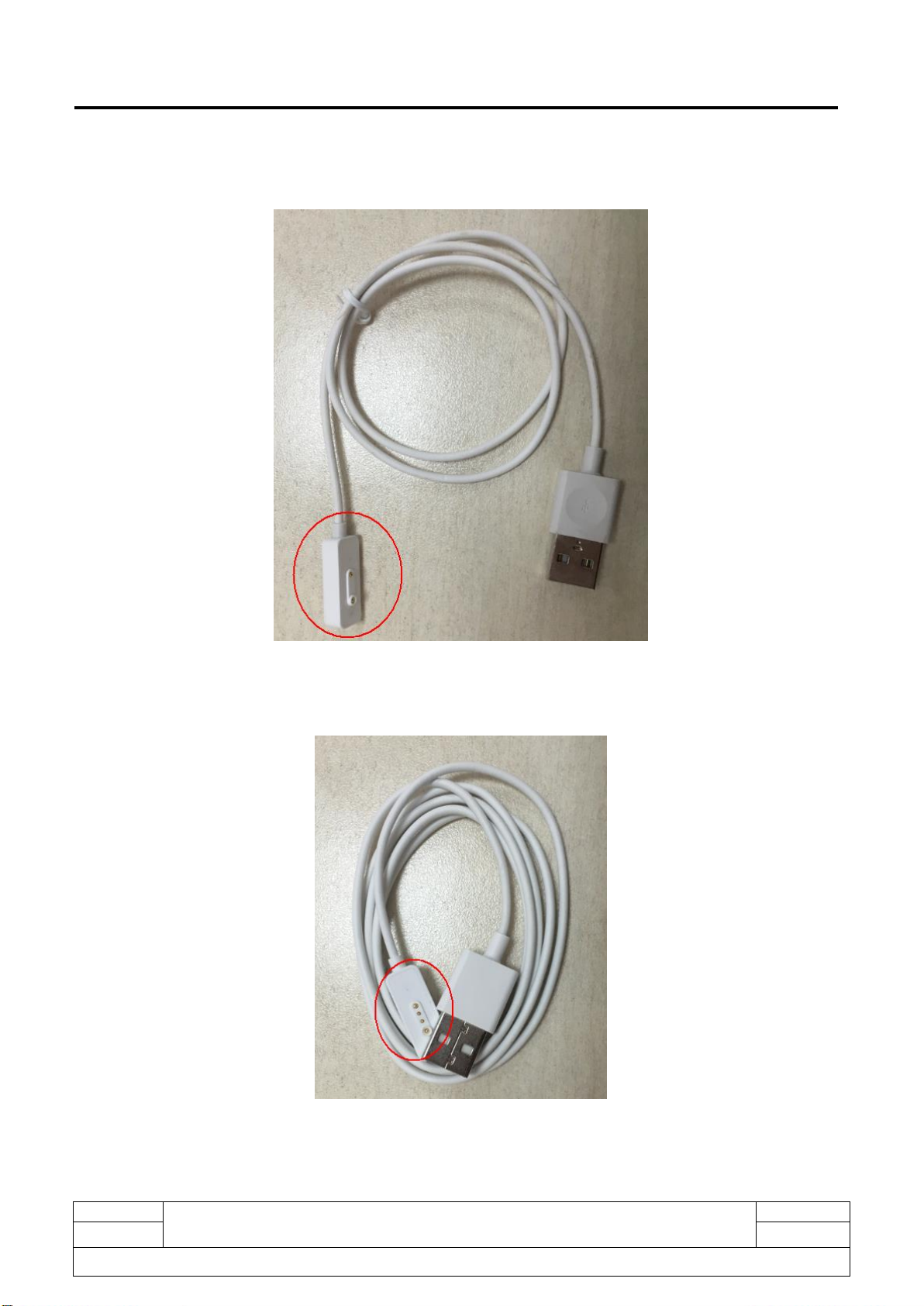

2.4.1. Charging cable (for end user) (PN: CDB0000056C1)
2.4.2. Charging cable (for CC) (PN: CDA0000079CF)

L1 Service Manual TCLCommunication Ltd.
Rev.
SW10 Level 1 Service Manual
Page
1.4
9/19
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.

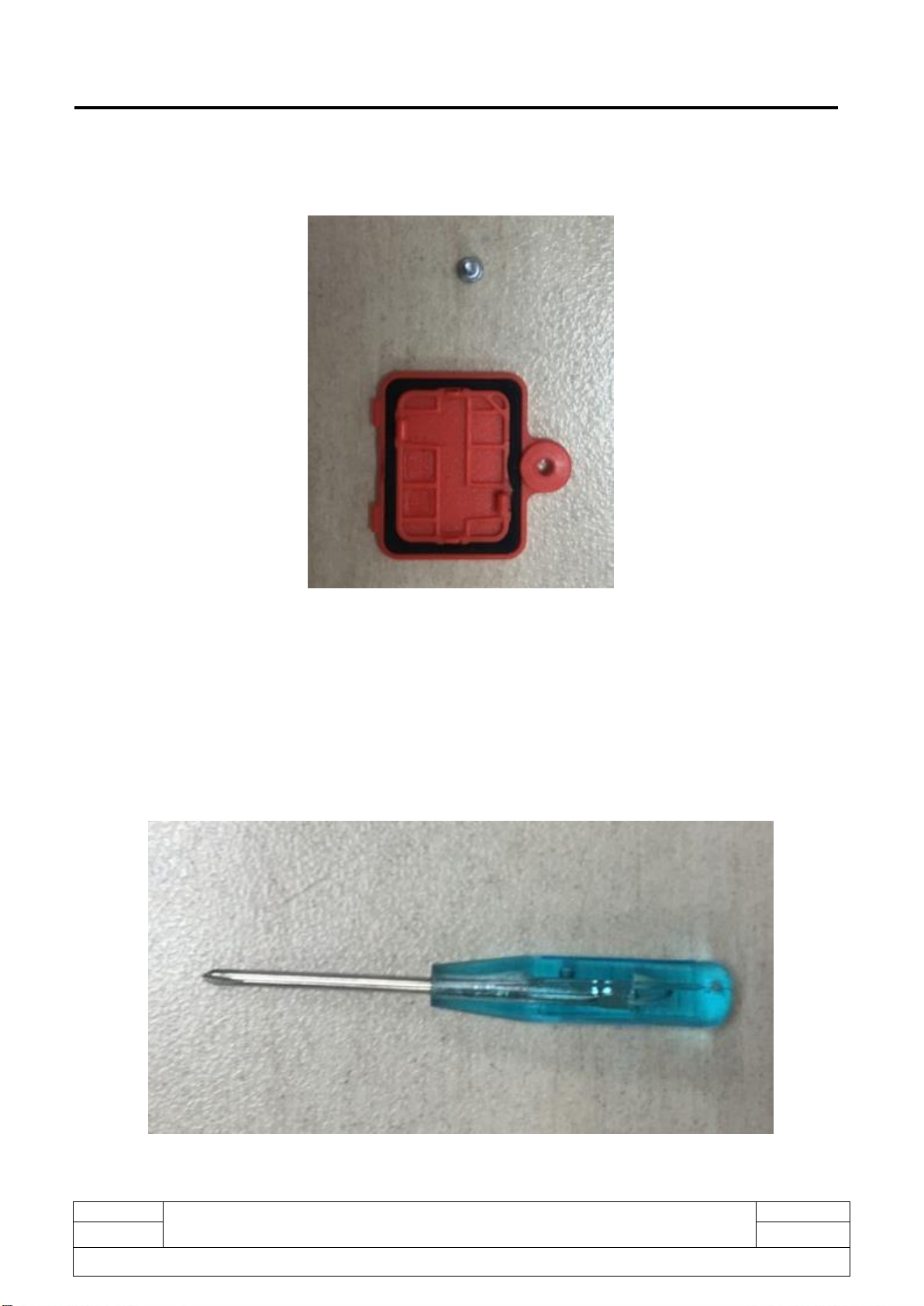

2.4.3. Furnished SIM Card Cover and screw
2.4.4. Screwdriver

L1 Service Manual TCLCommunication Ltd.
Rev.
SW10 Level 1 Service Manual
Page
1.4
10/19
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
3. MAINTENANCE POLICY
3.1VISUAL MECHANICAL INSPECTION
Mechanical warranty checked items:
Corrosion: corrosion on the USB connectors, SIM connectors, and other metal surfaces
Holes (diam > 1mm): Holes on any surface, including the furnished front casing, furnished back casing
and USB model, etc.
Big bumps (diam > 1mm): Bumps on any surface, including the furnished front casing, back casing
and USB, etc.
Long scratch (length > 3mm): Scratches on any surface, including the furnished front casing, back
casing and USB, etc.
Distortion: Bend, twisted or crushed on the h/s, casing or connectors…
Broken: Any mechanical broken including front casing/back casing/usb etc.
Fallen off: Connectors fallen off …
Gap: External physical damage relating to abnormal use, like front/back cases.
Others
- Damage caused by disassembly like wrong part assembly, lost of components
- Use in abnormal environment like too high temperature with plastic melts
3.2 Main maintenance operations
•Software downloading;
•Swap the watch.
3.3 SW10 Maintenance Procedure
•Pre-examine the watch, to see if the cover or housing or accessory is damaged.
•Check the SIM card is placed correctly and then Insert the watch to PC USB port
•Check the status of SIM card service
•If there is new version software released, please update the SW.
•If the fault is not with all those above, pls. give the user a swap watch and send the faulty one to
upper level RC.

L1 Service Manual TCLCommunication Ltd.
Rev.
SW10 Level 1 Service Manual
Page
1.4
11/19
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
4. Software download
It is authorized to download software for the watch which needs to be updated. This downloading tool
is called “MultiPortFlashDownloadProject”. Thus internet access is necessary. TS Website:
https://css.tclmobile.cn/.
4.1 Equipments requested when download：
⑴A device with full power;
⑵PC with windows system;
⑶A USB cable and a download cable (PN: CDA0000079CF,).
4.2 SW download process
Step 1: Double click to run the “MultiPortFlashDownloadProject”, and then select the “Install driver”check
box for the driver installation.

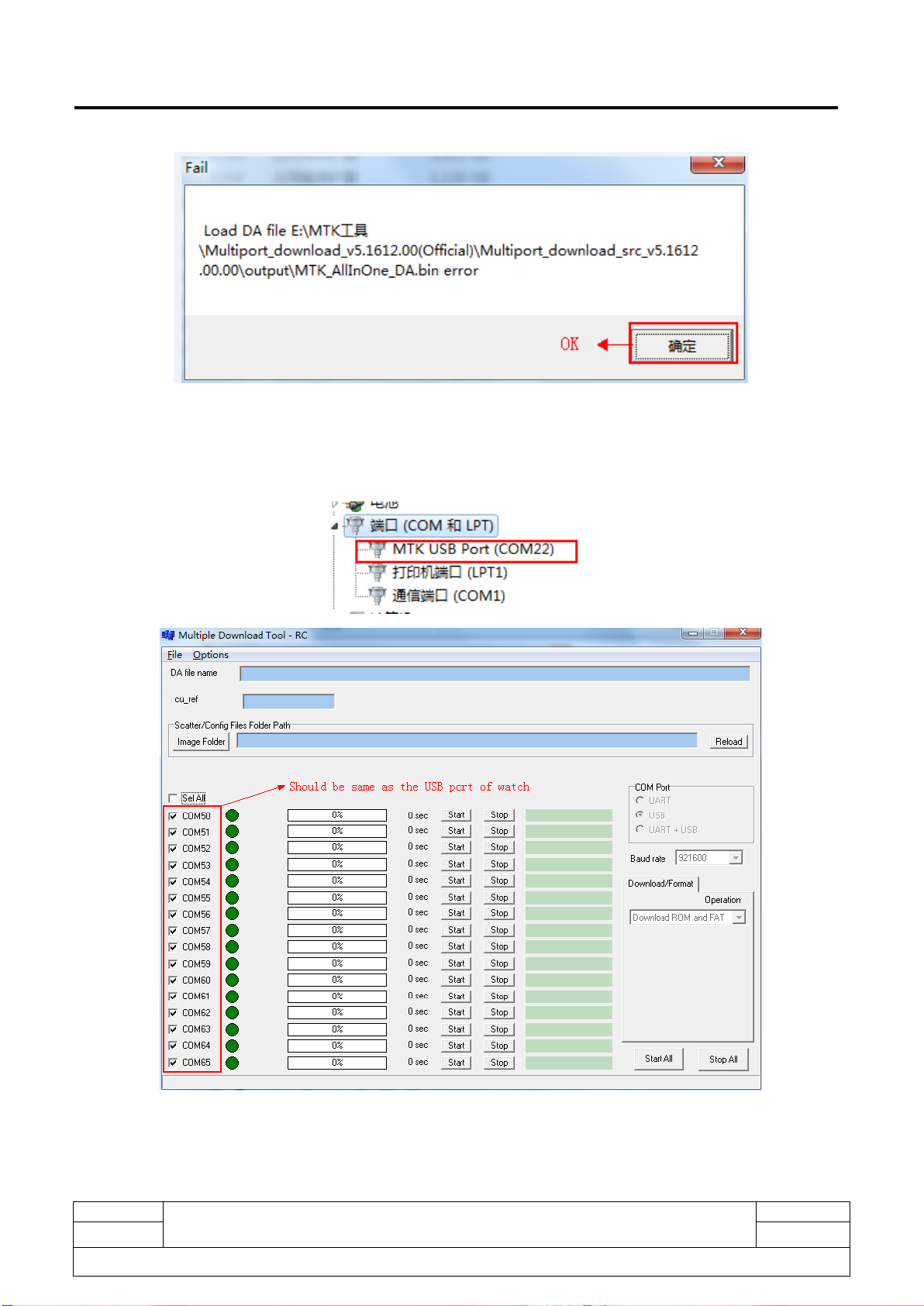

Step 2: Click “OK”when the tips below pops up.

L1 Service Manual TCLCommunication Ltd.
Rev.
SW10 Level 1 Service Manual
Page
1.4
12/19
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
Step 3: Power on the watch and plug it to the PC. Check Whether the COM is the same as the USB port in
your PC.
If not, please change the COM Port in “Options”.

L1 Service Manual TCLCommunication Ltd.
Rev.
SW10 Level 1 Service Manual
Page
1.4
13/19
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.

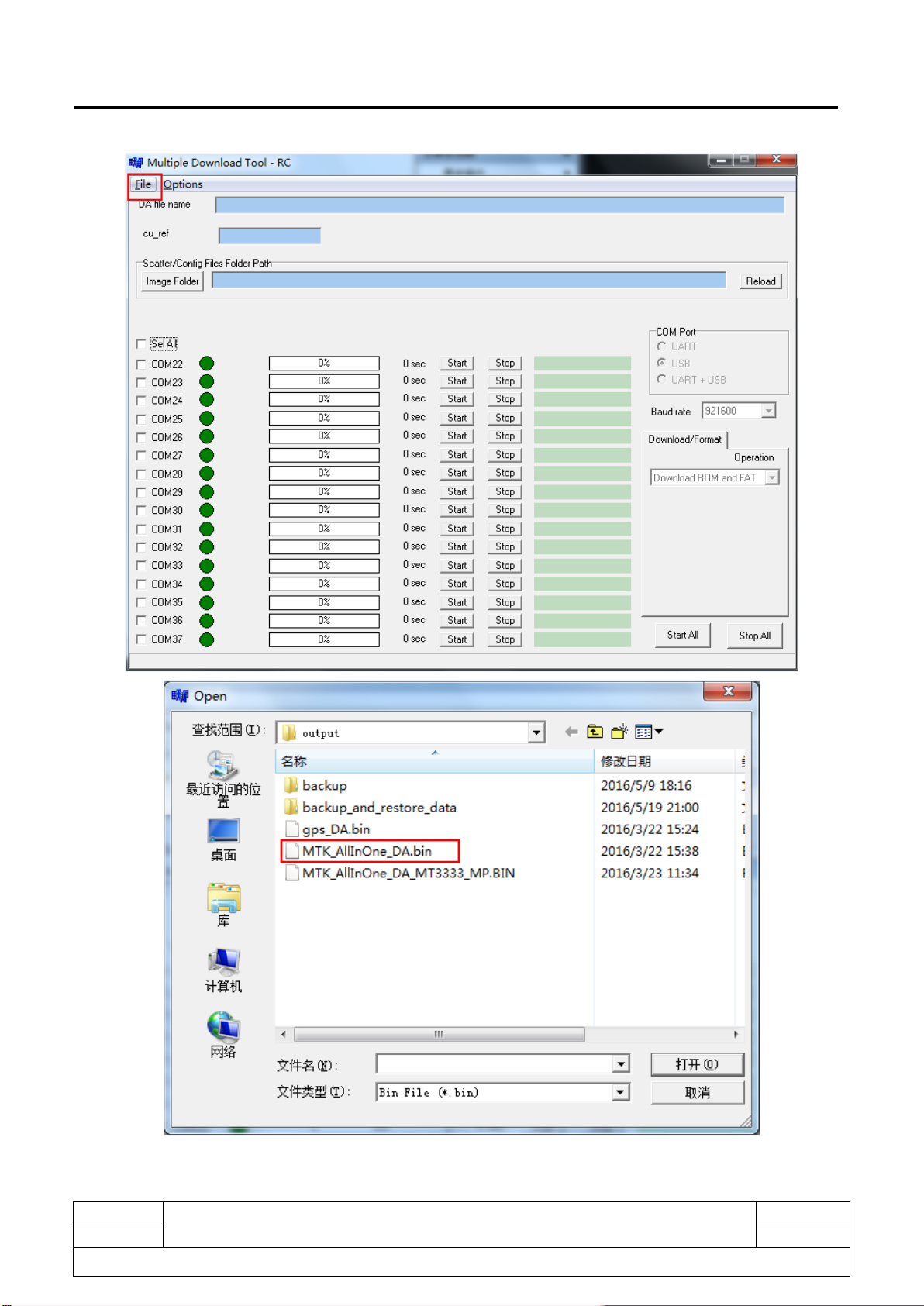

Step 4: Click “File”to choose the DA file “MTK_AllInOne_DA.bin”.

L1 Service Manual TCLCommunication Ltd.
Rev.
SW10 Level 1 Service Manual
Page
1.4
14/19
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.

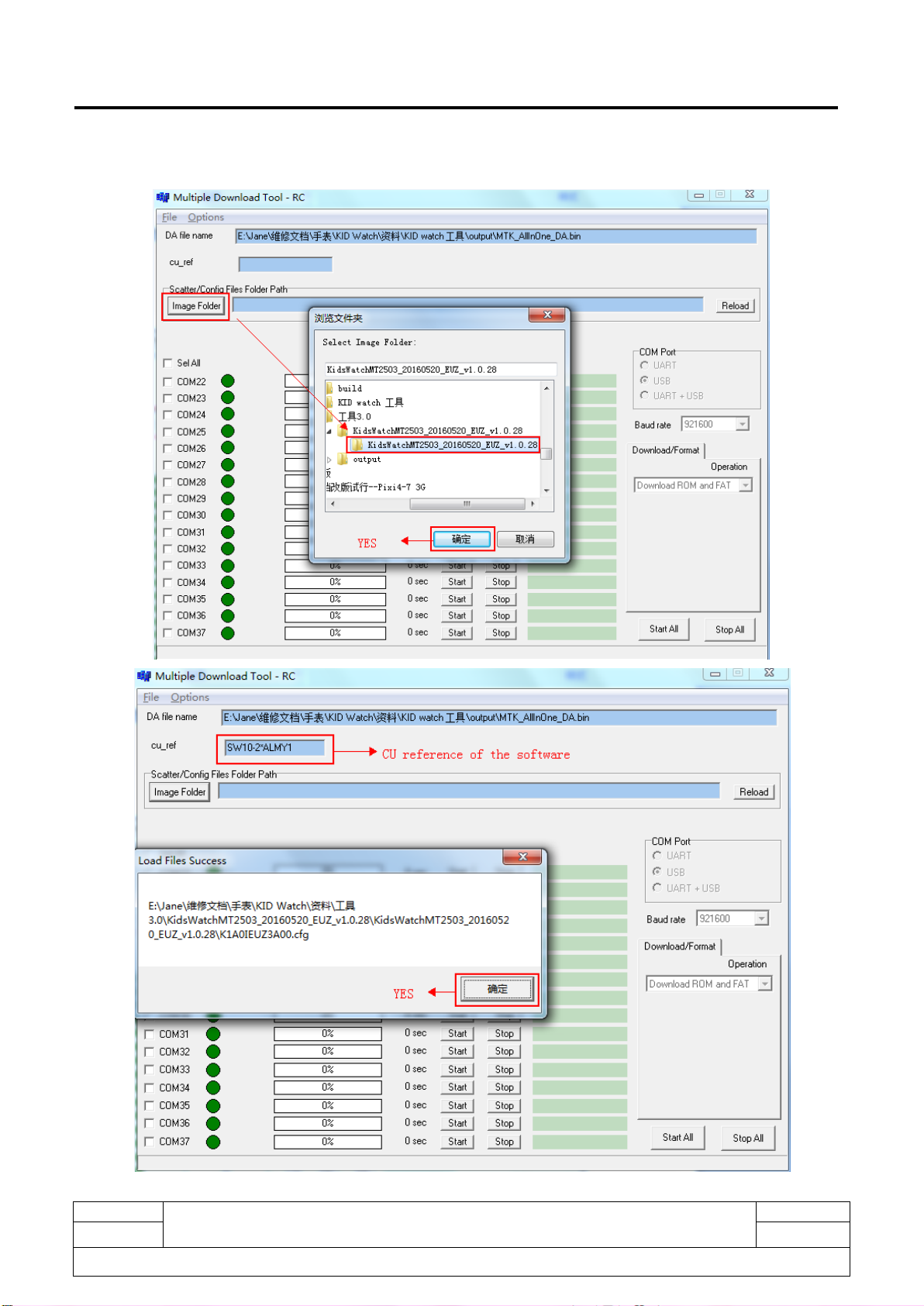

Step 5: Click “Image Folder”to choose software file “build”. You could download the software file in CSS

L1 Service Manual TCLCommunication Ltd.
Rev.
SW10 Level 1 Service Manual
Page
1.4
15/19
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
Website.And then click Yes to confirm.

L1 Service Manual TCLCommunication Ltd.
Rev.
SW10 Level 1 Service Manual
Page
1.4
16/19
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.

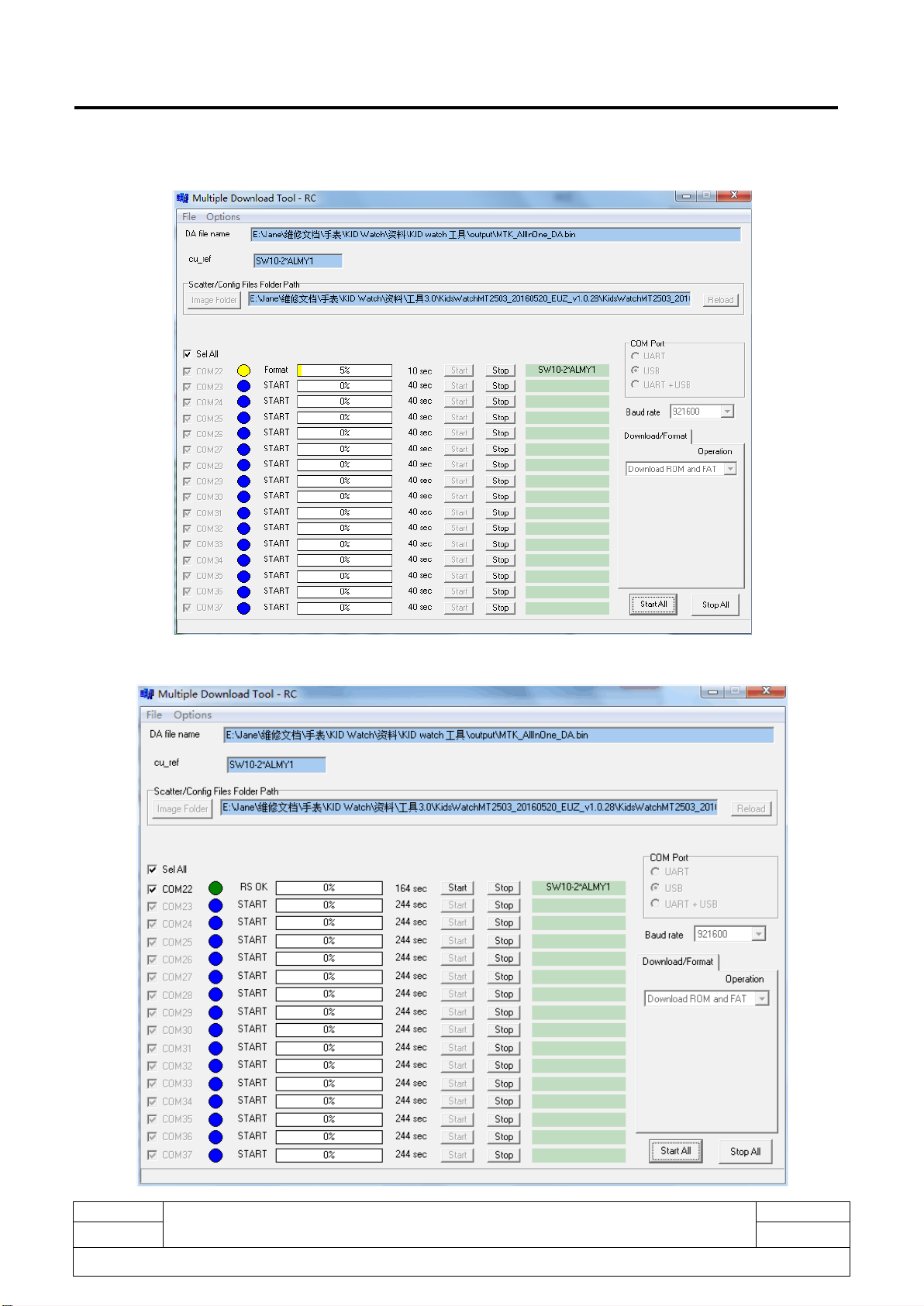

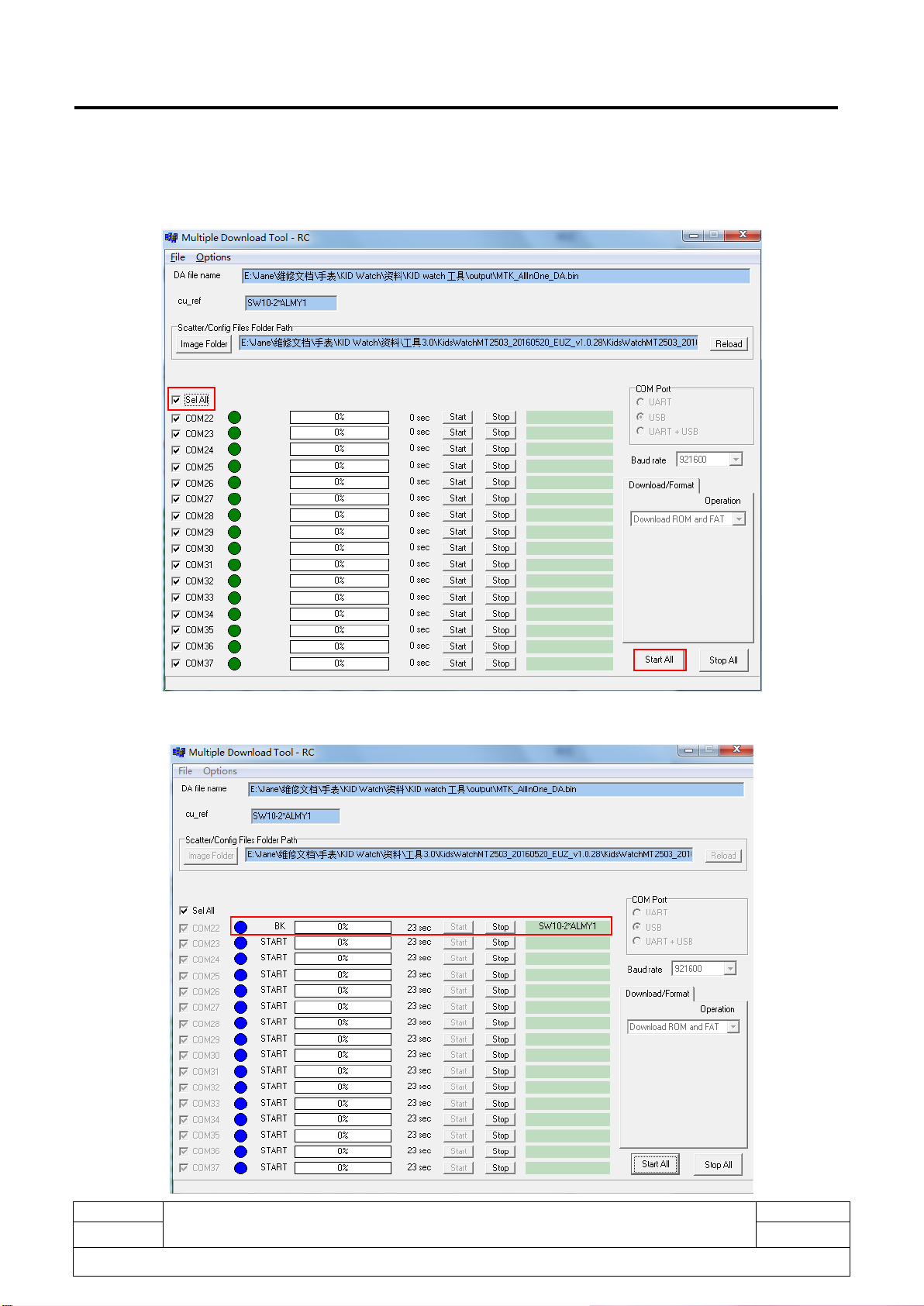

Step 6: Power off the watch and click “Sel All”and “StartAll”, and then replug the watch to the PC. The tool
will search the port of the watch.
Step 7: The COM port is recognized and the CU of the watch is displayed.

L1 Service Manual TCLCommunication Ltd.
Rev.
SW10 Level 1 Service Manual
Page
1.4
17/19
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
Step 8: Upgrading process.
Step 9: Upgrading finish.

L1 Service Manual TCLCommunication Ltd.
Rev.
SW10 Level 1 Service Manual
Page
1.4
18/19
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.

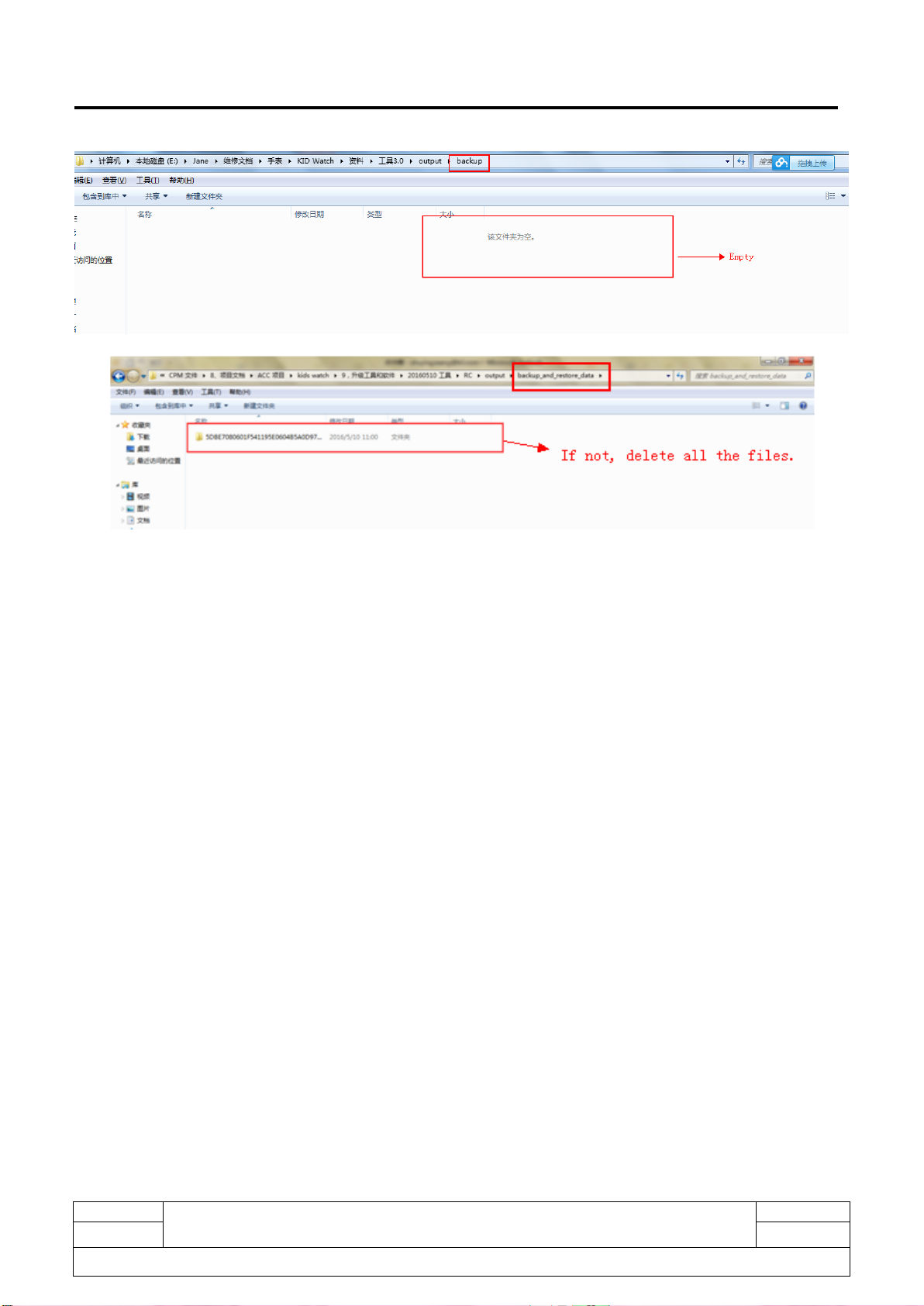

Note: If the COM port cannot be recognized as the picture below.
Check whether the “backup”folder and “backup_and_restore_data”folder in the tool folder are all empty. If
not, please delete all the files in these two folders.

L1 Service Manual TCLCommunication Ltd.
Rev.
SW10 Level 1 Service Manual
Page
1.4
19/19
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.
If you have any question or problem, please feel free to contact us
([e-mail]) .
Thanks for your cooperation.
TCL Communication Ltd.
Global Customer Service TS Dept.
Jun. 3rd, 2016
