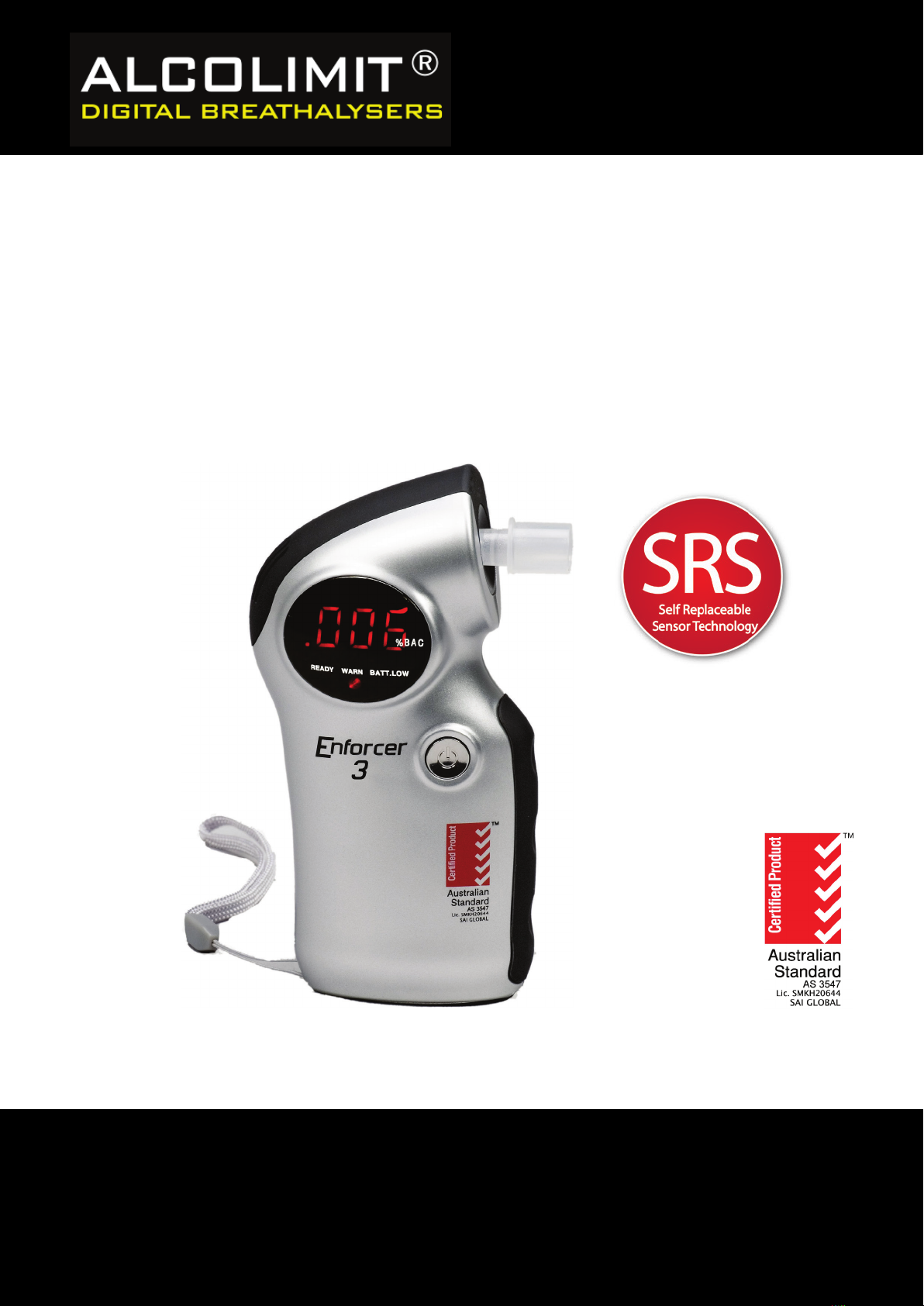

AlcoLimit Enforcer 3 User manual

Enforcer 3
User Manual
AlcoLimit Breathalysers Pty. Ltd.
P.O. Box 1106,
Manly, NSW, 1655
Ph: 1300 667 661
www.alcolimit.com.au

Enforcer 3
pg-2

Enforcer 3
IMPORTANT INFORMATION
If you do not follow the instructions for use your test results may be
inaccurate and your warranty may become void.
IMPORTANT NOTE: YOU MUST WAIT AT LEAST 20 MINUTES AFTER YOUR
LAST ALCOHOLIC DRINK BEFORE USING ALCOLIMIT Enforcer 3
OTHERWISE INACCURATE READINGS OF YOUR BLOOD ALCOHOL LEVEL
WILL BE DISPLAYED ON THE SCREEN.
PARTS OF YOUR BREATHALYSER
AlcoLimit's Flow Control Technology checks the flow rate of your breath.
An adequate air sample must be received before it will provide you with a
reading. This is just one of the safety measures built into the AlcoLimit
range.
AlcoLimit's Intelli-sensor Recognition Technology checks the sensor
condition every time you use your breathalyser. Stability of the sensor is
analysed as well as the level of alcohol residue built-up on the sensor. An
indication will be given if the sensor needs recalibration.
pg-3

Enforcer 3
SPECIFICATIONS
Usage
Personal / Professional
Sensor Type
Semi-conductor Alcohol Sensor with Gas Flow Sensor built-in
Accuracy
AS3547 Certified accuracy
Calibrated to Australian & NZ legal limit
Range
0.000 – 0.400g / 100mL
Display
LED with Backlight
Usage Monitor
Cumulative test counter on start-up
Warm-up time
< 20 seconds
Breath Sampling Time
3 seconds (approx.) Gas flow sensor means a minimum flow must
be received to get a reading
Time Between Retests
< 4 seconds (Fast mode) < 20 seconds(Normal Mode)
Housing
Shock Resistant Plastic
Weight
115g with batteries
Power Source
2 x 1.5V ‘AA’ Alkaline batteries
Power Usage
Over 200 times
Dimensions
137 x 73 x 44mm
Warranty
1 year manufacturer’s warranty
Recalibration
Workplace use: Monthly
Personal use: 6-12 months
or at least every 200 uses
Recalibration cost $45
Mouthpieces
Enforcer 3 has 5 supplied,
additional available
Specifications are subject to change for the purpose of product improvement.
For all after-sales service and enquiries please contact the manufacturer:
AlcoLimit Breathalysers Pty. Ltd.
P.O. Box 1106
Manly, N.S.W. 1655
Australia
Ph: 1300 667 661 or [phone]
Website: www.alcolimit.com.au
Email: [e-mail]
pg-4

Enforcer 3
USAGE
Turning on the power
First, place 2xAA batteries (supplied) into your ALCOLIMIT Enforcer 3 in the
correct direction as marked on the battery cover.
Be sure to use high quality alkaline batteries (preferably Duracell). We
recommend removing the batteries while the unit is in storage to prevent them going flat. High
quality 1.5V Alkaline batteries must be used. Rechargeable batteries will not work as they are
a lower voltage.
Your Enforcer 3 can be operated in two modes:
Normal mode will display digital readings (i.e. 0.032%BAC)
Fast mode will simply display ‘0’, ‘Lo’ or ‘Hi’.
To turn on hold down the on/off button, and you will first see a number
representing the usage counter of the Enforcer 3. Then it will cycle between
and and the usage counter, and so on until you release the on/off
button. (i.e. if you want to use it in normal mode release the on/off button when
is on the screen).
Normal mode is also the default mode of operation when the unit is turned on by
holding the button down briefly.
To operate in normal mode:
Depress the on/off button for 2 seconds or until appear. The countdown
process will start and countdown from to .
Insert a mouthpiece into the unit. Once appears you will hear a double
beep.
pg-5

Enforcer 3
Blow one consistent deep breath into the sensor. There will be a continual long
beep while you are blowing. Once your ALCOLIMIT Enforcer 3 has received
enough airflow you will hear a double beep signaling you to stop.
If inadequate airflow is received, the word will appear on the screen. Do
not block the air hole on the opposite side of the mouthpiece while testing as this
will affect the airflow.
Your %BAC reading will then be displayed on the screen for 15 seconds
And the unit will turn itself off. To retest, simply turn the unit on again.
PLEASE NOTE: If you do not test yourself within 10 seconds of the unit
becoming ‘READY’ the word will appear on the screen and you will need
to start again.
To operate in fast mode:
Depress the on/off button. Hold it down until you see the letters
appear. Release the on/off button once appears. The countdown
process will start and countdown from to .
The letters will appear again confirming it is ready for testing. If
doesn’t appear, start again.
Blow into the air hole for 3 seconds holding your mouth 1-2 cms from the hole (no
mouthpiece is used). A zero will scroll across the screen then your reading will
appear on the screen as or . (see Display & Interpretation)
Your mouth should be 1-2cms from the hole without touching the unit.
After displaying your reading the unit will automatically reset for retesting by
displaying .
PLEASE NOTE: Alcohol vapour on your breath will cause a higher reading. We recommend
having a glass of water prior to testing and waiting at least 20 minutes after your last drink for
accurate results. Not waiting the required 20 minutes will saturate the sensor unnecessarily and
may cause sensor damage. This is not covered under your warranty. Please always wait 20
minutes after consuming any alcohol to avoid this problem.
pg-6

Enforcer 3
DISPLAY & INTERPRETATION
Result Type
Digital Display
Negative
(0.000-0.019%BAC)
Caution
(0.020-0.049%BAC)
Positive
(0.050%BAC and above)
In Normal mode readings above 0.400%BAC will be displayed as 0.400%BAC.
This device is a 0.050%BAC device (0.050%BAC is equal to 0.05grams of
alcohol per 100ml of blood).
Australian Customers: The Australian drink driving cutoff for people on a
full license is 50mg per 100ml of blood. This equates to 0.050%BAC.
This is current as at October 2015. The Australian Govt. may change this level in the future so
please check before driving.
NZ Customers: The New Zealand drink driving cutoff for people over 20
years old is 50mg per 100ml of blood. This equates to 0.050%BAC.
This is current as at October, 2015. The New Zealand Govt. may change this level in the future
so please check before driving.
pg-7

Enforcer 3
TROUBLESHOOTING GUIDE
Symptom
Solution
Unit turns on and counts down then
turns itself off
Not enough power - replace batteries
Not enough power - replace batteries
Unit doesn’t power up at all
Check batteries are new and in the
correct direction +/-
Recalibration is required
Recalibration is required
Inadequate airflow received. Keep
blowing until you receive a double beep
Unit has timed out. You need to restart.
Ensure you blow into the unit within 10
seconds of it becoming ready
Readings are inaccurate
Ensure you’ve waited 20 minutes after
drinking any amount of alcohol.
If this rule is not adhered to on all
occasions, unnecessary alcohol residue
build-up on the sensor will occur.
If in doubt, send your unit for
recalibration
For any other issues please call our customer centre on 1300 667 661 or +612
9939 3077 (NZ customers)
pg-8

Enforcer 3
WARNINGS (Please read carefully)
•Closed rooms with poor ventilation, pollution, smoke or air conditioning may delay the time
for resetting between tests.
•Not waiting at least 20 minutes after your last alcoholic drink will cause inaccurate readings,
and if you continue to misuse ALCOLIMIT Enforcer this way you will damage the sensor
beyond repair (not covered under warranty). Have a glass of water or other non-alcoholic
beverage to minimise alcohol vapour in your mouth as the vapour can cause a higher
reading.
•Retest 2-3 times to obtain a reliable test result. We suggest you then wait a further 10 - 20
minutes and retest to check that your level has stabilised and not increased.
•Medications, mouthwash and chewing gum can contain small doses of alcohol or menthol
so do not consume anything for at least 20 minutes prior to testing.
•Blood alcohol concentration can continue to rise for up to 2 hours after the cessation of
drinking. If the reading is close to the limit it is advised to wait a further 10-20 minutes and
retest to determine whether your %BAC has stabilised.
•It can take 10 hours or more to return to a zero reading after a high blood alcohol level has
been reached. A further test should be carried out later in the day or the following morning.
•If you are taking ALCOLIMIT Enforcer overseas or using it at a different altitude please be
aware that the calibration may be affected.
•Do not blow cigarette smoke or liquid into the tester.
•Alcohol affects each individual differently depending upon many factors; type of alcohol,
muscle mass, weight, full or empty stomach, immune system, gender, regularity of drinking.
•Those with diabetes may find they can drink large volumes of alcohol yet still read
0.00%BAC. This does not mean your ability to drive is not impaired.
•Do not use ALCOLIMIT Enforcer as a tool to drink and drive. There is no safe level of
alcohol consumption before driving or operating machinery.
STORAGE CONDITIONS
Keep free from dust, dirt, and small particles as they may clog the sensor.
Keep in a cool dry place.
Keep out of extreme temperatures.
Keep out of reach of children.
Keep away from electrical interference.
Do not drop, knock or shake.
Remove batteries prior to storage.
pg-9

Enforcer 3
RECALIBRATION
The calibration period of ALCOLIMIT Enforcer is 30 days. For professional use we
recommend recalibration every 1-3 months and for personal use every 3-12 months.
Recalibration is required because alcohol residue builds up on the sensor and this must be
cleaned because it affects the accuracy of the device over time. The sensor needs to be
cleaned professionally. Do not try and clean it yourself as you will damage the sensor and
the device will not work properly. A specially calibrated alcohol simulator is used to
recalibrate ALCOLIMIT Enforcer and the electronics need to be reset during recalibration.
After 200 uses the letters will appear on the LCD screen at start up, indicating
recalibration is due. Depending upon the concentrations of alcohol blown into the sensor
over time, your ALCOLIMIT Enforcer may require recalibration sooner. If your ALCOLIMIT
Enforcer displays on the screen or you receive erratic readings, please send it to us
for recalibration.
If you have any doubt about the readings you are receiving from your ALCOLIMIT Enforcer
then please send your unit to us for recalibration.
Periodic recalibration is required because over time breath alcohol testing devices may drift
from their calibration setting even when not used.
Additional mouthpieces may be purchased online at www.alcolimit.com.au or by calling
1300 667 661.
SELF REPLACEABLE SENSOR TECHNOLOGY
AlcoLimit Enforcer 3 now comes with self-replaceable sensor
technology enabling you to perform servicing yourself. Now you’ll
never be without your breathalyser while it’s away at our service
centre.
Simply order a replacement sensor module, remove the screw at
the rear of the breathalyser and replace the sensor module.
All sensor modules are calibrated at the time of receiving your order and
overnight express posted to you so you receive it the next day. The cost is $45
and includes postage charges.
To view a video of how easy it is to perform this service please go to our website at
www.alcolimit.com.au.
While performing this sensor change if you have any issues our technicians can
assist you over the phone or if you get really stuck you can then send your breathalyser
and sensor to us for professional servicing at no extra charge.
pg-10

Enforcer 3
Professional Recalibration Costs and Procedure:
Recalibration costs $45 AUD/approx. $55NZD and includes return postage to you within
Australia and NZ via Australia Post Express.
Post your ALCOLIMIT unit to :
AlcoLimit Breathalysers Pty. Ltd.
Recalibration Dept.
P.O. Box 1106
Manly, N.S.W. 1655
When posting your ALCOLIMIT Enforcer to us you are advised to send it Registered Mail for
tracking purposes. Australia Post sells a padded bag size 0 which fits ALCOLIMIT Enforcer
perfectly.
You must include the following:
-your name
-return postal address
-daytime phone no.
-payment
-instruction manual to update service record
Payment can be made via cheque or money order made out to:
'AlcoLimit Breathalysers Pty. Ltd.'
Or you may call us on 1300 667 661 to pay with credit card.
Your unit will usually be returned to you within a week.
If you have any questions regarding recalibration, please call us on
1300 667 661 or [phone]
For NZ Customers we recommend payment via Credit Card.
pg-11

Enforcer 3
WARRANTY
Manufacturer warrants for one calendar year the product to be free from defects in
workmanship or materials (excluding calibration) in normal service from the date of
purchase. Manufacturer’s obligation under this warranty is limited to replacing or repairing
the unit if returned along with proof of purchase. This warranty is void if unit has been
tampered with, misused, dropped, maliciously damaged or used for any purpose other than
that intended.
The cost to return the unit to the manufacturer’s service centre is at the expense of the
consumer. The consumer is welcome to drop the unit off at our service centre in person.
The consumer must contact our customer service centre prior to returning the unit to us to
enable our technicians to diagnose the fault over the phone.
Upon returning the unit to our service centre under warranty, should the unit be found not to
be faulty, the consumer is liable for the freight cost to return the item to them. Should the
unit be found to be faulty the freight cost to return the item to the consumer will be borne by
the manufacturer.
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the
goods repaired or replaced if the goods fail to be of acceptable quality and the failure does
not amount to a major failure.
DISCLAIMER
AlcoLimit Enforcer is recommended as a screening device only. The reading you receive is
not legally binding in a court of law, ALCOLIMIT Enforcer is to be used only as a guide. The
only true indication of your %BAC is a blood test.
Probationary drivers and machinery operators should check with their state authority or
employer as to whether a 0.02%BAC or zero tolerance applies to them. We do not
recommend driving or operating machinery with any amount of alcohol in your system.
Heavy fines and penalties may apply and the presence of alcohol in your system may void
your insurance.
The manufacturer gives no warranty, express or implied, as to the ability of ALCOLIMIT
Enforcer to determine or detect intoxication or to accurately indicate your blood alcohol
level. The manufacturer assumes no responsibility in circumstances where a person who
has used the device and received an indication of the presence of alcohol in his/her exhaled
breath is later found to be under the influence of or their judgment has been impaired by
alcohol; and will in no circumstances be liable for any loss or damage in contract or tort
(including negligence) or otherwise suffered by any person arising directly or indirectly from
the use of ALCOLIMIT Enforcer.
The manufacturer, importer or distributor takes no responsibility whatsoever for the use of
this product for any reason. This product must not be used as a tool for determining whether
a person is able to operate a vehicle or machinery. The intake of any alcohol will impair
reflexes and judgment to operate motor vehicles and machinery.
For further information on ALCOLIMIT Enforcer, and to view other models available, see our
website: www.alcolimit.com.au or call our information line on 1300 667 661.
pg-12

Enforcer 3
ADDITIONAL PRODUCTS AND ACCESSORIES
Enforcer 2 Breathalyser
Self-replaceable Sensor
Precise, durable and portable. Includes fast
mode for rapid testing of large volumes of
people. (ALCO-007)
-2 decimal place accuracy
-Range of 0.00-0.04%BAC
-Calibrated for the Aust. & NZ Legal
Limit
Simply pop out your old sensor and insert a
new one. No need to return your breathalyser
to us for servicing. (ALCO-026)
-Precalibrated to the Aust. & NZ Legal
Limit
-Easy to install yourself
-Sent via overnight freight
Mouthpieces
Calibration Certificate
Individually wrapped, disposable mouthpieces
suitable for personal and professional use.
-Pack of 10 (ALCO-030)
-Pack of 50 (ALCO-020)
-Pack of 500 (ALCO-043)
Maintain WH&S records easily by ordering a
calibration certificate.
-Ensure WH&S compliance
-Includes all breathalyser details
Evidence of compliance with AS3547
Breathalyser Training
Online training is available for those
performing workplace testing – a Statement of
Attainment is issued upon completion.
-Ensure OH&S compliance
-Takes about 60 minutes to complete
pg-13

Enforcer 3
pg-14

Enforcer 3
pg-15

Enforcer 3
RECALIBRATION SERVICE RECORD
Date of
Recalibration Service Details Technician
For service records to be updated, please send your instructions with your
breathalyser each time it is recalibrated.
Alternatively, you may request a Calibration Certificate at a cost of $22 (recommended for
workplaces).
pg-16
