INTRODUCTION
Thank you for purchasing an AlcoSense® Prodigy.
The AlcoSense® Prodigy is a state of the art instrument used to
detect ethyl alcohol from a valid breath sample.
It uses an electrochemical fuel cell to measure the
concentration of alcohol in the breath sample expelled from a
human subject. If alcohol is present, a corresponding voltage is
generated from the fuel cell, which is proportional to the alcohol
content of the sample provided by the human subject. This
voltage is then sent to the CPU and converted to the subject’s
BAC (blood alcohol concentration) which is then displayed.
PREPARATION
Gently pull down the battery compartment cover to remove it.
Insert fresh alkaline batteries (4 x AA), checking that the + and
- on each battery are aligned according to the polarity diagram
inside.
Carefully replace the battery compartment cover.
CONTENTS
DEVICE FEATURES
OPERATING INSTRUCTIONS
TEST RECORDS
SETTINGS
CONDITIONS FOR TESTING
PRINTER
TROUBLESHOOTING
DISCLAIMER
WARRANTY DETAILS
PRODUCT REGISTRATION
.............................................3
..............................4
...................................................7
.............................................................8
.............................11
.............................................................12
........................................13
......................................................14
........................................15
...............................17

3
DEVICE FEATURES
Passive Test
Specic Test
Settings
Record
8
DIAGRAM EXPLANATION
Disposable mouthpiece
Button to remove mouthpiece
Touch screen display
On/Off button
External power connectors
Stylus pen
Function button

4

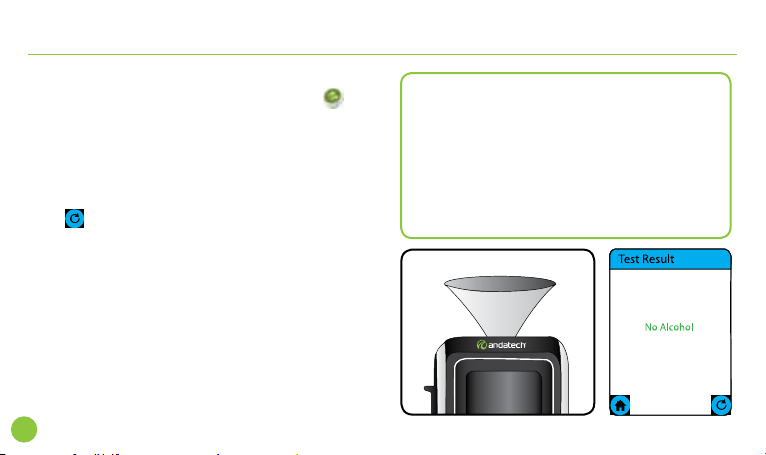

PASSIVE TEST
Attach a sampling cup to the sample port and select the icon.
When the screen displays “Please Blow”, take a deep breath and
blow towards the sampling cup until the BEEP tone stops.
“Alcohol Detected” or “No Alcohol” displays on the screen.
Alternatively, a passive test can be performed by selecting
“Passive” whilst the user is blowing.
Select to start another test.
If the screen shows “Alcohol Present”, use a mouthpiece to
perform a standard test so that an accurate BAC reading can be
obtained.
NOTE: A “Passive Test” is only used for screening; it checks for
the presence of alcohol in a breath sample. An accurate test
result can only be obtained through use of a “Standard Test” with
a mouthpiece.
NOTE: Test records of the passive tests cannot be printed or
stored.
The optimum temperature range for operating the unit
is -10°C -50°C. Use within this temperature range will
limit condensation from the subject’s breath and ensure
an accurate reading is taken. It is recommended that
the operator observes the subject for approximately
20 minutes before administering the breath test. This
is to ensure the subject does not consume anything.
Following this procedure will ensure the subject’s saliva
is clear of alcohol so it does not alter the outcome of
the breath sample test.
OPERATING INSTRUCTIONS

5
SPECIFIC TEST WITH INPUT
Attach a mouthpiece to the sample port and select the
icon. Using the stylus pen, input information (See page 6).
Note: 16 characters maximum for each input.
Use or to move to the next or previous eld.
If “Keyboard” is not activated, the unit will move directly to test
mode . (See page 9 on how to enable/disable keyboard).
When the screen displays “Please Blow”, take a deep breath
and blow into the mouthpiece with a slow and steady breath.
Blow until the progress bar reaches 0%. A click will be heard
indicating a sample has been taken.
The test result will display .
Select to start another test.
If the subject does not blow into the unit within 30 seconds,
the operator can either select “Refuse” to conrm the subject
refused to do the test; or can select “Test Again” to allow the
subject to redo the test.
If the subject cannot blow sufciently to take the test, while the
subject is blowing, press the 'Passive' button to manually take
a breath sample.
1
2
3

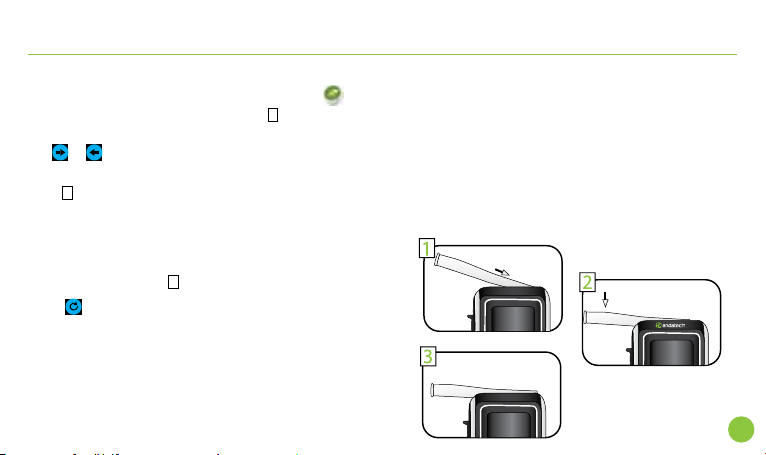

ATTACHING A MOUTHPIECE
• Tear the perforated section from the wrapper of a new
mouthpiece.
• Pull back the wrapper to expose half the mouthpiece.
• Ensuring the two small holes in the bottom of the mouthpiece
are aligned with the sensor, insert the notched end of the
mouthpiece into the slot on the right of the screen.
• Lower the other end of the mouthpiece until it snaps into
place.
• Discard remaining wrapper from mouthpiece.

6

7

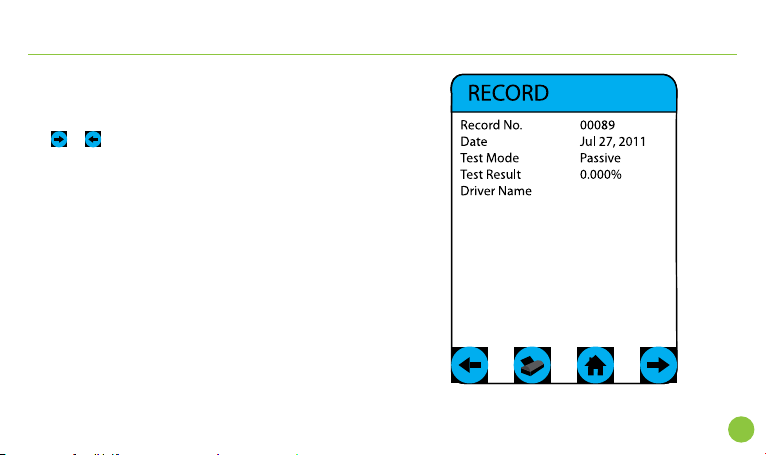

TEST RECORDS
Up to 10,000 test records can be stored, depending on the
length of the records.
Use or to move to the next or previous record.
Press the On/Off button to move 10 records forward, and press
the Function button to move 10 records backward.
Press the On/Off button and Function buttons together to jump
to the record needed.
First: Jump to rst Record
End: Jump to end Record
0 00 00: Jump to a specic record, e.g. 0 01 00 means jump to
record 100; 0 92 00 means jump to record 09200.
In order to download your data to a PC you must have the
Prodigy PC software, available from www.alcosense.com.au
TEST RECORDS

8

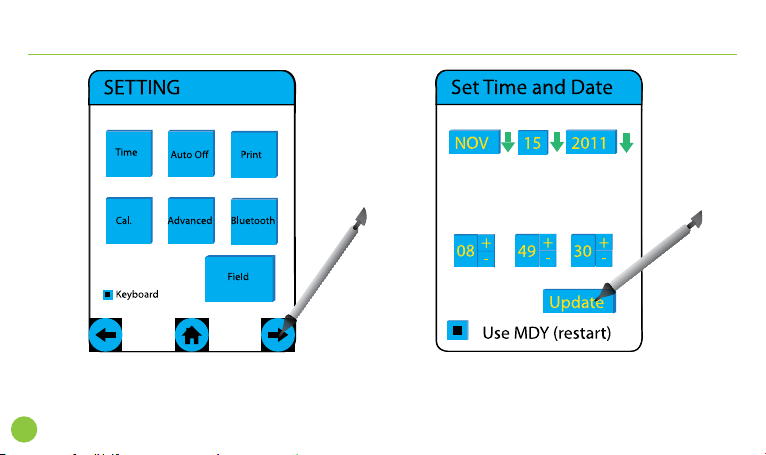

DATE & TIME
Set correct Date and Time.
Select “Update” to conrm.
SETTINGS

9

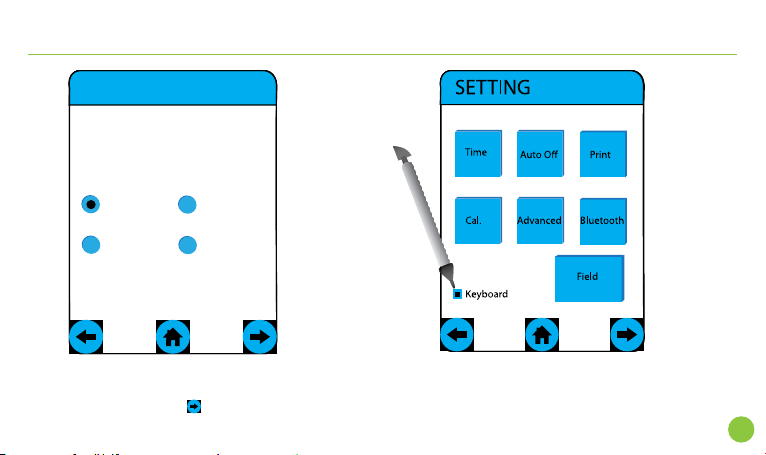

AUTO OFF
1 Minute 2 Minutes
5 Minutes 10 Minutes
AUTO OFF
Select time limit to turn off the device
automatically. Select to conrm.
KEYBOARD
Selecting this option enables the
keyboard allowing user data to be entered
and saved with each specic test.

10
8
FIELD
Driver Name
Vehicle Number
Licence Number
Police Name
Badge Number
Department
Field
Field
Signature
Field
FIELD
Use the tick boxes on the left to enable
the data you wish to collect. Clicking a
label allows editing of eld label.
PRINT
If your unit was supplied with a printer,
use this section to set the number of
copies printed a and if you want all
readings to print automatically select b

11
MEASUREMENTS & CONDITIONS FOR TEST
Use a clean mouthpiece for each test.
Do not allow samples containing smoke, tobacco or other
chemical products to enter the unit, as damage to the fuel cell
can occur.
There must be an interval of at least 15 minutes after alcohol
consumption as alcohol residue in the mouth may give a false
reading. Such residue may also be left by aromatic drinks,
mouthwash, medicines and drops, as well as by belching and
vomiting. Rinsing your mouth with water or non-alcoholic drinks
does not substitute for an interval.
A person’s blood alcohol concentration (BAC) can continue to
rise for up to 2 hours after drinking alcohol. If a caution results
or a result is close to the designated BAC, it is recommended
to wait and retest after 20 minutes.
It can take 10 hours or more for a person’s BAC to return to
zero after a high BAC has been reached. A further test should
be carried out later in the day or the following morning.
Working temperature range of AlcoSense® Prodigy: 5°C to 40°C
Storage temperature range of AlcoSense® Prodigy: -15°C to 65°C
LIABILITY FOR PROPER FUNCTION OR DAMAGE
The liability for proper functioning of the instrument
is irrevocably transferred to the owner or operator in
the event the instrument is serviced or repaired by
personnel not employed or authorised by Andatech.
In such an event, the warranty will be void.
CONDITIONS FOR TESTING

12
PRINTER
Ensure that the serial number on the printer matches the serial
number on the breathalyser.
Press the ON/OFF button on the printer to switch it on, the
indication light will begin ashing.
VERIFY CONNECTION
When the printer is successfully connected to the Prodigy, the
indication light on the printer will ash slowly and a Bluetooth icon
will appear on the Prodigy screen.
If the indication light on the printer is ashing quickly, the printer
has not been connected correctly or the Prodigy has not been
switched on.
PRINTING
Records can be printed from the Test Result screen and Test
Record screen for specic test only. Passive test results cannot
be printed out.
To turn off the printer, press and hold the ON/OFF button on the
printer for 3 seconds.
Release
lever
On/Off
button /
Indication
Light
Connection
Icon

13
FIELDS
Fields selected under Field settings will be printed on the
receipt. Data entered at time of test will print on receipt.
BATTERY LIFE
High Capacity Lithium rechargeable batteries can print
around 30 meters of paper.
BATTERY CHARGER
Use only the supplied charger to charge the printer
battery.
Caution: Use only the Lithium battery provided.
STANDARD THERMAL PAPER SIZE
6cm X 1000cm
A wireless thermal printer can be used with the device.
INSERT / REPLACE PAPER
Pull the handle. When inserting a new roll of paper, make
sure glossy side of paper is kept close to indentation.
NOTE: If nothing can be printed, change the side of the
paper and try again.
TROUBLESHOOTING
'CALIBRATION NEEDED' WARNING
When the unit starts up and shows the "Calibration Needed"
warning and alarm, it means that the unit has passed its
calibration due date. You can touch the screen to continue
using the unit, however we strongly recommend that you send
this back to us for calibration.
BATTERY LIFE TOO SHORT
Use only alkaline batteries, or if using rechargeable batteries,
use either NiMH or rechargheable alkaline batteries.
TOUCH SCREEN NOT RESPONDING
If the touch screen is not sensitive enough, please calibrate the
screen. Press and hold the On/Off button (right button) and then
press the Function button (left button) immediately. Follow the
on-screen instructions to calibrate the touchscreen.

14
THINGS TO REMEMBER
• Always wait a minimum of 15 minutes after your last
drink before testing.
• NEVER take a sip of alcohol and blow immediately
into the device.
• Ignoring these two points WILL cause damage to the
unit that is NOT covered by warranty.
DISCLAIMERS
This product must be used strictly in accordance with the
instructions in this manual.
This product is intended to provide the user with an indication
of alcohol on the breath. However, neither the manufacturer
nor the supplier gives any warranty (express or implied) that
the product can give any indication of blood alcohol level.
A person's BAC (Blood Alcohol Concentration) can only be
accurately measured by the administration of a blood test.
This product only measures breath alcohol content which, in
turn, only gives an approximate indication of blood alcohol
concentration.
In these circumstances the user of this product should not
rely on the information provided thereby as an accurate
indication of their blood alcohol concentration or of their level
of intoxication or of their tness to drive and in particular
should not take any action in reliance on such information as
the product can provide no more than an indication of alcohol
on the breath.
If the user of this product makes any decision or takes any
action based on the use of the product such decision or such
action shall be at the sole risk of the user and neither the
manufacturer nor the supplier assumes any responsibility for
such decision or action.
In particular, neither the manufacturer nor the supplier shall
be in any way liable if the user of the product asserts that the
product led them to believe they were t to operate a motor
vehicle and are subsequently found not to be so t.
If the subject fails to give a valid breath sample, the operator
can either select “Discontinue” to conrm; or can select “Test
Again” to allow the subject to redo the test again. A passive
test can be performed by selecting “Passive” whilst the user
is blowing. Slide up the button underneath the mouthpiece to
remove the mouthpiece.

15
Proof of Purchase
This warranty is valid for the original purchase and is not
transferable. Please keep your purchase docket or receipt as proof
of purchase and as proof of date on which the purchase was made.
The purchase docket (or a copy) or receipt must be presented with
the warranty when making a claim under this warranty.
Service during the Warranty Period
To claim for warranty, contact us on 1300 800 200 or info@
andatech.com.au to get an RA# (Return Authorisation Number).
Ensure that the RA# is clearly stated on the outside of the
packaging and that the product is properly packaged so that no
damage occurs to the product during transit. Shipping of the
product back to us for warranty will be at your cost. A product
return without the RA# or proof of purchase will not be accepted.
Extent of Warranty
This warranty is limited to defects in workmanship or parts. All
defective products or parts will be repaired or replaced. This
warranty does not cover manuals and packaging.
WARRANTY DETAILS
It is our aim to provide you with quality products that you
can trust. Our products come with guarantees that cannot
be excluded under the Australian Consumer Law. You are
entitled to a replacement or a refund for a major failure and
for compensation for any other reasonably foreseeable loss
or damage.
You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and
the failure does not amount to a major failure.
The Guarantee
The product is guaranteed to be free from defects in
workmanship and parts for a period of 1 year from the date
of purchase. Defects that occur within this warranty period,
under normal use and care, will be repaired, replaced or
refunded at our discretion, solely at our option with no
charge for parts and labour. The benets conferred by
this warranty are in addition to all rights and remedies in
respect of the product that the consumer has under the
Trade Practices Act and similar state laws.

16
Normal Wear and Tear
This warranty does not cover normal wear and tear to
the product or parts.
Exclusions
This warranty does not cover:
• Calibration costs.
• Any defect caused by an accident, misuse, abuse,
improper operation, lack of reasonable care,
unauthorised modication, loss of parts, tampering
or attempted repair by a person not authorised by
the distributor.
• Any product that has been damaged by a lightning
strike either directly or indirectly or a main power
surge or liquid ingress.
• The product if it is located outside of Australia.
• Any damage caused by improper power input or
improper cable connection.

WARRANTY
The manufacturer warrants for 1 year from the date
of purchase, the product to be free from defects in
workmanship or material (excluding recalibration) under
normal use. The manufacturer’s obligation under this
warranty is limited to replacing, adjusting or repairing
the unit if returned along with proof of purchase. This
warranty is void if the unit has been tampered with,
damaged or abused in any way.
To register your warranty online, go to
my.andatech.com.au
RECALIBRATION AND SERVICE
Andatech recommends the AlcoSense® Prodigy to be
calibrated every 12 months or after 1500 uses or for
Australian Standards requirement every 6 months.
For recalibration and technical support, please go to
my.andatech.com.au or contact:
Andatech Corporation Pty Ltd
Hot line: 1300 800 200
Website: www.alcosense.com.au
PRODUCT REGISTRATION
Visit my.andatech.com.au to register your warranty online and
receive calibration reminders. Alternatively, complete this form
and forward to the address below with a copy of your proof of
purchase:
Andatech Corporation Pty Ltd
PO BOX 3038, Nunawading VIC 3131 Australia.
Product AlcoSense® Prodigy
Date of purchase
Place of purchase
Surname
Given name
Address
Suburb
Postcode State
Contact no.
Email

Andatech Corporation Pty Ltd
PO Box 3038
Nunawading VIC 3131
1300 800 200
www.andatech.com.au
www.alcosense.com.au
Version 3. Updated 12.05.2014.
Calibration Centre
