Sealey TA120 User manual

INSTRUCTIONS FOR
CURRENT TESTER 20A
MODEL NO’S: TA120 STANDARD FUSE
TA121 MINI FUSE
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Only suitable for automotive circuits. NOT suitable for 110-230V applications.
9999 Observe standard workshop safety procedures when using.
WARNING! The Fuse blade may become hot during testing. Allow to cool before removing.
WARNING! DO NOT exceed Maximum Load: 20A/48V for Max 10sec.
9999 Ensure vehicles ignition, is switched OFF, before connecting or disconnecting tester.
9999 Keep the work area clean, uncluttered and ensure there is adequate lighting.9Keep tools and other items away from the engine, and
ensure you can see the battery and working parts of engine clearly.
9999 Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
9Remove ill fitting clothing. Remove ties, watches, rings and other loose jewellery. Contain or tie back long hair.
9Keep children and unauthorised persons away from the working area.
9899 DO NOT disassemble. Tester must be checked by qualified service personnel only.
9899 DO NOT get wet or use in damp or wet locations or areas where there is condensation.
9899 DO NOT use for any purpose other than for which it is designed.
8DO NOT pull by the cables to free from the fuse terminals.
9899 DO NOT operate if damaged.
9When not in use store in a safe, dry, childproof location.
WARNING! The warnings, cautions and instructions referred to in this manual cannot cover all possible conditions and situations that
may occur. It must be understood that common sense and caution are factors which cannot be built into this product, but must be applied
by the operator.
2. INTRODUCTION
Fast, accurate and safe current measurement at the fuse box. Ideal for fault-finding on car and commercial vehicle electrical circuits. Features large
LCD display. Plugs straight into the vehicle’s fuse board.
3. SPECIFICATION
Model no’s:........................................................TA120/TA121
Range: ............................................................. 0-20A - 0-48V
Accuracy: ........................................................................±2%
Fuse:................................................................ Standard/Mini
4. OPERATION
4.1. Measuring
4.1.1. With the vehicle ignition OFF, remove the fuse from the circuit to be tested
and insert it into the fuse jack (fig.1.2), this ensures the correct level of
circuit protection.
4.1.2. Insert the plug into the vehicle fuse socket.
4.1.3. Switch on the vehicle ignition if required, to energise the circuit and then switch
on the tester fig.1.5.
4.1.4. Operate the circuit under test and the LCD will display the measured current.
WARNING! The Fuse blade may become hot during testing. Allow to cool
before touching.
Refer to
instruction
manual
Wear eye
protection
1
2
3
4
5

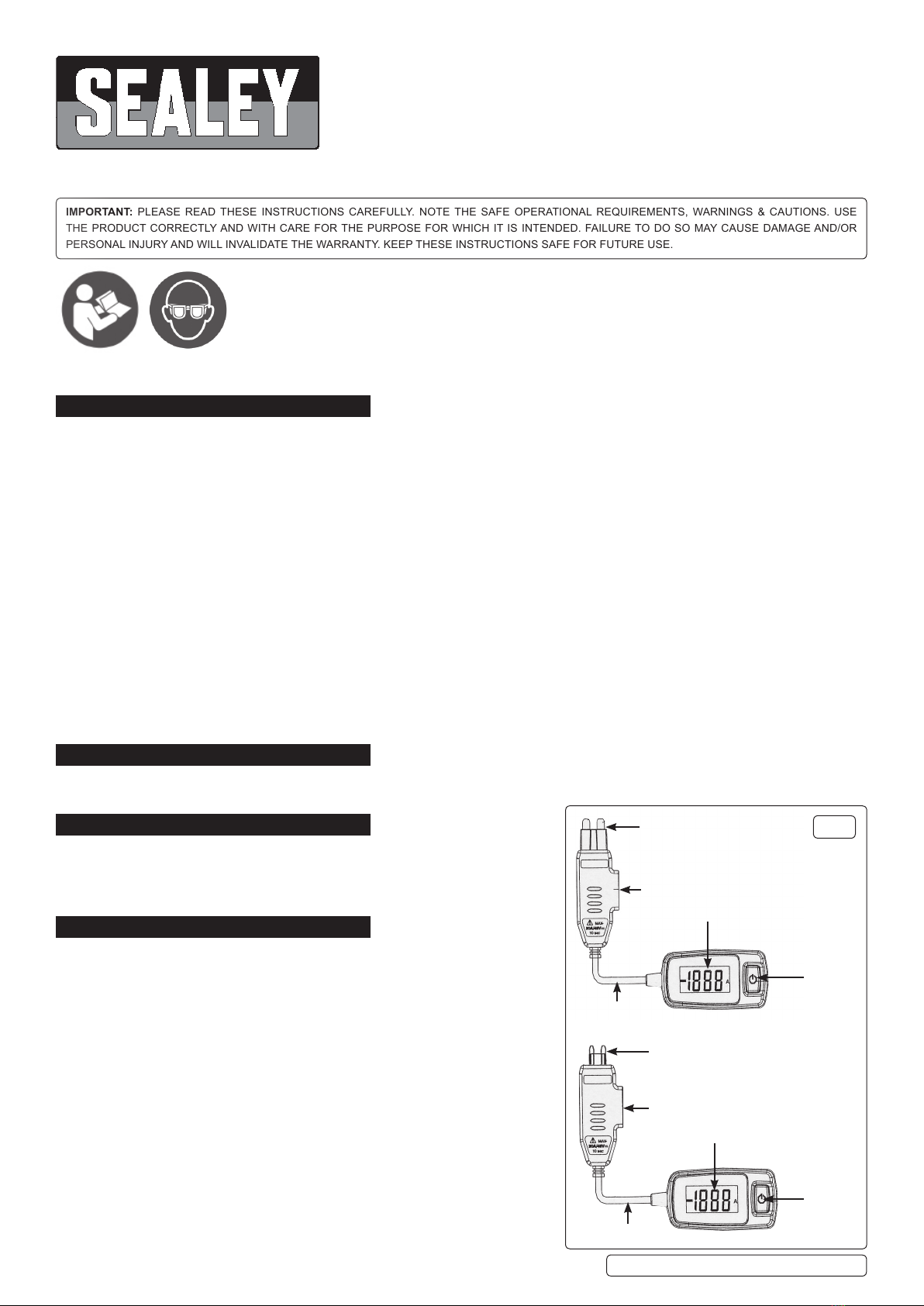

TA120
1. Standard Blade Type
2. Fuse Jack
3. Lead
4. LCD Display
5. Power ON / OFF
g.1
TA121
1. Mini Blade Type
2. Fuse Jack
3. Lead
4. LCD Display
5. Power ON / OFF
2
1
3
4
5
TA120, TA121 | Issue:4(3) 20/0318
Original Language Version
© Jack Sealey Limited

TA120, TA121 | Issue:4 (H,F) 20/03/18
Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 [e-mail] www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
WEEE REGULATIONS
Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment
(WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid
waste authority for recycling information.
BATTERY REMOVAL
Under the Waste Batteries and Accumulators Regulations 2009, Jack Sealey Ltd are required to inform potential purchasers of products
containing batteries (as defined within these regulations), that they are registered with Valpak’s registered compliance scheme. Jack
Sealey Ltd Batteries Producer Registration Number (BPRN) is BPRN00705.
5. MAINTENANCE
5.1. Battery Replacement
5.1.1. Power is supplied by a 12V A23S battery. The ‘BAT’ symbol appears on the LCD display when replacement is required.
WARNING!To avoid electric shock ensure all inputs are disconnected from any circuit before removing the battery cover.
5.1.2. To replace the battery, remove the screw from the back of the unit and remove the cover.
5.1.3. Remove the exhausted battery and replace with a new one observing the connection polarity. Replace cover.
NOTE! Dispose of old battery according to local authority guidelines.
5.2. Cleaning
5.2.1. Clean using a soft damp cloth.
5.2.2. Store in a safe, dry, childproof location.
