Overview ...................................................................................... 4
Use................................................................................................. 5
Product contents/device parts.................................................... 6
General information ......................................................................7
Reading and storing the user manual..............................................7
Explanation of symbols.......................................................................7
Safety ............................................................................................ 9
Proper use............................................................................................ 9
Safety notes ......................................................................................... 9
Residual risks............................................................................... 12
First use........................................................................................ 14
Checking the 2.2 kW high pressure washer and
product contents................................................................................ 14
Assembling the 2.2 kW high pressure washer ............................... 14
Operation.....................................................................................16
Starting and stopping ....................................................................... 17
Instructions for operation.................................................................18
Using the adjustable spray lance ....................................................19
Using the turbo lance ....................................................................... 20
Using the rotating brush.................................................................. 20
Automatic supply of cleaners........................................................... 21
Cleaning and maintenance .........................................................22
Cleaning ..............................................................................................22
Maintenance.......................................................................................23
Storage and transport.................................................................23
Storage of accessories.......................................................................24
Storage of the 2.2 kW high pressure washer..................................24
Transport .............................................................................................25
Troubleshooting ..........................................................................25
Technical data..............................................................................27
Declaration of conformity............................................................28
Spare part list...............................................................................29
Disposal........................................................................................29
Disposing of the packaging............................................................. 29
Disposing of the 2.2 kW high pressure washer ............................. 29
Warranty card .............................................................................. 31
Warranty conditions ....................................................................32
Contents

A
1
2
3
4
5
6
89
11
10 7
4
GB IRE

B
12
13
14
15
18
19
20
21
22
16
17
23
5
GB IRE

GB IRE

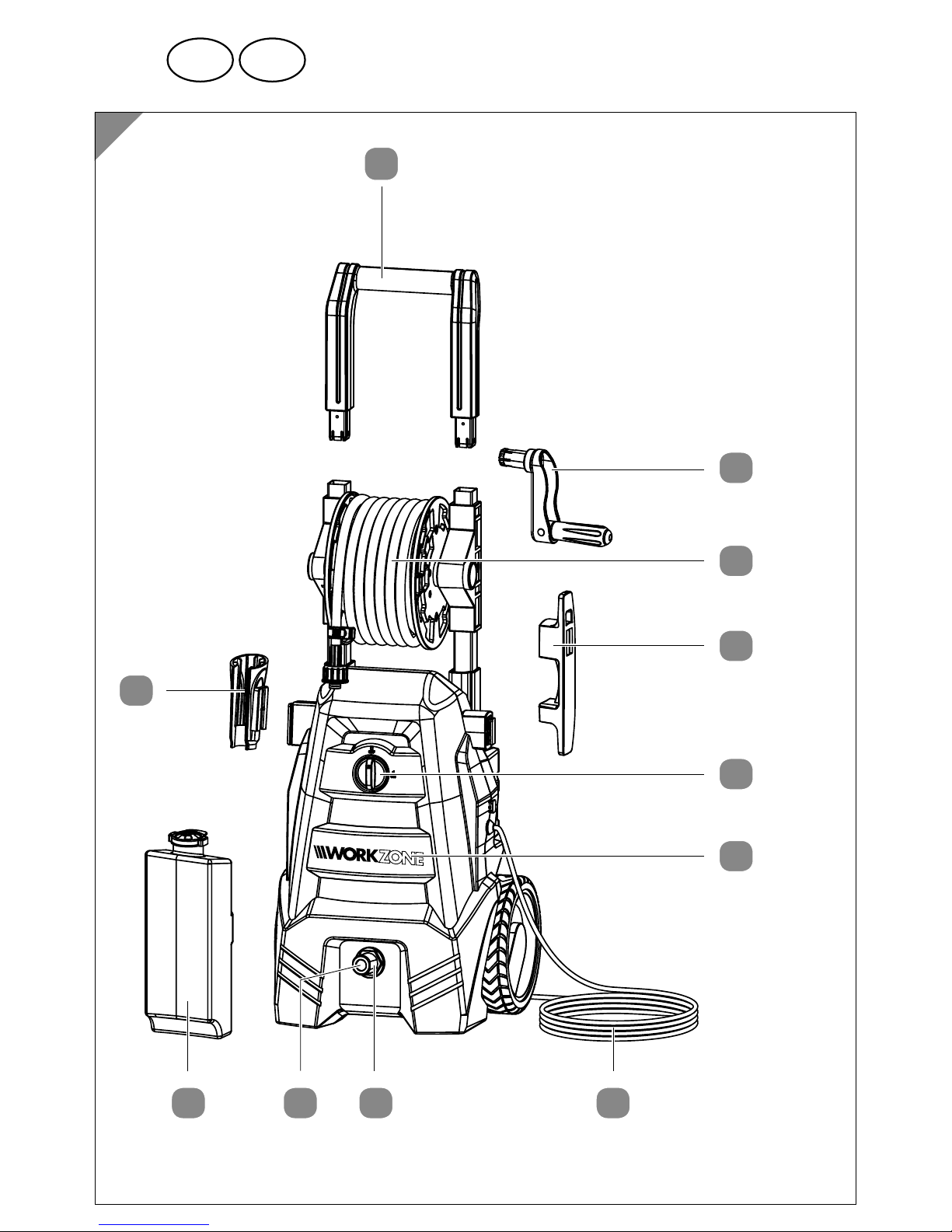

Product contents⁄device parts
1Handle
2Hand crank
3High pressure hose (with hose clamp)
4Cord holder
5ON/OFF switch
62.2 kW high pressure washer
7Mains cord
8Threaded socket
9Protective cap
10 Cleaner container
11 Holder for the spray gun
12 Rotating brush (low pressure accessory)
13 Turbo lance
14 Adjustable spray lance (used with the high pressure nozzle)
15 Spray gun
16 Trigger
17 Safety lock
18 Protective cap
19 Cross-slotted screws, 2×
20 Cleaning solution
21 Water inlet adapter (with dirt filter)
22 Nozzle pin
23 Nozzle head, can be pulled out and rotated
6

General information
7
www.coreservice.co.uk
AFTER SALES SUPPORT
GB IRE
GB 01904727501 IRE 019022605
General information
Reading and storing the user manual
This user manual accompanies this 2.2 kW high pressure washer.
It contains important information on start-up and handling.
Before using the 2.2 kW high pressure washer, read the user manual
carefully. This particularly applies for the safety notes. Failure to heed
this user manual may result in severe injury or damage to the 2.2 kW high pressure
washer.
The user manual is based on the standards and rules in force in the European Union.
When abroad, you must also observe country-specific guidelines and laws.
Keep the user manual for future use. If you pass the 2.2 kW high pressure washer on to
third parties, please be absolutely sure to include this user manual.
You can also request the user manual in PDF format from customer service.
Explanation of symbols
The following symbols and signal words are used in this user manual, on the 2.2 kW
high pressure washer or on the packaging.
WARNING! This signal symbol/word designates a hazard with
moderate degree of risk which may lead to death or
severe injury if not avoided.
CAUTION! This signal symbol/word designates a hazard with
low risk that, if not avoided, may result in minor or
moderate injury.
NOTICE! This signal word warns against potential damages to
property.
This symbol provides you with useful supplementary information
on assembly or operation.
Declaration of conformity (see chapter “Declaration of
conformity”): Products marked with this symbol meet all
applicable Community regulations for the European Economic
Area.

General information
8
www.coreservice.co.uk
AFTER SALES SUPPORT
8
GB IRE
GB 01904727501 IRE 019022605
Immediately disconnect the mains plug from the power supply if
the cord is damaged, twisted or knotted, if it has been severed or
if the 2.2 kW high pressure washer is left unsupervised – even for
a short period of time.
Never point the high pressure jet directly at persons, animals, the
2.2 kW high pressure washer or the electrical components.
The 2.2 kW high pressure washer must not be connected directly
to the drinking water network. If necessary, please only use it
with a water backflow preventer or a supply hose set approved
in accordance with IEC 61770.
Only turn the crank for the hose reel clockwise to wind up the
high pressure hose. Winding it in the opposite direction may
damage the hose and the 2.2 kW high pressure washer.
98
Guaranteed sound power level in accordance with the directive
2000/14/EC.
Dual insulation, device of protection class II.
WARNING: Read the user manual before using the device.

Safety
9
www.coreservice.co.uk
AFTER SALES SUPPORT
GB IRE
GB 01904727501 IRE 019022605
Safety
Proper use
The 2.2 kW high pressure washer is only designed for cleaning the walls of buildings,
façades, patios, walkways, garden tools, machines, vehicles, tools etc. with a high
pressure nozzle. It is only intended for private use and is not suitable for commercial use.
Only use the 2.2 kW high pressure washer as described in this user manual. Any other
use is deemed improper and may result in damage to property or even personal
injury. The 2.2 kW high pressure washer is not a children’s toy.
The manufacturer or vendor accepts no liability for damage caused by improper or
incorrect use.
Safety notes
WARNING!
Risk of electric shock!
Faulty electrical installation or excessive mains voltage may result
in an electric shock.
− Only connect the 2.2 kW high pressure washer if the mains
voltage of the socket corresponds to the nameplate
specification.
− An experienced electrician must connect the device to the
mains and the connection must meet the requirements of
IEC 60364-1.
− It is recommended that the power supply for this 2.2 kW high
pressure washer is supplied either via a fault-current circuit
breaker that interrupts the power supply as soon as the
leakage current to the earth exceeds 30 mA for 30 ms or that it
is equipped with an earth tester.
− Only connect the 2.2 kW high pressure washer to an easily
accessible socket so that you can quickly disconnect the 2.2 kW
high pressure washer from the mains in the event of a fault.
− Do not operate the 2.2 kW high pressure washer if it is visibly
damaged or if the mains cord or mains plug is defective.

Safety
10
www.coreservice.co.uk
AFTER SALES SUPPORT
10
GB IRE
GB 01904727501 IRE 019022605
− If the mains cord of the 2.2 kW high pressure washer is dam-
aged, the manufacturer, its customer service team or a person
with similar qualifications must replace it to avoid risks.
− Do not open the housing; instead, have a qualified
professional perform the repairs. Contact the after sales
support line for this. Liability and warranty claims are waived
in the event of repairs performed by the user, improper
connection of the device or incorrect operation.
− Only parts that comply with the original device data may be
used for repairs. Electrical and mechanical parts, which are
essential for providing protection against sources of danger,
are located in this 2.2 kW high pressure washer.
− The 2.2 kW high pressure washer must not be operated with an
external timer or separate telecontrol system.
− Do not immerse the 2.2 kW high pressure washer or the mains
cord or mains plug in water or other liquids.
− Never touch the mains plug with damp hands.
− Never pull the mains plug out of the socket by the mains cord;
instead, always do so by taking hold of the mains plug.
− Pull the mains plug out of the socket if you would like to attach
or remove accessory parts, before cleaning and maintenance
and if you leave the 2.2 kW high pressure washer unattended –
even for a short period of time.
− Never use the mains cord as a carrying handle.
− Keep the 2.2 kW high pressure washer, mains plug and mains
cord away from open flames and hot surfaces.
− Lay the mains cord so that it does not pose a tripping hazard.
− Do not kink the mains cord and do not lay it over sharp edges.
− Never reach to retrieve an electrical device if it has fallen in
water. In such a case, immediately disconnect the mains plug.
− Make sure that children do not insert any objects in the 2.2 kW
high pressure washer.
