ALDI Workzone Titanium HM80MP User manual

Details 04
Contents of box 06
Handling pictures 07
Explanation of the symbols on the equipment 09
Introduction 10
Layout 11
Scope of delivery 12
Intended use 12
Safety regulations 13
Before starting the equipment 19
Assembling and operation 20
Technical data 25
Transport 26
Maintenance 26
Storage 26
Electrical connection 27
Disposal and recycling 28
Troubleshooting 28
Warranty Details 29
Repair and Refurbished Goods or Parts Notice 30
1700W
SLIDING MITRE SAW
Original operating manual
Vers.No. 190107
MODEL:
HM80MP 06/2019
AFTER SALES SUPPORT
53666
 1300 855 831
 suppor[email protected]
ALDI guarantees that our exclusive brand products are developed to our
stringent quality specifi ca ons. If you are not en rely sa sfi ed with this
product, please return it to the nearest ALDI store within 60 days from the
date of purchase, for a full refund or replacement, or take advantage of our
a er sales support by calling the supplier’s Customer Service Hotline.
Made in China
WORKZONE TITANIUM® is a registered trademark of ALDI Stores
DISTRIBUTED BY:
ALDI STORES
1 SARGENTS ROAD
MINCHINBURY NSW 2770
www.aldi.com.au
5
YEARS
WARRANTY
Contents

UtilisationOverview
45Pack contents/parts
Contents of Box
11 x Sliding Mitre saw
1 x Clamping device
2 x Workpiece support
1 x Dustbag
1 x Allen key
3 x LR44 Battery (pre-installed)
1 x Instruction manual
1 x Warranty card
2
3
4
5
6
7
8
AUS
HM80MP
24
4
23
22
20
19
13
25
12
21
Fig. 2
13 12
Fig. 4
19
30
20
22
Fig. 5
26 24 27
Fig. 3
Fig. 1 1
2
3
5
6
7
9
10
11
12
1314151617
18
28
8
Fig. 6a
9
Fig. 9
1
524 22 8
16
13
12
Fig. 8
1
28
5
24
8
16
Fig. 10
26 34 27
Fig. 11
6
32
33
Fig. 6
29
31 28
Fig. 7
12
13
16
8
1
2
3
4
5
Fig. 6c
17
10 9
Fig. 6b
91710
42
6
AFTER SALES SUPPORT
 [e-mail]  1300 855 831
MODEL: HM80MP PRODUCT CODE: 53666 06/2019

7
AFTER SALES SUPPORT
 1300 855 831  [e-mail]
MODEL:HM80MP PRODUCT CODE: 53666 06/2019
AUS
HM80MP
Fig. 14
C 6
4
3
Fig. 12
40
34
41
Fig. 13
4011
Fig. 15
39
7
Fig. 16
37 34 38
Fig. 17
35 36
Fig. 18 5
30
d7
a
16
Fig. 19 31
c
b
7
16

8AFTER SALES SUPPORT
 [e-mail]  1300 855 831
MODEL: HM80MP PRODUCT CODE: 53666 06/2019
Text
m Attention! These operating instructions provide places concerning
your safety which are marked with this indication.
m Caution! Failure to follow these instructions may cause light to
medium risk of injury
m Warning! Failure to follow these instructions may cause danger to
life or danger of serious injuries!
AUS
<Chapter> HM80MP

9
AFTER SALES SUPPORT
 1300 855 831  [e-mail]
MODEL:HM80MP PRODUCT CODE: 53666 06/2019
AUS
HM80MP Explanation of symbols

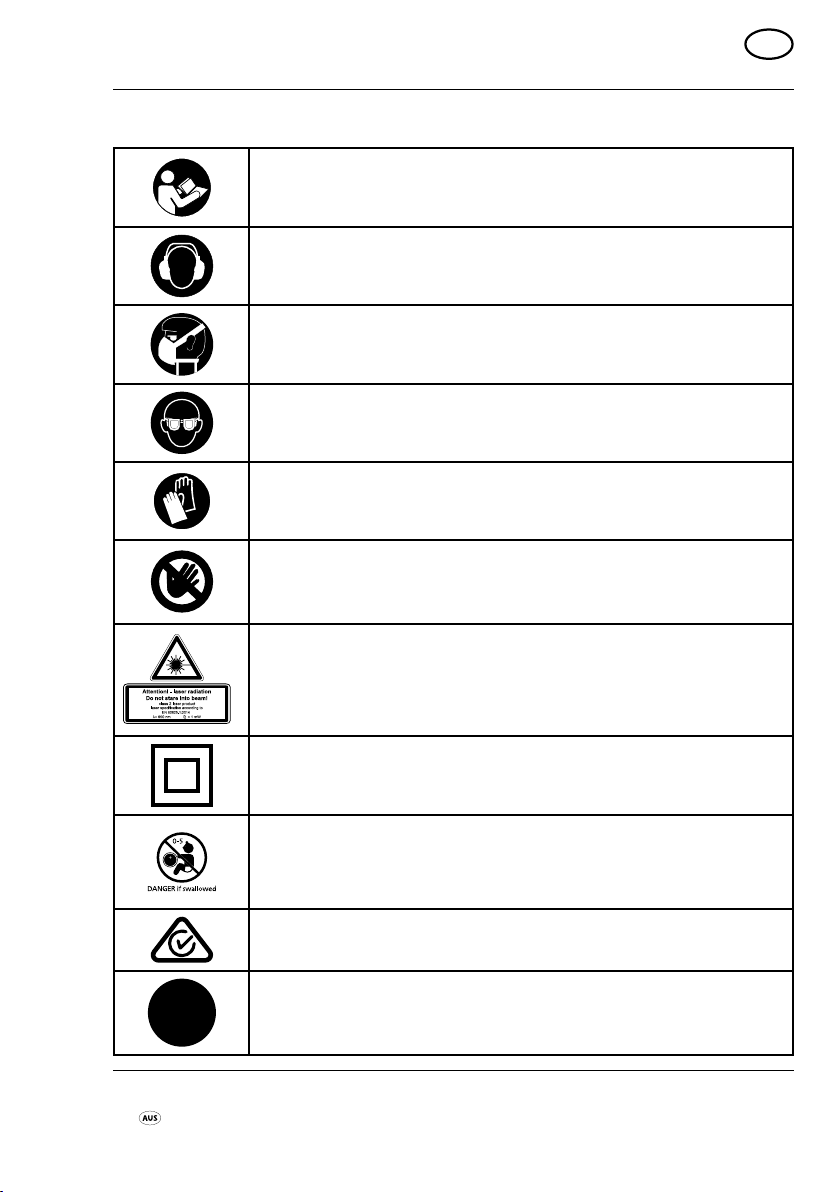

Explanation of Symbols
Caution - Read the operating instructions to reduce the risk of
injury!
Wear ear-muffs. The impact of noise can cause damage to hear-
ing.
Wear a breathing mask. Dust which is injurious to health can be
generated when working on wood and other materials.
Wear safety goggles. Sparks generated during working or splin-
ters, chips and dust emitted by the device can cause loss of sight.
Wear protection gloves during the saw blade change.
Important! Risk of injury. Never reach into the running saw blade!

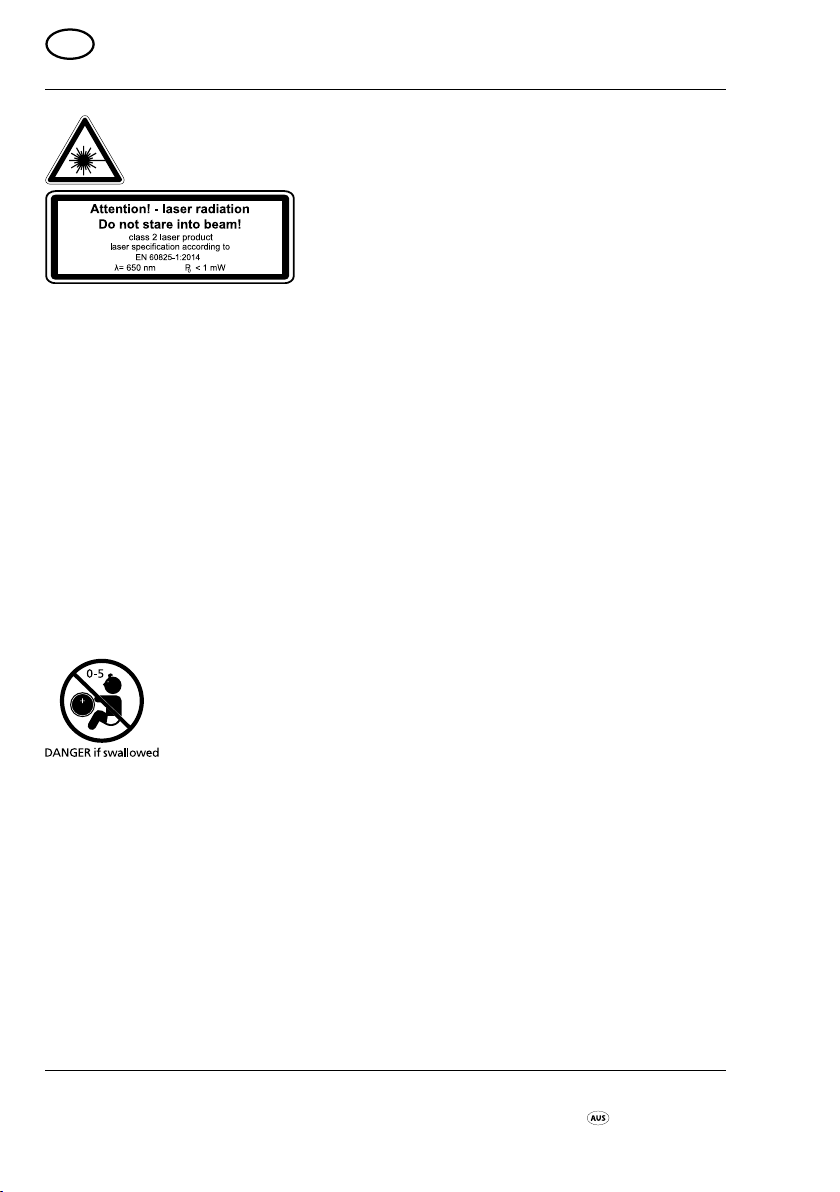

Attention! Laser radiation
Do not stare into the beam!
Protection class II
WARNING: Keep batteries out of reach of children. Swallowing
may lead to serious injury or death in as little as 2 hours due to
internal burns. If swallowed, go straight to a hospital emergency
room. Dispose of used batteries immediately.
Complies with the Australian standards.
60 Warranty period of 60 months.

10 AFTER SALES SUPPORT
 [e-mail]  1300 855 831
MODEL: HM80MP PRODUCT CODE: 53666 06/2019
I. Introduction
Congratulations on choosing to buy a WORKZONE TITANIUM®product.
All products brought to you by WORKZONE TITANIUM®are manufactured to the
highest standards of performance and safety, and as part of our philosophy of cus-
tomer service and satisfaction, are backed by our comprehensive 5 Year Warranty.
We hope you will enjoy using your purchase for many years to come.
Note:
According to the applicable product liability law the manufacturer of this device is not
liable for damages which arise on or in connection with this device in case of:
• improper handling,
• non-compliance with the instructions for use,
• repairs by third party, non-authorised skilled workers,
• installation and replacement of non-original spare parts,
• improper use,
• failures of the electrical system due to the non-compliance with the electrical
specications and regulations.
Recommendations:
Read the entire text of the operating instructions prior to the assembly and operation
of the device.
These operating instructions are intended to make it easier for you to get familiar with
your device and utilise its intended possibilities of use.
The operating instructions contain important notes on how to work safely, properly
and economically with your machine and how to avoid dangers, save repair costs,
reduce downtime, and increase the reliability and working life of the machine.
In addition to the safety regulations contained herein, you must in any case comply
with the applicable regulations of your country with respect to the operation of the
machine.
Put the operating instructions in a clear plastic folder to protect them from dirt and hu-
midity, and store them near the machine. The instructions must be read and carefully
observed by each operator prior to starting the work. Only persons who have been
trained in the use of the machine and have been informed on the related dangers and
risks are allowed to use the machine. The required minimum age must be met.
In addition to the safety notes contained in the present operating instructions and the
special regulations of your country, the generally recognised technical rules for the
operation of identically constructed machines must be observed.
AUS
Introduction HM80MP

11
AFTER SALES SUPPORT
 1300 855 831  [e-mail]
MODEL:HM80MP PRODUCT CODE: 53666 06/2019
II. Layout (Fig. 1-19)
1. Handle
2. ON/OFF switch
3. Release lever
4. Saw spindle lock
5. Machine head
6. Movable blade guard
7. Saw blade
8. Clamping device
9. Workpiece support
10. Locking screw for workpiece support
11. Table insert
12. Indexed position lever
13. Locking lever
14. Pointer
15. Scale
16. Turntable
17. Fixed saw table
18. Fence
19. Scale
20. Pointer
21. Sawdust bag
22. Set lever
23. Locking screw for drag guide
24. Fastening bolt
25. Drag guide
26. Screw for cutting depth limiter
27. Stop for cutting depth limiter
28. Movable fence
29. Set screw for moveable fence
30. Adjustment screw (90°)
31. Adjustment screw (45°)
32. Flange screw
33. Outer ange
34. Laser
35. ON/OFF switch for laser
36. Battery compartment
37. Battery compartment cover
38. Screw
39. Inner ange
40. Guide bar
41. Spring
42. Switch for switching speeds
AUS
HM80MP Layout

12 AFTER SALES SUPPORT
 [e-mail]  1300 855 831
MODEL: HM80MP PRODUCT CODE: 53666 06/2019
AUS
Layout/Scope of delivery/Intended use HM80MP
a) 90° angle gauge (not supplied)
b) 45° angle gauge (not supplied)
c) Allen key, 6 mm
d) Counter nut for adjustment screw
III. Scope of delivery
1700W Sliding Mitre Saw
1 x Clamping device (8)
2 x Workpiece support (9)
1 x Dust bag (21)
1 x Allen key (c)
3 x LR44 Battery (pre-installed)
1 x Operating manual
• Open the packaging and remove the device carefully.
• Remove the packaging material as well as the packaging and transport bracing
(if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport damage.
• If possible, store the packaging until the warranty period has expired.
m Attention!
The device and packaging materials are not toys!
Children must not be allowed to play with plastic bags, lm and small parts!
There is a risk of swallowing and suffocation!
IV. Intended use
The trim, mitre and bevel saw is used to mitre wood, materials similar to wood, plas-
tics and non-ferrous metals, with the exception of magnesium and alloys containing
magnesium, according to the machine size.
Warning! The supplied saw blade is only intended for the sawing of wood! Do not
use this blade for the sawing of plastic!
The equipment is to be used only for its prescribed purpose. Any other use is
deemed to be a case of misuse. The user / operator and not the manufacturer will
be liable for any damage or injuries of any kind caused as a result of this.
The equipment is to be operated only with suitable saw blades. It is prohibited to use any
type of cutting-off or grinding wheel.
To use the equipment properly you must also observe the safety information, the
assembly instructions and the operating instructions to be found in this manual.
All persons who use and service the equipment have to be acquainted with this
manual and must be informed about the equipment’s potential hazards. It is also

13
AFTER SALES SUPPORT
 1300 855 831  [e-mail]
MODEL:HM80MP PRODUCT CODE: 53666 06/2019
AUS
HM80MP Intended use/Safety regulations
imperative to observe the accident prevention regulations in force in your area. The
same applies for the general rules of health and safety at work.
The manufacturer will not be liable for any changes made to the equipment nor for
any damage resulting from such changes. Even when the equipment is used as pre-
scribed it is still impossible to eliminate certain residual risk factors. The following
hazards may arise in connection with the machine’s construction and
design:
• Contact with the saw blade in the uncovered saw zone.
• Reaching into the running saw blade (cut injuries).
• Kick-back of workpieces and parts of workpieces.
• Saw blade fracturing.
• Catapulting of faulty carbide tips from the saw blade.
• Damage to hearing if ear-muffs are not used as necessary.
• Harmful emissions of wood dust when used in closed rooms.
Please note that our equipment has not been designed for use in commercial, trade
or industrial applications. Our warranty will be voided if the equipment is used in
commercial, trade or industrial businesses or for equivalent purposes.
V. Safety regulations
Attention! The following basic safety measures must be observed when using elec-
tric tools for protection against electric shock, and the risk of injury and re. Read
all these notices before using the electric tool and keep the safety instructions for
later reference.
Safe work
1 Keep the work area orderly
–Disorder in the work area can lead to accidents.
2 Take environmental inuences into account
–Do not expose electric tools to rain.
–Do not use electric tools in a damp or wet environment.
–Make sure that the work area is well-illuminated.
–Do not use electric tools where there is a risk of re or explosion.
3 Protect yourself from electric shock
–Avoid physical contact with earthed parts (e.g. pipes, radiators, electric ranges,
cooling units).
4 Keep children away
–Do not allow other persons to touch the equipment or cable, keep them away
from your work area.
5 Securely store unused electric tools
–Unused electric tools should be stored in a dry, elevated or closed location out
of the reach of children.

14 AFTER SALES SUPPORT
 [e-mail]  1300 855 831
MODEL: HM80MP PRODUCT CODE: 53666 06/2019
AUS
Safety regulations HM80MP
6 Do not overload your electric tool
–They work better and more safely in the specied output range.
7 Use the correct electric tool
–Do not use low-output electric tools for heavy work.
–Do not use the electric tool for purposes for which it is not intended. For ex-
ample, do not use handheld circular saws for the cutting of branches or logs.
–Do not use the electric tool to cut rewood.
8 Wear suitable clothing
–Do not wear wide clothing or jewellery, which can become entangled in moving
parts.
–When working outdoors, anti-slip footwear is recommended.
–Tie long hair back in a hair net.
9 Use protective equipment
–Wear protective goggles.
–Wear a mask when carrying out dust-creating work.
10 Connect the dust extraction device if you will be processing wood, materials
similar to wood, or plastics.
–ATTENTION! The dust extractor must not be connected when processing met-
als. Risk of re and explosion due to hot swarf or ying sparks! When processing
metals, also remove the dust bag (21).
–If connections for dust extraction and a collecting device are present, make
sure that they are connected and used properly.
–When processing wood, materials similar to wood, and plastics, operation in
enclosed spaces is only permitted with the use of a suitable extraction system.
11 Do not use the cable for purposes for which it is not intended
–Do not use the cable to pull the plug out of the outlet. Protect the cable from
heat, oil and sharp edges.
12 Secure the workpiece
–Use the clamping devices or a vice to hold the workpiece in place. In this
manner, it is held more securely than with your hand.
–An additional support is necessary for long workpieces (table, trestle, etc.) in
order to prevent the machine from tipping over.
–Always press the workpiece rmly against the working plate and stop in order
to prevent bouncing and twisting of the workpiece.
13 Avoid abnormal posture
–Make sure that you have secure footing and always maintain your balance.
–Avoid awkward hand positions in which a sudden slip could cause one or both
hands to come into contact with the saw blade.
14 Take care of your tools
–Keep cutting tools sharp and clean in order to be able to work better and more
safely.
–Follow the instructions for lubrication and for tool replacement.

15
AFTER SALES SUPPORT
 1300 855 831  [e-mail]
MODEL:HM80MP PRODUCT CODE: 53666 06/2019
AUS
HM80MP Safety regulations
–Check the connection cable of the electric tool regularly and have it replaced
by a recognised specialist when damaged.
–Check extension cables regularly and replace them when damaged.
–Keep the handle dry, clean and free of oil and grease.
15 Pull the plug out of the outlet
–Never remove loose splinters, chips or jammed wood pieces from the running
saw blade.
–During non-use of the electric tool or prior to maintenance and when replacing
tools such as saw blades, bits, milling heads.
–When the saw blade is blocked due to abnormal feed force during cutting, turn
the machine off and disconnect it from power supply. Remove the work piece
and ensure that the saw blade runs free. Turn the machine on and start new
cutting operation with reduced feed force.
16 Do not leave a tool key inserted
–Before switching on, make sure that keys and adjusting tools are removed.
17 Avoid inadvertent starting
–Make sure that the switch is switched off when plugging the plug into an outlet.
18 Use extension cables for outdoors
–Only use approved and appropriately identied extension cables for use out-
doors.
–Only use cable reels in the unrolled state.
19 Remain attentive
–Pay attention to what you are doing. Remain sensible when working. Do not
use the electric tool when you are distracted.
20 Check the electric tool for potential damage
–Protective devices and other parts must be carefully inspected to ensure that
they are fault-free and function as intended prior to continued use of the elec-
tric tool.
–Check whether the moving parts function faultlessly and do not jam or whether
parts are damaged. All parts must be correctly mounted and all conditions must
be fullled to ensure fault-free operation of the electric tool.
–The moving protective hood may not be xed in the open position.
–Damaged protective devices and parts must be properly repaired or replaced
by a recognised workshop, insofar as nothing different is specied in the op-
erating manual.
–Damaged switches must be replaced at a customer service workshop.
–Do not use any faulty or damaged connection cables.
–Do not use any electric tool on which the switch cannot be switched on and off.
21 ATTENTION!
–Exercise elevated caution for double mitre cuts.
22 ATTENTION!
–The use of other insertion tools and other accessories can entail a risk of injury.

16 AFTER SALES SUPPORT
 [e-mail]  1300 855 831
MODEL: HM80MP PRODUCT CODE: 53666 06/2019
AUS
Safety regulations HM80MP
23 Have your electric tool repaired by a qualied electrician
–This electric tool conforms to the applicable safety regulations. Repairs may
only be performed by an electrician using original spare parts. Otherwise
accidents can occur.
24 It is recommended that the tool always be supplied via a residual current device
having a rated residual current of 30 mA or less.
ADDITIONAL SAFETY INSTRUCTIONS
1 Safety precautions
–Warning! Do not use damaged or deformed saw blades.
–Replace a worn table insert.
–Only use saw blades recommended by the manufacturer which conform to EN
847-1.
–Make sure that a suitable saw blade for the material to be cut is selected.
–Wear suitable personal protective equipment. This includes:
• Hearing protection to avoid the risk of becoming hearing impaired,
• Respiratory protection to avoid the risk of inhaling harmful dust,
• Wear gloves when handling saw blades and rough materials. Carry saw
blades in a container whenever practical.
• Wear goggles. Sparks generated during work or splinters, chippings and
dust coming from the device can lead to loss of eyesight.
–Connect a dust collecting device to the electric tool when sawing wood. The
emission of dust is inuenced, among other things, by the type of material to
be processed, the signicance of local separation (collection or source) and
the correct setting of the hood/guide plates/guides.
–Do not use saw blades made of high-speed alloy steel (HSS steel).
2 Maintenance and repair
–Pull out the mains plug for any adjustment or repair tasks.
–The generation of noise is inuenced by various factors, including the char-
acteristics of saw blades, condition of saw blade and electric tool. Use saw
blades which were designed for reduced noise development, insofar as possi-
ble. Maintain the electric tool and tool attachments regularly and if necessary,
initiate repairs in order to reduce noise.
–Report faults on the electric tool, protective devices or the tool attachment to
the person responsible for safety as soon as they are discovered.
3 Safe work
–Only use saw blades for which the maximum permissible speed is not lower
than the maximum spindle speed of table saws and which are suitable for the
material to be cut.
–Make sure that the saw blade does not touch the turntable in any position by
pulling out the mains plug and rotating the saw blade by hand in the 45° and
90° position. If necessary, readjust the saw head.

17
AFTER SALES SUPPORT
 1300 855 831  [e-mail]
MODEL:HM80MP PRODUCT CODE: 53666 06/2019
AUS
HM80MP Safety regulations
–When transporting the electric tool, only use the transport devices. Never use
the protective devices for handling or transport.
–Make sure that the lower part of the saw blade is covered during transport, e.g.
by the protective device.
–Be sure to only use spacers and spindle rings specied by the manufacturer
as suitable for the intended purpose.
–The oor around the machine must be level, clean and free of loose particles,
such as chips and cutting residues.
–Do not remove any cutting residues or other parts of workpieces from the cutting
zone while the machine is running and the saw unit is not at rest.
–Make sure that the machine is always secured on a workbench or a table if at
all possible.
–Support long workpieces (e.g. with a roller table) to prevent them sagging at
the end of a cut.
Warning! This electric tool generates an electromagnetic eld during operation. This
eld can impair active or passive medical implants under certain conditions. In order
to prevent the risk of serious or deadly injuries, we recommend that persons with
medical implants consult with their physician and the manufacturer of the medical
implant prior to operating the electric tool.
SAFETY INSTRUCTIONS FOR THE HANDLING OF SAW BLADES
1 Only use insertion tools if you have mastered their use.
2 Observe the maximum speed. The maximum speed specied on the insertion
tool may not be exceeded. If specied, observe the speed range.
3 Observe the motor / saw blade direction of rotation.
4 Do not use any insertion tools with cracks. Replace cracked insertion tools.
Repairs are not permitted.
5 Clean grease, oil and water off of the clamping surfaces.
6 Do not use any loose reducing rings or bushes for the reducing of holes on saw
blades.
7 Make sure that xed reducer rings for securing the insertion tool have the same
diameter and have at least 1/3 of the cutting diameter.
8 Make sure that xed reducer rings are parallel to each other.
9 Handle insertion tool with caution. They are ideally stored in the original package
or special containers. Wear protective gloves in order to improve grip and to
further reduce the risk of injury.
10 Prior to the use of insertion tools, make sure that all protective devices are
properly fastened.
11 Prior to use, make sure that the insertion tool meets the technical requirements
of this electric tool and is properly fastened.
12 Only use the supplied saw blade for sawing operations in wood.

18 AFTER SALES SUPPORT
 [e-mail]  1300 855 831
MODEL: HM80MP PRODUCT CODE: 53666 06/2019
AUS
Safety regulations HM80MP
Attention: Laser radiation
Do not stare into the beam
Class 2 laser
Protect yourself and you environment from accidents using suitable precau-
tionary measures!
• Do not look directly into the laser beam with unprotected eyes.
• Never look into the path of the beam.
• Never point the laser beam towards reecting surfaces and persons or animals.
Even a laser beam with a low output can cause damage to the eyes.
• Caution - methods other than those specied here can result in dangerous radi-
ation exposure.
• Never open the laser module. Unexpected exposure to the beam can occur.
• If the mitre saw is not used for an extended period of time, the batteries should
be removed.
• The laser may not be replaced with a different type of laser.
• Repairs of the laser may only be carried out by the laser manufacturer or an au-
thorised representative.
Safety instructions for handling batteries
1 Always make sure that the batteries are inserted with the correct
polarity (+ and –), as indicated on the battery.
2 Do not short-circuit batteries.
3 Do not charge non-rechargeable batteries.
4 Do not overcharge batteries!
5 Do not mix old and new batteries or batteries of different types or manufacturers!
Replace an entire set of batteries at the same time.
6 Immediately remove used batteries from the device and dispose of them prop-
erly!
7 Do not allow batteries to heat up!
8 Do not weld or solder directly on batteries!
9 Do not dismantle batteries!
10 Do not allow batteries to deform!
11 Do not throw batteries into re!
12 Keep batteries out of the reach of children.
13 Do not allow children to replace batteries without supervision!
14 Do not keep batteries near re, ovens or other sources of heat. Do not use
batteries in direct sunlight or store them in vehicles in hot weather.

19
AFTER SALES SUPPORT
 1300 855 831  [e-mail]
MODEL:HM80MP PRODUCT CODE: 53666 06/2019
AUS
HM80MP Safety regulations/Before starting the equipment
15 Keep unused batteries in the original packaging and keep them away from metal
objects. Do not mix unpacked batteries or toss them together! This can lead
to a short-circuit of the battery and thus damage, burns or even the risk of re.
16 Remove batteries from the equipment when it will not be used for an extended
period of time, unless it is for emergencies!
17 NEVER handle batteries that have leaked without appropriate protection. If
the leaked uid comes into contact with your skin, the skin in this area should
be rinsed off under running water immediately. Always prevent the uid from
coming into contact with the eyes and mouth. In the event of contact, please
seek immediate medical attention.
18 Clean the battery contacts and corresponding contacts in the device prior to
inserting the batteries:
Residual risks
The machine has been built according to the state of the art and the recog-
nised technical safety requirements. However, individual residual risks can
arise during operation.
• Health hazard due to electrical power, with the use of improper electrical con-
nection cables.
• Furthermore, despite all precautions having been met, some non-obvious resid-
ual risks may still remain.
• Residual risks can be minimised if the "safety instructions“ and the "Proper use“
are observed along with the whole of the operating instructions.
• Do not load the machine unnecessarily: excessive pressure when sawing will
quickly damage the saw blade, which results in reduced output of the machine in
the processing and in cut precision.
• When cutting plastic material, please always use clamps: the parts which should
be cut must always be xed between the clamps.
• Avoid accidental starting of the machine: the operating button may not be pressed
when inserting the plug in an outlet.
• Use the tool that is recommended in this manual. In doing so, your mitre saw pro-
vides optimal performance.
• Hands may never enter the processing zone when the machine is in operation.
Release the handle button and switch off the machine prior to any operations.
VI. Before starting the equipment
• The equipment must be set up where it can stand securely, i.e. it should be bolt-
ed to a workbench, a universal base frame or similar. To do this, use the holes
located in the frame of the machine.
• All covers and safety devices have to be properly tted before the equipment is
switched on.
• It must be possible for the blade to run freely.

20 AFTER SALES SUPPORT
 [e-mail]  1300 855 831
MODEL: HM80MP PRODUCT CODE: 53666 06/2019
AUS
Before starting the equipment/Assembling and operation HM80MP
• When working with wood that has been processed before, watch out for foreign
bodies such as nails or screws, etc.
• Before you press the ON/OFF switch check that the saw blade is tted correctly.
Moving parts must run smoothly.
• Before you connect the equipment to the power supply make sure the data on the
rating plate are identical to the mains data.
VII. Assembling and operation
m Warning! Prior to any adjustment work disconnect the mains power plug!
7.1 Assembling the saw (Fig. 1-6)
• To adjust the turntable (16), push the indexed position lever (12) downwards and
pull the lower locking lever (13) upwards with your index nger.
• Rotate the turntable (16) and pointer (14) to the desired angle on the scale (15)
and lock in place by folding up the the indexed position lever (12).
• Pressing the machine head (5) lightly downwards and removing the fastening
bolt (24) from the motor bracket at the same time disengages the saw from the
lowest position.
• Swing the machine head (5) up until the release lever (3) latches into place.
• It is possible to secure the clamping device (8) to the left or right on the xed saw
table (17). Long workpieces must be supported by the clamping device!
• Attach the workpiece supports (9) to the xed saw table (17) as shown in Figure
6a,b,c and push them all the way through. Secure the shafts with the retaining
springs to prevent them from slipping out accidentally. Then fasten them in the
desired position with the screw (10).
• It is possible to tilt the machine head (5) a max. 45° to the left by loosening the
set lever (22).
7.2 Sawdust bag (Fig. 2)
The saw is equipped with a sawdust bag (21) for sawdust and chips.
Squeeze together the metal ring on the dust bag and attach it to the outlet opening
in the motor area.
The sawdust bag (21) can be emptied by means of a zipper at the bottom.
7.3 Using the laser (Fig. 16,17)
• To switch on: Move the ON/OFF switch of the laser (35) to the “I” position. A
laser line is projected onto the material you wish to process, providing an exact
guide for the cut.
• To switch off: Move the ON/OFF switch of the laser (35) to the “0” position.
• Replacing the battery: Switch off the laser (34). Remove the battery compartment
cover (37). Remove the batteries and replace with new batteries (3 x LR44) Check
that the battery terminals are positioned correctly when inserting new batteries.
Close the battery compartment (36) again.

21
AFTER SALES SUPPORT
 1300 855 831  [e-mail]
MODEL:HM80MP PRODUCT CODE: 53666 06/2019
AUS
HM80MP Assembling and operation
7.4 Changing the speed (Fig. 2)
The saw has 2 speed ranges:
• To operate the saw at a speed of 3800 rpm (non-ferrous metals), set the switch
(42) to position I.
• To operate the saw at a speed of 5000 rpm (wood), set the switch (42) to position II.
7.5 Cross cut 90° and turntable 0° (Fig.1,2,6,7)
In the case of cutting widths up to approx. 100 mm it is possible to x the traction
function of the saw with the locking screw (23) in the rear position. In this position
the machine can be operated in cross cutting mode. If the cutting width is over 100
mm then it is necessary to ensure that the locking screw (23) is loose and the ma-
chine head (5) can move.
Caution! For 90° mitre cuts, the moveable fence (28) must be xed in the inner
position.
• Open the set screw (29) on the moveable fence (28) and push the moveable fence
(28) inwards.
• Warning! The moveable fence (28) must be locked in a position far enough from
the inner position that the distance between the fence (28) and the saw blade (7)
is no more than 5 mm.
• Before making the cut, check that no collision could occur between the fence (28)
and the saw blade (7).
• Tighten the set screw (29) again.
• Move the machine head (5) to its upper position.
• Use the handle (1) to push back the machine head (5) and x it in this position if
required (dependent on the cutting width).
• Place the piece of wood to be cut at the fence (18) and on the turntable (16).
• Lock the material with the clamping device (8) on the xed saw table (16) to pre-
vent the material from moving during the cutting operation.
• Push down the release lever (3) to release the machine head (5).
• Press the ON/OFF switch (2) to start the motor.
• With the drag guide (23) xed in place:
use the handle (1) to move the machine head (5) steadily and with light pressure
downwards until the saw blade (7) has completely cut through the work piece.
• With the drag guide (23) not xed in place:
pull the machine head (5) all the way to the front. Lower the handle (1) to the very
bottom by applying steady and light downward pressure. Now push the machine
head (5) slowly and steadily to the very back until the saw blade (7) has completely
cut through the work piece.
• When the cutting operation is completed, release the on/off button rst and raise
the machine head once the blade has come to a complete stop.
Caution! The machine executes an upward stroke automatically due to the return
spring, i.e. do not release the handle (1) after completing the cut; instead allow
the machine head to move upwards slowly whilst applying light counter pressure.

22 AFTER SALES SUPPORT
 [e-mail]  1300 855 831
MODEL: HM80MP PRODUCT CODE: 53666 06/2019
AUS
Assembling and operation HM80MP
7.6 Cross cut 90° and turntable 0° - 45° (Fig. 1,6,7)
The crosscut saw can be used to make crosscuts of 0° -45° to the left and 0° -45°
to the right in relation to the fence.
Caution! For bevel cuts (inclined saw head), the moveable fence (28) must be xed
in the outer position.
• Open the set screw (29) on the moveable fence (28) and push the moveable fence
(28) outwards.
• Warning! The moveable fence (28) must be locked in a position far enough from
the inner position that the distance between the fence (28) and the saw blade (7)
is no more than 5 mm.
• Before making the cut, check that no collision could occur between the fence (28)
and the saw blade (7).
• Tighten the set screw (29) again.
• Use the locking lever (13) to adjust the turntable (16) to the desired angle. The
pointer (14) on the turntable (16) must match the desired angle on the scale (15)
on the xed saw table (17).
• Tilt the locking lever (13) back up again to x the turntable (16) in place.
• Cut as described under section 7.5.
7.7 Mitre cut 0°- 45° and turntable 0° (Fig. 1,2,6,8)
The crosscut saw can be used to make mitre cuts of 0° - 45° in relation to the work
face.
Caution! To make mitre cuts (inclined saw head), the adjustable fence (28) must
be xed at the outer position.
• Open the set screw (29) for the adjustable fence (28) and push the adjustable
fence outwards.
• Warning! The adjustable fence (28) must be xed far enough in front of the in-
nermost position that the distance between the fence (28) and the saw blade (7)
amounts to a maximum of 5 mm.
• Before making a cut, check that the fence (28) and the saw blade (7) cannot col-
lide.
• Secure the set screw (29) again.
• Move the machine head (5) to the top position.
• Fix the turntable (16) in the 0° position.
• Loosen the set lever (22) and use the handle (1) to angle the machine head (5)
to the left, until the pointer (20) indicates the desired angle measurement on the
scale (19).
• Re-tighten the set lever (22).
• Cut as described in section 7.5.

23
AFTER SALES SUPPORT
 1300 855 831  [e-mail]
MODEL:HM80MP PRODUCT CODE: 53666 06/2019
AUS
HM80MP Assembling and operation
7.8 Mitre cut 0°- 45° and turntable 0°- 45° (Fig. 1,2,6,9)
The crosscut saw can be used to make mitre cuts to the left of 0°- 45° in relation
to the work face and, at the same time, 0° - 45° to the left or 0° - 45° to the right in
relation to the fence (double mitre cut).
Caution! To make mitre cuts (inclined saw head), the adjustable fence (28) must
be xed at the outer position.
• Open the set screw (29) for the adjustable fence (28) and push the adjustable
fence outwards.
• Warning! The adjustable fence (28) must be xed far enough in front of the in-
nermost position that the distance between the fence (28) and the saw blade (7)
amounts to a maximum of 5 mm.
• Before making a cut, check that the fence (28) and the saw blade (7) cannot col-
lide.
• Secure the set screw (29) again.
• Move the machine head (5) to its upper position.
• Release the turntable (16) by loosening the screw (26).
• Using the Locking lever (13), set the turntable (16) to the desired angle (refer also
to point 7.4 in this regard).
• Re-tighten the screw (26) in order to secure the turntable.
• Undo the set lever (22) and use the handle (1) to tilt the machine head (5) to the
left until it coincides with the required angle value (in this connection see also
section 7.6).
• Re-tighten the set lever (22).
• Cut as described under section 7.5.
7.9 Limiting the cutting depth (Fig. 3)
• The cutting depth can be continuously adjusted using the screw (26). To do this
loosen the knurled nut on the screw (26). Turn the screw (26) in or out to set the
required cutting depth. Then re-tighten the knurled nut on the screw (26).
• Check the setting by completing a test cut. Cutting capacity: See VIII Technical
data
7.10 Precision adjustment for crosscut 90° (Fig. 3,5,18)
• No angle gauge included.
• Lower the machine head (5) and secure using the locking bolt (24).
• Loosen the set lever (22).
• Position the angle gauge (a) between the saw blade (7) and the turntable (16).
• Slacken the counternut (d). Adjust the adjusting screw (30) until the angle between
the saw blade (7) and turntable (16) is 90°.
• Retighten the counternut (d) to secure this setting.
• Subsequently check the position of the angle indicator. If necessary loosen the
pointer (20) using a Philips screwdriver, set to position 0° on the angle scale (19)
and re-tighten the retaining screw.

24 AFTER SALES SUPPORT
 [e-mail]  1300 855 831
MODEL: HM80MP PRODUCT CODE: 53666 06/2019
AUS
Assembling and operation HM80MP
7.11 Precision adjustment for mitre cut 45° (Fig. 1,3,5,19)
• No angle gauge included.
• Lower the machine head (5) and secure using the fastening bolt (24).
• Fix the turntable (16) in the 0° position.
• Loosen the set lever (22) and use the handle (1) to angle the machine head (5)
45° to the left.
• 45° - position angle gauge (b) between the saw blade (7) and turntable (16).
• Slacken the counternut (c). Adjust the adjusting screw (31) until the angle between
the saw blade (7) and turntable (16) is precisely 45°.
• Retighten the counternut (d) to secure this setting.
7.12 Changing the saw blade (Fig. 11-15)
Remove the power plug!
mCaution!
Wear safety gloves when changing the saw blade. Risk of injury!
• Remove the spring (41) from the pin by pushing together the two ends.
• Release the guide bar (40) from the pin.
• Firmly press the saw spindle lock (4), and slowly turn the ange screw (32) clock-
wise. After max. one turn, the saw spindle lock (4) engages.
• Then undo the ange screw (32), by applying a slightly greater force in a clock-
wise direction.
• Fully unscrew the ange screw (32) and remove the outer ange (33).
• Press the release lever (3) to slide back the movable blade guard (6), then remove
the saw blade (7) from the inner ange (39) and pull out in a downwards direction.
Do not use the saw without guards in position and additional safety instruction, if
double bevel-cutting is possible.
• Carefully clean the ange screw (32), outer ange (33) and inner ange (39).
• Insert the new saw blade (7) in the reverse sequence and tighten.
• Position the guide bar (40) on the pin again, and secure with the spring (41).
• Warning! The cutting angle of the teeth, in other words the direction of rotation
of the saw blade (7) must coincide with the direction of the arrow on the housing.
• Before continuing your work make sure that all safety devices are in good work-
ing condition.
• Warning! Every time that you change the saw blade (7), check to see that it spins
freely in the table insert (11) in both perpendicular and 45° angle settings.
• Warning! The work to change and align the saw blade (7) must be carried out
correctly.
