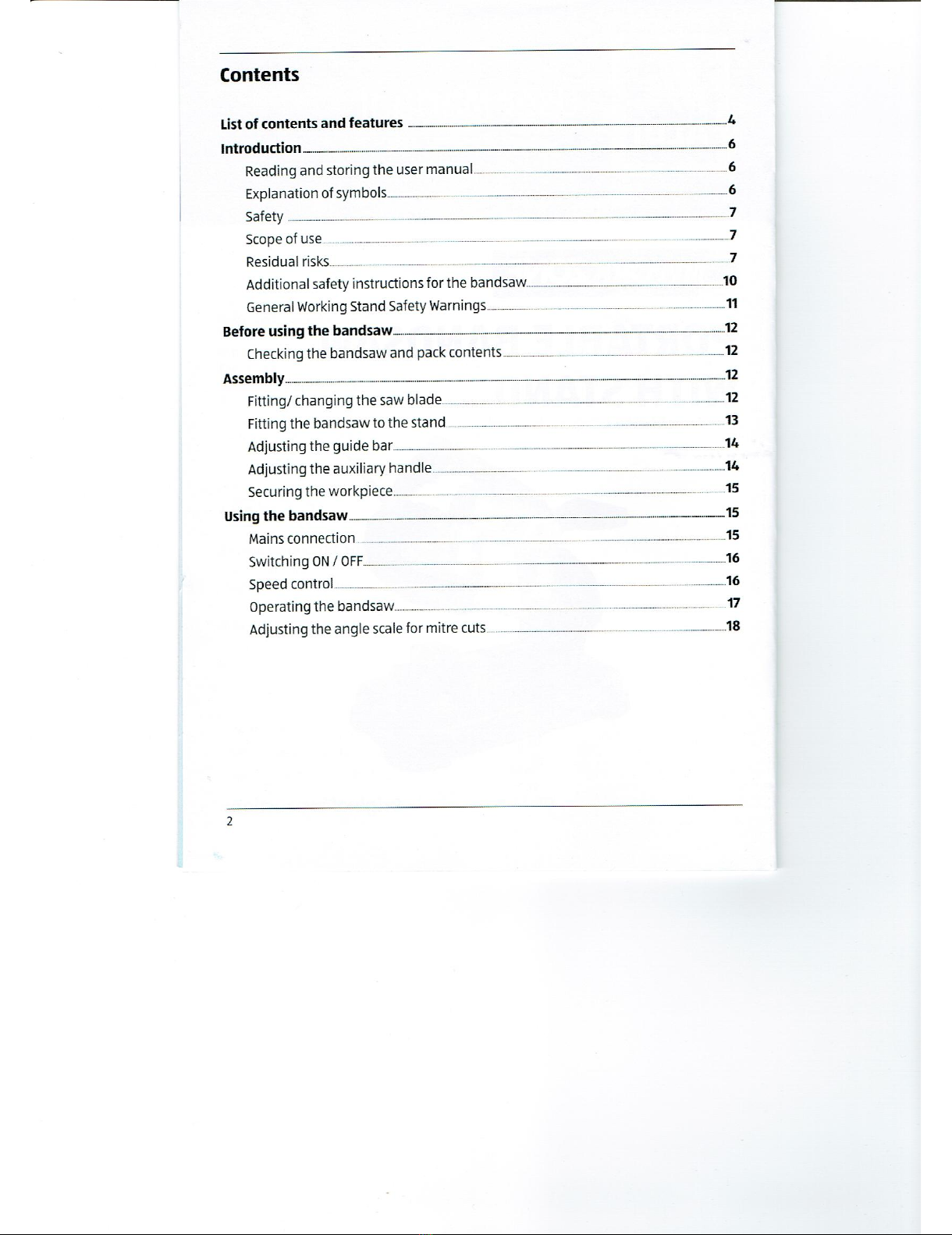

Contents
Assembly
List of contents and features be
Introduction 6
Reading and storing the user manual 6
Explanation of symbols 6
Safety 7
Scopeof use cd
Residual risks 7
Additional safety instructions for the DaANGSAW......nn-cmmnmn sO
General Working Stand Safety Warnings... om
Before using the bandsaw. 12
Checking the bandsaw and pack contents... 12
12
Fitting/ changingthe saw blade.. 12
Fitting the bandsaw to the stand 13
Adjusting the guide bar. 14
Adjusting the auxiliary handle 14
Securing the workpiece 15
Using the bandsaw 5
Mains connection 15
Switching ON / OFF 16
Speed control 16
Operating the bandsaw. 7
Adjusting the angle
scale for mitre cuts soe B
All manuals and user guides at all-guides.com

Maintenance, cleaning, storage and transport...
Maintenance
Cleaning 21
Storage .21
Transport ;21
Troubleshooting 22
Technical specifications 22
Noise/vibration information. 23
Noise emission levels 23
Recycling 24
Disposalof the packaging 24
Disposing of old appliances 24
EC Declaration of Conformity. 25
All manuals and user guides at all-guides.com

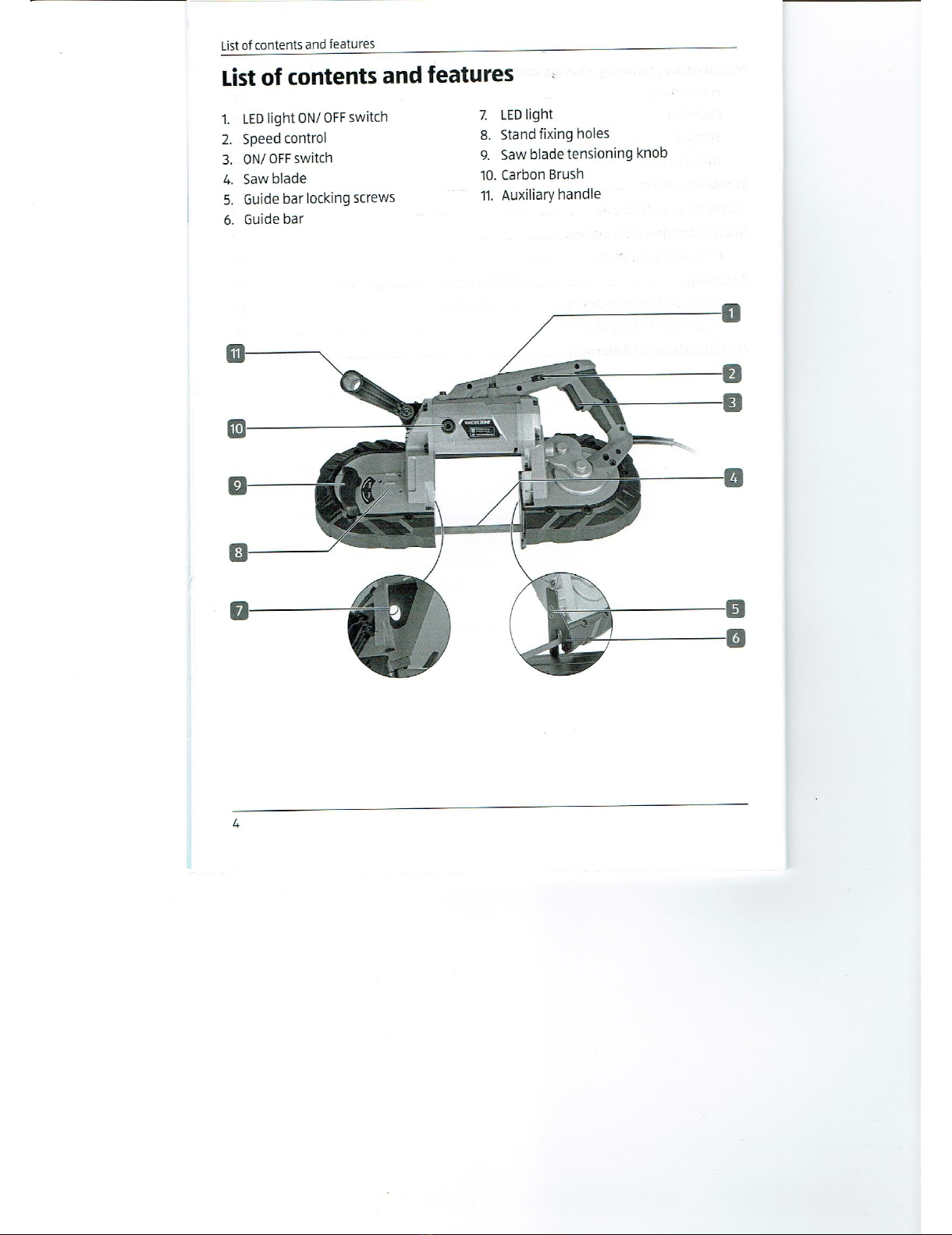

List of contents and features
List of contents and features
1. LED light ON/ OFF switch 7. LED light
2. Speed control 8. Stand fixing holes
3. ON/ OFF switch 9. Saw blade tensioning knob
4. Saw blade 10. Carbon Brush
5. Guide bar locking screws 1. Auxiliary handle
6. Guide bar
All manuals and user guides at all-guides.com

List of contents and features
12. Drive wheel 19. Vise fixing knob
13. Saw blade guide bearing 20. Arm fixing bolts (3x)
14. Air intake 21. Washers (3x)
15. Stand arm 22. Lockingwashers (3x)
16. Angle locking knob 23. No. 4allen key
17. Angle scale for arm 24. No. 5allen key
18. Stand Vise 25. No. 6 allen key
°
8SS oO=—00
==—
All manuals and user guides at all-guides.com

Introduction
Introduction
Reading and storing the user manual
These operating instructions form an integral part of this portable bandsaw with
stand (referred to as bandsaw or stand in the remainder of this manual). They
contain importantinstructions on safety, use and disposal of the bandsaw. Please
familiarise yourself with all operating and safety instructions before using the
bandsaw. Only use the bandsaw asdescribed and for the stated purpose. If the
bandsaw is passed on to
a
third party, please provide
all documents to the third
party together with the bandsaw. Keep the operating instructions safe for the future
reference.
Explanation of symbols
The following symbols and signal words are used in this user manual, on the
screwdriver or on the packaging.
Indicates ahazardous situation that, if not avoided, could
r,,
Nh result in death orserious injury.
Indicates ahazardous situation that, if not avoided, could
result in minor or moderate injury.
A\__NOTICE! warns of possible damage to property.
.This symbol provides you with useful additional information
lL regarding assembly or operation.
Declaration of Conformity (see chapter“EC Declaration of
Conformity”):
Products labelled with this symbol meet all
applicable provisions of the European Economic Area.
©(LU Read the user manual.
©Wear protective goggles.
Wear ear protection.
Protection class II
@Wear respiratory protection.
O
33year warranty
All manuals and user guides at all-guides.com
all-guides.com

Introduction
Safety

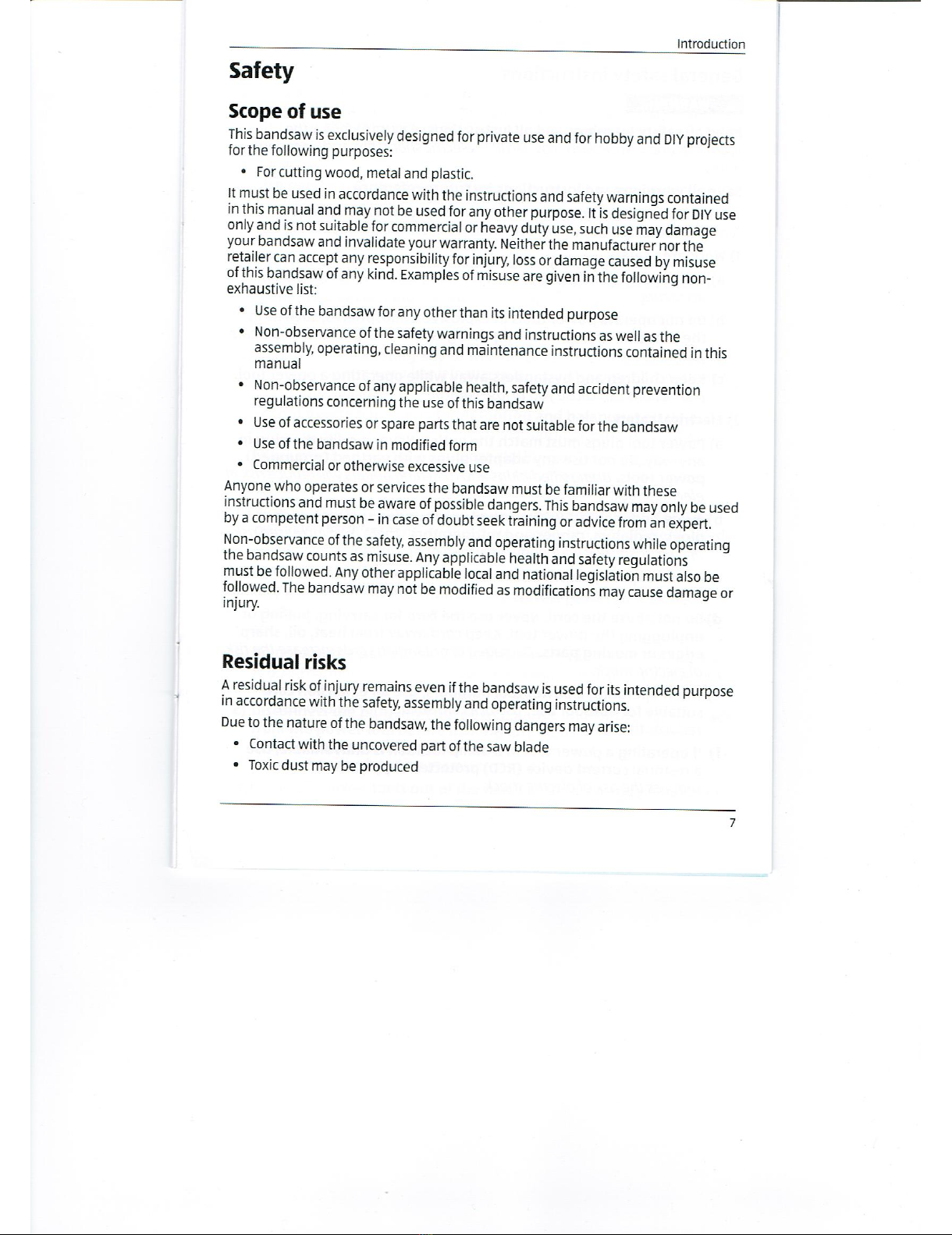

Scopeof use
This bandsaw is exclusivelydesigned for private use and for hobby and DIY
projects
for the following purposes:
*For cutting wood, metal and plastic.
It must be used in accordance with the instructions and safety warningscontained
in this manual and may not be used for any other purpose. It is designed for DIY use
only and is not suitable for commercial or heavy duty use, such use may damage
your bandsaw and invalidate your warranty. Neither the manufacturer nor the
retailer can accept any responsibility for injury, loss or damagecaused by misuse
of this bandsaw of any kind. Examples of misuse are given
in the following non-
exhaustive list:
*Use of the bandsaw for any other than its intended purpose
*Non-observance of the safety warnings and instructions as well as the
assembly, operating, cleaning and maintenance instructions contained in this
manual
*Non-observance of any applicable health, safety and accident prevention
regulations concerning the use of this bandsaw
¢Use of accessories or spare parts that are not suitable for the bandsaw
¢Use of the bandsaw in modified form
*Commercial or otherwise excessive use
Anyone whooperates or services the bandsaw must be familiar with these
instructions and must be aware of possible dangers. This bandsaw may only be used
by acompetent person -in case of doubt seek training or advice from an expert.
Non-observance of the safety, assembly and operating instructions while operating
the bandsaw counts as misuse. Any applicable health and safety regulations
must be followed. Any other applicable local and national legislation must also be
followed. The bandsaw may not be modified as modifications may cause damage or
injury.
Residual risks
Aresidual risk ofinjury remains even if the bandsaw is used for its intended purpose
in accordance with thesafety, assembly and operating instructions.
Dueto the nature of the bandsaw, the following dangers may arise:
*Contact with the uncovered part of the saw blade
*Toxic dust may be produced
All manuals and user guides at all-guides.com

Introduction
General safety instructions
ye ee
Read all safety warningsand all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious
injury.
Save all warningsand instructions for future reference.
The term “power
tool" in the warnings refers to your mains-operated
(corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. C/uttered or dark areas invite
accidents.
b) Do not operate power tools in explosive atmospheres, such as in
the presence of flammable liquids, gases or dust. Power tools create
sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating apower tool.
Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in
any way. Donot use any adapter plugs with earthed (grounded)
power tools. Unmodified plugs and matching outlets will reduce risk of
electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as
pipes, radiators, ranges and refrigerators. There isan increased risk
of electric shock if your bodyis earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering
apower tool will increase therisk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying,pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled cords increase therisk
of electric shock.
e) When operating apower tool outdoors, use an extension cord
suitable for outdoor use. Use ofa cord suitable for outdoor use
reduces the risk of electric shock.
f) If operating apower tool in adamp location is unavoidable, use
aresidual current device (RCD) protected supply. Use of an RCD
reduces the risk of electric shock.
All manuals and user guides at all-guides.com

Introduction

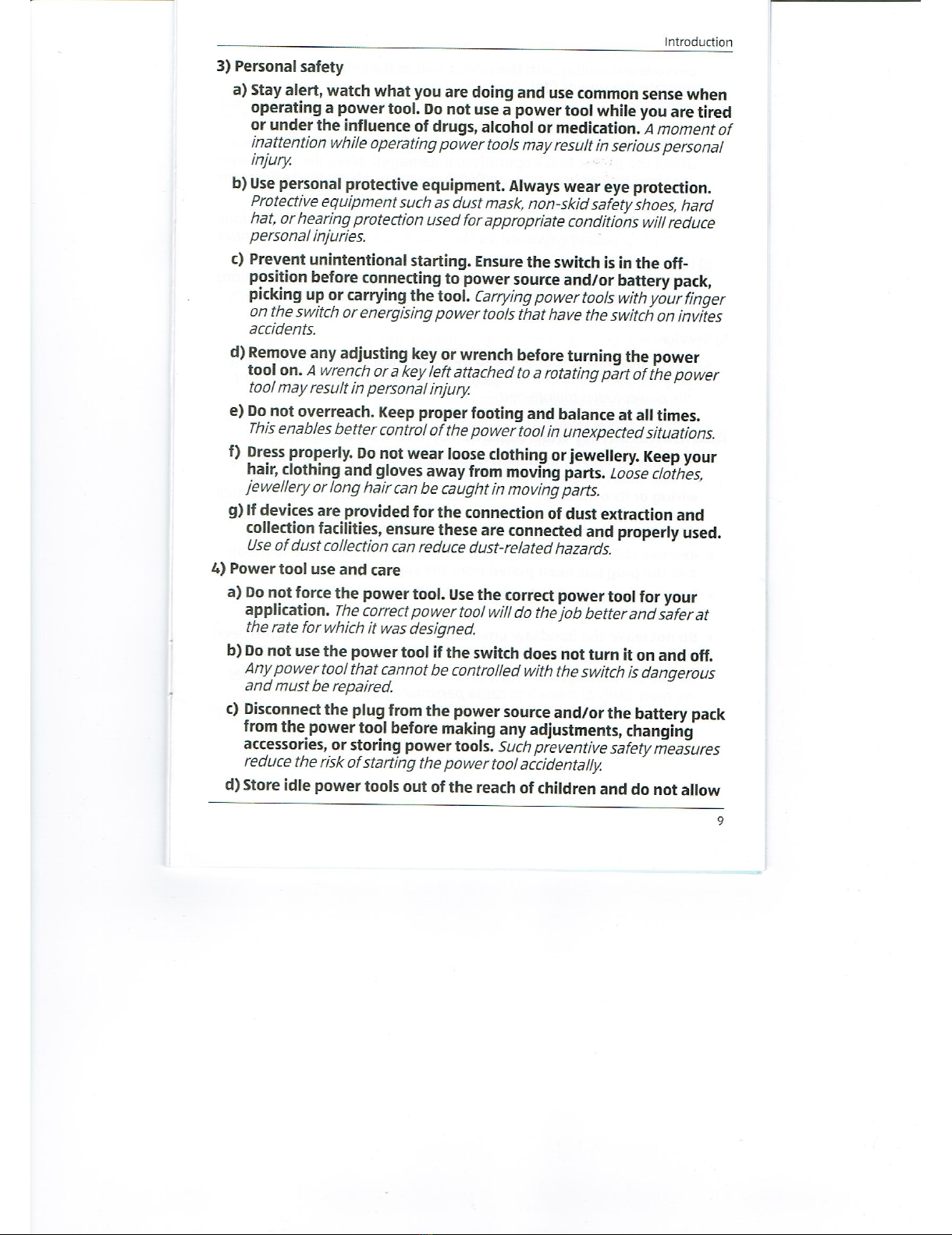

3) Personal safety
a) Stay alert, watch what you are doing and use common sense when
Operating apower tool. Do not use apower tool while youare tired
or under the influence of drugs, alcohol or medication. Amoment of
inattention while operating power tools may result in serious personal
injury.
b) Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-
position before connecting to power source and/or battery pack,
picking upor carrying the tool. Carryingpower tools with your finger
on the switch or energising power tools that have the switch on invites
accidents.
d) Remove any adjusting key or wrench before turning the power
tool on. Awrench ora key left attached to arotating part of the power
tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your
hair, clothing and gloves away from moving parts. Loose clothes,
jewellery or long hair can be caughtin moving parts.
g) If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used.
Use of dust collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at
the rate for whichit was designed.
b) Do not use the power tool if the switch does not turn it on and off.
Any power tool that cannot be controlled with the switch is dangerous
and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack
from the power tool before making any adjustments, changing
accessories, or storing power tools. Such preventive Safety measures
reduce the risk of starting the power too/ accidentally.
d) Store idle power tools out of the reach of children and do not allow
9
All manuals and user guides at all-guides.com

Introduction
persons unfamiliar with the power tool or these instructions to
operate the power tool. Power tools are dangerous in the hands of
untrained users.
e) Maintain power tools. Check for misalignment or binding of
moving parts, breakage of parts and any other condition that may
affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained
power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools
with sharp cutting edgesare less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance
with these instructions, taking into account the working conditions
and the work to be performed. Use of the power tool for operations
different from those intended couldresult in ahazardous situation.
5) Service
a) Have your power tool serviced by aqualified repair person using
only identical replacement parts. his will ensure that the safety of
the power tool is maintained.
Additional safety instructions for the bandsaw
*Hold power tool by insulated gripping surfaces, when performing
an operation where the cutting accessory may contact hidden
wiring or its own cord. Cutting accessories contacting a"live" wire may
make exposed metal parts of the power tool "live" and could give the
operator an electric shock.
¢Remove chips and shavings only when the tool has come toa stop
and the plug has been pulled from thesocket.
©Do not attempt to decelerate the saw blade, when the bandsaw has
been switched off.
©Donot leave the bandsaw unattended. Ensure that the plug has been
pulled and the saw blade has stopped before leaving the bandsaw.
*Do not use damaged or worn saw blades. Damaged or worn blades
are more likely to break and cause personal injury.
10
All manuals and user guides at all-guides.com
