Alemite 343683 User manual

Installation and maintenance instructions
Models 343683 and 343684*
Fluid solenoid valve
and pulse meter kit
Date of issue May 2023
Form number 671129
Version 4*Indicates change.

Safety* . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Description*. . . . . . . . . . . . . . . . . . . . . . 4
Pulse meter. . . . . . . . . . . . . . . . . . . . . 4
Fluid solenoid . . . . . . . . . . . . . . . . . . . 4
Use and maintenance . . . . . . . . . . . . . . 5
Operation* . . . . . . . . . . . . . . . . . . . . . . . 5
Fluid solenoid flow rate. . . . . . . . . . . . 5
Pulse meter specifications . . . . . . . . . 5
Function and overhaul* . . . . . . . . . . . . . 6
Disassembly . . . . . . . . . . . . . . . . . . . . 8
Assembly. . . . . . . . . . . . . . . . . . . . . . . 9
Fluid solenoid . . . . . . . . . . . . . . . . . . . . . 8
Fluid solenoid wiring. . . . . . . . . . . . . . 8
Fluid solenoid flow rate. . . . . . . . . . . . 9
Service parts . . . . . . . . . . . . . . . . . . . . . 11
Troubleshooting . . . . . . . . . . . . . . . . . . 11
Warranty . . . . . . . . . . . . . . . . . . . . . . . . 12
Contents
*Indicates change.
2

WARNING
Do not allow any body part
to be trapped by equipment.
Body parts can be crushed
by subassemblies during
operation.
Failure to comply may result in death
or serious physical injury.
WARNING
Do not allow fluid to leak
onto floor when operating
equipment. If spill occurs,
clean any fluid on floor before continuing
operation.
Failure to comply may result in death
or serious personal injury.
Safety*
Read and carefully observe these installation
instructions before installing/operating/
troubleshooting the assembly. The assembly
must be installed, maintained and repaired
exclusively by persons familiar with the
instructions.
Always disconnect power source
(electricity, air or hydraulic) from the
equipment when it is not being used.
This equipment generates high pressure.
Extreme caution should be used when
operating this equipment as material leaks
from loose or ruptured components can
inject fluid through the skin and into the
body. If any fluid appears to penetrate the
skin, seek attention from a doctor
immediately. Do not treat injury as a simple
cut. Tell attending doctor exactly what type of
fluid was injected.
Any other use not in accordance with
instructions will result in loss of claim for
warranty or liability.
• Do not misuse, over-pressurize, modify
parts, use incompatible chemicals, fluids,
or use worn and/or damaged parts.
• Do not exceed the stated maximum
working pressure of the equipment or of
the lowest rated component in your
system.
• Always read and follow the manufacturer’s
recommendations regarding fluid
compatibility, and the use of protective
clothing and equipment.
• Failure to comply may result in personal
injury and/or damage to equipment.
Explanation of signal
words for safety
NOTE
Emphasizes useful hints and
recommendations as well as
information to prevent property damage
and ensure efficient trouble-free
operation.
CAUTION
Indicates a dangerous situation that can
lead to light personal injury if
precautionary measures are ignored.
WARNING
Indicates a dangerous situation that
could lead to death or serious injury if
precautionary measures are ignored.
DANGER
Indicates a dangerous situation that will
lead to death or serious injury if
precautionary measures are ignored.
WARNING
Do not operate equipment
without reading and fully
understanding safety
warnings and instructions.
Failure to follow warnings and
instructions may result in serious injury.
NOTE
Do not operate equipment without
wearing personal protective gear.
Wear eye protection. Protective
equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing
protection used for appropriate
conditions will reduce personal injuries.
*Indicates change.
3

2022/02/23
2.77 in
(70 mm)
∅ 3.96 in
(100 mm)
1/2 in NPTF
10
4 1 /2 in (114 mm)
3 1
/2 in (89 mm)
1 3 /8 in (35 mm)
1)
2)
Model 339005 is part of kit 343683, and is
designed to meter motor oils (SAE 5-50),
gear oils (SAE 80-240), and automatic
transmission fluid.
Model 340080 is part of kit 343684, and
is designed specifically to meter an
antifreeze/water mixture or
windshield washer fluid.
Model 343683 and 343684 kits include a
pre-wired solenoid valve, pulse meter and
1/2in NPTF(M) straight adapter engineered
for incorporation into fluid management
systems. The fluid solenoid valve is suitable
for motor/gear oils, automatic transmission
fluid, antifreeze/water mix or windshield
washer fluid.
Kit 343683 is for fluid management of
motor oils (SAE 5-50), gear oils (SAE
80-240), automatic transmission fluid (ATF)
and petroleum-based fluids.
Kit 343684 is specialized for fluid
management of antifreeze/water mix and
windshield washer fluid.
Model 343683 kit contains 339005 pulse
meter, 338315 fluid solenoid and 51888
1/2in NPT adapter.
Models 343683 kit contains 340080 pulse
meter, 338315 fluid solenoid and 51888
1/2in NPT adapter.
For complete instructions on pulse meters
refer to manual 670867.
NOTE
Do not use petroleum-based products
in a meter designed for water-based
fluids.
Do not use water-based fluids in a
meter designed for petroleum-based
products.
Description*

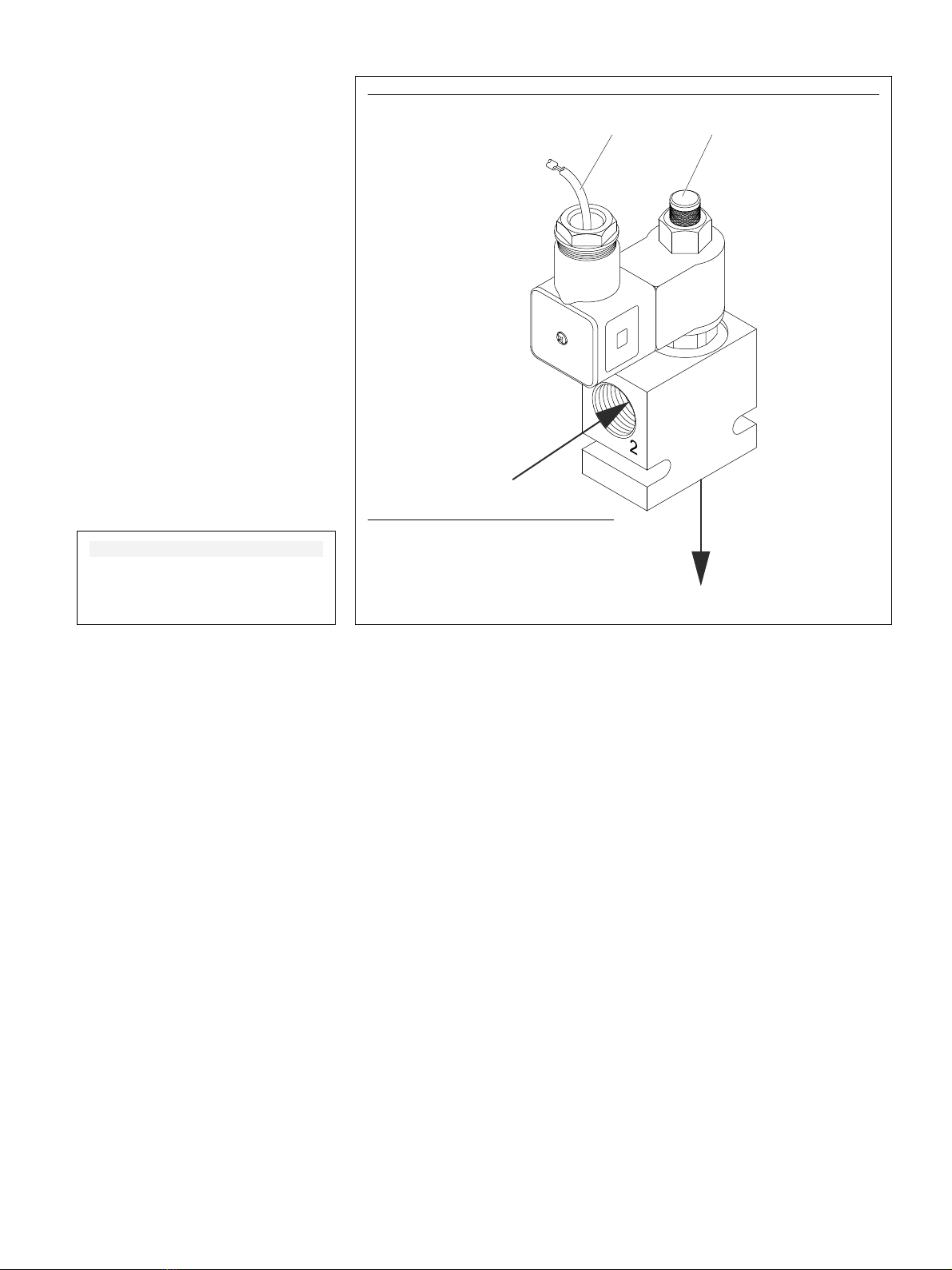

Fig. 1
Pulse meter (339005 and 340080)
Fig. 2
Adapter (51888)
Fig. 3*
Fluid solenoid (338315)
1) IN
2) OUT
*Indicates change.
*Indicates change.
4

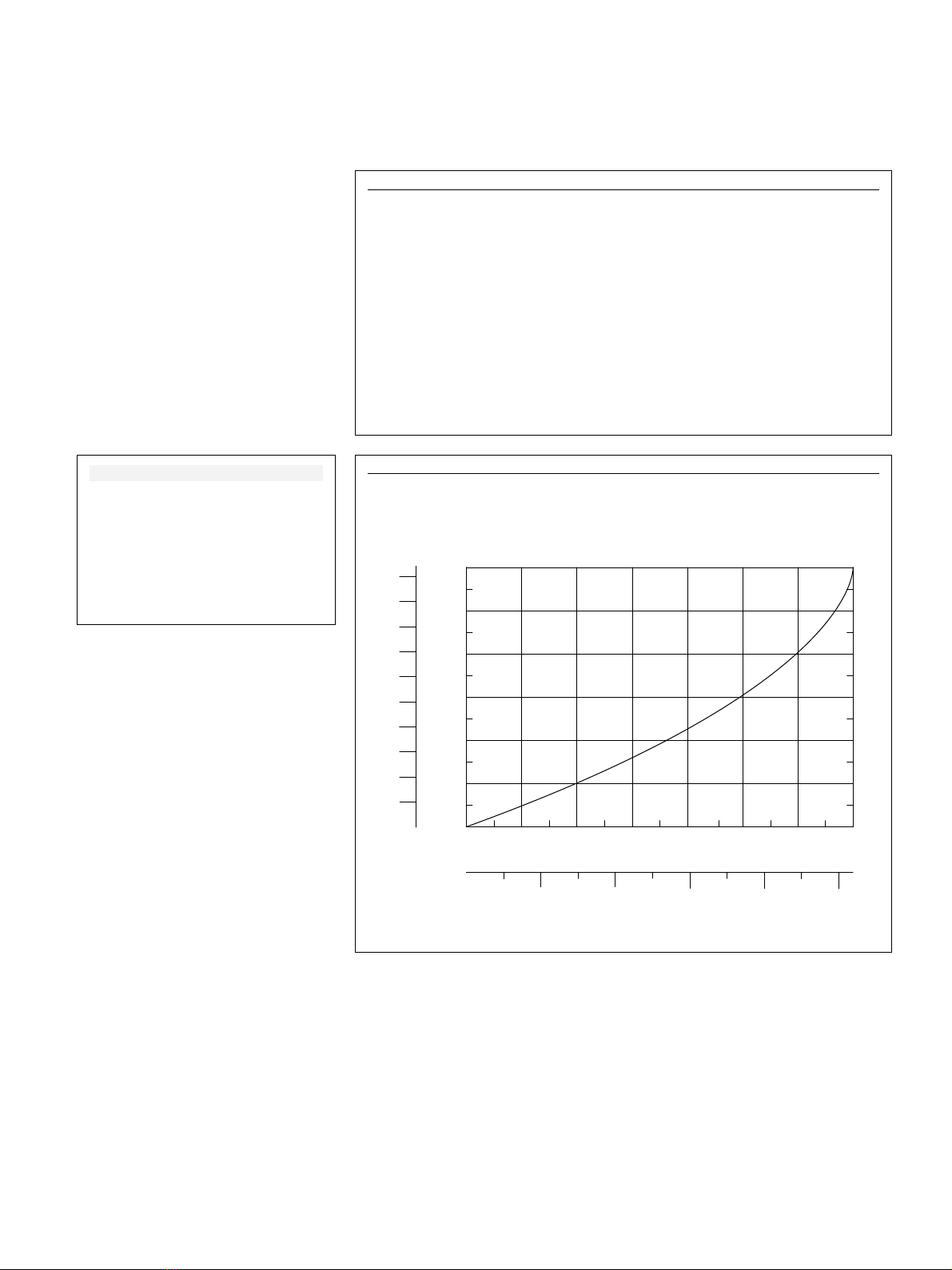

150 ssu oil at 104 °F (40 °C)psi
Gallons per minute
Flow
bar
Pressure drop
Liters per minute
150
125
100
75
50
25
0
10
9
8
7
6
5
4
3
2
1
0 1 2 3 4 5 6 7
5 10 15 20 25
Table 1*
Pulse meter specifications
Pressure range 5 to 1 500 psi (0.3 to 103 bar)
Operating temperature -10 to +110 °F (-23 to +43 °C)
Reed switch rating 120 V AC @ 10 watts
Flow rate (343683) 1) 0.25 to 8 gal (0.9 to 30 l) ±0.75%
Flow rate (343684) 2) 1 to 6 gal (3.8 to 22.7 l) ±1.0%
Wiring Not polarity specific
Pulses per Liter 100
Quart 94.64
Gallon 378.5
1) DTE-25 motor oil at ambient temperature
2) Water at ambient temperature
*Indicates change.
Operation*
Fluid enters the inlet port (either end of the
meter) and passes through the metering
chamber. The force of the fluid causes the
internal gear assembly to rotate and forces
the fluid to exit through the outlet port.
Each full rotation of the gear assembly
displaces a given volume of fluid. Controlled
clearances between the gears and chamber
wall minimize leakage. One gear in the
assembly contains two magnets; one at each
end of the gear. See Fig. 4, page 6.
Use and maintenance
NOTE
Install a 40-micron or finer filter at the
inlet side of these meters.
Failure to comply may result in
damage to system, damage to
components, jammed gears, or
inaccurate readings.
These magnets activate a reed switch in
the switch module to open and close.
Contact closures from the switch are
transmitted as a signal to the remote batch
controller.
This transmitter is normally connected to
fluid managament metering systems that
have scaling capabilities and that can accept
a reed switch pulse.
Typical application is the Enterprise Fluid
Inventory Control and Management System
that accurately tracks, monitors and
dispenses fluids in vehicle service
applications.
Diagram 1
Fluid solenoid flow rate
*Indicates change.
5

1
2
3
4
5
6
7
8
Function and
overhaul*
Refer to Troubleshooting (page 11) to
determine where to look if problems occur.
Disassembly
Switch module
1 Remove screws (2) that secure switch
module (1) to housing (3) († Fig. 4).
2 Separate switch module from housing.
NOTE
Switch module is serviced as an
assembly. No further breakdown of
assembly is necessary.
NOTE
Use a repair kit for replacement parts.
Do not discard old components. First,
verify all component are included in kit.
Metering gears
3 Remove screws (8) and washers (7) that
secure housing cover (6) to housing (3).
4 Separate housing cover from housing.
5 Remove o-ring (4) from oval groove in
housing.
6 Remove gears (5) from housing.
Clean and inspect
7 Clean all metal parts in cleaning solvent.
Solvent should be environmentally safe.
8 Inspect all parts for wear and/or
damage. Replace as necessary.
9 Closely inspect mating surfaces of
housing cover (6) and housing (3) for any
imperfections. Ensure a smooth and
clean contact is obtained when
assembled.

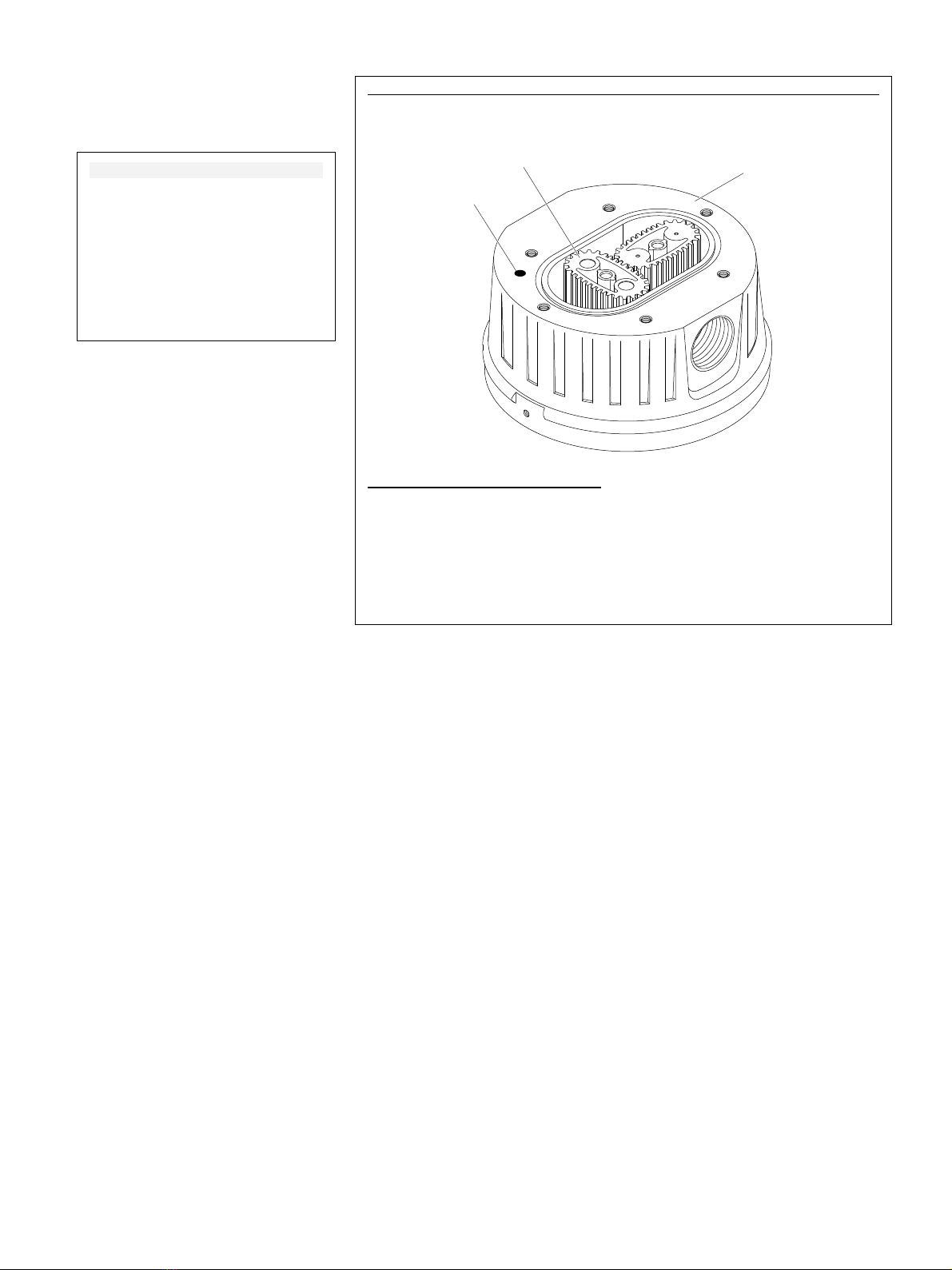

Fig. 4
Pulse meter
*Indicates change.
6

A
B
C
NOTE
Position gear with magnets († Fig. 5).
Before assembly verify gears rotate
and do not bind. Manually turn gears
through three rotations to verify free
movement.
Meter will not function properly if
gears are incorrectly installed.
Assembly
Metering gears
1 Install gear (5) with magnets into
housing (3). Make sure to locate gear
properly in housing († Fig. 4, page 6).
2 Place second gear into housing. Verify
gear engages magnet gear as shown.
3 Rotate gear assembly by hand to make
sure gear teeth are properly engaged.
4 Install and seat o-ring (4) into oval
groove in housing.
5 Position housing cover (6) onto housing.
6 Install washers (7) and screws (8) that
secure housing cover to housing.
7 Tighten screws in a criss-cross pattern
to 90 in-lbf (10.2 Nm).
Switch module
8 Position switch module (1) onto housing.
9 Install screws (2) that secure switch
module to housing. Do not overtighten.
Fig. 5
Pulse meter housing assembly with gears
Item Description
AMagnet position indicator mark
B Gear with magnets
C Housing (3)
7

A
B
CD
Fig. 6
Fluid solenoid wiring (343683 and 343684)
Item Description
A Diode
B LED
CPositive (+) wire (red)
D Neutral (-) wire (black)
NOTE
Do not wire fluid solenoid incorrectly.
Wire polarity must be maintained
when connecting fluid solenoid. Red
wire is positive +and connects to
terminal 1 and black wire is negative
-and connects to terminal 2.
Failure to comply will result in damage
to equipment.
Fluid solenoid
Fluid solenoid valves contain diodes in their
connectors. This diode prevents electrical
surges from damaging relay contacts in the
keypad controller. Connections at fluid
solenoid valve are pre-wired († Fig. 6).
Fluid solenoid valve is normally closed and
pilot-operated. Valve is equipped with an
LED indicator and manual override.
When energized, valve opens and allows
fluid to be dispensed from control valve.
Fluid solenoid valves are suitable for
motor/gear oils, automatic transmission
fluid, antifreeze/water mix or windshield
washer fluid.
For complete instructions on fluid solenoid
valve 338315 refer to manual 671131.*
Table 2*
Fluid solenoid specifications
Inlet and outlet connections 1/2in NPTF(F)
Operating pressure 30 to 3 000 psi (2.1 to 2.7 bar)
Power requirement 24 V (see Fig. 5, 8for polarity)
Operating temperature -40 to 248 °F (-40 to 120 °C)
Current draw 0.60 A
Termination DIN 43650
Required filtration 40 micron
*Indicates change. *Indicates change.
8

A B
C
D
NOTE
Fluid inlet is numbered 2and fluid outlet
is numbered 1(† Fig. 7).
Fig. 7
Solenoid (343683 and 343684)
Item Description
AWire to keypad controller
B Manual override (normally closed)*
C Fluid inlet
D Fluid outlet
Operation
Valve assembly († Fig. 7) consists of two
separate internal valves; the primary needle
valve and the secondary valve. The primary
valve actuates first, causing the secondary
valve to operate.
When the coil is energized, the primary
needle valve lifts and allows fluid into
delivery port. Fluid pressure equalizes and
assists movement of secondary valve.
When energized, the valves poppet lifts to
open the port 2 to port 1 flow path, while
flow from port 1 to port 2 is severely
restricted.*
Manual override
To place valve in manual override mode,
push down on knob and turn counter-
clockwise 180°.
*Indicates change.
*Indicates change.
9

1
2
3
4
5
6
7
8
9
10
Fig. IPB 1
Pulse meter
Fig. IPB 2
Solenoid
Fig. IPB 3
Adapter (51888)
10

Not all part numbers may be available.
1) Sold as kit 393307-175. Individual parts not available.
Service parts
Item Description Quantity 339005 340080 343683 343684
1Switch module 1 393307-182 393307-182 393307-182 393307-182
2 Screws 3
3 Housing 1
4 O-ring 1 393307-175 1) 393307-175 1) 393307-175 1) 393307-175 1)
5Gears 1 set 393307-175 1) 393307-175 1) 393307-175 1) 393307-175 1)
6Housing cover 1
7 Washers 6
8 Screws 6
9 Fluid solenoid valve 1 N/A N/A 338315 338315
10 1/2in NPTF(M) straight adapter 1 N/A N/A 51888 51888
Troubleshooting
Meter indications Possible problems Solution
Meter is not accurate. Incorrect scale factor. Change scale factor.
Flow rate above maximum. Decrease flow rate.
Flow rate below minimum. Increase flow rate.
Reduced or zero flow. Gears (5) jammed. Overhaul metering gear cavity.
Clogged system. Clean system filter.
Meter does not count and flow rate is normal. Gears (5) installed incorrectly. Set gears properly in housing (3).
Switch module (1) defective. Replace switch module (1).
No power. Wiring loose or disconnected. Confirm wiring is securely connected..
11

skf.com | alemite.com
® SKF and Alemite are registered trademarks of the SKF Group.
© SKF Group 2023
The contents of this publication are the copyright of the publisher and may not be reproduced (even
extracts) unless prior written permission is granted. Every care has been taken to ensure the accuracy
of the information contained in this publication but no liability can be accepted for any loss or damage
whether direct, indirect or consequential arising out of the use of the information contained herein.
May 2023 · Form 671129Version 4
Warranty
The instructions do not contain any information on the warranty.
This can be found in the Terms and Conditions, available at:
www.skf.com/alemite.
