PLASMA CUTTING MACHINE
PEGAS 40 PLASMA PFC
OPERATING MANUAL

-2-
ALFA IN a.s © www.alfain.eu3
Content:
1.
INTRODUCTION......................................................................................3
2. SAFETY INSTRUCTIONS AND WARNINGS...........................................4
2.1 ELECTROMAGNETIC COMPATIBILITY (EMC).................................6
2.2 PROTECTIVE UTTILITIES.................................................................7
2.3 RISK OVERVIEW...............................................................................7
3. CONDITIONS OF USE.............................................................................7
4. TECHNICAL DATA...................................................................................8
5. OPERATOR CONTROLS.........................................................................9
5.1 FRONT AND REAR PANELS.............................................................9
6. ACCESSORIES .....................................................................................10
6.1 PART OF DELIVERY........................................................................10
6.2 ON REQUEST..................................................................................10
6.3 COMMENTS ON CONSUMABLES ..................................................12
7. GETTING STARTED..............................................................................12
7.1 FIRST STEPS...................................................................................12
7.2 REQUIREMENTS FOR SOURCE OF COMPRESSED AIR..............13

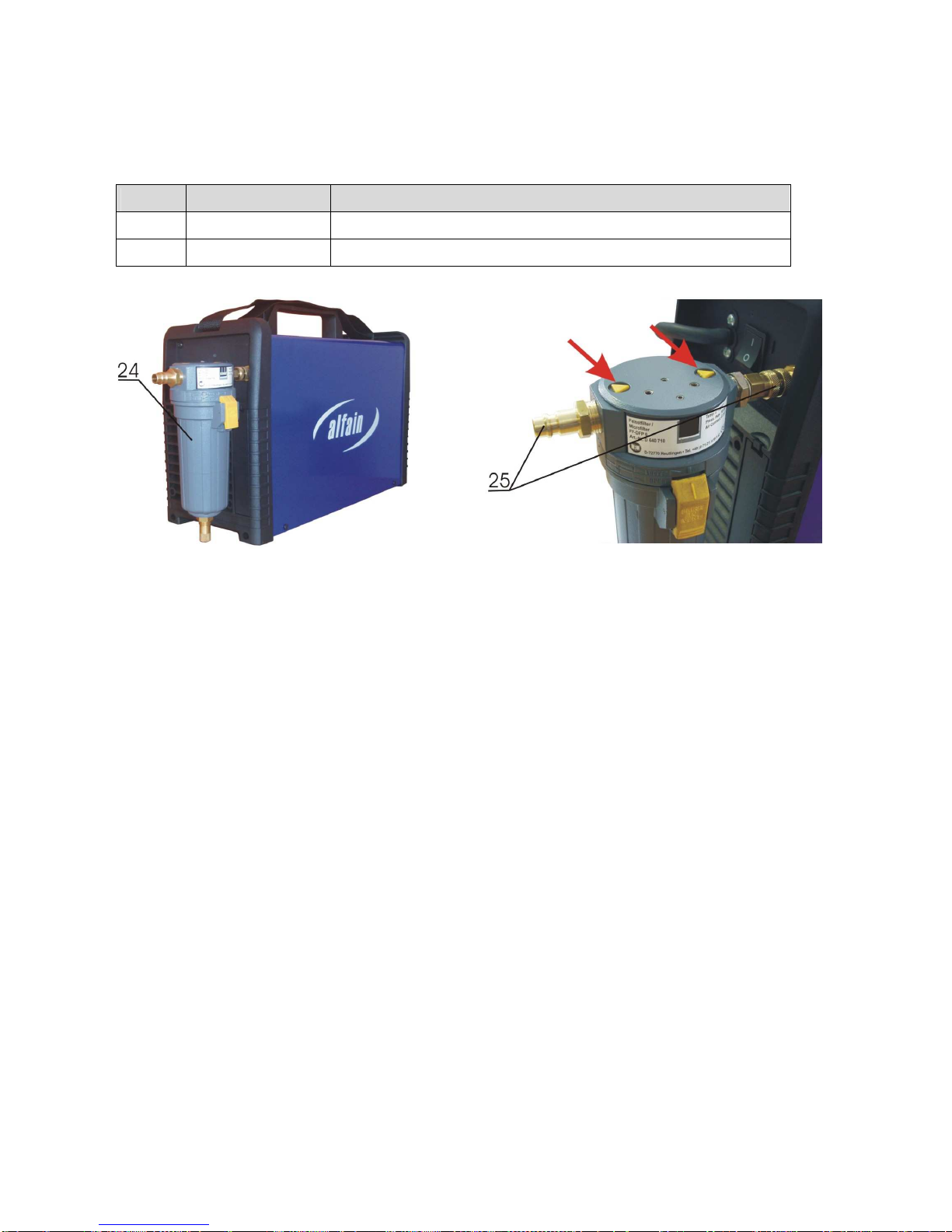

7.3 OPTIONAL AIR FILTERS.................................................................14
7.4 CUTTING..........................................................................................14
7.5 IMPORTANT RULES........................................................................15
7.6 SOURCES OF POOR QUALITY CUTS............................................15
8. MAINTENANCE.....................................................................................16
9. STATEMENT OF WARRANTY ..............................................................17
10. DISPOSAL.............................................................................................18

-3-
ALFA IN a.s © www.alfain.eu3
1. INTRODUCTION
Congratulations on your new ALFA IN product. We are proud to have you as
our customer and will strive to provide you with the best service and reliability
in the industry.
This Operating Manual has been designed to instruct you on the correct use
and operation of your ALFA IN product. Your satisfaction with this product and
its safe operation is our ultimate concern. Therefore please take the time to
read the entire manual, especially the Safety Precautions. They will help you to
avoid potential hazards that may exist when working with this product.
Read and understand this entire Manual and your employer’s safety practices
before installing, operating, or servicing the equipment. While the information
contained in this Manual represents the Manufacturer's best judgement, the
Manufacturer assumes no liability for its use.
Machine PEGAS 40 PLASMA PFC is designed for cutting metal on the basis of
modern technology cutting material through a thin beam plasma gas.
PEGAS 40 PLASMA PFC is equipped by Power Factor Correction (PFC),
which allows operation on single phase voltage networks 110 V – 230 V.
PEGAS 40 PLASMA PFC is designed for high-quality cutting of materials up to
20 mm thick carbon steel (for more information, see instructions
below). Productive cutting of carbon steel can be to a thickness of 12 mm.
At lower demands on the quality of the cut can be cut through (separate) the
material thickness to 25 mm.

-4-
ALFA IN a.s © www.alfain.eu3
2. SAFETY INSTRUCTIONS AND WARNINGS
•OPERATION AND MAINTENANCE OF PLASMA ARC EQUIPMENT CAN
BE DANGEROUS AND HAZARDOUS TO YOURHEALTH.
•Plasma arc cutting produces intense electric and magnetic emissions that
may interfere with the proper function of cardiac pacemakers, hearing aids,
or other electronic health equipment. Persons who work near plasma arc
cutting applications should consult their medical health professional and
the manufacturer of the health equipment to determine whether a hazard
exists.
•Once the packing has been opened, make sure that the machine is not
damaged. If in any doubt, call the service centre.
•This equipment must only be used by qualified personnel.
•During installation, any electric work must only be carried out by trained
personnel.
•The machine must be used in a dry place with good ventilation.
•Make sure that no metal dust can be drawn in by the fan inside the
machine, as this could cause damage to the electronic circuits.
•It is prohibited to connect more than one INVERTER generator in series or
in parallel.
•When installing the machine, follow the local regulations on safety.
•The position of the machine must allow easy access by the operator to the
controls and connectors.
•When the cutting machine is operating, all its covers and doors must be
closed and well fixed.
•Do not expose the cutting machine to direct sunlight or to heavy rain. This
equipment conforms to protection rating IP23S.
•The operator must wear gloves, clothes, shoes, and a helmet or a welder’s
helmet, which protect and are fire-resistant in order to protect him against
electric shock, flashes and sparks from cutting.
•The operator must protect his eyes with safety visor or mask designed for
welding, fitted with standard safety filters. He should also be aware that
during plasma cutting ULTRAVIOLET RADIATION is emitted. Therefore it
is vital that his face is also protected from radiation. Ultraviolet rays
produce the same harmful effect as sun burning on unprotected skin.
•The operator is obliged to warn anyone near the cutting area of the risks
that cutting involves and to arrange to provide adequate protection
equipment.
•Keep all fumes and gases from the breathing area.
•Keep your head out of the fume plume.
•Use an air-supplied respirator if ventilation is not adequate to remove all
fumes and gases.

-5-
ALFA IN a.s © www.alfain.eu3
•The kinds of fumes and gases from the plasma arc depend on the kind of
metal being used, coatings on the metal, and the different processes. You
must be very careful when cutting or welding any metals which may contain
one or more of the following:
Antimony Chromium Mercury
Nickel Cobalt Arsenic
Barium Copper Selenium
Beryllium Lead Silver
Cadmium Manganese Vanadium
•Always read the Material Safety Data Sheets (MSDS) that should be
supplied with the material you are using. These MSDSs will give you the
information regarding the kind and amount of fumes and gases that may be
dangerous to your health.
•It is very important to arrange for sufficient ventilation, especially when
cutting in enclosed spaces. We suggest using suitable fume extractors to
prevent the risk of intoxication by fumes or gas generated by the cutting
process.
•Noise can cause permanent hearing loss. Plasma arc processes can cause
noise levels to exceed safe limits. You must protect your ears from loud
noise to prevent permanent loss of hearing.
•To protect your hearing from loud noise, wear protective ear plugs and/or
ear muffs. Protect others in the workplace.
•Noise levels should be measured to be sure the decibels (sound) do not
exceed safe levels.
•The operator must ensure all flammable materials are removed from the
work area to avoid any risk of fire.
•The operator must NEVER cut containers that have previously contained
petrol, lubricants, gas or similar flammable materials, even if the container
has been empty for a considerable time. THERE IS A VERY HIGH RISK
OF EXPLOSION.
•The operator must be aware of all the special regulations which he needs
to conform to when cutting in enclosed spaces with a high risk of explosion.
•To prevent electric shock, we strongly suggest the following rules:
•Do not work in a damp or humid environment.
•Do not use the machine if its cables are damaged in any way.
•Make sure that the earthing system of the electric equipment is
correctly connected and operational.
•The operator must be insulated from the metal components
connected to the return wire.
•The earthing of the piece being worked could increase the risk of
injury to the operator.
•EN 60974-1 Standard: Open-circuit voltage. During the operation of the
machine, the highest voltage, with which it is possible to come into contact,

-6-
ALFA IN a.s © www.alfain.eu3
is the open-circuit voltage between the clamps. In our generator this
voltage is 380V.
•The maximum open-circuit voltage of the plasma machines is established
by national and international standards (EN 60974-1) depending on the
type of current to be used, on its waveform and on the hazards arising from
the work place. These values are not applicable to the strike currents and
those for stabilisation of the arc that could be above it.
•The open-circuit voltage, for as many adjustments as possible, must never
exceed the values relating to the various cases shown in the following
table:
Case
Working conditions Open-circuit voltage
1 Places with increased risk of
electric shock DC current: 113V peak value AC current: 68V peak value and
48V effective
2 Places without increased risk
of electric shock DC current: 113V peak value AC current: 113V peak value and
80V effective
3 Torches held mechanically
with increased protection for
the operator
DC current: 141V
peak value AC current: 141V peak value and
100V effective
4 Plasma cutting DC current: 500V
peak value
•In case 1, the dc machines with rectifier must be built in such a way that, in
case of a fault developing in the rectifier (for example open circuit, short
circuit or lack of power), the permitted values cannot be exceeded. The
plasma cutting machines of this type can be marked with the symbol:
S
•Before opening the machine switch off the machine and disconnect it from
the power socket.
•Only personnel authorised by this company can carry out maintenance on
the machine.
2.1 ELECTROMAGNETIC COMPATIBILITY (EMC)
•This machine conforms to EN 60974-10 standard. However, the
electromagnetic emissions generated could prove not be compatible with
the maximum permitted levels for some classes of electrical equipment,
such as the following:
•Domestic electronic appliances (radios, TVs, videos, telephones,
burglar alarms, etc.).
•Computers, robots, electro-medical instruments and life-support
systems.
•Radio-television transmitters and receivers.
•Pacemakers and hearing aids.

-7-
ALFA IN a.s © www.alfain.eu3
•All very sensitive electrical equipment.
•The operator is responsible for the installation and use of the cutting
machine. If there should be any fault in operations of other systems located
in the immediate vicinity of the generator, we recommend suspending
operations and consulting the manufacturers.
2.2 PROTECTIVE UTTILITIES
•Welding helmet with filter shade at least 10
•Welding gloves
•Welding apron and cloth
•Welding boots
2.3 RISK OVERVIEW
•Risk of electric shock.
•Ultraviolet light and light radiation
•Risk of inhaling gas fumes and dust particles
•Burns
•Noise
 NOTE 
• It is forbidden to operate a machine with damaged insulation of the
cutting torch or supply cable.
•Never operate the machine taken down or damaged covers.
• It is forbidden to operate the machine in wet environments and outdoors
in rain or snow.
• Ensure proper grounding clamping pliers, which also reduces the risk of
electric shock.
• Use prescribed protective utilities, keep them dry.
• Plasma arc cutting produces intense electric and magnetic emissions
that may interfere with the proper function of cardiac pacemakers,
hearing aids, or other electronic health equipment. Persons who work
near plasma arc cutting applications should consult their medical health
professional and the manufacturer of the health equipment to determine
whether a hazard exists.
• Never aim the torch against the eyes, body or other person.
3. CONDITIONS OF USE
•This equipment must only be used by qualified personnel.
•During installation, any electric work must only be carried out by trained
personnel.
•Do not expose the plasma machine to direct sunlight or to rain or snow.
This equipment conforms to protection rating IP23S.

-8-
ALFA IN a.s © www.alfain.eu3
•Place the machine the way that the cooling air can enter the vents without
restriction to. It is necessary to ensure that no impurities, especially metal
particles, are not drawn into the machine.
•Cutting machine in terms of interference suppression is intended primarily
for industrial premises. In the case of use of other areas may be need for
special measures (see EN 60974-10).
• The machine must be protected against
a) moisture and rain and snow
b) mechanical damage
c) draft and any ventilation of neighbouring machine
d) excessive overloading - crossing technical parameters
e) rough handling
4. TECHNICAL DATA
PEGAS 40 PLASMA PFC Unit
Method Plasma cutting
Mains voltage V/Hz 1 x 110/50-60 1x230/50-60
Mains protection A 20 T 16 T
Max. input power I
1
A 33,7 23,4
Max. effective current I
1eff
A 19,9 14,8
Cutting current range A/V 20/88,0 - 30/92,0
20/88,0 - 40/96,0
Open-circuit voltage U
20
V 380
Cutting current (DC=100%) I
2
/U
2
A/V 20/88 21/88,4
Cutting current (DC=60%) I
2
/U
2
A/V 23/89,2 26/90,4
Cutting current (DC=x%) I
2
/U
2
A/V 35%=30/92 40%=40/96
Max. Productive cutting
thickness - carbon steel mm 8 12
Max. Cutting thickness -
carbon steel mm 15 20
Carbon
steel mm 10 15
Stainless
steel mm 8 12
Aluminium
mm 6 10
Quality cutting
thickenss
Copper mm 3 4
Working pressure bar 5
Max. Input pressure bar 8
Air consumption l/min 119
Arc ignition Contact
Curent regulation Continuous
Insulation class F
Protection IP 23S
Standards EN 60974-1
Dimensions (w x l x h) mm 170x430x270
Weight kg 12,6

-9-
ALFA IN a.s © www.alfain.eu3
5. OPERATOR CONTROLS
5.1 FRONT AND REAR PANELS
Pos. Description
1 LED ON when the machine is switched on by the mains switch
2 LED. If the LED illuminates the thermo-switch is disconnected. In
such a case leave the machine on to cool down. Second warning
is when the mains voltage is over 270 V.
3 Cutting current potentiometer
4 LED Error
1. LED illuminates and the air valve regularly opens and
closes - there is a shortcut among the shield cup and the
cutting tip.
2. LED illuminates and the air valve regularly opens and
closes - the cutting tip and the electrode are not fitted
properly.
3. LED flashes – there is not shield cup or the shield cup is

-10-
ALFA IN a.s © www.alfain.eu3
not fitted properly.
4. LED illuminates – low air pressure
5 LED torch burning – illuminates when the torch trigger is pressed.
On the torch is voltage.
6 Switch CUT – cutting mode/AIR setting the air
7 Torch central connector
8 Work leads with the plagues
9 Mains supply cable
10 ON/OFF switch
11 Air quick connector
12 Storage space for cutting tips or electrodes.
6. ACCESSORIES
6.1 PART OF DELIVERY
•Plasma cutting torch ABICUT45 6 m with cutting tip 0,8 mm and shield cup
35 A.
6.2 ON REQUEST
Pos. Item No Description
V9030038 Earthing cable with clamp 3m 10-25 150A
4314 Quick connector Pegas 160/40
VM0329 Air Supply Adapter PEGAS Plasma
742.D121.1 Circular Cutting Attachment ABICUT 45
24 D640710 Filter for plasma DFP 6 R3/8
25 VM0328 Set for addition filter DFP to plasma
S777a Light Reactive Welding Helmet ALFA IN S777
Circular Cutting
Attachment ABICUT
45
Air Supply Adapter
PEGAS Plasma Quick connector Pegas 160/40

-11-
ALFA IN a.s © www.alfain.eu3
Pos. Item No Description
13 748.0020.1 Torch body ABI25/45
14 748.0053.1 Handle ABI25/45
15 185.0005 Switch ON/OFF
16 748.0032.10 Electrode standard ABI25/45
17 748.0048.10 Electrode Long ABI25/45
18 748.0033.2 Air diffuser ABI25/45
19 748.0034.10 Cutting Tip 0,65 Standard ABI25/45
19 748.0035.10 Cutting Tip 0,8 Standard ABI25/45
19 748.0061.10 Cutting Tip 1,0 Standard ABI25/45
20 748.0049.10 Cutting Tip 0,9 Long ABI25/45
21 748.0042.2 Shield Cup ABI25/45 25A
21 748.0052.2 Shield Cup ABI45 35A
21 748.0043.2 Shield Cup ABI45 45A
22 748.0050.5 Standoff Guide ABI25/45
23 748.0059.1 Multi key ABI25/45
748.0057.1 Cable bundle ABI45
Note – the bold items are equipped on the torch
Recommended starting kit for the Torch:
Pos. Item No Description pc
748.START Starting Kit for ABICUT 45 PEGAS

-12-
ALFA IN a.s © www.alfain.eu3
Content:
16 748.0032.10 Electrode standard ABI25/45 2
17 748.0048.10 Electrode Long ABI25/45 1
19 748.0035.10 Cutting Tip 0,8 Standard ABI25/45 4
19 748.0061.10 Cutting Tip 1,0 Standard ABI25/45 1
20 748.0049.10 Cutting Tip 0,9 Long ABI25/45 2
21 748.0043.2 Shield Cup ABI45 45A 1
22 748.0050.5 Standoff Guide ABI25/45 1
6.3 COMMENTS ON CONSUMABLES
6.3.1 Shield cups
•You can choose from three shield cups. They differ in the number of holes
for compressed air (2; 4 respectively 6 holes). It is appropriate to use
shiled cup 748.0042.2 (25 A) for lower power respectively 748.0052.2 (35
A), cut is better.
•For maximum performance it is necessary to use shield cup 748.0043.2
(45A) with six holes for air.
6.3.2 Long electrode and a long cutting tip
•The combination of Long electrode and Long cutting tip is aimed for cutting
in angles or in spaces where standard electrode cannot reach.
•It is possible to drag the Long cutting tip directly on the cutting material up
to thickness of 5.8 mm without the guiding spring. The Lifetime of the
cutting tip and the electrode is reduced by 30% - 50%.
6.3.3 Standard electrode and standard cutting tips
•It is possible to drag the standard cutting tip directly on the cutting material
up to thickness of 10 mm without the guiding spring. The Lifetime of the
cutting tip and the electrode is reduced by 30% - 50%.
•It is better to use standard cutting tip 748.0034.10 0. (Cutting Tip 0,65
Standard ABI25/45) in combination with standard electrode 748.0032.10
for smaller cut thickness. Cut is narrower, better.
7. GETTING STARTED
7.1 FIRST STEPS
NOTE This equipment must only be used by qualified personnel.
•Before beginning work is necessary to connect the machine to the
mains. (1 x 110-230 V, 50/60 Hz).
•Check completeness of the mounted cutting torch.
•Connect the compressed air quick connector to the connector on the rear
wall of the machine.

-13-
ALFA IN a.s © www.alfain.eu3
•Connect the mains plug to the mains.
•After turning the power switch pos. 10 the LED “ON” pos. 1 must illuminate.
•Connect the work lead cable to the material being cut.
•Check the input pressure. The max. input pressure is 8 bar, the minimal
input pressure is 4 bar.
•Set potentiometer pos 3to the cutting power you need.
•
Fit the torch with appropriate type of cutting tip electrode and shield cup
according to the selected cutting current.
7.2 REQUIREMENTS FOR SOURCE OF COMPRESSED AIR
•Delivered air pressure must be max. 8 bar and min. 4 bar.
•Air consumption 119 l/min
• Compressed air for the plasma must be clean and dry.
• Pressure dew point +3 °C
• Maximum oil content 0.1 mg/m3
• Maximal size of solid particles 15 microns
• The minimal size of an air tank is 50 l
• No additional oiling if the pressure air is permitted. That could damage
the plasma machine and the cutting torch.

-14-
ALFA IN a.s © www.alfain.eu3
7.3 OPTIONAL AIR FILTERS
To achieve high quality cutting and to avoid serious disturbances to the torch it
is highly advised to include the air filter.
Pos. Item No Description
24 D640710 Filter for plasma DFP 6 R3/8
25 VM0328 Set for addition filter DFP to plasma

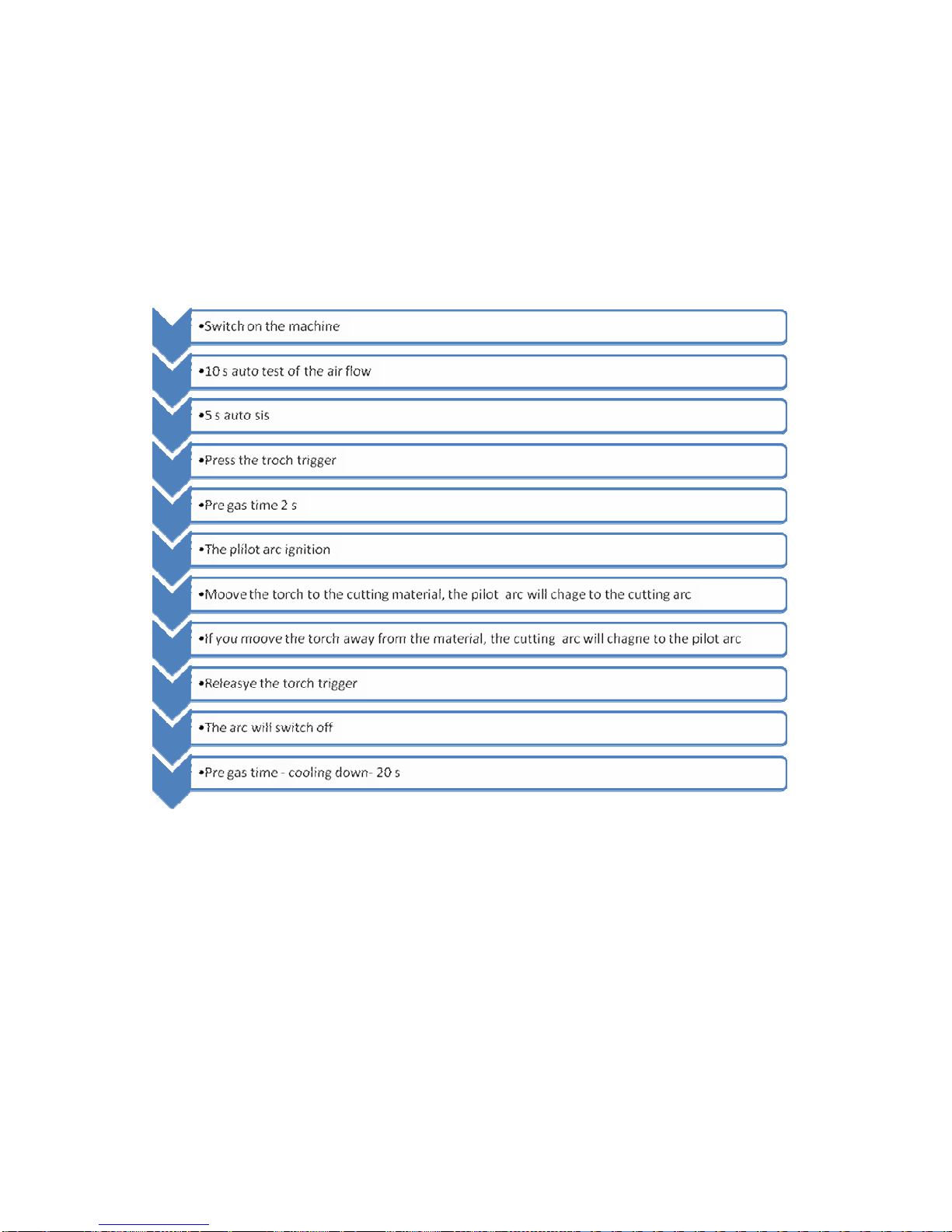

7.4 CUTTING
•Press the torch trigger. The pilot arc will ignite. Then you have to
immediately attach the torch to the cut material. At this point begins to burn
the main arc between the torch and the material.
•Move the torch with a constant speed. Cutting speeds vary according to
torch output amperage, the type of material being cut, and operator skill.
•Output current setting or cutting speeds may be reduced to allow slower
cutting when following a line, or using a template or cutting guide while still
producing cuts of excellent quality
•To achieve a good cutting quality make sure the distance between the tip
and the material is about 2 mm. The Standoff Guide ABI25/45 pos 21
located at the end of the plasma torch guarantees the distance .At a
greater distance decreases cutting power and the arc may go off. With too
small distance the torch parts will be worn off faster.
•Plasma cutting may be done in all possible positions (vertically,
horizontally, overhead, vertical ascending and descending), but as far as
possible choose primarily horizontal cut. In other positions the operator is
increasingly threatened by flying drops of molten material.
•We recommend starting cutting at the edge of the material. If needed to
start from the centre of the material, or to cut hole into the material, slightly
tilt the torch head and gradually it straighten into a vertical position so the
spraying material would not damage the cutting tip (see Figure 3). This
workflow must always be followed, if the thickness of material is above

-15-
ALFA IN a.s © www.alfain.eu3
above 3 mm.
•In case of cutting in the corner or around the corner (see Figure 4), use the
long electrode and cutting tip (pos. 17 and 20). The cutting power while
using the Long cutting tip is decreased.
Fig. 3 Fig. 4
7.5 IMPORTANT RULES
•The pilot arc burning time should be limited only to the time necessary. It
lowers the wear of the cutting tips and electrodes.
•Never turn off the main switch immediately after finishing cutting but always
leave time to run cooling cycle to cool down the torch. Immediate turn-off
only in case of emergency.
• Ensure a good el. Contact of the work lead clamps and cutting material.
•Check and timely exchange cutting tips and the electrodes. Lifetime of
these parts is only a few hours of cutting time and is highly dependent on
compliance with the principles of good cutting.
• Disconnect the machine from the mains before replacing the torch
consumable parts.
• Unplug the machine from the mains before any intervention inside the
machine.
•PEGAS 40 PLASMA PFC is adapted for use with torch ABICUT 45. This
combination comply with EN 60974-7 Article 10.1.4. Using any other
type and design of a torch must be approved by ALFA IN a.s.
•Imperfect capture of condensate would cause its elimination in the area of
the cutting tip and it would prevent ignition of the pilot arc.
7.6 SOURCES OF POOR QUALITY CUTS
7.6.1 Shallow penetration of the cut
•The cutting speed is too high. Make sure the slope of the cutting arc does
not exceed about 15 °(see Figure 5).
•High wear of the cutting tip or electrode (see Figure 6)
•Too large thickness of material and not adequately chosen value of current
and diameter of the cutting tip.
•Bad contact between the work lead clamps and material.

-16-
ALFA IN a.s © www.alfain.eu3
7.6.2
Cutting arc is unstable, goes off and "shoots"
•Worn out cutting tip or electrode
• High pressure
• Impurities in the pressure air
• not captured water condensate
7.6.3 Conical cut
•If there is a false cut (see Figure 7) turn off the machine, release the shield
cup and rotate the cutting tip about 1/4 and again try to cut.
•Damaged cutting tip and electrode
•The position of the torch is not perpendicular to the material
•Too large distance form the cutting tip to the material.
Max 15
o
Fig. 5 Fig.6 Fig.7
8. MAINTENANCE
•A great care should be taken to the cutting torch. The molten material
sprays while cutting. This sputter contaminates the interior space of the
torch. The worn parts (consumables) of a plasma torch should be regularly
maintained and timely exchanged. Regularly check the condition of diffuser
channels (see diagram of the torch). If contaminated, you must clean it with
a pressure air or to replace the diffuser. Poor state of the diffuser has a
negative impact on the quality of cutting and causes very strong
interference that may cause the collapse of the machine control electronics
or influence the surrounding devices. If the cable bundle of the torch is
worn out it must be replaced immediately - danger of electrical shock.
•Disconnect the PEGAS from the mains supply voltage before
disassembling.
•Special maintenance is not necessary for the control unit parts in the
plasma cut machine. If these parts are damaged for any reason,
replacement is recommended.


 CAUTION 


•Do not blow air into the plasma cut during cleaning. Blowing air into the

-17-
ALFA IN a.s © www.alfain.eu3
plasma cut can cause metal particles to interfere with sensitive electronic
components and cause damage to the welder.
•To clean the plasma cut, disconnect it from the mains supply voltage then
open the enclosure and use a vacuum cleaner to remove any accumulated
dirt and dust. The plasma cut should also be wiped clean. If necessary,
solvents that are recommended for cleaning electrical apparatus may be
used.
•Troubleshooting and repairing of PEGAS equipment should only be carried
out only by suitably qualified or competent person.
•A ‘competent person’ must be a person who has acquired through training,
qualification or experience, or a combination of them, the knowledge and
skills enabling that person to safely carry out a risk assessment and repairs
to the electrical equipment in question.
•The person carrying out the servicing needs and repairs must know what to
look at, what to look for and what to do.
9. STATEMENT OF WARRANTY
•In accordance with the warranty periods stated below, ALFA IN guarantees
the proposed product to be free from defects in material or workmanship
when operated in accordance with the written instructions as defined in this
operating manual.
•ALFA IN products are manufactured for use by commercial and industrial
users and trained personnel with experience in the use and maintenance of
electrical welding and cutting equipment.
•ALFA IN will repair or replace, at its discretion, any warranted parts or
components that fail due to defects in material or workmanship within the
warranty period. The warranty period begins on the date of sale to the end
user.
•If warranty is being sought, please contact your ALFA IN product supplier
for the warranty repair procedure.
•ALFA IN warranty will not apply to:
•Equipment that has been modified by any other party other than ALFA
IN’s own service personnel or with prior written consent obtained from
ALFA IN Service Department.
•Equipment that has been used beyond the specifications established in
the operating manual.
•Installation not in accordance with the installation/operating manual.
•Any product that has been subjected to abuse, misuse, negligence or
accident.
•Failure to clean and maintain (including lack of lubrication,
maintenance and protection), the machine as set forth in the operating,
installation or service manual.
•Within this operating manual are details regarding the maintenance

-18-
ALFA IN a.s © www.alfain.eu3
necessary to ensure trouble free operation.


 NOTE 


•Warranty repairs must be performed by either an ALFA IN Service Centre,
an ALFA IN distributor or an Authorised Service Agent approved by the
company ALFA IN.
10. DISPOSAL
Only for EU countries. Do not dispose of electric tools together
with household waste material.
In accordance with European Council Directive 2002/96/EC on
electrical and electronic equipment waste and its
implementation in accordance with national law, electric tools
that have reached the end of their service life must be
collected separately and returned to an environmentally
compatible recycling facility.
