Alien Aero SILVER Series User manual

1
set up instructions
Designed, manufactured and distributed by

2
Follow this step by step guide to complete the installation of your system.
SYSTEM SET-UP
Place your pots in the desired location taking care to place them evenly
and on a level surface. There is enough pipe included in the kit for the
15L pots to be 50-60cm plant centres and 30L pots at 60-75cm centres.
Examples:
15L 16 pot system – 2 x 2m (50cm centres) or max 2.4 x 2.4m (60cm centres).
30L 16 pot system – 2.4 x 2.4m (60cm centres) or max 3 x 3m (75cm centres).
Pipe lengths between pots:
15L - 50cm plant centres = 40cm
15L - 60cm plant centres = 50cm
30L - 60cm plant centres = 50cm
30L - 75cm plant centres = 65cm
5
6
7
12
13
15
16
1
4
to
8
11
to

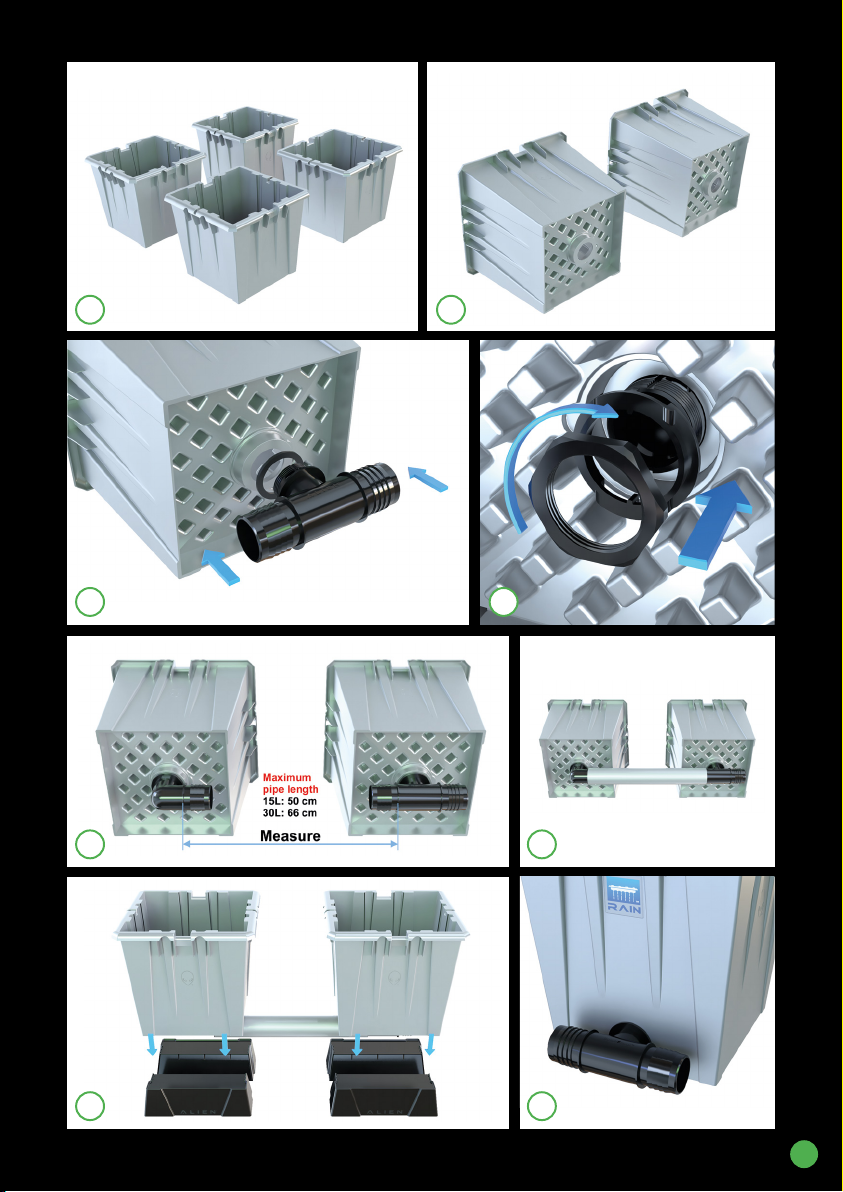

Lay the pots down on their side. Fit the 50mm Dual-Flow™ ttings into
the holes at the bottom of the pots. The rubber washer must be on the
outside. Using the locating slots, slide the collars over the threads then
secure the nut with the spanner provided. Tees are used on all pots
except for the end of line where elbows are used.
Measure the distance between the barbed ttings. Taking note of the
maximum pipe lengths, cut and t the 50mm silver pipe.
Place a pair of stands under each pot.

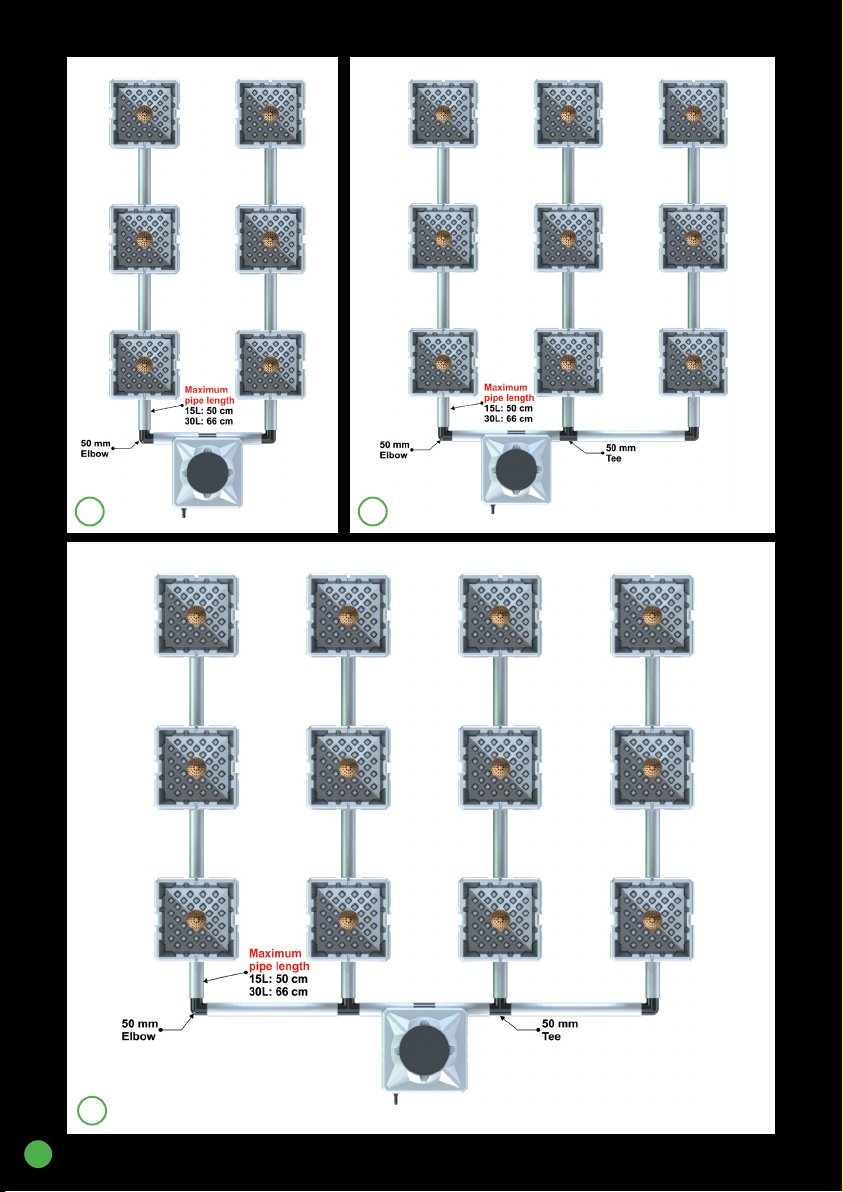

Fit a tee to the header pot. Refer to the bird’s eye images for 2, 3 and 4
row systems. The 48 pot system is a 6 row system. Connect the header
to the pots using 32mm tees & elbows.
Place a drain cover in the bottom of each pot.
The copper drain cover will deter the roots from entering the pipework.
The copper will discolour after a period of time, this is a natural
occurrence. We recommend replacing them after 6 months of use
to maintain the performance.
Push-t the pot clips into the slots on the side of the pots.
Push-t two grommets into each lid and place a lid on every pot.
If you have a 2 row system (4, 6, 8 or 10 pots), the valves with green taps
are screwed directly to the header pot.
For 3, 4 and 6 row systems, screw the valves on to the threaded
tees and elbows as shown. 9, 12, 15, 16 & 18 pot systems use 19mm
threaded tees & elbows, 21 pot systems upwards use 25mm.
14
14a
14b

3
1 2
3
5
7
4
6
8

4
11
109

5
Place the valves as shown and connect them with blue pipe. Use the
smaller size of jubilee clips to secure.
Use silver 16mm pipe to install the reducing tees in line with the lid
clip and attach pieces of 4mm pipe through the slot in the lid clip.
Fit lengths of the 4mm pink pipe to the reducing tee’s, push the
other end through the grommet so 4cm of pipe is showing. This will
avoid water splashing between the pot and lid and also hit the net
pot in the correct place. (We recommend running the system for 60
seconds without the sprinklers to remove any debris present in the
pipes). Push-t the sprinklers when ready. Blue 90° sprinklers are
used on the 15L pots.
The silver 16mm pipe runs the length of the system from the valves
to the last pot. Fit 16mm blanks at the end of each line.
CAMO®Tank
Assemble the tank using the leaet provided. The tank can be
located inside or outside of the grow room. If located outside,
depending on distance, more pipe may be required.
RAIN™ Pump
Fit the blue pipe to the RAIN™ pump and secure with a Jubilee clip.
4 - 18 pot systems use 25mm pipe. 21 pot systems upwards use
40mm pipe. The pump sizes are shown here.
Place the RAIN™ pump at the bottom of the tank and t the
25mm/40mm siphon tee as shown just underneath the lid. Put a
piece of pipe through the hole in the tank lid and t 2 x elbows.
Use hose clips to secure all connections on the blue feed line.
The drain siphon tee is 19mm and is connected in the same way
but without clips. Black 19mm elbows and pipe are used here.
Connect the blue feed line and black drain line to the ttings on the
header. Secure feed line with clips.
Secure the RAIN™ Brain to a wall, away from possible water contact.
Connections to “Power” and “RAIN™ pump” are shown.
Connect the cable from the red drain pump in the header pot to the
ALIEN®adaptor by pushing the connector in and securing the lock
nut. You may have a dierent style of adaptor than the one shown.
This should remain powered 24/7. Whenever the pump senses
water it will engage and drain the header.
27
28
29
31
19
17
18
22
24
to
30
25
32
26
26a
26b
20
21

6
12 13
14 14a 14b
15
17
18
16

7
19 20
24
2322
21

8
25
27
29 30
26
28
26b
26a
31 32
3500lph

9
33 33a 33b
34
35

10
Planting into the system
Put a layer of substrate into the bottom of the net pot level with the
raised grid.
Water the cutting before transplanting. Place the rooted cutting into
the pot and ll the remaining void with substrate.
SYSTEM OPERATION
Filling the system
Use a hose pipe to ll the tank. Add the required amount of
nutrients. After the rst feed, top up the tank as some water will
remain in the system.
The AERO™ system uses the air culture technique in which the plants
roots are suspended in the air. This technique requires feeding little
and often.
RAIN™ Brain
When you select a “Run -Time” position, the RAIN™ pump will
engage. When the selected “Run-Time” expires the system will
remain idle until the next feed cycle which is selected by the
“Frequency”.
Frequency Dial
This is how often you require a feed cycle.
Run-time Dial
This is the amount of time that the RAIN™ pump will run. These
pumps have a high ow rate so the “Run-Time” is normally around
“30-60 seconds”.
A suggested setting for the AERO™ system is 30 seconds on, 30-60
minutes o. If you do not want your plants to be watered at night
you can simply plug the RAIN™ Brain into a segment timer and select
the o period. We advise having one feed in the middle of the “o”
period.
Warning: The ‘ON’ setting should only be used for cleaning
the system. If left on permanently, pots can overll.
