Alinco DJ-500T User manual

■Large, dot-matrix, 3 color-selectable display and keypad
■Semi-Duplex dualband, V/V-U/U and FM broadcast receiver
■200 memory channels, any mix of VHF/UHF
■Internal VOX
■Alphanumeric channel labels
■Direct frequency input from keypad
■Landmobile-grade signaling features
■Variety of scanning modes
■IP54 dust/splash proof, MILSPEC vibration/shock compliant
■Wide and narrow FM TX/RX
■12Vdc input using an optional cigar-socket adapter.
■High power Li-Ion battery pack, stand charger and beltclip included
■Wire cloning capability
Full of advanced features, the DJ-500 offers landmobile-grade operation
and powerful 5W output. CTCSS, DTMF, DCS and 5-tones are standard,
along with a variety of tone bursts for repeater access or selective calling.
Convenience features include direct frequency input, alphanumeric
channel labels and 200 memory channels that can each store operating
parameters.
A Li-Ion battery pack and a stand charger are standard, adding power and
convenience. The DJ-500 looks simple, but remember, looks can be
deceiving! The DJ-500 places one of the world's most advanced
transceivers at your command, at ALINCO's affordable price!
Amazing high performance,
compact size, and full featured!
orange
sakura(cherry) white
DJ-500T/E
144/430MHz FM Dualband Handheld Transceiver

Authorized Dealer:
DJ-500
T:
E:
- 60dB or less

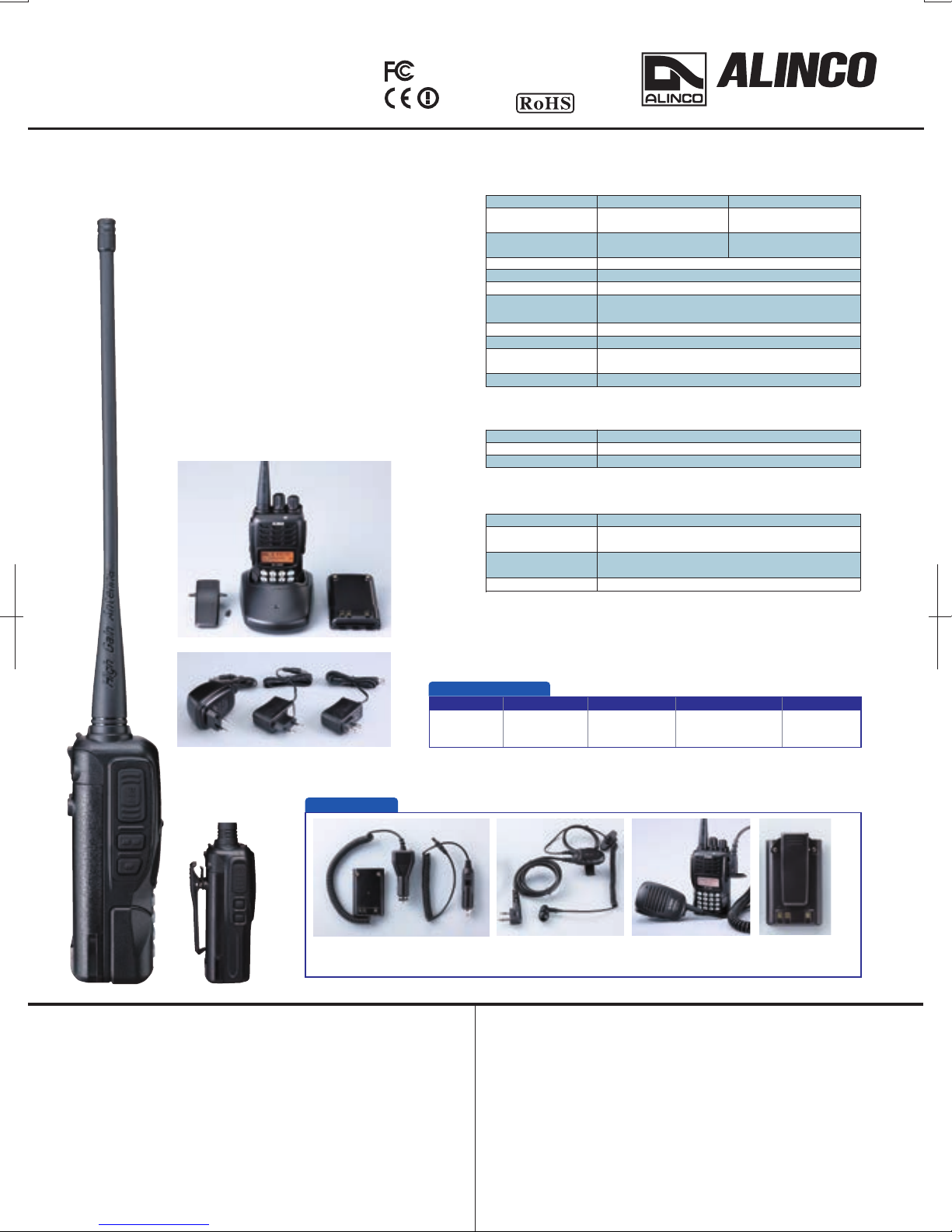

StandardAccessories
Specifications subject to change without notice or obligation.
Product intended for use by properly authorized operators.
Reception out of Ham Radio bands is considered an accessory feature.
Weight
Dimensions
(Projections not included/approx.)
Channel step
Usable temperature range
Current drain (Approx.)
Power supply requirement
Frequency stability
Modulation
RX Frequency Coverage
(76-108MHz included)
TX Frequency Coverage
136-174MHz
400-480MHz
144-146MHz
430-440MHz
144-148MHz
420-450MHz
144-146MHz
430-440MHz
GENERAL
DJ-500T DJ-500E
Spurious emission
Frequency Deviation
Output Power (Approx)
TRANSMITTER
Audio output power
Selectivity
Sensitivity
(12dB SINAD Wide/Narrow)
Receiver System
RECEIVER
Specifications
Advanced Features
■Landmobile-grade signaling features
Including DTMF,CTCSS,DCS,5-tone,Tone-burst tones
with Talk-around, Reverse, BCLO, TOT and more!
■Variety of scanning modes
including Programmed, CTCSS/DCS tone, VFO, FM
broadcast and Memory with skip feature.
■Flexible Power Options
Use the standard Li-Ion battery pack or an optional
mobile DC cable EDH-40 for continuous 12Vdc
operation. The battery pack is rechargeable using
12Vdc through an optional EDC-198 cable and a
standard charger.
INCORPORATED
MIL-STD-810GCompliant
-Shock:Method514.6/I,IV
-Vibration:Method516.6/I
IC
144/430MHz FM Dualband Handheld Transceiver
FNFNEEEF-PE
Ver.1.0DJ500
PrintedinJapan
ALINCO, INC. Electronics Division
Yodoyabashi Dai-Bldg 13F, 4-4-9 Koraibashi,
Chuo-ku, Osaka 541-0043 Japan
Phone: 06-7636−2362 Fax: 06-6208−3802
http://www.ALINCO.com
E-mail: [email protected]
CopyrightAlinco,Inc.,Osaka,Japan.Allrightsreserved.AlthoughAlincohasdesignedthis
brochuretobeasaccurateandcomprehensiveaspossible,wereservetherighttomake
changesatanytimetoourequipmentline,optionalaccessories,specifications,standard
accessories,oravailabilityofanysuchdeviceswemanufactureanddistribute.Pleasenote
thatcertainproductsandaccessoriesmaynotbeavailableinallcountriesofdistribution
thereforeconsultyourAuthorizedAlincoDealerforproductavailabilityandpricing.
Specificationsapplyonlytohambandsunlessotherwisespecified.Colorsofimagesherein
mayappearslightlydifferentfromactualproductsduetoprint.
＊Projectionsarenotincludedinthedeclareddimensionvalues.
＊FCCandCElogosinthisbrochuremeanthattheseproductshavebeenapprovedunderthe
amateur-radiocategoryofrelativeconformityunlessotherwisespecified.
Approx.5 / 2.5 / 1W
−6dB : Wide 12kHz /Narrow 10kHz or more
−60dB :Wide 30kHz / Narrow 24kHz or less
Wide-12dBu/Narrwo-9dBu
Direct conversion
approx.227g or 8.01oz inclusive of battery pack and antenna
59.0W×98.0H×35.0D mm or 2.32W×3.86H×1.38D inches
−20〜+55℃(-4〜131°F)
1400mA TX / 300mA receive at Max audio output
70mA squelched
±2.5ppm
7.4V (Battery)
EA-228
※VoidsIP54ingressprotectionwhenEME-56Aand/orEDH-40areinuse.
RapidChargerStand
Whipantenna
●EarphoneMicrophone
(EME-56A)
●SpeakerMicrophone
(EMS-76)
●Li-ionBatteryPack
DC7.4V1700mAh
(EBP-88)
Beltclipnotincluded.
ACAdapter BeltClip
(Astrapisincluded)
StandardAccessories
Standardaccessoriesdeclaredhereinareourfactorydefaultandmayvaryatmomentofsalesdepending
onthemarketandDealers'salespolicy.
Li-ionBatteryPack
EDC-189 EBC-34
●MobileDCchargingcable(EDC-198)
●MobileDCcable(EDH-40)
Options
EBP-87
7.4V1500mAh
EDC-190E (220VLinear)
EDC-191E (220V)
EDC-191T (120V)
F3E(16K0F3E / 11K0F3E / RX only WFM)
2.5, 5, 6.25, 8.33, 10, 12.5, 20, 25, 30 and 50 KHz
±5kHz / ±2.5kHz
1W (10% distortion)
