All In 1 Gaming Pro Series User manual

Pro Series
Phantom SE
Assembly Instructions
Our Support Team is here for you.
Feel free to reach out to us and we will be happy to help.
Email Web Chat Messenger
Skype
Address : [email protected]
WhatsApp

Unboxing
■Open every box first. Each group or section of the whole of a whole was seperatley packed.
■Consider placing the flattened cardboard boxes on the floor under your components to prevent
them from getting scratched during assembly.
■As you discard the packaging, be careful to not accidentally throw a part away. Please recycle as
much as possible.
Tips
■ You can slide T-nuts in from the end of an extrusion or insert them anywhere along the
length of the extrusion–no need to dismantle to insert a T-nut.
■ T-nuts work similarly regardless of their orientation. No need to orient them in the same
direction inside the T-slot.
■ Tighten fasteners with your fingers first and leave them slightly loose until you've
finished assembling a sub-section. Once you've completely assembled your machine (or
a sub-assembly), tighten it all up.
Corner Bracket
s

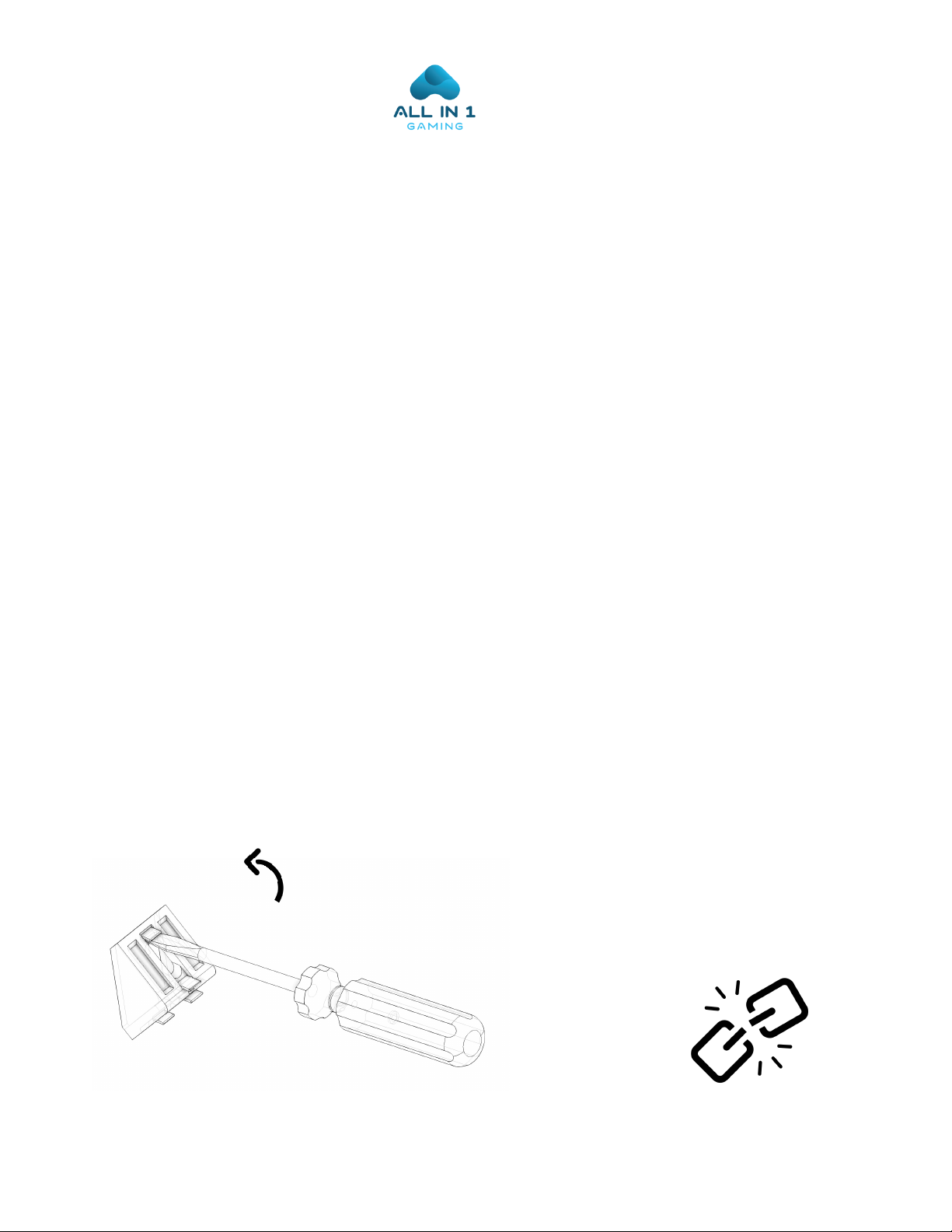

Tabs on the corner brackets may need to be removed if they are perpendicular to the extrusion they are
placed on. In this case they won't lie flatly on the extrusion. This can be done by placing a flathead
screwdriver behind the tab and tilt upwards away from your body.
The assembly instructions will show the
bottom break tab symbol on the
appropriate steps where tabs need ot
be broken off.

Long Profile
2 x
Repeat for remaining positions
spreader profile
1515 Corner Bracket
16x
8 x
16mm Bolt
16x
2x x
M8 T-Nut
Spreader Profile
Step 1: Base Assembly Phantom SE Assembly Instructions
3
spreader profile
long profile
long profile

16mm Bolt M8 T-Nut
4 x 4 x 4 x
Rubber Feet
Step 2: Feet Assembly Phantom SE Assembly Instructions
3

M8 T-Nut
12 x 12 x
Please flip unit over to complete assembly.
4444 x x x x
BasePlate
4444 x x x x
Leveling Foot
Step 2a:Optional Base Plate Assembly Phantom SE Assembly Instructions
3
20mm Bolt M12 Nut
8x x

Wheel Uprights
2 x
Repeat for remaining sides
1.5x3 Corner Brackets
16 x
20mm M8 Bolt
16x
T-Nuts
Step 3: Upright Assembly Phantom SE Assembly Instructions
3
2 x

Corner Bracket
1 x
1 x
4 x 8x
16mm M8 Bolt
8x
M8 T-Nut
Side Mount Upright
Side Mount
Step 4: Side Shifter Assembly Phantom SE Assembly Instructions
3

2 x
DELUXE SIDE MOUNT
DELUXE SIDE MOUNT
Cross Profiles Croner Bracket
8 x
4 x
M8 T-nut
8 x
Repeat step 1 for the remaining 4 brackets. Add 4 t-
nuts into the slots of the 180mm profiles to match
with the hole locations of your shifter (or other).
WITH SHIFTER PLATE
2 x
2 x
16mm M8 Bolt
Step 4a: optional Phantom SE Assembly Instructions
3

1 x 1 x 8 x
Side Mount Right Front Wheel Mount 30mm M8 Flathead Bolt
4 x 4 x
Side Mount Left
1 x
1515 Bracket
M8 Nut
Step 5a: Front Wheel Mount Phantom SE Assembly Instructions
3

30mm M8 Flathead Bolt
8 x
M8 Nut
8 x
Side Mount Right Side Mount Left
Wheel Deck Mount
1 x 1 x 1 x
1515 Bracket
4 x
Step 5b: Wheel Deck Mount Phantom SE Assembly Instructions
3

1 x
Right Side
Wheel Mount
25mm M8
Flathead Bolt
8 x
Left Side
Wheel Mount
1 x 1 x 1 x
Right Fanatec
Mount
Left Fanatec
Mount
Fanatec
Profile
2 x
do step 3 after 1 /2 om the following page
Step 5c: Fanatec Wheel Mount Phantom SE Assembly Instructions
3
for Fanatec DD1/DD2 only:
Use 4 x M8 Washers (spacers) on top and bottom and tighten.
M8 Washer

20mm M8 Bolt
8 x
M8 T-Nut
8 x
Step 6: Wheel Side Mount Phantom SE Assembly Instructions
3

Seat Rails 16mm M8 Bolt
12 x
M8 T-Nut
12 x
Corner Bracket
4 x
2 x
Optional -With Undermount Seating Kit
Step 7: Seat Rail Assembly Phantom SE Assembly Instructions
3
Repeat for 3 remaining corners

Pedal Spreader Pedal Side
2 x
M8 T-Nut
8 x
Corner Bracket
14 x
2 x
16mm M8 Bolt
14 x
Repeat for other
corners
Add the bracket to both sides
and leave slightly loose
Pedal Spreader
Pedal Spreader
Pedal Side
Pedal Side
Step 8a: SE Pedal Assembly Phantom SE Assembly Instructions
3

16mm M8 Bolt
6x
M8 T-Nut
6 x
Corner Bracket
4 x
Repeat for other side
Leave slightly loose.
Pedal Upright
2 x
Step 8b: SE Pedal Assmebly Phantom SE Assembly Instructions
3

16mm M8 Bolt
4 x
M8 T-Nut
4 x
Connect both sides, leave loose, adjust to desired angle and tighten
Step 8c: SE Pedal Assembly Phantom SE Assembly Instructions
3
