ALLEN & HEATH ZED-10 Technical manual

ALLEN&HEATH Issue 1 1
Copyright © 2011 Allen & Heath Limited. All rights reserved
Allen & Heath Limited
Kernick Industrial Estate, Penryn, Cornwall, TR10 9LU, UK
ALLEN&HEATH
Technical document
ZED 10 / ZED10FX
Retrospective FX MUTE Footswitch
Modification
ALLEN&HEATH Issue 1 2
Addition of effects footswitch to ZED 10FX
With this modification:
Connecting a footswitch to the FX OUT jack will mute the effects signal when the switch is closed.
The FX OUT jack can still be used as a pre effects feed as before.
Instructions for modification
Remove 6 crosshead front panel screws plus 3 underside and 3 rear panel torx screws
Lift front panel up from back and slide out forwards CAUTION: Do not stress connecting wire
Remove 2 screws securing effects PCB and remove PCB (See below).
ALLEN&HEATH Issue 1 3
Remove knobs, nuts and torx screws from USB + Master channels.
Unplug bus wire and remove both PCBs
On USB PCB replace C23 with a 470R 1/4w through hole resistor (See below)
ALLEN&HEATH Issue 1 4
On Master PCB replace R1 with a 0R 0805 SMT resistor (or wire link).
To assemble reverse above procedure.

Other manuals for ZED-10

2

This manual suits for next models

1

Other ALLEN & HEATH Dj Equipment manuals

ALLEN & HEATH XONE:96 User manual

ALLEN & HEATH

ALLEN & HEATH XONE:96 User manual

ALLEN & HEATH SYS-LINK W312/16-SLV2 Kit User manual

ALLEN & HEATH

ALLEN & HEATH SYS-LINK W312/16-SLV2 Kit User manual

ALLEN & HEATH SYS-LINK W31442-SLV2 Kit User manual

ALLEN & HEATH

ALLEN & HEATH SYS-LINK W31442-SLV2 Kit User manual

ALLEN & HEATH XONE:DB2 User manual

ALLEN & HEATH

ALLEN & HEATH XONE:DB2 User manual

ALLEN & HEATH ML5000 User manual

ALLEN & HEATH

ALLEN & HEATH ML5000 User manual

ALLEN & HEATH XONE:62 User manual

ALLEN & HEATH

ALLEN & HEATH XONE:62 User manual

ALLEN & HEATH dLive CTi1500 User manual

ALLEN & HEATH

ALLEN & HEATH dLive CTi1500 User manual

ALLEN & HEATH Olive S3000 User manual

ALLEN & HEATH

ALLEN & HEATH Olive S3000 User manual

ALLEN & HEATH XONE:4D User manual

ALLEN & HEATH

ALLEN & HEATH XONE:4D User manual

ALLEN & HEATH XONE:K1 User manual

ALLEN & HEATH

ALLEN & HEATH XONE:K1 User manual

ALLEN & HEATH XONE:DB2 User manual

ALLEN & HEATH

ALLEN & HEATH XONE:DB2 User manual

ALLEN & HEATH iDR-8 Quick start guide

ALLEN & HEATH

ALLEN & HEATH iDR-8 Quick start guide

ALLEN & HEATH ICON DP1000 User manual

ALLEN & HEATH

ALLEN & HEATH ICON DP1000 User manual

ALLEN & HEATH ML4000 User manual

ALLEN & HEATH

ALLEN & HEATH ML4000 User manual

ALLEN & HEATH XONE:K1 User manual

ALLEN & HEATH

ALLEN & HEATH XONE:K1 User manual

ALLEN & HEATH XONE:43C User manual

ALLEN & HEATH

ALLEN & HEATH XONE:43C User manual

ALLEN & HEATH XONE:96 User manual

ALLEN & HEATH

ALLEN & HEATH XONE:96 User manual

ALLEN & HEATH XONE: PB User manual

ALLEN & HEATH

ALLEN & HEATH XONE: PB User manual

ALLEN & HEATH ZED 420 User manual

ALLEN & HEATH

ALLEN & HEATH ZED 420 User manual

ALLEN & HEATH ML4000 User manual

ALLEN & HEATH

ALLEN & HEATH ML4000 User manual

ALLEN & HEATH XONE:96 User manual

ALLEN & HEATH

ALLEN & HEATH XONE:96 User manual

ALLEN & HEATH ML4000 User manual

ALLEN & HEATH

ALLEN & HEATH ML4000 User manual

ALLEN & HEATH XONE:96 User manual

ALLEN & HEATH

ALLEN & HEATH XONE:96 User manual

ALLEN & HEATH dLive C1500 User manual

ALLEN & HEATH

ALLEN & HEATH dLive C1500 User manual

Popular Dj Equipment manuals by other brands

Microh LED PROFILE 120CW user manual

Microh

Microh LED PROFILE 120CW user manual

Chauvet COLORado 1 VW user manual

Chauvet

Chauvet COLORado 1 VW user manual

American DJ Tempest 575H User instructions

American DJ

American DJ Tempest 575H User instructions

ADJ Mega GO Bar 50 RGBA instruction manual

ADJ

ADJ Mega GO Bar 50 RGBA instruction manual

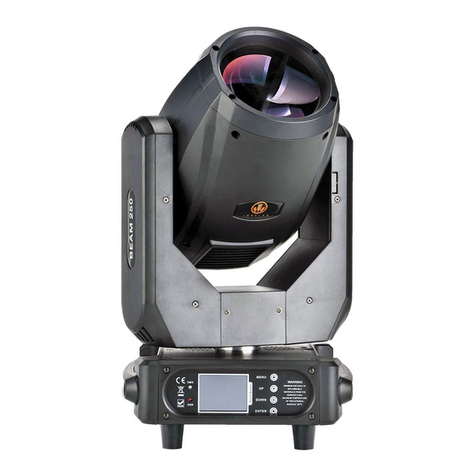

IMRELAX IM-MH250 user manual

IMRELAX

IMRELAX IM-MH250 user manual

PIONEER DJ rekordbox XDJ Series Connection guide

PIONEER DJ

PIONEER DJ rekordbox XDJ Series Connection guide

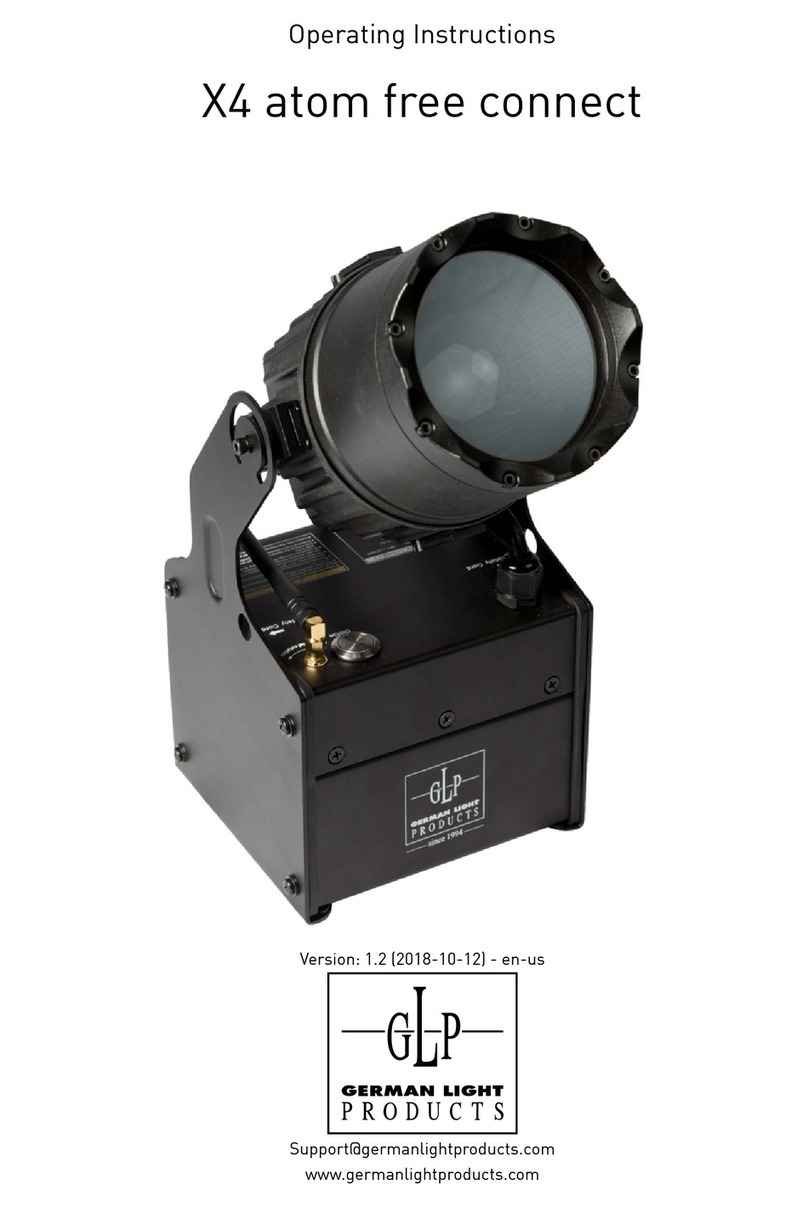

German Light Products X4 atom free connect operating instructions

German Light Products

German Light Products X4 atom free connect operating instructions

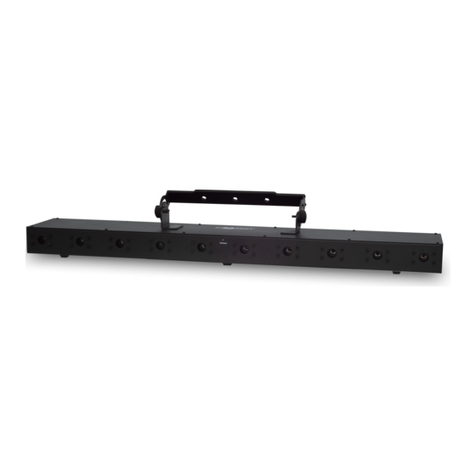

Laserworld BeamBar Series manual

Laserworld

Laserworld BeamBar Series manual

LOTRONIC LAS1000RGB-5IN1 user manual

LOTRONIC

LOTRONIC LAS1000RGB-5IN1 user manual

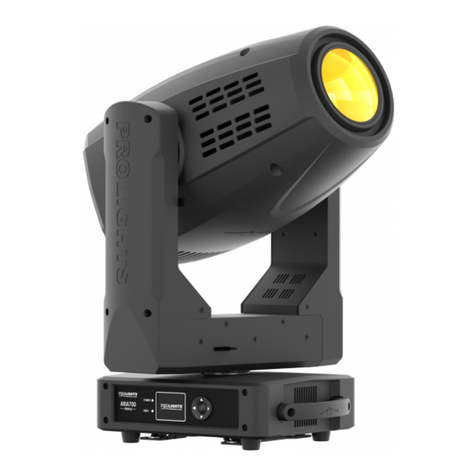

ProLights ARIA 700SPOT user manual

ProLights

ProLights ARIA 700SPOT user manual

Cameo CLP64RGBWAU10WBS user manual

Cameo

Cameo CLP64RGBWAU10WBS user manual

Gamma Led Vision Starburst Versa user manual

Gamma Led Vision

Gamma Led Vision Starburst Versa user manual

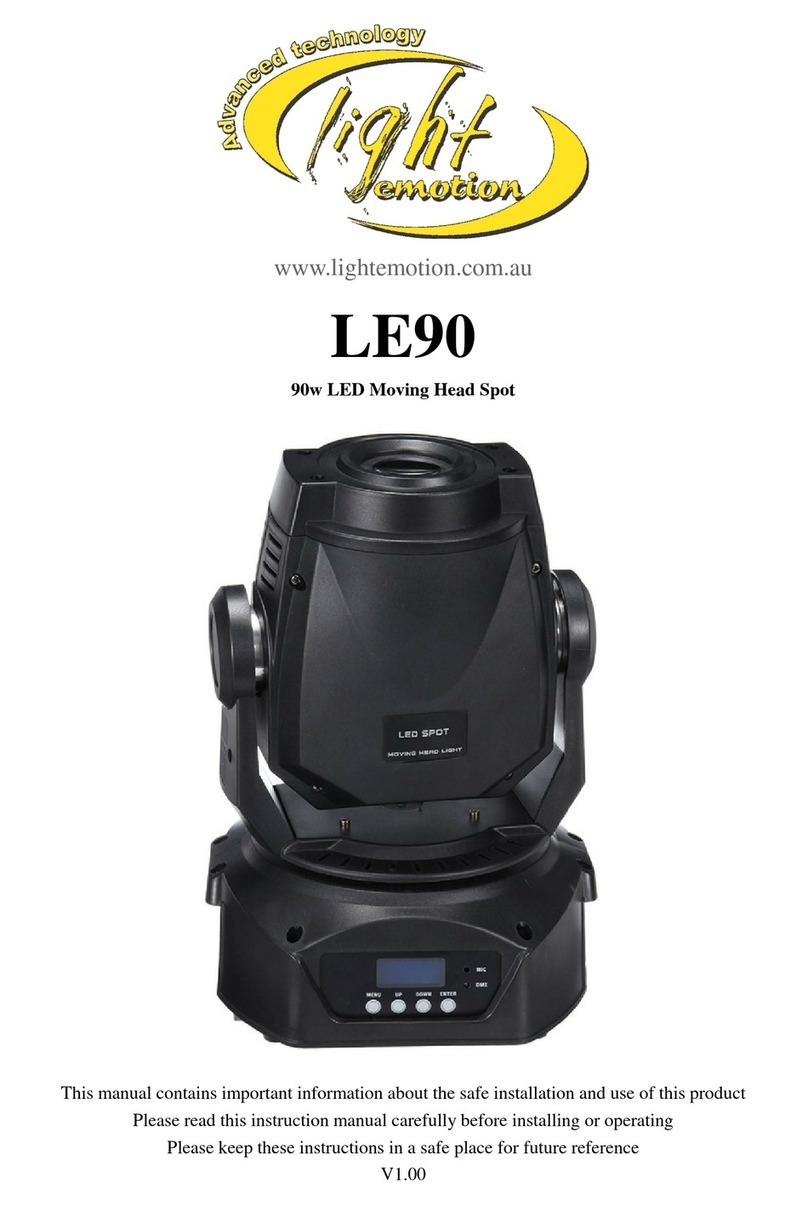

Light Emotion LE90 manual

Light Emotion

Light Emotion LE90 manual

Guest 501 Installation and operation instructions

Guest

Guest 501 Installation and operation instructions

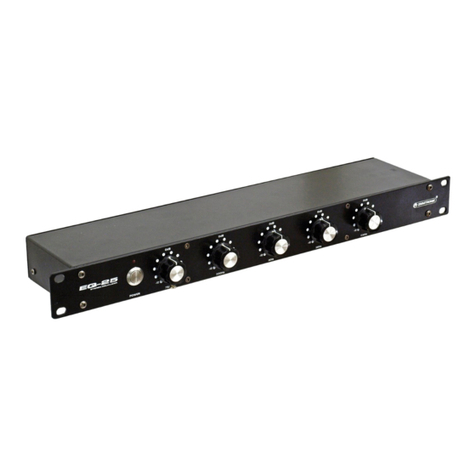

Omnitronic EQ-25 user manual

Omnitronic

Omnitronic EQ-25 user manual

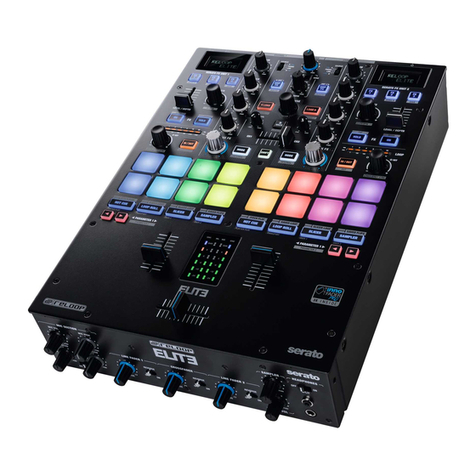

Serato Reloop Elite quick start guide

Serato

Serato Reloop Elite quick start guide

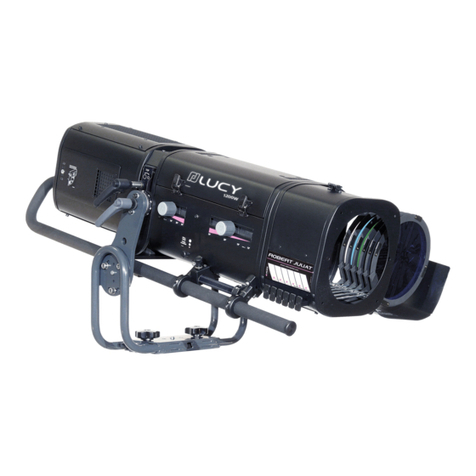

Robert Juliat Lucy Series Technical file

Robert Juliat

Robert Juliat Lucy Series Technical file

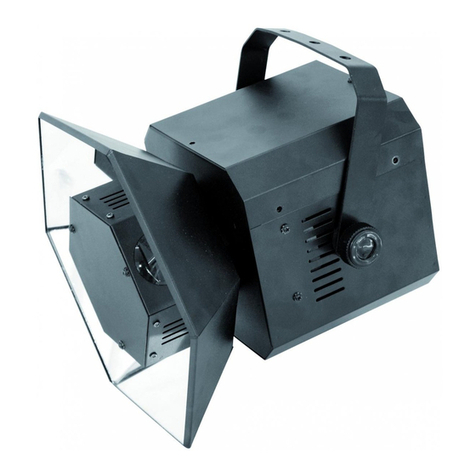

EuroLite LED BR-100 user manual
