allen MSP475 User manual

PARTS &
DECALS MANUAL
Manual Part #: 069599P | Revision: B
Language: English | Original Instructions
RIDING TROWEL
MSP475

For information regarding the following, please see the “MSP475- Safety & Operator Manual”
• Warranty Information
• Dealer Information
• How to identify the Model / Serial Numbers on the machine
• Engine Detail
069599PPage 2

PARTS & DECAL MANUAL
This manual covers the products listed below:
Part No. Description
067405 MSP475, 8ft, Kubota 57HP, Gas, Hydraulic Steering
HDX605 RiDing TRowelMSP475 RiDing TRowel
069599P Page 3

069599PPage 4
Sect No. Title Page
1.0 Parts ..................................................... 5
Seat Frame Assembly .................................................. 8
Lower Unit Assembly.................................................. 10

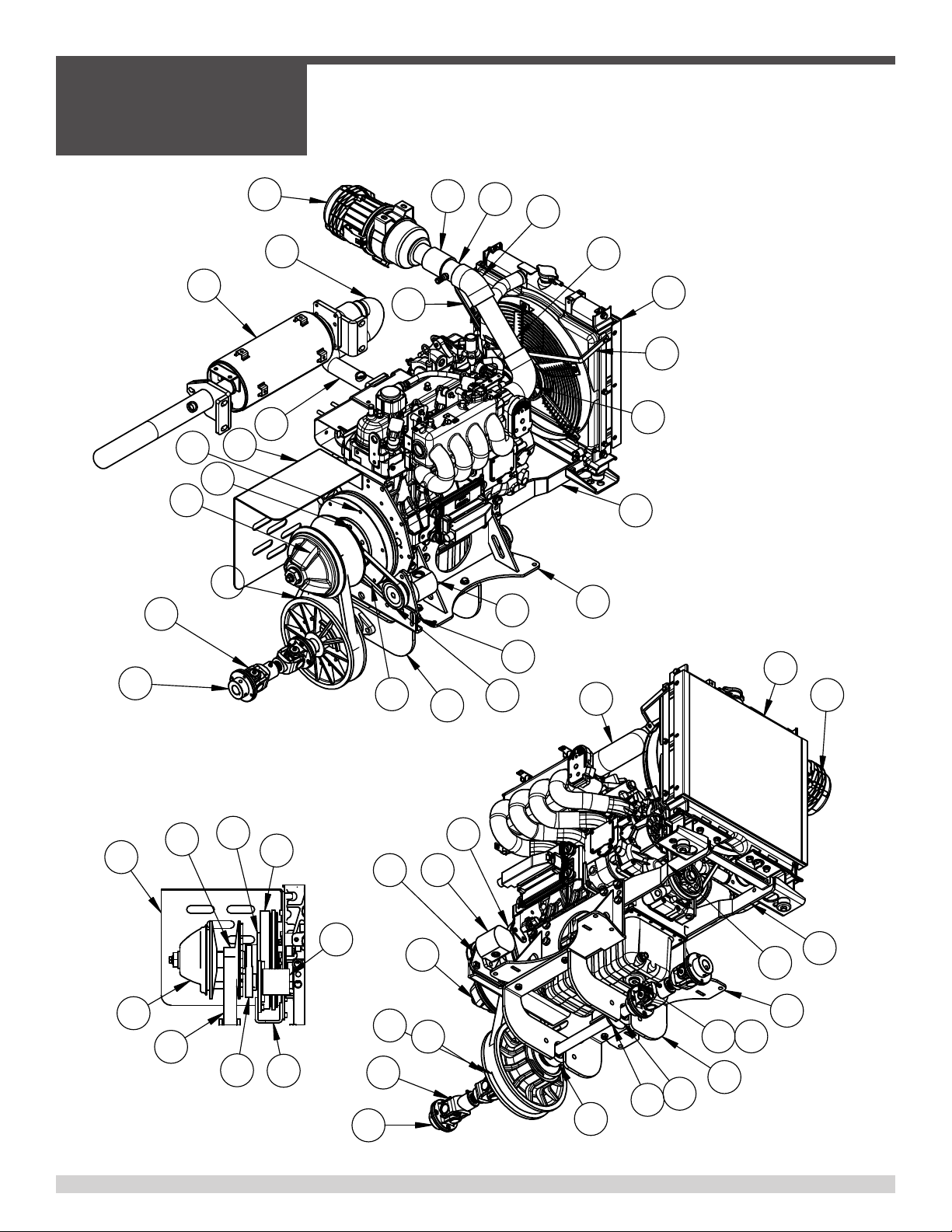

Engine Assembly..................................................... 12

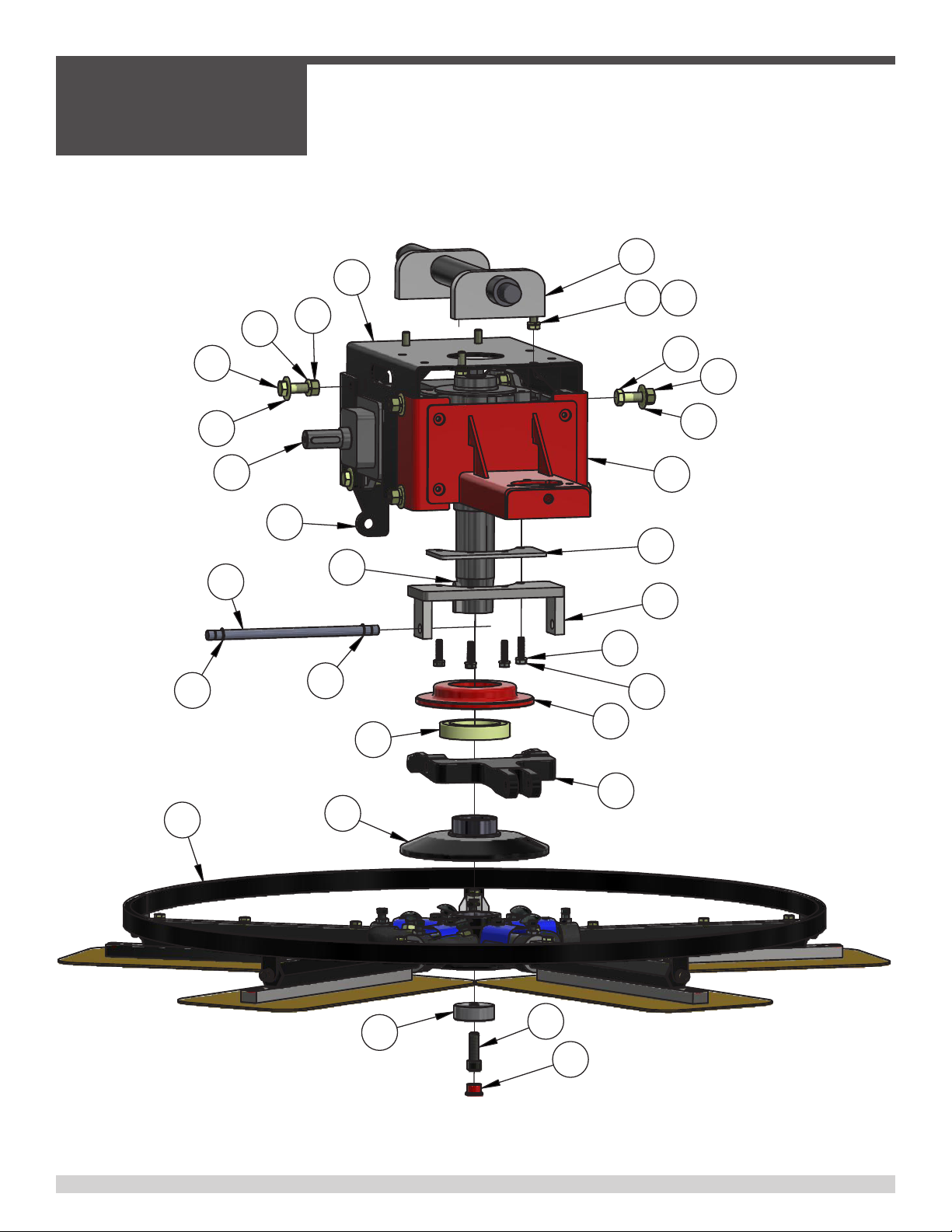

Rotor Assembly - Left Hand............................................. 14
Rotor Assembly - Right Hand............................................ 16
Lower Rotor Assembly - Left Hand ....................................... 18
Lower Rotor Assembly - Right Hand ...................................... 19
Spider Assembly - Left Hand............................................ 20
Spider Assembly - Right Hand........................................... 21
Hydraulic Steering Schematic ........................................... 22
Hydraulic Component Kit ............................................... 23
Hydraulic Fitting Kit / Hose Kit ........................................... 24
2.0 Decals................................................... 25
Front .............................................................. 26
Rear .............................................................. 27
Top ............................................................... 28
Left/Right .......................................................... 29
Revision Detail. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Copyright Information ................................................. 31
Table of Contents

SECTION 1
PARTS
SECTION 1
PARTS
069599P Page 5

This section contains the illustrated drawings and parts list for help in identifying and/or ordering replacement parts for
your machine. Follow the instructions in the front section of this manual “Ordering Parts” when ordering replacement
parts to ensure prompt and accurate delivery.
All set screws have blue (LOC-TITE™) applied at the
factory. If set screw is removed or loosened for any
reason re-apply blue (LOC-TITE™).
All grease fittings are capped with CAP PLUG GC-5
(AEC PN 015692) to protect the fitting. If cap becomes
missing or damaged replace it as soon as possible.
Anti-Seize is applied at the factory to all drive line coupling,
gear box main and counter shafts and pitch control threaded
rod assemblies. If these parts are disassembled re-apply a light
coat of a graphite based anti-seize.
Factory Service Information
SECTION 1
PARTS
069599PPage 6

ALL REFERENCES MADE TO LEFT/RIGHT SIDES IN THIS MANUAL ARE SITTING ON MACHINE (SOM)
[i.e. Left / Right are in reference from a sitting position on the machine]
We recommend AEC quality replacement parts, available from the AEC Customer Service Department or your nearest AEC
Dealer.
Part numbers are subject to change without notice. Part numbers might be different outside of the United States of
America. Use part numbers listed in the applicable parts list table when you place your order. If a part number changes,
the AEC Customer Service Department or your nearest AEC dealer will have the latest part number for the replacement
part.
Remember when you order replacement parts, you will need your MODEL NUMBER and SERIAL NUMBER. These are the
numbers that you have recorded in the UNIT ID section of the “Safety and Operations Manual” or by looking on the unit
Identification Plate. Please order replacement parts by the appropriate part number, not the item number.
This manual contains an illustrated parts list for help in ordering replacement parts for your machine. Follow the
instructions below when ordering parts to ensure prompt and accurate delivery:
1. All orders for service parts - include the serial number for the machine. Shipment will be delayed if this information
is not available.
2. Include correct description and part number
3. Specify exact shipping instructions, including the preferred routing and complete destination address.
4. DO NOT return parts to AEC without receiving written authorization from AEC. All authorized returns must be shipped
pre-paid.
5. When placing an order, please contact the AEC Dealer nearest you.
All information, specifications, and illustrations in this manual are sub-
ject to change without notice and are based on the latest information at
the time of publication.
Replacement Part Procedure SECTION 1
PARTS
069599P Page 7

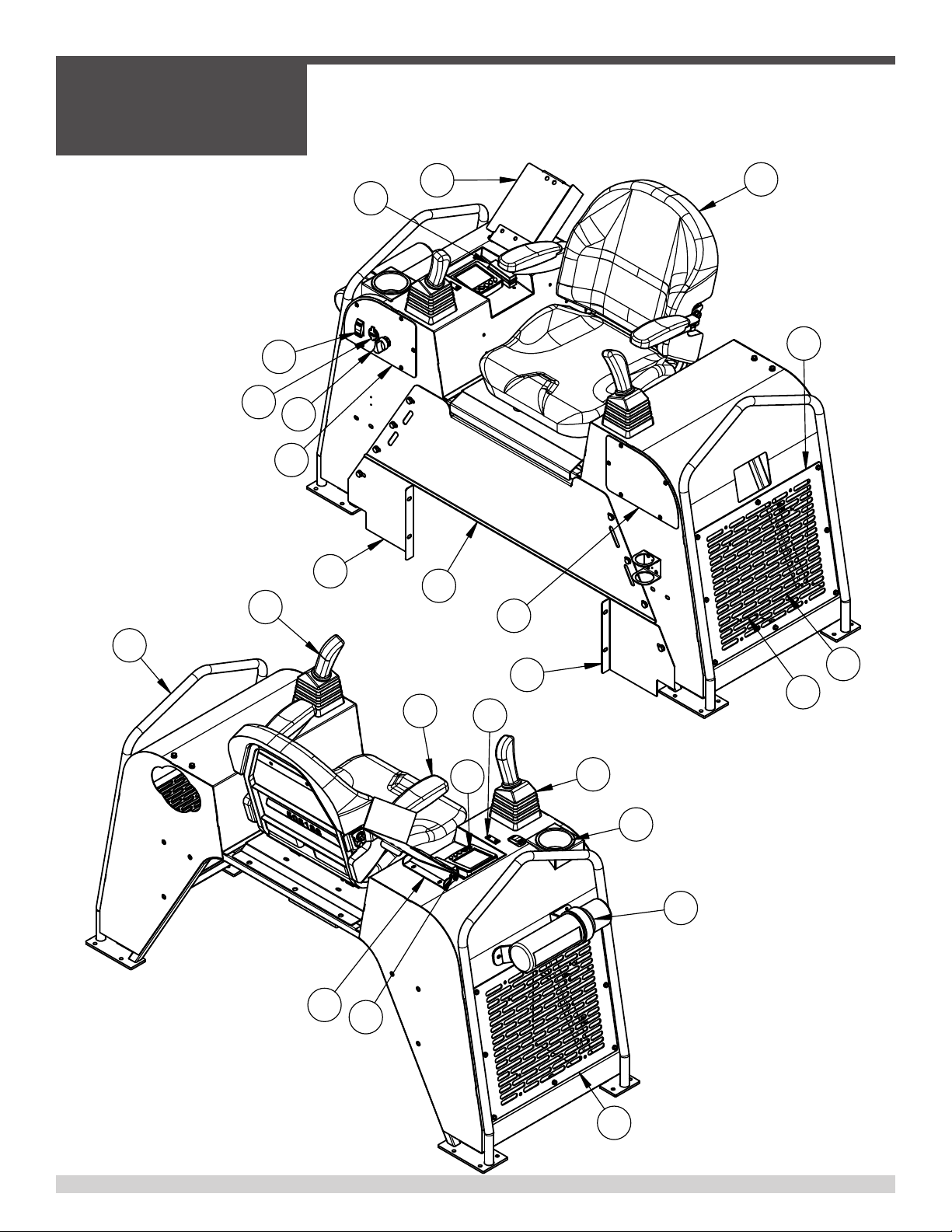

Seat Frame Assembly
PARTS LIST
U/MQTYDESCRIPTIONPART NO.ITEM
2ROCKER SWITCH0321251
1BLOCK, 200B/150B 8-WAY FUSE0389652
1CUP HOLDER0415373
1
JOYSTICK, RH
0467364
1
JOYSTICK, LH
0467375
1
SEAT PROP
0532116
1MAGNETIC LATCH056920
7
2FAN COVER0608858
1MURPHY CONTROLLER, PV380 VER20662279
1COVER, RH06623410
1COVER, LH06623511
1MANUAL TUBE06625512
1
BRKT F/ CONTROLLER CONNECTIONS HDX605
06767613
1
KEY SWITCH, SEALED 95060 FOR HDX605
06816614
1
FILLER PANEL, RH
06930015
1FILLER PANEL, RH06930116
1FRONT SCREEN06930217
1SEAT FRAME WMNT06930618
1AIR SHROUD, LH06965119
1AIR SHROUD, RH06965220
1
USB RECEPTICAL 12VDC
06985021
1
SEAT, RIDER
06987422
1SEAT, ARM RESTS, LEFT/RIGHT06987523
1SEAT, ARM RESTS, LEFT/RIGHT06987523
1COVER, CONTROL PANEL MSP465/47507057924
1BRACKET, HINGE FOR MSP465/475 CONTROL PANEL07058025
2FLANGED SLEEVED BEARING 1/4" I.D X 1/4" LONG BRONZE OIL-EMBEDED07058326
18
12
3
4
5
1
21 14
24
9
2
22
8
11
10
15
17
16 20
7
8
19
25 26
23
SECTION 1
PARTS
069599PPage 8

Seat Frame Assembly
ITEM PART NO. DESCRIPTION QTY
- 069305 Assembly, Seat Frame, MSP475 -
1 032125 Switch, Rocker, Single Pole 1
2 046737 Block, Fuse, 8 Pole 1
3 041537 Cup Holder 1
4 046736 Joystick, Right Hand 1
- 064844 (REPLACEMENT) Joystick, Right Hand, Upper Handle ONLY (Not Shown) -
5 046737 Joystick, Left Hand 1
- 064843 (REPLACEMENT) Joystick, Left Hand, Upper Handle ONLY (Not Shown) -
6 053211 Seat Prop (Not Shown 1
7 056920 Latch, Magnetic 1
8 060885 Cover, for Fan 2
9 066227 Controller, Murphy, PV380.2 1
10 066234 Cover, Right Hand 1
11 066235 Cover, Left Hand 1
12 066255 Manual Tube 1
13 067676 Bracket, for Controller Connections (Not Shown) 1
14 068166 Switch, Key 1
- 070075 (REPLACEMENT) Key, Engine -
15 069300 Panel, Filler, Right Hand 1
16 069301 Panel, Filler, Left Hand 1
17 069302 Screen, Front 1
18 069306 Weldment, Seat Frame 1
19 069651 Shroud, Air, Left Hand 1
20 069652 Shroud, Air, Right Hand 1
21 069850 USB, 12 VDC 1
22 069874 Seat, Rider 1
23 069875 Seat, Arm Rests, Left/Right 1
24 070579 Cover, Control Panel 1
25 070580 Bracket, Hinge for Controller Panel 1
26 070583 Bearing, Sleeve, Flanged, 1/4” I.D. x 1/4”, Bronze 2
SECTION 1
PARTS
069599P Page 9

Lower Unit Assembly
PARTS LIST
U/MQTYDESCRIPTIONPART NO.
ITEM
2TIP, 80°x0.10 GPM BRASS SPRAY0127021
1PUMP, SPRAY SYSTEM0337352
1BATTERY, 12 V GRAY 655CA0377713
1OVERFLOW TANK WITH BRACKET0377914
1FILTER, SPRAY SYSTEM0402095
2RETAINER, NYLON SPRAY TIP0416246
1
BOX, STANDARD BATTERY
0466967
4
MOUNT, VIB, 90#, YELLOW/WHITE
0467448
1TANK, 6 GALLON WATER PLASTIC0477009
2CAP, 3-1/2" VENTED BLACK04770110
4MNTG BLOCK, CROSSHEAD04855911
4
BEARING, Ø1 ID PLASTIC FLANGE
04856012
6SPACER, STEERING CONNECTION04862713
3CYLINDER, 1.5x.625 STEERING04866014
2
STRAP, TANK
04892115
2
NOZZLE BODY MALE STRAIGHT CP8028-NYB
04995716
1COOLER, AIR/OIL 2005K-12S-BP05293017
1UNDERCARRIAGE PAN05688818
1FRONT COVER PLATE05954419
1DOOR WMNT06091020
1FOOT PEDAL ELECTRONIC HDX760063341A21
2BRACE F/ COOLER06424722
2
WELDMENT, TANK GUARD
06456223
2
STRAINER, POLY 100 µMESH, W/ CHECK VALVE
06524424
1
FRONT PANEL WMNT
06619825
1MNTG BRKT, OVERFLOW06622826
1ASSEMBLY, ROTOR, RIGHT HAND06630127
1ASSEMBLY, ROTOR, LEFT HAND06631428
1HYD TANK WMNT06632929
1STEP WMNT, RH06719330
1
STEP WMNT, LH
06719831
1
FUEL PUMP FOR WG1605 KUBOTA ENGINE
06726932
1
FUEL FILTER FOR KUBOTA WG1605
06727533
2ASSY, PSII PITCH CONTROL06844234
1FUEL MANIFOLD FOR WG1605 KUBOTA ENGINE06923135
1BATTERY TRAY06930436
1MNTG BRKT F/ FUEL MANIFOLD06931337
1COVER PLATE06931438
2
TANK, 6 GALLON PLASTIC NEUTRAL
06950339
6
LIGHT, LED 1200 LUMENS 12 VDC (1.3 AMP)
06983540
23
10
9
34
39
39
38
15
9
21 20
30
25
1
16
6
14
40
31
40
28
34
32
2
2
36
8
33
30 31
35
37
16
16
7
18
28
27
17
224
26
29
11
11
SECTION 1
PARTS
069599PPage 10
