OPERATIONS & PARTS MANUAL
AT14S & AT12L TRACK BUGGY
MANUAL PART #: 065300 | REVISION: C

For your own safety and protection from personal injury, carefully read,
understand, and observe the safety instructions described in this manual.
Keep this manual or a copy of it with the machine at all times.

AT14S Track Buggy
OPERATIONS - PARTS MANUAL
This manual covers the products listed below:
Copyright © 2016 Allen Engineering Corporation
All rights reserved
All information, specications, and illustrations in this manual are subject to change without notice and
are based on the latest information at the time of publication. No part of this manual may be reproduced
or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the
express written permission of Allen Engineering Corporation (AEC). AEC assumes no responsibility or
liability for any errors or inaccuracies that may appear in this manual.
Allen Products are covered under one or more of the following patent numbers:
U.S. Design Patents: 344,736; 400,542; 400,544; 402,998; 402,999; 403,332; 404,041; 404,042;
410,931; 413,127; 416,564; 465,897; 466,909; 474,203.
U.S. Utility Patents: 5,108,220; 5,238,323; 5,328,295; 5,352,063; 5,405,216; 5,476,342; 5,480,257;
5,480,258; 5,533,831; 5,562,361; 5,567,075; 5,613,801; 5,658,089; 5,685,667; 5,803,658; 5,816,739;
5,816,740; 5,890,833; 5,934,823; 5,967,696; 5,988,938; 5,988,939; 6,019,433; 6,019,545; 6,048,130;
6,053,660; 6,089,786; 6,106,193; 6,857,815; 5,288,166; 6,582,153 B1, 7,108,449; 7,114,876;
7,316,523; 7,690,864 B2
Canadian Patents: 2,039,893.
Printed in U.S.A.
Part No. Description
065000 BUGGY, 14CF POLY
066182 BUGGY, AT-12L WITH SHOVEL

065300 - 09/2016
Page 4
Limited Warranty
Allen Engineering Corporation (“Allen”) warrants its products to be free of defects in material or workmanship for:
TWO YEARS FROM END USER’S DATE OF PURCHASE
Warranty period begins on the date of purchase by the End User of the product. All warranty is based on the following limited
warranty terms and conditions, including the disclaimer of implied warranties and consequential damages.
1. Allen’s obligation and liability under this warranty is limited to repairing or replacing parts if, after Allen’s inspection, there is
determined to be a defect in material or workmanship. Allen reserves the choice to repair or replace.
2. If Allen chooses to replace the part, it will be at no cost to the customer and will be made available to the Allen Distributor,
Dealer, or Rental Center from whom the End User purchased the product.
3. Replacement or repair parts, installed in the product, are warranted only for the remainder of warranty period of the product
as though they were the original parts.
4. Allen does not warranty engines or batteries. Engine warranty claims should be made directly to an authorized factory
service center for the particular engine manufacturer. Batteries are not warranted due to unknown treatment during transport,
etc, and any battery claims should be directed to the battery manufacturer.
5. Allen’s warranty does not cover the normal maintenance of products or its components (such as engine tuneups and oil &
lter changes). The warranty also does not cover normal wear and tear items (such as belts and consumables).
6. Allen’s warranty will be void if it is determined that the defect resulted from operator abuse, failure to perform normal main-
tenance on the product, modication to product, alterations or repairs made to the product without the written approval of
Allen. Allen specically excludes from warranty any damage to any trowels resulting from an impact to the rotors.
7. Impact damage to gear boxes is not covered under the Allen warranty and is deemed customer abuse.
8. Allen will pay shop labor on warranty items at the Allen Shop Labor Rate in existence on the date of the warranty claim. An
Allen labor chart will determine the time allowed to complete a repair and will govern the shop labor hours that will be allowed.
9. Allen will pay freight on warranty replacement parts at worldwide standard ground rates. No warranty replacement parts will
be shipped air freight at the expense of Allen. Allen only pays outbound freight charges when sending warranty replacement
parts to the customer via ground service. Allen does not pay any inbound freight. However, if Allen determines this to be a
warranted item, only then will Allen reimburse the customer for inbound freight at standard ground rates.
10. ALLEN ENGINEERING CORPORATION’S WARRANTY POLICY WILL NOT COVER THE FOLLOWING: TAXES;
SHOP SUPPLIES; ENVIRONMENTAL SURCHARGES; AIR FREIGHT; TRAVEL TIME; LOSS OF TIME; INCONVENIENCE;
LOSS OF RENTAL REVENUE; RENTAL COSTS OF EQUIPMENT USED TO REPLACE THE PRODUCT BEING REPAIRED;
LOSS OF USE OF THE PRODUCT; COMMERCIAL LOSS; OR ANY OTHER CHARGES WHATSOEVER OR ANY LIABILI-
TIES FOR DIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE OR DELAY.
11. ALLEN ENGINEERING CORPORATION MAKES NO OTHER WARRANTY, EXPRESSED OR IMPLIED. THIS LIMITED
WARRANTY IS IN LIEU OF THE WARRANTY OF MERCHANTABILITY AND FITNESS. THERE ARE NO OTHER WARRAN-
TIES THAT EXTEND BEYOND THE DESCRIPTION ON THIS DOCUMENT.
12. No Allen employee or representative is authorized to change this warranty in any way or grant any other warranty
unless such change is made in writing and signed by an ofcer of Allen Engineering Corporation.

065300 - 09/2016 Page 5
Table of Contents
Title Page
Limited Warranty 4
Table of Contents 5
Information Contained In This Manual 7
Dealer Information 8
Ordering Parts 9
Model Number - Serial Number Codes 10
Unit Identication 11
Technical specications 12
Dimensions 13
Engine Specications 14
Engine Serial Number Information 15
Section 1 - Safety
State Regulations 16
Federal Regulations 17
Safety Information 18
General Safety 20
Transportation and Lifting Safety 26
Safety Retainer Positioning 28
Section 2 - Operations
Driving Position Controls 29
General Operating Instructions 30
General Operations 32
Section 3 - Service
Grease Points 34
Track Tightening 39
Hydraulic Oil Intake Filter 40
Air Filter 41
Wheel Gear Maintenance 42
Maintenance Schedule 44
Hydrostatic Transmission System 45
Pump Maintenance 46
Transmission Pressures 48
Hydraulic System Service Pressures 50
Electrical System 51
Troubleshooting 53

065300 - 09/2016
Page 6
Table of Contents - Continued
Title Page
Parts
Framework Assembly 54
Hydraulic Tank Assembly 56
Engine Assembly 58
Hydraulic Pump Assembly 60
Hydraulic Cooler Assembly 62
Fuel Tank Assembly 64
Wiring Assembly 66
Operator Console Assembly 68
Throttle Assembly 70
Control Lever Assembly 72
Block Drainages and Servos 76
Hood Assembly 78
Bucket Valve Fitting Assembly 80
Hydraulic Hose Assembly 82
Decals 84
Maintenance Tools 88
Hourmeter 90
Bucket Hydraulic Cylinder Assembly 92
Swivel Hydraulic Cylinder Assembly 94
Trilateral Tipping Bucket Assembly 96
Hydraulic Tank Connections 102
AT12L Control Plate 104
AT12L Control Levers 106
AT12L Manufacturer Plates 108
AT12L Bucket Assembly 110
AT12L Bucket Plate 112
AT12L Bucket Chassis 114
AT12L Hydraulic Tank Connections 116
Filter Kit 118
Hydraulic Schematic 120
Electrical Schematic 122

065300 - 09/2016 Page 7
Information Contained in this
Manual
This manual provides information and procedures to safely operate and maintain the Allen Machine.
For your own safety and protection from personal injury, carefully read, understand, and observe the
safety instructions described in this manual. Keep this manual or a copy of it with the machine at all
times.
Always operate this machine in accordance with the instructions described in this manual. A well main-
tained piece of equipment will provide many years of trouble free operation.
This manual is divided into the following sections:
SECTION 1
SAFETY
SECTION 3
SERVICE
SECTION 2
OPERATIONS
SECTION 4
PARTS
Complete any warranty requirements as specied by the engine manufacturer in their instructions
found inside the manual box located on the operator’s control panel.
Your engine is not manufactured by Allen Engineering Corporation, Inc, and therefore is not covered
under Allen Engineering Corporation, Inc warranty.
Your engine manufacturer should be contacted if you wish to purchase a parts manual or a repair man-
ual for your engine.
Refer to enclosed owners engine manual for complete O&M instructions. See your battery manufactur-
er for battery warranty.

065300 - 09/2016
Page 8
Dealer Name: _____________________________________________________________
Phone #: (____) - ____ - ____________________________________________________
Address: ________________________________________________________________
City:__________________________________State:________ Zip:___________________
Salesman: _______________________________Mobile Phone _____________________
Additional Comments: ______________________________________________________
________________________________________________________________________
________________________________________________________________________
Your Dealer has Allen Engineering Corporation trained mechanics and original Allen replacement parts.
Always contact the Allen Dealer who sold you this machine for Allen Certied repairs and replacement
parts.
Place Allen Dealer information below for future reference.
Dealer Information

065300 - 09/2016 Page 9
Ordering Parts
Section 4 contains illustrated parts lists for help in ordering replacement parts for your machine. Fol-
low the instructions below when ordering parts to insure prompt and accurate delivery:
1. All orders for service parts - include the serial number for the machine. Shipment
will be delayed if this information is not available.
2. Include correct description and part number from the “PARTS” section of this
manual.
3. Specify exact shipping instructions, including the preferred routing and complete
destination address.
4. DO NOT return parts to AEC without receiving written authorization from AEC. All
authorized returns must be shipped pre-paid.
5. When placing an order, please contact the AEC dealer nearest you.
All information, specications, and illustrations in this manual
are subject to change without notice and are based
on the latest information at the time of publication.
VISIT US!!! www.alleneng.com
LIKE US!!! www.facebook.com/AllenEngineering
FOLLOW US!!! @alleneng
WATCH US!!! www.youtube.com/AllenMachinery

065300 - 09/2016
Page 10
Model Number - Serial Number Codes
Manufacturer’s Codes:
When ordering parts or requesting service information, you will always be asked to specify the model
and serial numbers of the machine. The legends below specically denes each signicant character
or group of characters of the Model Number and Serial Number codes.
Model Number
AT14 S
Series
Swivel
Track Buggy
AT14
Serial Number
The serial number found on the identication plate is a ten digit format. The model number identies
your machine and will ensure that you receive the correct replacement parts.
Serial Number Example:
T14 10 16 001
Series
Sequence Number
Month
Year

065300 - 09/2016 Page 11
Unit Identication
Unit Identication Plate Location:
An identication plate listing the model number and the serial number is attached to each unit and is
located on the lower inside face of the console. See image below for serial number plate location. This
plate should not be removed at any time.
Please record the information found on this plate below so it will be available should the identication
plate become lost or damaged. When ordering parts or requesting service information, you will always
be asked to specify the model and serial numbers of the machine.
FILL IN FOR FUTURE REFERENCE
Model Number:____________________________
Serial Number:____________________________
Date Purchased:___________________________
Purchased From:___________________________

065300 - 09/2016
Page 12
Technical Specications
Operating weight (without operator) Kg 795
lbs 1,753
Operating capacity Kg 1000
lbs 2,205
Load capacity: - heaped (SAE Standard) m30.58
ft320.4
- at: sand m30.48
ft316.9
liquid m30.4
ft314.1
ENGINE
Petrol Engine HONDA GX630
Maximum engine rotation speed rpm 3600
Max. power at maximum speed HP/Kw 20.8 / 15.5
Displacement cm³ 688
Cylinders n° 2
Max. torque at 2500 rpm daNm 4.8
Cooling Air-Cooled
Transmission Hydrostatic
Transmission pumps with variable displace-
ment pistons n° 2
Total capacity l/min. 29x2
Services gear pump n° 1
Capacity l/min. 7
Max. operating pressure for driving bar 230
Max. operating pressure for services bar 160
Maximum speed: Km/h 4.5 / 9.0
mph 2.8 / 5.6
Separate track steering system Hydrostatic
Rubber track tensioning spring + adjusting
screw
Width of the rubber track mm 180
in 7.08”
Specic ground pressure: - empty/loaded Kg/cm2-
Max. gradient when fully loaded max % -
REFUELLING
Fuel tank capacity lt 9
gal 2.37
Hydraulic oil tank capacity lt 18
gal 4.75
Pumps overload pressure bar 20 – 22
Noise emission level at 3000 rpm dBA 101

065300 - 09/2016 Page 13

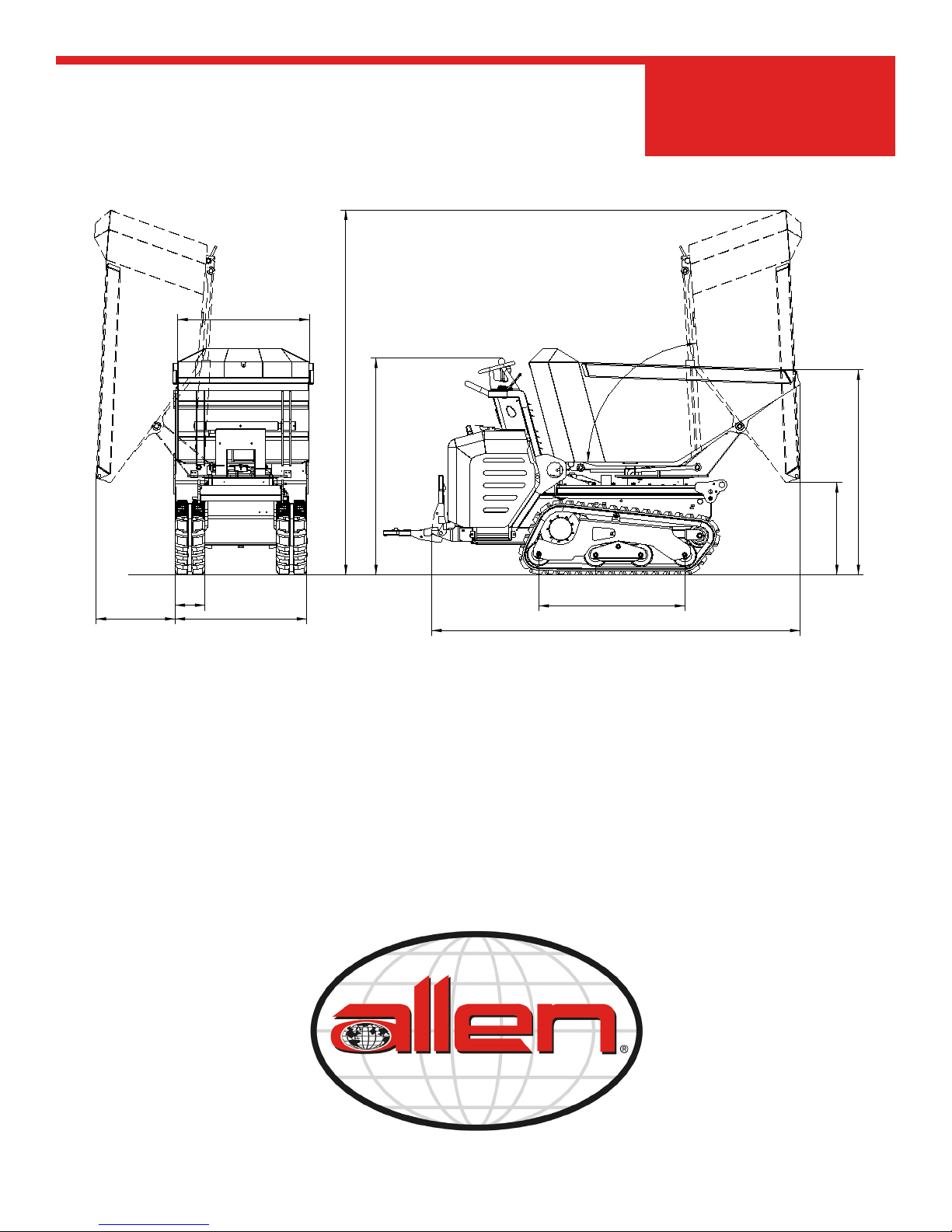

Dimensional Specications
790
180
790473
2186
1228
553
880
1300
2211
85°
18.6”
7.08”
31.1” 87.0”
34.6”
51.2”
21.8”
48.3”
86.1”
31.1”

065300 - 09/2016
Page 14
Engine Specications
Engine Type Air-cooled 4-stroke OHV
Bore x Stroke 78 X 72 mm
Displacement 688 cm3
Net Power Output* 20.8 hp (15.5 kW) @ 3,600 rpm
Net Torque 35.6 lbs ft (48.3 Nm) @ 2,500 rpm
PTO Shaft Rotation Counterclockwise (from PTO shaft
side)
Compression Ratio 9.3:1
Lamp/Charge coil options 2.7A, 17A, 26A
Carburetor Horizontal type, two barrel buttery
valve, internal vent
Ignition System Digital CDI with variable ignition timing
Starting System Electric
Lubrication System Forced lubrication
Governor System Mechanical
Air cleaner Dual element
Oil Capacity 2.1 US qt (2.0l)
Fuel Unleaded 86 octane or higher
Dry Weight 96.8 lb (44 kg)

065300 - 09/2016 Page 15

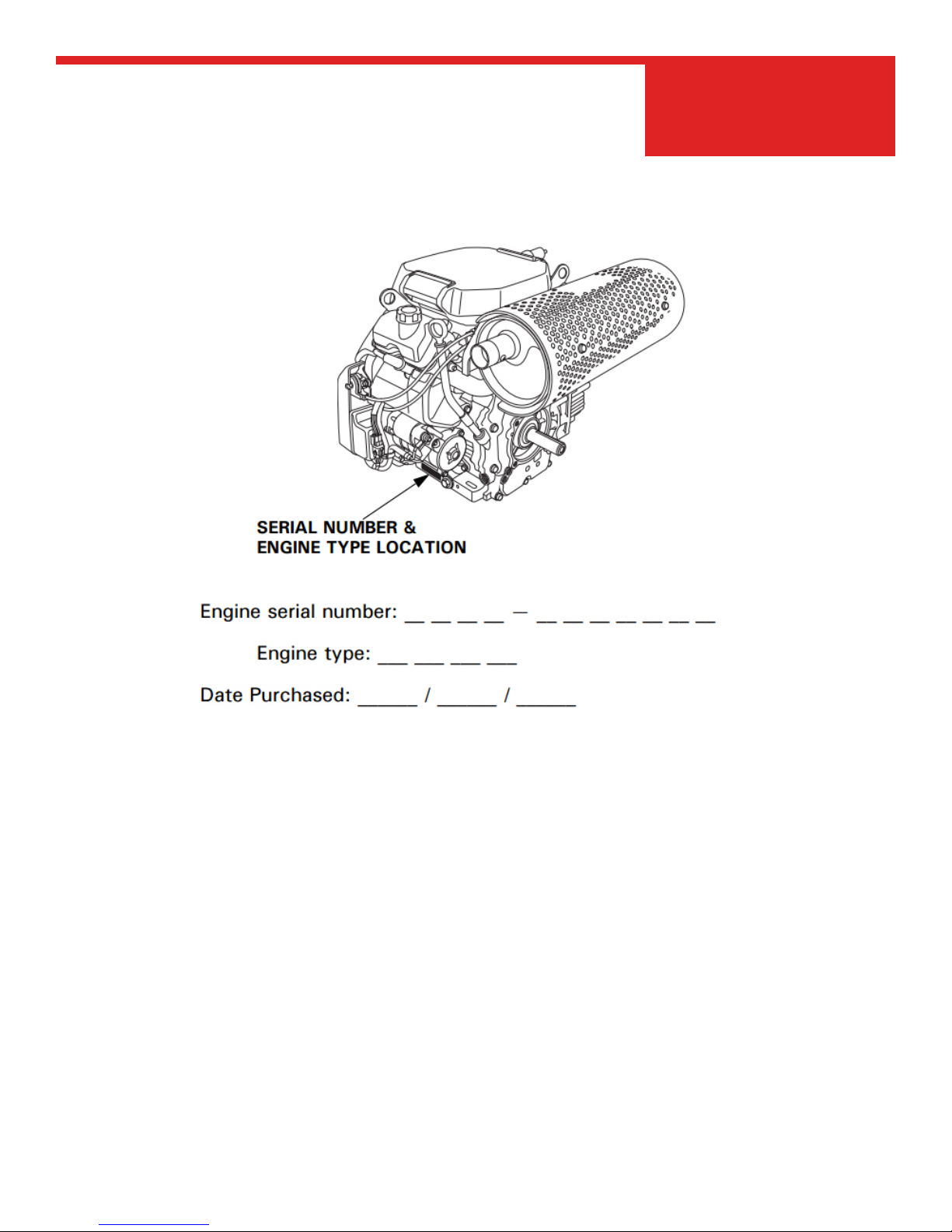

Engine Serial Number Information
Record the engine serial number, type and purchase date in the spaces below. You will need this
information when ordering parts and when making technical and warranty inquiries.

065300 - 09/2016
Page 16
SECTION 1
SAFETY
State Regulations
Proposition 65 Warning

065300 - 09/2016 Page 17
SECTION 1
SAFETY
Federal Regulations
Respiratory Hazards

065300 - 09/2016
Page 18
SECTION 1
SAFETY
Safety Information
Do not operate or service the equipment before reading the entire manual. Safety precautions should
be followed at all times when operating this equipment. Failure to read and understand the safety mes-
sages and operating instructions could result in injury to yourself and others.
SAFETY NOTES
The four safety notes shown below will inform you about potential hazards that could injure you or oth-
ers. The safety notes specically address the level of exposure to the operator and are preceded by
one of four words: DANGER, WARNING, CAUTION or NOTICE.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.

065300 - 09/2016 Page 19
SECTION 1
SAFETY
Safety Symbols
Potential hazards associated with the operation of this equipment will be referenced with hazard
symbols which may appear throughout this manual in conjunction with safety notes.

065300 - 09/2016
Page 20
SECTION 1
SAFETY
General Safety
For the vehicle to work properly it must be set up perfectly (installation and use) and the oil level of the
various mechanisms must be veried. An inaccurate inspection or incorrect installation or improper use
can impair the vehicle efciency and compromise operator safety.
All the information and diagrams in this manual refer to the model in production at the time of publica-
tion.
For more information contact an Authorized Service Center.
Allen Engineering Corporation reserves the right to make changes without prior notication.
Everything in this manual belongs to the AEC, therefore no part or diagram can be used for any other
use without authorization.
Caution is the principal factor in preventing accidents and injuries.
Before starting up the vehicle, carefully read all the instructions in this booklet. Should doubt or uncer-
tainties arise, contact the manufacturing company.
• Before starting the engine, make sure that there are no people near the vehicle, especially children.
• It is strictly forbidden to transport or lift people.
• Do not use the vehicle unless you are physically t.
• Do not drink alcoholic beverages while at work.
• This vehicle is not approved for road circulation.
• Do not use the vehicle on steep slopes but only on ground with a gradient that is less than the limits
indicated further stated in this manual.
• It is strictly forbidden to abandon the vehicle while the engine is running or with the ignition key insert-
ed. The engine must always be stopped.
• It is strictly forbidden for minors to use the vehicle.
• Do not use the vehicle in closed or poorly ventilated areas: exhaust fumes are toxic and could be
seriously harmful to the body and may even be fatal.
The vehicle must be refuelled with the engine switched off. Always keep away from ames and do not
smoke.
