Alliance Laundry Systems D677I Guide

Installation/Operation
www.comlaundry.com
Clothes Dryer
Nonmetered and Metered
Electric and Gas Models
D677I
Part No. 512680R7
September 2011
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT512680
1
IMPORTANT: Purchaser must consult the local gas supplier for suggested instructions to be followed if the
unit user smells gas. The gas utility instructions plus the SAFETY and WARNING note directly above must
be posted in a prominent location near the unit for customer use.
The following information applies to the state of Massachusetts, USA.
•This appliance can only be installed by a Massachusetts licensed plumber or gas fitter.
•This appliance must be installed with a 36 inch (91 cm) long flexible gas connector.
•A “T-Handle” type gas shut-off valve must be installed in the gas supply line to this appliance.
•This appliance must not be installed in a bedroom or bathroom.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
• WHAT TO DO IF YOU SMELL GAS:
– Do not try to light any appliance.
– Do not touch any electrical switch; do not use any phone in your building.
– Clear the room, building or area of all occupants.
– Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
– If you cannot reach your gas supplier, call the fire department.
• Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
W052
FOR YOUR SAFETY, the information in this manual must be followed to minimize the risk
of fire or explosion or to prevent property damage, personal injury or death.
W033
WARNING
• Installation of unit must be performed by a qualified installer.
• Install clothes dryer according to manufacturer’s instructions and local codes.

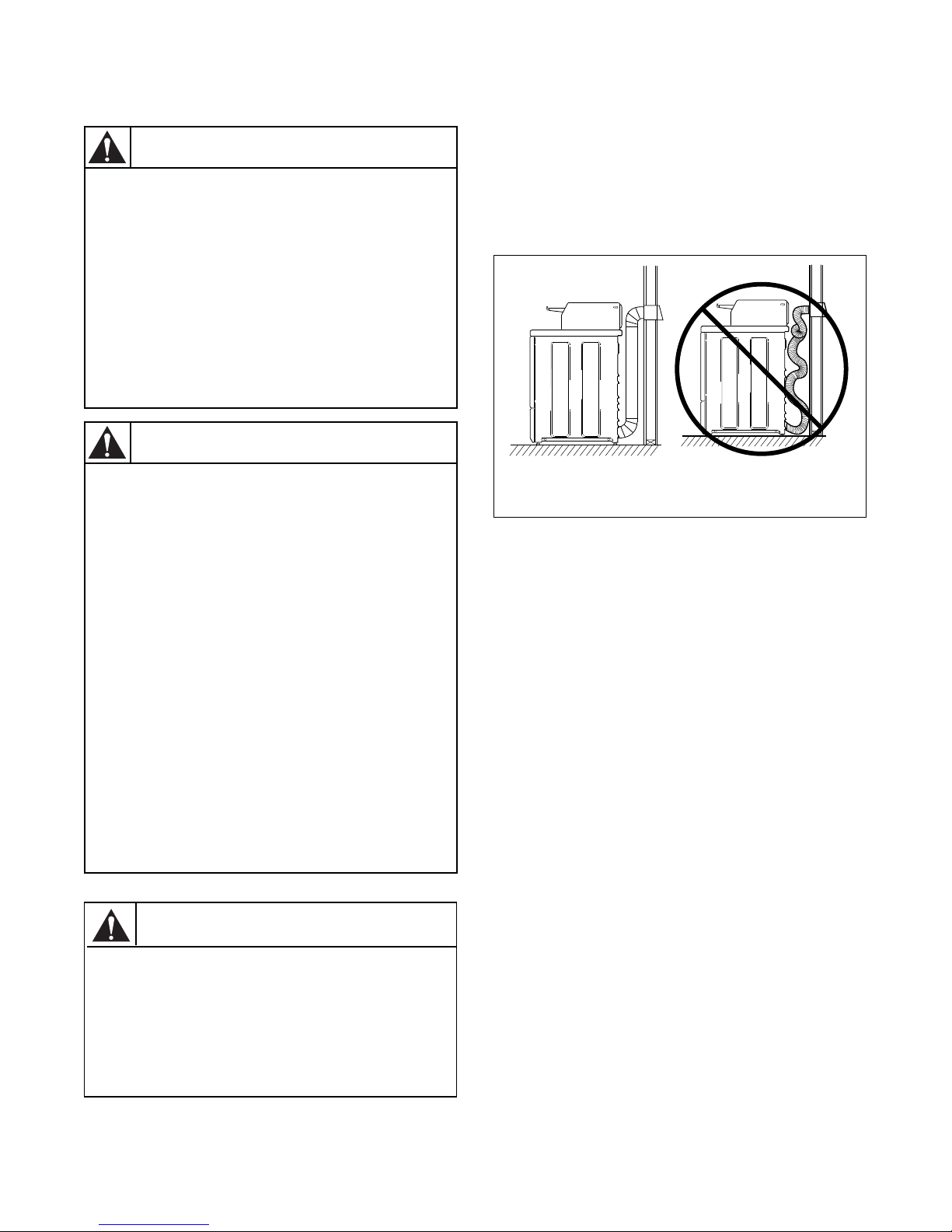

• DO NOT install a clothes dryer with flexible plastic venting materials. If flexible metal (foil
type) duct is installed, it must be of a specific type identified by the appliance manufacturer
as suitable for use with clothes dryers. Refer to section on connecting exhaust system.
Flexible venting materials are known to collapse, be easily crushed, and trap lint. These
conditions will obstruct clothes dryer airflow and increase the risk of fire.
W729R1
WARNING
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
W053

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
© Copyright 2011, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
512680
2
Table of
Contents
Safety Information.............................................................................. 4
Explanation of Safety Messages........................................................... 4
Important Safety Instructions ............................................................... 4
Installation........................................................................................... 6
Dimensions ........................................................................................... 6
Nonmetered Models......................................................................... 6
Metered Models ............................................................................... 7
Before You Start ................................................................................... 8
Tools ................................................................................................ 8
Card Reader Models ........................................................................ 8
Installing the Dryer ............................................................................... 9
Step 1: Position and Level the Dryer ............................................... 9
Step 2: Connect Dryer Exhaust System ........................................... 11
Exhaust Direction............................................................................. 12
Exhaust System................................................................................ 13
Multi-Dryer Installation Exhaust Requirements.............................. 14
Step 3: (Gas Dryer Only) Connect Gas Supply Pipe ....................... 16
Step 4: (Electric Dryer Only) Connect Electrical Plug.................... 17
Step 5: Reverse Door, if Desired ..................................................... 23
Step 6: Wipe Out Inside of Dryer .................................................... 24
Step 7: Plug In the Dryer ................................................................. 24
Step 8: Recheck Steps 1-7................................................................ 26
Step 9: Check Heat Source .............................................................. 26
Vending................................................................................................ 27
Meter Case............................................................................................ 27
Coin Slide Control ................................................................................ 27
Power-Up Mode............................................................................... 27
Ready Mode ..................................................................................... 27
Start Mode........................................................................................ 27
Run Mode......................................................................................... 27
Door Open Mode ............................................................................. 27
End of Cycle Mode .......................................................................... 27
Topoffs............................................................................................. 27
Temperature Selector Switch........................................................... 27
Error Display Mode ......................................................................... 28
Setting Dry Time Dipswitches.............................................................. 28
Models Through Serial No. 0908..................................................... 28
Models Starting Serial No. 0909...................................................... 28
All Models ....................................................................................... 28
Models Starting Serial No. 0909...................................................... 28
Dipswitch Settings................................................................................ 29
Models Through Serial No. 0908..................................................... 30
Models Starting Serial No. 0909...................................................... 31
Test Setting ...................................................................................... 31
Slide Extension ..................................................................................... 32
Additional Dryer Security..................................................................... 34
Operation............................................................................................. 35

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
512680
3
Operation Instructions for Nonmetered and Coin Slide Dryers ........... 35
Step 1: Clean Lint Filter................................................................... 35
Step 2: Load Laundry....................................................................... 35
Step 3: Close Loading Door............................................................. 35
Step 4: Set Fabric Selector............................................................... 36
Step 5: Start Dryer ........................................................................... 36
Operation Instructions for Electronic Display Control Dryers............. 37
Step 1: Clean Lint Filter................................................................... 37
Step 2: Load Laundry....................................................................... 37
Step 3: Close Loading Door............................................................. 37
Step 4: Set Fabric Selector............................................................... 38
Step 5: Insert Coin(s) or Card .......................................................... 38
Step 6: Start Dryer ........................................................................... 39
Indicator Lights................................................................................ 39
Operation Instructions for MDC Dryers............................................... 40
Step 1: Clean Lint Filter................................................................... 40
Step 2: Load Laundry....................................................................... 40
Step 3: Close Loading Door............................................................. 40
Step 4: Set Fabric Selector............................................................... 41
Step 5: Insert Coin(s) or Card .......................................................... 41
Step 6: Start Dryer ........................................................................... 41
Indicator Lights................................................................................ 41
Operation Instructions for NetMaster Dryers....................................... 42
Step 1: Clean Lint Filter................................................................... 42
Step 2: Load Laundry....................................................................... 42
Step 3: Close Loading Door............................................................. 42
Step 4: Set Fabric Selector............................................................... 43
Step 5: Insert Coin(s) or Card .......................................................... 43
Step 6: Start Dryer ........................................................................... 44
Indicator Lights................................................................................ 44
Maintenance ........................................................................................ 45
Lubrication............................................................................................ 45
Care of Your Dryer............................................................................... 45
Dryer Interior ................................................................................... 45
Cabinet ............................................................................................. 45
Control Panel ................................................................................... 45
Exhaust System................................................................................ 45
Lint Filter .............................................................................................. 46
Motor Overload Protector..................................................................... 46
For Energy Conservation...................................................................... 46
Troubleshooting .................................................................................. 47
Contact Information........................................................................... 48
Installer Checklist ............................................................... Back Cover

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
4
512680
Safety Information
Explanation of Safety Messages
Throughout this manual and on machine decals, you
will find precautionary statements (“DANGER,”
“WARNING,” and “CAUTION”) followed by specific
instructions. These precautions are intended for the
personal safety of the operator, user, servicer, and
those maintaining the machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word “NOTE” is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
Important Safety Instructions
Save These Instructions
1. Read all instructions before using the dryer.
2. Install this dryer according to the
INSTALLATION INSTRUCTIONS. Refer to the
GROUNDING INSTRUCTIONS in the
INSTALLATION manual for the proper
grounding of the dryer. All connections for
electrical power, grounding and gas supply must
comply with local codes and be made by licensed
personnel when required. Do not do it yourself
unless you know how!
3. Do not install or store the dryer where it will be
exposed to water and/or weather.
4. Do not dry articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline or machine oils, vegetable or cooking
oils, cleaning waxes or chemicals, dry-cleaning
solvents, thinner or other flammable or explosive
substances as they give off vapors that could
ignite, explode or cause fabric to catch on fire by
itself.
5. Items that have been soiled with substances such
as cooking oil, acetone, alcohol, petrol, kerosene,
spot removers, turpentine, waxes and wax
removers, should be washed in hot water with an
extra amount of detergent before being dried in
the tumble dryer.
6. To reduce the risk of fire, DO NOT DRY plastics
or articles containing foam or latex rubber or
similarly textured rubberlike materials, such as
shower caps, water proof textiles, rubber-backed
articles, and clothes or pillows filled with foam
rubber pads.
7. Do not tumble fiberglass curtains and draperies
unless the label says it can be done. If they are
dried, wipe out the cylinder with a damp cloth to
remove particles of fiberglass.
Indicates an imminently hazardous
situation that, if not avoided, will cause
severe personal injury or death.
DANGER
Indicates a hazardous situation that, if not
avoided, could cause severe personal
injury or death.
WARNING
Indicates a hazardous situation that, if not
avoided, may cause minor or moderate
personal injury or property damage.
CAUTION
To reduce the risk of fire, electric shock,
or injury to persons when using your
dryer, follow these basic precautions:
W034
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
5
512680
8. Do not allow children to play on or in the dryer.
Close supervision of children is necessary when
the dryer is used near children. This appliance is
not intended for use by persons (including
children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning the use of
the appliance by a person responsible for their
safety. This is a safety rule for all appliances.
9. Do not reach into the dryer if the cylinder is
revolving.
10. Use the dryer only for its intended purpose,
drying clothes. ALWAYS follow the fabric care
instructions supplied by the garment
manufacturer and only use the dryer drum to dry
textiles that have been washed in water.
11. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. To reduce
the risk of poisoning or chemical burns, keep
them out of reach of children at all times
(preferably in a locked cabinet).
12. Remove laundry immediately after the dryer
stops.
13. DO NOT operate the dryer if it is smoking,
grinding or has missing or broken parts or
removed guards and/or panels. DO NOT tamper
with the controls or bypass any safety devices.
14. DO NOT operate individual units if they have
been separated from a stack unit.
15. Dryer will not operate with the loading door
open. DO NOT bypass the door safety switch by
permitting the dryer to operate with the door
open. The dryer will stop tumbling when the door
is opened. Do not use the dryer if it does not stop
tumbling when the door is opened or starts
tumbling without pressing the START
mechanism. Remove the dryer from use and call
the service person.
16. ALWAYS clean the lint filter after every load. A
layer of lint in the filter reduces drying efficiency
and prolongs drying time. Keep area around the
exhaust opening and adjacent surrounding area
free from the accumulation of lint, dust and dirt.
The interior of the dryer and the exhaust duct
should be cleaned periodically by qualified
service personnel.
17. Do not repair or replace any part of the dryer, or
attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that you understand and have the
skills to carry out. ALWAYS disconnect the
electrical power to the dryer before attempting
service. Disconnect the power cord by grasping
the plug, not the cord.
18. If supply cord is damaged, it must be replaced by
a special cord or assembly available from the
manufacturer or its service agent.
19. Before the dryer is removed from service or
discarded, remove the door to the drying
compartment.
20. Failure to install, maintain, and/or operate this
machine according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
IMPORTANT: Solvent vapors from dry-cleaning
machines create acids when drawn through the
heater of the drying unit. These acids are corrosive
to the dryer as well as to the laundry load being
dried. Be sure make-up air is free of solvent vapors.
IMPORTANT: Have your dryer installed properly.
Don’t do it yourself unless you know how!
NOTE: The WARNING and IMPORTANT
SAFETY INSTRUCTIONS appearing in this
manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining, or operating the dryer.
Always contact your dealer, distributor, service agent
or the manufacturer about any problems or conditions
you do not understand.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
6
512680
Installation
Dimensions
Nonmetered Models
DRY2471N
*With leveling legs turned into base.
NOTE: Exhaust openings are 4 inch (10.2 cm) metal ducting.
DRY2472N
*With leveling legs turned into base.
NOTE: Exhaust openings are 4 inch (10.2 cm) metal ducting.
13/8 in. N.P.T. Gas Connection
DRY2471N
23.5 in.
(59.7 cm)
8.0 in.
(20.3 cm) 0.4 in.
(1.02 cm)
*4.5 in. (11.4 cm)
28 in.
(71.1 cm)
*36 in. (91.4 cm)
*15.44 in. (39.2 cm)
15.4 in.
(39.1 cm)
ELECTRIC MODELS
4.0 in.
(10.2 cm)
26.875 in.
(68.3 cm)
21.56 in.
(54.8 cm)
*40.19 in. (102 cm)
*43 in. (109.2 cm)
DRY2472N
23.5 in.
(59.7 cm)
8.0 in.
(20.3 cm) 0.4 in.
(1.02 cm)
*4.5 in. (11.4 cm)
28 in.
(71.1 cm)
*36 in. (91.4 cm)
*40.19 in. (102 cm)
15.4 in.
(39.1 cm)
GAS MODELS
2.8 in.
(7 cm)
26.875 in.
(68.3 cm)
2.3 in.
(6 cm)
*15.44 in. (39.2 cm)
1
4.0 in.
(10.2 cm)
21.56 in.
(54.8 cm)
*43 in. (109.2 cm)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
7
512680
Metered Models
NOTE: Side, rear and bottom exhaust openings are
4 inch (10.2 cm) ducting. Gas models cannot be
vented out left side of cabinet because of burner
housing.
IMPORTANT: The dryer should have sufficient
clearance around it for needed ventilation and for
the ease of installation and servicing. For maximum
drying performance, we recommend that more
clearance be allowed around the dryer than the
clearances that are listed throughout this manual.
DRY2096N
*With leveling legs turned into base.
NOTE: Exhaust openings are 4 inch (10.2 cm) metal ducting.
DRY2238N
*With leveling legs turned into base.
NOTE: Exhaust openings are 4 inch (10.2 cm) metal ducting.
13/8 in. N.P.T. Gas Connection
23.5 in.
(59.7 cm)
8.0 in.
(20.3 cm) 0.4 in.
(1.02 cm)
28 in.
(71.1 cm)
*36 in. (91.4 cm)
15.4 in.
(39.1 cm)
ELECTRIC MODELS
4.0 in.
(10.2 cm)
26.875 in.
(68.3 cm)
22.06 in. (56 cm)
Electronic Control Models
*40.19 in. (102 cm) Coin Slide Models
*4.5 in. (11.4 cm)
*15.44 in. (39.2 cm)
21.56 in. (54.8 cm)
Coin Slide Models *38.19 in. (97 cm) Electronic Control Models
*43 in. (109.2 cm)
Standard Capacity Meter case
*43.875 in. (111.4 cm)
High Capacity Metercase
DRY2238
GAS MODELS
23.5 in.
(59.7 cm)
8.0 in.
(20.3 cm)
28 in.
(71.1 cm)
*38.19 in. (97 cm) Electronic Control Models
15.4 in.
(39.1 cm)
2.3 in.
(6 cm)
26.875 in.
(68.3 cm)
0.4 in.
(1.02 cm)
2.8 in.
(7 cm)
1
22.06 in. (56 cm)
Electronic Control Models
*4.5 in. (11.4 cm)
*40.19 in. (102 cm) Coin Slide Models
4.0 in.
(10.2 cm)
*15.44 in. (39.2 cm)
*36 in. (91.4 cm)
21.56 in. (54.8 cm)
Coin Slide Models
*43 in. (109.2 cm)
Standard Capacity Meter case
*43.875 in. (111.4 cm)
High Capacity Metercase

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
512680
8
Before You Start
Tools
For most installations, the basic tools you will need
are:

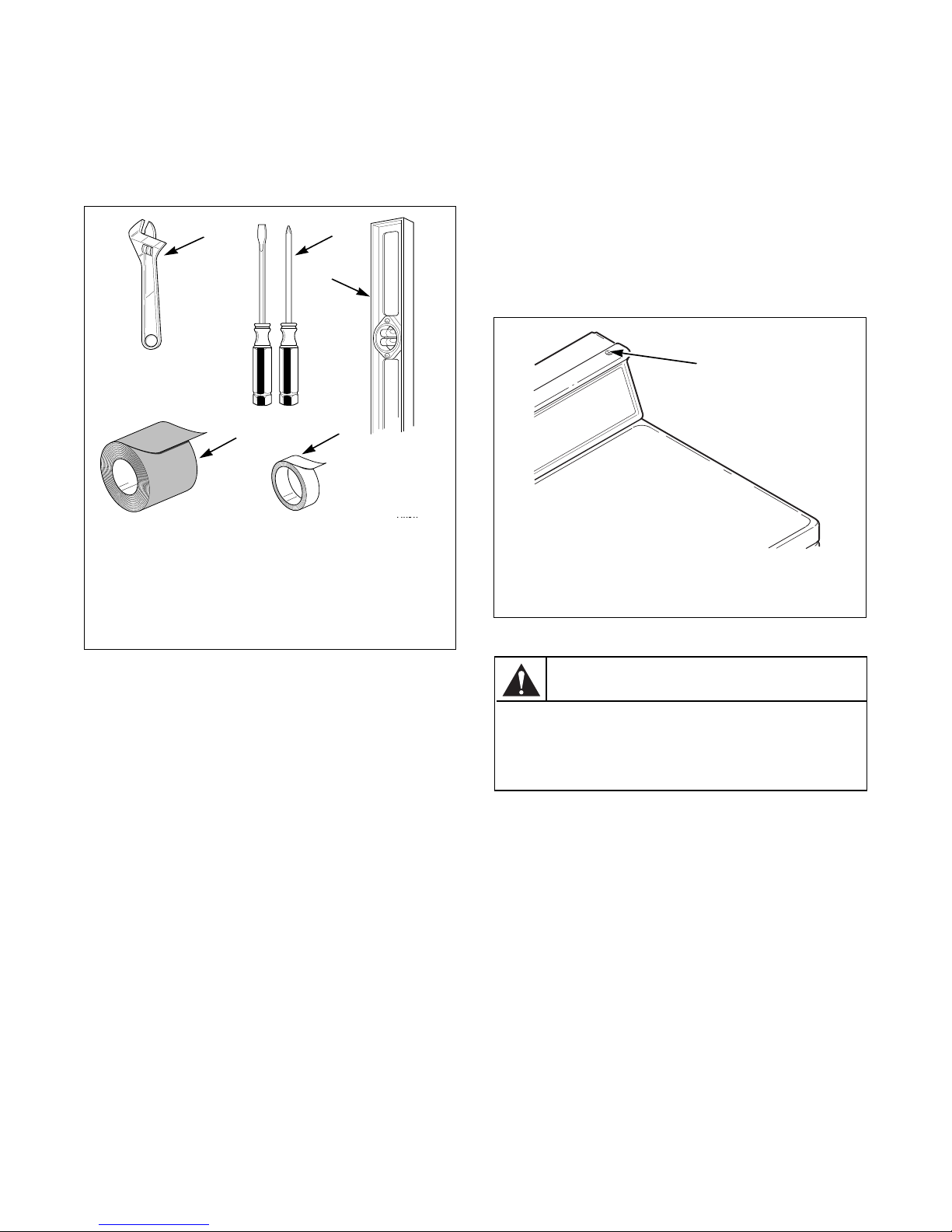

Figure 1
NOTE: An 8 in. (20.32 cm) coin drawer is required
for coin operated MDC and NetMaster models with
standard capacity meter case and high capacity
meter case models starting with Serial Nos.
beginning 1010. High capacity meter case MDC
and NetMaster models with Serial Nos. beginning
0910 through 1010 require a 7.21 in. (18.31 cm)
coin drawer.
Card Reader Models
The machine is shipped from the factory with the
Electronic Control Diagnostic Harness Assembly
unplugged. To avoid unauthorized manual
programming or vending perform the following steps.
1. Open service door. Refer to Figure 2.
2. Locate diagnostic harness on electronic control.
3. Plug connectors for “white/black” wire and “red/
blue” wire together.
.
D818I
1Wrench
2Screwdrivers
3Level
4Teflon Tape
5Duct Tape
12
3
4
5
FLW6R
1 Service Door
Figure 2
1
Any disassembly requiring the use of
tools must be performed by a suitably
qualified service person.
W299
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
9
512680
Installing the Dryer
Step 1: Position and Level the Dryer
Install dryer before washer. This allows room for
attaching exhaust duct.
Install the four rubber feet (in accessories bag).
Select a location with a solid floor. Dryers installed in
residential garages must be elevated 18 inches (46 cm)
above the floor.
No other fuel burning appliance should be installed in
the same closet with the dryer.
The dryer must not be installed or stored in an area
where it will be exposed to water and/or weather.
The dryer needs sufficient clearance and an adequate
air supply for proper operation and ventilation, and for
easier installation and servicing. (Minimum clearances
are shown in Figure 4).
Place the dryer in position, and adjust the legs until the
dryer is level from side to side and front to back.
Leveling legs can be adjusted from inside the dryer
with a 1/4 in. driver. All four legs must rest firmly on
the floor so the weight of the dryer is evenly
distributed. The dryer must not rock.

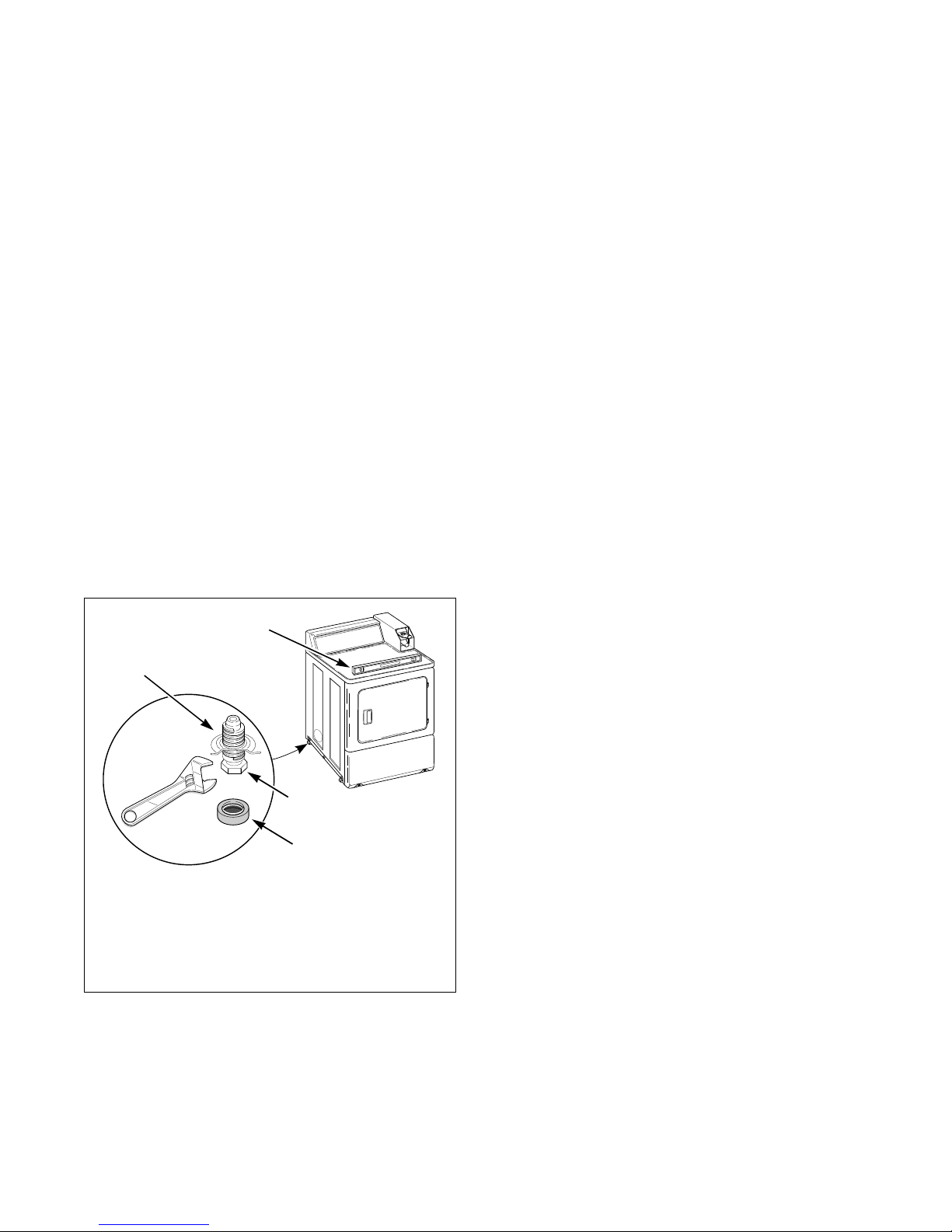

Figure 3
IMPORTANT: In mobile home installations, gas
dryers MUST be permanently attached to the floor
at the time of installation. Order No. 526P3 Hold
Down Kit (available at extra cost) for a
manufactured (mobile) home installation. Follow
the instructions supplied with the kit.
Installation of unit must conform to the Manufactured
Home Construction and Safety Standards, Title 24
CF4, Part 32-80 or Standard CAN/CSA-Z240 MH.
D678I
1Dryer Base
2Level
3Leveling Leg
4Rubber Foot
D678I
1
2
3
4

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
512680
10
D337I
1Closet Door
2Centered Air Openings (G) (2 Openings
minimum)
3Outer Wall of Enclosure
**NOTE: For new installations, locate top of wall vent 42 inches (106.7 cm) above floor to make venting
easier to connect.
Figure 4
D337I
1
2 (G)
3
A
E
**42 in.
(106.7 cm)
F
F
B
AAC
FRONT VIEW
(W/O CLOSET DOOR)
SIDE VIEW
(CLOSET DOOR)
FRONT VIEW
(CLOSET DOOR)
D
Area Description Free Standing/Alcove
Installation Closet Installation
A
Dryer sides and rear clearance 0 in. (0 cm) 0 in. (0 cm)
B
Dryer top clearance 12 in. (30.5 cm) 12 in. (30.5 cm)
C
Dryer front clearance Not Applicable 2 in. (5.1 cm)
D
Exhaust duct clearance to
combustible material
2 in. (5.1 cm) 2 in. (5.1 cm)
E
Weather hood to ground clearance 12 in. (30.5 cm) 12 in. (30.5 cm)
F
Distance from floor or ceiling to
hole edge
Not Applicable 3 in. (7.6 cm)
G*
Area of centered air openings in
closet door
Not Applicable 40 sq. in./open (260 sq. cm)
*Louvered door with equivalent air openings is acceptable. (Minimum clearances are shown.)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
11
512680
Step 2: Connect Dryer Exhaust System
IMPORTANT: Installing in-line filters or lint
collectors will cause increased static pressure.
Failure to maintain the secondary lint system will
decrease dryer efficiency and may void machine
warranty.
DO NOT use plastic, thin foil or or type B
ducting. Rigid metal duct is recommended.
Locate dryer so exhaust duct is as short as
possible.
Be certain old ducts are cleaned before installing
your new dryer.
Use 4 inch (102 mm) diameter rigid or flexible
metal duct.
The male end of each section of duct must point
away from the dryer.
Use as few elbows as possible.
Use of duct tape or pop-rivets on all seams and
joints is recommended, if allow by local codes.
DO NOT use sheet metal screws or fasteners on
exhaust pipe joints which extend into the duct
and catch lint.
Ductwork that runs through unheated areas must
be insulated to help reduce condensation and lint
build-up on pipe walls.
Install backdraft dampers in multi-dryer
installations.
In mobile home installations, dryer exhaust duct
must be secured to mobile home structure.
Dryer exhaust duct MUST NOT terminate under
mobile home.
Dryer exhausts 220 cfm (measured at back of
dryer).
To reduce the risk of fire and combustion
gas accumulation the dryer MUST be
exhausted to the outdoors.
W604
To reduce the risk of fire and the
accumulation of combustion gases, DO
NOT exhaust dryer air into a window well,
gas vent, chimney or enclosed, unventilated
area, such as an attic, wall, ceiling, crawl
space under a building or concealed space
of a building.
W045
WARNING
This gas appliance contains or produces a
chemical or chemicals which can cause
death or serious illness and which are
known to the State of California to cause
cancer, birth defects, or other reproductive
harm. To reduce the risk from substances in
the fuel or from fuel combustion, make sure
this appliance is installed, operated, and
maintained according to the instructions in
this manual.
W115
To reduce the risk of fire, DO NOT use
plastic or thin foil ducting to exhaust the
dryer.
W354
To reduce the risk of fire, the exhaust duct
and weather hood MUST be fabricated of a
material that will not support combustion.
Rigid or flexible metal pipe is recommended
for a clothes dryer.
W048
WARNING
To reduce the risk of fire due to increased
static pressure, we do not recommend
installation of in-line secondary lint filters
or lint collectors. If secondary systems
are mandated, frequently clean the
system to assure safe operation.
W749
WARNING
D333I D335I
Figure 5
D333I
D335I
DON’TDO

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
512680
12
DO NOT install flexible duct in concealed
spaces, such as a wall or ceiling.
Static pressure in exhaust duct should not be
greater than .6 inches water column (1.5 cm),
measured with manometer placed on exhaust
duct two feet (61 cm) from dryer (check with
dryer running and no load). In multi-dryer
installations, all dryers connected to the main
collector duct should be operating when pressure
is checked.
Exhausting dryer in hard-to-reach locations can
be done by installing 521P3 Flexible Metal Vent
Kit (available as optional equipment at extra
cost).
Sufficient make-up air must be supplied to
replace the air exhausted by the dryer. The free
area of any opening for outside air must be at
least 40 in
2
(260 cm
2
).
Energy efficient buildings with low air
infiltration rates should be equipped with an air
exchanger that can accommodate on demand
make-up air needs in the laundry room. These
devices can be obtained through your building
contractor or building material suppliers.
Do not draw make-up air from a room containing
a gas fired water heater, a dry cleaner or a hair
salon.
Failure to exhaust dryer properly will void
warranty.
NOTE: Venting materials are not supplied with the
dryer (obtain locally).
IMPORTANT: DO NOT block the airflow at the
bottom of the dryer’s front panel with laundry,
rugs, etc. Blockage will decrease airflow through
the dryer, thus reducing the efficiency of the dryer.
Exhaust Direction
The dryer can be exhausted to the outdoors through the
back, left, right or bottom of the dryer. EXCEPTION:
Gas dryers cannot be vented out the left side
because of the burner housing.
Dryer is shipped from factory ready for rear exhaust.
Exhausting the dryer through sides or bottom can be
accomplished by installing a Directional Exhaust Kit,
528P3, available as optional equipment at extra cost.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
13
512680
Exhaust System
For best drying results, recommended maximum
length of exhaust system is shown in Ta ble 1.
To prevent backdraft when dryer is not in operation,
outer end of exhaust pipe must have a weather hood
with hinged dampers (obtain locally).
NOTE: Weather hood should be installed at least
12 inches (30.5 cm) above the ground. Larger
clearances may be necessary for installations where
heavy snowfall can occur.

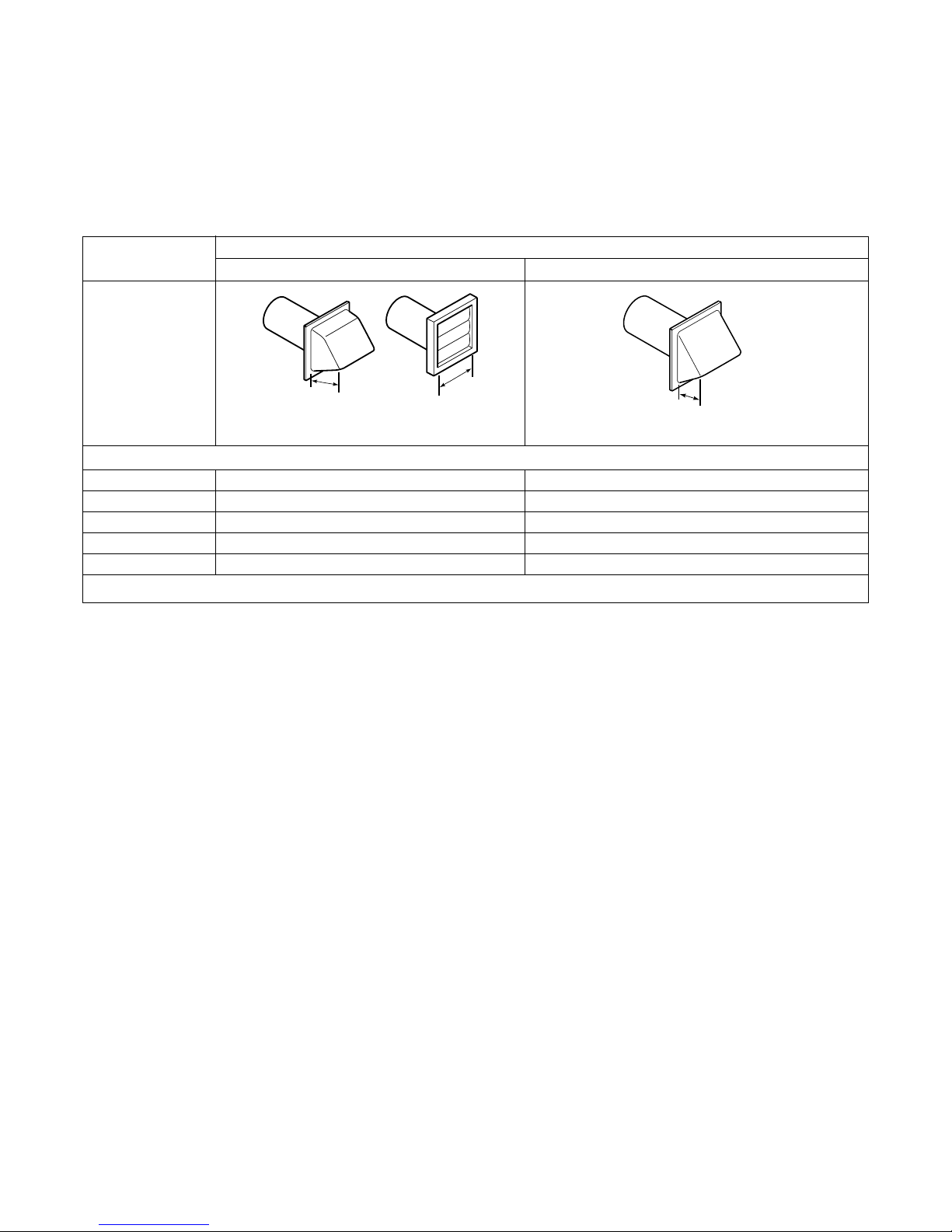

Ta b le 1
NOTE: The maximum length of 4 in. (10.2 cm)
diameter flexible metal duct must not exceed
7.87 feet (2.4 m) as required to meet UL2158, clause
7.3.2A.
Number of
90° Elbows
Weather Hood Type
Recommended Use Only for Short Run Installations
Maximum length of 4 in. (10.2 cm) diameter rigid metal duct.
0 65 feet (19.8 m) 55 feet (16.8 m)
1 55 feet (16.8 m) 47 feet (14.3 m)
2 47 feet (14.3 m) 41 feet (12.5 m)
3 36 feet (11.0 m) 30 feet (9.1 m)
4 28 feet (8.5 m) 22 feet (6.7 m)
NOTE: Deduct 6 feet (1.8 m) for each additional elbow.
4 in.
(10.2 cm)
4 in.
(10.2 cm)
D673I
D802I
2-1/2 in.
(6.35 cm)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
512680
14
Multi-Dryer Installation Exhaust
Requirements
Figure 6 shows a typical example of a multiple dryer
installation. Note how each dryer has its own exhaust
system vented to the central exhaust duct.
Figure 6
D797I
158786 Backdraft Damper (Available through
your local authorized parts source)
3Weather Hood or Sweep Elbow
(No cap or screen)
2Clean Out Cover (Must be provided). Inspect
monthly.
2
1
3
METERED MODELS ILLUSTRATED
24 IN. (61 CM)
MINIMUM
CLEARANCE TO
ROOF/GROUND

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
15
512680
Figure 7
Figure 8
D686I
1NOTE: Where the exhaust duct pierces a
combustible wall or ceiling, the opening must be
sized per local codes.
32 in. (5 cm) Minimum or Clearance per Local
Codes
4No Screen or Cap
2Wall 5Clean Out Cover
– Inspect Monthly
D686I
2
3
4
EXHAUST
OUTLET
KJIHGFEDCBA
5
30°
1
24 in. (61 cm)
MINIMUM
CLEARANCE TO
ROOF/GROUND
EXHAUST AIR FLOW MAXIMUM
LENGTH OF DUCT 30 feet (9.1 m)
HORIZONTAL EXHAUST INSTALLATION
AIR
FLOW
D753I
1Roof
2No Screen or Cap
3Wall
42 in. (5 cm) Minimum
5NOTE: Where the exhaust duct pierces a
combustible wall or ceiling, an opening must
be sized as shown or per local codes.
3
1
4
5
24 in. (61 cm)
MINIMUM
CLEARANCE TO
ROOF/GROUND
CONNECT TO DRYER
VERTICAL EXHAUST INSTALLATION
2
To reduce the risk of fire and the
accumulation of combustion gases, DO NOT
exhaust dryer air into a window well, gas
vent, chimney or enclosed, unventilated
area, such as an attic, wall, ceiling, crawl
space under a building or concealed space
of a building.
W045
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
512680
16
A Backdraft Damper, Part No. 58786 (obtain locally),
should be installed in a 4 inch (10.2 cm) diameter
VERTICAL duct system. This will prevent a backdraft
when dryer is not in use, and will keep the exhaust air
in balance within the central exhaust system.
Step 3: (Gas Dryer Only) Connect Gas
Supply Pipe
1. Make certain your dryer is equipped for use with
the type of gas in your laundry room. Dryer is
equipped at the factory for Natural Gas with a
3/8 inch NPT gas connection.
NOTE: The gas service to a gas dryer must
conform with the local codes and ordinances, or in
the absence of local codes and ordinances, with the
latest edition of the National Fuel Gas Code ANSI
Z223.1/NFPA 54 or the CAN/CSA-B149.1, Natural
Gas and Propane Installation Code.
Natural Gas, 1000 Btu/ft
3
(37.3 MJ/m
3
) service must
be supplied at minimum 5.0 inch water column
pressure to maximum 10.5 inch water column
pressure.
For proper operation at altitudes above 2000 feet
(610 m) the natural gas valve spud orifice size must be
reduced to ensure complete combustion. Refer to
Tab le 2 .
2. Remove the shipping cap from the gas
connection at the rear of the dryer. Make sure you
do not damage the pipe threads when removing
the cap.
3. Connect to gas supply pipe.
Duct Station Minimum Diameter of
Collector Duct
A 4 inches (10.2 cm)
B 8 inches (20.3 cm)
C 9 inches (22.9 cm)
D 10 inches (25.4 cm)
E 11 inches (27.9 cm)
F 12 inches (30.5 cm)
G 13 inches (32.6 cm)
H 14 inches (35.6 cm)
I 15 inches (38.1 cm)
J 15 inches (38.1 cm)
K 16 inches (40.6 cm)
To reduce the risk of gas leaks, fire or
explosion:
• The dryer must be connected to the type
of gas as shown on nameplate located in
the door recess.
• Use a new flexible stainless steel
connector.
• Use pipe joint compound insoluble in L.P.
(Liquefied Petroleum) Gas, or Teflon tape,
on all pipe threads.
• Purge air and sediment from gas supply
line before connecting it to the dryer.
Before tightening the connection, purge
remaining air from gas line to dryer until
odor of gas is detected. This step is
required to prevent gas valve
contamination.
• Do not use an open flame to check for gas
leaks. Use a non-corrosive leak detection
fluid.
• Any disassembly requiring the use of
tools must be performed by a suitably
qualified service person.
W316
WARNING
Natural Gas Altitude Adjustments
Altitude Orifice Size Part
Number
feet m # inches mm
2,000 610 41 0.0960 2.44 503776
3,000 915 42 0.0935 2.37 503777
5,500 1,680 43 0.0890 2.26 503778
7,000 2,135 44 0.0860 2.18 58719
9,000 2,745 45 0.0820 2.08 503779
10,500 3,200 46 0.0810 2.06 503780
Tab le 2

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
17
512680
NOTE: When connecting to a gas line, an
equipment shut-off valve must be installed within
6 feet (1.8 m) of the dryer. An 1/8 in. NPT pipe plug
must be installed as shown for checking inlet
pressure. Refer to Figure 9.
4. Tighten all connections securely. Turn on gas and
check all pipe connections (internal & external)
for gas leaks with a non-corrosive leak detection
fluid.
NOTE: The dryer and its appliance main gas valve
must be disconnected from the gas supply piping
system during any pressure testing of that system
at test pressures in excess of 1/2 psi (3.45 kPa).
Refer to Step 9 (Check Heat Source).
L.P. (Liquefied Petroleum) Gas, 2500 Btu/ft
3
(93.1 MJ/m
3
) service must be supplied at 10 ± 1.5 inch
water column pressure.
For proper operation at altitudes above 3500 feet
(1070 m) the L.P. gas valve spud orifice size must be
reduced to ensure complete combustion. Refer to
Table 3.
NOTE: DO NOT connect the dryer to L.P. Gas
Service without converting the gas valve. Install
L.P. Gas Conversion Kit 458P3, available at extra
cost.
Step 4: (Electric Dryer Only) Connect
Electrical Plug
Dryer requires 120/240 Volt or 120/208 Volt, 60 Hertz,
3 or 4 wire electrical suppy. Refer to serial plate for
specific electrical requirements.
NOTE: The wiring diagram is located inside the
control hood.
D699I
1New stainless steel flexible connector -
(Use design CSA certified connector).
Use only if allowed by local codes.
21/8 in. NPT Pipe Plug
3Equipment Shut Off Valve
4Black Iron Pipe
Shorter than 20 ft. (6.1 m) - Use 3/8 in.
(9.5 mm) pipe.
Longer than 20 ft. (6.1 m) - Use 1/2 in.
(12.7 mm) pipe.
53/8 in. NPT Gas Connection
Figure 9
D233I
1
3
2
4
5
L.P. Altitude Adjustments
Altitude Orifice Size Part
No.
feet m No. inches mm
3500 1070 54 0.0550 1.40 503785
7500 2290 55 0.0520 1.32 58755
11000 3355 56 0.0465 1.18 503786
Table 3
To reduce the risk of fire, electric shock,
serious injury or death, all wiring and
grounding MUST conform with the latest
edition of the National Electrical Code,
ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1, and such local
regulations as might apply. It is the
customer’s responsibility to have the wiring
and fuses installed by a qualified electrician
to make sure adequate electrical power is
available to the dryer.
W521
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
512680
18
Grounding Information
This appliance must be grounded. In the event of
malfunction or breakdown, grounding will reduce the
risk of electric shock by providing a path of least
resistance for electric current.The cord-kit must be
equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local
codes and ordinances.
Do not modify the plug provided with the cord-kit - if
it will not fit the outlet, have a proper outlet installed
by a qualified electrician.
The dryer has its own terminal block that must be
connected to a separate branch, 60 Hertz, single phase
circuit, AC (alternating current) circuit, fused at 30
Amperes (the circuit must be fused on both sides of
the line). Electrical service for the dryer should be
of maximum rated voltage (208 or 240 Volt,
depending on heating element) listed on the
nameplate. Do not connect dryer to 110, 115, or 120
Volt circuit .
Heating elements are available for field installation in
dryers which are to be connected to electrical service
of different voltage than that listed on nameplate, such
as 208 Volt.
NOTE: Branch circuit wire size requirements to
laundry room outlet are shown in Table 4.
Table 4
The power cord connection between wall receptacle
and dryer terminal block IS NOT supplied with
dryer. Type of power cord and gauge of wire must
conform to local codes.
Improper connection of the equipment-
grounding conductor can result in a risk of
electric shock. Check with a qualified
electrician or service person if you are in
doubt as to whether the dryer is properly
grounded.
W038
WARNING
Wire Length Wire
Less than 15 ft. (4.5 m) Listed No. 10 AWG
Copper wire only
Longer than 15 ft. (4.5 m) Listed No. 8 AWG
Copper wire only
