Alliance Laundry Systems D677I_SVG Original operating instructions

Installation/Operation
Clothes Dryer
Nonmetered and metered
Electric and Gas Models
D677I_SVG
Original Instructions
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
www.alliancelaundry.com Part No. 512680R10
November 2014

Front Matter
WARNING
WARNING
FOR YOUR SAFETY, the information in this manual
must be followed to minimize the risk of fire or ex-
plosion or to prevent property damage, personal in-
jury or death.
W033
WARNING
• Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
• WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Clear the room, building or area of all occu-
pants.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s in-
structions.
• If you cannot reach your gas supplier, call the
fire department.
• Installation and service must be performed by a
qualified installer, service agency or the gas sup-
plier.
W052
IMPORTANT: Purchaser must consult the local gas
supplier for suggested instructions to be followed if
the dryer user smells gas. The gas utility instructions
plus the SAFETY and WARNING note directly above
must be posted in a prominent location near the dryer
for customer use.
WARNING
• Installation of unit must be performed by a quali-
fied installer.
• Install clothes dryer according to manufacturer’s
instructions and local codes.
• DO NOT install a clothes dryer with flexible plas-
tic venting materials. If flexible metal (foil type)
duct is installed, it must be of a specific type
identified by the appliance manufacturer as suita-
ble for use with clothes dryers. Refer to section
on connecting exhaust system. Flexible venting
materials are known to collapse, be easily crush-
ed, and trap lint. These conditions will obstruct
clothes dryer airflow and increase the risk of fire.
W729R1
WARNING
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
W053
The following information applies to the state of Massachusetts,
USA.
• This appliance can only be installed by a Massachusetts li-
censed plumber or gas fitter.
• This appliance must be installed with a 36 inch [910 mm]
long flexible gas connector.
• A “T-Handle” type gas shut-off valve must be installed in the
gas supply line to this appliance.
• This appliance must not be installed in a bedroom or bath-
room.
Front Matter
Part No. 512680R10 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 3

Table of Contents
Front Matter.......................................................................................... 3
Safety Information..................................................................................7
Explanation of Safety Messages....................................................................... 7
Important Safety Instructions........................................................................... 7
Dimensions............................................................................................. 9
Installation........................................................................................... 14
Before You Start...........................................................................................14
Tools........................................................................................................14
Card Reader Models.................................................................................. 14
Order of Installation Steps..........................................................................14
Position and Level the Dryer..........................................................................14
Connect Dryer Exhaust System...................................................................... 17
Exhaust Direction......................................................................................19
Exhaust System.........................................................................................19
Multi-Dryer Installation Exhaust Requirements............................................19
Gas Dryers - Connect Gas Supply Pipe........................................................... 22
Electric Dryer Only - Connect Electrical Plug..................................................24
Earth/Ground Information.......................................................................... 24
Connecting Power Cord with Three-Wire Plug.............................................25
Connecting Power Cord with Four-Wire Plug.............................................. 27
Reverse Door, if Desired............................................................................... 28
Wipe Out Inside of Dryer.............................................................................. 30
Plug In the Dryer.......................................................................................... 30
Electric Dryer........................................................................................... 30
Gas Dryer................................................................................................. 30
Grounding Information.............................................................................. 31
Recheck Steps.............................................................................................. 31
Check Heat Source........................................................................................31
Electric Dryers.......................................................................................... 31
Gas Dryers................................................................................................31
Vending....................................................................................................... 32
Meter Case............................................................................................... 32
Coin Slide Control.....................................................................................33
Setting Dry Time Dipswitches.................................................................... 33
Dipswitch Settings.....................................................................................35
Test Setting...............................................................................................37
Slide Extension Assembly – Models through Serial No. 1211........................37
Slide Extension Assembly – Models Starting Serial No. 1211........................39
Additional Dryer Security.......................................................................... 41
© Copyright 2014, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed
written consent of the publisher.
Part No. 512680R10 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 4

Operation............................................................................................. 42
Operation Instructions for Nonmetered and Coin Slide Dryers.......................... 42
Clean Lint Filter........................................................................................42
Load Laundry........................................................................................... 42
Close Loading Door...................................................................................42
Set Fabric Selector.....................................................................................42
Start Dryer................................................................................................43
Operation Instructions for Electronic Display Control Dryers............................43
Clean Lint Filter........................................................................................43
Load Laundry........................................................................................... 44
Close Loading Door...................................................................................44
Set Fabric Selector.....................................................................................44
Insert Coins or Card...................................................................................44
Start Dryer................................................................................................45
Indicator Lights.........................................................................................45
Operation Instructions for MDC Dryers.......................................................... 45
Clean Lint Filter........................................................................................46
Load Laundry........................................................................................... 46
Close Loading Door...................................................................................46
Set Fabric Selector.....................................................................................46
Insert Coins or Card...................................................................................46
Start Dryer................................................................................................47
Indicator Lights.........................................................................................47
Operation Instructions for NetMaster Dryers................................................... 47
Clean Lint Filter........................................................................................47
Load Laundry........................................................................................... 48
Close Loading Door...................................................................................48
Set Fabric Selector.....................................................................................48
Insert Coins or Card...................................................................................48
Start Dryer................................................................................................49
Indicator Lights.........................................................................................49
Maintenance......................................................................................... 50
Lubrication...................................................................................................50
Care of Your Dryer....................................................................................... 50
Dryer Interior............................................................................................50
Cabinet.....................................................................................................50
Control Panel............................................................................................ 50
Exhaust System.........................................................................................50
Lint Filter.....................................................................................................50
Motor Overload Protector.............................................................................. 51
For Energy Conservation............................................................................... 51
Troubleshooting....................................................................................52
Contact Information............................................................................. 54
Part No. 512680R10 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 5

Installer Checklist.................................................................................55
6 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 512680R10

Safety Information
Explanation of Safety Messages
Precautionary statements (“DANGER,” “WARNING,” and
“CAUTION”), followed by specific instructions, are found in this
manual and on machine decals. These precautions are intended
for the personal safety of the operator, user, servicer, and those
maintaining the machine.
DANGER
Indicates an imminently hazardous situation that, if
not avoided, will cause severe personal injury or
death.
WARNING
Indicates a hazardous situation that, if not avoided,
could cause severe personal injury or death.
CAUTION
Indicates a hazardous situation that, if not avoided,
may cause minor or moderate personal injury or
property damage.
Additional precautionary statements (“IMPORTANT” and
“NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used to in-
form the reader of specific procedures where minor
machine damage will occur if the procedure is not fol-
lowed.
NOTE: The word “NOTE” is used to communicate in-
stallation, operation, maintenance or servicing informa-
tion that is important but not hazard related.
Important Safety Instructions
Save These Instructions
WARNING
To reduce the risk of fire, electric shock, or injury to
persons when using your dryer, follow these basic
precautions:
W034
• Read all instructions before using the dryer.
• Install this dryer according to the INSTALLATION IN-
STRUCTIONS. Refer to the EARTH/GROUND INSTRUC-
TIONS in the INSTALLATION manual for the proper earth/
ground connection of the dryer. All connections for electrical
power, earth/ground and gas supply must comply with local
codes and be made by licensed personnel when required. Do
not do it yourself.
• Do not install or store the dryer where it will be exposed to
water and/or weather.
• Do not dry articles that have been previously cleaned in,
washed in, soaked in, or spotted with gasoline or machine
oils, vegetable or cooking oils, cleaning waxes or chemicals,
dry-cleaning solvents, thinner, anything containing chemicals
such as in mops and cleaning cloths, or other flammable or
explosive substances as they give off vapors that could ignite,
explode or cause fabric to catch on fire by itself.
• Items that have been soiled with substances such as cooking
oil, acetone, alcohol, petrol, kerosene, spot removers, turpen-
tine, waxes and wax removers, should be washed in hot water
with an extra amount of detergent before being dried in the
tumble dryer.
• To reduce the risk of fire, DO NOT DRY plastics or articles
containing foam or latex rubber or similarly textured rubber-
like materials, such as shower caps, water proof textiles, rub-
ber-backed articles, and clothes or pillows filled with foam
rubber pads.
• Do not tumble fiberglass curtains and draperies unless the la-
bel says it can be done. If they are dried, wipe out the cylinder
with a damp cloth to remove particles of fiberglass.
• Do not allow children to play on or in the dryer. Close super-
vision of children is necessary when the dryer is used near
children. This appliance is not intended for use by persons
(including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning the use
of the appliance by a person responsible for their safety. This
is a safety rule for all appliances.
• Do not reach into the dryer if the cylinder is revolving.
• Use the dryer only for its intended purpose, drying clothes.
ALWAYS follow the fabric care instructions supplied by the
garment manufacturer and only use the dryer drum to dry tex-
tiles that have been washed in water.
Safety Information
Part No. 512680R10 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 7

• Always read and follow manufacturer’s instructions on pack-
ages of laundry and cleaning aids. Heed all warnings or pre-
cautions. To reduce the risk of poisoning or chemical burns,
keep them out of reach of children at all times (preferably in a
locked cabinet).
• Remove laundry immediately after the dryer stops.
• DO NOT operate the dryer if it is smoking, grinding or has
missing or broken parts or removed guards and/or panels. DO
NOT tamper with the controls or bypass any safety devices.
• Dryer will not operate with the loading door open. DO NOT
bypass the door safety switch by permitting the dryer to oper-
ate with the door open. The dryer will stop tumbling when the
door is opened. Do not use the dryer if it does not stop tum-
bling when the door is opened or starts tumbling without
pressing the START mechanism. Remove the dryer from use
and call the service person.
• ALWAYS clean the lint filter after every load. A layer of lint
in the filter reduces drying efficiency and prolongs drying
time. Keep area around the exhaust opening and adjacent sur-
rounding area free from the accumulation of lint, dust and
dirt. The interior of the dryer and the exhaust duct should be
cleaned periodically by qualified service personnel.
• Do not repair or replace any part of the dryer, or attempt any
servicing unless specifically recommended in the user-main-
tenance instructions or in published user-repair instructions
that you understand and have the skills to carry out. AL-
WAYS disconnect the electrical power to the dryer before at-
tempting service. Disconnect the power cord by grasping the
plug, not the cord.
• If supply cord is damaged, it must be replaced by a special
cord or assembly available from the manufacturer or its serv-
ice agent.
• Before the dryer is removed from service or discarded, re-
move the door to the drying compartment.
• Failure to install, maintain, and/or operate this machine ac-
cording to the manufacturer’s instructions may result in con-
ditions which can produce bodily injury and/or property dam-
age.
NOTE: The WARNING and IMPORTANT SAFETY IN-
STRUCTIONS appearing in this manual are not meant
to cover all possible conditions and situations that may
occur. Observe and be aware of other labels and pre-
cautions that are located on the machine. They are in-
tended to provide instruction for safe use of the ma-
chine. Common sense, caution and care must be exer-
cised when installing, maintaining, or operating the
dryer.
Always contact your dealer, distributor, service agent or the man-
ufacturer about any problems or conditions you do not under-
stand.
Safety Information
8 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 512680R10

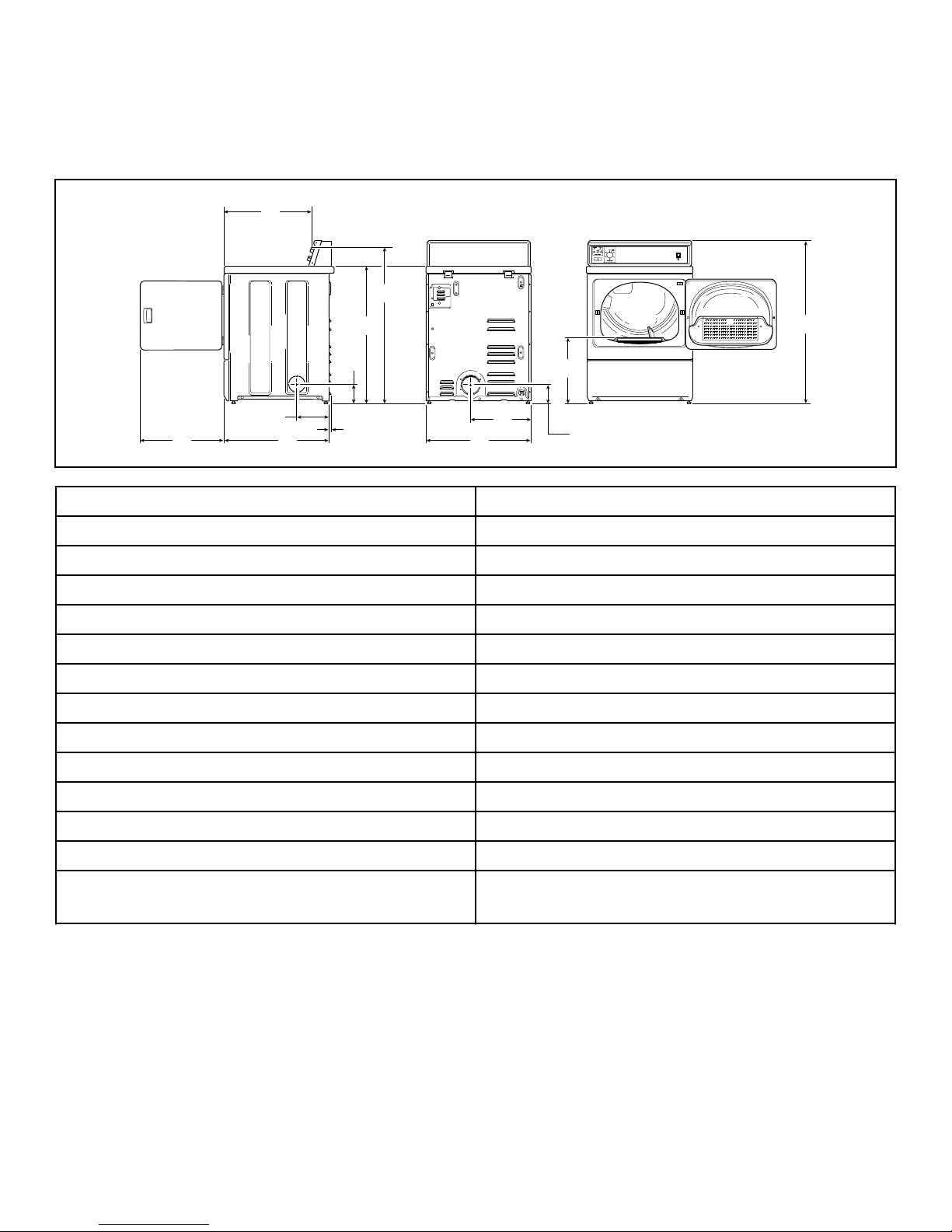

Dimensions
Nonmetered Models
Electric Models
DRY2471N_SVG
ML
KJI
H
G
F
E
D
C
B
A
A 21.56 in. [548 mm]
B *4.5 in. [114 mm]
C *36 in. [914 mm]
D *40.19 in. [1020 mm]
E *15.44 in. [392 mm]
F *43 in. [1092 mm]
G 4.0 in. [102 mm]
H 15.4 in. [391 mm]
I 26.875 in. [683 mm]
J 0.4 in. [10 mm]
K 8 in. [203 mm]
L 28 in. [711 mm]
M 23.5 in. [597 mm]
NOTE: Exhaust openings are 4 inch [102 mm] metal
ducting.
* With leveling legs turned into base.
Dimensions
Part No. 512680R10 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 9

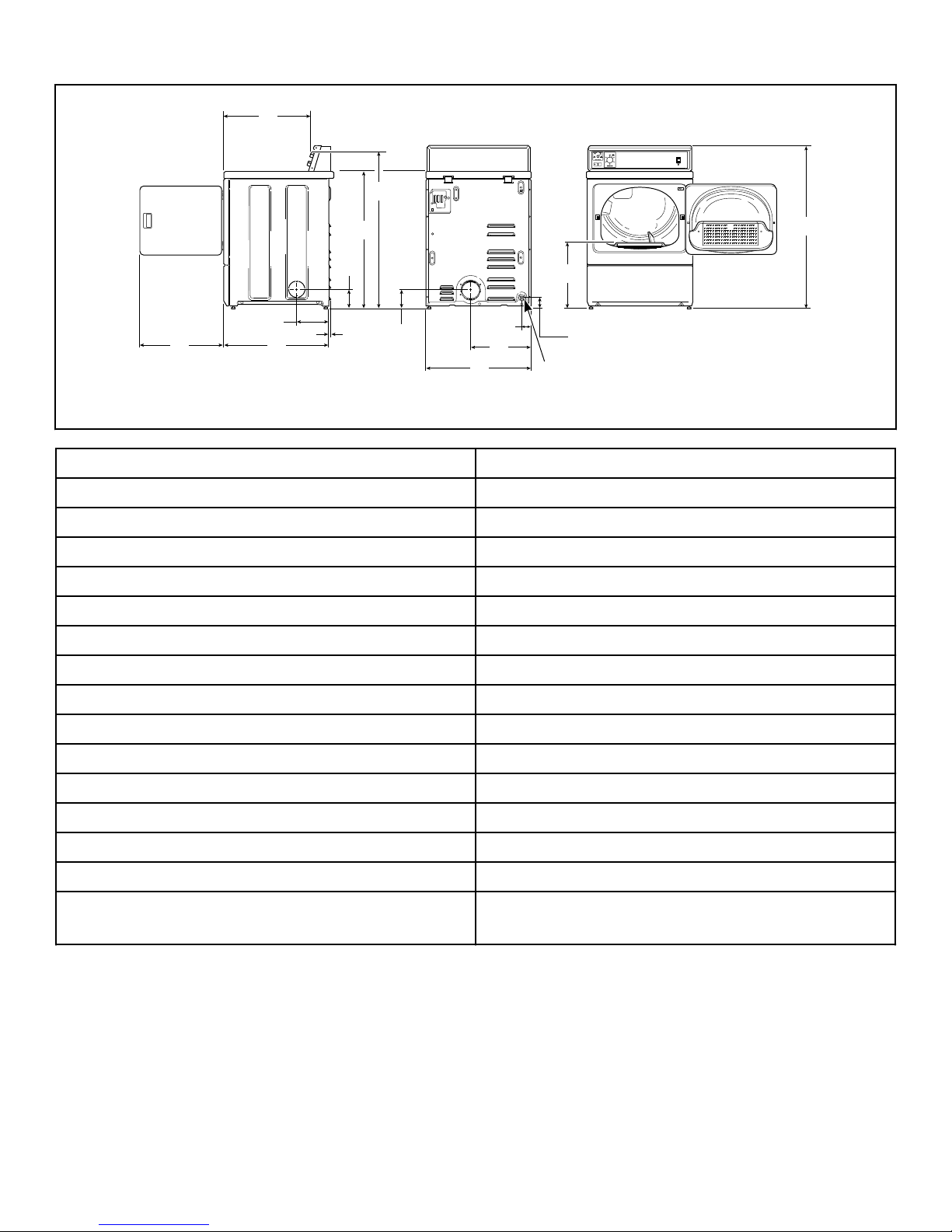

Gas Models
DRY2472N_SVG
ON
ML K
J
I
HG
F
E
D
C
B
A
1
1. 3/8 in. N.P.T. Gas Connection
A 21.56 in. [548 mm]
B *4.5 in. [114 mm]
C *36 in. [914 mm]
D *40.19 in. [1020 mm]
E *15.44 in. [392 mm]
F *43 in. [1092 mm]
G *2.8 in. [70 mm]
H 2.3 in. [60 mm]
I 15.4 in. [391 mm]
J 26.875 in. [683 mm]
K 4 in. [102 mm]
L 0.4 in. [10 mm]
M 8 in. [203 mm]
N 28 in. [711 mm]
O 23.5 in. [597 mm]
NOTE: Exhaust openings are 4 inch [102 mm] metal
ducting.
* With leveling legs turned into base.
Dimensions
10 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 512680R10

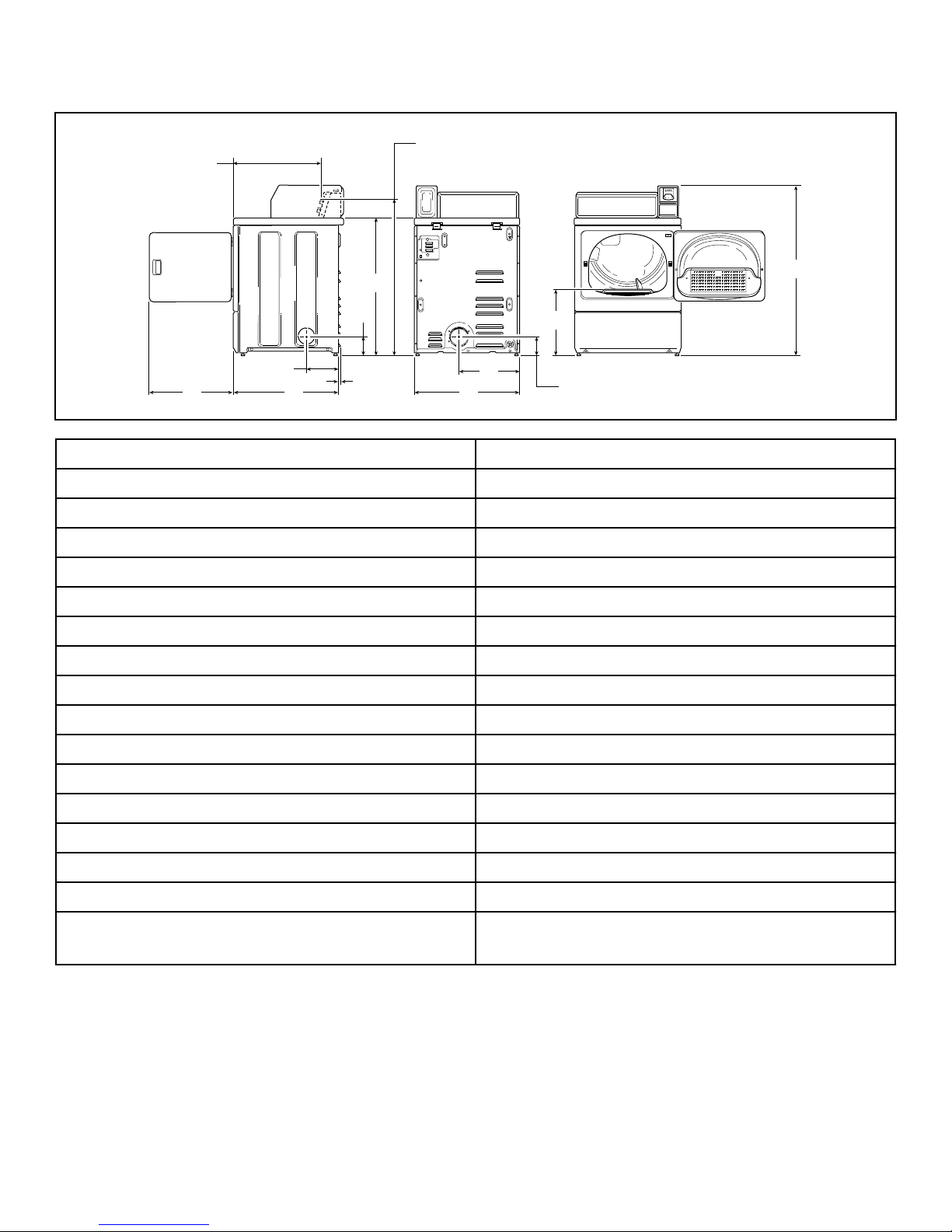

Metered Models
Electric Models
DRY2096N_SVG
M L
KJ
I
H
G
F
E
D
C
B
A
A - Coin Slide Models 21.56 in. [548 mm]
A - Electronic Control Models 22.06 in. [560 mm]
B - Coin Slide Models *40.19 in. [1020 mm]
B - Electronic Control Models 38.19 in. [970 mm]
C - Standard Capacity Metercase *43 in. [1092 mm]
C - High Capacity Metercase 43.875 in. [1114 mm]
D *15.44 in. [392 mm]
E 4.0 in. [102 mm]
F 15.4 in. [391 mm]
G 26.875 in. [683 mm]
H *36 in. [914 mm]
I *4.5 in. [114 mm]
J 0.4 in. [10 mm]
K 8.0 in. [203 mm]
L 28 in. [711 mm]
M 23.5 in. [597 mm]
NOTE: Exhaust openings are 4 inch [102 mm] metal
ducting.
* With leveling legs turned into base.
Dimensions
Part No. 512680R10 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 11

Gas Models
DRY2585N_SVG
K
N
MLG
FE
D
J
B
A
C
H
OI
1
1. 3/8 in. N.P.T. Gas Connection
A - Coin Slide Models 21.56 in. [548 mm]
A - Electronic Control Models 22.06 in. [560 mm]
B - Coin Slide Models *40.19 in. [1020 mm]
B - Electronic Control Models 38.19 in. [970 mm]
C - Standard Capacity Meter Case *43 in. [1092 mm]
C - High Capacity Meter Case *43.875 in. [1114 mm]
D *15.44 in. [392 mm]
E *2.8 in. [70 mm]
F 2.3 in. [60 mm]
G 15.4 in. [391 mm]
H 26.875 in. [683 mm]
I *4.0 in. [102 mm]
J *36 in. [914 mm]
K *4.5 in. [114 mm]
L 0.4 in. [10 mm]
M 8 in. [203 mm]
N 28 in. [711 mm]
O 23.5 in. [597 mm]
NOTE: Exhaust openings are 4 inch [102 mm] metal
ducting.
* With leveling legs turned into base.
NOTE: Gas models cannot be vented out left side of cabinet because of burner housing.
Dimensions
12 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 512680R10

NOTE: The dryer should have sufficient clearance around it for needed ventilation and for the ease of installation
and servicing. For maximum drying performance, we recommend that more clearance be allowed around the dry-
er than the clearances that are listed thorughout this manual.
Dimensions
Part No. 512680R10 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 13

Installation
Before You Start
Tools
For most installations, the basic tools you will need are:
D818I_SVG
5
4
3
2
1
1. Wrench
2. Screwdrivers
3. Level
4. Duct Tape
5. Teflon Tape
Figure 1
NOTE: An 8 in. [20.32 cm] coin drawer is required for
coin operated MDC and NetMaster models with stand-
ard capacity meter case and high capacity meter case
models starting with Serial Nos. beginning 1010. High
capacity meter case MDC and NetMaster models with
Serial Nos. beginning 0910 through 1010 require a 7.21
in. [18.31 cm] coin drawer.
Card Reader Models
The machine is shipped from the factory with the Electronic Con-
trol Diagnostic Harness Assembly unplugged. To avoid unauthor-
ized manual programming or vending, perform the following
steps.
1. Open service door. Refer to Figure 2 .
2. Locate diagnostic harness on electronic control.
3. Plug connectors for “white/black” wire and “red/blue” wire
together.
FLW6R_SVG
1
1. Service Door
Figure 2
WARNING
Any disassembly requiring the use of tools must be
performed by a suitably qualified service person.
W299
Order of Installation Steps
1. Position and level the dryer.
2. Connect dryer to exhaust system.
3. For gas models only, connect the gas supply pipe. Check for
gas leaks.
4. For electric models only, connect the electrical cord.
5. Reverse the door, if desired.
6. Wipe out the inside of the dryer.
7. Plug in the dryer.
8. Recheck steps.
9. Check heat source.
Position and Level the Dryer
1. Install dryer before washer. This allows room for attaching
exhaust duct.
2. Install the four rubber feet (in accessories bag).
3. Select a location with a solid floor. Dryers installed in resi-
dential garages must be elevated 18 inches [457 mm] above
the floor.
No other fuel burning appliance should be installed in the same
closet with the dryer.
Installation
Part No. 512680R10 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 14

The dryer must not be installed or stored in an area where it will
be exposed to water and/or weather.
The dryer needs sufficient clearance and an adequate air supply
for proper operation and ventilation, and for easier installation
and servicing. (Minimum clearances are shown in Figure 4 ).
4. Place the dryer in position, and adjust the legs until the dryer
is level from side to side and front to back. Leveling legs can
be adjusted from inside the dryer with a 1/4 in. driver.
5. All four legs must rest firmly on the floor so the weight of the
dryer is evenly distributed. The dryer must not rock.
D678I_SVG
2
1
3
4
1. Dryer Base
2. Level
3. Leveling Leg
4. Rubber Foot
Figure 3
Installation
Part No. 512680R10 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 15

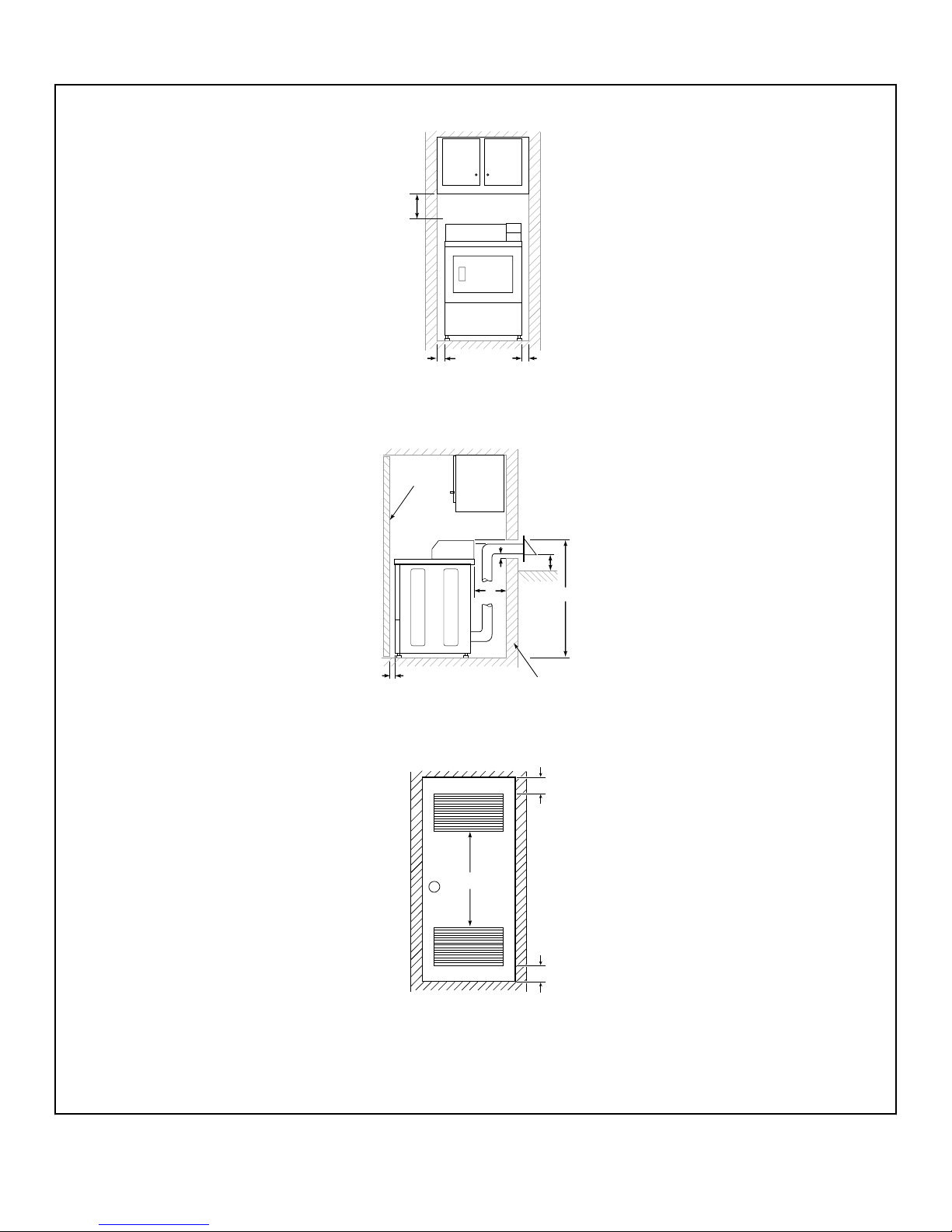

Front View (Without Closet Door)
DRY2651N_SVG
B
A A
Side View (Closet Door)
DRY2652N_SVG
E
H
D
A
C3
1
Front View (Closet Door)
DRY2637N_SVG
F
F
2 (G)
1. Closet Door
2. Centered Air Openings (G) (2 Openings minimum)
3. Outer Wall of Enclosure
Figure 4
Installation
16 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 512680R10

Area Description
Free Standing/Alcove In-
stallation Closet Installation
A* Dryer sides and rear clearance 0 in. [0 mm] 0 in. [0 mm]
B Dryer top clearance 12 in. [305 mm] 12 in. [305 mm]
C Dryer front clearance Not Applicable 2 in. [51 mm]
D Exhaust duct clearance to com-
bustible material
2 in. [51 mm] 2 in. [51 mm]
E Weather hood to ground clear-
ance
12 in. [305 mm] 12 in. [305 mm]
F Distance from floor or ceiling
to air opening edge
Not Applicable 3 in. [76 mm]
G Area of centered air openings
in closet door. Louvered door
with equivalent air openings is
acceptable. (Minimum clearan-
ces are shown.)
Not Applicable 40 sq. in./open [1016 sq. mm/
open]
H For new installations, locate
top of wall vent 42 inches
[1067 mm] above floor to make
venting easier to connect.
42 in. [1067 mm] 42 in. [1067 mm]
* Rear clearance is minimum. 2 inches [51 mm] is recommended for utility connection. 6 inches
[152 mm] is recommended when venting through rear of unit.
Table 1
NOTE: For new installations, locate top of wall vent 42
inches (106.7 cm) above floor to make venting easier to
connect.
IMPORTANT: In mobile home installations, gas dryers
MUST be permanently attached to the floor at the time
of installation. Order No. 526P3 Hold Down Kit (availa-
ble at extra cost) for a manufactured (mobile) home in-
stallation. Follow the instructions supplied with the kit.
Installation of unit must conform to the Manufactured Home
Construction and Safety Standards, Title 24 CF4, Part 32-80 or
Standard CAN/CSA-Z240 MH.
Connect Dryer Exhaust System
WARNING
To reduce the risk of fire and combustion gas accu-
mulation the dryer MUST be exhausted to the out-
doors.
W604
WARNING
To reduce the risk of fire and the accumulation of
combustion gases, DO NOT exhaust dryer air into a
window well, gas vent, chimney or enclosed, unven-
tilated area, such as an attic, wall, ceiling, crawl
space under a building or concealed space of a
building.
W045
Installation
Part No. 512680R10 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 17

WARNING
This gas appliance contains or produces a chemical
or chemicals which can cause death or serious ill-
ness and which are known to the State of California
to cause cancer, birth defects, or other reproductive
harm. To reduce the risk from substances in the fuel
or from fuel combustion, make sure this appliance is
installed, operated, and maintained according to the
instructions in this manual.
W115
WARNING
To reduce the risk of fire, DO NOT use plastic or thin
foil ducting to exhaust the dryer.
W354
WARNING
To reduce the risk of fire, the exhaust duct and
weather hood MUST be fabricated of a material that
will not support combustion. Rigid or flexible metal
pipe is recommended for a clothes dryer.
W048
WARNING
To reduce the risk of fire due to increased static
pressure, we do not recommend installation of in-
line secondary lint filters or lint collectors. If secon-
dary systems are mandated, frequently clean the
system to assure safe operation.
W749
IMPORTANT: Installing in-line filters or lint collectors
will cause increased static pressure. Failure to main-
tain the secondary lint system will decrease dryer effi-
ciency and will void machine warranty.
D333I_SVG
D335I_SVG
1. Correct
2. Incorrect
Figure 5
• DO NOT use plastic, thin foil or type B ducting. Rigid metal
duct is recommended.
• Locate dryer so exhaust duct is as short as possible.
• Be certain old exhaust ducts are cleaned before installing your
new dryer.
• Use 4 inch [102 mm] diameter rigid or flexible metal duct.
• The male end of each section of duct must point away from
the dryer.
• Use as few elbows as possible.
• Use of duct tape or pop-rivets on all seams and joints is rec-
ommended, if allowed by local codes. DO NOT use sheet
metal screws or fasteners on exhaust pipe joints which extend
into the duct and catch lint.
• Ductwork that runs through unheated areas must be insulated
to help reduce condensation and lint build-up on pipe walls.
• Install backdraft dampers in multi-dryer installations.
• In mobile home installations, dryer exhaust duct must be se-
cured to mobile home structure.
• Dryer exhaust duct MUST NOT terminate under mobile
home.
• Dryer exhausts 220 cfm per unit (measured at back of dryer).
• DO NOT install flexible duct in concealed spaces, such as a
wall or ceiling.
• Static pressure in exhaust duct should not be greater than 0.6
inches water column [1.5 cm water column], measured with
manometer placed on exhaust duct 2 feet [610 mm] from dry-
er (check with dryer running and no load). In multi-dryer in-
stallations, all dryers connected to the main collector duct
should be operating when pressure is checked.
• Exhausting dryer in hard-to-reach locations can be done by
installing 521P3 Flexible Metal Vent Kit (available as option-
al equipment at extra cost).
• Sufficient make-up air must be supplied to replace the air ex-
hausted by the dryer. The free area of any opening for outside
air must be at least 40 in.2 [260 cm2] per unit.
• Energy efficient buildings with low air infiltration rates
should be equipped with an air exchanger that can accommo-
Installation
18 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 512680R10

date on demand make-up air needs in the laundry room. These
devices can be obtained through your building contractor or
building material suppliers.
• Do not draw make-up air from a room containing a gas fired
water heater, a dry cleaner or a hair salon.
• Failure to exhaust dryer properly will void warranty.
NOTE: Venting materials are not supplied with the dry-
er (obtain locally).
IMPORTANT: DO NOT block the airflow at the bottom
of the dryer’s front panel with laundry, rugs, etc. Block-
age will decrease airflow through the dryer, thus reduc-
ing the efficiency of the dryer.
Exhaust Direction
The dryer can be exhausted to the outdoors through the back, left,
right or bottom of the dryer. EXCEPTION: Gas dryers cannot be
vented out the left side because of the burner housing.
Dryer is shipped from factory ready for rear exhaust.
Exhausting the dryer through sides or bottom can be accomplish-
ed by installing a Directional Exhaust Kit, 528P3, available as
optional equipment at extra cost.
IMPORTANT: DO NOT block the airflow at the bottom
of the dryer’s front panel with laundry, rugs, etc. Block-
age will decrease airflow through the dryer, thus reduc-
ing the efficiency of the dryer.
Exhaust System
For best drying results, recommended maximum length of ex-
haust system is shown in Table 2 .
To prevent backdraft when dryer is not in operation, outer end of
exhaust pipe must have a weather hood with hinged dampers (ob-
tain locally).
NOTE: Weather hood should be installed at least 12 in-
ches [305 mm] above the ground. Larger clearances
may be necessary for installations where heavy snow-
fall can occur.
Number of 90° Elbows
Weather Hood Type
Recommended Use Only for Short Run Installations
D673I_SVG
1
1
1. 4 in. [102 mm]
D802I_SVG
1
1. 2.5 in. [64 mm]
Maximum length of 4 in. [102 mm] diameter rigid metal duct.
0 65 feet [19.8 m] 55 feet [16.8 m]
1 55 feet [16.8 m] 47 feet [14.3 m]
2 47 feet [14.3 m] 41 feet [12.5 m]
3 36 feet [11.0 m] 30 feet [9.1 m]
4 28 feet [8.5 m] 22 feet [6.7 m]
Table 2
NOTE: Deduct 6 feet [1.8 m] for each additional elbow.
NOTE: The maximum length of a 4 in. [102 mm] diame-
ter flexible metal duct must not exceed 7.87 ft. [2.4 m],
as required to meet UL2158, clause 7.3.2.A.
Multi-Dryer Installation Exhaust Requirements
Figure 6 shows a typical example of a multiple dryer installation.
Note how each dryer has its own exhaust system vented to the
central exhaust duct.
Installation
Part No. 512680R10 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT 19

D797I_SVG
4
3
2
1
1. 58786 Backdraft Damper (Available through your local authorized parts source)
2. Clean Out Cover (Must be provided). Inspect monthly.
3. Weather Hood or Sweep Elbow (No cap or screen)
4. 24 in. [610 mm] Minimum Clearance to Roof/Ground
Figure 6
Installation
