Alliance Laundry Systems Speed Queen FF7009WN User manual

Installation Instructions
for Dryers
Original Instructions
Keep These Instructions for Future Reference.
CAUTION: Read the instructions before using the machine.
(If this machine changes ownership, this manual must accompany machine.)
www.speedqueen.com Part No. D514320ENR6
April 2022

WARNING
WARNING
Risk of fire. Highly flammable material.
W881
Read all instructions before using unit.
WARNING
FOR YOUR SAFETY, the information in this manual
must be followed to minimize the risk of fire or ex-
plosion or to prevent property damage, personal in-
jury or death.
W033
WARNING
• Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
• WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Clear the room, building or area of all occu-
pants.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s in-
structions.
• If you cannot reach your gas supplier, call the
fire department.
• Installation and service must be performed by a
qualified installer, service agency or the gas sup-
plier.
W052
IMPORTANT: Purchaser must consult the local gas
supplier for suggested instructions to be followed if
the dryer user smells gas. The gas utility instructions
plus the SAFETY and WARNING note directly above
must be posted in a prominent location near the dryer
for customer use.
WARNING
• Installation of unit must be performed by a quali-
fied installer.
• Install clothes dryer according to manufacturer’s
instructions and local codes.
• DO NOT install a clothes dryer with flexible plas-
tic venting materials. If flexible metal (foil type)
duct is installed, it must be of a specific type
identified by the appliance manufacturer as suita-
ble for use with clothes dryers. Refer to section
on connecting exhaust system. Flexible venting
materials are known to collapse, be easily crush-
ed, and trap lint. These conditions will obstruct
clothes dryer airflow and increase the risk of fire.
W729R1
WARNING
To reduce the risk of severe injury or death, follow all
installation instructions. Save these instructions.
W894
WARNING
FOR YOUR SAFETY
Do not store or use gasoline or other flammable va-
pors and liquids in the vicinity of this or any other
appliance.
W053
This product uses FreeRTOS V7.2.0 (www.freertos.org).
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
3 Part No. D514320ENR6

The following information applies to the state of Massachusetts,
USA.
• This appliance can only be installed by a Massachusetts li-
censed plumber or gas fitter.
• This appliance must be installed with a 36 inch [910 mm]
long flexible gas connector.
• A “T-Handle” type gas shut-off valve must be installed in the
gas supply line to this appliance.
• This appliance must not be installed in a bedroom or bath-
room.
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
4 Part No. D514320ENR6

Table of Contents
Dimensions............................................................................................. 6
Installation............................................................................................. 8
Before You Start............................................................................................. 8
Supplies..................................................................................................... 8
Parts Included............................................................................................. 8
Order of Installation Steps............................................................................8
Position and Level the Dryer............................................................................8
Connect Dryer Exhaust System...................................................................... 11
Exhaust Direction......................................................................................12
Exhaust System.........................................................................................12
Gas Dryers - Connect Gas Supply Pipe........................................................... 13
Electric Dryer Only - Connect Electrical Plug..................................................15
Earth/Ground Information.......................................................................... 15
Connecting Power Cord with Three-Wire Plug.............................................16
Connecting Power Cord with Four-Wire Plug.............................................. 18
Reverse Door, if Desired................................................................................19
Wipe Out Inside of Dryer...............................................................................21
Plug In the Dryer.......................................................................................... 21
Electric Dryer........................................................................................... 21
Gas Dryer................................................................................................. 21
Recheck Steps.............................................................................................. 22
Check Heat Source........................................................................................22
Electric Dryers.......................................................................................... 22
Gas Dryers................................................................................................22
Installer Checklist.................................................................................24
© Copyright 2021, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed
written consent of the publisher.
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
5 Part No. D514320ENR6

Dimensions
Electric Models
DRY2638N_SVG
JK
IH
G
F
E
D
C
B
A
A * 40.42 in. [1027 mm]
B * 39.61 in. [1006 mm]
C * 15.44 in. [392 mm]
D * 4 in. [102 mm]
E 15.4 in. [391 mm]
F 26.875 in. [683 mm]
G * 4.5 in. [114 mm]
H 0.4 in. [10 mm]
I 8 in. [203 mm]
J 28 in. [711 mm]
K 23.5 in. [597 mm]
NOTE: Exhaust openings are 4 inch [102 mm] metal
ducting.
* With leveling legs turned into base.
Dimensions
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
6 Part No. D514320ENR6

Gas Models
DRY2639N_SVG
F
E
DC
B
A
J
K
M L
I
H
G
1
1. 3/8 in. NPT Gas Connection
A * 40.42 in. [1027 mm]
B * 39.61 in. [1006 mm]
C * 15.44 in. [392 mm]
D * 2.8 in. [70 mm]
E 2.3 in. [60 mm]
F 15.4 in. [391 mm]
G 26.875 in. [683 mm]
H 4 in. [102 mm]
I * 4.5 in. [114 mm]
J 0.4 in. [10 mm]
K 8 in. [203 mm]
L 28 in. [711 mm]
M 23.5 in. [597 mm]
NOTE: Exhaust openings are 4 inch [102 mm] metal
ducting.
* With leveling legs turned into base.
NOTE: Gas models cannot be vented out left side of
cabinet because of burner housing.
IMPORTANT: The dryer should have sufficient clear-
ance around it for needed ventilation and for the ease
of installation and servicing. For maximum drying per-
formance, we recommend that more clearance be al-
lowed around the dryer than the clearances that are
listed throughout this manual.
Dimensions
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
7 Part No. D514320ENR6

Installation
Before You Start
Supplies
For most installations, the basic supplies you will need are:
DRY2586N_SVG
8
765
4
3
2
1
1. Wrench
2. 1/4 inch Driver
3. Screwdrivers
4. Level
5. Gloves
6. Teflon Tape
7. Duct Tape
8. Safety Glasses
Figure 1
NOTE: This appliance is suitable for use in countries
having a warm, damp climate.
WARNING
Any disassembly requiring the use of tools must be
performed by a suitably qualified service person.
W299
Parts Included
An accessories bag has been shipped inside your dryer. It in-
cludes:
• Product literature
• Dryer Rack Reply Card (Select Models Only)
• Three screws (electric dryers only). Refer to Electric Dryer
Only - Connect Electrical Plug.
Order of Installation Steps
1. Position and level the dryer.
2. Connect dryer to exhaust system.
3. For gas models only, connect the gas supply pipe. Check for
gas leaks.
4. For electric models only, connect the electrical cord.
5. Reverse the door, if desired.
6. Wipe out the inside of the dryer.
7. Plug in the dryer.
8. Recheck steps.
9. Start and run the dryer in a heat setting to verify dryer is heat-
ing.
Position and Level the Dryer
1. Install dryer before washer. This allows room for attaching
exhaust duct.
2. Select a location with a solid floor. Dryers installed in resi-
dential garages must be elevated 18 inches [457 mm] above
the floor.
No other fuel burning appliance should be installed in the same
closet with the dryer.
The dryer must not be installed or stored in an area where it will
be exposed to water and/or weather.
The dryer needs sufficient clearance and an adequate air supply
for proper operation and ventilation, and for easier installation
and servicing. (Minimum clearances are shown in Figure 3 ).
3. Place the dryer in position, and adjust the legs until the dryer
is level from side to side and front to back. Leveling legs can
be adjusted from inside the dryer with a 1/4 in. driver.
4. All four legs must rest firmly on the floor so the weight of the
dryer is evenly distributed. The dryer must not rock.
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
8 Part No. D514320ENR6

DRY2500N_SVG
3
2
1
1. Dryer Base
2. Level
3. Leveling Leg
Figure 2
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
9 Part No. D514320ENR6

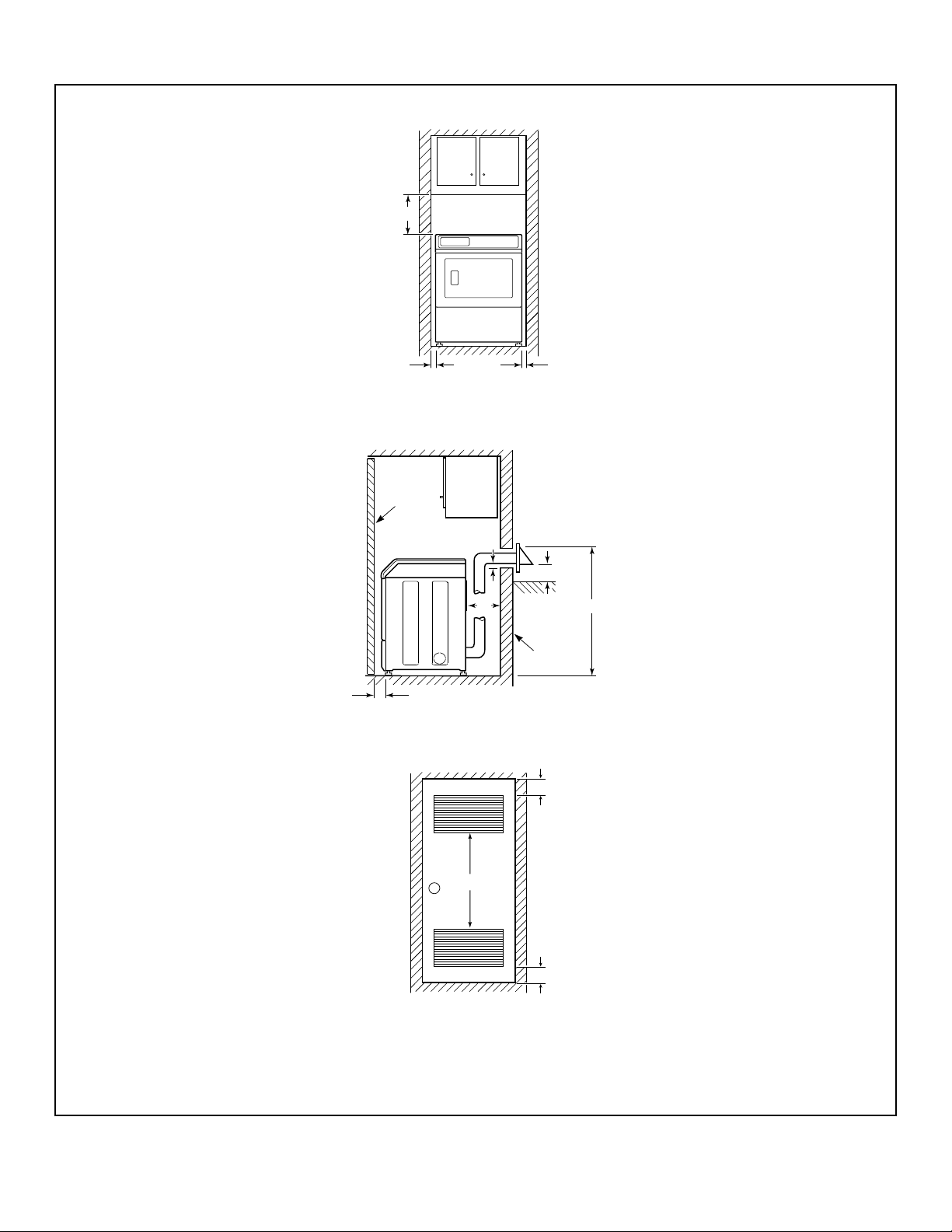

Front View (Without Closet Door)
DRY2640N_SVG
A
B
A
Side View (Closet Door)
DRY2641N_SVG
H
E
D
C
A
3
1
Front View (Closet Door)
DRY2637N_SVG
F
F
2 (G)
1. Closet Door
2. Centered Air Openings (G) (2 Openings minimum)
3. Outer Wall of Enclosure
Figure 3
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
10 Part No. D514320ENR6

Area Description
Free Standing/Alcove In-
stallation Closet Installation
A* Dryer sides and rear clearance 0 in. [0 mm] 0 in. [0 mm]
B Dryer top clearance 12 in. [305 mm] 12 in. [305 mm]
C Dryer front clearance Not Applicable 2 in. [51 mm]
D Exhaust duct clearance to com-
bustible material
2 in. [51 mm] 2 in. [51 mm]
E Weather hood to ground clear-
ance
12 in. [305 mm] 12 in. [305 mm]
F Distance from floor or ceiling
to air opening edge
Not Applicable 3 in. [76 mm]
G Area of centered air openings
in closet door. Louvered door
with equivalent air openings is
acceptable. (Minimum clearan-
ces are shown.)
Not Applicable 40 sq. in./open [1016 sq. mm/
open]
H For new installations, it is sug-
gested to locate top of wall vent
42 inches [1067 mm] above
floor to make venting easier to
connect.
42 in. [1067 mm] 42 in. [1067 mm]
* Rear clearance is minimum. 2 inches [51 mm] is recommended for utility connection. 6 inches
[152 mm] is recommended when venting through rear of unit.
Table 1
IMPORTANT: In mobile home installations, gas dryers
MUST be permanently attached to the floor at the time
of installation. Order No. 526P3 Hold Down Kit (availa-
ble at extra cost) for a manufactured (mobile) home in-
stallation. Follow the instructions supplied with the kit.
Installation of unit must conform to the Manufactured Home
Construction and Safety Standards, Title 24 CF4, Part 32-80 or
Standard CAN/CSA-Z240 MH.
Connect Dryer Exhaust System
WARNING
To reduce the risk of fire and combustion gas accu-
mulation the dryer MUST be exhausted to the out-
doors.
W604
WARNING
To reduce the risk of fire and the accumulation of
combustion gases, DO NOT exhaust dryer air into a
window well, gas vent, chimney or enclosed, unven-
tilated area, such as an attic, wall, ceiling, crawl
space under a building or concealed space of a
building.
W045
WARNING
This gas appliance contains or produces a chemical
or chemicals which can cause death or serious ill-
ness and which are known to the State of California
to cause cancer, birth defects, or other reproductive
harm. To reduce the risk from substances in the fuel
or from fuel combustion, make sure this appliance is
installed, operated, and maintained according to the
instructions in this manual.
W115
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
11 Part No. D514320ENR6

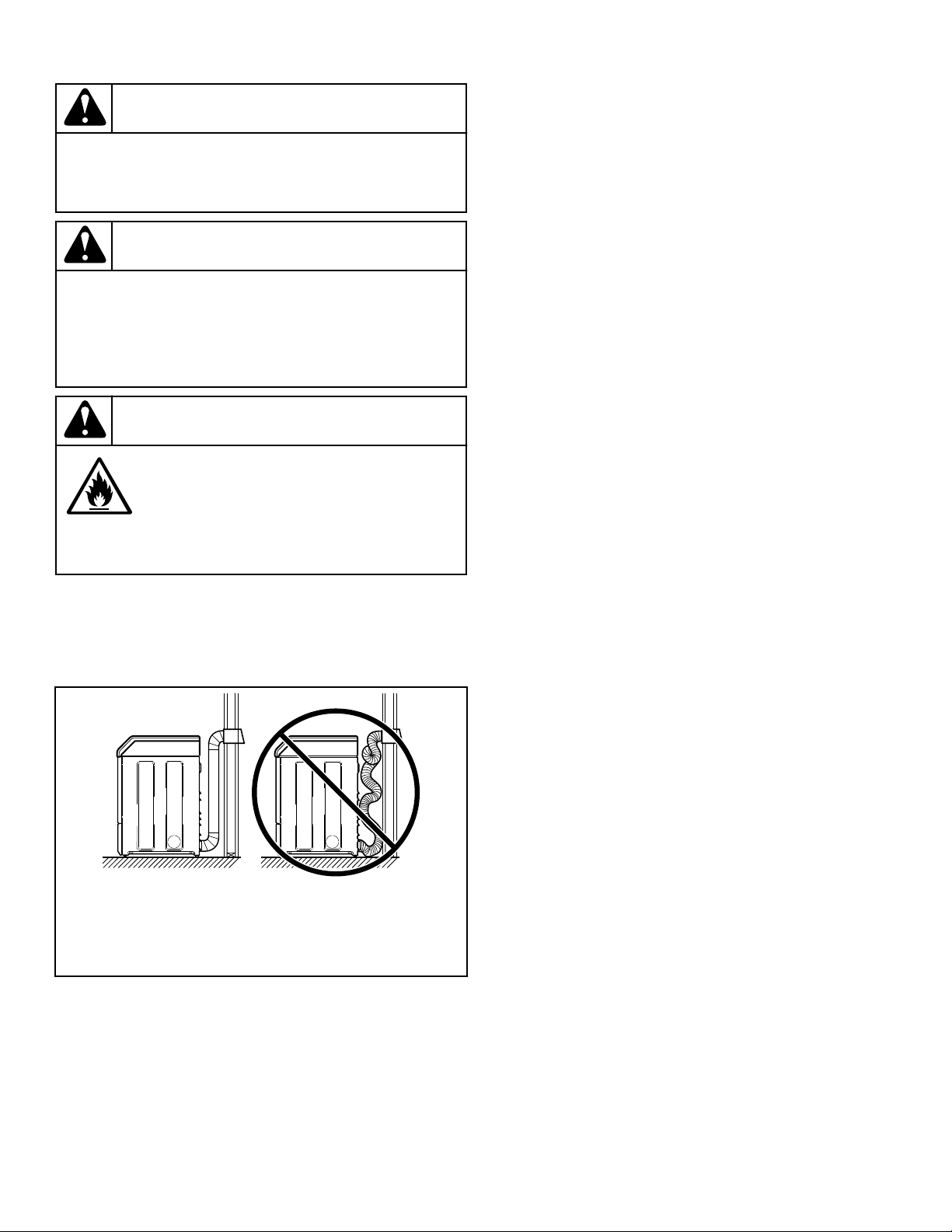

WARNING
To reduce the risk of fire, DO NOT use plastic or thin
foil ducting to exhaust the dryer.
W354
WARNING
To reduce the risk of fire, the exhaust duct and
weather hood MUST be fabricated of a material that
will not support combustion. Rigid or flexible metal
pipe is recommended for a clothes dryer.
W048
WARNING
Risk of fire. Do not install a booster fan in
the exhaust duct.
W1072
NOTE: The booster fan warning does not apply to
clothes dryers intended to be installed in a multiple
clothes dryer system, with an engineered exhaust duct
system that is installed per the clothes dryer manufac-
turer's guidelines.
DRY2501N_SVG
1 2
1. Correct
2. Incorrect
Figure 4
• DO NOT use plastic, thin foil or type B ducting. Rigid metal
duct is recommended.
• Locate dryer so exhaust duct is as short as possible.
• Be certain old exhaust ducts are cleaned before installing your
new dryer.
• Use 4 inch [102 mm] diameter rigid or flexible metal duct.
• The male end of each section of duct must point away from
the dryer.
• Use as few elbows as possible.
• Use of duct tape or pop-rivets on all seams and joints is rec-
ommended, if allowed by local codes. DO NOT use sheet
metal screws or fasteners on exhaust pipe joints which extend
into the duct and catch lint.
• Ductwork that runs through unheated areas must be insulated
to help reduce condensation and lint build-up on pipe walls.
• In mobile home installations, dryer exhaust duct must be se-
cured to mobile home structure.
• Dryer exhaust duct MUST NOT terminate under mobile
home.
• Exhaust duct must not be connected to any other duct, vent, or
chimney.
• Dryer exhausts 220 cfm per unit (measured at back of dryer).
• DO NOT install flexible duct in concealed spaces, such as a
wall or ceiling.
• Static pressure in exhaust duct should not be greater than 0.6
inches water column [1.5 cm water column] , measured with
manometer placed on exhaust duct 2 feet [610 mm] from dry-
er (check with dryer running and no load).
• Exhausting dryer in hard-to-reach locations can be done by
installing 521P3 Flexible Metal Vent Kit (available as option-
al equipment at extra cost).
• Sufficient make-up air must be supplied to replace the air ex-
hausted by the dryer. The free area of any opening for outside
air must be at least 40 in.2 [25806 mm2 ] per unit.
• Failure to exhaust dryer properly will void warranty.
• A dryer will dissipate 60 Btu/ft2 [681,392 J/m2 ] of surface
area exposed to the conditioned air.
NOTE: Venting materials are not supplied with the dry-
er (obtain locally).
IMPORTANT: DO NOT block the airflow at the bottom of
the dryer’s front panel with laundry, rugs, etc. Blockage
will decrease airflow through the dryer, thus reducing
the efficiency of the dryer.
Exhaust Direction
The dryer can be exhausted to the outdoors through the back, left,
right or bottom of the dryer. EXCEPTION: Gas dryers cannot be
vented out the left side because of the burner housing.
Dryer is shipped from factory ready for rear exhaust.
Exhausting the dryer through sides or bottom can be accomplish-
ed by installing a Directional Exhaust Kit, 528P3, available as
optional equipment at extra cost.
Exhaust System
For best drying results, recommended maximum length of ex-
haust system is shown in Table 2 .
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
12 Part No. D514320ENR6

To prevent backdraft when dryer is not in operation, outer end of
exhaust pipe must have a weather hood with hinged dampers (ob-
tain locally).
NOTE: Weather hood should be installed at least 12 in-
ches [305 mm] above the ground. Larger clearances
may be necessary for installations where heavy snow-
fall can occur.

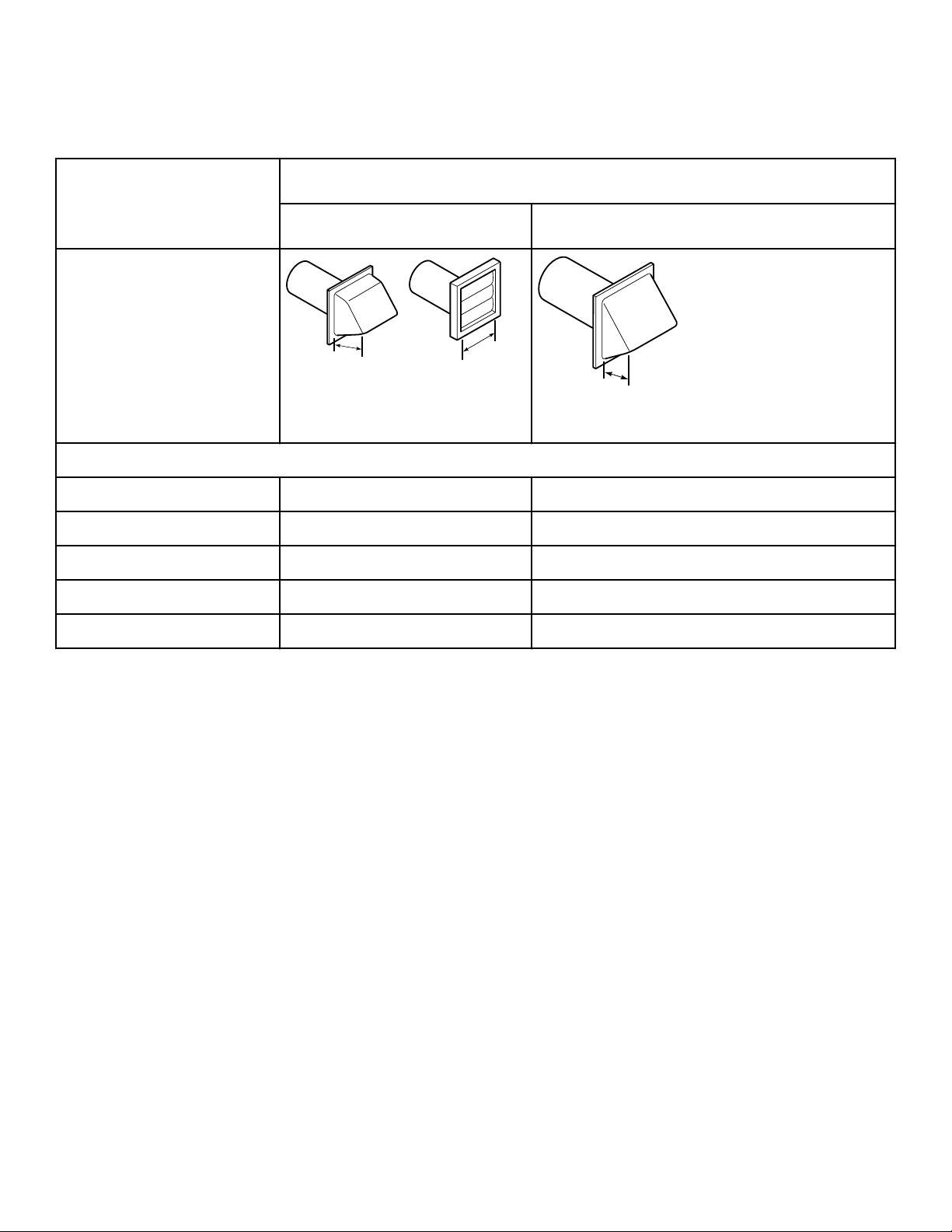

Number of 90° Elbows
Weather Hood Type
Recommended Use Only for Short Run Installations
D673I_SVG
1
1
1. 4 in. [102 mm]
D802I_SVG
1
1. 2.5 in. [64 mm]
Maximum length of 4 in. [102 mm] diameter rigid metal duct.
0 65 feet [19.8 m] 55 feet [16.8 m]
1 55 feet [16.8 m] 47 feet [14.3 m]
2 47 feet [14.3 m] 41 feet [12.5 m]
3 36 feet [11.0 m] 30 feet [9.1 m]
4 28 feet [8.5 m] 22 feet [6.7 m]
Table 2
NOTE: Deduct 6 feet [1.8 m] for each additional elbow.
NOTE: The maximum length of a 4 in. [102 mm] diame-
ter flexible metal duct must not exceed 7.87 ft. [2.4 m] ,
as required to meet UL2158, clause 7.3.2.A.
Gas Dryers - Connect Gas Supply Pipe
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
13 Part No. D514320ENR6

WARNING
To reduce the risk of gas leaks, fire or explosion:
• The dryer must be connected to the type of gas
as shown on nameplate located in the door re-
cess.
• Use a new flexible stainless steel connector.
• Use pipe joint compound insoluble in L.P. (Lique-
fied Petroleum) Gas, or Teflon tape, on all pipe
threads.
• Purge air and sediment from gas supply line be-
fore connecting it to the dryer. Before tightening
the connection, purge remaining air from gas line
to dryer until odor of gas is detected. This step is
required to prevent gas valve contamination.
• Do not use an open flame to check for gas leaks.
Use a non-corrosive leak detection fluid.
• Any disassembly requiring the use of tools must
be performed by a suitably qualified service per-
son.
W316
1. Make certain your dryer is equipped for use with the type of
gas in your laundry room. Dryer is equipped at the factory for
Natural Gas with a 3/8 inch NPT gas connection.
NOTE: The gas service to a gas dryer must conform
with the local codes and ordinances, or in the ab-
sence of local codes and ordinances, with the latest
edition of the National Fuel Gas Code ANSI Z223.1/
NFPA 54 or the CAN/CSA-B149.1 Natural Gas and
Propane Installation Code.
Natural Gas, 1000 Btu/ft3 [37.3 MJ/m3 ] , service must be sup-
plied at minimum 5.0 inch water column pressure to maximum
10.5 inch water column pressure.
For proper operation at altitudes above 3000 feet [915 m] the nat-
ural gas valve spud orifice size must be reduced to ensure com-
plete combustion. Refer to Table 3 .
Natural Gas Altitude Adjustments
Altitude Orifice Size
Part
No.feet [m] No. inches [mm]
3000 [915] 43 0.0890 [2.26] D503778
6000 [1830] 44 0.0860 [2.18] 58719
8000 [2440] 45 0.0820 [2.08] D503779
Table 3 continues...
Natural Gas Altitude Adjustments
Altitude Orifice Size
Part
No.feet [m] No. inches [mm]
9000 [2740] 46 0.0810 [2.06] D503780
10,000 [3050] 47 0.0785 [1.99] D503781
Table 3
2. Remove the shipping cap from the gas connection at the rear
of the dryer. Make sure you do not damage the pipe threads
when removing the cap.
3. Connect to gas supply pipe using thread sealant or Teflon
tape. Torque 90 - 175 inch-pounds [10.2 - 19.7 Nm] .
NOTE: The connection of gas supply to the appli-
ance shall be made with a flexible hose suitable for
the appliance category in accordance with national
installation regulations of the country of destina-
tion. If in doubt contact the dryer distributor or man-
ufacturer.
NOTE: When connecting to a gas line, an equipment
shut-off valve in accordance with the National Fuel
Gas Code, ANSI Z223.1/NFPA 54 and the Natural
Gas and Propane Installation Code, CSA B149.1
must be installed within 6 feet [1.8 m] of the dryer.
An 1/8 in. NPT pipe plug must be installed as shown
for checking inlet pressure. Refer to Figure 5 .
Starting Serial No. 1908000001, the following must be furnished
and installed by the customer for the gas service line to dryer:
Union at gas supply connection (listed to ANSI Z21.24 and CSA
6.10).
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
14 Part No. D514320ENR6

D233I_SVG
2
3
4
1
5
1. New Stainless Steel Flexible Connector – (Use design
CSA certified connector) Use only if allowed by local co-
des
2. 1/8 in. NPT Pipe Plug
3. Equipment Shut-Off Valve
4. Black Iron Pipe:
Shorter than 20 ft. [6.1 m] – Use 3/8 in. [9.5 mm] pipe.
Longer than 20 ft. [6.1 m] – Use 1/2 in. [12.7 mm] pipe.
5. 3/8 in. NPT Gas Connection
Figure 5
4. Tighten all connections securely but don't overtighten to avoid
breaking or bending the gas valve bracket. Turn on gas and
check all pipe connections (internal & external) for gas leaks
with a non-corrosive leak detection fluid.
NOTE: The dryer and its appliance main gas valve must
be disconnected from the gas supply piping system
during any pressure testing of that system at test pres-
sures in excess of 1/2 psi [3.45 kPa] . Refer to Check
Heat Source.
NOTE: DO NOT connect the dryer to L.P. Gas Service
without converting the gas valve. Install L.P. Gas Con-
version Kit 649P3, available at extra cost.
L.P. (Liquefied Petroleum) Gas, 2500 Btu/ft.3 [93.1 MJ/m3 ] ,
service must be supplied at 10 ± 1.5 inch water column pressure.
For proper operation at altitudes above 3000 feet [915 m] the L.P.
gas valve spud orifice size must be reduced to ensure complete
combustion. Refer to Table 4 .
L.P. Altitude Adjustments
Altitude Orifice Size
Part No.feet [m] No. inches [mm]
3000 [915] 55 0.0520 [1.32] 58755
8000 [2440] 56 0.0465 [1.18] D503786
Table 4

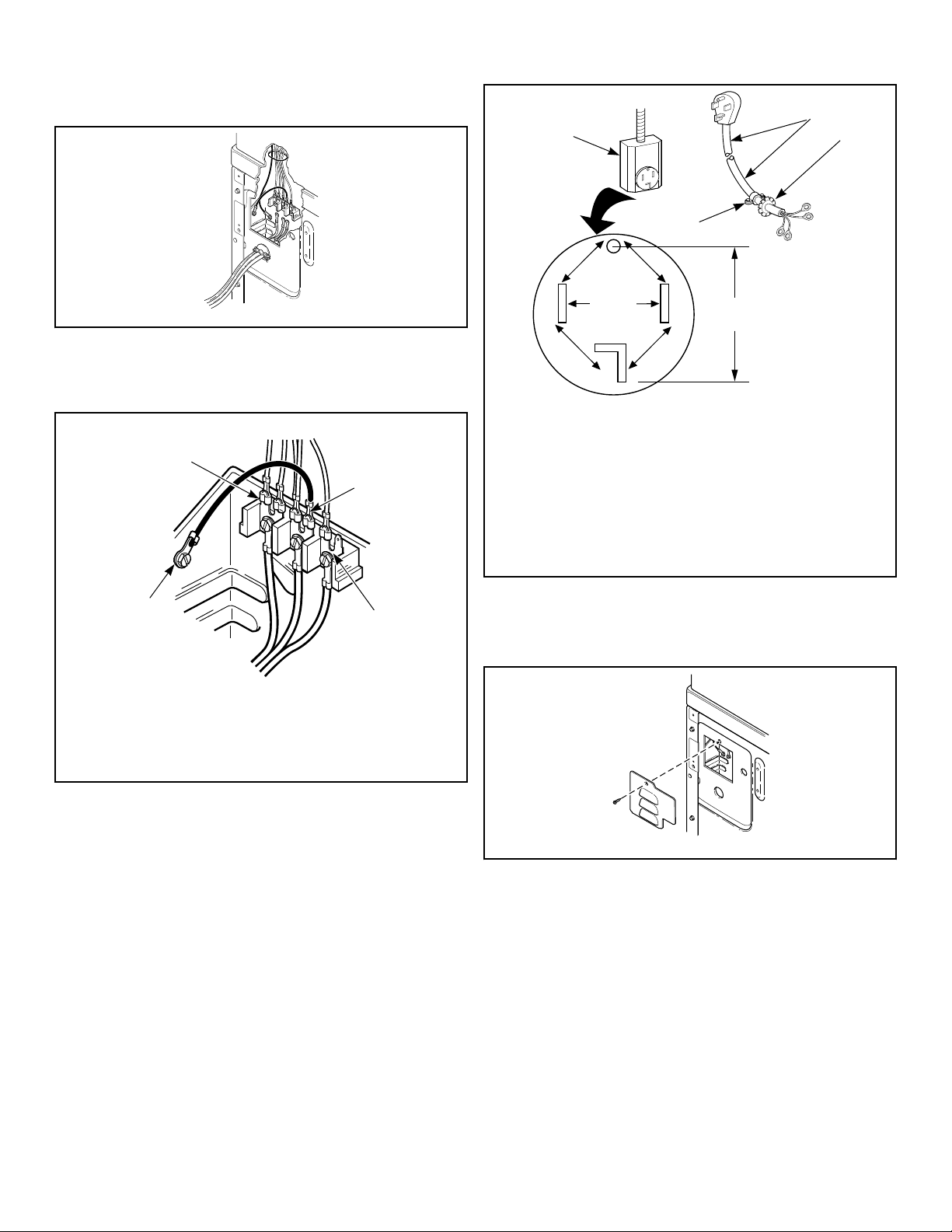

Electric Dryer Only - Connect Electrical
Plug
Dryer requires 120/240 Volt or 120/208 Volt, 60 Hertz, 3 or 4
wire electrical supply. Refer to serial plate for specific electrical
requirements.
IMPORTANT: Use only a new U.L. listed No. 10 (copper
wire only) three or four conductor power supply cord
kit rated 240 Volts (minimum) 30 Amperes and labeled
as suitable for use in a clothes dryer.
NOTE: The wiring diagram is located in the control cab-
inet.
WARNING
To reduce the risk of fire, electric shock, serious in-
jury or death, all wiring and grounding MUST con-
form with the latest edition of the National Electrical
Code, ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1, and such local regulations as
might apply. It is the customer’s responsibility to
have the wiring and fuses installed by a qualified
electrician to make sure adequate electrical power is
available to the dryer.
W521
Earth/Ground Information
This appliance must be properly connected to protective earth/
ground. In the event of malfunction or breakdown, the earth/
ground will reduce the risk of electric shock by providing a path
of least resistance for electric current.
The cord-kit must be equipped with a cord having an equipment-
earth/ground conductor and an earth/ground plug. The plug must
be plugged into an appropriate outlet that is properly installed and
connected to a protective earth/ground in accordance with all lo-
cal codes and ordinances.
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
15 Part No. D514320ENR6

WARNING
Improper connection of the equipment earth/ground
conductor can result in a risk of electric shock.
Check with a qualified electrician or service person if
you are in doubt as to whether the dryer is properly
connected to a protective earth/ground.
W886
Do not modify the plug provided with the cord-kit - if it will not
fit the outlet, have a proper outlet installed by a qualified electri-
cian.
The dryer has its own terminal block that must be connected to a
separate branch, 60 Hertz, single phase circuit, AC (alternating
current) circuit, fused at 30 Amperes (the circuit must be fused on
both sides of the line). Electrical service for the dryer should be
of maximum rated voltage (208 or 240 Volt, depending on heat-
ing element) listed on the serial plate. Do not connect dryer to
110, 115, or 120 Volt circuit.
Heating elements are available for field installation in dryers
which are to be connected to electrical service of different volt-
age than that listed on serial plate, such as 208 Volt.
NOTE: Branch circuit wire size requirements to laundry
room outlet are shown in table below.
Wire Length Wire
Less than 15 ft. [4.5 m] Listed No. 10 AWG Copper
wire only
Table 5 continues...
Wire Length Wire
Longer than 15 ft. [4.5 m] Listed No. 8 AWG Copper
wire only
Table 5
The power cord connection between wall receptacle and dryer
terminal block IS NOT supplied with dryer. Type of power cord
and gauge of wire must conform to local codes.
Connecting Power Cord with Three-Wire Plug
NOTE: Four-wire cord is required for new branch-cir-
cuit installations, mobile homes or where codes do not
permit grounding through neutral.
NOTE: The power cord is NOT supplied with the elec-
tric dryer. Type of power cord and gauge of wire must
conform to local codes and instructions. The method
of wiring the dryer is optional and subject to local code
requirements.
NOTE: Connect the dryer to the power supply with the
MAXIMUM RATED VOLTAGE listed on the serial plate.
NOTE: Use COPPER WIRE only.
Shorter than 15 ft. (4.5 m) – use 10 AWG
Longer than 15 ft. (4.5 m) – use 8 AWG
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
16 Part No. D514320ENR6

D816I_SVG
L1 L2 L1 L2
15
16
5
22
3
4
8
9
12
13
10
11
7
6
1
14
1. A typical 30-Amp Three-Wire Receptacle NEMA Type 10-30R
2. 120 ± 12 V.A.C.
3. 240 ± 12 V.A.C.
4. Intermediate Fuse Box (may be omitted if service entrance box is fused)
5. Wall Receptacle
6. Power Supply
7. 3-Wire Earth/Ground Neutral 120/240 Volt, 60 Hertz AC 1 Phase Service Entrance Switch Box (Refer to NOTE above)
8. 30 Ampere Fuses or Circuit Breaker
9. Neutral Wire
10. Metallic or Non-Metallic Sheathed Cable (Copper Wire Only)
11. Power Cord (Not supplied with dryer)
12. Neutral
13. Terminal Block in Dryer
14. Intermediate Shut-Off Box (may or may not be fused)
15. Direct Connection
16. Power Cord Connection
Figure 6
1. Disconnect power to dryer.
2. Remove access cover from rear of dryer.
D695I_SVG
Figure 7
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
17 Part No. D514320ENR6

3. Use a strain relief and insert end of power cord through power
supply hole.
D696I_SVG
Figure 8
4. Use the three screws from the accessories bag to attach the
power cord wires to the terminal block. Refer to Figure 9 .
3-Wire Connection
DRY2508N_SVG
43
2
1
1. "L1" Terminal
2. Neutral Terminal
3. "L2" Terminal
4. Earth/Ground to Bulkhead
Figure 9
5. Using a screwdriver, tighten all screws firmly.
IMPORTANT: Failure to tighten these screws firmly
may result in wire failure at the terminal block.
6. Secure the strain relief to the power cord, or wires, where they
enter the dryer cabinet.
7. Check the continuity of the earth/ground connection before
plugging the cord into an outlet. Use an acceptable indicating
device connected to the center earth/ground pin of the plug
and the green screw on the back of the cabinet.
8. Reinstall access cover and screw.
Connecting Power Cord with Four-Wire Plug
NOTE: Four-wire cord is required for new branch-cir-
cuit installations, mobile homes or where codes do not
permit grounding through neutral.
DRY2016N_SVG
7
7
7
7
6
3
2
1
4
5
1. Typical Four-Wire Receptacle
2. Power Cord – Not Supplied with Dryer
3. Strain Relief Nut
4. Strain Relief
5. 0 V.A.C.
6. 240 ± 12 V.A.C.
7. 120 ± 12 V.A.C.
Figure 10
1. Disconnect power to dryer.
2. Remove access cover from rear of dryer.
DRY2467N_SVG
Figure 11
3. Remove earth/ground screw from earth/ground to neutral wire
and save for use in Step 5. Earth/ground to neutral wire will
be attached to the neutral terminal in Step 6.
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
18 Part No. D514320ENR6

DRY2468N_SVG
1
1. Earth/Ground Screw
Figure 12
4. Use a strain relief and insert end of power cord through power
supply hole.
DRY2469N_SVG
1. Strain Relief
Figure 13
5. Attach power cord earth/ground (green) wire to rear bulkhead
using earth/ground screw removed in Step 3.
4-Wire Connection
DRY2482N_SVG
1
2
3
4
5
6
7
8
1. Neutral Terminal
2. “L2” Terminal
3. Black
4. White
5. Earth/Ground
6. Red
7. “L1” Terminal
8. Earth/Ground to Neutral Wire
Figure 14
6. Use the three screws from the accessories bag to attach the re-
maining power cord wires to the terminal block as follows:
a. Red wire to “L1” terminal.
b. Black wire to “L2” terminal.
c. White wire to Neutral terminal.
NOTE: When installing the white wire, loop the free
eyelet end of the earth/ground to neutral wire (re-
moved in Step 3) and attach along with the white
wire to the neutral (center) terminal on the terminal
block.
7. Using a screwdriver, tighten all screws firmly.
IMPORTANT: Failure to tighten these screws firmly
may result in wire failure at the terminal block.
8. Secure the strain relief to the power cord, or wires, where they
enter the dryer cabinet.
9. Check the continuity of the earth/ground connection before
plugging the cord into an outlet. Use an acceptable indicating
device connected to the center earth/ground pin of the plug
and the green screw on the back of the cabinet.
10. Reinstall access cover and screw.
Reverse Door, if Desired
NOTE: Doors with windows cannot be reversed.
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
19 Part No. D514320ENR6

The door on this dryer is completely reversible. To reverse door
proceed as follows:
1. Remove four hinge attaching screws.
DRY2052N_SVG
Figure 15
2. Remove all nine screws.
D272P_SVG
Figure 16
3. Pull bottom of door liner out, then pull down, removing door
liner from door panel.
DRY1916N_SVG
B
A
Figure 17
4. Rotate door panel 180 degrees as shown.
D273P_SVG
Figure 18
5. Remove door strike from door liner and reinstall on opposite
side.
DRY1917N_SVG
Figure 19
6. Insert liner under flange on bottom of door, then push top of
door liner into place.
DRY1918N_SVG
B
A
Figure 20
7. Reinstall nine screws removed in Step 2.
DRY1919N_SVG
Figure 21
Installation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
20 Part No. D514320ENR6
